 Model No.
B—0585
( RELIABILITY Y
T&S BRASS AND BRONZE WORKS, INC.
18S 2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690 — Weg
PHONE 800-476-4103 — FAX 864- 834-3518 REG. $A2601
sofort BULLTIN
Job Name: Architect/Engineer Approval:
Notes:
— 10° —
a [254mm] a
%" NPT MALE INLET
SHANK WITH LOCK
NUT & LOCK WASHER
» 2”
7 3/16 — |
алый 10" SWING NOZZLE [51mm]
[104mm] AERATOR
| 7
i 02 |
| [52mm] WALL
| FLANGE
| CONTROL VALVE
| WITH BRASS 6”
| WRIST ACTION
| HANDLE
8 1/2
[216mm]
NOTE: REQUIRES %
DIAMETER MOUNTING
HOLE
Product Description: Drawn: Checked Scale:
WJS JKD 1:4

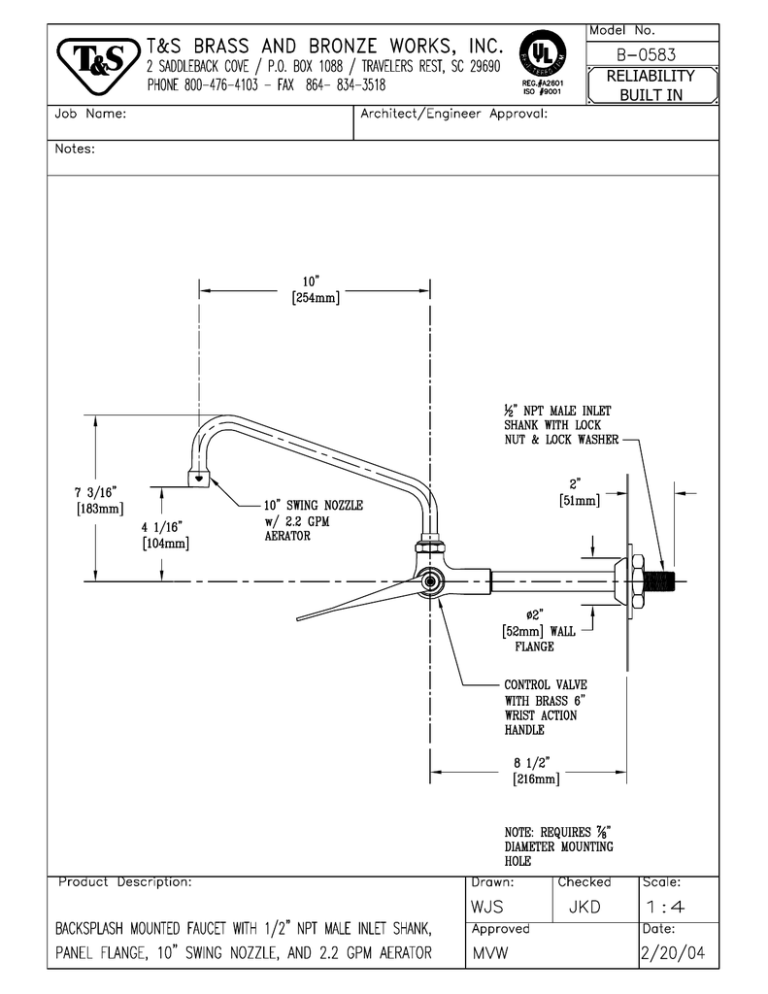

BACKSPLASH MOUNTED FAUCET WITH 1/2” NPT MALE INLET SHANK, Approved Date:
PANEL FLANGE, 10” SWING NOZZLE, AND 2.2 GPM AERATOR MVW 2/20/04
