T&S BRASS AND BRONZE WORKS, INC. 3-0937
1aS 2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690 №6 Fem No
PHONE 800-476-4103 FAX 804— 834-3518 RES 4250 -
Job Name: Architect/Engineer Approval:
Notes:
ADA Compliant

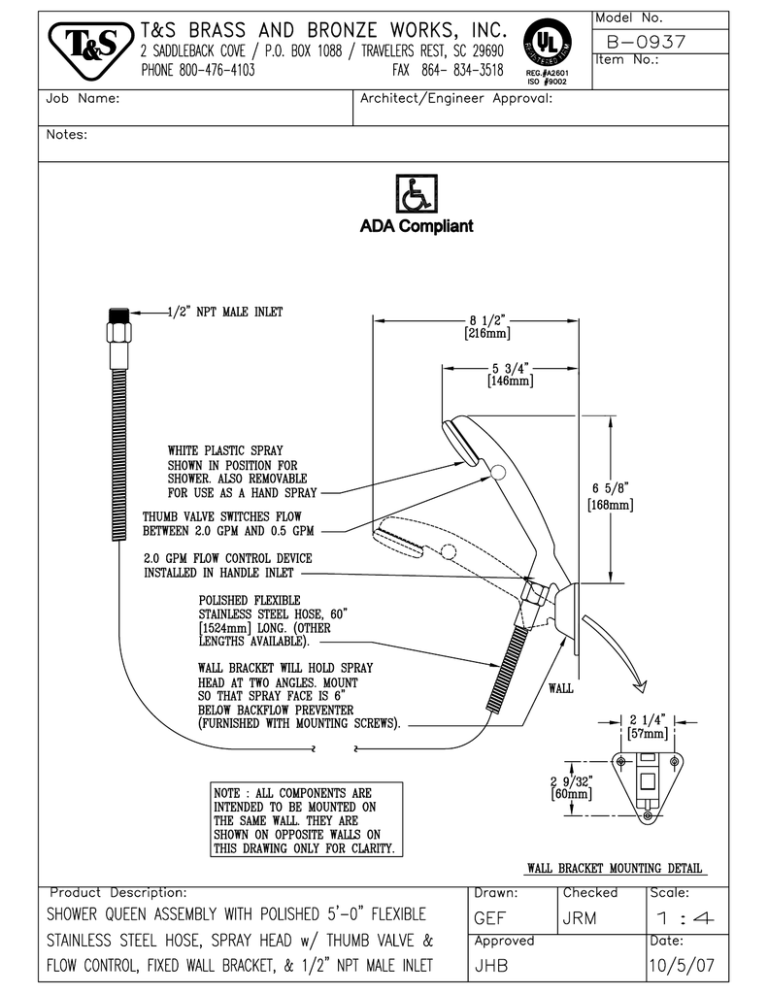

1/2" NPT MALE INLET _ 8 1/2°
[216mm]
(аби)
WHITE PLASTIC SPRAY AN
SHOWN IN POSITION FOR O
SHOWER. ALSO REMOVABLE p
FOR USE AS A HAND SPRAY ——— | 6 5/8
[168mm]
THUMB VALVE SWITCHES FLOW
BETWEEN 2.0 GPM AND 05 GPM —— Ka. >
2.0 GPM FLOW CONTROL DEVICE ~~ 7 << ™
INSTALLED IN HANDLE INLET ————— A
POLISHED FLEXIBLE NU
STAINLESS STEEL HOSE, 60” A] ,
[1524mm] LONG. (OTHER ~ N
LENGTHS AVAILABLE).
HEAD AT TWO ANGLES. MOUNT
SO THAT SPRAY FACE IS 6”
BELOW BACKFLOW PREVENTER $ ,
(FURNISHED WITH MOUNTING SCREWS). —| 2 1/4 |=
S
WALL BRACKET WILL HOLD SPRAY S
S
9
S
NOTE : ALL COMPONENTS ARE [60mm]
INTENDED TO BE MOUNTED ON
THE SAME WALL. THEY ARE
SHOWN ON OPPOSITE WALLS ON
THIS DRAWING ONLY FOR CLARITY.
WALL BRACKET MOUNTING DETAIL
Product Description: Drawn: Checked Scale:
SHOWER QUEEN ASSEMBLY WITH POLISHED 5'-0” FLEXIBLE GEF IRM 1 -A
STAINLESS STEEL HOSE, SPRAY HEAD w/ THUMB VALVE & Approved Date:
FLOW CONTROL, FIXED WALL BRACKET, & 1/2" NPT MALE INLET JHB 10/5/07
