 PHONE 600-476-4105
T&S BRASS AND BRONZE WORKS, INC.
NZ 2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690
FAX 864- 834-3518
REG.#A2601
ISO #9002

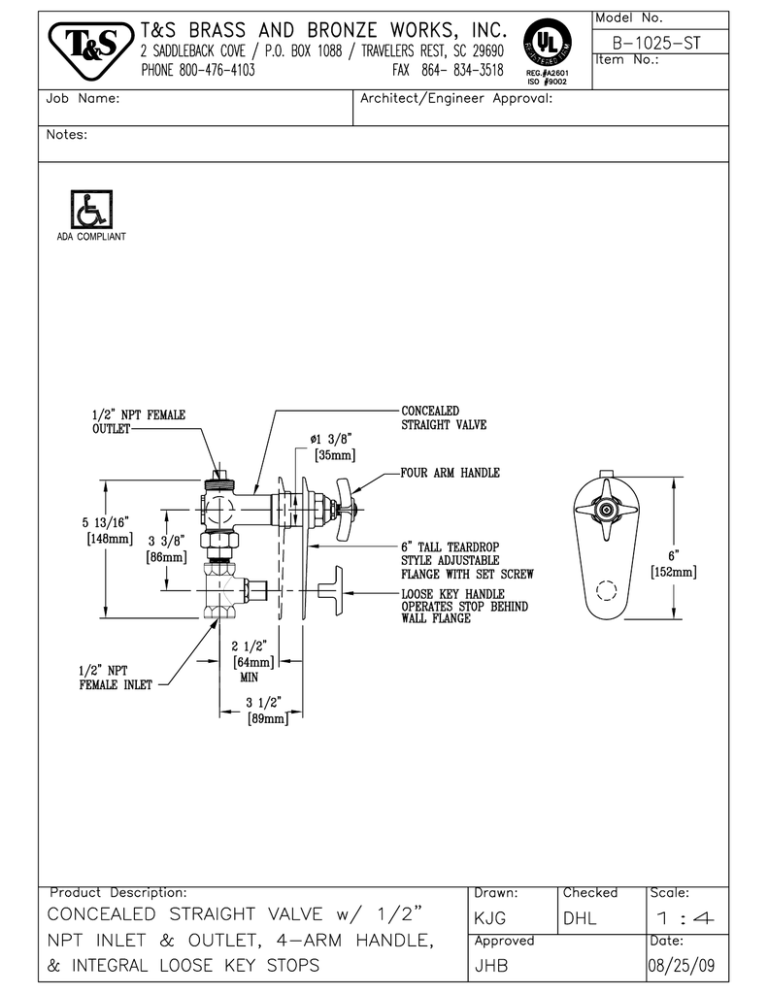

Model No.
B—1025—51
Item No.:
Job Name:
Architect/Engineer Approval:
Notes:
&
ADA COMPLIANT
[86mm]
21/2" _
1/2" NPT a Lamm)
FEMALE INLET
3
[89mm] |
1/2" NPT FEMALE CONCEALED
je N STRAIGHT VALVE
— 61 3/6
[35mm]
VIN FOUR ARM HANDLE
[ITA
| ||
5 13/16 | a
[148mm] 3 3/8 - 6” TALL TEARDROP
|
| STYLE ADJUSTABLE
FLANGE WITH SET SCREW
c LOOSE KEY HANDLE
| | OPERATES STOP BEHIND
WALL FLANGE
Product Description: Drawn: Checked Scale:
CONCEALED STRAIGHT VALVE w/ 1/2” KJC DHL. A:
NPT INLET & OUTLET, 4—ARM HANDLE, Approved Date:
& INTEGRAL LOOSE KEY STOPS JHB 08/25/09
