T & S Brass & Bronze Works B-1305-SS User manual

T & S Brass & Bronze Works B-1305-SS User manual
 NS
PHONE 800-476-4103
T&S BRASS AND BRONZE WORKS, INC.
2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690
FAX 804— 834-3518
Model No.
B—1305—55
Item No.
REG.#A2601
ISO #9002
Job Name: Architect /Engineer Approval:
Notes:
(D)

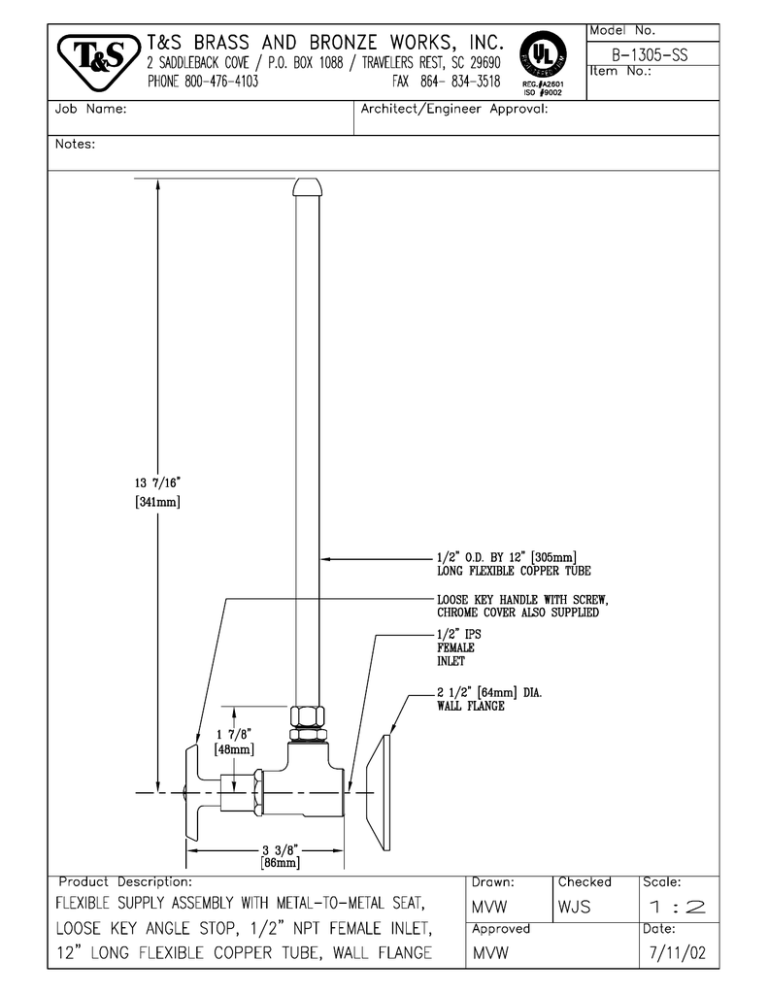

13 7/16”
[341mm |
- 1/2" 0.D. BY 12" [305mm]
LONG FLEXIBLE COPPER TUBE
LOOSE KEY HANDLE WITH SCREW,
CHROME COVER ALSO SUPPLIED
1/2" IPS
FEMALE
INLET
2 1/2" [64mm] DIA.
/ WALL FLANGE
1 7/8
[48mm]
— E 1 1 _
a ‘
Product Description: Drawn: Checked Scale:
FLEXIBLE SUPPLY ASSEMBLY WITH METAL-TO-METAL SEAT, VW WJS 1-5
LOOSE KEY ANGLE STOP, 1/2" NPT FEMALE INLET, Approved Date:
12" LONG FLEXIBLE COPPER TUBE, WALL FLANGE MVW 7/11/02
