 Model No.
T&S BRASS AND BRONZE WORKS, INC. 130
189S/ 2 simusicr СО / Po. Bot 1088 / TRVELERS REST, SC 29690 OO
PHONE 800-4/6-4103 FAX 804— 834-3518 wea acon -
Job Name: Architect/Engineer Approval:
Notes:

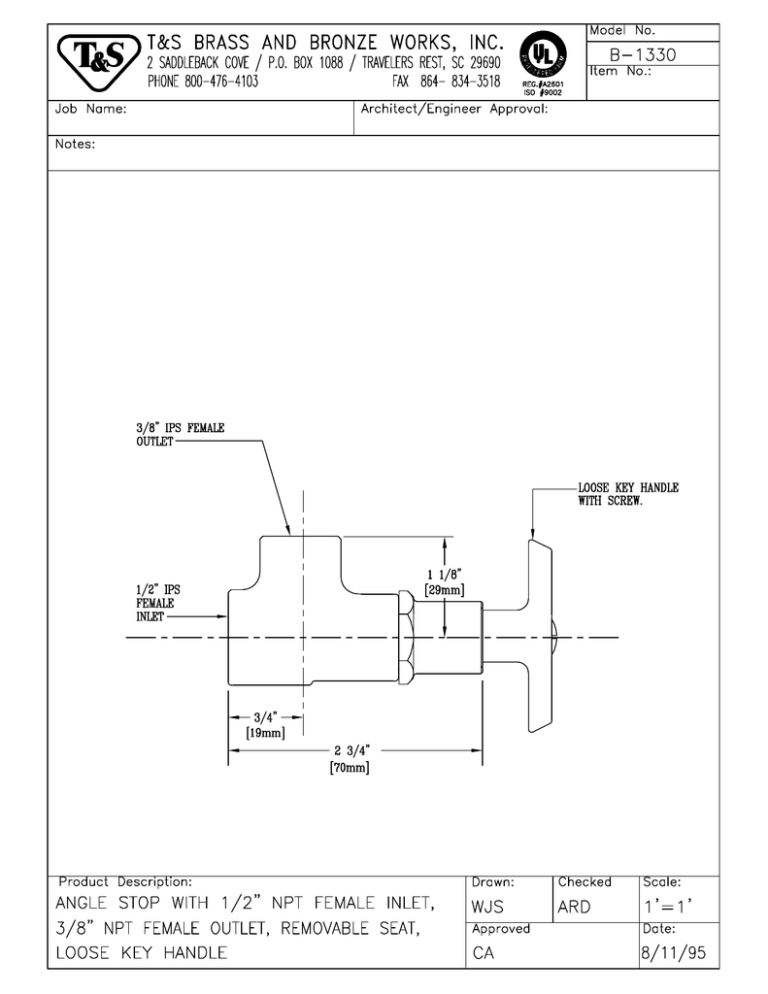

3/8” IPS FEMALE
OUTLET
LOOSE KEY HANDLE
WITH SCREW.
|
| | 11/8"
1/2" IPS [29mm]
FEMALE |
INLET | | \
_ _ _ _ _ _ TT
/ |
—~— 3/4”
om] |
— 2 3/4 -
[70mm]
Product Description: Drawn: Checked Scale:
ANGLE STOP WITH 1/2” NPT FEMALE INLET, |wJs ARD 1°=1
3/8" NPT FEMALE OUTLET, REMOVABLE SEAT, Approved Date:
LOOSE KEY HANDLE CA 8/11/95
