 Model No.
INC.

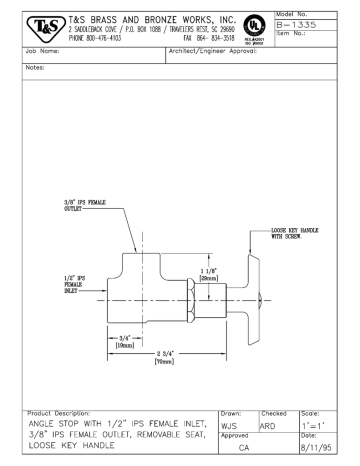

T&S BRASS AND BRONZE WORKS, 3- 1335
1aS 2 SADDLEBACK COVE / P.O. BOX 1088 / TRAVELERS REST, SC 29690 Un rem No-
PHONE 800-476-4103 FAX 804— 834-3518 TA I
Job Name: Architect/Engineer Approval:
Notes:
3/8” IPS FEMALE
OUTLET
LOOSE KEY HANDLE
WITH SCREW.
|
| | 11/8"
1/2" IPS [29mm |
FEMALE
INLET |
Yeh
/
|
/ |
—~— 3/4"
om |
- 2 3/4 -
[70mm |
Product Description: Drawn: Checked Scale:
ANGLE STOP WITH 1/2” IPS FEMALE INLET, |wys ARD =’
3/8" IPS FEMALE OUTLET, REMOVABLE SEAT, Approved Date:
LOOSE KEY HANDLE CA 8/11/95
