T & S Brass & Bronze Works B-2349-C User manual

T & S Brass & Bronze Works B-2349-C User manual
 T&S BRASS AND BRONZE WORKS, .
Ts 2 SADDLEBACK COVE / P.O. BOX 1088 / TRAVELERS REST, SC 29690
INC
PHONE 600-476-4105 FAX 864- 834-3518 cos
ISO #9002
Model No.
B—23549—C
Item No.:
Job Name: Architect/Engineer Approval:
Notes:
EPAct2005 COMPLIANT
[SoLo]

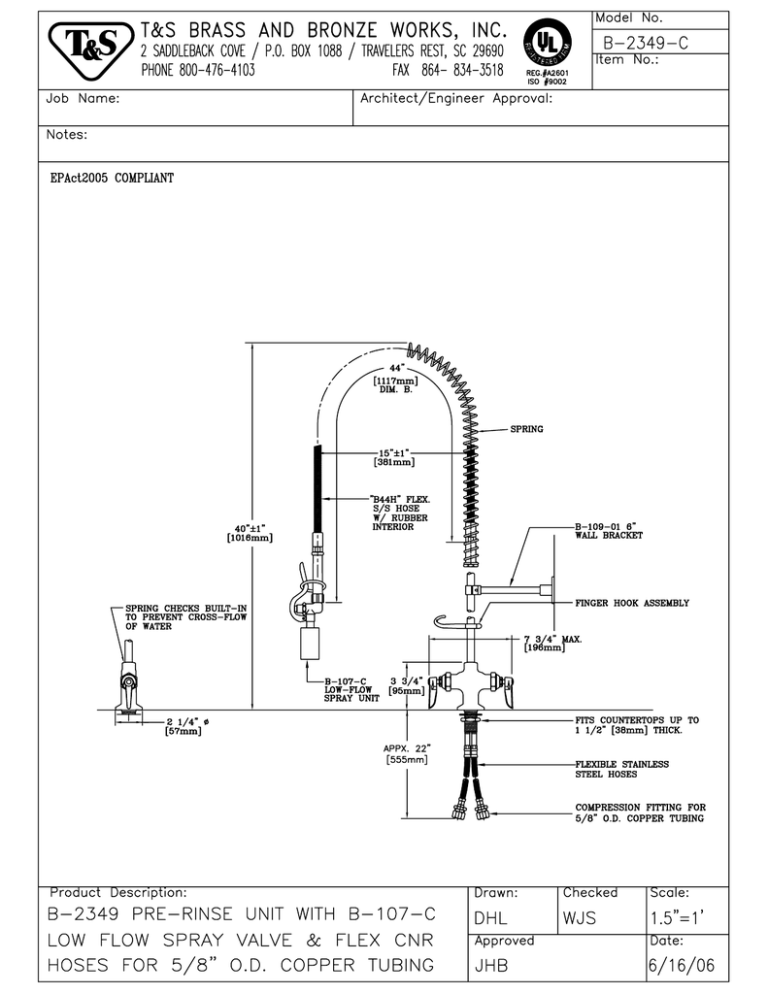

"B44H” FLEX.
S/S HOSE
W/ RUBBER
0”+1” INTERIOR
4
[1016mm]
SPRING
SPRING CHECKS BUILT-IN
TO PREVENT CROSS—-FLOW
OF WATER
B—107—C 33
[196mm]
B—109—01 6"
WALL BRACKET
FINGER HOOK ASSEMBLY
+ 7 3/4” MAX.
F210
[57mm]
APPX. 22”
[555mm]
— — | / 4”
LOW-FLOW [95mm]
SPRAY UNIT |
FITS COUNTERTOPS UP TO
1 1/2” [38mm] THICK.
FLEXIBLE STAINLESS
STEEL HOSES
COMPRESSION FITTING FOR
5/8” O.D. COPPER TUBING
Product Description: Drawn: Checked Scale:
B—2349 PRE—RINSE UNIT WITH B—107-C DHL WS 1571?
LOW FLOW SPRAY VALVE & FLEX CNR Approved Date:
HOSES FOR 5/8” O.D. COPPER TUBING JHB 6/16/06
