User manual | RECOVERY CD QUICK GUIDE (for Windows XP)

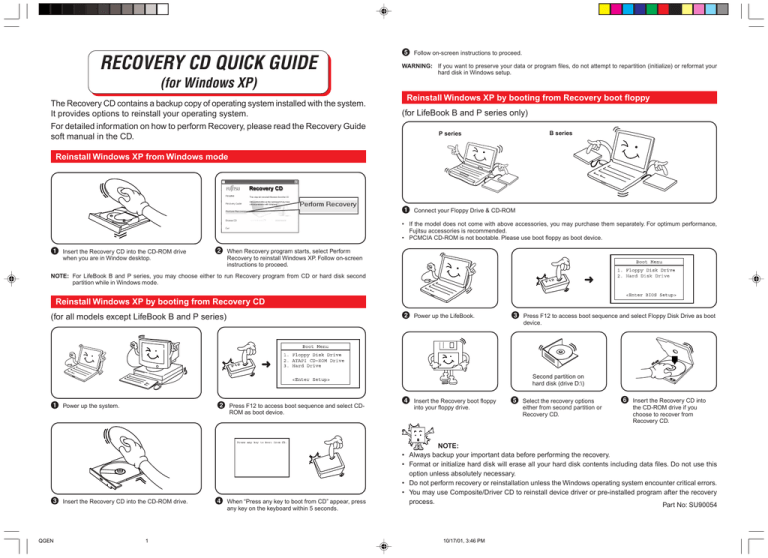

RECOVERY CD QUICK GUIDE
5
Follow on-screen instructions to proceed.
WARNING: If you want to preserve your data or program files, do not attempt to repartition (initialize) or reformat your
hard disk in Windows setup.
(for Windows XP)
The Recovery CD contains a backup copy of operating system installed with the system.
It provides options to reinstall your operating system.
For detailed information on how to perform Recovery, please read the Recovery Guide
soft manual in the CD.
Reinstall Windows XP by booting from Recovery boot floppy
(for LifeBook B and P series only)
B series
P series
Reinstall Windows XP from Windows mode
1
Connect your Floppy Drive & CD-ROM
• If the model does not come with above accessories, you may purchase them separately. For optimum performance,
Fujitsu accessories is recommended.
• PCMCIA CD-ROM is not bootable. Please use boot floppy as boot device.
1
Insert the Recovery CD into the CD-ROM drive
when you are in Window desktop.
2
When Recovery program starts, select Perform
Recovery to reinstall Windows XP. Follow on-screen
instructions to proceed.
NOTE: For LifeBook B and P series, you may choose either to run Recovery program from CD or hard disk second
partition while in Windows mode.
Reinstall Windows XP by booting from Recovery CD
2
(for all models except LifeBook B and P series)
Power up the LifeBook.
3
Press F12 to access boot sequence and select Floppy Disk Drive as boot
device.
Second partition on
hard disk (drive D:\)
1
3
QGEN
2
Power up the system.
Insert the Recovery CD into the CD-ROM drive.
1
4
Press F12 to access boot sequence and select CDROM as boot device.
When “Press any key to boot from CD” appear, press
any key on the keyboard within 5 seconds.
4
Insert the Recovery boot floppy
into your floppy drive.
5
Select the recovery options
either from second partition or
Recovery CD.
6
Insert the Recovery CD into
the CD-ROM drive if you
choose to recover from
Recovery CD.
NOTE:
• Always backup your important data before performing the recovery.
• Format or initialize hard disk will erase all your hard disk contents including data files. Do not use this
option unless absolutely necessary.
• Do not perform recovery or reinstallation unless the Windows operating system encounter critical errors.
• You may use Composite/Driver CD to reinstall device driver or pre-installed program after the recovery
process.
Part No: SU90054
10/17/01, 3:46 PM
