 Model No.
T&S BRASS AND BRONZE WORKS, INC. E 0575
185 > simusicr core / PO. BOX 1088 / TRVELERS REST SC 29690 Em No:
PHONE 800-476-4103 FAX 804— 834-3518 nec fra -
Job Name: Architect/Engineer Approval:
Notes:

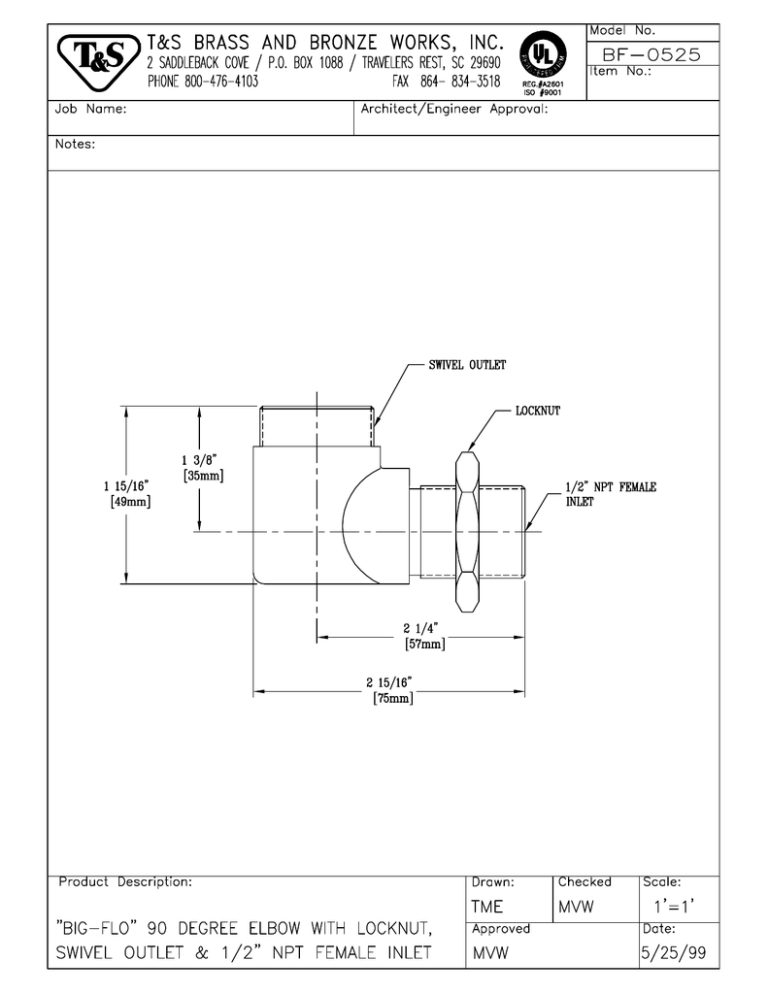

SWIVEL OUTLET
| / LOCKNUT
E À
1 3/8”
, [35mm] |
115/16 | r=——\ /JF=——= 1/2" NPT FEMALE
[49mm] | a INLET
|
| N
OC A HL
| \_/
| 2 1/4 _
[57mm] a
2 15/16"
a [75mm]
Product Description: Drawn: Checked Scale:
TME MVW 1=1
"BIG—FLO" 90 DEGREE ELBOW WITH LOCKNUT, Approved Date:
SWIVEL OUTLET & 1/2" NPT FEMALE INLET MVW 5/25/99
