T & S Brass & Bronze Works BL-5810-02 General Manual

 T&S BRASS AND BRONZE WORKS, INC.
Tas 2 SADDLEBACK COVE / P.O. BOX 1088 / TRAVELERS REST, SC 29690
PHONE 800-476-4103
FAX 864- 834-3518 cose
.JA2601
ISO #9001
Model No.
BL-5810-02
Item No.:
Job Name: Architect/Engineer Approval:
Notes:

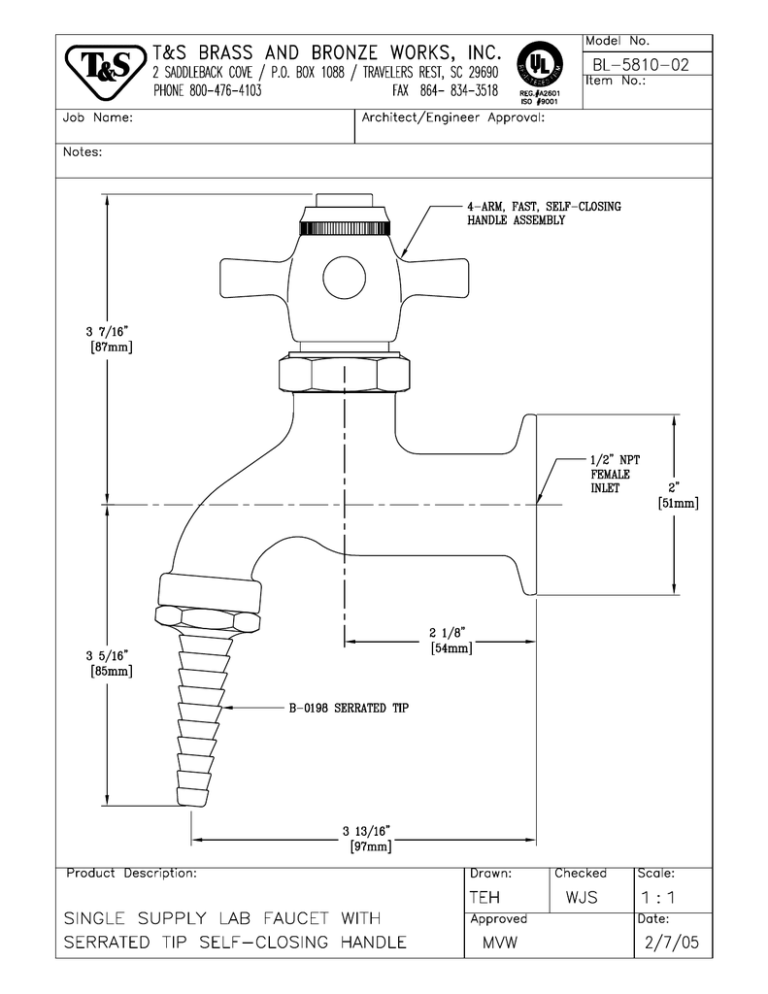

' 4—ARM, FAST, SELF-CLOSING
HANDLE ASSEMBLY
3 7/16"
[87mm] |
Nu 1/2" NPT
| FEMALE ,
INLET 2
_ _ _ _ — — [51mm]
|
\
Ÿ
|
_ 2 1/8”
3 5/16" [54mm]
[85mm |
B—-0198 SERRATED TIP
Ÿ
5 3 13/16” _
[97mm] и
Product Description: Drawn: Checked Scale:
TEH WJS 1:71
SINGLE SUPPLY LAB FAUCET WITH Approved Date:
SERRATED TIP SELE-CLOSING HANDLE MVW 2/7/05
