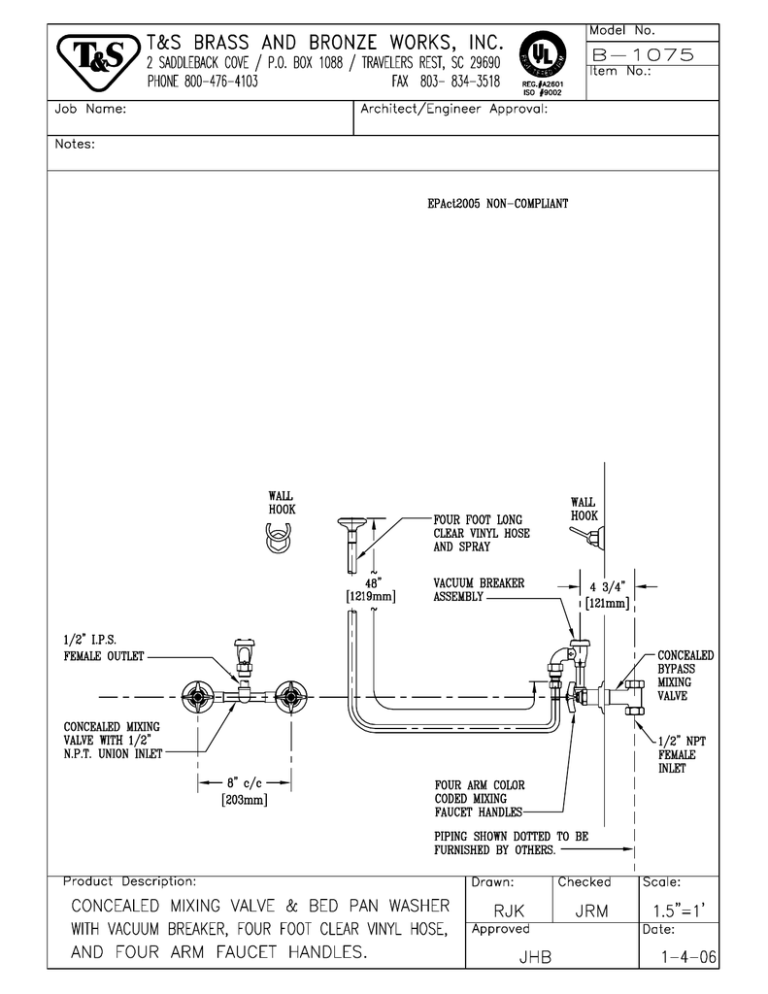

 Model No.
T&S BRASS AND BRONZE WORKS, INC. 3-1075
189S/ 2 simusicr СО / Po. Bot 1088 / TRVELERS REST, SC 29690 =
PHONE 800-476-4105 FAX 803- 834-3518 ке до! -
Job Name: Architect/Engineer Approval:
Notes:
EPAct2005 NON—COMPLIANT
WALL
HOOK
1/2" LPS.
FEMALE OUTLET — 8
CONCEALED MIXING
VALVE WITH 1/2"
N.P.T. UNION INLET
T
|
48”
[1219mm]
Г
FOUR FOOT LONG
CLEAR VINYL HOSE
AND SPRAY
VACUUM BREAKER
ASSEMBLY
=
FOUR ARM COLOR
CODED MIXING
FAUCET HANDLES
PIPING SHOWN DOTTED TO BE
FURNISHED BY OTHERS. — — >
| 7 — CONCEALED
BYPASS
MIXING
VALVE
1/2" NPT
FEMALE
INLET
Froduct Description:
CONCEALED MIXING VALVE & BED PAN WASHER RJK
WITH VACUUM BREAKER, FOUR FOOT CLEAR VINYL HOSE, [Approved
AND FOUR ARM FAUCET HANDLES.
Drawn: Checked Scale:
JRM 1.5=1
Date:
JHB 1-4-06
