Model No.
MV—0 /70—06N
FAX 803- 834-3518 — tem No.:
ISO #9002
Job Name:
Architect/Engineer Approval:
Notes:

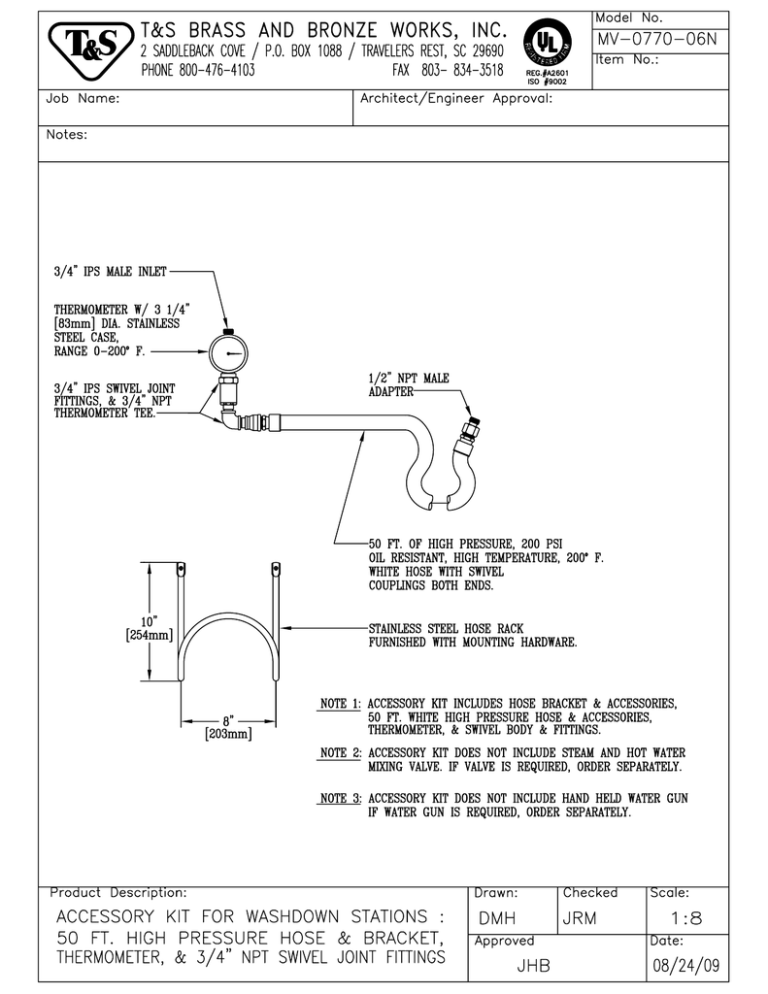

3/4" IPS MALE INLET
THERMOMETER W/ 3 1/4”
[83mm] DIA. STAINLESS
STEEL CASE,
RANGE 0-200° F.
3/4" IPS SWIVEL JOINT
FITTINGS, & 3/4" NPT
THERMOMETER TEE.
1/2" NPT MALE
ADAPTER
[254mm]
0 FT. OF HIGH PRESSURE, 200 PSI
OIL RESISTANT, HIGH TEMPERATURE, 200° F.
WHITE HOSE WITH SWIVEL
COUPLINGS BOTH ENDS.
STAINLESS STEEL HOSE RACK
FURNISHED WITH MOUNTING HARDWARE.
NOTE 1: ACCESSORY KIT INCLUDES HOSE BRACKET & ACCESSORIES,
0 FT. WHITE HIGH PRESSURE HOSE & ACCESSORIES,
[203mm] THERMOMETER, & SWIVEL BODY & FITTINGS.
NOTE 2: ACCESSORY KIT DOES NOT INCLUDE STEAM AND HOT WATER
MIXING VALVE. IF VALVE IS REQUIRED, ORDER SEPARATELY.
NOTE 3: ACCESSORY KIT DOES NOT INCLUDE HAND HELD WATER GUN
IF WATER GUN IS REQUIRED, ORDER SEPARATELY.
Product Description: Drawn: Checked Scale:
ACCESSORY KIT FOR WASHDOWN STATIONS : DMH JRM 1:8
20 El. HIGH PRESSURE HOSE & BRACKET, [Approved Date:
THERMOMETER, & 3/4" NPT SWIVEL JOINT FITTINGS JHB 08/24/09
