 Model No.
T&S BRASS AND BRONZE WORKS, INC. | REVS
2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690 ‘Qu © RELIABILITY
PHONE 800-476-4103 -— FAX 864- 834-3518 тия
BUILTIN J
Job Name: Architect /Engineer Approval:
Notes:
RISER 15 ROTATED
OFF CENTER FOR
| A EASE OF HOOK-UP
— -— 2 3/8 TO REMOTE UNIT BY
[60mm] OTHERS
| |
VACUUM BREAKER | |
FOR CONTINUOUS /
PRESSURE USE
|
| |
| |
MALE GARDEN HOSE THREAD
7/8 -— 203mm] —
1 [23mm]
- STAINLESS STEEL MOUNTING
SURFACE

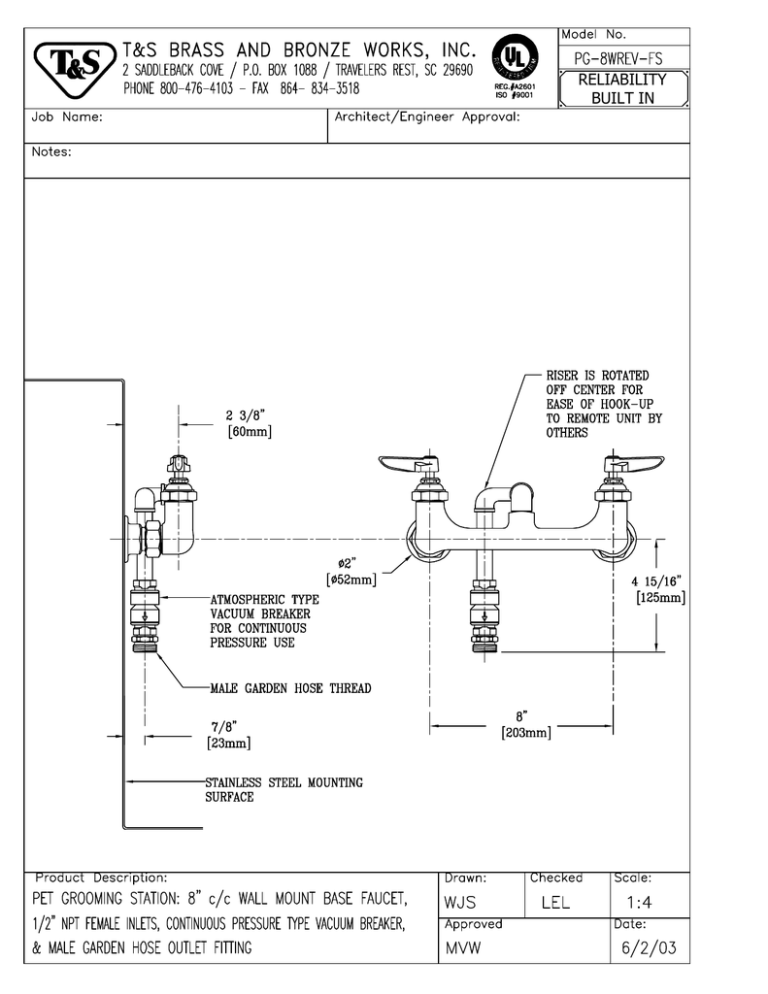

Product Description: Drawn: Checked Scale:
PET GROOMING STATION: 8” ¢/c WALL MOUNT BASE FAUCET, — |ws EL 1-4
1/2" NPT FEMALE INLETS, CONTINUOUS PRESSURE TYPE VACUUM BREAKER, Approved Date:
de MALE GARDEN HOSE OUTLET FITTING MVW 6/2/03
