 NS
T&S BRASS AND BRONZE WORKS, INC.
2 SADDLEBACK COVE / P.0. BOX 1088 / TRAVELERS REST, SC 29690
Model No.
B-2183
REG.#A2601
Item No.:
y
15/8" [41mm]
PHONE 800-476-4103 FAX 804— 834-3518 ws paso
Job Name: Architect /Engineer Approval:
Notes:
2" DIA,
C [51mm]
SHANK WASHER
55°— LOCK NUT
- 81/8" —=| 1/2 IPS MALE
[206mm] INLET
NT + NL
1 1/2” 4 INE
[38mm] |
DIA. OUTLET
— 9 9/16” -
[243mm]
— 12 1/2” -
[318mm |
42-HOLE SPRAY FACE &
STAINLESS STEEL SCREW
To /
e) 9
NÉ: /
el 7

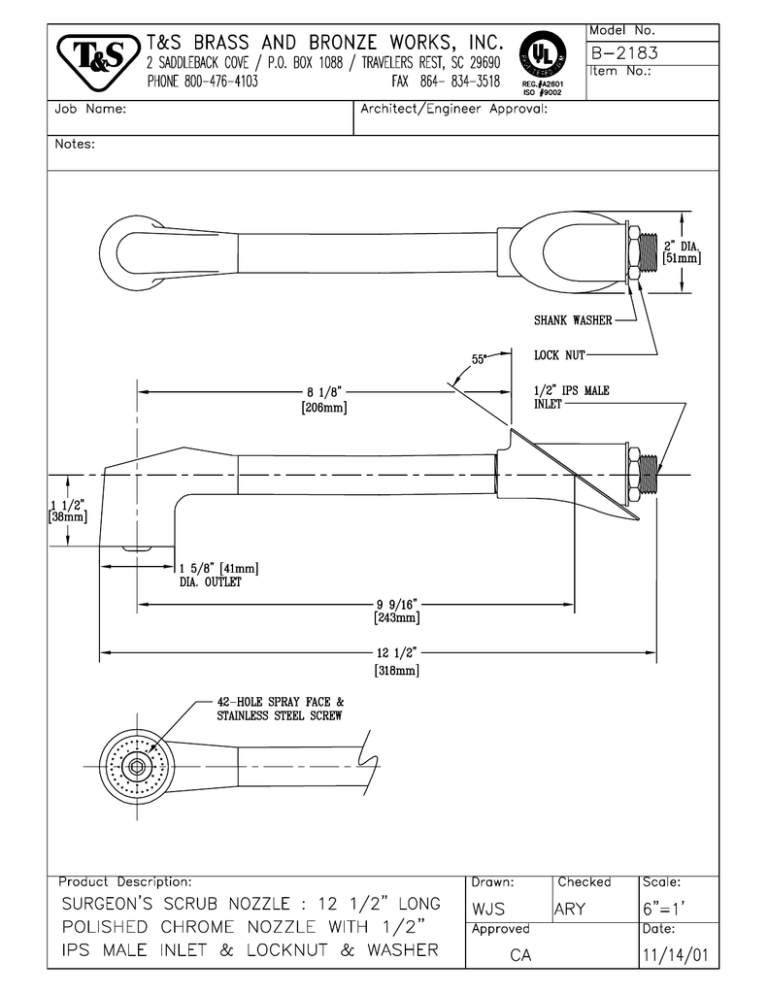

Product Description: Drawn: Checked Scale:
SURGEON'S SCRUB NOZZLE : 12 1/2" LONG |wys ARY 6°=1
POLISHED CHROME NOZZLE WITH 1/2” Approved Date:
IPS MALE INLET & LOCKNUT & WASHER CA 11/14/01
