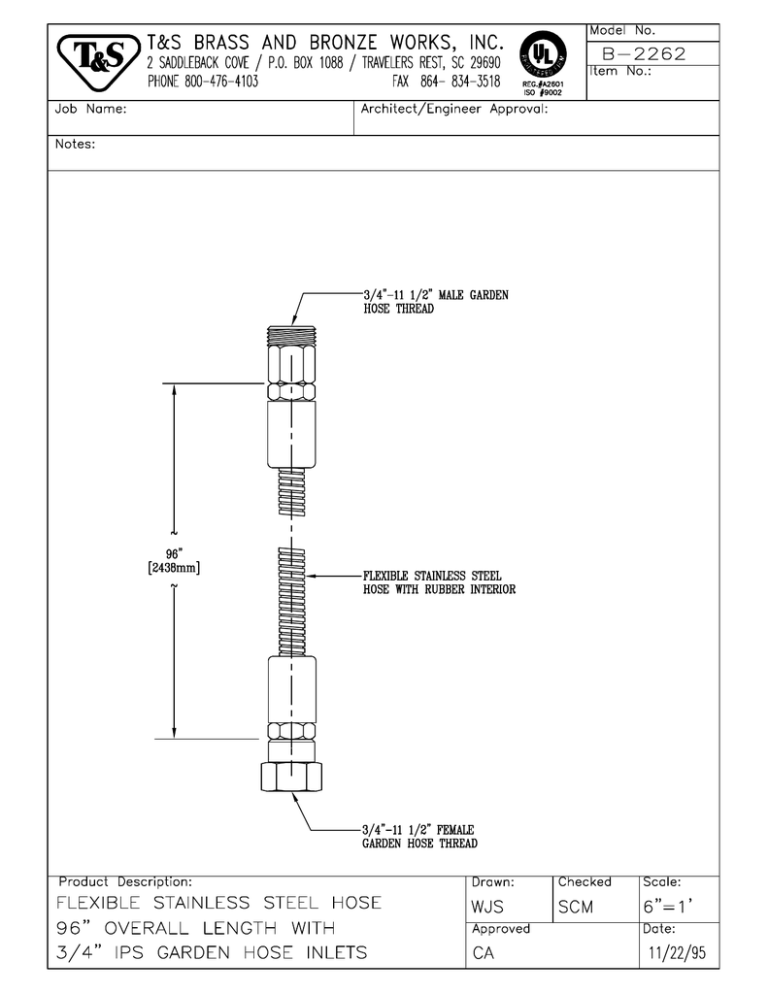

 Model No.
T&S BRASS AND BRONZE WORKS, INC. B2562
189 2 sontemcx co / PO. 504 1088 / TRAELERS REST, SC 29690 UN No
PHONE 800-476-4103 FAX 804— 834-3518 nec p25 I
Job Name: Architect/Engineer Approval:
Notes:
/4"-11 1/2" MALE GARDEN
HOSE THREAD
A
|
96”
[?436mm] FLEXIBLE STAINLESS STEEL
T HOSE WITH RUBBER INTERIOR
Y
3/4—-11 1/2” FEMALE
GARDEN HOSE THREAD
Product Description: Drawn: Checked Scale:
FLEXIBLE STAINLESS STEEL HOSE WS SCM 6°=1
96” OVERALL LENGTH WITH Approved Date:
3/47 IPS GARDEN HOSE INLETS CA 11/22/95
