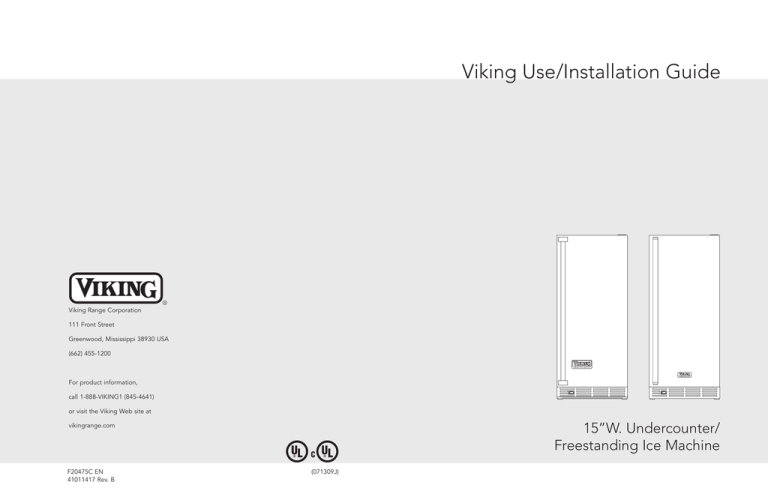

Viking Use/Installation Guide

Viking Range Corporation

111 Front Street

Greenwood, Mississippi 38930 USA

(662) 455-1200

For product information, call 1-888-VIKING1 (845-4641) or visit the Viking Web site at vikingrange.com

F20475C EN

41011417 Rev. B

UL

C

UL

(071309J)

15”W. Undercounter/

Freestanding Ice Machine

IMPORTANT - PLEASE READ AND FOLLOW

• DO NOT remove permanently affixed labels, warnings, or plates from the product. This may void the warranty.

• Please observe all local and national codes and ordinances.

• Please ensure that this product is properly grounded.

• The installer should leave these instructions with the consumer who should retain for local inspector’s use and for future reference.

A GFI shall be used if required by NFPA-70 (National Electric Code), federal/state/local laws, or local

ordinances.

• The required use of a GFI is normally related to the location of a receptacle with respect to any significant sources of water or moisture.

• Viking Range Corporation will NOT warranty any problems resulting from GFI outlets which are not installed properly or do not meet the requirements below.

If the use of a GFI is required, it should be:

• Of the receptacle type (breaker type or portable type NOT recommended)

• Used with permanent wiring only (temporary or portable wiring NOT recommended)

• On a dedicated circuit (no other receptacles, switches or loads in the circuit)

• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT recommended)

• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard)

• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)

• Protected from moisture (water, steam, high humidity) as much as reasonably possible

WARNING

To reduce the risk of fire, electric shock, or injury when using your unit, follow these basic precautions:

• Read all instructions before using the unit.

• Never allow children to operate, play with, or crawl inside the unit.

• Never clean unit parts with flammable fluids. The fumes can create a fire hazard or explosion.

• Always turn the power on/off switch (located behind the air grille on top right side) to the OFF position before attempting to change light bulbs, clean, or service the unit.

FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER

APPLIANCE. THE FUMES CAN CREATE A FIRE HAZARD OR EXPLOSION.

It is your responsibility to be sure your ice machine is:

• located so the front is not blocked to restrict incoming or discharge air flow.

• properly leveled.

• located in a well ventilated area.

• connected to the proper kind of outlet, with the correct electric supply and grounding. A 115V, 60 Hz, 15 amp fused electrical supply is required. NOTE: Time delay fuse or circuit breaker is recommended.

• not used by anyone unable to operate it properly.

• used only for its intended purpose.

• properly maintained.

•SAVE THESE INSTRUCTIONS•

PROPER DISPOSAL (OF OLD REFRIGERATION UNIT)

DANGER

RISK OF CHILD ENTRAPMENT

Before You Throw Away Your Old Refrigeration Unit:

• Take off the doors.

• Leave the shelves in place so that children may not easily climb inside.

IMPORTANT: Child entrapment and suffocation are not problems of the past.

Junked or abandoned refrigeration units are still dangerous... even if they will sit for

“just a few days.”

IMPORTANT:

Now that you have a new ice machine, it is extremely important that you dispose of your old appliance in a way that minimizes the possibility that children will find it. There have been many cases in years past of children crawling inside junked and abandoned refrigeration units and becoming trapped or suffocated.

Contact your municipal waste disposal authority to find out the best and safest way to dispose of your old refrigeration unit.

2

GENERAL INFORMATION

Unpack

1. Remove banding from bottom of carton. Lift carton up and off of the ice machine

2. Remove all tape and packaging material from the outside and inside of the cabinet.

3. Keep all carton packaging until your ice machine has been thoroughly inspected and found to be in good condition.

Area Requirements

Units Certified for Outdoor Use - outdoor models contain a T after the base model number (ex. VUIM153T) and have a stainless steel outer cabinet.

1. Place unit so the front side will be completely unobstructed to provide proper air flow. The unit may be closed in on the top and three sides, but the front MUST BE unobstructed for air circulation and proper operation.

Installation should be such that the cabinet can be moved for servicing if necessary.

2. Unit should be in a well ventilated area. Best results are obtained at temperatures between 55°F (13°C) and 80°F

(27°C) for built-in indoor models, between 55°F (13°C) and 90°F (32°C) for indoor freestanding models, and between 45°F (7.2°C) and 110°F (43°C) for outdoor models.

3. Provisions for electricity should be determined before placing unit in proper place.

4. For best performance, outdoor units should be installed away from direct sunlight or under a counter or sink.

UNDERCOUNTER CABINET CUTOUT

A

B

C

15” W. Models

15” (38.1 cm)*

Min. 34 1/2” (87.6 cm)

Max. 35 1/8” (89.2 cm)

24” (61.0 cm)

*15” (38.1 cm) width for cabinet only. If door is recessed between cabinets, cabinet cutout must be 15-1/4” (38.7 cm).

C

B

3

A

SPECIFICATIONS/DIMENSIONS

PROFESSIONAL MODELS

Basic Electric Data

•115 VAC/60 Hz

•Maximum amps - 3.0

Approximate Shipping Weight - 100 lbs. (45.0 kg)

Dimensions

VUIM

14-3

/4”

)

30-3

/4”

)

Door Swing

VUIM

24-5/8”

(62.6 cm)

22”

(55.9 cm) to back of water valve

27-1/8”

(68.9 cm)

14-3/4”

(37.5 cm)

22

(55

.9 cm

)

-5/

8”

cm

)

24

(62

.6

27

-1/

(68

.9

8”

cm

)

2-1/2”

(6.4 cm)

34-1

min to

/4”

.

)

35”

max

.

)

90.0°

37-7/8”

(96.3 cm)

4

SPECIFICATIONS/DIMENSIONS

DESIGNER MODEL

Basic Electric Data

•115 VAC/60 Hz

•Maximum amps - 3.0

•Approximate Shipping Weight - 100 lbs. (45.0 kg)

Dimensions

DUIM

14-3

/4”

)

30-3

/4”

)

34-1

min to

/4”

.

)

35”

max

.

)

Door Swing

DUIM

24-5/8”

(62.6 cm)

22”

(55.9 cm) to back of water valve

27-1/8”

(68.9 cm)

14-3/4”

(37.5 cm)

22

(55

.9

cm

)

24

-5/

8”

(62

.6 cm

)

8”

27

-1/

(68

.9 cm

)

90.0°

2-1/2”

(6.4 cm)

37-7/8”

(96.3 cm)

5

SPECIFICATIONS/DIMENSIONS

CUSTOM PANEL MODEL

Basic Electric Data

•115 VAC/60 Hz

•Maximum amps - 3.0

•Approximate Shipping Weight - 100 lbs. (45.0 kg)

Dimensions

DFIM

(37.5

cm

) )

30-3

/4”

)

Door Swing

DFIM

22”

(55.9 cm) to back of water valve

24-7/16”

(62.1 cm)

14-3/4”

(37.5 cm)

22

(55

.9c

m)

16

24

-7/

(62

.1 cm

)

34-1

min to

(88.9

cm max

/4”

.

.

)

)

90.0°

37-7/8”

(96.3 cm)

6

FULL OVERLAY PANEL INSTALLATION

NOTE: Weight of wood panel must not exceed 20 lbs.

Wood Screws

1. A #10 pan head wood screw should be used to properly secure the wood panel. A total of 10 screws will be needed.

2. Only use pan head screws.

3. DO NOT select a screw that is longer than the wood thickness at the screw locations.

4. Use recommended pilot holes for the frame material. (See chart)

Working Material

Hardwood

Softwood

Wood Screw Size #10

3/32 (0.24 cm)

5/64 (0.20 cm)

Assembling Door Hinge Brackets

(Disregard if hinge brackets are already attached)

1. Attach the top and bottom door hinge brackets to the door with the machine screws and a 5/32” Allen head driver as shown in Figure 1 below.

2. Press in the shoulder bushings to the top and bottom door hinge brackets. Make certain that the shoulder is to the outside of the door as shown in Figure 1 below.

3. Test fit the door to the unit to make certain door will hang correctly. The door is hung correctly when the top of the door is parallel to the top of the unit. Adjustments can be made by loosening the door hinge machine screws and moving the door hinge brackets on the door.

4. Tighten all four (4) machine screws after adjustments have been made.

5. Remove the door from the unit by removing the units top hinge set screw and angling the door off of the bottom hinge pin.

FIGURE 1

Typical Top and Bottom Door

Hinge Bracket Assembly

Machine

Screws

Door Hinge Bracket

Shoulder Bushing

Door Hinge

Screw Holes

Door Front

Surface

FRONT

Bottom View of Door with Left Hand Swing

7

Selecting and Preparing the Wood Frame - DFIM Models

FOR A 3-1/2” TOE KICK

(COVERS THE ENTIRE DOOR FRONT - LEFT HINGE)

1/4” x 3/8” deep hinge screw clearance hole. Locate and drill using door hinge hole after the door has been aligned to the unit and when the wood is positioned on door.

Min. 5/8” (1.7 cm)

Max. 3/4” (1.9 cm)

14-3/4” (37.5 cm)

8-1/8” (20.7 cm)

TYP

5” (12.7 cm)

TYP

Mounting Surface

(non-face) side

23/32”

(1.8 cm)

TYP

14-7/16”

(1.12 cm)

5”

(12.7 cm)

TYP

TYP

30-5/16”

(77.0 cm)

TYP

TOP

OF

DOOR

BAC

K VI

EW

OF

OVE

RLAY

PAN

EL

13/16”

(2.1 cm)

TYP

23-27/32”

(60.6 cm)

TYP

Pre-drilled pilot holes -

10 places

Mounting Surface

(non-face) side

Mounting Surface

(non-face) side

1/4” x 3/8” deep hinge screw clearance hole. Locate and drill using door hinge hole after the door has been aligned to the unit and when the wood is positioned on door.

8

Selecting and Preparing the Wood Frame - DFIM Models

FOR 3-1/2” TOE KICK

(COVERS THE ENTIRE DOOR FRONT - RIGHT HINGE)

1/4” x 3/8” deep hinge screw clearance hole. Locate and drill using door hinge hole after the door has been aligned to the unit and when the wood is positioned on door.

Min. 5/8” (1.7 cm)

Max. 3/4” (1.9 cm)

30-5/16”

(77.0 cm)

TYP

14-3/4” (37.5 cm)

8-1/8” (20.7 cm)

TYP

5” (12.7 cm)

TYP

Mounting Surface

(non-face) side

23/32”

(1.8 cm)

TYP

14-7/16”

(1.12 cm)

5”

(12.7 cm)

TYP

TYP

TOP

OF

DOOR

23-27/32”

(60.6 cm)

TYP

BAC

K VI

EW

OF

OVE

RLAY

PAN

EL

13/16”

(2.1 cm)

TYP

Pre-drilled pilot holes -

10 places

Mounting Surface

(non-face) side

1/4” x 3/8” deep hinge screw clearance hole. Locate and drill using door hinge hole after the door has been aligned to the unit and when the wood is positioned on door.

Mounting Surface

(non-face) side

9

ATTACHING THE OVERLAY PANEL TO THE DOOR

1. If the door is attached to the unit, remove by unscrewing the top Allen head set screw at the top hinge. Remove the door by angling the door off of the bottom hinge pin.

2. Peel back the door gasket to expose the screw holes.

3. Set the overlay panel flush to the front of the door in the desired location. Clamp the overlay panel to the door if necessary.

4. Insert the wood screws through the back of the door into the pilot holes in the overlay panel and tighten.

5. Reinstall the door gasket by pressing into the door channel. Make certain the corners are inserted fully.

6. Install the door to the unit. Use the supplied plastic washer as shown in the figure below.

7. Realigning the door may be necessary. Any final door adjustments can be made using a 5/32” Allen head driver to adjust the door’s brackets. (See figure below)

8. Attach the door to the unit by reversing step number 1 above.

Hinge Hardware Installation Details

CAUTION

Door can become disengaged if washers are not installed.

(2) NYLON

HARDWARE

COMPONENTS

AT TOP HINGE

.625 OD X .218 ID

WASHER

MAGNETIC

DOOR GASKET

Ø 3/8” CLEARANCE HOLES

FOR SCREWS - 10 HOLES

SHOULDER BUSHING

DOOR HINGE

BUSHING BRACKET

OVERLAY PANEL

TOP HINGE CORNER

CAUTION

Door can become disengaged if washers are not installed.

REAR OF DOOR

REFRIGERATOR

DOOR

OVERLAY PANEL

DOOR HINGE

BUSHING BRACKET

SHOULDER BUSHING

BOTTOM HINGE CORNER

.75 OD X .443 ID

WASHER

.75 OD X .257 ID

WASHER

(3) NYLON

HARDWARE

COMPONENTS

AT BOTTOM

HINGE

CAUTION

Door may not swing properly if all nylon components are not installed as shown.

DOOR HINGE

ADJUSTMENT SCREWS

5/32” ALLEN HEAD SCREWS

FOR HINGE ADJUSTMENT

BOTTOM OF DOOR

ATTACHED OVERLAY PANEL

10

LEG LEVELER INSTALLATION

R ea d B effo alllliin g L g L

WARNING

Do not lay unit on top, side, back, or front. If unit is accidentally laid in any position other than right side up, then the unit must remain in the right side up position for at least 24 hours before plugging the unit in.

1. Four leveling legs are pre-installed in the base of the unit at the factory.

2. The unit should be leveled from front to back and side to side. If floor conditions do not allow the unit to sit level , adjust the leg levelers by turning the required leg leveler counter-clockwise to increase the height and clockwise to reduce the height.

ELECTRICAL CONNECTION

WARNING

ELECTRICAL SHOCK HAZARD

Failure to follow these instructions could result in fire or electrical shock.

Electrical Requirements

A 115 volt, 60 Hz, AC only 15 amp fused electrical supply is required. (A time delay fuse or circuit breaker is recommended.) It is recommended that a separate circuit, serving only this appliance, be provided.

Grounding type wall receptacle

•ELECTRICAL GROUND IS REQUIRED ON THIS APPLIANCE.

•DO NOT UNDER ANY CIRCUMSTANCES REMOVE THE POWER SUPPLY

CORD GROUND PLUG.

•DO NOT USE AN EXTENSION CORD.

Power Supply with 3-prong grounding plug

Recommended Grounding Methods

For your personal safety, this refrigeration product must be grounded. This appliance is equipped with a 5’ power supply cord having a 3-prong grounding plug. To minimize possible shock hazard, the cord must be plugged into a mating 3-prong grounding type wall receptacle grounded in accordance with the National Electrical Code and local codes and ordinances. If the circuit does not have a grounding type receptacle, it is the responsibility and obligation of the customer to exchange the existing receptacle in accordance with the National Electrical Code and applicable local codes and ordinances. The third ground plug SHOULD NOT, under any circumstances, be cut or removed. All UL listed refrigerated products are equipped with this type of plug.

11

WATER CONNECTION

REAR OF UNIT

GARDEN HOSE

FITTING

5/8” (.63 cm) I.D. DRAIN

TUBING BARB

*MAKE CERTAIN ALL HOSE

CLAMPS ARE SECURE

5-1/2” (14.0 cm)

1/4” (.64 cm) TUBING FROM

COLD WATER LINE

2-1/4” (5.7 cm)

COMPRESSION FITTING

Water Supply

• This ice machine must be connected to a potable, active cold water supply line delivering water pressure at a minimum pressure of 20 psi and maximum of 120 psi.

• Water connection is made through a 1/4” (.64 cm) compression right angle garden hose fitting. DO NOT use any thread sealers. NOTE: The water line fitting supplied with your ice machine is to be used on a 1/4” (.64 cm) copper

water supply line only. Do not attach a plastic supply line to your unit using this fitting.

Rubber

Washer

Adapter

Fitting

Valve

1/4” (.64 cm) copper water supply line

(supplied by customer)

Compression Fitting

From water supply to ice machine

Compression Nut

• A water filter is recommended for this unit. A quality filter can remove particles as well as remove taste and odors from water.

• Do not use a reverse osmosis water filtration system with the ice machine.

• Softened water is not recommended. This will produce mushy, cloudy ice cubes that will stick together.

• De-ionized water is not recommended. This water will not form solid ice cubes.

• A water specialist can recommend proper water treatment.

• After installation of water line, turn on water and check for any leaks. Additional tightening may be needed. DO NOT use any type of thread sealer.

• Allow extra water line for easy removal of unit and to help prevent the water line from kinking.

12

DRAIN PLUMBING

Your ice machine uses a gravity drain that requires 5/8” (.63 cm) ID tubing from the back of the ice maker to a plumbed connection to a sanitary sewer (see Gravity Drain drawing below). Remove the access panel, with a 5/16” (0.8 cm) wrench to plumb in drain connection. Gravity drain location for built-in units can be within the area shown in illustration below. An optional drain pump can be purchased for your ice machine if a gravity drain is not accessible. Observe and follow all local codes when installing an ice machine.

WARNING

Failure to use adequate drainage system will result in surrounding water damage and/or poor ice production.

GRAVITY

DRAIN

GRAVITY DRAIN LOCATION

24-5/8” (62.6 cm)

22” (55.9 cm)

Front of Unit

5/8” (.63 cm) I.D.

DRAIN TUBING

AND HOSE CLAMP

Top of

Unit

6-3/4”

(17.1 cm)

2-3/8”

(6.0 cm)

14-3/4”

(37.5 cm)

4-1/16”

(10.3 cm)

1-1/2” (3.8 cm) DRAIN PIPE

ACCESS PANEL

DRAIN FROM

ICE MAKER

DRAIN PUMP

Model Number -

VUIM-DP

((S olld pa attiio n iin ellyy -- sse e uccttiio nss ssu pp d w p um

ICE MAKER

POWER CORD

DRAIN

TRAP

TUBING CLAMPS

VENT TUBE

SUPPLIED SCREWS

DISCHARGE TUBE GOES THROUGH

THIS OPENING IN THE ACCESS PANEL

DRAIN FROM

ICE MAKER

DRAIN PUMP

DRAIN PUMP

POWER CORD

VENT TUBE GOES THROUGH THIS

OPENING IN THE ACCESS PANEL

13

ACCESS PANEL

DRAIN PUMP’S DISCHARGE LINE

THROUGH THIS OPENING

ICE MACHINE FEATURES

1. Escutcheon Panel

2. Ice Storage Bin

3. Ice Scoop

4. On/Off/Clean Rocker Switch

1

2

4

3

HOW THE ICE MACHINE WORKS

Your ice machine is unique in forming ice. It uses fractional freezing to form a slab of ice that is clear and has less mineral content than the water it is produced from. This is accomplished by running water over the cold evaporator plate which gradually freezes the water to produce the ice slab. Mineral deposits are left in the reservoir.

When the ice slab reaches the correct thickness determined by the temperature of the evaporator plate, the electronic control switches to the harvest cycle to harvest the ice slab. During the harvest cycle, the ice slab falls from the evaporator to the ice grid cutter. Here, the ice slab is cut into 3/4” squares by the grid cutter’s low voltage heated wires. During the harvest cycle, the drain valve will remain open for 45 seconds to drain the reservoir of remaining deposits. After that, the water valve will open for 2 minutes providing 2 quarts of water to the reservoir for the next ice production cycle.

The ice machine will keep producing ice until the ice machine’s storage bin is full and will restart automatically when ice needs to be replenished in the storage bin.

To begin ice production, turn the switch to the “ON” position.

Ice Machine Safety and Operation Tips

•Avoid leaning on the cabinet door. You may bend the door hinge or tip the unit.

•Exercise caution when sweeping, vacuuming, or mopping near the front of the unit. Damage to the grill and/or switch can occur.

•Periodically clean the inside of the ice machine components and inside of the unit.

•Periodically check and/or clean the front grill and condenser coils.

14

USING YOUR ICE MACHINE

1. Allow your ice machine to run for at least 48 hours to accumulate ice in the ice bin.

2. The unit will cycle off between ice production and ice harvest cycles.

3. Your ice machine will make unusual noises that you do not normally hear form your household refrigerator/freezer.

These noises do not mean your ice machine is not functioning properly. They occur as a normal part of the ice machine’s operations.

4. The unit will automatically shut down when the ice bin is full.

5. Unplug the ice machine before working on the unit.

6. Keep the ice machine clean for proper ice quality, production, and unit life.

7. Room and water supply temperatures will greatly affect the output of ice in the unit. (See table below.) Ice will also melt away, especially at the start of an empty bin, but will slow down as ice accumulates.

PRODUCTION

RATE (LB/DAY)*

WATER TEMPERATURE °F

50 70

APPROXIMATE

TIME TO FILL BIN (HOURS)*

WATER TEMPERATURE °F

50 70

70

34 32

70

31 34

80

30 27

80

41 58

90

23

**N OT

D e tto arriia blle

20 attiio n a d u e,, iin diivviid

90

60 ullttss m arryy..

82

Outdoor Use

1. For best performance, install under a counter or shelter. Avoid direct sunlight.

2. If the ice machine is not used for an extended period of time or if temperatures are below 45 0 F (7.2

0 C), it is necessary to remove remaining water in the ice making system. (See Preparing Ice Machine for Storage, p. 12).

3. Chlorine gas from swimming pools and spas may discolor stainless steel. (See Cleaning and Maintenance below for instructions on cleaning).

CLEANING AND MAINTENANCE

Any piece of equipment works better and lasts longer when maintained properly and kept clean.

Condenser

The condenser tubing inside the cabinet does not require frequent cleaning; however, satisfactory cooling depends on adequate ventilation over the coils. Be sure that nothing obstructs the required air flow openings in front of the cabinet. Spiders and insects can nest in and around the ice machine causing damage to the unit. Frequently brush or vacuum (twice yearly) lint and dirt from the condenser for efficient performance by unscrewing the grill and kickplate on the bottom front of cabinet.

Cabinet

The cabinet can be washed with mild soap and water and thoroughly rinsed with clear water. Never use abrasive scouring powders.

Interior/Ice Scoop

Wash interior compartment and ice scoop with mild soap and water or a baking soda and water solution. Do not use abrasive powder, solvent, polish cleaner or undiluted detergent.

15

Stainless Steel Parts

All stainless steel parts should be wiped regularly with hot soapy water. Use a liquid cleaner designed for stainless steel when soapy water will not do the job. DO NOT USE bleach, steel wool, abrasive cloths, cleansers, or powders.

Do not permit citrus or tomato juice to remain on stainless steel surfaces, as citric acid will permanently discolor stainless steel. NOTE: Under rare conditions, such as an extremely salty environment, small amounts of rust may

accumulate on stainless steel parts. These small amounts of surface rust can easily be removed by apply Soft Scrub®

Gel to a damp sponge and wiping with the stainless steel grain. It is important to make sure you wipe with the grain for the most efficient removal of surface rust.

Brass Parts

CAUTION: All brass parts have an epoxy coating. DO NOT USE BRASS OR ABRASIVE CLEANERS ON THE BRASS

PARTS. All brass parts should be wiped regularly with hot soapy water. When hot soapy water will not do the job, use every day non-abrasive household cleaners.

Door Gasket

The vinyl gasket may be cleaned with mild soap and water, a baking soda and water solution, or a mild scouring powder.

Painted Surfaces

Wash with warm soapy water. DO NOT USE steel wool, abrasive cleansers, ammonia, acids or commercial oven cleaners which may damage the finish.

CLEANING THE ICE MACHINE SYSTEM

Some impurities will remain and buildup in the ice machine and stick to the ice machine’s parts over time. This buildup must be removed for proper ice production, ice quality, and ice machine life. Your ice machine is equipped with a cleaning mode that will help in cleaning out these impurities.

WARNING

Read and follow manufacturer’s warnings on ice machine cleaner products.

The ice machine will regularly (at the very least, annually) need to be cleaned of this build-up, depending on use and water hardness. You can use an acid such as one specified for ice machine cleaning or you can use citric acid to remove the build-up. To clean the ice machine:

1. Switch the selector switch to the “OFF” position.

2. Remove the drain plug at the bottom of the reservoir to drain any remaining water and then reinstall.

3. Remove the escutcheon panel.

4. Add cleaning solution to the reservoir. NOTE: Three quarts of water

will automatically be added to the reservoir. Therefore, cleaning solution should not be diluted. Please follow manufacturer’s instructions for mixing with 3 quarts of water.

O

N

O

F

F

C

L

E

A

N

5. Replace escutcheon panel and close door.

6. Switch selector switch on the grill of the machine to the clean position.

7. The cleaning cycle will end in 49 minutes. The cleaning cycle will automatically rinse the evaporator plate, drain the cleaning solution, and rinse the components.

8. After the cleaning cycle has ended, remove the escutcheon panel again and check that build-up has been removed. The evaporator plate should be clean, shiny, and smooth to the touch. If not and build-up is still visible, repeat the cleaning cycle above. If build-up is removed, continue below.

9. Remove the distributor tube, hose clamp, hose and its rubber ends.

10. Thoroughly clean the inside of the distributor tube and the spray holes. You can use the same cleaning solution as before and an old tooth brush to reach the inside of the distributor tube.

11. Reinstall the rubber end, hose, and hose clamp to the distributor tube and then reinstall the distributor tube to the evaporator with the spray holes pointed to the bottom of the evaporator plate. Reinstall the escutcheon panel.

Your ice machine is now clean and sanitized. It can be placed back into operation by switching the selector switch to the “ON” position. Please wait 48 hours for maximum ice production.

16

PREPARING THE ICE MACHINE FOR

STORAGE

If the ice machine is moved, not used for an extended period of time, or will be in a area below 45°F (7.2°C), it is necessary to remove the water from the ice making system.

CAUTION

This ice machine must have all water drained and removed to prevent ice machine damages as well as possible water damage to the surrounding area in freezing conditions. These damages are not covered under warranty.

WARNING

Step 1: Clean the ice machine (refer to page 11.)

Step 2: Drain and remove water from ice making system.

1. Turn off the water supply to the ice machine.

Do not use any type of anti-freeze or other solutions as a substitution for properly draining the ice machine.

2. Disconnect the water supply fitting at the inlet of the water valve.

3. Switch the rocker switch to “CLEAN” for approximately 1 minute. This will energize and open the water valve and remove most of the water from the water valve and the water valve’s outlet water line to the reservoir.

4. Switch the rocker switch to “OFF”. This will energize and open the drain valve to drain the reservoir and the ice machine drain system.

5. Unplug the unit from the electrical outlet.

6. Remove the back panel from the rear of the unit.

7. Disconnect the water valve’s outlet water line to the reservoir and drain the remaining water left in the water line trap area.

8. Reconnect the water valve outlet water line and tighten the compression nut to a watertight seal.

9. Reinstall the unit’s back panel.

10. Clean and dry the ice machine’s storage bin.

11. Prop the door open for air circulation to prevent mold and mildew.

12. Leave the water supply line disconnected or reconnect the supply line and leave it shut off. DO NOT turn the water and allow water to enter back into the water valve.

STEP 3: Drain water from optional drain pump, if applicable.

1. Remove the drain pump from the ice machine. (Refer to drain pump installation instructions).

2. Drain the water in the drain pump’s reservoir by running the pump upside down and allowing water to drain through the pump’s inlet and vent tube fittings.

3. After all water is drained, reinstall the drain pump. Make certain all tubing is installed and all hose clamps are tight. (Refer to drain pump installation instructions).

Step 4: Restart the ice machine when ready for use.

1. With the rocker switch in the “OFF” position, plug the unit into an electrical outlet.

2. Reconnect or turn on the water supply line.

3. Reconnect drain tubing if removed.

4. Turn the rocker switch to the “ON” position.

5. Check the water inlet, drain lines, and fittings for any water leaks.

6. Check drain pump, (if applicable), operation by pouring approximately 2 quarts (1.9 L) of water into the ice storage bin. The drain pump should activate and discharge water. (Refer to drain pump installation instructions). Check for water leaks at all hose connections.

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE

Water keeps backing up Drain pump tubing kinked or into ice bin (drain pump).

restricted

Inlet screen to the drain pump is restricted.

Drain pump and/or the ice machine are not level.

CORRECTION

Check inlet, discharge, and vent line tubing for any kinks or restrictions and repair as needed.

Clean the inlet screen to the drain pump.

Check and level the drain pump and the ice machine if necessary.

The drain pump cycles on Vent line to the drain pump is and off erratically.

restricted or kinked.

Check the vent line for any restrictions or kinks and repair as needed.

Discharge line is restricted or kinked.

Check the discharge line and connection to the desired

The drain pump is not level.

drain for any restrictions or kinks and repair as needed.

The drain pump must be level. Check for level on the top of the drain pump case and adjust the tubing or use shims to level.

17

PROBLEM

Unit does not operate.

Unit operates but does not produce any ice.

Ice is not clear

TROUBLESHOOTING GUIDE

POSSIBLE CAUSE

The unit is unplugged

Breaker is tripped or fuse is blown.

CORRECTION

Plug in the unit.

Reset breaker or replace fuse. Check to make sure there is not a short in the electrical circuit.

Ice machine selector switch is in the

Set the rocker switch on the grill of the

“OFF” position.

The unit has just been started and it has been less than 6 hours.

machine to the “ON” position.

Ice produced when the unit is initially started will melt off in the bin. This is normal operation. Check the unit in 24 hours for ice accumulation in the bin.

Typical ice production cycle can take up to 1.5 hours.

Check the unit in 24 hours for ice accumulation in the bin.

The selector switch is in the “OFF” or “CLEAN” position.

No water in the reservoir.

Distributor tube is restricted.

Build-up of deposits on evaporator plate.

Condenser fan air flow is restricted

Room and/or water temperature is too warm.

Leaking drain valve

Inadequate drain system

Grid cutter is unplugged

Low water in level in reservoir.

Softened water supply

Room temperature it too cold.

Set the rocker switch on the grill of the ice machine to the “ON” position

.

Make sure that the reservoir drain plug is installed.

Check the water line to the unit to make sure it is on and that there are no restrictions or kinks in the line. Check all filters to make sure they are not restricted or plugged.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

See “Cleaning the Ice Machine

System” section for cleaning the unit for proper operation.

Make certain the grill in the front of the unit is free and open for proper air circulation. Check and clean the condenser coil by removing the grill in the front of the unit. Clean the condenser with a vacuum and brush attachment.

Move the unit to an area where ambient temperature is below 90°F. The unit should not be placed next to a heat source such as an oven.

Check for cold water connection.

See “Cleaning the Ice Machine System” section for cleaning the unit. This will also dissolve and flush out foreign material in the drain valve.

Restriction in drain lines will cause ice in the bin to melt. If using a gravity drain, make certain there are no kinks or restrictions in the drain lines. If using a drain pump, check the inlet screen, discharge line, and vent line for any build-up or restrictions.

Plug in the grid cutter so that ice slabs can be cut into cubes.

Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there are no restrictions or kinks in the line.

Check all filters to make sure they are not restricted or plugged.

Make certain that water line is not connected to the water softener.

Move to an area where room temperature is above

55°F

.

18

PROBLEM

Ice cubes are too small

(less than 1/2” thick)

Ice cubes are too big

(greater than 3/4” thick)

Hollow ice slab

Unit continues to run and produce ice.

Ice cubes are sticking together.

TROUBLESHOOTING GUIDE

POSSIBLE CAUSE

Low ice consumption

Not enough water in reservoir.

Distributor tube is restricted.

Build-up of deposits on evaporator plate.

Leaking drain valve

Inadequate drain system.

Room temperature is too warm.

Ice slab not releasing.

Condenser fan air flow is restricted.

Room temperature is too warm.

Distributor tube is restricted.

Build-up of deposits on evaporator plate.

Low water level in reservoir.

Ice bin is not full.

Ice bin is full.

Room temperature is too warm.

Ice machine is not level.

Ice consumption is low.

Room temperature is too warm

CORRECTION

Ice is slowly melting in the ice bin and will affect the size of the ice cube. This is normal operation. When the ice bin needs to be replenished, cubes will return to regular size.

Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there are no restrictions or kinks in the line.

Check all filters to make sure they are not restricted or plugged.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

See “Cleaning the Ice Machine System” section for cleaning the unit. Cleaning the unit will also dissolve and flush out foreign material in the drain valve.

Restriction in drain lines will cause ice in the bin to melt to a thinner cube. If using a gravity drain, make certain there are no kinks or restrictions in the drain lines. If using a drain pump, check the inlet screen, discharge line, and vent line for any build-up or restrictions

.

Move to an area where temperature is below 90°F.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

Make certain the grill in the front of the unit is free and open for proper air circulation. Check and clean the condenser coil by removing the grill in the front of the unit. Clean the condenser with a vacuum and brush attachment.

Move to area where temperature is below 90°F

.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation and cube size.

Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there are no restrictions or kinks in the line.

Check all filters to make sure they are not restricted or plugged.

The unit will automatically shut down when ice reaches the sensing tube.

The unit will automatically shut down when ice reaches the sensing tube and has completed the harvest of the ice slab.

Move to an area where room temperature is below

90°F.

Use a level to check the unit from side to side and front to rear.

Use the ice in the bin frequently. Ice will stick together if left in insulated bin over long periods of time.

Move the unit to an area where temperature is below 90°F.

19

PROBLEM

Low ice production. Unit is running, has run over a 48 hour period, and there is little ice in bin.

Grid cutter is not cutting ice slab.

Ice level is too low.

Ice level is too high.

Water keeps backing up into ice bin (gravity drain).

TROUBLESHOOTING GUIDE

POSSIBLE CAUSE

Low water level in reservoir.

Distributor tube is restricted.

Build-up of deposits on evaporator plate.

Inadequate drain system.

Condenser fan air flow is restricted

The selector switch is not in the

“ON” position.

The grid cutter is not plugged into receptacle.

It has not had time to cut through the slab.

The ice machine is not level

Room temperature is too cold.

The selector switch is not in the

“ON” position.

The ice machine is not level

Room temperature is too warm.

Ice deflector is not in place or secured properly.

Bin level sensing tube needs adjusting.

Inadequate drain system.

Foreign material in ice bin drain

CORRECTION

Make sure that the reservoir drain plug is installed properly. Check the water line to the unit to make sure there are no restrictions or kinks in the line. Check all filters to make sure they are not restricted or plugged.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

See “Cleaning the Ice Machine System” section for cleaning the unit for proper operation.

Restriction in drain lines will cause ice in the bin to melt to a thinner cube. If using a gravity drain, make certain there are no kinks or restrictions in the drain lines. If using a drain pump, check the inlet screen, discharge line, and vent line for any build-up or restrictions.

Make certain the grill in the front of the unit is free and open for proper air circulation. Check and clean the condenser coil by removing the grill in the front of the unit. Clean the condenser with a vacuum and brush attachment.

Set the rocker switch on the grill of the ice machine to the “ON” position.

Remove the escutcheon panel and plug the grid cutter into the receptacle on the side of the liner.

I t can take up to 35 minutes to cut through a harvested ice slab. This is normal operation.

Use a level to check the unit from side to side and front to rear

.

Move the unit to an area where temperature is above 55°F.

Set the rocker switch on the grill of the ice machine to the “ON” position.

Use a level to check the unit from side to side and front to rear.

Move the unit to an area where temperature is below 90°F.

Check to see that the ice deflector is in place and secured below the grid cutter.

Adjust the bin level sensing tube by simply pressing directly down on the tube 5 inches from the front of the tube to get a desired bin level.

Restriction or improperly installed drain lines will cause water to back up into the ice bin. Make certain there are no kinks or restrictions in the drain lines. If necessary, consult a qualified plumber.

Foreign material is restricting or blocking the ice bin drain located at the right rear corner of the ice bin.

The drain will need to be cleared

.

FINAL PREPARATION

1. Some stainless steel parts may have a plastic protective wrap which must be peeled off. The interior of the ice machine should be washed thoroughly with hot, soapy water, rinsed and wiped dry to remove film residue and any installation dust or debris before being used. Solutions stronger than soap and water are rarely needed.

2. All stainless steel parts should be wiped with hot soapy water. If buildup occurs, do not use steel wool, abrasive cloths, cleaners, or powders. If it is necessary to scrape stainless steel to remove encrusted materials, soak with hot, wet cloths to loosen the material, then use a wood or nylon scraper. Do not use a metal knife, spatula, or any other metal tool to scrape stainless steel; scratches are almost impossible to remove.

SERVICE INFORMATION

If service is required, call your dealer or authorized service agency. The name of the authorized service agency can be obtained from the dealer or distributor in your area.

Have the following information readily available.

• Model number

• Serial number

• Date purchased

• Name of dealer from whom purchased

Clearly describe the problem that you are having. If you are unable to obtain the name of an authorized service agency, or if you continue to have service problems, contact Viking Range Corporation at 1-888-VIKING1 (845-4641), or write to:

VIKING RANGE CORPORATION

PREFERRED SERVICE

1803 Hwy 82W

Greenwood, Mississippi 38930 USA

Record the information indicated below. You will need it if service is ever required. The model and serial number for your ice machine are located on the front of the unit at the base of the door frame.

Model Number Serial Number

Date Installed Date of Purchase

Dealer’s Name

Address

If service requires installation of parts, use only authorized parts to insure protection under the warranty.

KEEP THIS MANUAL FOR FUTURE REFERENCE.

20 21

UNDERCOUNTER/FREESTANDING ICE MACHINE WARRANTY

(Units certified for Indoor Use)

T WO EA R F UL L W RR AN Y

Undercounter/freestanding ice machines and all of their components and accessories, except as detailed below*, are warranted to be free from defects in material or workmanship under normal household use for a period of two (2) years from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period

*Painted and decorative items are warranted to be free from defective materials or workmanship for a period of ninety (90) days from the date of original retail purchase.

ANY DEFECTS MUST BE REPORTED TO THE SELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE.

X Y EA R F UL L W AR NT Y

Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the third through the sixth year from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.

S ea d R effrriig erra n S m C po ne Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer

T WE E Y EA MIIT ED AR AN Y

Any sealed refrigeration system component, as listed above, which fails due to defective materials or workmanship in normal household use during the seventh through the twelfth year from the date of original retail purchase will be repaired or replaced, free of charge for the part itself, with the owner paying all other costs, including labor.

NIIN ET Y ((9 0)) D Y R SIID TIIA L P S W AR NT Y This warranty applies to applications where use of the product extends beyond normal residential use.

Examples are, but not limited to, bed and breakfasts, fire stations, private clubs, churches, etc. This warranty excludes all commercial locations such as restaurants, food service locations and institutional food service locations.

This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the warranty.

This warranty shall apply to products purchased and located in the United States and Canada. Products must be purchased in the country where service is requested.

Warranty labor shall be performed by an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, improper installation, improper operation or repair or service to the product by anyone other than an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from indoor units being used in outdoor situations. This warranty does not apply to commercial usage. Warrantor is not responsible for consequential or incidental damage whether arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement of the product or its component part or parts. Replacement of a component part includes its free installation. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no case exceed the price of the goods or service or part there of which gives rise to the claim.

W AR AN Y S VIIC E:: Under the terms of this warranty, service must be performed by a factory authorized Viking Range Corporation service agent or representative.

Service will be provided during normal business hours, and labor performed at overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer from whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation. Provide model and serial number and date of original purchase. For the name of your nearest authorized Viking Range Corporation service agency, call the dealer from whom the product was purchased or Viking Range Corporation. IIM PO AN T:: Retain proof of original purchase to establish warranty period.

The return of the Owner Registration Card is not a condition of warranty coverage. You, however, should return the Owner Registration Card so that Viking Range

Corporation can contact you should any question of safety arise which could affect you.

Any implied warranties of merchantability and fitness applicable to the above described undercounter ice machine are limited in duration to the period of coverage of the applicable express written limited warranties set forth above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.

UNDERCOUNTER/FREESTANDING ICE MACHINE WARRANTY

(Units certified for Outdoor Use)

O NE EA R F UL L W RR AN Y

Undercounter/freestanding ice machines and all of their components and accessories, except as detailed below*, are warranted to be free from defects in material or workmanship under normal household use for a period of one (1) year from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.

*Painted and decorative items are warranted to be free from defective materials or workmanship for a period of ninety (90) days from the date of original retail purchase.

ANY DEFECTS MUST BE REPORTED TO THE SELLING DEALER WITHIN NINETY (90) DAYS FROM DATE OF ORIGINAL RETAIL PURCHASE.

FIIV E Y AR MIIT ED AR AN Y

Any sealed refrigeration system component, as listed below, is warranted to be free from defective materials or workmanship in normal household use during the second through the fifth year from the date of original retail purchase. Viking Range Corporation, warrantor, agrees to repair or replace, at its option, any part which fails or is found to be defective during the warranty period.

S ea d R effrriig erra n S m C om po nttss:: Compressor, Evaporator, Condenser, Connecting Tubing, Dryer/Strainer

It is recommended that in temperatures above 110 o F (43.0

o C) and below 45 o F (7.2

o C) the unit be shut off. The normal operating range for the unit is between 45 o F (7.2

o F) and 110 o F (43.0

o C).

NIIN ET Y ((9 0)) D Y R DE NT PL US RR AN

Examples are, but not limited to, bed and breakfasts, fire stations, private clubs, churches, etc. This warranty excludes all commercial locations such as restaurants, food service locations and institutional food service locations.

This warranty extends to the original purchaser of the product warranted hereunder and to each transferee owner of the product during the term of the warranty.

This warranty shall apply to products purchased and located in the United States and Canada. Products must be purchased in the country where service is requested.

Warranty labor shall be performed by an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from abuse, accident, natural disaster, loss of electrical power to the product for any reason, alteration, improper installation, improper operation or repair or service to the product by anyone other than an authorized Viking Range Corporation service agency or representative. Warranty shall not apply to damage resulting from indoor units being used in outdoor situations. This warranty does not apply to commercial usage. Warrantor is not responsible for consequential or incidental damage whether arising out of breach of warranty, breach of contract, or otherwise. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Owner shall be responsible for proper installation, providing normal care and maintenance, providing proof of purchase upon request, and making the appliance reasonably accessible for service. If the product or one of its component parts contains a defect or malfunction during the warranty period, after a reasonable number of attempts by the warrantor to remedy the defects or malfunctions, the owner is entitled to either a refund or replacement of the product or its component part or parts. Replacement of a component part includes its free installation. Warrantor’s liability on any claim of any kind, with respect to the goods or services covered hereunder, shall in no case exceed the price of the goods or service or part there of which gives rise to the claim.

W AR AN Y S VIIC E:: Under the terms of this warranty, service must be performed by a factory authorized Viking Range Corporation service agent or representative.

Service will be provided during normal business hours, and labor performed at overtime or premium rates shall not be covered by this warranty. To obtain warranty service, contact the dealer from whom the product was purchased, an authorized Viking Range Corporation service agent, or Viking Range Corporation. Provide model and serial number and date of original purchase. For the name of your nearest authorized Viking Range Corporation service agency, call the dealer from whom the product was purchased or Viking Range Corporation. IIM PO AN T:: Retain proof of original purchase to establish warranty period.

The return of the Owner Registration Card is not a condition of warranty coverage. You, however, should return the Owner Registration Card so that Viking Range

Corporation can contact you should any question of safety arise which could affect you.

Any implied warranties of merchantability and fitness applicable to the above described undercounter/freestaning ice machine are limited in duration to the period of coverage of the applicable express written limited warranties set forth above. Some jurisdictions do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. This warranty gives you specific rights, and you may also have other rights which may vary from jurisdiction to jurisdiction.

22 23

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
