For Balancing and Flow Measurement Applications

For Balancing and Flow Measurement Applications
ES-PG-8
For Balancing and Flow Measurement Applications
Job Name
–––––––––––––––––––––––––––––––––––––––––––
Contractor ––––––––––––––––––––––––––––––––––––––––––––
Job Location –––––––––––––––––––––––––––––––––––––––––
Approval
Engineer –––––––––––––––––––––––––––––––––––––––––––––
Contractor’s P.O. No. –––––––––––––––––––––––––––––––––––
Approval –––––––––––––––––––––––––––––––––––––––––––––
Representative
–––––––––––––––––––––––––––––––––––––––––––––
––––––––––––––––––––––––––––––––––––––––

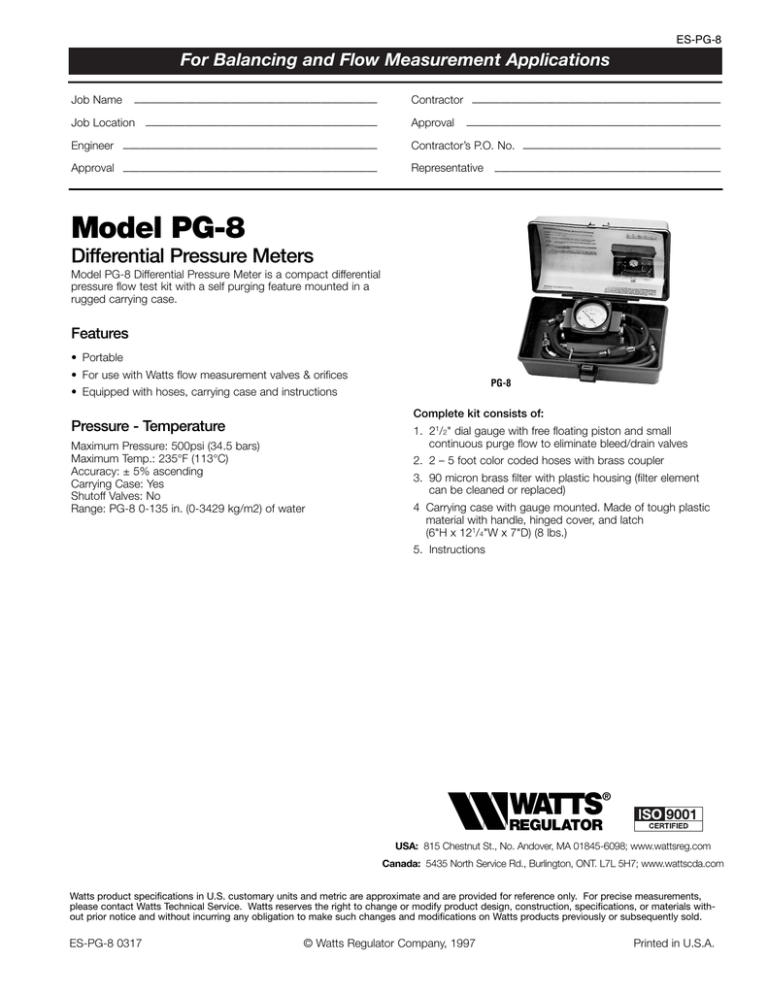

Model PG-8
Differential Pressure Meters
Model PG-8 Differential Pressure Meter is a compact differential
pressure flow test kit with a self purging feature mounted in a
rugged carrying case.
Features
• Portable
• For use with Watts flow measurement valves & orifices
PG-8
• Equipped with hoses, carrying case and instructions
Complete kit consists of:
Pressure - Temperature
Maximum Pressure: 500psi (34.5 bars)
Maximum Temp.: 235°F (113°C)
Accuracy: ± 5% ascending
Carrying Case: Yes
Shutoff Valves: No
Range: PG-8 0-135 in. (0-3429 kg/m2) of water
1. 21/2" dial gauge with free floating piston and small
continuous purge flow to eliminate bleed/drain valves
2. 2 – 5 foot color coded hoses with brass coupler
3. 90 micron brass filter with plastic housing (filter element
can be cleaned or replaced)
4 Carrying case with gauge mounted. Made of tough plastic
material with handle, hinged cover, and latch
(6"H x 121/4"W x 7"D) (8 lbs.)
5. Instructions
USA: 815 Chestnut St., No. Andover, MA 01845-6098; www.wattsreg.com
Canada: 5435 North Service Rd., Burlington, ONT. L7L 5H7; www.wattscda.com
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements,
please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
ES-PG-8 0317
© Watts Regulator Company, 1997
Printed in U.S.A.
