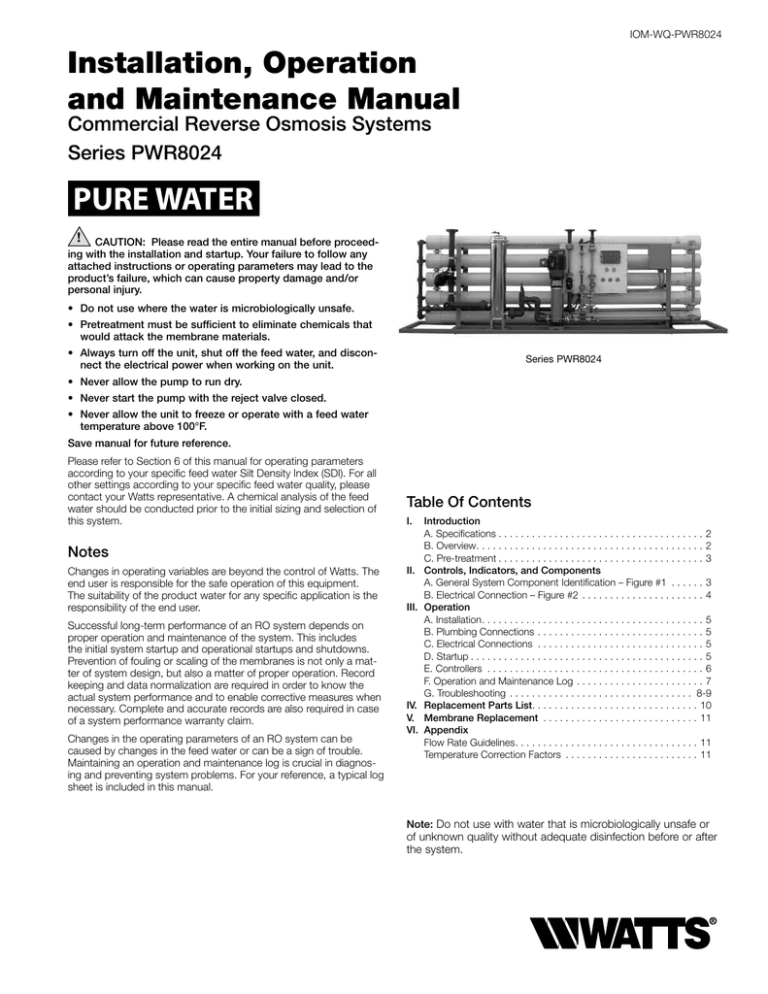

Installation, Operation
and Maintenance Manual
Commercial Reverse Osmosis Systems
Series PWR8024
PURE WATER
! CAUTION: Please read the entire manual before proceeding with the installation and startup. Your failure to follow any
attached instructions or operating parameters may lead to the
product’s failure, which can cause property damage and/or
personal injury.
• Do not use where the water is microbiologically unsafe.
•Pretreatment must be sufficient to eliminate chemicals that
would attack the membrane materials.
•Always turn off the unit, shut off the feed water, and disconnect the electrical power when working on the unit.
Series PWR8024
• Never allow the pump to run dry.
• Never start the pump with the reject valve closed.
•Never allow the unit to freeze or operate with a feed water
temperature above 100°F.
Save manual for future reference.
Please refer to Section 6 of this manual for operating parameters
according to your specific feed water Silt Density Index (SDI). For all
other settings according to your specific feed water quality, please
contact your Watts representative. A chemical analysis of the feed
water should be conducted prior to the initial sizing and selection of
this system.
Notes
Changes in operating variables are beyond the control of Watts. The
end user is responsible for the safe operation of this equipment.
The suitability of the product water for any specific application is the
responsibility of the end user.
Successful long-term performance of an RO system depends on
proper operation and maintenance of the system. This includes
the initial system startup and operational startups and shutdowns.
Prevention of fouling or scaling of the membranes is not only a matter of system design, but also a matter of proper operation. Record
keeping and data normalization are required in order to know the
actual system performance and to enable corrective measures when
necessary. Complete and accurate records are also required in case
of a system performance warranty claim.
Changes in the operating parameters of an RO system can be
caused by changes in the feed water or can be a sign of trouble.
Maintaining an operation and maintenance log is crucial in diagnosing and preventing system problems. For your reference, a typical log
sheet is included in this manual.
Table Of Contents
I.
II.
III.
IV.
V.
VI.
Introduction
A. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
B. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
C. Pre-treatment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls, Indicators, and Components
A. General System Component Identification – Figure #1 . . . . . . 3
B. Electrical Connection – Figure #2 . . . . . . . . . . . . . . . . . . . . . . 4
Operation
A. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
B. Plumbing Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
C. Electrical Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
D. Startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
E. Controllers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
F. Operation and Maintenance Log . . . . . . . . . . . . . . . . . . . . . . . . 7
G. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-9
Replacement Parts List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Membrane Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Appendix
Flow Rate Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Temperature Correction Factors . . . . . . . . . . . . . . . . . . . . . . . . . 11
Note: Do not use with water that is microbiologically unsafe or
of unknown quality without adequate disinfection before or after
the system.
I. Introduction
The separation of dissolved solids and water using RO membranes
is a pressure driven temperature dependent process. The membrane
material is designed to be as permeable to water as possible while
maintaining the ability to reject dissolved solids.
The main system design parameters require the following:
• Internal flows across the membrane surface must be high enough
to prevent settling of fine suspended solids on the membrane
surface.
• The concentration of each dissolved ionic species must not exceed
the limits of solubility anywhere in the system.
• Pre-treatment must be sufficient to eliminate chemicals that would
attack the membrane materials.
A. Specifications
Model Number
Maximum Productivity (gallons per minute)
Quality (typical membrane percent rejection)
Recovery (adjustable)
Membrane Size
Membrane Array (four elements per vessel)
Prefilter (system ships with five micron cartridges)
Feed Water Connection
Product Water Connection
Reject Water Connection
Feed Water Required (GPM at 65% recovery)
Minimum Feed Water Pressure
Drain Required (maximum)
460 VAC, 3-phase, 60Hz (other voltages available)
Motor Horse Power (TEFC Motor)
Dimensions L x W x H (approximate)
Shipping Weight (estimated pounds)
PWR80243085
PWR80243125
40
60
PWR80243205
80
100
99%
65% - 75%
8" x 40"
1:1
2:1
2:2
7 round x 40"
2" Flange
3:2
7 round x 40"
3" Flange
2.5" Flange
2.5" Flange
2" Flange
1.5" Flange
62
20 PSIG
62
25 amps
15
93
20 PSIG
93
30 amps
20
2500
2800
123
20 PSIG
123
35 amps
25
154
20 PSIG
154
40 amps
30
3200
3500
186" x 26" x 72"
Notes:
•Maximum production based on a feed water of 77° F, SDI < 3,
1000 ppm TDS, and pH 7.6.
Individual membrane productivity may vary (± 15%). May be
operated on other feed waters with reduced capacity.
•Percent Rejection is based on membrane manufactures specifications; overall system percent rejection may be less.
B. RO Overview
Reverse osmosis systems utilize semipermeable membrane elements to separate the feed water into two streams. The pressurized
feed water is separated into purified (product) water and concentrate
(reject) water. The impurities contained in the feed water are carried
to drain by the reject water.
RO Membrane
Feed Water
PWR80243165
Product Water
Reject Water
2
II. Controls, Indicators, and
Components (See Figure 1)
C. Pretreatment
The RO feed water must be pretreated in order to prevent membrane damage and/or fouling. Proper pretreatment is essential for
reliable operation of any RO system.
Pretreatment requirements vary depending on the nature of the feed
water. Pretreatment equipment is sold separately. The most common
forms of pretreatment are described below.
A. General System Component Identification
Media Filter - Used to remove large suspended solids (sediment)
from the feed water. Backwashing the media removes the trapped
particles. Backwash can be initiated by time or differential pressure.
B Reject Control Valve - Controls the amount of reject flow.
AController - Controls the operation of the system and displays
the product water quality.
CReject Recycle Control Valve – Controls the amount of reject
recycle flow.
Water Softener - Used to remove calcium and magnesium from
the feed water in order to prevent hardness scaling. The potential
for hardness scaling is predicted by the Langelier Saturation Index
(LSI). The LSI should be zero or negative throughout the unit unless
approved anti-scalents are used. Softening is the preferred method
of controlling hardness scale.
D Pump Discharge Valve - Used to throttle the pump.
EPrefilter Inlet Pressure Gauge - Indicates the inlet pressure of the
prefilter.
FPump Suction Pressure Gauge – Indicates the prefilter outlet
and pump suction pressure. The difference between this gauge
and the prefilter inlet gauge is the prefilter differential pressure of
the prefilter.
Carbon Filter - Used to remove chlorine and organics from the
feed water. Free chlorine will cause rapid irreversible damage to the
membranes.
The residual free chlorine present in most municipal water supplies
will damage the thin film composite structure of the membranes
used in this unit. Carbon filtration or sodium bisulfite injection should
be used to completely remove the free chlorine residual.
GPump Discharge Pressure Gauge - Indicates the pump discharge pressure.
HMembrane Feed Pressure Gauge – Indicates the membrane
feed pressure.
I Reject Pressure Gauge - Indicates the reject pressure.
Chemical Injection - Typically used to feed antiscalant, coagulant,
or bisulfite into the feed water or to adjust the feed water pH.
Prefilter Cartridge - Used to remove smaller suspended solids and
trap any particles that may be generated by the other pretreatment.
The cartridge(s) should be replaced when the pressure drop across
the housing increases 5 - 10 psig over the clean cartridge pressure
drop. The effect of suspended solids is measured by the silt density
index (SDI) test. An SDI of five (5) or less is specified by most membrane manufacturers and three (3) or less is recommended.
JReject Flow Meter - Indicates the reject flow rate in gallons per
minute (gpm).
KReject Recycle Flow Meter – Indicates the reject recycle flow in
gpm.
L Product Flow Meter - Indicates the product flow rate in (gpm).
M Prefilter Housing - Contains the RO prefilters.
Iron & Manganese - Iron should be removed to less than 0.1 ppm.
Manganese should be removed to less than 0.05 ppm. Special media filters and/or chemical treatment is commonly used.
NAutomatic Inlet Valve - Opens when pump is on and closes
when the pump is off.
pH - The pH is often lowered to reduce the scaling potential.
P RO Membrane Vessels - Contains the RO membranes.
Silica: Reported on the analysis as SiO2. Silica forms a coating on
membrane surfaces when the concentration exceeds its solubility.
Additionally, the solubility is highly pH and temperature dependent.
Silica fouling can be prevented with chemical injection and/or reducing the recovery.
Q Motor starter / transformer enclosure.
O RO Feed Pump - Pressurizes the RO feed water.
Figure 1
3
B. Electrical Connection
460 Volt 3-phase
Power Inlet
To Pump
Figure 2
Electrical Connection
4
III. Operation
D. Startup
1.Verify that the pretreatment equipment is installed and working
properly. Verify that no free chlorine is present in the feed water.
A. Installation
2. Verify that the controller on/off switch is in the off position.
1.The water supply should be sufficient to provide a minimum of
20 psig pressure at the design feed flow.
3.Close the pump discharge completely then open it one turn.
Note: All valves on this unit turn clockwise to close.
2.Proper pretreatment must be determined and installed prior to
the RO system.
4. Install five micron filter cartridges in the prefilter housing.
5.Open the reject control valve completely by turning it counterclockwise.
3.A fused high voltage disconnect switch located within 10 feet of
the unit is recommended. This disconnect is not provided with
the RO system.
6.Close the reject recycle control valve completely by turning it
counterclockwise.
4.Responsibility for meeting local electrical and plumbing codes
lies with the owner /operator.
7. Open the feed water shutoff valve installed in step III-B-1 above.
5.Install indoors in an area protected from freezing. Space allowances for the removal of the membranes from the pressure
vessels should be provided. This system requires 42" minimum
clear space on each side.
8.Engage the safety switch or disconnect (installed in step III-C-1
above) to apply electrical power to the RO system.
9.Turn the key switch on by rotating it clockwise. Press the power
button. There will be a 10 second delay and the pump will start.
Press the power button as soon as the pump starts to shut it
down and look at the motor fan as the pump stops to determine
if the pump rotation is correct. The fan should rotate in the direction indicated by the rotation arrow on the pump. Continue with
the startup if the pump is rotating in the proper direction. If the
pump rotation is backwards, reverse the rotation by shutting off
the power and swapping any two of the three power lines connected in step III.C.3 above. Verify correct pump rotation before
continuing with startup.
B. Plumbing Connections
Note: It is the responsibility of the end user to ensure that the
installation is done according to local codes and regulations.
1.Connect the pretreated feed water line to the inlet side of the
prefilter housing. (Figure # 1 item # 1) A feed water shutoff valve
should be located within 10 feet of the system.
2.Temporarily connect the outlet of the product water flow meter
to drain. (Figure # 1 item # 2) The product water line should
never be restricted. Membrane and/or system damage may occur if the product line is blocked.
10.Turn the system on and allow the product and reject water to go
to drain for 15 minutes.
3.Connect the outlet of the reject water flow meter to a drain. (Figure # 1 item # 3) The reject drain line should never be restricted.
Membrane and/or system damage may occur if the reject drain
line is blocked. An air gap must be located between the end
of the drain line and the drain. The use of a standpipe or other
open drain satisfies most state and local codes and allows for
visual inspection and sampling.
11.Adjust the reject control valve, the reject recycle control valve
and the pump discharge valve until the desired flows are
achieved. Closing the reject valve increases the recycle and
product flow and decreases the reject flow. Closing the reject
recycle valve increases the reject and product flow and decreases the recycle flow. Opening the pump discharge valve
increases all of the flows. See the temperature correction table in
the appendix to determine the flow rates for different operating
temperatures.
C. Electrical
12.Allow the product water to flow to drain for 30 minutes.
Note: It is the responsibility of the end user to ensure that the
installation is done according to local codes and regulations.
13.Turn off the system and connect the product line to the point of
use. The product water line should never be restricted. Membrane and/or system damage may occur if the product line is
blocked.
1.A safety switch or fused disconnect should be installed within
10 feet of the system. The disconnect and fuses should be sized
accordingly.
14.Restart the system and record the initial operating data using the
log sheet in the next section.
2.Verify that the disconnect switch is de-energized using a
voltmeter.
15.See the controller section for detailed information about the
controller.
3.Connect the outlet of the disconnect switch to the top of the
motor starter relay. (Figure #1 item Q and Figure #2). Attach the
power supply ground to the controller ground.
4.Do not apply power to the RO unit at this time.
5
E. Controllers
Note: It is very important to vent the mechanical seal
during startup. Failure to vent the seal may result in
premature seal failure.
See Seperate Booklet
Vented
Priming
Plug
Drain
Plug
Back off needle
valve to vent air.
Retighten to 25 in.lbs. when vent port
runs a steady stream
of water.
6
7
Product
Gpm
Reject Gpm
Pump
Discharge
Pressure
reject
pressure
Feed Tds Ppm
Product Tds
Ppm
Feed Water
Temp
Feed Water
Hardness
Note: Change the prefilter when the differential pressure increases by 5 - 10psi over the clean differential pressure.
Clean the RO membrane(s) when the product flow drops by 15% or more. (See appendix)
Date
F. PWR8024 Operation and Maintenance Log
Feed Water
Chlorine Level
Pre Filter
Inlet Pressure
Pre Filter
Outlet
Pressure
Remarks
G. Troubleshooting
RO Troubleshooting Guide
SYMPTOMS
Salt Passage
Permeate Flow
Normal to increased Decreased
Normal to increased Decreased
Increased
Decreased
Pressure Drop
Location
Possible Causes
Normal to increased Predominantly
first stage
Normal to increased Predominantly
first stage
Metal oxide
Increased
Scaling (CaSO4, CaSO3,
BaSO4, SiO2)
Predominantly
last stage
Colloidal fouling
Verification
Corrective Action
Analysis of metal ions in
cleaning solution.
SDI measurement of feed/
X-ray diffraction analysis of
cleaning sol. residue.
Analysis of metal ions in
cleaning sol. Check LSI of
reject. Calculate maximum
solubility for CaSO4, BaSO4,
SiO2 in reject analysis.
Bacteria count in permeate
and reject. Slime in pipes
and vessels.
Improved pretreatment to remove metals. Cleaning with acid cleaners.
Optimize pretreatment system for
colloid removal. Clean with high pH,
anionic detergent formulation.
Increase acid addition and scale
inhibitor for CaSO3 and CaSO4. Reduce
recovery. Clean with an acid formulation for CaCO3, CaSO4 and BaSO4.
Normal to moderate Decreased
increase
Normal to moderate Can occur in any
increase
stage
Biological fouling
Decreased or moderately increased
Decreased
Normal
All stages
Organic fouling
Destructive testing, e.g. IR
reflection analysis.
Increased
Increased
Decreased
Chlorine oxidant attack
Increased
Increased
Decreased
Most severe in
the first stage
Most severe in
the first stage
Increased
Normal to increased Decreased
At random
Increased
Normal to low
All stages
O-ring leaks, End or side
seal glue leaks.
Conversion too high.
Chlorine analysis of feed.
Destructive element test.
Microscopic solids analysis
of feed. Destructive element test.
Probe test. Vacuum test.
Colloidal material passage.
Check flows and pressures
against design guidelines
Decreased
Abrasion of membrane by
crystalline material
8
Shock dosage of sodium bisulfite.
Continuous feed of low conc. bisulfite
at reduced pH. Peracetic acid sterilization. Clean with alkaline anionic surfactant. Chlorine dosage upstream with
dechlorination. Replace cartridge filters.
Optimization of pretreatment system
(e.g. coagulation process.) Resin/
activated carbon treatment. Clean with
high pH detergent.
Check chlorine feed equipment and
dechlorination equipment.
Improved pretreatment. Check all filters
for media leakage.
Replace O-rings. Repair or replace
elements.
Reduce conversion rate. Calibrate
sensors. Increase analysis and data
collection.
Motor Troubleshooting Chart
problem
Motor fails to start
Motor Stalls
Motor runs and then dies down
Motor does not come up to speed
Motor takes too long to accelerate
Wrong rotation
Motor overheats while running
under load
Motor vibrates after correcting
have been made
Unbalanced line current on
polyphase motors during normal
operation
Scraping noise
possible CAUSE
corrective action
Blown fuses
Overload trips
Improper power supply
Open circuit in winding or control switch
Mechanical failure
Short circuited stator
Poor stator coil connection
Rotor defective
Motor may be overloaded
One phase connection
Wrong application
Overload motor
Low motor voltage
Open circuit
Power failure
Not applied properly
Voltage too low at motor terminals because of line drop.
Replace fuses with proper type and rating
Check and rest overload in starter.
Check to see that power supplied agrees with motor nameplate and load factor.
Indicated by humming sound when switch is closed.
Check to see if motor and drive turn freely. Check bearing and lubrication.
Indicated by blown fuses. Motor must be rewound.
Remove end bells, locate with test lamp.
Look for broken bars or end ring.
Reduce load.
Check lines for open phase.
Change type or size. Consult manufacturer.
Reduce load.
See that nameplate voltage is maintained. Check connection.
Fuses blown, check overload relay, stator and push buttons.
Check for loose connections to line, to fuses and to control.
Consult supplier for proper type.
Use higher voltage on transformer terminals or reduce load. Check connections. Check
conductors for proper size.
Look for cracks near the rings. A new rotor may be required as repairs are usually temporary.
Locate fault with testing device and repair.
Reduce load.
Check for high resistance.
Replace with new rotor.
Get power company to increase power tap.
reverse connections at motor or at switchboard.
reduce load.
Open vent holes and check for a continuous stream of air from the motor.
Broken rotor bars or loose rotor.
Open primary circuit
Excess loading
Poor circuit
Defective squirrel cage rotor
Applied voltage too low
Wrong sequence of phases
Overloaded
Frame or bracket vents may be clogged with dirt and
prevent proper ventilation of motor.
Motor may have one phase open
Grounded could
Unbalanced terminal voltage
motor misaligned
Weak support
Coupling out of balance
Driven equipment unbalanced
Defective ball bearing
Bearing not in line
Balancing weights shifted
Polyphase motor running single phase
Excessive end play
Unequal terminal volts
Single phase operation
Check to make sure that all leads are well connected.
Locate and repair.
Check for faulty leads, connections and transformers.
Realign
Strengthen base.
Balance coupling.
Rebalance driven equipment.
Replace bearing.
Line properly.
Rebalance motor.
Check for open circuit.
Adjust bearing or add washer.
Check leads and connections
Check for open contacts
Fan rubbing air shield
Remove interference.
Fan striking insulation
Clear fan.
loose on bedplate
Tighten holding bolts.
Noisy operation
Airgap not uniform
Check and correct bracket fits or bearing.
Rotor unbalance
Rebalance.
Hot bearings general
Bent or sprung shaft
Straighten or replace shaft.
Excessive belt pull
Decrease belt tension.
Pulleys too far away
Move pulley closer to motor bearing.
Pulley diameter too small
Use larger pulleys.
Misalignment
Correct by realignment of drive.
Hot bearings ball
Insufficient grease
Maintain proper quantity of grease in bearing.
Deterioration of grease, or lubricant contaminated
Remove old grease, wash bearings thoroughly in kerosene and replace with new grease.
Excess lubricant
Reduce quantity of grease: bearing should not be more than ½ filled.
Overloaded bearing
Check alignment, side and end thrust.
Broken ball or rough races
Replace bearing: first clean housing thoroughly.
These instructions do not cover all details or variations in equipment nor provide for every possible condition to be
met in connection with installation, operation or maintenance. Chart courtesy of Marathon Electric.
9
RO System Troubleshooting
Problem
corrective action
General
High Product Water TDS
Membrane expanded.
Membrane attack by chlorine
Clogged pre-filter-creates pressure drop and low reject flow.
Feed pressure too low.
Insufficiently flushed post-filter cartridge.
Brine seal on membrane leaks.
No Product Water or Not Enough Product Water
Feed water shut off.
Low feed pressure. Feed pressure must be at least 20psi.
Pre-filter cartridge clogged.
Membrane fouled.
Product check valve stuck.
Low pump discharge pressure
Replace membrane.
Carbon pre-filter may be exhausted. Replace with a new cartridge.
Replace pre-filter cartridge.
Feed pressure must be at least 20psi.
Flush post-filter with pure water.
Determine if seal or o-ring is bad. Replace as needed.
Turn on feed water.
Consider booster pump.
Replace pre-filter cartridge.
Determine and correct cause; replace membrane.
Replace check valve fitting.
Open pump discharge valve, replace pump
IV. Replacement Parts List
ITEM Number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Description
Quantity per System
Pre filter housing 7 round 40"
Pressure Gauge, 2 1/2", 0-100 psi, LF, Back Mount
Pressure Gauge, 2 1/2", 0-400 psi, LF, Back Mount
Flow Meter 2 - 20 gpm
Flow Meter 4 – 40 gpm
Flow Meter 6 - 60 gpm
Flow Meter 10 - 80 gpm
Flow Meter 15-130 gpm
Controller with conductivity meter (optional)
Pump & Motor, 3-Phase, 60Hz, 15 hp
Pump & Motor, 3-Phase, 60Hz, 20 hp
Pump & Motor, 3-Phase, 60Hz, 25 hp
Pump & Motor, 3-Phase, 60Hz, 30 hp
Low Pressure Switch
Inlet Solenoid Valve 24 volt, 2”
Inlet Solenoid Valve 24 volt, 3”
RO Membranes
Pre Filter Cartridges 40” 5 micron
PWR80243085
PWR80243125
PWR80243165
PWR80243205
1
2
3
1
1
2
3
1
1
2
3
1
2
3
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
8
7
10
1
1
1
1
1
12
7
1
16
7
1
20
7
V. Membrane Replacement
Temperature Correction Factors
1.Turn off the system and close the feed water shutoff valve.
°C
2.Disconnect the membrane feed hoses by loosing the brass fittings between the end of the hoses and the pressure vessel end
caps.
3. Remove the retaining rings from the pressure vessels.
4.Push the old membrane out of the vessel in the direction of the
feed flow.
5. Record the serial numbers of the new membranes.
6.Lightly lubricate the brine seals on the new membranes with
clean water.
7. Install the new membranes in the direction of flow with the brine
seal end going in last.
Note: Be sure to install an interconnector between the membranes in each pressure vessel.
8.Lightly lubricate the end cap internal and external o-rings with
glycerin.
9. Install the end caps and secure them with the retaining rings.
10. Install the membrane feed hoses.
11. Verify that all retaining rings are installed.
12. Follow the start up procedure in section III-D.
Flow Direction
Brine
Seal
Membrane
°F
Correction Factor
30
86
1.16
29
84.2
1.13
28
82.4
1.09
27
80.6
1.06
26
78.8
1.03
25
77
1.00
24
75.2
0.97
23
73.4
0.94
22
71.6
0.92
21
69.8
0.89
20
68
0.86
19
66.2
0.84
18
64.4
0.81
17
62.6
0.79
16
60.8
0.77
15
59
0.74
14
57.2
0.72
13
55.4
0.70
12
53.6
0.68
11
51.8
0.66
10
50
0.64
9
48.2
0.62
8
46.4
0.61
7
44.6
0.59
6
42.8
0.57
5
41
0.55
Multiply the nominal product flow at 25° C by the temperature correction factor to
determine the flow at various other temperatures.
VI. Appendix
The following tables are intended as a guide to determining the flow
rates for the PWR8024 series RO systems. All flows are in gallons
per minute (GPM).
Nominal flows for systems with reject recycle and a feed water
Silt Density Index less than 3.
Model Number
PWR80243085
PWR80243125
PWR80243165
PWR80243205
Product (max)
Reject
40
25
60
35
80
45
100
55
Nominal flows for systems with reject recycle and a feed water
Silt Density Index less than 3.
Model Number
PWR80243085
PWR80243125
PWR80243165
PWR80243205
Product (max)
Reject
Reject Recycle
40
14
11
60
20
15
80
27
18
100
34
21
Nominal flows for systems not using reject recycle and a feed
water Silt Density Index of 3 to less than 5.
Model Number
PWR80243085
PWR80243125
PWR80243165
PWR80243205
Product (max)
Reject
34
19
51
28
68
37
85
46
Nominal flows for systems with reject recycle and a feed water
Silt Density Index of 3 to less than 5.
Model Number
PWR80243085
PWR80243125
PWR80243165
PWR80243205
Product (max)
Reject
Reject Recycle
34
12
7
51
17
11
68
23
14
85
29
17
11
LIMITED WARRANTY: Certain Watts Pure Water products come with a limited warranty from Watts Regulator Co. Other products may have no warranty or are covered by the original manufacturer’s
warranty only. For specific product warranty information, please visit www.watts.com or the published literature that comes with your product. Any remedies stated in such warranties are exclusive and
are the only remedies for breach of warranty. EXCEPT FOR THE APPLICABLE PRODUCT WARRANTY, IF ANY, WATTS MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED. TO THE FULLEST EXTENT
PERMITTED BY APPLICABLE LAW, WATTS HEREBY SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND IN NO EVENT SHALL WATTS BE LIABLE, IN CONTRACT, TORT, STRICT LIABILITY OR UNDER ANY OTHER LEGAL THEORY, FOR
INCIDENTAL, INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING, WITHOUT LIMITATION, LOST PROFITS OR PROPERTY DAMAGE, REGARDLESS OF WHETHER IT WAS INFORMED ABOUT
THE POSSIBILITY OF SUCH DAMAGES.
A Watts Water Technologies Company
IOM-WQ-PWR8024 1105
USA: North Andover, MA • Tel. (800) 224-1299 • www.watts.com
Canada: Burlington, ON • Tel. (888) 208-8927 • www.wattscanada.ca
EDP# 2915861
© 2011 Watts
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
