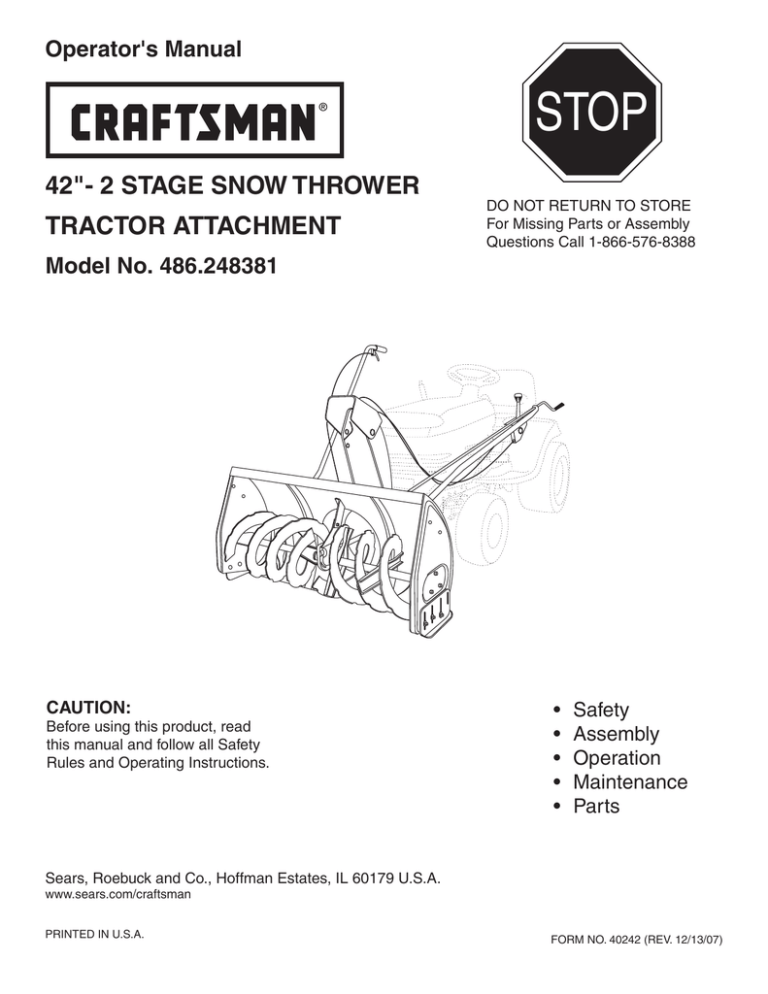

Operator's Manual
®
42"- 2 STAGE SNOW THROWER
TRACTOR ATTACHMENT
STOP
DO NOT RETURN TO STORE
For Missing Parts or Assembly
Questions Call 1-866-576-8388
Model No. 486.248381
CAUTION:
Before using this product, read
this manual and follow all Safety
Rules and Operating Instructions.
•
•
•
•
•
Safety
Assembly
Operation
Maintenance
Parts
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman
PRINTED IN U.S.A.
FORM NO. 40242 (REV. 12/13/07)
TABLE OF CONTENTS
ACCESSORIES................................................................2
SAFETY RULES...............................................................3
FULL SIZE HARDWARE CHART.....................................4
CARTON CONTENTS......................................................6
ASSEMBLY.......................................................................7
OPERATION...................................................................27
MAINTENANCE.............................................................28
SERVICE AND ADJUSTMENTS.................................... 29
STORAGE...................................................................... 30
TROUBLESHOOTING.................................................... 30
REPAIR PARTS ILLUSTRATION......................... 34,36,38
REPAIR PARTS LIST........................................... 35,37,38
SLOPE GUIDE............................................................... 39
PARTS ORDERING/SERVICE....................BACK COVER
WARRANTY
ONE YEAR FULL WARRANTY
When operated and maintained according to the instructions supplied with it, if this Snowthrower fails due to a defect in
material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME® to arrange for free repair (or
replacement if repair proves impossible).
If this product is used for commercial or rental purposes, this warranty applies for only 90 days from the date of purchase.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
Sears, Roebuck and Co., D817WA, Hoffman Estates, IL 60179
ACCESSORIES AND ATTACHMENTS
These and other accessories are recommended for use with your unit. Call 1-800-4-MY-HOME® to find out if they are available.
If available, they may be purchased at most Craftsman outlets or by calling 1-800-4-MY-HOME®.
WHEEL WEIGHT
TIRE CHAINS
The model number and serial numbers will be found on a
decal attached to the snow thrower.
You should record both the serial number and the date of
purchase and keep in a safe place for future reference.
2
SNOW CAB
71-24276
MODEL NUMBER:
486.248381
SERIAL NUMBER:
__________________
DATE OF PURCHASE:
__________________
SAFETY
Any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment.
Exercise caution at all times, when using power equipment.
• Read this owner's manual carefully and know how to
operate your snow thrower and how to stop the unit
and disengage the controls quickly.
• Never allow children to operate the equipment.
• Never allow adults to operate the equipment without
proper instruction.
• Keep the area of operation clear of all persons,
especially small children, and pets.
• Thoroughly inspect the area where the equipment is
to be used and remove all door mats, sleds, boards,
wires and other foreign objects.
• Disengage all clutches and shift into neutral before
starting engine.
• Do not operate equipment without wearing adequate
winter outer garments.
• Wear substantial footwear which will protect feet and
improve footing on slippery surfaces.
• Check fuel before starting the engine. Do not remove
the fuel cap or fill the fuel tank while the engine
is running or hot. Do not fill the fuel tank indoors.
Gasoline is an extremely flammable fuel.
• Make sure the snow thrower height is adjusted to
clear the type surface it will be used on.
• Do not use the snow thrower without the rear weight
attached to the tractor.
• Never make any adjustments while the engine is
running.
• Always wear safety glasses or eye shield during
operation or while performing adjustment or repair.
• Do not place hands or feet near rotating parts. Keep
clear of the discharge opening at all times.
• Use extreme caution when operating on or crossing
gravel surfaces.
• Do not carry passengers.
• After striking a foreign object, stop the engine, remove
the wire from the spark plug and then thoroughly
inspect the snow thrower for damage. Repair any
damage before restarting and operating the snow
thrower.
• If the snow thrower starts to vibrate abnormally, stop
the engine immediately and check for the cause.
Vibration is generally a warning of trouble.
• Stop the engine whenever you leave the operating
position, before unclogging the snow thrower or
making any adjustments or inspections.
• Take all possible precautions when leaving the unit
unattended. Disengage the attachment clutch lever or
switch, lower the snow thrower, shift into neutral, set
the parking brake, stop the engine and remove the
key.
• When cleaning, repairing or inspecting, make certain
all moving parts have stopped. Disconnect the spark
plug wire and keep it away from the plug to prevent
accidental starting.
• Do not run engine indoors except when transporting
the snow thrower in or out of the building. Open the
outside doors. Exhaust fumes are dangerous.
• Do not clear snow across the face of slopes. Exercise
extreme caution when changing direction on slopes.
Do not attempt to clear steep slopes. Refer to the
slope guide on page 39 of this manual.
• Never operate the snow thrower without guards,
plates or other safety protection devices in place.
• Never operate the snow thrower near glass
enclosures, automobiles, window wells, drop offs
etc. without proper adjustment of the snow thrower
discharge angle.
• Never direct discharge at bystanders or allow anyone
in front of the snow thrower.
• Never run the snow thrower into material at high
speeds.
• Do not overload the machine capacity by attempting
to clear snow at too fast a rate.
• Never operate the machine at high transport speed
on slippery surfaces. Look behind and use care when
backing up.
• Watch for traffic and stay alert when crossing or
operating near roadways.
• Disengage power to the snow thrower when
transporting or when not in use.
• Use only attachments and accessories approved by
the manufacturer of the snow thrower (such as wheel
weights, counter weights, cabs etc.)
• Never operate the snow thrower without good visibility
or light.
Look for this symbol to point out important safety precautions. It means — Attention!! Become
alert!! Your safety is involved.
3
HARDWARE PACKAGE CONTENTS
SHOWN ACTUAL SIZE
B
A
C
E
D
J
L
K
H
G
F
M
I
O
N
Z
P
U
T
S
AA
BB
V
W,X
R
CC
Y
Q
DD
EE
NOT SHOWN ACTUAL SIZE
GG
PP
QQ
MM
LL
KK
JJ
RR
SS
4
II
HH
FF
NN
TT
OO
REF. QTY.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
1
1
2
2
4
6
6
2
2
2
6
2
2
8
2
4
2
2
7
7
6
8
1
DESCRIPTION
Hex Bolt, 1/2" x 1-1/4"
Hex Bolt, 3/8" x 3-1/4"
Hex Bolt, 3/8" x 1"
Hex Bolt, 5/16" x 1-3/4"
Hex Bolt, 5/16" x 3/4"
Hex Bolt, 1/4" x 1"
Hex Bolt, 3/8" x 1" (Thread Forming)
Hex Bolt, 3/8" x 3/4" (Thread Forming)
Hex Bolt, 5/16" x 3/4" (Thread Forming)
Slotted Truss Head Bolt, 3/8" x 1"
Carriage Bolt, 3/8" x 1"
Carriage Bolt, 5/16" x 1-3/4"
Carriage Bolt , 5/16" x 1-1/4"
Carriage Bolt, 5/16" x 1"
Carriage Bolt, 5/16" x 3/4"
Shoulder Bolt
Shoulder Bolt
Shear Bolt (spare parts)
Lock Washer, 3/8"
Washer, 1/4"
Washer, 5/16"
Washer, 1/2"
Washer, 3/8" (Thin)
REF.
5
X
Y
Z
AA
BB
CC
DD
EE
FF
GG
HH
II
JJ
KK
LL
MM
NN
OO
PP
QQ
RR
SS
TT
QTY.
3
2
6
1
12
21
2
1
1
1
3
1
2
4
1
2
1
2
2
2
1
1
1
DESCRIPTION
Washer, 3/8"
Bowed Washer
Flanged Nut, 1/4"
Flanged Nut, 5/16"
Flanged Nut, 3/8"
Nylock Nut, 5/16" (2 spare parts)
Hex Lock Nut, 3/8"
Nylock Nut, 1/2"
Tarp Strap
Spring
Chute Keeper
Trunnion
Hairpin Cotter, 5/64"
Hairpin Cotter, 1/8"
Hairpin Cotter, 3/32"
Lock Pin
Plastic Cap
Nylon Tie
Chain, Tensioning
Tail Reflector
Small Spacer
Large Spacer
Pulley
CARTON CONTENTS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18
19.
20.
21.
22.
23.
24.
Cross Brace (Weight Tray)
Side Braces (2) (Weight Tray)
Left Hand Side Plate
Right Hand Side Plate
Anti-rotation Bracket
Engagement Rod (Not used on some models)
Suspension Arms (2)
Engine Pulley Keeper (Not used on some models)
Chute Crank Rod Assembly
Support Tube, Crank Rod
Lift Handle and Cable
Cable Bracket
1
2
Plastic Keg
L.H. Hanger Bracket (Outside Mounting)
R.H. Hanger Bracket (Outside Mounting)
Clutch Idler Assembly
V-Belt, Drive (Short) #46989
V-Belt, Drive (Long) #48138
V-Belt, Auger (Attached to Housing Assembly)
Chute and Control Cable Assembly
Housing Assembly
Weight Tray
L.H. Hanger Bracket (Inside Mounting)
R.H. Hanger Bracket (Inside Mounting)
Hardware Package (Stored inside Plastic Keg)
3
4
7
6
5
8
13
14
9
15
10
11
21
12
16
20
22
17
18
19
23
24
6
ASSEMBLY
TOOLS REQUIRED FOR ASSEMBLY
IDENTIFY YOU TRACTOR
(2)7/16" Wrenches
(2)1/2" Wrenches
(2)9/16" Wrenches
(2)3/4" Wrenches
(1) Screw Driver
(1)Knife
STEP 1: (SEE FIGURE 1)
• Look under the front of your tractor. If there is a single
mower deck suspension bracket located underneath
the middle of the front axle, continue on to step
2. If your tractor does not have a mower deck
suspension bracket underneath the middle of the
front axle, skip to step 21 on page 13 for tractors
with dual suspension brackets.
ADDITIONAL ITEMS REQUIRED
General Purpose Grease
REMOVAL OF PARTS FROM CARTON
• Remove all parts and hardware packages from the
carton. Lay out parts and hardware and identify using
the illustrations on pages 4 and 6.
NOTE: Not all of the supplied parts and hardware will be
needed for your particular tractor. Unneeded items may
be discarded after you have completed assembly and
checked operation of unit. DO NOT DISCARD the two
spare shear bolts (R) and 5/16" nylock nuts (CC). Refer
to the Service and Adjustments section on page 29.
MOWER DECK
SUSPENSION
BRACKET
FIGURE 1
CAUTION: Before starting to assemble the
snow thrower, remove the spark plug wire(s),
set the parking brake and remove the key
from the tractor ignition.
INSTRUCTIONS FOR TRACTORS WITH
SINGLE FRONT DECK SUSPENSION
BRACKET
TRACTOR PREPARATION
STEP 2: (SEE FIGURE 2)
• Remove the browning shield from the front of the
tractor as shown. Hold onto the shield as you remove
the second screw to prevent it from falling.
• Be sure to reinstall the browning shield when so
instructed in step 3.
Before performing these instructions, refer to the Service
and Adjustments section of your tractor owner's manual
for specific safety instructions.
• Allow engine, muffler and exhaust deflector to cool
before beginning.
• Remove any front or rear attachment which is
mounted to your tractor.
• Remove the mower deck. Refer to your tractor owner's
manual for removal instructions. Mark all loose parts
and save for reassembly.
• Remove the tractor hood. Refer to your tractor owner's
manual for removal instructions.
REMOVE
FRONT SCREWS
IMPORTANT: Right hand (R.H.) and left hand (L.H.) side
of the tractor are determined from the operators position
while seated on the tractor.
REMOVE
BROWNING SHIELD
FIGURE 2
7
RIGHT SIDE VIEW
INSTALL SIDE PLATES
INSTALL HANGER BRACKETS AND SHOULDER
BOLTS TO OUTSIDE OF FRAME
STEP 3: (SEE FIGURE 3)
• Fasten the R.H. Side Plate (bend facing out) to the
front three holes in the tractor frame using three
3/8" x 1" carriage bolts (K), three 1/2" washers (V)
(see note) and three 3/8" flange nuts (BB). For the
rear hole, use a 5/16" x 1" carriage bolt (N), a 1/2"
washer (V) and a 5/16" nylock nut (CC). Place the 1/2"
washers (V) between the tractor frame and the side
plate. Repeat for L.H. side plate.
• Reinstall the browning shield onto the tractor frame
using the original screws.
STEP 5: (SEE FIGURE 5)
• Remove the bolt, if present, in the hole directly behind
the brake rod on the left side of the tractor frame.
• Attach the L.H. Hanger Bracket (tube facing out) to the
hole using a 5/16" x 3/4" self threading bolt (I).
• Install a round head shoulder bolt (Q) into the hole
that is 9-1/2" to the rear of the bolt you just installed.
Secure it with a 3/8" flange nut (BB) on the inside of
the frame.
BRAKE ROD
NOTE: If there is an engine mounting plate (shown with
dotted lines) leave the 1/2 washer off the bolt that goes
through the plate.
5/16" x 1"
CARRIAGE BOLT (N)
SEE NOTE
5/16"
NYLOCK
NUT (CC)
5/16" x 3/4" SELF
THREADING BOLT (I)
ENGINE MOUNTING
PLATE
L.H. HANGER
BRACKET
SHOULDER
BOLT (Q)
3/8" FLANGED
NUT (BB)
(3) 3/8" x 1"
CARRIAGE
BOLTS (K)
FIGURE 5
LEFT SIDE VIEW
(4) 1/2" WASHERS (V)
STEP 6: (SEE FIGURE 6)
• Remove the bracket, if present, from the hole directly
behind the end of the brake rod on the right side of
the tractor frame. Store the bracket and bolt.
• Attach the R.H. Hanger Bracket to the hole using a
5/16" x 3/4" self threading bolt (I).
• Install a round head shoulder bolt (Q) into the hole
that is 9-1/2" to the rear of the bolt you just installed.
Secure it with a 3/8" flange nut (BB) on the inside of
the frame.
(3) 3/8" FLANGE NUTS (BB)
FIGURE 3
RIGHT SIDE VIEW
STEP 4: (SEE FIGURE 4)
• Assemble a shoulder bolt (P) and a 3/8" washer (X)
to the outside of R.H. side plate, securing it with a
3/8" flanged nut (BB). Repeat for L.H. side plate.
5/16" x 3/4" SELF
THREADING BOLT (I)
RIGHT END OF
BRAKE ROD
R.H. HANGER
BRACKET
SHOULDER
BOLT (Q)
SHOULDER
BOLT (P)
3/8" WASHER (X)
FIGURE 4
3/8" FLANGED
NUT (BB)
3/8" FLANGED
NUT (BB)
RIGHT SIDE VIEW
FIGURE 6
8
RIGHT SIDE VIEW
THIS SECTION IS FOR TRACTORS WITH A
MANUAL ATTACHMENT CLUTCH
STEP 9: (SEE FIGURE 9)
• Attach the cable bracket to the slot shown in the
clutch/idler assembly using a 5/16" x 3/4" carriage
bolt (O) and a 5/16" nylock nut (CC). Place the bolt in
the front hole of the bracket and in the end of the slot
closest to the pulley. Do not tighten yet.
If your tractor has an electric attachment clutch go to
step 14 on page 11.
STEP 7: (SEE FIGURE 7)
• Attach the pulley (long end of hub facing down) and
the large spacer (SS) to the hole shown in the clutch/
idler assembly. Use a 3/8" x 3-1/4" hex bolt (B), a 3/8"
washer (X), a 3/8" lock washer (S) and a 3/8" hex lock
nut (DD).
3/8" HEX LOCK NUT (DD)
3/8" LOCKWASHER (S)
PULLEY (TT)
LARGE SPACER (SS)
5/16" x 3/4"
CARRIAGE BOLT (O)
CABLE
BRACKET
3/8"
WASHER (X)
LONG END
OF HUB
3/8" X 3-1/4"
HEX BOLT
(B)
5/16" NYLOCK
NUT (CC)
FIGURE 9
STEP 10: (SEE FIGURE 10)
• Two different length drive belts are included with
your snow thrower. Tractors with manual attachment
clutches and single front deck suspension brackets use
the 56" drive belt with #48138 printed on the outside of
the belt. DO NOT USE the other belt.
• Slightly loosen the hex bolt next to the flat idler pulley.
Install the drive belt down between the hex bolt and the
flat idler pulley with the flat side of the belt against the
pulley. Retighten the hex bolt.
• Loop the belt around the large v-pulley, placing it
between the v-pulley and the hex bolt next to the pulley.
Place the belt to the inside of the other flat idler pulley.
FIGURE 7
STEP 8: (SEE FIGURE 8)
• Attach the two suspension arms to the rear of the
clutch/idler assembly using two 5/16" x 3/4" hex bolts
(E) and 5/16" nylock nuts (CC) for each arm. Place the
arms on the outside of the frame with the notches to
the rear.
• Insert a tensioning chain through the hole shown and
attach the end link to the spring on the lower idler arm.
HEX BOLTS
FLAT IDLER
PULLEYS
(#48138)
DRIVE BELT
FIGURE 10
5/16" NYLOCK
NUT (CC)
5/16" x 3/4"
HEX BOLT (E)
TENSIONING CHAIN (PP)
STOP
FIGURE 8
9
Did you select the correct drive belt for your
tractor? Using the wrong length belt may
cause premature bearing or belt failure.
STEP 11: (SEE FIGURE 11)
• Find the cable clip that is attached to the left side
of the tractor frame underneath the footrest. Open
the clip and remove the mower clutch cable. Do not
remove the clip from the tractor frame. The cable
reattaches to the clip when using the mower deck.
• Move the attachment clutch lever on the dash panel to
the disengaged position.
• Place the clutch/idler assembly on the floor on the left
side of the tractor.
• Attach the tractor's mower clutch cable to the cable
bracket on the clutch/idler assembly. Secure the cable
housing guide (groove down) to the cable bracket
using the original collar and a 5/64" hair cotter pin ( JJ).
• Place a spacer (RR) on the welded pin on the idler
arm. Hook the end of the clutch cable spring over the
pin and secure it with a 1/4" washer (T) and a 5/64"
hair cotter pin (JJ).
• Align cable bracket with welded pin and tighten the
nut assembled in step 9.
PIVOT LOCK PIN (MM)
(use this hole)
1/8" HAIRPIN
COTTER (KK)
L.H. HANGER
BRACKET
NYLON TIE (OO)
SHOULDER
BOLT (Q)
MOWER
CLUTCH
CABLE
FIGURE 12
VIEWED FROM LEFT SIDE
5/64" HAIR
COTTER PIN (JJ)
STEP 13: (SEE FIGURE 13)
• Assemble the drive belt onto the engine pulley first
and then onto the large pulley on top of the clutch/
idler assembly. The belt must be placed inside the
engine pulley belt keeper(s) and between the large
pulley and the keeper bolt next to it.
1/4" WASHER (T)
SPACER (RR)
IMPORTANT: Do Not assemble the "V" belt outside of
the engine pulley keepers or outside of the keeper bolt
next to the large pulley.
5/64" HAIR
COTTER PIN (JJ)
TRACTOR'S
CLUTCH CABLE
• Go to step 48 on page 21.
CABLE
BRACKET
ENGINE
PULLEY
KEEPER
FIGURE 11
ENGINE
ENGINE
PULLEY
PULLEY
ENGINE
PULLEY
KEEPER
5/64" HAIR
COTTER PIN
ATTACH CLUTCH IDLER ASSEMBLY TO TRACTOR
STEP 12: (SEE FIGURE 12)
1/4" WASHER
• Attach the clutch/idler assembly to the tractor frame.
Hook the notched suspension arms onto the two
shoulder bolts (Q) assembled to the outside of the
tractor frame. Lift the front of the assembly and attach
it to the R.H. and L.H. hanger brackets using SPACER
two pivot
lock pins (MM) and 1/8" hairpin cotters (KK).
• Loosely attach the mower clutch cable to the left side
of the tractor frame with a nylon tie (OO). Do not pull
the nylon tie completely tight. The cable may need to
be removed from the nylon tie when using the mower
TRACTOR'S
CABLE
deck.
CLUTCH CABLE
BRACKET
Left Side
of Tractor
IDLER
PULLEY
FIGURE 13
GROOVE
10
KEEPER BOLT
VIEWED FROM UNDERNEATH
THIS SECTION IS FOR TRACTORS WITH AN
ELECTRIC ATTACHMENT CLUTCH
STEP 16: (SEE FIGURE 16)
• Hook one end of the spring supplied in the parts bag
through the end link of the tensioning chain.
• With the clutch/idler assembly turned upside down,
hook the other end of the spring onto the end of the
bolt and nut which secure the idler pulley to the upper
idler arm. Assemble a 3/8" hex lock nut (DD) onto the
bolt and nut, leaving enough gap between the nuts for
the spring to pivot freely.
• Attach a 3/32" hairpin cotter (LL) to the chain, placing
it in the fifth link from the spring.
STEP 14: (SEE FIGURE 14)
• Attach the two suspension arms to the rear of the
clutch/idler assembly using two 5/16" x 3/4" hex bolts
(E) and 5/16" nylock nuts (CC) for each arm. Place the
arms on the outside of the frame with the notches to
the rear.
• Insert a tensioning chain through the hole shown and
attach the end link to the spring on the lower idler arm.
SPRING
5TH LINK
CHAIN
(L.H. SIDE)
ATTACH
SPRING
HERE
3/8" HEX
LOCK NUT (DD)
3/32" HAIR
COTTER PIN (LL)
5/16" NYLOCK
NUT (CC)
5/16" x 3/4"
HEX BOLT (E)
RIGHT
SIDE
TENSIONING CHAIN (PP)
FIGURE 14
LEFT
SIDE
FIGURE 16
STEP 15: (SEE FIGURE 15)
• Turn the clutch/idler assembly upside down and place
the extra tensioning chain (PP) through the left front
hole.
VIEW OF BOTTOM
SELECT THE CORRECT DRIVE BELT
(Electric clutch tractors with a single front deck
suspension bracket)
STEP 17: (SEE TABLE 1)
• Two different length drive belts are included with
your snow thrower. Use the table below to select
the correct drive belt for your type tractor. The part
number is printed on the outside of the belt .
• Set aside the belt that is not for your tractor to avoid
accidentally using it.
LEFT FRONT HOLE
55" BELT (PART #46989)
TRACTOR TYPE
DECK SIZE
CLUTCH TYPE
TENSIONING CHAIN (PP)
(LT) Lawn Tractor
38", 42"
Electric
FIGURE 15
56" BELT (PART #48138)
TRACTOR TYPE
DECK SIZE
CLUTCH TYPE
(LT) Lawn Tractor
(GT) Garden Tractor
TABLE 1
11
48"
48", 54"
Electric
Electric
STEP 18: (SEE FIGURE 17)
• Turn the clutch/idler assembly right side up.
• Slightly loosen the hex bolt next to the flat idler pulley.
Install the drive belt down between the hex bolt and the
flat idler pulley with the flat side of the belt against the
pulley. Retighten the hex bolt.
• Loop the belt around the large v-pulley, placing it
between the v-pulley and the hex bolt next to the pulley.
STEP 20: (SEE FIGURE 19)
• Assemble the drive belt onto the engine pulley first
and then onto the large pulley on top of the clutch/
idler assembly. Place the belt to the inside of the idler
pulley and the belt keeper bolt located beside the
large pulley.
• Place tension on the belt by pulling the left side
tensioning chain (PP) out as far as the 3/32" hairpin
cotter in the chain will allow. Secure the chain in this
position by inserting a 1/8" hairpin cotter (KK) through
the chain.
FLAT IDLER
PULLEY
HEX BOLTS
IMPORTANT: Do Not assemble the drive belt around the
outside of the keeper bolt beside the large pulley.
• Go to step 48 on page 21.
CLUTCH/IDLER ASSEMBLY
DRIVE BELT
ENGINE
ENGINE
PULLEY
PULLEY
FIGURE 17
STOP
Did you choose the correct drive belt for
your tractor? Using the wrong length belt
may cause premature bearing or belt failure.
IDLER
PULLEY
STEP 19: (SEE FIGURE 18)
• Attach the clutch/idler assembly to the tractor frame.
Hook the notched suspension arms onto the two
shoulder bolts (Q) assembled to the outside of the
tractor frame. Lift the front of the assembly and attach
it to the R.H. and L.H. hanger brackets using two pivot
lock pins (MM) and 1/8" hairpin cotters (KK).
PIVOT LOCK PIN (MM)
(use second hole)
L.H. HANGER
BRACKET
CHAIN (PP)
(L.H. SIDE)
KEEPER
BOLT
SHOULDER
BOLT (Q)
FIGURE 19
1/8" HAIRPIN
COTTER (KK)
FIGURE 18
1/8" HAIRPIN
COTTER (KK)
VIEWED FROM LEFT SIDE
12
VIEWED FROM UNDERNEATH
INSTRUCTIONS FOR TRACTORS WITH DUAL
FRONT DECK SUSPENSION BRACKETS
STEP 23: (SEE FIGURE 22)
• Remove any bolts found in the holes shown.
REMOVE BOLTS
IF PRESENT
FASTEN SIDE PLATES TO TRACTOR
If your tractor resembles figure 20, go to step 21.
If your tractor resembles figure 22, go to step 23.
STEP 21: (SEE FIGURE 20)
• Remove bolts from front three holes shown.
• If a bolt is present in the fourth hole, replace it with a
5/16" x 1" carriage bolt (N) without a nut. The bracket
fastened to inside of frame must remain in place.
SUSPENSION
BRACKET
REPLACE BOLT
(IF PRESENT)
FIGURE 22
REMOVE BOLTS
(IF PRESENT)
STEP 24: (SEE FIGURE 23)
• Fasten the R.H. Side Plate (bend facing out) to the
three holes shown in the tractor frame. Use three 3/8" x
1" thread forming bolts (G), 1/2" washers (V) and 3/8"
lock washers (S). Tighten all bolts and repeat for the
L.H. side.
NOTE: If the bolt inserts freely into the front hole, assemble
a 3/8" flanged nut (BB) onto the bolt.
(3) 1/2" WASHERS (V)
FRONT
SUSPENSION
BRACKET
FIGURE 20
RIGHT SIDE VIEW
STEP 22: (SEE FIGURE 21)
• Fasten the R.H. Side Plate (bend facing out) to the front three holes shown in the tractor frame using
three 3/8" x 1" thread forming bolts (G), three 3/8"
lock washers (S) and one 1/2" washer (V) placed on
the third bolt as a shim between the side plate and
the frame. Tighten all bolts. Repeat for the L.H. side.
NOTE: If you installed a bolt in the fourth hole in step 21,
assemble a 5/16" flange nut (AA) onto the bolt after the
side plate is installed.
• Go to step 25 on this page.
5/16" x 1"
CARRIAGE BOLT (N)
(SEE NOTE)
5/16" FLANGED
NUT (AA)
(SEE NOTE)
(3) 3/8" LOCK
WASHERS (S)
(3) 3/8" x 1"
THREAD FORMING
BOLTS (G)
3/8" FLANGED NUT (BB)
(SEE NOTE)
FIGURE 23
RIGHT SIDE VIEW
STEP 25: (SEE FIGURE 24)
• Assemble a shoulder bolt (P) and a 3/8" washer (X)
to the outside of each side plate, securing them with
a 3/8" flanged nut (BB).
1/2" WASHER (V)
(3) 3/8" x 1"
THREAD FORMING
BOLTS (G)
FIGURE 21
RIGHT SIDE VIEW
SHOULDER
BOLT (P)
(3) 3/8" LOCK
WASHERS (S)
3/8" WASHER (X)
RIGHT SIDE VIEW
FIGURE 24
13
3/8" FLANGED
NUT (BB)
RIGHT SIDE VIEW
INSTALLING SHOULDER BOLTS
INSTALLING HANGER BRACKETS
For better clearance, lower the tractor's suspension arms
using the attachment lift lever.
STEP 27: (SEE FIGURE 27)
• Remove the bolt, washer and nut which fasten the
sway bar bracket to the L.H. side of the tractor frame.
Replace with a shoulder bolt (P) and a 3/8" flanged
nut (BB). Bolt goes on inside of frame.
STEP 26: (SEE FIGURE 25 or 26)
On Tractors With Foot Rest Brackets
• Remove the bolt and nut that fasten the L.H. and R.H.
foot rest brackets to the frame.
• Attach the L.H. Hanger Bracket (marked "L") to the
inside of the tractor frame using two 3/8" x 1" carriage
bolts (K) and 3/8" flanged nuts (BB). Bolt heads go on
inside of tractor frame. Repeat for the R.H. side.
BOLT REMOVED
FROM THIS HOLE
3/8" FLANGED
NUT (BB)
SHOULDER BOLT (P)
BOLT REMOVED
FROM THIS HOLE
SWAY BAR
BRACKET
FIGURE 27
3/8"
FLANGED
NUT (BB)
LEFT SIDE VIEW
SUSPENSION ARM
3/8" x 1"
CARRIAGE
BOLT (K)
L.H. HANGER
BRACKET
FIGURE 25
STEP 28: (SEE FIGURE 28)
• Assemble a shoulder bolt (P) and 3/8" flanged nut
(BB) to the R.H. side of the tractor frame, using the
first empty hole to the rear of the R.H. hanger bracket.
Bolt goes on inside of frame.
LEFT SIDE VIEW
On Tractors Without Foot Rest Brackets
• Find the empty hole beneath the foot rest. Attach the
L.H. Hanger Bracket (marked "L") to the inside of the
frame using a 3/8" x 1" carriage bolt (K) and a 3/8"
flanged nut (BB). Bolt head goes on inside of tractor
frame. Repeat for the R.H. side.
3/8" FLANGED
NUT (BB)
3/8"
FLANGED
NUT (BB)
SHOULDER BOLT (P)
R.H. HANGER BRACKET
SUSPENSION ARM
3/8" x 1"
CARRIAGE
BOLT (K)
FIGURE 26
FIGURE 28
L.H. HANGER
BRACKET
LEFT SIDE VIEW
14
RIGHT SIDE VIEW
INSTALLING CLUTCH/IDLER ASSEMBLY
This section covers the installation of the Clutch/Idler
assembly to tractors with attachment clutches that are
either rod operated (p. 15), cable operated (p. 17) or
electric (p. 19). Use the appropriate instructions for your
tractor.
ROD OPERATED MANUAL ATTACHMENT CLUTCH
5/16" NYLOCK
NUT (CC)
STEP 29: (SEE FIGURE 29)
• Move the attachment clutch lever on the dash panel to
the disengaged (down) position.
• Screw the trunnion (II) onto the end of the snow
thrower engagement rod.
• Locate the clutch arm (where the mower clutch rod
was connected) underneath the right hand side the
tractor, just to the inside of the suspension arm. If
there is an extension attached to the clutch lever, the
extension, bolt and nut must be removed and stored
with the mower deck.
IMPORTANT: Re-attach the extension to the clutch
lever before reinstalling the mower deck.
• Position the engagement rod to the inside of the
clutch arm and insert the drilled end of the rod
through the arm. Secure with a 5/64" hairpin cotter
(JJ).
5/16" WASHER (U)
5/16" x 3/4"
HEX BOLT (E)
TENSIONING CHAIN (PP)
FIGURE 30
STEP 31: (SEE FIGURE 31)
• Two different length drive belts are included with
your snow thrower. Tractors with manual attachment
clutches and dual front deck suspension brackets use
the 55" drive belt with #46989 printed on the outside
of the belt. DO NOT USE the other belt.
• Slightly loosen the hex bolt next to the flat idler pulley.
Install the drive belt down between the hex bolt and the
flat idler pulley with the flat side of the belt against the
pulley. Retighten the hex bolt.
• Loop the belt around the large v-pulley, placing it
between the v-pulley and the hex bolt next to the pulley.
TRACTOR'S CLUTCH ARM
ENGAGEMENT ROD
TRUNNION (II)
HEX BOLTS
FLAT IDLER
PULLEY
SUSPENSION ARM
5/64" HAIRPIN
COTTER (JJ)
REMOVE EXTENSION,
BOLT AND NUT
(IF PRESENT)
FIGURE 29
(#46989)
DRIVE BELT
RIGHT SIDE VIEW
FIGURE 31
STOP
STEP 30: (SEE FIGURE 30)
• Attach the two suspension arms to the inside of the
clutch/idler assembly using two 5/16" x 3/4" hex bolts
(E), 5/16" washers (U) and 5/16" nylock nuts (CC) for
each arm. Place the washers between the arms and
the assembly frame.
• Insert a tensioning chain through the hole shown and
attach the end link to the spring on the lower idler arm.
15
Did you choose the correct drive belt for
your tractor? Using the wrong length belt
may cause premature bearing or belt failure.
STEP 32: (SEE FIGURE 32)
• Be sure to lift up the front end of the engagement rod
as shown when performing the next operation. You
can temporarily support the rod using a rubber band
tied to the engine pulley keeper.
• Attach the clutch/idler assembly to the tractor frame
as follows. Hook the assembly's notched arms onto
the two shoulder bolts you assembled to the inside
of the tractor frame. Lift the front of the assembly and
attach it to the R.H. and L.H. hanger brackets using
two pivot lock pins (MM) and 1/8" hairpin cotters (KK).
NEW ENGINE PULLEY KEEPER WITH
ORIGINAL BOLT, NUT AND WASHER
TRUNNION (II)
STOP BOLT
IDLER ARM
PIVOT LOCK PIN (MM)
(use second hole)
1/8" HAIRPIN COTTER (KK)
3/8" THIN
WASHER (W)
ENGAGEMENT
ROD
5/64" HAIRPIN
COTTER (JJ)
FIGURE 33
RIGHT SIDE VIEW
STEP 34: (SEE FIGURE 34)
• Assemble the short "V" belt onto the engine pulley
and then onto the large pulley on top of the clutch/idler
assembly. The belt must be placed to the inside of the
engine pulley keeper, the idler pulley and the keeper
bolt located beside the large pulley.
IMPORTANT: Do Not assemble the "V" belt around the
outside of the engine pulley keeper or the keeper bolt.
• Go to step 48 on page 21.
FIGURE 32
RIGHT SIDE VIEW
CLUTCH/IDLER ASSEMBLY
ENGINE
PULLEY
KEEPER
STEP 33: (SEE FIGURE 33)
• Make sure the attachment clutch lever on the dash
panel is in the disengaged (down) position.
• Pivot the upper idler arm so that it rests against the
stop bolt and is pointing toward the front as shown.
Screw the trunnion (II) along the threads of the
engagement rod until it is aligned at the front end of
the idler arm slot. Attach the trunnion (II) to the slot
using the 3/8" thin washer (W) and a 5/64" hairpin
cotter (JJ).
• Remove the engine pulley keeper from the side of
the tractor frame by removing the washer and nut
that secure the keeper. Attach the new pulley keeper
supplied with the snow thrower, reusing the original
bolt, washer and nut.
NOTE: Some tractors may already be equipped with a
pulley keeper that is identical to the new one supplied.
Left Side
of Tractor
ENGINE
PULLEY
IDLER
PULLEY
FIGURE 34
16
KEEPER BOLT
VIEWED FROM UNDERNEATH
CABLE OPERATED MANUAL ATTACHMENT CLUTCH
• Slightly loosen the hex bolt next to the flat idler pulley.
Install the drive belt down between the hex bolt and the
flat idler pulley with the flat side of the belt against the
pulley. Retighten the hex bolt.
• Loop the belt around the large v-pulley, placing it
between the v-pulley and the hex bolt next to the pulley.
STEP 35: (SEE FIGURE 35)
• Attach the two suspension arms to the inside of the
clutch/idler assembly using two 5/16" x 3/4" hex bolts
(E), 5/16" washers (U) and 5/16" nylock nuts (CC) for
each arm. Place the washers between the arms and
the assembly frame.
• Insert a tensioning chain through the hole shown and
attach the end link to the spring on the lower idler arm.
HEX BOLTS
FLAT IDLER
PULLEY
(#46989)
DRIVE BELT
FIGURE 37
5/16" NYLOCK
NUT (CC)
5/16" WASHER (U)
5/16" x 3/4"
HEX BOLT (E)
STOP
TENSIONING CHAIN (PP)
Did you choose the correct drive belt for
your tractor? Using the wrong length belt
may cause premature bearing or belt failure.
STEP 38: (SEE FIGURE 38)
• Move the attachment clutch lever on the dash panel to
the disengaged (down) position.
• Place the clutch/idler assembly on the floor on the right
side of the tractor.
• Attach the tractor's clutch cable to the cable bracket.
Secure the cable housing guide (groove down) to the
cable bracket using the original collar and a 5/64" hair
cotter pin (JJ ).
• Place a spacer (RR) on the welded pin on the idler
arm. Hook the end of the clutch spring over the pin and
secure it with a 1/4" washer (T) and a 5/64" hair cotter
pin (JJ).
FIGURE 35
STEP 36: (SEE FIGURE 36)
• Assemble the cable bracket to the inner half of the
double holes in the bottom of the clutch/idler assembly
using two 5/16" x 3/4" carriage bolts (O) and 5/16"
nylock nuts (CC). Use the front holes in the cable
bracket if your tractor has a 42" mower deck. Use the
rear holes if your tractor has a 46" mower deck.
5/16" x 3/4"
CARRIAGE BOLT (O)
5/64" HAIR
COTTER PIN (JJ)
CABLE
BRACKET
1/4" WASHER (T)
46"
DECKS
42"
DECKS
SPACER (RR)
5/16" NYLOCK
NUT (CC)
FIGURE 36
STEP 37: (SEE FIGURE 37)
• Two different length drive belts are included with
your snow thrower. Tractors with manual attachment
clutches and dual front deck suspension brackets use
the 55" drive belt with #46989 printed on the outside
of the belt. DO NOT USE the other belt.
TRACTOR'S
CLUTCH CABLE
5/64" HAIR
COTTER PIN (JJ)
FIGURE 38
17
5/64" HAIR
COTTER PIN (NN)
STEP 39: (SEE FIGURE 39)
• Remove the engine pulley keeper from the side of
the tractor frame by removing the washer and nut
that secure the keeper. Attach the new pulley keeper
supplied with the snow thrower, reusing the original
bolt, washer and nut.
STEP 40: (SEE FIGURE 40)
• Assemble the short "V" belt onto the engine pulley
and then onto the large pulley on top of the clutch/idler
assembly. The belt must be placed to the inside of the
engine pulley keeper, the idler pulley and the keeper
bolt located beside the large pulley.
NOTE: Some tractors may already be equipped with a
pulley keeper that is identical to the new one supplied.
IMPORTANT: Do Not assemble the "V" belt around the
outside of the engine pulley keeper or the keeper bolt.
• Attach the clutch/idler assembly to the tractor frame
as follows. Hook the assembly's notched arms onto
the two shoulder bolts you assembled to the inside
of the tractor frame. Lift the front of the assembly and
attach it to the R.H. and L.H. hanger brackets using
two pivot lock pins (MM) and 1/8" hairpin cotters (KK).
• Go to step 48 on page 21.
CLUTCH/IDLER ASSEMBLY
ENGINE
PULLEY
KEEPER
NEW ENGINE PULLEY KEEPER WITH
ORIGINAL BOLT, NUT AND WASHER
Left Side
of Tractor
ENGINE
PULLEY
PIVOT LOCK PIN (MM)
(use second hole)
1/8" HAIRPIN COTTER (KK)
IDLER
PULLEY
FIGURE 40
FIGURE 39
18
KEEPER BOLT
VIEWED FROM UNDERNEATH
ELECTRIC ATTACHMENT CLUTCHES
STEP 43: (SEE FIGURE 43)
• Hook the spring from the parts bag through the end of
the tensioning chain.
• Hook the other end of the spring onto the bottom of
the bolt and nut which secure the idler pulley to the
upper idler arm. Hold the bolt head and assemble a
3/8" hex lock nut (DD) onto the bolt, leaving enough
space for the spring to pivot freely between the two
nuts.
• Attach a 3/32" hairpin cotter (LL) to the chain, placing
it in the fifth link from the spring.
STEP 41: (SEE FIGURE 41)
• Attach the two suspension arms to the inside of the
clutch/idler assembly using two 5/16" x 3/4" hex bolts
(E), 5/16" washers (U) and 5/16" nylock nuts (CC) for
each arm. Place the washers between the arms and
the assembly frame.
• Insert a tensioning chain through the hole shown and
attach the end link to the spring on the lower idler arm.
SPRING
5TH LINK
CHAIN
(L.H. SIDE)
ATTACH
SPRING
HERE
3/8" HEX
LOCK NUT (DD)
5/16" NYLOCK
NUT (CC)
3/32" HAIR
COTTER PIN (LL)
5/16" WASHER (U)
5/16" x 3/4"
HEX BOLT (E)
TENSIONING CHAIN (PP)
RIGHT
SIDE
LEFT
SIDE
FIGURE 41
FIGURE 43
STEP 42: (SEE FIGURE 42)
• Pace the extra tensioning chain (PP) through the left
front hole in the clutch/idler assembly and then turn
the assembly upside down.
VIEW OF BOTTOM
STEP 44: (SEE TABLE 2)
• Two different length drive belts are included with
your snow thrower. Use the table below to select
the correct drive belt for your type tractor. The part
number is printed on the outside of the belt .
• Set aside the belt that is not for your tractor to avoid
accidentally using it.
55" BELT (PART #46989)
TRACTOR TYPE
DECK SIZE
CLUTCH TYPE
LEFT FRONT HOLE
(LT) Lawn Tractor
TENSIONING CHAIN (PP)
38", 42", 46"
Electric
56" BELT (PART #48138)
TRACTOR TYPE
DECK SIZE
CLUTCH TYPE
FIGURE 42
(LT) Lawn Tractor
TABLE 2
19
48"
Electric
STEP 45: (SEE FIGURE 44)
• Turn the clutch/idler assembly right side up.
• Slightly loosen the hex bolt next to the flat idler pulley.
Install the drive belt down between the hex bolt and the
flat idler pulley with the flat side of the belt against the
pulley. Retighten the hex bolt.
• Loop the belt around the large v-pulley, placing it
between the v-pulley and the hex bolt next to the pulley.
Place the belt to the inside of the other flat idler pulley.
STEP 47: (SEE FIGURE 46)
• Assemble the drive belt onto the engine pulley and
then onto the large pulley on top of the clutch/idler
assembly. The belt must be placed to the inside of
the idler pulley and the keeper bolt located beside the
large pulley.
• Place tension on the belt by pulling the left side
tensioning chain out as far as the 3/32" hairpin cotter
(LL) will allow. Secure the chain in this position by
inserting a 1/8" hairpin cotter (KK) through the chain.
FLAT IDLER
PULLEY
HEX BOLTS
IMPORTANT: Do Not assemble the "V" belt around the
outside of the engine pulley keeper or the keeper bolt.
CLUTCH/IDLER ASSEMBLY
ENGINE
ENGINE
PULLEY
PULLEY
DRIVE BELT
1/8" HAIRPIN
COTTER (KK)
FIGURE 44
Did you choose the correct drive belt for
your tractor? Using the wrong length belt
may cause premature bearing or belt failure.
STOP
IDLER
PULLEY
CHAIN (PP)
(L.H. SIDE)
STEP 46: (SEE FIGURE 45)
• Attach the clutch/idler assembly to the tractor frame
as follows. Hook the assembly's notched arms onto
the two shoulder bolts you assembled to the inside
of the tractor frame. Lift the front of the assembly and
attach it to the R.H. and L.H. hanger brackets using
two pivot lock pins (MM) and 1/8" hairpin cotters (KK).
KEEPER
BOLT
FIGURE 46
1/8" HAIRPIN COTTER (KK)
PIVOT LOCK PIN (MM)
(use second hole)
FIGURE 45
RIGHT SIDE VIEW
20
VIEWED FROM UNDERNEATH
ASSEMBLY OF THE SNOW THROWER
STEP 50: (SEE FIGURE 49)
• Tilt the snow thrower back down to the ground.
• Remove the nylon tie which fastens the auger
drive belt to the discharge housing, leaving the belt
assembled around the pulleys.
• Remove the nylon tie which fastens the chute crank
rod to the crank rod support tube.
• Assemble the crank rod support tube to the bracket
on the left side of the discharge housing using two
5/16" x 1-1/4" carriage bolts (M), and 5/16" Nylock
nuts (CC).
STEP 48: (SEE FIGURE 47)
• Place the lift handle into the lift bracket on the right side
of the snow thrower. Fasten the handle to the bracket
using two 5/16" x 1-3/4" hex bolts (D) and 5/16" Nylock
nuts (CC).
DISCHARGE
HOUSING
5/16" x 1-1/4"
CARRIAGE BOLT (M)
5/16" x 1-3/4"
HEX BOLT (D)
5/16" NYLOCK NUT (CC)
FIGURE 47
RIGHT SIDE VIEW
NOTE: Be sure the lift release cable's plastic covering
stays inserted into the trigger assembly for the next step.
CRANK ROD
5/16" NYLOCK NUT (CC) SUPPORT TUBE
STEP 49: (SEE FIGURE 48)
• Push the lift handle down into the locked position.
Insert the end of the cable wire into the hole in the
lift rod. Place the threaded fitting into the slot in the
lift bracket, with one hex nut above and one hex nut
and the lock washer below the slot. Tighten the nuts,
adjusting them to eliminate slack in the cable wire.
Refer also to the Service and Adjustments section on
page 29 in this manual.
FIGURE 49
LEFT SIDE VIEW
STEP 51: (SEE FIGURE 50)
• Attach the chute tilt control assembly to the top side
of the crank support tube using two 5/16" x 1-3/4"
carriage bolts (L), bowed washers (Y) and 5/16"
Nylock nuts (CC).
HINT: For easier assembly of the lift release cable, tilt the
snow thrower forward onto the spiral auger.
CHUTE CRANK ROD
LIFT RELEASE
CABLE
CRANK SUPPORT TUBE
TILT CONTROL HANDLE
HEX NUT
TRIGGER
ASSEMBLY
5/16" x 1-3/4"
CARRIAGE BOLT (L)
BOWED WASHER (Y)
LOCK
WASHER
5/16" NYLOCK NUT (CC)
HEX NUT
CABLE
WIRE
FIGURE 50
LIFT
ROD
FIGURE 48
TILT
CONTROL
ASSEMBLY
RIGHT SIDE VIEW
21
LEFT SIDE VIEW
STEP 52: (SEE FIGURE 51)
• Attach the chute crank rod assembly brackets to
the plastic bracket on the left side of the discharge
housing. Align the chute crank bracket beneath the
rod support bracket and assemble both to the plastic
bracket using two 5/16" x 1" carriage bolts (N), 5/16"
washers (U) and 5/16" Nylock nuts (CC). Do not
tighten yet.
CHUTE CRANK
BRACKET
STEP 53: (SEE FIGURE 52)
• Coat the top of the ring around the discharge opening
with general purpose grease.
• Place the discharge chute (facing forward) onto the
ring. Place the anti-rotation bracket on top of the chute
flange, aligning it with the holes on the right hand side
of the flange. Attach the three chute keepers (HH)
(right side up as shown) to the bottom of the flange
using six 1/4" x 1" hex bolts (F), 1/4" flat washers (T)
and 1/4" flanged lock nuts (Z). Tighten carefully so
that the nuts are snug but do not dig into the plastic
chute keepers.
• Place the plastic cap (NN) onto the short end of the
anti-rotation bracket.
• Position the crank rod spiral (see figure 51) so that it
does not rub against the bottoms of the notches in the
chute flange. Tighten the nuts.
• Check if the crank rod rotates the chute freely. If not,
loosen by 1/4 turn each of the six hex bolts holding
the chute keepers to the chute flange.
• Secure the control cables to the crank rod support
tube using a nylon tie (OO).
5/16" x 1"
CARRIAGE BOLT (N)
CHUTE
CRANK
ROD
SPIRAL
ROD
SUPPORT
BRACKET
5/16" WASHER (U)
1/4" x 1"
HEX BOLT (F)
ANTI-ROTATION
BRACKET
1/4" FLAT
WASHER (T)
5/16" NYLOCK NUT (CC)
FIGURE 51
FLANGE
PLASTIC CAP (NN)
LEFT SIDE VIEW
GREASED
SURFACE
CHUTE KEEPER (HH)
1/4" FLANGED
LOCK NUT (Z)
FIGURE 52
RIGHT SIDE VIEW
STEP 54: (SEE FIGURE 53)
Skip this step if you have a lawn tractor.
This step is for garden tractors only.
• If you have a (GT) Garden Tractor, remove the stop
bolts from each side of the snow thrower frame.
STOP BOLT
FIGURE 53
22
RIGHT SIDE VIEW
ATTACHING SNOW THROWER TO TRACTOR
BEFORE INSTALLING THE AUGER BELT
STEP 56: (SEE FIGURE 55)
• The auger belt comes preassembled to the pulleys on
the snow thrower housing. Make sure the belt passes
over the top of the auger pulley and then twists 1/4
turn to pass underneath each side idler pulley. The
"V" side of the belt must mate with the grooves of the
pulleys.
NOTE: An additional person's help may be required to
mount the snow thrower to the front of the tractor.
STEP 55: (SEE FIGURE 54)
• Place the tractor and snow thrower on a flat, level
surface so that the tractor can be rolled forward to
attach the snow thrower.
• Remove the Attachment Pin from the snow thrower.
• Extend the auger belt out behind the snow thrower,
making sure the belt is still looped over the top of
the large drive pulley and underneath the two idler
pulleys. The "V" side of the belt must be seated in the
grooves of all three pulleys.
• Roll the tractor up behind the snow thrower, centering
it between the snow thrower's mounting plates.
• Raise the rear of the snow thrower by lifting up on
the lift handle until the notches in the mounting plates
align with the shoulder bolts in the tractor's side
plates. Guide the bolts into the notches.
• To ease the assembly of the auger drive belt, delay
the installation of the attachment pin until you have
assembled the belt as instructed in steps 56 and 57.
TWIST
1/4 TURN
AUGER PULLEY
TWIST
1/4 TURN
IDLER
PULLEY
IDLER
PULLEY
FIGURE 55
ATTACHMENT PIN
(After installing auger belt)
INSTALLING THE AUGER BELT
STEP 57: (SEE FIGURE 56)
• Push the lift handle down to increase slack in the belt
(attachment pin must first be removed).
• Swing the idler arm over to the left side.
• Place the auger belt around the rear pulley and
between the two pulleys on the idler arm. The "V"
side of the belt must be seated in the grooves of the
V-pulleys.
1/8" HAIRPIN
COTTER (KK)
SHOULDER
BOLT
SIDE PLATE
CLUTCH/IDLER ASSEMBLY
MOUNTING
PLATE
FIGURE 54
IDLER
ARM
RIGHT SIDE VIEW
REAR
PULLEY
FIGURE 56
23
LEFT SIDE
OF
TRACTOR
VIEWED FROM UNDERNEATH
INSTALLING THE ATTACHMENT PIN
ATTACHING WEIGHT TRAY TO TRACTOR
STEP 58: (REFER BACK TO FIGURE 54 ON PAGE 23)
• Lift the front of the snow blower to align the holes in
the mounting plates and the side plates. From the left
side of the tractor insert the attachment pin through
the holes. Secure it with by reinstalling the 1/8" hairpin
cotter (KK).
ATTACHING TO (LT) LAWN TRACTORS WITH A SINGLE
FRONT DECK SUSPENSION BRACKET
STEP 60: (SEE FIGURE 58)
NOTE: Go to step 63 on page 26 if you plan to use tire
chains and there is only 1-1/2" or less clearance between
the side of the tractor and the tires.
SETTING THE AUGER BELT TENSION
• Screw a 3/8" x 3/4" self threading bolt (H) a few turns
into the unthreaded upper hole in each side of the
tractor's draw bar. Assemble the slotted end of a side
brace down onto each bolt. Do not tighten yet.
• Place the weight tray on top of the tractor hitch and
fasten the side braces to the rear hole in the tray
using two 5/16" x 1" carriage bolts (N) and 5/16"
nylock nuts (CC). Do not tighten yet.
• Fasten the weight tray to the tractor hitch using a 1/2"
x 1-1/4" hex bolt (A) and a 1/2" nylock nut (EE). Do
not tighten yet.
• Fasten the cross brace to the side braces using two
5/16" x 1" carriage bolts (N) and 5/16" nylock nuts
(CC). Tighten all loose bolts at this time.
STEP 59: (SEE FIGURE 57)
• Pull the tensioning chain until the end of the spring is
pulled through the hole in the side of the Clutch/Idler
assembly. Install a 1/8" hairpin cotter (KK) through
the end of the spring, securing it on the outside of the
Clutch/Idler assembly.
IMPORTANT: For correct belt tension, the 1/8" hairpin
cotter must attach to the end of the spring, not to the
chain.
NOTE; To prevent the chain from dragging on the
ground, loop the end of the chain though the pivot lock
pin. Refer to figure 45 on page 20.
DRAWBAR
CLUTCH/IDLER ASSEMBLY
CROSS
BRACE
LEFT SIDE
OF
TRACTOR
5/16"
NYLOCK
NUT (CC)
3/8" x 3/4" SELF
THREADING BOLT (H)
1/2" x 1-1/4"
HEX BOLT (A)
SIDE BRACE
FLAT
PULLEY
WEIGHT
TRAY
1/8"
HAIRPIN
COTTER (KK)
5/16" x 1"
CARRIAGE BOLT (N)
FIGURE 58
END OF
SPRING
FIGURE 57 VIEWED FROM UNDERNEATH
24
5/16" x 1"
CARRIAGE
BOLT (N)
5/16" NYLOCK
NUT (CC)
1/2" NYLOCK NUT (EE)
ATTACHING TO (GT) GARDEN TRACTORS WITH A
SINGLE FRONT DECK SUSPENSION BRACKET
ATTACHING TO LAWN (LT) TRACTORS WITH
DUAL FRONT DECK SUSPENSION BRACKETS
STEP 61: (SEE FIGURE 59)
• Locate the upper empty hole in the right side of the
tractor's draw bar. Insert a 3/8" x 1" hex bolt (C) from
inside the tractor frame through the hole. Hook the
slotted end of a side brace down onto the bolt, then
assemble a 3/8" flanged nut (BB) onto the bolt making
only finger tight. Repeat on left side.
• Place the weight tray on top of the tractor hitch and
fasten the side braces to the front hole in the side of
the tray using two 5/16" x 1" carriage bolts (N) and
5/16" nylock nuts (CC). Do not tighten yet.
• Fasten the weight tray to the tractor hitch using a 1/2"
x 1-1/4" hex bolt (A) and a 1/2" nylock nut (EE). Do
not tighten yet.
• Fasten the cross brace to the side braces using two
5/16" x 1" carriage bolts (N) and 5/16" nylock nuts
(CC). Tighten all loose bolts at this time.
STEP 62: (SEE FIGURE 60)
NOTE: Go to step 63 on page 26 if you plan to use tire
chains and there is only 1-1/2" or less clearance between
the side of the tractor and the tires.
• Loosen the top hex bolt on each side of the tractor
draw bar. Assemble the slotted end of the side braces
down onto the loosened bolts. Do not tighten yet.
• Place the weight tray on top of the tractor hitch and
fasten the side braces to it using two 5/16" x 1"
carriage bolts (N) and 5/16" nylock nuts (CC). Do not
tighten yet.
• Fasten the weight tray to the tractor hitch using a 1/2"
x 1-1/4" hex bolt (A) and a 1/2" nylock nut (EE). Do
not tighten yet.
• Fasten the cross brace to the side braces using two
5/16" x 1" carriage bolts (N) and 5/16" nylock nuts
(CC). Tighten all loose bolts at this time.
DRAWBAR
CROSS
BRACE
3/8" x 1"
HEX BOLT (C)
3/8" FLANGED
NUT (BB)
CROSS
BRACE
1/2" x 1-1/4"
HEX BOLT (A)
ORIGINAL
HEX BOLT or
(SEE NOTE)
1/2" x 1-1/4"
HEX BOLT (A)
SIDE BRACE
SIDE BRACE
WEIGHT
TRAY
5/16" x 1"
CARRIAGE BOLT (N)
5/16" x 1"
CARRIAGE
BOLT (N)
WEIGHT
TRAY
5/16" NYLOCK
NUT (CC)
5/16" x 1"
CARRIAGE BOLT (N)
1/2" NYLOCK NUT (EE)
FIGURE 59
FIGURE 60
25
5/16" x 1"
CARRIAGE
BOLT (N)
5/16" NYLOCK
NUT (CC)
1/2" NYLOCK NUT (EE)
ATTACH REFLECTORS TO REAR FENDER
ALTERNATE INSTRUCTIONS FOR WEIGHT TRAY
STEP 63: (SEE FIGURE 61)
• Block up the rear of the tractor to allow removal of
rear wheels.
• Remove the rear wheels from the axle, retaining the
square key and all other parts for reassembly.
• Remove the hex bolt from the top hole in the side of
the tractor frame. If no bolt is present and the hole is
unthreaded, screw a 3/8" x 3/4" self threading bolt (H)
into and out of the hole to create threads.
• Assemble the notched end of each side brace to the
top hole in the each side of the tractor frame, using a
3/8-16 x 1" slotted truss head bolt (J) for each brace.
• Assemble the weight tray to the side braces as
instructed in step 60 or 62 on pages 24 and 25.
• Reassemble the wheels onto the axle, making sure to
reassemble the square keys and all other parts which
were removed.
STEP 65: (SEE FIGURE 63)
• If your tractor is not equipped with rear reflectors,
assemble the supplied rear reflectors (QQ) to the rear
fender. Place the reflectors as close to the bottom of
the fender and as far apart as the shape of the fender
will allow.
HOLE WITH HEX
BOLT REMOVED
3/8" x 1" SLOTTED
TRUSS HEAD BOLT (J)
REAR REFLECTORS (QQ)
SQUARE KEY
FIGURE 63
TRACTOR
HITCH
CHECKLIST
SIDE BRACE
Before you operate your snow thrower, please review
the following checklist to help ensure that you will
obtain the best performance from your snow thrower.
• Make sure all assembly instructions have been
completed with all bolts and nuts properly tightened.
• Make sure the correct drive belt was installed.
• Make sure the drive belt and auger belt are routed
properly around pulleys and inside all belt keepers.
• Check discharge chute for proper rotation.
• Check operation of tilt control for upper chute.
• Verify that the lift handle will lock into and release
from the raised transport position. (Refer to the
Service and Adjustments section.)
• Check skid shoe adjustment. (Refer to the Service
and Adjustments section.)
FIGURE 61
ATTACHING KEG TO WEIGHT TRAY
STEP 64: (SEE FIGURE 62)
• Place the plastic keg on the weight tray and fill with
approximately 75 lbs. of dry sand.
• Secure the keg with the rubber tarp strap (FF) hooked
into the holes in the cross brace.
The following additional items are available from
Sears to help enhance the performance of your snow
thrower. See Accessories and Attachments on page 2.
• Tire chains which can be installed to improve traction.
• Rear wheel weights which can be installed in addition
to the rear weight tray to improve traction.
• Drift cutter bars which can be installed to help slice off
the edges of tall drifts.
• Snow Cab which can be installed to help protect
against wind and blowing snow.
TARP STRAP (FF)
FIGURE 62
26
OPERATION
KNOW YOUR SNOW THROWER
Read this owner's manual and safety rules before operating your snow thrower.
Compare the illustration below with your snow thrower to familiarize yourself with the various controls and their locations.
LIFT RELEASE TRIGGER
LIFT HANDLE
CHUTE TILT HANDLE
CRANK ROD
UPPER CHUTE
LOWER CHUTE
SKID SHOE
SCRAPER PLATE
SPIRAL AUGERS, R.H. & L.H.
CHUTE TILT HANDLE Pivots the Upper Chute up or down to control the angle and distance of discharge.
CRANK ROD Rotates the Lower and Upper Chutes to
control the direction of discharge.
LIFT HANDLE Used to lift or lower the snow thrower
to transport or operating position.
LIFT RELEASE TRIGGER Releases the lock which
holds the snow thrower in the transport position
UPPER AND LOWER DISCHARGE CHUTE Controls
direction and height of snow discharge.
SCRAPER PLATE Replaceable plate that absorbs
wear and impact from contact with ground.
SKID SHOE Controls amount of clearance between
the scraper plate and the ground.
SPIRAL AUGER, R.H. & L.H. Feed snow to the
impeller fan at the center of the housing.
BEFORE STARTING
HOW TO USE YOUR SNOW THROWER
• Use the end of assembly checklist to verify that all
instructions have been properly completed.
• Make sure the skid shoes are adjusted to maintain
adequate ground clearance between the snow
thrower and the type of surface to be cleared. (Refer
to the Service and Adjustments section.)
• Make sure the tractor engine has the correct oil
for winter operation (SAE 5W-30). Refer to tractor
owner's manual.
CAUTION: Never direct discharge
towards bystanders or windows. Do not
allow anyone in front of unit.
CONTROLLING SNOW DISCHARGE
• To control the direction snow is thrown, the discharge
chute has 180 degrees of rotation. Turn the crank rod
clockwise to rotate the chute to the right. Turn the
crank rod counterclockwise to rotate the chute to the
left.
HOW TO START YOUR SNOW THROWER
• The tractor should be sitting with the engine running
at full throttle. Move the attachment clutch to the
engaged position, starting the snow thrower before
the tractor clutch is engaged.
• To control the distance snow is thrown, the upper
section of the discharge chute pivots up and down.
Push forward on the chute tilt handle to pivot the
chute down, decreasing the distance snow is thrown.
Pull back on the handle to pivot the chute up,
increasing the distance snow is thrown.
HOW TO STOP YOUR SNOW THROWER
• To stop the snow thrower, disengage the tractor's
attachment clutch lever for manual clutches or the
clutch switch for electric clutches. Refer to your tractor
owner's manual.
27
• In extremely deep snow, raise the snow thrower from
the ground to remove the top layer and drive forward
only until the tractors front tires reach the uncleared
bottom layer of snow. Depress the tractor's clutchbrake pedal and allow the spiral auger to clear the
snow. Reverse the tractor and lower the snow thrower
to the ground. Drive the tractor forward until the snow
again becomes too deep. Repeating this process into
and out of drifts will eventually clear even the deepest
of snow piles.
• If the snow thrower becomes clogged with snow or
jammed with a foreign object, disengage the snow
thrower immediately and shut off the tractor engine.
Unclog the snow thrower before resuming operation.
RAISING AND LOWERING
• To raise, push down on the lift handle until the snow
thrower locks in the raised transport position.
• To lower, push down slightly on the lift handle and pull
the trigger. With the trigger pulled, slowly lower the
snow thrower until it reaches the ground.
CAUTION: Do not operate the snow
thrower without the rear weight attached
to the tractor to provide extra traction and
stability.
REMOVING SNOW
Snow removal conditions vary greatly from light fluffy
snowfall to wet heavy snow. Operating instructions must
be flexible to fit the conditions encountered. The operator
must adapt the lawn tractor and snow thrower to depth of
snow, wind direction, temperature and surface conditions.
• Before beginning operation, thoroughly inspect the
area of operation and remove all door mats, sleds,
boards, wires and other foreign objects.
• The spiral auger speed is directly related to engine
speed. For maximum snow removal and discharge,
maintain high engine r.p.m. (full throttle). It is advisable
to operate the lawn tractor at a slow ground speed
(1st gear) for safe and efficient snow removal.
• In deep, drifted or banked snow it will be necessary to
use full throttle and a slow ground speed (1st gear).
Drive forward into the snow, depress the tractor's
clutch-brake pedal and allow the spiral auger to clear
the snow. Repeat this method until a path is cleared.
On the second pass, overlap the first enough to allow
the snow thrower to handle the snow without repeated
stopping and starting of forward motion.
DANGER: Shut off engine and
disengage snow thrower before
unclogging discharge chute. Unclog using
a wooden stick, not your hands.
OPERATING TIPS
• Discharge snow down wind whenever possible.
• To help prevent snow from sticking to the snow thrower,
allow the snow thrower to reach outdoor temperature
before using it. A light coat of wax may also be applied
to the inside surface of the snow thrower housing and
discharge chute.
• Use tire chains to improve traction.
• Use rear wheel weights to improve traction.
• Before the first snowfall, remove all stones, sticks and
other objects which could become hidden by the snow.
Permanent obstacles should be marked for visibility.
• Overlap each pass slightly to assure complete snow
removal.
MAINTENANCE
CUSTOMER RESPONSIBILITIES
• Read and follow the maintenance schedule and the maintenance procedures listed in this section.
MAINTENANCE SCHEDULE
Fill in dates as you
complete regular service.
se e
e
n
h u h us aso orag
c
t
a
e
c
s
e e ea y s e
for ter ver efor
E
Be Af
B
Service Dates
Check for loose fasteners X
Check scraper and shoes for wear X X
Cleaning X
Lubrication Section X
LUBRICATION
CHECK SCRAPER AND SHOES FOR WEAR
• Oil all pivot points on the snow thrower.
• Oil the pivot points of the two idler arms on the clutch/
idler assembly.
• Apply penetrating oil to the control cables of the
discharge chute.
• Apply a good grade of spray lubricant to the trigger
assembly and the chute tilt control assembly.
(Refer to figures 64 and 65 on page 29.)
• The scraper plate and skid shoes on the bottom of the
snow thrower are subject to wear. To prevent damage
to the spiral auger housing, replace plate and shoes
before wear is excessive.
28
SERVICE AND ADJUSTMENTS
LIFT RELEASE CABLE ADJUSTMENT
CAUTION: Before servicing or adjusting
the snow thrower, shut off the engine, remove
the spark plug wire(s), set the parking brake
and remove the key from the tractor ignition.
• If the lift rod does not lock the snow thrower securely
in the transport position, loosen the upper hex nut on
the lift bracket a few turns and tighten the lower hex
nut. Refer to figure 48 on page 21.
• If the lift rod fails to unlock completely to lower the
snow thrower, loosen the lower hex nut on the lift
bracket a few turns and tighten the upper hex nut.
Refer to figure 48 on page 21.
REPLACING AUGER BELT
•
•
•
•
•
•
•
•
Disengage the tractor's attachment clutch.
Lower the snow thrower to the ground.
Remove the attachment pin.
Lock the snow thrower's lift handle in the down
position to decrease belt tension.
Release the spring tension from the auger belt idler
arm on the bottom of the clutch/idler assembly.
Remove the auger drive belt from the clutch/idler
assembly and from the spiral auger housing.
Install new belt over top of large auger drive pulley
and under the two side idler pulleys. Twist the belt 1/4
turn to seat the "V" of the belt in the groove of each
idler pulley. Refer to figure 55 on page 23.
Assemble the belt onto the clutch/idler assembly.
CLUTCH DISENGAGEMENT ADJUSTMENT
(For tractors with engagement rod clutches only.
Not for electric clutches or cable clutches)
If the spiral auger on the snow thrower does not stop
when the attachment clutch lever on the tractor is
disengaged, then adjustment is necessary. Proceed as
follows. Refer back to figure 33 on page 16.
• Place the attachment clutch lever in the disengaged
position.
• Remove the hairpin cotter from the engagement rod
trunnion and lift the trunnion out of the hole in the idler
arm.
• Screw the trunnion a few turns towards the front end
of the rod.
• Replace the trunnion into the hole in the idler arm and
secure it with the hairpin cotter.
Check the operation of the snow thrower. If the spiral
augers still do not stop, repeat the above steps until
the augers stop when the attachment clutch lever is
placed in the disengaged position.
SKID SHOE ADJUSTMENT
• The skid shoes are mounted on each side of the spiral
auger housing. They regulate the distance the scraper
plate is raised above the plowing surface. When
removing snow from a gravel driveway or and uneven
surface, it is advisable to keep the scraper plate as
high above the surface as possible to prevent possible
damage to the spiral auger. On blacktop or concrete
surface, keep the scraper plate as close to the surface
as possible.
• Raise the snow thrower off the ground and place a
block under each end of the scraper plate. Loosen the
six hex nuts securing the skid shoes to the housing.
Adjust the skid shoes up or down and retighten the
nuts securely. Adjust both skid shoes to the same
height to keep the housing and the scraper plate level.
See figure 64.
SPIRAL AUGERS
• The spiral augers are secured to the auger shaft with
two shear bolts and nylock nuts. If you hit a foreign
object or if ice jams the augers, the snow thrower is
designed so that the bolts will shear.
• If the augers will not turn, check to see if the shear
bolts have sheared. See figure 65. Two replacement
shear bolts and nylock nuts have been provided with
the snow thrower. For future use order part number
710-0890A shear bolt and number 47810 nylock nut.
FIGURE 64
FIGURE 65
29
STORAGE
STORAGE RECOMMENDATIONS
PARTS TO REMOVE AT END OF SEASON
REMOVING THE SPIRAL AUGER HOUSING
• Remove the clutch/idler assembly. (The two hanger
brackets and the two shoulder bolts may be left
attached to the tractor frame.)
• Remove the drive belt from the engine pulley.
• If you replaced the engine pulley keeper on a manual
attachment clutch tractor, reinstall the tractor's original
engine pulley keeper. See figure 33 on page 16 or
figure 39 on page 18.
• If you have a rod operated attachment clutch, remove
the engagement rod from the tractor's clutch arm. See
figure 29 on page 15.
• If a rear mounted attachment is to be used, remove
the rear weight tray, leaving the bolts that you installed
in the sides of the tractor draw bar. Retighten the
bolts.
• If a front mounted attachment is to be used, remove
the side plates from the tractor. Be sure to assemble
bolts back into the empty holes in the tractor frame.
• Lower the snow thrower to the ground.
• Remove the snow thrower from the tractor.
• Clean the snow thrower thoroughly. Wash off any salt
deposit which may have dried on the thrower and
housing.
• Any bare metal that has become exposed should be
painted or coated with a light oil to prevent rust.
• Store in a dry place.
• Lower the snow thrower to the ground.
• Remove the attachment pin. See figure 54 on page
23.
• Lock the snow thrower's lift handle in the down
position to decrease belt tension.
• Release the spring tension from the auger belt idler
arm on the bottom of the clutch/idler assembly.
• Remove the auger drive belt from the clutch/idler
assembly. See figure 56 on page 23.
• Pull the spiral auger housing assembly off of the
tractor.
TROUBLESHOOTING
PROBLEM
CAUSE
CORRECTION
Spiral augers don't turn
1. Upper or lower V belt too loose
2. Upper or lower V belt broken
3. Shear bolts are sheared.
1. Increase tension on V belt
2. Replace V belt
3. Replace shear bolts
Clogged discharge chute
1. Tractor ground speed too fast
2. Tractor throttle set too low
3. Snow too deep
4. Snow melts during contact with
the snow thrower
1. Use lower tractor gear
2. Increase to full throttle
3. Raise the snow thrower
4. Allow snow thrower to cool to
outdoor temperature before using
Snow thrower stalls tractor engine
1. Object jammed in spiral auger
2. Hard or heavy snow 1. Stop engine, disengage the snow thrower clutch and clear the auger
2. Increase to full throttle and
decrease ground speed
Front wheels slide instead of steering
Not enough traction at front wheels
1. Increase scraper plate clearance by lowering skid shoes
2. Pull down on lift handle to
increase weight on front wheels
Snow thrower rides up over snow
1. Tractor ground speed too fast
2. Bottom snow is icy or hard packed
1. Reduce ground speed
2. Lower the skid shoes so that front of skid shoe is lower than the rear
30
NOTES
31
NOTES
32
NOTES
33
PARTS
REPAIR PARTS FOR MODEL 486.248381 42" SNOW THROWER
34
REPAIR PARTS FOR MODEL 486.248381 42" SNOW THROWER
REF.
NO.
PART
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
05931
65701
71464
63579
63768
24773
25982
703-2735A
24816
705-5226
705-5269
705-5270
43840
44950
44917
44326
43080
46703
710-0890A
43088
43070
47189
47810
715-0114
750-0437
731-1379A
43086
736-0188
711-0469
43081
47615
741-0309
741-0475
741-0493A
24279
48015
784-5618
24393
QTY. DESCRIPTION
1
1
1
1
1
1
1
1
1
1
1
1
2
4
1
4
10
8
2
11
2
5
29
2
2
1
4
6
4
24
2
1
2
4
2
5
2
1
Housing, Bearing
Housing Assembly
Gear Assembly
Chute Crank Rod Assembly
Impeller Assembly
Scraper Plate
Shaft, Auger Gearbox
Bracket, Chute Crank
Cover, Belt
Chute Reinforcement
Spiral Assembly, L.H. (not shown)
Spiral Assembly, R.H.
Hex Bolt, 5/16-18 x 1-1/4" Lg.
Carriage Bolt, 1/4-20 x 3/4"
Palnut, 3/8"
Carriage Bolt, 5/16-18 x 1" Lg.
Carriage Bolt, 5/16-18 x 3/4" Lg.
Bolt, Self-Tap 5/16" x 3/4"
Bolt, Shear 5/16-18 x 1-1/2"
Washer, 1/4"
Washer, 3/8"
Hex Nut, 1/4-20 Nylock
Hex Nut, 5/16-18 Nylock
Spiral Pin, 1/4" x 1-1/2" Lg.
Bushing
Chute Adapter
Lock Washer, 5/16"
Washer, .76" x 1.49" x .06"
Spacer, .75 ID x 1.25 OD x .5 L
Washer, 5/16" Std. Wrt.
Bearing, Flange
Bearing, Ball
Bushing, Plastic 3/8"
Bearing, Split, 3/4"
Skid Shoe
Washer, Nylon
Housing, Bearing
Bracket, Chute Crank
REF.
NO.
35
PART
NO.
39
24281
40
49933
41
65367
42
65450
43
41576
44
44377
45 784-5594
46 746-0929
47 711-0242
48 746-0928
49 HA21362
50
43038
51
43343
52
43350
53
24394
54
47572
55 1643-60
56
64452
57
64451
58
47043
59
48106
60
24466
61 736-0247
62
47598
63 731-0921
64 731-1313C
65
47044
66
47026
67
43085
68 710-0896
69 731-0851A
70
43661
71 731-1300C
72
25937
73 HA20185
74
43182
75
40504
40242
QTY.
1
2
1
1
2
1
1
1
1
1
4
2
2
4
1
6
1
1
1
1
4
2
1
6
1
1
2
1
1
1
3
6
1
1
1
3
1
1
DESCRIPTION
Bracket, Idler
Shoulder Bolt, Round Head
Hanger Bracket Assembly, L.H.
Hanger Bracket Assembly, R.H.
Hex Bolt, 3/8-16 x 1-3/4"
Hex Bolt, 3/8-24 x 1"
Bracket, Cable
Cable, Chute Control With Clip
Spacer
Cable, Chute Control
Hex Nut, 3/8-16 Nylock
Pin, Pivot Lock
Pin, Hair Cotter #4 (1/8")
Carriage Bolt, 3/8-16 x 1"
Bracket, Chute Anti-rotation
Hex Lock Nut, 3/8-16 Flanged
Plastic Cap
Hanger Bracket Assembly, R.H.
Hanger Bracket Assembly, L.H.
Keeper, Engine Pulley
Bolt, Shoulder
Bracket, Down Stop
Washer,
Hex Lock Nut, 1/4" Flanged
Chute, Upper
Guide, Cable
Pulley, V Type 4"
Pulley, V Type
Hex Bolt, 5/16-18 x 1-1/2"
Screw, 1/4-14 x 5/8"
Chute Keeper
Hex Bolt, 1/4-20 x 1"
Chute, Lower
Center Brace, Gearbox
#61 Woodruff Key
Hex Bolt, 5/16-18 x 3/4"
Elevator Bolt, 1/4-20 x 1"
Owner's Manual
REPAIR PARTS FOR MODEL 486.248381 42" SNOW THROWER
62
33
75
11
62
32
63
75
65
65
75
76 61
36
60
36
73
REPAIR PARTS FOR MODEL 486.248381 42" SNOW THROWER
REF. PART QTY.
DESCRIPTION
NO.
NO.
1
64637
1 Lift Shaft Assembly
2 710-0865 2 Hex Bolt, 1/2-13 x 1"
3 710-0367 2 Hex Bolt, 5/8-11 x 1-1/2"
4 711-0332 2 Pin, Bracket Lift
5 712-0261 2 Nut, Hex Lock 5/8-11 Thread
6
43262
6 Nut, Hex Lock 1/2-13
8
142
5 Pin, Cotter 1/8" x 3/4"
9
43093
1 Pin, Cotter 1/8" x 1-1/2"
10 R19171616 4 Washer, 17/32" x 1"
11
43350
6 Carriage Bolt, 3/8-16 x 1"
12 741-0192 2 Bearing, Flange With Flats
13 783-0380 2 Link, 15.80" Long
14 783-0381 2 Link, 11.75" Long
15
24476
2 Link, 4.88" Long
16
24311
1 Rod, Spacer
17
47599
2 Hex Bolt, 5/16-18 x 1" (Locking)
18
43086
4 Lock Washer, 5/16"
19
24820
1 Bracket, Lift
20
63773
1 Assembly, Handle Lift Bracket
21
48049
1 Rod, Index Lift
22
47369
1 Pin, Spring 3/16" x 1-3/4"
23 732-0306 1 Spring, Compression
24 R19131316 2 Washer, 13/32" x 13/16"
25
47788
2 Reflector, Rear
26
43080
1 Carriage Bolt, 5/16-18 x 3/4"
27
43182
2 Hex Bolt, 5/16-18 x 3/4"
29
47368
1 Pin, Spring 5/16" x 1-3/4"
30
46954
1 Pin, Attachment
31
43343
1 Pin, Haircotter #4 (1/8")
32
25678
1 Plate, Side (R.H.)
33
25679
1 Plate, Side (L.H.)
34
49916
1 Tube, Lift Handle
35
49912
1 Trigger and Lift Cable Assembly
36
43070
2 Washer, 3/8"
37 710-1233 1 Screw, Oval #10-24 x 1"
38
46446
1 Grip, Handle
39
47027
1 Tube, Crank Rod Support
40 741-0475 2 Bushing, 3/8" Plastic
REF. PART
QTY.
DESCRIPTION
NO.
NO.
41 703-2735A 1 Bracket, Chute Crank
42 720-0201A 1 Knob, Crank
43
44917
1 Palnut, 3/8"
45
63579
1 Assembly, Chute Crank Rod
46 784-5604A 1 Handle, Chute Tilt
47 720-04039
1 Knob
48 603-0302
1 Assembly, Chute Tilt Bracket
49 731-1313C 1 Guide, Cable
50 746-0928
1 Cable, Chute Control
51 746-0929
1 Cable, Chute Control with Clip
52
43064
5 Nut, Hex Lock 5/16-18
53
43081
2 Washer, 5/16"
54
24285
1 Plate, Mounting (L.H.)
55
24284
1 Plate, Mounting (R.H.)
56
47093
1 Keg, Plastic
57
23812
2 Brace, Side (Weight Tray)
58
24288
1 Brace, Cross (Weight Tray)
59
25723
1 Tray, Weight
60
47631
6 Hex Bolt, 3/8-16 x 1" Self Tap
61
43003
6 Lock Washer, 3/8"
62
47572
8 Nut, Flanged Lock 3/8-16
63
47810
12 Nut, Nylock Hex 5/16-18
64
43084
2 Hex Bolt, 5/16-18 x 1-3/4"
65
44326
6 Carriage Bolt, 5/16-18 x 1"
66
43351
1 Hex Bolt, 1/2-13 x 1-1/4"
67
43001
2 Bolt, Hex 3/8-16 x 1"
68
43682
2 Carriage Bolt, 5/16-18 x 1-1/4"
69
43790
1 Strap, Tarp 25" Long
70
44215
2 Carriage Bolt, 5/16-18 x 1-3/4"
71
44695
2 Washer, Bowed
72 712-3083
1 Nut, Nylock Hex 1/2-13
73
48106
2 Bolt, Shoulder
74 726-0178
3 Tie, Nylon
75 R19172410 8 Washer, 1/2"
76
46584
1 Nut, Whizlock, 5/16-18
77
43601
1 Washer, 1.59" x 1.032" x .060"
78
49948
2 Bolt, Hex 3/8-16 x 3/4" Self Thd.
79
47361
2 Slotted Truss Hd. Bolt, 3/8-16 x 1"
37
REPAIR PARTS FOR MODEL 486.248381 42" SNOW THROWER
38
REF.
NO.
PART
NO.
1
2
3
4
5 6
7
8
9 10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57 58
43080
43064
43083
43086
43081
25727
63904
24286
63762
43015
46981
43082
46982
738-0680
750-0456
750-0660
43003
714-0161
741-0919
08253B
15296A
14088B
44377
736-0247
43063
46989
48138
47846
47044
47025
43432
43054
24571
24472
43070
46959
46963
43055
23727
43088
43343
47134
711-0198
46948
47620
47607
23625
43509
47605
24558
49870
43178
43177
48883
25728
46938
25780
47810
43182
QTY.
2
3
2
4
4
1
1
1
1
1
1
8
1
1
1
1
6
2
2
1
1
1
2
2
3
1
1
1
1
1
1
3
1
1
8
1
2
1
1
1
2
2
1
1
1
1
1
1
1
1
1
2
1
3
2
1
1
6
4
DESCRIPTION
Carriage Bolt, 5/16-18 x 3/4"
Hex Lock Nut, 5/16-18
Hex Nut, 5/16-18
Lock Washer, 5/16"
Washer, 5/16" Std. Wrt.
Frame, Clutch and Pulley
Idler Arm Assembly
Spacer, Pivot
Idler Bracket Assembly
Hex Nut, 3/8-16
Pulley, V Type 9"
Nut, Hex Lock, 3/8-16
Pulley, V Type 5-1/2"
Shaft
Spacer
Spacer
Lock Washer, 3/8"
Key
Bearing, Ball
Housing, Bearing
Housing, Open Bearing
Spacer, Spindle
Hex Bolt, 3/8-24 x 1"
Washer
Hex Bolt, 5/16-18 x 1"
Belt, V Type Drive (55")
Belt, V Type Drive (56")
Belt, V Type Auger
Pulley, V Type 4"
Hex Bolt, 5/16-18 x 3-1/2"
Hex Bolt, 3/8-16 x 2-1/2"
Hex Bolt, 3/8-16 x 2"
Spacer
Spacer, Pivot
Washer, 3/8"
Spring
Chain
Pin, Hair Cotter, 3/32"
Spacer
Washer, 1/4"
Pin, Hair Cotter #4 (1/8")
Pin, Hair Cotter 5/64"
Trunnion
Rod, Engagement
Spring
Spring, Torsion
Spacer
Hex Bolt, 3/8-16 x 2-3/4" Lg.
Washer, Flat 3/8"
Cable Bracket
Hex Bolt, 1/4-20 x 2-1/2"
Hex Nut, 1/4-20
Lock Washer, 1/4"
Pulley, Flat 3-5/8"
Rear Pulley Frame Bracket
Hex Bolt, 3/8-16 x 3-1/4"
Spacer
Hex Nut, 5/16-18 Nylock
Hex Bolt, 5/16-18 x 3/4"
SUGGESTED GUIDE FOR SIGHTING SLOPES FOR SAFE OPERATION
OF TRACTOR WITH ATTACHMENT
FOLD
ALO
N
G
D
THIS IS
OTTED
LINE
A 10
D
E
G
REE S
LOPE
ONLY RIDE UP AND DOWN HILL,
NOT ACROSS HILL
10 DEGREES MAX.
WARNING: To avoid serious injury, operate your tractor up and
down the face of slopes, never across the face. Do not operate
on slopes greater than 10 degrees. Make turns gradually to
prevent tipping or loss of control. Exercise extreme caution
when changing direction on slopes. Braking may be affected by
tractor attachment. Reduce speed on slopes.
1. Fold this page along dotted line indicated above.
2. Hold page before you so that its left edge is vertically parallel to a tree
trunk or other upright structure.
3. Sight across the fold in the direction of hill slope you want to measure.
4. Compare the angle of the fold with the slope of the hill.
39
Get it fixed, at your home or ours!
Your Home
For repair – in your home – of all major brand appliances,
lawn and garden equipment, or heating and cooling systems,
no matter who made it, no matter who sold it!
For the replacement parts, accessories and
owner’s manuals that you need to do-it-yourself.
For Sears professional installation of home appliances
and items like garage door openers and water heaters.
1-800-4-MY-HOME®
(1-800-469-4663)
Call anytime, day or night (U.S.A. and Canada)
www.sears.com
www.sears.ca
For expert home solutions advice: www.managemyhome.com
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call or go on-line for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.)
1-800-469-4663 (Canada)
Call anytime, day or night
www.sears.com
www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.)
1-800-361-6665 (Canada)
Para pedir servicio de reparación
a domicilio, y para ordenar piezas:
Au Canada pour service en français:
1-888-SU-HOGAR®
1-800-LE-FOYER MC
(1-888-784-6427)
® Registered Trademark / TM Trademark / SM Service Mark of Sears Brands, LLC
® Marca Registrada / TM Marca de Fábrica / SM Marca de Servicio de Sears Brands, LLC
MC
Marque de commerce / MD Marque déposée de Sears Brands, LLC
(1-800-533-6937)
www.sears.ca
© Sears Brands, LLC
Download PDF

advertising
