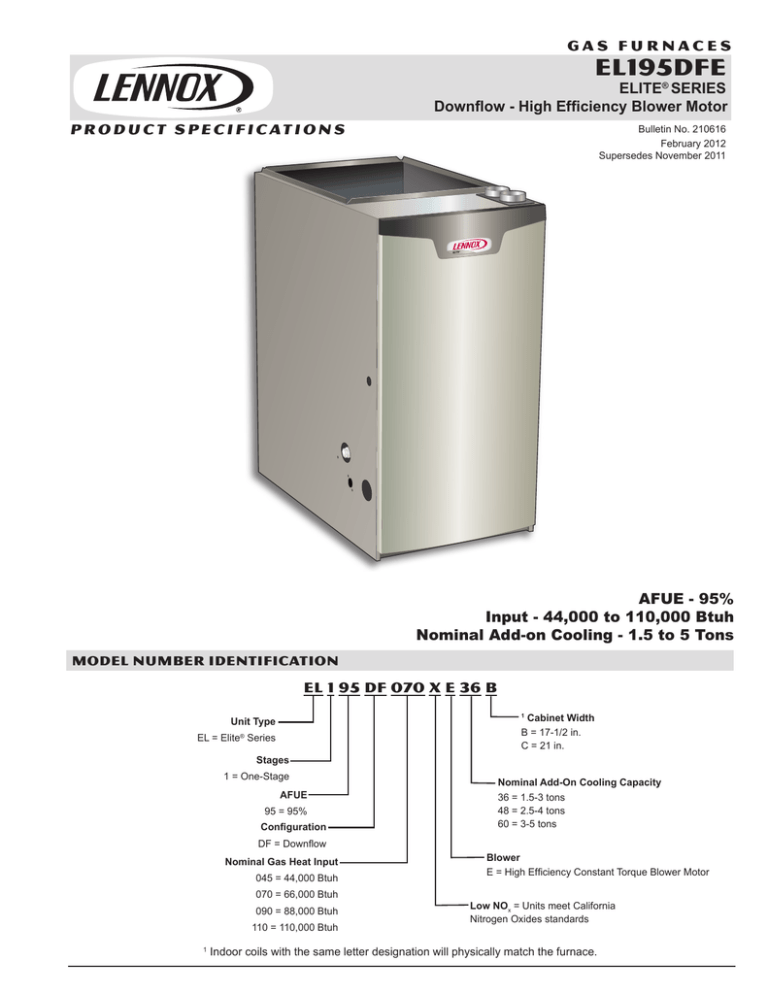

EL195DFE

P R O D U C T S P E C I F I C AT I O N S

G A S F U R N A C E S

EL195DFE

ELITE

®

SERIES

Downflow - High Efficiency Blower Motor

Bulletin No. 210616

February 2012

Supersedes November 2011

AFUE - 95%

Input - 44,000 to 110,000 Btuh

Nominal Add-on Cooling - 1.5 to 5 Tons

MODEL NUMBER IDENTIFICATION

EL 1 95 DF 070 X E 36 B

Unit Type

EL = Elite

®

Series

Stages

1 = One-Stage

AFUE

95 = 95%

Configuration

DF = Downflow

Nominal Gas Heat Input

045 = 44,000 Btuh

070 = 66,000 Btuh

090 = 88,000 Btuh

110 = 110,000 Btuh

1

Cabinet Width

B = 17-1/2 in.

C = 21 in.

Nominal Add-On Cooling Capacity

36 = 1.5-3 tons

48 = 2.5-4 tons

60 = 3-5 tons

Blower

E = High Efficiency Constant Torque Blower Motor

Low NO

x

= Units meet California

Nitrogen Oxides standards

1

Indoor coils with the same letter designation will physically match the furnace.

FEATURES

I

H

G

Contents

Blower Data ................................................................10

Dimensions .................................................................11

Dimensions Furnace/Coil Combined Dimensions ......12

Features........................................................................2

Gas Heat Accessories ..................................................7

Installation Clearances ................................................6

Model Number Identification .........................................1

Optional Accessories ....................................................7

Optional Accessory Dimensions .................................12

Outdoor Termination Kit Usage .....................................8

Specifications................................................................6

Vent Lengths - Feet ......................................................9

C

A

F

J

B

E

K

D

WARRANTY

Duralok Plus

Aluminized Steel Heat Exchanger -

Limited Lifetime warranty in residential applications

(twenty-year transferable), ten years in non-residential applications.

All other covered components - Limited Five-Year

warranty in residential applications, one year in nonresidential applications.

Refer to Lennox Equipment Limited Warranty certificate included with equipment for details.

APPROVALS

Units are Certified by AHRI.

Units tested and rated according to US DOE test procedures and FTC labeling regulations.

Blower data from unit tests conducted in Lennox

Laboratory air test chamber.

Approved by the California Energy Commission and meets California Nitrogen Oxides (NOx) Standards.

ISO 9001 Registered Manufacturing Quality System.

APPLICATIONS

Input capacities of 44,000, 66,000, 88,000 and 110,000

Btuh.

Energy efficiency (AFUE) of 95%.

Compact cabinet for downflow applications without any internal modifications to the unit.

Lennox add-on indoor coils, high-efficiency air cleaners and humidifiers can easily be added to furnace.

Shipped factory assembled with controls installed and wired.

Each unit factory test operated to ensure proper operation.

NOTE - FURNACES CANNOT BE TWINNED!

HEATING SYSTEM

B

Lennox Duralok Plus

Heat Exchanger Assembly

C

Lennox developed heat exchanger assembly consists of primary heat exchanger and secondary condenser coil assembly.

Main multi-pass crimped seam design clamshell type heat exchanger.

Constructed of heavy-gauge, aluminized steel.

Designed for normal expansion and contraction with maximum efficiency and minimum resistance to air flow.

Secondary heat exchanger condenser coil constructed of aluminum fins fitted to stainless steel tubes.

Coil is factory tested for leaks.

Condensate drain header box assembly located on front of coil.

Compact size of complete heat exchanger assembly permits low overall design of furnace cabinet.

Heat exchanger assembly has been laboratory life cycle tested in excess of industry standards.

Lennox Designed Header Box

Header box on end of condenser coil collects flue condensate for disposal through condensate drains.

The drains are located on each side of the cabinet for easy field installation of condensate drain trap.

Only one drain is used, the other drain is sealed.

Condensate drain trap is included with unit for field installation.

EL195DFE / Page 2

FEATURES

D

HEATING SYSTEM (CONTINUED)

Lennox Designed Flue Condensate Trap Assembly

Condensate trap assembly is mounted outside the conditioned air stream.

Assembly can be mounted on either side of cabinet.

See Installation Instructions.

90° street elbow furnished for ease of drain trap installation.

Drain connection can be made with field provided PVC pipe, PVC coupling, or vinyl tubing with hose clamp.

Drain cap on trap allows easy cleaning and winterizing.

Inshot Burners

Aluminized steel inshot burners provide efficient, trouble-free operation.

Burner venturi mixes air and gas in correct proportion for proper combustion.

Burner assembly is removable from the unit as a single component for ease of service.

SureLight

®

Hot Surface Ignitor

Tough, reliable, long-life, trouble-free performance.

E

F

Silicon nitride ignitor.

Cemented to steatite block for protection against current leakage.

Ignition leads are constructed of nickel plated copper and are enclosed in high temperature Teflon

®

insulation for dependable operation.

Gas Control Valve

24 volt redundant combination gas control valve combines manual shut off switch (On-Off), automatic electric valve (dual) and gas pressure regulation into a compact combination control.

Flame Rollout Switches (2)

Manual reset switches are factory installed in burner box.

Switch provides protection from abnormal operating conditions.

Limit Control

Automatic reset, primary limit is accurately located on vestibule panel on all units.

Combustion Air Inducer

Shaded pole heavy duty blower prepurges heat exchanger and safely vents flue products.

Operates only during heating cycle.

Pressure Switch

Proves Combustion Air Inducer operation before allowing gas valve to open.

OPTIONS

High Altitude Orifice Kits

Required on all units for proper unit operation at altitudes from 7501 to 10,000 ft.

Kits are available for natural gas and LPG/propane.

High Altitude Pressure Switch Kit

Required for proper unit operation on installations above

4500 ft.

Natural Gas to LPG/Propane Conversion Kit

Required for field changeover from natural gas to LPG/

Propane.

LPG/Propane to Natural Gas Conversion Kit

Required for field changeover from LPG/Propane to natural gas.

DIRECT VENT / NON-DIRECT VENT

G

Furnace can be installed in either Direct Vent or Non-

Direct applications.

In Direct Vent applications, combustion air is supplied from outdoors and flue gases are discharged outdoors.

In Non-Direct Vent applications, combustion air is supplied from indoors and flue gases are discharged outdoors.

OPTIONS

Termination Kits

Facilitates installation of combustion air intake pipe and flue exhaust pipe.

Refer to venting table in this bulletin to determine pipe size needed and proper termination kit required.

See Optional Accessories table and dimension drawings.

Termination Kit - Concentric - Direct Vent

Applications

2 or 3 inch kit contains concentric termination assembly, reducer bushing and 45 degree elbow.

2 inch kit for -045-070 models contains an outdoor exhaust accelerator.

Kit requires single hole penetration of roof or wall for installation.

Roof Termination Flashing Kit is available for use with

2 inch Kits.

CSA certified.

Termination Kit - Flush-Mount

Kit contains flush-mount termination, accelerator, mounting template and hardware.

Kit may be used with 2, 2-1/2 or 3 in. pipe.

EL195DFE / Page 3

FEATURES

DIRECT VENT (CONTINUED)

Termination Kits - Wall Assembly

Close Couple (US Only) - Direct Vent Applications

2 or 3 inch kit consists of close-couple, side-by-side

PVC piping with galvanized steel wall cover plate for sealing and isolating piping penetration of the wall.

Piping spacing and length is sized for proper wall installations.

CSA certified.

Close Couple WTK (Canada Only) - Direct Vent

Applications

2 or 3 inch kit contains one insulated faceplate, one insulated exhaust pipe, elbow and fittings.

Wall Ring - Direct Vent or Non-Direct Vent

Applications

2 inch kit contains 2 stainless steel outside seal caps,

2 galvanized steel inside seal caps, 4 seal rings for the caps and 18 inch insulation sleeve for sealing and isolating intake and exhaust piping penetration of wall.

Maintain a maximum of 6 inches between the inlet and outlet openings in the installation of the pipes.

Roof Termination Flashing Kit - Direct Vent or Non-

Direct Vent Applications

2 or 3 inch kit contains two neoprene rubber roof flashings for vertical venting through a roof.

Vent pipe and insulation not furnished.

Also available for use with 2 inch (use 3 inch flashing)

Concentric Vent Termination Kits used in vertical venting rooftop applications.

H

CONTROLS

Integrated Furnace Control

Contains all necessary controls and relays to operate furnace.

Combustion air inducer is controlled by integrated furnace control. Prior to ignition, a pre-purge cycle for 15 seconds is initiated. After the main burners are turned off, a post-purge cycle for 5 seconds is run.

Flame sensor assures safe and reliable operation.

Should loss of flame occur the integrated furnace control will initiate 4 re-attempts at ignition before locking out unit operation for 60 minutes.

Watchguard type circuit automatically resets ignition controls after one hour of continuous thermostat demand after unit lockout, eliminating nuisance calls for service.

Fan control consists of adjustable blower timed-off delay

(60, 90, 120, 180 seconds - factory setting 90 seconds) and fixed blower timed-on delay (45 seconds).

For air-conditioning applications, blower is automatically energized on thermostat demand for cooling.

Two accessory terminals furnished for additional power supply requirements for 120 volt (less than 1 amp) power humidifiers and powered air cleaners.

One additional terminal is furnished for power supply requirements for 24V (less than 0.5 amp) low voltage accessories.

Ignition control has a single red LED to indicate status and as an aid in troubleshooting.

Last ten codes are stored in non-volatile memory

(accessible by recall button on control) for servicing.

24 Volt Transformer

Furnished and factory installed in control box. 40VA transformer has circuit breaker wired in series.

Field Wiring Make-up Box

Furnished for line voltage wiring.

Factory installed internally on left side of furnace.

Box may be installed internally or externally on either side of furnace.

OPTIONS

Blower Relay Kit

(For Use With Two-Stage Outdoor Units)

Allows furnace blower speed changes when matched with two-stage air conditioners or heat pumps.

Thermostat

Thermostat (programmable/non-programmable) is not furnished with unit.

See Thermostat bulletins in Controls Section and

Lennox Price Book for selection.

Night Service Kit

Contains most commonly used service parts:

• Furnace control

• Igniter

• Flame sensor

• Gas valve

• Transformer

• Service Manual

Safety Service Kit

Kit contains:

• Primary limits (for each model)

• Pressure switches (for each model)

• Flame rollout switches (for each model)

EL195DFE / Page 4

FEATURES

I

BLOWER

Direct drive blower.

Statically and dynamically balanced.

Resiliently mounted.

Blower assembly easily removed for servicing.

High Efficiency Constant Torque Blower Motor

ECM (Electronically Commutated Motor) motor.

Motor is programmed to provide constant torque at each of the selectable speeds.

Motor is controlled by the Integrated Furnace Control.

Blower speeds are easily changed on the integrated furnace control. See Blower Data tables.

J

CABINET

Low-profile, narrow width cabinet allows easy installation in downflow applications.

Heavy-gauge, cold rolled steel construction.

Pre-painted cabinet finish.

Flanges provided on supply air opening for ease of plenum connection or alignment with indoor coil.

Cabinet is insulated with foil-faced insulation on sides and back of heating compartment and mat-faced insulation in blower compartment.

Sealed blower compartment.

K

Inner blower compartment access panel seals blower compartment from air leakage.

Complete service access.

Safety interlock switch automatically shuts off power to unit when blower compartment access door is removed.

Gas piping and electrical inlets are provided in both sides of cabinet.

Coil Match-up

All furnaces exactly match CR33 cased, downflow indoor coils with adaptor rails, furnished with coil.

OPTIONS

Condensate Drain Heat Cable Kits

Self-limiting wattage heat cable prevents condensate drain from freezing in unconditioned areas.

Available in 6, 24 or 50 ft. lengths.

Heat Cable Tape:

66 ft. length, 1/2 in. wide fiberglass.

60 ft. length, 2 in. wide aluminum foil.

Crawl Space Vent Drain Kit

Allows venting through a crawl space for downflow applications.

Includes 2 or 3 in. sanitary tee, 2 in. PVC assembly,

PVC boot and clamp.

Downflow Combustible Flooring Base

Required for heating only units installed on combustible floors.

Not required in add-on cooling applications.

See Dimension Drawing.

FILTER

OPTIONS

Downflow Filter Cabinet

Filter cabinet mounts directly on top of furnace.

“B and “C” width cabinets have two filters.

Filter rails are furnished.

Front access for servicing.

Cleanble filter(s) are furnished.

EL195DFE / Page 5

SPECIFICATIONS

Gas

Heating

Performance

Model No. EL195DF045XE36B EL195DF070XE48B EL195DF090XE48C EL195DF110XE60C

1

AFUE 95% 95% 95% 95%

Input - Btuh

Output - Btuh

44,000

42,000

66,000

64,000

88,000

85,000

110,000

106,000

Temperature rise range - °F

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

25 - 55

3.5 / 10

25 - 55

3.5 / 10

40 - 70

3.5 / 10

40 - 70

3.5 / 10

Connections in.

High static - in. w.g.

Intake / Exhaust Pipe (PVC)

0.5

2 / 2

0.5

2 / 2

0.5

2 / 2

0.5

2 / 2

Gas pipe size IPS 1/2 1/2 1/2 1/2

Condensate Drain Trap (PVC pipe) - i.d.

1/2 1/2 1/2 1/2 with furnished 90° street elbow 1/2 slip x 1/2 Mipt 1/2 slip x 1/2 Mipt 1/2 slip x 1/2 Mipt 1/2 slip x 1/2 Mipt

Indoor

Blower

with field supplied (PVC coupling) - o.d. 1/2 slip x 1/2 Npt

Wheel nom. dia. x width - in.

10 x 8

Motor output - hp 1/2

Electrical

Data

Tons of add-on cooling

Air Volume Range - cfm

Voltage

Blower motor full load amps

Maximum overcurrent protection

1.5 - 3

485 - 1395

6.8

15

1/2 slip x 1/2 Npt

11-1/2 x 10

3/4

2 - 4

8.4

15

1/2 slip x 1/2 Npt

10 x 10

3/4

2 - 4

520 - 1770 760 - 1765

120 volts - 60 hertz - 1 phase

8.4

15

1/2 slip x 1/2 Npt

11 x 11

1

3 - 5

1045 - 2285

10.9

15

Shipping Data

lbs. - 1 package 131 146 162 174

1

NOTE - Filters and provisions for mounting are not furnished and must be field provided.

Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

INSTALLATION CLEARANCES

Sides

Rear

Top/Plenum

Front

1

0 inches (0 mm)

0 inches (0 mm)

1 inch (25 mm)

0 inches (0 mm)

Front (service/alcove)

Floor

24 inches (610 mm)

2

Combustible

NOTE - Air for combustion must conform to the methods outlined in the National Fuel Gas Code (NFPA 54/ANSI-

Z223.1) or the National Standard of Canada CAN/CSA-B149.1 “Natural Gas and Propane Installation

Code”.

NOTE - In the U.S. flue sizing must conform to the methods outlined in the current National Fuel Gas Code (NFPA

54/ANSI-Z223.1) or applicable provisions of local building codes. In Canada flue sizing must conform to the methods outlined in National Standard of Canada CAN/CSA-B149.1.

1

Allow proper clearances to accommodate condensate trap and vent pipe installation.

2 Clearance for installation on combustible floor if Optional Downflow Combustible Flooring Base is installed between furnace and combustible floor. Not required in add-on cooling applications if installed in accordance with local codes or National Fuel Gas Code ANSI-Z223.1 or CAN/CGA-149.1,.2. Do not install the furnace directly on carpeting, tile, or other combustible materials other than wood flooring.

EL195DFE / Page 6

OPTIONAL ACCESSORIES - ORDER SEPARATELY

NOTE - FURNACES CANNOT BE TWINNED!

“B” Width Models

CABINET ACCESSORIES

Downflow Combustible Flooring Base

CONDENSATE DRAIN KITS

Condensate Drain Heat Cable

Heat Cable Tape

6 ft.

24 ft.

50 ft.

Fiberglass - 1/2 in. x 66 ft.

Aluminum foil - 2 in. x 60 ft.

Crawl Space Vent Drain Kit

CONTROLS

Blower Relay Kit (for two-stage outdoor units)

11M60

26K68

26K69

26K70

36G53

16P89

51W18

85W66

DOWNFLOW FILTER KITS

1

Downflow Filter Cabinet

No. and Size of filter - in.

51W07

(2) 16 x 20 x 1 service kits

Night Service Kit

Safety Service Kit

TERMINATION KITS

84W48

89W20

See Installation Instructions for specific venting information.

Termination Kits -

Direct Vent Applications

Only

Termination Kits -

Direct or Non-Direct vent

Concentric

Flush-Mount

Wall - Close

Couple

Wall - Close

Couple WTK

Roof

Wall Ring Kit

US - 2 in.

3 in.

Canada - 2 in.

3 in.

2, 2-1/2 or 3 in.

US - 2 in.

3 in.

Canada - 2 in.

3 in.

2 in.

2 in.

71M80

- - -

44W92

- - -

51W11

22G44

44J40

30G28

81J20

15F75

15F74

44J41 Roof Termination Flashing Kit - Direct or Non-Direct

Vent (2 flashings)

2 in.

1

Cleanable polyurethane frame type filter.

2

Kits contain enough parts for two, non-direct vent installations.

3

Non-direct vent only.

NOTE - Termination Kits 44W92, 44W93, 30G28, 81J20 are certified to ULC S636 standard for use in Canada only.

“C” Width Models

11M61

26K68

26K69

26K70

36G53

16P89

51W18

85W66

51W08

(2) 16 x 20 x 1

84W48

89W20

69M29

60L46

44W92

44W93

51W11

- - -

44J40

- - -

81J20

15F75

3

15F74

44J41

GAS HEAT ACCESSORIES

Input

045

070

090

110

High Altitude

Pressure Switch Kit

4501 - 7500 ft.

7501 - 10,000 ft.

No Change 80W60

80W66

80W65

80W66

80W59

80W59

80W59

Natural Gas to

LPG/Propane Kit

0 - 7500 ft.

69W73

69W73

69W73

69W73

LPG/Propane to Natural Gas Kit

0 - 7500 ft.

73W81

73W81

73W81

73W81

Natural Gas

High Altitude

Orifice Kit

LPG/Propane

High Altitude

Orifice Kit

7501- 10,000 ft. 7501- 10,000 ft.

73W37 68W68

73W37

73W37

73W37

68W68

68W68

68W68

EL195DFE / Page 7

OUTDOOR TERMINATION KIT USAGE

Input

Size

045

070

090

110

Vent

Pipe

Diameter

(in.)

2

2-1/2

3

2

2-1/2

3

2

2-1/2

3

2

2-1/2

3

Flush

Mount

Kit

3

YES

3

YES

3

YES

3

YES

3

YES

3

YES

3

YES

3

YES

3

YES

YES

YES

YES

YES

YES

YES

- - -

- - -

- - -

2 inch

YES

YES

YES

Standard Terminations

Wall Kit

4

3 inch

44J40 (US)

81J20 (CA)

1

YES

Wall Ring

Kit

2 inch

15F74

Field

Fabricated

Exhaust

Accelerator

Size

Required

YES 1-1/2 in.

1

YES

1

YES

YES

YES

1-1/2 in.

1-1/2 in.

- - -

- - -

- - -

1

1

1

YES

YES

YES

YES

YES

YES

YES

YES

YES

1

1

1

YES

YES

YES

YES

YES

YES

YES

- - -

- - -

1-1/2 in.

1-1/2 in.

1-1/2 in.

2 in.

2 in.

2 in.

2 in.

2 in.

2 in.

2

YES

2

YES

2

YES

2

YES

2

YES

2

YES

- - -

- - -

- - -

- - -

- - -

- - -

Concentric Terminations

1-1/2 inch

4

71M80 (US)

44W92 (CA)

Concentric Kit

2 inch

4

69M29 (US)

44W92 (CA)

- - -

- - -

- - -

- - -

- - -

- - -

YES

YES

YES

YES

YES

YES

3 inch

4

60L46 (US)

44W93 (CA)

- - -

- - -

- - -

- - -

- - -

- - -

YES

YES

YES

YES

YES

YES

NOTE - Standard Terminations do not include any vent pipe or elbows external to the structure.

Any vent pipe or elbows external to the structure must be included in total vent length calculations. See Vent Length Tables.

1

Requires field provided 1-1/2 in. outdoor exhaust accelerator.

2

Concentric Kits 71M80 and 44W92 include 1-1/2 in. outdoor exhaust accelerator, required when used with 045 and 070 input models. Accelerator is not used with 090,

110, 135 input models.

3

Flush Mount Kit 51W11 includes 1-1/2 in. outdoor exhaust accelerator, required when used with 045, 070 and 090 input models. Accelerator is not used with 110 or 135 input models.

4

Termination Kits 30G28, 44W92, 44W93 and 81J20 are certified to ULC S636 standard for use in Canada only.

EL195DFE / Page 8

VENT LENGTHS - FEET

STANDARD TERMINATION AT ELEVATION 0 - 4500 ft.

Pipe Size 2 in.

Input

1

045

81

070

66

090

44

110

24

No. of

90 ELL

2

3

4

5

6

7

76

71

66

61

56

51

61

56

51

46

41

36

39

34

29

24

19

14

19

14

N/A

N/A

N/A

N/A

8

9

10

46

41

36

31

26

21

N/A

N/A

N/A

N/A

N/A

N/A

STANDARD TERMINATION ELEVATION 4501 - 10,000 ft.

Pipe Size

2 in.

Input

1

045

81

070

66

090

44

110

N/A

2

3

76

71

61

56

39

34

N/A

N/A

No. of

90 ELL

4

5

6

66

61

56

51

46

41

29

24

19

N/A

N/A

N/A

9

10

7

8

51

46

41

36

36

31

26

21

14

N/A

N/A

N/A

N/A

N/A

N/A

N/A

045

115

110

105

100

95

90

85

80

75

70

90

85

80

75

70

045

115

110

105

100

95

CONCENTRIC TERMINATION AT ELEVATION 0 - 4500 ft.

Pipe Size 2 in.

Input

1

045

73

070

58

090

42

110

22

2

3

68

63

53

48

37

32

17

12

No. of

90 ELL

4

5

6

7

58

53

48

43

43

38

33

28

27

22

17

12

N/A

N/A

N/A

N/A

8

9

10

38

33

28

23

18

13

N/A

N/A

N/A

N/A

N/A

N/A

90

85

80

75

045

105

100

95

70

65

60

CONCENTRIC TERMINATION ELEVATION 4501 - 10,000 ft.

Pipe Size

2 in.

Input

1

2

045

73

68

070

58

53

090

42

37

110

N/A

N/A

045

105

100

3

4

63

58

48

43

32

27

N/A

N/A

95

90

No. of

90 ELL

5

6

7

53

48

43

38

33

28

22

17

12

N/A

N/A

N/A

85

80

75

8

9

10

38

33

28

23

18

13

N/A

N/A

N/A

N/A

N/A

N/A

70

65

60

90

85

80

75

70

2-1/2 in.

070

115

090

93

110

105

100

95

88

83

78

73

68

63

58

53

48

85

80

75

70

2-1/2 in.

070

115

090

93

110

105

88

83

100

95

90

78

73

68

63

58

53

48

90

85

80

75

2-1/2 in.

070

105

090

89

100

95

84

79

74

69

64

59

70

65

60

54

49

44

2-1/2 in.

070

105

100

090

89

84

95

90

79

74

85

80

75

69

64

59

70

65

60

54

49

44

33

28

23

18

13

110

58

53

48

43

38

113

108

103

98

93

045

138

133

128

123

118

112

107

102

97

92

070

137

132

127

122

117

3 in.

93

88

83

78

73

090

118

113

108

103

98

93

88

83

78

73

110

118

113

108

103

98

110

58

53

48

43

38

33

28

23

18

13

045

138

133

128

123

118

113

108

103

98

93

070

137

132

127

122

117

112

107

102

97

92

3 in.

090

118

113

108

103

98

93

88

83

78

73

110

118

113

108

103

98

93

88

83

78

73

39

34

29

24

110

54

49

44

19

14

N/A

045

121

116

111

106

101

96

91

86

81

76

070

121

116

111

106

101

96

91

86

81

76

3 in.

99

94

89

84

090

114

109

104

79

74

69

99

94

89

84

110

114

109

104

79

74

69

110

54

49

44

39

34

29

24

19

14

N/A

045

121

116

111

106

101

96

91

86

81

76

070

121

116

111

106

101

96

91

86

81

76

3 in.

090

114

109

104

99

94

89

84

79

74

69

110

114

109

104

99

94

89

84

79

74

69

EL195DFE / Page 9

BLOWER DATA

EL195DF045XE36B PERFORMANCE (Less Filter)

External Air Volume / Watts at Various Blower Speeds

Static

Pressure in. w.g.

0.00

cfm

1395

High

Watts

335

Medium-High cfm

1290

Watts

250

cfm

1190

Medium

Watts

195

Medium-Low cfm

910

Watts

105

0.10

0.20

1375

1320

350

360

1245

1215

260

265

1140

1090

205

215

875

825

110

120

0.30

0.40

0.50

0.60

0.70

0.80

1285

1275

1230

1185

N/A

N/A

365

375

385

380

N/A

N/A

1165

1150

1095

1060

1020

980

270

285

295

300

310

315

1065

1025

985

935

915

860

225

230

240

245

250

255

795

750

705

655

590

555

130

135

145

150

150

160

EL195DF070XE48B PERFORMANCE (Less Filter)

External Air Volume / Watts at Various Blower Speeds

Static

Pressure in. w.g.

0.00

cfm

1770

High

Watts

510

Medium-High cfm

1550

Watts

340

cfm

1355

Medium

Watts

220

Medium-Low cfm

1255

Watts

180

0.10

0.20

0.30

0.40

1720

1705

1665

1605

520

535

540

555

1510

1470

1430

1390

355

365

380

395

1315

1265

1235

1185

230

245

250

260

1200

1165

1120

1070

185

195

205

210

0.50

0.60

0.70

0.80

1585

1540

N/A

N/A

565

565

N/A

N/A

1335

1300

1260

1220

400

410

420

430

1155

1100

1050

1015

275

290

295

305

1015

970

915

865

225

235

245

255

EL195DF090XE48C PERFORMANCE (Less Filter)

External Air Volume / Watts at Various Blower Speeds

Static

Pressure in. w.g.

0.00

cfm

1765

High

Watts

395

Medium-High cfm

1565

Watts

265

cfm

1410

Medium

Watts

210

Medium-Low cfm

1290

Watts

175

0.10

0.20

0.30

0.40

0.50

1745

1685

1630

1620

1570

410

425

440

450

465

1510

1455

1415

1370

1335

280

295

310

320

330

1365

1310

1285

1245

1185

220

235

250

255

265

1265

1220

1165

1125

1080

185

200

210

220

230

0.60

0.70

0.80

1540

N/A

N/A

470

N/A

N/A

1295

1260

1210

345

355

370

1145

1110

1060

280

295

305

1045

990

940

240

255

260

EL195DF110XE60C PERFORMANCE (Less Filter)

External Air Volume / Watts at Various Blower Speeds

Static

Pressure in. w.g.

0.00

0.10

cfm

2285

2250

High

Watts

640

660

Medium-High cfm

1990

1965

Watts

435

450

cfm

1805

1775

Medium

Watts

330

345

Medium-Low cfm

1685

1630

Watts

265

280

0.20

0.30

2185

2150

675

690

1910

1850

465

485

1720

1670

360

375

1575

1525

295

310

0.40

0.50

0.60

0.70

0.80

2085

2060

2005

1970

1910

710

725

745

760

775

1810

1765

1700

1665

1620

495

515

535

550

560

1605

1565

1510

1460

1420

395

400

420

440

450

1465

1420

1370

1325

1275

325

335

355

370

380

EL195DFE / Page 10 cfm

865

815

785

735

705

650

605

545

485

Low

Watts

95

100

110

115

120

125

135

140

140

cfm

1035

980

895

835

775

690

625

570

520

Low

Watts

115

105

110

120

130

140

145

150

155

cfm

1180

1120

1080

1035

985

925

875

825

760

Low

Watts

135

140

150

160

175

180

190

200

205

cfm

1480

1430

1360

1290

1255

1190

1160

1100

1045

Low

Watts

195

205

215

235

245

255

270

280

295

DIMENSIONS - INCHES (MM)

7

(178)

OUT

9/16

(14)

A

AIR

B

FLOW

Flue Condensate Trap

Assembly

Furnished for external field installation on either side of unit.

(See installation instructions for additional information.)

COMBUSTION

AIR INTAKE

EXHAUST AIR

OUTLET

2-1/16 (52)

9/16

(14)

1-1/2 (38)

Front Panel

B

RETURN AIR

OPENING

5

(127)

2-1/4

(57)

9/16

(14)

TOP VIEW

27-3/4

(705)

19-7/16

(494)

9/16

(14)

3/4

(19)

C

Supply

Air

FRONT VIEW

Model No.

EL195DF045XE36B

EL195DF070XE48B

EL195DF090XE48C

EL195DF110XE60C

3/4

(19)

33

(838)

2 (51)

Either Side

GAS PIPING INLET

(Either Side)

9-1/8 (232) Right

6-9/16 (167) Left

in.

17-1/2

21

A mm

446

533

ELECTRICAL INLET

(Either Side)

CONDENSATE

TRAP CONNECTION

(Either Side)

in.

16-3/8

19-7/8

B mm

416

505

6-7/16 (163)

Either Side

9 (229)

Either Side

19-1/4

(489)

SIDE VIEW

Supply

Air in.

16

19-1/2

C mm

406

495

3/4

(19)

EL195DFE / Page 11

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

DOWNFLOW COMBUSTIBLE FLOORING BASE

1-1/2

(38)

DOWN

FLOW

FURNACE

1-1/2

(38)

SUPPLY

AIR

OPENING

19-13/16

(503)

B

27-1/4

(692)

21-13/16

(554)

DOWNFLOW

COMBUSTIBLE

FLOORING

BASE

FLOOR

OPENING

Front Of Furnace

A

TOP VIEW

1-1/2

(38)

SIDE VIEW

Cabinet

Width

B

C

Catalog

Number in.

A mm in.

B mm in.

C mm

11M60

19-9/16 497 16-9/16 421 18-3/4 476

11M61

23-1/16 586 20-1/16 510 22-1/4 565

22

(559)

C

DIMENSIONS - INCHES (MM) - FURNACE/COIL COMBINED DIMENSIONS

Furnace

Width

33

(838)

Overall

Height

Coil

Height

Model

Number

Coil

Width

Furnace

Width

Coil

Height

Overall

Height in. mm in. mm in. mm in. mm

17-1/2 446 17-1/2 446 13-1/4 337 46-1/4 1175 CR33-24B-F

CR33-30/36B-F 17-1/2 446 17-1/2 446 16-1/8 410 49-1/8 1248

CR33-30/36C-F 21 533 21 533 16-1/8 410 49-1/8 1248

CR33-48B-F

CR33-48C-F

21

21

533 17-1/2 446

533 21 533

20

20

508

508

53

53

1346

1346

CR33-50/60C-F 24-1/2 622 21 533 23-5/8 600 56-5/8 2276

Coil

Width

EL195DFE / Page 12

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

FLUSH-MOUNT VENT TERMINATION KIT (51W11)

2-3/8 (60)

With 2 or 2-1/2 in. (51 or 64 mm) PVC pipe

Exhaust Intake

(Behind Plate)

Seal all openings

(typical)

With 3 in. (76 mm) PVC pipe

Exhaust Intake

(Behind Plate)

12 (305) minimum

(recommended)

2 (51) PVC pipe

3 (76) PVC pipe

When required Use

Field Provided

2-1/2 to 2 in. (64 to 51 mm)

Coupling

NOTE - PVC pipe and fittings are not furnished and must be field furnished.

2-1/2 (64) PVC pipe

EL195DFE / Page 13

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

CONCENTRIC WALL

TERMINATION APPLICATIONS

CONCENTRIC ROOF

TERMINATION APPLICATIONS

FLASHING

(Not Furnished)

EXHAUST

AIR

INTAKE

AIR

OUTSIDE

WALL

CLAMP

(Not Furnished)

INTAKE

AIR

EXHAUST

AIR

INTAKE

AIR

12 (305)

Minimum

Above Grade or Average Snow

Accumulation

GRADE

12 (305)

Minimum

Above Average

Snow

Accumulation

CLAMP

SHEET METAL STRAP

(Clamp and sheet metal strap must be field installed to support the weight of the termination kit.)

71M80 / 69M29 / 44W92 − 2 inch kits

60L46 / 44W93 − 3 inch kits

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

A

Cat. No.

71M80

69M29

44W92

(Canada)

60L46

44W93

(Canada)

ELBOW

(Field Supplied)

INTAKE AIR

TERMINATION

ASSEMBLY

(Furnished)

Outdoor Exhaust Accelerator included with 71M80/44W92

A B in.

mm in.

mm

33−3/8 848 16−3/4 425

29 737 15−1/2 394

38−7/8 987

21−3/16 538

36−1/8 918 19−1/2 495

NOTE − Typical illustration for dimensions only. Design may vary depending on kit ordered.

WALL ASSEMBLY TERMINATION KIT − RING KIT 15F74 − 2 inch (51 mm)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

DIRECT VENT APPLICATION

NON-DIRECT VENT APPLICATION

NOTE - EXHAUST PIPE SHOWN

Kit Contains Enough Parts For Two Installations

12 in. (305 mm) - 2 in. (51 mm) dia. exhaust pipe

20 in. (508 mm) - 3 in. (76 mm) dia. exhaust pipe

maximum length without support

12 in. (305 mm) - 2 in. (51 mm) dia. exhaust pipe

20 in. (508 mm) - 3 in. (76 mm) dia. exhaust pipe

maximum length without support

8 in. (203 mm) minimum

6 in. (152 mm) maximum

NOTE − 12 in. (305 mm) minimum height above average snow accumulation

(from bottom of vent pipe).

NOTE − 12 in. (305 mm) minimum height above average snow accumulation

(from bottom of vent pipe).

EL195DFE / Page 14

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

WALL TERMINATION KITS (CLOSE-COUPLE)

EXTENDED VENT FOR GRADE CLEARANCE

2 inch (51 mm) 22G44 (US)

3 inch (76 mm) 44J40 (US)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

If Intake and Exhaust Pipe is less than12 in. (305 mm) above snow accumulation or other obstructions, field fabricated piping must be installed.

WALL SUPPORT

8 (203) MIN. Between Ends of Exhaust and Intake Pipe

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

12

(305)

6 (152)

Maximum

EXHAUST

AIR

INTAKE

AIR

INTAKE

AIR

8 (203) MIN.

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

5

(127)

5-1/2

(140)

1/2 (13)

FOAM INSULATION

(Field Furnished)

EXHAUST

AIR

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

WALL TERMINATION KITS (CLOSE-COUPLE)

EXTENDED VENT FOR GRADE CLEARANCE

2 inch (51 mm) 30G28 (WTK Canada)

3 inch (76 mm) 81J20 (WTK Canada)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

If Intake and Exhaust Pipe is less than12 in. (305 mm) above snow accumulation or other obstructions, field fabricated piping must be installed.

WALL SUPPORT

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

12

(305)

6 (152)

Maximum

INTAKE

AIR

EXHAUST

AIR

6 (152)

MIN.

INTAKE

AIR

6 (152) MIN.

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

5

(127)

5-1/2

(140)

1/2 (13)

FOAM INSULATION

(Field Furnished)

EXHAUST

AIR

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

EL195DFE / Page 15

REVISIONS

Sections

Document

Outdoor Termination Kit Usage

Description of Change

Removed ENERGYSTAR usage.

Table updated.

Visit us at www.lennox.com

For the latest technical information, www.lennoxdavenet.com

Contact us at 1-800-4-LENNOX

NOTE - Due to Lennox’ ongoing commitment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability.

Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.

Installation and service must be performed by a qualified installer and servicing agency. ©2012 Lennox Industries, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
