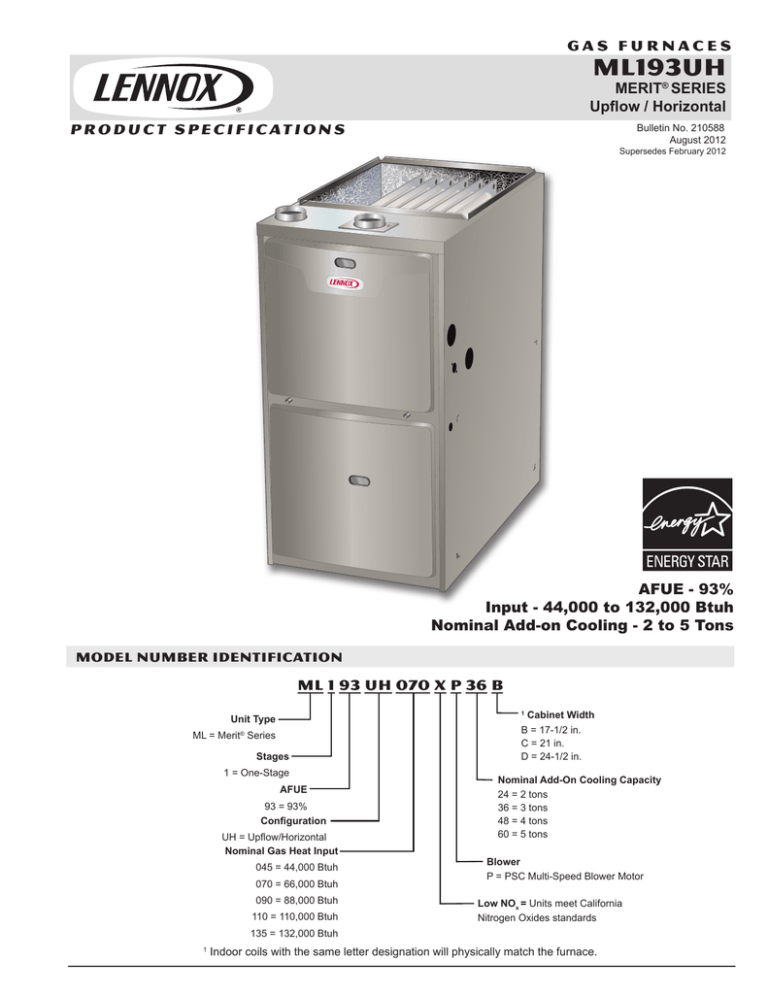

ML193UH

ML193UH

P R O D U C T S P E C I F I C AT I O N S

G A S F U R N A C E S

ML193UH

MERIT

®

SERIES

Upflow / Horizontal

Bulletin No. 210588

August 2012

Supersedes February 2012

AFUE - 93%

Input - 44,000 to 132,000 Btuh

Nominal Add-on Cooling - 2 to 5 Tons

MODEL NUMBER IDENTIFICATION

ML 1 93 UH 070 x P 36 B

Unit Type

ML = Merit

®

Series

1

Cabinet Width

B = 17-1/2 in.

C = 21 in.

D = 24-1/2 in.

Stages

1 = One-Stage

AFUE

93 = 93%

Configuration

UH = Upflow/Horizontal

Nominal Gas Heat Input

045 = 44,000 Btuh

070 = 66,000 Btuh

090 = 88,000 Btuh

110 = 110,000 Btuh

135 = 132,000 Btuh

Nominal Add-On Cooling Capacity

24 = 2 tons

36 = 3 tons

48 = 4 tons

60 = 5 tons

Blower

P = PSC Multi-Speed Blower Motor

Low NO x

= Units meet California

Nitrogen Oxides standards

1

Indoor coils with the same letter designation will physically match the furnace.

A

FEATURES

Contents

Blower Data . . . . . . . . . . . . . . . . . . . . . . 17

Dimensions - Furnace/Coil Combined Dimensions . . 13

Dimensions - Horizontal Position . . . . . . . . . . . 11

Dimensions - Upflow Position. . . . . . . . . . . . . 10

Features. . . . . . . . . . . . . . . . . . . . . . . . 2

Gas Heat Accessories . . . . . . . . . . . . . . . . 8

Installation Clearances . . . . . . . . . . . . . . . . 7

Model Number Identification . . . . . . . . . . . . . 1

Optional Accessories . . . . . . . . . . . . . . . . . 8

Optional Accessory Dimensions . . . . . . . . . . . 12

Specifications . . . . . . . . . . . . . . . . . . . . . 6

Termination Kits Usage . . . . . . . . . . . . . . . . 9

Vent Lengths . . . . . . . . . . . . . . . . . . . . . 9

H

K

F

G

E

B

D

C

L

WARRANTY

Duralok Plus

Aluminized Steel Heat Exchanger -

Limited twenty year warranty in residential applications, ten years in non-residential applications.

All other covered components - Limited five year

warranty in residential applications, one year in nonresidential applications.

Refer to Lennox Equipment Limited Warranty certificate included with equipment for details.

APPROVALS

Units are certified by AHRI

Units tested and rated according to US DOE test procedures and FTC labeling regulations.

Blower data from unit tests conducted in Lennox

Laboratory air test chamber.

All models are approved by the California Energy

Commission and meet California Seasonal Efficiency requirements and California Nitrogen Oxides (NOx)

Standards.

E nErgy

S tar

®

certified units are designed to use less energy, help save money on utility bills, and help protect the environment.

ISO 9001 Registered Manufacturing Quality System.

APPLICATIONS

Input capacities of 44,000, 66,000, 88,000, 110,000 and

132,000 Btuh.

Energy efficiency (AFUE) of 93%.

Compact cabinet for upflow, horizontal-left or horizontalright applications without any modifications. Removable bottom seal panel shipped in place for side return air is easily removed for bottom/end return air applications.

Utility room, alcove, closet, crawl space, basement or attic installation.

Lennox add-on indoor coils, high-efficiency air cleaners and humidifiers can easily be added to furnace.

Shipped factory assembled with all controls installed and wired.

Each unit factory test operated to ensure proper operation.

ML193UH / Page 2

I

J

B

HEATING SYSTEM

Lennox Duralok Plus

Heat Exchanger Assembly

Lennox developed heat exchanger assembly consists of primary heat exchanger and secondary condenser coil assembly.

Main multi-pass crimped seam design clamshell type heat exchanger.

Constructed of heavygauge, aluminized steel.

C

Designed for normal expansion and contraction with maximum efficiency and minimum resistance to air flow.

Secondary heat exchanger condenser coil constructed of aluminum fins fitted to stainless steel tubes.

Coil is factory tested for leaks.

Condensate drain header box assembly located on front of coil.

Compact size of complete heat exchanger assembly permits low overall design of furnace cabinet.

Heat exchanger assembly has been laboratory life cycle tested in excess of industry standards..

FEATURES

D

E

F

G

HEATING SYSTEM (CONTINUED)

Lennox Designed Header Box

Header box on end of condenser coil collects flue condensate for disposal through condensate drains.

The drains are located on each side of the cabinet for easy field installation of condensate drain trap.

Only one drain is used, the other drain is sealed.

Condensate drain trap is included with the unit for field installation.

Lennox Designed Flue Condensate Trap Assembly

Condensate trap assembly is mounted outside the conditioned air stream.

Assembly can be mounted on either side of cabinet in upflow applications. Assembly is mounted below the cabinet in horizontal applications. Can also be mounted remotely (up to 5 ft. away) from unit. See Dimension

Drawing and Installation Instructions.

90° street elbow furnished for ease of drain trap installation.

Drain connection can be made with field provided PVC pipe or PVC coupling.

Drain cap on trap allows easy cleaning and winterizing.

Inshot Burners

Aluminized steel inshot burners provide efficient, trouble-free operation.

Burner venturi mixes air and gas in correct proportion for proper combustion.

Burner assembly is removable from the unit as a single component for ease of service.

SureLight

®

Hot Surface Ignitor

Tough, reliable, long-life, trouble-free performance.

Silicon nitride ignitor.

Cemented to steatite block for protection against current leakage.

Ignition leads are constructed of nickel plated copper and are enclosed in high temperature Teflon

®

insulation for dependable operation.

Gas Control Valve

24 volt redundant combination gas control valve combines manual shut off switch (On-Off), automatic electric valve (dual) and gas pressure regulation into a compact combination control.

Combustion Air Inducer

Shaded pole heavy duty blower prepurges heat exchanger and safely vents flue products.

Operates only during heating cycle.

Pressure Switch

Proves Combustion Air Inducer operation before allowing gas valve to open.

H

Flame Rollout Switches (2)

Manual reset switches are factory installed on the front of the burner box.

Switch provides protection from abnormal operating conditions.

Limit Control

Automatic reset, primary limit is accurately located on header box on all units.

OPTIONS

High Altitude Orifice Kits

Required on all units for proper operation at altitudes from 7501 to 10,000 ft.

Kits are available for natural gas and LPG/propane.

High Altitude Pressure Switch Kit

Required for proper unit operation on installations above

4500 ft.

Natural Gas to LPG/Propane Conversion Kit

Required for field changeover from natural gas to LPG/

Propane.

LPG/Propane to Natural Gas Conversion Kit

Required for field changeover from LPG/Propane to natural gas.

DIRECT VENT / NON-DIRECT VENT

Sealed comBustion system

Furnace features a “sealed combustion” system and can be installed in either Direct Vent or Non-Direct applications.

In Direct Vent applications, combustion air is supplied from outdoors and flue gases are discharged outdoors.

In Non-Direct Vent applications, combustion air is supplied from indoors and flue gases are discharged outdoors.

OPTIONS

Termination Kits

Facilitates installation of combustion air intake pipe and flue exhaust pipe.

Refer to venting table in this bulletin to determine pipe size needed and proper termination kit required.

See Optional Accessories table and dimension drawings.

Termination Kit - Concentric - Direct Vent

Applications

2 or 3 inch kit contains concentric termination assembly, reducer bushing and 45° elbow.

2 inch kit for -045-070 models contains an outdoor exhaust accelerator.

Kit requires single hole penetration of roof or wall for installation.

Roof Termination Flashing Kit is available for use with

2 inch Kits.

CSA certified.

ML193UH / Page 3

FEATURES

DIRECT VENT / NON-DIRECT VENT

Sealed comBustion system

(continued)

OPTIONS

Termination Kit - Flush-Mount

Kit contains flush-mount termination, accelerator, mounting template and hardware.

Kit may be used with 2, 2-1/2 or 3 in. pipe.

Termination Kits - Wall Assembly

Close Couple (US Only) - Direct Vent Applications

2 or 3 inch kit consists of close-couple, side-by-side

PVC piping with galvanized steel wall cover plate for sealing and isolating piping penetration of the wall.

Piping spacing and length is sized for proper wall installations.

CSA certified.

Close Couple WTK (Canada Only) - Direct Vent

Applications

2 or 3 inch kit contains one insulated faceplate, one insulated exhaust pipe, elbow and fittings.

Wall Ring - Direct Vent or Non-Direct Vent

Applications

2 inch kit contains 2 stainless steel outside seal caps,

2 galvanized steel inside seal caps, 4 seal rings for the caps and 18 inch insulation sleeve for sealing and isolating intake and exhaust piping penetration of wall.

Maintain a maximum of 6 inches between the inlet and outlet openings in the installation of the pipes.

Roof Termination Flashing Kit

2 or 3 inch kit contains two neoprene rubber roof flashings for vertical venting through a roof.

Vent pipe and insulation not furnished.

Also available for use with 2 inch (use 3 inch flashing)

Concentric Vent Termination Kits used in vertical venting rooftop applications.

I

CONTROLS

SureLight

®

Integrated Furnace Control

Contains all necessary controls and relays to operate furnace.

Combustion air inducer is controlled by the integrated furnace control. Prior to ignition, a pre-purge cycle for 15 seconds is initiated. After the main burners are turned off, a post-purge cycle for 5 seconds is run.

Control continuously monitors line voltage and maintains the igniter power at a constant level to provide consistent lighting and maximum igniter life.

Flame sensor assures safe and reliable operation.

Should loss of flame occur the integrated furnace control will initiate 4 re-attempts at ignition before locking out unit operation for 60 minutes.

Watchguard type circuit automatically resets ignition controls after one hour of continuous thermostat demand after unit lockout, eliminating nuisance calls for service.

ML193UH / Page 4

Fan control consists of adjustable blower timed-off delay (60, 90, 120, 180 seconds - factory setting 120 seconds) and fixed blower timed-on delay (30 seconds).

For air-conditioning applications, blower is automatically energized on thermostat demand for cooling.

Integrated furnace control has one red LED to indicate status and indicate diagnostic codes. Push button recall of the last 5 diagnostic codes aids in troubleshooting.

Integrated furnace control has built-in twinning capability

(“TWIN” terminal on control) to operate two furnaces simultaneously without any additional controls. A field supplied isolation relay is required to operate the twinned (no thermostat connection) furnace.

Two accessory terminals furnished for additional power supply requirements for 120 volt (less than 1 amp) power humidifiers and powered air cleaners.

24 Volt Transformer

Furnished and factory installed in control box. 40VA transformer has fuse wired in series.

Field Wiring Make-up Box

Furnished for line voltage wiring.

Factory installed internally on left side of furnace.

Box may be installed internally or externally on either side of furnace.

OPTIONS

Thermostat

Thermostat (programmable/non-programmable) is not furnished with unit.

See Thermostat bulletins in Controls Section and

Lennox Price Book for selection.

Night Service Kit

Contains most commonly used service parts:

• Furnace control

• Igniter

• Flame sensor

• Gas valve

• Transformer

• Service Manual

Universal Service Kit - Switches

Kit contains:

• Primary limits (for each model)

• Pressure switches (for each model)

• Flame rollout switches (for each model)

J

BLOWER

Multi-speed direct drive blower.

Statically and dynamically balanced.

Resiliently mounted.

Blower assembly easily removed for servicing.

Blower speeds are easily changed on the integrated furnace control. See blower performance tables.

FEATURES

K

L

CABINET

Low-profile, narrow width cabinet allows easy installation in upflow or horizontal applications.

Heavy-gauge, cold rolled steel construction.

Pre-painted cabinet finish.

Flanges provided on supply air opening for ease of plenum connection or alignment with indoor coil.

Insulated cabinet with foil faced insulation on sides and back of heating compartment.

Sealed blower compartment.

Complete service access.

Safety interlock switch automatically shuts off power to unit when blower compartment access door is removed.

Gas piping and electrical inlets are provided in both sides of cabinet.

Return Air Entry:

For bottom/end return-air entry for upflow/horizontal applications, remove furnished bottom seal panel from cabinet.

For side return-air entry (upflow applications only), corners are marked on either side of cabinet for return air cut-outs.

See dimension drawings.

NOTE - 60C and 60D size units that require air volumes over 1800 cfm must have one of the following:

1. Single side return air with transition, to accommodate

20 x 25 x 1 in. cleanable air filter. Required to maintain proper air velocity.

2. Single side return air with Optional Return Air Base

3. Bottom return air.

4. Return air from both sides.

5. Bottom and one side return air.

See Blower Performance Tables for additional information.

Coil Match-up

All furnaces exactly match C33 and CX34 cased upflow indoor coils and CH33 horizontal indoor coils with same letter designation in model number. No adaptor required. Engaging holes furnished on cabinet for alignment.

C33 uncased coils match furnaces without any overhang but require an optional adaptor base or field fabricated transition to match furnace opening. See C33 coil bulletin for additional information.

OPTIONS

Condensate Drain Heat Cable Kits

Self-limiting wattage heat cable prevents condensate drain from freezing in unconditioned areas.

Available in 6, 24 or 50 ft. lengths.

Heat Cable Tape:

66 ft. length, 1/2 in. wide fiberglass.

60 ft. length, 2 in. wide aluminum foil.

Horizontal Suspension Kit

Provides suspension of unit and indoor coil in horizontal applications.

Allows complete service access.

Consists of corner mounted hanging brackets with vibration isolators, return air end support rail and hardware for assembly.

Metal hanging straps must be field provided.

Crawl Space Vent Drain Kit

Allows venting through a crawl space for upflow and horizontal applications.

Includes 2 or 3 in. sanitary tee, 2 in. PVC assembly,

PVC boot and clamp.

Return Air Base

On furnaces with side return air and condensate trap on the same side of the cabinet, a field fabricated transition or Return Air Base is required when using an IAQ product higher than 14-3/16 in. installed next to the unit and serviced from the front.

IAQ products higher than 20 in. require a field fabricated transition.

Must be used for 60C and 60D models with air volumes over 1800 cfm in upflow applications when only one side return is required.

Cabinet is shipped flat for easy field assembly and is pre-painted steel to match the furnace.

See Dimension Drawing.

FILTER (NOT FURNISHED)

Filter and provisions for external mounting must be field provided.

OPTIONS

Air Filter and Rack Kit for Horizontal Return Air

(End) Applications

Washable or vacuum cleanable polyurethane frame type filter and external end return air rack available for field installation.

Rack has filter door for easy filter servicing.

Flanges on rack allow easy duct connection.

See dimension drawing.

Air Filter and Rack Kit for Upflow Side Return Air

Applications - Not for use with Return Air Base

Washable or vacuum cleanable polyurethane frame type filter and external side return air rack available for field installation.

Available in single and ten pack kits.

Rack has filter door for easy filter servicing.

Flanges on rack allow easy duct connection.

Field installs on either side of unit cabinet. See dimension drawing.

ML193UH / Page 5

SPECIFICATIONS

Gas

Heating

Performance

Model No.

1

AFUE

Input - Btuh

Output - Btuh

Temperature rise range - °F

ML193UH045XP24B

93%

44,000

41,000

40 - 70

3.5 / 10.0

ML193UH045XP36B

93%

44,000

42,000

25 - 55

3.5 / 10.0

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 8

1/3

ML193UH070XP24B

93%

66,000

62,000

50 - 80

3.5 / 10.0

Connections in.

Indoor

Blower

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

High static - in. w.g.

Intake / Exhaust Pipe (PVC)

Gas pipe size IPS

Condensate Drain Trap (PVC pipe) - i.d.

with furnished 90° street elbow with field supplied (PVC coupling) - o.d.

Wheel nom. dia. x width - in.

Motor output - hp

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 8

1/5

1.5 - 2

390 - 1140

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 8

1/5

1.5 - 2

390 - 1140

Electrical

Data

Tons of add-on cooling

Air Volume Range - cfm

Voltage

Blower motor full load amps 3.1

2.5 - 3

700 - 1600

120 volts - 60 hertz - 1 phase

6.1

3.1

Shipping Data

Maximum overcurrent protection lbs. - 1 package

15

120

15

122

15

125

1

NOTE - Filters and provisions for mounting are not furnished and must be field provided.

Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

SPECIFICATIONS

Gas

Heating

Performance

Model No.

1

AFUE

Input - Btuh

Output - Btuh

Temperature rise range - °F

ML193UH070XP36B

93%

66,000

62,000

40 - 70

3.5 / 10.0

ML193UH090XP36C

93%

88,000

83,000

50 - 80

3.5 / 10.0

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 8

1/3

ML193UH090XP48C

93%

88,000

83,000

40 - 70

3.5 / 10.0

Connections in.

Indoor

Blower

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

High static - in. w.g.

Intake / Exhaust Pipe (PVC)

Gas pipe size IPS

Condensate Drain Trap (PVC pipe) - i.d.

with furnished 90° street elbow with field supplied (PVC coupling) - o.d.

Wheel nom. dia. x width - in.

Motor output - hp

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 8

1/3

2.5 - 3

660 - 1615

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 10

1/2

3 - 4

900 - 2025

Electrical

Data

Tons of add-on cooling

Air Volume Range - cfm

Voltage

Blower motor full load amps 6.1

2 - 3

695 - 1620

120 volts - 60 hertz - 1 phase

6.1

8.2

Shipping Data

Maximum overcurrent protection lbs. - 1 package

15

127

15

143

15

146

1

NOTE - Filters and provisions for mounting are not furnished and must be field provided.

Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

ML193UH / Page 6

SPECIFICATIONS

Gas

Heating

Performance

Model No.

1

AFUE

Input - Btuh

Output - Btuh

ML193UH110XP48C

93%

110,000

104,000

ML193UH110XP60C

93%

110,000

104,000

ML193UH135XP60D

93%

132,000

124,000

Connections in.

Temperature rise range - °F

Gas Manifold Pressure (in. w.g.)

Nat. Gas / LPG/Propane

High static - in. w.g.

Intake / Exhaust Pipe (PVC)

Gas pipe size IPS

Condensate Drain Trap (PVC pipe) - i.d.

with furnished 90° street elbow

Indoor

Blower

with field supplied (PVC coupling) - o.d.

Wheel nom. dia. x width - in.

Motor output - hp

Tons of add-on cooling

Air Volume Range - cfm

Voltage

Blower motor full load amps

Maximum overcurrent protection

50 - 80

3.5 / 10.0

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

10 x 10

1/2

3 - 4

850 - 2030

40 - 70

3.5 / 10.0

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

11 ½ x 10

1

4 - 5

1210 - 2525

120 volts - 60 hertz - 1 phase

45 - 75

3.5 / 10.0

0.50

2 / 2

1/2

1/2

1/2 slip x 1/2 Mipt

3/4

11 ½ x 10

1

4 - 5

1340 - 2800

Electrical

Data

8.2

15

11.5

15

11.5

15

Shipping Data

lbs. - 1 package 155 161 178

1

NOTE - Filters and provisions for mounting are not furnished and must be field provided.

Annual Fuel Utilization Efficiency based on DOE test procedures and according to FTC labeling regulations. Isolated combustion system rating for non-weatherized furnaces.

INSTALLATION CLEARANCES - INCHES (MM)

Sides

Rear

Top/Plenum

Front

Front (service/alcove)

Floor

1

0 inches (0 mm)

0 inches (0 mm)

1 inch (25 mm)

0 inches (0 mm)

24 inches (610 mm)

2

Combustible

NOTE − Air for combustion must conform to the methods outlined in the National Fuel Gas Code (NFPA 54/ANSI−Z223.1) or the National Standard of Canada CAN/CSA−B149.1 Natural Gas and Propane Installation Code”.

NOTE − In the U.S. flue sizing must conform to the methods outlined in the current National Fuel Gas Code (NFPA 54/

ANSI−Z223.1) or applicable provisions of local building codes. In Canada flue sizing must conform to the methods outlined in National Standard of Canada CAN/CSA−B149.1.

1

Allow proper clearances to accommodate condensate trap and vent pipe installation.

2

Do not install the furnace directly on carpeting, tile, or other combustible materials other than wood flooring.

ML193UH / Page 7

OPTIONAL ACCESSORIES - order separately

“B” Width

Models

“C” Width

Models

CABINET ACCESSORIES

Horizontal Suspension Kit - Horizontal only

Return Air Base - Upflow only

CONDENSATE DRAIN KITS

Condensate Drain Heat Cable

Heat Cable Tape

6 ft.

24 ft.

50 ft.

Fiberglass - 1/2 in. x 66 ft.

Aluminum foil - 2 in. x 60 ft.

Crawl Space Vent Drain Kit

CONTROLS

51W10

50W98

26K68

26K69

26K70

36G53

16P89

51W18

51W10

50W99

26K68

26K69

26K70

36G53

16P89

51W18

Twinning Kit

FILTER KITS

1

Air Filter and

Rack Kit

Horizontal (end)

Side Return

15L38

Size of filter - in.

87L96 - 18 x 25 x 1

Single

44J22

Ten Pack

Size of filter - in.

66K63

16 x 25 x 1

NIGHT SERVICE KIT

Night Service Kit

Universal Service Kit - Switches

TERMINATION KITS

51W03

89W20

See Installation Instructions for specific venting information.

Termination Kits -

Direct Vent

Applications Only

Concentric

Flush-Mount

Wall - Close

Couple

Wall - Close

Couple WTK

US - 2 in.

3 in.

Canada - 2 in.

3 in.

2, 2-1/2 or 3 in.

US - 2 in.

3 in.

Canada - 2 in.

3 in.

2 in.

71M80

- - -

44W92

- - -

51W11

22G44

44J40

30G28

81J20

15F75

15F74

Termination Kits -

Direct or Non-

Direct vent

Roof

Wall Ring Kit

2

Roof Termination Flashing Kit - Direct or

Non-Direct Vent (2 flashings)

2 in.

2 in.

44J41

1

Cleanable polyurethane frame type filter.

2

Kits contain enough parts for two, non−direct vent installations.

3

Non-direct vent only.

NOTE - Termination Kits 44W92, 44W93, 30G28, 81J20 are certified to ULC S636 standard for use in Canada only.

15L38

87L97 - 20 x 25 x 1

44J22

66K63

16 x 25 x 1

51W03

89W20

69M29

60L46

44W92

44W93

51W11

- - -

44J40

- - -

81J20

15F75

3

15F74

44J41

“D” Width

Models

51W10

51W00

26K68

26K69

26K70

36G53

16P89

51W18

15L38

87L98 - 25 x 25 x 1

44J22

66K63

16 x 25 x 1

51W03

89W20

- - -

60L46

- - -

44W93

51W11

- - -

44J40

- - -

81J20

- - -

- - -

44J41

GAS HEAT ACCESSORIES

Input all models

High Altitude

Pressure Switch Kit

4501 - 7500 ft.

7501 - 10,000 ft.

80W60 80W61

Natural Gas to

LPG/Propane Kit

LPG/Propane to Natural Gas Kit

0 - 7500 ft.

69W73

0 - 7500 ft.

73W81

Natural Gas

High Altitude

Orifice Kit

LPG/Propane

High Altitude

Orifice Kit

7501- 10,000 ft.

7501- 10,000 ft.

73W37 68W68

ML193UH / Page 8

TERMINATION KITS USAGE

Input

Size

045

070

090

Vent Pipe

Diameter in.

2

2-1/2

3

2

2-1/2

3

2

2-1/2

3

Concentric Terminations

3

71M80

3, 4

44W92

Yes

Yes

Yes

Yes

Yes

Yes

- - -

- - -

- - -

Concentric

2 in.

Kits

69M29

- - -

- - -

- - -

- - -

- - -

- - -

Yes

Yes

Yes

3 in.

4

60L46

44W93

- - -

- - -

- - -

- - -

- - -

- - -

Yes

Yes

Yes

4

Close Couple

2 in.

22G44

30G28

Yes

Kits

3 in.

Standard Terminations

Outdoor Exhaust

Wall

Ring

Kit

2 in.

Flush

Mount kit

2, 2-1/2 or 3 in.

Accelerator

(Diameter X Length)

For use with Close

Couple and Wall Ring Kits

1-1/2 x 12 in.

2 x 12 in.

4

44J40

81J20 15F74

1

Yes Yes

51W11

Yes

Field Provided

Yes - - -

Yes

Yes

1

Yes

1

Yes

Yes

Yes

Yes

Yes

Yes

Yes

- - -

- - -

Yes

Yes

Yes

- - -

- - -

- - -

1

1

1

Yes

Yes

Yes

Yes

Yes

Yes

2

2

2

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

Yes

- - -

- - -

- - -

- - -

- - -

- - -

Yes

Yes

Yes

2 - - Yes Yes

110

2-1/2

3

- - -

- - -

Yes

Yes

Yes

Yes

135 3 - - - - Yes

1

Requires field provided 1-1/2 in. outdoor exhaust accelerator.

- - -

- - -

- - -

- - -

Yes

Yes

Yes

Yes

- - -

- - -

- - -

- - -

Yes

Yes

Yes

Yes

- - -

- - -

- - -

- - -

Yes

Yes

Yes

Yes

2

Requires field provided 2 in. outdoor exhaust accelerator.

3 Concentric Kits

71M80 and 44W92 include 1-1/2 in. outdoor exhaust accelerator, required when used with 045, 070 input models. Accelerator is not used with 090, 110,

135 input models.

4

Termination Kits 44W92, 44W93, 30G28, 81J20 are certified to ULC S636 standard for use in Canada only.

VENT LENGTHS - FEET

STANDARD TERMINATION AT ELEVATION 0 - 10,000 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1 81 66

2 in.

44 24 N/A 115 100

2-1/2 in.

68 43

3 in.

N/A 137 137 118 118 114

2

3

4

76

71

66

61

56

51

39

34

29

19

14

N/A 110

N/A 105

N/A N/A 100

95

90

85

63

58

53

38

33

28

N/A 132 132 113 113 109

N/A

N/A

127

122

127

122

108

103

108

103

104

99

No. of

90 ELL

7

8

5

6

9

10

61

56

51

46

41

36

46

41

36

31

26

21

24

19

14

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

95

90

85

80

75

70

80

75

70

65

60

55

48

43

38

33

28

23

23

18

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

117

112

107

102

97

92

117

112

107

102

97

92

98

93

88

83

78

73

98

93

88

83

78

73

94

89

84

79

74

69

CONCENTRIC TERMINATION ELEVATION 0 - 10,000 ft.

Pipe Size

Input 045 070 090 110 135 045 070 090 110 135 045 070 090 110 135

1 73 58

2 in.

42 22 N/A 105 90

2-1/2 in.

64 39

3 in.

N/A 121 121 114 114 105

No. of

90 ELL

2

3

4

5

6

7

68

63

58

53

48

43

53

48

43

38

33

28

37

32

27

22

17

12

17

12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

100

95

90

85

80

75

85

80

75

70

65

60

59

54

49

44

39

34

34

29

24

19

14

N/A

N/A

N/A

N/A

N/A

N/A

N/A

116

111

106

101

96

91

116

111

106

101

96

91

109

104

99

94

89

84

109

104

99

94

89

84

100

95

90

85

80

75

8

9

10

38

33

28

23

18

13

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

70

65

60

55

50

45

29

24

19

N/A

N/A

N/A

N/A

N/A

N/A

86

81

76

86

81

76

79

74

69

79

74

69

70

65

60

ML193UH / Page 9

DIMENSIONS - INCHES (MM) - UPFLOW POSITION

1

NOTE - 60C and 60D size units that require air volumes over 1800 cfm must have one of the following:

1. Single side return air with transition, to accommodate

20 x 25 x 1 in. cleanable air filter.

Required to maintain proper air velocity.

2. Single side return air with Optional Return Air Base

3. Bottom return air.

4. Return air from both sides.

5. Bottom and one side return air.

See Blower Performance Tables for additional information.

2 Optional Side Return Air Filter Kit is not for use with the Optional Return Air Base.

2 (51)

D

COMBUSTION

AIR INTAKE

7

(178)

OUT

Flue Condensate Trap

Assembly

Furnished for external field installation on either side of unit.

(See installation instructions for additional information.)

2

OPTIONAL

SIDE RETURN

AIR FILTER KIT

(Either Side)

3-3/8

(86)

2-7/8

(73)

EXHAUST AIR

OUTLET

SUPPLY AIR

OPENING

23-3/4

(603)

25

(635)

TOP VIEW

A

B

9/16 (14)

1 (25)

Front Panel

2

OPTIONAL

SIDE RETURN

AIR FILTER KIT

(Either Side)

33

(838)

6-9/16 (167)

Left

9 (229)

Right

12-5/8 (321)

(Either Side)

ELECTRICAL

INLET

(Either Side)

14-3/4

(375)

16

(406)

AIR FLOW

3/4

(19)

C

1

Bottom Return

Air Opening

FRONT VIEW

3/4

(19)

Model No.

in.

ML193UH045XP24B

ML193UH045XP36B

ML193UH070XP24B

ML193UH070XP36B

17-1/2

ML193UH090XP36C

ML193UH090XP48C

ML193UH110XP48C

ML193UH110XP60C

21

ML193UH135XP60D 24-1/2

A

ML193UH / Page 10

5/8

(16)

mm

446

533

622

in.

B mm

16-3/8

19-7/8

23-3/8

416

505

594

27-3/4

(705)

19-7/16

(494)

2 (51)

(Either Side)

GAS PIPING INLET

(Either Side)

CONDENSATE

TRAP CONNECTION

(Either Side)

6-1/2 (165)

(Either Side)

23

(584)

1 Side Return

Air Opening

(Either Side)

14

(356)

3-1/4

(83)

1-15/16 (49)

in.

C mm

23-1/2

(597)

1

Bottom Return

Air Opening

SIDE VIEW in.

D mm

16

19-1/2

23

406

495

584

7-5/8

9-3/8

11-1/8

194

238

283

9/16

(14)

1-1/2

(38)

DIMENSIONS - INCHES (MM) - HORIZONTAL POSITION

LEFT-HAND AIR DISCHARGE

9/16

(14)

12-5/8 (321)

Bottom

6-9/16 (167) Top

9 (229) Bottom

CONDENSATE

TRAP CONNECTION

(Bottom)

AIR

FLOW

ELECTRICAL INLET

(Top or Bottom)

9/16

(14)

27-3/4

(705)

B

19-7/16

(494)

SUPPLY

AIR

OPENING

6-1/2 (165)

Bottom

2 (51)

Top or Bottom

COMBUSTION

AIR INTAKE

2-7/8

(73)

D

A

EXHAUST AIR

OUTLET

END VIEW

3-3/8 (86)

2 (51)

TOP VIEW

33

(838)

FRONT VIEW

GAS PIPING INLET

(Top or Bottom)

1 (25)

Front Panel

AIR

FLOW

A

3-1/4

(95)

RIGHT-HAND AIR DISCHARGE

3/4

(19)

C

27-3/4

(705)

23-1/2

(591)

AIR

OPENING

END VIEW

AIR

FLOW

CONDENSATE

(Bottom)

12-5/8 (321)

Bottom

9 (229) Top

6-9/16 (167) Bottom

ELECTRICAL INLET

(Top or Bottom)

27-3/4

(705)

23-1/2

(591)

RETURN

OPENING

C

END VIEW

3/4

(19)

1 (25)

Front Panel

3-1/4

(95)

A

AIR

FLOW

Model No.

in.

ML193UH045XP24B

ML193UH045XP36B

ML193UH070XP24B

ML193UH070XP36B

17-1/2

ML193UH090XP36C

ML193UH090XP48C

ML193UH110XP48C

ML193UH110XP60C

21

ML193UH135XP60D 24-1/2

A mm

446

533

622

TOP VIEW

FRONT VIEW in.

B mm

16-3/8 416

19-7/8

23-3/8

505

594

GAS PIPING INLET

(Top or Bottom)

EXHAUST AIR

OUTLET

2 (51)

in.

16

19-1/2

23

A

D

2-7/8

(73)

C

COMBUSTION

AIR INTAKE

END VIEW

D mm in.

mm

406

495

584

7-5/8

9-3/8

11-1/8

27-3/4

(705)

SUPPLY

AIR

OPENING

B

9/16

(14)

194

238

283

9/16

(14)

ML193UH / Page 11

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

HORIZONTAL (END) FILTER KIT

5/8

(16)

24−3/4

(629)

5/8

(16)

AIR FLOW

A

5/8

(16)

B

RETURN

AIR

OPENING

23−1/2

(597)

5/8

(16)

SIDE VIEW

1-1/4

(32)

AIR FILTER

(Furnished)

FRONT VIEW

Furnace

Cabinet

Width

B

C

D

Catalog

Number

87L96

87L97

87L98 in.

18

21

25

A mm

457

533

635

in.

16-3/4

18-3/4

23-3/4

B mm

425

476

603

CONDENSATE

TRAP

Optional Return Air Base

(Upflow Applications Only - For use with B, C and D cabinets)

FURNACE

FRONT

INDOOR AIR

QUALITY

CABINET

(PCO, Filter

Cabinet, etc.)

IF BASE

IS USED

WITHOUT

IAQ CABINET,

A SINGLE

RETURN AIR

PLENUM

MUST

COVER BOTH

UNIT AND

RETURN

AIR BASE

OPENINGS

3-1/4

(83)

1

Overall

(Maximum)

1

Unit side return air

Opening

1

2

11 (279)

Maximum

14 (356)

1

22-7/16

(570)

Overall

(Maximum)

17-1/2 (446) B Width (50W98)

21 (533) C Width (50W99)

24-1/2 (622) D Width (51W00)

OPTIONAL

AIR BASE

5-5/8

(143)

SIDE RETURN

AIR OPENINGS

(Either Side)

23

(584)

26-7/8

(683)

SIDE VIEW

3/4

(19)

NOTE- Optional Side Return Air Filter Kits are not for use with Optional Return Air Base.

Both the unit return air opening and the base return air opening must be covered by a single plenum or IAQ cabinet.

Minimum unit side return air opening dimensions for units requiring 1800 cfm or more of air (W x H): 23 x 11 in. (584 x 279 mm).

The opening can be cut as needed to accommodate plenum or IAQ cabinet while maintaining dimensions shown.

2

Side return air openings must be cut in the field. There are cutting guides stenciled on the cabinet for the side return air opening. The size of the opening must not extend beyond the markings on the furnace cabinet.

To minimize pressure drop, the largest opening height possible, up to 14 in. (356 mm), is preferred.

ML193UH / Page 12

DIMENSIONS - INCHES (MM) - FURNACE/COIL COMBINED DIMENSIONS

A

33

(838)

B

UPFLOW POSITION

Model No

CX34

CX34-18/24B-6F

CX34-18/24C-6F

C33

C33-24B

A

Cased

B

Uncased

(CX34 - cased only)

A in. mm in.

mm in. mm in.

B mm

C33-24C 16-1/2 419 49-1/2 1257 13-7/8 352 46-7/8 1191

CX34-25B-6F

CX34-30B-6F

CX34-30C-6F

CX34-31B-6F

CX34-36B-6F

C33-25B 18-1/2 470 51-1/2 1308 15-7/8 403 48-7/8 1241

C33-30B

C33-30C 20-1/2 521 53-1/2 1359 17-3/4 451 50-3/4 1289

C33-31B 22-1/2 572 55-1/2 1410 20-1/4 514 53-1/4 1353

C33-36B 24-1/2 622 57-1/2 1461 21-7/8 556 54-7/8 1394

CX34-36C-6F

CX34-38B-6F

CX34-42B-6F

C33-36C 24-1/2 622 57-1/2 1461 21-1/4 540 54-1/4 1378

C33-38B 24-1/2 622 57-1/2 1461 22 559 55 1397

C33-42B 24-1/2 622 57-1/2 1461 21-7/8 556 54-7/8 1394

CX34-43B-6F

CX34-43C-6F

C33-43B 27-1/2 699 60-1/2 1537 26-1/4 667 59-1/4 1505

C33-43C 27-1/2 699 60-1/2 1537 25-3/4 654 58-3/4 1492

- - C33-44C 24-1/2 622 57-1/2 1461 21-1/2 546 54-1/2 1384

CX34-44/48B-6F C33-48B 24-1/2 622 57-1/2 1461 22-1/8 562 55-1/8 1400

CX34-44/48C-6F C33-48C 24-1/2 622 57-1/2 1461 21-1/2 546 54-1/2 1384

CX34-49C-6F C33-49C 29-1/2 749 62-1/2 1588 28-1/2 724 61-1/2 1562

CX34-50/60C-6F C33-50/60C27-1/2 699 60-1/2 1537 24-3/4 629 57-3/4 1467

CX34-60D-6F C33-60D 25-1/2 648 58-1/2 1486 24-3/4 629 57-3/4 1467

CX34-62C-6F

CX34-62D-6F

C33-62C 31-1/2 800 64-1/2 1638 30-5/8 778 63-5/8 1616

C33-62D 29-1/2 749 62-1/2 1588 28-3/4 730 61-3/4 1568

A

B

HORIZONTAL POSITION

Model

Number

CH33-36B-2F

CH33-36C-2F

CH33-42B-2F

CH33-48C-2F

CH33-60D-2F

CH33-44/48B-2F

CH33-50/60C-2F

CH33-62D-2F

in.

26-1/2

31-1/2

A mm

673

800

in.

59-1/2

B mm

1511

64-1/2 1638

ML193UH / Page 13

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

FLUSH-MOUNT VENT TERMINATION KIT (51W11)

2-3/8 (60)

With 2 or 2-1/2 in. (51 or 64 mm) PVC pipe

Exhaust Intake

(Behind Plate)

Seal all openings

(typical)

With 3 in. (76 mm) PVC pipe

Exhaust Intake

(Behind Plate)

12 (305) minimum

(recommended)

2 (51) PVC pipe

3 (76) PVC pipe

When required Use

Field Provided

2-1/2 to 2 in. (64 to 51 mm)

Coupling

NOTE - PVC pipe and fittings are not furnished and must be field furnished.

2-1/2 (64) PVC pipe

ML193UH / Page 14

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

CONCENTRIC WALL

TERMINATION APPLICATIONS

CONCENTRIC ROOF

TERMINATION APPLICATIONS

FLASHING

(Not Furnished)

EXHAUST

AIR

INTAKE

AIR

OUTSIDE

WALL

CLAMP

(Not Furnished)

INTAKE

AIR

EXHAUST

AIR

INTAKE

AIR

12 (305)

Minimum

Above Grade or Average Snow

Accumulation

GRADE

12 (305)

Minimum

Above Average

Snow

Accumulation

CLAMP

SHEET METAL STRAP

(Clamp and sheet metal strap must be field installed to support the weight of the termination kit.)

71M80 / 69M29 / 44W92 − 2 inch kits

60L46 / 44W93 − 3 inch kits

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

A

EXHAUST

AIR

Cat. No.

71M80

69M29

44W92

(Canada)

60L46

44W93

(Canada)

ELBOW

(Field Supplied)

INTAKE AIR

TERMINATION

ASSEMBLY

(Furnished)

Outdoor Exhaust Accelerator included with 71M80/44W92

A B in.

mm in.

mm

33−3/8 848 16−3/4 425

29 737 15−1/2 394

38−7/8 987 21−3/16 538

36−1/8 918 19−1/2 495

NOTE − Typical illustration for dimensions only. Design may vary depending on kit ordered.

WALL ASSEMBLY TERMINATION KIT − RING KIT 15F74 − 2 inch (51 mm)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

DIRECT VENT APPLICATION

NON-DIRECT VENT APPLICATION

NOTE - EXHAUST PIPE SHOWN

Kit Contains Enough Parts For Two Installations

12 in. (305 mm) - 2 in. (51 mm) dia. exhaust pipe

20 in. (508 mm) - 3 in. (76 mm) dia. exhaust pipe

maximum length without support

12 in. (305 mm) - 2 in. (51 mm) dia. exhaust pipe

20 in. (508 mm) - 3 in. (76 mm) dia. exhaust pipe

maximum length without support

8 in. (203 mm) minimum

6 in. (152 mm) maximum

NOTE − 12 in. (305 mm) minimum height above average snow accumulation

(from bottom of vent pipe).

NOTE − 12 in. (305 mm) minimum height above average snow accumulation

(from bottom of vent pipe).

ML193UH / Page 15

OPTIONAL ACCESSORY DIMENSIONS - INCHES (MM)

WALL TERMINATION KITS (CLOSE-COUPLE)

EXTENDED VENT FOR GRADE CLEARANCE

2 inch (51 mm) 22G44 (US)

3 inch (76 mm) 44J40 (US)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

If Intake and Exhaust Pipe is less than12 in. (305 mm) above snow accumulation or other obstructions, field fabricated piping must be installed.

WALL SUPPORT

8 (203) MIN. Between Ends of Exhaust and Intake Pipe

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

12

(305)

6 (152)

Maximum

EXHAUST

AIR

INTAKE

AIR

INTAKE

AIR

8 (203) MIN.

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

5

(127)

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

5-1/2

(140)

1/2 (13)

FOAM INSULATION

(Field Furnished)

EXHAUST

AIR

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

WALL TERMINATION KITS (CLOSE-COUPLE)

EXTENDED VENT FOR GRADE CLEARANCE

2 inch (51 mm) 30G28 (WTK Canada)

3 inch (76 mm) 81J20 (WTK Canada)

See Installation Instructions for additional information.

Note - Field provided reducer may be required to adapt larger vent pipe size to termination.

If Intake and Exhaust Pipe is less than12 in. (305 mm) above snow accumulation or other obstructions, field fabricated piping must be installed.

WALL SUPPORT

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

12

(305)

6 (152)

Maximum

INTAKE

AIR

EXHAUST

AIR

6 (152)

MIN.

INTAKE

AIR

6 (152) MIN.

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

12 (305) MAX. for 2 (51) Dia. Exhaust

20 (508) MAX. for 3 (76) Dia. Exhaust

5

(127)

5-1/2

(140)

1/2 (13)

FOAM INSULATION

(Field Furnished)

EXHAUST

AIR

12 (305) Minimum

Above Grade or Average

Snow Accumulation

GRADE

ML193UH / Page 16

BLOWER DATA

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

ML193UH045XP24B PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

1140 455 920 365 765 295 710 265

1135 445 900 360 765 290 690 255

1125 430 895 350 755 285 680 255

1090 415 870 340 725 280 660 250

1065 405 870 325 715 270 635 245

1020 390 825 315 675 260 605 235

945 365 780 300 640 250 555 225

910 350 740 295 585 240 505 220

790 325 670 275 510 225 455 205

735 310 575 255 460 220 390 195

ML193UH045XP36B PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

1600 700 1370 590 1160 475 1005 400

1600 685 1355 565 1155 465 1015 390

1550 650 1330 540 1150 445 1000 380

1480 625 1295 515 1140 430 975 365

1425 590 1280 490 1105 415 975 350

1355 565 1190 460 1085 395 940 335

1320 545 1165 435 1030 375 900 315

1225 500 1110 425 975 355 855 310

1135 480 1050 395 920 330 780 280

1025 445 950 360 800 295 700 255

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

ML193UH070XP24B PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

1140 455 920 365 765 295 710 265

1135 445 900 360 765 290 690 255

1125 430 895 350 755 285 680 255

1090 415 870 340 725 280 660 250

1065 405 870 325 715 270 635 245

1020 390 825 315 675 260 605 235

945 365 780 300 640 250 555 225

910 350 740 295 585 240 505 220

790 325 670 275 510 225 455 205

735 310 575 255 460 220 390 195

ML193UH070XP36B PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

1615 680 1355 570 1140 480 1030 400

1565 660 1365 545 1150 465 1020 385

1535 630 1340 525 1150 440 1025 375

1440 600 1300 500 1110 420 1000 350

1405 570 1255 470 1075 400 975 345

1340 535 1200 445 1045 380 945 330

1255 500 1125 420 995 355 875 310

1165 475 1080 395 935 335 820 290

1060 455 990 365 870 315 750 265

955 425 895 345 750 285 660 245

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

ML193UH090XP36C PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

1620 745 1340 620 1130 500 965 405

1610 720 1335 595 1135 490 975 395

1565 695 1335 565 1145 465 970 385

1525 665 1300 555 1135 455 970 370

1485 635 1295 520 1110 435 960 355

1431 600 1260 495 1090 405 940 345

1365 570 1210 475 1035 390 900 330

1295 535 1155 445 995 365 860 305

1200 505 1065 415 930 340 745 270

1060 460 955 375 820 305 695 260

ML193UH090XP48C PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

2025 900 1690 780 1395 645 1200 540

1995 880 1705 760 1390 635 1205 525

1925 835 1675 715 1405 605 1205 505

1850 795 1640 680 1400 580 1170 490

1790 760 1575 645 1395 560 1170 475

1700 725 1540 625 1350 535 1140 450

1610 690 1455 580 1295 505 1100 430

1540 645 1365 550 1225 480 1030 405

1415 615 1265 510 1125 445 980 385

1270 565 1165 470 1060 420 900 350

0.00

0.10

0.20

0.30

0.40

0.50

0.60

0.70

0.80

0.90

ML193UH110XP48C PERFORMANCE (Less Filter)

External

Static

Pressure in. w.g.

Air Volume / Watts at Various Blower Speeds

High

Medium-

High

Medium-

Low

Low cfm Watts cfm Watts cfm Watts cfm Watts

2030 905 1750 805 1425 665 1225 530

1950 865 1755 770 1430 630 1215 515

1935 840 1675 735 1455 610 1230 505

1885 810 1660 685 1410 585 1200 485

1830 780 1585 645 1385 570 1190 470

1750 740 1565 630 1320 535 1165 455

1660 695 1485 585 1280 505 1105 425

1540 665 1380 555 1230 485 1060 405

1420 615 1290 520 1140 445 945 375

1290 575 1175 470 1045 410 850 350

ML193UH / Page 17

BLOWER DATA

ML193UH110XP60C PERFORMANCE (Less Filter)

Air Volume / Watts at Different Blower Speeds

External

Static

Pressure in. w.g.

0.00

0.10

Bottom Return Air, Side Return Air with Optional Return

Air Base, Return Air from Both Sides or Return Air from

Bottom and One Side.

High Medium-High Medium-Low Low

Single Side Return Air − Air volumes in bold require field fabricated transition to accommodate 20 x 25 x 1 in. air filter in order to maintain proper air velocity.

High Medium-High Medium-Low Low cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts

2525 1560 2175 1165 1820 905 1465 725

2520 1545 2135 1150 1750

905 1445 720

2585 1545 2200 1135 1860 900 1475 710 2555 1545 2135 1115 1775 890 1470 715

0.20

0.30

0.40

0.50

0.60

0.70

2515 1505 2150 1110 1840

2445 1445 2135 1065 1790

2340 1385 2065 1035 1770

890

870

845

1490

1500

1500

705

690

675

2465 1480 2105 1085 1775

2370 1430 2045 1055 1750

2275 1375 1990 1010 1730

875

855

830

1465

1460

1460

705

690

680

2230 1350 1985 985 1755 810 1470 665

2185 1345 1930 970

1690 800 1460 655

2130 1295 1920 950 1685 785 1425 640

2060 1290 1850 935

1650 780 1420 635

2030 1250 1815 905 1640 760 1405 625 1930 1230 1760 900 1580 750 1355 610

0.80

0.90

1920 1190 1735 865 1560 725 1350 605 1825 1180 1660 855 1505 710 1290 585

1735 1135 1620 830 1450 685 1270 575 1665 1130 1520 810 1415 675 1210 560

ML193UH135XP60D PERFORMANCE (Less Filter)

Air Volume / Watts at Different Blower Speeds

External

Static

Pressure in. w.g.

0.00

0.10

Bottom Return Air, Side Return Air with Optional Return

Air Base, Return Air from Both Sides or Return Air from

Bottom and One Side.

High Medium-High Medium-Low Low

Single Side Return Air − Air volumes in bold require field fabricated transition to accommodate 20 x 25 x 1 in. air filter in order to maintain proper air velocity.

High Medium-High Medium-Low Low cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts cfm Watts

2800 1715 2155 1160 1730 900 1375 695 2720 1685 2110 1135 1670 905 1355 705

2770 1665 2170 1145 1740 895 1415 700 2660 1650 2110 1115 1725 895 1390 700

0.20

0.30

0.40

0.50

0.60

0.70

0.80

2690 1635 2150 1110 1770

2590 1560 2140 1080 1785

2500 1535 2105 1055 1785

890

870

855

1450

1455

1475

700

695

690

2600 1585 2125 1090 1750

2535 1525 2075 1065 1750

2400 1490 2055 1030 1715

885

865

845

1450

1465

1460

695

685

680

2420 1465 2050 1025 1770 835 1465 665 2335 1420 2000 1005 1725 825 1455 660

2330 1410 2015 995 1720 810 1460 655

2270 1385 1950 970

1720 800 1445 650

2225 1370 1965 960 1690 785 1450 650

2175 1335 1895 950

1665 780 1430 635

2150 1335 1875 925 1655 755 1435 630

2075 1295 1840 910

1605 745 1400 620

0.90

2025 1290 1830 890 1575 720 1375 605 1975 1255 1755 875 1540 725 1340 590

ML193UH / Page 18

REVISIONS

Sections

Features

Optional Accessories

Description of Change

Updated Surelight

®

Integrated Furnace Control features. Added twinning capability.

Changed Safety Night Service Kit to Universal Service Kit - Switches.

Removed Twinning Kit.

Visit us at www.lennox.com

For the latest technical information, www.lennoxdavenet.com

Contact us at 1-800-4-LENNOX

NOTE - Due to Lennox’ ongoing commitment to quality, Specifications, Ratings and Dimensions subject to change without notice and without incurring liability.

Improper installation, adjustment, alteration, service or maintenance can cause property damage or personal injury.

Installation and service must be performed by a qualified installer and servicing agency. ©2012 Lennox Industries, Inc.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
