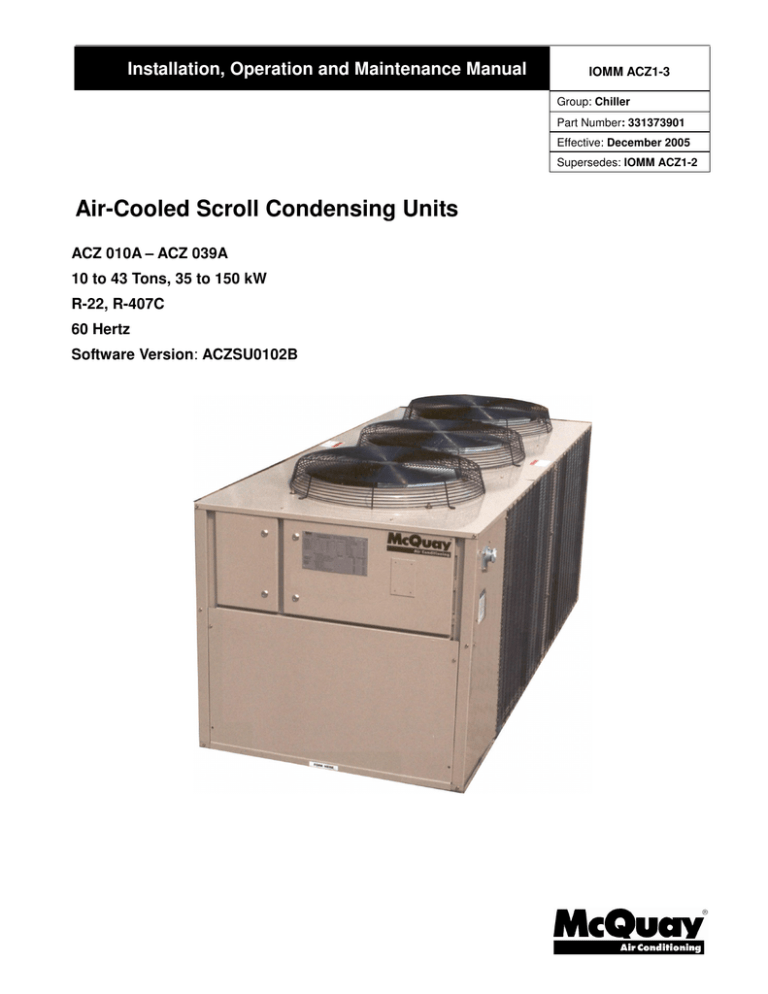

Installation, Operation and Maintenance Manual

Air-Cooled Scroll Condensing Units

ACZ 010A – ACZ 039A

10 to 43 Tons, 35 to 150 kW

R-22, R-407C

60 Hertz

Software Version: ACZSU0102B

IOMM ACZ1-3

Group: Chiller

Part Number: 331373901

Effective: December 2005

Supersedes: IOMM ACZ1-2

2

Table of Contents

Introduction ....................................... 3

General Description ......................................... 3

Inspection......................................................... 3

Installation ....................................................... 3

Handling .......................................................... 3

Location ........................................................... 4

Service Access ................................................. 4

Vibration Isolators............................................ 6

Chilled Water System....................................... 7

Refrigerant Piping............................................ 9

Unit Component Location.............................. 13

Control Layout and Operation ...... 13

Control Center................................................ 13

R-407C Units.................................... 14

Start-up and Shutdown................... 16

Pre Start-up .................................................... 16

Start-up .......................................................... 16

Sequence of Operation................................... 16

Physical Data.................................... 18

R-22 ............................................................... 18

R-407C........................................................... 20

Electrical Data ................................. 21

Field Wiring ................................................... 21

R-22 ............................................................... 21

Dimensional Data ............................ 29

System Maintenance........................ 30

General........................................................... 30

Lubrication..................................................... 30

Electrical Terminals ....................................... 30

MODEL CODE

A C Z XXX A

Condensers..................................................... 30

Refrigerant Sight glass ................................... 30

Standard MicroTech II Controller. 31

Table of Contents ........................................... 31

Overview........................................................ 32

General Description ....................................... 32

Automatic Adjusted Limits ............................ 34

Dynamic Default Values ................................ 35

Control Functions and Definitions ................. 36

Unit Enable .................................................... 37

Unit Mode...................................................... 38

Power Up Start Delay .................................... 38

Unit State ....................................................... 38

Evaporator Fan State Control......................... 39

Condenser Fans.............................................. 39

Low OAT Start............................................... 40

Capacity Overrides ........................................ 40

Low Ambient Lockout ................................... 41

Compressor Control....................................... 41

Normal Shutdown .......................................... 42

Rapid Shutdown............................................. 42

Liquid Line Solenoid ..................................... 42

Using the Controller....................................... 43

Service .............................................. 54

Thermostatic Expansion Valve....................... 54

Filter-Driers ................................................... 54

Liquid Line Solenoid ..................................... 54

Optional Controls........................................... 55

Troubleshooting Chart ................................... 57

Air-Cooled

Vintage

Condensing

Nominal Tons

Scroll Compressor

"McQuay" is a registered trademark of McQuay International

2005 McQuay International

Illustrations and data cover the McQuay International products at the time of publication and we reserve the right to make changes in design and construction at anytime without notice.

ACZ 010A through 039A IOMM ACZ1-3

Introduction

General Description

McQuay air-cooled condensing units are complete, self-contained automatic refrigerating units.

Every unit is completely assembled, factory wired, and tested. Each unit consists of an air-cooled condenser, Copeland Compliant Scroll hermetic compressor, and internal refrigerant piping, ready to be piped to a field supplied low side.

The electrical control center includes all equipment protection and operating controls necessary for automatic operation except for the staging control for the steps of capacity in the unit.

Condenser fan motors are three-phase (except single-phase on No.1 fan with SpeedTrol option) and started by their own contactors with inherent overload protection. The compressor has solidstate motor protection for inherent thermal overload protection except Models ACZ 010 and 013 that have internal line breakage.

Inspection

Check all items carefully against the bill of lading. Inspect all units for damage upon arrival.

Report shipping damage and file a claim with the carrier. Check the unit nameplate before unloading to be sure it agrees with the power supply available. Units are shipped FOB factory and McQuay is not responsible for physical damage after the unit leaves the factory.

Note: Unit shipping and operating weights are listed on pages 18 and 19.

Installation

Note: Installation is to be performed by qualified personnel who are familiar with local codes and regulations, especially concerning refrigerant release to the atmosphere.

WARNING

Sharp edges and coil surfaces can cause personal injury.

Wear protective gear and avoid contact with them.

Handling

Be careful to avoid rough handling of the unit. Do not push or pull the unit from anything other than the base. Block the pushing vehicle away from the unit to prevent damage to the sheet-metal cabinet and end frame (see Figure 1).

To lift the unit, lifting slots are provided in the base of the unit. Arrange spreader bars and cables to prevent damage to the condenser coils or cabinet (see Figure 2).

IOMM ACZ1-3 ACZ 010A through 039A 3

Figure 1, Suggested Pushing Arrangement

BLOCKING REQUIRED

ACROSS FULL WIDTH

4

Figure 2, Suggested Lifting Arrangement

SPREADER BAR (2)

NOTE:: The fork lift slots can be used for lifting by inserting sufficiently strong pipe through them as shown in Figure 2.

The slots are centered around the unit enter-ofgravity.

PIPE SLUNG THRU

OPENINGS IN LEGS (2)

Location

Unit Placement

ACZ units are for outdoor applications and can be mounted on a roof or at ground level. Set units on a solid and level foundation. For roof-mounted applications, install the unit on a steel channel or I-beam frame to support the unit above the roof. For ground level applications, install the unit on a substantial base that will not settle. A one-piece concrete slab with footings extended below the frost line is recommended. Be sure the foundation is level (within 1/2” [13 mm] over its length and width). The foundation must support the operating weights listed in the Physical Data

Tables on pages 18 and 19.

Since its operation is affected by wind, the unit should be located so that its length is parallel with the prevailing wind. If this is not practical, field fabricated wind deflectors may be required.

Service Access

Each end of the unit must be accessible after installation for periodic service. Compressors, filterdriers, and liquid line solenoid valve are accessible from the end of the unit. Motor protector controls are on the compressor. Most operating, equipment protection, and starting controls are located in the unit control box.

The fan deck with the condenser fans and motors can be removed from the top of the unit.

ACZ 010A through 039A IOMM ACZ1-3

Clearances

The flow of air to and from the condenser coil must not be limited.

Restricting airflow or allowing air recirculation will result in a decrease in unit performance and efficiency.

There must be no obstruction above the unit that would deflect discharge air downward where it could be recirculated back to the inlet of the condenser coil. The condenser fans are propeller type and will not operate with ductwork on the fan outlet.

Install the unit with enough side clearance for air entrance to the coil and for servicing. Provide service access to the compressors, electrical control panel and piping components as shown in Figure 3. Do not block access to the unit with piping or conduit.

Do not allow debris to accumulate near the unit. Air movement can draw debris into the condenser coil causing air starvation. Give special consideration to low ambient operation where snow can accumulate. Keep condenser coils and fan discharge free of snow or other obstructions to permit adequate airflow.

Sound Isolation

The low sound levels of the ACZ units are suitable for most applications.

When additional sound reduction is necessary, locate the unit away from sound sensitive areas. Avoid locations beneath windows or between structures where normal-operating sounds may be objectionable. Reduce structurally transmitted sound by isolating electrical conduit and the unit itself.

Use wall sleeves and rubber isolated refrigerant piping hangers to reduce transmission of noise into occupied spaces. Use flexible electrical conduit to isolate sound through electrical conduit. Spring isolators are effective in reducing the low amplitude sound generated by the compressors and for unit isolation in sound-sensitive areas.

Figure 3, Clearance requirements

4 Ft.

(1220mm)

Clearance for

Service Access

4 Ft. (1220mm)

Clearance for Air Inlet

4 Ft. (1220mm)

Clearance for Air Inlet

4 Ft.

(1220mm)

Clearance for

Service Access

The recommended minimum side clearance between two units is 8 feet (2440mm).

The unit must not be installed in a pit or enclosure that is deeper or taller than the height of the unit unless extra space is provided. The minimum clearance on each side of the unit is 6 feet (1828mm) when installed in a pit. The pit cannot be deeper than the unit.

The minimum clearance to a side wall or building taller than the unit height is 6 feet (1828mm) provided no solid wall above 6 feet (1828mm) tall is closer than 12 feet (3658mm) to the opposite side of the unit.

IOMM ACZ1-3 ACZ 010A through 039A 5

6

Vibration Isolators

Vibration isolators are recommended for all roof-mounted installations or wherever vibration transmission is a consideration.

The unit should be initially on shims or blocks at the listed free height. When all piping, wiring, flushing, charging, etc. is completed, the springs are adjusted upward to loosen the blocks or shims that are then removed.

A rubber anti-skid pad is part of the isolator. Installation of spring isolators requires flexible piping connections and at least three feet of flexible conduit to avoid straining the piping and transmitting vibration and noise. These units cannot be bolted to isolators.

Table 1, Recommended Vibration Isolators

RF

Neoprene-in-Shear

LF

RP-3 Red

RP-3 Green

RP-3 Red

RP-3 Green

RB

RP-3 Black

RP-3 Red

LB

RP-3 Black

RP-3 Red

Kit P/N

Model

010, 013,016,020,025,028

033, 039

350014859

350014857

Spring

LF

Kit P/N

Model

010, 013

016, 020

025, 028

033

039

RF

CP 1-24 Brown

CP 1-25 Red

CP 1-24 Brown

CP 1-25 Red

RB

CP 1-24 Brown

CP 1-24 Brown

LB

CP 1-24 Brown

CP 1-24 Brown

350014831

350014830

CP1-26 Purple CP1-26 Purple CP 1-24 Brown CP 1-24 Brown 350014829

CP1-27 Orange CP1-26 Purple CP 1-24 Brown CP 1-24 Brown 350014836

CP1-27 Orange CP1-27 Orange CP 1-24 Brown CP 1-24 Brown 350014828

Note: See dimension drawing for location of isolators

Corner Operating Weights

ACZ

Unit

Model

010

013

016

020

025

028

033

039

RF LF RB LB Total

259 257 243 241 1000

259 257 243 241 1000

353 360 251 256 1220

377 383 288 292 1340

498 505 232 235 1470

508 515 232 235 1490

605 567 304 284 1760

712 649 313 286 1960

RP-3, Neoprene-in Shear Isolator CP-1, Spring Isolator

Control

Panel

ACZ 010A through 039A IOMM ACZ1-3

Chilled Water System

Water Piping (Applicable when the Unit is Field Connected to a Water Type

Evaporator)

Local authorities can supply the installer with the proper building and safety codes required for proper installation.

Install piping with minimum bends and changes in elevation to minimize pressure drop. Consider the following when installing water piping:

1. Vibration eliminators to reduce vibration and noise transmission to the building.

2. Shutoff valves to isolate the unit from the piping system during unit servicing.

3. Manual or automatic air vent valves at the high points of the system. Install drains at the lowest points in the system.

4. A means of maintaining adequate system water pressure (expansion tank or regulating valve).

5. Temperature and pressure indicators located at the unit to aid in unit servicing. Pressure gauge taps must be installed in the chilled water inlet and outlet piping or as shown in Figure

4.

6. A strainer or other means of removing foreign matter from the water before it enters the pump.

Place the strainer far enough upstream to prevent cavitation at the pump inlet (consult pump manufacturer for recommendations). The use of a strainer will help prolong pump life and keep system performance up.

7. A 40-mesh strainer is required in the water line just before the inlet of the evaporator. This will help prevent foreign material from entering and decreasing the performance of the evaporator.

8. If the unit is used as a replacement chiller on a previously existing piping system, flush the system thoroughly before unit installation. Regular water analysis and chemical water treatment on the evaporator is recommended immediately at equipment start-up.

9. When glycol is added to the water system for freeze protection, the refrigerant suction pressure will be lower, cooling performance less, and water side pressure drop greater. If the percentage of glycol is high, or if propylene is used instead of ethylene glycol, the added pressure drop and loss of performance could be substantial. Reset the freezestat and low leaving water alarm temperatures. The freezestat is factory set to default at 38°F (3.3°C).

Reset the freezestat setting to approximately 4 to 5 degrees F (2.3 to 2.8 degrees C) below the leaving chilled water setpoint temperature.

10. Perform a preliminary leak check before insulating the piping and filling the system.

11. Piping insulation should include a vapor barrier to prevent condensation and possible damage to the building structure.

Figure 4, Typical Field Evaporator Water Piping

Air

Vent

Strainer

Inlet

P

Vibration

Eliminators

Isolation

Valves

Outlet

Flow

Switch

Drain

IOMM ACZ1-3 ACZ 010A through 039A 7

8

System Volume

It is important to have adequate water volume in the system to provide an opportunity for the chiller to sense a load change, adjust to the change and stabilize. As the expected load change becomes more rapid, a greater water volume is needed. The system water volume is the total amount of water in the evaporator, air handling products and associated piping. If the water volume is too low, operational problems can occur, including rapid compressor cycling, rapid loading and unloading of compressors, erratic refrigerant flow in the chiller, improper motor cooling, shortened equipment life and other undesirable occurrences.

For normal comfort cooling applications, where the cooling load changes relatively slowly, we recommend a minimum system volume of five minutes times the flow rate (gpm). For example, if the design chiller flow rate is 50 gpm, we recommend a minimum system volume of 250 gallons

(50 gpm x 5 minutes).

Since there are many other factors that can influence performance, systems can successfully operate below these suggestions. However, as the water volume decreases below these suggestions, the possibility of problems increases.

Variable Chilled Water flow

Variable chilled water flow systems are not recommended for this class of equipment due to limited unloading capability.

Flow Switch

Mount a water flow switch in the leaving water line to shut down the unit when water flow is interrupted.

Figure 5, Flow Switch Installation

A flow switch is available from

McQuay (part number 017503300). It is a “paddle” type switch and adaptable to pipe sizes down to 1 1/4” (32mm) nominal. Certain minimum flow rates are required to close the switch and are listed in Table 2. Install the switch as shown in Figure 5. Connect the normally open contacts of the flow switch in the unit control center at terminals 4 and 5. There is also a set of normally closed contacts on the switch that can be used for an indicator light or an alarm to indicate when a “no-flow” condition exists.

Freeze protect any flow switch that is installed outdoors. Follow installation instructions provided with the flow switch. Calibrate the flow switch to open at one-half of nominal flow rate.

CAUTION

:

Differential pressure switches are not recommended for outdoor installation.

They are subject to freezing-up at low ambient temperatures.

ACZ 010A through 039A IOMM ACZ1-3

Table 2, Flow Switch Settings

Pipe Size

(NOTE !)

Min.

Adjst.

Max.

Adjst. inch 1 1/4 1 1/2 mm 32 (2) 38 (2)

Flow

gpm

Lpm

No

gpm

Flow

Lpm

Flow

gpm

No

Lpm gpm

Flow

Lpm

5.8

1.3

3.7

0.8

13.3

3.0

12.5

2.8

7.5

1.7

5.0

1.1

19.2

4.4

18.0

4.1

2

51

13.7

3.1

9.5

2.2

29.0

6.6

27.0

6.1

2 1/2

63 (3)

18.0

4.1

12.5

2.8

34.5

7.8

32.0

7.3

3

76

27.5

6.2

19.0

4.3

53.0

12.0

50.0

11.4

4 5 6 8

102 (4) 127 (4) 153 (4) 204 (5)

65.0

14.8

50.0

11.4

125.0

28.4

101.0

22.9

190.0

43.2

158.0

35.9

205.0

46.6

170.0

38.6

128.0

29.1

122.0

27.7

245.0

55.6

235.0

53.4

375.0

85.2

360.0

81.8

415.0

94.3

400.0

90.8

NOTES:

1. A segmented 3-inch paddle (1, 2, and 3 inches) is furnished mounted, plus a 6-inch paddle loose.

2. Flow rates for a 2-inch paddle trimmed to fit the pipe.

3. Flow rates for a 3-inch paddle trimmed to fit the pipe.

4. Flow rates for a 3-inch paddle.

5. Flow rates for a 6-inch paddle

Refrigerant Piping

Introduction

NOTE: All field piping, wiring, and procedures must be performed in accordance with ASHRAE,

EPA, and industry standards. Proper refrigerant piping can represent the difference between a reliable, trouble free system and months or years of inefficient, problematic performance.

System concerns related to piping are:

1. Refrigerant pressure drop

2. Solid liquid feed to the expansion valve(s)

3. Continuous oil return

The most important and least understood is number 3. “Continuous oil return”. The failure of oil to return at or close to the rate of displacement from the compressor can result in oil trapping and ultimate compressor failure.

On the other hand, the instantaneous return of a large volume of compressor oil (slug) can be equally damaging to a compressor.

All compressors displace some oil during operation. Oil is carried into the compressor with suction gas; and that same gas entrains oil present on the compressor walls as it is being compressed. The sum of the two is then pumped into the discharge piping.

More oil is displaced at compressor start-up than during the normal running periods. If a compressor experiences excessive starts because of recycling pumpdown control, the oil can be pumped out and trapped in the condenser with the refrigerant charge. This oil can not return regardless of the adequacy of the piping system.

A similar problem to a lesser extent occurs when the equipment is oversized for the available cooling load.

In short, extreme care should be exercised to assure that both piping and controls are suitable for the application such that displaced oil is returned to the compressor moderately. Note that oil loss to the system can be due to a hang up in the evaporator, as well as in the piping.

Suction Lines

McQuay recommends the use of ASHRAE for guidelines in sizing and routing piping with one exception. See the 1998 ASHRAE Handbook Refrigeration Edition, Chapter 2 for tables and guidelines. The single exception is to the piping of direct expansion cooling coils located above the compressors. In all cases, regardless of whether the equipment has pumpdown control or not,

IOMM ACZ1-3 ACZ 010A through 039A 9

10 a trap in the suction line equal to the height of the coil section is recommended. In its absence, upon a power failure, all of the liquid in the coil will fall by gravity to the compressor below.

Suction line gas velocities can range between 900 and 4000 feet per minute. Consideration should be given to the possibility of objectionable noise in or adjacent to occupied space. Where this is a concern, gas velocities on the low side are recommended.

Routing must also take into account the requirement established in the latest ANSI/ASHRAE 15.

To size the suction line, determine: a. The maximum tons for the circuit b. The actual length in feet c. The equivalent length contributed by elbows, fittings, valves or other refrigerant specialties. ASHRAE Tables 2-10, 11 & 12 d. If a vertical riser exists including the trap at the coil, determine the minimum tons for the circuit.

Add b and c above to obtain the total equivalent feet. Use the ASHRAE table for R22. Suction line selections are based upon the pressure equivalent of a 2ºF loss per 100 equivalent feet.

Select a line size that displays an equal or slightly larger tons then that determined in a) above.

To determine the actual line loss:

1. Modify the table tons by the value for the design condensing temperature.

2. Use the formula in the notes to calculate the line loss in terms of the saturation temperature.

3. Convert the saturation temperature loss calculated to a pressure drop equivalent using the

(Delta) listed in the table for the comparable delta temperature.

NOTE: Excessive pressure drop is undesirable because:

It reduces available compressor capacity.

It increases power consumed for the net tons realized.

It can affect the performance of both the evaporator and the expansion valve previously selected for the application.

The line loss calculated, expressed in temperature, or PSID pressure drop will be used to establish the temperature required at the evaporator to produce the required cooling, as well as, the suction pressure that the compressor must operate at to deliver the required capacity.

Having selected the suction line size, based upon total equivalent length and maximum tons, verify the line size selected will maintain entrainment of the lubricating oil up any vertical risers at the minimum tons for the circuit. See d) above, and ASHRAE Tables.

If the line size selected will not maintain satisfactory oil return in a suction riser, the following options are available:

The vertical length can be sized smaller to accommodate the lower circuit tons at reduced load.

Hot gas bypass can be introduced at the distributor to the evaporator, increasing the volume of gas available in the suction line to entrain the oil.

An oil separator can be installed in the discharge line.

Note:

In horizontal refrigerant gas lines, oil return to compressors is provided by sizing lines at a velocity above the minimum recommended and pitching the lines in the direction of refrigerant flow.

ACZ 010A through 039A IOMM ACZ1-3

Underground Refrigerant Lines

McQuay does not recommend the installation of suction lines underground. If job conditions require that they be located below ground, a suitable sized suction accumulator must be installed ahead of the compressor to interrupt liquid refrigerant slugs at start-up.

Long Vertical Riser Installation

Where job conditions require refrigerant gas lifts of more than 25 feet, McQuay recommends the installation of a short trap half-way up the riser or at not more than 20 feet intervals. These traps are required to capture and hold small quantities of oil during off cycles.

Figure 6, DX Coil Piping

Condensing Unit Above Coil Condensing Unit Below Coil

Hot gas bypass valve and solenoid valve located as close to condensing

unit as possible.

Pit

To ch

Su ctio n

Co mp res sor

Pit ch

To

Co n

Su ctio mp res sor

Liquid

to Coil

Air F low

Hot gas bypass valve and solenoid valve located as close to condensing

unit as possible.

Air F low

Suction Trap

Short as

Fittings Permit

Liquid

to Coil

Pit ch

Su ctio n

To

Co mp res sor

HG

BP

to

Co il

Air F low

Expansion Valve

Control Bulb

Strap To Line and Insulate

Liquid

to Coil

Suction Trap

Short as

Fittings Permit

Pit

To ch

Su ctio n

Co mp res sor

HG

BP

to

Co il

Air F low

Expansion Valve

Control Bulb

Strap To Line and Insulate

Suction Trap

Short as

Fittings Permit

Expansion Valve

Control Bulb

Strap To Line and Insulate

Liquid

to Coil

Suction Trap

Short as

Fittings Permit

Expansion Valve

Control Bulb

Strap To Line and Insulate

IOMM ACZ1-3 ACZ 010A through 039A 11

12

Liquid Lines

Liquid lines are generally sized for 1 to 2 degree F line losses or their equivalent in pressure drop. Actual selection can vary based upon the pressure drop expected from refrigerant specialties such as solenoids, refrigerant driers, valves, etc. piping lifts or risers and the amount of condenser sub-cooling expected.

The principal concern in sizing and routing liquid lines is assurance that liquid is present in the line at start-up of the compressor, and that liquid and not vapor is available at the inlet to the expansion valve during system operation.

Liquid can not be available in a liquid line at start-up if:

1. The solenoid valve is located adjacent to the condenser or condensing unit, remote from the expansion valve.

2. An excessive length of liquid line is located in a heated ambient and the application permits migration of the refrigerant to a cold air-cooled condenser.

3. Liquid refrigerant is permitted to gravitate from the liquid line to the condenser because of the relative location of components.

In the event 2) or 3) above are possible, the application should include a check valve at the condenser end of the liquid line. The check valve should be a low-pressure drop valve.

The line between the check valve and the solenoid valve can be comparable to a pressure vessel and as the line becomes heated refrigerant trapped in the confined space will increase in pressure. The check valve should include a pressure relief devise, relieving from the line side to the condenser side of the circuit. The relief can be sized for a pressure differential from 80 to 180 psi, but not more than 180 psi, and should be auto-resetting as the pressure is relieved.

Liquid line solenoid valves should be located adjacent to the expansion valve with possibly only a sight glass interposing the two.

If liquid lines are short, they may be of smaller diameter than the size indicated in the current ASHRAE Refrigerant Handbook. As indicated above, the designer must size the liquid line to assure that pure liquid will reach the inlet of the expansion valve. If the condenser is sized to produce 10ºF of subcooling, and each degree represents 3.05 psi with

R-22, the liquid line and its refrigerant specialties can have pressure losses totaling 10 x

3.05 psi (or 10 x 2.2) and still satisfy the objective of delivering pure liquid to the expansion valve.

In calculating the pressure losses, or gains, note that each foot of rise in a liquid line results in an approximate 0.5 psi loss. Thus a 10 foot rise represent 5 pounds per square inch loss in refrigerant pressure, or the equivalent of 1.6ºF subcooling with R-22. Total line losses will include values for line friction, equivalents for valves and elbows and pressure losses from manufacturers’ catalogs for driers, solenoids, sight glasses, etc.

When calculating condenser subcooling, note that saturated condensing pressure should be read at the same point in the system where the liquid refrigerant temperature is obtained.

ACZ 010A through 039A IOMM ACZ1-2

Unit Component Location

Control Panel

Removable Panel in

This Area to Facilitate

Field Piping

Suction

Connection

Tandem Scroll

Compressors

Liquid

Connection

Optional Hot Gas Bypass Valve

Control Layout and Operation

Control Center

All electrical controls are enclosed in a weather resistant control center with tool-locked, hinged access doors. The left-hand section contains the microprocessor controller and control input and output terminals. All high-voltage components are located on the right side of the panel.

Control

Transformer

24-Volt Trans.

ON/OFF Switch

MicroTech II

Non-Fused Disc. or

Power Block

SpeedTrol Location

Field Connection

Terminals

Compressor Contactors

Fan

Contactors

Fan

Protection

IOMM ACZ1-2 ACZ 010A through 039A 13

R-407C Units

AGZ chillers are available with R-407C refrigerant as non-ARI certified units. R-407C is a zeotropic blend of three compounds, and as such exhibits the characteristic of glide. It does not behave as one substance like R-22 does. Glide is the difference (in degrees F) between the beginning and end phase-change process in either the evaporator or condenser. During these processes, different ratios of the refrigerant’s components change phase from the beginning to the end of the process. The following functions, conditions and settings will differ from units charged with R-22.

1. Different physical data and electrical data

2. Polyolester lubricants are used instead of mineral oil.

3. The saturated pressure/temperature relationship

4. Control and alarm settings

5. Charging procedures

1.

Lubrication. The units are factory-charged with polyoester (POE) lubricant and one of the following lubricants must be used if lubricant is to be added to the system:

Copeland Ultra 22 CC

Mobil EAL Arctic 22 CC

ICI EMKARATE RL RL 32CF

POEs are very hygroscopic and will quickly absorb moisture if exposed to air. Pump the lubricant into the unit through a closed transfer system. Avoid overcharging the unit.

2.

Pressure/temperature relationship. See Table 3 on page 15 for the saturated pressuretemperature chart. Due to refrigerant glide, use the following procedures for superheat and subcooling measurement.

To determine superheat, only vapor must be present at the point of measurement, no liquid.

Use the temperature reading, the pressure reading and the Saturated P/T Chart. If the pressure is measured at 78 psig, the chart shows the saturated vapor temperature to be

50.6°F. If the temperature is measured at 60°F, the superheat is 9.4 degrees F.

To determine subcooling, only liquid must be present, no vapor. Use the temperature reading, the pressure reading and the Saturated P/T Chart. If the pressure is measured at

250 psig, the chart shows the saturated liquid temperature to be 108.2°F. If the temperature is measured at 98°F, the subcooling is 10.2 degrees F.

The P/T relationship between R-407C and R-22 is similar enough to allow the use of R-22 expansion valves. The valves may be marked as “R-22’ or “R-22/R-407C”.

3.

Control and alarm settings. The software that controls the operation of the unit is factory-set for operation with R-407C, taking into account that the pressure/temperature relationship differs from R-22. The software functionality is the same for either refrigerant.

4.

Charging procedure. The units are factory-charged with R-407C. Use the following procedure if recharging in the field is necessary:

Whether topping off a charge or replacing the circuit’s entire charge, always remove the refrigerant from the charging vessel as a liquid. Many of the cylinders for the newer refrigerants have a dip tube so that liquid is drawn off when the cylinder is in the upright position. Do not vapor charge out of a cylinder unless the entire contents will be charged into the system.

With the system in a 250-micron or lower vacuum, liquid can be charged into the high side.

Initially charge about 80 percent of the system total charge.

14 ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Start the system and observe operation. Use standard charging procedures (liquid only) to top off the charge.

It may be necessary to add refrigerant through the compressor suction. Because the refrigerant leaving the cylinder must be a liquid, exercise care to avoid damage to the compressor. A sight glass can be connected between the charging hose and the compressor.

It can be adjusted to have liquid leave the cylinder and vapor enter the compressor.

Liquid Temp

(°F)

61.8

64.1

66.4

68.5

70.7

72.8

49.8

50.9

51.9

54.5

57.0

59.5

43.0

44.2

45.4

46.5

47.6

48.7

35.6

36.9

38.2

39.4

40.6

41.9

27.4

28.8

30.2

31.6

33.0

34.3

18.1

19.7

21.3

22.9

24.4

25.9

-10.7

-8.2

-5.7

-3.4

-1.1

1.1

3.2

5.3

7.3

9.2

11.1

12.9

14.7

16.4

Table 3, R-407C Saturated Pressure/Temperature Chart

Pressure

(PSIG)

120

125

130

135

140

145

96

98

100

105

110

115

84

86

88

90

92

94

72

74

76

78

80

82

60

62

64

66

68

70

48

50

52

54

56

58

32

34

36

38

40

42

44

46

20

22

24

26

28

30

Vapor Temp

(°F)

72.3

74.6

76.7

78.8

80.9

82.9

60.7

61.7

62.7

65.2

67.7

70.0

54.1

55.2

56.3

57.4

58.5

59.6

46.9

48.1

49.3

50.6

51.8

52.9

38.8

40.2

41.6

43.0

44.3

45.6

29.7

31.3

32.9

34.4

35.9

37.4

15.2

17.2

19.2

21.0

22.9

24.7

26.4

28.1

1.5

4.0

6.4

8.7

11.0

13.1

Pressure

(PSIG)

370

375

380

385

390

395

340

345

350

355

360

365

310

315

320

325

330

335

280

285

290

295

300

305

250

255

260

265

270

275

220

225

230

235

240

245

180

185

190

195

200

205

210

215

150

155

160

165

170

175

Liquid Temp

(°F)

131.0

132.1

133.2

134.3

135.4

136.5

137.6

138.7

139.8

140.8

141.8

142.9

116.3

117.6

118.9

120.2

121.4

122.7

123.9

125.1

126.3

127.5

128.7

129.8

99.3

100.8

102.3

103.8

105.3

106.7

108.2

109.6

111.0

112.3

113.7

115.0

86.1

87.8

89.6

91.3

92.9

94.6

96.2

97.7

74.8

76.8

78.7

80.6

82.5

84.3

Vapor Temp

(°F)

138.5

139.6

140.6

141.7

142.7

143.7

144.7

145.7

146.7

147.7

148.7

149.6

124.7

125.9

127.1

128.3

129.5

130.7

131.8

133.0

134.1

135.2

136.3

137.4

108.4

109.9

111.4

112.8

114.2

115.6

116.9

118.2

119.6

120.9

122.1

123.4

84.9

86.8

88.7

90.5

92.3

94.0

95.8

97.5

99.1

100.7

102.3

103.9

105.4

107.0

ACZ 010A through 039A 15

Start-up and Shutdown

Pre Start-up

1. The chilled-water system should be flushed and cleaned or air filters checked for cleanliness on DX systems.

2. Open all electric disconnects and check all electric connections for tightness.

3. Inspect all water piping for flow direction and correct connections at the evaporator or ductwork for tightness and completeness.

4. Verify that thermostat connections for two stages of control have been connected to unit terminals 23 / J5-ID7 and 28 / J5- ID-8.

5. Check compressor oil level. The oil level should be visible in the oil sightglass.

6. Check voltage of the unit power supply and make certain voltage is within ±10% of nameplate rating. Check unit power supply wiring for proper ampacity and a minimum insulation temperature of 75°C. Check for proper phasing using a phase sequence meter.

7. Verify all mechanical and electrical inspections have been completed according to local codes.

8. Open control stop switch S1(off). Turn on the main power and control disconnect switches. This will energize crankcase heaters. Wait at least 24 hours before starting up unit.

Start-up

1. Start auxiliary equipment by turning on the following: time clock (if present), ambient thermostat and/or remote on/off switch, chilled water pump or air handler.

2. If the field supplied staging control calls for cooling, the unit will begin the start-up sequence.

3. After running the unit for a short time, check the oil level in the compressor (1/4 to 1/3 of the glass), rotation of fans, and flashing in refrigerant sight glass.

4. Verify superheat temperature is at the factory setting of 8 to 12 degrees F (4.4 to 6.7 degrees C).

5. After system performance has stabilized, complete the current ACZ Start-Up Form

(obtainable from the local McQuay sales office) to establish inception of warranty benefits. Return the form to McQuay International through your sales representative.

Sequence of Operation

The following sequence of operation is typical for Models ACZ 010A through ACZ 039A.

It can vary depending upon options.

Start-Up

With the control circuit power on, 115V power is applied through the control circuit fuse F1 to the compressor crankcase heaters, the compressor motor protections and the primary of the 24V control circuit transformer. The 24V transformer provides power to the microprocessor controller.

If an optional remote time clock or remote manual switch is field wired to the unit

(terminals 25 and 35), it must be closed in order to start the unit. The operation of the unit is then under the control of the field supplied staging thermostat. A water or air flow switch is recommended across terminals 26 and 36 to prove flow before starting compressors. If not used, a jumper is required across the terminals. The two compressors will start when the normally open staging contacts close.

16 ACZ 010A through 039A IOMM ACZ1-2

Equipment Protection Alarms

The following conditions will shut down the unit and activate the alarm circuit:

No water or air flow

High condenser pressure

Phase voltage protection (Optional)

• Sensor failures

The following alarms will limit unit operation:

• Low evaporator pressure

• Motor protection system

• Outside ambient temperature

Condenser pressure stage down, unloads unit at high discharge pressures

Low ambient lockout, shuts off unit at low ambient temperatures

Low evaporator pressure hold, holds stage #1 until pressure rises

Low evaporator pressure unload, shuts off stage #2

Unit Enable Selection

Enables unit operation from local keypad, digital input, or Building Automation System.

Unit Mode Selection

Selects standard cooling or test operation mode. (Test is for service personnel only.)

Condenser Fan Control

Control of condenser fans is provided by the MicroTech II controller. The control steps condenser fans based on discharge pressure.

Shutdown

As the Stage #2 external staging thermostat is satisfied, it will stage off the lag compressor unloading the unit. The Stage #1 will de-energize the liquid line solenoid valve SV1 and the lead compressor will pump down the unit and shut off on Low Suction Pressure at 40 psig. If the low pressure cutoff point cannot be reached in 120 seconds, the compressor will time off. The compressor crankcase heaters will energize when the compressors shut off, keeping the small amount of refrigerant in the plate heat exchanger from migrating to the compressor. See page Error! Bookmark not defined. for detailed explanation of compressor staging.

IOMM ACZ1-2 ACZ 010A through 039A 17

Physical Data

R-22

Table 4, Physical Data, ACZ 010A through 020A

PHYSICAL DATA

010A

ACZ MODEL NUMBER

013A 016A 020A

BASIC DATA

Number Of Refrigerant Circuits

Unit Operating Charge, R-22, Lb. (kg), Note 1

Cabinet Dimensions, LxWxH, In.

Cabinet Dimensions, LxWxH, (mm)

Unit Operating Weight, Lbs. (kg)

Unit Shipping Weight, Lbs. (kg)

Add'l Weight If Copper Finned Coils, Lb. (kg)

COMPRESSORS

Type

Nominal Horsepower

1

22.0 (10.0)

1

22.0 (10.0)

1

24.0 (10.9)

1

31.0 (14.1)

73.6 x 46.3 x 50.8 73.6 x 46.3 x 50.8 73.6 x 46.3 x 50.8 73.6 x 46.3 x 50.8

(1869) x (1176) x

(1289)

1000 (454)

(1869) x (1176) x

(1289)

1000 (454)

(1869) x (1176) x

(1289)

1220 (554)

(1869) x (1176) x

(1289)

1340 (608)

1080 (490)

220 (99.7)

1080 (490)

220 (99.7)

1300 (590)

220 (99.7)

1420 (645)

220 (99.7)

Scroll

4.0 / 4.0

Scroll

6.0 / 6.0

Oil Charge Per Compressor, Oz. (g) 57 (1616) 60 (1701)

CAPACITY REDUCTION STEPS - PERCENT OF COMPRESSOR DISPLACEMENT

Standard Staging 0 – 50 – 100 0 – 50 – 100

Scroll

7.5 / 7.5

140 (3969)

0 – 50 – 100

Scroll

9.0 / 9.0

140 (3969)

0 – 50 – 100

CONDENSERS - HIGH EFFICIENCY FIN AND TUBE TYPE WITH INTEGRAL SUBCOOLING

Coil Face Area,Sq. Ft. (M

2

) 30.3 (2.8) 30.3 (2.8) 30.3 (2.8)

Finned Height x Finned Length, In.

Finned Height x Finned Length, (mm)

Fins Per Inch x Rows Deep

84 x 52

(2134) x (1321)

16 x 2

84 x 52

(2134) x (1321)

16 x 2

84 x 52

(2134) x (1321)

16 x 2

Pumpdown Capacity lb. (kg) 35.3 (16.0) 35.3 (16.0) 35.3 (16.0)

CONDENSER FANS - DIRECT DRIVE PROPELLER TYPE

Number Of Fans - Fan Diameter, In. (mm)

Number Of Motors - HP (kW)

Fan And Motor RPM, 60 Hz

Total Unit Airflow, CFM (l/s), 60 Hz

2 – 26 (660)

2 – 1.0 (0.75)

1140

13950 (6584)

2 – 26 (660)

2 – 1.0 (0.75)

1140

13950 (6584)

2 – 26 (660)

2 – 1.0 (0.75)

1140

13950 (6584)

30.3 (2.8)

84 x 52

(2134) x (1321)

16 x 3

50.3 (22.8)

2 – 26 (660)

2 – 1.0 (0.75)

1140

12000 (5664)

Note: Operating charge is for the condensing unit only. Refrigerant lines and evaporator charge must be added.

18 ACZ 010A through 039A IOMM ACZ1-2

Table 5, Physical Data, ACZ 025A through 039A

PHYSICAL DATA

025A

ACZ MODEL NUMBER

028A 033A 039A

BASIC DATA

Number Of Refrigerant Circuits

Unit Operating Charge, R-22, Lb. (kg), Note 1

Cabinet Dimensions, LxWxH, In.

Cabinet Dimensions, LxWxH, (mm)

Unit Operating Weight, Lbs. (kg)

Unit Shipping Weight, Lbs. (kg)

Add'l Weight If Copper Finned Coils, Lb. (kg)

COMPRESSORS

Type

Nominal Horsepower

Oil Charge Per Compressor, Oz. (g)

1

34.0 (15.4)

1

36.0 (16.3)

1

47.0 (21.3)

1

50.0 (22.7)

106.2x 46.3 x 50.8 106.2x 46.3 x 50.8 106.2x 46.3 x 58.8 106.2x 46.3 x 58.8

(2697) x (1176) x

(1289)

1470 (667)

(2697) x (1176) x

(1289)

1490 (676)

(2697) x (1176) x

(1493)

1760 (799)

(2697) x (1176) x

(1493)

1960 (890)

1580 (717)

350 (159)

1600 (726)

350 (159)

1890 (858)

435 (197)

2090 (949)

435 (197)

Scroll

10.0 / 13.0

140 (3969)

Scroll

13.0 / 13.0

140 (3969)

Scroll

15.0 / 15.0

140 (3969)

Scroll

20.0 / 20.0

296 (8392)

CAPACITY REDUCTION STEPS - PERCENT OF COMPRESSOR DISPLACEMENT

Standard Staging 0 – 45 - 100 0 – 50 – 100 0 – 50 – 100 0 – 50 – 100

CONDENSERS - HIGH EFFICIENCY FIN AND TUBE TYPE WITH INTEGRAL SUBCOOLING

Coil Face Area,Sq. Ft. (M

2

)

Finned Height x Finned Length, In.

Finned Height x Finned Length, (mm)

49.0 (4.6)

84 x 84

(2134) x (2134)

49.0 (4.6)

84 x 84

58.3 (5.4)

100 x 84

58.3 (5.4)

100 x 84

(2134) x (2134) (2545 ) x (2134) (2545 ) x (2134)

Fins Per Inch x Rows Deep

Pumpdown Capacity lb. (kg)

16 x 2

53.1 (24.0)

16 x 2

53.1 (24.0)

16 x 3

90.7 (41.1)

16 x 3

92.8 (42.0)

CONDENSER FANS - DIRECT DRIVE PROPELLER TYPE

Number Of Fans - Fan Diameter, In. (mm)

Number Of Motors - HP (kW)

Fan And Motor RPM, 60 Hz

Total Unit Airflow, CFM (l/s), 60 Hz

3 – 26 (660)

3 – 1.0 (0.75)

1140

20925 (9877)

3 – 26 (660)

3 – 1.0 (0.75)

1140

20925 (9877)

3 – 26 (660)

3 – 1.0 (0.75)

1140

19800 (9346)

3 – 26 (660)

3 – 1.0 (0.75)

1140

19800 (9346)

Note: Operating charge is for the condensing unit only. Refrigerant lines and evaporator charge must be added.

IOMM ACZ1-2 ACZ 010A through 039A 19

R-407C

20 ACZ 010A through 039A IOMM ACZ1-2

Electrical Data

Field Wiring

Wiring must comply with all applicable codes and ordinances. Warranty is void if wiring is not in accordance with specifications. Copper wire is required for all power lead terminations at the unit.

ACZ 010A through ACZ 039A units have single-point power connection. A single field supplied fused disconnect is required or it can be supplied as a factory-mounted option. The control transformer is factory mounted.

R-22

Table 6, ACZ 010A – 039A, Electrical Data Single Point, R-22

ACZ

Unit

Size

Volts

Minimum

Circuit

Ampacity

(MCA)

Field Wire

Quantity

Power Supply

Wire

Gauge

75C

Hub (Conduit

Connection)

Quantity

Nominal

Size

In. (mm)

Field Fuse Size or HACR (Heating/Air-

Conditioning/Refrigeration)

Breaker Size

Recommended Maximum

010A

208

230

460

575

45

45

22

18

3

3

3

3

8

8

10

10

1

1

1

1

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

50

50

25

20

50

50

25

20

013A

208

230

460

575

54

54

26

23

3

3

3

3

6

6

10

10

1

1

1

1

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

60

60

30

25

70

70

35

30

016A

020A

025A

028A

033A

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

65

65

34

27

79

79

41

33

103

103

53

45

110

110

58

48

127

127

62

58

039A

208

230

460

575

182

182

79

63

3

3

3

3

3/0

3/0

4

6

NOTES:

1. See page 24 for all Electrical Data notes.

2. HACR = Heating/Air-Conditioning/Refrigeration

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

2

2

6

8

2

2

6

8

1

1

6

6

4

4

8

10

6

6

10

10

125

125

70

60

150

150

80

60

175

175

80

70

80

80

45

35

100

100

50

40

250

250

100

80

125

125

60

50

125

125

70

60

150

150

70

70

90

90

45

40

80

80

40

30

225

225

90

80

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.25 (32)

1.25 (32)

1.00 (25)

1.00 (25)

1.25 (32)

1.25 (32)

1.00 (25)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

1.00 (25)

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

IOMM ACZ1-2 ACZ 010A through 039A 21

Table 7, ACZ 010A – 039A Compressor and Condenser Fan Motor Amp Draw, R-22

ACZ

Unit

Size

010A

013A

016A

020A

025A

028A

033A

039A

Volts Hz.

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

60

60

60

60

60

60

60

60

Rated Load Amps

Compressors

No. 1 No. 2

Fan

Motor

(Each)

29.9

29.9

15.3

11.6

33.6

33.6

16.5

13.7

41.0

41.0

21.8

17.3

48.5

48.5

23.7

21.7

73.1

73.1

31.0

24.4

14.8

14.8

7.1

5.8

18.6

18.6

9.1

7.4

23.7

23.7

12.5

9.1

See page 24 for all Electrical Data notes.

3

3

3

3

2

2

2

2

3

3

3

3

3

3

3

3

3

3

3

3

2

2

2

2

2

2

2

2

2

2

2

2

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

29.9

29.9

15.3

11.6

41

41

21.8

17.3

41.0

41.0

21.8

17.3

48.5

48.5

23.7

21.7

73.1

73.1

31.0

24.4

14.8

14.8

7.1

5.8

18.6

18.6

9.1

7.4

23.7

23.7

12.5

9.1

No. of

Fan

Mtrs

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

Fan

Motor

(Each)

Locked Rotor Amps

Compressors

Across-The-Line

No. 1 No. 2

23.7

21.4

10.7

11.0

91

91

50

37

91

91

50

37

156

156

75

54

189

189

99

74

156

156

75

54

189

189

99

74

232

232

125

100

278

278

127

100

350

350

158

125

425

425

187

148

505

505

225

180

232

232

125

100

350

350

158

125

350

350

158

125

425

425

187

148

505

505

225

180

22 ACZ 010A through 039A IOMM ACZ1-2

Table 8, ACZ 010A – 039A Field Wiring Data, Single Point Power, R-22

Wiring to

Standard Power Block Terminal

Wiring to

Optional Disconnect Switch

ACZ

UNIT

SIZE

Volts HZ.

Maximum

Terminal

Amps

Connector Wire Range

(Copper Wire Only)

Disconnect

Size

Connector Wire

Range

(Copper Wire Only)

010A

013A

016A

020A

025A

028A

033A

039A

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

60

60

60

60

60

60

60

60

See page 24 for all Electrical Data notes.

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

335

335

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

6 GA – 400 kcmil

6 GA – 400 kcmil

14 GA – 2/0

14 GA – 2/0

100

100

63

63

100

100

63

63

225

225

100

100

100

100

63

63

100

100

63

63

225

225

100

100

225

225

100

100

225

225

125

100

#8-1/0

#8-1/0

#1-#14

#1-#14

#8-1/0

#8-1/0

#1-#14

#1-#14

#8-1/0

#8-1/0

#1-#14

#1-#14

#10-1/0

#10-1/0

#1-#14

#1-#14

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#3-3/0

#10-1/0

IOMM ACZ1-2 ACZ 010A through 039A 23

R-407C

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

89

89

43

36

79

79

37

28

109

109

59

46

57

54

26

23

45

45

22

17

116

116

63

46

138

129

73

60

186

182

85

72

Table 9, ACZ 010A – 039A, Single Point Electrical Data, R-407C

ACZ

Unit

Size

010A

013A

016A

020A

025A

028A

033A

039A

Volts

Minimum

Circuit

Ampacity

(MCA)

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

Field Wire

Quantity

Power Supply

Wire

Gauge

75C

Hub (Conduit

Connection)

Quantity

Nominal

Size

In. (mm)

Field Fuse Size or HACR (Heating/Air-

Conditioning/Refrigeration)

Breaker Size

Recommended Maximum

#8

#8

#10

#10

#6

#6

#10

#10

1

1

1

1

1

1

1

1

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

50

50

25

20

70

70

30

25

70

70

35

25

50

50

25

20

1/0

#1

#4

#6

#1

#1

#6

#8

3/0

3/0

#4

#4

#4

#4

#8

#10

#3

#3

#8

#8

#2

#2

#6

#8

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.00 (25)

1.25 (32)

1.25 (32)

1.00 (25)

1.00 (25)

1.25 (32)

1.25 (32)

1.00 (25)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

1.00 (25)

100

100

45

35

110

110

50

45

125

125

70

60

150

150

80

60

175

150

90

70

225

225

100

90

150

150

80

60

175

175

100

80

250

250

110

100

100

100

50

35

110

110

50

45

150

150

80

60

NOTE: See page 27 for all Electrical Data notes.

24 ACZ 010A through 039A IOMM ACZ1-2

Table 10, ACZ 010A – 039A Compressor and Condenser Fan Motor Amp Draw, R-407C

ACZ

Unit

Size

010A

013A

016A

020A

025A

028A

033A

039A

Volts Hz.

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

60

60

60

60

60

60

60

60

43.9

43.9

24.4

17.3

53.4

49.4

28.8

23.1

75.0

73.1

34.0

28.8

30.1

30.1

13.8

10.3

34.3

34.3

16.7

13.8

36.9

36.9

19.9

16.4

Compressors

No. 1

Rated Load Amps

No. 2

F.L. Amps

Fan

Motor

(Each)

14.7

14.7

7.1

5.3

20.3

18.6

9.2

7.4

14.7

14.7

7.1

5.3

20.3

18.6

9.2

7.4

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

43.9

43.9

24.4

17.3

53.4

49.4

28.8

23.1

75.0

73.1

34.0

28.8

30.1

30.1

13.8

10.3

34.3

34.3

16.7

13.8

43.9

43.9

24.4

17.3

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

5.8

5.8

2.8

2.5

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

No. of

Fan

Mtrs

Locked Rotor Amps

L.R.Amps

Fan

Motor

(Each)

Compressors

Across-The-Line

No. 1 No. 2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

3

3

3

3

3

3

3

3

3

3

3

3

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

23.7

21.4

10.7

11.0

350

350

158

125

425

425

187

148

505

505

225

180

189

189

99

74

232

232

125

100

278

278

127

100

156

156

75

54

91

91

50

37

350

350

158

125

425

425

187

148

505

505

225

180

189

189

99

74

232

232

125

100

350

350

158

125

91

91

50

37

156

156

75

54

NOTE: See page 27 for all Electrical Data notes.

IOMM ACZ1-2 ACZ 010A through 039A 25

Table 11, ACZ 010A – 039A, Field Wiring Data, Single Point Power, R-407C

ACZ

UNIT

SIZE

010A

013A

016A

020A

025E

Wiring to

Standard Power Block Terminal

Volts

Maximum Connector Wire

Terminal

Amps

Range

(Copper Wire Only)

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

028A

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

033E

208

230

460

575

175

175

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

039A

208

230

460

575

335

335

175

175

6 GA – 400 kcmil

6 GA – 400 kcmil

14 GA – 2/0

14 GA – 2/0

NOTE: See page 27 for all Electrical Data notes.

Wiring to

Optional Disconnect Switch

Disconnect

Size

Factory Option

Connector Wire Range

(Copper Wire Only)

225

225

100

100

225

225

100

100

225

225

125

100

100

100

63

63

100

100

63

63

225

225

100

100

100

100

63

63

100

100

63

63

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#3-3/0

#10-1/0

#10-1/0

#10-1/0

#1-#14

#1-#14

#10-1/0

#10-1/0

#1-#14

#1-#14

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#8-1/0

#8-1/0

#1-#14

#1-#14

#8-1/0

#8-1/0

#1-#14

#1-#14

26 ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Notes for “Electrical Data”

1. Field Fuse Size for recommended and maximum is based on use of a time-delay fuse.

2. Unit wire size ampacity (MCA) is equal to 125% of the largest compressor-motor RLA plus 100% of RLA of all other loads in the circuit including the control transformer.

3. Since the control transformer is furnished, no separate 115V power is required.

4. If a separate 115V power supply is used for the control circuit, the wire sizing amps is

10 Amps.

5. Recommended power lead wire sizes for three conductors per conduit are based on

100% conductor ampacity in accordance with NEC. Voltage drop has not been included. Therefore, it is recommended that power leads should be kept short. All terminal block connections must be made with copper (type THW) wire.

6. Single conductors should be used for power connections as listed under “Power

Supply/Field Wire Size.”

7. “Recommended Fuse Sizes” are selected at approximately 150% to 175% of the largest compressor RLA, plus 100% of all other loads in the circuit.

8. “Maximum Fuse Sizes” are selected at approximately 225% of the largest compressor

RLA, plus 100% of all other loads in the circuit.

9. The recommended power lead wire sizes are based on an ambient temperature of 86°F.

Ampacity correction factors must be applied for other ambient temperatures. Refer to the National Electrical Code Handbook.

Voltage Limitations:

1. Within 10% of nameplate rating.

2. Maximum 2 % voltage unbalance between phases.

Notes for “Compressor and Condenser Fan Amp Draw”:

1. Compressor RLA values are for wiring sizing purposes only but do not reflect normal operating current draw at rated capacity. If unit is equipped with optional SpeedTrol condenser fan motors, the first motor on each refrigerant circuit is a single phase, 1hp motor, with a FLA of 2.8 amps at 460 volts, 5.6 amps at 208, 230, and 575 volts.

2. Compressor LRA for reduced inrush start are for the first winding only. If the unit is equipped with optional SpeedTrol motors, the first motor is a single phase, 1 hp motor, with a LRA of 7.3 amps at 460 volts, 14.5 amps at 208, 230, and 575 volts.

Notes for “Field Wiring Data” - Single Point Power:

1. Single point power supply requires a single disconnect to supply electrical power to the unit. This power must be fused.

2. All field wiring to unit power block or non-fused disconnect switch must be copper.

3. All field wire size values given in table apply to 75°C rated wire per NEC.

ACZ 010A through 039A 27

28

Figure 7, ACZ 010A through 039A, Typical Field Wiring Diagram

DISCONNECT

(BY OTHERS)

UNIT MAIN

TERMINAL

BLOCK

GND LUG

3 PHASE

POWER

TO COMPRESSOR(S)

AND FAN MOTORS

SUPPLY

NOTE: ALL FIELD WIRING

TO BE INSTALLED AS NEC

CLASS 1 WIRING SYSTEM

WITH CONDUCTOR RATED

600 VOLTS

FUSED CONTROL

CIRCUIT

TRANSFORMER

DISCONNECT

(BY OTHERS)

N

120VAC

CONTROL POWER

10A

FUSE

(BY OTHERS)

LIQUID LINE SOLENOID

120 VAC 1.0 AMP MAX

SV1

120

VAC

SV5

HOT GAS BYPASS SOLENOID

120 VAC 1.0 AMP MAX

TB1

1

2

13

16

14

12

17

DX EVAP. FAN PUMP RELAY

(BY OTHERS)

120 VAC 1.0 AMP MAX

ALARM BELL

OPTION

FACTORY SUPPLIED ALARM

FIELD WIRED

ALARM BELL RELAY

11

17

TB1-20

CONTROL

CIRCUIT

FUSE

N

120 VAC

120 VAC

120 VAC

120 VAC

GND

REMOTE STOP

SWITCH

(BY OTHERS)

TIME

CLOCK

AUTO

OFF

ON

TB2

25

843

IF REMOTE STOP CONTROL

IS USED, REMOVE LEAD 843

FROM TERM. 25 TO 35.

35

EVAP. FLOW SWITCH

---MANDATORY–-

(BY OTHERS)

MANUAL

NOR. OPEN PUMP AUX.

CONTACTS (OPTIONAL)

26

36

STAGE 1 NOR. OPEN CONTACTORS

STAGE 2 NOR. OPEN CONTACTORS

FIELD WIRING

33

22

31

23

J5-ID7

28

J5-ID8 34

FACTORY WIRING

ALARM BELL

RELAY

COM NO

1

BELL

2

ALARM BELL OPTION

LABEL DWG. 330539401 REV.0B

ACZ 010A through 039A IOMM ACZ1-2

Dimensional Data

Figure 8, ACZ 010A through 020A

46.27

(1175.26)

POWER ENTRY

KNOCKOUT

(OTHER SIDE)

CONTROL

ELECTRICAL

KNOCKOUT

SUCTION

INLET

HOT GAS BYPASS

LIQUID

OUTLET

CONTROL PANEL

ACCESS DOORS

ACCESS DOOR

POWER

ENTRY

51.0

(1295.40)

Z

ACZ Unit Size

010A, 013A

016A, 020A

X

21.32

(541.53)

46.23 (1174.24)

49.06 (1246.12)

73.55 (1868.17)

Liquid Conn. inches (mm)

7/8 (22.2)

7/8 (22.2)

Suction

Conn inches (mm)

1 1/8 (28.6)

1 5/8 (41.3)

6.0

(152.4)

LIFTING SLOTS

3.94 (100.08)

M0UNTING HOLES

QTY. 4 01.00 (25.4)

Optional

Hot Gas

Bypass

5/8 (15.8)

5/8 (15.8)

Y

6.0

(152.4)

6.0

(152.4)

31.11 (790.19)

MOUNTING

HOLES

7.55

(191.77)

6.0

(152.4)

Center of Gravity inches (mm)

X Y Z

28 (711.2)

25 (635.0)

22 (558.8) 23 (584.2)

21 (553.4) 23 (584.2)

Figure 9, ACZ 025A through 039A

ACZ Unit

Size

025A, 028A

033A, 039A

A inches (mm)

51 (1295)

59 (1499)

46.26

(1175.26)

49.06 (1246.12)

105.97 (2691.64)

POWER ENTRY

KNOCKOUT

(OTHER SIDE)

CONTROL

ELECTRICAL

KNOCKOUT

SUCTION

INLET

HOT GAS

BYPASS

CONTROL PANEL

ACCESS DOORS

ACCESS DOOR

POWER

ENTRY

A

Z

LIQUID

OUTLET

X

21.32

(541.53)

46.19 (1173.23)

49.06 (1246.12)

Liquid

Conn. inches (mm)

7/8 (22.2)

7/8 (22.2)

Suction

Conn inches (mm)

1 5/8 (41.3)

2 1/8 (53.9)

6.0

(152.4)

6.0

(152.4)

6.0

(152.4)

6.0

(152.4)

LIFTING SLOTS

3.94 (100.08)

MOUNTING HOLES

QTY. 6 0 1.00 (25.4)

Y

31.11 (790.19)

MOUNTING

HOLES

7.55

(191.77)

Optional Hot

Gas Bypass

Center of Gravity inches (mm)

X Y Z

5/8 (15.8)

5/8 (15.8)

35 (889.0) 21 (553.4) 23 (584.2)

35 (889.0) 25 (635.0) 24 (609.6)

IOMM ACZ1-2 ACZ 010A through 039A 29

30

System Maintenance

General

On initial start-up and periodically during operation, it will be necessary to perform certain routine service checks. Among these are taking electric leg readings. Some readings are readily available on the MicroTech II display.

Lubrication

No routine lubrication is required on the ACZ units. The fan motor bearings are of the permanently lubricated type and require no lubrication.

Electrical Terminals

WARNING

Electric shock hazard. Disconnect and tag-out all sources of power to the unit before continuing with following service to avoid risk of severe personal injury.

Normal heating and cooling of the wire will cause terminals to loosen. Retighten all power electrical terminals every six months.

Condensers

Condensers are air-cooled and constructed with 3/8” (9.5mm) O.D. internally finned copper tubes bonded in a staggered pattern into slit aluminum fins. No maintenance is ordinarily required except the occasional removal of dirt and debris from the outside surface of the fins. Use locally purchased foaming condenser coil cleaners for periodic cleaning of the coil. Condenser cleaners may contain harmful chemicals. Wear protective gear and read and follow manufacturer's safety instructions. Take care not to damage the fins during cleaning. All chemical cleaners should be thoroughly rinsed from the coils.

Refrigerant Sight glass

Observe the refrigerant sight glass monthly. A clear glass of liquid indicates adequate subcooled refrigerant charge in the system to provide proper feed through the expansion valve.

Bubbling refrigerant in the sight glass indicates the system is short of refrigerant charge.

Sub-cooling should be verified to prevent overcharging. Refrigerant gas flashing in the sight glass could also indicate an excessive pressure drop in the line, possibly due to a clogged filter-drier or a restriction elsewhere in the system. The sight glass indicates what moisture condition corresponds to a given element color. If the sight glass does not indicate a dry condition after about 12 hours of operation, the refrigerant and oil should be tested for moisture.

ACZ 010A through 039A IOMM ACZ1-2

Standard MicroTech II Controller

Table of Contents

Overview .............................................................................32

General Description .............................................................32

Compressor Motor Description .......................................32

FanTrol Head Pressure Control .......................................32

Inputs/Outputs ................................................................33

Setpoints ........................................................................33

Equipment Protection Alarms .........................................34

Limit Alarms ..................................................................36

Unit Enable ....................................................................36

Control Functions and Definitions........................................36

Compressor Control .............................................................41

Using the Controller.............................................................43

Display and Keyboard.....................................................43

Getting Started .....................................................................43

Menu Screens .................................................................44

Menu Matrix...................................................................46

View Screens Defined.....................................................47

Alarm Screens Defined ...................................................49

Set Screens Defined ........................................................49

Software Version: ACZSU0102B

BIOS Version: 3.56

BOOT File Version: 3.0

IOMM ACZ1-2 ACZ 010A through 039A 31

32

Overview

The MicroTech II controller's state-of-the-art design will not only permit the unit to run more efficiently but also simplifies troubleshooting if a system failure occurs. Every

MicroTech II controller is programmed and tested prior to shipment to contribute to a trouble-free start-up.

Software Version

This manual is based on software version ACZSU0102A

Operator-friendly

The MicroTech II controller menu structure is separated into three distinct categories, which provide the operator or service technician with a full description of current unit status, control parameters, and alarms. Security protection deters unauthorized changing of the setpoints and control parameters.

MicroTech II control continuously performs self-diagnostic checks, monitoring system temperatures, pressures and protection devices, and will automatically shut down a compressor or the entire unit if a fault occurs. The cause of the shutdown will be retained in memory and can be easily displayed in plain English for operator review. The

MicroTech II controller will also retain and display the time the fault occurred. In addition to displaying alarm diagnostics, the MicroTech II controller also provides the operator with a warning of limit (pre-alarm) conditions.

Staging

The two scroll compressors are staged on and off by contact closure of the field supplied remote two-stage staging thermostat. Lead/lag is automatic and switched every ten starts.

General Description

NOTE: When the following descriptions refer to "evaporator pressure", the pressure is actually the suction pressure within the condensing unit itself.

Compressor Motor Protection

ACZ 016 – 039: The solid-state compressor motor protector module incorporates a 30minute (± 5 minutes) “time-off” relay utilizing the bleed-down capacitor principle. Any time the protection system opens or power to the module is interrupted, the 30-minute

“time-off” delay is triggered and the module will not reset for 30 minutes. Once the 30minute period has passed the motor protector contacts M1 and M2 reset, provided the protection system is satisfied and power is applied to the module.

Note: If the power circuit is broken once the 2-minute period is passed, the pilot circuit will reset without delay when power is reapplied.

ACZ 010 - 013: The model ACZ 010 and ACZ 013 compressors have internal line breakage with automatic reset.

FanTrol Head Pressure Control

FanTrol is the standard method of head pressure control that automatically cycles the condenser fan motors in response to condenser pressure. This function is controlled by the microprocessor, maintains head pressure and allows the unit to run at low ambient air temperatures down to 35°F (1.7°C). Fans are staged as follows:

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Table 12, Fan Staging Pressures

Fan

Stage #1

Stage #2

Stage #3

Two-Fan Unit

On 150 psig, Off with unit

On 290 psig, Off 170 psig

Three-Fan Unit

On 150 psig, Off with unit

On 290 psig, Off 170 psig

On 310 psig, Off 180 psig

Note: Fan #1 is on with first compressor above 75°F (24°C).

Inputs/Outputs

Table 13, Inputs and Outputs

Analog Inputs

# Description

1 Open

2 Evaporator Refrigerant Pressure

3 Condenser Refrigerant Pressure

4 Open

5 Outside Ambient Temperature

Signal Source

0.5 VDC to 4.5 VDC (NOTE 1)

0.5 VDC to 4.5 VDC (NOTE 1)

Thermister (10k at 77°F, 25°C)

Range

0 to 132 psi

3.6to 410 psi

-58 to 212°F

NOTE: Value at the converter board input. Value at the converter board output is 0.1 VDC – 0.9 VDC.

Analog Outputs

#

1-4 None

Description

Digital Inputs

# Description

1 Unit OFF Switch

2 Remote Start/Stop

3 Evaporator Water Flow/Air Flow Switch

4 Motor Protection

5 Open

6 Phase Voltage Fault

7 Stage 1 Request

8 Stage 2 Request

Digital Outputs

# Description

1 Alarm

3 Liquid Line

4 Motor Control Relay #1

5 Motor Control Relay #2

6 Condenser Fan #1

7 Condenser Fan #2

8 Condenser Fan #3

Load

Alarm Indicator

Solenoid

Starter

Starter

Fan Contactor

Fan Contactor

Fan Contactor

Output Signal

Signal

0 VAC (Stop)

0 VAC (Stop)

0 VAC (No Flow)

0 VAC (Fault)

0 VAC (Fault)

0 VAC (Stop)

0 VAC (Stop)

Output OFF

Alarm OFF

Cooling OFF

Compressor OFF

Compressor OFF

Fan OFF

Fan OFF

Fan OFF

Range

Signal

24 VAC (Auto)

24 VAC (Start)

24 VAC (Flow)

24 VAC (No Fault)

24 VAC (No Fault)

24 VAC (Start)

24 VAC (Start)

Output ON

Alarm ON

Cooling ON

Compressor ON

Compressor ON

Fan ON

Fan ON

Fan ON

Setpoints

The setpoints shown in Table 14 are held in a non-volatile memory and remembered during power off, are factory set to the Default value, and can be adjusted within the value shown in the Range column.

The PW (password) column indicates the password level that must be entered in order to change the setpoint. Passwords are as follows:

O = Operator [0100]

M = Manager, [2001}

ACZ 010A through 039A 33

34

Table 14, Setpoints

Unit

Unit Enable

Description

Available mode

Default

Off

Cool

Off, On

Cool, Test

Range

Control Source

Air Flow Timer

Low Ambient Lockout

Refrigerant Type

Switches

30

35.0 °F

None

Modbus BAS Protocol

Ident number

Baud rate

001

9600

Evaporator Refrig Press Sensor Offset 0 psi

Condenser Refrig Press Sensor Offset 0 psi

Outside Ambient Temperature Sensor

Password

Compressor

Clear Cycle Timers

Start-Start

Stop-Start

Stage Up Delay

Stage Down Delay

Comp 1 Enable

0 °F

0000

No

15 min

5 min

240

30

Enable

Enable Comp 2 Enable

Alarms

Low Evap Pressure-Hold

Keypad, Network, Switches

10 to 60 seconds

–2(35) to 70 °F

R22, R407c

BACnet, LonWorks, Modbus

001-999

1200,2400,4800,9600,19200

-20.0 to 20.0 psi

-20.0 to 20.0 psi

-5.0 to 5.0 °F

0000 to 9999

No, Yes

10 to 60 min

3 to 20 min

20 to 480 sec

10 to 60 sec

Enable, Disable

Enable, Disable

[59,60] psi [20, 24] to 65 psi

[58,59] psi [20, 24] to 65 psi

5 sec 3 to 120 sec

Low Evap Pressure-Unload

Evap Flow Proof

High Condenser Pressure

High Condenser Stage Down

Phase Voltage Protection

Low OAT Start Timer

380 psi

370 psi

N

165 sec

380 to 390 psi

365 to 375 psi

N,Y

150 to 240 sec

Condenser Fans

Fan Stages

Speedtrol Option

Stage #1 On (OAT < 75°F)

Stage #2 On

Stage #3 On

Stage #1 Off

Stage #2 Off

Stage #3 Off

2

N

200 psi

290 psi

300 psi

140 psi

180 psi

190 psi

2,3

N,Y

140 to 200 psi

230 to 330 psi

230 to 330 psi

130 to 170 psi

150 to 200 psi

150 to 200 psi

Automatic Adjusted Limits

The following are setpoints that will be limited based on the option selected.

Low Ambient Lockout Temperature

Speedtrol

Speedtrol = N

Speedtrol = Y

35 – 60°F

-2 – 60°F

Range

Low Evaporator Pressure Hold and Unload

Refrigerant

R22

R407C

24 to 65 Psig

20 to 65 Psig

Range

ACZ 010A through 039A IOMM ACZ1-2

PW

M

M

M

M

M

M

M

M

M

M

M

M

M

M

O

M

O

M

M

M

M

M

M

M

M

M

N/a

M

M

M

M

M

M

M

M

IOMM ACZ1-2

Dynamic Default Values

Some setpoints will have different default values loaded depending on the value of other setpoints.

Low Evaporator Pressure Inhibit

Default Value Refrigerant

R22

R407C

Low Evaporator Pressure Unload

R22

R407C

Refrigerant

59 psi

60 psi

58 psi

59 psi

Default Value

Equipment Protection (Stop) Alarms

Equipment protection (stop) alarms execute rapid compressor shutdown without going through the normal shutdown cycle.

The following table identifies each of these alarms, gives the condition that causes the alarm to occur, and states the action taken because of the alarm. If the alarm is autoclearing, the reset condition is shown below. Otherwise, the alarm is manually reset, requiring the operator to clear the alarm.

Table 15, Stop Alarms

Description

No Evaporator (Water/Air)

Flow

Low Evaporator Pressure

High Condenser Pressure

Motor Protection

Phase Voltage Protection

(opt)

Low Ambient Restart Fault

Evaporator Pressure

Sensor Fault

Condenser Pressure

Sensor Fault

Outside Ambient

Temperature Sensor Fault

Occurs When:

Any compressor is running AND

Evap Flow Digital Input = No Flow for time >

Evap Flow Proof SP

Evaporator Press < Low Evap Pressure SP for time> Low Evap Pressure Time Delay

Condenser Press > High Condenser

Pressure SP

Digital Input = High Motor Temperature

AND Delay 150 Sec. after power up has passed

If Phase Voltage Protection = Y, Then Digital

Input = Phase/Voltage Problem

Failed three consecutive low ambient start attempts

Sensor shorted or open

Sensor shorted or open

Sensor open or shorted

Action Taken

Rapid Stop

Rapid Stop

Rapid Stop

Rapid Stop

Rapid Stop

Rapid Stop

Rapid Stop

Rapid Stop

Normal Stop

Reset

Evap flow switch closes OR Unit

State=Off

Manual

Manual

Manual

Phase/Voltage input returns to normal

Manual

Manual

Manual

Manual

Evaporator Freezestat

Freezestat logic allows the circuit to run for varying times at low pressures. The lower the pressure, the shorter the time the compressor can run. This time is calculated as follows:

Freeze error

= Low Evaporator Pressure Unload – Evaporator Pressure

Freeze time

= 60 – 1.6 x freeze error, limited to a range of 20-70 seconds

When the evaporator pressure goes below the Low Evaporator Pressure Unload setpoint, a timer starts. If this timer exceeds the freeze time, then a freezestat trip occurs. If the evaporator pressure rises to the unload setpoint or higher, and the freeze time has not been exceeded, the timer will reset.

ACZ 010A through 039A 35

36

Events (Limit Alarms)

The following events limit the operation of the unit in some way as described in the Action

Taken column. These alarms are auto-clearing based on reaching the conditions in the reset column.

Table 16, Event (Limit) Alarms

Description

Condenser Pressure

High Unload

Evaporator Pressure

Low – Hold

Evaporator Pressure

Low – Unload

Occurs When:

Pressure > High Condenser Stage

Down setpoint

Pressure < Low Evap Pressure–Hold setpoint AND one compessor is running

Pressure < Low Evap Pressure–Unload setpoint

Failed Pumpdown Unit is pumping down for 60 seconds

Action Taken

Shutoff

Stage #2

Hold @

Stage 1

Shutoff

Stage 2

Shutoff

Compressors

Reset

Condenser Press drops below (SP – 100psi)

Evap Press rises above

(SP + 8psi)

Evap Press rises above

(SP + 10 psi)

N/A

Active Alarm List

When an alarm occurs, it appears in the active alarm list. The active alarm list holds a record of all active alarms, which includes the date and time each occurred. The active alarms can be cleared by pressing the Edit key when the end of the list has been reached by scrolling.

Active alarms may be cleared without a password being active. The condition that caused the alarm must be corrected prior to clearing the alarm to avoid filling the buffer with duplicate entries and also to avoid repeated trips from the same cause.

Alarm Logging

A separate alarm log stores the last 25 alarms to occur. When an alarm occurs, it is put into the first slot in the alarm log and all others are moved down one, dropping the last alarm.

In the alarm log, the date and time the alarm occurred are stored, as well as a list of other parameters. These parameters include compressor states, evaporator pressure, condenser pressure, number of fans on, and OAT.

Event Logging

An event log similar to the alarm log holds the last 25 events to occur. When an event occurs, it is put into the first slot in the event log and all other entries are moved down one, dropping the last event. Each entry in the event log includes an event description as well as the time and date of the occurrence. No additional parameters are logged for events. A password must be active to view the event log.

Control Functions and Definitions

Refrigerant Saturated Temperature

Methods for calculating saturated refrigerant temperature differ with each refrigerant as explained below.

R22 Saturated Temperature

Evaporator saturated temperature and condenser saturated temperature are calculated from the pressures for each circuit. The pressure is fit to a curve made up of 13 straight line segments. The points used to define these segments are as follows:

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Table 17, R-22 Saturated Temperatures

Pressure (psi)

24.0

34.7

47.6

62.8

80.8

101.6

126.2

153.8

185.2

220.6

260.5

305.2

355.1

430.4

Temperature ( o

F)

84.0

96.0

108.0

120.0

132.0

144.0

160.0

0

12.0

24.0

36.0

48.0

60.0

72.0

R407C Saturated Temperature

Evaporator dew point and condenser mid point are calculated using 32 bit math. The equation is as follows:

If Pressure < 120 psi Then

Saturation = [Pressure x 145/105] – [(Pressure

2

)/2000] – 250

If Pressure >= 120 psi Then

Saturation = [Pressure x 46/94] – [Pressure

2

/25000] + 145

Pumpdown Pressure

The pressure to which a circuit will pumpdown is based on the Low Evaporator Pressure

Unload setpoint. The equation is as follows:

Pumpdown pressure = Low Evaporator Pressure Unload Setpoint – 15 psi (with the calculated value limited to a minimum of 10 psi).

Unit Enable

The Unit Enable status determines whether the unit is enabled to run or not. This can be altered by the Unit Switch input, Remote input, Keypad entry, and BAS request. The

Control Source Setpoint determines which sources can change the Unit Enable status with options of SWITCHES, KEYPAD or NETWORK.

Changing the Unit Enable status can be accomplished according to the following table.

NOTE: An “x” indicates that the value is ignored.

Unit

Switch

OFF x

ON

ON

ON

ON

ON

ON

Control Source

Setpoint

x

SWITCHES

SWITCHES

KEYPAD

KEYPAD

NETWORK

NETWORK

NETWORK

Remote

Input

x

OFF

ON x x x

OFF

ON

Keypad

Entry

x x x

OFF

ON x x x

BAS

Request

x x x x x

OFF x

ON

Unit

Enable

OFF

OFF

ON

OFF

ON

OFF

OFF

ON

ACZ 010A through 039A 37

38

Unit Mode

The overall operating mode of the chiller is set by the Available Mode Setpoint with options of COOL and TEST.

Unit Test Mode

The unit test mode allows manual testing of controller outputs. Entering this mode requires the following conditions.

Unit Switch = OFF

Manager password active.

Available Unit Mode setpoint = TEST

A test menu can then be selected to allow activation of the outputs. It is possible to switch each digital output ON or OFF and set the analog outputs to any value. In test mode, the compressors can be started, but will automatically turn off after 10 seconds. Also, if any outputs are left on in test mode, they will be automatically turned off and/or normal control logic resumed when the unit is taken out of test mode.

Power Up Start Delay

After powering up the unit, the motor protectors may not seem to work properly for up to

150 seconds. After the control is powered up, no compressor can start for 150 seconds. In addition, the motor protect inputs are ignored during this time so as to avoid tripping a false alarm.

Unit State

The Unit is always in one of three states. These states are Off, Auto, and Pumpdown.

Transitions between these states are shown in the following diagram.

Figure 10, Unit State Diagram

Unit State Diagram

Power On

Off

T3

T4

T1

Pumpdown

T2

T1: Transition from Off to Auto

Requires all of the following:

Unit Enable = True

No Alarm

At least one compressor enabled via manual setpoint

Auto

ACZ 010A through 039A IOMM ACZ1-2

T2: Transition from Auto to Pumpdown

Requires any of the following:

• Keypad Enable = Off OR

BAS Enable = Off OR

• Remote Switch = Off OR

Pumpdown Alarm Active

T3: Transition from Pumpdown to Off

Requires any of the following:

Unit Alarm OR

• Unit Switch Off OR

All compressors off

T4: Transition from Auto to Off

Requires any of the following:

Unit Alarm OR

Unit Switch Off

Both compressors disabled via manual setpoint

Evaporator Fan State Control

Operation of the evaporator fan output is controlled by the state-transition diagram shown below.

Figure 11, Fan Output State

Evaporator Fan Output State

Diagram

Off

Unit State = Off

Unit State = Off

Unit State=Auto

IOMM ACZ1-2

Run Start

[Evap State = Start AND

Flow Switch Closed] for time > Evap Recirc Tmr

Condenser Fans

Condenser fans are staged up and down based on the fan stage setpoint. These setpoints define pressures at which fans should start or stop. Comments for “fan 3” apply to 3-fan units only. fan 1 will start with the first compressor when the ambient temperature is greater than 75°F.

Below 75°F, this fan starts when the condenser pressure gets up to the Stage #1 On setpoint. fan 2 will start when the condenser pressure gets up to the Stage #2 On setpoint, and fan 3 will start when the condenser pressure gets up to the Stage #3 On setpoint.

ACZ 010A through 039A 39

40

Fan 3 will stop when the condenser pressure drops to the Stage #3 Off setpoint, and fan 2 will stop when the condenser pressure drops to the Stage #2 Off setpoint. Fan 1 will stop when the pressure drops down to the Stage #1 Off setpoint.

Low OAT Start

In order to avoid low-pressure alarms at startup, low OAT start logic allows for running at low pressures for a longer time than normal as well as multiple start attempts.

A low OAT start is initiated if the condenser saturated temperature is less than 85°F when the compressor starts. Once this happens, the circuit is in this low OAT start state for a time equal to the low OAT start timer setpoint. During this time, the freezestat logic and the low pressure events are disabled. The absolute limit of 5 psi is still enforced.

At the end of the low OAT start, the evaporator pressure is checked. If the pressure is greater than or equal to the low evaporator pressure unload setpoint, the start is considered successful. If the pressure is less than the unload setpoint, the start is not successful and the compressor will stop. Three start attempts are allowed before tripping on the restart alarm; so if on the third attempt the start is not successful the restart alarm is triggered.

The restart counter will be reset when either a start is successful or the circuit is off on an alarm.

Capacity Overrides

The following conditions override the automatic capacity control when the chiller is in

Cool mode only. These overrides keep the unit from entering a condition in which it is not designed to run.

Low Evaporator Pressure

If the evaporator pressure drops below the Low Evaporator Pressure Hold setpoint, the Low

Evaporator Pressure Inhibit event is triggered. This can occur with either one or two compressors running. When triggered, the second compressor will not be allowed to start if only one is currently running. If both compressors are already running, no action is taken.

If the evaporator pressure drops below the Low Evaporator Pressure Unload setpoint, the

Low Evaporator Pressure Unload event is triggered. This can only occur when both compressors are running. When triggered, one compressor is shut off.

These events are logged to an event log when they occur. Both remain active until the evaporator pressure rises 5 psi above the hold setpoint or both compressors are off.

High Condenser Pressure

If the discharge pressure rises above the High Condenser Pressure Unload setpoint and both compressors are running, the High Condenser Pressure Unload event is triggered. One compressor will be shut off when this occurs.

This event will also be logged to an event log when it occurs. It will remain active until the condenser pressure drops 100 psi below the unload setpoint. While active, the second compressor cannot turn back on.

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Low Ambient Lockout

If the OAT drops below the low ambient lockout setpoint, the unit will do a normal stop.

Once the lockout has been triggered, no compressors will start until the OAT rises to the lockout setpoint plus 5°F.

Compressor Control

Compressor Available

A compressor is available to start when the following are true:

Unit state = auto

Evap state = run

Low OAT lockout is not active

Power start delay is expired

No limit events active

No cycle timers active for the compressor

Compressor enable setpoint = On

Compressor Start/Stop Timing

This section determines when to start or stop a compressor. There are two separate functions used, one for staging up and one for staging down.

Stage Up Now

The

Stage Up Now flag is set based on the following tests:

IF Stage Request > Stages On AND

Stage up timer expired THEN

Stage Up Now = True

Stage Down Now

The

Stage Down Now flag is set based on the following tests:

IF Stage Request < Stages On AND

Stage down timer expired THEN

Stage Down Now = True

Compressor Sequencing

Compressor staging is primarily based on compressor run-hours and starts. Compressors that have fewer starts will normally start before those with more starts. Compressors that have more run hours will normally shut off before those with fewer run hours. In the event of a tie on number of starts, the lower numbered compressor will start first. In the event of a tie on run-hours, the lower numbered compressor will shut off first. Run-hours will be compared in terms of tens of hours.

Next On = 1 if compressor 1 starts <= compressor 2 starts, or compressor 2 not available

Next On = 2 if compressor 1 starts > compressor 2 starts, or compressor 1 not available

Next Off = 1 if compressor 1 run-hours > compressor 2 run-hours

Next Off = 2 if compressor 1 run-hours <= compressor 2 run-hours

ACZ 010A through 039A 41

42

Compressor State

A compressor will start when all of the following are true:

The compressor is “next on”

Stage Up Now is set

The compressor is available to start

A compressor will stop when any of the following conditions are true:

Unit state = Off

Evap flow alarm active

Low Ambient start attempt failed

Stage Down Now is set, both compressors are running, and the compressor is “next off”

Pumpdown is complete

Normal Shutdown

If a condition arises that requires the unit to shut down, a pumpdown will be performed if it is not an emergency situation. A normal shutdown will be initiated when any of the following occur:

Unit State = Pumpdown

Low Ambient Lockout

A normal stagedown occurs, and only one compressor is running

Pumpdown Procedure

If both compressors are running, shut off the appropriate compressor based on sequencing logic

• With one compressor left running, turn off hot gas output and liquid line output

Keep running until evaporator pressure reaches the pumpdown pressure, then stop compressor

If evaporator pressure does not reach pumpdown pressure within two minutes, stop compressor and log pumpdown failure alarm

Rapid Shutdown

A situation may arise that requires the unit to shut down immediately, without doing a pumpdown. This rapid shutdown will be triggered by any of the following:

Unit State = Off

Stop Alarm

Low ambient start attempt failed

All compressor and liquid line outputs will be turned off immediately for a rapid shutdown.

Liquid Line Solenoid

The liquid line output will be on any time a compressor is running and the unit is not performing a pumpdown. This output will be off at all other times.

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Using the Controller

4x20 Display & Keypad

Layout

The 4-line by 20-character/line liquid crystal display and 6-key keypad are shown below.

Figure 12, Display (in MENU mode) and Keypad Layout

Key to Screen Pathway

Red Alarm Light

MENU Key

Air Conditioning

<

<

<

ALARM

VIEW

SET

ARROW Keys ENTER Key

Note that each ARROW key has a pathway to a line in the display. Pressing an ARROW key will activate the associated line when in the MENU mode.

Getting Started

There are two basic procedures to learn in order to utilize the MicroTech II controller:

1. Navigating through the menu matrix to reach a desired menu screen and knowing where a particular screen is located.

2. Knowing what is contained in a menu screen and how to read that information or how to change a setpoint contained in the menu screen.

Navigating Through the Menus

The menus are arranged in a matrix of screens across a top horizontal row. Some of these top-level screens have sub-screens located under them. The general content of each screen and its location in the matrix are shown in Figure 14. A detailed description of each menu begins on page 46.

There are two ways to navigate through the menu matrix to reach a desired menu screen.

One is to scroll through the matrix from one screen to another using the four ARROW keys.

The other way is to use shortcuts to work through the matrix hierarchy. From any menu screen, pressing the MENU key will take you to the top level of the hierarchy. The display will show ALARM, VIEW, and SET as shown in Figure 12. This corresponds to the second row of screens on Figure 14. One of these groups of screens can then be selected by pressing the key connected to it via the pathway shown in Figure 12.

For example, selecting ALARM will go the next row of menus under ALARM (ALARM

LOG or ACTIVE ALARM). Selecting VIEW will go the next level of screens under VIEW

(VIEW UNIT STATUS or VIEW UNIT TEMP). Selecting SET will go to a series of screens for looking at and changing setpoints.

ACZ 010A through 039A 43

44

MENU Key

The MENU key is used to switch between the shortcut method (known as the MENU mode and as shown in Figure 12) and scrolling method (known as the SCROLL mode). The

MENU mode is the shortcut to specific groups of menus used for checking ALARMS, for

VIEWING information, or to SET setpoint values. The SCROLL mode allows the user to move about the matrix (from one menu to another, one at a time) by using the four

ARROW keys. A typical menu screen is shown in Figure 13.

Pressing the MENU key from any menu screen will automatically return you to the MENU mode as shown in Figure 12.

Figure 13, Display in the Shortcut (SCROLL) Mode and Keypad Layout

MENU Key

Air Conditioning

VIEW UNIT STATUS

Unit = COOL

Compr. #1/#2=OFF/OFF

Evap Pump = RUN

ARROW Keys

ENTER Key

Menu Screens

Various menus are shown in the controller display. Each menu screen shows specific information; in some cases menus are used only to view the status of the unit, in some cases they are used for checking and clearing alarms, and in some case they are used to set setpoint values.

The menus are arranged in a matrix of screens across a top horizontal row. Some of these top-level screens have sub-screens located under them. The general content of each screen and its location in the matrix are shown in Figure 14. A detailed description of each menu begins on page 46.

The ARROW keys on the controller are used to navigate through the menus. The keys are also used to change numerical setpoint values contained in certain menus.

Changing Setpoints

Pressing the ENTER key changes the function of the ARROW keys to the editing function as shown below:

LEFT key Default, changes a value to the factory-set default value.

RIGHT key Cancel, cancels any change made to a value and returns to the original setting.

UP key Increment, increases the value of the setting.

DOWN key Decrement decreases the value of a setting.

These four edit functions are indicated by one-character abbreviation on the right side of the display (this mode is entered by pressing the ENTER key).

ACZ 010A through 039A IOMM ACZ1-2

Most menus containing setpoint values have several different setpoints shown on one menu.

When in a setpoint menu, the ENTER key is used to proceed from the top line to the second line and on downward. The cursor will blink at the entry point for making a change. The

ARROW keys (now in the edit mode) are used to change the setpoint as described above.

When the change has been made, press the ENTER key to enter it. No setting is changed until the ENTER key is pressed.

For example, to change the number of unit fans setpoint:

1. Press MENU key to go to the MENU mode (see Figure 12).

2. Press SET (the UP Key) to go to the setpoint menus.

3. Press SET FAN SP (the Right key) to go to setpoints associated with unit operation.

4. Since the first (or top) menu will be used, there is no need to press the DOWN key to scroll down through other setpoint menus.

5. Press the ENTER key to move the cursor down from the top line to the second line in order to make the change.

6. Use the ARROW keys (now in the edit mode as shown above) to change the setting.

7. When the desired value is achieved, press ENTER to enter it. The cursor will automatically move down.

At this point, the following actions can be taken:

1. Change another setpoint in this menu by scrolling to it with the ENTER key.

2. Using the ENTER key, scroll to the first line in the menu. From there the ARROW keys can be used to scroll to different menus.

IOMM ACZ1-2 ACZ 010A through 039A 45

46

Figure 14, Menu Matrix

"MENU"

VIEW UNIT

STATUS 1-3

UNIT

VIEW UNIT

TEMP

"VIEW" MENUS

COMP REFRIGERANT

VIEW COMP #1

STATUS 1-2

VIEW COMP #2

STATUS 1-2

VIEW EVAP/COND PRESS

1-2

FANS

VIEW

FANS

⇐ Continued ⇐

(Right side of matrix continued from above)

"ALARM" MENUS "SET" MENUS

ALARM LOG

(LAST)

TYPE, TIME

ALARM LOG

(NEXT TO LAST)

EVENT LOG ACTIVE ALARM SET UNIT SPs,

(NEXT TO (n) (2) MODE =

ALARM LOG

(SECOND TO

LAST)

EVENT LOG ACTIVE ALARM SET UNIT SPs,

(LAST)

TYPE, TIME

(1)

TYPE, TIME

(1) MODE

SET COMP

SPs (1)

STOP/START

LAST) TYPE, TIME

ADDITIONAL

COOL

EVENT LOG ACTIVE ALARM SET UNIT SPs,

(SECOND TO

LAST)

(3)

CLEAR/VIEW

(3) CLOCK

SET COMP

SPs (2)

INTER-

STAGE

SET LIMIT

ALARMS (1)

EVAP PRESS

SET FANS (1)

STAGES

FANTROL

SET LIMIT

ALARMS (2)

FREEZE/ FLOW

SET FANS (2)

STAGE ON

SET LIMIT

ALARMS (3)

COND PRESS

SET FANS (3)

STAGE OFF

ALARM LOG

LAST 25 SHOWN

EVENT LOG

LAST 25

SHOWN ⇓

SET UNIT SPs,

(4) ENGLISH

SET UNIT SPs,

(5) PROTOCOL

SET LIMIT

ALARMS (4)

PHASE/VOLT

LOW AMB

LOCKOUT

SET LIMIT

ALARMS (5)

LOW EVAP PR

SET UNIT SPs,

(6) EVAP

OFFSET

SET UNIT SPs,

(7) COND

OFFSET

SET UNIT SPs,

(8) AMBIENT

OFFSET

SET UNIT SPs,

(9) ENTER

PASSWORD

Menu Structure (Hierarchical)

As discussed previously, a hierarchical menu structure can be used to access the various screens. One to twelve levels are used with two or three being typical. Optionally, the last menu selection can access one of a set of screens that can be navigated with the UP/DOWN

ARROW keys (see the scrolled menu structure below).

Menu selection is initiated by pressing the MENU key that changes the display from a regular data screen to a menu screen. Menu selections are then made using the arrow keys according to labels on the right side of the display (the arrows are ignored). When the last

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2 menu item is selected, the display changes to the selected data screen. An example follows showing the selection of the “VIEW REFRIGERANT” screen.

Suppose the initial screen is as below or any other menu screen:

ALARM LOG

(data)

(data)

(data)

After pressing the MENU key, the top level menu screen will show:

< ALARM

< VIEW

< SET

After pressing the “VIEW” menu key, a menu screen will show:

VIEW < UNIT

< COMPRESSOR

< REFRIGRANT

< FANS

Selection of any of these will advance to the appropriate data menu. For example, after pressing the

REFRIGERANT” menu button, the selected data screen will show:

VIEW REFRIG

PSI °°°°F

SAT EVAP XXX.X XX.X

SAT COND XXX.X XX.X

The ARROW keys will automatically return to the “scroll” mode at this time.

Screen Definitions VIEW

This section contains information on each screen. The menu screens are in order of the matrix in Figure 14, going from left to right and then down when there are sub-menus.

Many menus are self-explanatory.

VIEW UNIT

VIEW UNIT STATUS (1)

Unit = AUTO

Stage=X Request=X

Unit status can be OFF, AUTO, and ALARM as determined from the Unit State variable, the Unit Mode setpoint, the Unit Enable and the presence of an alarm.

VIEW UNIT STATUS (2)

Stg Up Delay=XXXsec

Stg Dn Delay=XXXsec

ACZ 010A through 039A 47

48

VIEW UNIT STATUS (3)

D.O D.I.

12345678 12345678

00000000 00000000

View Unit Temperatures

VIEW UNIT TEMP °°°°F

Outside Amb = XX.X°°°°F

VIEW COMPRESSORS

VIEW COMP#1 (1)

State = OFF LEAD

Cycle Timer: XXmin

Manual Disable

Cycle timer only visible when active. Manual Disable visible only when compressor is disabled via manual enable setpoint.

VIEW COMP#1 (2)

Hours = XXXXX

Starts = XXXXX

Above two screens duplicated for Compressor #2.

VIEW REFRIGERANT

VIEW REFRIG (1)

EVAP Press = XX.Xpsi

COND Press - XX.Xpsi

With R22 Refrigerant With R407C Refrigerant

VIEW REFRIG (2) VIEW REFRIG (2)

SAT EVAP = XXX.X°°°°F Evap Dew = XXX.X°°°°F

SAT COND = XXX.X°°°°F Cond Mid = XXX.X°°°°F

EvapApproach = XX.X°°°°F EvapApproach = XX.X°°°°F

See page 36 for an explanation of saturated temperatures for R22 and R407C.

Approach is the difference between the leaving fluid temperature and the saturated evaporator temperature. It is an indication of the evaporator efficiency; an increasing approach temperature indicates decreasing heat transfer efficiency.

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

VIEW FANS

VIEW FANS

Stages ON = 2 of 3

Screen Definitions – ALARM

ALARM ACTIVE (X)

Alarm Description

ALARM ACTIVE (X)

No more alarms hh:mm:ss dd/mmm/yyyy Press ENTER to clear all active alarms

If the unit is off on a shutdown alarm or running but in a limit alarm condition, the cause and date will appear in the upper screen. If there is a simultaneous occurrence of more than one alarm, the others will appear in additional screens below this one, accessed by the

DOWN ARROW. Either type alarm will light a red light in back of the LEFT-KEY. The light will go out when the fault is cleared.

To clear the fault, scroll down to the last screen and press ENTER. If other faults have appeared, they will all be cleared at the same time.

ALARM LOG (1)

High Condenser Press

hh:mm:ss d/mmm/yyyy

The last 25 alarms, either shutdown or limit, are shown in this menu with subsequent menus stored under it. ARROW DOWN from this menu will go to the next-to-last alarm, ARROW

DOWN again will go to the second from last, and so on through the last 25 occurrences.

The screens are numbered (1), (2),, etc.

Screen Definitions – SET

Changing setpoints; in general, setpoints are changed as follows:

1. Select the desired menu by scrolling through SET menus with the UP and DOWN

ARROWS.

2. When the desired menu is selected, select the desired entry by moving between lines using the ENTER key.

3. If a numerical value is being changed, use the INCREMENT key (UP ARROW) to increase or the DECREMENT key (DOWN ARROW) to decrease the value of the setpoint.

If a word type setpoint (for example, YES or NO) is to be selected, the choices are loaded into the menu and selected by scrolling through the available setpoint options using the UP ARROW key.

4. Enter the desired value or word into the controller by pressing the SET key.

ACZ 010A through 039A 49

50

SET UNIT SPs

SET UNIT SPs (1)

Unit Enable=OFF

Source=KEYPAD

Unit Enable is an external signal or a keypad setting that keeps the unit off when the setting is OFF and allows it to run if there is a call for cooling. The source for the signal is selected in the 3td line and can be:

1. KEYPAD, in which case the selection is made in line 2 and would be normally selected as ON. This is the normal setting when no external signals are controlling the unit.

2. SWITCHES, in which an external switch is wired across terminals #25 and #35.

3. NETWORK, used with BAS signal, which is wired to the three communication ports.

SET UNIT SPs (2)

Available Modes

=COOL

Set w/ FP Switch Off

Available Modes setting is the standard COOL or TEST as selected from the available modes imbedded in the menu. The 4 th

line is a reminder that the ON/OFF switch on the front panel (FP) must be in the OFF position before the MODE can be changed. This prevents a mode change while the unit is operating.

SET UNIT SPs (3)

Air Flow Timer=XXsec

LowAmblock= XX.X°°°°F

SET UNIT SPs (4)

CLOCK

dd/mmm/yyyy

hh:mm:ss

SET UNIT SPs (5)

Units = °°°°F/psi

Lang = ENGLISH

Refrig=R22

Unit settings are only °F/psi at the present time. °C/kPa will be available later.

Lang (Language) settings can be only ENGLISH at present.

Refrig (Refrigerant) is set for the correct refrigerant in the factory prior to shipment.

SET UNIT SPs (6)

Protocol = NONE

Ident Number=001

Baud Rate=9600

Protocol selection for BAS will be available in June 2002.

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

SET UNIT SPs (7)

Evaporator Refrig

Press Sensor

Offset= 00.0 psi

The pressure offsets on menus 7 and 8 and the temperature offset on menu 9 correct the controller's display of the parameters. The sensors used in these units have a high degree of repeatability but may need correction (offset). An accurate pressure gauge or thermometer is used to determine the correct temperature or pressure. A positive or negative offset value is then entered to make the controller reading agree with the measured value.

SET UNIT SPs (8)

Condenser Refrig

Press Sensor

Offset= 00.0 psi

SET UNIT SPs (9)

Outside Ambient

Temperature Sensor

Offset= 00.0

o

F

SET UNIT SPs (10)

ENTER PASSWORD XXXX

Active Password

Level:None

Two four-digit passwords provide OPERATOR and MANAGER levels of access to changeable parameters. The passwords are preprogrammed into the controller. The

Operator Password is 0100. Either password must be entered using the ENTER

PASSWORD (12) screen before a protected setting can be changed.

This screen can be accessed either through the SET OTHER menu or by simply pressing the ENTER key while on one of the SET screens. The controller will automatically go from the screen with the setting change to this screen. After the correct password has been entered, the controller will automatically return to the original set screen.

Once a password has been entered, it remains valid for 15 minutes after the last key-press.

SET COMP SPs

SET COMP SPs (1)

Clear Cycle Tmr=No

Stop-Start =XXmin

Start-Start =XXmin

This menu sets the anti-recycle timers. Stop-Start is the time required before starting a compressor after it has stopped. Start-Start is the time required before starting a compressor after the last time it has started. It is recommended that these default values not be changed.

SET COMP SPs (2)

InterStageUp=XXXsec

InterStageDn=XXXsec

ACZ 010A through 039A 51

52

InterStageUp is the time delay since the last stage change before a compressor can stage on.

InterStageDn is the time delay since the last stage change before a compressor can stage off normally (not by an alarm).

SET COMP SPs (3)

Manual Comp Enable

Comp 1= Enable

Comp 2= Enable

SET ALARM SETPOINTS

SET ALARM LMTS (1)

Low Evap Pressure

Hold = 59.0 psi

Unload = 58.0 psi

If two compressors are running, the LowEvPr Unld is in effect and the lag compressor will be shut off to unload the unit. If one compressor is running, the LowEvPr Hold is in effect and the lag compressor is prevented from starting, thereby holding the unit capacity.

SET ALARM LMTS (2)

EvapFlowProof=XXXsec

EvapFlowProof is the flow switch interlock. Closing the flow switch and therefore proving the existence of chilled water or air flow resets this trip.

SET ALARM LMTS (3)

HighCondPr = XXXpsi

HiCondStgDn = XXXpsi

HighCondPr (the unit high-discharge-pressure shutdown) is a stop alarm that shuts off the unit when the discharge pressure reaches the setting. The default setting is 380 psi. The

HiCondStDn is a limit alarm that unloads the unit in an attempt to prevent total shutdown from the HighCondPr. The stage down is set at 370 psi.

SET ALARM LMTS (4)

PhaseVoltage=YES/NO

LowOATStrtTmr=XXXsec

LowAmbientLock prevents unit operation below the setting. If the unit is equipped with the standard FanTrol pressure-activated control, the available range is 35°F to 60°F with a default of 35°F. With the optional SpeedTrol variable speed control, the range becomes –

2°F to 60°F with default of 0°F. Input to line 3 of the next screen, SET FANS SP (1), informs the controller which type of control is installed and which range of setting to allow.

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

SET FANS SETPOINTS

SET FANS SPs (1)

Fans Stages = X

Speedtrol = NO

The Fan Stages line tells the controller the number of fans on the unit. The UP ARROW toggles between 1, 2, and 3. 1 is not used; 2 should be used for Models ACZ 010, 013, and

017; and 3 should be used for ACZ 020, 025, 029, and 039.

SpeedTrol tells the controller whether the optional SpeedTrol is installed in the unit. The

UP ARROW toggles between YES and NO. The setting changes the range available: YES

= 35°F to 60°F, with 35°F being the recommended setting; NO = -2°F to 60°F, with 0°F being the recommended setting.

SET FANS SPs (2)

Stage ON psi

#1 #2 #3

XXX XXX XXX

SET FANS SPs (3)

Stage Off psi

#1 #2 #3

XXX XXX XXX

These two menus set the on and off staging pressures for the fans. The third fan is for only for three-fan units. These settings are used with both FanTrol and SpeedTrol. SpeedTrol takes effect when the last fan is running after FanTrol cycles off the others. Fan #1 is staged by condensing pressure and does not or stop start automatically when the unit does.

Screen Definitions – TEST

The test screens are only available when the unit is in TEST mode. Using these screens, any digital output can be controlled manually.

TEST UNIT (1)

Alarm Signal= OFF

Evap Fan=OFF

TEST UNIT (2)

Liquid Line Sol=OFF

Compressor #1 = OFF

Compressor #2 = OFF

TEST UNIT (3)

Fan Motor #1 = OFF

Fan Motor #2 = OFF

Fan Motor #3 = OFF

ACZ 010A through 039A 53

Service

DANGER

Disconnect and tag-out all sources of power to the unit before doing any service inside the unit. Failure to do so can cause serious personal injury or death.

CAUTION

Service on this equipment must be performed only by trained, experienced, qualified service personnel with special regard to regulations concerning release of refrigerant to the atmosphere.

Note: Repeated tripping of equipment protection controls must be investigated and corrected.

Thermostatic Expansion Valve

The field-installed expansion valve is responsible for allowing the proper amount of refrigerant to enter the evaporator regardless of cooling load. It does this by maintaining a constant superheat. (Superheat is the difference between refrigerant temperature as it leaves the evaporator and the saturation temperature corresponding to the evaporator pressure.) Typically, superheat should run in the range of 8°F to 12°F (4.4°C to 6.6°C).

Maintaining correct superheat to the compressor is an important element in extending compressor life.

Filter-Driers

In general, the pressure drop across the field-installed filter-drier should be in the 6 to 10 psi range. It should be monitored and changed when the pressure drop reaches 10 psi.

After changing the filter-drier, check for leaks before recharging and returning unit to operation.

Liquid Line Solenoid

The field installed liquid line solenoid valve does not normally require any maintenance.

Reliable operation of the solinoid valve is necessary for the pump-down function of the unit's control system.

54 ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Optional Controls

SpeedTrol Head Pressure Control

The SpeedTrol method of head pressure control operates in conjunction with FanTrol by modulating the motor speed on system #1 fan in response to condenser pressure. By reducing the speed of the last fan as the condensing pressure falls, the unit can operate to

0°F (-18°C) ambient air temperature.

The SpeedTrol fan motor is a single-phase, 230/460 volt, thermally protected motor specially designed for variable speed operation. The solid-state speed control is mounted in the unit control panel and is connected to a Schrader fitting on the liquid line. The control is factory-set to start modulating fan speed at 230 psig, and it will maintain a minimum condensing pressure of 170 to 180 psig. Minimum starting voltage for SpeedTrol motors is

120 volts.

A low ambient timer function is included in the microprocessor. When the solenoid valve and lead compressor are energized by the controller, the low pressure cutout control is bypassed and the compressor is allowed to start with the low pressure control open.

After about 2-3/4 minutes, the time delay will open and the low pressure cutout function is again operable. If the system has not built up enough evaporator pressure to close the low pressure setting, the compressor will stop.

Due to the vertical condenser design, it is recommended that the unit be oriented so that prevailing winds blow parallel to the unit length, thus minimizing effects on minimum ambient operation. If it is not practical to orient the unit in this manner, a wind deflector should be constructed.

Hot Gas Bypass

Hot gas bypass is a system for maintaining evaporator pressure at or above a minimum value. The purpose for doing this is to keep the velocity of the refrigerant as it passes through the evaporator high enough for proper oil return to the compressor when cooling load conditions are light. It also maintains continuous operation of the chiller at light load conditions.

The field installed hot gas solenoid valve should be as shown on Figure 7, ACZ 010A through 039A, Typical Field Wiring Diagram. This can be accomplished by wiring the hot gas solenoid (SV5) to terminals 14 and 16. The pressure-regulating valve is factory-set to begin opening at 58 PSIG (32°F for R-22) when the air-charged bulb is in an 80°F ambient temperature. The bulb can be mounted anywhere as long as it senses a fairly constant temperature at various load conditions. The compressor suction line is one such mounting location. It is generally in the 50°F to 60°F range.

The chart below (Figure 16) indicates that when the bulb is sensing 50°F to 60°F temperatures, the valve will begin opening at 54 PSIG. This setting can be changed as indicated above, by changing the pressure setting, remove the cap on the bulb and turn the adjustment screw clockwise. To lower the setting, turn the screw counterclockwise. Do not force the adjustment beyond the range it is designed for, as this will damage the adjustment assembly.

The regulating valve opening point can be determined by slowly reducing the system load

(or increasing the required evaporator temperature setting indicated on the unit thermostat), while observing the suction pressure. When the bypass valve starts to open, the refrigerant line on the evaporator side of the valve will begin to feel warm to the touch.

ACZ 010A through 039A 55

56

WARNING

The hot gas line can become hot enough to cause injury in a very short time.

Do not allow prolonged contact during valve checkout.

On installations where the condensing unit is remote from the evaporator, it is recommended that the hot gas bypass valve be mounted near the condensing unit to minimize the amount of refrigerant that will condense in the hot gas line during periods when hot gas bypass is not required.

Figure 15, Hot Gas Bypass Piping

Suction Line

Hot Gas Bypass

Solenoid Valve

Discharge

Line

Hot Gas

Bypass Valve

Figure 16, Hot Gas Bypass Adjustment

REMOTE BULB ADJUSTMENT RANGE

80

Adjustable

Remote Bulb

External Equalizer

Connection to Suction

Side of Evaporator

To Evaporator Inlet

After Expansion Valve

50

40

70

60

MAXIMU

FACTO

MINIMU

M

RY SET

M

TING

30

30 40 50 60 70 80

TEMP (°F) AT BULB LOCATION

90 100 110

ACZ 010A through 039A IOMM ACZ1-2

IOMM ACZ1-2

Troubleshooting Chart

WARNING

Troubleshooting must be done only by trained, experienced technicians.

Troubleshooting presents risks of severe personal injury and death from cuts, burns, electrocution and suffocation.

Table 18, Troubleshooting Chart

PROBLEM

COMPRESSOR WILL

NOT RUN

COMPRESSOR NOISY

OR VIBRATING

HIGH DISCHARGE

PRESSURE

LOW DISCHARGE

PRESSURE

HIGH SUCTION

PRESSURE

LOW SUCTION

PRESSURE

UNIT WILL NOT LOAD

OR UNLOAD

LOAD/UNLOAD

INTERVAL TOO

SHORT

POSSIBLE CAUSES

1. Main switch open

2. Fuse blown, breakers open

3. Thermal overloads tripped

4. Defective contactor or coil

5. System off by protection device

6. No cooling required

7. Liquid line solenoid will not open

8. Motor electrical problem

9. Loose wiring

1. Refrigerant flooding compressor

2. Improper line support

3. Worn compressor

1. Noncondensables in system

2. Refrigerant overcharge

3. Fan not running

4. Dirty condenser coils

5. FanTrol out of adjustment

1. Faulty condenser control

2. Low refrigerant charge

3. Low suction pressure

1. Excessive load

2. Expansion valve overfeeding

1. Lack of refrigerant

2. Evaporator dirty

3. Clogged filter-drier

4. Expansion valve malfunctioning

5. Low condensing temperature

1 Faulty controller sensor/broken wire

2. Stages not set for application

1. Erratic thermostat

2. Insufficient water flow

COMPRESSOR

LOSES OIL

MOTOR OVERLOAD

RELAYS OPEN OR

BLOWN FUSES

1. Lack of refrigerant

2. Suction superheat too high

3. Crankcase heater burned out

1. Low voltage during high loads

2. Defective or grounded motor wiring

3. Loose power wiring

4. High condensing temperature

5. Unbalanced voltage

1. Operating beyond design conditions

COMPRESSOR

THERMAL SWITCH

OPEN

POSSIBLE CORRECTIVE STEPS

1. Close switch

2. Check electrical circuits and motor windings for shorts. Check for overloads and loose connections.

Replace fuse or reset breaker.

3. Check unit when back on line, auto reset

4. Repair or replace

5. Determine cause and correct

6. None, should start on call for cooling

7. Repair or replace coil

8. Check motor for open or short circuit, or burnout

9. Check all wire junctions. Tighten all terminals.

1. Check expansion valve setting

2. Relocate or add supports

3. Replace

1. Remove with authorized procedures

2. Remove excess

3. Check electrical circuit

4. Clean coil

5. Adjust FanTrol setting

1. Check condenser control operation

2. Check for leaks. Add refrigerant

3. See low suction pressure steps below

1. Reduce load or add capacity

2. Check remote bulb. Regulate superheat

1. Check for leaks. Repair and replace refrigerant.

2. Clean chemically

3. Replace

4. Check and adjust for proper superheat

5. Check discharge pressure control settings

1. Replace

2. Adjust thermostat setting

1. Replace

2. Adjust flow

1. Check for leaks and repair

2. Adjust superheat

3. Replace crankcase heater

1. Check supply voltage

2. Replace compressor

3. Check all connections and tighten

4. See steps for high discharge pressure

5. Check voltage. Contact power company.

1. Add facilities so conditions are within allowable limits

ACZ 010A through 039A 57

Post Office Box 2510, Staunton, Virginia 24402 USA • (540) 248-0711 • www.mcquay.com

IOMM ACZ1-2 (11/05)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals
