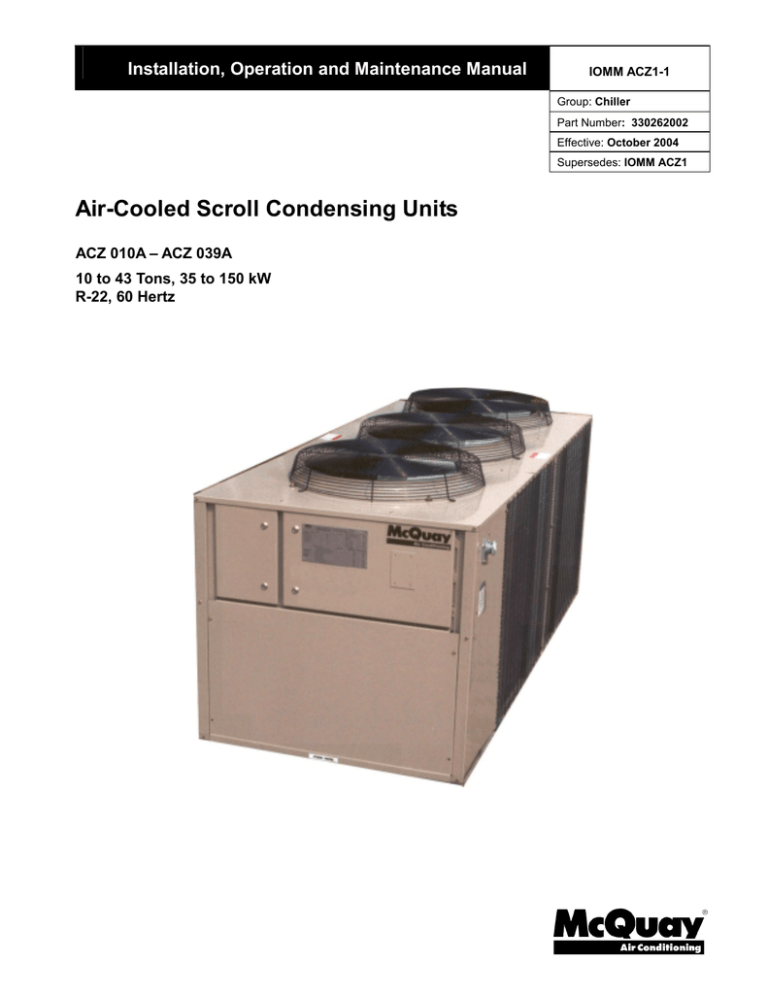

Installation, Operation and Maintenance Manual

Air-Cooled Scroll Condensing Units

ACZ 010A – ACZ 039A

10 to 43 Tons, 35 to 150 kW

R-22, 60 Hertz

IOMM ACZ1-1

Group: Chiller

Part Number: 330262002

Effective: October 2004

Supersedes: IOMM ACZ1

2

Table of Contents

Introduction........................................3

General Description..........................................3

Inspection .........................................................3

Installation........................................................3

Handling...........................................................3

Location ...........................................................4

Service Access..................................................4

Vibration Isolators ............................................6

Chilled Water System .......................................6

Refrigerant Piping ............................................9

Unit Component Location ..............................12

Control Layout and Operation.......13

Control Center ................................................13

Start-up and Shutdown ...................13

Pre Start-up.....................................................13

Start-up ...........................................................13

Sequence of Operation ...................................14

Physical Data ....................................15

Electrical Data..................................17

Field Wiring ...................................................17

MODEL CODE

A C Z XXX A

Dimensional Data............................. 22

System Maintenance........................ 23

General ...........................................................23

Lubrication .....................................................23

Electrical Terminals........................................23

Condensers .....................................................23

Refrigerant Sight glass ...................................23

Standard MicroTech II Controller. 24

Table of Contents ...........................................24

Overview........................................................25

General Description .......................................25

Using the Controller .......................................31

Service............................................... 42

Thermostatic Expansion Valve .......................42

Filter-Driers....................................................42

Liquid Line Solenoid......................................42

Optional Controls ...........................................43

Troubleshooting Chart....................................45

Air-Cooled

Vintage

Condensing

Nominal Tons

Scroll Compressor

"McQuay" is a registered trademark of McQuay International

2003 McQuay International

Illustrations and data cover the McQuay International products at the time of publication and we reserve the right to make changes in design and construction at anytime without notice.

ACZ 010A through 039A IOMM ACZ1-1

Introduction

General Description

McQuay air-cooled condensing units are complete, self-contained automatic refrigerating units. Every unit is completely assembled, factory wired, and tested. Each unit consists of air-cooled condensers, Copeland

Compliant Scroll

£ hermetic compressor, and internal refrigerant piping, ready to be piped to a field supplied low side.

The electrical control center includes all equipment protection and operating controls necessary for automatic operation except for the staging control for the steps of capacity in the unit. Condenser fan motors are three-phase (except single-phase on No.1 fan with SpeedTrol option) and started by their own contactors with inherent overload protection. The compressor has solid-state motor protection for inherent thermal overload protection except Models ACZ 010 and 013 that have internal line breakage.

Inspection

Check all items carefully against the bill of lading. Inspect all units for damage upon arrival. Report shipping damage and file a claim with the carrier. Check the unit nameplate before unloading to be sure it agrees with the power supply available. Units are shipped FOB factory and McQuay is not responsible for physical damage after the unit leaves the factory.

Note: Unit shipping and operating weights are listed on pages 15 and 16.

Installation

Note: Installation is to be performed by qualified personnel who are familiar with local codes and

regulations, especially concerning refrigerant release to the atmosphere.

WARNING

Sharp edges and coil surfaces can cause personal injury.

Wear protective gear and avoid contact with them.

Handling

Be careful to avoid rough handling of the unit. Do not push or pull the unit from anything other than the base. Block the pushing vehicle away from the unit to prevent damage to the sheet-metal cabinet and end

frame (see Figure 1).

To lift the unit, lifting slots are provided in the base of the unit. Arrange spreader bars and cables to prevent

damage to the condenser coils or cabinet (see Figure 2).

Figure 1, Suggested Pushing Arrangement

Blocking required across full width

IOMM ACZ1-1 ACZ 010A through 039A 3

Figure 2, Suggested Lifting Arrangement

Location

Unit Placement

ACZ units are for outdoor applications and can be mounted on a roof or at ground level. Set units on a solid and level foundation. For roof-mounted applications, install the unit on a steel channel or I-beam frame to support the unit above the roof. For ground level applications, install the unit on a substantial base that will not settle. A one-piece concrete slab with footings extended below the frost line is recommended. Be sure the foundation is level (within 1/2” [13 mm] over its length and width). The foundation must support the

operating weights listed in the Physical Data Tables on pages 15 and 16.

Since its operation is affected by wind, the unit should be located so that its length is parallel with the prevailing wind. If this is not practical, field fabricated wind deflectors may be required.

Service Access

Each end of the unit must be accessible after installation for periodic service. Compressors, filter-driers, and liquid line solenoid valve are accessible from the end of the unit. Motor protector controls are on the compressor. Most operating, equipment protection, and starting controls are located in the unit control box.

The fan deck with the condenser fans and motors can be removed from the top of the unit.

4 ACZ 010A through 039A IOMM ACZ1-1

Clearances

The flow of air to and from the condenser coil must not be limited. Restricting airflow or allowing air recirculation will result in a decrease in unit performance and efficiency. There must be no obstruction above the unit that would deflect discharge air downward where it could be recirculated back to the inlet of the condenser coil. The condenser fans are propeller type and will not operate with ductwork on the fan outlet.

Figure 3, Clearance requirements

4 Ft.

(1220mm)

Clearance for

Service Access

4 Ft. (1220mm)

Clearance for Air Inlet

Install the unit with enough side clearance for air entrance to the coil and for servicing. Provide service access to the compressors, electrical control panel and

piping components as shown in Figure 3.

Do not block access to the unit with piping or conduit.

Do not allow debris to accumulate near the unit. Air movement can draw debris into the condenser coil causing air starvation.

Give special consideration to low ambient operation where snow can accumulate.

Keep condenser coils and fan discharge free of snow or other obstructions to permit adequate airflow.

4 Ft. (1220mm)

Clearance for Air Inlet

4 Ft.

(1220mm)

Clearance for

Service Access

The recommended minimum side clearance between two units is 8 feet (2440mm).

Sound Isolation

The low sound levels of the ACZ units are suitable for most applications. When additional sound reduction is necessary, locate the unit away from sound sensitive areas. Avoid locations beneath windows or between structures where normal-operating sounds may be objectionable. Reduce structurally transmitted sound by isolating electrical conduit and the unit itself. Use wall sleeves and rubber isolated refrigerant piping hangers to reduce transmission of noise into occupied spaces. Use flexible electrical conduit to isolate sound through electrical conduit. Spring isolators are effective in reducing the low amplitude sound generated by the compressors and for unit isolation in sound-sensitive areas.

The unit must not be installed in a pit or enclosure that is deeper or taller than the height of the unit unless extra space is provided. The minimum clearance on each side of the unit is 6 feet (1828mm) when installed in a pit. The pit cannot be deeper than the unit.

The minimum clearance to a side wall or building taller than the unit height is 6 feet (1828mm) provided no solid wall above 6 feet (1828mm) tall is closer than 12 feet (3658mm) to the opposite side of the unit.

IOMM ACZ1-1 ACZ 010A through 039A 5

6

Vibration Isolators

Vibration isolators are recommended for all roof-mounted installations or wherever vibration transmission is a consideration.

The unit should be initially on shims or blocks at the listed free height. When all piping, wiring, flushing, charging, etc. is completed, the springs are adjusted upward to loosen the blocks or shims that are then removed.

A rubber anti-skid pad is part of the isolator. Installation of spring isolators requires flexible piping connections and at least three feet of flexible conduit to avoid straining the piping and transmitting vibration and noise.

Table 1, Recommended Vibration Isolators

Rubber-in-Shear

010, 013,016,020,025,028

033, 039

RP-3 Red

RP-3 Green

RP-3 Red

RP-3 Green

RP-3 Black

RP-3 Red

Kit P/N

LB

RP-3 Black

RP-3 Red

350014859

350014857

Spring

Kit P/N

Model RF LF RB LB

010, 013

016, 020

025, 028

033

039

CP 1-24 Brown

CP 1-25 Red

CP1-26 Purple

CP1-27 Orange

CP1-27 Orange

CP 1-24 Brown

CP 1-25 Red

CP1-26 Purple

CP1-26 Purple

CP1-27 Orange

Note: See dimension drawing for location of isolators

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

CP 1-24 Brown

350014831

350014830

350014829

350014836

350014828

Control

Panel

Corner Operating Weights

ACZ

Unit

Model

RF LF RB LB Total

010 259 257 243 241 1000

013 259 257 243 241 1000

016 353 360 251 256 1220

020 377 383 288 292 1340

025 498 505 232 235 1470

028 508 515 232 235 1490

033 605 567 304 284 1760

039 712 649 313 286 1960

Chilled Water System

Water Piping (Applicable when the Unit is Field Connected to a Water Type

Evaporator)

Local authorities can supply the installer with the proper building and safety codes required for proper installation.

Install piping with minimum bends and changes in elevation to minimize pressure drop. Consider the following when installing water piping:

ACZ 010A through 039A IOMM ACZ1-1

1. Vibration eliminators to reduce vibration and noise transmission to the building.

2. Shutoff valves to isolate the unit from the piping system during unit servicing.

3. Manual or automatic air vent valves at the high points of the system. Install drains at the lowest points in the system.

4. A means of maintaining adequate system water pressure (expansion tank or regulating valve).

5. Temperature and pressure indicators located at the unit to aid in unit servicing. Pressure gauge taps must be installed in the chilled water inlet and outlet piping or as shown in Figure 4.

6. A strainer or other means of removing foreign matter from the water before it enters the pump. Place the strainer far enough upstream to prevent cavitation at the pump inlet (consult pump manufacturer for recommendations). The use of a strainer will help prolong pump life and keep system performance up.

7. A 40-mesh strainer is required in the water line just before the inlet of the evaporator. This will help prevent foreign material from entering and decreasing the performance of the evaporator.

8. If the unit is used as a replacement chiller on a previously existing piping system, flush the system thoroughly before unit installation. Regular water analysis and chemical water treatment on the evaporator is recommended immediately at equipment start-up.

9. When glycol is added to the water system for freeze protection, the refrigerant suction pressure will be lower, cooling performance less, and water side pressure drop greater. If the percentage of glycol is high, or if propylene is used instead of ethylene glycol, the added pressure drop and loss of performance could be substantial. Reset the freezestat and low leaving water alarm temperatures. The freezestat is factory set to default at 38

°

F (3.3

°

C). Reset the freezestat setting to approximately 4 to 5 degrees F (2.3 to 2.8 degrees C) below the leaving chilled water setpoint temperature.

10. Perform a preliminary leak check before insulating the piping and filling the system.

11. Piping insulation should include a vapor barrier to prevent condensation and possible damage to the building structure.

Figure 4, Typical Field Evaporator Water Piping

Air

Vent

Strainer

Inlet

P

Vibration

Eliminators

Isolation

Valves

Outlet

Flow

Switch

Drain

System Volume

It is important to have adequate water volume in the system to provide an opportunity for the chiller to sense a load change, adjust to the change and stabilize. As the expected load change becomes more rapid, a greater water volume is needed. The system water volume is the total amount of water in the evaporator, air handling products and associated piping. If the water volume is too low, operational problems can occur, including rapid compressor cycling, rapid loading and unloading of compressors, erratic refrigerant flow in the chiller, improper motor cooling, shortened equipment life and other undesirable occurrences.

IOMM ACZ1-1 ACZ 010A through 039A 7

8

For normal comfort cooling applications, where the cooling load changes relatively slowly, we recommend a minimum system volume of five minutes times the flow rate (gpm). For example, if the design chiller flow rate is 50 gpm, we recommend a minimum system volume of 250 gallons (50 gpm x 5 minutes).

Since there are many other factors that can influence performance, systems can successfully operate below these suggestions. However, as the water volume decreases below these suggestions, the possibility of problems increases.

Variable Chilled Water flow

Variable chilled water flow systems are not recommended for this class of equipment due to limited unloading capability.

Flow Switch

Mount a water flow switch in the leaving water line to shut down the unit when water flow is interrupted.

Figure 5, Flow Switch Installation

A flow switch is available from McQuay

(part number 017503300). It is a “paddle” type switch and adaptable to pipe sizes down to 1 1/4” (32mm) nominal. Certain minimum flow rates are required to close

the switch and are listed in Table 2. Install

the switch as shown in Figure 5. Connect

the normally open contacts of the flow switch in the unit control center at terminals

4 and 5. There is also a set of normally closed contacts on the switch that can be used for an indicator light or an alarm to indicate when a “no-flow” condition exists.

Freeze protect any flow switch that is installed outdoors. Follow installation instructions provided with the flow switch. Calibrate the flow switch to open at one-half of nominal flow rate.

CAUTION

:

Differential pressure switches are not recommended for outdoor installation.

They are subject to freezing-up at low ambient temperatures.

Table 2, Flow Switch Settings

Pipe Size inch 1 1/4 1 1/2 2 2 1/2 3 4 mm 32 38 51 63 76 102

Flow

Minimum

Adjustment

No

Flow

Flow

Lpm 18.2 22.7 37.5 57.9 92.4 126.0

Lpm 11.3 13.6 22.3 36.0 58.3 79.9 gpm 7.7 10.0 15.8 23.7 35.5 61.4

Maximum

Adjustment

No

Flow gpm 5.9 7.0 11.0 17.0 29.2 37.7

ACZ 010A through 039A IOMM ACZ1-1

Refrigerant Piping

Introduction

Proper refrigerant piping can represent the difference between a reliable, trouble free system and months or years of inefficient, problematic performance.

System concerns related to piping are:

1. Refrigerant pressure drop

2. Solid liquid feed to the expansion valve(s)

3. Continuous oil return

The most important and least understood is number 3. “Continuous oil return”. The failure of oil to return at or close to the rate of displacement from the compressor can result in oil trapping and ultimate compressor failure.

On the other hand, the instantaneous return of a large volume of compressor oil (slug) can be equally damaging to a compressor.

All compressors displace some oil during operation. Oil is carried into the compressor with suction gas; and that same gas entrains oil present on the compressor walls as it is being compressed. The sum of the two is then pumped into the discharge piping.

More oil is displaced at compressor start-up than during the normal running periods. If a compressor experiences excessive starts because of recycling pumpdown control, the oil can be pumped out and trapped in the condenser with the refrigerant charge. This oil can not return regardless of the adequacy of the piping system.

A similar problem to a lesser extent occurs when the equipment is oversized for the available cooling load.

In short, extreme care should be exercised to assure that both piping and controls are suitable for the application such that displaced oil is returned to the compressor moderately. Note that oil loss to the system can be due to a hang up in the evaporator, as well as in the piping.

Suction Lines

McQuay recommends the use of ASHRAE for guidelines in sizing and routing piping with one exception.

See the 1998 ASHRAE Handbook Refrigeration Edition, Chapter 2 for tables and guidelines. The single exception is to the piping of direct expansion cooling coils located above the compressors. In all cases, regardless of whether the equipment has pumpdown control or not, a trap in the suction line equal to the height of the coil section is recommended. In its absence, upon a power failure, all of the liquid in the coil will fall by gravity to the compressor below.

Suction line gas velocities can range between 900 and 4000 feet per minute. Consideration should be given to the possibility of objectionable noise in or adjacent to occupied space. Where this is a concern, gas velocities on the low side are recommended.

Routing must also take into account the requirement established in the latest ANSI/ASHRAE 15.

To size the suction line, determine: a. The maximum tons for the circuit b. The actual length in feet c. The equivalent length contributed by elbows, fittings, valves or other refrigerant specialties.

ASHRAE Tables 2-10, 11 & 12 d. If a vertical riser exists including the trap at the coil, determine the minimum tons for the circuit.

Add b and c above to obtain the total equivalent feet. Use the ASHRAE table for R22. Suction line selections are based upon the pressure equivalent of a 2ºF loss per 100 equivalent feet.

Select a line size that displays an equal or slightly larger tons then that determined in a) above.

IOMM ACZ1-1 ACZ 010A through 039A 9

To determine the actual line loss:

1. Modify the table tons by the value for the design condensing temperature.

2. Use the formula in the notes to calculate the line loss in terms of the saturation temperature.

3. Convert the saturation temperature loss calculated to a pressure drop equivalent using the (Delta) listed in the table for the comparable delta temperature.

CAUTION

:

Excessive pressure drop is undesirable because:

It reduces available compressor capacity.

It increases power consumed for the net tons realized.

It can affect the performance of both the evaporator and the expansion valve previously selected for the application.

The line loss calculated, expressed in temperature, or PSID pressure drop will be used to establish the temperature required at the evaporator to produce the required cooling, as well as, the suction pressure that the compressor must operate at to deliver the required capacity.

Having selected the suction line size, based upon total equivalent length and maximum tons, verify the line size selected will maintain entrainment of the lubricating oil up any vertical risers at the minimum tons for the circuit. See d) above, and ASHRAE Tables.

If the line size selected will not maintain satisfactory oil return in a suction riser, the following options are available:

The vertical length can be sized smaller to accommodate the lower circuit tons at reduced load.

Hot gas bypass can be introduced at the distributor to the evaporator, increasing the volume of gas available in the suction line to entrain the oil.

An oil separator can be installed in the discharge line.

Note:

In horizontal refrigerant gas lines, oil return to compressors is provided by sizing lines at a velocity above the minimum recommended and pitching the lines in the direction of refrigerant flow.

Underground Refrigerant Lines

McQuay does not recommend the installation of suction lines underground. If job conditions require that they be located below ground, a suitable sized suction accumulator must be installed ahead of the compressor to interrupt liquid refrigerant slugs at start-up.

Long Vertical Riser Installation

Where job conditions require refrigerant gas lifts of more than 25 feet, McQuay recommends the installation of a short trap half-way up the riser or at not more than 20 feet intervals. These traps are required to capture and hold small quantities of oil during off cycles.

10 ACZ 010A through 039A IOMM ACZ1-1

Figure 6, DX Coil Piping

Condensing Unit Above Coil

Hot gas bypass valve and solenoid valve located as close to condensing

unit as possible.

Su ctio res n sor

Pit ch mp

To

Co

Liquid

to Coil

Air F low

Condensing Unit Below Coil

Pit ch

Su ctio n

To

Co mp res sor

Hot gas bypass valve and solenoid valve located as close to condensing

unit as possible.

Air F low

Pit

To ch

Co

Su mp ctio res n sor

HG

BP

to

Co il

Suction Trap

Short as

Fittings Permit

Air F low

Expansion Valve

Control Bulb

Strap To Line and Insulate

Liquid

to Coil

Suction Trap

Short as

Fittings Permit

Pit ch

To

Co

Su ctio n mp res sor

HG

BP

to

Co il

Air F low

Expansion Valve

Control Bulb

Strap To Line and Insulate

Liquid

to Coil

Suction Trap

Short as

Fittings Permit

Expansion Valve

Control Bulb

Strap To Line and Insulate

Liquid

to Coil

Suction Trap

Short as

Fittings Permit

Expansion Valve

Control Bulb

Strap To Line and Insulate

Liquid Lines

Liquid lines are generally sized for 1 to 2 degree F line losses or their equivalent in pressure drop.

Actual selection can vary based upon the pressure drop expected from refrigerant specialties such as solenoids, refrigerant driers, valves, etc. piping lifts or risers and the amount of condenser sub-cooling expected.

The principal concern in sizing and routing liquid lines is assurance that liquid is present in the line at start-up of the compressor, and that liquid and not vapor is available at the inlet to the expansion valve during system operation.

Liquid can not be available in a liquid line at start-up if:

1. The solenoid valve is located adjacent to the condenser or condensing unit, remote from the expansion valve.

2. An excessive length of liquid line is located in a heated ambient and the application permits migration of the refrigerant to a cold air-cooled condenser.

3. Liquid refrigerant is permitted to gravitate from the liquid line to the condenser because of the relative location of components.

IOMM ACZ1-1 ACZ 010A through 039A 11

12

In the event 2) or 3) above are possible, the application should include a check valve at the condenser end of the liquid line. The check valve should be a low-pressure drop valve. The line between the check valve and the solenoid valve can be comparable to a pressure vessel and as the line becomes heated refrigerant trapped in the confined space will increase in pressure. The check valve should include a pressure relief devise, relieving from the line side to the condenser side of the circuit. The relief can be sized for a pressure differential from 80 to 180 psi, but not more than 180 psi, and should be auto-resetting as the pressure is relieved.

Liquid line solenoid valves should be located adjacent to the expansion valve with possibly only a sight glass interposing the two.

If liquid lines are short, they may be of smaller diameter than the size indicated in the current

ASHRAE Refrigerant Handbook. As indicated above, the designer must size the liquid line to assure that pure liquid will reach the inlet of the expansion valve. If the condenser is sized to produce 10ºF of subcooling, and each degree represents 3.05 psi with R-22, the liquid line and its refrigerant specialties can have pressure losses totaling 10 x 3.05 psi (or 10 x 2.2) and still satisfy the objective of delivering pure liquid to the expansion valve.

In calculating the pressure losses, or gains, note that each foot of rise in a liquid line results in an approximate 0.5 psi loss. Thus a 10 foot rise represent 5 pounds per square inch loss in refrigerant pressure, or the equivalent of 1.6ºF subcooling with R-22. Total line losses will include values for line friction, equivalents for valves and elbows and pressure losses from manufacturers’ catalogs for driers, solenoids, sight glasses, etc.

When calculating condenser subcooling, note that saturated condensing pressure should be read at the same point in the system where the liquid refrigerant temperature is obtained.

Unit Component Location

Optional Hot Gas Bypass Valve

Control Panel

Removable Panel in

This Area to Facilitate

Field Piping

Suction

Connection

Tandem Scroll

Compressors

Liquid

Connection

ACZ 010A through 039A IOMM ACZ1-1

Control Layout and Operation

Control Center

All electrical controls are enclosed in a weather resistant control center with tool-locked, hinged access doors. The left-hand section contains the microprocessor controller and control input and output terminals. All high-voltage components are located on the right side of the panel.

ON/OFF Switch

Control

Transformer

24-Volt Trans.

MicroTech II

Non-Fused Disc.

or

Power Block

SpeedTrol Location

Field Connection

Terminals

Compressor Contactors

Fan

Contactors

Fan

Protection

Start-up and Shutdown

Pre Start-up

1. The chilled-water system should be flushed and cleaned or air filters checked for cleanliness on

DX systems.

2. Open all electric disconnects and check all electric connections for tightness.

3. Inspect all water piping for flow direction and correct connections at the evaporator or ductwork for tightness and completeness.

4. Verify that thermostat connections for two stages of control have been connected to unit terminals

23 / J5-ID7 and 28 / J5- ID-8.

5. Check compressor oil level. The oil level should be visible in the oil sightglass.

6. Check voltage of the unit power supply and make certain voltage is within

±

10% of nameplate rating. Check unit power supply wiring for proper ampacity and a minimum insulation temperature of 75

°

C. Check for proper phasing using a phase sequence meter.

7. Verify all mechanical and electrical inspections have been completed according to local codes.

8. Open control stop switch S1(off). Turn on the main power and control disconnect switches. This will energize crankcase heaters. Wait at least 24 hours before starting up unit.

Start-up

1. Start auxiliary equipment by turning on the following: time clock (if present), ambient thermostat and/or remote on/off switch, chilled water pump or air handler.

2. If the field supplied staging control calls for cooling, the unit will begin the start-up sequence.

3. After running the unit for a short time, check the oil level in the compressor (1/4 to 1/3 of the glass), rotation of fans, and flashing in refrigerant sight glass.

4. Verify superheat temperature is at the factory setting of 8 to 12 degrees F (4.4 to 6.7 degrees C).

5. After system performance has stabilized, complete the current ACZ Start-Up Form (obtainable from the local McQuay sales office) to establish inception of warranty benefits. Return the form to McQuay International through your sales representative.

IOMM ACZ1-1 ACZ 010A through 039A 13

14

Sequence of Operation

The following sequence of operation is typical for Models ACZ 010A through ACZ 039A. It can vary depending upon options.

Start-Up

With the control circuit power on, 115V power is applied through the control circuit fuse F1 to the compressor crankcase heaters, the compressor motor protections and the primary of the 24V control circuit transformer. The 24V transformer provides power to the microprocessor controller.

If an optional remote time clock or remote manual switch is field wired to the unit (terminals 25 and

35), it must be closed in order to start the unit. The operation of the unit is then under the control of the field supplied staging thermostat. A water or air flow switch is recommended across terminals 26 and 36 to prove flow before starting compressors. If not used, a jumper is required across the terminals. The two compressors will start when the normally open staging contacts close.

Equipment Protection Alarms

The following conditions will shut down the unit and activate the alarm circuit:

No water or air flow

High condenser pressure

Phase voltage protection (Optional)

Sensor

Low evaporator pressure

Motor protection system

Outside ambient temperature

The following alarms will limit unit operation:

Condenser pressure stage down, unloads unit at high discharge pressures

Low ambient lockout, shuts off unit at low ambient temperatures

Low evaporator pressure hold, holds stage #1 until pressure rises

Low evaporator pressure unload, shuts off stage #2

Unit Enable Selection

Enables unit operation from local keypad, digital input, or Building Automation System.

Unit Mode Selection

Selects standard cooling or test operation mode. (Test is for service personnel only.)

Condenser Fan Control

Control of condenser fans is provided by the MicroTech II controller. The control steps condenser fans based on discharge pressure.

Shutdown

As the Stage #2 external staging thermostat is satisfied, it will stage off the lag compressor unloading the unit. The Stage #1 will de-energize the liquid line solenoid valve SV1 and the lead compressor will pump down the unit and shut off on Low Suction Pressure at 40 psig. If the low pressure cutoff point cannot be reached in 120 seconds, the compressor will time off. The compressor crankcase heaters will energize when the compressors shut off, keeping the small amount of refrigerant in the

plate heat exchanger from migrating to the compressor. See page 29 for detailed explanation of

compressor staging.

ACZ 010A through 039A IOMM ACZ1-1

Physical Data

Table 3, Physical Data, ACZ 010A through 020A

ACZ MODEL NUMBER

PHYSICAL DATA

010A 013A 016A 020A

BASIC DATA

Number Of Refrigerant Circuits

Unit Operating Charge, R-22, Lb. (kg), Note 1

Cabinet Dimensions, LxWxH, In.

Cabinet Dimensions, LxWxH, (mm)

Unit Operating Weight, Lbs. (kg)

Unit Shipping Weight, Lbs. (kg)

1

22.0 (10.0)

1080 (490)

1

22.0 (10.0)

1080 (490)

1

24.0 (10.9)

1300 (590)

1

31.0 (14.1)

73.6 x 46.3 x 50.8

73.6 x 46.3 x 50.8 73.6 x 46.3 x 50.8 73.6 x 46.3 x 50.8

(1869) x (1176) x

(1289)

1000 (454)

(1869) x (1176) x

(1289)

1000 (454)

(1869) x (1176) x

(1289)

1220 (554)

(1869) x (1176) x

(1289)

1340 (608)

1420 (645)

Add'l Weight If Copper Finned Coils, Lb. (kg) 220 (99.7) 220 (99.7) 220 (99.7) 220 (99.7)

COMPRESSORS

Nominal Horsepower

Oil Charge Per Compressor, Oz. (g)

4.0 / 4.0

57 (1616)

6.0 / 6.0

60 (1701)

CAPACITY REDUCTION STEPS - PERCENT OF COMPRESSOR DISPLACEMENT

Standard Staging 0 – 50 – 100 0 – 50 – 100

7.5 / 7.5

140 (3969)

0 – 50 – 100

CONDENSERS - HIGH EFFICIENCY FIN AND TUBE TYPE WITH INTEGRAL SUBCOOLING

Coil Face Area,Sq. Ft. (M

2

) 30.3 (2.8) 30.3 (2.8) 30.3 (2.8)

Finned Height x Finned Length, In.

Finned Height x Finned Length, (mm)

84 x 52

(2134) x (1321)

84 x 52

(2134) x (1321)

84 x 52

(2134) x (1321)

Fins Per Inch x Rows Deep

Pumpdown Capacity lb. (kg)

16 x 2

35.3 (16.0)

16 x 2

35.3 (16.0)

16 x 2

35.3 (16.0)

CONDENSER FANS - DIRECT DRIVE PROPELLER TYPE

Number Of Fans - Fan Diameter, In. (mm)

Number Of Motors - HP (kW)

Fan And Motor RPM, 60 Hz

Total Unit Airflow, CFM (l/s), 60 Hz

2 – 26 (660)

2 – 1.0 (0.75)

1140

13950 (6584)

2 – 26 (660)

2 – 1.0 (0.75)

1140

13950 (6584)

2 – 26 (660)

2 – 1.0 (0.75)

1140

13950 (6584)

9.0 / 9.0

140 (3969)

0 – 50 – 100

30.3 (2.8)

84 x 52

(2134) x (1321)

16 x 3

50.3 (22.8)

2 – 26 (660)

2 – 1.0 (0.75)

1140

12000 (5664)

Note: Operating charge is for the condensing unit only. Refrigerant lines and evaporator charge must be added.

IOMM ACZ1-1 ACZ 010A through 039A 15

Table 4, Physical Data, ACZ 025A through 039A

PHYSICAL DATA

ACZ MODEL NUMBER

025A 028A 033A 039A

BASIC DATA

Number Of Refrigerant Circuits

Unit Operating Charge, R-22, Lb. (kg), Note 1

Cabinet Dimensions, LxWxH, In.

Cabinet Dimensions, LxWxH, (mm)

Unit Operating Weight, Lbs. (kg)

Unit Shipping Weight, Lbs. (kg)

Add'l Weight If Copper Finned Coils, Lb. (kg)

1

34.0 (15.4)

1

36.0 (16.3)

1

47.0 (21.3)

1

50.0 (22.7)

106.2x 46.3 x 50.8 106.2x 46.3 x 50.8

106.2x 46.3 x 58.8 106.2x 46.3 x 58.8

(2697) x (1176) x

(1289)

1470 (667)

(2697) x (1176) x

(1289)

1490 (676)

(2697) x (1176) x

(1493)

1760 (799)

(2697) x (1176) x

(1493)

1960 (890)

1580 (717)

350 (159)

1600 (726)

350 (159)

1890 (858)

435 (197)

2090 (949)

435 (197)

COMPRESSORS

Nominal Horsepower

Oil Charge Per Compressor, Oz. (g)

10.0 / 13.0

140 (3969)

13.0 / 13.0

140 (3969)

CAPACITY REDUCTION STEPS - PERCENT OF COMPRESSOR DISPLACEMENT

Standard Staging 0 – 45 - 100 0 – 50 – 100

15.0 / 15.0

140 (3969)

20.0 / 20.0

296 (8392)

0 – 50 – 100 0 – 50 – 100

CONDENSERS - HIGH EFFICIENCY FIN AND TUBE TYPE WITH INTEGRAL SUBCOOLING

Coil Face Area,Sq. Ft. (M

2

)

Finned Height x Finned Length, In.

Finned Height x Finned Length, (mm)

49.0 (4.6)

84 x 84

(2134) x (2134)

49.0 (4.6)

84 x 84

58.3 (5.4)

100 x 84

58.3 (5.4)

100 x 84

(2134) x (2134) (2545 ) x (2134) (2545 ) x (2134)

Fins Per Inch x Rows Deep 16 x 2 16 x 2 16 x 3 16 x 3

Pumpdown Capacity lb. (kg) 53.1 (24.0) 53.1 (24.0) 90.7 (41.1) 92.8 (42.0)

CONDENSER FANS - DIRECT DRIVE PROPELLER TYPE

Number Of Fans - Fan Diameter, In. (mm)

Number Of Motors - HP (kW)

Fan And Motor RPM, 60 Hz

Total Unit Airflow, CFM (l/s), 60 Hz

3 – 26 (660)

3 – 1.0 (0.75)

1140

20925 (9877)

3 – 26 (660)

3 – 1.0 (0.75)

1140

20925 (9877)

3 – 26 (660)

3 – 1.0 (0.75)

1140

19800 (9346)

3 – 26 (660)

3 – 1.0 (0.75)

1140

19800 (9346)

Note: Operating charge is for the condensing unit only. Refrigerant lines and evaporator charge must be added.

16 ACZ 010A through 039A IOMM ACZ1-1

Electrical Data

Field Wiring

Wiring must comply with all applicable codes and ordinances. Warranty is void if wiring is not in accordance with specifications. Copper wire is required for all power lead terminations at the unit.

ACZ 010A through ACZ 039A units have single-point power connection. A single field supplied fused disconnect is required or it can be supplied as a factory-mounted option. The control transformer is factory mounted.

Table 5, ACZ 010A – 039A, Electrical Data Single Point

ACZ

Unit

Size

Volts Hz.

Minimum

Circuit

Ampacity

(MCA)

Field Wire

Power Supply

Hub (Conduit

Connection)

Quantity

Wire

Gauge

Quantity

Size

In. (mm)

010A

013A

016A

020A

025A

028A

033A

039A

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

60

60

60

60

60

60

60

60

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

6

6

10

6

6

10

6

6

10

4

4

8

2

2

6

2

2

6

1

1

6

3/0

3/0

4

NOTES:

1.

See page 20 for all Electrical Data notes.

2. HACR = Heating/Air-Conditioning/Refrigeration

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1.00 (25)

1.00 (25)

50

50

50

50

1.00 (25) 25 25

(25) 20

1.00 (25)

1.00 (25)

60

60

70

70

1.00 (25) 30 35

(25) 30

1.00 (25)

1.00 (25)

80

80

80

80

1.00 (25) 40 45

(25) 35

1.00 (25)

1.00 (25)

90

90

100

100

1.00 (25) 45 50

(25) 40

1.25 (32)

1.25 (32)

1.00 (25)

125

125

60

125

125

70

1.25 (32)

1.25 (32)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

125

125

70

150

150

70

225

225

90

Field Fuse Size or HACR Breaker Size

Recommended Maximum

150

150

80

175

175

80

250

250

100

IOMM ACZ1-1 ACZ 010A through 039A 17

Table 6, ACZ 010A – 039A Compressor and Condenser Fan Motor Amp Draw

ACZ

Unit

Size

010A

013A

016A

020A

025A

028A

033A

039A

Volts Hz.

Rated Load Amps Locked Rotor Amps

Compressors Compressors

No. 1 No. 2

Motor

(Each)

Fan

Mtrs

Motor

(Each)

Across-The-Line

No. 1 No. 2

208

230

60

460

575

7.0 7.0 2.8 2 10.7 48 48

208

230

60

460

575

208

230

60

460

575

208

230

60

460

575

208

230

60

460

575

208

230

60

460

575

208

230

60

460

575

208

230

60

460

575

9.1

12.5

33.6

33.6

9.1

12.5

41

41

2.8

2.8

5.8

5.8

2

2

3

3

10.7

10.7

23.7

21.4

75

99

278

278

75

99

350

350

See page 20 for all Electrical Data notes.

18 ACZ 010A through 039A IOMM ACZ1-1

Table 7, ACZ 010A – 039A Field Wiring Data, Single Point Power

Wiring to

Standard Power Block Terminal

ACZ

UNIT

SIZE

Volts HZ.

Maximum

Terminal

Amps

Connector Wire Range

(Copper Wire Only)

Wiring to

Optional Disconnect Switch

Disconnect

Size

Connector Wire

Range

(Copper Wire Only)

010A

013A

016A

020A

025A

028A

033A

039A

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

60

60

60

60

60

60

60

60

See page 20 for all Electrical Data notes.

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

335

335

175

175

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

14 GA – 2/0

6 GA – 400 kcmil

6 GA – 400 kcmil

14 GA – 2/0

14 GA – 2/0

100

100

63

63

100

100

63

63

225

225

100

100

100

100

63

63

100

100

63

63

225

225

100

100

225

225

100

100

225

225

125

100

#8-1/0

#8-1/0

#1-#14

#1-#14

#8-1/0

#8-1/0

#1-#14

#1-#14

#8-1/0

#8-1/0

#1-#14

#1-#14

#10-1/0

#10-1/0

#1-#14

#1-#14

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#8-1/0

#10-1/0

#2-4/0

#2-4/0

#3-3/0

#10-1/0

IOMM ACZ1-1 ACZ 010A through 039A 19

20

Notes for “Electrical Data”

1. Field Fuse Size for recommended and maximum is based on use of a time-delay fuse.

2. Unit wire size ampacity (MCA) is equal to 125% of the largest compressor-motor RLA plus

100% of RLA of all other loads in the circuit including the control transformer.

3. Since the control transformer is furnished, no separate 115V power is required.

4. If a separate 115V power supply is used for the control circuit, the wire sizing amps is 10 Amps.

5. Recommended power lead wire sizes for three conductors per conduit are based on 100% conductor ampacity in accordance with NEC. Voltage drop has not been included. Therefore, it is recommended that power leads should be kept short. All terminal block connections must be made with copper (type THW) wire.

6. Single conductors should be used for power connections as listed under “Power Supply/Field

Wire Size.”

7. “Recommended Fuse Sizes” are selected at approximately 150% to 175% of the largest compressor RLA, plus 100% of all other loads in the circuit.

8. “Maximum Fuse Sizes” are selected at approximately 225% of the largest compressor RLA, plus

100% of all other loads in the circuit.

9. The recommended power lead wire sizes are based on an ambient temperature of 86°F.

Ampacity correction factors must be applied for other ambient temperatures. Refer to the

National Electrical Code Handbook.

Voltage Limitations:

1. Within 10% of nameplate rating.

2. Maximum 2 % voltage unbalance between phases.

Notes for “Compressor and Condenser Fan Amp Draw”:

1. Compressor RLA values are for wiring sizing purposes only but do not reflect normal operating current draw at rated capacity. If unit is equipped with optional SpeedTrol condenser fan motors, the first motor on each refrigerant circuit is a single phase, 1hp motor, with a FLA of 2.8 amps at

460 volts, 5.6 amps at 208, 230, and 575 volts.

2. Compressor LRA for reduced inrush start are for the first winding only. If the unit is equipped with optional SpeedTrol motors, the first motor is a single phase, 1 hp motor, with a LRA of 7.3 amps at 460 volts, 14.5 amps at 208, 230, and 575 volts.

Notes for “Field Wiring Data” - Single Point Power:

1. Single point power supply requires a single disconnect to supply electrical power to the unit.

This power must be fused.

2. All field wiring to unit power block or non-fused disconnect switch must be copper.

3. All field wire size values given in table apply to 75°C rated wire per NEC.

ACZ 010A through 039A IOMM ACZ1-1

Figure 7, ACZ 010A through 039A, Typical Field Wiring Diagram

DISCONNECT

(BY OTHERS)

UNIT MAIN

TERMINAL

BLOCK

GND LUG

3 PHASE

POWER

SUPPLY

TO COMPRESSOR(S)

AND FAN MOTORS

NOTE: ALL FIELD WIRING

TO BE INSTALLED AS NEC

CLASS 1 WIRING SYSTEM

WITH CONDUCTOR RATED

600 VOLTS

FUSED CONTROL

CIRCUIT

TRANSFORMER

DISCONNECT

(BY OTHERS)

N

120VAC

CONTROL POWER

10A

FUSE

(BY OTHERS)

LIQUID LINE SOLENOID

120 VAC 1.0 AMP MAX

SV1

120

VAC

SV5

HOT GAS BYPASS SOLENOID

120 VAC 1.0 AMP MAX

TB1

1

2

13

16

14

12

17

DX EVAP. FAN PUMP RELAY

(BY OTHERS)

120 VAC 1.0 AMP MAX

ALARM BELL

OPTION

FACTORY SUPPLIED ALARM

FIELD WIRED

ALARM BELL RELAY

11

17

TB1-20

CONTROL

CIRCUIT

FUSE

N

120 VAC

120 VAC

120 VAC

120 VAC

GND

REMOTE STOP

SWITCH

(BY OTHERS)

TIME

CLOCK

AUTO

OFF

ON

TB2

25

843

IF REMOTE STOP CONTROL

IS USED, REMOVE LEAD 843

FROM TERM. 25 TO 35.

35

EVAP. FLOW SWITCH

---MANDATORY–-

(BY OTHERS)

MANUAL

NOR. OPEN PUMP AUX.

CONTACTS (OPTIONAL)

26

36

STAGE 1 NOR. OPEN CONTACTORS

STAGE 2 NOR. OPEN CONTACTORS

FIELD WIRING

33 J5-ID7

28

J5-ID8

22

31

23

34

FACTORY WIRING

ALARM BELL

RELAY

COM NO

1

BELL

2

ALARM BELL OPTION

LABEL DWG. 330539401 REV.0B

IOMM ACZ1-1 ACZ 010A through 039A 21

Dimensional Data

Figure 8, ACZ 010A through 020A

46.27

(1175.26)

POWER ENTRY

KNOCKOUT

(OTHER SIDE)

CONTROL

ELECTRICAL

KNOCKOUT

SUCTION

INLET

HOT GAS BYPASS

LIQUID

OUTLET

CONTROL PANEL

ACCESS DOORS

POWER

ENTRY

51.0

(1295.40)

ACCESS DOOR

Z

ACZ Unit Size

010A, 013A

016A, 020A

Y

X

21.32

(541.53)

46.23 (1174.24)

49.06 (1246.12)

73.55 (1868.17)

Liquid Conn. inches (mm)

7/8 (22.2)

7/8 (22.2)

Suction

Conn inches (mm)

1 1/8 (28.6)

1 5/8 (41.3)

LIFTING SLOTS

3.94 (100.08)

M0UNTING HOLES

QTY. 4 01.00 (25.4)

Optional

Hot Gas

Bypass

5/8 (15.8)

5/8 (15.8)

31.11 (790.19)

MOUNTING

HOLES

7.55

(191.77)

Center of Gravity inches (mm)

X Y Z

28 (711.2)

25 (635.0)

22 (558.8) 23 (584.2)

21 (553.4) 23 (584.2)

Figure 9, ACZ 025A through 039A

POWER ENTRY

KNOCKOUT

(OTHER SIDE)

CONTROL

ELECTRICAL

KNOCKOUT

SUCTION

INLET

HOT GAS

BYPASS

LIQUID

OUTLET

46.26

(1175.26)

CONTROL PANEL

ACCESS DOORS

POWER

ENTRY

A

ACCESS DOOR

Z

ACZ Unit

Size

025A, 028A

033A, 039A

49.06 (1246.12)

105.97 (2691.64)

X

21.32

(541.53)

46.19 (1173.23)

49.06 (1246.12)

A inches (mm)

51 (1295)

59 (1499)

Liquid

Conn. inches (mm)

7/8 (22.2)

7/8 (22.2)

Suction

Conn inches (mm)

1 5/8 (41.3)

2 1/8 (53.9)

LIFTING SLOTS

3.94 (100.08)

MOUNTING HOLES

QTY. 6 0 1.00 (25.4)

Y

31.11 (790.19)

MOUNTING

HOLES

7.55

(191.77)

Optional Hot

Gas Bypass

5/8 (15.8)

5/8 (15.8)

Center of Gravity inches (mm)

X Y Z

35 (889.0) 21 (553.4) 23 (584.2)

35 (889.0) 25 (635.0) 24 (609.6)

22 ACZ 010A through 039A IOMM ACZ1-1

System Maintenance

General

On initial start-up and periodically during operation, it will be necessary to perform certain routine service checks. Among these are taking electric leg readings. Some readings are readily available on the MicroTech II display.

Lubrication

No routine lubrication is required on the ACZ units. The fan motor bearings are of the permanently lubricated type and require no lubrication.

Electrical Terminals

WARNING

Electric shock hazard. Disconnect and tag-out all sources of power to the unit before continuing with following service to avoid risk of severe personal injury.

Normal heating and cooling of the wire will cause terminals to loosen. Retighten all power electrical terminals every six months.

Condensers

Condensers are air-cooled and constructed with 3/8” (9.5mm) O.D. internally finned copper tubes bonded in a staggered pattern into slit aluminum fins. No maintenance is ordinarily required except the occasional removal of dirt and debris from the outside surface of the fins. Use locally purchased foaming condenser coil cleaners for periodic cleaning of the coil. Condenser cleaners may contain harmful chemicals. Wear protective gear and read and follow manufacturer's safety instructions.

Take care not to damage the fins during cleaning. All chemical cleaners should be thoroughly rinsed from the coils.

Refrigerant Sight glass

Observe the refrigerant sight glass monthly. A clear glass of liquid indicates adequate sub-cooled refrigerant charge in the system to provide proper feed through the expansion valve. Bubbling refrigerant in the sight glass indicates the system is short of refrigerant charge. Sub-cooling should be verified to prevent overcharging. Refrigerant gas flashing in the sight glass could also indicate an excessive pressure drop in the line, possibly due to a clogged filter-drier or a restriction elsewhere in the system. The sight glass indicates what moisture condition corresponds to a given element color.

If the sight glass does not indicate a dry condition after about 12 hours of operation, the refrigerant and oil should be tested for moisture.

IOMM ACZ1-1 ACZ 010A through 039A 23

Standard MicroTech II Controller

Table of Contents

Overview ............................................................................. 25

General Description ............................................................. 25

Compressor Motor Description .......................................25

FanTrol Head Pressure Control ....................................... 25

Inputs/Outputs ................................................................ 26

Setpoints ........................................................................26

Equipment Protection Alarms ......................................... 27

Limit Alarms ..................................................................28

Unit Enable ....................................................................28

Unit Mode Selection ....................................................... 29

Low Ambient Start.......................................................... 29

Automatic Adjusted Range Limits ..................................29

Compressor Staging Parameters ...................................... 29

Using the Controller ............................................................ 31

Display and Keyboard..................................................... 31

Getting Started ..................................................................... 31

Menu Screens ................................................................. 32

Menu Matrix ..................................................................34

View Screens Defined..................................................... 35

Alarm Screens Defined ...................................................37

Set Screens Defined........................................................37

24 ACZ 010A through 039A IOMM ACZ1-1

IOMM ACZ1-1

Overview

The MicroTech II controller's state-of-the-art design will not only permit the unit to run more efficiently but also simplifies troubleshooting if a system failure occurs. Every MicroTech II controller is programmed and tested prior to shipment to contribute to a trouble-free start-up.

Operator-friendly

The MicroTech II controller menu structure is separated into three distinct categories, which provide the operator or service technician with a full description of current unit status, control parameters, and alarms. Security protection deters unauthorized changing of the setpoints and control parameters.

MicroTech II control continuously performs self-diagnostic checks, monitoring system temperatures, pressures and protection devices, and will automatically shut down a compressor or the entire unit if a fault occurs. The cause of the shutdown will be retained in memory and can be easily displayed in plain English for operator review. The MicroTech II controller will also retain and display the time the fault occurred. In addition to displaying alarm diagnostics, the MicroTech II controller also provides the operator with a warning of limit (pre-alarm) conditions.

Staging

The two scroll compressors are staged on and off by contact closure of the field supplied remote twostage staging thermostat. Lead/lag is automatic and switched every ten starts.

General Description

NOTE: When the following descriptions refer to "evaporator pressure", the pressure is actually the suction pressure within the condensing unit itself.

Compressor Motor Protection

ACZ 016 – 039: The solid-state compressor motor protector module incorporates a 2-minute “time-

off” relay utilizing the bleed-down capacitor principle. Any time the protection system opens or power to the module is interrupted, the 2-minute “time-off” delay is triggered and the module will not reset for two minutes. Once the 2-minute period has passed the motor protector contacts M1 and M2 reset, provided the protection system is satisfied and power is applied to the module.

Note: If the power circuit is broken once the 2-minute period is passed, the pilot circuit will

reset without delay when power is reapplied.

ACZ 010 - 013: The model ACZ 010 and ACZ 013 compressors have internal line breakage with

automatic reset.

FanTrol Head Pressure Control

FanTrol is the standard method of head pressure control that automatically cycles the condenser fan motors in response to condenser pressure. This function is controlled by the microprocessor, maintains head pressure and allows the unit to run at low ambient air temperatures down to 35

°

F

(1.7

°

C). Fans are staged as follows:

Table 8, Fan Staging Pressures

Fan Two-Fan Unit Three-Fan Unit

Stage #1

Stage #2

On 150 psig, Off with unit

On 290 psig, Off 170 psig

On 150 psig, Off with unit

On 290 psig, Off 170 psig

Stage #3

On 310 psig, Off 180 psig

Note: Fan #1 is on with first compressor above 75

°

F (24

°

C).

ACZ 010A through 039A 25

26

Inputs/Outputs

Table 9, Inputs and Outputs

Analog Inputs

# Description

2

3

Evaporator Refrigerant Pressure

Condenser Refrigerant Pressure

0.5 VDC to 4.5 VDC (NOTE 1)

0.5 VDC to 4.5 VDC (NOTE 1)

Thermister (10k at 77

°

F, 25

°

C)

0 to 132 psi

3.6to 410 psi

-58 to 212°F

NOTE: Value at the converter board input. Value at the converter board output is 0.1 VDC – 0.9 VDC.

Analog Outputs

# Description

1 None

Digital Inputs

# Description

1 Unit OFF Switch

2 Remote Start/Stop

3 Evaporator Water Flow/Air Flow Switch

4 Motor Protection

6 Phase Voltage Fault

7 Stage 1 Request

8 Stage 2 Request

Signal

0 VAC (Stop)

0 VAC (Stop)

0 VAC (No Flow)

0 VAC (Fault)

0 VAC (Fault)

0 VAC (Stop)

0 VAC (Stop)

Signal

24 VAC (Auto)

24 VAC (Start)

24 VAC (Flow)

24 VAC (No Fault)

24 VAC (No Fault)

24 VAC (Start)

24 VAC (Start)

Digital Outputs

# Description

1 Alarm

3 Liquid Line

4 Motor Control Relay #1

5 Motor Control Relay #2

6 Condenser Fan #1

7 Condenser Fan #2

8 Condenser Fan #3

Load

Alarm Indicator

Solenoid

Starter

Starter

Fan Contactor

Fan Contactor

Fan Contactor

Output OFF

Alarm OFF

Cooling OFF

Compressor OFF

Compressor OFF

Fan OFF

Fan OFF

Fan OFF

Output ON

Alarm ON

Cooling ON

Compressor ON

Compressor ON

Fan ON

Fan ON

Fan ON

Setpoints

The setpoints shown in Table 10 are held in a non-volatile memory and remembered during power

off, are factory set to the Default value, and can be adjusted within the value shown in the Range column.

The PW (password) column indicates the password level that must be entered in order to change the setpoint. Passwords are as follows:

O = Operator [0100]

M = Manager, M level settings are not normally changed for chilled water air-conditioning applications.

ACZ 010A through 039A IOMM ACZ1-1

Table 10, Setpoints

Unit

Unit Enable

Available Mode

OFF

COOL

Control Source

Display Units

SWITCHES

°

F/psi

BAS Protocol

* Condenser Fans Stages

* Phase Voltage Protection

* SpeedTrol Option

Staging

Stage Up Delay

Stage Down Delay

Timers

Evap Flow/Air Flow Proof

Low Evap Pressure Delay

Start-Start

Stop-Start

Alarms

Low Evap Pressure

Low Evap Pressure-Hold

Low Evap Pressure-Unload

High Condenser Stage Down

High Condenser Pressure

* Low Ambient Lockout

Condenser Fans

Fan Stages

Stage #1 On

Stage #2 On

Stage #3 On

Stage #1 Off

Stage #2 Off

Stage #3 Off

(*) These items are factory set prior to shipment.

None

2

N

N

120

30

5 sec

60 sec

15 min

5 min

58 psi

59 psi

59 psi

370 psi

380 psi

35.0

°

F

2

150psi

290 psi

310 psi

Off

170 psi

180 psi

OFF, ON

COOL

TEST

SWITCHES, KEYPAD,

NETWORK

°

F/psi

O

M

O

O

None, BACnet, L

ON

W

ORKS

M

2,3

N,Y

N,Y

M

M

M

20 to 240 sec

10 to 60 sec

3 to 120 sec

10 sec to 120 sec

10 to 60 min

3 to 20 min

30 to 60 psi

31 to 65 psi

31 to 65 psi

365 to 375 psi

380 to 390 psi

–2 to 60

°

F

2-3

140 to 200 psi

230 to 330 psi

230 to 330 psi

Off with Stage #1

150 to 200 psi

150 to 200 psi

M

M

M

M

M

M

M

M

M

M

M

M

M

M

M

M

M

M

M

Equipment Protection Alarms

Equipment protection alarms execute rapid compressor shutdown.

The following table identifies each equipment protection alarm, gives the condition that causes the alarm to occur, and states the action taken because of the alarm. If the alarm is auto-clearing, the reset condition is shown below. Otherwise, the alarm is manually reset, requiring the operator to clear the alarm.

IOMM ACZ1-1 ACZ 010A through 039A 27

28

Table 11, Shutdown Alarms

No Evaporator Water/Air

Flow

Low Evaporator Pressure

High Condenser Pressure

Motor Protection

Phase Voltage Protection

(opt)

Action

When:

Taken

Any compressor is running AND

Evap Flow Digital Input = No Flow for time >

Evap Flow Proof SP

Evaporator Press < Low Evap Pressure SP for time> Low Evap Pressure Time Delay

Condenser Press > High Condenser Pressure

SP

Digital Input = High Motor Temperature

AND Delay 150 Sec. after power up has passed

Rapid Stop

Rapid Stop

Rapid Stop

Rapid Stop

If Phase Voltage Protection = Y, Then Digital

Input = Phase/Voltage Problem

Rapid Stop

Failed three consecutive low ambient start attempts

Sensor shorted or open

Rapid Stop

Rapid Stop

Low Ambient Restart Fault

Evaporator Pressure Sensor

Fault

Condenser Pressure Sensor

Fault

Outside Ambient

Temperature Sensor Fault

NOTE: SP=SetPoint

Sensor shorted or open

Sensor is open or shorted

Rapid Stop

Rapid Stop

Reset

Manual

Manual

Manual

Manual

Phase/Voltage

Input Returns to Normal

Manual

Manual

Manual

Manual

Limit Alarms

The following alarms limit the operation of the unit in some way as described in the Action Taken column. These alarms are auto-clearing based on reaching the conditions in the reset column.

Table 12, Limit Alarms

Condenser Pressure

Stage Down

Low Ambient

Lockout

Low Evaporator

Pressure – Hold

Low Evaporator

Pressure – Unload

NOTE: SP = Set Point

Pressure > High Condenser Stage

Down setpoint

Any compressor is running AND

Outside Ambient < Low Amb Lockout

SP

Pressure < Low Evap Pressure–Hold setpoint

Pressure < Low Evap Pressure–

Unload setpoint

Shutoff

Stage #2

Shutoff Stages #1

& #2

Hold @

Stage 1

Shutoff

Stage 2

Condenser Press drops below (SP – 100psi)

Outside Ambient > Low

Amb Lockout

(SP + 5ºF)

Evap Press rises above

(SP + 8psi)

Evap Press rises above

(SP + 10 psi)

Unit Enable

Enabling and disabling the unit is controlled by the Unit Enable Setpoint with options of OFF and

ON. This setpoint can be altered by the Unit Off Input, Remote Input, keypad entry, or BAS request.

The Control Source setpoint determines which source can change the Unit Enable setpoint with options of SWITCHES, KEYPAD, or NETWORK.

Changing the Unit Enable Setpoint can be accomplished according to the following table.

Table 13, Unit Enable Conditions

Unit Off

Input

Control Source

Set Point

Entry BAS Enable

ON NETWORK x

NOTE: An “x” indicates that the value is ignored.

ACZ 010A through 039A x OFF OFF

IOMM ACZ1-1

Unit Mode Selection

The operating mode of the chiller is set by the Unit Mode Setpoint with options of COOL and TEST.

COOL is the default and is the only standard operating mode. TEST is only available for service personnel. This mode setting can be altered by the keypad, BAS, and Mode input. Changes to the

Unit Mode Set Point are controlled by two additional setpoints.

Available Modes Setpoint: Determines the operational modes available at any time with options of COOL and TEST.

Control Source Setpoint: Determines the source that can change the Unit Mode Set Point with options of KEYPAD, NETWORK, or SWITCHES.

Low Ambient Start

If SpeedTrol = N, the unit will start in the normal operation. If the SpeedTrol = Y then starting will follow table below. This step will bypass the “Low Evaporator Pressure” alarm until Low Ambient

Start is completed.

Low Ambient Start Method

Table 14, Low Ambient Start Sequence

Check #1

Check #2

Check #3

Check #4

After 15 Seconds after starting Lead Compressor, If the

Evap Press is < (0.48 times the Low Evap Press SP) take

Action or else continue

After 15 Seconds after Check #1, If the Evap Press is <

(0.66 times the Low Evap Press SP) take Action or else continue

After 15 Seconds after Check #2, If the Evap Press is <

(0.83 times the Low Evap Press SP) take Action or else continue

After 15 Seconds after Check #3, If the Evap Press is <

Low Evap Pressure SP take Action or else continue in normal operation

Rapid Stop – See Low Ambient

Re-Start below

Rapid Stop – See Low Ambient

Re-Start below

Rapid Stop – See Low Ambient

Re-Start below

Rapid Stop – See Low Ambient

Re-Start below

Low Ambient Restart

If the Evap Pressure fails during the low-ambient start, the controller will wait until the anti-cycle timers expire then try to restart. It will allow unit to attempt to start 3 times. If the unit starts successfully, the counter is reset. If it fails to start on the third attempt, the Low Ambient Restart

Alarm Fault (Manual Reset) will be activated.

Automatic Adjusted Limits

The following setpoint ranges will be adjusted automatically based on selected options or mode of operation.

Low Ambient Lockout Temperature

SpeedTrol Range

SpeedTrol = N

SpeedTrol = Y

35– 60

°

F

-2 – 60

°

F

IOMM ACZ1-1 ACZ 010A through 039A 29

Compressor Lead/ Lag

The compressor designated as the lead will be the first to start and the last to shut off. Lead/lag designation is switched based on the number of starts. After 10 starts on Compressor #1 as lead,

Compressor #2 starts as Lead for 10 starts, and then the cycle is repeated.

Capacity Overrides

The following conditions will override the capacity control when the unit is in the COOL mode.

Low Evaporator Pressure

If the unit is running at stage 1 and the evaporator pressure drops below the Low Evaporator

Pressure-Hold setpoint, the unit will hold at stage 1. This condition will inhibit the unit from loading until the evaporator pressure reaches the hold setpoint plus 8-psi.

If the unit is running at stage 2 and the evaporator pressure drops below the Low Evaporator

Pressure-Unload setpoint, the unit will unload to stage 1. This condition will inhibit the unit from loading until the evaporator pressure reaches the hold setpoint plus 10 psi.

Discharge Pressure Stage Down

If the unit is running at stage 2 and the condenser pressure rises above the High Condenser Pressure

Stage Down setpoint, the unit will unload to stage 1. This condition will inhibit the unit from loading until the condenser pressure drops below the unload setpoint less 100 psi.

Digital Output Control

Each digital output is controlled according to the following rules and in accordance with whether the unit is in normal operation or TEST (test mode). All outputs are initialized to OFF at power on.

Alarm – (Terminals J12 – NO1)

This output is turned ON when any “EQUIPMENT PROTECTION ALARMS” occur. It is turned

OFF when all alarms have been cleared.

Liquid Line Solenoid – (Terminals J12 – NO3)

This output is ON when the Compressors are ON. It is OFF for all other cases.

Motor Control Relay #1, #2 – (Terminals J13 – NO4, J13 – NO5)

This output is ON when the Compressors are ON. It is OFF for all other cases.

Fan #1, #2, & #3 – (Terminals J13 – NO6, J14 – NO7, J15 – NO8)

Condenser Fans Staging is based on Condenser pressure as selected Fan Stage On & Off setpoints.

30 ACZ 010A through 039A IOMM ACZ1-1

IOMM ACZ1-1

Using the Controller

4x20 Display & Keypad

Layout

The 4-line by 20-character/line liquid crystal display and 6-key keypad are shown below.

Figure 10, Display (in MENU mode) and Keypad Layout

Key to Screen Pathway

MENU Key

Air Conditioning

<

<

<

ALARM

VIEW

SET

ARROW Keys ENTER Key

Note that each ARROW key has a pathway to a line in the display. Pressing an ARROW key will activate the associated line when in the MENU mode.

Getting Started

There are two basic procedures to learn in order to utilize the MicroTech II controller:

1. Navigating through the menu matrix to reach a desired menu screen and knowing where a particular screen is located.

2. Knowing what is contained in a menu screen and how to read that information or how to change a setpoint contained in the menu screen.

Navigating Through the Menus

The menus are arranged in a matrix of screens across a top horizontal row. Some of these top-level screens have sub-screens located under them. The general content of each screen and its location in

the matrix are shown in Figure 12. A detailed description of each menu begins on page 34.

There are two ways to navigate through the menu matrix to reach a desired menu screen.

One is to scroll through the matrix from one screen to another using the four ARROW keys.

The other way is to use shortcuts to work through the matrix hierarchy. From any menu screen, pressing the MENU key will take you to the top level of the hierarchy. The display will show

ALARM, VIEW, and SET as shown in Figure 10. This corresponds to the second row of screens on

Figure 12. One of these groups of screens can then be selected by pressing the key connected to it via

the pathway shown in Figure 10.

ACZ 010A through 039A 31

32

For example, selecting ALARM will go the next row of menus under ALARM (ALARM LOG or

ACTIVE ALARM). Selecting VIEW will go the next level of screens under VIEW (VIEW UNIT

STATUS or VIEW UNIT TEMP). Selecting SET will go to a series of screens for looking at and changing setpoints.

MENU Key

The MENU key is used to switch between the shortcut method (known as the MENU mode and as

shown in Figure 10) and scrolling method (known as the SCROLL mode). The MENU mode is the

shortcut to specific groups of menus used for checking ALARMS, for VIEWING information, or to

SET setpoint values. The SCROLL mode allows the user to move about the matrix (from one menu

to another, one at a time) by using the four ARROW keys. A typical menu screen is shown in Figure

11.

Pressing the MENU key from any menu screen will automatically return you to the MENU mode as

shown in Figure 10.

Figure 11, Display in the Shortcut (SCROLL) Mode and Keypad Layout

MENU Key

Air Conditioning

VIEW UNIT STATUS

Unit = COOL

Compr. #1/#2=OFF/OFF

Evap Pump = RUN

ARROW Keys

ENTER Key

Menu Screens

Various menus are shown in the controller display. Each menu screen shows specific information; in some cases menus are used only to view the status of the unit, in some cases they are used for checking and clearing alarms, and in some case they are used to set setpoint values.

The menus are arranged in a matrix of screens across a top horizontal row. Some of these top-level screens have sub-screens located under them. The general content of each screen and its location in

the matrix are shown in Figure 12. A detailed description of each menu begins on page 34.

The ARROW keys on the controller are used to navigate through the menus. The keys are also used to change numerical setpoint values contained in certain menus.

Changing Setpoints

Pressing the ENTER key changes the function of the ARROW keys to the editing function as shown below:

UP Increment, increases the value of the setting.

These four edit functions are indicated by one-character abbreviation on the right side of the display

(this mode is entered by pressing the ENTER key).

ACZ 010A through 039A IOMM ACZ1-1

Most menus containing setpoint values have several different setpoints shown on one menu. When in a setpoint menu, the ENTER key is used to proceed from the top line to the second line and on downward. The cursor will blink at the entry point for making a change. The ARROW keys (now in the edit mode) are used to change the setpoint as described above. When the change has been made, press the ENTER key to enter it. No setting is changed until the ENTER key is pressed.

For example, to change the number of unit fans setpoint:

1. Press MENU key to go to the MENU mode (see Figure 10).

2. Press SET (the UP Key) to go to the setpoint menus.

3. Press SET FAN SP (the Right key) to go to setpoints associated with unit operation.

4. Since the first (or top) menu will be used, there is no need to press the DOWN key to scroll down through other setpoint menus.

5. Press the ENTER key to move the cursor down from the top line to the second line in order to make the change.

6. Use the ARROW keys (now in the edit mode as shown above) to change the setting.

7. When the desired value is achieved, press ENTER to enter it. The cursor will automatically move down.

At this point, the following actions can be taken:

1. Change another setpoint in this menu by scrolling to it with the ENTER key.

2. Using the ENTER key, scroll to the first line in the menu. From there the ARROW keys can be used to scroll to different menus.

IOMM ACZ1-1 ACZ 010A through 039A 33

34

Figure 12, Menu Matrix

"MENU"

"VIEW" MENUS

VIEW UNIT

STATUS

VIEW UNIT

TEMP

VIEW COMP VIEW COMP #2

#1 STATUS STATUS

VIEW EVAP/COND PRESS (1)

Continued

VIEW FAN

STAGING

(Right side of matrix continued from above)

"ALARM" MENUS

ALARM LOG (LAST)

TYPE, TIME

ALARM LOG

(NEXT TO LAST)

ALARM LOG

(SECOND TO LAST)

ALARM LOG

LAST 25 SHOWN



ACTIVE ALARM

(1)

TYPE, TIME

SET UNIT SPs, (1)

MODE

"SET" MENUS

SET COMP

SPs (1)

STOP/START

ACTIVE ALARM SET UNIT SPs, (2)

(n)

TYPE, TIME

SET COMP

MODE = COOL SPs (2) INTER-

STAGE

SET LIMIT

ALARMS (2)

FREEZE/ FLOW

ADDITIONAL

ACTIVE ALARM SET UNIT SPs, (3)

(3)

CLEAR/VIEW

CLOCK

SET UNIT SPs, (4)

ENGLISH

SET UNIT SPs, (5)

PROTOCOL

SET UNIT SPs, (6)

EVAP OFFSET

SET UNIT SPs, (7)

COND OFFSET

SET UNIT SPs, (8)

AMBIENT

OFFSET

SET UNIT SPs, (9)

ENTER

PASSWORD

SET LIMIT

ALARMS (1)

EVAP PRESS

ALARMS (3)

COND PRESS

ALARMS (4)

PHASE/VOLT

LOW AMB

LOCKOUT

ALARMS (5)

LOW EVAP PR

SET FANS (1)

STAGES

FANTROL

SET FANS (2)

STAGE ON

STAGE OFF

Menu Structure (Hierarchical)

As discussed previously, a hierarchical menu structure can be used to access the various screens. One to twelve levels are used with two or three being typical. Optionally, the last menu selection can access one of a set of screens that can be navigated with the UP/DOWN ARROW keys (see the scrolled menu structure below).

Menu selection is initiated by pressing the MENU key that changes the display from a regular data screen to a menu screen. Menu selections are then made using the arrow keys according to labels on the right side of the display (the arrows are ignored). When the last menu item is selected, the display changes to the selected data screen. An example follows showing the selection of the “VIEW

REFRIGERANT” screen.

ACZ 010A through 039A IOMM ACZ1-1

IOMM ACZ1-1

Suppose the initial screen is as below or any other menu screen:

A L A R M L O G

( d a t a )

( d a t a )

( d a t a )

After pressing the MENU key, the top level menu screen will show:

< ALARM

< VIEW

< SET

After pressing the “VIEW” menu key, a menu screen will show:

VIEW < UNIT

< COMPRESSOR

< REFRIGRANT

< FANS

Selection of any of these will advance to the appropriate data menu. For example, after pressing the

REFRIGERANT” menu button, the selected data screen will show:

VIEW REFRIG

PSI

°°°°

F

SAT EVAP XXX.X

XX.X

SAT COND XXX.X

XX.X

The ARROW keys will automatically return to the “scroll” mode at this time.

Screen Definitions VIEW

This section contains information on each screen. The menu screens are in order of the matrix in

Figure 12, going from left to right and then down when there are sub-menus. Many menus are self-

explanatory.

VIEW UNIT

VIEW UNIT STATUS

Unit = AUTO

Compr.#1/#2=OFF/OFF

Unit status can be OFF, AUTO, and ALARM as determined from the Unit State variable, the Unit

Mode setpoint, the Unit Enable and the presence of an alarm.

Compressor states can be OFF/OFF, ON/OFF, OFF/ON, and ON/ON.

ACZ 010A through 039A 35

VIEW UNIT TEMP

°°°°

F

Outside Amb = XX.X

°°°°

F

VIEW COMPRESSORS

VIEW COMP#1

State = OFF LEAD

Hours = XXXXX

Starts = XXXXX

VIEW COMP#2

State = OFF LAG

Hours = XXXXX

Starts = XXXXX

VIEW REFRIGERANT

VIEW REFRIG psi

(1)

°°°°

F

SAT EVAP XXX.X

XX.X

SAT COND XXX.X

XX.X

VIEW FANS

VIEW FANS

Stages ON = 2 of 3

36 ACZ 010A through 039A IOMM ACZ1-1

Screen Definitions – ALARM

ALARM ACTIVE (X)

Alarm Description hh:mm:ss dd/mmm/yyyy

OR

ALARM ACTIVE (X)

No more alarms

Press ENTER to clear all active alarms

If the unit is off on a shutdown alarm or running but in a limit alarm condition, the cause and date will appear in the upper screen. If there is a simultaneous occurrence of more than one alarm, the others will appear in additional screens below this one, accessed by the DOWN ARROW. Either type alarm will light a red light in back of the LEFT-KEY. The light will go out when the fault is cleared.

To clear the fault, scroll down to the last screen and press ENTER. If other faults have appeared, they will all be cleared at the same time.

ALARM LOG (1)

High Condenser Press hh:mm:ss d/mmm/yyyy

The last 25 alarms, either shutdown or limit, are shown in this menu with subsequent menus stored under it. ARROW DOWN from this menu will go to the next-to-last alarm, ARROW DOWN again will go to the second from last, and so on through the last 25 occurrences. The screens are numbered

(1), (2), (3), etc.

Screen Definitions – SET

Changing setpoints; in general, setpoints are changed as follows:

1. Select the desired menu by scrolling through SET menus with the UP and DOWN ARROWS.

2. When the desired menu is selected, select the desired entry by moving between lines using the

ENTER key.

3. If a numerical value is being changed, use the INCREMENT key (UP ARROW) to increase or the DECREMENT key (DOWN ARROW) to decrease the value of the setpoint.

If a word type setpoint (for example, YES or NO) is to be selected, the choices are loaded into the menu and selected by scrolling through the available setpoint options using the UP ARROW key.

4. Enter the desired value or word into the controller by pressing the SET key.

IOMM ACZ1-1 ACZ 010A through 039A 37

38

SET UNIT SPs

SET UNIT SPs (1)

Unit Enable=OFF

Source=KEYPAD

Unit Enable is an external signal or a keypad setting that keeps the unit off when the setting is OFF and allows it to run if there is a call for cooling. The source for the signal is selected in the 4 th

line and can be:

1. KEYPAD, in which case the selection is made in line 2 and would be normally selected as ON.

This is the normal setting when no external signals are controlling the unit.

2. SWITCHES, in which an external switch is wired across terminals #25 and #35.

3. NETWORK, used with BAS signal, which is wired to the three communication ports.

SET UNIT SPs (2)

Available Modes

=COOL

Set w/ FP Switch Off

Available Modes setting is the standard COOL or TEST as selected from the available modes imbedded in the menu. The 4 th

line is a reminder that the ON/OFF switch on the front panel (FP) must be in the OFF position before the MODE can be changed. This prevents a mode change while the unit is operating.

SET UNIT SPs (3)

CLOCK dd/mmm/yyyy hh:mm:ss

SET UNIT SPs (4)

Units =

°°°°

F/psi

Lang = ENGLISH

Unit settings are only °F/psi at the present time. °C/kPa will be available later.

Lang (Language) settings can be only ENGLISH at present.

SET UNIT SPs (5)

Protocol = NONE

Ident Number=001

Baud Rate=9600

Protocol selection for BAS will be available in June 2002.

ACZ 010A through 039A IOMM ACZ1-1

IOMM ACZ1-1

SET UNIT SPs (6)

Evaporator Refrig

Press Sensor

Offset= 00.0 psi

The pressure offsets on menus 8 and 9 and the temperature offsets on menus 10 and 11 correct the controller's display of the parameters. The sensors used in these units have a high degree of repeatability but may need correction (offset). An accurate pressure gauge or thermometer is used to determine the correct temperature or pressure. A positive or negative offset value is then entered to make the controller reading agree with the measured value.

SET UNIT SPs (7)

Condenser Refrig

Press Sensor

Offset= 00.0 psi

SET UNIT SPs (8)

Outside Ambient

Temperature Sensor

Offset= 00.0

o

F

SET UNIT SPs (9)

ENTER PASSWORD XXXX

Active Password

Level:None

Two four-digit passwords provide OPERATOR and MANAGER levels of access to changeable parameters. The passwords are preprogrammed into the controller. The Operator Password is 0100.

Either password must be entered using the ENTER PASSWORD (12) screen before a protected setting can be changed.

This screen can be accessed either through the SET OTHER menu or by simply pressing the ENTER key while on one of the SET screens. The controller will automatically go from the screen with the setting change to this screen. After the correct password has been entered, the controller will automatically return to the original set screen.

Once a password has been entered, it remains valid for 15 minutes after the last key-press.

SET COMP SPs

SET COMP SPs (1)

Stop-Start =XXmin

Start-Start =XXmin

This menu sets the anti-recycle timers. Stop-Start is the time required before starting a compressor after it has stopped. Start-Start is the time required before starting a compressor after the last time it has started. It is recommended that these default values not be changed.

ACZ 010A through 039A 39

40

SET COMP SPs (2)

InterStageUp=XXXsec

InterStageDn=XXXsec

InterStageUp is the time delay since the last stage change before a compressor can stage on.

InterStageDn is the time delay since the last stage change before a compressor can stage off normally

(not by an alarm).

SET LIMIT ALARMS

SET ALARM LMTS (1)

LowEvPrHold=XXXpsi

LowEvPrUnld=XXXpsi

LowEvPrStop=XXXpsi

The LowEvPrHold and LowEvPrUnld have the same default value of 59 psi. If two compressors are running, the LowEvPrUnld is in effect and the lag compressor will be shut off to unload the unit. If one compressor is running, the LowEvPrHold is in effect and the lag compressor is prevented from starting, thereby holding the unit capacity.

The last action to take place is the shutoff of all compressors running when the LowEvPrStop setting is reached (default is 58 psi).

SET ALARM LMTS (2)

Evap Freeze= XX.X

°°°°

F

LowEvpPrDelay=XXs

EvapFlowProof=XXXsec

Evap Freeze (the unit freeze protection shutdown) is actually a stop alarm and shuts off the unit when the LWT reaches 36

°

F. It is cleared by going to the CLEAR ALARM menu in the ACTIVE ALARM hierarchy.

LowEvPrDelay is a time delay on the low pressure trip that reduces nuisance low-pressure trips. The default setting is 30 seconds.

EvapFlowProof is the flow switch interlock. Closing the flow switch and therefore proving the existence of chilled water or air flow resets this trip.

SET ALARM LMTS (3)

HighCondPr = XXXpsi

HiCondStgDn = XXXpsi

HighCondPr (the unit high-discharge-pressure shutdown) is a stop alarm that shuts off the unit when the discharge pressure reaches the setting. The default setting is 380 psi. The HiCondStDn is a limit alarm that unloads the unit in an attempt to prevent total shutdown from the HighCondPr. The stage down is set at 370 psi.

ACZ 010A through 039A IOMM ACZ1-1

SET ALARM LMTS (4)

PhaseVoltage=YES/NO

LowAmbientLock=XX

°°°°

F

LowAmbientLock prevents unit operation below the setting. If the unit is equipped with the standard

FanTrol pressure-activated control, the available range is 35

°

F to 60

°

F with a default of 35

°

F. With the optional SpeedTrol variable speed control, the range becomes –2

°

F to 60

°

F with default of 0

°

F.

Input to line 3 of the next screen, SET FANS SP (1), informs the controller which type of control is installed and which range of setting to allow.

SET FANS STAGES

SET FANS SPs (1)

Fans = 2

Speedtrol = NO

The Fans line tells the controller the number of fans on the unit. The UP ARROW toggles between 1,

2, and 3. 1 is not used; 2 should be used for Models ACZ 010, 013, and 017; and 3 should be used for ACZ 020, 025, 029, and 039.

SpeedTrol tells the controller whether the optional SpeedTrol is installed in the unit. The UP

ARROW toggles between YES and NO. The setting changes the range available: YES = 35

°

F to

60

°

F, with 35

°

F being the recommended setting; NO = -2

°

F to 60

°

F, with 0

°

F being the recommended setting.

SET FANS SPs (2)

Stage ON psi

#1

150

#2

290

#3

310

SET FANS SPs (2)

Stage ON psi

#1 #2

150 290

SET FANS SPs (3)

Stage Off psi

#1 #2

UNIT 170

#3

180

SET FANS SPs (3)

Stage Off psi

#1 #2

UNIT 170

These two menus set the on and off staging pressures for the fans. The left-hand two are for three-fan units; the right-hand two are for two-fan units. The default values are shown in the boxes. These settings are used with both FanTrol and SpeedTrol. SpeedTrol takes effect when the last fan is running after FanTrol cycles off the others.

IOMM ACZ1-1 ACZ 010A through 039A 41

Service

DANGER

Disconnect and tag-out all sources of power to the unit before doing any service inside the unit. Failure to do so can cause serious personal injury or death.

CAUTION

Service on this equipment must be performed only by trained, experienced, qualified service personnel with special regard to regulations concerning release of refrigerant to the atmosphere.

Note: Repeated tripping of equipment protection controls must be investigated and

corrected.

Thermostatic Expansion Valve

The field installed expansion valve is responsible for allowing the proper amount of refrigerant to enter the evaporator regardless of cooling load. It does this by maintaining a constant superheat.

(Superheat is the difference between refrigerant temperature as it leaves the evaporator and the saturation temperature corresponding to the evaporator pressure.) Typically, superheat should run in the range of 8

°

F to 12

°

F (4.4

°

C to 6.6

°

C). Maintaining correct superheat to the compressor is an important element in extending compressor life.

Filter-Driers

In general, the pressure drop across the field-installed filter-drier should be in the 6 to 10 psi range. It should be monitored and changed when the pressure drop reaches 10 psi. After changing the filterdrier, check for leaks before recharging and returning unit to operation.

Liquid Line Solenoid

The field installed liquid line solenoid valve does not normally require any maintenance. Reliable operation of the solinoid valve is necessary for the pump-down function of the unit's control system.

42 ACZ 010A through 039A IOMM ACZ1-1

Optional Controls

SpeedTrol Head Pressure Control

The SpeedTrol method of head pressure control operates in conjunction with FanTrol by modulating the motor speed on system #1 fan in response to condenser pressure. By reducing the speed of the last fan as the condensing pressure falls, the unit can operate to 0

°

F (-18

°

C) ambient air temperature.

The SpeedTrol fan motor is a single-phase, 230/460 volt, thermally protected motor specially designed for variable speed operation. The solid-state speed control is mounted in the unit control panel and is connected to a Schrader fitting on the liquid line. The control is factory-set to start modulating fan speed at 230 psig, and it will maintain a minimum condensing pressure of 170 to 180 psig. Minimum starting voltage for SpeedTrol motors is 120 volts.

A low ambient timer function is included in the microprocessor. When the solenoid valve and lead compressor are energized by the controller, the low pressure cutout control is bypassed and the compressor is allowed to start with the low pressure control open.

After about 2-3/4 minutes, the time delay will open and the low pressure cutout function is again operable. If the system has not built up enough evaporator pressure to close the low pressure setting, the compressor will stop.

Due to the vertical condenser design, it is recommended that the unit be oriented so that prevailing winds blow parallel to the unit length, thus minimizing effects on minimum ambient operation. If it is not practical to orient the unit in this manner, a wind deflector should be constructed.

Hot Gas Bypass

Hot gas bypass is a system for maintaining evaporator pressure at or above a minimum value. The purpose for doing this is to keep the velocity of the refrigerant as it passes through the evaporator high enough for proper oil return to the compressor when cooling load conditions are light. It also maintains continuous operation of the chiller at light load conditions.

The field installed hot gas solenoid valve should be wired to open whenever the liquid line solenoid valve is energized. This can be accomplished by wiring the hot gas solenoid (SV5) in parallel with the liquid line solenoid at terminals 14 and 16. The pressure-regulating valve is factory-set to begin opening at 58 PSIG (32

°

F for R-22) when the air-charged bulb is in an 80

°

F ambient temperature.

The bulb can be mounted anywhere as long as it senses a fairly constant temperature at various load conditions. The compressor suction line is one such mounting location. It is generally in the 50

°

F to

60

°

F range.

The chart below (Figure 14) indicates that when the bulb is sensing 50

°

F to 60

°

F temperatures, the valve will begin opening at 54 PSIG. This setting can be changed as indicated above, by changing the pressure setting, remove the cap on the bulb and turn the adjustment screw clockwise. To lower the setting, turn the screw counterclockwise. Do not force the adjustment beyond the range it is designed for, as this will damage the adjustment assembly.

The regulating valve opening point can be determined by slowly reducing the system load (or increasing the required evaporator temperature setting indicated on the unit thermostat), while observing the suction pressure. When the bypass valve starts to open, the refrigerant line on the evaporator side of the valve will begin to feel warm to the touch.

IOMM ACZ1-1 ACZ 010A through 039A 43

44

WARNING

The hot gas line can become hot enough to cause injury in a very short time.

Do not allow prolonged contact during valve checkout.

On installations where the condensing unit is remote from the evaporator, it is recommended that the hot gas bypass valve be mounted near the condensing unit to minimize the amount of refrigerant that will condense in the hot gas line during periods when hot gas bypass is not required.

Figure 13, Hot Gas Bypass Piping

Suction Line

Hot Gas Bypass

Solenoid Valve

Discharge

Line

Hot Gas

Bypass Valve

Figure 14, Hot Gas Bypass Adjustment

REMOTE BULB ADJUSTMENT RANGE

80

Adjustable

Remote Bulb

External Equalizer

Connection to Suction

Side of Evaporator

To Evaporator Inlet

After Expansion Valve

50

40

70

60

MAXIM

FACTO

UM

RY SET

MINIMU

M

TING

30

30 40 50 60 70 80

TEMP (°F) AT BULB LOCATION

90 100 110

ACZ 010A through 039A IOMM ACZ1-1

IOMM ACZ1-1

Troubleshooting Chart

WARNING

Troubleshooting must be done only by trained, experienced technicians.

Troubleshooting presents risks of severe personal injury and death from cuts, burns, electrocution and suffocation.

Table 15, Troubleshooting Chart

PROBLEM

COMPRESSOR WILL

NOT RUN

COMPRESSOR NOISY

OR VIBRATING

HIGH DISCHARGE

PRESSURE

LOW DISCHARGE

PRESSURE

HIGH SUCTION

PRESSURE

LOW SUCTION

PRESSURE

UNIT WILL NOT LOAD

OR UNLOAD

LOAD/UNLOAD

INTERVAL TOO

SHORT

POSSIBLE CAUSES

1. Main switch open

2. Fuse blown, breakers open

3. Thermal overloads tripped

4. Defective contactor or coil

5. System off by protection device

6. No cooling required

7. Liquid line solenoid will not open

8. Motor electrical problem

9. Loose wiring

1. Refrigerant flooding compressor

2. Improper line support

3. Worn compressor

1. Noncondensables in system

2. Refrigerant overcharge

3. Fan not running

4. Dirty condenser coils

5. FanTrol out of adjustment

1. Faulty condenser control

2. Low refrigerant charge

3. Low suction pressure

1. Excessive load

2. Expansion valve overfeeding

1. Lack of refrigerant

2. Evaporator dirty

3. Clogged filter-drier

4. Expansion valve malfunctioning

5. Low condensing temperature

1 Faulty controller sensor/broken wire

2. Stages not set for application

1. Erratic thermostat

2. Insufficient water flow

COMPRESSOR

LOSES OIL

MOTOR OVERLOAD

RELAYS OPEN OR

BLOWN FUSES

1. Lack of refrigerant

2. Suction superheat too high

3. Crankcase heater burned out

1. Low voltage during high loads

2. Defective or grounded motor wiring

3. Loose power wiring

4. High condensing temperature

5. Unbalanced voltage

1. Operating beyond design conditions

COMPRESSOR

THERMAL SWITCH

OPEN

POSSIBLE CORRECTIVE STEPS

1. Close switch

2. Check electrical circuits and motor windings for shorts. Check for overloads and loose connections.

Replace fuse or reset breaker.

3. Check unit when back on line, auto reset

4. Repair or replace

5. Determine cause and correct

6. None, should start on call for cooling

7. Repair or replace coil

8. Check motor for open or short circuit, or burnout

9. Check all wire junctions. Tighten all terminals.

1. Check expansion valve setting

2. Relocate or add supports

3. Replace

1. Remove with authorized procedures

2. Remove excess

3. Check electrical circuit

4. Clean coil

5. Adjust FanTrol setting

1. Check condenser control operation

2. Check for leaks. Add refrigerant

3. See low suction pressure steps below

1. Reduce load or add capacity

2. Check remote bulb. Regulate superheat

1. Check for leaks. Repair and replace refrigerant.

2. Clean chemically

3. Replace

4. Check and adjust for proper superheat

5. Check discharge pressure control settings

1. Replace

2. Adjust thermostat setting

1. Replace

2. Adjust flow

1. Check for leaks and repair

2. Adjust superheat

3. Replace crankcase heater

1. Check supply voltage

2. Replace compressor

3. Check all connections and tighten

4. See steps for high discharge pressure

5. Check voltage. Contact power company.

1. Add facilities so conditions are within allowable limits

ACZ 010A through 039A 45

46 ACZ 010A through 039A IOMM ACZ1-1

Post Office Box 2510, Staunton, Virginia 24402 USA

(540) 248-0711

• www.mcquay.com

(10/04)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals
