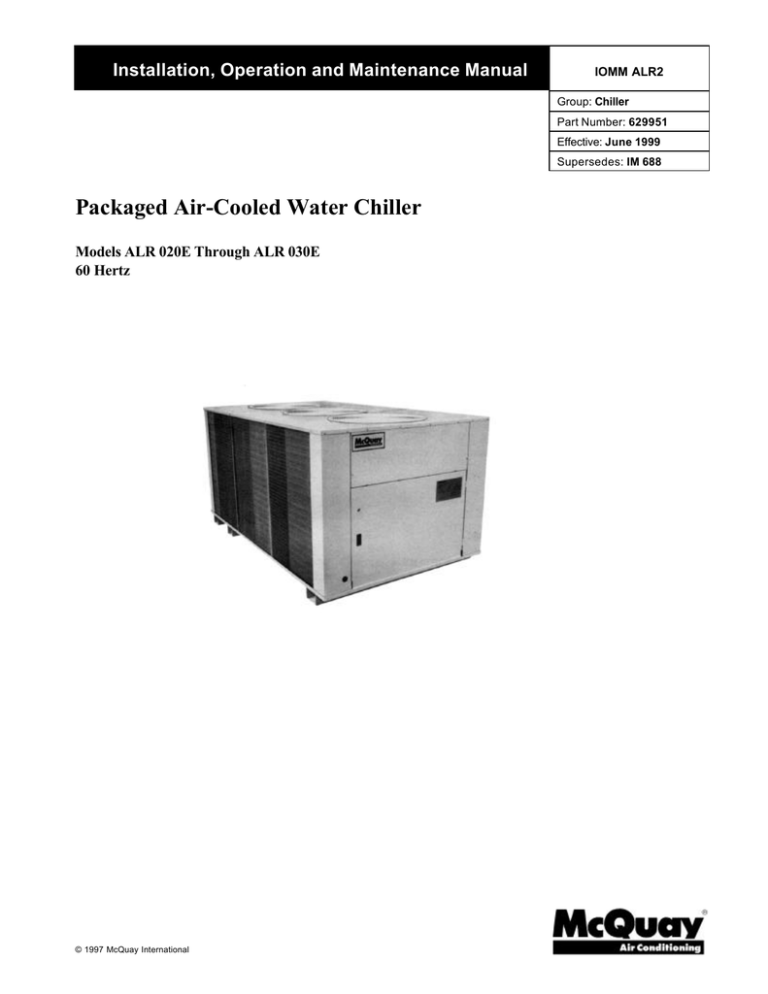

Installation, Operation and Maintenance Manual

IOMM ALR2

Group: Chiller

Part Number: 629951

Effective: June 1999

Supersedes: IM 688

Packaged Air-Cooled Water Chiller

Models ALR 020E Through ALR 030E

60 Hertz

© 1997 McQuay International

Table of Contents

Introduction......................................... 3

General Description................................................3

Inspection................................................................3

Installation...............................................................3

Handling ..................................................................3

Location...................................................................4

Service Access........................................................5

Vibration Isolators ..................................................6

Water Piping............................................................6

Flow Switch.............................................................8

Water Connections ................................................9

Refrigerant Charge .................................................9

Glycol Solutions .....................................................9

Evaporator Water Flow and Pressure Drop........9

Unit Layout and Operation............... 11

Control Center.......................................................11

Start-up and Shutdown...................... 11

Pre Start-up............................................................11

Start-up ..................................................................11

Sequence of Operation ........................................12

Physical Data .................................... 13

Electrical Data ..................................14

Field Wiring...........................................................14

Dimensional Data .............................18

System Maintenance ........................18

General...................................................................18

Fan Motor Bearings .............................................18

Electrical Terminals ...............................................18

Condensers ...........................................................18

Refrigerant Sightglass .........................................19

Service ...............................................19

Thermostatic Expansion Valve ...........................19

Filter-Driers............................................................19

Liquid Line Solenoid ............................................20

Standard Controls ................................................20

Compressor Lockout............................................22

Optional Controls .................................................23

Control Settings....................................................26

Troubleshooting Chart ........................................27

2

"McQuay" is a registered trademark of McQuay International

1997 McQuay International

"Illustrations cover the general appearance of McQuay International products at the time of publication and we reserve the right to make changes in design and construction at anytime without notice"

ALR 020E through 030E IOMM ALR2

Introduction

General Description

McQuay air-cooled water chillers are complete, self-contained automatic refrigerating units. Every unit is completely assembled, factory wired, charged, and tested. Each unit consists of two air-cooled condensers connected in parallel with integral subcooler sections, Copeland DISCUS

semi-hermetic compressor, single circuit brazed plate-to-plate evaporator, and complete refrigerant piping. Liquid line components include manual liquid line shutoff valve, sight-glass/moisture indicator, solenoid valve, and double diaphragm hydraulic element thermal expansion valve. Other features include a compressor crankcase heater, an evaporator heater for chilled water freeze protection, and a hot gas muffler.

The electrical control center includes all safety and operating controls necessary for dependable automatic operation. Condenser fan motors are three phase (except single phase on No. 1 fan with

FanTrol option) and started by their own contactors and have inherent overload protection. The compressor is not fused but has solid state motor protection for inherent thermal overload protection.

Inspection

Check all items carefully against the bill of lading. Inspect all units for damage upon arrival. Report shipping damage and file a claim with the carrier. Check the unit name plate before unloading, making certain it agrees with the power supply available. Units are shipped fob factory and McQuay is not responsible for physical damage after unit leaves the factory.

Note: Unit shipping and operating weights are listed on page 13, Table 3.

Installation

Note: Installation is to be performed by qualified personnel who are familiar with local codes

and regulations especially concerning refrigerant release to the atmosphere.

WARNING

Sharp edges and coil surfaces are a potential hazard. Avoid contact with them.

Handling

Be careful to avoid rough handling of the unit. Do not push or pull the unit from anything other than the base. Block the pushing vehicle away from the unit to prevent damage to the sheet metal cabinet and end frame (see Figure 1).

To lift the unit, lifting slots are provided in the base of the unit. Arrange spreader bars and cables to prevent damage to the condenser coils or cabinet (see Figure 2).

IOMM ALR2 ALR 020E through 030E

3

Figure 1, Suggested pushing arrangement

Blocking required across full width

Figure 2, Suggested lifting arrangement

4

Location

Unit Placement

ALR units are for outdoor applications and can be mounted on a roof or ground level. Set units on a solid and level foundation. For roof mounted applications, install the unit on a steel channel or I-beam frame to support the unit above the roof. For ground level applications, install the unit on a substantial base that will not settle. A one-piece concrete slab with footings extended below the frost line is recommended. Be sure the foundation is level (within 1/2” [13 mm] over its length and width).

The foundation must support the operating weights listed in the Physical Data Table on page 13.

Unit operation is affected by wind and it should located so that length is parallel with the prevailing wind. If this is not practical, field fabricated wind deflectors should be employed.

Clearances

The flow of air to and from the condenser coil must not be limited. Restricting airflow or allowing air recirculation will result in a decrease in unit performance and efficiency. There must be no obstruction above the unit that would deflect discharge air downward where it could be recirculated back to the inlet of the condenser coil. The condenser fans are propeller type and will not operate with ductwork on the fan outlet.

ALR 020E through 030E IOMM ALR2

IOMM ALR2

Install the unit with enough side clearance for air entrance to the coil and for servicing. Provide service access to the evaporator, compressors, electrical control panel and piping components as shown in Figure 3. Do not block access to the unit with piping or conduit.

Do not allow debris to accumulate near the unit. Air movement may draw debris into the condenser coil causing air starvation. Give special consideration to low ambient operation where snow can accumulate. Keep condenser coils and fan discharge free of snow or other obstructions to permit adequate airflow.

Figure 3, Clearance requirements

Sound Isolation

The low sound levels of the ALR chiller are suitable for most applications.

When additional sound reduction is necessary, locate the unit away from sound sensitive areas. Avoid locations beneath windows or between structures where normal operating sounds may be objectionable. Reduce structurally transmitted sound by isolating water lines, electrical conduit and the unit itself. Use wall sleeves and rubber isolated piping hangers to reduce transmission of water or pump noise into occupied spaces. Use flexible electrical conduit to isolate sound through electrical conduit.

Spring isolators are effective in reducing the low amplitude sound generated by the Discus semi-hermetic compressors and for unit isolation in sound sensitive areas.

Service Access

Each end of the unit must be accessible after installation for periodic service.

Compressors, filter-driers, and manual liquid line shutoff valves are accessible from the end of the unit. High pressure, low pressure, and motor protector controls are on the compressor. Most operational, safety and starting controls are located in the unit control box.

The condenser fan and motors can be removed from the top of the unit.

ALR 020E through 030E

5

6

Vibration Isolators

Vibration isolators are recommended for all roof mounted installations or wherever vibration transmission is a consideration. The isolators can be purchased from McQuay by the part numbers shown in the table. Install spring isolators under the main unit support according to the dimension drawing. Adjust springs to allow the upper housing to clear the lower housing by 1/4” to 1/2”. An anti-skid pad should be used if hold-down bolts are not used.

Table 1, Recommended Vibration Isolators

ALR UNIT ISOLATOR

TYPE

Rubber-in-shear

McQUAY

PART NO.

00-216397-01 020E-028E

030E Rubber-in-shear 00-216397-01

00-216397-03

00-477927-26 020E-028E

030E

Spring Isolators

Spring Isolators 00-477927-26

00-447927-27

Note: See dimension drawing for location of isolators

NUMBER

REQUIRED

4

2

2

4

2

2

ISOLATOR

DESCRIPTION

RP-3 Red

RP-3 Red

RP-3 Green

CP-1-26

CP-1-26

CP-1-27

MAX. LOAD

EACH (LBS)

525

525

725

600

600

750

Water Piping

Local authorities can supply the installer with the proper building and safety codes required for safe and proper installation.

Install piping with minimum bends and changes in elevation to minimize pressure drop. Consider the following when installing water piping:

1. Vibration eliminators to reduce vibration and noise transmission to the building.

2. Shutoff valves to isolate the unit from the piping system during unit servicing.

3. Manual or automatic air vent valves at the high points of the system. Install drains at the lowest points in the system.

4. A means of maintaining adequate system water pressure (expansion tank or regulating valve).

5. Temperature and pressure indicators located at the unit to aid in unit servicing. Pressure gauge taps must be installed in the chilled water inlet and outlet piping or as shown in Figure 4.

6. A strainer or other means of removing foreign matter from the water before it enters the pump.

Place the strainer far enough upstream to prevent cavitation at the pump inlet (consult pump manufacturer for recommendations). The use of a strainer will prolong pump life and keep system performance up.

7. Place a strainer in the water line just before the inlet of the evaporator. This will help prevent foreign material from entering and decreasing the performance of the evaporator.

CAUTION

If separate disconnect is used for the 110V supply to the evaporator heating cable, mark the disconnect clearly to ensure disconnect is not accidentally shut off during cold seasons.

8. The brazed plate evaporator has a thermostat and heating cable to prevent freeze-up down to -

20

°

F (-29

°

C). It is suggested that the heating cable be wired to a separate 110V supply circuit. As shipped from the factory, the heating cable is wired to the control circuit. All water piping to the unit must also be protected to prevent freezing.

9. If the unit is used as a replacement chiller on a previously existing piping system, flush the system thoroughly before unit installation. Regular water analysis and chemical water treatment on the evaporator is recommended immediately at equipment start-up.

ALR 020E through 030E IOMM ALR2

10. The total water volume in the system should be sufficient to prevent frequent “on-off” cycling.

Turnover rate should not be less than 15 minutes for normal variable cooling loads. Turnover rate for a constant load should not be less than 6 minutes.

IOMM ALR2 ALR 020E through 030E

7

11. When glycol is added to the water system for freeze protection, the refrigerant suction pressure will be lower, cooling performance less, and water side pressure drop greater. If the percentage of glycol is high, or if propylene is used instead of ethylene glycol, the added pressure drop and loss of performance could be substantial. Reset the freezestat and low leaving water alarm temperatures. The freezestat is factory set to default at 36

°

F (2.2

°

C). Reset the freezestat setting to approximately 4 to 5 degrees F (2.3 to 2.8 degrees C) below the leaving chilled water setpoint temperature. See the section titled “Glycol Solutions” for additional information concerning glycol.

12. Perform a preliminary leak check before insulating the piping and filling the system.

13. Piping insulation should include a vapor barrier to prevent condensation and possible damage to the building structure.

Figure 4, Typical Field Evaporator Water Piping

8

Note: the above piping is correct for both brazed plate and tube-in-shell evaporators

Flow Switch

Mount a water flow switch in the leaving water line to shut down the unit when water flow is interrupted.

A flow switch is available from McQuay (part number 0701804-04). It is a “paddle” type switch and adaptable to pipe sizes down to 1 1/4 ” (32mm) nominal. Certain minimum flow rates are required to close the switch and are listed in Table 2. Installation should be as shown in Figure 5. Connect the normally open contacts of the flow switch in the unit control center at terminals 4 and 5. There is also a set of normally closed contacts on the switch that can be used for an indicator light or an alarm to indicate when a “no flow” condition exists. Freeze protect any flow switch that is installed outdoors.

NOTE: Differential pressure switches are not recommended for outdoor installation.

Table 2, Flow Switch Settings

Pipe Size

Minimum

Adjustment

Maximum

Adjustment

Flow

No

Flow

Flow

No

Flow mm inch gpm

Lpm gpm

Lpm gpm

Lpm gpm

Lpm

32

1 1/4

4.8

18.2

3.0

11.3

7.7

29.1

5.9

22.3

38

1 1/2

6.3

22.7

3.6

13.6

10.0

37.9

7.0

26.5

51

2

9.9

37.5

5.9

22.3

15.8

59.8

11.0

41.6

63

2 1/2

15.3

57.9

9.5

36.0

23.7

89.7

17.0

64.3

76

3

24.4

92.4

15.4

58.3

35.5

134.4

29.2

110.5

102

4

33.3

126.0

21.1

79.9

61.4

232.4

37.7

142.7

ALR 020E through 030E IOMM ALR2

Figure 5, Flow Switch Installation

IOMM ALR2

Water Connections

Bring water piping to the cooler from the end of the unit, in the top and out the bottom connection.

Refrigerant Charge

All units are designed for use with HCFC-22 and other refrigerants. See nameplate for specific refrigerant used. Units are shipped with an operating charge. The operating charge

(using HCFC-22) for each unit is shown in the Physical Data Table on page 12.

Glycol Solutions

The use of glycol anti-freeze solutions will decrease unit capacity, and increase the pressure drop through the cooler. See Product Manual 985 for specific ratings and correction factors.

CAUTION

Do not use automotive grade antifreeze. Industrial grade glycols must be used. Automotive antifreeze contains inhibitors that will cause plating on the copper tubes within the chiller evaporator. The type and handling of glycol used must be consistent with local codes.

Evaporator Water Flow and Pressure Drop

Evaporator flow rate must fall between the minimum and maximum values shown in the evaporator pressure drop curve, Figure 6. Flow rates below the minimum values will result in laminar flow that will reduce efficiency, cause erratic operation of the expansion valve and could cause low temperature cutouts. Flow rates exceeding the maximum values can cause erosion on the evaporator water connections and tubes.

Measure the chilled water pressure drop through the evaporator at field installed pressure taps. It is important not to include the effect of valves or strainers in these readings.

Varying chilled water flow through the evaporator while the compressor are operating is not recommended.

ALR 020E through 030E

9

Figure 6, Evaporator Water Pressure Drop Curve

10

ALR 020E through 030E IOMM ALR2

Unit Layout and Operation

Control Center

All electrical controls are enclosed in a weatherproof control center with keylocked, hinged access doors. The control center has two separate compartments, high voltage and low voltage. All high voltage components are located in the compartment on the right side of the unit.

The low voltage components are located on the left side with the live terminals behind the deadfront panel. This protects service personnel from live terminals when accessing the adjustable and resettable controls.

Start-up and Shutdown

Pre Start-up

1. Open all electric disconnects and check all electric connections for tightness. Check all compressor valve connections for tightness.

2. Inspect all water piping for flow direction and correct connections at the evaporator.

3. Verify thermostat water temperature sensor is installed in the leaving water line (supply to building). On all ALR units the sensor well and sensor are factory mounted.

4. Check compressor oil level. The oil level should be visible in the oil sightglass.

5. Check voltage of the unit power supply and make certain voltage is within

±

10% of nameplate rating. Check unit power supply wiring for proper ampacity and a minimum insulation temperature of 75

°

C.

6. Verify all mechanical and electrical inspections have been completed according to local codes.

7. Open compressor suction and discharge shutoff valves until backseated. Always replace valve seal caps.

8. Open control stop switch S1(off). Turn on the main power and control disconnect switches. This will energize crankcase heaters. Wait at least 24 hours before starting up unit.

9. Open all water flow valves and start the chilled water pump. Check all piping for leaks and vent the air from the evaporator as well as from the system piping. Flush the evaporator and system piping to obtain clean, noncorrosive water in the evaporator.

CAUTION

Most relays and terminals in the unit control center are energized with S1 and the control circuit disconnect on. Do not close S1 until start-up.

Start-up

1. Verify compressor suction and discharge shutoff valves are backseated. Always replace valve seal caps.

2. Open manual liquid line shutoff valve at the outlet of the condenser subcooler.

3. Set temperature controller CP1 to the desired chilled water temperature. Set the control band.

4. Start auxiliary equipment by turning on the following: time clock (if present), ambient thermostat and/or remote on/off switch, chilled water pump.

IOMM ALR2 ALR 020E through 030E

11

5. If the controller calls for cooling, the unit will begin the start-up sequence.

6. After running the unit for a short time, check the oil level in the compressor crankcase, rotation of fans, and flashing in refrigerant sightglass.

7. Verify superheat temperature is at the factory setting of 8 to 12 degrees F (4.4 to 6.7 degrees C).

8. After system performance has stabilized, complete the “Compressorized Equipment Warranty

Form” (Form No. 415415Y) to obtain full warranty benefits. Return the form to McQuay

International through your sales representative.

Sequence of Operation

The following sequence of operation is typical for Models ALR 020E through ALR 030E. The sequence can vary depending upon options.

Start-Up

With the control circuit power on and the control stop switch S1 closed, 115V power is applied through the control circuit fuse F1 to the compressor crankcase heater HTR1, the compressor motor protections MP1 and the primary of the 24V control circuit transformer. The 24V transformer provides power to the contacts of the low pressure controls LP1 and the compressor lockout timer TD1.

When the remote time clock (optional) or manual shutdown switch turns on the chilled water pump, the flow switch closes and 115V power is applied to the relay contacts on the return water control

CP1. The unit will operate in response to TC 10 if:

1. The compressor lockout time delays are closed

2. The compressor motor protection and high pressure control (HP1) do not sense a failure.

On a call for cooling, the return water control CP1 completes the circuit to the liquid line solenoid valve SV1 in circuit #1, opening the valve and allowing refrigerant to flow through the expansion valve and into the evaporator. As the evaporator refrigerant pressure increases, the low pressure control LP1 closes. This energizes the compressor starting relay R9, starting the compressor via the compressor contactors M1. Closing the R9 contacts also energizes the condenser fan motor contacts

M11, M12, and M13, starting the fan motors.

Shutdown

As the leaving water control is satisfied, it will unload the compressor and then de-energize the liquid line solenoid valve SV1, causing the valve to close. The compressor will stop and the compressor crankcase heater will energize, keeping the small amount of refrigerant in the plate heat exchanger from migrating to the compressor.

12

ALR 020E through 030E IOMM ALR2

Physical Data

Table 3, Physical Data ALR 020E through 030E

PHYSICAL DATA

020E

ALR MODEL NUMBER

025E 028E

BASIC DATA

Unit Capacity @ ARI Conditions (1), Tons (kW)

Number Of Refrigerant Circuits

Unit Operating Charge, R-22, Lbs. (kg)

Cabinet Dimensions, LxWxH, In.

Cabinet Dimensions, LxWxH, (mm)

Unit Operating Weight, Lbs. (kg)

Unit Shipping Weight, Lbs. (kg)

Add'l Weight If Copper Finned Coils, Lbs. (kg)

COMPRESSORS

21.0 (73.8 )

1

30 (13.6)

96 x 58 x 46

(2426 x 1461 x

1168)

1595 (724)

1578 (716)

350 (159)

24.2 (85.1)

1

30 (13.6)

96 x 58 x 46

(2426 x 1461 x

1168)

1610 (730)

1590 (721)

350 (159)

Type

Nominal Horsepower

Number Of Cylinders Per Compressor

Oil Charge Per Compressor, Oz. (g)

Semi-Hermetic

25

4

130 (3686)

Semi-Hermetic

30

4

140 (3969)

CAPACITY REDUCTION STEPS - PERCENT OF COMPRESSOR DISPLACEMENT

Standard Staging

Optional Staging

0-50-100

NA

0-50-100

NA

27.1 (95.3 )

1

30 (13.6)

96 x 58 x 46

(2426 x 1461 x

1168)

1610 (730)

1590 (721)

350 (159)

Semi-Hermetic

30

6

140 (3969)

0-67-100

0-33-67-100

CONDENSERS - HIGH EFFICIENCY FIN AND TUBE TYPE WITH INTEGRAL SUBCOOLING

Coil Face Area, Sq. Ft. (M

2

) 49.0 (4.6) 49.0 (4.6)

Finned Height x Finned Length, In.

Finned Height x Finned Length, (mm)

Fins Per Inch x Rows Deep

84 x 84

(2134 x 2134)

16 x 2

84 x 84

(2134 x 2134)

16 x 2

CONDENSER FANS - DIRECT DRIVE PROPELLER TYPE

Number Of Fans - Fan Diameter, In. (mm)

Number Of Motors - HP (kW)

Fan And Motor RPM, 60

60 Hz Fan Tip Speed, FPM

60 Hz Total Unit Airflow, CFM

3 - 26 (660)

3 - 1.0 (.7)

1100

7760

20925

DIRECT EXPANSION EVAPORATOR - BRAZED PLATE-TO-PLATE

3 - 26 (660)

3 - 1.0 (.7)

1100

7760

20925

LxWxH, In.

LxWxH, (mm)

5.9 x 9.4 x 20.5

(149.9 x 238.8 x

520.7)

Water Volume, Gallons (L)

Maximum Water Pressure, psig (kPa)

2.0 (7.6)

430 (2966)

NOTE:

Nominal capacity based on 95°F ambient air and 54°F/44°F water range.

6.8 x 9.4 x 20.5

(172.7 x 238.8 x

520.7)

2.3 (8.7)

430 (2966)

49.0 (4.6)

84 x 84

(2134 x 2134)

16 x 2

3 - 26 (660)

3 - 1.0 (.7)

1100

7760

20925

7.8 x 9.4 x 20.5

(198.1 x 238.8 x

520.7)

2.7 (10.2)

430 (2966)

030E

31.7 (111.5 )

1

35 (15.9)

96 x 58 x 46

(2426 x 1461 x

1168)

1720 (780)

1698 (770)

530 (240)

Semi-Hermetic

35

6

140 (3969)

0-67-100

0-33-67-100

49.0 (4.6)

84 x 84

(2134 x 2134)

16 x 3

3 - 26 (660)

3 - 1.5 (1.1)

1100

7760

18000

7.8 x 9.4 x 20.5

(198.1 x 238.8 x

520.7)

2.7 (10.2)

430 (2966)

IOMM ALR2 ALR 020E through 030E

13

14

Electrical Data

Field Wiring

CAUTION

Internal power wiring to the compressors for single and multiple point option are different.

Field wiring must be installed according to unit wiring diagram.

Wiring must comply with all applicable codes and ordinances. Warranty is void if wiring is not in accordance with specifications. Copper wire is required for all power lead terminations at the unit.

Aluminum or copper can be used for all other wiring.

ALR 020E through ALR 030E units have single point power connection. A single field supplied fused disconnect is required. An optional factory mounted transformer may be installed.

If the evaporator heater is on a separate disconnect switch from the main unit power supply, the unit may be shut down without defeating the freeze protection provided by the evaporator heater.

Table 4. ALR 020E - ALR 030E Electrical Data, Single Point

ALR

Unit

Size

020E

025E

028E

030E

Volts

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

Minimum

Circuit

Ampacity

(MCA)

105

105

52

45

118

118

59

52

131

131

65

52

169

157

83

59

3

3

3

3

3

3

3

3

Field Wire

POWER SUPPLY

Hub

Quantity

Wire

Gauge

Quantity

Nominal

Size

3

3

3

3

3

3

3

3

2

2

6

8

1

1

6

6

1

1

1

1

1

1

1

1

1.25 (32)

1.25 (32)

1.00 (25)

0.75 (19)

1.25 (32)

1.25 (32)

1.00 (25)

1.00 (25)

2/0

2/0

4

6

1/0

1/0

6

6

1

1

1

1

1

1

1

1

1.50 (38)

1.50 (38)

1.00 (25)

1.00 (25)

1.50 (38)

1.50 (38)

1.00 (25)

1.00 (25)

FIELD FUSE SIZE

Recommended

Max.

175

175

90

70

225

200

110

80

150

150

70

70

150

150

80

70

225

225

110

80

250

250

125

100

175

175

80

70

200

200

100

80

ALR 020E through 030E IOMM ALR2

Table 5, ALR 020E - ALR 030E Compressor and Condenser Fan Motor Amp Draw

ALR

Unit

Size

Volts

No.

1

Rated Load Amps

Compressors

No.

2

No.

3

No.

4

Fan

Motors

(Each)

Locked Rotor Amps

No. Of

Fan

Motors

Fan

Motors

Across-The-Line

Compressors

Reduced Inrush

(Each)

No. 1 No. 2 No. 3 No. 4 No. 1 No. 2 No. 3 No. 4

208

230

020E 460

575

208

230

025E 460

575

208

230

028E 460

575

208 121

230 112

030E 460

575

60

42

85

85

42

36

95

95

47

36

74

74

37

31

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

----------

4.0

4.0

2.0

2.2

4.0

4.0

2.0

2.2

4.0

4.0

2.0

2.2

5.8

5.8

2.8

2.3

17.0

17.0

8.5

10.3

17.0

17.0

8.5

10.3

17.0

17.0

8.5

10.3

23.7

21.4

10.7

11.5

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

3

428 ----

428 ----

214 ----

172 ----

470 ----

470 ----

235 ----

200 ----

565 ----

565 ----

283 ----

230 ----

650 ----

594 ----

297 ----

245 ----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

---250

---250

---132

---103

---292

---292

---141

---130

---340

---340

---156

---138

---400

---340

---195

---152

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

----

Table 6, 010E - 016E Field Wiring Data, Single Point Power

Wiring to Standard Power Block

ALR

Unit

Size

Volts

Terminal

Amps

Connector Wire Range

(Copper Wire Only)

020E

025E

028E

030E

208

230

460

575

208

230

460

575

208

230

460

575

208

230

460

575

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

175

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

(1 qty.) #12 - 2/0

IOMM ALR2 ALR 020E through 030E

15

Notes for “Electrical Data Single Point

1. Unit wire size ampacity (MCA) is equal to 125% of the largest compressor-motor RLA plus 100% of RLA of all other loads in the circuit including the control transformer.

2. If the control transformer option is furnished, no separate 115v power is required.

If a separate 115V power supply is used for the control circuit, then the wire sizing amps is 2 amps for unit sizes ALR 020E through ALR 030E.

3. Recommended power lead wire sizes for 3 conductors per conduit are based on 100% conductor ampacity in accordance with NEC. Wire sizes for 6 conductors per conduit are based on 80% conductor ampacity in accordance with NEC. Voltage drop has not been included. Therefore, it is recommended that power leads be kept short. All terminal block connections must be made with copper (type THW) wire.

4. The unit power terminal block may have 2 lugs per phase. Single or parallel conductors should be used for power connections as listed under “Recommended Power Lead Wire Size.”

5. “Recommended Fuse Sizes” are selected at approximately 150% of the largest compressor RLA, plus 100% of all other loads in the circuit.

6. “Maximum Fuse Sizes” are selected at approximately 225% of the largest compressor RLA, plus

100% of all other loads in the circuit.

7. The recommended power lead wire sizes are based on an ambient temperature of 86° F. Ampacity correction factors must be applied for other ambient temperatures. Refer to the National Electrical

Code Handbook.

Voltage Limitations:

Within

±

10% of nameplate rating

Notes for “Compressor and Condenser Fan Amp Draw”:

1. Compressor RLA values are for wiring sizing purposes only but do not reflect normal operating current draw at rated capacity. If unit is equipped with SpeedTrol condenser fan motors, the first motor on each refrigerant circuit is a single phase, 1hp motor, with a FLA of 2.8 amps at 460 volts,

5.6 amps at 208, 230, and 575 volts.

2. Single point power supply requires a single disconnect to supply electrical power to the unit.

This power must be fused.

3. All field wiring to unit power block or optional non-fused disconnect switch must be copper.

4. All field wire size values given in table apply to 75° C rated wire per NEC.

16

ALR 020E through 030E IOMM ALR2

IOMM ALR2

5

Figure 7, ALR 020E through ALR 030E, Typical Field Wiring Diagram

UNI T MAIN

3 PHASE

BK

OPTIONAL FUSED

CONTROL CIRCUIT

TRANSFORMER

1

13 COO ATER

540

2

F1

S1

4

17

R (SEENO E A)

120 V

24 V

T2

2 7

WH

545

16

NB

18

AUTO

ON

OFF

TI MECLOCK

CONTACT

LEGEND

FIELD CONNECTION TERMINAL

FACTORY WIRING

FIELD WIRING

NOTE:

COOLER HEATER ON A SEPARATE DISCONNECT

SWITCH FROM THE MAIN UNIT POWER SUPPLY

SOTHAT THE UNIT MAYBE SHUT DOWN WITH-

OUT DEFEATING THE FREEZE PROTECTION

PROVIDED BY THE COOLER HEATER. TOAC-

COMPLISH THIS, REMOVE WIRES 54 0 AND 545

AND FIELD WIRE TERMINALS 1 3 AND 16 TO A

SEPARATE 11 5V CIRCUIT.

6

7

CHI LLER

FLOWSWI TCH

CONTACT

8

CHILLER CONTROL

28

CHILLERCONTROL

15

Note: See control and power wiring diagrams on unit control panel for specific unit information.

ALR 020E through 030E

17

Dimensional Data

Figure 8, 020E through ALR 030E Dimensions

18

System Maintenance

General

On initial startup and periodically during operation, it will be necessary to perform certain routine service checks. Among these are taking condensing and suction pressures. On units ordered with gauges, condensing and suction pressures can be read from the vertical support on the side of the unit adjacent to the compressors.

The gauges are factory installed with a manual shutoff valve on each gauge line. The valves should be closed at all times except when gauge readings are being taken.

Fan Motor Bearings

The fan motor bearings are of the permanently lubricated type. No lubrication is required.

Electrical Terminals

WARNING

Electric shock hazard. Turn off all power before continuing with following service.

Normal heating and cooling of the wire will cause terminals to loosen. Retightened all power electrical terminals every six months.

Condensers

Condensers are air cooled and constructed with 3/8” (9.5mm) O.D. internally finned copper tubes bonded in a staggered pattern into slit aluminum fins. No maintenance is ordinarily required except the occasional removal of dirt and debris from the outside surface of the fins. Use locally purchased foaming condenser coil cleaners for periodic cleaning of the coil. Condenser cleaners may contain harmful chemicals, be careful when using cleaners. Care should be taken not to damage the fins during cleaning.

ALR 020E through 030E IOMM ALR2

Service

Refrigerant Sightglass

Observe the refrigerant sightglass monthly. A clear glass of liquid indicates adequate refrigerant charge in the system to ensure proper feed through the expansion valve. Bubbling refrigerant in the sightglass indicates the system is short of refrigerant charge. Refrigerant gas flashing in the sightglass could also indicate an excessive pressure drop in the line, possible due to a clogged filterdrier or a restriction elsewhere in the system. The sightglass indicates what moisture condition corresponds to a given element color. If the sightglass does not indicate a dry condition after about

12 hours of operation, the unit should be pumped down and the filter-driers changed.

IOMM ALR2

WARNING

Disconnect all power before doing any service inside the unit.

CAUTION

Service on this equipment is to be performed by qualified service personnel with special regard to regulations concerning release of refrigerant to the atmosphere.

Note: Repeated tripping of safety controls must be investigated and corrected.

Thermostatic Expansion Valve

The expansion valve is responsible for allowing the proper amount of refrigerant to enter the evaporator regardless of cooling load. It does this by maintaining a constant superheat. (Superheat is the difference between refrigerant temperature as it leaves the evaporator and the saturation temperature corresponding to the evaporator pressure.) Typically, superheat should run in the range of 10

°

F to 15

°

F.

The superheat setting can be adjusted by removing the cap at the bottom of the valve to expose the adjustment screw. Turn the screw clockwise (when viewed from the adjustment screw end) to increase the superheat setting and counterclockwise to reduce superheat. Allow time for system rebalance after each superheat adjustment.

The expansion valve, like the solenoid valve, should not normally require replacement, but if it does the unit must be pumped down by following the steps involved when changing a filter-drier.

If the problem can be traced to the power element only, it can be unscrewed from the valve body without removing the valve, but only after pumping the unit down.

Filter-Driers

To change the liquid line filter-drier, close the field supplied manual liquid line shutoff valve (see

Figure 4). By jumping out the low pressure control allow the unit to pump down to 0-5 PSIG

(0-34 kPa). When the evaporator pressure reaches 0-5 PSIG (0-34kPa), shut the unit off at the disconnect. Front seat the suction service valve, remove and replace the filter-drier, evacuate and remove the jumper.

After the filter-drier has been changed, a leak check is recommended before returning unit to operation.

ALR 020E through 030E

19

Liquid Line Solenoid

The liquid line solenoid valve does not normally require any maintenance. It may, however, require replacement of the solenoid coil. The solenoid coil may be removed from the valve body without opening the system by disconnecting power to the unit. The coil can then be removed from the valve body by simply removing the nut or snap ring located at the top of the coil.

Standard Controls

Note: Perform an operational check on all unit safety controls once per year.

Thermostat

The thermostat provided as standard on ALR 020E through 030E is the Johnson Controls System 350.

It is factory calibrated for use as a return water control, with the sensor strapped to the heat exchanger water inlet. The A350 module provides a single stage of cooling. Additional staging can be obtained by adding S350 stage modules, one stage per module. Modules are connected via five pin male/female connectors with no interconnecting wiring required.

A350 Electronic Temperature Control

The A350 temperature module has a visible control range scale and a knob-adjusted control point. An

LED indicator located on the face of the control will be illuminated when the relay is energized.

As shown in Figure 9, the A350 module’s two adjustment potentiometers are set per

“Recommended Settings” below. To adjust the A350 differential setting, remove the four corner screws and adjust to the desired differential. The control point setting can be adjusted with the cover in place and is also set per “Recommended Settings’. Important: The control point does not reflect either the desired return or leaving water temperature, but rather a control point that will allow the unit to deliver the desired average leaving water temperature specified. Step unloading systems will always fluctuate around a desired control point.

S350 Stage Adder Module

The S350 module receives its power, control point and sensor input from the A350 module. As shown in Figure 9, the S350 module has both offset and differential potentiometers set per “Recommended

Settings”. Offset is the number of degrees above the A350 control point at which the S350 will stage off. “Differential” is the number of degrees above offset at which the S50 will stage on. Both offset and differential adjustments require cover removal.

20

ALR 020E through 030E IOMM ALR2

Recommended Settings

Control has been factory set for a 44

°

F (6.7

°

C) leaving water temperature. The dial shows leaving water temperature based on a 10 degree F (12.2 degree C) built in offset from the dial setting. The control settings are as follows:

1 Stage: A350 (CP1 Relay 1) dial setpoint 44

°

F (6.7

°

C)

Control differential 4

°

F (2.2

°

C)

2 Stage: A350 (CP1 Relay 1) dial setpoint 44

°

F (6.7

°

C)

Control differential 4

°

F (2.2

°

C)

S350 (CP1 Relay 2) control differential 4

°

F (2.2

°

C)

Offset 5

°

F (2.8

°

C)

3 Stage: A350 (CP1 Relay 1) dial setpoint 44

°

F (6.7

°

C)

Control differential 4

°

F (2.2

°

C)

S350 (CP1 Relay 2) control differential 4

°

F (2.2

°

C)

Offset 3

°

F (1.7

°

C)

S350 (CP1 Relay 2) control differential 4

°

F (2.2

°

C)

Offset 6

°

F (3.3

°

C)

If a different leaving water temperature is needed, set the dial on the CP1 to the desired leaving water setting. If the Delta-T between the entering and the leaving water is not 10 degrees F, follow the rules set below.

12

°°F Delta-T: Set the dial setting 1 degree F (0.6 degrees C) above the desired leaving water

temperature.

8

°°F Delta-T: Set the dial setting 1 degree F (0.6 degrees C) below the desired leaving water

temperature.

Control Checkout

1. Be sure the heat/cool switch is set for cooling

2. Set all offset and differential potentiometers per Figure 9 or job specifications

3. After necessary adjustments have been made, apply power to the control, put the system in operation, and observe at least one complete operating cycle.

Figure 9, Temperature control details

IOMM ALR2

Repairs and Replacement

Field repairs or calibration must not be made. Sensors and replacement modules are available through

McQuay parts distributors. Sensor resistance is 1005 ohms at 70

°

F (21.1

°

C), with 4.4 ohms per 1 degree F (0.6 degrees C).

ALR 020E through 030E

21

22

High Pressure Control

The high pressure control is a single pole pressure activated switch that closes on a rise in pressure.

When the switch closes, it de-energizes the compressor circuit preventing unit operation until the high pressure control is reset. The control is factory set to close at 400 PSIG and open at 300 PSIG.

The control is attached to a Schrader fitting on the discharge line located in the compressor compartment.

To check the control, either block off the condenser surface or start the unit with condenser fan motors off and observe the cutout point of the control on the high side of the system. Resetting is accomplished by opening and closing control stop switch S1.

CAUTION

The control stop switch S1 should be near at hand in case the high pressure control malfunctions. After testing the high pressure control, leak check the pressure relief device.

Low Pressure Control

The low pressure control is a single pole pressure switch that closes on a pressure rise. It senses evaporator pressure and is factory set to close at 60 PSI and automatically opens at 35 PSIG. To check the low pressure control (unit must be running), remove wire to de-energizing R-3 relay which in turn will de-energize the liquid line solenoid. As the compressor pumps down, condenser pressure will rise and evaporator pressure will drop. The lowest evaporator pressure reached before cut-out is the cutout setting of the control. Reconnecting the wire will energize the liquid line solenoid allowing evaporator pressure to rise. The highest evaporator pressure reached before compressor restart is the cut-in setting of the control.

Compressor Lockout

Compressor lockout consists of a 5-minute time delay TD1. It is wired in series with the R5 safety relay that energizes after 5 minutes, enabling the compressor to start. Its purpose is to prevent rapid compressor cycling when cooling demands are erratic.

When the unit thermostat no longer calls for cooling and the compressor contactors have opened, the lockout time delay breaks open the circuit, preventing compressor restart.

The circuit remains open for a period of 5 minutes so that the unit thermostat should call for cooling before the delay period has expired, the compressor will not restart. After 5 minutes the time delay will close its contacts to complete the circuit to R5, enabling the compressor to start. When R9 is energized with the compressor, another set of contacts will shunt around TD1, allowing TD1 to reset open for timing out the next compressor cycle.

To check the time delay, the compressor must be running initially. Allow the unit to pump down by adjusting the temperature control to simulate no call for cooling. Immediately after the compressor has stopped running adjust the temperature control to call for cooling. The compressor should not restart for 5 minutes.

ALR 020E through 030E IOMM ALR2

IOMM ALR2

Compressor Motor Protector

The solid-state compressor motor protector module incorporates a 2-minute “time off” relay utilizing the bleed down capacitor principle. Any time the protection system opens or power to the module is interrupted, the 2-minute “time off” delay is triggered and the module will not reset for two minutes.

Once the 2-minute period is passed the motor protector contacts M1 and M2 reset, provided the protection system is satisfied and power is applied to the module.

Note: If the power circuit is broken once the 2-minute period is passed the pilot circuit will

reset without delay when power is reapplied.

Fantrol Head Pressure Control

FanTrol is the standard method of head pressure control (PC 12) that automatically cycles the condenser fan motor in response to condenser pressure. This maintains head pressure and allows the unit to run at low ambient air temperatures down to 40

°

F (4.4

°

C).

FanTrol is a nonadjustable control set to open at 150 psig and close at 225 psig. The control is attached to a Schrader fitting on the discharge line inside the compressor compartment.

Optional Controls

SpeedTrol Head Pressure Control

The SpeedTrol method of head pressure control operates in conjunction with FanTrol by modulating the motor speed on one fan in response to condenser pressure. By reducing the speed of the last fan as the condensing pressure falls, the unit can operate to 0

°

F (-18

°

C) ambient air temperature.

The SpeedTrol fan motor is a single phase, 230/460 volt, thermally protected motor specially designed for variable speed operation. The solid-state speed control SC11 is mounted in the unit control panel and is connected to a Schrader fitting on the liquid line. The control is factory set to start modulating fan speed at 230 psig, and will maintain a minimum condensing pressure of 170 to 180 psig. Minimum starting voltage for SpeedTrol motors is 120 volts.

A low ambient timer is included with the optional SpeedTrol. It consists of a solid-state, normally closed time delay wired in series with a relay. These are both wired in parallel to the liquid line solenoid valve so that when the solenoid valve is energized by the unit thermostat the low ambient start relay is also energized through the time delay. The relay has contacts that essentially shortcircuit the low pressure control and allow the compressor to start with the low pressure control open.

After about 2-3/4 minutes, the time delay will open and de-energize the relay. If the system has not built up enough evaporator pressure to close the low pressure control, the compressor will stop. The time delay can be reset to its original normally closed position by de-energizing relay R3 in the thermostat circuit.

Due to the vertical condenser design, it is recommended that the unit be oriented so that prevailing winds blow parallel to the unit length, thus minimizing effects on minimum ambient operation. If it is not practical to orient the unit in this manner, a wind deflector should be constructed.

ALR 020E through 030E

23

24

Figure 10, Low Ambient Start Time Delay/Relay R13)

Hot Gas Bypass

Hot gas bypass is a system for maintaining evaporator pressure at or above a minimum value. The purpose for doing this is to keep the velocity of the refrigerant as it passes through the evaporator high enough for proper oil return to the compressor when cooling load conditions are light. It also maintains continuous operation of the chiller at light load conditions.

The solenoid valve should be wired to open whenever the liquid line solenoid valve is energized.

This can be accomplished by wiring the hot gas solenoid (SV5) in parallel with the liquid line solenoid at terminals 3 and 5. The pressure regulating valve is factory set to begin opening at 58 PSIG (32

°

F for

R-22) when the air charged bulb is in an 80

°

F ambient temperature. The bulb can be mounted anywhere as long as it senses a fairly constant temperature at various load conditions. The compressor suction line is one such mounting location. It is generally in the 50

°

F to 60

°

F range.

The chart below indicates that when the bulb is sensing 50

°

F to 60

°

F temperatures, the valve will begin opening at 54 PSIG. This setting can be changed as indicated above, by changing the pressure setting, remove the cap on the bulb and turn the adjustment screw clockwise. To lower the setting, turn the screw counterclockwise. Do not force the adjustment beyond the range it is designed for, as this will damage the adjustment assembly.

The regulating valve opening point can be determined by slowly reducing the system load (or increasing the required chiller water temperature setting indicated on the unit thermostat), while observing the suction pressure. When the bypass valve starts to open, the refrigerant line on the evaporator side of the valve will begin to feel warm to the touch.

WARNING

The hot gas line may become hot enough to cause injury in a very short time, be careful during valve checkout.

On installations where the condensing unit is remote from the evaporator, it is recommended that the hot gas bypass valve be mounted near the condensing unit to minimize the amount of refrigerant that will condense in the hot gas line during periods when hot gas bypass is not required.

ALR 020E through 030E IOMM ALR2

Figure 11, Hot Gas Bypass Piping

Figure 12, Hot Gas Bypass Adjustment

IOMM ALR2 ALR 020E through 030E

25

26

Control Settings

Table 7, ALR Controls, Settings And Functions

DESCRIPTION FUNCTION SETTING

HIGH PRESSURE

CONTROL

LOW PRESSURE

CONTROL

MOTOR

PROTECTOR

OIL PRESSURE

CONTROL

HIGH PRESSURE

UNLOADER

FANTROL

CONTROL

PHASE/VOLTAGE

MONITOR

SPEEDTROL

CONTROL

LIQUID LINE

SOLENOID

PUMPDOWN

SWITCH

CONTROL STOP

SWITCH

HGBP SOLENOID

VALVE

LOCKOUT TIME

DELAY

PART WINDING

START DELAY

LOW AMBIENT

START DELAY

COMPRESSOR

UNLOADER

CONTROL

UNIT MASTER

THERMOSTAT

Stops compressor at high discharge

Stops compressor at low suction

High motor temperature

Stops compressor at low oil pressure with

120 second delay

Unloads compressor at high discharge pressure

Cycles fans by condensing pressure

Protects against power loss, phase loss, phase reversal

Modulates fan speed by condensing press.

Close liquid line for pumpdown

To manually pump down the unit

Shuts down the entire unit

Close HGBP for pumpdown

Prevents compressor short cycling

Reduces inrush at startup

Bypass LP control for cold starts

Energize to unload , de-energize to load compressor

Stages compressor by return water

SYMB

OL

HP1

LP1

MP1

OP1

PC5

PC12

TC13

PVM

SC11

SV1

PS1

S1

SV5

TD1

TD5

TD9

U1, 2

CP1

Closes at 400

PSIG

Opens at 300

PSIG

Closes at 60 PSIG

Opens at 35 PSIG

500 ohms cold to

20,000 ohms hot

Opens at 14 psig.

If pressure drops below 10 psig, closes energizing

120 second delay

Closes at 375 psig

Opens at 300 psig

See FanTrol description

N/A

Maintains min. of

170 to 180 PSIG

N/A

Auto/manual

On/Off

N/A

Fixed 5 minutes

1 second

2 3/4 minutes

N/A

Adjustable from

30

°

F to 60

°

F

FREEZE

CONTROL

COOLER HEATER

THERMOSTAT

HIGH RETURN

WATER

THERMOSTAT

Prevents evaporator freeze-up. Time delay to prevent nuisance trips

Energizes chiller heater to prevent freeze-up

Unloads compressor at high return water temperature

FS1,2

TD

15,16

TC2

TC11

Closes at 52 psig

Opens at 56 psig

30 second TD

38

°

F

Adjustable 0

°

F to

100

°

F, 70

°

F recommended

RESET

Auto

LCATION

On compressor

Auto

Auto 2700 to

4500 ohms

Manual

On compressor

Compressor junction box

Control box

Auto

Auto

At normal condition

N/A

N/A

N/A

N/A

N/A

Auto

N/A

Auto

N/A

N/A

Manual thru

RS1, 2

Auto

Auto

Top of control box

Control box

Control box

Top of

Control box

Field installed

Control box

Control box

Condenser section

Control box

Control box

Control box

On compressor

Control box

Sensor in return water line

Suction line near cooler

On cooler

Control Box

DIFFERENTIAL

100 PSIG fixed

25 PSIG fixed

15,000 ohms

5 psig

75 psig

See FanTrol description

N/A

Adjustable from

1

°

F to 3

°

F per stage

4 psig fixed

N/A

3

°

F fixed

N/A

N/A

N/A

N/A

N/AN/A

N/A

N/A

N/A

N/A

ALR 020E through 030E IOMM ALR2

IOMM ALR2

Troubleshooting Chart

Table 8, Troubleshooting Chart

PROBLEM

COMPRESSOR WILL

NOT RUN

COMPRESSOR NOISY

OR VIBRATING

HIGH DISCHARGE

PRESSURE

LOW DISCHARGE

PRESSURE

HIGH SUCTION

PRESSURE

LOW SUCTION

PRESSURE

COMPRESSOR WILL

NOT LOAD OR

UNLOAD

LOAD/UNLOAD

INTERVAL TOO

SHORT

LOSS OF OIL

PRESSURE OR

NUISANCE TRIPS

POSSIBLE CAUSES

1. Main switch open

2. Fuse blown, breakers open

3. Thermal overloads tripped

4. Defective contactor or coil

5. System off by safety device

6. No cooling required

7. Liquid line solenoid will not open

8. Motor electrical problem

9. Loose wiring

1. Refrigerant flooding compressor

2. Improper line support

3. Worn compressor

1. Noncondensables in system

2. Refrigerant overcharge

3. Discharge valve partially closed

4. Fan not running

5. Dirty condenser coils

6. FanTrol out of adjustment

1. Faulty condenser control

2. Low refrigerant charge

3. Low suction pressure

1. Excessive load

2. Expansion valve overfeeding

1. Lack of refrigerant

2. Evaporator dirty

3. Clogged filter-drier

4. Clogged suction strainer

5. Expansion valve malfunctioning

6. Low condensing temperature

7. Compressor will not load

8. Low evaporator air flow

1. Defective capacity control

2. Unloader mechanism defective

3. Faulty thermostat stage/broken wire

4. Stages not set for application

1. Erratic water thermostat

2. Insufficient water flow

1. Clogged suction oil strainer

2. Excessive liquid in crankcase

3. Oil pressure gauge defective

POSSIBLE CORRECTIVE STEPS

1. Close switch

2. Check electrical circuits and motor windings for shorts. Check for overloads and loose connections.

Replace fuse or reset breaker.

3. Check unit when back on line, auto reset

4. Repair or replace

5. Determine cause and correct

6. None, should start on call for cooling

7. Repair or replace coil

8. Check motor for open or short circuit, or burnout

9. Check all wire junctions. Tighten all terminals.

1. Check expansion valve setting

2. Relocate or add supports

3. Replace

1. Remove with authorized procedures

2. Remove excess

3. Open valve

4. Check electrical circuit

5. Clean coil

6. Adjust FanTrol setting

1. Check condenser control operation

2. Check for leaks. Add refrigerant

3. See low suction pressure steps below

1. Reduce load or add capacity

2. Check remote bulb. Regulate superheat

1. Check for leaks. Repair and replace refrigerant.

2. Clean chemically

3. Replace

4. Clean strainers

5. Check and adjust for proper superheat

6. Check discharge pressure control devices

7. See steps below for correcting failure to unload

8. Adjust airflow

1. Replace

2. Replace

3. Replace

4. Adjust thermostat setting

1. Replace

2. Adjust flow

1. Clean

2. Check crankcase heater. Reset TXV for higher superheat, Check liquid line solenoid valve operation.

3. Repair or replace. Keep valve closed except when taking readings

4. Replace

5. Replace

6. Reverse compressor rotation

COMPRESSOR LOSES

OIL

MOTOR OVERLOAD

RELAYS OPEN OR

BLOWN FUSES

COMPRESSOR

THERMAL SWITCH

4. Oil pressure switch defective

5. Worn oil pump

6. Oil pump reversing gear stuck in wrong position

7. Worn bearings

8. Low oil level

9. Loose fitting on oil lines

10. Pump housing gasket leaks

11. Flooding of refrigerant to into crankcase.

12. Insufficient water flow

1. Lack of refrigerant

2. Excessive compression ring blowby

3. Suction superheat too high

4. Crankcase heater burned out

1. Low voltage during high loads

2. Defective or grounded motor wiring

3. Loose power wiring

4. High condensing temperature

5. Unbalanced voltage

6. High ambient at overload relay

1. Operating beyond design conditions

7. Replace compressor

8. Add oil

9. Check and tighten system

10. Replace gasket

11. Adjust TXV

12. Adjust water flow.

1. Check for leaks and repair

2. Replace compressor

3. Adjust superheat

4. Replace crankcase heater

1. Check supply voltage

2. Replace compressor

3. Check all connections and tighten

4. See steps for high discharge pressure

5. Check voltage. Contact power company

6. Provide ventilation to reduce heat

1. Add facilities so conditions are within allowable limits

ALR 020E through 030E

27

OPEN

..

28

ALR 020E through 030E IOMM ALR2

Post Office Box 2510, Staunton, Virginia USA (540) 248-0711

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Related manuals
