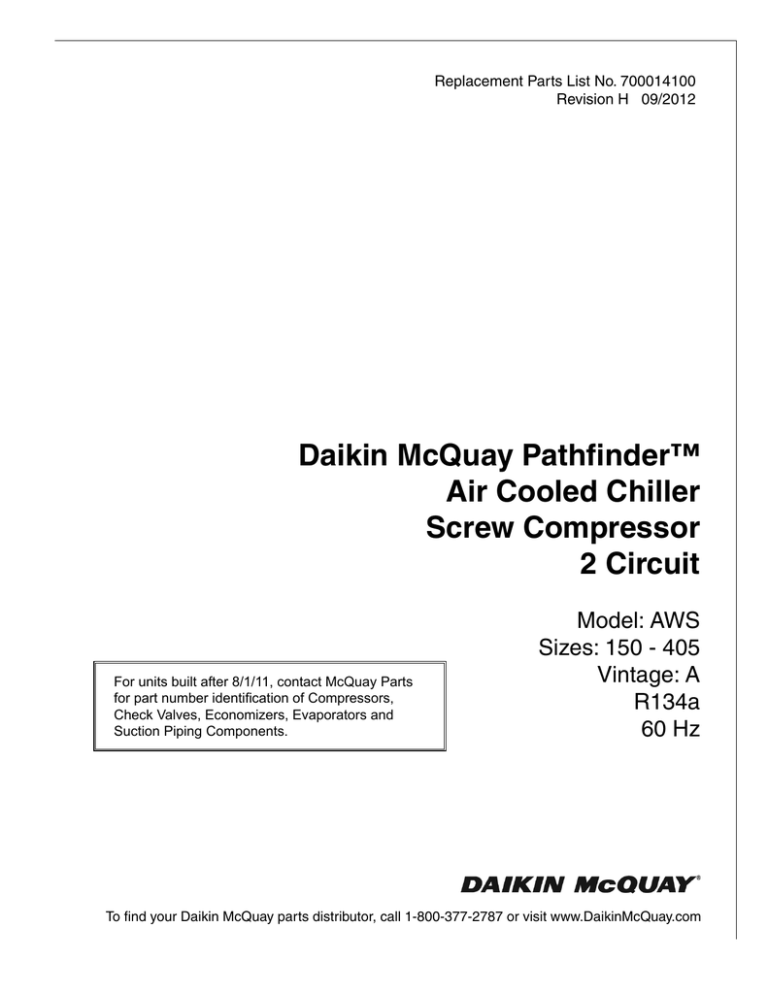

Replacement Parts List No. 700014100

Revision H 09/2012

Daikin McQuay Pathfinder™

Air Cooled Chiller

Screw Compressor

2 Circuit

For units built after 8/1/11, contact McQuay Parts for part number identification of Compressors,

Check Valves, Economizers, Evaporators and

Suction Piping Components.

Model: AWS

Sizes: 150 - 405

Vintage: A

R134a

60 Hz

To find your Daikin McQuay parts distributor, call 1-800-377-2787 or visit www.DaikinMcQuay.com

Contents

Parts List Revision History.................................................................................................................................. 3

Nomenclature

Serial Number .............................................................................................................................................. 4

Unit Model Number- Dataplate .................................................................................................................... 4

Unit Model Number- Complete ............................................................................................................... 5 - 6

Electrical Legend - Units with Wye Delta or SS Starter ............................................................................... 7 - 10

Electrical Legend - Units with VFD Starter .................................................................................................11 - 14

Unit Layout ....................................................................................................................................................... 15

Refrigeration Section

Compressor Charts .................................................................................................................................... 16

Compressors .............................................................................................................................................. 17

Compressor Components ................................................................................................................... 18 - 19

Suction Lines, Discharge Lines, Liquid Injection Lines ....................................................................... 20 - 21

Suction Shut Off Valves ............................................................................................................................. 22

Liquid Lines- Standard Efficiency Units ..................................................................................................... 23

Liquid Lines with Economizer- High & Premium Efficiency Units ...................................................... 24 - 26

Condenser Coils and Fans ........................................................................................................................ 27

Total Fans per Unit ..................................................................................................................................... 28

Evaporator Diagram ................................................................................................................................... 29

Evaporator Components ..................................................................................................................... 30 - 31

Coil and Base Frame Grilles............................................................................................................................. 32

Coil Louvers...................................................................................................................................................... 33

Base Frame Louvers ................................................................................................................................. 34 - 36

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Box Locations and Label Detail ........................................................................................................... 37

Control Panel Detail ............................................................................................................................. 38

Power Panel Detail ....................................................................................................................... 39 - 41

Solid State Starter Panel .............................................................................................................. 42 - 43

Wye-Delta Starter Panel ............................................................................................................... 44 - 45

Power Factor Correction Capacitors (PFCC) ............................................................................................ 46 - 47

Units with VFD Starters (Code 9 = VE or VF)

Box Locations and Label Detail ........................................................................................................... 48

Control Side .................................................................................................................................. 49 - 51

Power Side ................................................................................................................................... 52 - 60

Control Box Exhaust and Intake Fans ................................................................................................. 61

Terminal Box ..................................................................................................................................................... 62

Accessories

Units with Wye-Delta or Solid State Starter (Code 9 = WD or SS)

Isolator Kits - Rubber-In-Shear ............................................................................................................ 63

Isolator Kits - Spring ............................................................................................................................ 64

Units with VFD Starter (Code 9 = VF or VE)

Isolator Kits - Rubber-In-Shear ............................................................................................................ 65

Isolator Kits - Spring ............................................................................................................................ 66

Flow Switch ................................................................................................................................................ 67

Sound Enclosure Kit .................................................................................................................................. 67

Alarm Bell ................................................................................................................................................... 67

Inlet Strainer ............................................................................................................................................... 67

Field-Installed Fan VFD Kits ...................................................................................................................... 68

High Ambient Exhaust Fan Kit ................................................................................................................... 68

Rapid Restore ............................................................................................................................................ 68

Base and Coil - Grille and Louver Kits.............................................................................................................. 69

Base Grille Kits ................................................................................................................................................ 69

Coil Louver Kits ................................................................................................................................................ 69

Base & Coil Louver Kits ................................................................................................................................... 69

BACnet MS/TP Communications Module ......................................................................................................... 70

BACnet with IP/Ethernet ................................................................................................................................... 70

MODBUS Communications Module ................................................................................................................. 70

LonMark Communications Module ................................................................................................................... 70

Remote Display Kit ........................................................................................................................................... 70

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 2

Parts List Revision History

Athru E

F 04/12

Description

Revision History archived for revisions A through E.

Page 21: Changed ST1 & 2 Sensor-Suct Temp. to two choices, Straight and Bent.

Added length description "20 ft." to WD1 & 2 Sensor- Discharge Temp.

Pages 23 & 25: Changed part # for Ref. 113 Filter Drier Core, was 070339101.

Page 27: Added length description "20 ft." to WAA Sensor- Outdoor Air. Changed Motor part #s, were 10000108801, 02, 03, 04. Added info for Condenser Coil location and identification.

G 07/12

Page 30: Added length description "60 ft." to WIE & WOE Sensor- Evap.

Page 6: Corrected Code 29 nomenclature to SL= SD + LL Solenoid, was DS + LL Solenoid.

Pages 18 & 19: Changed part # for Ref. 14 Slide Indicator from 330591102 to 330591103.

Page 21: Added Gasket- Discharge Shut-Off Valve 070199144 to Dischg Line groups. Added

Gasket- Discharge Shut-Off Valve 070199117 to footnotes 1 and 2.

Page 26: Corrected titles to say Economizer, Circuit 1 and 2 (was Compressor). Corrected

Ckt. 2 codes: Size 230 Prem Eff to C (was A), Size 280 Prem Eff to B (was C), Size 320

H

Prem (was

Page 27: Corrected Ref. 5 Fan Motor, 460V to 10000108873, was -74; Fan Motor 575V to was

Pages 34-36: Corrected title to Code 28= B, was Code 28= B, C, L.

Page 38: Added Advanced Web Module and footnote 2.

Page 43: Corrected description of where used for 3000479900 to AWS 280-350, Std Eff, Ckt 2

150-250).

Page 50: Added Advanced Web Module and footnote 2. Changed description for EEXV1,2 to

Code 29 = LD or SL and Code 29 = ND or SD, was With or Without UPS.

Page 53: Corrected description for CT4,5,6 to Current Transformer, was Current Sensor.

09/12

Page 60: Removed "Prem" from description for F2, Sizes 380, 405.

Page 62: Expanded Terminal Plate information to include Type A and Type B.

Page 68: Corrected Rapid Restore (without VFD starter) to 333930501, was 333930601.

Page 70: Removed LonMark Comm. Module Only from Ref. 920.

Pages 18 & 19: Corrected descriptions for Liq Injection Fittings. Added Liq Inj Fitting- Rotolock to

Copper and Liq Inj O-Ring.

McQuay International, 13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 3

Nomenclature

Plant Identification

STN = Staunton, VA

U= Unit

Serial Number

STN U 08 05 038

Year of Manufacture

09= 2009

10= 2010

11= 2011 etc.

Serial Number

(build sequence)

Month of Manufacture

01= January

02= February

03= March

04= April

05= May

06= June

07= July

08= August

09= September

10= October

11= November

12= December

Unit Model Number- Dataplate

AWS 300 A D S 27

Voltage

27= 460/60/3

12= 208/60/3

29= 230/60/3

46= 380/60/3

37= 575/60/3

Platform

S= Standard Efficiency

H= High Efficiency

P= Premium Efficiency

Number of Compressors (circuits)

D= 2

Vintage

Nominal Tonnage

ex. 300= 300 Tons

Unit Type:

AWS= Air- Cooled Screw Compressor Chiller

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 4

Nomenclature

Unit Model Number- Complete

AWS 300A D SE NN ST S A WD Y 27 WN V N N N LM N G Y N N VL S R

Code 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25

L F G ND

Code 26 27 28 29

YNNNNNNN0000000N

30- 36

N NNYNNNNNNNN0000000000000000000

37 38- 45

Code

ENDSUDPLYNNNNNNNNNNNRA1D00 NN M 6 NN Y S 00

46-55 56 57 58 59 60 61 62

02 Size (in nominal tons)

150A= 150 Tons 'A' Vintage 280A= 280 Tons 'A' Vintage

175A= 175 Tons 'A' Vintage 300A= 300 Tons 'A' Vintage

190A= 190 Tons 'A' Vintage 320A= 320 Tons 'A' Vintage

210A= 210 Tons 'A' Vintage 350A= 350 Tons 'A' Vintage

230A= 230 Tons 'A' Vintage 380A= 380 Tons 'A' Vintage

250A= 250 Tons 'A' Vintage 405A= 405 Tons 'A' Vintage

03 Number of Compressors

D= 2

14 Meters

N= None

A= Meters: Unit Amp & Volt

15 Control Box Ambient

N= None

H= With Exhaust Fans

16 Compressor Capacitor

N= None

C= Power Correction Capacitors

04 Platform

SE= Standard Package- Standard Efficiency

HE= Standard Package- High Efficiency

PE= Standard Package- Premium Efficiency

05 Construction

NN= Standard

17 Communication

NN= None

LM= LonMark

MB= Mod Bus

BN= BACnet w/ MSTP

BE= BACnet w/ Ethernet

06 Sound

ST= Standard Sound

LN= Low Noise- Sound Enclosure

18 Display Options

N= On Controller Only

U= Unit Remote Display

07 Unit Operation

S= Standard (40° - 60° F LWT)

A= Lower Operation (34° - 39° F LWT)

B= Brine Operation (20° - 33° F LWT)

19 Ground Fault

N= None

G= Ground Fault Protection for the Unit

20 Always Y

08 Condenser Coil Fins

A= Aluminum Fin (Standard)

C= Copper Fin

B= Aluminum Fin w/Prefab Black Fin Coating

E= Aluminum Fin w/Electro Fin Coating

F= Copper Fin w/Electro Fin Coating

21 Unit Options

N= None

C= 115V Convenience Outlet

L= Slide Transducer

B= C + L

09 Compressor Starter

WD= Wye- Delta w/Compressor Overloads

SS= Solid State

VF= VFD without EMI Filter

VE= VFD with EMI Filter

22 Water Flow

N= None

A= Water Flow Indication on Evaporator Only

23 Evaporator Connection

VL= Victaulic/ Left Hand

VR= Victaulic/ Right Hand

10 Always Y

11 Voltage

27= 460/60/3 12= 208/60/3

29= 230/60/3 46= 380/60/3

37= 575/60/3

24 Evaporator Insulation

S= Standard Evaporator- Single Layer

D= Standard Evaporator- Double Insulation

25 Relief Valve

R= Single Valve

12 Power Connection

PC= Single Point Power Block & Circuit Breakers

DC= Single Point Disconnect & Circuit Breakers

DH= High Short Circuit Current Rating + DC

WN= Multiple Point Disconnect- No Circuit Breaker

WH= High Short Circuit Current Rating + WN

26 Fans

L= Standard Low Noise Fan Motors

27 Head Pressure

F= Fantrol Only (35° F Minimum)

V= VFD (First Fans/ Circuit)

13 Phase Voltage

V= Phase & Under/Over Voltage Protection w/LED

N= None

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 5

Nomenclature

Unit Model Number- Complete, Continued

28 Guards

G= Condenser Coil Grilles Only

F= Condenser Coil & Base Frame Grilles

L= Condenser Coil Louvers

B= Condenser Coil Louvers & Base Guard Louvers

C= Condenser Coil Louvers and Base Frame Grilles

46 Approvals

E= ETL/CETL Approval & ARI

T= ETL/CETL Approval & No ARI

29 Tubing Options

ND= With Discharge Shut-Off Valve

SD= With Suction and Discharge Shut-Off Valve

LD= ND + Liquid Line Solenoid

SL= SD + Liquid Line Solenoid

47 CRN- Evaporator

1= CRN- BC

3= CRN- Saskatchewan

5= CRN- Ontario

2= CRN- Alberta

4= CRN- Manitoba

6= CRN- Quebec

7= CRN- New Brunswick 8= CRN- Nova Scotia

9= CRN- P.E.I.

0= CRN- NewFoundland

N= None

U= CRN- Yukon

30 Always Y

31 Water Pump

NN= None

32 Pump Type

NNNN= No Pump Package

PPSS= Pump Package Air- Cooled Screw Single Pump

PPSD= Pump Package Air- Cooled Screw Dual Pump

33 Pump Connection

N= No Pump Package

6= 6" 8= 8" T= 10"

48 Unit Start

DSU= Domestic Start Up

CPL= Canadian Start Up

ISU= International- No Start Up Provided

49 Standard Warranty

DPL= Domestic 1st Year Standard

CPL= Canadian 1st Year Standard Warranty

TPN= International 1st Year Standard Warranty

50 Always Y

34 Pump Flow

Actual 4 digit number based on conditions

35 Total Head

Actual 3 digit number based on conditions

36 Pump Starter

N= No Pump Package

S= Pump Package Starter

51 Extended Compressor Warranty

NNNN= No Extended Compressor Warranty

CPE*= Compressor Only- Parts Only (*= no. of years)

CBE*= Compressor Only- Parts & Labor (*= no. of years)

52 Always NNN

37 Pump Gauges

N= None

G= Pressure Gauges

38 Pump Suction Valve

N= None

39 Pump Discharge Valve

N= None

40 Always Y

53 Extended Unit Warranty

NNNN= None

EPE*= Ext. Unit- Parts Only (*= no. of years)

EBE*= Ext. Unit- Parts & Labor (*= no. of years)

DPE*= Ext. Unit w/Dual Pumps- Parts Only (*= no. of years)

DBE*= Ext. Unit w/Dual Pumps- Parts & Labor (*= no. of years)

SPE*= Ext. Unit w/Single Pump- Parts Only (*= no. of years)

SBE*= Ext. Unit w/Single Pump- Parts & Labor (*= no. of years)

54 Refrigerant Warranty

NNN= None

RA*= Refrigeant 134a Warranty (*= no. of years)

55 Delayed Warranty Start

D00= 0 months

D**= Delayed Warranty Start (**= number of months)

41 Impeller Trim

NNNN= No Pumps

0000= Impeller Size

42 Expansion Tank

NN= None

43 Buffer Tank

NN= None

44 % of Glycol

000= None

E**= Ethylene; **= %

P**= Propylene; **= %

45 Pump Number

All 0's= None

16 digit number= With Pumps

56 Always NN

57 Brand Name

D= DaikenMcQuay

M= McQuay

58 Hertz

6= 60 Hertz

59 & 60 Always YY

61 Misc.

S= Standard Unit

X= Special

62 Major Unit Change Revision

00= No Revision

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 6

Electrical Legend - Units with Wye Delta or SS Starter

Sch.

AC

AM1

C1

C2

C10

C20

C101

C102

C103

C104

C105

C106

C107

C108

C109

C110

C111

C112

C201

C202

C203

C204

C205

C206

C207

C208

C209

C210

C211

C212

CC1

CC2

DP-1

DP-2

EEXV1

EEXV2

ESV-1

ESV-2

EXV-1

EXV-2

F0-1

F0-2

F1

F2

F5-1

F5-2

F12

F13

F23

F59

F90

F100

F112

Alarm Control

Ammeter

PFCC Capacitor

PFCC Capacitor

EXV-1 Connector

EXV-2 Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Control Compressor Cir. 1

Control Compressor Cir. 2

Condenser Pressure Cir. 1

Condenser Pressure Cir. 2

Expansion Valve Controller Cir. 1

Expansion Valve Controller Cir. 2

Economizer Solenoid Valve Cir. 1

Economizer Solenoid Valve Cir. 2

Electronic Expansion Valve Cir. 1

Electronic Expansion Valve Cir. 2

Crankcase Heater 1 Fuses/ MSP

Crankcase Heater 2 Fuses/ MSP

Compressor 1 Circuit Breaker

Compressor 2 Circuit Breaker

Thermal Relay

Thermal Relay

Outlet Fuse

High Pressure Switch Cir. 1

High Pressure Switch Cir. 2

Evaporator Heater Fuse

Thermostat

Fan Circuit Breaker Cir. 1

Phase Volt Monitor Cir. 1

Location

Control Panel

Switch Box Door

PFCC Enclosure

PFCC Enclosure

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Discharge Line- Circuit 1

Discharge Line- Circuit 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Liquid Line- Circuit 1

Liquid Line- Circuit 2

Liquid Line- Circuit 1

Liquid Line- Circuit 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Power Panel- Right

Power Panel- Right

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Power Panel- Left

Compressor 1

Compressor 2

Control Panel

Control Panel

Power Panel- Left

Power Panel- Left

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 7

Electrical Legend - Units with Wye Delta or SS Starter

K16

K26

K2B-1

K2B-2

KLJ-1

KLJ-2

KM1-1

KM1-2

KM1-3

KM2-1

KM2-2

KM2-3

KM10-1

KM10-2

KM101

KM102

F116

F120

F130

F200

F212

F230

FC

FTB107

FTB110

FTB207

FTB210

FU1

FU2

GFR1

GFR2

K11

KM103

KM105

KM107

KM110

KM201

KM202

KM203

KM205

KM207

KM210

KT13

KT23

KT-1

KT-2

KT1-1

KT1-2

LJV-1

LJV-2

LP1

LP2

LR1

Evaporator Flow Switch

Transformer T1 Protection

Phase Volt Monitor Fuse Cir. 1

Fan Circuit Breaker 2

Phase Voltage Monitor Cir. 2

Phase Volt Monitor Fuse Cir. 2

Fans Control

Fan Terminal Block Cir. 1

Fan Terminal Block Cir. 1

Fan Terminal Block Cir. 2

Fan Terminal Block Cir. 2

PFCC Fuse

PFCC Fuse

Ground Fault Relay Cir. 1

Ground Fault Relay Cir. 2

Emergency Stop Contactor

Fan Stage 1

Fan Stage 2

Contactor

Contactor

Liquid Injection Relay 1

Liquid Injection Relay 2

Compressor Contactor

Compressor Contactor

Compressor Contactor

Compressor Contactor

Compressor Contactor

Compressor Contactor

Contactor

Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Time Delay Relay 1

Time Delay Relay 2

Auxilliary Relay Cir. 1

Aux. Relay Cir. 2

Delay Relay

Delay Relay

Liquid Injection Solenoid Cir. 1

Liquid Injection Solenoid Cir. 2

Low Pressure Switch 1

Low Pressure Switch 2

Line Reactor Cir. 1

Location

Evaporator Outlet

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Control Panel

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

PFCC Enclosure

PFCC Enclosure

Power Panel- Left

Power Panel- Left

Control Panel

Power Panel- Left

Power Panel- Left

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Starter Panel- Compressor 1

Starter Panel- Compressor 1

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Starter Panel- Compressor 2

Starter Panel- Compressor 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Liquid Line/Starter Panel 1

Liquid Line/Starter Panel 2

Compressor 1

Compressor 2

Power Panel- Left

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 8

Sch.

LR2

LSV-1

LSV-2

LT1

LT2

M1

M2

M10

M101

M102

M103

M104

M105

M106

M107

M108

M109

M110

M111

M112

M201

M202

M203

M204

M205

M206

M207

M208

M209

M210

M211

P2

PA1

PA2

PC1

PC2

Q0

Q1

Q2

M212

MP1

MP2

MPR1

MPR2

OP-1

OP-2

P1

Q10

Q11

Q12

Q20

Q101

Q102

Electrical Legend - Units with Wye Delta or SS Starter

Line Reactor Cir. 2

Liquid Line Solenoid Cir. 1

Liquid Line Solenoid Cir. 2

PFCC Lamp

PFCC Lamp

Compressor Cir. 1

Compressor Cir. 2

Forced Ventilation

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Motor Thermal Protection

Motor Thermal Protection

Motor Protection Relay Cir. 1

Motor Protection Relay Cir. 2

Oil Pressure Cir. 1

Oil Pressure Cir. 2

PFCC Contactor 1

PFCC Contactor 2

PFCC Aux Contact 1

PFCC Aux Contact 2

Power Factor Correction

Power Factor Correction

Unit ON - OFF Switch

Pump Down Switch Cir. 1

Pump Down Switch Cir. 2

Location

Power Panel- Left

Liquid Line- Circuit 1

Liquid Line- Circuit 2

PFCC Enclosure

PFCC Enclosure

Base

Base

Switch Box End

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Compressor 1

Compressor 2

PFCC Enclosure

PFCC Enclosure

PFCC Enclosure

PFCC Enclosure

PFCC Enclosure

PFCC Enclosure

Control Panel

Control Panel

Control Panel

Main Power Block or Disconnect Switch 1 Power Panel- Right

Emergency Stop Switch

Automatic Circuit Breaker

Control Box Door

Control Panel

Main Power Block or Disconnect Switch 2 Power Panel- Right

Fan MSP Power Panel- Left

Fan MSP Power Panel- Left

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 9

Sch.

Q103

Q105

Q107

Q110

Q201

Q202

Q203

Q205

Q207

Q210

R1

R2

R5

REC 1

SL-1

SL-2

SP-1

SP-2

SS1

SS2

ST-1

ST-2

T1

T2

T20-1

T20-2

TC

TXV-1

TXV-2

UC

VFD1

VFD2

VM1

W1

W2

WAA

WD-1

WD-2

WIE

WOE

Y2A-1

Y2A-2

Y2B-1

Y2B-2

Y3A-1

Y3A-2

Y3B-1

Y3B-2

YT-1

YT-2

Electrical Legend - Units with Wye Delta or SS Starter

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Compressor Crankcase Heater Cir. 1

Compressor Crankcase Heater Cir. 2

Evaporator Heater

115V Outlet

Slide Indicator Cir. 1

Slide Indicator Cir. 2

Evap. Pressure Circuit 1

Evap. Pressure Circuit 2

Selection Switch 1

Selection Switch 2

Suction Temperature Cir. 1

Suction Temperature Cir. 2

115V Transformer

24V Transformer

Transformer Cir. 1

Transformer Cir. 2

Thermostat- Evaporator Heater

Thermal Expansion Valve Cir. 1

Thermal Expansion Valve Cir. 2

Unit Control- MicroTech III

Fan VFD / SpeedTrol

Fan VFD / SpeedTrol

Volt Meter

Compressor Thermistor Cir. 1

Compressor Thermistor Cir. 2

Air Ambient Sensor

Oil Discharge Temp. Sensor Cir. 1

Oil Discharge Temp. Sensor Cir. 2

Evaporator Entering Water Temperature

Evaporator Leaving Water Temperature

Location

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Power Panel- Left

Compressor 1

Compressor 2

Evaporator Shell

Control Panel

Compressor 1

Compressor 2

Suction Line- Circuit 1

Suction Line- Circuit 2

Voltmeter

Ammeter

Suction Line- Circuit 1

Suction Line- Circuit 2

Power Panel- Left

Power Panel- Left

Starter Panel- Compressor 1

Starter Panel- Compressor 2

Evaporator

Economizer Liquid Line

Economizer Liquid Line

Control Panel

Near front of evaporator

Near front of evaporator

Switch Box Door

Compressor 1

Compressor 2

Condenser Coil Header

Discharge Line- Circuit 1

Discharge Line- Circuit 2

Evaporator Inlet

Evaporator Outlet

Non-Modulating Slide Load Sol. Valve Cir. 1 Compressor 1

Non-Modulating Slide Load Sol. Valve Cir. 2 Compressor 2

Modulating Slide Load Solenoid Valve Cir. 1 Compressor 1

Modulating Slide Load Solenoid Valve Cir. 2 Compressor 2

Non-Mod. Slide Unload Sol. Valve Cir. 1 Compressor 1

Non-Mod. Slide Unload Sol. Valve Cir. 2

Mod. Slide Unload Solenoid Valve Cir. 1

Compressor 2

Compressor 1

Mod. Slide Unload Solenoid Valve Cir. 2

Turbo Solenoid Valve Cir. 1

Turbo Solenoid Valve Cir. 2

Compressor 2

Compressor 1

Compressor 2

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 10

Sch.

AC

AM1

C10

C20

C101

C102

C103

C104

C105

C106

C107

C108

C109

C110

C111

C112

C201

C202

C203

C204

C205

C206

C207

C208

C209

C210

C211

C212

CC1

CC2

DP-1

DP-2

EEXV1

EEXV2

EMI-1

EMI-2

ESV-1

ESV-2

EXV-1

EXV-2

F0-1

F0-2

F1

F2

F10

F11

F12

F13

F23

F59

F90

F100

F116

Electrical Legend - Units with VFD Starter

Alarm Control

Ammeter

EXV-1 Connector

EXV-2 Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Fan Harness Connector

Control Compressor Cir. 1

Control Compressor Cir. 2

Condenser Pressure Cir. 1

Condenser Pressure Cir. 2

Expansion Valve Controller Cir. 1

Expansion Valve Controller Cir. 2

Electromagnetic Interference Filter 1

Electromagnetic Interference Filter 2

Economizer Solenoid Valve Cir. 1

Economizer Solenoid Valve Cir. 2

Electronic Expansion Valve Cir. 1

Electronic Expansion Valve Cir. 2

Crankcase Heater 1 Fuses/ MSP

Crankcase Heater 2 Fuses/ MSP

Compressor 1 Circuit Breaker

Compressor 2 Circuit Breaker

Exhaust Fan Fuse

Unit Controller Fuse

Outlet Fuse

High Pressure Switch Cir. 1

High Pressure Switch Cir. 2

Evaporator Heater Fuse

Thermostat

Fan Circuit Breaker Cir. 1

Evaporator Flow Switch

Location

Control Side

Control Box Door

Outside Back of Control Side

Outside Back of Control Side

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Control Side

Control Side

Discharge Line- Circuit 1

Discharge Line- Circuit 2

Control Side

Control Side

Power Side

Power Side

Liquid Line- Circuit 1

Liquid Line- Circuit 2

Liquid Line- Circuit 1

Liquid Line- Circuit 2

Power Side

Power Side

Power Side

Power Side

Control Side

Control Side

Control Side

Compressor 1

Compressor 2

Control Side

Control Side

Control Side

Evaporator Outlet

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 11

Sch.

F120

F130

F200

FC

FTB107

FTB110

FTB207

FTB210

GFR1

GFR2

JFU1

JFU2

K1

K2

K11

K13

K16

K23

K26

KLJ-1

KLJ-2

KM101

KM102

KM103

KM105

KM107

KM110

KM201

KM202

KM203

KM205

KM207

KM210

LJV-1

LJV-2

LP1

LP2

LR1

LR2

LSV-1

LSV-2

M1

M2

M10

M11

M12

M101

M102

M103

M104

M105

M106

M107

Electrical Legend - Units with VFD Starter

Transformer T1 Protection

Phase Volt Monitor Fuse

Fan Circuit Breaker 2

Fans Control

Fan Terminal Block Cir. 1

Fan Terminal Block Cir. 1

Fan Terminal Block Cir. 2

Fan Terminal Block Cir. 2

Ground Fault Relay Cir. 1

Ground Fault Relay Cir. 2

HSCR Fuse 1

HSCR Fuse 2

Compressor VFD Run Relay 1

Compressor VFD Run Relay 2

Emergency Stop Contactor

Location

Power Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Power Side

Power Side

Control Side

Mechanical Hi Pressure Relay & Contactor Control Side

Fan Stage Cir. 1 Control Side

Mechanical Hi Pressure Relay & Contactor Control Side

Fan Stage Cir. 2

Liquid Injection Relay 1

Liquid Injection Relay 2

Fan Motor Contactor

Control Side

Control Side

Control Side

Control Side

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Fan Motor Contactor

Fan Motor Contactor

Fan Motor Contactor

Liquid Injection Solenoid Cir. 1

Liquid Injection Solenoid Cir. 2

Low Pressure Switch 1

Low Pressure Switch 2

Line Reactor Cir. 1

Line Reactor Cir. 2

Liquid Line Solenoid Cir. 1

Liquid Line Solenoid Cir. 2

Compressor Cir. 1

Compressor Cir. 2

Forced Ventilation

Intake Fan

Exhaust Fan

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Control Side

Control Side

Control Side

Liquid Injection Line 1

Liquid Injection Line 2

Compressor 1

Compressor 2

Control Side

Control Side

Liquid Line- Circuit 1

Liquid Line- Circuit 2

Base

Base

Outside Wall of Power Side

Outside Wall of Control Side

Control Box Left Door

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 12

Electrical Legend - Units with VFD Starter

M212

MP1

MP2

MPR1

MPR2

OP-1

OP-2

Q0

Q1

Q2

Q10

Q11

Q12

Q101

Q102

Q103

M108

M109

M110

M111

M112

M201

M202

M203

M204

M205

M206

M207

M208

M209

M210

M211

Q105

Q107

Q110

Q201

Q202

Q203

Q205

Q207

Q210

R1

R2

R5

REC 1

SP-1

SP-2

SS1

SS2

ST-1

ST-2

T1

T2

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Fan Motor

Motor Thermal Protection

Motor Thermal Protection

Motor Protection Relay Cir. 1

Motor Protection Relay Cir. 2

Oil Pressure Cir. 1

Oil Pressure Cir. 2

Unit ON - OFF Switch

Pump Down Switch Cir. 1

Pump Down Switch Cir. 2

Location

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Condenser Fan Section

Control Side

Control Side

Control Side

Control Side

Compressor 1

Compressor 2

Control Side

Control Side

Control Side

Main Power Block or Disconnect Switch 1 Power Side

Emergency Stop Switch

Automatic Circuit Breaker

Control Box Left Door

T1 Transformer

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Control Side

Control Side

Control Side

Control Side

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Fan MSP

Compressor Crankcase Heater Cir. 1

Compressor Crankcase Heater Cir. 2

Evaporator Heater

115V Outlet

Evap. Pressure Circuit 1

Evap. Pressure Circuit 2

Selection Switch 1

Selection Switch 2

Suction Temperature Cir. 1

Suction Temperature Cir. 2

115V Transformer

24V Transformer

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Control Side

Compressor 1

Compressor 2

Evaporator Shell

Control Side

Suction Line- Circuit 1

Suction Line- Circuit 2

Voltmeter

Ammeter

Suction Line- Circuit 1

Suction Line- Circuit 2

Power Side

Control Side

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 13

Electrical Legend - Units with VFD Starter

Sch.

T20-1

T20-2

TC

UC

VFD1

VFD2

VFD-1

VFD-2

VFU1

VFU2

VM1

W1

W2

WAA

WD-1

WD-2

WIE

WOE

Transformer Cir. 1

Transformer Cir. 2

Thermostat- Evaporator Heater

Unit Control- MicroTech III

Fan VFD / SpeedTrol

Fan VFD / SpeedTrol

Compressor VFD 1

Compressor VFD 2

Compressor VFD Fuse 1

Compressor VFD Fuse 2

Volt Meter

Compressor Thermistor Cir. 1

Compressor Thermistor Cir. 2

Air Ambient Sensor

Oil Discharge Temp. Sensor Cir. 1

Oil Discharge Temp. Sensor Cir. 2

Evaporator Entering Water Temperature

Evaporator Leaving Water Temperature

Location

Control Side

Control Side

Evaporator

Control Side

Control Side Left Wall

Control Side Left Wall

Power Side

Power Side

Power Side

Power Side

Switch Box Door

Compressor 1

Compressor 2

Condenser Coil Header

Discharge Line- Circuit 1

Discharge Line- Circuit 2

Evaporator Inlet

Evaporator Outlet

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 14

Unit Layout

(Unit Size 300ADS Shown)

9

8

9 9 9

9

9 9 9

3 7

2

11

12

1

10

Ref. No. Description

1 Compressors

2

3

Tubing (suction, discharge, liquid injection)

Liquid Line and Economizer

7

8

9

10

11

12

Evaporator

Condenser Coil

Condenser Fans

Unit Switch Box/Control Panel *

Compressor Starter Panel (not on units with VFD Starters)

Compressor Terminal Box

Location

Refrigeration Section

Refrigeration Section

Refrigeration Section

Refrigeration Section

Refrigeration Section

Refrigeration Section

Controls Section

Controls Section

Controls Section

* Control Panel for units with Wye-Delta or Solid State Starters shown. Larger Panel used on units with

VFD Starters.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 15

Refrigeration Section

Compressor Charts

For units built after 8/1/11, contact McQuay Parts for part number identification of Compressors.

Unit Size

150

175

190

190

210

230

250

280

300

320

350

380

405

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Compressor, Circuit 1

Starter Std Eff.

(Code 9)

VE or VF A any

WD or SS

A

A

VE or VF any any any any any any any any any

C

C

C

B

B

E

E

D

--

--

High Eff Premium Eff

--

--

--

--

A

A

C

C

B

B

E

E

D

A

A

C

C

--

--

--

--

E

--

B

B

--

Compressor, Circuit 2

Unit Size

150

175

175

190

210

230

250

280

300

320

350

380

405

Starter Std Eff. High Eff Premium Eff

(Code 9)

VE or VF A -- --

WD or SS

VE or VF

A

C

--

--

--

-any any any any

C

C

B

B

--

A

C

C

--

A

C

C any any any any any any

E

E

D

D

--

--

B

B

E

E

D

D

B

B

E

E

--

--

See next page for Compressor part numbers.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 16

Refrigeration Section

Compressors

For units built after 8/1/11, contact McQuay Parts for part number identification of Compressors.

See previous page for Compressor Charts.

Compressor A

Units built before Sept. 2010 may have the Original

or New Compressor A. See diagrams at right to

determine which you have. To replace an Original

Compressor A, order the New Compressor A plus

the corresponding Retrofit Kit.

208V - new

230V - new

332525070

332525075

380V - new (units w/ VFD Starters) 332525180

380V - new (units w/o VFD Starters) 332525080

460V - new (units w/ VFD Starters) 332525160

460V - new (units w/o VFD Starters) 332525060

575V - new 332525065

Retrofit Kit - Circuit 1

Retrofit Kit - Circuit 2

332517701

332517702

Oil

Filter

Oil Filter

Compressor A - New

Compressor A - Original

Compressor B

208V

230V

380V (units w/ VFD Starters)

332525272

332525277

332525382

380V (units w/o VFD Starters) 332525282

460V (units w/ VFD Starters) 332525362

460V (units w/o VFD Starters) 332525262

575V 332525267

Compressor D

380V (units w/ VFD Starters) 10000108984

380V (units w/o VFD Starters) 10000102384

460V (units w/ VFD Starters) 10000108964

460V (units w/o VFD Starters) 10000102364

575V 10000102369

Compressor C

208V

230V

380V (units w/ VFD Starters)

332525271

332525276

332525381

380V (units w/o VFD Starters) 332525281

460V (units w/ VFD Starters) 332525361

460V (units w/o VFD Starters) 332525261

575V 332525266

Compressor E

380V (units w/ VFD Starters)

380V (units w/o VFD Starters)

460V (units w/ VFD Starters)

460V (units w/o VFD Starters)

575V

Units with VFD Starters: Code 9 = VE, VF. Units without VFD Starters: Code 9 = WD or SS

10000108983

10000102383

10000108963

10000102363

10000102368

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 17

Refrigeration Section

Compressor Components

Y3A1

60

15A

15B

15

Y2A1

60A

Circuit # 1 shown

11

60B

YT1

60A

Y3B1

Y2B1

60

SL1

10

F13

14

50

53

52

54

51

R1

2

2A 2B

13

13A

Ref. Sch.

No. Sym.

Description

See Compressor Charts to identify compressor.

Compressor Compressor Compressor Qty

A B C per compr

2

2

2

2

2A

2B

10

11

F13, 23

OP1, 2

Compressor Heater, 208-230V

Compressor Heater, 380V

Compressor Heater, 460V

Compressor Heater, 575V

Well- Heater

Bushing- Heater

Switch- High Pressure Control, 290 psi

Transducer- Oil Pressure, 0 to 30 bar

735041265

735041266

735041267

735041268

300043894

132010016

073074009

735041265

735041266

735041267

735041268

300043894

132010016

073074009

735041265

735041266

735041267

735041268

300043894

132010016

073074009

10000109562 1000109562 10000109562

13

13A

Relief Valve

2

735045859 1

Elbow- Relief Valve

14 SL1, 2 Transducer- Slide Indicator (C21= L, B)

10000108772 10000108772 10000108772

330591103 330591103 330591103

1

1

1

1

1

1

1

1

1

1

15

15A

15B

50

51

52

53

54

Discharge Shut-Off Valve

Screw, Hex

Washer, Lock

Isolator, Compr. Mounting

Screw, M8 x 2.5 C101

Washer, Plain, .312

Washer, Lock, .500

Screw, M12 x 1.75

2

10000107127

330821937

048164815

10000107037 10000107037 1

330821925 330821925

048164816 048164816

4

4

10000107142 10000107142 10000107142

330821929

040500322

048164814

330821921

330821929 330821929

040500322 040500322

048164814 048164814

330821921 330821921

8

4

4

8

4

55 Washer, Lock, .312

60 Y2*1-1, 2 Valve, Solenoid- Load

60A Y3*1-1, 2 Valve, Solenoid- Unload

60B YT-1, 2 Valve, Solenoid- Turbo

NS Suction Gasket

NS

NS

NS

NS

NS

NS

Oil Filter

Liq Injection Fitting- Compr

Liq Injection Fitting- Compr

Liq Injection O-Ring

Kit, O-Rings and Gaskets

(non-Economizer)

(with Economizer)

Liq Injection Fitting- Rotolock to Copper

048164810

1

1

1

350233902

332126801

070194921

128810917

048164810 048164810

1

1

332115901

128810919

1

1 1

1

332115901

332115201 332115201

132010068 132010053 132010053

10000105096 10000105095 10000105095

10000107074 10000107074 10000107074

070194971 070194971

128810919

8

1

1

1

1

1

1

1

1

Solenoids are comprised of: Valve Body & Adapter p/n 132010102; Valve Coil p/n 131066074; Valve Support Gasket p/n 332130201.

2

If unit has original Compressor A (see previous page), use: Relief Valve 735045860 and Shut-off Valve 735039803

NS = Not Shown

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 18

Refrigeration Section

Compressor Components

Y3A1

60

15A

15B

15

Y2A1

60A

11

R1

2

2A 2B

13

13A

60B

YT1

60A

Y3B1

Y2B1

60

SL1

14

10

F13

50

53

52

54

51

Circuit # 1 shown

See Compressor Charts to identify compressor.

Ref. Sch.

No. Sym.

Description Compressor Compressor

D E

Qty per compr

2

2

2

Compressor Heater, 208/230V

Compressor Heater, 380V

Compressor Heater, 460V

2

2A

Compressor Heater, 575V

Well- Heater

2B Bushing- Heater

10 F13, 23 Switch- High Pressure Control, 290 psi

11 OP1, 2 Transducer- Oil Pressure, 0 to 30 bar

13

13A

14

15

15A

15B

50

51

52

53

54

55

60

60A Y3*1-1, 2 Valve, Solenoid- Unload

60B YT-1, 2

NS

NS

NS

NS

NS

NS

NS

SL1, 2

Relief Valve

Elbow- Relief Valve

Transducer- Slide Indicator (C21= L, B)

Discharge Shut-Off Valve

Screw, Hex

Washer, Lock

Isolator, Compr. Mounting

Screw, M8 x 2.5

Washer, Plain, .312

Washer, Lock, .500

Screw, M12 x 1.75

Washer, Lock, .312

Y2*1-1, 2 Valve, Solenoid- Load

Valve, Solenoid- Turbo

Suction Gasket

Oil Filter

Liq Injection Fitting- Compressor (non-Economizer)

Liq Injection Fitting- Compressor (with Economizer)

Liq Injection Fitting- Rotolock to Copper

Liq Injection O-Ring

Kit, O-Rings and Gaskets

735041265 735041265

735041266 735041266

735041267 735041267

735041268 735041268

300043894 300043894

132010016 132010016

073074009 073074009

10000109562 10000109562

735045859 735045859

10000108772 10000108772

330591103 330591103

10000107037 10000107037

330821925 330821925

048164816 048164816

10000107046 10000107046

330821929 330821929

040500310 040500310

048164814 048164814

330821921 330821921

048164810 048164810

1

1 1

1

1 1

332115901 332115901

332115201 332115201

132010053 132010053

10000105095 10000105095

10000107074 10000107074

070194971 070194971

128810921 128810921

8

8

4

4

4

4

8

1

1

1

1

4

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

1

Solenoids are comprised of: Valve Body & Adapter p/n 132010102; Valve Coil p/n 131066074; Valve Support Gasket p/n 332130201.

NS = Not Shown

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 19

Refrigeration Section

Suction Lines, Discharge Lines, Liquid Injection Lines

609

608

WD2

605

603

604

DP2

303

313

411

403

413

500

501

Discharge Line

Detail

Circuit #1

22-24 Fan Units shown

503

504

505

DP1

508

509

WD1

Discharge

Discharge Line

Detail

Circuit #2

22-24 Fan Units shown

Liquid Injection Detail

Circuit #1

304

LJV1

309

311

409

Liquid

Injection

302

Liquid Injection Detail

Circuit #2

16-20 Fan Unit

Shown

LJV2

404

402

600 601

Suction

Suction Line Detail

Circuit #1

Shown with Suction

Shut-off Valve

102

104

ST1

100

Suction Line Detail

Circuit #2

Shown with Suction

Shut-off Valve

202

204

ST2

200

For units built after 8/1/11, contact McQuay Parts for part number identification of Suction Piping

Components.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 20

Refrigeration Section

Suction Lines, Discharge Lines, Liquid Injection

For units built after 8/1/11, contact McQuay Parts for part number identification of Suction Piping Components.

Ref Sch. Part

No. Sym. Description

Suction Line- Circuit #1

100 Valve- Relief

102 Valve- Suction Shutoff

104 ST1 Sensor- Suction Temperature, Straight, 30 ft.

Sensor- Suction Temperature, Bent, 30 ft.

N/S SP1 Transducer- Suction

Suction Line- Circuit #2

200 Valve- Relief

202 Valve- Suction Shutoff

204 ST2 Sensor- Suction Temperature, Straight, 30 ft.

Sensor- Suction Temperature, Bent, 30 ft.

N/S SP2 Transducer- Suction Pressure

Liquid Injection- Circuit #1

302 Fitting- Rotolock

303 Valve- Schrader

304 LJV1 Valve- Solenoid

309 Strainer

311 Valve- Ball

313 Cap- Valve

Liquid Injection- Circuit #2

402 Fitting- Rotolock

403 Valve- Schrader

404 LJV2 Valve- Solenoid

409 Strainer

411 Valve- Ball

413 Cap- Valve

Discharge Line- Circuit #1

500 Coupling *

501 Kit- Flange *

NS Gasket- Discharge Shut-Off Valve *

503 Valve- Schrader

504 Core- Valve

505 DP1 Transducer- Discharge Pressure

508 Tube- Sensor

509 WD1 Sensor- Discharge Temperature, 20 ft.

Discharge Line- Circuit #2

600 Coupling **

601 Kit- Flange **

NS Gasket- Discharge Shut-Off Valve **

603 Valve- Schrader

604 Core- Valve

605 DP2 Transducer- Discharge Pressure

608 Tube- Sensor

609 WD2 Sensor- Discharge Temperature, 20 ft.

Part

Number Qty.

200 PSI

735045852 1

see next page 1

332519703 1

193414603 1

-1 to 7 bar 10000109563 1

200 PSI

735045852 1

see next page

1

332519703 1

193414603 1

-1 to 7 bar 10000109563 1

10000107074

1

071100801 1

120V

331451002 1

735030506

1

330286003 1

032943500 1

10000107074

1

071100801 1

120V

331451002 1

735030506

1

330286003 1

032943500 1

3.13 10000108703

1

4.12

735016406 1

070199144 1

071100801 1

026541100 1

0 to 30 bar 10000109562

1

070228901 1

193414602 1

3.13 10000108703

1

4.12

735016406 1

070199144 1

071100801 1

026541100 1

0 to 30 bar 10000109562

1

070228901 1

193414602 1

* Circuit 1 - On the following units, use Coupling/Adapter 735049707, Flange Kit 735016404, and Discharge Shut-Off

Valve Gasket 070199117: 150ADS, 175ADS, 190ADS, 210ADH, 210ADP, 230ADH, 230ADP.

** Circuit 2 - On the following units, use Coupling/Adapter 735049707 and Flange Kit 735016404, and Discharge Shut-

Off Valve Gasket 070199117: 150ADS, 175ADS, 210ADH, 210ADP.

NS= Not shown

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 21

Refrigeration Section

Suction Shut Off Valves

For units built after 8/1/11, contact McQuay Parts for part number identification of Suction Piping

Components.

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Ref. 102: Suction Shut Off Valve, Circuit 1

Unit Size

150

175

190

210

230

250

280

300

320

350

380

405

Standard Eff. High Eff. Premium Eff.

073062104 --

073062104 --

--

--

073062104 -- --

073062104 073062104 073062104

073062104 073062104 073062104

073062104 073062104 See Note below

See Note below

See Note below

See Note below

See Note below

See Note below

See Note below

See Note below

See Note below

--

--

See Note below

See Note below

See Note below

See Note below

See Note below

See Note below

--

--

Ref. 202: Suction Shut Off Valve, Circuit 2

Unit Size

150

175

190

210

230

250

280

300

320

350

380

405

Standard Eff. High Eff.

073062104 --

073062104 --

073062104 --

Premium Eff.

073062104 073062104 073062104

073062104

073062104 073062104 073062103

See Note below

See Note below

See Note below

See Note below

--

--

073062104

See Note below

See Note below

See Note below

See Note below

See Note below

See Note below

--

--

--

See Note below

073062103

073062103

073062103

073062103

--

--

Note: For units built after 8/31/10, use Valve part # 073062103.

For units built before 8/31/10, contact McQuay Parts with the unit GO # and Serial # to determine the correct

Valve.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 22

Refrigeration Section

Liquid Lines- Standard Efficiency Units

(Code 04= S*)

Evaporator

102

116

101

100

115

Circuit #1

109

112

113

114

108

Circuit #2

113

114

112

108

109

102

101

100

116 115

107

107

119

EXV2

124

LSV2

107 119

EXV1

100

101

102

124

LSV1

107

100 101

102

Ref Sch. Part

No. Sym. Description

100 Valve- Schrader

101

102

Core- Valve

Cap- Valve

107

108

109

112

Valve- Charge

Valve- Ball

Bracket- Drier

Shell- Filter Drier

113

114

115

116

Core- Filter Drier

Kit- Drier Gasket

Saddle- Sight Glass

Cap- Sight Glass

119 EXV1, 2 Valve- Electronic Expansion

124 LSV1, 2 Valve- Liquid Line Solenoid

Part Qty.

Number per circuit

071100801 2

026541100

032943500

2

2

.37 x .37 038689900

1.625 330286087

10000101769

071993505

3

1

1

1

330694401

074783601

330508705

330508701

12V/6W 10000107041

C29= SD, SL 331451007

4

2

1

1

1

1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 23

Refrigeration Section

Liquid Lines with Economizer- High & Premium Efficiency Units

(Code 04= H* or P*)

Compressor

Economizer

Connection

Detail

208 209

201

200

From Economizer S4

204

To Compressor

Line Between

Economizer and Compressor

Detail

102

101

100

100 102

101

109

116

115

114

112

113

100

101

102

Representation of

Circuit 1 Shown

Configuration may vary

(Circuit 2 has same components)

108

Liquid

Line

Te e

To

S1

107

Condenser to Economizer

Detail

Fr om Condenser

100

101

102

Equalization

Tube

From

Economiz

S4 er

From ESV

Evaporator

100

101

102

6

S4

S1

Circuit 1

Circuit 2

From Liquid Line

Tee

ESV_

1

To Compressor

From Condenser

TXV_

2

S3

S2

Economizer

Connects T o Ev aporator

107

101

102

100

To Ev aporator

Economizer to

Evaporator

Detail

119

EXV_

124

LSV_

er S2

From Economiz

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12

For units built after 8/1/11, contact McQuay Parts for part number identification of Check Valves and

Economizers.

RPL 700014100 / Page 24

Refrigeration Section

Liquid Lines with Economizer- High & Premium Efficiency Units

(Code 04= H* or P*)

For units built after 8/1/11, contact McQuay Parts for part number identification of Check Valves and

Economizers.

Ref Sch. Part

No. Sym. Description

1 ESV1, 2 Valve- Economizer Solenoid

2 TXV1, 2 Valve- Thermal Expansion

6 Economizer- Brazed Plate

100

101

102

107

Valve- Schrader

Core- Valve

Cap- Valve

Valve- Charge

108

109

112

113

Valve- Ball

Bracket- Drier

Shell- Filter Drier

Core- Filter Drier

114

115

Kit- Drier Gasket

Saddle- Sight Glass

116 Cap- Sight Glass

119 EXV1, 2 Valve- Electronic Expansion

124 LSV1, 2 Valve- Liquid Line Solenoid

200 Connector- Economizer

201

204

Fitting- Economizer

Valve- Check

208

209

O-Ring

O-Ring

Part

Number

331451003 see next page see next page

071100801

026541100

032943500

.37 x .37

038689900

1.625

330286087

10000101769

071993505

330694401

074783601

330508705

330508701

12V/6W

10000107041

C29= SD, SL

331451007 see next page see next page see next page see next page see next page

2

2

1

2

2

2

1

1

2

1

1

4

1

1

Qty.

per circuit

1

1

1

4

2

4

4

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 25

Refrigeration Section

Liquid Lines with Economizer- High & Premium Efficiency Units

(Code 04= H* or P*)

For units built after 8/1/11, contact McQuay Parts for part number identification of Check Valves and

Economizers.

High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit Size

Economizer, Circuit 1

High Eff

175 --

190 --

210 A

230 A

250 C

280 C

300 B

320 B

350 E

380 E

405 D

Premium Eff

B

B

C

C

A

A

--

--

E

--

--

Ref. #

Economizer A (from chart above)

2

6

Thermal Expansion Valve

Economizer

200

201

204

Fitting, Economizer

Rotolock Fitting

Check Valve

Gasket for Check Valve

O-Ring 208

Economizer B or C

2

6

200

201

204

208

209

Economizer D or E

2

Thermal Expansion Valve

Economizer

Fitting, Economizer

Rotolock Fitting

Check Valve

Gasket for Check Valve

O-Ring

O-Ring

6

200

201

204

Thermal Expansion Valve

Economizer

Fitting, Economizer

Rotolock Fitting

208

209

Check Valve

Gasket for Check Valve

O-Ring

O-Ring

Economizer, Circuit 2

Unit Size High Eff Premium Eff

175 --

190 --

210 A

230 A

250 C

280 C

300 B

320 B

350 E

380 E

405 D

B

E

C

B

--

--

A

C

E

--

--

Part Number

330692926

10000107021

10000105097

10000108774

070300704

300000411

070194971

330692927

10000107023

10000105027

10000107073

070300705

P292C-14

070194970

070199104

330692928

10000107024

10000105027

10000107073

070300705

P292C-14

070194970

070199104

Qty. per circuit

2

2

2

1

1

2

2

2

2

2

2

1

1

2

2

2

2

2

2

1

1

2

2

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 26

Refrigeration Section

Condenser Coils and Fans

Fan

Detail

4

50

100A

C1

100B

C2

200A

200B

C3

C4

Condenser

Section

Fan Location Example

AWS 405

M101 M103 M105 M107 M109 M111

M201 M203 M205 M207 M209 M211

5

M102 M104 M106 M108 M110 M112

M202 M204 M206 M208 M210 M212

2

3

1

Ref Sch. Part

No. Sym. Description

Part

Number

1

2

3

4

Panel- Fan Deck

Grille- Fan

Bracket- Fan Motor

Blade- Fan

5 M*** Motor- Fan, 208/230V

5 M*** Motor- Fan, 380V

5 M*** Motor- Fan, 460V

5 M*** Motor- Fan, 575V

1.4 HP

1.4 HP

1.4 HP

1.4 HP

10000108765

10000107008

10000100048

10000107009

10000108871

10000108872

10000108873

10000108874

50 WAA Sensor- Outdoor Air, 20 ft.

1

193414602

100A Coils- Condenser, C1 Circuit 1, LH

Contact McQuay Parts

100B Coils- Condenser, C2 Circuit 1, RH

Contact McQuay Parts

200A Coils- Condenser, C4 Circuit 2, LH

Contact McQuay Parts

200B Coils- Condenser, C3 Circuit 2, RH

Contact McQuay Parts

1 Mounted to Condenser Coil tubesheet behind the switch box.

***= Fan number 101 - 212.

Quantity

1 per fan - see next page

1 per fan

1 per fan

1 per fan

1 per fan

1 per fan

1 per fan

1 per fan

1 per unit

1 per unit

1 per unit

1 per unit

1 per unit

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 27

Refrigeration Section

Fan Totals per Unit

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit Starter Std. Eff.

Size (Code 9) Ckt 1 Ckt 2

High Eff. Premium Eff.

Total Ckt1 Ckt 2 Total Ckt 1 Ckt 2 Total

150 VF or VE

5 5

175 WD or SS

5 5

175 VF or VE

6 6

190 WD or SS

6 6

190 VF or VE

210 any

230

250

280

300 any any any

6

6

7

7

8

6

6

7

7

8

= 10

= 10

= 12

= 12

= 12

= 12

= 14

= 14

= 16

--

--

--

--

--

6

7

7

8

--

--

--

--

--

6

7

7

8

= 12

= 14

= 14

= 16

320

350 any any any

8

10

10 10

380 any --

8

10

405 any --

= 16

= 20

= 20

8

10

10

10

12

8

10

10

= 16

= 20

= 20

--

--

--

--

--

8

9

9

10

10

10

12

--

--

--

--

--

8

9

9

10

10

12

12

= 16

= 18

= 18

= 20

= 20

= 22

= 24

Code 9: VF = VFD Starter without EMI Filter

VE = VFD Starter with EMI Filter

WD = Wye Delta Starter with Compressor Overloads

SS = Solid State Starter

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 28

Refrigeration Section

Evaporator Diagram

10

8

9

1

F116

7

4A

WOE

WIE

4

10

9

8A

12

5

18

2 2A

Liquid Connection

End

20

19

Suction Connection

End

20

15

5

6

18

14

For units built after 8/1/11, contact McQuay Parts for part number identification of Evaporator Assemblies.

All other Evaporator parts listed apply to all dates.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 29

Refrigeration Section

Evaporator Components

Standard Efficiency: Code 4 = S*,

High Efficiency: Code 4 = H*,

Premium Efficiency: Code 4 = P*

Ref. No. 1: Evaporator Assembly

Evap

Group

Description / Unit Sizes

A

Standard Efficiency Units

150A

A

A

A

A

175A

175A

190A

190A

A 210A

A 230A

A 250A

B 280A

B 300A

B 320A

B 350A

High Efficiency Units

A 210A

A 230A

A 250A

B 280A

B 300A

B 320A

B 350A

B 380A

B 405A

Premium Efficiency Units

B 210A

B 230A

C 250A

C 280A

C 300A

C 320A

C 350A

For units built after 8/1/11, contact McQuay Parts for part number identification of Evaporator Assemblies.

All other Evaporator parts listed apply to all dates.

Starter

(Code 9)

VF or VE

WD or SS

VF or VE

WD or SS

VF or VE any any any any any any any any any any any any any any any any any any any any any any any

Left-Hand Evap

Code 23 = VL

10000108710

10000108710

10000108710

10000108710

10000108712

10000108712

10000108714

10000108714

10000108717

10000108717

10000108719

10000108719

10000108712

10000108714

10000108714

10000108717

10000108717

10000108719

10000108719

10000108719

10000108719

10000108725

10000108725

10000108735

10000108735

10000108735

10000108737

10000108737

Right-Hand Evap

Code 23 = VR

10000108740

10000108740

10000108740

10000108740

10000108742

10000108742

10000108744

10000108744

10000108747

10000108747

10000108749

10000108749

10000108742

10000108744

10000108744

10000108747

10000108747

10000108749

10000108749

10000108749

10000108749

10000108750

10000108750

10000108755

10000108755

10000108755

10000108757

10000108757

Evap Ref Sch. Part

Group No. Sym. Description

All

All

All

All

All

All

All

All

4

4A

5

7

19

20

WIE

WOE

F116

Sensor- Evaporator Inlet, 60 ft.

Sensor- Evaporator Outlet, 60 ft.

Well- Sensor

Switch- Evaporator Flow

Cable- for Evap Flow Switch

Valve- Mini Ball, 0.50 NPT

Pad- Vibration, 4" x 3.25"

Insulation

Part No.

193414606

193414606

070716307

331796201

330571403

071596201

735008725

047662050

For more Evaporator components, determine Evap Group from above chart and see next page.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12

Qty.

1

1

2

1

1

1

4 as needed

RPL 700014100 / Page 30

Refrigeration Section

Evaporator Components

A

B

C

9

9

9

A

B

10

10

A, B 12

C 12

A 14

B, C 14

A

B

C

15

15

15

A

B

B

B

C

C

C

18

18

18

18

18

18

18

A

B

C

A

B

C

Evap Ref Sch. Part

Group No. Sym. Description

A, B

C

2

2

Ferrule- Liquid

Ferrule- Liquid

A, B 2A

C 2A

A 6

B, C 6

R5

R5

Flange- Liquid

Flange- Liquid

Heater- Evaporator

Heater- Evaporator

8

8

8

8A

8A

8A

Gasket- Inlet Head

Gasket- Inlet Head

Gasket- Inlet Head

Gasket- Suction Head

Gasket- Suction Head

Gasket- Suction Head

Gasket- Distributor

Gasket- Distributor

Gasket- Distributor

O'Ring- Tube Sheet

O'Ring- Tube Sheet

Bolt- Liquid Ferrule

Bolt- Liquid Ferrule

Bolt- Suction Connection

Bolt- Suction Connection

O'Ring- Suction

O'Ring- Suction

O'Ring- Suction

Bolt- Head (M16 x 1.5 x 70)

Bolt- Head (M16 x 1.5 x 70)

Bolt- Head (M14- 16 x 1.5 x 100)

Bolt- Head (M14- 16 x 1.5 x 135)

Bolt- Head (M14- 16 x 1.5 x 130)

Bolt- Head (M16 x 1.5 x 145)

Bolt- Head (M16 x 1.5 x 70)

Qty.

2

2

2

1

1

1

8

8

2

2

1

1

1

1

1

2

2

2

2

2

2

2

8

8

48

56

2

2

22

4

22

Part No.

E44070016

E44070043

E44060007

E44060009

E44196011

E44191111

E44134053

E44135062

E44136601

E44134053

E44135062

E44136601

E44134072

E44135072

E44136602

E0041600

E0062000

E10125400

E10154000

E14155000

E14156000

E44130201

E44136600

E44130201

E16157000

E16157000

E16151000

E16151350

E16151300

E16151400

E16157000

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 31

Coil and Base Frame Grilles

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Std. High Prem.

Unit Starter Eff. Eff. Eff.

Size (Code 9) Total Total Total

Fans Fans Fans

150 VF orVE 10 --

--

--

-175 WD or SS 10

175 VF or VE 12

190 WD or SS 12

190 VF or VE 12 any 12

--

--

--

--

--

--

210 12 16

230 any 14 14 18

250 any 14 14 18

280 any 16 16 20

300 any 16 16 20

320 any 20 20 22

350 any 20 20 24

380 any -- 22 --

405 any -- 24 --

Coil Grilles

Code 28=G, F

16 Fan Unit shown

1

Ref Part

No. Description

1 Grille- Coil

1

Part

Number

Quantity

10000107007 1 per fan

1 Each coil louver is attached using six (6) screws p/n 331578401.

3

2

Base Frame Grilles

Code 28=F, C

16 Fan Unit shown

4

1

Ref Part

No. Description

1 Grille- Base

1

2 Grille- Left Hand Rear

2

3 Grille- Right Hand Rear

2

4 Grille- Front

2

Part

Number

10000108704

10000108705

10000108706

10000108707

Quantity

1 per fan

1 per unit

1 per unit

1 per unit

1 Each base grille is attached using four (4) screws p/n 331578401.

2

Each front or rear grille is attached using six (6) screws p/n 331578401. Front Grille not used on units with VFD Starters.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 32

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Std. High Prem.

Unit Starter Eff. Eff. Eff.

Size (Code 9) Total Total Total

Fans Fans Fans

150 VF orVE 10 --

--

--

-175 WD or SS 10

175 VF or VE 12

190 WD or SS 12

190 VF or VE 12 any 12

--

--

--

--

--

--

210 12 16

230 any 14 14 18

250 any 14 14 18

280 any 16 16 20

300 any 16 16 20

320 any 20 20 22

350 any 20 20 24

380 any -- 22 --

405 any -- 24 --

Coil Louvers

Code 28=L, B, C

2

16 Fan Unit shown

Ref Part

No. Description

2 Louvered Panel- Coil

1

Part

Number

10000101793

1

Each coil louver is attached using six (6) screws p/n 331578401.

Quantity

1 per fan

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 33

Base Frame Louvers

Code 28= B

10-16 Fan Units

Std. High Prem.

Unit Starter Eff. Eff. Eff.

Size (Code 9) Total Total Total

Fans Fans Fans

150 VF orVE 10 --

--

--

-175 WD or SS 10

175 VF or VE 12

190 WD or SS 12

190 VF or VE 12 any 12

--

--

--

--

--

--

210 12 16

230 any 14 14 18

250 any 14 14 18

280 any 16 16 20

300 any 16 16 20

320 any 20 20 22

350 any 20 20 24

380 any -- 22 --

405 any -- 24 --

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

10

6

11

10

4

5

5

3

6

4

10 -12 Fan Unit

2

3

7

4

5

10

6

2

3

6

7

4

5

4

2

11

10

5

4

6

14 Fan Unit

10

4

16 Fan Unit

6

11

5

4

10

Ref Part

No. Description

2 Louvered Panel- Rear Bottom

3 Louvered Panel- Rear Top

4 Louvered Panel- Side

5 Louvered Panel- Side

6 Louvered Panel- Side

7 Louvered Panel- Side

10 Louvered Panel- Front Side 1

11 Louvered Panel- Front Center 1

Part

# of Fans screws

10000101799 2 2 2 2

10000101792 2

per

Number 10 12 14 16 panel

2

10000101795 1 1 1 1 16

10000101796 1 1 1 1 10

10000101797 8 8 8 12 6

10000101798 2 2 2 2 6

6

6

332527901 2 2 2 2 9

332527902 1 1 1 1 10

1 Front Side and Front Center Panels not used on units with VFD Starters. 2 Screw part number 331578401.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 34

Base Frame Louvers

Code 28= B

18-20 Fan Units

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Std. High Prem.

Unit Eff. Eff. Eff.

Size Total Total Total

Fans Fans Fans

175 10 -- --

190 12 -- --

210 12 12 16

230 14 14 18

250 14 14 18

280 16 16 20

300 16 16 20

320 20 20 22

350 20 20 24

380 -- 22 --

405 -- 24 --

10

11

6

10

4

5

4

4

5

3

5

4

4

6

3

4

18 Fan Unit

2

2

4

6

20 Fan Unit

10

11

10

5

4

Ref Part

No. Description

2 Louvered Panel- Rear Bottom

3 Louvered Panel- Rear Top

4 Louvered Panel- Side

5 Louvered Panel- Side

6 Louvered Panel- Side

10 Louvered Panel- Front Side 1

11 Louvered Panel- Front Center 1

Part

Number

# of Fans screws per

18 20 panel

2

10000101795 1 1

10000101796 1 1

16

10

10000101797 14 16

10000101798 2 2

10000101799 2 2 6

332527901 2 2 9

6

6

332527902 1 1 10

1 Front Side and Front Center Panels not used on units with VFD Starters.

2

Screw part number 331578401.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 35

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Std. High Prem.

Unit Eff. Eff. Eff.

Size Total Total Total

Fans Fans Fans

175 10 -- --

190 12 -- --

210 12 12 16

230 14 14 18

250 14 14 18

280 16 16 20

300 16 16 20

320 20 20 22

350 20 20 24

380 -- 22 --

405 -- 24 --

Base Frame Louvers

Code 28= B

22-24 Fan Units

6

10

11

10

4

5

5

4

6

4

5

6 5

3

6

5

4

6

22 Fan Unit

5

6

2

3

5

2

4

6

4

5

6

6

5

6

4

24 Fan Unit

10

11

10

5

4

Ref Part

No. Description

2 Louvered Panel- Rear Bottom

3 Louvered Panel- Rear Top

4 Louvered Panel- Side

5 Louvered Panel- Side

6 Louvered Panel- Side

10 Louvered Panel- Front Side 1

11 Louvered Panel- Front Center 1

Part

Number

# of Fans screws per

22 24 panel

2

10000101795 1 1

10000101796 1 1

16

10

10000101797 10 16

10000101798 6 4

10000101799 6 4 6

332527901 2 2 9

6

6

332527902 1 1 10

1 Front Side and Front Center Panels not used on units with VFD Starters.

2

Screw part number 331578401.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 36

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Box Locations and Label Detail

Control Panel Power Panel- Left Side Power Panel- Right Side

Terminal Box

( one per compressor)

5

4

6

3

2

1

Fan VFD location

Circuit 2

Starter Box

Label Detail

For all control components not detailed or for unit specific controls (i.e. main disconnect, solid state contactors), please contact McQuay Parts with the Control Box Serial Number and

Control Box Part Number. These numbers are located on the Control box rating label (see example below). This label is found inside the panel.

Control Box Serial Number

“S” + Year + ##### + detail#

Solid State

Starter Panel

( one per compressor)

Circuit 2 shown or

Wye- Delta

Starter Panel

( one per compressor)

Circuit 2 shown

Control Box Part Number

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 37

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Control Panel Detail

Q12 K11

F59 F12 AC

REC1

UC FC

Q0

Q1

Q2

Q11

Sch. Part

Sym. Description

AC Expansion Controller- Alarms

AWM Advanced Web Module

2

FC Expansion Controller- Fans

F12 Fuse- Outlet

F59 Fuse- Evaporator Heater Protection

K11 Relay- Emergency Stop

Q0 Switch- Unit Shut Off

Q1 Switch- Pumpdown

Q2 Switch- Pumpdown

Q11 Switch- Emergency Stop

1

Q12 Circuit Breaker

REC1 Receptacle

UC Controller- MicroTech III

Circuit #1

Circuit #2

Part

Number Qty.

193407501

193408502 1

193407601

300046446

300046455

300046445

300046456

300046456

300046456

300046448 1

300046447

330472601

193407301

1

1

1

1

1

1

1

1

1

1

1

1

Mounted through the door.

2

This control board must be programmed in order to function correctly. When ordering a replacement, provide the unit model and serial number so that unit specific software code can be loaded before shipment.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 38

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Power Panel Detail

Q101 Q102 Q103 Q104 Q105 Q107

F112

K16

KM

102

KM

103

KM

104

KM

105

KM

107

F100

F130

LR1

Q201 Q202 Q203 Q204 Q205 Q207

UC

F230

F200

F212

K26

KM

202

KM

203

KM

204

KM

205

KM

207

GFR1 GFR2

LR2

T2

AM1 VM1

T1

F120

Sch.

Sym.

AM1

F100, 200

F112, 212

F120

F120

F120

F130, 230

GFR1, 2

K16, 26

KM102- 107

KM202- 207

LR1, 2

Q101- 107

Q201- 207

T2

T1

T1

T1

VFD1, 2

VFD1, 2

VFD1, 2

VM1

Part

Description

Ammeter

Circuit Breaker- Circuit #1 Fans

Phase Voltage Monitor

Fuse- Control Transformer

Fuse- Control Transformer

Fuse- Control Transformer

Fuse- PVM

Relay- Ground Fault

Relay- Fan Motor

Contactor- Fans

Contactor- Fans

Line Reactor

MSP- Fans

MSP- Fans

Transformer

Transformer- Control

Transformer- Control

Transformer- Control

Fan VFD

Fan VFD

Fan VFD

2

2

2

Volt Meter: 0- 600V

1

1

Mounted on the outside of the power panel door.

2

Not shown - The Fan VFDs are located on the cross rail near the front of the evaporator.

Part

Number Qty.

Code 14= A See next page 1

600V/100A 300043195

300040118

2

2

208/230V 300046446

380V 300046449

460V, 575V 300046450

300046454

1

2

1

1

330315101

300046445

2

2

Circuit #1 300046444 1/fan

Circuit #2 300046444 1/fan

460V 300046411 2

Circuit #1 300046443 1/fan

Circuit #2 300046443 1/fan

24V 300046472 1

208/230/460V:120V 300046451

380V:120V 300046453

575V:120V 300046452 1

208/230V 300046457 2

1

1

380V, 460V 300046412 2

575V 300046259 2

Code 14= A 300046460 1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 39

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Power Panel Detail

AM1: Ammeter

Voltage

208V, 230V

380V

380V

380V

380V

460V, 575V

460V, 575V

Unit Size

all

175-250

280AS

280AH, 280AP

300-405

175-280

350-405

0-1500A

0-600A

0-1500A

0-600A

0-1500A

0-600A

0-1500A

Part Number

300046459

300046458

300046459

300046458

300046459

300046458

300046459

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 40

Controls

Units with Wye-Delta or Solid State Starter (Code 9 = WD, SS)

Power Panel Detail

M10

F1 or

Q20

Q10 or

P10

F2

GFR1 CT

Single Point Connection (Code 12= PC, DC, DH) Shown

Sch. Sym.

Q10

Q20

P10

F1, 2

Part Description

Switch- Main Disconnect

Switch- Main Disconnect

Power Block- Main

Circuit Breaker- Compressor 1, 2, 3

Units with Disc Switch: C12= DC, DH, WN, WH

Only on Multi-Point units: C12= WN, WH

Units with Power Block: C12= PC

Only on Single Point units: C12= PC, DC, DH

To insure proper replacement part number for any of the items above, contact McQuay Parts with the Control Box Serial Number and

Control Box Part number. See earlier Controls page for Label example.

Sch. Sym.

M10

Part Description

Control Box Exhaust Fan

GFR1 CT: Ground Fault Current Sensor

Multi-Point Units

(Code 12 = WN, WH)

Single Point Units

(Code 12 = PC, DC, DH)

Voltage Unit Size

all

208/230V

380V

380V

380V

380V

380V

380V

460V

460V

460V

460V

460V all all

175-250

280AS

280AH, AP

300AS

300AH, AP

320-405

175-300

320AS

320AH

320AP

350-405

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12

Part Number

300047148

Part Number

300043558

349937410

300043558

349937410

300043558

349937410

300043558

349937410

300043558

349937410

300043558

349937410

349937410

RPL 700014100 / Page 41

Controls

Solid State Starter Panel

Code 09= SS

KM1-1

K2B-1

KT-1

F0-1

LJV-1

MPR-1

EEXV1

MP1

T20-1

CC1

Sch.

Sym.

CC1, 2

EEXV1, 2

F0-1, 2

K2B-1, 2

KLJ-1, 2

KM1-1, 2

KT-1, 2

MP1, 2

MPR-1, 2

T20-1, 2

Part

Description

Controller- Circuit

Controller- Expansion Valve

MSP- Heater

Contactor- Turbo

Relay- Liquid Injection

Contactor- Solid State

Relay- Turbo Solenoid

Motor Protector

Relay- Motor Protection

Transformer- 120V to 24V

Part

Number

193407501

300046465

300044140

349934724

300046470 see next page

300046470

330343902

330278110

300046466

Qty per panel

1

1

1

1

1

1

1

1

1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 42

7

Controls

Solid State Starter Panel

Code 09= SS

1

MX2 Card

6

3 2

5

5

5

KM1-1,2 Contactor Assy

300048732 used on:

Sch.

Sym.

Part

Description

KM1-1, 2 Contactor - Solid State, complete assembly includes:

AWS 150-280, Std Eff, circuit 1 AWS 150-250, Std Eff, circuit 2

AWS 210-320, High Eff, circuit 1 AWS 210-300, High Eff, circuit 2

AWS 210-320, Prem Eff, circuit 1 AWS 210-300, Prem Eff, circuit 2

Part

Number

300048732

Qty per panel

1

' 1

2

3

5

6

7

MX2 Low Voltage Motor Starter Card

Contactor Bypass, 75A, 50HP, 120V

Surge Suppressor

SCR, 660A, 1800V

Current Transformer

Snubber Assembly

300048820

300040148

300043749

300042134

300042127

300043777

1

3

3

6

3

1

KM1-1,2 Contactor Assy

300047990 used on:

Sch.

Sym.

Part

Description

KM1-1, 2 Contactor - Solid State, complete assembly includes:

AWS 300-350, Std. Eff, circuit 1

AWS 350-405, High Eff, circuit 1

AWS 350, Prem Eff, circuit 1

AWS 280-350, Std Eff, circuit 2

AWS 320-405, High Eff, circuit 2

AWS 320-350, Prem Eff, circuit 2

Part

Number

300047990

Qty per panel

1

' 1

2

3

5

6

7

MX2 Low Voltage Motor Starter Card

Contactor Bypass, 85A, 60HP, 120V

Surge Suppressor

SCR, 660A, 1800V

Current Transformer

Snubber Assembly

300048820

300043218

300043749

300042134

300042127

300043777

1

3

3

6

3

1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 43

Controls

Wye-Delta Starter Panel

Code 09= WD

KM3-1

F5-1

KT1-1

K2B-1

KT-1

FO-1

LJV-1

MPR-1

EEXV1

MP1

CC1

KM2-1

KM1-1

T20-1

Sch.

Sym.

CC1, 2

EEXV1, 2

F0-1 , 2

F5-1, 2

K2B-1, 2

KLJ-1, 2

KM1-1, 2

KM2-1, 2

KM3-1, 2

KT-1, 2

KT1-1, 2

MP1, 2

MPR-1, 2

T20-1, 2

Part

Description

Controller- Circuit

Controller- Expansion Valve

Heater- MSP

Overload- Thermal

Contactor- Turbo Relay

Relay- Liquid Injection

Contactor- Wye Delta

Contactor- Wye Delta

Contactor- Wye Delta

Relay- Turbo Solenoid

Time Delay- Starter

Motor Protector

Relay- Motor Protection

Transformer- 120V to 24V

Part

Number

193407501

300046465

300044140

See next page

349934724

300046470

See next page

See next page

See next page

300046470

300046469

330343902

330278110

300046466

Qty per panel

1

1

1

1

1

1

1

1

1

1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 44

Controls

Wye-Delta Starter Panel

Code 09= WD

Starter Label example.

Refer to the Starter Label to identify the

Starter Max RLA.

Starter

Max

RLA

Unit

Voltage

Compressor Circuit Breakers

KM1-1, 2

KM2-1, 2 KM3-1,2

142A

200A

241A

275A all all all all

105A 300042917 105A 300042917

150A 300042135 105A 300042917

180A 300040787 180A 300040787

250A 300042136 180A 300040787

317A

413A all

208V

250A 300042136 180A 300040787

300A 300042137 300A 300042137

413A 230V 300A 300042137 180A 300040787

413A 380V w/o

Economizer

300A 300042137 300A 300042137

413A 380V

551A all

300A

400A

300042137

300042138

180A

300A

300040787

300042137

Thermal

Overload

F5-1, 2

107A 300046492

130A 300046493

150A 300046494

150A 300046494

200A 300046495

250A 300046496

250A 300046496

250A 300046496

250A 300046496

350A 300046497

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 45

Controls

Power Factor Correction Capacitors (PFCC)

Code 16= C

12 Fan unit shown. Configuration similar for 10-20 Fan and 24 Fan units.

For 22 Fan units, the PFCC panels are mounted on both sides of the evaporator.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 46

Controls

Power Factor Correction Capacitors (PFCC)

Code 16= C

208V 230V 460V

PFCC

Part Number from label on panel »»

575V

Sch Description Part

Sym

C1 Capacitor

C1 Capacitor

C1 Capacitor

332690221

332690229

1 1

1

C1 Capacitor

C1 Capacitor

C1 Capacitor

C1 Capacitor

C2 Capacitor

C2 Capacitor

C2 Capacitor

C2 Capacitor

FU1,2,3 Fuse

FU1,2,3 Fuse

FU1,2,3

FU1,2,3

Fuse

Fuse

FU1,2,3 Fuse

FU1,2,3 Fuse

FU1,2,3 Fuse

PC2 Contactor

PC2 Contactor

PC1 or PC2

PC1 or PC2

Contactor

Contactor

PC1 or PC2 Contactor

PC2 Contactor

PC2 Contactor

332690219

332690232

332690234

300043015

300040147

300044115

1

3

3 3

1

1

1 1

PA1 or PA2 Aux Contacts

PA1 or PA2 Aux Contacts

LT1,2,3 Pilot

332690206

332690207

1 1 1 1

1 1 1 1 1 1

332690210 3 3 3 3 3 3 3 3 3 3

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 47

Controls

Units with VFD Starters (Code 9 = VE or VF)

Box Locations and Label Detail

Control Panel Power Panel

Fan VFD location

Label Detail

For all control components not detailed or for unit specific controls (i.e. main disconnect, solid state contactors), please contact McQuay Parts with the Control Box Serial Number and

Control Box Part Number. These numbers are located on the Control box rating label (see example below). This label is found inside the panel.

Control Box Serial Number

“S” + Year + ##### + detail#

Control Box Part Number

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 48

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Side

Q110

Q107

Q105

Q103

Q102

Q101

Q210

Q207

Q205

Q203

Q202

Q201

FUSES

REC1

AC

K11

K13

K16

MPR1

KLJ-1

CC2

K23

K26

MPR2

KLJ-2

T20-1, T20-2

MP1, MP2

Q0

Q1

Q2

UC

FC, FC2

CC1

EEXV1

EEXV2

GFR1

T2

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 49

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Side

Sch.

Sym.

AC

AWM

CC1,2

EEXV1,2

Q0

Q1,2

Part

Description

Expansion Controller- Alarms

Advanced Web Module

Controller- Circuit

2

Extension I/O for Electr. Exp. Valve (Code 29= LD or SL)

EEXV1,2 Extension I/O for Electr. Exp. Valve (Code 29= ND or SD)

F11

F12

F59

F120

F120

Fuse- Unit Controller, 10A Rejection Type

Fuse- Outlet

Fuse- Evaporator Heater Protection

Fuse- Control Transformer, 12A Rejection Type (380V)

Fuse- Control Transformer, 9A Rejection Type (460V)

FC, FC2 Expansion Controller- Fans

GFR1

K11

K13

K16

K23

K26

KLJ-1,2

MP1,2

MPR1,2

Q11

Relay- Ground Fault

Relay- Emergency Stop

Relay- Mechanical High Pressure, Circuit 1

Relay- Fan Motor, Circuit 1

Relay- Mechanical High Pressure, Circuit 2

Relay- Fan Motor, Circuit 2

Relay- Liquid Injection

Motor Thermal Protection

Relay- Motor Protector

Switch- Unit Shut Off

Switch- Pumpdown

Part

Number Qty.

193407501 1

193408502 1

193407501

193407801

193407901

349937131

349937131

349937116

349937132

349937130

193407601

193432101

349934765

349934764

349934764

349934764

349934764

193439901

193445901

349934762

001355000

001355000

Switch- Emergency Stop (Not shown - mounted through the door) 193441101

2

2

2

1

1

1

2

2

2

*

1

1

1

1

1

2

2

2

1

1

1

REC1

T2

Receptacle- Ground Fault Interrupter

Transformer- 100VA, 115V-24V

039003600

330386105

1

1

T20-1,2 Transformer- 50VA, 115V-24V

UC Controller- MicroTech III

VFD1, 2 Fan VFD

1

349937203

193407301

2

1

193445601 2

1 Not shown - Fan VFDs are located on the left wall of the Control Side on units with VFD Starters.

2 This control board must be programmed in order to function correctly. When ordering a replacement, provide the unit model and serial number so that unit specific software code can be loaded before shipment.

*Qty = 1 on Std Short Circuit units (Code 12 = PC,DC,WN); Qty = 3 High Short Circuit units (Code 12 = DH, WH)

Code 14=A

Unit Size Efficiency

(Code 4)

Voltage Description Part Number Qty

0-600V

AM1

AM1

AM1

AM1

AM1

AM1

AM1

150 - 230

250

250

250

280

280

300 - 405 all

H

P

H, P

H, P

H, P all

1

Mounted on the outside of the control box door. all

380V

380V

460V

380V

460V all

Ammeter- 0-600A

Ammeter- 0-600A

Ammeter- 0-600A

Ammeter- 0-600A

1

1

Ammeter- 0-1200A

1

Ammeter- 0-1200A

1

Ammeter- 0-1200A

1

1

1

193446001 1

193446001 1

193446002 1

193446001 1

193446002 1

193446001 1

193446002 1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 50

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Side

Units with High Short Circuit Current Rating (Code 12=DH,WH)

Q101-210: Contact McQuay Parts

Units with Standard Short Circuit Current Rating (Code 12 = PC, DC, WN)

Sch. Part

Sym. Description

Units without Fan VFDs (Code 27 = F)

Q101-110 MSP- Fans

Q201- 210 MSP- Fans

Circuit #1

Circuit #2

Part

Number Qty.

349934055

349934055

1/fan

1/fan

Units with Fan VFDs (Code 27 = V)

Q101 Manual Mtr Starter- Fans

Q201 Manual Mtr Starter- Fans

Q102- 110 MSP- Fans, Low Short Circuit

Q202- 210 MSP- Fans, Low Short Circuit

Circuit #1

Circuit #2

Circuit #1

Circuit #2

193439703

193439703

349934055

349934055

1/fan

1/fan

1/fan

1/fan

Sch. Part

Sym. Description

NS F10 Exhaust Fan Fuse, 10A

Part

Number Qty.

049759816 1

NS

NS

NS

NS

NS

NS

F100

F200

Circuit Breaker- Circuit #1 Fans

Circuit Breaker- Circuit #2 Fans

JFU1,2,3 High Short Circuit Fuse, 30A, 600V

JFU1,2,3 High Short Circuit Fuse, 60A, 600V

JFU1,2,3 High Short Circuit Fuse, 100A, 600V

F130 Fuse- PVM

NS

KM101- 110

Contactor- Fans

NS

KM201- 210

Contactor- Fans

NS LR1, 2 Line Reactor

Circuit #1

Circuit #2

NS

NS

SS1

SS2

Switch- Voltmeter

Switch- Ammeter

** Contact McQuay Parts to determine which High Short Ckt Fuse is used in a specific unit.

NS = Not Shown

Contact McQuay Parts

Contact McQuay Parts

193403108 **

193403113 **

193403117 **

349937120

349932123

349932123

349964902

193446601

193446101

1

1

1

1

1/fan

1/fan

2

1

1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 51

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

VFD1

VFD2

VFU1

VFU2

K1

F01

F02

F1, F2

CT6

CT5

CT4

Q10 or PB1

GCT1

T1

Q12

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 52

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Sch. Part Part

Sym. Description

F0-1,2 Crankcase Heater MSP (Code 12= PC, DC or WN)

F0-1,2 Crankcase Heater MSP (Code 12= DH or WH)

K1,2

K1,2

Q12

T1

T1

Relay- Crankcase Heater (Code 12= PC, DC or WN)

Relay- Crankcase Heater (Code 12= DH or WH)

Fuse- Control Transformer, 20A Non-rejection Type

Transformer- Control, 1500VA, 380V-115V (380V units)

Transformer- Control, 1500VA, 460V-115V (460V units)

T1 Transformers include the following:

Finger Safe Cover for T1

Fuse Puller Kit for T1

Number Qty.

349934026 2

349934006 2

193454201

193454301

349937036

2

2

1

349992907

038253957

349955901

349955801

1

1

Sch.

Sym.

CT 4,5,6

Part

Description

Current Transformer

Unit Efficiency Voltage Current

Size

150-230

Code 4

S,H,P 380V, 460V

Relay

600:5A

Part Qty

Number

193432206 3

CT 4,5,6 Current Transformer

CT 4,5,6 Current Transformer

250

250

H

P

380V

380V

600:5A

1200:5A

193432206 3

193432207 3

CT 4,5,6 Current Transformer

CT 4,5,6 Current Transformer

250

280

CT 4,5,6 Current Transformer 280

CT 4,5,6 Current Transformer 300-350

CT 4,5,6 Current Transformer 380, 405

H,P

H,P

H,P

H,P

H

460V

380V

460V

380V, 460V

460V

600:5A

1200:5A

600:5A

1200:5A

1200:5A

193432206

193432206

3

193432207 3

3

193432207 3

193432207 3

Sch.

Sym.

Unit

Size

Units with Single Point Pwr Blk or Disconnect (Code 12 = PC, DC or DH)

GCT1

GCT1

Ground Fault Current Sensor

Ground Fault Current Sensor

150-300

320-405

Part

Number

193432203

193432205

Units with Multi Point Disconnect (Code 12 = WN or WH)

GCT1,2,3 Ground Fault Current Sensor 150-405

193432203

Qty

1

1

3

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 53

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

VFD-1, VFD-2 Compressor VFD Starter

Unit Voltage

Size

Circuit 1

VFD-1

Circuit 2

VFD-2

150A 460V

193439001 193439001

150A 380V

193439002 193439002

175A 460V

193439001 193439002

175A 380V

193439002 193439003

190A 460V

193439002 193439002

190A 380V

193439003 193439003

210A 460V

193439001 193439001

210A 380V

193439002 193439002

230A 460V

193439001 193439002

230A 380V

193439002 193439003

250A 460V

193439002 193439002

250A 380V

193439003 193439003

280A 460V

193439002 193439003

280A 380V

193439003 193439004

300A 460V

193439003 193439003

300A 380V

193439004 193439004

320A 460V

193439003 193439004

320A 380V

193439004 193439005

350A 460V

193439004 193439004

350A 380V

193439005 193439005

380A 460V

193439004 193439005

380A 380V

193439005 193439006

405A 460V

193439005 193439005

405A 380V

193439006 193439006

VFU1,2 Fuse

EMI1,2 EMI Filter

Used with

193439001 Compressor VFD (250A)

VFU1,2 Fuse- Semi-Conductor, 600A 193439601

Fuse Block- Semi-Conductor 193439501

EMI1,2 EMI Filter (Code 9 = VE)

Used with

VFU1,2 Fuse- Semi-Conductor, 700A 193439602

EMI1,2 EMI Filter (Code 9 = VE)

Used with

193439003 Compressor VFD (362A)

VFU1,2 Fuse- Semi-Conductor, 800A 193439603

EMI1,2 EMI Filter (Code 9 = VE)

Used with

193445701

193439002 Compressor VFD (296A)

Fuse Block- Semi-Conductor 193439501

193445702

Fuse Block- Semi-Conductor 193439501

193445702

193439004 Compressor VFD (414A)

VFU1,2 Fuse- Semi-Conductor, 800A 193439603

Fuse Block- Semi-Conductor 193439501

EMI1,2 EMI Filter (Code 9 = VE) 193445702

Used with

193439005 Compressor VFD (515A)

VFU1,2 Fuse- Semi-Conductor, 1000A 193439604

Fuse Block- Semi-Conductor 193439502

EMI1,2 EMI Filter (Code 9 = VE) 193445703

Used with

193439006 Compressor VFD (675A)

VFU1,2 Fuse- Semi-Conductor,1200A 193439605

Fuse Block- Semi-Conductor 193439502

EMI1,2 EMI Filter (Code 9 = VE) 193445703

Note: EMI1,2 are not shown on diagram

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 54

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

PB1 - Single Point Power Block (Code 12 = PC)

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit

Size

Efficiency

150 Standard

150 Standard

175

190

Standard

Standard

210

230

High, Prem

High, Prem

250 High

250 Premium

250 Premium

280, 300 High

280, 300 High

280, 300 Premium

280, 300 Premium

320, 350 High

320, 350 High

320, 350 Premium

320, 350 Premium

380 High

405 High

Voltage

380V

460V

380V, 460V

380V, 460V

380V, 460V

380V, 460V

380V, 460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V, 460V

380V, 460V

Power Block

Power Block

Part Number

620A

380A

620A

620A

620A

620A

620A

760A

620A

760A

620A

760A

620A

1400A

760A

1400A

760A

1400A

1400A

Safety Cover

Part Number

193446301

193446303

193446301

193446301

193446301

193446301

193446301

193446302

193446301

193446302

193446301

193446302

193446301

193445001

193446302

193445001

193446302

193445001

193445001

193446401

193446401

193446401

193446401

193446401

193446401

193446401

193446401

193446401

193446401

193446401

193446401

193446401 included with Pwr Blk

193446401 included with Pwr Blk

193446401 included with Pwr Blk included with Pwr Blk

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 55

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Q10 - Main Disconnect (Code 12 = DC, DH, WN or WH)

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit Efficiency Voltage Disconnect Disconnect

Size

Part Number

150 Standard

150 Standard

175 Standard

190 Standard

380V

460V

380V, 460V

380V, 460V

210 High, Prem 380V, 460V

230 High, Prem 380V, 460V

250 High

250 Premium

380V, 460V

380V

250 Premium

280 High

280 High

280 Premium

460V

380V

460V

380V

280 Premium 460V

300 High, Prem 380V, 460V

320

320

High

High

380V

460V

320 Premium 380,460V

350 High 380V

350 High

350 Premium

460V

380V

350 Premium

380 High

405 High

460V

380V, 460V

380V, 460V

600A

400A

600A

600A

600A

600A

600A

800A

600A

800A

600A

800A

600A

800A

1200A

800A

800A

1200A

800A

1200A

800A

1200A

1200A

193438002

193438001

193438002

193438002

193438002

193438002

193438002

193438201

193438002

193438201

193438002

193438201

193438002

193438201

193438202

193438201

193438201

193438202

193438201

193438202

193438201

193438202

193438202

Handle Shaft

Part Number Part Number

193437901

193437901

193437901

193437901

193437901

193437901

193437901

349961206

193437901

349961206

193437901

349961206

193437901

349961206

349961206

349961206

349961206

349961206

349961206

349961206

349961206

349961206

349961206

349962236

349962236

349962236

349962236

349962236

349962236

349962236

249962238

349962236

249962238

349962236

249962238

349962236

249962238

349962238

249962238

249962238

349962238

249962238

349962238

249962238

349962238

349962238

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 56

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Multi Point Disconnect and Standard Short Circuit Current Rating (Code 12 = WN)

See next page for Multi Point Disconnect on units with High Short Circuit Current

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Molded Case

Circuit Breaker

Part

Number

Unit

Size

F1 (Circuit 1)

150

175

190

190

210, 230

210, 230

250, 280

300, 320

350

350

Efficiency

Standard

Standard

Standard

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

380

405

High

High

F2 (Circuit 2)

150

175

175

190

190

210

210

230, 250

280, 300

320, 350

320, 350

380, 405

Standard

Standard

Standard

Standard

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High

Voltage

380V, 460V

380V, 460V

380V

460V

380V

460V

380V, 460V

380V, 460V

380V

460V

460V

460V

380V, 460V

380V

460V

380V

460V

380V

460V

380V, 460V

380V, 460V

380V

460V

460V

Code 12

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

WN

250A / 18KA

250A / 18KA

400A / 35KA

250A / 18KA

400A / 35KA

250A / 18KA

400A / 35KA

400A / 35KA

600A / 35KA

400A / 35KA

400A / 35KA

600A / 35KA

250A / 18KA

400A / 35KA

250A / 18KA

400A / 35KA

250A / 18KA

400A / 35KA

250A / 18KA

400A / 35KA

400A / 35KA

600A / 35KA

400A / 35KA

600A / 35KA

193428705

193428705

193454101

193428705

193454101

193428705

193454101

193454101

193454103

193454101

193454101

193454103

193428705

193454101

193428705

193454101

193428705

193454101

193428705

193454101

193454101

193454103

193454101

193454103

Handle for 250A Circuit Breaker

Handle for 400A and 600A Circuit Breaker

Shaft for 250A, 400A and 600A Circuit Breaker

349935533

193437901

349962236

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 57

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Multi Point Disconnect and High Short Circuit Current Rating (Code 12 = WH)

See previous page for Multi Point Disconnect on units with Standard Short Circuit Current

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Part

Number

Unit

Size

F1 (Circuit 1)

150

175

190

190

210, 230

210, 230

250, 280

300, 320

350

350

380

380

Efficiency

Standard

Standard

Standard

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High

High

405 High

F2 (Circuit 2)

150

175

175

190

190

210

210

230, 250

280, 300

320, 350

320, 350

380

405

Standard

Standard

Standard

Standard

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High

High

Voltage

380V, 460V

380V, 460V

380V

460V

380V

460V

380V, 460V

380V, 460V

380V

460V

380V

460V

460V

380V, 460V

380V

460V

380V

460V

380V

460V

380V, 460V

380V, 460V

380V

460V

460V

460V

Code 12 Molded Case

Circuit Breaker

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

WH

250A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

400A / 65KA

600A / 65KA

400A / 65KA

600A / 65KA

400A / 65KA

600A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

400A / 65KA

600A / 65KA

400A / 65KA

600A / 65KA

600A / 65KA

193428704

193428704

193454102

193428704

193454102

193428704

193454102

193454102

193454104

193454102

193454104

193454102

193454104

193428704

193454102

193428704

193454102

193428704

193454102

193428704

193454102

193454102

193454104

193454102

193454104

193454104

Handle for 250A Circuit Breaker

Handle for 400A and 600A Circuit Breaker

Shaft for 250A, 400A and 600A Circuit Breaker

349935533

193437901

349962236

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 58

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Single Point Circuit Breaker and Standard Short Circuit Current Rating (Code 12= PC or DC)

See next page for Circuit Breaker on units with High Short Circuit Current

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit

Size

Efficiency Voltage Code 12 Molded Case

Circuit Breaker

F1 (Circuit 1)

150

175

190

190

210, 230

210, 230

250, 280, 300, 320

350

350

380

405

Standard

Standard

Standard

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High

High

380V, 460V

380V, 460V

380V

460V

380V

460V

380V, 460V

380V

460V

460V

380V, 460V

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

PC, DC

250A / 18KA

250A / 18KA

400A / 30KA

250A / 18KA

400A / 30KA

250A / 18KA

400A / 30KA

600A / 35KA

400A / 30KA

400A / 30KA

600A / 35KA

F2 (Circuit 2)

150 Standard 380V, 460V PC, DC 250A / 18KA

175, 190

175, 190

210

210

Standard

Standard

High,Prem

High,Prem

380V

460V

380V

460V

PC, DC

PC, DC

PC, DC

PC, DC

400A / 30KA

250A / 18KA

400A / 30KA

250A / 18KA

230, 250, 280, 300

320, 350

320, 350

380, 405

High,Prem

High,Prem

High,Prem

High

380V, 460V

380V

460V

460V

PC, DC

PC, DC

PC, DC

PC, DC

400A / 30KA

600A / 35KA

400A / 30KA

600A / 35KA

Part

Number

193428705

193428705

193454001

193428705

193454001

193428705

193454001

193454103

193454001

193454001

193454103

193428705

193454001

193428705

193454001

193428705

193454001

193454103

193454001

193454103

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 59

Controls

Units with VFD Starters (Code 9 = VE or VF)

Power Side

Units with Single Point Circuit Breaker and High Short Circuit Current Rating (Code 12 = DH)

See previous page for Circuit Breaker on units with Standard Short Circuit Current

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit

Size

Efficiency Voltage Code 12 Molded Case

Circuit Breaker

F1 (Circuit 1)

150

175

190

190

210, 230

210, 230

250, 280, 300, 320

350

350

380

405

Standard

Standard

Standard

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High

High

380V, 460V

380V, 460V

380V

460V

380V

460V

380V, 460V

380V

460V

460V

460V

DH

DH

DH

DH

DH

DH

DH

DH

DH

DH

DH

250A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

600A / 65KA

400A / 65KA

400A / 65KA

600A / 65KA

F2 (Circuit 2)

150

175

175

190

Standard

Standard

Standard

Standard

380V, 460V

380V

460V

380V

DH

DH

DH

DH

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

190

210

210

230, 250, 280, 300

320, 350

320, 350

380, 405

Standard

High,Prem

High,Prem

High,Prem

High,Prem

High,Prem

High

460V

380V

460V

380V, 460V

380V

460V

460V

DH

DH

DH

DH

DH

DH

DH

250A / 65KA

400A / 65KA

250A / 65KA

400A / 65KA

600A / 65KA

400A / 65KA

600A / 65KA

Part

Number

193428704

193428704

193454102

193428704

193454102

193428704

193454102

193454104

193454102

193454102

193454104

193428704

193454102

193428704

193454102

193428704

193454102

193428704

193454102

193454104

193454102

193454104

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 60

Controls

Units with VFD Starters (Code 9 = VE or VF)

Control Box Exhaust and Intake Fans

M12

M11

M10

Sch. Sym. Part Description

M10

M10

Control Box Exhaust Fan Unit sizes 150-230,300-350,405

Control Box Exhaust Fan Unit sizes 250, 280, 380

M11

M11

M12

Control Box Intake Fan

Control Box Intake Fan

Control Box Exhaust Fan

Unit sizes 300, 320, 350

Unit sizes 380, 405

Unit size 405 only

Part Number

193441002

193441003

193440802

193440803

193441002

1

1

1

Qty

1

1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 61

Controls

Terminal Box

Type A Terminal Plate

For more information, see

Parts Bulletin PB-0512-01.

Ref. Part

No. Description

50 Motor Terminal Plate

Motor Terminal Plate Gasket

Motor Terminal Bolt, M8

Bus Bar

Electrical Barrier

Terminal Box Mounting Screw, M6

Type B Terminal Plate

For more information, see

Parts Bulletin PB-0512-01.

5

4

6

3

2

1

Part

Number

330875701

300040078

300040079

300044004

330719201

330821902

P5

50

Qty.

1 per compressor

1 per compressor

14 per compressor

3 per compressor

1 per compressor

4 per compressor

P3

50

Ref. Part

No. Description

50 Motor Terminal Plate

P3

Motor Terminal Plate Gasket

Terminal Plate Insulator

P4

P5

Motor Terminal Bolt, M10 (Starter side)

Lock Washer (Starter side)

Mounting Bolt, M8 (Plate mounting)

Terminal Box Screw, M6

P4

Part

Number

131073022

300040078

131083020

130306091

130902028

300040079

330821902

Qty.

1 per compressor

1 per compressor

6 per compressor

6 per compressor

6 per compressor

14 per compressor

4 per compressor

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 62

Accessories

Units with Wye-Delta or Solid State Starter (Code 9 = WD or SS)

Isolator Kits - Rubber-In-Shear

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Unit Std. High Prem. Unit Std. High Prem

Size Eff. Eff. Eff. Size Eff. Eff. Eff.

Total Total Total

Fans Fans Fans

Total Total Total

Fans Fans Fans

175 10 -- -- 300 16 16 20

190 12 -- -- 320 20 20 22

210 12 12 16 350 20 20 24

230 14 14 18 380 -- 22 --

280 16 16 20

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding

Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Units with Aluminum Fin Condenser

Group #

(Code 8 = A, B, E)

Total # of Fans

10 12 14 16 18 20 22 24

4 4 5 1 6 6 7 8

Units with Copper Fin Condenser Group #

(Code 8 = C, F)

Group

Complete

Kit

#

Part #

2 332325802

3 332325803

RIS Isolator Part #s and Quantities

331481404 331481403 331481401 331481402 331481405

Charcoal Lime Brown Brick Red Purple

4

4

4

4

6 332325808

7 332325809

8 332325810

9 332325811

10 332325812

11 332325815

2

2

2

4

2

2

4

4

4

2

4

2

2

2

2

2

2

2

2

4

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 63

Accessories

Units with Wye-Delta or Solid State Starter (Code 9 = WD or SS)

Isolator Kits - Spring

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Unit Std. High Prem. Unit Std. High Prem

Size Eff. Eff. Eff. Size Eff. Eff. Eff.

Total Total Total

Fans Fans Fans

Total Total Total

Fans Fans Fans

175 10 -- -- 300 16 16 20

190 12 -- -- 320 20 20 22

210 12 12 16 350 20 20 24

230 14 14 18 380 -- 22 --

280 16 16 20

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding

Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Total # of Fans

10 12 14 16 18 20 22 24

Units with Aluminum Fin Condenser

Group #

(Code 8 = A, B, E)

Units with Copper Fin Condenser

Group #

(Code 8 = C, F)

Complete Spring Isolator Part #s and Quantities

Group Kit

332620800 332620600 332620400 332620900 332620500 332621000 026219800

# Part #

Dark Green Dark Purple Red Gray Black White Housing CP4

8 8 16 8

16 16 8

18 332320807 16 8 6

8 8 8 8 8

21 332320810

22 332320811

8

16

24

8 8 8

8

10

16 16 8 10

8 8 16 8 10

25 332320814 16 8 6

27 332320816

332320817

29 332320818 16

16

8

16

16

8

10

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 64

Accessories

Units with VFD Starter (Code 9 = VF or VE)

Isolator Kits - Rubber-In-Shear

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Unit Std. High Prem.

Size Eff. Eff. Eff.

Total Total Total

Fans Fans Fans

150 10 --

175 12 --

--

--

190 12 -- --

210 -- 12 16

230 -- 14 18

250 -- 14 18

280 -- 16 20

300 -- 16 20

320 -- 20 22

350 -- 20 24

380 -- 22

405 -- 24

--

--

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding

Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

10

Total # of Fans

12 14 16 18 20 22 24

Units with Aluminum Fin Condenser

Group #

(Code 8 = A, B, E)

Units with Copper Fin Condenser

Group #

(Code 8 = C, F)

Complete

Group

#

Kit

Part #

35 332325821

36 332325822

37 332325823

38 332325824

40 332325826

RIS Isolator Part #s and Quantities

331481403 331481402

Lime Brick Red

8

10

12

8

10

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 65

Accessories

Units with VFD Starter (Code 9 = VF or VE)

Isolator Kits - Spring

Standard Efficiency: Code 4 = S*

High Efficiency: Code 4 = H*

Premium Efficiency: Code 4 = P*

Unit Std. High Prem.

Size Eff. Eff. Eff.

Total Total Total

Fans Fans Fans

150 10 --

175 12 --

--

--

190 12 -- --

210 -- 12 16

230 -- 14 18

250 -- 14 18

280 -- 16 20

300 -- 16 20

320 -- 20 22

350 -- 20 24

380 -- 22

405 -- 24

--

--

Use the chart above to determine the Total # of Fans. Use the chart below to identify the corresponding

Isolator Group #. Then, see the last chart for the Complete Kit and component part numbers.

Units with Aluminum Fin Condenser

Group #

(Code 8 = A, B, E)

Total # of Fans

10 12 14 16 18 20 22 24

Units with Copper Fin Condenser Group # 48 48 48 48 49

(Code 8 = C, F)

Group

Complete

Kit

#

Part #

45 332320821

46 332320822

47 332320823

48 332320824

49 332320825

332620800

Dark Green

32

24

32

40

40

Spring Isolator Part #s and Quantities

332620600 332620500 026219800

Dark Purple Black Housing CP4

8

8

16

8

10

10

10

12

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 66

Accessories

Description

Flow Switch- Paddle

Flow Switch Kit- Electronic

Flow Switch Only

Cable- Flow Switch

Flow Switch

Part No.

017503300

332688401

331796201

330571404

Sound Enclosure Kit

Description Part No.

Sound Enclosure Kit, 2 Circuit (only available on units without VFD Starters) 332523852

Description

Alarm Bell Kit

Relay, SPDT, 30A, 120VAC

Alarm Bell

Transformer

Alarm Bell

Inlet Strainer

Description

Inlet Strainer, Stainless Steel, Field Kit

Standard Eff. units (Code 4 = S*): Sizes 150ADS- 250ADS

Sizes 280ADS- 350ADS

High Eff. units (Code 4 = H*): Sizes 210ADH- 250ADH

Sizes 280ADH- 405ADH

Premium Eff. units (Code 4 = P*): Sizes 210ADP- 230ADP

Sizes 250ADP- 350ADP

Part No.

332688502

072937402

017809400

330386102

Part No.

331758906

331758908

331758906

331758908

331758908

331758910

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 67

Accessories

Field-Installed Fan VFD Kits

Description

Field-Installed Fan VFD Kit for units without VFD Starters

208V / 60Hz

230V / 60HZ

460V / 60Hz

575V / 60Hz

Field-Installed Fan VFD Kit for units with VFD Starters

400V / 50Hz

460V / 60Hz

Part No.

332688601

332688602

332688603

332688605

193502807

193502801

High Ambient Exhaust Fan Kit

Description

High Ambient Exhaust Fan Kit for units without VFD Starters

Part No.

333930401

Rapid Restore

Description

Rapid Restore Kit for units without VFD Starters

Rapid Restore Kit for units with VFD Starters

Part No.

333930501

193503101

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 68

Accessories

Base and Coil - Grille and Louver Kits

Standard Efficiency: Code 4 = S*, High Efficiency: Code 4 = H*, Premium Efficiency: Code 4 = P*

Unit Std. High Prem.

Size Eff. Eff. Eff.

Total Total Total

Fans Fans Fans

150 10 --

175 12 --

--

--

190 12 --

210 -- 12

--

16

230 --

250 --

14 18

14 18

Unit Std. High Prem.

Size Eff. Eff. Eff.

Total Total Total

Fans Fans Fans

280 -- 16 20

300 -- 16 20

320 -- 20 22

350 -- 20 24

380 -- 22

405 -- 24

--

--

Base Grille Kits* - Units with Wye-Delta or SS Starter (Code 8 = WD, SS)

Total # of Fans

332688110 332688112 332688114 332688116 332688118 332688120 332688122 332688124

Base Grille Kits* - Units with VFD Starter (Code 8 = VF, VE)

Total # of Fans

332688148 332688135 332688136 332688137 332688138 332688139 332688140 332688141

* Kit part numbers above include Grilles and hardware. For component details, see earlier pages concerning Coil and

Base Frame Grilles and Louvers.

Coil Louver Kits**

Total # of Fans

332688210 332688212 332688214 332688216 332688218 332688220 332688222 332688224

Base & Coil Louver Kits**- Units with Wye-Delta or SS Starter (Code 8 = WD, SS)

Total # of Fans

332688310 332688312 332688314 332688316 332688318 332688320 332688322 332688324

Base & Coil Louver Kits** - Units with VFD Starter (Code 8 = VF, VE)

Total # of Fans

332688348 332688335 332688336 332688337 332688338 332688339 332688340 332688341

** Kit part numbers above include Louvers and hardware. For component details, see earlier pages concerning Coil and

Base Frame Grilles and Louvers.

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 69

650

Accessories

BACnet MS/TP Communications Module

Ref. Description

No.

650 BACnet MS/TP Kit

Part Qty.

Number

350147414 1

700

BACnet with IP/Ethernet

Ref. Description

No.

700 BACnet IP/Ethernet Kit

Part Qty.

Number

350147415 1

827

MODBUS Communications Module

Ref. Description

No.

827 MODBUS Installation Kit

Part Qty.

Number

350147413 1

920

LonMark Communications Module

Ref. Description

No.

920 LonMark Installation Kit

Part Qty.

Number

350147412 1

950

Remote Display Kit

Ref. Description

No.

Remote Display Kit

950 Control- Remote Keypad

Part Qty.

Number

350147416 1

193408001 1

Air Cooled Screw Comp. Chiller, AWS 150-405 60Hz, 2-Ckt, Vint. A Rev. H 09/12 RPL 700014100 / Page 70

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
