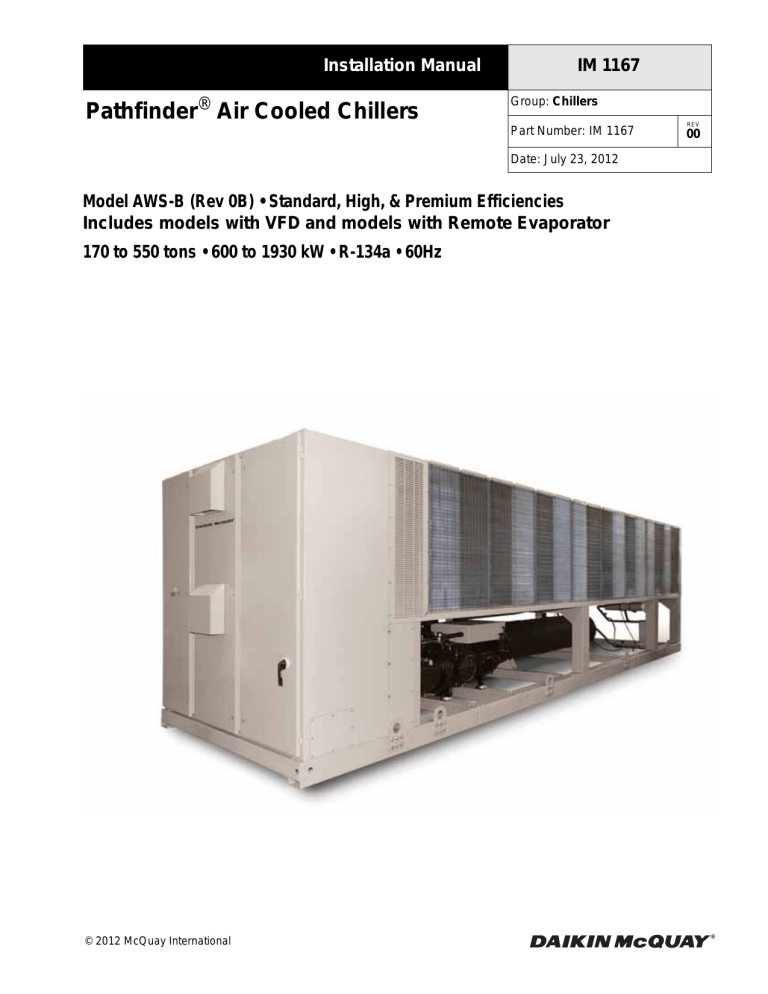

Pathfinder Air Cooled Chillers ®

Pathfinder Air Cooled Chillers ®

Installation Manual

Pathfinder

®

Air Cooled Chillers

IM 1167

Group:

Chillers

Part Number: IM 1167

Date: July 23, 2012

Model AWS-B (Rev 0B) • Standard, High, & Premium Efficiencies

Includes models with VFD and models with Remote Evaporator

170 to 550 tons • 600 to 1930 kW • R-134a • 60Hz

REV

00

© 2012 McQuay International

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Installation and Startup . . . . . . . . . . . . . . . . . . . . . . 4

Clearance Requirements . . . . . . . . . . . . . . . . . 5

Chilled Water Piping. . . . . . . . . . . . . . . . . . . . 10

Physical Data (non-VFD) . . . . . . . . . . . . . . . . . . . . 15

Physical Data (VFD) . . . . . . . . . . . . . . . . . . . . . . . . 30

Lifting & Mounting Weights (I-P Units). . . . . . . . . 39

Lifting & Mounting Weights (SI Units) . . . . . . . . . 41

Lifting & Mounting Locations - Index of Drawings 43

Dimensions (non-VFD). . . . . . . . . . . . . . . . . . . . . . 44

Dimensions (VFD). . . . . . . . . . . . . . . . . . . . . . . . . . 50

Isolator Locations and Kit Numbers. . . . . . . . . . . 55

Electrical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Multipoint Electrical Data (non-VFD) . . . . . . . . . . 67

Multipoint Field Wiring Data (non-VFD) . . . . . . . . 78

Terminal Amps (non-VFD) (single/multi-point) . . 88

Single-point Electrical Data (non-VFD) . . . . . . . . 92

Single-point Field Wiring Data (non-VFD) . . . . . . 97

Multipoint Electrical Data (VFD). . . . . . . . . . . . . 101

Multipoint Field Wiring Data (VFD) . . . . . . . . . . 104

Terminal Amps (VFD) (single- and multi-point) 105

Single-point Electrical Data (VFD) . . . . . . . . . . . 106

Single-point Field Wiring Data (VFD). . . . . . . . . 107

Pressure Drop Data. . . . . . . . . . . . . . . . . . . . . . . 108

Remote Evaporators . . . . . . . . . . . . . . . . . . . . . . 115

Remote Evaporator Refrigerant Piping . . . . 116

Remote Evaporator Dimensions . . . . . . . . . . . . 123

Remote Evaporator Unit Dimensions . . . . . . . . 126

Remote Evaporator Lifting & Mounting Weights 152

Remote Evaporator Isolators . . . . . . . . . . . . . . . 154

Remote Evaporator Lifting & Mounting Locations 158

Remote Evaporator Physical Data. . . . . . . . . . . 166

Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . 181

Hazard Identification

DANGER

Dangers indicate a hazardous situation which will result in death or serious injury if not avoided.

WARNING

Warnings indicate potentially hazardous situations, which can result in property damage, severe personal injury, or death if not avoided.

CAUTION

Cautions indicate potentially hazardous situations, which can result in personal injury or equipment damage if not avoided.

Modbus

Document:

Issue Date:

Revision Date:

Replaces:

IM 1167

July 23, 2012

--

NEW

©2012 McQuay International. Illustrations and data cover the McQuay International product at the time of publication and we reserve the right to make changes in design and construction at anytime without notice. ™® The following are trademarks or registered trademarks of their respective companies: BACnet from ASHRAE; LONMARK,

LonTalk, LONWORKS, and the LONMARK logo are managed, granted and used by LONMARK International under a license granted by Echelon Corporation; ElectroFin from AST ElectroFin Inc.; Modbus from Schneider Electric; FanTrol, MicroTech III, Open Choices, and SpeedTrol from McQuay International

2 IM 1122-2

General Description

Daikin McQuay Pathfinder™ air-cooled chillers are complete, self-contained chillers that include the latest in engineered components arranged to provide a compact and efficient unit.

Each unit is completely assembled, factory wired, evacuated, charged, tested and comes complete and ready for installation.

Each of two circuits consists of an air-cooled condenser section with an integral subcooler section, a semi-hermetic, single-screw compressor with starter, a multi-circuit, shelland-tube, direct expansion evaporator, an economizer and complete refrigerant piping. Each compressor has an independent refrigeration circuit. Liquid line components included are a manual liquid line shutoff valve, charging port, filter-drier, sight-glass/moisture indicator, and electronic expansion valve. A combination discharge check and shutoff valve is included and a compressor suction shutoff valve is optional. Other features include compressor heaters, evaporator heaters for freeze protection, automatic, one-time pumpdown of each refrigerant circuit upon circuit shutdown, and an advanced fully integrated microprocessor control system.

Pathfinder units are available as standard efficiency (BDS) or high efficiency (BDH) or premium efficiency (BDP). A high ambient option is required for operation in ambient temperatures above 100

F (37.8

C) and up to 125

F (51.7

C) and when the VFD low ambient option is selected.

Introduction

Introduction

Figure 1: Model Nomenclature

Air-Cooled

World Product

Screw Compressor

Nominal Tons

Design Vintage

A

W S XXX B D SE

E = Standard Packaged

M = Remote Evaporator

S = Standard Efficiency

H = High Efficiency

P = Premium Efficiency

D = Dual Compressor

T = Triple Compressor

Information on the operation of the unit MicroTech

III controller is in the OM 1123 manual, available on www.daikinmcquay.com.

Remote Evaporator Models

For enhanced application flexibility, AWS non-VFDand VFD models are also available as remote evaporator models.

Information on remote evaporator units can be found beginning on page 117 .

Inspection

When the equipment is received, carefully check all items against the bill of lading to verify for a complete shipment.

Check all units for damage upon arrival. All shipping damage must be reported to the carrier and a claim must be filed with the carrier. Check the unit’s serial plate before unloading the unit to be sure that it agrees with the power supply available.

Physical damage to a unit after shipment is not McQuay

International’s responsibility.

Note

: Unit shipping and operating weights are shown in the

Physical Data Tables beginning on page 15 .

Table 1: Operating Limits

Maximum standby ambient temperature

Maximum operating ambient temperature with optional high ambient package (see detailed information in Cat 600)

Minimum operating ambient temperature (standard control)

Minimum operating ambient temperature (with optional low-ambient control)

Leaving chilled water temperature

Leaving chilled fluid temperatures (with anti-freeze) - Unloading is not permitted with fluid leaving temperatures below 30°F (-1°C).

Operating chilled water delta-T range

Maximum evaporator operating inlet fluid temperature

Maximum evaporator non-operating inlet fluid temperature

130°F (55°C)

100°F (37.8°C)

125°F (52°C)

35°F (2°C)

0°F (-18°C)

40°F to 60°F (4.4°C to 15.6°C)

20°F to 60°F (-7°C to 16°C)

6 to 18°F (-14 to -8°C)

76°F (24°C)

100°F (38°C)

IM 1167 3

4

Installation and Startup

Installation and Startup

Installation and maintenance are to be performed only by qualified personnel who are familiar with local codes and regulations, and experienced with this type of equipment.

WARNING

Sharp edges and coil surfaces are a potential injury hazard.

Avoid contact with them.

Start-up by McQuay Factory Service is included on all

Pathfinder units sold for installation within the U.S. and

Canada and must be performed by them to initiate the standard

Limited Product Warranty. Start-up by any party other than

McQuay Factory Service or a McQuay Authorized Service

Representative will void the Limited Product Warranty. Twoweek prior notification of start-up is required. The contractor should obtain a copy of the Start-up Scheduled Request Form from the sales representative or from the nearest McQuay

Factory Service office.

WARNING

Escaping refrigerant can displace air and cause suffocation.

Immediately evacuate and ventilate the equipment area. If the unit is damaged, follow Environmental Protection Agency

(EPA) requirements. Do not expose sparks, arcing equipment, open flame or other ignition source to the refrigerant.

Handling

DANGER

Improper lifting or moving of a unit can result in property damage, severe personal injury or death. Follow rigging and moving instructions carefully.

Avoid rough handling shock due to impact or dropping the unit. Do not push or pull the unit. Never allow any part of the unit to fall during unloading or moving, as this can result in serious damage.

To lift the unit, lifting tabs with 3" (76 mm) diameter holes are provided on the base of the unit. All lifting holes must be used when lifting the unit. Spreader bars and cables should be arranged to prevent damage to the condenser coils or unit cabinet (see

Figure 2

).

Location

Locate the unit outdoors and carefully to provide proper airflow to the condenser. (See

Figure 4, page 5

for required

clearances.)Using less clearance than shown in Figure 4 can

cause discharge air recirculation to the condenser and could have a significant detrimental effect on unit performance.

Due to the shape of the condenser coils on the Pathfinder chillers, it is recommended that the unit be oriented so that prevailing winds blow parallel to the unit length, thus minimizing the wind effect on condensing pressure and performance. If low ambient temperature operation is expected, optional louvers should be installed if the unit has no protection against prevailing winds.

For pad-mounted units, it is recommended that the unit be raised a few inches with suitable supports such as neoprene waffle vibration pads, located at least under the mounting locations. This will allow water to drain from under the unit and facilitate cleaning under it.

Figure 2: Required Lifting Method

NOTES:

1.

Unit with 8 lifting points illustrated above; the number of condenser sections, fans, and lifting points can vary from this diagram.see lifting/mounting drawings beginning on page page 44 to identfy the number of lifting points for a specific unit.

2.

3.

All rigging points must be used. See weights at lifting points beginning on page 39 for each specific size unit.

Crosswise and lengthwise spreader bars must be used to avoid damage to unit.

Service Access

Compressors, filter-driers, and manual liquid line shutoff valves are accessible on each side or end of the unit. The evaporator heater is located on the barrel.

The control panels are located on the end of the chiller. The left-hand control box contains the unit and circuit microprocessors as well as transformers, fuses and terminal.

The right-hand panel contains a circuit breaker. A minimum of four feet of clearance is required in front of the panels. The side clearance required for airflow provides sufficient service clearance.

IM 1167

g ,

Installation and Startup

, g

Single Point Disconnect Switch

Controller

Fuse

Emergency

Switch

Relay

Control

Circuit

Breaker

Unit On/Off

Switch

Circuit #1

Pumpdown

Switch

Circuit #2

Pumpdown

Switch

On all Pathfinder units, the condenser fans and motors can be removed from the top of the unit. The complete fan/motor assembly can be removed for service. The fan blade must be removed for access to wiring terminals at the top of the motor.

DANGER

Disconnect, lockout and tag all power to the unit before servicing condenser fan motors or compressors. Failure to do so can cause bodily injury or death.

Do not block access to the sides or ends of the unit with piping or conduit. These areas must be open for service access. Do not block access to the control panels with field-mounted disconnect switches.

Figure 3: Control and Power Panel Component Location

MicroTech III

Main

Controller

Optional

115V

Outlet

Cir #1 & #2

Fan Control

Extension

Module

NOTES

:

1. The Emergency Switch Relay de-energizes circuit #1 and #2 control power when activated, causing an immediate compressor and fan shut down. When ordered, the optional red emergency button switch is located on the bottom front of the control panel door.

2. The control power transformer is located in the power panel adjacent to the control panel.

3. Additional extension (aka extension) modules are located elsewhere on the chiller.

Phase/Voltage

Monitor

Fan Contactors, 1 per Fan

Circuit #1

Alarm & Limit

Extension

Module

Cir# 1, Fan Circuit Breaker

Compressor #1

Circuit Breaker

Compressor #2

Circuit Breaker

Clearance Requirements

Notes:

1

Minimum side clearance between two units is 12 feet

(3.7 meters).

2

3

Unit must not be installed in a pit or enclosure that is deeper or taller than the height of the unit unless extra clearance is provided per note 4.

Minimum clearance on each side is 8 feet (2.4 meters) when installed in a pit no deeper than the unit height.

4

5

6

7

Minimum side clearance to a side wall or building taller than the unit height is 6 feet (1.8 meters), provided no solid wall above 6 feet (1.8 meters) is closer than 12 feet

(3.7 meters) to the opposite side of the unit.

Do not mount electrical conduits where they can block service access to compressor controls, refrigerant driers or valves.

There must be no obstruction of the fan discharge.

Field installed switches must not interfere with service access or airflow.

Figure 4: Clearance Requirements

5ft (1.5m)if open fence or 50% open wall

6ft (1.8m) if solid wall (see note 3 for pit)

No obstructions.

Recommended area required for unit operation, air flow and maintenance access.

4ft (1.2m)

For electric panel access

Fan Contactors

1 per Fan, Circuit #2

120/24V

Transformer

Line/120V

Transformer

5ft (1.5m)if open fence or 50% open wall

6ft (1.8m) if solid wall (see note 3 for pit)

3ft (1m) for service

See notes 2 & 4 concerning wall height at unit sides.

Air Flow

No obstructions allowed above unit at any height

See Note 5

Wall or

Fence

IM 1167 5

Installation and Startup

Figure 5: Refrigerant Diagram - All Standard Efficiency Models (one circuit shown of two or three possible circuits)

AWS PACKAGE CHILLER

331994701 REV. 0D

CONDENSER

ASSEMBLY

AIR

FLOW

SCHRADER

VALVE

(HEADER)

DISCHARGE

TUBING

DISCHARGE

TRANSDUCER

SHUT-OFF

VALVE

OIL PRESS.

TRANSDUCER

WITH SCHRADER

VALVE

SUCTION

TRANSDUCER

BUTTERFLY

VALVE

(OPTIONAL)

BALL

VALVE

CHARGING

VALVE

SCHRADER

VALVE

RELIEF

VALVE

OUTSIDE AIR

TEMPERATURE

(WAA)

DISCHARGE

TEMP. SENSOR

F3/F4

COMPRESSOR

SCHRADER

VALVE

AIR

FLOW

LIQUID

INJECTION

TUBING

SUCTION

TUBING

BALL

VALVE

SCHRADER

VALVE

STRAINER

SOLENOID

VALVE

LIQUID

TUBING

WATER OUT

(WOE)

TEMP. SENSOR

WATER IN

(WIE)

TEMP. SENSOR

FILTER

DRYER

CHARGING

VALVE

SIGHT

GLASS

SCHRADER

VALVE

SOLENOID

VALVE

(OPTIONAL)

EXPANSION

VALVE

CHARGING

VALVE

DX EVAPORATOR

RELIEF

VALVE

SUCTION

TEMP. SENSOR

Figure 6: Refrigerant Diagram-All High and PremiumEfficiency Models (one circuit shown of two - three possible circuits)

LIQUID

TUBING

SCHRADER

VALVE

CONDENSER

ASSEMBLY

BALL

VALVE

CHARGING

VALVE

SCHRADER

VALVE

AIR

FLOW

SCHRADER

VALVE

AIR

FLOW

AWS PACKAGE CHILLER

WITH ECONOMIZER

331994701 REV. 0D

SCHRADER

VALVE

(HEADER)

DISCHARGE

TUBING

DISCHARGE

TRANSDUCER

SHUT-OFF

VALVE

CHECK

VALVE

OIL PRESS.

TRANSDUCER

WITH SCHRADER

VALVE SUCTION

TRANSDUCER

BUTTERFLY

VALVE

(OPTIONAL)

OUTSIDE AIR

TEMPERATURE

(WAA)

RELIEF

VALVE

DISCHARGE

TEMP. SENSOR

F3/F4

COMPRESSOR

BALL

VALVE

SCHRADER

VALVE

LIQUID

INJECTION

TUBING

ECONOMIZER FLASH GAS TO COMPRESSOR INTERSTAGE

STRAINER

SOLENOID

VALVE

CHECK

VALVE

SUCTION

TUBING

FILTER

DRYER

SCHRADER

VALVE

SIGHT

GLASS

CHARGING

VALVE

SOLENOID

VALVE

TGE

EXPANSION

VALVE

WATER OUT

(WOE)

TEMP. SENSOR

WATER IN

(WIE)

TEMP. SENSOR

ECONOMIZER

SOLENOID

VALVE

(OPTIONAL)

SCHRADER

VALVE

EXPANSION

VALVE

CHARGING

VALVE

DX EVAPORATOR

RELIEF

VALVE

SUCTION

TEMP. SENSOR

6 IM 1167

Restricted Air Flow

The clearances required for design operation of Pathfinder aircooled chillers are described in the previous section.

Occasionally, these clearances cannot be maintained due to site restrictions such as units being too close together or a fence or wall restricting airflow, or both. Pathfinder chillers have several features that may help mitigate the penalties attributable to restricted airflow.

"The condenser section is "W" shaped, as shown below. This allows inlet air for these coils to come in from both sides and the bottom. All the coils in one "V" section serve one compressor. Each compressor has its own independent refrigerant circuit.

"The MicroTech III control is proactive in response to "offdesign conditions". In the case of single or compounded influences restricting airflow to the unit, the microprocessor will act to keep the unit running (at reduced capacity), rather than allowing a shut-off on high discharge pressure.

Installation and Startup

Case 1: Building or Wall on One Side of One Unit

The existence of a screening wall or the wall of a building in close proximity to an air-cooled chiller is common in both rooftop and ground level applications. Hot air recirculation on the coils adjoining the wall will increase compressor discharge pressure, decreasing capacity and increasing power consumption.

When close to a wall, it is desirable to place chillers on the north or east side of them. It is also desirable to have prevailing winds blowing parallel to the unit's long axis. The worst case is to have wind blowing hot discharge air into the wall.

Figure 7: Unit Adjacent to Wall - Adjustment Factors

H

D

1.00

Full Load Capacity Adjustment Factor

D=4 ft (1.2m)

0.75

0.50

0.25

D=5 ft (1.5m)

D=6 ft (1.8m)

0.00

8

(2.4)

16

(4.8)

H - Height of Wall or Building in ft. (m)

24

(7.2)

2.00

Full Load Power Adjustment Factor

D=4 ft (1.2m)

1.50

1.00

0.50

0.00

8

(2.4)

16

(4.8)

H - Height of Wall or Building in ft. (m)

24

(7.2)

D=5 ft (1.5m)

D=6 ft (1.8m)

IM 1167 7

8

Installation and Startup

Case 2: Two Units Side By Side

Two or more units sited side by side are common. If spaced closer than 12 feet (3.7 meters) it is necessary to adjust the performance of each unit; circuits adjoining each other are affected. If one of the two units also has a wall adjoining it, see

Case 1. Add the two adjustment factors together and apply to the unit located between the wall and the other unit.

Mounting units end to end will not necessitate adjusting performance.

Do not use pit or solid wall surrounds where the ambient air temperature exceeds 105

F (40

C).

Figure 8: Two Units Side by Side - Adjustment Factors

Case 3: Three or More Units Side By Side

When three or more units are side by side, the outside chillers

(1 and 3 in this case) are influenced by the middle unit only on their inside circuits. Their adjustment factors will be the same as Case 2. All inside units (only number 2 in this case) are influenced on both sides and must be adjusted by the factors shown below.

Figure 9: Three or More Units - Adjustment Factor

1.50

Full Load Capacity Adjustment Factor

1.00

0.50

0.00

6

(1.8)

8

(2.4)

10

(3.0)

Distance Between Units in ft. (m)

12

(3.6)

3.00

Full Load Power Adjustment Factor

2.50

2.00

1.50

1.00

0.50

0.00

6

(1.8)

8

(2.4)

10

(3.0)

Distance Between Units in ft. (m)

12

(3.6)

3.00

Full Load Capacity Adjustment Factor

2.00

1.00

0.00

8

(2.4)

12

(3.6)

16

(4.8)

Distance Between Units in ft. (m)

20

(6.1)

6.00

Full Load Power Adjustment Factor

4.00

2.00

0.00

8

(2.4)

12

(3.6)

16

(4.8)

Distance Between Units in ft. (m)

20

(6.1)

IM 1167

Case 4: Open Screening Walls

Decorative screening walls are often used to help conceal a unit either on grade or on a rooftop. Design these walls such that the combination of their open area and distance from the unit do not require performance adjustment. It is assumed that the wall height is equal to or less than the unit height when mounted on its base support. This is usually satisfactory for concealment. If the wall height is greater than the unit height, see Case 5, Pit Installation.

The distance from the sides of the unit to the side walls must be sufficient for service, such as opening control panel doors.

If each side wall is a different distance from the unit, the distances can be averaged providing either wall is not less than

8 feet (2.4 meters) from the unit. For example, do not average

4 feet and 20 feet to equal 12 feet (1 meter and 5 meters to equal 3 meters).

Figure 10: Open Screening Walls - Adjustment Factors

Installation and Startup

Case 5, Pit/Solid Wall Installation

Use care with pit installations as they can cause operating problems. Recirculation and restriction can both occur. Use this information for a solid wall around unit A.

If steel grating is used used to cover a pit, the grating material and installation design must be strong enough to prevent accidents, yet provide abundant open area to prevent air recirculation. Have any pit installation reviewed by the Daikin

McQuay sales representative prior to installation to make sure there is sufficient air-flow clearance. .

Figure 11: Pit Installation - Adjustment Factors

8 .00

Wall Fre e Are a vs D istance

6 .00

4 .00

2 .00

0 .00

0 1 0 2 0 3 0

% Ope n Wall Ar e a

4 0 5 0

8 .0 0

F u ll L o ad P o w e r Ad ju stm e n t F ac to r

D= 8 ft (2 .4 m )

D = 6 ft (1 .8 m )

6 .0 0

D= 1 0 ft

(3 .1 m )

4 .0 0

2 .0 0

0 .0 0

8

(2 .4 )

1 0

(3 .1 )

1 2

(3 .7 )

H - He ig ht of W a ll or Building in ft. ( m )

1 4

(4 .3 )

IM 1167 9

Installation and Startup

Chilled Water Piping

IMPORTANT: Piping design must be provided by a qualified Architect or Systems HVAC Design Engineer familiar with piping design, as well as local codes and regulations. The manufacturer recommendations provided here are to be used as a general guide, but do not replace system design by a qualified professional.

Design the piping with a minimum number of bends and changes in elevation to keep system cost down and performance up. It should contain:

1

2

Vibration eliminators to reduce vibration and noise transmission to the building.

Shutoff valves to isolate the unit from the piping system during unit servicing.

3

4

5

6

7

8

9

Manual or automatic air-vent valves at the high points of the system and drains at the low parts in the system. The evaporator should not be the highest point in the piping system.

Some means of maintaining adequate system water pressure (i.e., expansion tank or regulating valve).

Water temperature and pressure indicators located at the evaporator inlet and outlet to aid in unit servicing. Any connections should be made prior to filling the system with water.

A strainer to remove foreign matter from the water before it enters the pump. Place the strainer far enough upstream to prevent cavitation at the pump inlet (consult pump manufacturer for recommendations). The use of a strainer will prolong pump life and help maintain high system performance levels.

Note:

A 20-mesh strainer must also be placed in the supply water line just prior to the inlet of the evaporator. This will aid in preventing foreign material from entering the evaporator and causing damage or decreasing its performance. Care must also be exercised if welding pipe or flanges to the evaporator connections to prevent any weld slag from entering the evaporator.

Any water piping to the unit must be protected to prevent freeze-up if below freezing temperatures are expected.

If the unit is used as a replacement chiller on a previously existing piping system, flush the system thoroughly prior to unit installation. Perform regular chilled water analysis and chemical water treatment immediately at equipment start-up.

In the event glycol is added to the water system as a late addition for freeze protection, recognize that the refrigerant suction pressure will be lower, cooling performance less, and water side pressure drop greater. If the percentage of glycol is large, or if propylene is employed in lieu of ethylene glycol, the added pressure drop and loss of performance could be substantial.

10

11

Do not use PVC or CPVC piping due to incompatibility with POE oil in the event of a refrigerant to water leak.

For ice making or low temperature glycol operation, a different freezestat pressure value is usually required.

The freezestat setting can be manually changed through the MicroTech III controller.

Make a preliminary leak check prior to insulating the water piping and filling the system.

Include a vapor barrier with the piping insulation to prevent moisture condensation and possible damage to the building structure. It is important to have the vapor barrier on the outside of the insulation to prevent condensation within the insulation on the cold surface of the pipe.

Chilled Water Pump

It is important that the chilled water pumps be wired to, and controlled by, the chiller's microprocessor. The chiller controller has the capability to selectively start pump A or B or automatically alternate pump selection and also has standby operation capability. The controller will energize the pump whenever at least one circuit on the chiller is enabled to run, whether there is a call for cooling or not. This helps ensure proper unit start-up sequence. The pump will also be turned on when the water temperature reaches 1°F below the Freeze

Setpoint to help prevent evaporator freeze-up. Wiring connection points are shown in Figure 41, page 65 .

CAUTION

Adding glycol or draining the system is the recommended method of freeze protection. If the chiller does not have the ability to control the pumps and the water system is not drained in temperatures below freezing, catastrophic evaporator failure may occur.

Failure to allow pump control by the chiller may cause the following problems:

1

If any device other than the chiller attempts to start the chiller without first starting the pump, the chiller will lock out on the No Flow alarm and require manual reset.

2

3

If the chiller evaporator water temperature drops below the “Freeze setpoint” the chiller will attempt to start the water pumps to avoid evaporator freeze. If the chiller does not have the ability to start the pumps, the chiller will alarm due to lack of water flow.

If the chiller does not have the ability to control the pumps and the water system is not to be drained in temperatures below freezing, the chiller may be subject to catastrophic evaporator failure due to freezing. The freeze rating of the evaporator is based on the immersion heater and pump operation. The immersion heater itself may not be able to properly protect the evaporator from freezing without circulation of water.

10 IM 1167

Optional Inlet Strainer

An inlet water strainer kit is available as a shipped-loose

option, sized per Table 2 and with the pressure drop shown in

Figure 12 . The kit is field installed and consists of:

• Y-type 40% open area strainer with 304 stainless steel perforated basket, Victaulic pipe connections and strainer cap

• Extension pipe with two Schrader fittings that can be used for a pressure gauge and thermal dispersion flow switch. The pipe provides sufficient clearance from the evaporator for strainer basket removal.

• ½-inch blowdown valve

• Two Victaulic clamps

Table 2: Strainer Sizing Data

AWS Model

Strainer

Size (in.)

Strainer Plus

Pipe Length

(in.)

Strainer

Weight

(lbs)

175ADS-250ADS

210ADH-250ADH

280ADS-350ADS

280ADH-405ADH

375ADS-530ADS

445ADH-530ADH

6

8

10

30.5

36.0

43.0

72

125

205

Figure 12: Strainer Pressure Drop

Installing Optional Inlet Strainer

The extension pipe is located adjacent to the evaporator with the strainer then mounted to it. The strainer must be mounted per manufacturer's instruction with the arrows in the direction of flow; inlet and outlet are noted along with the arrows.

Use one Victaulic clamp to mount the extension pipe to the evaporator and the second to mount the strainer to the pipe.

The clamps to mount the field piping to the strainer are field supplied. The piping and strainer must be supported to prevent any stress on the evaporator nozzle.

The extension pipe has two Schrader fittings that can be used as desired, frequently for mounting the optional Daikin

Installation and Startup

McQuay thermal dispersion flow switch and a water pressure gauge. The ball valve can be installed in the strainer basket cover as a blow-down valve.

System Water Volume

All chilled water systems need adequate time to recognize a load change, respond to that load change and stabilize, without undesirable short cycling of the compressors or loss of control.

In air conditioning systems, the potential for short cycling usually exists when the building load falls below the minimum chiller plant capacity or on close-coupled systems with very small water volumes.

Some of the things the designer should consider when looking at water volume are the minimum cooling load, the minimum chiller plant capacity during the low load period and the desired cycle time for the compressors.

Assuming that there are no sudden load changes and that the chiller plant has reasonable turndown, a rule of thumb of

"gallons of water volume equal to two to three times the chilled water gpm flow rate" is often used.

A properly designed storage tank should be added if the system components do not provide sufficient water volume.

Variable Speed Pumping

Variable water flow involves reducing the water flow through the evaporator as the load decreases. Daikin McQuay chillers are designed for this duty, provided that the rate of change in water flow is slow, and the minimum and maximum flow rates for the evaporator are not exceeded.

The recommended maximum change in water flow is 10 percent of the change per minute. For example, if the maximum (design) flow is 200 gpm and the flow is reduced to a minimum of 140 gpm, the change in flow is 60 gpm, so the maximum change per minute would be 10% of 60, or 6 gpm per minute. It would take ten minutes to change the flow through the entire range.

The water flow through the evaporator must remain between the minimum and maximum values listed on page 108 . If flow drops below the minimum allowable, large reductions in heat transfer can occur. If the flow exceeds the maximum rate, excessive pressure drop and tube erosion can occur.

Evaporator Freeze Protection

Pathfinder chillers are equipped with thermostatically controlled evaporator heaters that help protect against freezeup down to -20°F (-28°C). The immersion heater itself may not be able to properly protect the evaporator from freezing without circulation of water, and it is important that the chilled water pumps are wired to, and controlled by, the chiller’s controller. Additionally, use at least one of the following procedures during periods of sub-freezing temperatures:

1

Add a concentration of a glycol anti-freeze with a freeze point 10°F below the lowest expected temperature. This

IM 1167 11

Installation and Startup

2

will result in decreased capacity and increased pressure drop.

Note:

Do not use automotive grade antifreezes as they contain inhibitors harmful to chilled water systems.

Use only glycols specifically designated for use in building cooling systems.

Drain the water from outdoor equipment and piping and blow the chiller tubes dry from the chiller. Do not energize the chiller heater when water is drained from the vessel.

Note:

The heaters come from the factory connected to the control power circuit. The control power can be rewired in the field to a separate 115V supply (do not wire directly to the heater). See the field wiring diagram on page 65 . If this is done, it should power the entire control circuit.

Mark the disconnect switch clearly to avoid accidental deactivation of the heater during freezing temperatures.

Exposed chilled water piping also requires protection. If the evaporator is drained for winter freeze protection, the heaters must be de-energized to prevent heater burnout..

Flow Switch

A flow switch must be included in the chilled water system to prove that there is adequate water flow before the unit can start. It also serves to shut down the unit in the event that water flow is interrupted in order to guard against evaporator freezeup.

A factory-mounted, solid state, thermal dispersion flow switch is available as an option. A field-installed version is also available as a kit (Accessory part number 332688401).

A paddle-type flow switch for field mounting and wiring is also available as a kit (Accessory part number 017503300). It is adaptable to pipe sizes from 1" (25mm) to 8" (203mm).

Certain minimum flow rates are required to close the switch

and are listed in Table 4

. Installation should be as shown in

Figure 13 . on switch

Table 3: Freeze Protection

% Volume Glycol Concentration Required

Temp.

F (

C)

For Freeze Protection

Ethylene

Glycol

Propylene

Glycol

For Burst Protection

Ethylene

Glycol

Propylene

Glycol

20 (6.7)

10 (-12.2)

0 (-17.8)

-10 (-23.3)

-20 (-28.9)

-30 (-34.4)

-40 (-40.0)

-50 (-45.6)

16

25

33

39

44

48

52

56

18

29

36

42

46

50

54

57

11

17

22

26

30

30

30

30

12

20

24

28

30

33

35

35

-60 (-51.1) 60 60 30 35

Note: “Freeze protection” maintains the solution in a pumpable, usable liquid state. “Burst protection” prevents pipes from rupturing, but solution may be in a gel state and not pumpable. In most applications, “burst” protection is sufficient; concentrations over 30%

Ethylene Glycol or 35% Propylene Glycol will result in efficiency and capacity losses with negligible protection increases

Note: These figures are examples only and cannot be appropriate to every situation. Generally, for an extended margin of protection, select a temperature at least 15°F lower than the expected lowest ambient temperature. Inhibitor levels should be adjusted for solutions less than 25% glycol.

Note: Glycol of less than 25% concentration is not recommended because of the potential for bacterial growth and loss of efficiency.

Table 4: Paddle Type Flow Switch Flow Rates

Note:

Note:

Note:

Note:

Note:

1 1/4" (32mm) pipe

1 1/4" (32mm) pipe dia. min. after switch switch connection

Tee

1 1/4" (32mm) pipe dia. min. before switch dia. min. before switch

Electrical connections in the unit control center should be made at terminals 60 and 67 from switch terminals Y and R.

The normally open contacts of the flow switch should be wired between these two terminals. Flow switch contact quality must be suitable for 24 VAC, low current (16ma). Flow switch wire must be in separate conduit from any high voltage conductors

(115 VAC and higher) and have an insulation rating of 600 volts.

Pipe Size inch 1 1/4 1 1/2 2 2 1/2 3 mm 32 38 51 63 76

(NOTE) (2) (2) (3)

1 A segmented 3-inch paddle (1, 2, and 3 inches) is furnished mounted, plus a 6-inch paddle loose.

2

Flow rates for a 2-inch paddle trimmed to fit the pipe.

3

Flow rates for a 3-inch paddle trimmed to fit the pipe.

4 Flow rates for a 3-inch paddle.

5

Flow rates for a 6-inch paddle.

4

102

(4)

5

127

(4)

6

153

(4)

8

204

(5)

12 IM 1167

Installation and Startup

Table 4: Paddle Type Flow Switch Flow Rates

Min.

Adjst.

Flow

No Flow gpm

Lpm gpm

Lpm

5.8

1.3

3.7

0.8

7.5

1.7

5.0

1.1

13.7

3.1

9.5

2.2

18.0

4.1

12.5

2.8

27.5

6.2

19.0

4.3

Note:

Note:

Note:

Note:

Note:

Max.

Adjst.

Flow

No Flow gpm

Lpm gpm

Lpm

13.3

3.0

12.5

2.8

19.2

4.4

18.0

4.1

29.0

6.6

27.0

6.1

34.5

7.8

32.0

7.3

53.0

12.0

50.0

11.4

1 A segmented 3-inch paddle (1, 2, and 3 inches) is furnished mounted, plus a 6-inch paddle loose.

2

Flow rates for a 2-inch paddle trimmed to fit the pipe.

3 Flow rates for a 3-inch paddle trimmed to fit the pipe.

4

Flow rates for a 3-inch paddle.

5

Flow rates for a 6-inch paddle.

Figure 13: Typical Field Water Piping

Liquid

Out

Vent

Drain

In

Suction

Valved

Pressure

Gauge

Vibration

Eliminator

Water

Strainer

Vibration

Eliminator

Flow

Switch

Balancing

Valve

Gate

Valve

Gate

Valve

Flow

Flow

Protect All Field Piping

Against Freezing

65.0

14.8

50.0

11.4

128.0

29.1

122.0

27.7

125.0

28.4

101.0

22.9

245.0

55.6

235.0

53.4

190.0

43.2

158.0

35.9

375.0

85.2

360.0

81.8

4

Power

- To determine glycol system kW, multiply the water system kW by the factor designated "Power".

Test coolant with a clean, accurate glycol solution hydrometer

(similar to that found in service stations) to determine the freezing point. Obtain percent glycol from the freezing point table below. On glycol applications, the supplier normally recommends that a minimum of 25% solution by weight be used for protection against corrosion or that additional inhibitors should be employed.

205.0

46.6

170.0

38.6

415.0

94.3

400.0

90.8

Note:

Connections for vent and drain fittings are located on the top and bottom of the evaporator.

Note:

Piping must be supported to avoid putting strain on the evaporator nozzles.

CAUTION

Do not use automotive grade antifreeze. Industrial grade glycols must be used. Automotive antifreeze contains inhibitors that will cause plating on the copper tubes within the chiller evaporator. The type and handling of glycol used must be consistent with local codes.

Refrigerant Charge

All packaged units are designed for use with R-134a and are shipped with a full operating charge. The operating charge for each unit is shown in the Physical Data Tables beginning on page 15 .

Glycol Solutions

When using glycol anti-freeze solutions, the chiller's capacity, glycol solution flow rate, and pressure drop through the evaporator can be calculated using the following:

Note:

The procedure below does not specify the type of glycol. Use the derate factors found in Table 5 or Table 6 forcorrections when using glycol.

1

Capacity

- Cooling capacity is reduced from that with

2

plain water. To find the reduced value, multiply the chiller’s water system tonnage by the capacity correction factor to find the chiller’s capacity when using glycol.

Flow

- To determine flow (or Delta-T) knowing Delta-T

(or flow) and capacity:

GPM

 

tons



Delta flow

T factor

3

Pressure drop

- To determine pressure drop through the evaporator when using glycol, enter the water pressure drop curve at the water flow rate. Multiply the water pressure drop found there by the "PD" factor to obtain corrected glycol pressure drop.

Performance Adjustment Factors

AWS chiller units are designed to operate with leaving chilled fluid temperatures of 20.0°F to 60.0°F (-6.7°C to 15.6°C).

Consult the local Daikin McQuay sales office for performance outside these temperatures. Leaving chilled fluid temperatures below 40°F (4.4°C) result in evaporating temperatures at or below the freezing point of water and a glycol solution is required. MicroTech III control inhibits compressor unloading at leaving fluid temperatures below 30°F (-1°C).

Low fluid temperatures or high equipment room humidity may require optional double evaporator insulation. The system designer should determine its necessity. The use of glycol will reduce the performance of the unit depending on its concentration. Take this into consideration during initial system design.

On glycol applications, the supplier typically recommends that a minimum of 25% solution by weight be used for protection against corrosion, or additional inhibitors will be required.

Table 5: Ethylene Glycol Correction Factors

% E.G

Freeze Point o

F o

C

Capacity Power Flow PD

IM 1167 13

Installation and Startup

Table 5: Ethylene Glycol Correction Factors

10 26 -3.3

0.996

0.998

1.036

20

30

40

50

18

7

-7

-28

-7.8

-13.9

-21.7

-33.3

0.988

0.979

0.969

0.958

0.994

0.991

0.986

0.981

1.061

1.092

1.132

1.182

Table 6: Propylene Glycol Correction Factors

% P.G

Freeze Point o

F o

C Capacity Power Flow

10 26 -3.3

0.991

0.996

1.016

20

30

40

50

19

9

-5

-27

-7.2

-12.8

-20.6

-32.8

0.981

0.966

0.947

0.932

0.991

0.985

0.977

0.969

1.032

1.056

1.092

1.14

1.097

1.219

1.352

1.532

1.748

PD

1.092

1.195

1.345

1.544

1.906

Table 7: Ambient Freeze Protection

Percent Volume Glycol Concentration Required

For Freeze Protection For Burst Protection

Temperature

F (

C)

20 (6.7)

10 (-12.2)

0 (-17.8)

-10 (-23.3)

-20 (-28.9)

-30 (-34.4)

-40 (-40.0)

-50 (-45.6)

-60 (-51.1)

Ethylene

Glycol

16

25

33

39

44

48

52

56

60

Propylene

Glycol

18

29

36

42

46

50

54

57

60

Ethylene

Glycol

11

17

22

26

30

30

30

30

30

Propylene

Glycol

12

20

24

28

30

33

35

35

35

Note: “Freeze protection” maintains the solution ina pumpable, usable liquid state. “Burst protection” prevents pipes from rupturing, but the solution may be in a gel state and not pumpable. In most applications, “burst” protection is sufficient; concentrations over

30% Ethylene Glycol or 35% Propylene Glycol will result in efficiency and capacity losses with negligible protection increases.

Note: These figures are examples only and may not be appropriate to every situation. Generally, for an extended margin of protection, select a temperature at least 15°F (-12

°C) lower than the expected lowest ambient temperature. Adjust inhibitor levels for solutions less than 25% glycol

Note: Glycol of less than 25% concentration is not recommended because of the potential for bacterial growth and subsequent loss of heat transfer efficiency. Additional inhibitors may be required.

Electrical Connections

All wiring must be done in accordance with applicable local and national codes. Pathfinder units can be ordered with either standard multi-point power or optional single point power connections and with various disconnect and circuit breaker options. Wiring within the unit is sized in accordance with the

U.S.A. National Electrical Code. Field-supplied disconnect switches are required if not factory-supplied with the unit.

Table 8: Electric Power Connection Option

Multi-Point

Power Connection

Single-Point

Power Connection

Standard:

Disconnect switch per circuit, no compressor isolation circuit breakers

Optional: one power block, compressor isolation circuit breakers

Optional:

High short circuit current rated panel with disconnect switch and no isolation circuit breakers

Optional:

One disconnect switch replacing the power block, compressor isolation circuit breakers

Optional:

High short circuit current rated panel with disconnect switch and compressor isolation circuit breakers

Note: Disconnect switches are molded case construction with lockable through-the-door handles. They can be used to remove the unit/ circuit from the power system.

Note: The individual compressor isolation circuit breakers for each circuit isolate the compressor and do not have through-the-door handles.

They are operable only after the panel doors are opened.

Note: The high short circuit rated panel means that a short circuit current up to the ratings shown in

Table 9, Interrupt Ratings (kAmps)

will be contained in the panel. There is a short period of time when the circuit breaker will short circuit before opening a circuit that can damage downstream components. In other words, the enclosure is stronger than a standard enclosure. It has a high interrupt rated disconnect switch.

Note: The factory-mounted control power transformer is protected by fuses.

Condenser fans are protected and isolated by circuit breakers.

Table 9: Interrupt Ratings (kAmps)

VOLTAGE

208-230

380

460

575

STANDARD

SHORT

CIRCUIT

PANEL

RATING

10kA

10kA

10kA

5kA

HIGH SHORT

CIRCUIT

RATED

PANEL

100kA

65kA

65kA

25kA

VOLTAGE

208-230

380

460

575

Disconnecting means are addressed by Article 440 of the

U.S.A. National Electrical Code (NEC), which requires

“disconnecting means capable of disconnecting air conditioning and refrigerating equipment including motorcompressors, and controllers from the circuit feeder.” Select and locate the disconnect switch per the NEC guidelines.

Maximum recommended fuse sizes are given in the electrical data tables of this catalog for help in sizing the disconnect.

Terminals are provided in a unit control panel for optional field hookup of the control circuit to a separate fused 115-volt power supply in lieu of the standard factory installed control transformer.

RapidRestore Option

This option does not require field installation. Exception: Field supplied inputs are required in the case of a backup unit being started after the power interruption rather than restarting the primary unit.. A field supplied control (normally a BAS) must turn off the Backup Chiller connection on the primary chiller and turn on the connection on the backup chiller at the time of switching. See the unit Field Wiring Diagram for the Backup

Unit connection point (terminals #61 and #62).

14 IM 1167

Physical Data (non-VFD)

Physical Data (non-VFD)

Table 10: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

AWS190BDS

CIRCUIT 1 CIRCUIT 2

AWS210BDS

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

180.1 (633)

145 (66) 145 (66)

245 x 88 x 100

(6220 x 2225 x 2548)

13072 (5930)

12529 (5684)

1786 (810)

676 (307)

477 (216)

201.3 (708)

165 (75) 165 (75)

245 x 88 x 100

(6220 x 2225 x 2548)

13788 (6255)

13245 (6008)

1786 (810)

788 (357)

477 (216)

Weight-Add for PFCC option, lbs (kg) 160 (73) 160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

95 (334)

Oil charge per circuit , gallons (liters) 4.5 (17)

15

95 (334)

4.5 (17)

95 (334)

4.5 (17)

15

115 (404)

5.5 (21)

AWS225BDS

CIRCUIT 1

216.3 (760)

165 (75) 165 (75)

245 x 88 x 100

(6220 x 2225 x 2548)

14335 (6503)

13792 (6256)

1786 (810)

788 (357)

477 (216)

160 (73)

115 (404)

15

CIRCUIT 2

115 (404)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

5.5 (21) 5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

208 (94) 208 (94) 250 (113) 250 (113) 250 (113) 250 (113)

123.1 (11.4) 123.1 (11.4) 147.7 (13.7) 147.7 (13.7) 147.7 (13.7) 147.7 (13.7)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

5

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW) 1.4 (1.05)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

850

6984 (35)

5

110850 (52315)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 16 x 406 (406 x 2750)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

68 (258)

6 (168)

6

1.4 (1.05)

850

6984 (35)

133020 (62778)

66 (251)

6 (168)

6

16 x 108 (406 x 2750)

6

1.4 (1.05)

850

6984 (35)

133020 (62778)

16 x 108 (406 x 2750)

66 (251)

6 (168)

6

152 (1048)

325 (2241)

152 (1048)

325 (2241)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 15

Physical Data (non-VFD)

Table 11: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

AWS250BDS

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

235.8 (829)

185 (84) 185 (84)

280 x 88 x 100

(7121 x 2225 x 2548)

15188 (6890)

14645 (6643)

2084 (945)

900 (408)

477 (216)

160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 115 (404)

Minimum Capacity (% of Full Load) 15

135 (475)

AWS260BDS

CIRCUIT 1 CIRCUIT 2

250.5 (881)

185 (84) 185 (84)

280 x 88 x 100

(7121 x 2225 x 2548)

15188 (6890)

14645 (6643)

2084 (945)

900 (408)

477 (216)

160 (73)

135 (475) 135 (475)

AWS290BDS

CIRCUIT 1

282.9 (995)

210 (95) 210 (95)

316 x 88 x 100

(8022 x 2225 x 2548)

17491 (7934)

16624 (7541)

2372 (1076)

1012 (459)

477 (216)

160 (73)

135 (475)

CIRCUIT 2

155 (545)

15 15

Oil charge per circuit , gallons (liters) 5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

291 (132) 291 (132) 291 (132) 291 (132) 333 (151) 333 (151)

172.3 (16.0) 172.3 (16.0) 172.3 (16.0) 172.3 (16.0) 196.9 (18.3) 196.9 (18.3)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

7

Fan Motor, hp (kW) 1.4 (1.05)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

850

6984 (35)

7 7

1.4 (1.05)

850

6984 (35)

7 8

1.4 (1.05)

850

6984 (35)

8

Airflow, cfm (l/s) 155190 (73241)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 16 x 108 / (406 x 2750)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

64 (243)

6 (168)

152 (1048)

155190 (73241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

Max. Refrigerant Press., psi (kPa)

325 (2241) 325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

177360 (83704)

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

325 (2241)

16 IM 1167

Physical Data (non-VFD)

Table 12: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

AWS310BDS

CIRCUIT 1 CIRCUIT 2

AWS350BDS

CIRCUIT 1 CIRCUIT 2

AWS375BDS

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW) 300.4 (1056) 340.6 (1197) 361.4 (1271)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

215 (98) 215 (98)

316 x 88 x 100

(8026 x 2225 x 2548)

18161 (8238)

17294 (7845)

2372 (1076)

1012 (459)

477 (216)

265 (120) 265 (120)

387 x 88 x 100

(9823 x 2225 x 2548)

19803 (8983)

18936 (8590)

2968 (1346)

1236 (561)

477 (216)

265 (120) 265 (120)

387 x 88 x 100

(9823 x 2225 x 2548)

19803 (8983)

18936 (8590)

2968 (1346)

1236 (561)

477 (216)

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

160 (73)

155 (545) 155 (545)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 6 (23)

15

6 (23)

160 (73)

155 (545)

15

185 (650)

160 (73)

185 (650)

15

185 (650)

6 (23) 6 (23) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

333 (151) 333 (151) 416 (189) 416 (189) 416 (189) 416 (189)

196.9 (18.3) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

8

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW) 1.4 (1.05)

8 10

1.4 (1.05)

10 10

1.4 (1.05)

6 (23)

10

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

850

6984 (35)

177360 (83704)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 20 x 108 / (508 x 2750)

Water Volume, gallons (liters) 107 (403)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

8 (219)

152 (1048)

325 (2241)

850

6984 (35)

221700 (104630)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

850

6984 (35)

221700 (104630)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 17

Physical Data (non-VFD)

Table 13: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

CIRCUIT 1

AWS400BTS

CIRCUIT 2 CIRCUIT 3 CIRCUIT 1

AWS425BTS

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg) 185 (84)

398.3 (1400)

185 (84) 220 (100) 185 (84)

418.7 (1472)

185 (84) 220 (100)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

438 x 88 x 100

(11123 x 2225 x 2548)

24260 (11005)

22861 (10370)

3256 (1477)

1348 (611)

776 (352)

120 (55)

438 x 88 x 100

(11123 x 2225 x 2548)

24931 (11309)

23532 (10674)

3256 (1477)

1348 (611)

776 (352)

120 (55)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 135 (475)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 5.5 (21)

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

7

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

135 (475)

8

5.5 (21)

7

1.4 (1.05)

135 (475)

5.5 (21)

8

135 (475)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

291 (132) 291 (132) 333 (151) 291 (132) 291 (132) 333 (151)

172.3 (16.0) 172.3 (16.0) 196.9 (18.3) 172.3 (16.0) 172.3 (16.0) 196.9 (18.3)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

7

135 (475)

8

5.5 (21)

7

155 (545)

6 (23)

8

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

850

6984 (35)

266040 (125556)

1.4 (1.05)

850

6984 (35)

243870 (115094)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

225 (850)

10 (273)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

152 (1048)

325 (2241)

26 x 130 / (660 x 3300)

225 (850)

10 (273)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

18 IM 1167

Physical Data (non-VFD)

Table 14: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

CIRCUIT 1

AWS450BTS

CIRCUIT 2 CIRCUIT 3 CIRCUIT 1

AWS470BTS

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dim ensions

L x W x H, in. (m m )

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

210 (95)

441.4 (1552)

210 (95) 220 (100)

473 x 88 x 100

(12024 x 2225 x 2548)

26418 (11984)

25019 (11349)

3553 (1612)

1460 (662)

776 (352)

120 (55)

210 (95)

459.2 (1615)

210 (95) 220 (100)

473 x 88 x 100

(12024 x 2225 x 2548)

27143 (12312)

25744 (11678)

3553 (1612)

1460 (662)

776 (352)

120 (55)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nom inal Capacity, tons (kW) 135 (475)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 5.5 (21)

155 (545)

8

6 (23)

155 (545)

6 (23)

155 (545)

6 (23)

155 (545)

8

6 (23)

155 (545)

6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m .)

333 (151) 333 (151) 333 (151) 333 (151) 333 (151) 333 (151)

196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Num ber of Fans per Circuit

Fan Diameter: 31.5 in. (800 m m )

8

Fan Motor, hp (kW)

8

Victaulic inlet/outlet conn. in. (mm )

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

1.4 (1.05)

Fan & Motor RPM

Fan Tip Speed, fpm (m /s)

850

6984 (35)

Airflow, cfm (l/s)

266040 (125556)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(m m)

26 x 130 / (660 x 3300)

Water Volume, gallons (liters) 225 (850)

10 (273)

152 (1048)

325 (2241)

8 8 8

1.4 (1.05)

850

6984 (35)

266040 (125556)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

8

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 19

Physical Data (non-VFD)

Table 15: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

CIRCUIT 1

AWS500BTS

CIRCUIT 2 CIRCUIT 3

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Num ber of Fans per Circuit

Fan Diam eter: 31.5 in. (800 mm )

8

Fan Motor, hp (kW)

8

Max. Refrigerant Press., psi (kPa)

1.4 (1.05)

Fan & Motor RPM

Fan Tip Speed, fpm (m /s)

Airflow, cfm (l/s)

288210 (136019)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(m m )

26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (m m )

850

6984 (35)

220 (831)

10 (273)

Max. Water Pressure, ps i (kPa) 152 (1048)

325 (2241)

10

CIRCUIT 1

10

AWS525BTS

CIRCUIT 2

10

1.4 (1.05)

850

6984 (35)

310380 (146482)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dim ensions

L x W x H, in. (mm )

488.3 (1717)

210 (95) 210 (95)

509 x 88 x 100

280 (127)

(12921 x 2225 x 2548)

27902 (12657)

26503 (12022)

517.7 (1820)

265 (120) 265 (120)

544 x 88 x 100

220 (100)

(13823 x 2225 x 2548)

28901 (13110)

27502 (12475)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

3870 (1755)

1572 (713)

776 (352)

120 (55)

4168 (1891)

1684 (764)

776 (352)

120 (55)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nom inal Capacity, tons (kW)

Coil Inlet Face Area, sq. ft. (sq. m.)

Rows Deep/Fins Per Inch

155 (545)

Minim um Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pum pdown Capacity, lbs (kg) 333 (151)

155 (545)

8

6 (23)

185 (650)

6 (23)

185 (650)

6 (23)

185 (650)

8

6 (23)

155 (545)

6 (23)

333 (151) 416 (189) 416 (189) 416 (189) 333 (151)

196.9 (18.3) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 196.9 (18.3)

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

8

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

20 IM 1167

Physical Data (non-VFD)

Table 16: Physical Data (60 Hz, Standard Efficiency, non-VFD models)

Data

CIRCUIT 1

AWS550BTS

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

270 (122)

547.3 (1924)

270 (122)

580 x 88 x 100

280 (127)

(14722 x 2225 x 2548)

29643 (13446)

28244 (12812)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 185 (650)

Minimum Capacity (% of Full Load)

4466 (2026)

1796 (815)

776 (352)

120 (55)

185 (650)

8

185 (650)

Oil charge per circuit , gallons (liters) 6 (23) 6 (23) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

416 (189) 416 (189) 416 (189)

246.1 (22.8) 246.1 (22.8) 246.1 (22.8)

3 / 16 3 / 16 Rows Deep/Fins Per Inch 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

10

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

10

1.4 (1.05)

850

10

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

6984 (35)

332550 (156945)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

220 (831)

10 (273)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 21

Physical Data (non-VFD)

Table 17: Physical Data (60 Hz, High Efficiency, non-VFD models)

Data

AWS210BDH AWS230BDH AWS250BDH

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

205.7 (723)

160 (73) 160 (73)

245 x 88 x 100

(6220 x 2225 x 2548)

13653 (6193)

13110 (5947)

225.2 (792)

180 (82) 180 (82)

280 x 88 x 100

(7121 x 2225 x 2548)

15165 (6879)

14622 (6633)

240.6 (846)

180 (82) 180 (82)

280 x 88 x 100

(7121 x 2225 x 2548)

15825 (7179)

15282 (6932)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

1876 (851)

788 (357)

477 (216)

160 (73)

2084 (945)

900 (408)

477 (216)

160 (73)

2084 (945)

900 (408)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

105 (369)

15

105 (369) 105 (369)

15

125 (439) 125 (439)

15

125 (439)

Oil charge per circuit , gallons (liters)

4.5 (17) 4.5 (17) 4.5 (17) 5.5 (21) 5.5 (21) 5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg)

250 (113) 250 (113) 291 (132) 291 (132) 291 (132) 291 (132)

Coil Inlet Face Area, sq. ft. (sq. m.)

147.7 (13.7) 147.7 (13.7) 172.3 (16.0) 172.3 (16.0) 172.3 (16.0) 172.3 (16.0)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

6

1.4 (1.05)

850

6984 (35)

Airflow , cfm (l/s)

133020 (62778)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

6 7

1.4 (1.05)

850

6984 (35)

155190 (73241)

7 7

1.4 (1.05)

850

6984 (35)

155190 (73241)

7

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

16 x 108 / (406 x 2750)

66 (251)

6 (168)

152 (1048)

325 (2241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

325 (2241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

22 IM 1167

Physical Data (non-VFD)

Table 18: Physical Data (60 Hz, High Efficiency, non-VFD models)

Data

AWS280BDH AWS300BDH AWS330BDH

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

271.9 (956)

230 (104) 250 (113)

316 x 88 x 100

288.7 (1015)

250 (113) 250 (113)

316 x 88 x 100

327.3 (1151)

260 (118) 285 (129)

387 x 88 x 100

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

(8022 x 2225 x 2548)

17461 (7921)

16594 (7527)

2372 (1076)

1012 (459)

477 (216)

160 (73)

(8022 x 2225 x 2548)

17461 (7921)

16594 (7527)

2372 (1076)

1012 (459)

477 (216)

160 (73)

(9823 x 2225 x 2548)

19764 (8965)

18897 (8572)

2968 (1346)

1236 (561)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

125 (439)

15

150 (528) 150 (528)

15

150 (528) 150 (528)

15

175 (615)

Oil charge per circuit , gallons (liters)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 6 (23)

Pumpdow n Capacity, lbs (kg)

333 (151) 333 (151) 333 (151) 333 (151) 416 (189) 416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

8

1.4 (1.05)

850

6984 (35)

Airflow , cfm (l/s)

177360 (83704)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

8 8

1.4 (1.05)

850

6984 (35)

177360 (83704)

8 10

1.4 (1.05)

850

6984 (35)

10

221700 (104630)

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

325 (2241)

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

IM 1167 23

Physical Data (non-VFD)

Table 19: Physical Data (60 Hz, High Efficiency, non-VFD models)

Data

AWS350BDH AWS390BDH AWS410BDH

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

348.1 (1224)

285 (129) 285 (129)

387 x 88 x 100

(9823 x 2225 x 2548)

20444 (9274)

19577 (8880)

2968 (1346)

1236 (561)

477 (216)

160 (73)

378.7 (1332)

285 (129) 331 (150)

438 x 88 x 100

(11123 x 2225 x 2548)

21864 (9918)

20997 (9525)

3256 (1477)

1348 (611)

477 (216)

160 (73)

409.8 (1441)

331 (150) 331 (150)

473 x 88 x 101

(12024 x 2225 x 2548)

22657 (10278)

21790 (9884)

3553 (1612)

1460 (662)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

175 (615)

15

175 (615) 175 (615)

15

205 (721) 205 (721)

15

205 (721)

Oil charge per circuit , gallons (liters)

6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

6 (23) 6 (23) 6 (23) 6 (23) 6 (23)

Pumpdow n Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

416 (189) 416 (189) 416 (189) 500 (227) 500 (227) 500 (227)

246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 295.3 (27.4) 295.3 (27.4) 295.3 (27.4)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

10 10

1.4 (1.05)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

850

6984 (35)

Airflow , cfm (l/s)

221700 (104630)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

20 x 108 / (508 x 2750)

Water Volume, gallons (liters)

102 (386)

Victaulic inlet/outlet conn. in. (mm)

8 (219)

10

1.4 (1.05)

850

6984 (35)

243870 (115094)

20 x 108 / (508 x 2750)

100 (377)

8 (219)

12 12

1.4 (1.05)

850

6984 (35)

8 (219)

12

266040 (125556)

20 x 108 / (508 x 2750)

100 (377)

Max. Water Pressure, psi (kPa)

152 (1048) 152 (1048) 152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241) 325 (2241) 325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

24 IM 1167

Physical Data (non-VFD)

Table 20: Physical Data (60 Hz, High Efficiency, non-VFD models)

Data

CIRCUIT 1

AWS450BTH

CIRCUIT 2 CIRCUIT 3 CIRCUIT 1

AWS475BTH

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

250 (113)

446.3 (1569)

250 (113)

473 x 88 x 100

24658 (11185)

3553 (1612)

1460 (662)

776 (352)

120 (55)

250 (113)

(12024 x 2225 x 2548)

26057 (11820)

250 (113)

470.3 (1654)

250 (113)

509 x 88 x 100

295 (134)

(12921 x 2225 x 2548)

27542 (12493)

26143 (11859)

3870 (1755)

1572 (713)

776 (352)

120 (55)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

150 (528)

Oil charge per circuit , gallons (liters)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

150 (528)

8

5.5 (21)

150 (528)

5.5 (21)

150 (528)

5.5 (21)

150 (528)

8

5.5 (21)

175 (615)

6 (23)

Pumpdow n Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

333 (151) 333 (151) 333 (151) 333 (151) 333 (151) 416 (189)

196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 246.1 (22.8)

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

8 8

1.4 (1.05)

8 8 8

1.4 (1.05)

10

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

850

6984 (35)

266040 (125556)

850

6984 (35)

288210 (136019)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

26 x 130 / (660 x 3300)

225 (850)

26 x 130 / (660 x 3300)

220 (831)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

10 (273)

152 (1048)

325 (2241)

10 (273)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 25

Physical Data (non-VFD)

Table 21: Physical Data (60 Hz, High Efficiency, non-VFD models)

Data

CIRCUIT 1

AWS500BTH

CIRCUIT 2 CIRCUIT 3 CIRCUIT 1

AWS530BTH

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

295 (134)

499.4 (1756)

295 (134)

544 x 88 x 100

250 (113)

(13823 x 2225 x 2548)

29181 (13237)

27782 (12602)

4168 (1891)

1684 (764)

776 (352)

120 (55)

528.3 (1857)

295 (134) 295 (134)

580 x 88 x 100

295 (134)

(14722 x 2225 x 2548)

30608 (13884)

29209 (13249)

4466 (2026)

1796 (815)

776 (352)

120 (55)

175 (615) 175 (615)

8

150 (528) 175 (615) 175 (615)

8

175 (615)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg) 416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

6 (23) 5.5 (21) 6 (23) 6 (23) 6 (23)

416 (189) 333 (151) 416 (189) 416 (189) 416 (189)

246.1 (22.8) 246.1 (22.8) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8)

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

10

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

10

1.4 (1.05)

850

6984 (35)

310380 (146482)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

8 10 10

1.4 (1.05)

850

6984 (35)

332550 (156945)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

10

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

26 IM 1167

Physical Data (non-VFD)

Table 22: Physical Data (60 Hz, Premium Efficiency, non-VFD models)

Data

AWS240BDP AWS265BDP AWS290BDP

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

232.8 (818)

200 (91) 200 (91)

316 x 88 x 100

(8022 x 2225 x 2548)

17210 (7807)

15958 (7239)

2372 (1076)

1012 (459)

477 (216)

160 (73)

256.4 (901)

(8923 x 2225 x 2548)

18631 (8451)

17379 (7883)

2679 (1215)

1124 (510)

477 (216)

160 (73)

277.5 (976)

225 (102) 225 (102) (235) (107) (235) (107)

351 x 88 x 100 351 x 88 x 100

(8923 x 2225 x 2548)

20722 (9400)

19069 (8650)

2679 (1215)

1124 (510)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

105 (369)

15

105 (369) 105 (369)

15

125 (439) 125 (439)

15

125 (439)

Oil charge per circuit , gallons (liters)

4.5 (17)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

4.5 (17) 4.5 (17) 5.5 (21) 5.5 (21) 5.5 (21)

Pumpdow n Capacity, lbs (kg)

333 (151) 333 (151) 375 (170) 375 (170) 375 (170) 375 (170)

Coil Inlet Face Area, sq. ft. (sq. m.)

196.9 (18.3) 196.9 (18.3) 221.5 (20.6) 221.5 (20.6) 221.5 (20.6) 221.5 (20.6)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm) 8 8

Fan Motor, hp (kW)

Fan & Motor RPM

1.4 (1.05)

850

Fan Tip Speed, fpm (m/s)

6984 (35)

Airflow , cfm (l/s)

177360 (83704)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

20 x 154 / (508 x 3900)

Water Volume, gallons (liters)

158 (599)

Victaulic inlet/outlet conn. in. (mm)

8 (2199

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241)

9

1.4 (1.05)

850

6984 (35)

199530 (94167)

158 (599)

8 (219)

152 (1048)

325 (2241)

9

20 x 154 / (508 x 3900)

9

1.4 (1.05)

850

6984 (35)

199530 (94167)

26 x 154 / (660 x 3900)

276 (1043)

10 (273)

152 (1048)

325 (2241)

9

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 27

Physical Data (non-VFD)

Table 23: Physical Data (60 Hz, Premium Efficiency, non-VFD models)

Data

AWS310BDP AWS330BDP AWS365BDP

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

303.9 (1068)

250 (113) 250 (113)

387 x 88 x 100

9823 x 2225 x 2545

21559 (9779)

19906 (9030)

2968 (1346)

1236 (561)

477 (216)

160 (73)

324.9 (1142)

260 (118) 260 (118)

387 x 88 x 100

9823 x 2225 x 2545

21559 (9779)

19906 (9030)

2968 (1346)

1236 (561)

355 (1248)

260 (118) 300 (136)

438 x 88 x 100

11123 x 2225 x 2548

23659 (10732)

22006 (9982)

3256 (1477)

1348 (611)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

477 (216)

160 (73)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

125 (439)

15

150 (528) 150 (528)

15

150 (528) 150 (528)

15

175 (615)

Oil charge per circuit , gallons (liters)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 6 (23)

Pumpdow n Capacity, lbs (kg)

416 (189) 416 (189) 416 (189) 416 (189) 416 (189) 500 (227)

Coil Inlet Face Area, sq. ft. (sq. m.)

246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 295.3 (27.4)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm) 10 10

Fan Motor, hp (kW)

Fan & Motor RPM

1.4 (1.05)

850

Fan Tip Speed, fpm (m/s)

6984 (35)

Airflow , cfm (l/s)

221700 (104630)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

26 x 154 / (660 x 3900)

Water Volume, gallons (liters)

276 (1043)

Victaulic inlet/outlet conn. in. (mm)

10 (273)

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241)

10

1.4 (1.05)

850

6984 (35)

259 (979)

10 (273)

152 (1048)

325 (2241)

10

221700 (104630)

26 x 154 / (660 x 3900)

10

1.4 (1.05)

850

6984 (35)

243870 (115093)

26 x 154 / (660 x 3900)

259 (979)

10 (273)

152 (1048)

325 (2241)

12

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

28 IM 1167

Physical Data (non-VFD)

Table 24: Physical Data (60 Hz, Premium Efficiency, non-VFD models)

Data

AWS400BDP

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

385.4 (1355)

310 (141) 310 (141)

473 x 88 x 100

(12024 x 2225 x 2548)

25093 (11382)

23440 (10633)

3553 (1612)

1460 (662)

477 (216)

160 (73)

175 (615)

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

12

175 (615)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 6 (23)

15

6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg) 500 (227)

Coil Inlet Face Area, sq. ft. (sq. m.)

500 (227)

295.3 (27.4) 295.3 (27.4)

Row s Deep/Fins Per Inch 3 / 16 3 / 16

12

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

1.4 (1.05)

850

6984 (35)

Airflow , cfm (l/s) 266040 (125556)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

26 x 154 / (660 x 3900)

259 (979)

10 (273)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

IM 1167 29

Physical Data (VFD)

Physical Data (VFD)

Table 25: Physical Data (60 Hz, Standard Efficiency, VFD models)

Data

AWS170BDS VFD

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

162.6 (572)

145 (66) 145 (66)

268 x 88 x 100

(6803 x 2225 x 2548)

Unit Operating Weight, lbs. (kg)

14673 (6656)

Unit Shipping Weight, lbs (kg)

14130 (6409)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

1776 (806)

676 (307)

AWS190BDS VFD

CIRCUIT 1 CIRCUIT 2

181.3 (637)

165 (75) 165 (75)

268 x 88 x 100

(6803 x 2225 x 2548)

15978 (7248)

15435 (7001)

1776 (806)

788 (357)

AWS200BDS VFD

CIRCUIT 1 CIRCUIT 2

195.1 (686)

165 (75) 165 (75)

268 x 88 x 100

(6803 x 2225 x 2548)

15902 (7213)

15359 (6967)

1776 (806)

788 (357)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

95 (334)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters)

4.5 (17)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

20

95 (334)

4.5 (17)

Pumpdow n Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

208 (94) 208 (94)

123.1 (11.4) 123.1 (11.4)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

5

1.4 (1.05)

850

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

6984 (35)

110850 (52315)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

5

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

16 x 108 (406 x 2750)

68 (258)

6 (168)

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa)

325 (2241)

95 (334)

4.5 (17)

250 (113)

147.7 (13.7)

3 / 16

6

20

1.4 (1.05)

850

6984 (35)

133020 (62778)

68 (258)

6 (168)

115 (404)

5.5 (21)

250 (113)

147.7 (13.7)

3 / 16

6

16 x 108 (406 x 2750)

152 (1048)

325 (2241)

115 (404)

5.5 (21)

250 (113)

147.7 (13.7)

3 / 16

6

20

115 (404)

16 x 108 (406 x 2750)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

66 (251)

6 (168)

152 (1048)

325 (2241)

5.5 (21)

250 (113)

147.7 (13.7)

3 / 16

1.4 (1.05)

850

6984 (35)

133020 (62778)

6

30 IM 1167

Physical Data (VFD)

Table 26: Physical Data (60 Hz, High Efficiency, VFD models)

Data

AWS210BDH VFD

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

205.2 (721)

160 (73) 160 (73)

268 x 88 x 100

6803 x 2225 x 2548

15146 (6870)

14603 (6624)

1876 (851)

788 (357)

AWS230BDH VFD

CIRCUIT 1 CIRCUIT 2

224.8 (790)

180 (82) 180 (82)

303 x 88 x 100

7703 x 2225 x 2548

16478 (7474)

15935 (7228)

2084 (945)

900 (408)

AWS250BDH VFD

CIRCUIT 1 CIRCUIT 2

240.0 (844)

180 (82) 180 (82)

303 x 88 x 100

7703 x 2225 x 2548

17021 (7721)

16478 (7474)

2084 (945)

900 (408)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

105 (369) 105 (369) 105 (369) 125 (439) 125 (439) 125 (439)

20 20 20

Oil charge per circuit , gallons (liters) 4.5 (17)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg) 250 (113)

Coil Inlet Face Area, sq. ft. (sq. m.)

Rows Deep/Fins Per Inch

147.7 (13.7)

3 / 16

4.5 (17)

250 (113)

147.7 (13.7)

3 / 16

4.5 (17)

291 (132)

172.3 (16.0)

3 / 16

5.5 (21)

291 (132)

172.3 (16.0)

3 / 16

5.5 (21)

291 (132)

172.3 (16.0)

3 / 16

5.5 (21)

291 (132)

172.3 (16.0)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

6 6

1.4 (1.05)

Fan & Motor RPM

850

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

6984 (35)

133020 (62778)

16 x 108 / (406 x 2750)

66 (251)

Victaulic inlet/outlet conn. in. (mm)

6 (168)

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa)

325 (2241)

7

1.4 (1.05)

850

6984 (35)

155190 (73241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

325 (2241)

7

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

7

1.4 (1.05)

850

6984 (35)

155190 (73241)

152 (1048)

325 (2241)

7

16 x 108 / (406 x 2750)

64 (243)

6 (168)

IM 1167 31

Physical Data (VFD)

Table 27: Physical Data (60 Hz, High Efficiency, VFD models)

Data

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

AWS280BDH VFD

CIRCUIT 1 CIRCUIT 2

270.6 (951)

200 (91) 200 (91)

339 x 88 x 100

8602 x 2225 x 2548

18606 (8440)

17739 (8046)

2372 (1076)

1012 (459)

AWS300BDH VFD

CIRCUIT 1 CIRCUIT 2

287.7 (1012)

210 (95) 210 (95)

339 x 88 x 100

8602 x 2225 x 2548

18606 (8440)

17739 (8046)

2372 (1076)

1012 (459)

AWS330BDH VFD

CIRCUIT 1 CIRCUIT 2

326.3 (1147)

260 (118) 260 (118)

410 x 88 x 100

10402 x 2225 x 2545

20903 (9482)

20036 (9088)

2968 (1346)

1236 (561)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 125 (439)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 5.5 (21)

CONDENSERS, VFDICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg) 333 (151)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

Fan & Motor RPM

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

850

Fan Tip Speed, fpm (m/s)

6984 (35)

Airflow , cfm (l/s)

177360 (83704)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

20 x 108 / (508 x 2750)

107 (403)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

196.9 (18.3)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

8

20

333 (151)

196.9 (18.3)

3 / 16

1.4 (1.05)

8 (219)

150 (528)

152 (1048)

325 (2241)

5.5 (21)

8

150 (528)

5.5 (21)

333 (151)

196.9 (18.3)

3 / 16

8

20

150 (528)

5.5 (21)

333 (151)

196.9 (18.3)

1.4 (1.05)

3 / 16

850

6984 (35)

177360 (83704)

8

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

325 (2241)

150 (528)

5.5 (21)

416 (189)

246.1 (22.8)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

3 / 16

10

20

175 (615)

416 (189)

246.1 (22.8)

1.4 (1.05)

6 (23)

3 / 16

10

850

6984 (35)

221700 (104630)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

32 IM 1167

Physical Data (VFD)

Table 28: Physical Data (60 Hz, High Efficiency, VFD models)

Data

AWS350BDH VFD

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

347.1 (1220)

265 (120) 265 (120)

410 x 88 x 100

10402 x 2225 x 2545

21596 (9796)

20729 (9403)

2968 (1346)

1236 (561)

AWS390BDH VFD

CIRCUIT 1 CIRCUIT 2

377.8 (1328)

270 (122) 320 (145)

461 x 88 x 100

11701 x 2225 x 2548

22900 (10387)

22033 (9994)

3256 (1477)

1348 (611)

AWS410BDH VFD

CIRCUIT 1 CIRCUIT 2

408.7 (1437)

320 (145) 320 (145)

496 x 88 x 100

12604 x 2225 x 2545

23705 (10753)

22838 (10359)

3553 (1612)

1460 (662)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

175 (615)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

Rows Deep/Fins Per Inch

416 (189)

246.1 (22.8)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

20

175 (615)

6 (23)

416 (189)

246.1 (22.8)

3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

10

1.4 (1.05)

850

10

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

6984 (35)

221700 (104630)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

175 (615)

6 (23)

416 (189)

246.1 (22.8)

3 / 16

10

20

205 (721)

6 (23)

500 (227)

295.3 (27.4)

1.4 (1.05)

850

3 / 16

12

6984 (35)

243870 (115094)

20 x 108 / (508 x 2750)

100 (377)

8 (219)

152 (1048)

325 (2241)

205 (721)

6 (23)

500 (227)

295.3 (27.4)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

3 / 16

12

20

295.3 (27.4)

1.4 (1.05)

850

205 (721)

6 (23)

500 (227)

3 / 16

12

6984 (35)

266040 (125556)

20 x 108 / (508 x 2750)

100 (377)

8 (219)

152 (1048)

325 (2241)

IM 1167 33

Physical Data (VFD)

Table 29: Physical Data (60 Hz, High Efficiency, VFD models)

Data

CIRCUIT 1

AWS450BTH VFD

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

210 (95)

445.2 (1565)

210 (95)

496 x 88 x 100

12605 x 2225 x 2548

27152 (12316)

25753 (11682)

3553 (1612)

1460 (662)

220 (100)

CIRCUIT 1

AWS475BTH VFD

CIRCUIT 2 CIRCUIT 3

210 (95)

467.7 (1644)

210 (95)

532 x 88 x 100

13504 x 2225 x 2545

28300 (12837)

26901 (12202)

3870 (1755)

1572 (713)

280 (187)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters)

150 (528)

5.5 (21)

CONDENSERS, VFDICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

333 (151)

196.9 (18.3)

Row s Deep/Fins Per Inch 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

8

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

150 (528)

13

5.5 (21)

333 (151)

196.9 (18.3)

3 / 16

8

1.4 (1.05)

850

6984 (35)

266040 (125556)

26 x 130 / (660 x 3300)

225 (850)

10 (273)

152 (1048)

325 (2241)

150 (528)

5.5 (21)

333 (151)

196.9 (18.3)

3 / 16

8

150 (528)

5.5 (21)

333 (151)

196.9 (18.3)

3 / 16

8

150 (528)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

13

5.5 (21)

333 (151)

196.9 (18.3)

3 / 16

8

1.4 (1.05)

850

6984 (35)

288210 (136019)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

175 (615)

6 (23)

416 (189)

246.1 (22.8)

3 / 16

10

34 IM 1167

Physical Data (VFD)

Table 30: Physical Data (60 Hz, High Efficiency, VFD models)

Data

CIRCUIT 1

AWS500BTH VFD

CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

265 (120)

497.8 (1750)

265 (120)

567 x 88 x 100

14405 x 2225 x 2548

30117 (13661)

28718 (13026)

4168 (1891)

1684 (764)

220 (100)

CIRCUIT 1

AWS530BTH VFD

CIRCUIT 2 CIRCUIT 3

265 (120)

524.8 (1845)

265 (120)

603 x 88 x 100

15304 x 2225 x 2545

31446 (14264)

30047 (13629)

4466 (2026)

1796 (815)

280 (187)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

175 (615)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg) 416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

246.1 (22.8)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

10

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

175 (615)

13

6 (23)

416 (189)

246.1 (22.8)

3 / 16

10

1.4 (1.05)

850

6984 (35)

310380 (146482)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

150 (528)

5.5 (21)

333 (151)

196.9 (18.3)

3 / 16

8

175 (615)

6 (23)

416 (189)

246.1 (22.8)

3 / 16

10

175 (615)

13

6 (23)

416 (189)

246.1 (22.8)

3 / 16

1.4 (1.05)

850

6984 (35)

332550 (156945)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

10

175 (615)

6 (23)

416 (189)

246.1 (22.8)

3 / 16

10

IM 1167 35

Physical Data (VFD)

Table 31: Physical Data (60 Hz, Premium Efficiency, VFD models)

Data

AWS240BDP VFD

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

232.7 (818)

200 (91) 200 (91)

339 x 88 x 100

8602 x 2225 x 2548

18435 (8362)

17183 (7794)

2372 (1076)

1012 (459)

AWS265BDP VFD

CIRCUIT 1 CIRCUIT 2

256.3 (901)

225 (102) 225 (102)

374 x 88 x 100

9504 x 2225 x 2545

19641 (8909)

18389 (8341)

2679 (1215)

1124 (510)

AWS290BDP VFD

CIRCUIT 1 CIRCUIT 2

277.6 (976)

(235) (107) (235) (107)

374 x 88 x 100

9504 x 2225 x 2545

21512 (9758)

19859 (9008)

2679 (1215)

1124 (510)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 105 (369)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 4.5 (17)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg) 333 (151)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

196.9 (18.3)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm) 8

Fan Motor, hp (kW)

Fan & Motor RPM

20

850

105 (369)

4.5 (17)

333 (151)

196.9 (18.3)

1.4 (1.05)

3 / 16

8

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

6984 (35)

177360 (83704)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 20 x 154 / (508 x 3900)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

158 (599)

8 (2199

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

152 (1048)

325 (2241)

105 (369)

4.5 (17)

375 (170)

221.5 (20.6)

3 / 16

9

20

850

125 (439)

20 x 154 / (508 x 3900)

158 (599)

8 (219)

152 (1048)

325 (2241)

5.5 (21)

375 (170)

221.5 (20.6)

1.4 (1.05)

6984 (35)

3 / 16

199530 (94167)

9

125 (439)

5.5 (21)

375 (170)

221.5 (20.6)

3 / 16

9

20

850

125 (439)

26 x 154 / (660 x 3900)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

276 (1043)

10 (273)

152 (1048)

325 (2241)

5.5 (21)

375 (170)

221.5 (20.6)

1.4 (1.05)

6984 (35)

3 / 16

199530 (94167)

9

36 IM 1167

Physical Data (VFD)

Table 32: Physical Data (60 Hz, Premium Efficiency, VFD models)

Data

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

AWS310BDP VFD

CIRCUIT 1 CIRCUIT 2

303.8 (1068)

250 (113) 250 (113)

410 x 88 x 100

10402 x 2225 x 2545

22485 (10199)

20832 (9449)

2968 (1346)

1236 (561)

AWS330BDP VFD

CIRCUIT 1 CIRCUIT 2

324.7 (1142)

260 (118) 260 (118)

410 x 88 x 100

10402 x 2225 x 2545

22485 (10199)

20832 (9449)

2968 (1346)

1236 (561)

AWS365BDP VFD

CIRCUIT 1 CIRCUIT 2

354.8 (1247)

260 (118) 300 (136)

461 x 88 x 100

11701 x 2225 x 2548

24441 (11086)

22788 (10337)

3256 (1477)

1348 (611)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 125 (439)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters)

CONDENSERS, VFDICIENCY FIN AND TUBE TYPE

5.5 (21)

Pumpdow n Capacity, lbs (kg) 416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

246.1 (22.8)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm) 10

20

Fan Motor, hp (kW)

Fan & Motor RPM

1.4 (1.05)

850

150 (528)

5.5 (21)

416 (189)

246.1 (22.8)

3 / 16

10

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

6984 (35)

221700 (104630)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 154 / (660 x 3900)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

276 (1043)

10 (273)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

152 (1048)

325 (2241)

150 (528)

5.5 (21)

416 (189)

246.1 (22.8)

3 / 16

10

20

246.1 (22.8)

26 x 154 / (660 x 3900)

10 (273)

150 (528)

5.5 (21)

416 (189)

1.4 (1.05)

850

259 (979)

152 (1048)

325 (2241)

3 / 16

10

6984 (35)

221700 (104630)

150 (528)

5.5 (21)

416 (189)

246.1 (22.8)

3 / 16

10

20

175 (615)

500 (227)

295.3 (27.4)

1.4 (1.05)

850

6 (23)

3 / 16

12

6984 (35)

243870 (115093)

26 x 154 / (660 x 3900)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

259 (979)

10 (273)

152 (1048)

325 (2241)

IM 1167 37

Physical Data (VFD)

Table 33: Physical Data (60 Hz, Premium Efficiency, VFD models)

Data

AWS400BDP VFD

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins

Weight-Add for Louvered Panels

385.4 (1355)

310 (141) 310 (141)

496 x 88 x 100

12604 x 2225 x 2545

25881 (11740)

24228 (10990)

3553 (1612)

1460 (662)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

175 (615) 175 (615)

20

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg)

500 (227)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

295.3 (27.4)

3 / 16

6 (23)

500 (227)

295.3 (27.4)

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

12

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

12

1.4 (1.05)

850

6984 (35)

266040 (125556)

EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 154 / (660 x 3900)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

259 (979)

10 (273)

152 (1048)

Max. Refrigerant Press., psi (kPa)

325 (2241)

Note: A 20 mesh strainer must be placed in the supply water line just prior to the inlet of the evaporator.

Care must be exercised when welding pipe or flanges to the evaporator to prevent any slag from entering the vessel.

This information applies only to Rev 0B models of AWS-B. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

38 IM 1167

Lifting & Mounting Weights (I-P Units)

Lifting & Mounting Weights (I-P Units)

Note:

Lifting and Mounting Locations begin on page 43 . See Physical Data tables, beginning on

page 43 for Shipping and

Operating weights, and weight adjustments for accessories and options. All drawings and weights in this manual are applicable to AWS B-vintage (Rev 0B) models only. For drawings and information related to (Rev 00) models, consult CAT

600-6. To determine if your unit is Rev 00 or Rev 0A, check Item 62 of the Item Summary Report for your unit. If you have additional questions, contact your Daikin McQuay representative.

16

16

20

20

22

22

24

12

12

14

14

24

26

28

30

12

14

14

16

16

20

20

22

24

24

26

28

30

AWS210BDS

AWS225BDS

AWS250BDS

AWS260BDS

AWS290BDS

AWS310BDS

AWS350BDS

AWS375BDS

AWS400BTS

AWS425BTS

AWS450BTS

AWS470BTS

AWS500BTS

AWS525BTS

AWS550BTS

AWS210BDH

AWS230BDH

AWS250BDH

AWS280BDH

AWS300BDH

AWS330BDH

AWS350BDH

AWS390BDH

AWS410BDH

AWS450BTH

AWS475BTH

AWS500BTH

AWS530BTH

Table 34: Lifting & Mounting Weights (IP units)

LIFTING WEIGHT FOR EACH POINT (LBS)

UNIT SIZE # OF FANS

L1 L2 L3 L4 L5 L6 L7

MOUNTING LOADS FOR EACH POINT (LBS)

L8 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12

AWS190BDS

10 3921 3903 2358 2347 2805 2792 2324 2313 1422 1415 -

4214 4026 2560 2445 -

4364 4345 2547 2536 -

-

-

-

-

-

-

3005 2871 2498 2387 1548 1479

3121 3106 2558 2547 1505

-

1498 -

-

-

4207 4188 3132 3118

4207 4188 3132 3118

-

-

-

-

-

-

3190 3175 2519 2508

3190

1264 1258 638

3175 2519 2508 1264 1258 638

635

635

3330 3211 2583 2490 1659 1599 892 860 3457 3333 2862 2760 1749 1686 837 807

3461 3446 2664 2652 1679 1672 862 858 3580 3563 2950 2936 1769 1761 803 799 -

3567 3567 2960 2960 1847 1847 1094 1094 3434 3434 3030 3030 2272 2272 1166 1166 -

3567 3567 2960 2960 1847 1847 1094 1094 3434 3434 3030 3030 2272 2272 1166 1166 -

3664 3715 3288 3334 2506 2541 1893 1919 3618 3668 3380 3427 2762 2800 2286 2318 -

-

-

-

-

-

-

-

-

-

3795 3760 3413 3382 2618 2594 1994 1976 3738 3705 3500 3468 2880 2854 2403 2382 -

3945 3982 3574 3607 2802 2828 2131 2151 4036 4073 3602 3635 2473 2496 1867 1884 1171 1182

-

-

-

-

3816 3782 3556 3524 3014 2987 2544 2521 3921 3885 3552 3520 2594 2570 2079 2060 1488 1474

4032 3995 3728 3695 3097 3069 2455 2432 4030 3994 3651 3618 2666 2642 2137 2118 1529 1516

3925 3890 3724 3690 3305 3275 2859 2833 4125 4088 3782 3748 2889 2863 2203 2183 1517 1503

3963 3927 3794 3760 3444 3413 2985 2958 4193 4155 3881 3845 3069 3041 2300 2279 1446 1433

3892 3875 2678 2665 2737 2724 2383 2373 1722 1714 -

4052 3818 3476 3276

4158 4139 3501 3485

-

-

-

-

-

-

3103 2924 2503 2359

3175

1380 1301 821 774

3160 2554 2542 1391 1385 811 808

3065 3065 2455 2455 1701 1701 1075 1075 3206 3206 2711 2711 1786 1786 1028 1028

-

-

-

-

-

-

3065 3065 2455 2455 1701 1701 1075 1075 3206 3206 2711 2711 1786 1786 1028 1028 -

3473 3349 2934 2828 1942 1873 1272 1226 3355 3235 3001 2893 2337 2253 1369 1320 -

3594 3594 3014 3014 1950 1950 1230 1230 3462 3462 3080 3080 2363 2363 1317 1317 -

3275 3260 2937 2924 2414 2403 1897 1888 3598 3581 3263 3249 2394 2384 1701 1694 -

3314 3299 3037 3023 2608 2596 1961 1952 3564 3548 3165 3150 2141 2131 1556 1549 929 925

3653 3620 3405 3374 2888 2862 2440 2417 3762 3727 3408 3377 2490 2468 1997 1979 1431 1418

3758 3656 3566 3469 3166 3081 2760 2686 3754 3653 3457 3364 2685 2612 2270 2208 1793 1745

-

-

-

3886 3850 3716 3683 3364 3333 2988 2961 4096 4059 3769 3735 2918 2892 2264 2243 1609 1595

4071 3961 3921 3815 3610 3512 3202 3116 4317 4200 4005 3896 3194 3108 2426 2360 1572 1530

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

IM 1167 39

Lifting & Mounting Weights (I-P Units)

Table 35: Lifting & Mounting Weights (IP units) continued

LIFTING WEIGHT FOR EACH POINT (LBS)

UNIT SIZE # OF FANS

MOUNTING LOADS FOR EACH POINT (LBS)

L1 L2 L3 L4 L5 L6 L7 L8 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12

AWS240BDP

AWS265BDP

AWS290BDP

AWS310BDP

AWS330BDP

AWS365BDP

AWS400BDP

AWS170BDS VFD

AWS190BDS VFD

AWS200BDS VFD

AWS210BDH VFD

20

20

22

16

18

18

24

10

12

12

12

2699 2686 2268 2258 1736 1728 1294 1288 2926 2912 2554 2542 1857 1849 1287 1282 -

2870 2767 2486 2397 2011 1939 1481 1428 3121 3009 2784 2684 2151 2074 1430 1379 -

3041 3041 2657 2657 5183 2183 1654 1654 3361 3361 3014 3014 2363 2363 1622 1622 -

3299 3299 2889 2889 2137 2137 1628 1628 3321 3321 3057 3057 2562 2562 1839 1839 -

3299 3299 2889 2889 2137 2137 1628 1628 3321 3321 3057 3057 2562 2562 1839 1839

3190 3089 2982 2889 2662 2578 2345 2271 3682 3566 3418 3311 2733 2647 2186 2117 -

3446 3431 3205 3190 2830 2818 2265 2255 3833 3815 3426 3410 2382 2371 1786 1778 1148 1143

2814 2821 2265 2272 1471 1475 -

3139 3040 2530 2450 1647 1595 -

-

-

2217 2223 1898 1904 1512 1516 1194 1197

2464 2387 2112 2045 1684 1631 1332 1290

-

-

-

-

3146 3146 2501 2501 1567 1567 -

2732 2738 2323 2328 1731 1735 -

2698 2566 2560 2434 2358 2243 -

2474 2474 2099 2099 1644 1644 1270 1270 -

2135 2140 1904 1908 1624 1628 1394 1397 -

2410 2292 2015 1916 1536 1461 1142 1086 -

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

AWS230BDH VFD

AWS250BDH VFD

AWS280BDH VFD

14

14

16

2758 2758 2593 2593 2354 2354 -

3103 3110 2531 2537 1702 1706 -

3103 3110 2531 2537 1702 1706 -

2452 2452 2045 2045 1551 1551 1145 1145 -

2468 2473 2153 2158 1771 1775 1457 1461 -

2468 2473 2153 2158 1771 1775 1457 1461 -

-

-

-

-

-

-

-

-

-

AWS300BDH VFD

AWS330BDH VFD

AWS350BDH VFD

AWS390BDH VFD

AWS410BDH VFD

AWS450BTH VFD

AWS475BTH VFD

22

24

24

26

16

20

20

3490 3391 2987 2902 1937 1882 1271 1235 2530 2458 2323 2257 2073 2014 1867 1814 1330 1292 -

3610 3627 3073 3087 1950 1959 1238 1243 2619 2631 2391 2402 2114 2124 1886 1895 1293 1299 -

-

-

3589 3598 3084 3093 2469 2475 1860 1865 2418 2424 2380 2387 2331 2337 2204 2210 2102 2108 -

3619 3631 3197 3207 2682 2690 1903 1909 2509 2517 2385 2393 2225 2232 1813 1818 1577 1582 1325 1329

4013 4022 3599 3607 2920 2927 2331 2336 2645 2651 2556 2562 2441 2447 2142 2147 1980 1985 1796 1800

4148 4079 3767 3704 3142 3090 2507 2465 2658 2613 2593 2550 2510 2467 2292 2254 2176 2139 2042 2007

4180 4197 3882 3898 3394 3408 2874 2885 2869 2880 2791 2802 2690 2701 2428 2438 2226 2235 2025 2033

-

-

-

AWS500BTH VFD

AWS530BTH VFD

AWS240BDP VFD

28

30

16

4380 4323 4096 4042 3629 3581 3018 2979 3084 3043 2995 2956 2880 2843 2582 2548 2300 2270 1986 1960

2734 2740 2325 2330 1733 1737 1286 1289 2215 2220 2001 2006 1742 1746 1529 1532 1217 1220 -

2878 2800 2514 2446 1987 1934 1452 1413 2327 2264 2141 2083 1915 1864 1730 1683 1352 1316 -

AWS265BDP VFD

AWS290BDP VFD

AWS310BDP VFD

18

18

20

3036 3036 2675 2675 2151 2151 1618 1618 2488 2488 2305 2305 2083 2083 1901 1901 1529 1529 -

3302 3302 2918 2918 2115 2115 1606 1606 2449 2449 2328 2328 2182 2182 2061 2061 1747 1747 -

3302 3302 2918 2918 2115 2115 1606 1606 2449 2449 2328 2328 2182 2182 2061 2061 1747 1747 -

AWS330BDP VFD

AWS365BDP VFD

AWS400BDP VFD

20

22

24

-

-

-

3496 3422 3125 3058 2672 2615 2224 2177 2441 2389 2449 2397 2460 2408 2489 2436 2512 2459 -

3712 3723 3335 3344 2874 2881 2177 2183 2653 2660 2538 2545 2388 2395 2005 2011 1787 1792 1552 1557

40 IM 1167

Lifting & Mounting Weights (SI Units)

Lifting & Mounting Weights (SI Units)

Table 36: Lifting & Mounting Weights (SI units)

Unit Size

Hz

# OF

FANS

LIFTING WEIGHT FOR EACH POINT (KG) MOUNTING LOADS FOR EACH POINT (KG)

L1 L2 L3 L4 L5 L6 L7 L8 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10

AWS190BDS

60 10 1779 1770 1070 1065 1272 1266 1054 1049 645 642 -

AWS210BDS

60

60

12 1912 1826 1161 1109 -

12 1980 1971 1155 1150 -

-

-

-

-

1363 1302 1133 1083 702 671

1416 1409 1160 1155 683 680

-

-

-

-

-

-

-

-

AWS225BDS

AWS250BDS

60

60

14 1908 1900 1421 1414 -

14 1908 1900 1421 1414 -

-

-

-

-

1447 1440 1143 1138 573 571 289 288 -

1447 1440 1143 1138 573 571 289 288 -

-

-

AWS260BDS

AWS290BDS

60

60

16 1511 1456 1171 1129 752 725 405 390 1568 1512 1298 1252 793 765 380 366 -

16 1570 1563 1209 1203 762 758 391 389 1624 1616 1338 1332 802 799 364 362 -

-

-

AWS310BDS

AWS350BDS

60

60

20 1618 1618 1343 1343 838 838 496 496 1558 1558 1374 1374 1030 1030 529 529 -

20 1618 1618 1343 1343 838 838 496 496 1558 1558 1374 1374 1030 1030 529 529 -

-

-

AWS375BDS

AWS400BTS

AWS425BTS

60

60

60

AWS450BTS

AWS470BTS

22 1662 1685

22 1721

1491 1512 1137 1153

1706 1548 1534 1188 1177

859

904

870

896

1641 1664

1696

1533 1554 1253 1270

1681 1588 1573 1306

1037 1051

1295 1090 1080

-

-

-

-

24 1789 1806 1621 1636 1271 1283 967 976 1831 1847 1634 1649 1122 1132 847 855 531 536

60

60

24 1731 1715 1613 1598 1367 1355 1154 1144 1779 1762 1611 1597 1177 1166 943 934 675 669

26 1829 1812 1691 1676 1405 1392 1114 1103 1828 1812 1656 1641 1209 1198 969 961 694 688

AWS500BTS

AWS525BTS

60

60

28 1780 1764 1689 1674 1499 1486 1297 1285 1871 1854 1715 1700 1310 1299 999 990 688 682

30 1798 1781 1721 1706 1562 1548 1354 1342 1902 1885 1760 1744 1392 1379 1043 1034 656 650

AWS550BTS

AWS210BDH

AWS230BDH

60

60

12 1766 1758 1215 1209 -

14 1838 1732 1577 1486 -

-

-

-

-

1241 1236 1081 1076 781 778 -

1407 1326 1135 1070 626 590 372 351 -

-

AWS250BDH

AWS280BDH

AWS300BDH

AWS330BDH

AWS350BDH

AWS390BDH

AWS410BDH

AWS450BTH

AWS475BTH

AWS500BTH

AWS530BTH

60

60

60

60

60

60

60

60

60

60

60

14 1886 1877 1588 1581 -

16 1390 1390 1114 1114 772

-

772

1440 1433 1158 1153 631 628 368 367

488 488 1454 1454 1230 1230 810 810 466 466

-

16 1390 1390 1114 1114 772 772 488 488 1454 1454 1230 1230 810 810 466 466 -

-

20 1575 1519 1331 1283 881 849 577 556 1522 1467 1361 1312 1060 1022 621 599 -

20 1630 1630 1367 1367 885 885 558 558 1571 1571 1397 1397 1072 1072 597 597 -

22 1485 1479 1332 1326 1095 1090 860 856 1632 1624 1480 1474 1086 1081 772 768 -

24 1503 1496 1378 1371 1183 1178 889 885 1617 1609 1436 1429 971 967 706 703 -

24 1657 1642 1544 1530 1310 1298 1107 1096 1706 1691 1546 1532 1129 1119 906 898 649 643

26 1705 1658 1618 1574 1436 1398 1252 1218 1703 1657 1568 1526 1218 1185 1030 1002 813 792

28 1763 1746 1686 1671 1526 1512 1355 1343 1858 1841 1710 1694 1324 1312 1027 1017 730 723

30 1847 1797 1779 1730 1637 1593 1452 1413 1946 1859 1808 1727 1448 1384 1100 1070 713 694

-

-

-

-

-

-

-

IM 1167 41

Lifting & Mounting Weights (SI Units)

Table 37: Lifting & Mounting Weights - (SI units) continued

Unit Size Hz

# OF

FANS

LIFTING WEIGHT FOR EACH POINT (KG) MOUNTING LOADS FOR EACH POINT (KG)

L1 L2 L3 L4 L5 L6 L7 L8 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12

AWS240BDP

60 16 1224 1219 1029 1024 787 784 587 584 1327 1321 1158 1153 843 839 584 581 -

AWS265BDP

60 18 1302 1255 1128 1087 912 880 672 648 1416 1365 1263 1217 976 941 649 626 -

AWS290BDP

60 18 1379 1379 1205 1205 2351 990 750 750 1525 1525 1367 1367 1072 1072 736 736 -

AWS310BDP

60 20 1496 1496 1310 1310 969 969 738 738 1506 1506 1387 1387 1162 1162 834 834 -

AWS330BDP

60 20 1496 1496 1310 1310 969 969 738 738 1506 1506 1387 1387 1162 1162 834 834 -

AWS365BDP

60 22 1447 1401 1353 1310 1207 1169 1064 1030 1670 1617 1550 1502 1240 1201 992 960 -

AWS400BDP

AWS170BDS VFD

AWS190BDS VFD

AWS200BDS VFD

60

60

60

60

24 1563 1556 1454 1447 1284 1278 1027 1023 1739 1730 1554 1547 1080 1075 810 806 -

10

12

12

1276 1280 1027 1031 667 669

-

1424 1379 1148 1111 747 723

-

1427 1427 1134 1134 711 711

-

-

-

-

1006 1008 861 864 686 688 542 543

1118 1083 958 928 764 740 604 585

1122 1122 952 952 746 746 576 576

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

AWS210BDH VFD

60

AWS230BDH VFD

60

AWS250BDH VFD

60

AWS280BDH VFD

60

AWS300BDH VFD

60

AWS330BDH VFD

60

AWS350BDH VFD

60

AWS390BDH VFD

60

AWS410BDH VFD

60

AWS450BTH VFD

60

AWS475BTH VFD

60

AWS500BTH VFD

60

AWS530BTH VFD

60

AWS240BDP VFD

60

AWS265BDP VFD

60

AWS290BDP VFD

60

AWS310BDP VFD

60

AWS330BDP VFD

60

AWS365BDP VFD

60

AWS400BDP VFD

60

12 1239 1242 1054 1056 785 787 -

14 1224 1164 1161 1104 1070 1017 -

14 1251 1251 1176 1176 1068 1068 -

16 1408 1411 1148 1151 772 774 -

968 971 864 865 737 738 632 634 -

1093 1040 914 869 697 663 518 493 -

1112 1112 928 928 704 704 519 519 -

1119 1122 977 979 803 805 661 663 -

16 1408 1411 1148 1151 772 774 1119 1122 977 979 803 805 661 663 -

20 1583 1538 1355 1316 879 854 577 560 1148 1115 1054 1024 940 914 847 823 603 586

20 1637 1645 1394 1400 885 889 562 564 1188 1193 1085 1090 959 963 855 860 587 589

22 1628 1632 1399 1403 1120 1123 844 846 1097 1100 1080 1083 1057 1060 1000 1002 953 956

-

-

-

-

24 1642 1647 1450 1455 1216 1220 863 866 1138 1142 1082 1085 1009 1012 822 825 715 718 601 603

24 1820 1824 1632 1636 1325 1328 1057 1060 1200 1203 1160 1162 1107 1110 971 974 898 900 814 816

26 1882 1850 1709 1680 1425 1401 1137 1118 1205 1185 1176 1156 1138 1119 1040 1022 987 970 926 911

28 1896 1904 1761 1768 1540 1546 1303 1309 1301 1307 1266 1271 1220 1225 1101 1106 1010 1014 918 922

30 1987 1961 1858 1833 1646 1624 1369 1351 1399 1380 1359 1341 1307 1289 1171 1156 1043 1029 901 889

16 1240 1243 1055 1057 786 788 583 585 1005 1007 908 910 790 792 694 695 552 553 -

18 1305 1270 1140 1110 901 877 659 641 1056 1027 971 945 869 846 785 763 613 597

18 1377 1377 1213 1213 976 976 734 734 1129 1129 1046 1046 945 945 862 862 694 694

-

-

-

-

-

-

-

-

-

-

-

-

20 1498 1498 1324 1324 959 959 728 728 1111 1111 1056 1056 990 990 935 935 792 792

20 1498 1498 1324 1324 959 959 728 728 1111 1111 1056 1056 990 990 935 935 792 792

-

-

22 1586 1552 1417 1387 1212 1186 1009 987 1107 1084 1111 1087 1116 1092 1129 1105 1140 1115 -

24 1684 1689 1513 1517 1303 1307 987 990 1203 1207 1151 1154 1083 1086 910 912 810 813 704 706

-

-

-

-

-

-

-

-

-

-

42 IM 1167

Index of Lifting & Mounting Drawings

Table 38: Dimension Drawing Index (non-VFD models)

Model

AWS190BDS

Efficiency Fans

Standard 10

Figure & Page page 44

Standard 12

High 12

Standard 12

High 14

Premium 16

Standard 14

High 14

Standard 14

Premium

High

18

16

Standard 16

Premium 18

High 16

Standard 16

Premium 20

High

Premium

20

20

Standard 20

High

Premium

20

22

Standard 20

High 22

Standard 22

Premium 24

High 24

Standard 22

Standard 24

High 24

Standard 24

High 26

Standard 26

High 28

Standard 28

High 30

Standard 30

AWS210BDS

AWS210BDH

AWS225BDS

AWS230BDH

AWS240BDP

AWS250BDS

AWS250BDH

AWS260BDS

AWS265BDP

AWS280BDH

AWS290BDS

AWS290BDP

AWS300BDH

AWS310BDS

AWS310BDP

AWS330BDH

AWS330BDP

AWS350BDS

AWS350BDH

AWS365BDP

AWS375BDS

AWS390BDH

AWS400BTS

AWS400BDP

AWS410BDH

AWS425BTS

AWS450BTS

AWS450BTH

AWS470BTS

AWS475BTH

AWS500BTS

AWS500BTH

AWS525BTS

AWS530BTH

AWS550BTS page 44 page 44 page 44 page 45 page 45 page 45 page 45 page 45 page 46 page 45 page 45 page 46 page 45 page 45 page 46 page 46 page 46 page 46 page 46 page 47 page 46 page 47 page 47 page 48 page 48

Figure 21, page 47

Figure 23, page 48

Figure 23, page 48

Figure 23, page 48

Figure 24, page 49

Figure 24, page 49

Figure 25, page 49

Figure 25, page 49

Figure 26, page 49

Figure 26, page 49

Index of Lifting & Mounting Drawings

Table 39: Dimension Drawing Index (VFD models)

Model Efficiency Fans Figure & Page

AWS170BDS

AWS190BDS

AWS200BDS

AWS210BDH

AWS230BDH

AWS240BDP

AWS250BDH

AWS265BDP

AWS280BDH

AWS290BDP

AWS300BDH

AWS310BDP

AWS330BDH

AWS330BDP

AWS350BDH

AWS365BDP

AWS390BDH

AWS400BDP

AWS410BDH

AWS450BTH

AWS475BTH

AWS500BTH

AWS530BTH

20

20

20

16

18

16

20

14

16

14

18

10

12

12

12

24

26

28

30

22

22

24

24

Standard

Standard

Standard

High

High

Premium

High

Premium

High

Premium

High

Premium

High

Premium

High

Premium

High

Premium

High

High

High

High

High

Figure 27, page 50

Figure 28, page 50

Figure 28, page 50

Figure 28, page 50

Figure 29, page 51

Figure 30, page 51

Figure 29, page 51

Figure 31, page 52

Figure 30, page 51

Figure 31, page 52

Figure 30, page 51

Figure 32, page 52

Figure 32, page 52

Figure 32, page 52

Figure 32, page 52

Figure 33, page 52

Figure 33, page 52

Figure 34, page 53

Figure 34, page 53

Figure 35, page 53

Figure 36, page 53

Figure 37, page 54

Figure 38, page 54

IM 1167 43

Lifting & Mounting Dimensions (non-VFD)

Lifting & Mounting Dimensions (non-VFD)

Figure 14: AWS190BDS (non-VFD)

5820

229.1

4791

188.6

4910

193.3

2100

82.7

M5 L3 M3 M1 L1

431

17.0

600

23.6

2225

87.6

100

3.9

190

7.5

M6 L4

Figure 15: AWS210BDS/H, AWS225BDS (non-VFD)

331426601C020A

AWS 10 FAN DIM. DWG

5820

229.1

4910

193.3

4791

188.6

M5 L3

M4 M2 L2

M3

2100

82.7

M1 L1

431

17.0

600

23.6

190

7.5

2225

87.6

100

3.9

M6 L4

*3314266020A1*

AWS 12 FAN DIM. DWG

M4 M2 L2

44 IM 1167

Lifting & Mounting Dimensions (non-VFD)

Figure 16: AWS230BDH, AWS250BDS/H, AWS260BDS (non-VFD)

6720

264.6

4791

188.6

4910

193.3

6310

248.4

66

2.6

M7 M5 L3 M3

2100

82.7

M1 L1

431

17.0

600

23.6

2225

87.6

100

3.9

190

7.5

M8 M6 L4

AWS 14 FAN DIM. DWG

331426603C020A

M4

Figure 17: AWS240BDP, AWS280BDH, AWS290BDS, AWS300BDH, AWS310BDS (non-VFD)

7620

300.0

6791

267.4

4791

188.6

2381

93.7

7210

283.9

4910

193.3

2100

82.7

66

2.6

M7 L7 M5 L5 L3 M3

M2 L2

431

17.0

M1 L1

600

23.6

2225

87.6

100

3.9

M8 L8

190

7.5

M6 L6

331426604C020A

AWS 16 FAN DIM. DWG

L4 M4 M2 L2

IM 1167 45

Lifting & Mounting Dimensions (non-VFD)

Figure 18: AWS265BDP, AWS290BDP (non-VFD)

8520

335.5

7484

294.6

4791

188.6

4910

193.3

66

2.6

M7 L7 M5 L5 L3

2381

93.7

M3

2100

82.7

600

23.6

M1 L1

431

17.0

2225

87.6

100

3.9

M8 L8

190

7.5

M6 L6

331426605C020A

AWS 18 FAN DIM. DWG

L4 M4 M2 L2

Figure 19: AWS310BDP, AWS330BDH/P, AWS350BDS/H, AWS375BDS (non-VFD)

9421

370.9

8384

330.1

5961

234.7

9010

354.7

4910

193.3

66

2.6

M7 L7 L5 M5 L3

2381

93.7

M3

2100

82.7

M1 L1

431

17.0

600

23.6

2225

87.6

100

3.9

M8 L8

190

7.5

L6 M6

331426606C020A

AWS 20 FAN DIM. DWG

L4 M4 M2 L2

46 IM 1167

Figure 20: AWS365BDP, AWS390BDH (non-VFD)

10720

422.0

8384

330.1

Lifting & Mounting Dimensions (non-VFD)

5401

212.6

2381

93.7

431

17.0

9110

358.7

6000

236.2

66

2.6

M7 L7 M5 L5 L3 M3

2100

82.7

600

23.6

M1 L1

2225

87.6

100

3.9

190

7.5

M8 L8 M6 L6

AWS 22 FAN DIM. DWG

331426607C020A

L4 M4 M2 L2

Figure 21: AWS400BTS, AWS425BTS (non-VFD)

10718

422.0

9615

378.6

8998

354.3

66

2.6

L7 M7 L5 M5

6438

253.4

6000

236.2

2225

87.6

100

3.9

190

7.5

L8 M8 L6 M6

AWS 3C-22 FAN DIM. DWG

331426609D020A

L3

2381

93.7

431

17.0

M3

2100

82.7

600

23.6

M1 L1

L4 M4 M2 L2

IM 1167 47

Lifting & Mounting Dimensions (non-VFD)

Figure 22: AWS400BDP, AWS410BDH (non-VFD)

11620

457.5

9962

392.2

5401

212.6

10499

413.4

8147

320.8

5949

234.2

66

2.6

M9 L7 M7 M5 L5

2225

87.6

100

3.9

190

7.5

M10 L8 M8

2381

93.7

431

17.0

L3 M3

2100

82.7

600

23.6

M1 L1

M6 L6

AWS 24 FAN DIM. DWG

331426608C020A

L4 M4 M2 L2

Figure 23: AWS450BTS/H, AWS470BTS (non-VFD)

11620

457.5

9962

392.2

10499

413.4

8096

318.8

66

2.6

M9 L7 M7 L5 M5

6438

253.4

6000

236.2

2381

93.7

L3 M3

431

17.0

2100

82.7

M1 L1

600

23.6

2225

87.6

100

3.9

190

7.5

M10 L8 M8 L6 M6

AWS 3C-24 FAN DIM. DWG

331426610D020A

L4 M4 M2 L2

48 IM 1167

Figure 24: AWS475BTH, AWS500BTS (non-VFD)

12520

492.9

10564

415.9

Lifting & Mounting Dimensions (non-VFD)

6438

253.4

2381

93.7

431

17.0

10501

413.4

8096

318.8

6000

236.2

2100

82.7

600

23.6

L7 M9 M7 L5 M5 L3 M3 M1 L1

2225

87.6

100

3.9

190

7.5

L8 M10 M8

Figure 25: AWS500BTH, AWS525BTS (non-VFD)

13420

528.4

10761

423.6

12000

472.4

66

2.6

M9

L7 M7

2225

87.6

100

3.9

190

7.5

M10 L8 M8

Figure 26: AWS530BTH, AWS550BTS (non-VFD)

14320

563.8

11746

462.5

13800

543.3

9694

381.7

66

2.6

M9

L7 M7

2225

87.6

100

3.9

M10

190

7.5

IM 1167

L8 M8

L6 M6

L5 M5

L6 M6

AWS 3C-28 FAN DIM. DWG

331426612D020B

L5 M5

6436

253.4

6000

236.2

9000

354.3

6436

253.4

6000

236.2

L6 M6

AWS 3C-30 FAN DIM. DWG

331426613D020B

L4 M4

L4 M4

M2 L2

2381

93.7

431

17.0

L3 M3

2100

82.7

600

23.6

M1 L1

M2 L2

2381

93.7

431

17.0

L3 M3

2100

82.7

600

23.6

M1 L1

L4 M4 M2 L2

49

Lifting & Mounting Dimensions (VFD)

Lifting & Mounting Dimensions (VFD)

Figure 27: AWS170BDS (VFD)

M8 L6 M6 L4 M4 L2 M2

19

Ø .750 TYP.

66

2.6

2225

87.6

100

3.9

190

7.5

M7 L5 M5

BOTTOM VIEW

Figure 28: AWS190BDS, AWS200BDS, AWS210BDH (VFD)

L3 M3

M8 L6 M6 L4 M4

L1 M1

AWS-B-0B WITH VFD 10 FAN DIM. DWG

333687301

3336873 C 00 2 2

L2 M2

19

Ø .750 TYP.

66

2.6

2225

87.6

100

3.9

190

7.5

M7 L5 M5

BOTTOM VIEW

L3 M3 L1 M1

AWS-B-0B WITH VFD 12 FAN DIM. DWG

333687302

3336873 C 00 2 2

50 IM 1167

Figure 29: AWS230BDH, AWS250BDH (VFD)

M10 M8 L6

Lifting & Mounting Dimensions (VFD)

M6 L4 M4 L2 M2

19

Ø .750 TYP.

66

2.6

2225

87.6

100

3.9

190

7.5

M9 M7 L5 M5

BOTTOM VIEW

Figure 30: AWS240BDP, AWS280BDH, AWS300BDH (VFD)

M10 M8 L6 M6

L3 M3

AWS-B-0B WITH VFD 14 FAN DIM. DWG

3336873 C

L1

00

2 2

M1

L4 M4 L2 M2

19

Ø .750 TYP.

66

2.6

M9 M7 L5

BOTTOM VIEW

M5 L3 M3 L1 M1

AWS-B-0B WITH VFD 16 FAN DIM. DWG

3336873

333687304

D 00 2 2

IM 1167 51

Lifting & Mounting Dimensions (VFD)

Figure 31: AWS265BDP, AWS290BDP (VFD)

M10 M8 L6 M6 L4 M4 L2 M2

66

2.6

19

Ø .750 TYP.

2225

87.6

100

3.9

M9 M7 L5

BOTTOM VIEW

Figure 32: AWS310BDP, AWS330BDH/P, AWS350BDH (VFD)

M5

M10 L6 M8

M6

L3

AWS-B-0B WITH VFD 18 FAN DIM. DWG

M3

3336873 00

2 2

L1 M1

L4 M4 L2 M2

19

Ø .750 TYP.

M9 L5 M7

BOTTOM VIEW

Figure 33: AWS365BDP, 390BDH (VFD)

66

2.6

M9

L7

9353

368.2

M7 L5

6369

250.8

M5 L3 M3

L1 M1

AWS-B-0B WITH VFD 20 FAN DIM. DWG

333687306

3336873 D 00 2 2

L3

M5

3068

120.8

M3 L1

410

16.1

M1

2225

87.6

100

3.9

52

M10 L8 M8 L6

L4 M6

M4 L2 M2

332824701 AWS-B W/ VFD 22 FAN DIM. DWG

IM 1167

Figure 34: AWS400BDP, AWS410BDH (VFD)

12589

495.6

11470

451.6

66

2.6

M11 L7

10930

430.3

M9

9116

358.9

Lifting & Mounting Dimensions (VFD)

M7 L5

6918

272.3

6369

250.8

L3

3349

131.9

M5

3068

120.8

M3

1568

61.7

L1

872

34.3

410

16.1

M1

2225

87.6

100

3.9

M12 L8

190

7.5

Figure 35: AWS450BTH (VFD)

12589

495.6

11470

451.6

M10 M8 L6

6968

274.3

M11

L7

M9 L5 M7

2225

87.6

100

3.9

M12 L8

190

7.5

Figure 36: AWS475BTH (VFD)

13488

531.0

11528

453.9

11469

451.5

M10

L7 M11

L6 M8

M9

9065

356.9

7404

291.5

6968

274.3

L5 M7

2225

87.6

100

3.9

190

7.5

L8

M12

M10 L6 M8

L4 M6

332824801

M4 L2 M2

AWS-B W/VFD 24 2C FAN DIM. DWG

3349

131.9

L3 M5 M3

1568

61.7

L1 M1

L4 M6 M4 L2 M2

332824901 AWS-B W VFD 24 3C FAN DIM. DWG

3349

131.9

L3

3068

120.8

M5

872

34.3

M3

1568

61.7

L1

410

16.1

M1

L4 M6 M4 L2 M2

332825001 AWS-B WITH VFD 26 FAN DIM. DWG

IM 1167 53

Lifting & Mounting Dimensions (VFD)

Figure 37: AWS500BTH (VFD)

14388

566.5

11729

461.8

7404

291.5

12968

510.6

9968

392.4

6968

274.3

M11 L7 M9 L5 M7

2225

87.6

100

3.9

190

7.5

M12

L8 M10 L6 M8

Figure 38: AWS530BTH (VFD)

15288

601.9

12714

500.6

14768

581.4

M11

2225

87.6

100

3.9

M12

66

2.6

190

7.5

L8

L7

M9

M10

10662

419.8

L5 M7

6968

274.3

L6 M8

3349

131.9

L3 M5 M3

1568

61.7

L1 M1

L4 M6 M4 L2 M2

332825101 AWS-B W/ VFD 28 FAN DIM. DWG

872

34.3

L3

3068

120.8

M5 M3

1568

61.7

L1

410

16.1

M1

L4 M6 M4

AWS-B W/ VFD 30 FAN DIM. DWG

332825201

L2 M2

54 IM 1167

Isolator Locations and Kit Numbers

Transfer the unit as indicated in the Installation and

Maintenance Manual, IM 1167, available on www.DaikinMcQuay.com. In all cases, set the unit in place and level with a spirit level. When spring-type isolators are required, install springs running under the main unit supports.

The unit should be set initially on shims or blocks at the listed spring free height. When all piping, wiring, flushing, charging, etc., is completed, the springs are adjusted upward to loosen the blocks or shims that are then removed.

A rubber anti-skid pad should be used under isolators if holddown bolts are not used.

Installation of spring isolators requires flexible piping connections and at least three feet of flexible electrical conduit to avoid straining the piping and transmitting vibration and noise.

Mounting locations for each model can be found in the Lifting

& Mounting Dimensions beginning on page 44

Isolator Locations and Kit Numbers

Figure 39: Spring Isolators - CP-4

Figure 40: Neoprene-in-Shear Isolators - RP-4

6.25

5.00

3.75

3.00

ø .500-13NC-2B

R4

3.87

.56 TYP.

R.28

TYP.

4.63

R4

RECESSED

GRIP RIBS

R.250 TYP.

R.750 TYP.

DURULENE

MATERIAL

1.13 ± .25

APPROX.

1.63

.38

NOTES:

1.

2.

MOUNT MATERIAL TO BE DURULENE RUBBER.

MOLDED STEEL AND ELASTOMER MOUNT FOR

OUTDOOR SERVICE CONDITIONS.

RAISED GRIP RIBS

DRAWING NUMBER 3314814

ALL DIMENSIONS ARE IN DECIMAL INCHES

IM 1167 55

Isolator Locations and Kit Numbers

Table 40: Spring Isolators (for 60Hz non-VFD Units with Aluminum Fin Condensers)

UN IT S IZ E

# O F

F A N S

Kit P / N M 1 M 2 M 3 M 4 M 5 M 6 M 7

A WS190B DS

A WS210B DS 12

A WS225B DS 12

A WS250B DS 14

A WS260B DS 14

A WS290B DS 16

A WS310B DS

A WS350B DS

A WS375B DS 20

A WS400B TS

A WS425B TS

A WS450B TS 24

A WS470B TS

A WS500B TS 26

A WS525B TS 28

A WS550B TS 30

A WS210B DH 12

A WS230B DH 14

A WS250B DH 14

A WS280B DH 16

A WS300B DH 16

A WS330B DH 20

A WS350B DH 20

A WS390B DH 22

A WS410B DH

A WS450B TH 24

A WS475B TH

A WS500B TH

A WS530B TH 30

A WS240B DP 16

A WS265B DP 18

A WS290B DP 20

A WS310B DP

10

16

20

22

22

24

24

26

28

20

A WS330B DP 22

A WS365B DP 22

A WS400B DP 24

M 8 M 9 M 10

332320828

332320828

332320828

332320829

332320829

332320846

332320846

332320847

332320847

332320848

332320848

332320850

332320850

332320850

332320835

332320835

332320828

332320829

332320829

332320846

332320846

332320847

332320847

332320849

332320834

332320850

332320850

332320835

332320835

332320830

332320847

332320847

332320848

332320848

332320848

332320833

332620800 332620800 332620800 332620800 332620500 332620500

Dark Green Dark Green Dark Green Dark Green B lack B lack

332620800 332620800 332620800 332620800 332620500 332620500

Dark Green Dark Green Dark Green Dark Green B lack B lack

N/A

N/A

N/A

N/A

332620800 332620800 332620800 332620800 332620500 332620500

Dark Green Dark Green Dark Green Dark Green B lack B lack

N/A N/A

332620900 332620900 332620800 332620800 332620500 332620500 332620400 332620400

Gray Gray Dark Green Dark Green B lack B lack Red Red

332620900 332620900 332620800 332620800 332620500 332620500 332620400 332620400

Gray Gray Dark Green Dark Green B lack B lack Red Red

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

N/A N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green B lack B lack

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620500 332620500

White White White White Gray Gray Dark Green Dark Green B lack B lack

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620500 332620500

White White White White Gray Gray Dark Green Dark Green B lack B lack

332620800 332620800 332620800 332620800 332620500 332620500

Dark Green Dark Green Dark Green Dark Green B lack B lack

N/A N/A

332620900 332620900 332620800 332620800 332620500 332620500 332620400 332620400

Gray Gray Dark Green Dark Green B lack B lack Red Red

N/A

N/A

N/A

N/A

332620900 332620900 332620800 332620800 332620500 332620500 332620400 332620400

Gray Gray Dark Green Dark Green B lack B lack Red Red

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green B lack B lack

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620500 332620500

White White White White Gray Gray Dark Green Dark Green B lack B lack

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620500 332620500

White White White White Gray Gray Dark Green Dark Green B lack B lack

332620800 332620800 332620800 332620800 332620600 332620600 332620500 332620500

Dark Green Dark Green Dark Green Dark Green Dark P urple Dark P urple B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple B lack B lack

56 IM 1167

Isolator Locations and Kit Numbers

Table 41: Spring Isolators (for 60Hz non-VFD Units with Copper Fin Condensers)

UN IT S IZ E

# O F

F A N S

Kit P / N

A WS190B DS 10

A WS210B DS

A WS225B DS 12

A WS250B DS 14

A WS260B DS 14

A WS290B DS

12

A WS310B DS 16

A WS350B DS 20

A WS375B DS 20

A WS400B TS

A WS425B TS 22

A WS450B TS 24

A WS470B TS 24

A WS500B TS

A WS300B DH

16

22

26

A WS525B TS 28

A WS550B TS 30

A WS210B DH 12

A WS230B DH 14

A WS250B DH 14

A WS280B DH 16

A WS330B DH

16

20

A WS350B DH 20

A WS390B DH 22

A WS410B DH 24

A WS450B TH 24

A WS475B TH 26

A WS500B TH 28

A WS530B TH 30

A WS240B DP 16

A WS265B DP 18

A WS290B DP 20

A WS310B DP 20

A WS330B DP 22

A WS365B DP 22

A WS400B DP 24

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8 M 9 M 10

332320851

332620800 332620800 332620800 332620800 332620600 332620600

Dark Green Dark Green Dark Green Dark Green Dark P urple Dark P urple

332320831

332320831

332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Dark Green Dark Green Dark P urple Dark P urple

332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Dark Green Dark Green Dark P urple Dark P urple

332320846

332320846

332320847

332320847

N/A

N/A

N/A

N/A

N/A

N/A

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332320849

332320849

332320832

332320832

332320836

332320837

332320853

332320853

332320853

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple

332621000 332621000 332620900 332620900 332620900 332620900 332620800 332620800

White White Gray Gray Gray Gray Dark Green Dark Green

332621000 332621000 332620900 332620900 332620900 332620900 332620800 332620800

White White Gray Gray Gray Gray Dark Green Dark Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332621000 332621000 332621000 332621000 332620800 332620800 332620800 332620800 332620500 332620500

White White White White Dark Green Dark Green Dark Green Dark Green B lack B lack

332621000 332621000 332621000 332621000 332620800 332620800 332620800 332620800 332620600 332620600

White White White White Dark Green Dark Green Dark Green Dark Green Dark P urple Dark P urple

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620800 332620800

White White White White Gray Gray Dark Green Dark Green Dark Green Dark Green

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620800 332620800

White White White White Gray Gray Dark Green Dark Green Dark Green Dark Green

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620800 332620800

White White White White Gray Gray Dark Green Dark Green Dark Green Dark Green

332320852

332320846

332320846

332320847

332320847

332320849

332620800 332620800 332620800 332620800 332620800 332620800

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A N/A

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620800 332620800 332620600 332620600 332620400 332620400

Gray Gray Dark Green Dark Green Dark P urple Dark P urple Red Red

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332320849

332320832

332320836

332320837

332320853

332320853

332320853

332320847

332320849

332320848

332320848

332320848

332320832

332320836

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple

332621000 332621000 332620900 332620900 332620900 332620900 332620800 332620800

White White Gray Gray Gray Gray Dark Green Dark Green

N/A

N/A

N/A

N/A

332621000 332621000 332621000 332621000 332620800 332620800 332620800 332620800 332620500 332620500

White White White White Dark Green Dark Green Dark Green Dark Green B lack B lack

332621000 332621000 332621000 332621000 332620800 332620800 332620800 332620800 332620600 332620600

White White White White Dark Green Dark Green Dark Green Dark Green Dark P urple Dark P urple

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620800 332620800

White White White White Gray Gray Dark Green Dark Green Dark Green Dark Green

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620800 332620800

White White White White Gray Gray Dark Green Dark Green Dark Green Dark Green

332621000 332621000 332621000 332621000 332620900 332620900 332620800 332620800 332620800 332620800

White White White White Gray Gray Dark Green Dark Green Dark Green Dark Green

332620900 332620900 332620900 332620900 332620800 332620800 332620500 332620500

Gray Gray Gray Gray Dark Green Dark Green B lack B lack

332620900 332620900 332620900 332620900 332620800 332620800 332620600 332620600

Gray Gray Gray Gray Dark Green Dark Green Dark P urple Dark P urple

N/A

N/A

N/A

N/A

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green

332621000 332621000 332620900 332620900 332620900 332620900 332620800 332620800

White White Gray Gray Gray Gray Dark Green Dark Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332621000 332621000 332621000 332621000 332620800 332620800 332620800 332620800 332620500 332620500

White White White White Dark Green Dark Green Dark Green Dark Green B lack B lack

IM 1167 57

Isolator Locations and Kit Numbers

Table 42: RIS Isolators (for 60Hz non-VFD Units with Aluminum Fin Condensers)

UN IT S IZ E

# O F

F A N S

Kit P / N

A WS190B DS

A WS210B DS

A WS225B DS

10

A WS250B DS 14

A WS260B DS

A WS290B DS 16

A WS310B DS 16

A WS350B DS 20

A WS400B TS

A WS425B TS 22

A WS450B TS 24

A WS470B TS

A WS500B TS

A WS525B TS

A WS550B TS

A WS210B DH

A WS230B DH

A WS250B DH

26

A WS280B DH 16

A WS300B DH

A WS330B DH

A WS350B DH

A WS390B DH

A WS410B DH

A WS450B TH

12

14

22

24

28

30

12

14

14

16

20

20

24

A WS475B TH 26

A WS500B TH

A WS530B TH

A WS240B DP

A WS265B DP

A WS290B DP

A WS310B DP

A WS330B DP

A WS365B DP

A WS400B DP

12

22

24

28

30

16

18

20

20

22

22

24

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8 M 9 M 10

332325828

332325828

332325828

332325829

332325829

332325829

332325829

332325830

332325843

332325843

332325834

332325834

332325844

332325844

332325845

332325828

332325829

332325829

332325829

332325829

332325830

332325830

332325843

332325834

332325834

332325844

332325844

332325845

332325829

332325830

332325830

332325830

332325830

332325843

332325834

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

N/A

N/A

N/A

N/A

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

N/A N/A

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Green Green Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Green Green Green Green

N/A N/A

331481405 331481405 331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

P urple P urple Gray Gray Gray Gray Red Red B ro wn B ro wn

331481405 331481405 331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

P urple P urple Gray Gray Gray Gray Red Red B ro wn B ro wn

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple Gray Gray Gray Gray Green Green Red Red

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple Gray Gray Gray Gray Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

N/A N/A

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

N/A

N/A

N/A

N/A

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Green Green Green Green

N/A

N/A

N/A

N/A

331481405 331481405 331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

P urple P urple Gray Gray Gray Gray Red Red B ro wn B ro wn

331481405 331481405 331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

P urple P urple Gray Gray Gray Gray Red Red B ro wn B ro wn

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple Gray Gray Gray Gray Green Green Red Red

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple Gray Gray Gray Gray Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B ro wn

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

N/A

N/A

N/A

N/A

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Red Red

N/A

N/A

N/A

N/A

N/A

N/A

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Green Green Green Green

N/A N/A

331481405 331481405 331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

P urple P urple Gray Gray Gray Gray Red Red B ro wn B ro wn

58 IM 1167

Isolator Locations and Kit Numbers

Table 43: RIS Isolators (for 60Hz non-VFD Units with Copper Fin Condensers)

UN IT S IZ E

# O F

F A N S

Kit P / N

A WS190B DS

A WS210B DS 12

A WS225B DS 12

A WS250B DS 14

A WS260B DS 14

A WS290B DS 16

A WS310B DS 16

A WS350B DS 20

A WS375B DS 20

A WS400B TS 22

A WS425B TS 22

A WS450B TS 24

A WS470B TS 24

A WS500B TS

A WS525B TS 28

A WS550B TS 30

A WS210B DH 12

A WS230B DH

26

14

A WS250B DH 14

A WS280B DH 16

A WS300B DH 16

A WS330B DH 20

A WS350B DH 20

A WS390B DH 22

A WS410B DH 24

A WS450B TH 24

A WS475B TH 26

A WS500B TH 28

A WS530B TH 30

A WS240B DP 16

A WS265B DP 18

A WS290B DP 20

A WS310B DP 20

A WS330B DP

10

22

A WS365B DP 22

A WS400B DP 24

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8 M 9 M 10

332325828

332325828

332325828

332325829

332325829

332325832

332325832

332325833

332325833

332325833

332325833

332325835

332325846

332325845

332325845

332325845

332325828

332325829

332325829

332325832

332325832

332325833

332325833

332325833

332325835

332325846

332325845

332325845

332325845

332325831

332325831

332325831

332325833

332325833

332325833

332325835

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

N/A

N/A

N/A

N/A

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

N/A N/A

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B rown

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B rown

331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

Gray Gray Gray Gray Red Red B ro wn B rown

331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

Gray Gray Gray Gray Red Red B ro wn B rown

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

N/A N/A

331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402 331481402 331481402

P urple P urple Gray Gray Green Green Red Red Red Red

331481405 331481405 331481404 331481404 331481403 331481403 331481403 331481403 331481402 331481402

P urple P urple Gray Gray Green Green Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481404 331481404 331481403 331481403 331481402 331481402

Gray Gray Green Green Red Red

N/A N/A

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B rown

N/A

N/A

N/A

N/A

331481404 331481404 331481403 331481403 331481402 331481402 331481401 331481401

Gray Gray Green Green Red Red B ro wn B rown

331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

Gray Gray Gray Gray Red Red B ro wn B rown

331481404 331481404 331481404 331481404 331481402 331481402 331481401 331481401

Gray Gray Gray Gray Red Red B ro wn B rown

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

N/A

N/A

N/A

N/A

331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402 331481402 331481402

P urple P urple Gray Gray Green Green Red Red Red Red

331481405 331481405 331481404 331481404 331481403 331481403 331481403 331481403 331481402 331481402

P urple P urple Gray Gray Green Green Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481405 331481405 331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402

P urple P urple P urple P urple Gray Gray Green Green Red Red

331481404 331481404 331481404 331481404 331481404 331481404 331481402 331481402

Gray Gray Gray Gray Gray Gray Red Red

331481404 331481404 331481404 331481404 331481404 331481404 331481402 331481402

Gray Gray Gray Gray Gray Gray Red Red

331481404 331481404 331481404 331481404 331481404 331481404 331481402 331481402

Gray Gray Gray Gray Gray Gray Red Red

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

331481405 331481405 331481404 331481404 331481404 331481404 331481403 331481403

P urple P urple Gray Gray Gray Gray Green Green

N/A

N/A

N/A

N/A

331481405 331481405 331481404 331481404 331481403 331481403 331481402 331481402 331481402 331481402

P urple P urple Gray Gray Green Green Red Red Red Red

IM 1167 59

Isolator Locations and Kit Numbers

Table 44: Spring Isolators (for 60Hz Units with optional VFD and Aluminum Fin Condensers)

UNIT   SIZE

#   OF

FANS

Kit   P/N M1 M2 M3 M4 M5 M6 M7 M8 M9

AWS170BDS *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

10 332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

AWS190BDS *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

12 332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

AWS200BDS *VFD*

AWS210BDH *VFD*

AWS230BDH *VFD*

AWS250BDH *VFD*

AWS280BDH *VFD*

AWS300BDH *VFD*

AWS330BDH *VFD*

AWS350BDH *VFD*

AWS390BDH *VFD*

AWS410BDH *VFD*

AWS450BTH *VFD*

AWS475BTH *VFD*

AWS500BTH *VFD*

AWS530BTH *VFD*

AWS240BDP *VFD*

AWS265BDP *VFD*

AWS290BDP *VFD*

AWS310BDP *VFD*

AWS330BDP *VFD*

AWS365BDP *VFD*

AWS400BDP *VFD*

M10

N/A

N/A

M11

N/A

N/A

M12

N/A

N/A

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

12 332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

12 332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

14 332320822

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

14 332320822

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

16 332320823

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

16 332320823

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

20 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

20

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

22

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A N/A

24

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620600 332620600

332320825

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Purple Dark Purple

24

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620600 332620600

332320825

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Purple Dark Purple

26

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320826

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

28

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320826

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

30 332320827

332620900 332620900 332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

16

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

332320823

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black

18

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

18

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

20

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

20

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

22

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

24

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620600 332620600

332320825

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Purple Dark Purple

60 IM 1167

Isolator Locations and Kit Numbers

Table 45: Spring Isolators (for 60Hz Units with optional VFD and Copper Fin Condensers)

UNIT   SIZE

#   OF

FANS

Kit   P/N M1 M2 M3 M4 M5 M6 M7 M8

AWS170BDS *VFD*

10

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

M9

N/A

AWS190BDS *VFD*

AWS200BDS *VFD*

AWS210BDH *VFD*

12

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

12

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

12 332320821

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

M10

N/A

N/A

N/A

N/A

AWS230BDH *VFD*

AWS250BDH *VFD*

14

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

332320822

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black Black Black

14

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

332320822

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Black Black Black Black

AWS280BDH *VFD*

AWS300BDH *VFD*

AWS330BDH *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

16 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

16 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

20 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

M11

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

M12

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

AWS350BDH *VFD*

AWS390BDH *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

20 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

22

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

AWS410BDH *VFD*

AWS450BTH *VFD*

AWS475BTH *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620600 332620600

24 332320825

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Purple Dark Purple

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620600 332620600

24 332320825

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Purple Dark Purple

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

26 332320826

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

AWS500BTH *VFD*

AWS530BTH *VFD*

AWS240BDP *VFD*

28 332320827

332620900 332620900 332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

30 332320827

332620900 332620900 332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Gray Gray Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

16

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A N/A

AWS265BDP *VFD*

AWS290BDP *VFD*

AWS310BDP *VFD*

18

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

18 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

20

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

N/A

N/A

AWS330BDP *VFD*

AWS365BDP *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

20 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

22 332320824

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green

N/A

N/A

N/A

N/A

AWS400BDP *VFD*

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620600 332620600

24 332320825

Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Green Dark Purple Dark Purple

IM 1167 61

Isolator Locations and Kit Numbers

Table 46: RIS Isolators (for 60Hz Units with optional VFD and Aluminum Fin Condensers)

UNIT   SIZE

#   OF

FANS

Kit   P/N M1 M2 M3 M4 M5 M6 M7 M8

AWS170BDS *VFD*

10 332325821

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red

AWS190BDS *VFD*

AWS200BDS *VFD*

AWS210BDH *VFD*

AWS230BDH *VFD*

AWS250BDH *VFD*

AWS280BDH *VFD*

AWS300BDH *VFD*

AWS330BDH *VFD*

AWS350BDH *VFD*

AWS390BDH *VFD*

AWS410BDH *VFD*

AWS450BTH *VFD*

AWS475BTH *VFD*

AWS500BTH *VFD*

AWS530BTH *VFD*

AWS240BDP *VFD*

AWS265BDP *VFD*

AWS290BDP *VFD*

AWS310BDP *VFD*

AWS330BDP *VFD*

AWS365BDP *VFD*

AWS400BDP *VFD*

M9

N/A

M10

N/A

M11

N/A

M12

N/A

12 332325821

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red

12 332325821

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red

N/A

N/A

N/A

N/A

12 332325821

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red

N/A N/A

14 332325822

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red Red Red

14 332325822

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red Red Red

16 332325822

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red Red Red

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

16 332325822

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red Red Red

20 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

20 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

N/A

N/A

22 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A N/A

24 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

24 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

26 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

28 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

30 332325825

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Green Green Green Green Green Green Green Green

16 332325822

331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402 331481402

Red Red Red Red Red Red Red Red Red Red

18 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

18 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

20 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

20 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

22 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

24 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

62 IM 1167

Isolator Locations and Kit Numbers

Table 47: RIS Isolators (for 60Hz Units with optional VFD and Copper Fin Condensers)

UNIT   SIZE

AWS170BDS *VFD*

AWS190BDS *VFD*

AWS200BDS *VFD*

AWS210BDH *VFD*

AWS230BDH *VFD*

#   OF

FANS

Kit   P/N M1 M2 M3 M4 M5 M6 M7 M8 M9 M10

10 332325826

12 332325826

12 332325826

12 332325826

14 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

AWS250BDH *VFD*

AWS280BDH *VFD*

AWS300BDH *VFD*

AWS330BDH *VFD*

AWS350BDH *VFD*

AWS390BDH *VFD*

AWS410BDH *VFD*

AWS450BTH *VFD*

AWS475BTH *VFD*

AWS500BTH *VFD*

AWS530BTH *VFD*

AWS240BDP *VFD*

AWS265BDP *VFD*

AWS290BDP *VFD*

AWS310BDP *VFD*

AWS330BDP *VFD*

AWS365BDP *VFD*

AWS400BDP *VFD*

M11

N/A

N/A

N/A

N/A

N/A

M12

N/A

N/A

N/A

N/A

N/A

14 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A N/A

16 332325823

16 332325823

20 332325823

20 332325823

22 332325823

24 332325824

24 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A N/A

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

26 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

28 332325827

331481404 331481404 331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Gray Gray Green Green Green Green Green Green

30 332325827

331481404 331481404 331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403

Gray Gray Gray Gray Gray Gray Green Green Green Green Green Green

16 332325823

18 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

18 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

20 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

20 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A

N/A

N/A

N/A

N/A

N/A

22 332325823

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green

N/A N/A

24 332325824

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403

Green Green Green Green Green Green Green Green Green Green Green Green

IM 1167 63

Electrical Data

Electrical Data

Field Wiring

Wiring must comply with all applicable codes and ordinances.

Warranty does not cover damage to the equipment caused by wiring not complying with specifications. Pathfinder chillers can be ordered with main power wiring for either multi-point power connection (standard) or single-point connection

(optional). If the optional single-point power connection is ordered, a single power connection is made to a power block

(or optional disconnect switch) in the unit power panel. A separate disconnect is required if the optional factory-mounted disconnect is not ordered. Factory-mounted isolation circuit breakers for each circuit are included as standard on all singlepoint connection options.

If the standard multiple-point power wiring is ordered, two power connections are required on Pathfinder chiller models

AWS###B

D

S or three power connections on AWS###B

T

S.

They are made to factory-mounted disconnect switches in the power panel. See the dimension drawings beginning on page 67 for entry locations.

An open indicates a short, ground, or overload. Before replacing a fuse or restarting a compressor or fan motor, the trouble must be found and corrected.Copper wire is required for all power lead terminations at the unit, and copper must be used for all other wiring to the unit.

It can be desirable to have the unit evaporator heaters on a separate disconnect switch from the main unit power supply so that the unit power can be shut down without defeating the freeze protection provided by the evaporator heaters. See the field wiring diagram on page 65 for connection details. The

120-volt control transformer is factory mounted and wired. .

CAUTION

If a separate disconnect is used for the 120V supply to the unit, it must power the entire control circuit. It must be clearly marked so that it is not accidentally shut off during freezing temperatures, thereby deenergizing the evaporator heaters. Freeze damage to the evaporator could result. If the evaporator is drained for winter freeze protection, the heaters must be

de-energized

to prevent heater burnout.

CAUTION

Pathfinder unit compressors are single-direction rotation compressors and can be damaged if rotated in the wrong direction. For this reason, proper phasing of electrical power is important. Electrical phasing must be A, B, C for electrical phases 1, 2 and 3 (A=L1, B=L2, C=L3) for single or multiple point wiring arrangements. The solid-state starters contain phase reversal protection.

DO NOT ALTER THE WIRING TO THE STARTERS.

Electrical Data Notes

1

Explanation of field wiring designation:

Designation

350 MCM

2-250 MCM

(2) 250 MCM

(2) 2-300 MCM

Total Wires

3

6

6

12

Total Conduits

1

1

2

2

Note: NOTE: Wire size shown is for illustrative purposes only.

2

Allowable voltage limits:

Unit nameplate 460V/60Hz/3Ph: 414V to 506V

Unit nameplate 575V/60Hz/3Ph: 517V to 633V

64

3

4

5

6

7

8

9

10

11

12

13

Unit wire size ampacity (MCA) is equal to 125% of the largest compressor-motor RLA plus 100% of RLA of all other loads in the circuit including control transformer.

Wire size ampacity for separate 115V control circuit power is 15 amps.

Units marked with (*) - These units require the use of a

100% rated disconnect; therefore, wire will be sized per

75ºC NEC ratings, however 90ºC wire must be used.

Compressor RLA values are for wire sizing purposes only, but do reflect normal operating current draw at unit rated capacity.

Single-point power supply requires a single disconnect to supply electrical power to the unit. Power must be fused.

Multiple point power supply requires a independent power supply for each circuit.

All field wiring to unit power block or optional nonfused disconnect switch must be copper.

Field wire size values given in tables apply to 75°C rated wire per NEC.

External disconnect switch(s) or HACR breakers must be field supplied. On single-point power units, a non-fused disconnect switch in the panel is an available option.

All wiring must be done in accordance with applicable local and national codes.

Recommended time delay fuse size is equal to 170% of the largest compressor motor RLA plus 100% of remaining compressor RLAs and the sum of condenser fan FLAs.

Maximum time delay fuse size or HACR breakers is equal to 225% of the largest compressor-motor RLA plus

100% of remaining compressor RLAs and the sum of condenser fan FLAs.

14

Power Limitations:

Voltage within 10 percent of nameplate rating.

Voltage unbalance not to exceed 2% with a resultant current unbalance of 6 to 10 times the voltage unbalance per

NEMA MG-1, 1998 Standard.

15

Circuit Breakers (Non-Compressor VFD Units)

The circuit breaker used in the High Short Circuit panel option may have a higher trip rating than the unit Maximum Overload Protection (MOP) value shown on the unit nameplate. The circuit breaker is installed as a service disconnect switch and does not function as branch circuit protection, mainly that the protection device must be installed at the point of origin of the power wiring. The breaker (disconnect switch) is oversized to avoid nuisance trips at high ambient temperature conditions.

16

BAS Interface

The following installation manuals for optional BAS interface modules are shipped with the chiller. They can also be found and downloaded on www.DaikinMcQuay.com under

Product Information > Air cooled Chillers> Screw Type >

Control Integration:

IM 966, BACnet® IP Communication Module

IM 967, BACnet® IP Communication Module MS/TP

IM 968, Modbus® Communication Module

IM 969, LONWORKS Communication Module

IM 1167

Wiring Diagram

Figure 41: Field Wiring Diagram

Wiring Diagram

IM 1167 65

Wiring Diagram

Figure 42: Field Wiring Diagram (continued)

66 IM 1167

Multipoint Electrical Data (non-VFD)

Multipoint Electrical Data (non-VFD)

Table 48: Multipoint Electrical Data (60Hz, standard efficiency, non-VFD models)

Model HZ

190BDS 60

210BDS 60

225BDS 60

250BDS 60

Model

190BDS

210BDS 60

225BDS

60

60

250BDS 60

Voltage # of Fans

MCA

208V

441

230V

399

380V

5

242

460V

200

575V 160

208V

449

230V

406

380V

6

246

460V

203

575V 163

208V

230V

540

488

460V

244

575V 195

208V

230V

548

495

460V

248

575V 198

HZ Voltage # of Fans

208V

230V

MCA

441

399

460V

200

575V 160

208V

230V

540

488

460V

244

575V 195

208V

230V

540

488

460V

244

575V 195

208V

230V

644

583

460V

291

575V 233

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

600

600

350

800

700

450

350

300

300

225

800

700

450

350

300

1000

800

500

450

350

600

600

350

300

250

600

600

350

300

225

800

700

450

350

300

700

600

400

300

250

700

600

400

300

250

800

800

500

400

300

6

6

3

3

3

6

6

3

3

3

6

6

3

3

3

4/0 AWG

3/0 AWG

250 MCM

3/0 AWG

4/0 AWG

4/0 AWG

250 MCM

4/0 AWG

300 MCM

250 MCM

250 MCM

2

2

1

1

2

2

1

1

2

2

1

800

700

450

800

800

500

6

6

3

300 MCM

250 MCM

2

2

2.5

2.0

2.5

350

300

400

300

3

3

250 MCM 1 2.0

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

2.0

2.0

2.0

2.0

1.5

2.0

2.0

2.0

2.0

1.5

2.5

2.0

2.5

2.0

2.0

4/0 AWG

3/0 AWG

2

2

700

600

400

800

800

500

400

300

300

250

800

800

500

400

300

1000

1000

600

500

400

6

6

3

3

3

6

6

3

3

3

3

3

6

6

3

3

3

6

6

3

3/0 AWG

300 MCM

250 MCM

250 MCM

300 MCM

250 MCM

250 MCM

400 MCM

350 MCM

350 MCM

1

2

2

1

2

2

1

2

2

1

2.0

2.0

2.0

2.5

2.0

2.5

2.0

2.0

2.0

1.5

2.5

2.0

2.5

2.0

2.0

2.5

2.5

3.0

2.5

2.0

IM 1167 67

Multipoint Electrical Data (non-VFD)

Table 49: Multipoint Electrical Data (60Hz, standard efficiency, non-VFD models), continued

Model

310BDS

350BDS

350BDS

HZ

260BDS 60

290BDS 60

60

60

Model HZ

260BDS 60

290BDS 60

310BDS 60

60

Voltage # of Fans

MCA

208V

644

230V

380V

7

583

353

460V

291

575V 233

208V

--

230V

--

380V

8

357

460V

295

575V 236

208V

230V

--

--

460V

357

575V 286

208V

230V

--

--

460V

364

575V 291

Voltage # of Fans

208V

230V

MCA

644

583

460V

291

575V 233

208V

230V

--

--

460V

357

575V 286

208V

230V

--

--

460V

357

575V 286

208V

230V

--

--

460V

404

575V 323

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

1000

800

500

450

350

--

--

500

450

350

--

--

600

500

400

--

--

600

500

450

1000

1000

600

500

400

--

--

600

500

400

--

--

700

600

450

--

--

700

600

500

6

6

3

3

3

--

--

3

3

3

--

--

6

3

3

--

--

6

3

3

400 MCM

350 MCM

500 MCM

350 MCM

--

--

500 MCM

350 MCM

--

--

500 MCM

--

--

500 MCM

2

2

1

1

--

--

1

1

--

--

1

--

--

1

--

--

3.0

2.5

2.0

--

--

2.0

2.5

2.5

3.0

2.5

2.0

3.0

2.5

--

--

2.0

3.0

2.5

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

1000

800

500

1000

1000

600

6

6

3

400 MCM

350 MCM

2

2

2.5

2.5

3.0

350 MCM 1 450

350

--

--

600

500

400

500

400

--

--

700

600

450

--

--

6

3

3

3

3

--

--

500 MCM

--

--

1

2.5

2.0

--

--

2.0

3.0

2.5

--

--

--

--

--

--

700

600

500

--

--

600

500

400

--

--

800

700

500

--

--

700

600

450

--

--

6

6

3

--

--

6

3

3

500 MCM

--

--

4/0 AWG

1

--

--

2

--

--

2.0

2.0

2.5

--

--

2.0

3.0

2.5

68 IM 1167

Multipoint Electrical Data (non-VFD)

Table 50: Multipoint Electrical Data (60Hz, standard efficiency, non-VFD models), continued

Model HZ

Circuit 1

(Wire 75°C f or SP Pow er Block / Disconnect Sw . - 90°C f or SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

375BDS 60

400BTS 60

425BTS 60

Model HZ

375BDS 60

400BTS 60

425BTS 60

Voltage # of Fans

MCA

208V

230V

380V

460V

208V

230V

10

--

--

441

364

575V 291

208V

--

230V

--

380V

7

353

460V

291

575V 233

--

--

460V

291

575V 233

Voltage

208V

230V

# of Fans

MCA

208V

--

230V --

380V

10

489

460V

404

575V 323

--

--

460V

291

575V 233

208V

230V

--

--

460V

291

575V 233

Model HZ Voltage # of Fans

400BTS

425BTS

60

60

MCA

208V

--

230V --

380V

8

357

460V

295

575V 236

208V

--

230V --

380V

8

433

460V

357

575V 286

--

--

500

450

350

--

--

600

500

450

--

--

500

450

350

--

--

600

500

400

--

--

700

600

500

--

--

600

500

400

--

--

3

3

3

--

--

3

3

3

6

3

--

--

3

--

--

4/0 AWG

500 MCM

--

--

500 MCM

350 MCM

--

--

350 MCM

--

--

2

1

--

--

1

1

--

--

1

--

--

3

3

2

--

--

2.0

3.0

2.5

--

--

3.0

2.5

2.0

Circuit 2

(Wire 75°C f or SP Pow er Block / Disconnect Sw . - 90°C f or SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

250 MCM

4/0 AWG

2

2

--

--

--

--

500

450

350

--

--

500

--

--

700

600

500

--

--

600

500

400

--

--

600

--

--

800

700

500

--

--

3

3

3

--

--

3

6

6

3

--

--

--

--

350 MCM

--

--

--

--

1

--

--

--

--

3.0

2.5

2.0

--

--

3.0

--

--

2.0

2.0

2.5

450

350

500

400

3

3

350 MCM 1 2.5

2.0

Circuit 3

(Wire 75°C f or SP Pow er Block / Disconnect Sw . - 90°C f or SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

500

450

350

--

--

600

500

400

--

--

600

500

400

--

--

700

600

450

--

--

3

3

3

--

--

6

3

3

--

--

500 MCM

350 MCM

--

--

4/0 AWG

500 MCM

--

--

1

1

--

--

2

1

--

--

3.0

2.5

2.0

--

--

2.0

3.0

2.5

IM 1167 69

Multipoint Electrical Data (non-VFD)

Table 51: Multipoint Electrical Data (60Hz, standard efficiency, non-VFD models), continued

Model HZ Voltage

450BTS

470BTS

60

60

# of Fans

MCA

208V

230V

--

--

380V

8

433

460V

357

575V 286

208V

230V

380V

8

--

--

433

460V

357

575V 286

208V

230V

--

--

500BTS 60

460V

357

575V 286

Model HZ

450BTS 60

Voltage # of Fans

MCA

208V

--

230V --

380V

8

433

460V

357

575V 286

208V

--

230V

--

470BTS 60

460V

357

575V 286

208V

230V

--

--

500BTS 60

460V

357

575V 286

Model HZ

450BTS

470BTS 60

500BTS

60

60

Voltage # of Fans

MCA

208V

--

230V --

380V

8

357

460V

295

575V 236

208V

--

230V --

380V

8

433

460V

357

575V 286

208V

--

230V

--

380V

10

489

460V

404

575V 323

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

600

500

400

--

--

700

600

500

--

--

500

450

350

--

--

--

--

600

500

400

--

--

600

500

400

--

--

600

500

400

--

--

700

600

450

--

--

700

600

450

--

--

700

600

450

--

--

6

3

3

--

--

6

3

3

--

--

6

3

3

--

--

4/0 AWG

500 MCM

--

--

4/0 AWG

500 MCM

--

--

500 MCM

--

--

2

1

--

--

2

1

--

--

1

--

--

2.0

3.0

2.5

--

--

2.0

3.0

2.5

--

--

2.0

3.0

2.5

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

600

500

400

--

--

600

500

400

--

--

600

500

400

--

--

700

600

450

--

--

700

600

450

--

--

700

600

450

6

3

3

--

--

6

--

--

--

--

6

3

3

3

3

--

--

4/0 AWG

500 MCM

--

--

500 MCM

--

--

500 MCM

--

--

2

1

--

--

1

--

--

1

--

--

2.0

3.0

2.5

--

--

2.0

3.0

2.5

--

--

2.0

3.0

2.5

Circuit 3

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

700

600

450

--

--

800

700

500

--

--

600

500

400

--

--

6

6

3

--

--

6

3

3

3

3

3

--

--

--

--

--

--

500 MCM

350 MCM

--

--

4/0 AWG

500 MCM

--

--

250 MCM

4/0 AWG

1

1

--

--

--

--

2

1

--

--

2

2

2.0

3.0

2.5

--

--

2.0

2.0

2.5

--

--

3.0

2.5

2.0

--

--

70 IM 1167

Multipoint Electrical Data (non-VFD)

Table 52: Multipoint Electrical Data (60Hz, standard efficiency, non-VFD models), continued

Circuit 1

Model

525BTS

550BTS

HZ

60

60

Voltage # of Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V

--

230V

--

380V

10

489

460V

404

575V 323

208V

230V

--

--

380V

10

489

460V

404

575V 323

--

--

700

600

500

--

--

700

600

500

--

--

800

700

500

--

--

800

700

500

--

--

6

6

3

--

--

6

6

3

--

--

250 MCM

4/0 AWG

--

--

250 MCM

4/0 AWG

--

--

2

2

--

--

2

2

--

--

2

2

3

--

--

2

2

3

Circuit 2

Model

525BTS

550BTS

HZ

60

60

Voltage # of Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V

--

230V --

380V

10

489

460V

404

575V 323

208V

--

230V --

380V

10

489

460V

404

575V 323

--

--

700

600

500

--

--

700

600

500

--

--

800

700

500

--

--

800

700

500

--

--

6

6

3

--

--

6

6

3

--

--

250 MCM

4/0 AWG

--

--

250 MCM

4/0 AWG

--

--

2

2

--

--

2

2

--

--

2.0

2.0

2.5

--

--

2.0

2.0

2.5

Circuit 3

Model

525BTS

550BTS

HZ

60

60

Voltage # of Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V

--

230V --

380V

8

433

460V

357

575V 286

208V

--

230V --

380V

10

489

460V

404

575V 323

--

--

600

500

400

--

--

700

600

500

--

--

700

600

450

--

--

800

700

500

--

--

6

3

3

--

--

6

6

3

--

--

4/0 AWG

500 MCM

--

--

250 MCM

4/0 AWG

--

--

2

1

--

--

2

2

--

--

2.0

3.0

2.5

--

--

2.0

2.0

2.5

IM 1167 71

Multipoint Electrical Data (non-VFD)

Table 53: Multipoint Electrical Data (60Hz, high efficiency, non-VFD models)

Model HZ Voltage # of Fans

210BDH 60

MCA

208V

463

230V

418

380V

6

253

460V

209

575V 168

208V

230V

470

425

230BDH 60

460V

213

575V 170

208V

230V

566

513

250BDH 60

460V

256

575V 205

208V

230V

574

519

280BDH 60

460V

260

575V 208

Model HZ Voltage # of Fans

210BDH 60

230BDH 60

250BDH 60

280BDH 60

208V

230V

MCA

463

418

460V

209

575V 168

208V

230V

566

513

460V

256

575V 205

208V 566

230V

513

460V

256

575V 205

208V 669

230V

604

460V

302

575V 242

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

700

600

350

300

250

800

700

450

350

300

800

700

450

350

300

1000

800

500

450

350

700

600

350

300

250

700

600

350

300

250

800

700

400

350

250

700

700

400

350

250

6

6

3

3

3

3

3

3

6

6

250 MCM

4/0 AWG

250 MCM

4/0 AWG

250 MCM

4/0 AWG

4/0 AWG

2

2

1

1

2

2

1

800

700

450

350

300

800

800

500

400

350

6

6

3

3

3

300 MCM

300 MCM

300 MCM

2

2

1

2.5

2.5

2.5

2.5

2.0

800

700

450

800

800

500

6

6

3

350 MCM

300 MCM

2

2

2.5

2.5

2.5

400

300

400

350

3

3

300 MCM 1 2.5

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

2.0

2.0

2.5

2.0

1.5

2.0

2.0

2.0

2.0

1.5

700

700

400

350

250

800

800

500

400

350

800

800

500

400

350

1000

1000

600

500

400

6

6

3

3

3

3

3

6

6

6

3

3

3

6

3

3

3

6

3

6

250 MCM

4/0 AWG

4/0 AWG

300 MCM

300 MCM

300 MCM

300 MCM

300 MCM

350 MCM

350 MCM

2

2

1

2

2

1

2

1

2

1

2.0

2.0

2.0

2.0

1.5

2.5

2.5

2.5

2.5

2.0

2.5

2.5

3.0

2.5

2.0

2.5

2.5

2.5

2.0

2.5

72 IM 1167

Multipoint Electrical Data (non-VFD)

Table 54: Multipoint Electrical Data (60Hz, high efficiency, non-VFD models), continued

Model

300BDH

330BDH

350BDH

390BDH

HZ Voltage # of Fans

60

MCA

208V

669

230V

604

380V

8

365

460V

302

575V 242

208V

230V

--

--

60

460V

309

575V 247

208V

230V

--

--

60

460V

392

575V 313

208V

230V

--

--

60

460V

392

575V 313

Model

300BDH

390BDH

HZ Voltage

60

330BDH 60

350BDH 60

60

208V

230V

# of Fans

MCA

669

604

460V

302

575V 242

208V

230V

--

--

460V

392

575V 313

208V --

230V

--

460V

392

575V 313

208V --

230V

--

460V

436

575V 349

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

700

600

450

--

1000

800

500

450

350

--

800

600

500

--

700

600

450

--

--

--

500

450

350

1000

800

500

450

350

--

--

700

600

450

--

--

700

600

450

--

--

600

500

400

1000

1000

600

500

400

--

--

800

600

500

--

--

800

600

500

--

--

3

3

3

3

3

3

6

6

--

--

6

6

3

6

3

--

--

6

400 MCM

350 MCM

500 MCM

350 MCM

--

--

350 MCM

--

--

3/0 AWG

--

--

3/0 AWG

2

2

1

1

--

--

1

--

--

2

--

--

2

--

--

3.0

2.5

2.0

2.5

2.5

3.0

2.5

2.0

--

--

2.0

2.0

2.5

--

--

2.0

2.0

2.5

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

800

600

500

--

1000

1000

600

500

400

--

800

700

600

--

800

600

500

--

6

3

--

--

--

6

6

6

3

3

3

6

3

--

6

6

3

--

6

--

400 MCM

350 MCM

350 MCM

--

--

3/0 AWG

--

--

3/0 AWG

--

--

4/0 AWG

2

2

1

--

--

2

--

--

2

--

--

2

--

--

2.0

2.0

2.5

--

2.5

2.5

3.0

2.5

2.0

--

2.5

2.0

3.0

--

2.0

2.0

2.5

--

IM 1167 73

Multipoint Electrical Data (non-VFD)

Table 55: Multipoint Electrical Data (60Hz, high efficiency, non-VFD models), continued

Model HZ Voltage # of Fans

410BDH 60

MCA

208V

230V

--

--

380V

12

528

460V

436

575V 349

Model HZ

410BDH 60

Voltage # of Fans

MCA

208V

--

230V --

380V

460V

12

528

436

575V 349

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

800

600

500

--

--

800

700

600

6

6

3

--

--

--

--

300 MCM

4/0 AWG

--

--

2

2

--

--

2.5

2.0

3.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

800

600

500

--

--

800

700

600

6

6

3

--

--

--

--

300 MCM

4/0 AWG

2

2

--

--

--

--

2.5

2.0

3.0

Model

450BTH

Model

HZ Voltage # of Fans

60

MCA

208V

--

230V --

380V

8

365

460V

302

575V 242

HZ

450BTH 60

Voltage # of Fans

MCA

208V

--

230V --

380V

8

365

460V

302

575V 242

Model HZ Voltage # of Fans

450BTH 60

MCA

208V

--

230V --

380V

8

365

460V 302

575V 242

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

--

--

--

--

--

--

--

--

--

--

500

450

350

600

500

400

3

3

3

500 MCM

350 MCM

1

1

3.0

2.5

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

--

--

--

--

--

--

--

--

--

--

500

450

350

600

500

400

3

3

3

500 MCM

350 MCM

1

1

3.0

2.5

2.0

Circuit 3

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

500

450

350

--

--

600

500

400

3

3

3

--

--

--

--

500 MCM

--

--

1

--

--

3.0

2.5

2.0

74 IM 1167

Multipoint Electrical Data (non-VFD)

Table 56: Multipoint Electrical Data (60Hz, high efficiency, non-VFD models), continued

Model HZ

475BTH 60

Voltage # of Fans

MCA

208V

230V

380V

8

--

--

365

460V

302

575V 242

208V

230V

--

--

500BTH 60

460V

392

575V 313

208V

230V

--

--

530BTH 60

460V

392

575V 313

Model

475BTH

500BTH

530BTH

HZ Voltage # of Fans

60

MCA

208V

--

230V --

380V

460V

8

365

302

575V 242

208V

230V

--

--

60

460V

392

575V 313

208V

230V

--

--

60

460V

392

575V 313

Model HZ Voltage # of Fans

MCA

208V

--

230V --

475BTH 60

500BTH

530BTH

60

60

460V

392

575V 313

208V

--

230V --

380V

8

365

460V

302

575V 242

208V

--

230V --

380V

10

474

460V 392

575V 313

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

700

600

450

--

--

500

450

350

--

--

600

500

400

--

--

800

600

500

--

--

3

3

3

--

--

6

6

3

--

--

500 MCM

350 MCM

--

--

3/0 AWG

--

--

1

1

--

--

2

--

--

700

--

--

800

--

--

6

--

--

--

--

--

--

2.0

600

450

600

500

6

3

3/0 AWG 2 2.0

2.5

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

2.0

2.0

2.5

--

--

3.0

2.5

2.0

--

--

700

600

450

--

--

500

450

350

--

--

700

600

450

--

--

700

600

450

--

--

700

600

450

--

--

500

450

350

--

--

800

600

500

--

--

800

600

500

--

--

600

500

400

--

--

6

6

3

--

--

6

6

3

3

3

3

--

--

--

--

500 MCM

350 MCM

--

--

3/0 AWG

--

--

3/0 AWG

--

--

1

1

--

--

2

--

--

2

--

--

2.0

2.0

2.5

--

--

2.0

2.0

2.5

--

--

3.0

2.5

2.0

Circuit 3

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

--

--

800

600

500

--

--

600

500

400

--

--

800

600

500

--

--

6

3

3

3

3

--

--

6

6

6

3

--

--

--

--

3/0 AWG

--

--

500 MCM

350 MCM

--

--

250 MCM

--

--

2

--

--

1

1

--

--

2

--

--

2.0

2.0

2.5

--

--

3.0

2.5

2.0

--

--

2.0

2.0

2.5

IM 1167 75

Multipoint Electrical Data (non-VFD)

Table 57: Multipoint Electrical Data (60Hz, premium efficiency, non-VFD models)

Model HZ Voltage # of Fans

240BDP

265BDP

290BDP

310BDP

60

60

60

60

MCA

208V

478

230V 432

380V

8

262

460V

216

575V 173

208V

485

230V 439

380V

9

266

460V

219

575V 176

208V

581

230V 526

380V

9

318

460V

263

575V 211

208V

589

230V 533

380V

10

322

460V

267

575V 213

Model

240BDP

265BDP

290BDP

310BDP

HZ Voltage

60

60

# of Fans

MCA

208V

478

230V 432

380V

8

262

460V

216

575V 173

208V

581

230V 526

380V

9

318

460V

263

575V 211

60

60

208V

581

230V 526

380V

9

318

460V

263

575V 211

208V

684

230V

618

380V

10

374

460V

309

575V 247

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

250 MCM 2 700

600

350

300

250

700

600

400

300

250

800

800

450

400

300

800

800

450

400

300

800

700

400

350

250

800

700

400

350

250

800

800

500

450

350

1000

800

500

450

350

3

3

3

6

6

6

6

3

3

3

6

6

6

6

3

3

3

3

3

3

300 MCM

4/0 AWG

250 MCM

300 MCM

4/0 AWG

350 MCM

400 MCM

300 MCM

350 MCM

400 MCM

300 MCM

1

1

2

1

1

2

1

1

2

1

1

2.0

2.0

2.5

2.0

1.5

2.0

2.0

2.5

2.0

2.0

2.5

2.5

2.5

2.5

2.0

2.5

2.5

2.5

2.5

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

700

600

800

700

6

6

250 MCM 2 2.0

2.0

350

300

250

800

800

400

350

250

800

800

3

3

3

6

6

300 MCM

4/0 AWG

350 MCM

1

1

2

2.5

2.0

1.5

2.5

2.5

400 MCM

300 MCM

1

1

450

400

300

800

800

450

400

300

1000

1000

500

450

350

500

450

350

800

800

500

450

350

1000

1000

600

500

400

3

3

3

6

6

3

3

3

3

3

3

6

6

350 MCM

400 MCM

300 MCM

500 MCM

350 MCM

500 MCM

350 MCM

2

1

1

2

2

1

1

2.5

2.5

2.0

2.5

2.5

2.5

2.5

2.0

3.0

2.5

3.0

2.5

2.0

76 IM 1167

Multipoint Electrical Data (non-VFD)

Table 58: Multipoint Electrical Data (60Hz, premium efficiency, non-VFD models), continued

Model HZ Voltage # of Fans

330BDP 60

365BDP 60

400BDP 60

Model HZ Voltage # of Fans

330BDP 60

365BDP 60

400BDP 60

208V

230V

208V

230V

MCA

684

618

460V

309

575V 247

208V

230V

--

--

460V

309

575V 247

208V

230V

--

--

460V

398

575V 319

MCA

684

618

460V

309

575V 247

208V

230V

--

--

460V

398

575V 319

208V

230V

--

--

460V

398

575V 319

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

1000

1000

500

450

350

--

--

700

600

450

--

--

700

600

450

--

--

500

450

350

1000

1000

500

450

350

--

--

700

600

450

--

--

600

500

400

1000

1000

600

500

400

--

--

800

600

500

--

--

3

3

3

6

6

3

3

3

--

--

6

6

3

500 MCM

350 MCM

350 MCM

--

--

350 MCM

--

--

3/0 AWG

2

2

1

--

--

1

--

--

2

--

--

3.0

2.5

2.0

3.0

2.5

3.0

2.5

2.0

--

--

2.0

2.0

2.5

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

1000

1000

600

500

400

--

--

800

600

500

--

--

800

600

500

--

--

6

3

3

6

3

6

6

3

--

--

6

6

3

500 MCM

350 MCM

350 MCM

--

--

3/0 AWG

--

--

3/0 AWG

2

2

1

--

--

2

--

--

2

3.0

2.5

3.0

2.5

2.0

--

--

2.0

2.0

2.5

--

--

2.0

2.0

2.5

IM 1167 77

Multipoint Field Wiring Data (non-VFD)

Multipoint Field Wiring Data (non-VFD)

Table 59: Multipoint Field Wiring Data (60Hz, Standard efficiency, non-VFD models)

Circuit 1

Model HZ V oltage

# o f

Fans per

C ircuit

Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size Std Lug Size

190BDS 60

208V

230V

380V

460V

575V

5

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

600A

(2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

250A

(1/PH) #6 - 350 kcmil

210BDS

225BDS

250BDS

260BDS

Model

190BDS

210BDS

225BDS

250BDS

260BDS

60

60

60

60

HZ

60

60

60

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

V oltage

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

6

6

7

7

# o f

Fans per

C ircuit

5

6

6

7

7

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

800A (4/PH) 250 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

Circuit 2

Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

250A

(1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

800A (4/PH) 250 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

800A (4/PH) 250 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

78 IM 1167

Multipoint Field Wiring Data (non-VFD)

Table 60: Multipoint Field Wiring Data (60Hz, Standard efficiency, non-VFD models), continued

Model

290BDS

310BDS

350BDS

375BDS

HZ V oltage

60

60

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

# o f

F ans per

C ircuit

8

8

10

10

Cir cuit 1

Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

--

--

--

--

--

--

--

--

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

Model

290BDS

310BDS

350BDS

375BDS

HZ

60

60

60

60

V oltage

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

# o f

F ans per

C ircuit

8

8

10

Cir cuit 2

Disconnect Sw itch

Size Std Lug Size

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size Std Lug Size

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

-----

--

--

--

--

600A

(2/PH) 3/0 - 500 kcmil

600A

(2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

IM 1167 79

Multipoint Field Wiring Data (non-VFD)

Table 61: Multipoint Field Wiring Data (60Hz, Standard efficiency, non-VFD models), continued

Circuit 1

Model HZ V oltage

# o f

F ans per

C ircuit

Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size Std Lug Size

400BTS 60

208V

230V

380V

460V

575V

7

--

--

--

--

--

--

--

--

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

425BTS

450BTS

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

7

8

--

--

--

--

--

--

--

--

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A

(2/PH) 3/0 - 500 kcmil

600A

(2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

Model

400BTS

425BTS

450BTS

Model

400BTS

425BTS

450BTS

HZ

60

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

HZ V oltage

60

60

60

V oltage

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

# o f

F ans per

7

7

8

# o f

F ans per

8

8

8

Size

Circuit 2

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size Std Lug Size

--

--

--

--

--

--

--

--

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

--

--

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

Size

Circuit 3

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size Std Lug Size

--

--

--

--

--

--

--

--

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

-----

-----

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

-----

-----

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

400A

(2/PH) 3/0 - 500 kcmil

250A

(1/PH) #6 - 350 kcmil

400A

(2/PH) 3/0 - 500 kcmil

80 IM 1167

Multipoint Field Wiring Data (non-VFD)

Table 62: Multipoint Field Wiring Data (60Hz, Standard efficiency, non-VFD models), continued

Model

470BTS

500BTS

525BTS

Model

470BTS

500BTS

525BTS

Model

470BTS

500BTS

525BTS

Circuit 1

# o f

HZ V oltage

F ans per

C ircuit

Size

208V --

60

Disconnect Sw itch

Std Lug Size

--

High Short Circuit Current Rating

Size

--

Circuit Breaker (note 1)

Std Lug Size

--

230V --

380V

8

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

60

208V --

230V --

380V

460V

8

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

60

HZ

60

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 2

# o f

V oltage

F ans per

Size

C ircuit

208V --

230V --

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

--

--

Circuit Breaker (note 1)

Std Lug Size

--

--

380V

460V

8

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

60

60

HZ

60

60

60

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

--

--

--

--

--

--

380V

460V

8

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 3

# o f

V oltage

F ans per

C ircuit

Size

208V --

230V --

380V

460V

8

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

--

--

Circuit Breaker (note 1)

Std Lug Size

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

460V

8

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

IM 1167 81

Multipoint Field Wiring Data (non-VFD)

Table 63: Multipoint Field Wiring Data (60Hz, High efficiency, non-VFD models)

Model

550BTS

HZ

60

Cir cuit 1

V oltage

380V

460V

# o f

F ans per

C ircuit

Size

208V --

230V --

10

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

550BTS

550BTS

60

60

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Cir cuit 2

208V --

230V --

380V

460V

10

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Cir cuit 3

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Table 64: Multipoint Field Wiring Data (60Hz, High efficiency, non-VFD models), continued

Model

210BDH

230BDH

HZ V oltage

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

# o f

Fans per

C irc uit

6

7

Cir cuit 1

Disconnect Sw itch

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size Std Lug Size Size Std Lug Size

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250BDH 60

575V

208V

230V

380V

460V

575V

7

Model

210BDH

230BDH

250BDH

HZ

60

60

60

V oltage

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

# o f

Fans per

C irc uit

6

7

7

250A (1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

Cir cuit 2

Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

82 IM 1167

Multipoint Field Wiring Data (non-VFD)

Table 65: Multipoint Field Wiring Data (60Hz, High efficiency, non-VFD models), continued

Model

280BDH

HZ

60

V oltage

208V

230V

380V

460V

# o f

F ans per

C ircuit

8

Size

600A

Circuit 1

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

(2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

300BDH

330BDH

350BDH

390BDH

Model

280BDH

300BDH

330BDH

350BDH

390BDH

60

60

60

60

575V

208V

230V

380V

460V

575V

8

250A

600A

(1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

460V

10

400A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

400A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

575V 250A

208V --

(1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V

HZ V oltage

60

208V

230V

380V

460V

# o f

F ans per

C ircuit

8

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Size

600A

Circuit 2

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

(2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

60

60

60

60

575V

208V

230V

380V

460V

8

250A

600A

575V 250A

208V --

(1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

(1/PH) #6 - 350 kcmil

--

400A

--

(2/PH) 3/0 - 500 kcmil

--

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

12

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

IM 1167 83

Multipoint Field Wiring Data (non-VFD)

Table 66: Multipoint Field Wiring Data (60Hz, High efficiency, non-VFD models), continued

Circuit 1

Model HZ

# o f

V oltage

Fans per

C ircuit

Size

208V --

Disconnect Sw itch

Std Lug Size

--

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size

--

Std Lug Size

--

410BDH 60

230V --

380V

12

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V 600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

Model

410BDH

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 2

HZ V oltage

# o f

Fans per

C ircuit

Size

208V --

230V --

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

--

--

Circuit Breaker (note 1)

Std Lug Size

--

--

60 380V

460V

12

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Table 67: Multipoint Field Wiring Data (60Hz, High efficiency, non-VFD models), continued

Circuit 1

Model HZ

# o f

V oltage

Fans per

C ircuit

Size

208V --

230V --

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

--

--

--

--

450BTH 60 380V

460V

8

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Model

450BTH

Model

450BTH

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 2

# o f

HZ V oltage

Fans per

C ircuit

Size

208V --

Disconnect Sw itch

Std Lug Size

--

High Short Circuit Current Rating

Size

--

Circuit Breaker (note 1)

Std Lug Size

--

60

230V --

380V

8

400A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 3

# o f

HZ V oltage

Fans per

C ircuit

Size

208V --

230V --

60 380V

460V

8

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

--

--

Circuit Breaker (note 1)

Std Lug Size

--

--

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

575V 250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

84 IM 1167

Multipoint Field Wiring Data (non-VFD)

Table 68: Multipoint Field Wiring Data (60Hz, High efficiency, non-VFD models), continued

Circuit 1

Model HZ

# o f

V oltage

F ans per

C ircuit

Size

208V --

Disconnect Sw itch

Std Lug Size

--

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size

--

Std Lug Size

--

475BTH

500BTH

530BTH

60

60

60

230V --

380V

8

400A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A

250A

(2/PH) 3/0 - 500 kcmil

(1/PH) #6 - 350 kcmil

400A

400A

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

10

--

--

--

--

--

--

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

460V

10

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

600A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

Model

475BTH

500BTH

530BTH

Model

475BTH

500BTH

530BTH

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 2

# o f

HZ V oltage

F ans per

C ircuit

Size

208V --

230V --

Disconnect Sw itch

Std Lug Size

--

--

High Short Circuit Current Rating

Size

--

--

Circuit Breaker (note 1)

Std Lug Size

--

--

60 380V

460V

8

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

60

60

575V 250A

208V --

(1/PH) #6 - 350 kcmil

--

400A

--

(2/PH) 3/0 - 500 kcmil

--

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

460V

10 600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

600A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 3

# o f

HZ V oltage

F ans per

C ircuit

Size

208V --

60

230V --

380V

10

600A

Disconnect Sw itch

Std Lug Size

--

--

(2/PH) 3/0 - 500 kcmil

High Short Circuit Current Rating

Size

--

--

Circuit Breaker (note 1)

600A

Std Lug Size

--

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A

400A

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

600A

400A

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

60

208V --

230V --

380V

460V

8

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

600A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

60

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V --

380V

10

600A

--

(2/PH) 3/0 - 500 kcmil

--

600A

--

(2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

IM 1167 85

Multipoint Field Wiring Data (non-VFD)

Table 69: Multipoint Field Wiring Data (60Hz, Premium efficiency, non-VFD models)

Circuit 1

Disconnect Sw itch High Short Circuit Current Rating

Model HZ V oltage

# o f

Fans per

C ircuit

Size Std Lug Size Size Std Lug Size

208V 600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

240BDP 60

230V

380V

460V

8

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

265BDP

290BDP

310BDP

60

60

60

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

9

9

10

250A (1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

250A

(1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

(1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 2

Disconnect Sw itch High Short Circuit Current Rating

Model HZ V oltage

# o f

Fans per

C ircuit

Size Std Lug Size Size Std Lug Size

240BDP

265BDP

290BDP

310BDP

60

60

60

60

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

8

9

9

10

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

250A

250A

(1/PH) #6 - 350 kcmil

(1/PH) #6 - 350 kcmil

400A

400A

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 250A (1/PH) #6 - 350 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A

250A

(1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

(1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

800A (4/PH) 250 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

86 IM 1167

Multipoint Field Wiring Data (non-VFD)

Table 70: Multipoint Field Wiring Data (60Hz, Premium efficiency, non-VFD models), continued

Circuit 1

Disconnect Sw itch High Short Circuit Current Rating

Model HZ V oltage

# o f

Fans per

C ircuit

Size Std Lug Size Size Std Lug Size

208V 800A (4/PH) 250 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

330BDP 60

230V

380V

460V

10

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

365BDP

400BDP

Model

330BDP

365BDP

400BDP

60

60

575V 250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

10

--

--

--

--

--

--

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

460V

575V

400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

250A (1/PH) #6 - 350 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

460V

12

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

600A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

Circuit 2

Disconnect Sw itch High Short Circuit Current Rating

HZ V oltage

60

60

# o f

Fans per

C ircuit

Size Std Lug Size Size Std Lug Size

208V

230V

380V

460V

575V

10

800A

400A

250A

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(1/PH) #6 - 350 kcmil

800A

600A (2/PH) 3/0 - 500 kcmil 800A (4/PH) 250 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A

400A

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

208V --

230V --

380V

460V

12

600A

400A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

--

--

600A

600A

--

--

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

60

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

208V -----

230V -----

380V

460V

12

600A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

400A (2/PH) 3/0 - 500 kcmil 600A (2/PH) 3/0 - 500 kcmil

575V 400A (2/PH) 3/0 - 500 kcmil 400A (2/PH) 3/0 - 500 kcmil

IM 1167 87

Terminal Amps (non-VFD) (single/multi-point)

Terminal Amps (non-VFD) (single/multi-point)

Table 71: Terminal Amps Electrical Data (60Hz)

Model HZ Voltage

Rated Load Amps

CIR 1

Compressor

CIR 2 CIR 3

# of Fans

Fan

Motor

FLA

Fan

Motor

LRA

Inrush Amps LRA

(ATL)

Inrush Amps LRA

(SS)

Inrush Amps LRA

CIR 1 CIR 2 CIR 3 CIR 1 CIR 2 CIR 3 CIR 1

(YD)

CIR 2 CIR 3

190BDS

210BDS

225BDS

250BDS

260BDS

290BDS

310BDS

350BDS

375BDS

400BTS

425BTS

60

60

60

60

60

60

60

60

60

60

60

208V 323 323

230V 292 292

380V 177 177

460V 146 146

575V 117 117

208V 323 396

230V 292 358

380V 177 217

460V 146 179

575V 117 143

208V 396 396

230V 358 358

380V 217 217

460V 179 179

575V 143 143

208V 396 473

230V 358 428

380V 217 259

460V 179 214

575V 143 171

208V 473 473

230V 428 428

380V 259 259

460V 214 214

575V 171 171

208V --

230V --

--

--

380V 259 320

460V 214 264

575V 171 211

208V --

230V --

--

--

380V 320 320

460V 264 264

575V 211 211

208V ---

230V ---

380V 320 358

460V 264 296

575V 211 237

208V --

230V --

--

--

380V 358 358

460V 296 296

575V 237 237

208V ----

230V ----

380V 259 259 259

460V 214 214 214

575V 171 171 171

208V --

230V --

--

--

--

--

380V 259 259 320

460V 214 214 264

575V 171 171 211

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

10

12

12

14

14

16

16

20

20

22

22

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

23 2788 2788

23 2339 2339

16 1410 1410

14 1157 1157

11 885 885

--

--

--

--

--

--

16 1410 2524

14 1157 1947

11 885 1663

--

--

--

--

--

--

16 2524 2524

14 1947 1947

11 1663 1663

----

----

16 2524 2524

14 1947 1947

11 1663 1663

23 2368 2368

23 2119 2119

16 1194 1194

14

11

976 976

846 846

23 2368 2788

23 2119 2339

16 1194 1410

14 976 1157

11 846 885

23 2788 2788

23 2339 2339

16 1410 1410

14 1157 1157

11 885 885

23 2788 2788

23 2339 2339

16 1410 1410

14 1157 1157

11 885 885

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

--

--

-

-

-

--

--

-

-

-

--

--

-

-

-

1373

566

491

1373

1229

693

566

491

1617

513

1617

1357 1357

818 818

671

513

--

--

818 1464

671 1129

513

--

--

--

1373

1229 1229

693 693

566

491

1617

1357

818

671

513

1617

1357 1357

818 818

671 671

513 513

1617 1617

1357 1357

818 818

671 671

513

1617

671

513

--

--

965

--

--

1464 1464

1129 1129

965 965

--

---

1464 1464

1129 1129

965 965

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

--

--

--

--

--

-

-

-

-

-

-

-

-

-

-

-

-

-

-

--

789 789

706 706

398 398

326 326

282 282

789 929

706 780

398 470

326 386

282 295

929 929

780 780

470 470

386 386

295 295

929 929

780 780

470 470

386 386

295 295

--

--

--

--

--

--

16 2524 2524

14 1947 1947

11 1663 1663

--

--

-

-

-

--

--

--

--

1464 1464

1129 1129

965 965

--

--

-

-

-

--

--

--

--

841 841

649 649

554 554

-----------

-----------

16 1410 1410 1410 818 818 818 470 470 470

14 1157 1157 1157 671 671 671 386 386 386

11 885 885 885 513 513 513 295 295 295

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 1410 1410 2524 818 818 1464 470 470 841

14 1157 1157 1947 671 671 1129 386 386 649

11 885 885 1663 513 513 965 295 295 554

--

--

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

929 929

780 780

470 470

386 386

295 295

--

--

--

--

470 841

386 649

295 554

--

--

--

--

841 841

649 649

554 554

---

---

841 841

649 649

554 554

--

--

-

-

-

--

--

-

-

-

-

-

-

--

--

-

-

-

-

-

88 IM 1167

Terminal Amps (non-VFD) (single/multi-point)

Table 72: Terminal Amps Electrical Data (60Hz), continued

Model HZ Voltage

CIR 1

Compressor

Rated Load Amps

CIR 2 CIR 3

# of Fans

Fan

Motor

FLA

Fan

Motor

LRA

Inrush Amps

LRA (ATL)

CIR 1 CIR 2 CIR 3

Inrush Amps LRA

CIR 1

(SS)

CIR 2 CIR 3 CIR 1

Inrush Amps

LRA (YD)

CIR 2 CIR 3

450BTS

470BTS

500BTS

525BTS

550BTS

210BDH

230BDH

250BDH

280BDH

300BDH

330BDH

60

60

60

60

60

60

60

60

60

60

60

208V --

230V --

--

--

--

--

380V 320 320 259

460V 264 264 214

575V 211 211 171

208V 334 411

230V 302 372

380V 183 225

460V 151 186

575V 121 149

208V 411 411

230V 372 372

380V 225 225

460V 186 186

575V 149 149

208V 411 487

230V 372 440

380V 225 266

460V 186 220

575V 149 176

208V 487 487

230V 440 440

380V 266 266

460V 220 220

575V 176 176

208V --

230V --

--

--

380V 266 346

460V 220 286

575V 176 229

208V --

230V --

--

--

--

--

380V 320 320 320

460V 264 264 264

575V 211 211 211

208V --

230V --

--

--

--

--

380V 320 320 358

460V 264 264 296

575V 211 211 237

208V --

230V --

--

--

--

--

380V 358 358 320

460V 296 296 264

575V 237 237 211

208V --

230V --

--

--

--

--

380V 358 358 358

460V 296 296 296

575V 237 237 237

208V 334 334

230V 302 302

380V 183 183

460V 151 151

575V 121 121

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

24

24

26

28

30

12

14

14

16

16

20

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

--

--

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 2524 2524 1410 1464 1464 818 841 841 470

14 1947 1947 1157 1129 1129 671 649 649 386

11 1663 1663 885 965 965 513 554 554 295

23 2368 2788

23 2119 2339

16 1194 1410

14 976 1157

11 846 885

23 2788 2788

23 2339 2339

16 1410 1410

14 1157 1157

11 885 885

23 2788 2788

23 2339 2339

16 1410 1410

14 1157 1157

11 885 885

23 2788 2788

23 2339 2339

16 1410 1410

14 1157 1157

11 885 885

--

--

--

--

--

--

16 1410 2524

14 1157 1947

11 885 1663

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 2524 2524 2524 1464 1464 1464 841 841 841

14 1947 1947 1947 1129 1129 1129 649 649 649

11 1663 1663 1663 965 965 965 554 554 554

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 2524 2524 2524 1464 1464 1464 841 841 841

14 1947 1947 1947 1129 1129 1129 649 649 649

11 1663 1663 1663 965 965 965 554 554 554

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 2524 2524 2524 1464 1464 1464 841 841 841

14 1947 1947 1947 1129 1129 1129 649 649 649

11 1663 1663 1663 965 965 965 554 554 554

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 2524 2524 2524 1464 1464 1464 841 841 841

14 1947 1947 1947 1129 1129 1129 649 649 649

11 1663 1663 1663 965 965 965 554 554 554

23 2368 2368

23 2119 2119

16 1194 1194

14 976 976

11 846 846

-

-

-

-

1373 1373

1229 1229

693 693

566 566

491 491

-

-

-

-

789 789

706 706

398 398

326 326

282 282

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

--

--

-

-

-

1373

1229

693

566

491

1617 1617

1357 1357

818 818

671 671

513

1617 1617

1357 1357

818 818

671 671

513

1617 1617

1357 1357

818 818

671 671

513

--

--

513

1617

1357

818

671

513

513

513

513

--

--

818 1464

671 1129

965

-

-

-

-

-

-

-

--

--

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

789 929

706 780

398 470

326 386

282 295

929 929

780 780

470 470

386 386

295 295

929 929

780 780

470 470

386 386

295 295

929 929

780 780

470 470

386 386

295 295

--

--

--

--

470 841

386 649

295 554

-

-

-

-

-

-

-

-

-

-

-

-

-

--

--

-

-

-

-

-

-

-

-

-

-

IM 1167 89

Terminal Amps (non-VFD) (single/multi-point)

Table 73: Terminal Amps Electrical Data (60Hz), continued

Model

350BDH

390BDH

410BDH

450BTH

475BTH

500BTH

530BTH

240BDP

265BDP

290BDP

310BDP

HZ Voltage

Rated Load Amps

CIR 1

Compressor

CIR 2 CIR 3

# of Fans

Fan

Motor

FLA

Fan

Motor

LRA

Inrush Amps

LRA (ATL)

CIR 1 CIR 2 CIR 3

Inrush Amps LRA

(SS)

CIR 1 CIR 2 CIR 3 CIR 1

Inrush Amps

LRA (YD)

CIR 2 CIR 3

60

60

60

60

60

60

60

60

60

60

60

208V --

230V --

--

--

380V 346 346

460V 286 286

575V 229 229

208V --

230V --

--

--

380V 346 383

460V 286 316

575V 229 253

208V --

230V --

--

--

380V 383 383

460V 316 316

575V 253 253

208V --

230V --

--

--

--

--

380V 266 266 266

460V 220 220 220

575V 176 176 176

208V --

230V --

--

--

--

--

380V 266 266 346

460V 220 220 286

575V 176 176 229

208V --

230V --

--

--

--

--

380V ----

460V 286 286 220

575V 229 229 176

208V --

230V --

--

--

--

--

380V ----

460V 286 286 286

575V 229 229 229

208V 334 334

230V 302 302

380V 183 183

460V 151 151

575V 121 121

208V 334 411

230V 302 372

380V 183 225

460V 151 186

575V 121 149

208V 411 411

230V 372 372

380V 225 225

460V 186 186

575V 149 149

208V 411 487

230V 372 440

380V 225 266

460V 186 220

575V 149 176

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

20

22

24

24

26

28

30

16

18

18

20

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

4.1

3.4

2.7

7.5

6.8

--

--

--

3.4

2.7

--

--

--

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

4.1

3.4

2.7

--

--

--

--

--

--

16 2524 2524

14 1947 1947

11 1663 1663

--

--

--

--

--

--

16 2524 2524

14 1947 1947

11 1663 1663

--

--

--

--

--

--

16 2524 2524

14 1947 1947

11 1663 1663

-

-

--

--

-

-

-

--

--

-

-

-

--

--

-

--

--

--

--

1464 1464

1129 1129

965 965

--

--

--

--

1464 1464

1129 1129

965 965

--

--

--

--

1464 1464

1129 1129

965 965

-

-

--

--

-

-

-

--

--

-

-

-

--

--

-

--

--

--

--

841 841

649 649

554 554

--

--

--

--

841 841

649 649

554 554

--

--

--

--

841 841

649 649

554 554

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 1410 1410 1410 818 818 818 470 470 470

14 1157 1157 1157 671 671 671 386 386 386

11 885 885 885 513 513 513 295 295 295

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

16 1410 1410 2524 818 818 1464 470 470 841

14 1157 1157 1947 671 671 1129 386 386 649

11 885 885 1663 513 513 965 295 295 554

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

-----------

14 1947 1947 1157 1129 1129 671 649 649 386

11 1663 1663 885 965 965 513 554 554 295

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

-----------

14 1947 1947 1947 1129 1129 1129 649 649 649

11 1663 1663 1663 965 965 965 554 554 554

23 2368 2368 --

23 2119 2119 --

16 1194 1194 --

14 976 976 --

11 846 846 --

23 2368 2788 --

23 2119 2339 --

16 1194 1410 --

14 976 1157 --

11 846 885 --

23 2788 2788 --

23 2339 2339 --

16 1410 1410 --

14 1157 1157 --

11 885 885 --

23 2788 2788 --

23 2339 2339 --

16 1410 1410 --

14 1157 1157 --

11 885 885 --

1373 1373 --

1229 1229 --

693 693

566 566

491 491

1373

1229

491

513

1617

1357

693 818

566 671

513

818 818

671 671

513 513

818 818

671 671

513

--

--

--

--

--

--

--

--

1617 1617 --

1357 1357 --

--

--

--

1617 1617 --

1357 1357 --

--

--

--

789 789

706 706

398 398

326 326

282 282

789 929

706 780

398 470

326 386

282 295

929 929

780 780

470 470

386 386

295 295

929 929

780 780

470 470

386 386

295 295

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

-

-

--

--

-

-

-

--

--

-

-

-

--

--

-

90 IM 1167

Terminal Amps (non-VFD) (single/multi-point)

Table 74: Terminal Amps Electrical Data (60Hz), continued

Model

330BDP

365BDP

400BDP

HZ Voltage

CIR 1

Compressor

Rated Load Amps

CIR 2 CIR 3

# of Fans

Fan

Motor

FLA

Fan

Motor

LRA CIR 1

Inrush Amps

LRA (ATL)

CIR 2 CIR 3

Inrush Amps LRA

(SS)

CIR 1 CIR 2 CIR 3 CIR 1

Inrush Amps

LRA (YD)

CIR 2 CIR 3

60

60

60

208V 487 487

230V 440 440

380V 266 266

460V 220 220

575V 176 176

208V --

230V --

--

--

380V 266 346

460V 220 286

575V 176 229

208V --

230V --

--

--

380V 346 346

460V 286 286

575V 229 229

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

20

22

24

7.5

6.8

4.1

3.4

2.7

--

--

4.1

3.4

2.7

23 2788 2788 --

23 2339 2339 --

16 1410 1410 --

14 1157 1157 --

11 885 885 --

--

--

--

--

--

--

16 1410 2524 --

14 1157 1947 --

11

--

--

885 1663 --

1617 1617 --

1357 1357 --

818 818

671 671

513 513

--

--

--

--

--

--

--

818 1464 --

671 1129 --

513 965

--

--

--

--

--

--

--

1464 1464 --

1129 1129 --

965 965

--

--

--

929 929

780 780

470 470

386 386

295 295

--

--

--

--

470 841

386 649

295 554

--

--

--

--

841 841

649 649

554 554

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

IM 1167 91

Single-point Electrical Data (non-VFD)

Single-point Electrical Data (non-VFD)

Table 75: Single-point Electrical Data (60 Hz, Standard efficiency, non-VFD models)

Model

190BDS

210BDS

225BDS

250BDS

260BDS

290BDS

310BDS

350BDS

375BDS

HZ

60

60

60

60

60

60

60

60

60

Voltage

# of

Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V 802

230V 725

460V 363

575V 290

208V 908

230V 821

460V 411

575V 328

208V 981

230V 887

460V 444

575V 354

208V 1092

230V 988

460V 494

575V 395

208V 1169

230V 1058

460V 529

575V 423

208V --

230V --

460V 598

575V 478

208V --

230V --

460V 648

575V 518

208V --

230V --

460V 702

575V 562

208V --

230V --

460V 734

575V 588

1000

1000

600

450

350

1200

1000

600

1000

800

700

--

--

1200

800

700

--

--

1200

1000

700

500

--

--

1000

800

600

--

--

1200

800

600

500

1600

1200

800

700

500

400

1200

1200

700

600

450

1200

1000

1000

600

500

400

1200

1000

700

500

450

1200

1200

700

600

450

1200

1200

800

700

500

1600

1200

800

700

500

--

--

1000

800

600

--

--

1000

800

700

--

--

1200

800

700

--

--

1200

1000

800

12

6

6

3

3

12

12

6

6

3

12

12

12

6

12

12

--

--

6

6

6

--

--

6

6

6

6

6

6

6

3

12

12

6

6

--

--

12

6

6

--

--

12

6

6

--

--

--

--

--

--

--

--

--

--

2

2

2

--

--

2

2

2

2

2

2

2

2

2

1

2

2

2

2

2

2

1

2

2

1

2

2

1

2

2

2

2

--

2

2

--

2

2

2

2

--

--

2

2.5

2.0

--

--

2.0

--

--

3.0

4.0

3.5

2.5

2.5

3.5

2.5

2.0

2.0

2.5

2.0

3.0

4.0

2.0

2.5

3.5

3.5

2.5

3.5

3.5

2.0

3.0

3.0

2.0

3.0

--

3.5

3.0

2.5

3.0

2.5

2.5

--

--

--

3.5

3.0

2.5

92 IM 1167

Single-point Electrical Data (non-VFD)

Table 76: Single-point Electrical Data (60 Hz, Standard efficiency, non-VFD models) continued

Model

400BTS

425BTS

450BTS

470BTS

HZ

60

60

60

60

Voltage

208V --

230V --

460V 783

575V 616

208V --

230V --

380V 22

1009

460V

833

575V 666

208V --

230V --

380V

460V

# of

Fans

24

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

1078

890

575V 711

208V --

230V --

--

--

1000

1000

700

--

--

1200

1000

800

--

--

1200

1000

800

--

--

--

--

--

1000

1000

700

--

--

1200

1000

800

--

--

1200

1000

800

--

--

--

--

--

12

12

6

--

--

12

12

6

--

--

12

12

6

--

--

--

--

--

--

--

400 MCM

300 MCM

--

--

500 MCM

300 MCM

--

--

--

--

--

2

2

2

--

--

--

2

2

2

--

--

2

2

--

--

2

4.0

3.5

3.0

--

--

--

3.5

3.5

2.5

--

--

--

--

3.5

3.0

2.5

--

--

500BTS 60

460V

940

575V 751

208V --

230V --

1200

800

--

--

--

1200

800

--

--

--

12

6

--

--

--

350 MCM

--

--

--

2

2

--

--

--

3.5

3.0

--

--

--

525BTS 60

460V

980

575V 784

208V --

230V --

1200

1000

--

--

--

1200

1000

--

--

--

12

12

--

--

--

350 MCM

--

--

--

2

2

--

--

--

3.5

3.0

--

--

--

550BTS 60

460V

1025

575V 820

208V --

230V --

1200

1000

--

--

--

1200

1000

--

--

--

12

12

--

--

--

400 MCM

--

--

--

2

2

--

--

--

3.5

3.5

--

--

--

460V

1064

575V 852

1200

1000

1200

1000

12

12

400 MCM 2

2

3.5

3.5

IM 1167 93

Single-point Electrical Data (non-VFD)

Table 77: Single-point Electrical Data (60 Hz, High efficiency, non-VFD models)

Model

210BDH

230BDH

250BDH

280BDH

300BDH

330BDH

350BDH

390BDH

410BDH

HZ

60

60

60

60

60

60

60

60

60

Voltage

# of

Fans

(Wire 75°C for SP Power Block / Disconnect Sw. - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V

842

230V

380V 12

761

461

460V

381

575V 305

208V

230V

953

862

380V

460V

14

522

431

575V 345

208V

1030

230V

932

380V 14

564

460V

466

575V 373

208V

1140

230V

1031

380V 16

623

460V

515

575V 413

208V

230V

380V

460V

16

1216

1099

664

549

575V 440

208V --

230V --

380V 20

781

460V

646

575V 517

208V --

230V --

380V

460V

20

861

712

575V 570

208V --

230V --

380V 22

915

460V

756

575V 605

208V --

230V --

380V 24

961

460V

793

575V 635

1000

1000

600

450

400

1200

1200

700

600

450

1200

1200

700

600

450

1600

1200

800

700

500

1600

1200

800

700

600

--

--

1000

800

700

--

--

1200

800

700

--

--

1200

1000

800

--

--

1200

1000

700

1000

1000

600

500

400

1200

1200

700

600

450

1200

1200

700

600

500

1600

1200

800

700

500

1600

1200

800

700

600

--

--

1000

800

700

--

--

1200

800

700

--

--

1200

1000

800

--

--

1200

1000

800

12

12

6

6

3

12

12

6

6

3

12

12

6

6

3

12

12

6

6

6

12

12

6

6

6

--

--

12

6

6

--

--

12

6

6

--

--

12

6

6

--

--

12

12

6

300 MCM

250 MCM

250 MCM

3/0 AWG

350 MCM

300 MCM

300 MCM

4/0 AWG

400 MCM

350 MCM

300 MCM

250 MCM

500 MCM

400 MCM

400 MCM

300 MCM

500 MCM

500 MCM

400 MCM

300 MCM

--

--

250 MCM

400 MCM

--

--

300 MCM

500 MCM

--

--

350 MCM

500 MCM

--

--

350 MCM

250 MCM

2

2

2

2

2

--

--

2

2

2

--

--

2

--

2

2

2

2

2

2

1

2

2

1

2

2

2

2

2

2

1

2

2

2

2

2

--

2

2

2

--

--

2

2

2

3.5

3.5

2.5

2.0

3.0

3.5

3.5

2.5

2.0

3.0

3.5

3.0

2.0

2.0

2.5

4.0

3.5

2.5

2.5

2.0

--

3.0

2.5

2.5

--

--

4.0

4.0

2.5

2.5

2.0

--

3.5

3.0

2.5

--

--

3.5

3.0

2.5

--

--

3.5

3.0

2.5

94 IM 1167

Single-point Electrical Data (non-VFD)

Table 78: Single-point Electrical Data (60 Hz, High efficiency, non-VFD models) continued

Model

450BTH

500BTH

HZ

60

Voltage

# of

Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V --

230V --

380V 24

963

460V

797

575V 637

208V --

230V --

--

--

1200

1000

800

--

--

--

--

1200

1000

800

--

--

--

--

12

12

6

--

--

--

--

350 MCM

250 MCM

--

--

--

--

2

2

2

--

--

--

--

3.5

3.0

2.5

--

--

475BTH 60

60

380V 26

1072

460V

886

575V 709

208V --

230V --

1200

1000

800

--

--

--

1200

1000

800

--

--

--

12

12

6

--

--

--

400 MCM

300 MCM

--

--

--

2

2

2

--

--

--

3.5

3.5

3.0

--

--

--

530BTH 60

460V

959

575V 767

208V --

230V --

460V

1032

575V 826

1200

800

--

--

--

1200

1000

1200

800

--

--

--

1200

1000

12

12

--

--

--

12

12

350 MCM

--

--

--

400 MCM

2

2

--

--

--

2

2

3.5

3.0

--

--

--

3.5

3.5

IM 1167 95

Single-point Electrical Data (non-VFD)

Table 79: Single-point Electrical Data (60 Hz, Premium efficiency, non-VFD models)

Model

240BDP

265BDP

290BDP

310BDP

330BDP

365BDP

400BDP

HZ

60

60

60

60

60

60

60

Voltage

# of

Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

208V

872

230V

788

380V 16

478

460V

394

575V 316

208V

983

230V

889

380V 18

538

460V

445

575V 356

208V

1060

230V

959

380V 18

580

460V

480

575V 384

208V

1170

230V

1058

380V 20

640

460V

529

575V 423

208V --

230V

1126

380V 20

681

460V

563

575V 450

208V --

230V --

380V 22

789

460V

652

575V 522

208V --

230V --

380V 24

877

460V

725

575V 581

1200

1000

600

500

400

1200

1200

700

600

450

1200

1200

700

600

450

1600

1200

800

700

600

--

1200

800

700

600

--

--

1000

800

700

--

--

1200

1000

700

1200

1000

600

500

400

1200

1200

700

600

500

1200

1200

800

600

500

1600

1200

800

700

600

--

1200

800

700

600

--

--

1000

800

700

--

--

1200

1000

800

12

12

6

6

3

12

12

6

6

3

12

12

6

6

6

12

12

6

6

6

--

12

6

6

6

--

--

12

6

6

--

--

12

6

6

300 MCM

250 MCM

250 MCM

3/0 AWG

350 MCM

300 MCM

300 MCM

4/0 AWG

400 MCM

350 MCM

350 MCM

250 MCM

500 MCM

400 MCM

400 MCM

300 MCM

--

500 MCM

500 MCM

300 MCM

--

--

250 MCM

400 MCM

--

--

300 MCM

500 MCM

2

2

2

2

1

2

2

2

2

1

2

2

2

2

2

2

2

2

2

2

--

2

2

2

2

--

--

2

2

2

--

--

2

2

2

4.0

3.5

2.5

2.5

2.0

--

3.5

3.5

2.5

2.0

2.0

3.5

3.5

2.5

2.0

3.0

3.5

3.0

2.0

2.0

2.5

4.0

3.0

2.5

2.0

--

--

3.0

2.5

2.5

--

--

3.5

3.0

2.5

96 IM 1167

Single-point Field Wiring Data (non-VFD)

Single-point Field Wiring Data (non-VFD)

Table 80: Single-point Field Wiring Data (60 Hz, Standard efficiency, non-VFD models)

Model HZ Voltage

# of

Fans

Size

Pow er Block

Std Lug Size Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size Std Lug Size

190BDS 60

210BDS 60

225BDS 60

250BDS 60

260BDS 60

290BDS 60

310BDS 60

350BDS 60

375BDS 60

400BTS 60

208V

230V

10

12

12

14

14

16

208V N/A

230V 1400A

380V

460V

16 840A

760A

575V 760A

208V N/A

230V N/A

380V 20 1400A

460V

575V

760A

760A

208V N/A

230V N/A

380V

460V

20 1400A

760A

575V 760A

208V N/A

230V N/A

380V 22 1400A

460V

575V

840A

760A

1400A

1400A

760A

760A

760A

1400A

1400A

760A

760A

760A

1400A

1400A

760A

760A

760A

1400A

1400A

760A

760A

760A

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

380V

460V

575V

208V

230V

380V

460V

575V

840A

760A

760A

760A

760A

1400A

840A

760A

760A

760A

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

N/A

N/A

1200A

800A

800A

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

800A

600A

N/A

N/A

1200A

800A

600A

N/A

1200A

800A

600A

600A

N/A

N/A

800A

800A

600A

1200A

1200A

600A

600A

400A

1200A

1200A

800A

600A

600A

1200A

800A

600A

400A

400A

1200A

1200A

600A

600A

400A

N/A

N/A

1200A

800A

800A

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

800A

600A

N/A

N/A

1200A

800A

600A

N/A

1200A

800A

600A

600A

N/A

N/A

800A

800A

600A

1200A

1200A

600A

600A

400A

1200A

1200A

800A

600A

600A

1200A

800A

600A

400A

400A

1200A

1200A

600A

600A

400A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

IM 1167 97

Single-point Field Wiring Data (non-VFD)

Table 81: Single-point Field Wiring Data (60 Hz, Standard efficiency, non-VFD models) continued

Model HZ Voltage

# of

Fans

Size

Pow er Block

Std Lug Size Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

425BTS 60

450BTS 60

470BTS 60

500BTS 60

525BTS 60

550BTS 60

208V N/A

230V N/A

380V

460V

22 1400A

840A

575V 760A

208V N/A

230V N/A

380V 24 1400A

460V

575V

1400A

760A

208V N/A

230V N/A

24 380V

460V

575V

1400A

1400A

760A

208V N/A

230V N/A

380V

460V

26 1400A

1400A

575V 840A

208V N/A

230V N/A

380V 28 1400A

460V

575V

1400A

840A

208V N/A

230V N/A

380V 30 1400A

460V

575V

1400A

1400A

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

1200A

800A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

1200A

800A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

Table 82: Single-point Field Wiring Data (60 Hz, High efficiency, non-VFD models)

Model

210BDH

230BDH

250BDH

280BDH

HZ Voltage

60

60

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

# of

Fans

12

14

14

16

Size

1400A

840A

760A

760A

760A

1400A

1400A

760A

760A

760A

1400A

1400A

760A

760A

760A

1400A

1400A

760A

760A

760A

Pow er Block

Std Lug Size

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

Size

1200A

800A

600A

400A

400A

1200A

1200A

600A

600A

400A

1200A

1200A

600A

600A

400A

1200A

1200A

800A

600A

600A

Disconnect Sw itch

Std Lug Size

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

1200A

1200A

600A

600A

400A

1200A

1200A

800A

600A

600A

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

1200A

800A

600A

400A

400A

1200A

1200A

600A

600A

400A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

98 IM 1167

Single-point Field Wiring Data (non-VFD)

Table 83: Single-point Field Wiring Data (60 Hz, High efficiency, non-VFD models) continued

Model HZ Voltage

# of

Fans

Size

Pow er Block

Std Lug Size Size

Disconnect Sw itch

Std Lug Size

High Short Circuit Current Rating

Circuit Breaker (note 1)

Size Std Lug Size

300BDH 60

330BDH 60

350BDH 60

390BDH 60

410BDH 60

450BTH 60

475BTH 60

500BTH 60

530BTH 60

208V

230V

380V

460V

575V

16

1400A

1400A

760A

760A

760A

208V N/A

230V

380V 20

1400A

840A

460V

575V

760A

760A

208V N/A

230V N/A

380V 20 1400A

460V

575V

208V N/A

230V N/A

22

760A

760A

380V

460V

575V

1400A

760A

760A

208V N/A

230V N/A

380V

460V

24 1400A

840A

575V 760A

208V N/A

230V N/A

380V 24 1400A

460V

575V

840A

760A

208V N/A

230V N/A

380V 26 1400A

460V

575V

1400A

760A

208V N/A

230V N/A

380V 28 1400A

460V

575V

208V N/A

230V N/A

30

1400A

840A

380V

460V

575V

1400A

1400A

840A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

1200A

800A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

1200A

800A

600A

600A

N/A

N/A

800A

800A

600A

N/A

N/A

1200A

800A

600A

N/A

N/A

1200A

800A

800A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

1200A

800A

N/A

N/A

1200A

1200A

800A

N/A

N/A

N/A

1200A

1200A

N/A

N/A

N/A

1200A

1200A

N/A

1200A

800A

600A

600A

N/A

N/A

800A

800A

600A

N/A

N/A

1200A

800A

600A

N/A

N/A

1200A

800A

800A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

#N/A

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

IM 1167 99

Single-point Field Wiring Data (non-VFD)

Table 84: Single-point Field Wiring Data (60 Hz, Premium efficiency, non-VFD models)

Model

240BDP

265BDP

290BDP

310BDP

330BDP

365BDP

400BDP

HZ Voltage

60

60

60

60

60

60

60

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

208V

230V

380V

460V

575V

# of

Fans

16

18

18

20

208V

230V

380V

460V

575V

20

1400A

1400A

760A

760A

760A

208V N/A

230V 1400A

380V

460V

22 840A

760A

575V 760A

208V N/A

230V N/A

380V 24 1400A

460V

575V

760A

760A

1400A

1400A

760A

760A

760A

1400A

1400A

760A

760A

760A

Size

1400A

840A

760A

760A

760A

1400A

1400A

760A

760A

760A

Pow er Block

Std Lug Size

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(4/PH) #2 - 600 kcmil

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

#N/A

#N/A

(4/PH) #2 - 600 kcmil

(2/PH) #6 - 500 kcmil

(2/PH) #6 - 500 kcmil

Disconnect Sw itch

Std Lug Size

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

N/A

1200A

800A

600A

600A

N/A

N/A

1200A

800A

600A

N/A

N/A

1200A

800A

800A

1200A

1200A

800A

600A

400A

N/A

1200A

800A

600A

600A

Size

1200A

1200A

600A

600A

400A

1200A

1200A

600A

600A

400A

N/A

1200A

800A

600A

600A

N/A

N/A

1200A

800A

600A

N/A

N/A

1200A

800A

800A

1200A

1200A

800A

600A

400A

N/A

1200A

800A

600A

600A

High Short Circuit Current Rating

Size

Circuit Breaker (note 1)

Std Lug Size

1200A

1200A

600A

600A

400A

1200A

1200A

600A

600A

400A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(2/PH) 3/0 - 500 kcmil

#N/A

#N/A

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

(4/PH) 250 - 500 kcmil

100 IM 1167

Multipoint Electrical Data (VFD)

Multipoint Electrical Data (VFD)

Table 85: Multipoint Electrical Data (60Hz, standard and high efficiency, VFD models)

Circuit 1

Model HZ Voltage # of Fans

170BDS

190BDS

200BDS

210BDH

230BDH

250BDH

280BDH

300BDH

330BDH

350BDH

390BDH

410BDH

330BDH

350BDH

60

60

60

60

60

60

60

60

60

60

60

60

60

60

380V 5

460V

5

380V 6

460V

6

380V 6

460V

6

380V

460V

6

6

380V

7

460V 7

380V

7

460V 7

380V

8

460V 8

380V

8

460V 8

380V

10

460V 10

380V

10

460V

10

380V 10

460V

12

380V 12

460V

12

Model HZ Voltage # of Fans

170BDS

190BDS

200BDS

210BDH

230BDH

250BDH

280BDH

300BDH

390BDH

410BDH

60

60

60

60

60

60

60

60

60

60

380V 5

460V 5

380V

460V 6

380V 6

460V 6

380V 6

460V 6

380V 7

460V 7

380V 7

460V 7

380V 8

460V 8

380V 8

460V 8

380V 10

460V 10

380V 10

460V 10

380V 10

460V 12

380V 12

460V

6

12

MCA

218

180

222

183

266

219

277

229

281

233

336

278

340

281

393

325

401

332

474

392

--

392

--

460

MCA

218

180

266

219

266

219

277

229

336

278

336

278

393

325

393

325

474

392

474

392

--

460

--

460

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

300

250

300

250

400

300

400

350

400

350

500

400

500

400

600

500

600

500

700

600

--

600

--

700

350

300

350

300

450

350

450

350

450

400

500

450

500

450

600

500

600

500

800

600

--

600

--

700

3

3

3

3

3

3

3

3

3

3

3

3

3

3

6

3

6

3

6

6

--

6

--

6

3/0 AWG

3/0 AWG

4/0 AWG

300 MCM

4/0 AWG

300 MCM

500 MCM

500 MCM

3/0 AWG

4/0 AWG

250 MCM

3/0 AWG

--

3/0 AWG

--

4/0 AWG

1

1

1

1

1

1

1

1

1

1

2

1

2

1

2

2

1

1

1

1

--

2

--

2

2.0

2.0

2.0

2.0

2.5

2.0

2.5

2.0

2.5

2.5

2.0

2.5

2.0

2.0

3.0

2.5

3.0

2.5

2.0

2.0

--

2.0

--

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

300

250

400

300

400

300

400

350

500

400

500

400

600

500

600

500

700

600

700

600

--

700

--

700

350

300

450

350

450

350

450

350

500

450

500

450

600

500

600

500

800

600

800

600

--

700

--

700

3

3

3

3

3

3

3

3

3

3

6

3

6

3

6

6

6

6

3

3

--

6

--

6

300 MCM

--

--

4/0 AWG

--

2

--

2.0

--

2

1

1

1

1

1

1

1

1

1

2

1

2

1

2

2

2

2

1

1

1

2.0

2.0

2.5

2.0

3.0

2.5

3.0

2.5

2.0

2.5

2.0

2.5

2.0

2.5

2.0

2.5

2.0

2.0

2.0

2.0

--

2.0

IM 1167 101

Multipoint Electrical Data (VFD)

Table 86: Multipoint Electrical Data (60Hz, standard efficiency, VFD models), continued

Model

450BTH

475BTH

500BTH

530BTH

Model

450BTH

475BTH

500BTH

530BTH

HZ Voltage

# of Fans per Circuit

MCA

60

60

60

60

HZ Voltage

# of Fans per Circuit

MCA

60

60

60

60

460V 325

380V

380V

460V 392

380V

460V 325

380V

8

--

460V 325

380V

380V

Model HZ Voltage

450BTH

475BTH

500BTH

60

60

60

530BTH 60

10

# of Fans per Circuit

--

--

--

--

--

MCA

380V 393

460V 325

380V

--

10

460V 392

380V

--

8

460V 325

380V

--

Circuit 1

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

600

500

--

500

--

600

--

600

600

500

--

500

--

600

--

600

6

3

--

3

--

6

--

6

--

--

--

--

--

--

2.0

2.5

--

2.5

--

2.0

--

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

600

500

600

500

6

3

2.0

2.5

--

500

--

600

--

600

--

500

--

600

--

600

--

3

--

6

--

6

--

--

--

--

--

--

--

2.5

--

2.0

--

2.0

Circuit 3

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

600

500

--

600

--

500

--

600

600

500

--

600

--

500

--

600

6

3

--

6

--

3

--

6

--

--

--

--

--

--

--

2.5

--

2.0

2.0

2.5

--

2.0

102 IM 1167

Multipoint Electrical Data (VFD)

Table 87: Multipoint Electrical Data (60Hz, premium efficiency, VFD models), continued

Circuit 1

Model HZ

240BDP

265BDP

290BDP

310BDP

330BDP

365BDP

400BDP

240BDP

265BDP

290BDP

310BDP

330BDP

365BDP

400BDP

Voltage # of Fans

9

10

460V 332

380V 482

460V 398

460V 236

380V 345

9

460V 284

10

MCA

460V 236

460V 239

380V 345

460V 284

460V 288

380V 401

460V 332

Model HZ Voltage # of Fans

MCA

460V 284

380V 401

460V 332

460V 332

380V 482

12

460V 398

460V 398

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

400

350

400

350

500

400

500

400

600

500

600

500

700

600

450

400

450

400

500

450

500

450

600

500

600

500

800

600

3

3

3

3

3

3

3

3

6

3

6

3

6

6

2.5

2.0

2.5

2.0

3.0

2.5

3.0

2.5

2.0

2.5

2.0

2.5

2.0

2.0

Circuit 2

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

400

350

500

400

500

400

600

500

600

500

700

600

700

600

450

400

500

450

500

450

600

500

600

500

800

600

800

600

3

3

3

3

3

3

6

3

6

3

6

6

6

6

2.5

2.0

3.0

2.5

3.0

2.5

2.0

2.5

2.0

2.5

2.0

2.0

2.0

2.0

IM 1167 103

Multipoint Field Wiring Data (VFD)

Multipoint Field Wiring Data (VFD)

Table 88: Multipoint Field Wiring Data (VFD models)

Circuit 1

Model HZ Voltage

# o f

Fans per

Circuit

Size

Disconnect Sw itch/

Circuit Breaker

Std Lug Size

170BDS VFD

190BDS VFD

200BDS VFD

210BDH VFD

230BDH VFD

250BDH VFD

280BDH VFD

300BDH VFD

330BDH VFD

350BDH VFD

390BDH VFD

410BDH VFD

450BTH VFD

475BTH VFD

500BTH VFD

530BTH VFD

240BDP VFD

265BDP VFD

290BDP VFD

310BDP VFD

330BDP VFD

365BDP VFD

400BDP VFD

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

Size

Circuit 2

Disconnect Sw itch/

Circuit Breaker

Std Lug Size Size

Circuit 3

Disconnect Sw itch/

Circuit Breaker

Std Lug Size

380V 350A

(1/PH) #1 - 600 MCM

350A

(1/PH) #1 - 600 MCM

5

460V

--

250A (1/PH) # 3/0 - 350 MCM 250A (1/PH) # 3/0 - 350 MCM --

--

--

380V 350A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

6

460V 300A

(1/PH) #1 - 600 MCM

350A

(1/PH) #1 - 600 MCM

380V 400A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

6

460V 350A

(1/PH) #1 - 600 MCM

350A

(1/PH) #1 - 600 MCM

380V 400A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

6

460V 350A

(1/PH) #1 - 600 MCM

350A

(1/PH) #1 - 600 MCM

380V 400A

(1/PH) #1 - 600 MCM

600A

(2/PH) 2/0 - 500 MCM

7

460V 350A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

7

460V 400A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

8

460V 400A

(1/PH) #1 - 600 MCM

600A

(2/PH) 2/0 - 500 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

8

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

10

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

380V 800A

(4/PH) #3/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

10

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V 800A

(4/PH) #3/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

10

460V 600A

(2/PH) 2/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

--

--

--

--

--

--

--

--

380V 800A

(4/PH) #3/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

12

460V 800A

(4/PH) #3/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

--

--

--

--

380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

8

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V --

8

------

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V --

10

------

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V --

10

------

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

--380V 400A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

8

460V 350A

(1/PH) #1 - 600 MCM

350A

(1/PH) #1 - 600 MCM

380V 400A

(1/PH) #1 - 600 MCM

600A

(2/PH) 2/0 - 500 MCM

9

460V 350A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

--

--

--

--

--

--

--380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

9

460V 400A

(1/PH) #1 - 600 MCM

400A

(1/PH) #1 - 600 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

10

460V 400A

(1/PH) #1 - 600 MCM

600A

(2/PH) 2/0 - 500 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

10

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V 600A

(2/PH) 2/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

10

460V 600A

(2/PH) 2/0 - 500 MCM

600A

(2/PH) 2/0 - 500 MCM

380V 800A

(4/PH) #3/0 - 500 MCM

800A

(4/PH) #3/0 - 500 MCM

12

460V 600A (2/PH) 2/0 - 500 MCM 600A (2/PH) 2/0 - 500 MCM

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

Note: This data applies to Rev 0A models only. Consult your Item Summary sheet for your configuration. For Rev 00 models, consult CAT 600-6; Rev 0A, CAT 600-7.

104 IM 1167

Terminal Amps (VFD) (single- and multi-point)

Terminal Amps (VFD) (single- and multi-point)

Table 89: Terminal Amps Electrical Data (60Hz)

Compressor

Rated Load Amps

Model HZ Voltage

# of Fans per Circuit

CIR 1 CIR 2 CIR 3

Fan

Motor

FLA

Fan

Motor

LRA

Inrush Amps LRA

VFD

CIR 1 CIR 2 CIR 3

170BDS VFD 60

190BDS VFD 60

200BDS VFD 60

210BDH VFD 60

230BDH VFD 60

250BDH VFD 60

280BDH VFD 60

300BDH VFD 60

330BDH VFD 60

350BDH VFD 60

390BDH VFD 60

410BDH VFD 60

450BTH VFD 60

475BTH VFD 60

500BTH VFD 60

530BTH VFD 60

240BDP VFD 60

265BDP VFD 60

290BDP VFD 60

310BDP VFD 60

330BDP VFD 60

365BDP VFD 60

400BDP VFD 60

380V 158 158

460V 130 130

380V 158 193

460V 130 159

380V 193 193

460V 159 159

380V 202 202

460V 167 167

380V 202 246

460V 167 203

380V 246 246

460V 203 203

380V 246 288

460V 203 238

380V 288 288

460V 238 238

380V 288 346

460V 238 286

380V 346 346

460V 286 286

380V 346 406

460V 286 335

380V ---

460V 335 335

--

--

--

--

380V 288 288 288

460V 238 238 238

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

380V ----

460V 238 238 286

380V ----

460V 286 286 238

380V ----

460V 286 286 286

380V 202 202

460V 167 167

--

--

380V 202 246

460V 167 203

--

--

380V 246 246

460V 203 203

380V 246 288

460V 203 238

380V 288 288

460V 238 238

380V 288 346

460V 238 286

380V 346 346

460V 286 286

--

--

--

--

--

--

--

--

--

--

8/8/8

8/8/10

10/10/8

10/10/10

1/8/1900

1/9/1900

9

9

10

10

10

10

10

12

12

12

10

12

12

12

7

7

7

7

8

8

6

6

6

6

6

6

5

5

8

8

10

10

10

10

16

14

--

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

16

14

--

14

--

14

--

14

16

14

16

14

158 158

130 130

158 193

130 159

193 193

159 159

202 202

167 167

202 246

167 203

246 246

203 203

246 288

203 238

288 288

238 238

288 346

238 286

346 346

286 286

---

286 335

---

335 335

--

--

--

--

288 288 288

238 238 238

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

--

----

238 238 286

----

286 286 238

----

286 286 286

202 202

167 167

--

--

202 246

167 203

--

--

246 246

203 203

246 288

203 238

288 288

238 238

288 346

238 286

346 346

286 286

--

--

--

--

--

--

--

--

--

--

--

3.4

4.1

3.4

--

3.4

--

3.4

--

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

4.1

3.4

IM 1167 105

Single-point Electrical Data (VFD)

Single-point Electrical Data (VFD)

Table 90: Single-point Electrical Data (60 Hz, High and Premium efficiency, VFD models)

Model

170B DSVFD

190B DSVFD

200B DSVFD

210B DHVFD

230B DHVFD

250B DHVFD

280B DHVFD

300B DHVFD

330B DHVFD

350B DHVFD

390B DHVFD

410B DHVFD

450B THVFD

475B THVFD

500B THVFD

530B THVFD

240B DP VFD

265B DP VFD

290B DP VFD

310B DP VFD

330B DP VFD

365B DP VFD

400B DP VFD

HZ

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

Voltage

# of

Fans

(Wire 75°C for SP Pow er Block / Disconnect Sw . - 90°C for SP HSCCR)

MCA Recommended Fuse Size Maximum Fuse Size # of Leads Wire Size # of Hubs Hub Size

1200

1000

--

1200

--

1200

--

1200

1000

800

1000

800

1200

1000

1200

1000

700

600

700

600

800

700

800

700

500

400

500

450

600

500

600

500

800

700

1000

800

1000

800

600

500

700

600

800

600

800

700

380V 397

10

460V 327

380V 449

12

460V 370

380V 484

12

460V 399

380V 504

12

460V 417

380V 567

14

460V 468

380V 611

14

460V 504

380V 672

16

460V 555

380V 714

16

460V 590

380V 803

20

460V 664

380V 861

20

460V 712

380V 944

22

460V 780

380V 1012

24

460V 835

380V 1035

24

460V 855

380V --

26

460V 922

380V --

28

460V 977

380V --

30

460V 1032

380V 520

16

460V 430

380V 584

18

460V 482

380V 628

18

460V 518

380V 688

20

460V 569

380V 730

20

460V 604

380V 811

22

460V 670

380V 877

24

460V 725

500

450

600

500

600

500

700

500

800

600

800

700

800

700

1000

800

1000

800

1200

800

1200

1000

1200

1000

1200

1000

--

1200

--

1200

--

1200

700

500

800

600

800

700

800

800

1000

800

1000

800

1200

1000

6

3

6

3

6

6

6

6

6

6

6

6

6

6

6

6

12

6

12

6

12

12

12

12

12

12

--

12

--

12

--

12

6

6

6

6

6

6

6

6

6

6

12

6

12

6

--

--

--

--

2

--

2

--

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

1

2

1

2

2

2

2

2

2

2

2

2

2

2

2

2

2

--

3.5

--

3.5

3.5

3.5

--

3.5

3.5

3.0

3.5

3.5

3.0

2.5

3.5

3.0

3.0

2.5

3.0

2.5

2.5

2.0

2.5

2.0

2.0

2.0

2.0

2.0

2.0

2.5

2.0

3.0

3.0

2.5

3.0

3.0

3.5

3.0

2.5

2.5

3.0

2.5

2.5

2.0

2.5

2.0

106 IM 1167

Single-point Field Wiring Data (VFD)

Single-point Field Wiring Data (VFD)

Table 91: Single-point Field Wiring Data (VFD models)

Pow erBlock

Model

170B DSVFD

190B DSVFD

200B DSVFD

210B DHVFD

230B DHVFD

250B DHVFD

280B DHVFD

300B DHVFD

330B DHVFD

350B DHVFD

390B DHVFD

410B DHVFD

450B THVFD

475B THVFD

500B THVFD

HZ Voltage

60

60

60

60

60

60

60

60

60

60

60

60

60

60

60

# of

Fans

10

12

12

12

14

14

16

16

20

20

22

24

24

620A

620A

620A

620A

620A

620A

760A

620A

760A

620A

1400A

760A

Size

620A

380A

620A

380A

620A

620A

1400A

760A

1400A

1400A

1400A

1400A

1400A

1400A

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V --

26

460V 1400A

380V --

28

460V 1400A

530B THVFD

60

240B DP VFD

60

265B DP VFD

60

290B DP VFD

60

310B DP VFD

60

330B DP VFD

60

365B DP VFD

60

400B DP VFD

60

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

380V

460V

16

18

18

20

20

22

24

1400A

620A

620A

620A

620A

760A

620A

760A

620A

760A

620A

1400A

760A

1400A

760A

Std Lug Size

(2/PH) # 6 - 350 MCM

(1/PH) #4 - 500

(2/PH) # 6 - 350 MCM

(1/PH) #4 - 500

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) #4 - 500 MCM

(2/PH) # 6 - 350 MCM

(2/PH) #4 - 500 MCM

(2/PH) # 6 - 350 MCM

(4/PH) #2 - 600 MCM

(2/PH) #4 - 500 MCM

(4/PH) #2 - 600 MCM

(2/PH) #4 - 500 MCM

(4/PH) #2 - 600 MCM

(4/PH) #2 - 600 MCM

(4/PH) #2 - 600 MCM

(4/PH) #2 - 600 MCM

(4/PH) #2 - 600 MCM

(4/PH) #2 - 600 MCM

--

(4/PH) #2 - 600 MCM

--

(4/PH) #2 - 600 MCM

--

(4/PH) #2 - 600 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) # 6 - 350 MCM

(2/PH) #4 - 500 MCM

(2/PH) # 6 - 350 MCM

(2/PH) #4 - 500 MCM

(2/PH) # 6 - 350 MCM

(2/PH) #4 - 500 MCM

(2/PH) # 6 - 350 MCM

(4/PH) #2 - 600 MCM

(2/PH) #4 - 500 MCM

(4/PH) #2 - 600 MCM

(2/PH) #4 - 500 MCM

Disconnect Sw itch

Std Lug Size

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

--

(4/PH) #3/0 - 500 MCM

--

(4/PH) #3/0 - 500 MCM

--

(4/PH) #3/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(2/PH) 2/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

(4/PH) #3/0 - 500 MCM

--

1200A

600A

600A

800A

600A

800A

600A

800A

600A

800A

800A

1200A

800A

1200A

800A

1200A

800A

1200A

1200A

1200A

1200A

1200A

1200A

--

1200A

--

1200A

600A

600A

600A

600A

800A

600A

800A

600A

800A

800A

1200A

800A

Size

600A

400A

600A

400A

600A

600A

IM 1167 107

Pressure Drop Data

Pressure Drop Data

Figure 43: Evaporator Pressure Drop: AWS models 170/190 Standard Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 4 0 2 7 1 0 1 0 / 9 N 2

40

19 0 St an dar d

17 0 St an dar d

30

P D

( f t )

20

10

0

0 100 200 300 400 500

F lo w R a t e ( gpm )

600 700 800

Model

170 Standard

190 Standard

Hz

60

60

gpm

216.8

240.1

Minimum ft.

l/s

4.4

5.3

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

13.7

13.2

390.2

12.4

24.6

37.1

596.9

26.3

37.7

78.6

15.1

15.8

432.2

14.9

27.3

44.5

596.9

26.3

37.7

78.6

Figure 44: Evaporator Pressure Drop: AWS models 210 Standard Efficiency and 210 High Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 4 0 2 7 1 1 1 1 / 7 N 2

40

30

P D

( f t )

20

2 10 High

2 10 St an dar d

108

10

0

0 100 200 300 400 500

F lo w R a t e ( gpm )

600 700 800 900

Model

210 Standard

210 High

Hz

60

60

gpm

268.4

274.3

Minimum ft.

l/s

4.1

4.3

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

16.9

12.3

483.1

11.7

30.5

35.0

748.0

25.3

47.2

75.6

17.3

12.9

493.6

12.1

31.1

36.2

748.0

25.3

47.2

75.6

IM 1167

Pressure Drop Data

Figure 45: Evaporator Pressure Drop: AWS models 200/225 Standard Efficiency and 230/250 High Efficiency

AWS-B Evapor ator Pr essur e Dr op Cur ves

Evapor ator EV40271212/ 7 N2

50

40

PD

30

(ft)

20

250 Hi gh

230 Hi gh

225 Standar d

200 Standar d

10

0

0 200 400 600

Flow Rate (gpm)

800 1000 1200

Model

200 Standard

225 Standard

230 High

250 High

Hz

60

60

60

60

gpm

260.1

288.4

300.3

320.8

Minimum ft.

l/s

4.2

5.1

5.5

6.1

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

16.4

12.6

468.2

12.0

29.5

35.9

748.0

27.5

47.2

82.2

18.2

15.2

519.1

14.4

32.8

43.0

748.0

27.5

47.2

82.2

18.9

16.4

540.5

15.5

34.1

46.3

748.0

27.5

47.2

82.2

20.2

18.2

577.4

17.4

36.4

52.0

748.0

27.5

47.2

82.2

Figure 46: Evaporator Pressure Drop: AWS models 250/260 Standard Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 4 0 2 7 1 3 1 3 / 5 N 2

40

260 St andar d

250 St andar d 30

P D

( f t )

20

10

IM 1167

Model

250 Standard

260 Standard

Hz

60

60

gpm

314.4

334

0

0 200 400 600

F lo w R a t e ( gpm )

800 1000 1200

Minimum ft.

l/s kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

4.3

19.836

12.9

565.9

12.1

35.703

36.2

943.2

30 59.507

89.7

4.8

21.072

14.3

601.2

13.5

37.93

40.4

1002 33.4

63.216

99.8

109

Pressure Drop Data

Figure 47: Evaporator Pressure Drop: AWS models 280/300 High Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 5 0 2 7 1 4 1 4 / 7 N 2

50

300 Hi gh

280 Hi gh

40

P D

( f t )

30

20

10

0

0 200 400 600 800

F lo w R a t e ( gpm )

1000

Model

280 High

300 High

Figure 48: Evaporator Pressure Drop: AWS models 290/310 Standard Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 5 0 2 7 1 5 1 5 / 5 N 2

40

1200 1400

Hz

60

60

gpm

362.5

384.9

Minimum ft.

l/s

5.9

6.5

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

22.9

17.6

652.6

16.6

41.2

49.6

876.4

28.0

55.3

83.7

24.3

19.4

692.9

18.5

43.7

55.3

876.4

28.0

55.3

83.7

310 St andar d

290 St andar d

30

P D

( f t )

20

10

0

0 200 400 600 800

F lo w R a t e ( gpm )

1000 1200 1400

Model

290 Standard

310 Standard

Hz

60

60

gpm

377.2

400.5

Minimum ft.

l/s

3.6

4.0

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

23.8

10.8

679.0

10.3

42.8

30.8

1131.6

25.5

71.4

76.2

25.3

12.0

721.0

11.5

45.5

34.4

1171.1

27.0

73.9

80.7

110 IM 1167

Pressure Drop Data

Figure 49: Evaporator Pressure Drop: AWS models 350/375 Standard Efficiency and 330/350/390/410 High Efficiency

AWS- B Evapor at or Pr essur e Dr op Cur ves

Evapor at or EV6633111111/ 5 N2

60

4 10 High

50

40

P D

(ft)

30

3 9 0 High

3 7 5 St an dar d

3 5 0 High

3 5 0 St an dar d

3 3 0 High

20

10

0

0 500 1000

Flow Rate (gpm)

1500 2000

Model

350 Standard

375 Standard

330 High

350 High

390 High

410 High

Hz

60

60

60

60

60

60

gpm

454.4

481.9

436.4

464.1

504.9

546.4

Minimum ft.

l/s

5.7

6.3

5.3

5.9

6.9

7.9

kpa gpm

Nominal ft.

l/s

28.7

17.0

817.4

16.2

51.6

30.4

18.8

867.4

18.0

54.7

27.5

15.8

785.5

15.1

49.6

29.3

17.6

835.4

16.8

52.7

31.9

20.6

908.9

19.5

57.3

34.5

23.6

983.5

22.4

62.0

kpa gpm

Maximum ft.

l/s kpa

48.4

1171.1

30.5

73.9

91.2

53.8

1171.1

30.5

73.9

91.2

45.1

1171.1

30.5

73.9

91.2

50.2

1171.1

30.5

73.9

91.2

58.3

1171.1

30.5

73.9

91.2

67.0

1171.1

30.5

73.9

91.2

IM 1167 111

Pressure Drop Data

Figure 50: Evaporator Pressure Drop: AWS models 240/265 Premium Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 5 0 3 9 1 3 1 3 / 1 1 N 2

60

50

2 6 5 Pr emium

2 4 0 Pr emium

40

P D

( f t )

30

20

10

Model

240 Prem ium

265 Prem ium

Hz

60

60

gpm

310.4

341.9

0

0 200 400 600

F lo w R a t e ( gpm )

800 1000 1200

Minimum ft.

l/s

6.7

7.9

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

19.6

20.0

558.7

18.9

35.2

56.5

931.2

46.8

58.7

139.9

21.6

23.6

615.4

22.5

38.8

67.3

1025.6

55.5

64.7

165.9

Figure 51: Evap. Pressure Drop: AWS models 400/425/450 Standard Efficiency & 450 High Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 6 6 3 3 1 0 1 0 1 0 / 7 N 2

50

4 5 0 High

4 5 0 St an dar d

40

4 2 5 St an dar d

4 0 0 St an dar d

P D

30

( f t )

20

10

Model

400 Standard

425 Standard

450 Standard

450 High

Hz

60

60

60

60

gpm

478.0

502.4

529.7

535.6

0

0 500 1000

F lo w R a t e ( gpm )

1500 2000

Minimum ft.

l/s

4.6

5.0

5.5

5.7

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

30.2

13.7

955.9

15.8

60.3

47.2

1329.7

28.3

83.9

84.6

31.7

14.9

1004.9

17.2

63.4

51.4

1329.7

28.3

83.9

84.6

33.4

16.4

1059.4

18.9

66.8

56.5

1329.7

28.3

83.9

84.6

33.8

17.0

1071.1

19.3

67.6

57.7

1329.7

28.3

83.9

84.6

112 IM 1167

Pressure Drop Data

Figure 52: Evaporator Pressure Drop: AWS models 470/500/525/550 Standard Efficiency & 475/500/530 High Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 6 6 3 3 1 1 1 1 1 1 / 5 N 2

40

30

P D

( f t )

20

5 5 0 S t an dar d

5 3 0 High

5 2 5 St an dar d

5 0 0 High

5 0 0 St an dar d

4 7 5 High

4 7 0 St an dar d

10

Model

470 Standard

500 Standard

525 Standard

550 Standard

475 High

500 High

530 High

Hz

60

60

60

60

60

60

60

gpm

551.0

586.0

621.2

656.8

564.4

599.3

634.0

0

0 500 1000 1500

F lo w R a t e ( gpm )

2000 2500

Minimum ft.

l/s

3.0

3.4

3.7

4.1

3.1

3.5

3.9

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

34.8

9.0

1102.1

10.3

69.5

30.8

1775.5

23.9

112.0

71.4

37.0

10.2

1171.9

11.5

73.9

34.4

1775.5

23.9

112.0

71.4

39.2

11.1

1242.5

12.7

78.4

38.0

1775.5

23.9

112.0

71.4

41.4

12.3

1313.5

14.0

82.9

41.8

1775.5

23.9

112.0

71.4

35.6

9.3

1128.7

10.7

71.2

32.0

1775.5

23.9

112.0

71.4

37.8

10.5

1198.6

11.9

75.6

35.6

1775.5

23.9

112.0

71.4

40.0

11.7

1267.9

13.2

80.0

39.5

1775.5

23.9

112.0

71.4

IM 1167 113

Pressure Drop Data

Figure 53: Evaporator Pressure Drop: AWS models 290/310 Premium Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 6 6 3 9 1 4 1 4 / 1 1 N 2

60

50

40

P D

( f t )

30

20

10

3 10 Pr emium

2 9 0 Pr emium

0

0 200 400 600 800

F lo w R a t e ( gpm )

1000 1200 1400

Model

290 Prem ium

310 Prem ium

Hz

60

60

gpm

370.0

405.2

Minimum ft.

l/s

6.0

7.0

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

23.3

17.9

666.1

16.9

42.0

50.5

1042.6

37.3

65.8

111.5

25.6

20.9

729.4

19.8

46.0

59.2

1042.6

37.3

65.8

111.5

Figure 54: Evaporator Pressure Drop: AWS models 330/365/400 Premium Efficiency

A WS- B E v a por a t or P r e s s ur e D r op C ur v e s

E v a por a t or E V 6 6 3 9 1 7 1 7 / 7 N 2

30

4 0 0 Pr emium

3 6 5 Pr emium

3 3 0 Pr emium

P D

( f t )

20

10

114

Model

330 Prem ium

365 Prem ium

400 Prem ium

Hz

60

60

60

gpm

433.2

473.3

513.9

0

0 500 1000

F lo w R a t e ( gpm )

1500 2000

Minimum ft.

l/s

2.9

3.4

3.9

kpa gpm

Nominal ft.

l/s kpa gpm

Maximum ft.

l/s kpa

27.3

8.7

779.8

8.2

49.2

24.5

1299.6

20.2

82.0

60.4

29.9

10.2

852.0

9.6

53.8

28.7

1420.0

23.6

89.6

70.5

32.4

11.7

925.0

11.1

58.4

33.2

1541.6

27.3

97.3

81.6

IM 1167

Remote Evaporators

This section contains data specific to AWS-B models with remote evaporators. Information includes:

• Field Wiring Diagram - Figure , page 115

• Refrigerant Piping -

page 116

• Performance Adjustment Factors -

page 115

• Dimensions and Weights page 126

• Isolator locations and weights - page 177

• Physical Data -

page 199

Data that is common to both packaged and remote evaporator models includes:

• Electrical Data - page 64

• Pressure Drops -

page 108

• Performance Data (subject to adjustment factor) and sound data can be found in CAT 600, available on www.daikinmcquay.com

Refrigerant Specialties Kit Components

A kit shipped with the unit has the following components for field installation:

Filter-drier and cores for field piping

Sight glass

Electronic expansion valve

Solenoid valve

Evaporator vent and drain shutoff valves - waterside

Charging Valve (on non-economizer models)

Suction coupling and flange for attachment to the evaporator

Performance Derate Data

AWS performance data can be found in CAT 600, available on www.daikinmcquay.com. There is a derate to the performance of an AWS with remote evaporator due to field installed refrigerant line losses exceeding those found on the packaged arrangement. For preliminary purposes, the following can be used as an estimate:

Table 92: Approximate Derate Factors

AWS - B

Actual Line Length

Up To:

Capacity

Derate

Power

Derate

75'

50'

25'

0.96

0.97

0.98

0.98

0.99

0.99

EER

Derate

0.97

0.98

0.99

Once the pipe design is finalized, the actual adjustment is easily determined using the following procedure.

Derate Procedure

1

Sketch the liquid and suction piping, including the actual

2

pipe lengths and all fittings.

Using the recommended pipe sizes from

Table 95 and

3

Table 96

, add up the equivalent pressure drop for the fittings in the suction line. Add this value to the actual linear feet of tubing to determine the total equivalent length (TEL) for the piping run.

Again using

Table 95 and

Table 96 , determine the

pressure drop (in degrees F) based on the TEL.

Remote Evaporators

4

Interpolation is permitted, extrapolation is not. Consult the Daikin McQuay Technical Response Center for piping installations outside the published recommendations.

Determine the derate factors from Table 93 based on the suction line pressure drop.

Table 93: Performance Derate Factors

AWS - B

Suction Line

Pressure Drop ( o

F)

0.0

1.0

2.0

3.0

4.0

Capacity

Derate

1.00

0.98

0.96

0.94

0.92

Power

Derate

1.00

0.99

0.98

0.98

0.97

EER

Derate

1.00

0.99

0.97

0.96

0.94

Remote Evaporator Field Wiring Notes:

• The 110V liquid line solenoid valves (LSV) have to be wired back to the outdoor unit. All the conduit and wiring is to be field supplied (14 gauge, red and white wires,

3/8” conduit with straight and 90 degree fittings). If additional length is required, use 14 gauge wire up to a maximum of 100 feet. A din connector is supplied with refrigerant specialties kits. Field to wire directly into compressor terminal box terminal block per below:

Compressor #1: (LSV-1) wire 740-1A (red) wires into compressor #1 terminal box terminal block at TB1-2-9. Wire 740-

1B (whit)e wires to TB1-2-10.

Compressor #2: (LSV-2) wire 740-2A (red) wires into compressor #2 terminal box terminal block at TB2-2-9. Wire 740-

2B (white) wires to TB2-2-10.

Compressor #3: (LSV-3) wire 740-3A (red) wires into compressor #3 terminal box terminal block at TB3-2-9. Wire 740-

3B (white) wires to TB3-2-10.

5

Two evaporator water temperature sensors with 100 feet of cable coiled up and attached to the unit base for extension to the evaporator and insertion in fittings located on the side of the inlet and outlet nozzles.

6

One suction line refrigerant temperature sensor per circuit with

100 feet of cable coiled up and attached to the unit base for extension to the evaporator.

7

One suction line pressure transducer per circuit with 100 feet of cable coiled up and attached to the unit base for extension to the evaporator.

8

The electronic expansion valve has a 40-foot long cable attached and can be used, when the outdoor unit is less than 40 feet away. Beyond that, a junction box must be located within

40-feet of the evaporator, and up to 60 additional feet of 14GA wire connected from the cable to the unit, allowing up to a total distance of 100 feet.

9

A flow switch must be installed in the leaving chilled water line per manufacturer's instructions and wired to terminals 8 and 23 on terminal block M5 in the chiller control panel. See Unit

Field Wiring Diagram page 65

.

10

Do not reduce the wire lengths of factory wiring.

IM 1167 115

Remote Evaporators

Remote Evaporator Refrigerant Piping

Important Note

Service Form SF99006 and an isometric sketch of the Remote Piping Layout showing pipe size, location of fittings, measured lengths, and elevations MUST BE SUBMITTED TO Daikin McQuay Technical Response Center and reviewed at least two weeks prior to beginning piping installation. McQuay Factory Service will not perform startup without reviewed Service Form SF99006 and drawing. Installation must match reviewed drawing.

All field piping, wiring and procedures must comply with design guidelines set forth in the Remote Evaporator section of product literature, and be performed in accordance with ASHRAE, EPA, local codes and industry standards. Any product failure caused or contributed to by failure to comply with appropriate design guidelines will not be covered by manufacturer's warranty. Daikin McQuay Technical Response: Fax: 763-509-7666

Phone : 540-248-9201; E-mail: [email protected]

Careful design of refrigerant piping is necessary for proper system operation. Design the refrigerant piping to accomplish the following:

1

Assure proper refrigerant feed to the evaporator.

2

Provide practical and economical refrigerant line sizes without excess pressure drop.

3

Maintain uniform oil return to the compressor under all load conditions.

4

Refer to the latest version of the ASHRAE Handbook for recommended piping practice; use included tables for correct pipe sizing.

5

Keep the refrigerant suction line pressure drop to a maximum of 2 F. in saturated temperature equivalent.

6

Each suction line's velocity must be sufficient to carry oil considering a 25% capacity reduction in each circuit.

7

When facing the unit control box, the left-hand compressor is circuit # 1, and the right-hand is circuit #

2. If present, the compressor behind #2, on the right-hand side, is circuit #3.

8

Liquid lines may be insulated to prevent collection of condensation, if needed.

The following applies to all size units:

Maximum linear line length cannot exceed 75 feet

Maximum total equivalent length (TEL) cannot exceed 180 feet (75 feet for vertical suction lines)

The evaporator cannot be located more than 20 feet above or

30 feet below the outdoor unit.

Suction line connection at unit = 4 1/8-inch OD each

Underground refrigerant piping is not permitted

Field piping must include adequate service taps for checking filter-drier, subcooling, and superheat.

Insulate complete suction lines. Liquid lines may be insulated to prevent collection of condensation if required.

Table 94: Fitting Equivalent Feet of Pipe

Line Size

In. OD

Angle Valve

Globe

Valve

90-Degree

Std. Radius

Elbow

90-Degree

Long Radius

Elbow

2 5/8

3 1/8

3 5/8

4 1/8

29.00

35.0

41.0

47.0

69.0

84.0

100.0

120.0

6.0

7.5

9.0

10.0

4.1

5.0

5.9

6.7

5 1/8 58 140 13 8.2

Note: TEL values for the filter-drier and solenoid valve are already included and should not be added to the liquid line drop.

Piping Layout

Figure 55 shows the piping layout for one of the two or three

refrigerant circuits for AWS units with a remote evaporator.

The outdoor unit, the evaporator, and a kit of refrigerant components are shipped as separate pieces for field mounting, wiring, and piping. The suction shutoff valve is standard on remote evaporator units. Note: Field insulation of the suction lines and the liquid line on circuits with economizers is required. The outdoor unit will have a refrigerant charge equal to that of a packaged unit pumped down into the condenser.

The additional charge of refrigerant and oil required by the field piping is supplied and installed by the customer. The location and size of the refrigerant connections are shown on the dimension drawings beginning on page 126 .

116 IM 1167

Remote Evaporators

Figure 55: Piping Schematic, Remote Evaporator (One of Two Circuits)

AWS Remote Evaporator Models (No Economizer)

CONDENSER

ASSEMBLY

AIR

FLOW

SCHRADER

VALVE

(HEADER)

DISCHARGE

TUBING

NOTE :

PIPING SHOWN FOR ONE SYSTEM OF UNIT.

UNIT HAS TWO INDEPENDENT SYSTEMS.

DISCHARGE

TRANSDUCER

SHUT-OFF

VALVE

OIL PRESS.

TRANSDUCER

WITH SCHRADER

VALVE

BUTTERFLY

SUCTION

TRANSDUCER

VALVE

CHARGING

VALVE

SCHRADER

VALVE

RELIEF

VALVE

OUTSIDE AIR

TEMPERATURE

(WAA)

DISCHARGE

TEMP. SENSOR

F3/F4

COMPRESSOR

SUCTION

TUBING

(STUB TUBE)

LIQUID

TUBING

AIR

FLOW

LIQUID

INJECTION

TUBING

BALL

VALVE

SCHRADER

VALVE

STRAINER

SOLENOID

VALVE

FIELD

CONNECTION

POINT

FIELD

CONNECTION

POINT

LIQUID

SHUTOFF

VALVE

WATER OUT

(WOE)

TEMP. SENSOR

(WIE)

TEMP. SENSOR

WATER IN

SCHRADER

VALVE

FILTER

DRYER

CHARGING

VALVE

SCHRADER

VALVE

SOLENOID

VALVE

SIGHT

GLASS

SCHRADER

VALVE

EXPANSION

VALVE

FIELD INSTALLED LIQUID LINE COMPONENTS

DX EVAPORATOR

*R3319947010E3*

SUCTION

TEMP. SENSOR

LIQUID

TUBING

AWS Remote Evaporator Models (With Economizer)

CONDENSER

ASSEMBLY

SHUT-OFF

BALL VALVE

CHARGING

VALVE

SCHRADER

VALVE

DISCHARGE

TRANSDUCER

RELIEF

VALVE

DISCHARGE

TEMP. SENSOR

BALL

VALVE

SCHRADER

VALVE

LIQUID

INJECTION

STRAINER

ECONOMIZER FLASH GAS TO COMPRESSOR INTERSTAGE

NOTE:

PIPING SHOWN FOR ONE SYSTEM OF UNIT.

UNIT HAS TWO INDEPENDENT SYSTEMS.

TRANSDUCER

WITH SCHRADER

VALVE

PRESS.

TRANSDUCER

F3/F4

COMPRESSOR

SCHRADER

VALVE

CHARGING

VALVE

SIGHT

GLASS

ECONOMIZER

FIELD

CONNECTION

POINT

TGE

EXPANSION

VALVE

FIELD

CONNECTION

POINT

SCHRADER

VALVE

STUB

TUBE

FILTER

DRYER

SCHRADER

VALVE

SOLENOID

VALVE

SIGHT

GLASS

EXPANSION

SCHRADER

VALVE

VALVE

FIELD INSTALLED LIQUID LINE COMPONENTS

WATER OUT

(WOE)

TEMP. SENSOR

DX EVAPORATOR

*R3319947010E4*

WATER IN

IM 1167 117

Remote Evaporators

Table 95: Recommended Horizontal or Downflow Suction Line Size

Recom m ended Horizontal or Dow nflow Suction Line Size

Model #

AWS350BDS

AWS375BDS

AWS375BDS

AWS400BTS

AWS400BTS

AWS400BTS

AWS425BTS

AWS425BTS

AWS425BTS

AWS450BTS

AWS450BTS

AWS450BTS

AWS470BTS

AWS470BTS

AWS470BTS

AWS500BTS

AWS500BTS

AWS500BTS

AWS525BTS

AWS525BTS

AWS525BTS

AWS550BTS

AWS550BTS

AWS550BTS

AWS190BDS

AWS190BDS

AWS210BDS

AWS210BDS

AWS225BDS

AWS225BDS

AWS250BDS

AWS250BDS

AWS260BDS

AWS260BDS

AWS290BDS

AWS290BDS

AWS310BDS

AWS310BDS

AWS350BDS

AWS210BDH

AWS210BDH

AWS230BDH

AWS230BDH

AWS250BDH

AWS250BDH

AWS280BDH

AWS280BDH

AWS300BDH

AWS300BDH

AWS330BDH

AWS330BDH

1

2

3

2

3

3

1

3

1

1

2

2

2

3

3

1

3

1

1

2

2

2

1

2

2

1

2

1

2

1

2

1

2

1

2

1

1

2

1

2

1

2

1

2

2

1

2

1

1

2

1

185

185

185

155

185

185

185

155

155

155

135

155

155

155

155

155

185

185

185

135

135

135

135

135

135

135

135

135

155

155

155

155

95

95

95

115

115

115

115

150

150

150

150

175

105

105

105

125

125

125

125

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

Circuit

Nom inal

Tons Per

Circuit

Tubing

Conn.

Size At

Unit

UP TO 50

EQUIV. FT.

UP TO 75

EQUIV. FT.

UP TO 100

EQUIV. FT.

UP TO 125

EQUIV. FT.

UP TO 150

EQUIV. FT.

UP TO 180

EQUIV. FT.

Size PD Size PD Size PD Size PD Size PD Size PD

3 5/8 1.23

3 5/8 1.84

4 1/8 1.32

4 1/8 1.66

4 1/8 1.99

4 1/8 2.38

3 5/8 1.23

3 5/8 1.84

4 1/8 1.32

4 1/8 1.66

4 1/8 1.99

4 1/8 2.38

3 5/8 1.23

3 5/8 1.84

4 1/8 1.32

4 1/8 1.66

4 1/8 1.99

4 1/8 2.38

3 5/8 1.73

4 1/8 1.40

4 1/8 1.87

4 1/8 2.34

4 1/8 2.80

4 1/8 3.36

3 5/8 1.73

4 1/8 1.40

4 1/8 1.87

4 1/8 2.34

4 1/8 2.80

4 1/8 3.36

3 5/8 1.73

4 1/8 1.40

4 1/8 1.87

4 1/8 2.34

4 1/8 2.80

4 1/8 3.36

3 5/8 1.73

4 1/8 1.40

4 1/8 1.87

4 1/8 2.34

4 1/8 2.80

4 1/8 3.36

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.25

4 1/8 1.87

4 1/8 2.49

5 1/8 1.10

5 1/8 1.32

5 1/8 1.58

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 1.60

4 1/8 2.40

5 1/8 1.13

5 1/8 1.41

5 1/8 1.69

5 1/8 2.03

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

4 1/8 2.20

5 1/8 1.16

5 1/8 1.55

5 1/8 1.94

5 1/8 2.33

5 1/8 2.79

3 5/8 1.47

3 5/8 2.20

4 1/8 1.59

4 1/8 1.98

4 1/8 2.38

4 1/8 2.86

3 5/8 1.47

3 5/8 2.20

4 1/8 1.59

4 1/8 1.98

4 1/8 2.38

4 1/8 2.86

3 5/8 1.47

3 5/8 2.20

4 1/8 1.59

4 1/8 1.98

4 1/8 2.38

4 1/8 2.86

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

118 IM 1167

Remote Evaporators

Recom m ended Horizontal or Dow nflow Suction Line Size

AWS190BDS

AWS190BDS

AWS210BDS

AWS210BDS

AWS225BDS

AWS225BDS

AWS250BDS

AWS250BDS

AWS260BDS

AWS260BDS

AWS290BDS

AWS290BDS

AWS310BDS

AWS310BDS

Model # Circuit

Nom inal

Tons Per

Circuit

Tubing

Conn.

Size At

Unit

UP TO 50

EQUIV. FT.

UP TO 75

EQUIV. FT.

UP TO 100

EQUIV. FT.

UP TO 125

EQUIV. FT.

UP TO 150

EQUIV. FT.

UP TO 180

EQUIV. FT.

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

2

1

2

1

1

2

1

2

1

2

1

3

1

2

3

2

1

2

3

1

2

3

1

1

2

2

2

1

2

1

2

1

AWS350BDH

AWS350BDH

AWS390BDH

AWS390BDH

AWS410BDH

AWS410BDH

AWS450BTH

AWS450BTH

AWS450BTH

AWS475BTH

AWS475BTH

AWS475BTH

AWS500BTH

AWS500BTH

AWS500BTH

AWS530BTH

AWS530BTH

AWS530BTH

AWS240BDP

AWS240BDP

AWS265BDP

AWS265BDP

AWS290BDP

AWS290BDP

AWS310BDP

AWS310BDP

AWS330BDP

AWS330BDP

AWS365BDP

AWS365BDP

AWS400BDP

AWS400BDP

150

175

175

175

105

105

105

125

125

125

125

150

150

150

150

150

150

150

150

150

175

175

175

175

175

175

205

205

205

175

175

175

Table 96: Recommended Upflow Suction

Model # Circuit

Nom inal

Recom m ended Vertical or Upflow

Suction Line Size

Tons

UP TO 50 EQUIV.

Per

FT.

UP TO 75 EQUIV.

Circuit

FT.

Size PD Size PD

Size PD Size PD Size PD Size PD Size PD Size PD

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 2.64

5 1/8 1.40

5 1/8 1.87

5 1/8 2.33

5 1/8 2.80

5 1/8 3.36

4 1/8 2.64

5 1/8 1.40

5 1/8 1.87

5 1/8 2.33

5 1/8 2.80

5 1/8 3.36

4 1/8 2.64

5 1/8 1.40

5 1/8 1.87

5 1/8 2.33

5 1/8 2.80

5 1/8 3.36

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

3 5/8 1.47

3 5/8 2.20

4 1/8 1.59

4 1/8 1.98

4 1/8 2.38

4 1/8 2.86

3 5/8 1.47

3 5/8 2.20

4 1/8 1.59

4 1/8 1.98

4 1/8 2.38

4 1/8 2.86

3 5/8 1.47

3 5/8 2.20

4 1/8 1.59

4 1/8 1.98

4 1/8 2.38

4 1/8 2.86

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

3 5/8 2.01

4 1/8 1.63

4 1/8 2.17

4 1/8 2.71

4 1/8 3.26

4 1/8 3.91

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.51

4 1/8 2.26

4 1/8 3.01

5 1/8 1.33

5 1/8 1.60

5 1/8 1.92

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

4 1/8 1.99

4 1/8 2.98

5 1/8 1.40

5 1/8 1.76

5 1/8 2.11

5 1/8 2.53

Max. Suct.

Riser Line Size for Vertical

Upflow to

Com pr.

135

135

135

135

155

155

155

95

95

95

115

115

115

115

1

2

1

2

2

1

2

2

1

2

1

1

2

1

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

1.25

1.25

1.25

1.25

1.60

1.60

1.60

1.23

1.23

1.23

1.73

1.73

1.73

1.73

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

1.87

1.87

1.87

1.87

2.40

2.40

2.40

1.84

1.84

1.84

2.60

2.60

2.60

2.60

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

IM 1167 119

Remote Evaporators

2

1

2

1

2

3

2

1

2

1

2

1

2

1

1

2

1

1

2

1

2

AWS210BDH

AWS210BDH

AWS230BDH

AWS230BDH

AWS250BDH

AWS250BDH

AWS280BDH

AWS280BDH

AWS300BDH

AWS300BDH

AWS330BDH

AWS330BDH

AWS350BDH

AWS350BDH

AWS390BDH

AWS390BDH

AWS410BDH

AWS410BDH

AWS450BTH

AWS450BTH

AWS450BTH

Table 96

(continued) Recommended Upflow Suction

Model # Circuit

Nom inal

Recom m ended Vertical or Upflow

Suction Line Size

Tons

UP TO 50 EQUIV. UP TO 75 EQUIV.

Per

FT.

FT.

Circuit

Size PD Size PD

2.20

2.20

1.60

2.20

2.20

2.20

1.60

1.25

1.60

1.60

1.60

1.60

1.60

2.20

1.60

2.20

2.20

2.20

1.25

1.25

1.25

1.25

1.25

1.60

1.60

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3

1

1

2

2

3

2

3

3

1

1

2

2

3

3

1

1

2

2

3

2

1

1

2

1

AWS350BDS

AWS350BDS

AWS375BDS

AWS375BDS

AWS400BTS

AWS400BTS

AWS400BTS

AWS425BTS

AWS425BTS

AWS425BTS

AWS450BTS

AWS450BTS

AWS450BTS

AWS470BTS

AWS470BTS

AWS470BTS

AWS500BTS

AWS500BTS

AWS500BTS

AWS525BTS

AWS525BTS

AWS525BTS

AWS550BTS

AWS550BTS

AWS550BTS

185

185

155

185

185

185

155

135

155

155

155

155

155

185

155

185

185

185

135

135

135

135

135

155

155

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3.30

3.30

2.40

3.30

3.30

3.30

2.40

1.87

2.40

2.40

2.40

2.40

2.40

3.30

2.40

3.30

3.30

3.30

1.87

1.87

1.87

1.87

1.87

2.40

2.40

2.64

2.64

2.64

1.51

1.51

1.51

1.51

1.51

1.51

1.51

1.99

1.99

1.99

1.99

1.47

1.47

1.47

2.01

2.01

2.01

2.01

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

205

205

205

150

150

150

150

150

150

150

175

175

175

175

105

105

105

125

125

125

125

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3.97

3.97

3.97

2.26

2.26

2.26

2.26

2.26

2.26

2.26

2.98

2.98

2.98

2.98

2.20

2.20

2.20

3.02

3.02

3.02

3.02

Max. Suct.

Riser Line Size for Vertical

Upflow to

Com pr.

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

120 IM 1167

Table 96

(continued) Recommended Upflow Suction

AWS240BDP

AWS240BDP

AWS265BDP

AWS265BDP

AWS290BDP

AWS290BDP

AWS310BDP

AWS310BDP

AWS330BDP

AWS330BDP

AWS365BDP

AWS365BDP

AWS400BDP

AWS400BDP

Model # Circuit

Nom inal

Recom m ended Vertical or Upflow

Suction Line Size

Tons

UP TO 50 EQUIV. UP TO 75 EQUIV.

Per

FT.

FT.

Circuit

Size PD Size PD

AWS475BTH

AWS475BTH

1

2

150

150

4 1/8

4 1/8

1.51

1.51

4 1/8

4 1/8

2.26

2.26

AWS475BTH

AWS500BTH

AWS500BTH

AWS500BTH

AWS530BTH

AWS530BTH

AWS530BTH

1

2

3

2

3

3

1

175

175

175

150

175

175

175

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

1.99

1.99

1.99

1.51

1.99

1.99

1.99

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

2.98

2.98

2.98

2.26

2.98

2.98

2.98

1

2

1

2

1

2

1

2

1

2

1

2

1

2

105

105

105

125

125

125

125

150

150

150

150

175

175

175

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

1.47

1.47

1.47

2.01

2.01

2.01

2.01

1.51

1.51

1.51

1.51

1.99

1.99

1.99

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

2.26

2.26

2.26

2.26

2.98

2.98

2.98

2.20

2.20

2.20

3.02

3.02

3.02

3.02

Max. Suct.

Riser Line Size for Vertical

Upflow to

Com pr.

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

3 5/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

4 1/8

Remote Evaporators

IM 1167 121

Remote Evaporators

AWS230BDH

AWS250BDH

AWS280BDH

AWS300BDH

AWS330BDH

AWS350BDH

AWS390BDH

AWS410BDH

AWS450BTH

AWS475BTH

AWS500BTH

AWS530BTH

AWS240BDP

AWS265BDP

AWS290BDP

AWS310BDP

AWS330BDP

AWS365BDP

AWS400BDP

AWS190BDS

AWS210BDS

AWS225BDS

AWS250BDS

AWS260BDS

AWS290BDS

AWS310BDS

AWS350BDS

AWS375BDS

AWS400BTS

AWS425BTS

AWS450BTS

AWS470BTS

AWS500BTS

AWS525BTS

AWS550BTS

AWS210BDH

Table 97: Recommended Liquid Line Sizes (Circuits 1 & 2; Circuit 3 below)

Recom m ended Liquid Line Size

Circuit 1

Model

Circuit 2

UP T O 5 0

EQ UIV. F T .

UP T O 7 5

EQ UIV. F T .

UP T O 10 0

E Q UIV . F T .

UP T O 12 5

E QUIV. F T .

UP T O 15 0

EQ UIV . F T .

UP T O 18 0

E Q UIV . F T .

UP T O 5 0

EQ UIV. F T .

UP T O 7 5

EQ UIV. F T .

UP T O 10 0

E QUIV . F T .

UP T O 12 5

EQ UIV. F T .

UP T O 15 0

E Q UIV . F T .

UP T O 18 0

E Q UIV . F T .

Size PD Size PD Size PD Size PD Size PD Size PD Size PD Size PD Size PD Size PD Size PD Size PD

1 5/8 0.70

1 5/8 1.05

1 5/8 1.41

1 5/8 1.76

1 5/8 2.11

1 5/8 2.53

1 5/8 0.70

1 5/8 1.05

1 5/8 1.41

1 5/8 1.76

1 5/8 2.11

1 5/8 2.53

1 5/8 0.70

1 5/8 1.05

1 5/8 1.41

1 5/8 1.76

1 5/8 2.11

1 5/8 2.53

1 5/8 0.99

1 5/8 1.49

1 5/8 1.98

1 5/8 2.48

1 5/8 2.98

1 5/8 3.57

1 5/8 0.99

1 5/8 1.49

1 5/8 1.98

1 5/8 2.48

1 5/8 2.98

1 5/8 3.57

1 5/8 0.99

1 5/8 1.49

1 5/8 1.98

1 5/8 2.48

1 5/8 2.98

1 5/8 3.57

1 5/8 0.99

1 5/8 1.49

1 5/8 1.98

1 5/8 2.48

1 5/8 2.98

1 5/8 3.57

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 0.84

1 5/8 1.26

1 5/8 1.68

1 5/8 2.11

1 5/8 2.53

1 5/8 3.03

1 5/8 0.84

1 5/8 1.26

1 5/8 1.68

1 5/8 2.11

1 5/8 2.53

1 5/8 3.03

1 5/8 0.84

1 5/8 1.26

1 5/8 1.68

1 5/8 2.11

1 5/8 2.53

1 5/8 3.03

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.81

2 1/8 1.13

2 1/8 1.51

2 1/8 1.89

2 1/8 2.27

2 1/8 2.72

1 5/8 2.81

2 1/8 1.13

2 1/8 1.51

2 1/8 1.89

2 1/8 2.27

2 1/8 2.72

1 5/8 2.81

2 1/8 1.13

2 1/8 1.51

2 1/8 1.89

2 1/8 2.27

2 1/8 2.72

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 0.84

1 5/8 1.26

1 5/8 1.68

1 5/8 2.11

1 5/8 2.53

1 5/8 3.03

1 5/8 0.84

1 5/8 1.26

1 5/8 1.68

1 5/8 2.11

1 5/8 2.53

1 5/8 3.03

1 5/8 0.84

1 5/8 1.26

1 5/8 1.68

1 5/8 2.11

1 5/8 2.53

1 5/8 3.03

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.15

1 5/8 1.73

1 5/8 2.31

1 5/8 2.88

1 5/8 3.46

1 5/8 4.15

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

Table 98: Recommended Liquid Line Sizes (Circuit 3;only 3-circuit models shown)

Recommended Liquid Line Size

Circuit 3

Model

AWS400BTS

AWS425BTS

AWS450BTS

AWS470BTS

AWS500BTS

AWS550BTS

AWS450BTH

AWS475BTH

AWS500BTH

AWS530BTH

UP T O 50

EQUIV. F T .

UP T O 75

EQUIV. F T .

UP T O 100

EQUIV. F T .

UP T O 125

EQUIV. F T .

UP T O 150

EQUIV. F T .

UP T O 180

EQUIV. F T .

Size PD Size PD Size PD Size PD Size PD Size PD

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 1.32

1 5/8 1.99

1 5/8 2.65

1 5/8 3.31

1 5/8 3.97

1 5/8 4.77

1 5/8 1.70

2 1/8 0.69

2 1/8 0.91

2 1/8 1.14

2 1/8 1.37

2 1/8 1.64

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 2.33

2 1/8 0.94

2 1/8 1.26

2 1/8 1.57

2 1/8 1.88

2 1/8 2.26

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

1 5/8 1.60

1 5/8 2.40

1 5/8 3.20

1 5/8 4.00

1 5/8 4.80

1 5/8 5.76

1 5/8 2.11

2 1/8 0.85

2 1/8 1.14

2 1/8 1.42

2 1/8 1.70

2 1/8 2.05

122 IM 1167

Remote Evaporator Dimensions

Figure 56: Evaporator Models

AWS Model Evaporator Model

AWS190BDS EV4027

AWS210BDS

AWS210BDH

AWS225BDS

AWS230BDH

AWS240BDP

EV4027

EV4027

EV4027

EV4027

EV5039

AWS250BDS

AWS250BDH

AWS260BDS

AWS265BDP

AWS280BDH

AWS290BDS

AWS290BDP

AWS300BDH

AWS310BDS

AWS310BDP

AWS330BDH

AWS330BDP

EV4027

EV4027

EV4027

EV5039

EV5027

EV5027

EV6639

EV5027

EV5027

EV6639

EV5027

EV6639

Figure 57: Evaporator Model: EV4027

65.5

2.6

65.5

2.6

Remote Evaporator Dimensions

AWS Model Evaporator Model

AWS350BDS EV5027

AWS350BDH

AWS365BDP

EV5027

EV6639

AWS375BDS

AWS390BDH

AWS400BTS

EV5027

EV5027

EV6633

AWS400BDP

AWS410BDH

AWS425BTS

AWS450BTS

AWS450BTH

AWS470BTS

AWS475BTH

AWS500BTS

AWS500BTH

AWS525BTS

AWS530BTH

AWS550BTS

EV6639

EV5027

EV6633

EV6633

EV6633

EV6633

EV6633

EV6633

EV6633

EV6633

EV6633

EV6633

274

10.8

2412

95.0

392

15.4

EVAPORATOR: EV4027

PART NO. 332532100

UNIT MODELS:

AWS190BDS

AWS210BDS

AWS225BDS

AWS250BDS

AWS260BDS

AWS210BDH

AWS230BDH

AWS250BDH

1.63IN/41.5MM I.D.

LIQUID CONNECTION

1/4" NPTF

168.3

6.63 SCH. 40 PIPE

VICTAULIC GROOVED QTY.2

461.6

18.2

OUTLET

SENSOR WELL

QTY 2

1/2" NPTF

3000# HALF CPLG.

QTY 2

2122.9

83.6

3078

121.2

406

16

EVAPORATOR

NAME PLATE

ASME/CRN

NAME PLATE

1/2" NPTF

QTY 2

1/4" NPTF

INLET

4.13IN/105MM I.D.

SUCTION CONNECTION

485

19.1

250

9.8

493.5

19.4

.71IN/18MM X 1.69IN/43MM

SLOTS (QTY 4)

75

3.0

303

11.9

463

18.2

*334043901001*

75

3.0

32.5

1.3

IM 1167 123

Remote Evaporator Dimensions

Figure 58: Evaporator Model: EV5027

75

3.0

75

3.0

310

12.2

1.63IN/41.5MM I.D.

LIQUID CONNECTION

1/4" NPTF

479.8

18.9

219.2

8.63 SCH. 40 PIPE

VICTAULIC GROOVED QTY.2

OUTLET

1/2" NPTF

3000# HALF CPLG.

QTY 2

SENSOR WELL

QTY 2

2360

92.9

2123

83.6

3095

121.9

EVAPORATOR

NAME PLATE

ASME/CRN

NAME PLATE

508

20.0

425

16.7

1/2" NPTF

QTY 2

1/4" NPTF

INLET

4.13IN/105MM I.D.

SUCTION CONNECTION

644

25.4

358

14.1

EVAPORATOR: EV5027

PART NO. 332532200

UNIT MODELS:

AWS290BDS

AWS310BDS

AWS350BDS

AWS375BDS

AWS280BDH

AWS300BDH

AWS330BDH

AWS350BDH

AWS390BDH

AWS410BDH

94

3.7

354

13.9

94

3.7

492.2

19.4

463

18.2

32.5

1.3

.71IN/18MM X 1.69IN/43MM

SLOTS (QTY 4)

*334043901002*

Figure 59: Evaporator Model: EV5039

75

3.0

75

3.0

310

12.2

1.63IN/41.5MM I.D.

LIQUID CONNECTION

1/4" NPTF

219.2

8.63 SCH. 40 PIPE

VICTAULIC GROOVED QTY.2

OUTLET

SENSOR WELL

QTY 2

1/2" NPTF

3000# HALF CPLG.

QTY 2

3510

138.2

469.8

18.5

3283

129.3

4245

167.1

EVAPORATOR

NAME PLATE

ASME/CRN

NAME PLATE

508

20.0

EVAPORATOR: EV5039

PART NO. 332532300

UNIT MODELS:

425

16.7

4.13IN/105MM I.D.

SUCTION CONNECTION

1/4" NPTF

94

3.7

354

13.9

94

3.7

1/2" NPTF

QTY 2

INLET

492.2

19.4

.71IN/18MM X 1.69IN/43MM

SLOTS (QTY 4)

644

25.4

358

14.1

463

18.2

*334043901003*

32.5

1.3

124 IM 1167

Remote Evaporator Dimensions

Figure 60: Evaporator Model: EV6639

105.8

4.2

105.8

4.2

367

14.4

3430

135.0

1.63IN/41.5MM I.D.

LIQUID CONNECTION

1/4" NPTF

273

10.75 SCH. 40 PIPE

VICTAULIC GROOVED QTY.2

OUTLET

1/2" NPTF

3000# HALF CPLG.

QTY 2

SENSOR WELL

QTY 2

513.8

20.2

3281.8

129.2

4287

168.8

EVAPORATOR

NAME PLATE

ASME/CRN

NAME PLATE

660.4

26.0

1/2" NPTF

QTY 2

INLET

490

19.3

4.13IN/105MM I.D.

SUCTION CONNECTION

1/4" NPTF

491.5

19.3

693.5

27.3

357

14.1

.71IN/18MM X 1.69IN/43MM

SLOTS (QTY 4)

EVAPORATOR: EV6639

PART NO. 332532400

UNIT MODELS:

AWS290BDP

AWS310BDP

AWS365BDP

AWS400BDP

430

16.9

463

18.2

105.8

4.2

105.8

4.2

*334043901004*

32.5

1.3

Figure 61: Evaporator Model: EV6633

141

5.6

141

5.6

367.2

14.5

2829.8

111.4

273

10.75 SCH. 40 PIPE

VICTAULIC GROOVED QTY.2

1.63IN/41.5MM I.D.

LIQUID CONNECTION

1/4" NPTF

EVAPORATOR

NAME PLATE

ASME/CRN

NAME PLATE

OUTLET

SENSOR WELL

QTY 2

1115.5

43.9

3697

145.6

2122.9

83.6

1/2" NPTF

3000# HALF CPLG.

QTY 2

498.7

19.6

EVAPORATOR: EV6633

PART NO. 332532600

UNIT MODELS:

AWS400BTS

AWS425BTS

AWS450BTS

AWS470BTS

AWS500BTS

AWS525BTS

AWS550BTS

AWS450BTH

AWS475BTH

AWS500BTH

AWS530BTH

4.13IN/105MM I.D.

SUCTION CONNECTION

430

16.9

1/4" NPTF

141

5.6

141

5.6

INLET

660.4

26.0

1/2" NPTF

QTY 2

706.3

27.8

357

14.1

32.5

1.3

458.5

18.1

463

18.2

.71IN/18MM X 1.69IN/43MM

SLOTS (QTY 4)

*334043901005*

IM 1167 125

Remote Evaporator Unit Dimensions (Non-VFD)

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 62: AWS190BDS Remote Evaporator (Non-VFD)

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS

AWS-B REMOTE 10FAN DIM DWG. 334042101C0100

VENT - FOR UNITS WITH AMBIENT ABOVE 105

126 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 63: AWS210BDS, AWS225BDS Remote Evaporator (Non-VFD)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS

IM 1167 127

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 64: AWS210BDH Remote Evaporator (Non-VFD)

IN BOTTOM OF C-BOX REMOVEABLE COVER

FIELD CONTROL CONNECTIONS

AWS-B REMOTE 12FAN DIM DWG. 334042201C0200

VENT - FOR UNITS WITH AMBIENT ABOVE 105

128

1.62 O.D. LIQUID CONNECTIONS

IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 65: AWS250BDS, AWS260BDS Remote Evaporator (Non-VFD)

IN BOTTOM OF C-BOX REMOVEABLE COVER

FIELD CONTROL CONNECTIONS

VENT - FOR UNITS WITH AMBIENT ABOVE 105

IM 1167 129

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 66: AWS230BDH, AWS250BDH Remote Evaporator (Non-VFD)

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS

VENT - FOR UNITS WITH AMBIENT ABOVE 105

1.62 O. D. LIQUID CONNECTIONS

SECTION A-A SCALE 1 : 30

1.62 O. D. LIQUID CONNECTIONS

AWS-B REMOTE 14 FAN DIM DWG. 334042301C0200

130 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 67: AWS290BDS, AWS310BDS Remote Evaporator (Non-VFD)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

POWER ENTRY IN BOTTOM OF C-BOX REMOVEABLE COVER

FIELD CONTROL CONNECTIONS (3) .88 (22.4MM) K.O.'S IN

IM 1167 131

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 68: AWS240BDP, AWS280BDH, AWS300BDH Remote Evaporator (Non-VFD)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS

132

1.62 O. D. LIQUID CONNECTIONS

1.62 O. D. LIQUID CONNECTIONS

IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 69: AWS265BDP, AWS290BDP Remote Evaporator (Non-VFD)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

3.0 REF.

POWER ENTRY IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS (3) .88 (22.4MM) K.O.'S IN SIDE OF C-BOX

IM 1167

1.62 O. D. LIQUID CONNECTIONS

1.62 O. D. LIQUID CONNECTIONS

133

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 70: AWS350BDS, AWS375BDS Remote Evaporator (Non-VFD)

3.0 REF.

POWER ENTRY IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

FIELD CONTROL CONNECTIONS

1.62 O. D. LIQUID CONNECTIONS

134 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 71: AWS310BDP, AWS330BDP, AWS330BDH, AWS350BDH Remote Evaporator (Non-VFD)

3.0 REF.

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS

VENT - FOR UNITS WITH AMBIENT ABOVE 105

1.62 O. D. LIQUID CONNECTIONS

1.62 O. D. LIQUID CONNECTIONS

IM 1167 135

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 72: AWS365BDP, AWS390BDH Remote Evaporator (Non-VFD)

3.0 REF.

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

FIELD CONTROL CONNECTIONS

VENT - FOR UNITS WITH AMBIENT ABOVE 105

1.62 O. D. LIQUID CONNECTIONS

1.62 O. D. LIQUID CONNECTIONS

136 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 73: AWS400BDP, AWS410BDH Remote Evaporator (Non-VFD)

3.0 REF.

IN BOTTOM OF C-BOX REMOVABLE COVER 9 X 12.5 (229MM X318MM)

9.0 REF.

FIELD CONTROL CONNECTIONS (3) .88 (22.4MM) K.O.'S

VENT - FOR UNITS WITH AMBIENT ABOVE 105

IM 1167 137

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 74: AWS400BTS, AWS425BTS Remote Evaporator (Non-VFD) (Page 1 of 2)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

3.0 REF.

IN BOTTOM OF C-BOX REMOVEABLE COVER

FIELD CONTROL CONNECTIONS

138 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 75: AWS400BTS, AWS425BTS Remote Evaporator (Non-VFD) (Page 2 of 2)

IM 1167

SUCTION HEIGHT ALL CIRCUITS

139

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 76: AWS450BTS, AWS450BTH, AWS470BTS Remote Evaporator (Non-VFD) (Page 1 of 3)

3.0 REF.

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

FIELD CONTROL CONNECTIONS

140 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 77: AWS450BTH Remote Evaporator (Non-VFD) (Page 2 of 3, see also Figure 76

)

IM 1167

LIQUID HEIGHT ALL CIRCUITS

141

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 78: AWS450BTS, AWS470BTS Remote Evaporator (Non-VFD) (Page 3 of 3, see also Figure 76

)

142

LIQUID HEIGHT ALL CIRCUITS

IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 79: AWS475BTH, AWS500BTS Remote Evaporator (Non-VFD) (Page 1 of 3)

3.0 REF.

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

FIELD CONTROL CONNECTIONS

IM 1167 143

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 80: AWS475BTH Remote Evaporator (Non-VFD) (Page 2 of 3)

144

LIQUID HEIGHT ALL CIRCUITS

IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 81: AWS500BTS Remote Evaporator (Non-VFD) (Page 3 of 3)

IM 1167 145

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 82: AWS500BTH, AWS525BTS Remote Evaporator (Non-VFD) (Page 1 of 3)

3.0 REF.

IN BOTTOM OF C-BOX REMOVEABLE COVER 9 X 12.5 (229MM X 318MM)

VENT - FOR UNITS WITH AMBIENT ABOVE 105

FIELD CONTROL CONNECTIONS

# OF FA # OF FA

SHIPPING WEI SHIPPING WEI

146 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 83: AWS500BTH Remote Evaporator (Non-VFD) (Page 2 of 3)

IM 1167

LIQUID HEIGHT ALL CIRCUITS

147

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 84: AWS525BTS Remote Evaporator (Non-VFD) (Page 3 of 3)

148 IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 85: AWS530BTH, AWS550BTS Remote Evaporator (Non-VFD) (Page 1 of 3)

IN BOTTOM OF C-BOX REMOVABLE COVER

FIELD CONTROL CONNECTIONS (3) .88 (22.4MM) K.O.'S IN SIDE OF C-BOX

IM 1167 149

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 86: AWS530BTH Remote Evaporator (Non-VFD) (Page 2 of 3)

150

LIQUID HEIGHT ALL CIRCUITS

IM 1167

Remote Evaporator Unit Dimensions (Non-VFD)

Figure 87: AWS550BTS Remote Evaporator (Non-VFD) (Page 3 of 3)

IM 1167 151

Remote Evaporator Unite Dimensions (VFD)

Remote Evaporator Unite Dimensions (VFD)

Figure 88: AWS170BDS(380-460V) Remote Evaporator (VFD)

ON LEFT SIDE OF C

4.5 REF

152 IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 89: AWS190BDS (380-460V), AWS200BDS(380-460V), AWS210BDH(380-460V) Remote Evaporator (VFD)

ON LEFT SIDE OF C

4.5 REF

IM 1167 153

Remote Evaporator Unite Dimensions (VFD)

Figure 90: AWS230BDH(380-460V), AWS250BDH(380-460V) Remote Evaporator (VFD)

ON LEFT SIDE OF C

4.5 REF

154 IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 91: AWS280BDH (460V), AWS300BDH (460v), AWS240BDP(380-460V) Remote Evaporator (VFD)

4.5 REF

ON LEFT SIDE OF C

IM 1167 155

Remote Evaporator Unite Dimensions (VFD)

Figure 92: AWS280BDH(380-400V), AWS300BDH (380-400V) Remote Evaporator (VFD)

CES REF

156 IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 93: AWS265BDP(380-460V), AWS290BDP(380-460V) Remote Evaporator (VFD)

4.5 REF

ON LEFT SIDE OF C

IM 1167 157

Remote Evaporator Unite Dimensions (VFD)

Figure 94: AWS310BDP, AWS330BDP Remote Evaporator (VFD)

4.5 REF 2 PLA

ON LEFT SIDE OF C

333687706 AW

158 IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 95: AWS310BDP, AWS330BDP, AWS330BDH, AWS350BDH Remote Evaporator (VFD)

4.5 2 PLA

ON RIGHT SIDE OF CONTROL BO 11 X 14.5 (279MM X 368MM) OPENING.

IM 1167 159

Remote Evaporator Unite Dimensions (VFD)

Figure 96: AWS365BDP, AWS390BDH Remote Evaporator (VFD)

CES REF

160 IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 97: AWS400BDP(380-460V), AWS410BDH(380-460V) Remote Evaporator (VFD)

CES REF

S ON LEFT SIDE OF CONTROL BO

IM 1167

AWS410BDH - 380-460V - 60HZ AWS400BDP - 380-460V - 60HZ

161

Remote Evaporator Unite Dimensions (VFD)

Figure 98: AWS450BTH(380-460V) Remote Evaporator (VFD)

CES REF

S ON LEFT SIDE OF CONTROL BO

162

HEIGHT OF ALL SUC

HEIGHT OF ALL LIQUID C

IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 99: AWS475BTH (380-460V)Remote Evaporator (VFD)

4032

158.8

4.12 O.D. SUCTION #2

3819

150.4

4796

188.8

1.62 O.D. LIQUID #3

5031

198.1

1.62 O.D. LIQUID #1

4981

196.1

891

35.1

1.62 O.D. LIQUID #2

4.12 O.D. SUCTION #3

175

6.9

891

35.1

4.12 O.D. SUCTION #1

961

37.8

13502

531.6

4173

164.3

5052

198.9

180

7.1

IM 1167

636

25.1

210

8.3

2225

87.6

DOES NOT INLCUDE

LIFTING LUGS

1049

41.3

1153

45.4

2548

100.3

22

Ø .88 REF.

FIELD CONTROL CONNECTIONS

QTY. 3 KNOCKOUTS ON LEFT SIDE OF

CONTROL BOX.

FIELD ENTRY

ON RIGHT SIDE OF

REMOVABLE COVER

OPENING.

AWS475BTH 380-460V 60HZ

*333687710001*

AWS-B REMOTE WITH VFD

26 FAN DIM. DWG

333

13.1

163

Remote Evaporator Unite Dimensions (VFD)

Figure 100: AWS500BTH (380-460V)Remote Evaporator (VFD)

CES REF

S ON LEFT SIDE OF CONTROL BO

164

TION HEIGHT ALL CIRCUIT

LIQUID HEIGHT ALL CIRCUIT

IM 1167

Remote Evaporator Unite Dimensions (VFD)

Figure 101: AWS530BTH (380-460V)Remote Evaporator (VFD)

CES REF

S ON LEFT SIDE OF CONTROL BO

IM 1167 165

Remote Evaporator Unite Dimensions (VFD)

Figure 102:

Figure 103:

Figure 104:

Figure 105:

Figure 106:

Figure 107:

Figure 108:

Figure 109:

Figure 110:

Figure 111:

Figure 112:

Figure 113:

Figure 114:

Figure 115:

Figure 116:

Figure 117:

Figure 118:

Figure 119:

Figure 120:

Figure 121:

Figure 122:

Figure 123:

Figure 124:

Figure 125:

Figure 126:

166 IM 1167

Remote Evaporator Lifting & Mounting Weights

Remote Evaporator Lifting & Mounting Weights

Table 99: Lifting and Mounting Weights

UNIT SIZE

Unit of

Measure

LIFTING WT FOR EACH POINT (LBS) MOUNTING LOADS FOR EACH POINT (LBS)

L1 L2 L3 L4 L5 L6 L7 L8 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10

AWS190BDS RE

AWS210BDS RE

AWS225BDS RE

AWS250BDS RE

AWS260BDS RE

AWS290BDS RE

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

3938 3920 1833 1824 -

1786 1778 831 827 -

4241 4051 2021 1931

-

1924 1838 917 876

-

4372 4352 2015 2006

-

1983 1974 914 910

-

4229 4210 2620 2608 -

1918 1910 1188 1183 -

4229 4210 2620 2608 -

1918 1910 1188 1183 -

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

2766 2753 2113 2104 891

1255 1249 958 954

-

2973 2840 2287 2185 1002 958

-

1349 1288 1037 991 455 435

-

3073 3059 2342 2331 972 968

-

1394 1388 1062 1057 441 439

3133 3119 2602 2591 1113 1108

1421 1415 1180 1175

404

505

887

402

503

3133 3119 2602 2591 1113 1108

1421 1415 1180 1175 505 503

-

-

-

-

-

-

-

-

-

-

-

-

-

-

3206 3191 2401 2390 147 1401 582 580 3138 3124 2539 2528 1418 1412 501 498

1454 1447 1089 1084 67 635 264 263 1423 1417 1152 1147 643 640 227 226

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

AWS310BDS RE

AWS350BDS RE

AWS375BDS RE

AWS400BTS RE

AWS425BTS RE

AWS450BTS RE

AWS470BTS RE

AWS500BTS RE

AWS525BTS RE

AWS550BTS RE

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

3397 3382 2529 2517 1455 1449 565 562 3321 3306 2676 2664 1468 1462 480 478

1541 1534 1147 1142 660 657 256 255 1506 1500 1214 1208 666 663 218 217

3419 3419 2800 2800 1663 1663 894 894 3140 3140 2741 2741 1993 1993 901 901

1551 1551 1270 1270 754 754 406 406 1424 1424 1243 1243 904 904 409 409

3419 3419 2800 2800 1663 1663 894 894 3140 3140 2741 2741 1993 1993 901 901

1551 1551 1270 1270 754 754 406 406 1424 1424 1243 1243 904 904 409 409

-

-

-

-

-

-

3554 3199 3157 2842 2331 2098 1683 1515 3317 2986 3067 2761 2419 2178 1921 1729 -

1612 1451 1432 1289 1057 952 763 687 1505 1354 1391 1252 1097 988 871 784 -

3686 3243 3282 2888 2443 2149 1784 1570 3437 3024 3187 2804 2536 2231 2035 1791 -

1672 1471 1489 1310 1108 975 809 712 1559 1372 1446 1272 1150 1012 923 812 -

3825 3396 3440 3054 2637 2342 1940 1723 3700 3285 3289 2920 2221 1972 1646 1461 987 877

1735 1540 1560 1385 1196 1062 880 782 1678 1490 1492 1325 1007 894 747 663 448 398

-

-

-

-

-

-

-

-

-

-

3968 3444 3575 3102 2755 2391 2043 1773 3840 3332 3417 2965 2316 2010 1724 1496 1045 907

1800 1562 1622 1407 1250 1085 927 804 1742 1511 1550 1345 1051 912 782 679 474 411

3889 3390 3585 3125 2952 2574 2308 2012 3692 3219 3339 2911 2420 2109 1925 1678 1359 1184

1764 1538 1626 1417 1339 1168 1047 913 1675 1460 1515 1320 1098 957 873 761 616 537

3767 3360 3573 3187 3169 2827 2739 2443 3767 3360 3453 3080 2637 2352 2009 1792 1382 1233

1709 1524 1621 1446 1437 1282 1242 1108 1709 1524 1566 1397 1196 1067 911 813 627 559

3786 3393 3635 3257 3319 2974 2906 2604 3823 3426 3542 3174 2812 2520 2120 1899 1351 1210

1717 1539 1649 1477 1505 1349 1318 1181 1734 1554 1607 1440 1276 1143 962 861 613 549

IM 1167 167

Remote Evaporator Lifting & Mounting Weights

Table 99, Lifting and Mounting Weights (continued)

UNIT SIZE

Unit of

Measure

LIFTING WT FOR EACH POINT (LBS) MOUNTING LOADS FOR EACH POINT (LBS)

L1 L2 L3 L4 L5 L6 L7 L8 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10

AWS210BDH RE

AWS230BDH RE

(LBS)

(KG)

(LBS)

3913 3895 2216 2206

-

1775 1767 1005 1001

-

4072 3837 3010 2836 -

-

-

-

-

-

-

-

2700 2688 2191 2181 1238 1232

-

-

1225 1219 994 989 562 559

-

3059 2883 2623 2472 1399 1318 -

-

-

-

-

-

-

AWS250BDH RE

AWS280BDH RE

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

1847 1740 1365 1286 -

4179 4160 3046 3032 -

-

-

-

-

1388 1308 1190 1121 635 598 -

3137 3122 2682 2670 1406 1400 -

-

-

1896 1887 1382 1375 1423 1416 1217 1211 638 635 -

2998 2984 2327 2316 1498 1491 810 806 2958 2945 2451 2440 1501 1494 723 720 -

-

-

1360 1354 1056 1051 679 676 367 366 1342 1336 1112 1107 681 678 328 327 -

2998 2984 2327 2316 1498 1491 810 806 2958 2945 2451 2440 1501 1494 723 720 -

-

-

-

-

-

-

-

-

-

AWS300BDH RE

AWS330BDH RE

AWS350BDH RE

AWS390BDH RE

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

1360 1354 1056 1051 679 676 367 366 1342 1336 1112 1107 681 678 328 327 -

3316 3197 2771 2671 1770 1706 1092 1053 3057 2947 2711 2614 2063 1989 1118 1078 -

1504 1450 1257 1212 803 774 495 478 1387 1337 1230 1186 936 902 507 489 -

3448 3448 2861 2861 1781 1781 1051 1051 3175 3175 2799 2799 2096 2096 1071 1071 -

1564 1564 1298 1298 808 808 477 477 1440 1440 1270 1270 951 951 486 486 -

3132 3117 2787 2774 2253 2243 1726 1718 3293 3278 2974 2961 2146 2136 1484 1478 -

-

-

-

-

-

-

AWS410BDH RE

AWS450BTH RE

AWS475BTH RE

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

1421 1414 1264 1258 1022 1017 783 779 1494 1487 1349 1343 973 969 673 670 -

3146 3132 2877 2864 2460 2449 1831 1822 3252 3237 2885 2872 1943 1934 1405 1398 829 826

1427 1421 1305 1299 1116 1111 831 826 1475 1468 1309 1303 881 877 637 634 376 375

3525 3045 3277 2831 2762 2385 2313 1998 3433 2965 3106 2683 2258 1950 1801 1556 1278 1104

1599 1381 1486 1284 1253 1082 1049 906 1557 1345 1409 1217 1024 885 817 706 580 501

3599 3066 3421 2915 3052 2600 2675 2280 3412 2907 3146 2680 2454 2091 2081 1773 1655 1410

1632 1391 1552 1322 1384 1179 1213 1034 1548 1319 1427 1216 1113 948 944 804 751 640

AWS500BTH RE

AWS530BTH RE

AWS240BDP RE

AWS265BDP RE

AWS290BDP RE

AWS310BDP RE

AWS330BDP RE

AWS365BDP RE

AWS400BDP RE

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

(LBS)

(KG)

3726 3339 3573 3202 3253 2915 2912 2609 3744 3355 3449 3090 2681 2402 2090 1873 1500 1344

1690 1515 1621 1452 1476 1322 1321 1183 1698 1522 1564 1402 1216 1090 948 850 680 610

3905 3436 3778 3324 3513 3091 3166 2785 3962 3486 3682 3239 2954 2599 2265 1993 1499 1319

1771 1559 1714 1508 1593 1402 1436 1263 1797 1581 1670 1469 1340 1179 1027 904 680 598

2670 2658 2117 2108 1434 1427 866 862 2648 2636 2225 2214 1432 1425 783 780

1211 1206 960 956 650 647 393 391 1201 1196 1009 1004 650 646 355 354

-

-

-

-

2786 2686 2316 2233 1734 1672 1085 1046 2790 2690 2425 2338 1742 1680 964 929 -

1264 1218 1051 1013 787 758 492 474 1266 1220 1100 1061 790 762 437 421 -

2892 2879 2380 2369 1746 1738 1038 1033 2887 2874 2494 2482 1757 1749 918 914 -

1312 1306 1080 1075 792 788 471 469 1310 1304 1131 1126 797 793 416 415 -

3081 3067 2599 2587 1712 1704 1112 1107 2845 2832 2542 2530 1973 1964 1145 1139 -

1398 1391 1179 1173 777 773 504 502 1290 1285 1153 1148 895 891 519 517 -

-

-

-

-

-

-

3081 3067 2599 2587 1712 1704 1112 1107 2845 2832 2542 2530 1973 1964 1145 1139 -

1398 1391 1179 1173 777 773 504 502 1290 1285 1153 1148 895 891 519 517 -

2992 2884 2698 2601 2243 2162 1793 1729 3163 3050 2878 2775 2138 2061 1546 1491 -

1357 1308 1224 1180 1017 981 813 784 1435 1383 1305 1259 970 935 701 676 -

3146 3132 2877 2864 2460 2449 1831 1822 3252 3237 2885 2872 1943 1934 1405 1398 829 826

1427 1421 1305 1299 1116 1111 831 826 1475 1468 1309 1303 881 877 637 634 376 375

-

-

-

-

168 IM 1167

Remote Evaporator Isolators

Remote Evaporator Isolators

Table 100: Spring Isolators for Aluminum Fin Condensers (Non-VFD)

Unit M o del # Kit P / N

A WS190 B D S

332320838

A WS210 B D S

332320838

A WS210B D H

332320828

A WS22 5 B D S

332320838

A WS2 30 B D H

332320839

A WS2 40 B D P

332320840

A WS25 0 B D S

332320839

A WS2 50 B D H

332320839

A WS26 0 B D S

332320839

A WS2 65 B D P

332320854

A WS2 80 B D H

332320840

A WS29 0 B D S

332320841

A WS2 90 B D P

332320854

A WS3 00 B D H

332320840

A WS310 B D S

332320841

A WS310B D P

332320842

A WS3 30 B D H

332320855

A WS3 30 B D P

332320842

A WS35 0 B D S

332320843

A WS3 50 B D H

332320855

A WS3 65 B D P

332320847

A WS37 5 B D S

332320843

A WS3 90 B D H

332320847

A WS 40 0 B T S

332320848

A WS4 00 B D P

332320844

A WS410B D H

332320844

A WS 42 5 B T S

332320848

A WS 45 0 B T S

332320834

A WS 45 0 B T H

332320833

A WS 47 0 B T S

332320834

A WS 47 5 B T H

332320850

A WS 50 0 B T S

332320850

A WS 50 0 B T H

332320850

A WS 52 5 B T S

332320850

A WS 53 0 B T H

332320850

A WS 55 0 B T S

332320850

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Dark Green

332620900

Gray

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

Gray

332620900

Gray

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

M 1

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Dark Green

332620900

Gray

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

Gray

332620900

Gray

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

M 2

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

M 3

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

M 4

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

Black

332620500

Black

332620600

Dark Purple

332620500

Black

332620500

Black

332620600

Dark Purple

332620500

Black

332620500

Black

332620800

M 5

332620400

Red

332620400

Red

332620500

Black

332620400

Red

332620500

Black

332620500

Black

332620500

Black

332620500

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

Black

332620500

Black

332620600

Dark P urple

332620500

Black

332620500

B lack

332620600

Dark P urple

332620500

Black

332620500

B lack

332620800

M 6

332620400

Red

332620400

Red

332620500

Black

332620400

Red

332620500

Black

332620500

Black

332620500

Black

332620500

M 7

332620400

Red

M 8

332620400

Red

332620500

Black

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620500

Black

332620400

Red

332620500

Black

332620500

Black

332620400

Red

332620500

Black

332620800

Dark Green

332620500

Black

332620400

Red

332620400

Red

332620200

Dark Blue

332620400

Red

332620400

Red

332620200

Dark Blue

332620500

Black

332620500

Black

332620500

Black

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620500

Black

332620400

Red

332620500

B lack

332620500

Black

332620400

Red

332620500

Black

332620800

Dark Green

332620500

Black

332620400

Red

332620400

Red

332620200

Dark B lue

332620400

Red

332620400

Red

332620200

Dark B lue

332620500

Black

332620500

B lack

M 9

332620400

Red

332620400

Red

332620400

Red

332620500

Black

332620400

Red

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

M 10

332620400

Red

332620400

Red

332620400

Red

332620500

Black

332620400

Red

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

IM 1167 169

Remote Evaporator Isolators

Table 101: Spring Isolators for Copper Fin Condensers (Non-VFD)

Unit M o del # Kit P / N

A WS190B D S

332320839

A WS210B D S

332320839

A WS210B D H

332320839

A WS225B D S

332320839

A WS230B D H

332320845

A WS240B D P

332320857

A WS250B D S

332320839

A WS250B D H

332320845

A WS260B D S

332320839

A WS265B D P

332320855

A WS280B D H

332320846

A WS290B D S

332320846

A WS290B D P

332320855

A WS300B D H

332320846

A WS310B D S

332320846

A WS310B D P

332320847

A WS330B D H

332320847

A WS330B D P

332320847

A WS350B D S

332320847

A WS350B D H

332320847

A WS365B D P

332320848

A WS375B D S

332320847

A WS390B D H

332320848

A WS400B T S

332320848

A WS400B D P

332320833

A WS410B D H

332320833

A WS425B T S

332320848

A WS450B T S

332320856

A WS450B T H

332320856

A WS470B T S

332320856

A WS475B T H

332320858

A WS500B T S

332320859

A WS500B T H

332320860

A WS525B T S

332320860

A WS530B T H

332320853

A WS550B T S

332320853

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332621000

White

332621000

White

332621000

White

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332621000

White

332621000

White

332621000

White

332621000

White

M 1

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332621000

White

332621000

White

332621000

White

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332621000

White

332621000

White

332621000

White

332621000

White

M 2

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332621000

White

332621000

White

M 3

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

332621000

White

332621000

White

M 4

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Black

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

M 5

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620600

Dark Purple

332620600

Dark Purple

332620500

Black

332620600

Dark Purple

332620500

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Black

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620900

Gray

332620900

Gray

332620900

Gray

332620900

Gray

M 6

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620600

Dark Purple

332620600

Dark Purple

332620500

Black

332620600

Dark Purple

332620500

M 7

332620500

Black

M 8

332620500

Black

M 9 M 10

Black

332620800

Dark Green

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

332620500

Black

332620400

Red

332620400

Red

332620500

Black

332620400

Red

332620400

Red

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620800

Dark Green

332620500

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

Black

332620800

Dark Green

332620800

Dark Green

332620600

Dark Purple

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

332620500

Black

332620400

Red

332620400

Red

332620500

Black

332620400

Red

332620400

Red

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620800

Dark Green

332620500

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620500

Black

332620800

Dark Green

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620500

Black

332620500

Black

332620500

Black

332620800

Dark Green

332620600

Dark Purple

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

332620800

Dark Green

170 IM 1167

Remote Evaporator Isolators

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481403

Green

331481403

Green

331481404

Gray

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

M 2

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481403

Green

331481404

Gray

331481404

Gray

331481404

Table 102: Neoprene in Shear Isolators for Aluminum Fin Condensers (Non-VFD)

Unit M o del # Kit P / N

A WS190B D S

332325836

A WS210B D H

332325836

A WS210B D S

332325837

A WS225B D S

332325837

A WS230B D H

332325837

A WS240B D P

332325838

A WS250B D S

332325837

A WS250B D H

332325837

A WS260B D S

332325837

A WS265B D P

332325838

A WS280B D H

332325838

A WS290B D S

332325847

A WS290B D P

332325838

A WS300B D H

332325838

A WS310B D S

332325847

A WS310B D P

332325829

A WS330B D H

332325829

A WS330B D P

332325829

A WS350B D S

332325829

A WS350B D H

332325829

A WS365B D P

332325839

A WS375B D S

332325829

A WS390B D H

332325839

A WS400B T S

332325830

A WS400B D P

332325840

A WS410B D H

332325840

A WS425B T S

332325830

A WS450B T S

332325842

A WS450B T H

332325842

A WS470B T S

332325842

A WS475B T H

332325848

A WS500B T S

332325842

A WS500B T H

332325849

A WS525B T S

332325849

A WS530B T H

332325849

A WS550B T S

332325849

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481403

Green

331481403

Green

331481404

Gray

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

M 1

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481403

Green

331481404

Gray

331481404

Gray

331481404

Green

331481403

Green

331481404

Gray

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

M 3

331481402

Red

331481402

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

Gray

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

M 4

331481402

Red

331481402

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Red

331481402

Red

331481403

Green

331481402

Red

331481402

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Brown

331481402

Red

331481402

Red

331481401

Brown

331481402

Red

331481402

Red

331481401

Brown

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

M 5

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481402

Red

331481401

Brown

331481401

Brown

331481401

Red

331481402

Red

331481403

Green

331481402

Red

331481402

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Brown

331481402

Red

331481402

Red

331481401

Brown

331481402

Red

331481402

Red

331481401

Brown

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

M 6

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481402

Red

331481401

Brown

331481401

Brown

331481401

M 7

331481401

Brown

Brown

331481402

Red

331481402

Red

331481401

Brown

331481401

Brown

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481402

Red

331481401

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

M 8

331481401

Brown

M 9

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481402

Red

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

M 10

331481401

Brown

331481401

Brown

Brown

331481402

Red

331481402

Red

331481401

Brown

331481401

Brown

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481402

Red

331481401

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481401

Brown

331481401

Brown

331481401

Brown

331481402

Red

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

331481401

Brown

IM 1167 171

Remote Evaporator Isolators

Gray

331481404

Gray

331481404

Gray

331481405

P urple

331481404

Gray

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

M 2

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Table 103: Neoprene in Shear Isolators for Copper Fin Condensers (Non-VFD)

Unit M o de l # Kit P / N

A WS 19 0 B D S

332325828

A WS 2 10 B D S

332325828

A WS2 10 B D H

332325828

A WS2 2 5 B D S

332325828

A WS 2 3 0 B D H

332325828

A WS 2 4 0 B D P

332325829

A WS2 5 0 B D S

332325828

A WS 2 5 0 B D H

332325841

A WS2 6 0 B D S

332325828

A WS 2 6 5 B D P

332325829

A WS 2 8 0 B D H

332325829

A WS2 9 0 B D S

332325829

A WS 2 9 0 B D P

332325829

A WS 3 0 0 B D H

332325829

A WS 3 10 B D S

332325829

A WS3 10 B D P

332325830

A WS 3 3 0 B D H

332325830

A WS 3 3 0 B D P

332325830

A WS3 5 0 B D S

332325830

A WS 3 5 0 B D H

332325830

A WS 3 6 5 B D P

332325830

A WS3 7 5 B D S

332325830

A WS 3 9 0 B D H

332325830

A WS4 0 0 B T S

332325843

A WS 4 0 0 B D P

332325842

A WS4 10 B D H

332325842

A WS4 2 5 B T S

332325843

A WS4 5 0 B T S

332325846

A WS4 5 0 B T H

332325850

A WS4 7 0 B T S

332325846

A WS4 7 5 B T H

332325846

A WS5 0 0 B T S

332325846

A WS5 0 0 B T H

332325844

A WS5 2 5 B T S

332325844

A WS5 3 0 B T H

332325845

A WS5 5 0 B T S

332325845

Gray

331481404

Gray

331481404

Gray

331481405

P urple

331481404

Gray

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

331481405

P urple

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

M 1

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481405

Purple

331481405

Purple

Gray

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

M 3

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481405

Purple

331481405

Purple

Gray

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

M 4

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481403

M 5

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481404

Gray

331481404

Gray

331481404

Gray

331481404

Gray

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481403

M 6

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

M 7

331481401

B ro wn

M 8

331481401

Bro wn

M 9 M 10

Red

331481402

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481403

Green

331481402

331481401

B ro wn

331481401

B ro wn

331481401

B ro wn

331481401

B ro wn

331481401

B ro wn

331481401

B ro wn

331481402

Red

331481402

Red

Red

331481402

Red

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481403

Green

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481403

Green

331481402

331481401

Bro wn

331481401

Bro wn

331481401

Bro wn

331481401

Bro wn

331481401

Bro wn

331481401

Bro wn

331481402

Red

331481402

Red

331481401

B ro wn

331481401

B ro wn

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481401

B ro wn

331481401

B ro wn

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

331481402

Red

172 IM 1167

Remote Evaporator Isolators

Unit M o del #

A WS170B D S

R E VF D

A WS190B D S

R E VF D

A WS200B D S

R E VF D

A WS210B D H

R E VF D

A WS230B D H

R E VF D

A WS250B D H

R E VF D

A WS240B D P

R E VF D

A WS280B D H

R E VF D

A WS300B D H

R E VF D

A WS265B D P

R E VF D

A WS290B D P

R E VF D

A WS310B D P

R E VF D

A WS330B D P

R E VF D

A WS330B D H

R E VF D

A WS350B D H

R E VF D

A WS365B D P

R E VF D

A WS390B D H

R E VF D

A WS400B D P

R E VF D

A WS410B D H

R E VF D

A WS450B T H

R E VF D

A WS475B T H

R E VF D

A WS500B T H

R E VF D

A WS530B T H

R E VF D

Table 104: Spring Isolators for Aluminum Fin Condensers (VFD)

Kit P/ N

332320840

332320840

332320840

332320840

332320861

332320861

332320862

332320862

332320862

332320862

332320862

332320866

332320866

332320866

332320866

332320824

332320824

332320863

332320863

332320863

332320826

332320826

332320826

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8

332620800 332620800 332620800 332620800 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Black Black Red Red

332620800 332620800 332620800 332620800 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Black Black Red Red

332620800 332620800 332620800 332620800 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Black Black Red Red

332620800 332620800 332620800 332620800 332620500 332620500 332620400 332620400

M 9 M 10

Dk Green Dk Green Dk Green Dk Green Black Black Red Red

332620800 332620800 332620800 332620800 332620500 332620500 332620400 332620400 332620200 332620200

Dk Green Dk Green Dk Green Dk Green Black Black Red Red Dk Blue Dk Blue

332620800 332620800 332620800 332620800 332620500 332620500 332620400 332620400 332620200 332620200

Dk Green Dk Green Dk Green Dk Green Black Black Red Red Dk Blue Dk Blue

332620800 332620800 332620800 332620800 332620600 332620600 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Dk Purple Dk Purple Black Black Red Red

332620800 332620800 332620800 332620800 332620600 332620600 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Dk Purple Dk Purple Black Black Red Red

332620800 332620800 332620800 332620800 332620600 332620600 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Dk Purple Dk Purple Black Black Red Red

332620800 332620800 332620800 332620800 332620600 332620600 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Dk Purple Dk Purple Black Black Red Red

332620800 332620800 332620800 332620800 332620600 332620600 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Dk Purple Dk Purple Black Black Red Red

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

M 11 M 12

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

IM 1167 173

Remote Evaporator Isolators

A WS330B D H

R E VF D

A WS350B D H

R E VF D

A WS365B D P

R E VF D

A WS390B D H

R E VF D

A WS400B D P

R E VF D

A WS410B D H

R E VF D

A WS450B T H

R E VF D

A WS475B T H

R E VF D

A WS500B T H

R E VF D

A WS530B T H

R E VF D

A WS170B D S

R E VF D

A WS190B D S

R E VF D

A WS200B D S

R E VF D

A WS210B D H

R E VF D

A WS230B D H

R E VF D

A WS250B D H

R E VF D

A WS240B D P

R E VF D

A WS280B D H

R E VF D

A WS300B D H

R E VF D

A WS265B D P

R E VF D

A WS290B D P

R E VF D

A WS310B D P

R E VF D

A WS330B D P

R E VF D

Table 105: Spring Isolators for Copper Fin Condensers (VFD)

Unit M o del #

Kit P/ N

332320864

332320864

332320864

332320864

332320865

332320865

332320865

332320866

332320866

332320866

332320866

332320823

332320823

332320823

332320823

332320824

332320824

332320826

332320826

332320826

332320826

332320868

332320868

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Black Black Black Black

M 9 M 10

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Black Black Black Black Red Red

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Black Black Black Black Red Red

332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500 332620400 332620400

Dk Green Dk Green Dk Green Dk Green Black Black Black Black Red Red

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

M 11 M 12

332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620500 332620500

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Black Black

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800 332620800

Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620900 332620900 332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Gray Gray Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

332620900 332620900 332620900 332620900 332620900 332620900 332620800 332620800 332620800 332620800 332620800 332620800

Gray Gray Gray Gray Gray Gray Dk Green Dk Green Dk Green Dk Green Dk Green Dk Green

174 IM 1167

Remote Evaporator Isolators

A WS170B D S

R E VF D

A WS190B D S

R E VF D

A WS200B D S

R E VF D

A WS210B D H

R E VF D

A WS230B D H

R E VF D

A WS250B D H

R E VF D

A WS240B D P

R E VF D

A WS280B D H

R E VF D

A WS300B D H

R E VF D

A WS265B D P

R E VF D

A WS290B D P

R E VF D

A WS310B D P

R E VF D

A WS330B D P

R E VF D

A WS330B D H

R E VF D

A WS350B D H

R E VF D

A WS365B D P

R E VF D

A WS390B D H

R E VF D

A WS400B D P

R E VF D

A WS410B D H

R E VF D

A WS450B T H

R E VF D

A WS475B T H

R E VF D

A WS500B T H

R E VF D

A WS530B T H

R E VF D

Table 106: Neoprene in Shear Isolators for Aluminum Fin Condensers (VFD)

Unit M o del #

Kit P/ N

332325851

332325851

332325851

332325851

332325852

332325852

332325858

332325858

332325858

332325858

332325858

332325853

332325853

332325853

332325853

332325853

332325853

332325854

332325854

332325854

332325854

332325854

332325854

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8

331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

M 9 M 10

Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401 331481401 331481401

Green Green Green Green Brown Brown Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401 331481401 331481401

Green Green Green Green Brown Brown Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481401 331481401 331481401 331481401

Green Green Green Green Green Green Brown Brown Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

M 11 M 12

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Green Green Red Red Red Red

IM 1167 175

Remote Evaporator Isolators

A WS170B D S

R E VF D

A WS190B D S

R E VF D

A WS200B D S

R E VF D

A WS210B D H

R E VF D

A WS230B D H

R E VF D

A WS250B D H

R E VF D

A WS240B D P

R E VF D

A WS280B D H

R E VF D

A WS300B D H

R E VF D

A WS265B D P

R E VF D

A WS290B D P

R E VF D

A WS310B D P

R E VF D

A WS330B D P

R E VF D

A WS330B D H

R E VF D

A WS350B D H

R E VF D

A WS365B D P

R E VF D

A WS390B D H

R E VF D

A WS400B D P

R E VF D

A WS410B D H

R E VF D

A WS450B T H

R E VF D

A WS475B T H

R E VF D

A WS500B T H

R E VF D

A WS530B T H

R E VF D

Table 107: Neoprene in Shear Isolators for Copper Fin Condensers (VFD)

Unit M o del #

Kit P/ N

332325855

332325855

332325855

332325855

332325856

332325856

332325856

332325856

332325856

332325856

332325856

332325853

332325853

332325853

332325853

332325853

332325853

332325857

332325857

332325857

332325857

332325857

332325857

M 1 M 2 M 3 M 4 M 5 M 6 M 7 M 8

331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Red Red Red Red Brown Brown

331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Red Red Red Red Brown Brown

331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Red Red Red Red Brown Brown

331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

M 9 M 10

Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402 331481401 331481401

Green Green Green Green Red Red Red Red Brown Brown

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

M 11 M 12

331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402 331481402 331481402

Green Green Green Green Green Green Red Red Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Green Green Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Green Green Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Green Green Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Green Green Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Green Green Green Green Red Red

331481404 331481404 331481404 331481404 331481403 331481403 331481403 331481403 331481403 331481403 331481402 331481402

Gray Gray Gray Gray Green Green Green Green Green Green Red Red

176 IM 1167

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 127: AWS190BDS Remote Evaporator (Non-VFD) Lifting & Mounting Locations

5820

229.1

4790

188.6

4910

193.3

2100

82.7

M5 L3 M3 M1 L1

430

16.9

600

23.6

2225

87.6

100

3.9

190

7.5

M6 L4

AWS-B REMOTE 10 FAN DIM. DWG

334042101C0200

M4 M2 L2

Figure 128: AWS210BDS, AWS225BDS, AWS210BDH Remote Evaporator (Non-VFD) Lifting & Mounting Locations

5820

229.1

M5 L3

4910

193.3

4790

188.6

M3

2100

82.7

M1 L1

600

23.6

430

16.9

2225

87.6

100

3.9

190

7.5

M6 L4 AWS-B REMOTE 12 FAN DIM. DWG

334042201C0300

M4 M2 L2

Figure 129: AWS250BDS, AWS260BDSAWS230BDH, AWS250BDH Remote Evaporator (Non-VFD) Lifting & Mounting

IM 1167 177

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Locations

6720

264.6

66

2.6

6310

248.4

4790

188.6

2100

82.7

M5 L3 M3 M1 L1

600

23.6

430

16.9

2225

87.6

100

3.9

190

7.5

M6 L4

AWS-B REMOTE 14 FAN DIM. DWG 334042301C0300

M4 M2 L2

Figure 130: AWS240BDP, AWS280BDH, AWS300BDH, AWS290BDS, 310BDS Remote Evaporator (Non-VFD) Lifting &

Mounting

7620

300.0

6790

267.3

4790

188.6

2380

93.7

430

16.9

66

2.6

M7 L7 M5 L5

4910

193.3

L3 M3

2100

82.7

M1 L1

600

23.6

2225

87.6

100

3.9

M8 L8

190

7.5

M6 L6

AWS-B REMOTE 16 FAN DIM. DWG

334042401C0300

L4 M4 M2 L2

178 IM 1167

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 131: AWS265BDP, AWS290BDP Remote Evaporator (Non-VFD) Lifting & Mounting Locations

66

2.6

8520

335.5

M7

8110

319.3

L7

7483

294.6

M5 L5

4910

193.3

4790

188.6

L3

2380

93.7

M3

2100

82.7

M1 L1

600

23.6

430

16.9

2225

87.6

M8

100

3.9

L8

190

7.5

M6 L6

AWS-B REMOTE 18 FAN DIM DWG.

334042501C0200

L4 M4 M2 L2

Figure 132: AWS310BDP, 330BDP, AWS330BDH, 350BDH, AWS350BDS, 375BDS Remote Evaporator (Non-VFD) Lifting &

Mounting

M7

9421

370.9

9010

354.7

L7

8383

330.1

66

2.6

L5

5961

234.7

M5

4910

193.3

L3

2380

93.7

2100

82.7

M3 M1 L1

600

23.6

430

16.9

2225

87.6

100

3.9

M8

190

7.5

L8 L6 M6

AWS-B REMOTE 20 FAN DIM DWG.

*334042601001* 3 3

L4 M4 M2 L2

Figure 133: AWS365BDP, AWS390BDH Remote Evaporator (Non-VFD) Lifting & Mounting Locations

66

2.6

10720

422.0

M7

9110

358.7

L7

8383

330.1

M5

6000

236.2

L5

5400

212.6

L3

2380

93.7

M3

2100

82.7

M1 L1

600

23.6

430

16.9

2225

87.6

100

3.9

190

7.5

M8 L8

IM 1167

M6 L6

AWS-B REMOTE 22 FAN DIM. DWG

334042701C0200

L4 M4 M2 L2

179

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 134: AWS400BDP, AWS410BDH Remote Evaporator (Non-VFD) Lifting & Mounting Locations

11620

457.5

9961

392.2

5400

212.6

2380

93.7

8147

320.8

5949

234.2

66

2.6

M9 L7 M7 M5 L5 L3

430

16.9

M3

2100

82.7

600

23.6

M1 L1

2225

87.6

100

3.9

190

7.5

M10 L8 M8

M6 L6 L4 M4 M2 L2

Figure 135: AWS400BTS, AWS425BTS Remote Evaporator (Non-VFD) Lifting & Mounting Locations

10718

422.0

9615

378.6

6438

253.4

8998

354.3

2381

93.7

6000

236.2

66

2.6

L7 M7 L5 M5 L3 M3

2100

82.7

600

23.6

M1

431

17.0

L1

2225

87.6

100

3.9

190

7.5

L8 M8 L6 M6

AWS-B REMOTE 22-3C FAN DIM

334042901

3 3

L4 M4 M2 L2

180 IM 1167

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 136: AWS450BTS, AWS450BTH, AWS470BTS Remote Evaporator (Non-VFD) Lifting & Mounting Locations

CONTROL BOX

IM 1167 181

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 137: AWS475BTH, AWS500BTS Remote Evaporator (Non-VFD) Lifting & Mounting Locations

CONTROL BOX

182 IM 1167

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 138: AWS500BTH, AWS525BTS Remote Evaporator (Non-VFD) Lifting & Mounting Locations

CONTROL BOX

IM 1167 183

Remote Evaporator Lifting & Mounting Locations (Non-VFD)

Figure 139: AWS530BTH, AWS550BTS Remote Evaporator (Non-VFD) Lifting & Mounting Locations (Page 1 of 3)

CONTROL BOX

184 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 140: AWS170BDS(380-460V) Remote Evaporator (VFD)

X CONTROL BO

152

6.0

0

0

610

24.0

2438

96.0

1727

68.0

3638

143.2

5208

205.0

5089

200.3

6118

240.9

IM 1167 185

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 141: AWS190BDS (380-460V), AWS200BDS(380-460V), AWS210BDH(380-460V) Remote Evaporator (VFD)

X CONTROL BO

610

24.0

152

6.0

0

0

2438

96.0

1727

68.0

3638

143.2

5208

205.0

5089

200.3

6118

240.9

186 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 142: AWS230BDH(380-460V), AWS250BDH(380-460V) Remote Evaporator (VFD)

X CONTROL BO

7018

276.3

6608

260.2

5208

205.0

5089

200.3

3638

143.2

2438

96.0

1727

68.0

610

24.0

152

6.0

0

0

IM 1167 187

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 143: AWS280BDH (460V), AWS300BDH (460v), AWS240BDP(380-460V) Remote Evaporator (VFD)

X CONTROL BO

152

6.0

0

0

610

24.0

2438

96.0

1727

68.0

3638

143.2

5208

205.0

5089

200.3

7508

295.6

7089

279.1

7918

311.7

188 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 144: AWS280BDH(380-400V), AWS300BDH (380-400V) Remote Evaporator (VFD)

X CONTROL BO

0

0

873

34.4

410

16.1

1568

61.7

3348

131.8

3069

120.8

5878

231.4

5759

226.7

8589

338.1

8179

322.0

7758

305.4

IM 1167 189

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 145: AWS265BDP(380-460V), AWS290BDP(380-460V) Remote Evaporator (VFD)

X CONTROL BO

610

24.0

152

6.0

0

0

2438

96.0

1727

68.0

3638

143.2

5208

205.0

5089

200.3

8818

347.2

8408

331.0

7782

306.4

190 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 146: AWS310BDP, AWS330BDP Remote Evaporator (VFD)

X CONTROL BO

610

24.0

0

0

6.0

152

1727

68.0

2438

96.0

3638

143.2

6259

246.4

5208

205.0

9716

382.5

9306

366.4

8682

341.8

IM 1167 191

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 147: AWS310BDP, AWS330BDP, AWS330BDH, AWS350BDH Remote Evaporator (VFD)

X CONTROL BO

0

0

410

16.1

872

34.3

1568

61.7

3349

131.9

3069

120.8

6928

272.8

5878

231.4

10389

409.0

9979

392.9

9353

368.2

192 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 148: AWS365BDP, AWS390BDH Remote Evaporator (VFD)

X

0

0

410

16.1

872

34.3

CONTROL BO

1568

61.7

3349

131.9

3069

120.8

10079

396.8

9353

368.2

11688

460.2

6968

274.3

6369

250.8

IM 1167 193

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 149: AWS400BDP(380-460V), AWS410BDH(380-460V) Remote Evaporator (VFD)

X CONTROL BO

872

34.3

410

16.1

0

0

1568

61.7

3349

131.9

3069

120.8

11470

451.6

10931

430.3

12589

495.6

9116

358.9

6918

272.3

6369

250.8

194 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 150: AWS450BTH(380-460V) Remote Evaporator (VFD)

X

0

0

409

16.1

872

34.3

1568

61.7

CONTROL BO

3349

131.9

3068

120.8

7406

291.6

6968

274.3

8973

353.3

11468

451.5

10930

430.3

12589

495.6

IM 1167 195

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 151: AWS475BTH (380-460V)Remote Evaporator (VFD)

X CONTROL BO

409

16.1

0

0

872

34.3

1568

61.7

3349

131.9

3068

120.8

11533

454.0

11469

451.5

13488

531.0

7406

291.6

6968

274.3

8973

353.3

196 IM 1167

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 152: AWS500BTH (380-460V)Remote Evaporator (VFD)

409

16.1

0

0

1568

61.7

872

34.3

X CONTROL BO

3349

131.9

3068

120.8

12968

510.6

11729

461.8

9968

392.4

7404

291.5

6968

274.3

14389

566.5

IM 1167 197

Remote Evaporator Lifting & Mounting Locations (VFD)

Figure 153: AWS530BTH (380-460V)Remote Evaporator (VFD)

0

0

16.1

409

872

34.3

X CONTROL BO

1568

61.7

3349

131.9

3068

120.8

12715

500.6

10662

419.8

15289

601.9

14768

581.4

7404

291.5

6968

274.3

198 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Remote Evaporator (Non-VFD) Physical Data

Table 108: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

AWS190BDS Remote Evap AWS210BDS Remote Evap AWS225BDS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

180.1 (633)

145 (66) 145 (66)

245 x 88 x 100

(6220 x 2225 x 2548)

11515 (5223)

11515 (5223)

1786 (810)

676 (307)

477 (216)

201.3 (708)

165 (75) 165 (75)

245 x 88 x 100

(6220 x 2225 x 2548)

12244 (5554)

12244 (5554)

1786 (810)

788 (357)

477 (216)

216.3 (760)

165 (75) 165 (75)

245 x 88 x 100

(6220 x 2225 x 2548)

12746 (5782)

12746 (5782)

1786 (810)

788 (357)

477 (216)

160 (73) 160 (73) Weight-Add for PFCC option, lbs (kg) 160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 95 (334)

Minimum Capacity (% of Full Load) 15

95 (334) 95 (334)

15

115 (404) 115 (404)

15

115 (404)

Oil charge per circuit , gallons (liters) 4.5 (17) 4.5 (17) 4.5 (17) 5.5 (21) 5.5 (21) 5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

208 (94) 208 (94) 250 (113) 250 (113) 250 (113) 250 (113)

123.1 (11.4) 123.1 (11.4) 147.7 (13.7) 147.7 (13.7) 147.7 (13.7) 147.7 (13.7)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

5

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW) 1.4 (1.05)

5

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

850

6984 (35)

110850 (52315) Airflow, cfm (l/s)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 16 x 406 (406 x 2750)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

68 (258)

6 (168)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

152 (1048)

325 (2241)

6

1.4 (1.05)

850

6984 (35)

6

133020 (62778)

16 x 108 (406 x 2750)

66 (251)

6 (168)

152 (1048)

325 (2241)

6

1.4 (1.05)

850

6984 (35)

16 x 108 (406 x 2750)

66 (251)

6 (168)

152 (1048)

325 (2241)

6

133020 (62778)

IM 1167 199

Remote Evaporator (Non-VFD) Physical Data

Table 109: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

AWS250BDS Remote Evap AWS260BDS Remote Evap AWS290BDS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

235.8 (829)

185 (84) 185 (84)

280 x 88 x 100

(7121 x 2225 x 2548)

13666 (6199)

13666 (6199)

2084 (945)

900 (408)

477 (216)

250.5 (881)

185 (84) 185 (84)

280 x 88 x 100

(7121 x 2225 x 2548)

13666 (6199)

13666 (6199)

2084 (945)

900 (408)

477 (216)

282.9 (995)

210 (95) 210 (95)

316 x 88 x 100

(8022 x 2225 x 2548)

15158 (6876)

15158 (6876)

2372 (1076)

1012 (459)

477 (216)

Weight-Add for PFCC option, lbs (kg) 160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 115 (404)

Minimum Capacity (% of Full Load) 15

135 (475)

Oil charge per circuit , gallons (liters) 5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

291 (132) 291 (132) 291 (132) 291 (132) 333 (151) 333 (151)

172.3 (16.0) 172.3 (16.0) 172.3 (16.0) 172.3 (16.0) 196.9 (18.3) 196.9 (18.3)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

7

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW) 1.4 (1.05)

7 7

15

7 8

15

8

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

850

6984 (35)

155190 (73241) Airflow, cfm (l/s)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 16 x 108 / (406 x 2750)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

64 (243)

6 (168)

Max. Water Pressure, psi (kPa) 152 (1048)

160 (73)

135 (475) 135 (475)

1.4 (1.05)

850

6984 (35)

155190 (73241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

160 (73)

135 (475) 155 (545)

1.4 (1.05)

850

6984 (35)

177360 (83704)

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241) 325 (2241) 325 (2241)

200 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 110: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

AWS310BDS Remote Evap AWS350BDS Remote Evap AWS375BDS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

300.4 (1056)

215 (98) 215 (98)

316 x 88 x 100

(8026 x 2225 x 2548)

15854 (7191)

15854 (7191)

2372 (1076)

1012 (459)

477 (216)

160 (73)

340.6 (1197)

265 (120) 265 (120)

387 x 88 x 100

(9823 x 2225 x 2548)

17550 (7961)

17550 (7961)

2968 (1346)

1236 (561)

477 (216)

160 (73)

361.4 (1271)

265 (120) 265 (120)

387 x 88 x 100

(9823 x 2225 x 2548)

17550 (7961)

17550 (7961)

2968 (1346)

1236 (561)

477 (216)

160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 155 (545)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 6 (23)

15

155 (545)

6 (23)

155 (545)

15

185 (650) 185 (650)

15

185 (650)

6 (23) 6 (23) 6 (23) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

333 (151) 333 (151) 416 (189) 416 (189) 416 (189) 416 (189)

196.9 (18.3) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

8

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

1.4 (1.05)

850

8

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

6984 (35)

177360 (83704)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 20 x 108 / (508 x 2750)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

107 (403)

8 (219)

152 (1048)

325 (2241)

10

1.4 (1.05)

850

6984 (35)

10

221700 (104630)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

10

1.4 (1.05)

850

6984 (35)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

10

221700 (104630)

IM 1167 201

Remote Evaporator (Non-VFD) Physical Data

Table 111: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

AWS400BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

AWS425BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

185 (84)

398.3 (1400)

185 (84) 220 (100)

438 x 88 x 100

(11123 x 2225 x 2548)

20376 (9244)

20376 (9244)

3256 (1477)

1348 (611)

776 (352)

120 (55)

185 (84)

418.7 (1472)

185 (84) 220 (100)

438 x 88 x 100

(11123 x 2225 x 2548)

21044 (9545)

21044 (9545)

3256 (1477)

1348 (611)

776 (352)

120 (55)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 135 (475)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 5.5 (21)

135 (475)

8

5.5 (21)

135 (475)

5.5 (21)

135 (475)

5.5 (21)

135 (475)

8

5.5 (21)

155 (545)

6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

291 (132) 291 (132) 333 (151) 291 (132) 291 (132) 333 (151)

172.3 (16.0) 172.3 (16.0) 196.9 (18.3) 172.3 (16.0) 172.3 (16.0) 196.9 (18.3)

Rows Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

7

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

7

1.4 (1.05)

850

6984 (35) Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s) 266040 (125556)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

225 (850)

10 (273)

152 (1048)

325 (2241)

8 7 7

1.4 (1.05)

850

6984 (35)

243870 (115094)

26 x 130 / (660 x 3300)

225 (850)

10 (273)

152 (1048)

325 (2241)

8

202 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 112: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

AWS450BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

AWS470BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

210 (95)

441.4 (1552)

210 (95) 220 (100)

473 x 88 x 100

(12024 x 2225 x 2548)

22357 (10141)

210 (95)

459.2 (1615)

210 (95) 220 (100)

473 x 88 x 100

(12024 x 2225 x 2548)

23051 (10456) Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

22357 (10141)

3553 (1612)

23051 (10456)

3553 (1612)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 135 (475)

1460 (662)

776 (352)

120 (55)

1460 (662)

776 (352)

120 (55)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

333 (151)

155 (545)

8

6 (23)

333 (151)

155 (545)

6 (23)

333 (151)

155 (545)

6 (23)

333 (151)

155 (545)

8

6 (23)

333 (151)

155 (545)

6 (23)

333 (151)

196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3)

3 / 16 3 / 16 3 / 16 Rows Deep/Fins Per Inch 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

8

Fan Diameter: 31.5 in. (800 mm)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

3 / 16

8

Fan Motor, hp (kW)

Fan & Motor RPM

1.4 (1.05)

850

6984 (35) Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

266040 (125556)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

26 x 130 / (660 x 3300)

Water Volume, gallons (liters) 225 (850)

10 (273)

152 (1048)

325 (2241)

3 / 16

8 8 8

1.4 (1.05)

850

6984 (35)

266040 (125556)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

8

IM 1167 203

Remote Evaporator (Non-VFD) Physical Data

Table 113: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

AWS500BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

AWS525BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

210 (95)

488.3 (1717)

210 (95) 280 (127)

509 x 88 x 100

(12921 x 2225 x 2548)

23835 (10811)

265 (120)

517.7 (1820)

265 (120) 220 (100)

544 x 88 x 100

(13823 x 2225 x 2548)

25064 (11369) Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

23835 (10811)

3870 (1755)

25064 (11369)

4168 (1891)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW) 155 (545)

1572 (713)

776 (352)

120 (55)

1684 (764)

776 (352)

120 (55)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

333 (151)

155 (545)

8

6 (23)

333 (151)

185 (650)

6 (23)

416 (189)

185 (650)

6 (23)

416 (189)

185 (650)

8

6 (23)

416 (189)

155 (545)

6 (23)

333 (151)

196.9 (18.3) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8) 196.9 (18.3)

3 / 16 3 / 16 3 / 16 Rows Deep/Fins Per Inch 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

8

Fan Diameter: 31.5 in. (800 mm)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

3 / 16

8

Fan Motor, hp (kW)

Fan & Motor RPM

1.4 (1.05)

850

6984 (35) Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

288210 (136019)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

26 x 130 / (660 x 3300)

Water Volume, gallons (liters) 220 (831)

10 (273)

152 (1048)

325 (2241)

3 / 16

10 10 10

1.4 (1.05)

850

6984 (35)

310380 (146482)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

8

204 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 114: Physical Data, Remote Evaporator (Non-VFD) Models (Standard Efficiency)

Data

AWS550BTS Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

270 (122)

547.3 (1924)

270 (122)

580 x 88 x 100

25875 (11737)

25875 (11737)

280 (127)

(14722 x 2225 x 2548)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

4466 (2026)

1796 (815)

776 (352)

120 (55)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

185 (650)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

185 (650)

8

6 (23)

185 (650)

6 (23)

Pumpdown Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

416 (189) 416 (189) 416 (189)

246.1 (22.8) 246.1 (22.8) 246.1 (22.8)

3 / 16 3 / 16 Rows Deep/Fins Per Inch 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

10

Fan Diameter: 31.5 in. (800 mm)

10 10

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow, cfm (l/s)

1.4 (1.05)

850

6984 (35)

332550 (156945)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

220 (831)

10 (273)

152 (1048)

Max. Refrigerant Press., psi (kPa)

325 (2241)

IM 1167 205

Remote Evaporator (Non-VFD) Physical Data

Table 115: Physical Data, Remote Evaporator (Non-VFD) Models (High Efficiency)

Data

AWS210BDH Remote Evap AWS230BDH Remote Evap AWS250BDH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

205.7 (723)

160 (73) 160 (73)

245 x 88 x 100

(6220 x 2225 x 2548)

12229 (5547)

12229 (5547)

1876 (851)

788 (357)

477 (216)

160 (73)

225.2 (792)

180 (82) 180 (82)

280 x 88 x 100

(7121 x 2225 x 2548)

13754 (6239)

13754 (6239)

2084 (945)

900 (408)

477 (216)

160 (73)

240.6 (846)

180 (82) 180 (82)

280 x 88 x 100

(7121 x 2225 x 2548)

14417 (6540)

14417 (6540)

2084 (945)

900 (408)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

105 (369)

15

105 (369) 105 (369)

15

125 (439) 125 (439)

15

125 (439)

Oil charge per circuit , gallons (liters)

4.5 (17)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

4.5 (17) 4.5 (17) 5.5 (21) 5.5 (21) 5.5 (21)

Pumpdow n Capacity, lbs (kg)

250 (113) 250 (113) 291 (132) 291 (132) 291 (132) 291 (132)

Coil Inlet Face Area, sq. ft. (sq. m.)

147.7 (13.7) 147.7 (13.7) 172.3 (16.0) 172.3 (16.0) 172.3 (16.0) 172.3 (16.0)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

6

1.4 (1.05)

850

6984 (35)

Airflow , cfm (l/s)

133020 (62778)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

6 7

1.4 (1.05)

850

6984 (35)

155190 (73241)

7 7

1.4 (1.05)

850

6984 (35)

155190 (73241)

7

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

16 x 108 / (406 x 2750)

66 (251)

6 (168)

152 (1048)

325 (2241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

325 (2241)

16 x 108 / (406 x 2750)

64 (243)

6 (168)

152 (1048)

325 (2241)

206 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 116: Physical Data, Remote Evaporator (Non-VFD) Models (High Efficiency)

Data

AWS280BDH Remote Evap AWS300BDH Remote Evap AWS330BDH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

271.9 (956)

230 (104) 250 (113)

316 x 88 x 100

(8022 x 2225 x 2548)

15230 (6908)

15230 (6908)

2372 (1076)

1012 (459)

477 (216)

160 (73)

288.7 (1015)

250 (113) 250 (113)

316 x 88 x 100

(8022 x 2225 x 2548)

15230 (6908)

15230 (6908)

2372 (1076)

1012 (459)

477 (216)

160 (73)

327.3 (1151)

260 (118) 285 (129)

387 x 88 x 100

(9823 x 2225 x 2548)

17576 (7972)

17576 (7972)

2968 (1346)

1236 (561)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

125 (439)

15

150 (528) 150 (528)

15

150 (528) 150 (528)

15

175 (615)

Oil charge per circuit , gallons (liters)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

5.5 (21) 5.5 (21) 5.5 (21) 5.5 (21) 6 (23)

Pumpdow n Capacity, lbs (kg)

333 (151) 333 (151) 333 (151) 333 (151) 416 (189) 416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8)

Row s Deep/Fins Per Inch

3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

8

1.4 (1.05)

850

6984 (35)

Airflow , cfm (l/s)

177360 (83704)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

8 8

1.4 (1.05)

850

6984 (35)

177360 (83704)

8 10

1.4 (1.05)

850

6984 (35)

10

221700 (104630)

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

325 (2241)

20 x 108 / (508 x 2750)

107 (403)

8 (219)

152 (1048)

325 (2241)

20 x 108 / (508 x 2750)

102 (386)

8 (219)

152 (1048)

325 (2241)

IM 1167 207

Remote Evaporator (Non-VFD) Physical Data

Table 117: Physical Data, Remote Evaporator (Non-VFD) Models (High Efficiency)

Data

AWS350BDH Remote Evap AWS390BDH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

AWS410BDH Remote Evap

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

348.1 (1224)

285 (129) 285 (129)

387 x 88 x 100

(9823 x 2225 x 2548)

18282 (8293)

18282 (8293)

2968 (1346)

1236 (561)

477 (216)

160 (73)

378.7 (1332)

285 (129) 331 (150)

438 x 88 x 100

(11123 x 2225 x 2548)

19750 (8959)

19750 (8959)

3256 (1477)

1348 (611)

477 (216)

160 (73)

409.8 (1441)

331 (150) 331 (150)

473 x 88 x 101

(12024 x 2225 x 2548)

20279 (9335)

20279 (9335)

3553 (1612)

1460 (662)

477 (216)

160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

175 (615) 175 (615) 175 (615) 205 (721) 205 (721) 205 (721)

Minimum Capacity (% of Full Load)

15

Oil charge per circuit , gallons (liters)

Pumpdow n Capacity, lbs (kg)

6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

246.1 (22.8)

6 (23)

416 (189)

246.1 (22.8)

6 (23)

416 (189)

246.1 (22.8)

6 (23)

500 (227)

295.3 (27.4)

6 (23)

500 (227)

295.3 (27.4)

6 (23)

500 (227)

295.3 (27.4)

Row s Deep/Fins Per Inch

3 / 16

15

3 / 16 3 / 16

15

3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

10

1.4 (1.05)

10 10

1.4 (1.05)

12 12

1.4 (1.05)

12

Fan & Motor RPM

850 850 850

Fan Tip Speed, fpm (m/s)

6984 (35) 6984 (35) 6984 (35)

Airflow , cfm (l/s)

221700 (104630) 243870 (115094) 266040 (125556)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

20 x 108 / (508 x 2750)

Water Volume, gallons (liters)

102 (386)

Victaulic inlet/outlet conn. in. (mm)

8 (219)

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241)

20 x 108 / (508 x 2750)

100 (377)

8 (219)

152 (1048)

325 (2241)

20 x 108 / (508 x 2750)

100 (377)

8 (219)

152 (1048)

325 (2241)

208 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 118: Physical Data, Remote Evaporator (Non-VFD) Models (High Efficiency)

Data

AWS450BTH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

AWS475BTH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

250 (113)

446.3 (1569)

250 (113) 250 (113)

473 x 88 x 100

(12024 x 2225 x 2548)

22135 (10040)

22135 (10040)

3553 (1612)

1460 (662)

776 (352)

120 (55)

250 (113)

470.3 (1654)

250 (113)

509 x 88 x 100

295 (134)

(12921 x 2225 x 2548)

23608 (10709)

23608 (10709)

3870 (1755)

1572 (713)

776 (352)

120 (55)

Minimum Capacity (% of Full Load)

150 (528) 150 (528)

8

150 (528) 150 (528) 150 (528)

8

175 (615)

Oil charge per circuit , gallons (liters)

Pumpdow n Capacity, lbs (kg)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

333 (151)

Coil Inlet Face Area, sq. ft. (sq. m.)

196.9 (18.3)

5.5 (21)

333 (151)

196.9 (18.3)

5.5 (21)

333 (151)

196.9 (18.3)

5.5 (21)

333 (151)

196.9 (18.3)

5.5 (21)

333 (151)

196.9 (18.3)

6 (23)

416 (189)

246.1 (22.8)

Row s Deep/Fins Per Inch

3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

8 8

1.4 (1.05)

8 8 8

1.4 (1.05)

10

Fan & Motor RPM

850 850

Fan Tip Speed, fpm (m/s)

6984 (35) 6984 (35)

Airflow , cfm (l/s)

266040 (125556) 288210 (136019)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

225 (850)

Victaulic inlet/outlet conn. in. (mm)

10 (273)

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

IM 1167 209

Remote Evaporator (Non-VFD) Physical Data

Table 119: Physical Data, Remote Evaporator (Non-VFD) Models (High Efficiency)

Data

AWS500BTH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

AWS530BTH Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 3

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

Oil charge per circuit , gallons (liters)

295 (134)

499.4 (1756)

295 (134)

544 x 88 x 100

250 (113)

(13823 x 2225 x 2548)

25528 (11579)

25528 (11579)

4168 (1891)

175 (615)

6 (23)

1684 (764)

776 (352)

120 (55)

175 (615)

8

6 (23)

150 (528)

5.5 (21)

295 (134)

175 (615)

6 (23)

528.3 (1857)

295 (134)

580 x 88 x 100

295 (134)

(14722 x 2225 x 2548)

26997 (12248)

26997 (12248)

4466 (2026)

1796 (815)

776 (352)

120 (55)

175 (615)

8

6 (23)

175 (615)

6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

Pumpdow n Capacity, lbs (kg)

Coil Inlet Face Area, sq. ft. (sq. m.)

416 (189) 416 (189) 333 (151) 416 (189) 416 (189) 416 (189)

246.1 (22.8) 246.1 (22.8) 196.9 (18.3) 246.1 (22.8) 246.1 (22.8) 246.1 (22.8)

Row s Deep/Fins Per Inch 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

10

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

Airflow , cfm (l/s)

10

1.4 (1.05)

850

6984 (35)

310380 (146482)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm) 26 x 130 / (660 x 3300)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

220 (831)

10 (273)

152 (1048)

325 (2241)

8 10 10

1.4 (1.05)

850

6984 (35)

332550 (156945)

26 x 130 / (660 x 3300)

220 (831)

10 (273)

152 (1048)

325 (2241)

10

210 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 120: Physical Data, Remote Evaporator (Non-VFD) Models (Premium Efficiency)

Data

AWS240BDP Remote Evap AWS265BDP Remote Evap AWS290BDP Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

232.8 (818)

200 (91) 200 (91)

316 x 88 x 100

(8022 x 2225 x 2548)

256.4 (901)

225 (102)

277.5 (976)

225 (102) (235) (107) (235) (107)

351 x 88 x 100

(8923 x 2225 x 2548)

351 x 88 x 100

(8923 x 2225 x 2548)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

14142 (6415)

14142 (6415)

15558 (7057)

15558 (7057)

16075 (7292)

16075 (7292)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

2372 (1076)

1012 (459)

477 (216)

160 (73)

2679 (1215)

1124 (510)

477 (216)

160 (73)

2679 (1215)

1124 (510)

477 (216)

160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

105 (369) 105 (369) 105 (369) 125 (439) 125 (439) 125 (439)

Minimum Capacity (% of Full Load)

15

Oil charge per circuit , gallons (liters)

Pumpdow n Capacity, lbs (kg)

4.5 (17)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

333 (151)

Coil Inlet Face Area, sq. ft. (sq. m.)

196.9 (18.3)

4.5 (17)

333 (151)

196.9 (18.3)

4.5 (17)

375 (170)

221.5 (20.6)

5.5 (21)

375 (170)

221.5 (20.6)

5.5 (21)

375 (170)

221.5 (20.6)

5.5 (21)

375 (170)

221.5 (20.6)

Row s Deep/Fins Per Inch

3 / 16

15

3 / 16 3 / 16

15

3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

8

1.4 (1.05)

8 9

1.4 (1.05)

9 9

1.4 (1.05)

9

Fan & Motor RPM

850 850 850

Fan Tip Speed, fpm (m/s)

6984 (35) 6984 (35) 6984 (35)

Airflow , cfm (l/s)

177360 (83704) 199530 (94167) 199530 (94167)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

20 x 154 / (508 x 3900)

Water Volume, gallons (liters)

158 (599)

Victaulic inlet/outlet conn. in. (mm)

8 (2199

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241)

20 x 154 / (508 x 3900)

158 (599)

8 (219)

152 (1048)

325 (2241)

26 x 154 / (660 x 3900)

276 (1043)

10 (273)

152 (1048)

325 (2241)

IM 1167 211

Remote Evaporator (Non-VFD) Physical Data

Table 121: Physical Data, Remote Evaporator (Non-VFD) Models (Premium Efficiency)

Data

AWS310BDP Remote Evap AWS330BDP Remote Evap AWS365BDP Remote Evap

CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2 CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

303.9 (1068) 324.9 (1142) 355 (1248)

Unit Operating Charge lbs (kg)

250 (113) 250 (113) 260 (118) 260 (118) 260 (118) 300 (136)

Unit Dimensions

387 x 88 x 100 387 x 88 x 100 438 x 88 x 100

L x W x H, in. (mm)

9823 x 2225 x 2545 9823 x 2225 x 2545 11123 x 2225 x 2548

Unit Operating Weight, lbs. (kg)

16970 (7698) 16970 (7698) 19102 (8665)

Unit Shipping Weight, lbs (kg)

16970 (7698) 16970 (7698) 19102 (8665)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

2968 (1346)

1236 (561)

477 (216)

160 (73)

2968 (1346)

1236 (561)

477 (216)

160 (73)

3256 (1477)

1348 (611)

477 (216)

160 (73)

COMPRESSORS, SCREW, SEMI-HERMETIC

Nominal Capacity, tons (kW)

125 (439) 150 (528) 150 (528) 150 (528) 150 (528) 175 (615)

Minimum Capacity (% of Full Load)

15

Oil charge per circuit , gallons (liters)

Pumpdow n Capacity, lbs (kg)

5.5 (21)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

416 (189)

Coil Inlet Face Area, sq. ft. (sq. m.)

246.1 (22.8)

5.5 (21)

416 (189)

246.1 (22.8)

5.5 (21)

416 (189)

246.1 (22.8)

5.5 (21)

416 (189)

246.1 (22.8)

5.5 (21)

416 (189)

246.1 (22.8)

6 (23)

500 (227)

295.3 (27.4)

Row s Deep/Fins Per Inch

3 / 16

15

3 / 16 3 / 16

15

3 / 16 3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

10

1.4 (1.05)

10 10

1.4 (1.05)

10 10

1.4 (1.05)

12

Fan & Motor RPM

850 850 850

Fan Tip Speed, fpm (m/s)

6984 (35) 6984 (35) 6984 (35)

Airflow , cfm (l/s)

221700 (104630) 221700 (104630) 243870 (115093)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

26 x 154 / (660 x 3900)

Water Volume, gallons (liters)

276 (1043)

Victaulic inlet/outlet conn. in. (mm)

10 (273)

Max. Water Pressure, psi (kPa)

152 (1048)

Max. Refrigerant Press., psi (kPa) 325 (2241)

26 x 154 / (660 x 3900)

259 (979)

10 (273)

152 (1048)

325 (2241)

26 x 154 / (660 x 3900)

259 (979)

10 (273)

152 (1048)

325 (2241)

212 IM 1167

Remote Evaporator (Non-VFD) Physical Data

Table 122: Physical Data, Remote Evaporator (Non-VFD) Models (Premium Efficiency)

Data

AWS400BDP Remote Evap

CIRCUIT 1 CIRCUIT 2

BASIC DATA

Unit Cap. @ AHRI tons (kW)

Unit Operating Charge lbs (kg)

Unit Dimensions

L x W x H, in. (mm)

Unit Operating Weight, lbs. (kg)

Unit Shipping Weight, lbs (kg)

Weight-Add for Copper Fins, lbs (kg)

Weight-Add for Louvered Panels, lbs (kg)

Weight-Add for Sound Enclosures, lbs (kg

Weight-Add for PFCC option, lbs (kg)

COMPRESSORS, SCREW, SEMI-HERMETIC

385.4 (1355)

310 (141) 310 (141)

473 x 88 x 100

(12024 x 2225 x 2548)

20279 (9335)

20279 (9335)

3553 (1612)

1460 (662)

477 (216)

160 (73)

Nominal Capacity, tons (kW)

Minimum Capacity (% of Full Load)

175 (615)

15

175 (615)

Oil charge per circuit , gallons (liters) 6 (23)

CONDENSERS, HIGH EFFICIENCY FIN AND TUBE TYPE

6 (23)

Pumpdow n Capacity, lbs (kg) 500 (227) 500 (227)

Coil Inlet Face Area, sq. ft. (sq. m.)

Row s Deep/Fins Per Inch

295.3 (27.4) 295.3 (27.4)

3 / 16 3 / 16

CONDENSER FANS, DIRECT DRIVE PROPELLER TYPE

Number of Fans per Circuit

Fan Diameter: 31.5 in. (800 mm)

Fan Motor, hp (kW)

12 12

Fan & Motor RPM

Fan Tip Speed, fpm (m/s)

1.4 (1.05)

850

6984 (35)

Airflow , cfm (l/s) 266040 (125556)

REMOTE EVAPORATOR, DIRECT EXPANSION SHELL AND TUBE

Shell Dia.-Tube Length, in.(mm)

Water Volume, gallons (liters)

Victaulic inlet/outlet conn. in. (mm)

Max. Water Pressure, psi (kPa)

Max. Refrigerant Press., psi (kPa)

26 x 154 / (660 x 3900)

259 (979)

10 (273)

152 (1048)

325 (2241)

IM 1167 213

Remote Evaporator (Non-VFD) Physical Data

214 IM 1167

Troubleshooting Chart

Table 123: Troubleshooting Chart

PROBLEM POSSIBLE CAUSES

1.

Main power switch open.

2.

Unit system switch open.

3.

Circuit switch in pumpdown position.

4.

Chilled water flow switch not closed.

5.

Circuit breakers open.

6.

Fuse blown or circuit breakers tripped.

Compressor will not run.

7.

Compressor overload tripped.

8.

Defective compressor contactor or contactor coil.

9.

System shut down by protection devices.

10.

No cooling required.

11.

Motor electrical trouble.

12.

Loose wiring.

13.

Cycle timer active

Compressor Noisy or Vibrating

1.

Compressor Internal problem.

2.

Oil injection not adequate.

Compressor

Overload Tripped or Circuit Breaker

Trip or Fuses

Blown

Compressor Will

Not Load or

Unload

3.

Liquid slugging

1.

Low voltage during high load condition.

2.

Loose power wiring.

3.

Power line fault causing unbalanced voltage.

4.

Defective or grounded wiring in the motor.

5.

High discharge pressure.

1.

Defective capacity control solenoids.

2.

Unloader mechanism defective.

1.

Noncondensables in the system.

High Discharge

Pressure

Low Discharge

Pressure

2.

Fans not running.

3.

Fan control out of adjustment.

4.

System overcharged with refrigerant.

5.

Dirty condenser coil.

6.

Air recirculation from fan outlet into unit coils.

7.

Air restriction into unit.

1.

Wind effect or a low ambient temperature.

2.

Condenser fan control not correct.

3.

Low suction pressure.

4.

Compressor operating unloaded.

5.

Compressor problem, not pumping properly

Troubleshooting Chart

POSSIBLE CORRECTIVE STEPS

1.

Close switch.

2.

Check unit status on MicroTech III display. Close switch.

3.

Check circuit status on MicroTech III display. Close switch. Check pump operation for flow.

4.

Check unit status on MicroTech display. Check Chilled water pump.

5.

Close circuit breakers.

6.

Check electrical circuits and motor windings for shorts or grounds.

Investigate for possible overloading. Check for loose or corroded connections. Reset breakers or replace fuses after fault is corrected.

7.

Overloads are manual reset. Reset overload at button on overload.

Clear alarm on Microtech III display.

8.

Check wiring. Repair or replace contactor.

9.

Determine type and cause of shutdown and correct problem before attempting to restart.

10.

Check control settings. Wait until unit calls for cooling.

11.

See 6,7,8 above.

12.

Check circuits for voltage at required points. Tighten all power wiring terminals.

13.

Check timer operation

1.

Contact McQuayService.

2.

Check that oil sight glass has oil visible during steady operation

Check pressure drop across oil filter and oil separator sight glasses

3.

Check suction and discharge superheat

1.

Check supply voltage for excessive voltage drop.

2.

Check and tighten all connections.

3.

Check supply voltage.

4.

Check motor and replace if defective.

5.

See corrective steps for high discharge pressure.

1.

Check solenoids for proper operation. See capacity control section.

2.

Contact McQuayService .

1.

Remove noncondensables from the condenser coil after shutdown per EPA regulations.

2.

Check fan fuses and electrical circuits.

3.

Check that fan setup in the controller matches unit fan number.

Check Microtech III condenser pressure sensor for proper operation.

4.

Check discharge superheat and condenser subcooling. Remove the excess charge.

5.

Clean the condenser coil.

6.

Remove the cause of recirculation.

7.

Remove obstructions near unit.

1.

Protect unit against excessive wind into vertical coils.

2.

Check that fan setup in the Microtech III controller matches unit fan number. Check VFD fan on units with VFD option.

3.

See corrective steps for low suction pressure.

4.

See corrective steps for failure to load.

5.

Repair or replace compressor

IM 1167 215

Troubleshooting Chart

Table 123: Troubleshooting Chart

1.

Inadequate refrigerant charge quantity.

Low Suction

Pressure

Low Oil Level Trip

High Suction

Pressure

2.

Clogged liquid line filter-drier.

3.

Expansion valve malfunctioning.

4.

Insufficient water flow to evaporator.

5.

Water temperature leaving evaporator is too low.

6.

Evaporator tubes fouled.

7.

Suction valve (partially) closed.

8.

Glycol in chilled water system

1.

Insufficient oil.

2.

Low discharge pressure.

3.

Low discharge superheat

1.

Excessive load - high water temperature.

2.

Compressor unloaders not loading compressor.

3.

Superheat is too low.

4.

System overcharged

5.

Compressor bypassing gas

1.

Check liquid line sight glass. Check unit for leaks. Repair and recharge to clear sight glass at full load, all fans on, 75

F min OAT..

2.

Check pressure drop across the filter-drier. Replace filter-driers.

3.

Check expansion valve superheat and valve opening position.

Replace valve only if certain valve is not working.

4.

Check water pressure drop across the evaporator and adjust gpm.

5.

Adjust water temperature to higher value.

6.

Inspect by removing water piping. Clean chemically.

7.

Open valve.

8.

Check glycol concentration

1.

Check oil line and separator sight glasses.

2.

Faulty EXV.

3.

Check and correct cause of low DSH

1.

Reduce load or add additional equipment.

2.

See corrective steps below for failure of compressor to load.

3.

Check superheat on Microtech III display. Check suction line sensor installation and sensor.

4.

Check charge, an overcharge raises suction pressure

5.

Check evaporator, suction and discharge pressures

216 IM 1167

Daikin McQuay Training and Development

Now that you have made an investment in modern, efficient Daikin McQuay equipment, its care should be a high priority. For training information, please visit us at www.daikinmcquay.com/training, or call 540-248-9201 to speak to the Training Department.

Warranty

All Daikin McQuay equipment is sold pursuant to its standard terms and conditions of sale, including Limited

Product Warranty. Consult your local Daikin McQuay Representative for warranty details. To find your local Daikin

McQuay Representative, go to www.daikinmcquay.com.

This document contains the most current product information as of this printing. For the most up-to-date product information, please go to www.daikinmcquay.com.

© 2012 McQuay International • www.daikinmcquay.com • 800-432-1342 07/23/12

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
