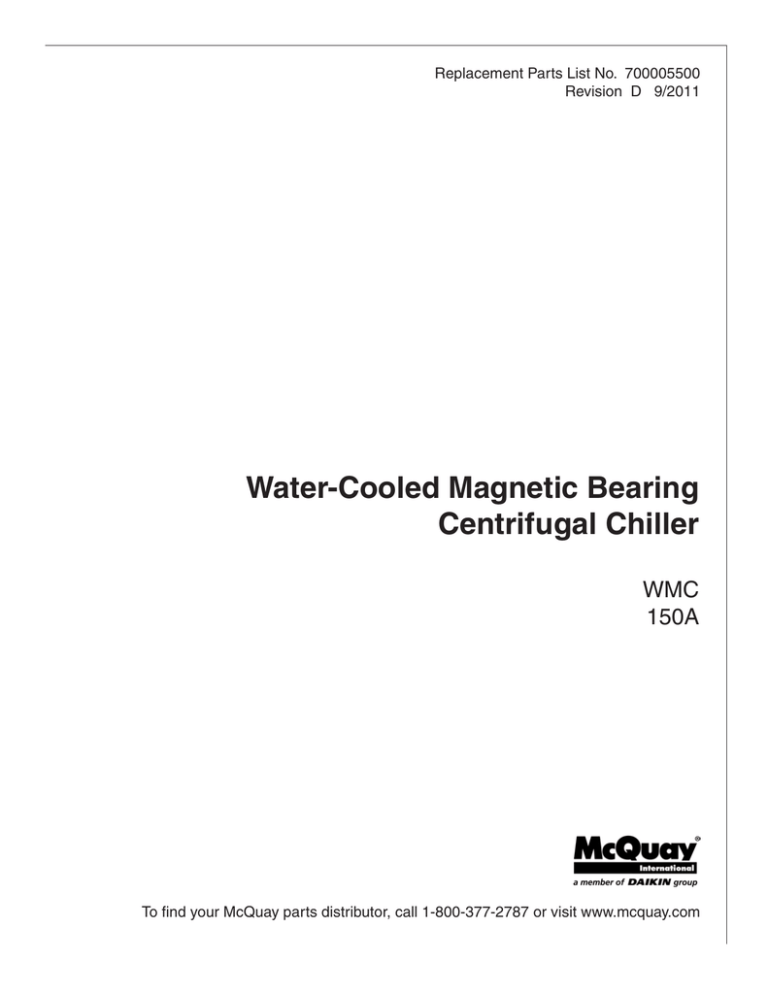

Replacement Parts List No. 700005500
Revision D 9/2011
Water-Cooled Magnetic Bearing
Centrifugal Chiller
WMC
150A
To find your McQuay parts distributor, call 1-800-377-2787 or visit www.mcquay.com
Contents
Parts List Revision History........................................................................................................................ 3
Complete Model Nomenclature...........................................................................................................4 - 5
Electrical Legend...................................................................................................................................... 6
Unit Components...................................................................................................................................... 7
Frictionless Compressor......................................................................................................................8 - 9
Tubing - Liquid Line and Liquid Injection Line......................................................................................... 10
Tubing - Discharge and Suction Lines.................................................................................................... 11
Condenser.............................................................................................................................................. 12
Evaporator.............................................................................................................................................. 13
Insulation................................................................................................................................................ 14
Unit Controls:
Operator Interface Panel................................................................................................................ 15
Single Point Connection Box.......................................................................................................... 16
Unit Control Box.........................................................................................................................17 - 18
Power Panels.............................................................................................................................19 - 22
Control Box Label............................................................................................................................. 23
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 2
Parts List Revision History
Revision
Date
NEW
06/2005
A
12/08
B
2/2010
C
4/2011
D
9/2011
Description
New
Page 7 - Ref. #5 add ‘Suction’ and Ref #6 add ‘Discharge’ to description.
Page 7 - Added IGBT Assembly.
Page 11 - Corrected Tube description.
Page 21-22 - Added footnote for items that were TBD.
Page 5 - Removed Compressor part #s, added note.
Page 7 - Removed BMCC part #s, added note.
Page 20 - Corrected out-of-focus diagram.
Pages 4 & 5 - Added 2 pags to expand Model Nomenclature.
Pages 7 thru 9: - Updated Compressor information.
Page 12 - Updated Condenser information.
Page 13 - Updated Evaporator information.
Page 14 - Changed note for Insulation.
Pages 15 thru 23 - Re-structured and updated Controls information.
13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 3
Complete Model Nomenclature
WMC 150A TT 13R NN N A E2209 BE 2RA C4 0440 CC Y A C2009 BLYY 2RAYYY
Code
02
03
04
05 06 07
08
C4 1050 CCYY YY A A 134
Code 19
20
21
22 23 24
25
09
124 EE
26
02
Size (in nominal tons)
150A= 150 Tons, Dual Compressors
Voltage
13R= 460V / 60Hz
05
Always NN
06
Always N
27
11
12
13
14 15
16
17
14
2LEYYA SMYDSYYS 0170 Y YY B
28
29
30
31 32 33
Always Y
15
Evaporator Model Revision
A= Evaporator Revision A
16
Condenser
C2009= 20" Diameter, 9 ft. length
C2012= 20" Diameter, 12 ft. length
07
Compressor Model Revision
A= Compressor Revision A
17
Condenser Tubes
Digit 1
Tube Count
Digit 2
L= 0.025 wall, CU Turbo, CSL
Digits 3-4
Always YY
08
Evaporator
E2209= 22" Diameter, 9 ft. length
E2212= 22" Diameter, 12 ft. length
09
Evaporator Tubes
Digit 1
Tube Count
Digit 2
E= 0.025 wall, CU Turbo, EHP
10
Evaporator Heads
Digit 1
2= 2 Pass
Digit 2
R= Right Hand Inlet Nozzle
L= Left hand Inlet Nozzle
Digit 3
A= Standard Victaulic
B= Flanged
18
Condenser Heads
Digit 1
2= 2 Pass
3= 3 Pass
Digit 2
R= Right Hand Inlet Nozzle
L= Left hand Inlet Nozzle
Digit 3
A= Standard Victaulic
B= Flanged
Digits 4-6
Always YYY
11
Evaporator Design Pressure
Digit 1
C= 200 PSIG Refrigerant Side
Digit 2
1= 150 PSIG Waterside, ASME Code
2= 250 PSIG Waterside, ASME Code
3= 350 PSIG Waterside, ASME Code
4= 150 PSIG Waterside, non-ASME Code
5= 300 PSIG Waterside, non-ASME Code
19
Condenser Design Pressure
Digit 1
C= 200 PSIG Refrigerant Side
Digit 2
1= 150 PSIG Waterside, ASME Code
2= 250 PSIG Waterside, ASME Code
3= 350 PSIG Waterside, ASME Code
4= 150 PSIG Waterside, non-ASME Code
5= 300 PSIG Waterside, non-ASME
12
Evaporator Leaving Water Temperature
Degrees Fahrenheit x 10
20
Condenser Max Leaving Water Temperature
Degrees Fahrenheit x 10
Magnetic Bearing Chiller: WMC 150A
18
13
Evaporator Tube Sheet & Head Material
Digit 1
C= Carbon Steel Tube Sheet
Digit 2
C= Carbon Steel Heads
03
Unit Configuration
TT= Standard Compressor, Single Circuit
04
10
Rev. D 9/2011
RPL 700005500 / Page 4
Complete Model Nomenclature
21
Condenser Tube Sheet & Head Material
Digit 1
C= Carbon Steel Tube Sheet
Digit 2
C= Carbon Steel Heads
Digits 3-4
Always YY
22
Always YY
23
Condenser Model Revision
A= Condenser Revision A
24
Pressure Vessel Code
A= ASME
J= Australia ASME with documentation
P= Chinese
T= Taiwan ASME with documentation
1= CRN British Columbia
2= CRN Alberta
3= CRN Saskatchewan
4= CRN Manitoba
5= CRN Ontario
6= CRN Quebec
7= CRN New Brunswick
8= CRN Nova Scotia
9= CRN Prince Edward Island
0= CRN Newfoundland
U= CRN Yukon
25
Refrigerant
134= Refrigerant 134a
26
Refrigerant Weight
example: 124= 1240 lbs divided by 10
27
Expansion Valve
EE= Electronic Expansion Valve
28
Controls
Digit 1
2= Microtech II
Digit 2
L= Large Controller
Digit 3
E= English Language
Digit 4
Always Y
Digit 5
B= BACnet w/ RS485 and Ethernet
L= LonMark
M= ModBus
S= Serial Port w/RS232
Y= None
Digit 6
A= NEMA 1
Magnetic Bearing Chiller: WMC 150A
29
Front End Box Options
Digit 1
S= Single Point
M= Multi-Point
Digit 2
M= Unit Mounted VFD
Digit 3
Y= Standard Filter
P= EMI Filter
Digit 4
D= Disconnect Switch
P= Power Block
Digit 5
Always S
Digit 6
Y= Standard Short Circuit Current Rating
Digit 7
Y= No Ground Fault Protection
F= With Ground Fault Protection
Digit 8
S= Standard Load Balance
30
Rated Load Amps
Compressor RLA
31
Always Y
32
Insulation
Digit 1
H= 3/4" insulation on Evap Shell, Suction Piping,
Compressor Inlet, Motor Barrel, plus High Humidity
3= 1-1/2" insulation on Evap shell; 3/4" insulation on Suction Piping and Compressor Inlet
Y= No Shell Insulation
Digit 2
1= Return Head Insulation
2= Return and Connection Head Insulation
Y= No Head Insulation
33
Water Flow Indication
B= Water Flow Indicator on Evaporator and Condenser
Rev. D 9/2011
RPL 700005500 / Page 5
Electrical Legend
A..................................... Alarm
B1-B10............................ Analog Input Connections
CAP................................ Capacitor
CB................................... Circuit Breaker
CBX................................ Compressor Box
CC.................................. Compressor Controller
CF................................... Condenser Flow Switch
CO.................................. Compressor Off Relay
CP1 & CP2..................... Condenser Pump Cycling Relay
CR.................................. Compressor Relay
CT................................... Control Transformer
CWI................................. Condenser Water Interlocks
C1................................... Cooling Tower Fan Relay (Stage 1)
C2................................... Cooling Tower Fan Relay (Stage 2)
C3................................... Cooling Tower Fan Relay (Stage 3)
C4................................... Cooling Tower Fan Relay (Stage 4)
EF................................... Evaporator Flow Switch
EP1 & 2.......................... Evaporator Pump Cycling Relay
EWI................................. Evaporator Water Interlocks
EXV................................ Electronic Expansion Valve
GDB................................ Guardistor Board
GFP................................ Ground Fault Protector
HG.................................. Hot Gas Solenoid
HR1 & 2.......................... Heater Relay
ID1 thru 18...................... Digital Input Connections
IR2 thru 4........................ Isolation Relay for T2 thru T4
L1................................... Liquid Injection Solenoid
Magnetic Bearing Chiller: WMC 150A
LR.......................................Latch Relay
MA......................................Contactor Auxillary
MC .....................................Motor Cooling Solenoid
MCR...................................Motor Contactor Relay (Starter)
MHP ..................................Mechanical High Pressure Switch
NO1-18, NC1-18.................Digital Output Connections
OC......................................Oil Cooler Solenoid (120 or 24 VAC)
OL . ....................................Overload
OP .....................................Oil Pump Contactor
PTB.....................................Pressure Transducer Board
RL.......................................Reactor, Line Side
SA(Unload), SB(Load)........Vane Control Solenoids
SC.......................................Signal Converter
SW1....................................Unit Start/Stop Switch
SW2....................................Compressor Manual Stop Switch
SW3....................................Remote Start/Stop Switch
SW4....................................Mode Switch
SW5....................................Emergency Stop Switch
T1.......................................Transformer (120VAC)
T2.......................................Transformer (24VAC)
T3.......................................Transformer (24VAC)
T4.......................................Transformer (24VAC)
T5.......................................Transformer (24VAC) / Isolation
VC.......................................Vane Close Switch
VO......................................Vane Open Switch
VR.......................................Voltage Relay
UC......................................Unit Controller
Rev. D 9/2011
RPL 700005500 / Page 6
Unit Components
001
001
175
014
320
321
183
186
Ref. #
Description
Part Number
Quantity
001
Compressor
See Note
2
014
175
183
186
320
321
Mini Ball Valve
Relief Valve 200#
Shut Off Valve
Relief Valve 200#
Flow Sensor
Cable, Flow Sensor, 5 meters
071596201
735045817
735039977 *
735045817
330571401
330571402
4
1
1
1
2
2
Note: Contact McQuay Parts with the compressor model, compressor part number, compressor serial number and BMCC
revision. On dual compressor units, provide same information on other compressor to ensure BMCC compatibility.
* Can use Valve 735039964 and Pipe Nipple 735031797 in place of this valve, if needed.
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 7
Frictionless Compressor
013
003
009
005
014
002
004
015
016
Compressor Isolation
Type 1 - Isolators with Bolts
008
010
018
011
018
006
016
Compressor Isolation
Type 2 - Separate Isolators
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 8
Frictionless Compressor
Quantity
Ref. #
Description
Part Number per compressor
2
Kit, Module, Bearing PVM
300040127
1
3
Kit, Module, DC-DC Converter
300042897
1
4
Kit, Module, Backplane Assy
300042899
1
5
Pressure Sensor, Suction 150 PSI
300040130
1
6
Pressure Sensor, Discharge 300 PSI
300040131
1
8
Kit, Cover, Top Assy
300040136
1
9
Kit, Cover, Service Side Assy
300040137
1
10
Kit, Cover, Power (Mains) Inlet
300040138
1
11
Kit, Cover, Capacitor Assy
300040139
1
13
Kit, Module, Soft Start
300043245
1
14
BMCC Assy
See Note
15
Kit, Solenoid Valve
300040132
1
300040125
1
16
Compr. Isolation: Type 1 - Isolators w/bolts (set of 4)1
16
Compr. Isolation: Type 2 - Separate Isolators1
330527701
4
18
Discharge Service Valve, with gasket 2
330619002
1
NS
Sensor, Cavity Temperature
300042906
1
NS Kit, O-Ring
300042907
1
NS
IGBT Assembly
300040931
1
NS
Kit, O-Ring, Ports Connection 3
300043968
1
NS
Kit, O-Ring, IGBT Assy
300043869
1
Note: Contact McQuay Parts with the compressor model, compressor part number, compressor serial number and BMCC
revision. On dual compressor units, provide same information on other compressor to ensure BMCC compatibility.
1
There are two types of Compressor Isolation. See diagrams on previous page to determine which type is needed.
2
Discharge Service Valve (straight end) can be replaced by 330619004 (bell end), but must also order Elbow 331341601 and
Reducing Coupler 041116534. Existing discharge tube will need to be cut to fit new configuration.
3
Includes O-Rings for Suction, Discharge and Economizer Ports.
NS = Not Shown
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 9
Tubing - Liquid Line and Liquid Injection Line
L53
L04
L04
L53
L54
L55
L02
L54
L54
L55
L55
L68
L68
L68
L02
L54
L57
L55
L68
L53
Liquid Line - 12 ft. vessels
Liquid Line - 9 ft. vessels
Liquid Injection Line
Ref. #
Description
Part Number
Quantity
L02
Ball Valve
330286057
1
L04
Electronic Expansion Valve
330386201
1
L53
Ball Valve
330286053
3
L54
Schrader Valve
071100801
3*
L55
Valve Core
026541100
3*
L57 Filter Drier
735028827
1
L68
Valve Cap, Brass
032943500
3*
* One per Liquid Line, two per Liquid Injection Line.
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 10
Tubing - Discharge and Suction Lines
D03
S06
S01
S04
Discharge Line
Suction Line
Ref. #
Description
Part Number
Quantity
D03
Valve
047135502
2
S01
Flange, Compresor Suction
330427001
1
S04
Shutoff Valve
330342706
1
S06
Relief Valve, 200#, Angle
735045818
1
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 11
Condenser
330
331
350
351
353
352
354
353
355
354
110
330
331
Condenser shown: 12 ft., 20” Diameter, 2-Pass, Victaulic Connections
Ref. #
Description
Part Number
Quantity
110
Sight Glass, Clear w/Ball
350229501
1
330
Shut-Off Valve 735039929
2
331
Cap, Flare
073243901
2
200 PSIG Refrig. Side, 150 PSIG Water Side, non-ASME Coded
Assembly, Return Head (2-Pass) 4
Assembly, Connection Head (2-Pass) 4 Assembly, Connection Head Gasket (2-Pass) 4
Screw, H5, 0.50 x 2.5
Nut, 0.50-13
Return Head Gasket (2-Pass) 4
350290102
331064112
071557803K
735033851
735029625
070304644
1
1
1
22 per head
22 per head
1
200 PSIG Refrigerant Side, 150 PSIG Water Side, ASME-Coded
350
Assembly, Return Head (2-Pass) 4
351
Assembly, Connection Head (2-Pass) 4
352
Assembly, Connection Head Gasket (2-Pass) 4
353
Screw, H8, 0.50 x 4.0
354
Nut, 0.50-13
355
Return Head Gasket (2-Pass) 4
074188912
074188913
071557803K
735033542
735029629
070304644
1
1
1
22 per head
22 per head
1
4
350
351
352
353
354
355
For 3-Pass Heads or Gaskets, contact McQuay Parts with the unit GO # and unit Serial #.
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 12
Evaporator
350
351
353
330
354
352
331
353
355
354
Evaporator shown: 12 ft., 22” Diameter, 2-Pass, Victaulic Connections
Ref. #
Description
Part Number
Quantity
330
Shut-Off Valve 735039929
2
331
Cap, Flare
073243901
2
200 PSIG Refrig. Side, 150 PSIG Water Side, non-ASME Coded
350
Assembly, Return Head
351
352
353
354
355
Assembly, Connection Head Assembly, Connection Head Gasket
Screw, H5, 0.50 x 2.5
Nut, 0.50-13
Return Head Gasket
200 PSIG Refrigerant Side, 150 PSIG Water Side, ASME-Coded
350
Assembly, Return Head
351
Assembly, Connection Head 352
Assembly, Connection Head Gasket
353
Screw, H5, 0.50 x 4.0
354
Nut, 0.50-13
355
Return Head Gasket
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
350290302
331064903
071557804K
735033851
735029625
070304645
1
1
1
26 per head
26 per head
1
074380712
331064913
071557804K
735033942
735029625
070304645
1
1
1
26 per head
26 per head
1
RPL 700005500 / Page 13
Insulation
Description
Part Number
Quantity
9 ft. Evaporator:
Insulation, 3/4", Evaporator Shell
047662050
68 square ft*
Insulation, 3/4", Head, 22”
047662050
9 square ft per head
Insulation, 3/4", Tube Sheet Support
047662050
18 square ft
Insulation, 3/4", Suction
047662050
8 square ft per suction line
12 ft. Evaporator:
Insulation, 3/4", Evaporator Shell
047662050
90 square ft*
Insulation, 3/4", Head, 22”
047662050
9 square ft per head
Insulation, 3/4", Tube Sheet Support
047662050
18 square ft
Insulation, 3/4", Suction
047662050
8 square ft per suction line
* If Code 32 = 3*, double the quantity for this item.
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 14
Unit Controls
Operator Interface Panel
15
18
16
Single Point Connection Box
Unit Control Box
Ref.
Description
Specification
No.
Part
Number
Qty.
until 5/05*
until 5/05*
until 5/05*
5/05 & later*
5/05 & later*
5/05 & later*
all 5/05 & later*
all 5/05 & later*
all 5/05 & later*
071858001
330367901
330332007
330277501
330276501
330276502
300040768
300043345
300043289
1
1
1
1
1
1
1
1
1
16
16
Support Arm Assy, Beige (includes swivel pin, washers, & nut)
Support Arm Assy, Black (includes swivel pin, washers, & nut)
330815401
330815411
1
1
18
Block- Mount
330406501
2
15
Operator Interface Panel, Original
Cable, 7-wire single, Original
Connector Only, Original
15
Operator Interface Panel w/cables, 12” Beige
15
Operator Interface Panel w/cables, 15” Beige
15
Operator Interface Panel w/cables, 15” Black
Cable, Power, Operator Interface
Cable, Serial, Operator Interface
Cable Kit (includes Power, Serial & VGA cords)
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 15
Unit Controls
Single Point Connection Box
Ref. #
Description
Part Number Quantity
DS1
400A Circuit Breaker, Std. SCCR
300042106
1
Lug
300042258
6
Operating Shaft
300042115
1
Operating Mechanism
300042118
1
Handle 300040313
1
PD1
Power Block, 760A
Magnetic Bearing Chiller: WMC 150A
300047431
Rev. D 9/2011
1
RPL 700005500 / Page 16
Unit Controls
Unit Control Box
103
104
106
200
112
302
105
310
303
309
200
306
309
200
303
115
400
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
401
402
RPL 700005500 / Page 17
Unit Controls
Unit Control Box
Tag
Ref. #
Description
Part Number
Quantity
EXV
103
EXV Driver Board
330277803
1
SW1,12
104
CK Rocker Switch, 4A-120VAC/2A-240VAC
300042181
2
SW5
105
Rocker Switch, Double-Pole
300042962
1
SW22
106
CK Rocker Switch, 4A-120VAC/2A-240VAC
300042181
1
CB1
112
ETA Circuit Breaker, 1ph, 250VAC, 10A
300042182
1
MOD1,2
115
Compressor Kit, PCB Assy.
300042958
2
IR2,3,4
200
Relay, 24VDC coil, 2-Pole
300043648
2
IR2,3,4
200
Relay Base
300042954
2
IR2,3,4
200
Relay Hold-Down Spring
300042955
2
UC
302
MicroTech II Controller, Large w/Display
330268311
1
303
MicroTech II Controller, Small w/Display
330268111
2
306
RS485 Serial Network Board
350147202
2
309
Cable, 7-Conductor, 15 Ft.
330407415
2
310
Bushing, Snap-in, 2.50
029648300
1
400
LonMark Serial Interface 350147401
1
400
ModBus RS485 Serial Network Board
350147402
1
400
BACnet RS232 Serial Gateway / Modem Board
330343102
1
401
BACnet Kit
350147407
1
402
Nut for BACnet Kit
040499807
3
S05
NS
Sensor, 30 ft.
73007303
1
S02,03,04
NS
Sensor, 30 ft.
73007303
3
CS01, 02
NS
Sensor, 30 ft.
73007303
2
NS
Cable (from Unit Control Box to Power Panels)
074608901
32 ft.
NS
Bracket, Controller Mounting
300042937
3
NS
Bracket, Breaker Outlet
300042936
1
NS
Compressor Isolation Board
330272602
1
NS
Kit, Modbus Gateway
300042959
2
NS = Not Shown
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 18
Unit Controls
Power Panels
Circuit #1
Power Panel
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
Circuit #2
Power Panel
RPL 700005500 / Page 19
Unit Controls
Power Panels
5
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 20
Unit Controls
Power Panels
Ref. #
Schem.
Description
Part Number
CB11, 21
Compressor Circuit Breaker
2
Trip, 100A, Circuit Breaker *
300047220
2
Trip, 125A, Circuit Breaker *
300042941
2
Trip, 150A, Circuit Breaker *
300042207
2
Trip, 175A, Circuit Breaker *
300042942
Qty.
per panel
1
1
1
1
3
Lug, Circuit Breaker
300040792
6
5
5
5
5
Frame, Circuit Breaker
Mechanism Circuit Breaker
Handle, Circuit Breaker, Rotary
Shaft, Circuit Breaker
300042120
300042117
300043800
300042808
1
1
1
1
* If unable to identify from this information, contact McQuay Parts with the Control Box Serial Number and Control Box .
Part Number.
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 21
Unit Controls
Power Panels
Qty.
Ref. #
Schem.
Description
Part Number per panel
T11, 21
460V Transformer Kit, 750VA, 480V:120V
300042952
1
20
includes: Transformer, 750A
300047231
1
20
Fuse Block
300043153
1
21
Fuse, 4A
300046330
1
22
Fuse, 8A
300047232
1
T11, 21
400V Transformer Kit, 750VA, 400V:120V
300047217
1
20
includes: Transformer, 750A
300047233
1
20
Fuse Block
300043153
1
21
Fuse, 4A
300046330
1
22
Fuse, 8A
300047232
1
NS
T11,21
25
T12-14,T22-24
30
CT11,CT21
35
35
LR11, 21
LR11, 21
40
EMI
50
51
CTGF11, 21
GFR11, 21
Fuse Puller/Cover
300043152
1
Transformer, 120V - 24V
300042178
3
Transformer, 0-5V Circuit Monitor
300042945
1
Line Reactor, 156A, 125HP *
Line Reactor *
300045391
300042961
1
1
EMI Filter (option)
300042960
1
Ground Fault Current Transformer (option)
Ground Fault Relay (option)
300043558
330315101
1
1
* If unable to identify from this information, contact McQuay Parts with the Control Box Serial Number and Control Box .
Part Number.
NS = Not Shown
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 22
Unit Controls
Control Box Label
For all other control components, please contact McQuay Parts with the Control Box Serial Number and Control Box Part Number. These numbers are located on the Control box rating label
(see example below). This label is found inside the panel.
Control Box Serial Number
“S” + Year + ##### + detail#
Control Box Part Number
Magnetic Bearing Chiller: WMC 150A
Rev. D 9/2011
RPL 700005500 / Page 23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
