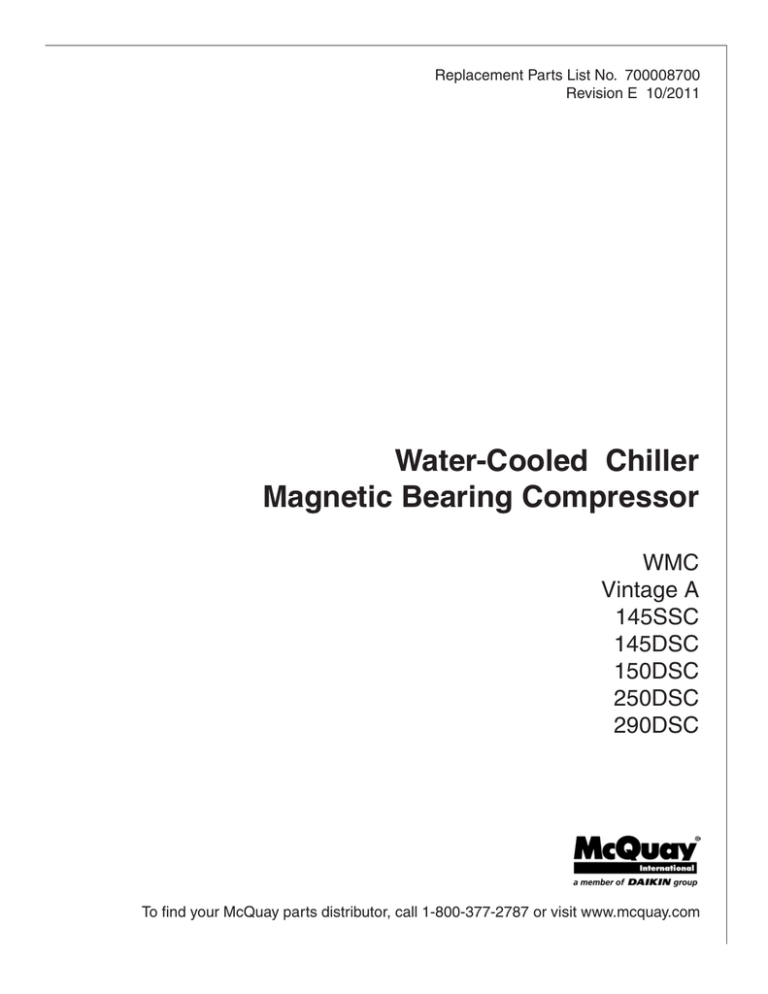

Replacement Parts List No. 700008700

Revision E 10/2011

Water-Cooled Chiller

Magnetic Bearing Compressor

WMC

Vintage A

145SSC

145DSC

150DSC

250DSC

290DSC

To find your McQuay parts distributor, call 1-800-377-2787 or visit www.mcquay.com

Contents

Parts List Revision History....................................................................................................................... 3

Complete Model Nomenclature ..........................................................................................................4 - 5

Electrical Legend ..................................................................................................................................... 6

Unit Components ................................................................................................................................7 - 8

Magnetic Bearing Compressor .........................................................................................................9 - 13

Piping - Discharge ................................................................................................................................. 14

Piping - Liquid Line and Motor Cooling.................................................................................................. 15

Condenser- Standard Heads ................................................................................................................. 16

20 inch, 150 PSI Standard Heads, Victaulic - 1 Pass, non-ASME .................................................. 17

20 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME ............................. 17

20 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 3 Pass, non-ASME ............................. 17

22 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME ............................. 18

22 Inch, 300 PSI Standard Heads, Flanged - 2 Pass, non-ASME .................................................. 18

22 inch, 150 PSI Standard Heads, Victaulic - 3 Pass, non-ASME .................................................. 18

Condenser- Water Box Heads ............................................................................................................... 19

20 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME ........................... 20

22 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME ........................... 21

Evaporator- Standard Heads ................................................................................................................ 22

22 Inch, 150 PSI Standard Heads, Victaulic - 1 Pass, non-ASME .................................................. 23

22 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME ............................. 23

22 Inch, 150 PSI Standard Heads, Victaulic - 3 Pass, non-ASME .................................................. 23

26 Inch, 150 PSI Standard Heads, Victaulic - 1 Pass, non-ASME .................................................. 24

26 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME ............................. 24

26 Inch, 300 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME ............................. 24

26 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 3 Pass, non-ASME ............................. 24

Evaporator- Water Box Heads .............................................................................................................. 25

22 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME ........................... 26

22 Inch, 150 PSI Standard Heads, Flanged - 3 Pass, non-ASME .................................................. 26

26 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME ........................... 27

Evaporator Insulation............................................................................................................................. 28

Unit Controls

Operator Interface Panel .............................................................................................................. 29

Single Point Connection Box ........................................................................................................ 30

Unit Control Box Communication ................................................................................................. 31

Unit Control Box ........................................................................................................................... 32

Unit Control Box- Size 145S (Single Circuit) ................................................................................ 33

Unit Control Box - Sizes 145D - 290D (Dual Circuit) .................................................................... 34

Power Panel Diagram .................................................................................................................. 35

Power Panels - Sizes 145D & 150D ............................................................................................. 36

Power Panels - Sizes 145S, 250D, 290D ..................................................................................... 37

Power Panels - Sizes 145S, 250D, 290D ..................................................................................... 38

Control Box Label ......................................................................................................................... 39

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 2

Revision

NEW

D

E

A

B

C

Parts List Revision History

Date Description

08/2007 New

09/2007 Page 8: Added O-Ring Kits.

12/08

6/09

Page 8 - Ref #15 add Cavity to Sensor, Temperature description p/n 300042906.

Add Sensor, Temperature Suction p/n 300040130.

Add Sensor, Temperature Discharge p/n 300040131.

Page 6 - Remove All Compressors and add note “Compressor Contact McQuay

2/2010

Parts with the unit GO Number and Serial Number.”

Page 8 - Added Compr Interface Connector Kit and IGBT Assemblies.

Page 16 - Replaced Benshaw dataplate with clearer graphic.

10/2011 Cover page - Added "SC" to models. Added "Vintage A".

Pages 4-5 - Added 2 pages for Complete Model Nomenclature.

Page 8 - Updated Compressor Note.

Page 9 - Added Ref. #s 6, 7, 16, 17 to diagram. Removed Ref. 15.

Page 15 - Added E20 Flare Nut to diagram and list.

Page 29 - Expanded information for Operator Interface Panel.

Page 30 - Added page for Single Point Connection Box.

Page 31 - Updated part numbers for all Communication parts.

Pages 10-13 - Added 3 pages to correct and expand compressor components.

Page 14 - Updated Check Valve part number.

Pages 16-27 - Expanded information for Condenser and Evaporator Heads.

Pages 32-39 - Added pages and expanded information for Unit Control Box and

Power Panels.

13600 Industrial Park Blvd., P.O. Box 1551, Minneapolis, MN 55440 (763) 553-5330

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 3

WMC 250D SC 15R NN N B E2609 BE 2RA C4 0440 CC Y A C2209 BLYY 2RAYYY

Code 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18

C4 1050 CCYY YY A A 134 124 DY 2LEYYA SMYDSYYS 0170 Y YY B

Code 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33

02 Size (in nominal tons)

145S= 145 Tons, Single Compressor

145D= 145 Tons, Dual Compressors

150D= 150 Tons, Dual Compressors

250D= 250 Tons, Dual Compressors

290D= 290 Tons, Dual Compressors

03 Unit Configuration

SC= Vintage A, Single Circuit

04 Voltage

13G or 15G= 400V / 50Hz

13R or 15R= 460V / 60Hz

05 Always NN

06 Always N

07 Compressor Model Revision

A= Compressor Revision A

B= Compressor Revision B

08 Evaporator

E2209= 22" Diameter, 9 ft. length

E2212= 22" Diameter, 12 ft. length

E2609= 26" Diameter, 9 ft. length

E2612= 26" Diameter, 12 ft. length

09 Evaporator Tubes

Digit 1

B= 300 Tubes

C= 262 Tubes

Digit 2

E= 0.025 wall, CU Turbo, EHP

10 Evaporator Heads

Digit 1

1= 1 pass

2= 2 Pass

3= 3 Pass

Digit 2

R= Right Hand Inlet Nozzle

L= Left hand Inlet Nozzle

Digit 3

A= Standard Victaulic

B= Flanged

C= Marine Box, Front, Victaulic

E= Marine Box, Front, Flanged

11 Evaporator Design Pressure

Digit 1

C= 200 PSIG Refrigerant Side

Digit 2

1= 150 PSIG Waterside, ASME Code

2= 250 PSIG Waterside, ASME Code

3= 350 PSIG Waterside, ASME Code

4= 150 PSIG Waterside, non-ASME Code

5= 300 PSIG Waterside, non-ASME Code

12 Evaporator Leaving Water Temperature

Degrees Fahrenheit x 10

13 Evaporator Tube Sheet & Head Material

Digit 1

C= Carbon Steel Tube Sheet

Digit 2

C= Carbon Steel Heads

14

Always Y

15 Evaporator Model Revision

A= Evaporator Revision A

16 Condenser

C2009= 20" Diameter, 9 ft. length

C2012= 20" Diameter, 12 ft. length

C2209= 22" Diameter, 9 ft. length

C2212= 22" Diameter, 12 ft. length

17 Condenser Tubes

Digit 1

B= 426 Tubes

C= 381 Tubes

Digit 2

L= 0.025 wall, CU Turbo, CSL

Digits 3-4

Always YY

18 Condenser Heads

Digit 1

1= 1 pass

2= 2 Pass

3= 3 Pass

Digit 2

R= Right Hand Inlet Nozzle

L= Left hand Inlet Nozzle

Digit 3

A= Standard Victaulic

B= Flanged

D= Marine Box, Front, Victaulic

F= Marine Box, Front, Flanged

Digits 4-6

Always YYY

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 4

Complete Model Nomenclature

19 Condenser Design Pressure

Digit 1

C= 200 PSIG Refrigerant Side

Digit 2

1= 150 PSIG Waterside, ASME Code

2= 250 PSIG Waterside, ASME Code

3= 350 PSIG Waterside, ASME Code

4= 150 PSIG Waterside, non-ASME Code

5= 300 PSIG Waterside, non-ASME

20 Condenser Max Leaving Water Temperature

Degrees Fahrenheit x 10

21 Condenser Tube Sheet & Head Material

Digit 1

C= Carbon Steel Tube Sheet

Digit 2

C= Carbon Steel Heads

Digits 3-4

Always YY

22 Always YY

23 Condenser Model Revision

A= Condenser Revision A

24 Pressure Vessel Code

A= ASME

J= Australia ASME with documentation

P= Chinese

T= Taiwan ASME with documentation

1= CRN British Columbia

2= CRN Alberta

3= CRN Saskatchewan

4= CRN Manitoba

5= CRN Ontario

6= CRN Quebec

7= CRN New Brunswick

8= CRN Nova Scotia

9= CRN Prince Edward Island

0= CRN Newfoundland

U= CRN Yukon

25 Refrigerant

134= Refrigerant 134a

26 Refrigerant Weight

example: 124= 1240 lbs divided by 10

27 Expansion Valve

DY= Electronic Expansion Valve

EY= Self=Mfg’d Electronic Expansion Valve

28 Controls

Digit 1

2= Microtech II

Digit 2

L= Large Controller

Digit 3

E= English Language

Digit 4

Always Y

Digit 5

B= BACnet w/ RS485 and Ethernet

E= BACnet w/ IP Ethernet

L= LonMark

M= ModBus

S= Serial Port w/RS232

Y= None

Digit 6

A= NEMA 1

29 Front End Box Options

Digit 1

S= Single Point

Digit 2

M= Unit Mounted VFD

Digit 3

Y= Standard Filter

P= EMI Filter

Digit 4

D= Disconnect Switch

P= Power Block

Digit 5

Always S

Digit 6

Y= Standard Short Circuit Current Rating

H= High Short Circuit Current Rating

Digit 7

Y= No Ground Fault Protection

F= With Ground Fault Protection

Digit 8

S= Standard Load Balance

30 Rated Load Amps

Compressor RLA

31 Always Y

32 Insulation

Digit 1

H= 3/4" insulation on Evap Shell, Suction Piping,

Compressor Inlet, Motor Barrel, plus High Humidity

3= 1-1/2" insulation on Evap shell; 3/4" insulation on

Suction Piping and Compressor Inlet

Y= No Shell Insulation

Digit 2

1= Return Head Insulation

2= Return and Connection Head Insulation

Y= No Head Insulation

33 Water Flow Indication

B= Water Flow Indicator on Evaporator and Condenser

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 5

Electrical Legend

A .................................... Alarm

B1-B10 ........................... Analog Input Connections

CAP ............................... Capacitor

CB .................................. Circuit Breaker

CBX ............................... Compressor Box

CC ................................. Compressor Controller

CF .................................. Condenser Flow Switch

CO ................................. Compressor Off Relay

CP1 & CP2 .................... Condenser Pump Cycling Relay

CR ................................. Compressor Relay

CT .................................. Control Transformer

CWI ................................ Condenser Water Interlocks

C1 .................................. Cooling Tower Fan Relay (Stage 1)

C2 .................................. Cooling Tower Fan Relay (Stage 2)

C3 .................................. Cooling Tower Fan Relay (Stage 3)

C4 .................................. Cooling Tower Fan Relay (Stage 4)

EF .................................. Evaporator Flow Switch

EP1 & 2 ......................... Evaporator Pump Cycling Relay

EWI ................................ Evaporator Water Interlocks

EXV ............................... Electronic Expansion Valve

GDB ............................... Guardistor Board

GFP ............................... Ground Fault Protector

HG ................................. Hot Gas Solenoid

HR1 & 2 ......................... Heater Relay

ID1 thru 18 ..................... Digital Input Connections

IR2 thru 4 ....................... Isolation Relay for T2 thru T4

L1................................... Liquid Injection Solenoid

LR ......................................Latch Relay

MA .....................................Contactor Auxillary

MC ....................................Motor Cooling Solenoid

MCR ..................................Motor Contactor Relay (Starter)

MHP ..................................Mechanical High Pressure Switch

NO1-18, NC1-18 ................Digital Output Connections

OC .....................................Oil Cooler Solenoid (120 or 24 VAC)

OL .....................................Overload

OP ....................................Oil Pump Contactor

PTB ....................................Pressure Transducer Board

RL ......................................Reactor, Line Side

SA(Unload), SB(Load) .......Vane Control Solenoids

SC ......................................Signal Converter

SW1 ...................................Unit Start/Stop Switch

SW2 ...................................Compressor Manual Stop Switch

SW3 ...................................Remote Start/Stop Switch

SW4 ...................................Mode Switch

SW5 ...................................Emergency Stop Switch

T1 ......................................Transformer (120VAC)

T2 ......................................Transformer (24VAC)

T3 ......................................Transformer (24VAC)

T4 ......................................Transformer (24VAC)

T5 ......................................Transformer (24VAC) / Isolation

VC ......................................Vane Close Switch

VO .....................................Vane Open Switch

VR ......................................Voltage Relay

UC .....................................Unit Controller

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 6

Unit Components

001

F022

H030

Single Circuit

WMC145S

A020

001

F021

F022

H020

H021

001

H030

F030

F022

H030

A050

H030

Dual Circuit

WMC 290D shown

A020

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A

F021

F022

H020

H021

Rev. E 10/2011

H020

H021

RPL 700008700 / Page 7

Unit Components

Ref. # Description

001 Compressor

A020 Compressor Isolator

A050 Butterfly Valve

F021 Shut Off Valve

F022 Relief Valve, 200#

F030 Relief Valve, 200#, Angle

H020 Flow Sensor

H021 Cable, Flow Sensor

H030 Sensor Well

Part Number 145S 145D 150D 250D 290D

See Note

330527701

073062103

4

1

8

2

8

2

8

2

8

2

735039977

735045817

735045818

1

3

1

1

3

2

1

3

2

1

3

2

1

3

2

330571401

330571402

047441511

2 2 2 2 2

2 2 2 2 2

6 6 6 6 6

Note: Contact McQuay Parts with the compressor model, compressor part number, compressor serial number and BMCC

revision. On dual compressor units, provide same information on other compressor to ensure BMCC compatibility.

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 8

004

Magnetic Bearing Compressor

016

013

017

003

012

014

002

008

011

010

009

006

007

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 9

Magnetic Bearing Compressor

Ref. # Description

002

017

017

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

003

003

004

006

007

008

009

010

011

012

013

013

013

014

016

017

Kit, Module, Bearing PWM

Kit, DC/DC Converter Assy, 400-460V

Kit, DC/DC Converter, 575V

Kit, Module, Backplane Assy

Kit, End Cap Assy

Kit, Insulation Cover, End Bell

Kit, Cover, Top Assy

Kit, Cover, Service Side Assy

Kit, Cover, Mains Input Assy

Kit, Cover, Capacitor Assy

Kit, Module Serial Driver

Kit, Module, Softstart, 400V

Kit, Module, Softstart, 460V

Kit, Module Softstart, 575V

Kit, Bearing Motor Compressor Control (BMCC)

Kit, Input Mains Buss Bars

Kit, IGBT Manifold Cooling

Kit, IGBT Assy Manifold Cooling (w/o DC/DC Converter)

Kit, IGBT Assy Manifold Cooling (w/DC/DC Converter)

Kit, Soft Start Cooling Fan Assembly

Kit, PCB Assy, Compressor Interface Connector

Communication Converter Module

Kit, Terminal Power Block Assy

Kit, Terminal Power Block Assy

Kit, Cover Plate Assy

Kit, Sensor Assy, Temperature, Motor Rotor

Kit, Temperature Sensor

Kit, Tube, Connection to IGBT

Kit, Capacitor, IGBT Snubber

Kit, Sensor, Pressure Temperature Suction (blue dot)

Kit, Sensor, Pressure Temperature Discharge (red dot)

300040931

300043315

300043246

300049137

300043882

300049169

300043928

300043983

300049175

300042906

300048181

300048170

300043447

300040130

300040131

Part Number

300040127

300042897

300048726

300042899

300048171

300043829

300040136

300040137

300040138

300040139

300043064

300043853

300043245

300049167

See Note

100416

1 1

1

1

1

1

1

1

1 1

1 1

1 1

1

1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

compressor

145D 145S

150D 250D

290D

1 1

1 1

1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

Note: Contact McQuay Parts with the compressor model, compressor part number, compressor serial number and BMCC

revision. On dual compressor units, provide same information on other compressor to ensure BMCC compatibility.

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 10

Magnetic Bearing Compressor

Ref. # Description

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

Kit, Diode Rectifiers

Kit, Diode Rectifiers

Kit, Sensor Heatsink Diode Rectifiers Dual Cooling

Kit, Service Valve, Suction

Kit, Service Valve, Discharge

Kit, Service Valve, Economizer

Kit, Flange 1”, Economizer 1

Kit, Flange Sweat, 3”, Suction

2

Kit, Flange, Suction 3"

Kit, Flange, Discharge, Brass, for 2-1/8”

Kit, Flange, Discharge, Steel, 2-1/8"

Kit, O-Ring, IGBT Assy

Kit, O-Ring, Ports Connection

3

Kit, O-Ring, IGV Assy

Kit, O-Ring, End Cap Assy

Kit, O-Ring, Service Side Small O-Rings

Kit, O-Ring, Cover Plate Assy

Kit, O-Ring, Suction Port Only

Kit, Cable Harness, Compressor DC Supply

Kit, Cable Harness Assy, Compressor Interface

Kit, Cable Harness, Softstart SCR Gate

Kit, Cable Harness, Mtr Cooling & Coil Assy

Kit, Cable Harness, Mtr Cooling & Coil Assy

Kit, Cable Harness, Compressor Controller

Kit, Cable Harness, Front Bearing Sensor

Kit, Cable Harness, Rear Bearing Sensor

Kit, Cable Harness, Motor Driver (IGBT to Backplane)

Kit, Cable Harness, Softstart AC/DC, Fused

Kit, Cable Harness, Softstart AC/DC

Kit, Cable Harness, Softstart AC/DC

Cable Harness Compressor Controller

Cable Harness, DC/DC to Backplane

1

Includes 7/8" Flange, O-Ring, lubrication, and 2 sets of screws/spring washers.

2

Includes 3-1/8” Flange, O-Ring, lubrication, and 4 sets of screws/spring washers.

3

Includes O-Rings for Suction, Discharge and Economizer Ports.

NS = Not Shown

300043879

300043880

300048180

200140

300047144

300044089

300040132

300048754

300044030

300047965

300047966

300044114

300040953

300048954

300044098

300044030

300047244

Part Number

300043875

300044087

300047204

300048174

330619004

300048958

300048175

300046266

300048959

300046267

331387401

300043869

300043968

300043877

300043878

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 11

1 1

1 1

1 1

1 1

1 1

1 1

1

1

1 1

1 1

1 1

1 1

1

1

1 1

1 1

1 1

Quantity per compressor

145D 145S

150D 250D

1

290D

1

1

1

1 1

1

1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

1 1

Magnetic Bearing Compressor

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

Ref. # Description

NS Line Reactor, 140A, 5%

NS

NS

NS

Line Reactor, 180A, 5%

Line Reactor, 240A, 5%

Line Reactor, 140A, 10%

Line Reactor, 180A, 10%

EMI/EMC Filter, CE, 185A

EMI/EMC Filter, UL, 185A

EMI/EMC Filter 322A, 480V

Kit, Fuse, Class T, Fast Acting

Fuse, Slo Nano SMF 0.25A, 125V

Fuse, Slo Nano SMF 0.5A, 125V 4

Fuse, Slo Nano SMF 0.2A, 600V, Midget, Time Delay

Kit, Fuse 2A, 1000V, HVA, 3”

Kit, Fuses, Softstart 4

Kit, Fuses, Softstart

5

Kit, Fuse Nano SMF 0.75A, 125V 5

Kit, IGV Motor Service

Kit, Buss Bar Assy and Capacitors, 400V

Kit, Buss Bar Assy and Capacitors, 460V

Kit, Buss Bar Assy and Capacitors, 400V

Kit, Buss Bar Assy and Capacitors, 460V

Kit, Buss Bar Assembly and Capacitors, 575V

Kit, Buss Bar Diode

Kit, Buss Assy Conn Motor IGBT

Kit, Buss Assy Conn Motor IGBT

Kit, Suction Strainer, Straight

Kit, Plunger Assy, Non-return Valve, Discharge 2"

Kit, Compressor Cooling Strainer

Kit, Compressor Mounting

Kit, Screws for Covers , M5, Stainless Steel

Bluetooth Serial Adapter Kit

Dielectric Grease

4

Used on Softstart Series 20 (Compressor Serial # 071975020) or before.

5

Used on Softstart Series 21 (Compressor Serial # 071975030) or later.

NS = Not Shown

300045312

331877106

300046521

300046530

300048085

300043831

300046429

300047251

300043832

300049168

300048955

300045215

300048961

300048957

300043734

300046931

300040125

300046932

300046950

300045661

Part Number

300047659

300045658

300048177

300044143

331557651

300048760

300048179

300048960

300045202

300046528

300046529

300044083

1 1

1 1

1 1

1 1

1 1

1

1

1

1

1

1

1

1

1

1

1

1 1

1 1

1 1

1 1

compressor

145D 145S

150D 250D

290D

1

1

1

1

1

1

1

1

1

1 1

1 1

1 1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 12

Magnetic Bearing Compressor

NS

NS

NS

NS

NS

NS

NS

NS

Ref. # Description

NS Kit, Cooling Valves Assy

NS

NS

NS

Kit, Cooling Valves Assy

Kit, IGV Housing Assembly and O-Rings

Kit, IGV Housing Assy and O-Rings (black IGV cone)

NS

NS

NS

NS

Kit, IGV Housing Assy and O-Rings (gold IGV cone)

Kit, Bracket Mains Input Plate, 2.0" Diameter

Kit, Bracket Mains Input Plate, 2.5” Diameter

Kit, Bracket Mains Input Plate, 3.0” Diameter

Kit, Bracket Mains Input Plate, 3.5” Diameter

Kit, Heatsink Cooling Manifold SCR Assy

Kit, Heatsink Cooling Manifold SCR Assy

Kit, Hermetic Feedthrough IGV - 4 Pin

Kit, Hermetic Feedthru, Rear Bearing, 6-Pin

Kit, Hermetic Feedthru, Front Bearing, 4-Pin

Kit, Hermetic Feedthru, Bearing Sensor, 9-Pin

Kit, Hermetic Feedthru High Power

NS = Not Shown

Part Number

300043892

300047112

300043626

300043627

300046822

300049170

300049171

300049172

300049173

300049070

300049174

300049176

300043473

300046599

300045720

300045214

compressor

145D 145S

150D 250D

290D

1

1

1

1

1

1 1

1 1

1 1

1 1

1

1

1 1

1 1

1 1

1 1

1 1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 13

Piping - Discharge

C044

C031

WMC290D shown

Ref. # Description

C031 Gasket, 6.88 OD

C044 Check Valve

Part Number

070199120

332630201

145S 145D 150D 250D 290D

2 6 6 6 6

1 2 2 2 2

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 14

B041

B030

Piping - Liquid Line and Motor Cooling

E031

E020

E022

Liquid Line

145D shown

E040

Motor Cooling Line

290D shown

E053

Ref. # Description

B030 Electronic Expansion Valve, 225 Ton

B030 Electronic Expansion Valve, 126 Ton

B030 Electronic Expansion Valve, 250 Ton

B041 Ball Valve, 1.63

B041 Ball Valve, 1.375

B041 Ball Valve, 2.12

E020 Flare Nut .375

E020 Flare Nut .500

E022 Strainer

E031 Ball Valve, .625

E031 Ball Valve, .625

E040 Filter Drier, .625

E053 Ball Valve, .875

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A

Part Number

330386201

330386206

330386207

330286007

330286006

330286008

000108300

000136100

735030506

330286053

330286003

735028827

330286004

145S 145D 150D 250D 290D

1

1

1

1 1

1 1

1

1 1

1

2 2

2 2

1 2 2 2 2

1

2 2 2 2

1 2 2 2 2

1 2 2 2 2

Rev. E 10/2011 RPL 700008700 / Page 15

Head

351

Connection

End

Condenser- Standard Heads

331

330

110

Return

End

355

Gasket

350

Head

Gasket

352

2-Pass, Left-Hand, Std. Victaulic (Front View)

Ref. # Description

110 Sight Glass Clear w/Ball

330

331

Shut-Off Valve

Cap, Flare

Part Number

350229501

735039929

073243901

Qty.

1

2

2

Code 18: 1

# Passes

1=1 Pass

2=2 Pass

3=3 Pass

L

Connection

L= Left Hand

R= Right Hand

A

Heads

A= Std. Victaulic

B= Std. Flanged

C= Wtr. Bx. Vict.

D= Wtr. Bx. Flgd.

Head Types

Standard Victaulic Standard Flanged

Connection Return Connection

Return

1- Pass

YYY

Future Use

2- Pass

3- Pass

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 16

Condenser - Standard Heads

20 Inch

Ref. #

350 / 351

352 / 355

NS

NS

NS = Not Shown

20 inch, 150 PSI Standard Heads, Victaulic - 1 Pass, non-ASME

Description

Assembly, Connection Head

Gasket, Connection Head

Screw, H5, 0.50 x 2.5

Nut, 0.50-13

Part Number

331153101

070304644

735033851

735029625

Qty.

2

2

22 per head

22 per head

Ref. #

350

351

352

355

NS

NS

20 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head with Flanged Connection with Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Screw, H5, 0.50 x 2.5

Nut, 0.50-13

Part Number

332182702

332187903

332186103

071557803K

070304644

735033851

735029625

Qty.

1

1

1

1

1

22 per head

22 per head

NS = Not Shown

Ref. #

350 / 351

352 / 355

NS

NS

20 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 3 Pass, non-ASME

Description

Assembly, Connection Head with Flanged Connection with Victaulic Connection

Gasket, Head

Screw- H5, 0.50 x 2.5

Nut- 0.50-13

Part Number

331158304

331156504

071557803K

735033851

735029625

Qty.

2

2

2

22 per head

22 per head

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 17

Condenser - Standard Heads

22 Inch

Ref. #

350

351

352

355

NS

NS

22 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head with Flanged Connection with Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Screw, H5, 0.50 x 2.5

Nut, 0.50-13

Part Number

332182902

332188103

332186303

071557804K

070304645

735033851

735029625

Qty.

1

1

1

1

1

26 per head

26 per head

NS = Not Shown

Ref. #

350

351

352

355

NS

NS

NS = Not Shown

22 Inch, 300 PSI Standard Heads, Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head

Gasket, Connection Head

Gasket, Return Head

Screw- H5, 0.50 x 4.0

Nut- 0.50-13

Part Number

332166542

332171743

071557814

070304614

735033542

735029629

Qty.

1

1

1

1

52 per head

52 per head

Ref. #

350 / 351

352 / 355

NS

NS

NS = Not Shown

22 inch, 150 PSI Standard Heads, Victaulic - 3 Pass, non-ASME

Description

Assembly, Connection Head

Gasket, Connection Head

Screw, H5, 0.50 x 2.5

Nut, 0.50-13

Part Number

331156704

071557804K

735033851

735029625

Qty.

2

2

26 per head

26 per head

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 18

Condenser- Water Box Heads

Head 351

366

Water Box

Cover Gasket

Connection

End

Gasket

352

331

110

Return

End

2-Pass, Left-Hand, Water Box Victaulic (Front View)

355 Gasket

350

Head

Ref. # Description

110

330

Sight Glass Clear w/Ball

Shut-Off Valve

331 Cap, Flare

Code 18: 1

# Passes

1=1 Pass

2=2 Pass

3=3 Pass

L

Connection

L= Left Hand

R= Right Hand

Part Number

350229501

735039929

073243901

Qty.

1

2

2

A

Heads

A= Std. Victaulic

B= Std. Flanged

C= Wtr. Bx. Vict.

D= Wtr. Bx. Flgd.

YYY

Future Use

1- Pass

Head Types

Water Box Victaulic

Connection

Return

Water Box Flanged

Connection Return

2- Pass

3- Pass

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 19

Condenser- Water Box Heads

20 Inch

Ref. #

350

351

352

355

366

NS

NS

NS

NS

20 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head with Flanged Connection with Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Gasket, Water Box Cover

Screw- H5, 0.50 x 2.5, for Return Head

Screw- H5, 0.50 x 3.0, for Water Box

Nut0.50-13, for Return Head

Nut- 0.50-13, for Water Box Head

Part Number

332182702

331158353

331156553

071557853

070304644

333850004

735033851

735033852

735029625

735029625

Qty.

1

1

1

1

1

1

22 per head

44 per head

22 per head

44 per head

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 20

Condenser- Water Box Heads

22 Inch

Ref. #

350

351

352

355

366

NS

NS

NS

NS

22 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head with Flanged Connection with Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Gasket, Water Box Cover

Screw- H5, 0.50 x 2.5, for Return Head

Screw- H5, 0.50 x 3.5, for Water Box

Nut0.50-13, for Return Head

Nut- 0.50-13, for Water Box Head

Part Number

332182902

332186353

332188153

071557854

070304645

333850005

735033851

735033941

735029625

735029625

Qty.

1

1

1

1

1

1

26 per head

52 per head

26 per head

52 per head

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 21

Head 351

Connection

End

Evaporator- Standard Heads

330

331

110

Return

End

355 Gasket

350

Head

Gasket

352

330

331

2-Pass, Left-Hand, Standard Victaulic (Front View)

Ref. # Description

110

330

331

Sight Glass Clear w/Ball

Shut-Off Valve

Cap, Flare

Code 10: 1

# Passes

1=1 Pass

2=2 Pass

3=3 Pass

L

Connection

L= Left Hand

R= Right Hand

Part Number

350229501

735039929

073243901

Qty.

1

2

2

A

Heads

A= Std. Victaulic

B= Std. Flanged

C= Wtr. Bx. Vict.

D= Wtr. Bx. Flgd.

Head Types

Standard Victaulic Standard Flanged

Connection Return Connection

Return

1- Pass

2- Pass

3- Pass

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 22

Evaporator - Standard Heads

22 Inch

Ref. #

350 / 351

352 / 355

NS

NS

NS = Not Shown

22 Inch, 150 PSI Standard Heads, Victaulic - 1 Pass, non-ASME

Description

Assembly, Connection Head

Gasket, Return Head

Screw, H5, 0.50 x 2.5

Nut, 0.50-13

Part Number

331153301

070304645

735033851

735029625

Qty.

2

2

26 per head

26 per head

Ref. #

350

351

352

355

NS

NS

22 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head

Flanged Connection

Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Screw, H5, 0.50 x 2.5

Nut, 0.50-13

Part Number

332182902

332184503

332182903

071557804K

070304645

735033851

735029625

Qty.

1

1

1

1

1

26 per head

26 per head

NS = Not Shown

Ref. #

350/351

352/355

NS

NS

NS = Not Shown

22 Inch, 150 PSI Standard Heads, Victaulic - 3 Pass, non-ASME

Description

Assembly, Head, Connection

Gasket, Head

Screw- H5, 0.50 x 2.5

Nut- 0.50-13

Part Number

331153304

071557804K

735033851

735029625

Qty.

2

2

26 per head

26 per head

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 23

Evaporator - Standard Heads

26 Inch

Ref. #

350 / 351

352 / 355

NS

NS

NS = Not Shown

26 Inch, 150 PSI Standard Heads, Victaulic - 1 Pass, non-ASME

Description

Assembly, Connection Head

Gasket, Return Head

Screw, H5, 0.75 x 3.0

Nut, 0.75-10

Part Number

331153501

070304646

735033878

735029626

Qty.

2

2

32 per head

32 per head

Ref. #

350

351

352

355

NS

NS

26 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head

Flanged Connection

Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Screw, H5, 0.75 x 3.0

Nut, 0.75-10

Part Number

332183102

332184703

332183103

071557805K

070304646

735033878

735029626

Qty.

1

1

1

1

1

32 per head

32 per head

NS = Not Shown

Ref. #

350

351

352

355

NS

NS

26 Inch, 300 PSI Standard Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head

Flanged Connection

Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Screw, H8, 0.75 x 5.5

Nut, 0.75-10

Part Number

332166742

332168343

332166743

071557815

070304615

735033571

735029628

Qty.

1

1

1

1

1

64 per head

64 per head

NS = Not Shown

Ref. #

350/351

352/355

NS

NS

26 Inch, 150 PSI Standard Heads, Victaulic and Flanged - 3 Pass, non-ASME

Description

Assembly, Head, Connection with Flanged Connection with Victaulic Connection

Gasket, Head

Screw- H5, 0.75 x 3.0

Nut- 0.75-10

Part Number

331155104

331153504

071557805K

735033878

735029626

Qty.

1

1

2

32 per head

32 per head

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 24

Water

Box

Cover

Gasket

366

Head 351

Connection

End

Evaporator- Water Box Heads

330

331

110

Return

End

355

Gasket

350 Head

Gasket

352

330

331

2-Pass, Left-Hand, Water Box Victaulic (Front View)

Ref. # Description

110

330

331

Sight Glass Clear w/Ball

Shut-Off Valve

Cap, Flare

Code 10: 1

# Passes

1=1 Pass

2=2 Pass

3=3 Pass

L

Connection

L= Left Hand

R= Right Hand

Part Number

350229501

735039929

073243901

Qty.

1

2

2

A

Heads

A= Std. Victaulic

B= Std. Flanged

C= Wtr. Bx. Vict.

D= Wtr. Bx. Flgd.

1- Pass

Head Types

Water Box Victaulic

Connection

Return

Water Box Flanged

Connection Return

2- Pass

3- Pass

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 25

Evaporator- Water Box Heads

22 Inch

Ref. #

350

351

352

355

366

NS

NS

NS

NS

22 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head

Flanged Connection

Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Gasket Water Box Cover

Screw, H5, 0.50 x 2.5, for Return Head

Screw, H5, 0.50 x 3.5, for Water Box

Nut, 0.50-13, for Return Head

Nut, 0.50-13 for Water Box Head

Part Number

332182902

331154953

331153353

350296754

070304645

333850005

735033851

735033941

735029625

735029625

Qty.

1

1

1

1

1

1

26 per head

52 per head

26 per head

52 per head

NS = Not Shown

Ref. #

350/351

352/355

366

NS

NS

NS = Not Shown

22 Inch, 150 PSI Standard Heads, Flanged - 3 Pass, non-ASME

Description

Assembly, Head, Connection

Gasket, Head

Gasket, Water Box Cover

Screw- H5, 0.50 x 3.5

Nut- 0.50-13

Part Number

331154954

350296754

071557804K

735033941

735029625

Qty.

2

2

2

52 per head

52 per head

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 26

Evaporator- Water Box Heads

26 Inch

Ref. #

350

351

352

355

366

NS

NS

NS

NS

26 Inch, 150 PSI Water Box Heads, Victaulic and Flanged - 2 Pass, non-ASME

Description

Assembly, Return Head

Assembly, Connection Head

Flanged Connection

Victaulic Connection

Gasket, Connection Head

Gasket, Return Head

Gasket Water Box Cover

Screw, H5, 0.75 x 3.0, for Return Head

Screw, H5, 0.75 x 4.5, for Water Box

Nut, 0.75-10, for Return Head

Nut, 0.75-10, for Water Box Head

Part Number

332183102

332184753

332183153

350296755

070304646

333850006

735033878

735033969

735029626

735029626

Qty.

1

1

1

1

1

1

32 per head

64 per head

32 per head

64 per head

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 27

Evaporator Insulation

Description

22 inch, 9 ft. Evaporator:

Insulation, 3/4", Evaporator Shell

Insulation, 3/4", Evaporator Head

Insulation, 3/4", Suction

22 inch, 12 ft. Evaporator:

Insulation, 3/4", Evaporator Shell

Insulation, 3/4", Evaporator Head

Insulation, 3/4", Suction

26 inch, 9 ft. Evaporator:

Insulation, 3/4", Evaporator Shell

Insulation, 3/4", Evaporator Head

Insulation, 3/4", Suction

26 inch, 12 ft. Evaporator:

Insulation, 3/4", Evaporator Shell

Insulation, 3/4", Evaporator Head

Insulation, 3/4", Suction

* If Code 32 = 3*, double the quantity for this item.

Part Number

047662050

047662050

047662050

047662050

047662050

047662050

047662050

047662050

047662050

047662050

047662050

047662050

Quantity

68 square ft *

9 square ft per head

11 square ft per suction line

90 square ft *

9 square ft per head

11 square ft per suction line

77 square ft *

11 square ft per head

11 square ft per suction line

103 square ft *

11 square ft per head

11 square ft per suction line

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 28

15

16

Unit Controls

Operator Interface Panel

Single Point Connection Box Unit Control Box

Circuit #1

Power Panel

Circuit #2

Power Panel

Ref. Description

No.

15 Operator Interface Panel w/cables, 12” Beige

15 Operator Interface Panel w/cables, 15” Beige

15 Operator Interface Panel w/cables, 15” Black

Cable, Power, Operator Interface

Cable, Serial, Operator Interface

Cable Kit (includes Power, Serial & VGA cords)

16 Support Arm Assy, Beige (includes swivel pin, washers, & nut)

16 Support Arm Assy, Black (includes swivel pin, washers, & nut)

Part

Number

330277501

330276501

330276502

300040768

300043345

300043289

330815401

330815411

1

1

1

1

1

Qty.

1

1

1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 29

Unit Controls

Single Point Connection Box

DS1

DS1

PD1

Ref. #

DS1

DS1

Description

Unit Sizes 145D, 150D

Standard SCCR (Code 29, Digit 6 = Y)

400A Circuit Breaker, Std. SCCR

Lug

Operating Shaft

Operating Mechanism

Handle

High SCCR (Code 29, Digit 6 = H)

400A Circuit Breaker, High SCCR

Lug

Operating Shaft

Operating Mechanism

Handle

Unit Sizes 250D, 290D

Standard SCCR (Code 29, Digit 6 = Y)

600A Circuit Breaker Assembly, Std. SCCR

includes: 600A Circuit Breaker, Std. SCCR

Lug

Operating Shaft

Operating Mechanism

Handle

High SCCR (Code 29, Digit 6 = H)

600A Circuit Breaker, High SCCR

Lug

Operating Shaft

Operating Mechanism

Handle

Power Block, 760A

Part Number Quantity

300042106

300042258

300042115

300042118

300040313

300046378

300046310

300042258

300042115

300042118

300040313

1

6

1

1

1

1

1

1

1

3

1

300043264

300042108

300042258

300042115

300042118

300042114

300046487

300042258

300042115

300042118

300042114

300047431

1

3

1

1

1

1

1

1

1

1

3

1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 30

Unit Controls

Unit Control Box Communication

400

401

Ref. #

400

400

400

400

401

Description

LonMark Serial Interface

ModBus RS485 Serial Network Board

BACnet RS232 Serial Gateway / Modem Board

BACnet with IP Ethernet

BACnet MS/TP (RS485) Interface Board

Part Number

350147401

350147402

330343102

350147406

350147407

1

1

1

1

Qty.

1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 31

22

Unit Controls

Unit Control Box

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 32

Unit Controls

Unit Control Box- Size 145S (Single Circuit)

Ref. #

10

12

13

NS

NS

NS

20

21

22

30

31

35

36

NS

NS = Not Shown

Schem.

UC

PC

CB1

SW1,12

SW5

MOD1

CA1

EXV

UCM

S05

Description

Circuit Controller, Small MTII

Unit Controller, Large MTII

OITS Circuit Board Assy

Power Supply for OITS Circuit Board

Power Supply for ATX

Memory Module

Circuit Breaker, 10A, 250V

Rocker Switch, Compressor

Rocker Switch, Emergency Shut-down

PCB Assy

Capacitor

EXV Driver Board

Comm Module Card

Sensor- 30 ft.

S02, S03, S04 Sensor- 30 ft.

CS01 Sensor- 30 ft.

Resistor, 120 Ohm

Part Number

330268111

330268311

330276603

330277353

333355201

330276693

300042182

300042181

300042962

300042958

300040510

330277803

330275202

073007303

073007203

073007203

300047219

1

1

1

1

1

1

1

2

Qty.

1

1

1

1

1

1

3

1

1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 33

Unit Controls

Unit Control Box - Sizes 145D - 290D (Dual Circuit)

Ref. #

10

11

12

13

21

22

30

31

15

20

21

35

36

NS

NS

NS

NS

NS = Not Shown

Schem.

UC

PC

Description

Circuit Controller, Small MTII

Serial Network Board

Unit Controller, Large MTII

OITS Circuit Board Assy

Power Supply for OITS Circuit Board

Power Supply for ATX

IR2, IR3, IR4

CB1

SW1,12

Memory Module

Relay, 2PDT, 10A, 24V

Circuit Breaker, 10A, 250V

Rocker Switch, Compressor

SW22

SW5

Rocker Switch, Unit

Rocker Switch, Emergency Shut-down

MOD 1, MOD2 PCB Assy

CA1, CA2 Capacitor

EXV

UCM

EXV Driver Board

Comm Module Card

S05 Sensor- 30 ft.

S02, S03, S04 Sensor- 30 ft.

CS01, CS02 Sensor- 30 ft.

Resistor, 120 Ohm

Part Number

330268111

350147402

330268311

330276603

330277353

333355201

330276693

300043648

300042182

300042181

300042181

300042962

300042958

300040510

330277803

330275202

073007303

073007203

073007203

300047219

1

1

2

2

1

2

1

3

Qty.

2

1

1

1

1

1

1

3

1

1

2

1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 34

206

204

205

Circuit #1

Unit Controls

Power Panel Diagram

207

206

200

201

203

204

205

Circuit #2

207

200

201

203

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 35

Unit Controls

Power Panels - Sizes 145D & 150D

Ref. #

200

200

201

203

203

Schem.

CB11, 21

CB11, 21

CT11,CT21

LR11, 21

LR11, 21

Description

Qty.

Part Number per panel

Compressor Circuit Breaker, Std. SCCR

(Code 29, Digit 6 = Y)

Trip, 100A, Circuit Breaker *

300047220 1

Trip, 150A, Circuit Breaker *

Trip, 175A, Circuit Breaker *

300042207

300042942

1

1

Frame, Circuit Breaker

Operator, Circuit Breaker

Handle, Circuit Breaker, Rotary

300042120

300042117

300043800

1

1

1

Shaft, Circuit Breaker

Lug, Circuit Breaker

Bus Tab, Circuit Breaker

300042939

Compressor Circuit Breaker, High SCCR

(Code 29, Digit 6 = H)

Circuit Breaker, 70-250A

300042209

Operator, Circuit Breaker

Handle, Circuit Breaker, Rotary

Shaft, Circuit Breaker

Lug, Circuit Breaker

Transformer, 0-5V Circuit Monitor

Line Reactor, 140A *

Line Reactor, 156A, 125HP *

300042808

300040792

300042117

300043800

300042808

300040792

300042945

300042961

300045391

1

3

3

1

1

1

1

3

1

1

1

204

205

205

T11,21

T11, 21

T11, 21

Fuse Puller/Cover

460V Transformer Kit, 750VA, 480V:120V includes: Transformer, 750A

Fuse Block

Fuse, 8A

Fuse, 4A

400V Transformer Kit, 750VA, 400V:120V includes: Transformer, 750A

Fuse Block

Fuse, 8A

Fuse, 4A

300043152

300042952

300047231

300043153

300047232

300046330

300047217

300047233

300043153

300047232

300046330

206

207

NS

NS

T12-14,T22-24

CTGF11, 21

EMI

GFR11, 21

Transformer, 120V - 24V

Ground Fault Current Transformer (option)

EMI Filter (option)

Ground Fault Relay (option)

300042178

300043558

300042960

330315101

3

1

1

1

* If unable to identify from this information, contact McQuay Parts with the Control Box Serial No. and Control Box Part No.

NS = Not Shown

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 36

1

1

1

1

1

1

1

1

1

1

1

Unit Controls

Power Panels - Sizes 145S, 250D, 290D

Ref. #

200

Schem.

CB11, 21

Description

Trip, 225A, Circuit Breaker *

Qty.

Part Number per panel

Compressor Circuit Breaker, Standard SCCR (Code 29, Digit 6 = Y)

Trip, 175A, Circuit Breaker *

300042942

300046537

1

1

Trip, 250A, Circuit Breaker *

Frame, Circuit Breaker

Operator, Circuit Breaker

300042208

300042120

300042117

1

1

1

Handle, Circuit Breaker, Rotary

Shaft, Circuit Breaker

Lug, Circuit Breaker

300043800

300042808

300040792

1

1

3

200 CB11, 21 Compressor Circuit Breaker, High SCCR (Code 29, Digit 6 = H)

Trip, 175A, Circuit Breaker *

300042942

Trip, 225A, Circuit Breaker *

Frame, Circuit Breaker

Operator, Circuit Breaker

Handle, Circuit Breaker, Rotary

Shaft, Circuit Breaker

Lug, Circuit Breaker

300046537

300042209

300042117

300043800

300042808

300040792

* If unable to identify from this information, contact McQuay Parts with the Control Box Serial Number and Control Box

Part Number.

1

1

1

1

1

1

3

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 37

Unit Controls

Power Panels - Sizes 145S, 250D, 290D

205

205

206

Ref. #

201

203

203

204

Schem.

CT11,CT21

LR11, 21

LR11, 21

Description

Transformer, 0-5V Circuit Monitor

Line Reactor, 156A, 125HP *

Line Reactor, 180A, 150HP *

T11,21

T11, 21

T11, 21

Fuse Puller/Cover

460V Transformer Kit, 750VA, 480V:120V includes: Transformer, 750A

Fuse Block

Fuse, 8A

Fuse, 4A

400V Transformer Kit, 750VA, 400V:120V includes: Transformer, 750A

Fuse Block

Fuse, 8A

Fuse, 4A

T12-14,T22-24 Transformer, 120V - 24V

207

NS

NS

FU11-13, 21-23 Fuse Assy includes: Fuse, 175A 600V

CTGF11, 21

EMI

GFR11, 21

Fuse Block

Ground Fault Current Transformer (option)

EMI Filter (option)

Ground Fault Relay (option)

* If unable to identify from this information, contact McQuay Parts with the Control Box Serial Number and Control Box

Part Number.

NS = Not Shown

Qty.

Part Number per panel

300042945 1

300045391

300045338

1

1

300043152

300042952

300047231

300043153

300047232

300046330

300047217

300047233

300043153

300047232

300046330

300042178

1

1

1

1

1

1

1

1

1

1

1

3

300047221

300047432

300047230

300043558

300047437

330315101

1

1

1

3

1

1

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 38

Unit Controls

Control Box Label

For all other control components, please contact McQuay Parts with the

Control Box Serial Num-

ber and Control Box Part Number. These numbers are located on the Control box rating label

(see example below). This label is found inside the panel.

Control Box Serial Number

“S” + Year + ##### + detail#

Control Box Part Number

Magnetic Bearing Compr. Chiller; WMC 145S, 145D-290D, Vint. A Rev. E 10/2011 RPL 700008700 / Page 39

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
