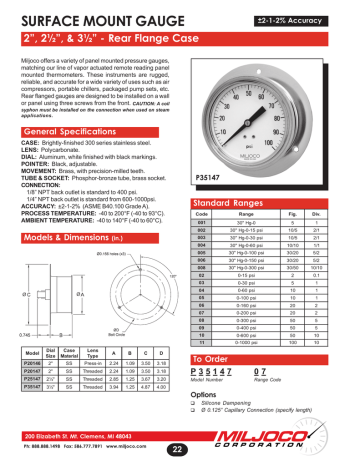

SURFACE MOUNT GAUGE
±2-1-2% Accuracy
2”, 2½”, & 3½” - Rear Flange Case
Miljoco offers a variety of panel mounted pressure gauges,
matching our line of vapor actuated remote reading panel
mounted thermometers. These instruments are rugged,
reliable, and accurate for a wide variety of uses such as air
compressors, portable chillers, packaged pump sets, etc.
Rear flanged gauges are designed to be installed on a wall
or panel using three screws from the front. CAUTION: A coil
syphon must be installed on the connection when used on steam
applications.
General Specifications
CASE: Brightly-finished 300 series stainless steel.
LENS: Polycarbonate.
DIAL: Aluminum, white finished with black markings.
POINTER: Black, adjustable.
MOVEMENT: Brass, with precision-milled teeth.
TUBE & SOCKET: Phosphor-bronze tube, brass socket.
CONNECTION:
1/8” NPT back outlet is standard to 400 psi.
1/4” NPT back outlet is standard from 600-1000psi.
ACCURACY: ±2-1-2% (ASME B40.100 Grade A).
PROCESS TEMPERATURE: -40 to 200°F (-40 to 93°C).
AMBIENT TEMPERATURE: -40 to 140°F (-40 to 60°C).
Models & Dimensions
P35147
Standard Ranges
C ode
(in.)
Ø
Ø
Model
Dial
Siz e
C ase
Material
L en s
Type
A
B
C
D
P 20146
2"
SS
Press-in
2.24
1.09
3.50
3.18
R an g e
Fig.
D iv.
001
30" Hg-0
5
1
002
30" Hg-0-15 psi
10/5
2/1
003
30" Hg-0-30 psi
10/5
2/1
004
30" Hg-0-60 psi
10/10
1/1
005
30" Hg-0-100 psi
30/20
5/2
006
30" Hg-0-150 psi
30/20
5/2
008
30" Hg-0-300 psi
30/50
10/10
02
0-15 psi
2
0.1
03
0-30 psi
5
1
04
0-60 psi
10
1
05
0-100 psi
10
1
06
0-160 psi
20
2
07
0-200 psi
20
2
08
0-300 psi
50
5
09
0-400 psi
50
5
10
0-600 psi
50
10
11
0-1000 psi
100
10
To Order
P 20147
2"
SS
Threaded
2.24
1.09
3.50
3.18
P35147
07
P 25147
2½"
SS
Threaded
2.85
1.25
3.67
3.20
Model Number
Range Code
P 35147
3½"
SS
Threaded
3.94
1.25
4.87
4.00
Options


22
Silicone Dampening
Ø 0.125” Capillary Connection (specify length)
