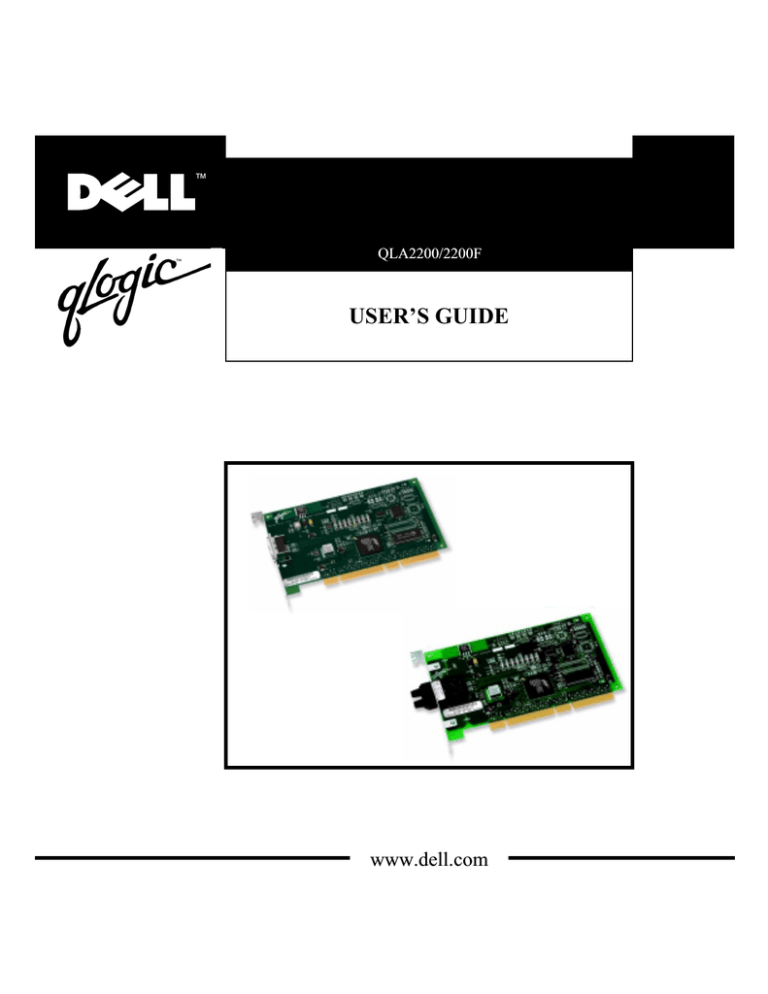

QLA2200/2200F
USER’S GUIDE
www.dell.com
™
QLA2200/2200F
USER’S GUIDE
www.dell.com
____________________
Information in this document is subject to change without notice.
© 1999 Dell Computer Corporation. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.
Trademarks used in this text: Dell, the DELL logo, and DellWare are registered trademarks of Dell Computer Corporation; QLogic is a trademark
of QLogic Corporation; Intel is a trademark of Intel Corporation.
Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell
Computer Corporation disclaims any proprietary interest in trademarks and trade names other than its own.
September 1999
P/N 5503T
Contents
Chapter 1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
Mixed Peripheral Support. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
Chapter 2
Hardware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Preinstallation Procedures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What You Need for Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation in the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1
2-1
2-2
2-2
Appendix A
Fast!UTIL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Host Adapter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Advanced Adapter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Scan Fibre Channel Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Select Host Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Appendix B
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Appendix C
Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
FCC Notices (U.S. Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Class A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
iii
Class B . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
FCC Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
IC Notice (Canada Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
CE Notice (European Union) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
Battery Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
EN 55022 Compliance (Czech Republic Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
VCCI Notice (Japan Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
Class A ITE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
Class B ITE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6
MOC Notice (South Korea Only). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6
Class A Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7
Class B Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7
Polish Center for Testing and Certification Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7
Wymagania Polskiego Centrum BadaÒ i Certyfikacji . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
PozostaŠe instrukcje bezpieczeÒstwa . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
NOM Information (Mexico Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9
Información para NOM (únicamente para México) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9
BSMI Notice (Taiwan Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-10
Appendix D
Warranty, Return Policy, and Year 2000 Statement of Compliance . . D-1
Limited Three-Year Warranty (U.S. Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
Coverage During Year One . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-1
Coverage During Years Two and Three . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
General Provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-2
Limited Three-Year Warranty (Canada Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3
Coverage During Year One . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-3
Coverage During Years Two and Three . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4
General Provisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-4
Intel® Warranty Statement (U.S. and Canada Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-6
“Total Satisfaction” Return Policy (U.S. and Canada Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-7
Year 2000 Statement of Compliance for Dell-Branded Hardware Products . . . . . . . . . . . . . . . . . D-7
Previous Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-8
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-8
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . D-8
iv
Figures
Figure 2-1.
Figure 2-2.
Figure C-1.
Figure C-2.
Figure C-3.
Figure C-4.
QLA2200/2200F Board Layouts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing the QLA2xxx Boards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VCCI Class A ITE Regulatory Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VCCI Class B ITE Regulatory Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MOC Class A Regulatory Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MOC Class B Regulatory Mark . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-2
2-3
C-6
C-6
C-7
C-7
Tables
Table A-1.
Table A-2.
Table B-1.
Table B-2.
Table C-1.
Table C-2.
Host Adapter Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Advanced Adapter Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
QLA2xxx Board Operating Environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
QLA2xxx Board Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
QLA2200 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
QLA2200F . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
v
vi
CHAPTER 1
Introduction
The following QLogic™ host adapter boards are collectively referred to as the QLA2xxx board
unless otherwise noted:
•
•
QLA2200 (64-bit PCI to Fibre Channel copper media)
QLA2200F (64-bit PCI to Fibre Channel optical media)
General Description
Thank you for selecting the QLA2xxx Fibre Channel (FC) board. The QLA2xxx board is an intelligent, high-performance, Direct Memory Access (DMA) bus master host adapter designed for highend systems. The intelligence and performance are derived from the ISP2xxx chips, making the
QLA2xxx board a leading-edge host adapter. The ISP2xxx combines a powerful reduced-instruction
Set Computer (RISC) processor, a Fibre Protocol Module (FPM) with gigabit transceivers, and a
Peripheral Component Interconnect (PCI) local bus interface in a single-chip solution. The
QLA2xxx board supports all FC peripherals that support Private Loop Direct Attach (PLDA) and
Fabric Loop Attach (FLA). Installation of the QLA2xxx board is quick and easy.
Features
•
•
•
•
•
•
Compliance with Intel® PCI version 2.1 specification
Compliance with Third Generation Fibre Channel Physical and Signaling Interface (FC-PH-3)
standard
Compliance with Fibre Channel-Arbitrated Loop (FC-AL) standard
Compliance with U.S. and international safety and emissions standards
Support for bus master DMA
Fast!UTIL BIOS utility to customize the configuration parameters on the QLA2xxx board and
attached drives
Introduction
1-1
Mixed Peripheral Support
Simultaneous mixed-peripheral configurations and bootable device support for FC devices that meet
the following standards:
•
•
1-2
Fibre Channel – Private Loop Direct Attach Technical Report (FC-PLDA)
Fibre Channel – Fabric Loop Attachment Technical Report (FC-FLA)
QLA2xxx User’s Guide
CHAPTER 2
Hardware Installation
Preinstallation Procedures
Before installing your QLA2xxx board, take a moment to read this guide.
CAUTION: The QLA2xxx board contains parts that can be damaged by Electrostatic Discharge (ESD). Before handling the QLA2xxx board, use standard methods to discharge static
electricity. Keep the QLA2xxx board in the antistatic bag until you are ready to install it. Place
the board on the bag when you examine or configure it. Retain the bag for future use.
Refer to the “Safety Information” section of your system documentation for specific safety
guidelines. Some Dell™ systems can only be serviced by trained service technicians.
What You Need for Installation
Before you install the QLA2xxx board in your computer, you need the following:
•
•
•
A screwdriver (usually a Phillips #1)
A High-Speed, Serial Data Connector (HSSDC) cable for the QLA2200 board
An optical, multimode cable with an SC-style duplex connector for the QLA2200F board
Figure 2-1identifies the QLA2xxx board components referenced throughout this section.
Each QLA2xxx board has a unique serial number; its location on the board is noted in Figure 2-1.
Take a minute to write down the serial number of the QLA2xxx board in the unlikely event that the
Nonvolatile Random Access Memory (NVRAM) is corrupted. If the NVRAM is corrupted, you will
be prompted for the QLA2xxx serial number.
Hardware Installation
2-1
serial number
J1
J1
serial number
Figure 2-1. QLA2200/2200F Board Layouts
Power Supply
The QLA2xxx board supplies +5 volts to pin 7 of the HSSDC copper interface to support
an external media interface adapter (MIA).
Installation in the Computer
NOTE: Due to multiple system configurations, these instructions provide a general description of the
installation procedure. Please consult your system’s user guide for any specific installation
procedures.
2-2
1.
Power down the peripherals, and then turn off the computer.
2.
Remove the computer cover, if necessary, and slot cover and save the screws (if there are any).
3.
Unscrew and remove the slot cover. Retain the screw; you will use it when you install the
QLA2xxx board.
4.
Place the QLA2xxx board into the slot. Carefully press the board into the slot until it seats
firmly.
QLA2xxx User’s Guide
Figure 2-2. Installing the QLA2xxx Boards
NOTE: QLA2xxx boards are designed with the components on the opposite side compared
with non-PCI boards.
5.
Secure the QLA2xxx board with the slot cover screw.
6.
Carefully reinstall the computer cover. Insert and tighten the computer cover screws.
Hardware Installation
2-3
2-4
QLA2xxx User’s Guide
APPENDIX A
Fast!UTIL
Introduction
This appendix provides detailed configuration information for advanced users who want to customize the configuration of the QLA2xxx board and the connected devices.
The board can be configured using Fast!UTIL. Access Fast!UTIL by pressing <ALT>-<Q> during
the QLA2xxx board BIOS initialization (it may take a few seconds for the Fast!UTIL menu to
appear). If you have more than one QLA2xxx board, Fast!UTIL asks you to select the board you
want to configure. After changing the settings, Fast!UTIL reboots your system to load the new
parameters.
CAUTION: If the configuration settings are incorrect, your QLA2xxx board will not function
properly.
The following sections describe the Fast!UTIL options.
Configuration Settings
The first selection on the Fast!UTIL Options menu is Configuration Settings. These settings configure the Fibre Channel (FC) devices and the QLA2xxx board to which they are attached.
Host Adapter Settings
From the Configuration Settings menu in Fast!UTIL, select Host Adapter Settings. The default settings for the QLA2xxx host adapter board are listed in table A-1 and described in the following
paragraphs.
Table A-1. Host Adapter Settings
Setting
Options
Default
Host Adapter BIOS
Enabled or Disabled
Disabled
Frame Size
512, 1024, 2048
2048
Loop Reset Delay
0-15 seconds
5 seconds
Adapter Hard Loop ID
Enabled or Disabled
Enabled
Fast!UTIL
A-1
Table A-1. Host Adapter Settings (continued)
Setting
Options
Default
Hard Loop ID
0-125
125
•
Host Adapter BIOS. When this setting is disabled, the ROM BIOS on the QLA2xxx board is
disabled, freeing space in upper memory. Do not disable this setting if you are booting from an
FC disk drive attached to the QLA2xxx board. The default is Disabled.
•
Frame Size. This setting specifies the maximum frame length supported by the QLA2xxx
board. The default size is 1024.
•
Loop Reset Delay. After resetting the loops, the firmware refrains from initiating any loop
activity for the number of seconds specified in this setting. The default is 5 seconds.
•
Adapter Hard Loop ID. This setting forces the adapter to use the ID specified in the Hard
Loop ID setting. The default is Disabled.
•
Hard Loop ID. If the Adapter Hard Loop ID setting is enabled, the adapter attempts to use the
ID specified in this setting. The default ID is 0.
Advanced Adapter Settings
From the Configuration Settings menu in Fast!UTIL, select Advanced Adapter Settings. The
default setting for the QLA2xxx host adapter board is listed in table A-2 and described in the following paragraphs.
Table A-2. Advanced Adapter Setting
•
Setting
Options
Default
>4GByte Addressing
Enabled or Disabled
Disabled
>4GByte Addressing. This option should be enabled if the system has more than 4 gigabytes
(GB) of memory available. The default is Disabled.
Scan Fibre Channel Devices
This option scans the FC loop and lists all the connected devices by loop ID. Information about each
device is listed, for example, vendor name, product name, and revision. This information is useful
when configuring your QLA2xxx board and attached devices.
Select Host Adapter
Use this setting to select a specific QLA2xxx board if you have multiple QLA2xxx boards in your
system.
A-2
QLA2xxx User’s Guide
APPENDIX B
Specifications
Table B-1. QLA2xxx Board Operating Environment
Environment
Minimum
Maximum
Operating temperature
0°C/32°F
55°C/131°F
Storage temperature
-20°C/-4°F
70°C/158°F
Relative humidity (noncondensing)
10%
90%
Storage humidity (noncondensing)
5%
95%
Table B-2. QLA2xxx Board Specifications
Type
Specification
Host bus
Conforms to PCI Local Bus Specification, revision 2.1
PCI signaling
environment
3.3 V and 5.0 V busses supported
PCI transfer rate
264 Mbytes/sec maximum burst rate for 33 MHz operation
(ISP2200 chip)
528 Mbytes/sec maximum burst rate for 66 MHz operation
(ISP2200A chip)
Fibre Channel
specifications
Bus type:
Bus transfer rate:
copper media, twisted pair (QLA2200)
fibre optic media (QLA2200F)
100 Mbytes/sec maximum
Central processing unit (CPU)
Single-chip design that includes a Reduced Instruction Set Computer (RISC) processor, Fibre Channel protocol manager, Peripheral Component Interconnect Direct Memory Access (PCI DMA)
controller, and 1-gigabit transceivers
Host data transfer
64-bit, bus master DMA data transfers to 264 Mbytes/sec
RAM
128K bytes of something Random Access Memory (SRAM),
optionally expandable to 256K bytes
BIOS ROM
128K bytes of flash Read-Only Memory (ROM) in two 64K-byte,
software selectable banks. The flash is field programmable.
Specifications
B-1
Table B-2. QLA2xxx Board Specifications (continued)
B-2
Type
Specification
NVRAM
256 bytes, field programmable
Onboard DMA
Three independent DMA channels: two data and one command.
Integrated 4K-byte frame buffer first-in-first-out (FIFO) for each
data channel
Connectors
(external)
QLA2200: High-Speed, Serial Data Connector (HSSDC) connector that supports copper cabling. Fibre optic support available
using an external MIA.
QLA2200F: SC-style connector that supports non-OFC, multimode fibre optic cabling using 1x9 fibre optic transceiver module.
Form factor
17.78cm x 10.67cm (7.0" x 4.2")
Operating power
Less than 15 watts
QLA2xxx User’s Guide
APPENDIX C
Regulatory Notices
Electromagnetic Interference (EMI) is any signal or emission, radiated in free space or conducted
along power or signal leads, that endangers the functioning of a radio navigation or other safety service or seriously degrades, obstructs, or repeatedly interrupts a licensed radio communications
service. Radio communications services include but are not limited to AM/FM commercial broadcast, television, cellular services, radar, air-traffic control, pager, and Personal Communication
Services (PCS). These licensed services, along with unintentional radiators such as digital devices,
including computer systems, contribute to the electromagnetic environment.
Electromagnetic Compatibility (EMC) is the ability of items of electronic equipment to function
properly together in the electronic environment. While this computer system has been designed and
determined to be compliant with regulatory agency limits for EMI, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference with
radio communications services, which can be determined by turning the equipment off and on, you
are encouraged to try to correct the interference by one or more of the following measures:
•
•
•
•
Reorient the receiving antenna.
Relocate the computer with respect to the receiver.
Move the computer away from the receiver.
Plug the computer into a different outlet so that the computer and the receiver are on different
branch circuits.
If necessary, consult a Technical Support representative of Dell Computer Corporation or an experienced radio/television technician for additional suggestions. You may find the FCC Interference
Handbook, 1986, to be helpful. It is available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00450-7 or on the World Wide Web at http://www.fcc.gov/
Bureaus/Compliance/WWW/tvibook.html.
Dell computer systems are designed, tested, and classified for their intended electromagnetic environment. These electromagnetic environment classifications generally refer to the following
harmonized definitions:
•
•
Class A is typically for business or industrial environments.
Class B is typically for residential environments.
Information Technology Equipment (ITE), including peripherals, expansion cards, printers, input/
output (I/O) devices, monitors, and so on, that are integrated into or connected to the system should
match the electromagnetic environment classification of the computer system.
Regulatory Notices
C-1
A Notice About Shielded Signal Cables: Use only shielded cables for connecting peripherals to
any Dell device to reduce the possibility of interference with radio communications services.
Using shielded cables ensures that you maintain the appropriate EMC classification for the
intended environment. For parallel printers, a cable is available from Dell Computer Corporation. If you prefer, you can order a cable from Dell Computer Corporation on the World Wide
Web at http://www.dell.com/products/dellware/index.htm.
A Notice About Networked Computer Systems: Some Dell computer systems that are classified for Class B environments may include an on-board network interface controller (NIC). If
your Class B system contains a NIC, it may be considered to be a Class A system at the time
that the NIC is connected to a network. When the NIC is not connected to a network, your system is considered to be a Class B digital device.
Most Dell computer systems are classified for Class B environments. To determine the electromagnetic classification for your system or device, refer to the following sections specific for each
regulatory agency. Each section provides country-specific EMC/EMI or product safety information.
FCC Notices (U.S. Only)
Most Dell computer systems are classified by the Federal Communications Commission (FCC) as
Class B digital devices. However, the inclusion of certain options can change the rating of some configurations to Class A. To determine which classification applies to your computer system, examine
all FCC registration labels located on the bottom or back panel of your computer, on card-mounting
brackets, and on the cards themselves. If any one of the labels carries a Class A rating, your entire
system is considered to be a Class A digital device. If all labels carry an FCC Class B rating as distinguished by either an FCC ID number or the FCC logo, (
), your system is considered to be a
Class B digital device.
Once you have determined your system’s FCC classification, read the appropriate FCC notice. Note
that FCC regulations provide that changes or modifications not expressly approved by Dell Computer Corporation could void your authority to operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
•
•
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause
undesired operation.
Class A
This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the manufacturer’s instruction manual, may cause harmful interference with radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in
which case you will be required to correct the interference at your own expense.
C-2
QLA2xxx User’s Guide
Class B
This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on,
you are encouraged to try to correct the interference by one or more of the following measures:
•
•
•
Reorient or relocate the receiving antenna.
•
Consult the dealer or an experienced radio/television technician for help.
Increase the separation between the equipment and the receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
FCC Declaration of Conformity
The following information is provided on the device or devices covered in this document in compliance with FCC regulations:
Table C-1. QLA2200
Trade Name:
QLogic
Model Number:
FC0210406
Compliance Test Report Number
B90208A1
Compliance Test Report Date
02/08/99
Responsible Party
QLogic Corporation
Address
3545 Harbor Blvd., Costa Mesa, CA 92626
Telephone
714.438.2200
Table C-2. QLA2200F
Trade Name:
QLogic
Model Number:
FC0310406
Compliance Test Report Number
B90527A1
Compliance Test Report Date
05/27/99
Responsible Party
QLogic Corporation
Address
3545 Harbor Blvd., Costa Mesa, CA 92626
Telephone
714.438.2200
Regulatory Notices
C-3
IC Notice (Canada Only)
Most Dell computer systems (and other Dell digital apparatus) are classified by the Industry Canada
(IC) Interference-Causing Equipment Standard #3 (ICES-003) as Class B digital devices. To determine which classification (Class A or B) applies to your computer system (or other Dell digital
apparatus), examine all registration labels located on the bottom or the back panel of your computer
(or other digital apparatus). A statement in the form of “IC Class A ICES-3” or “IC Class B ICES-3”
will be located on one of these labels. Note that Industry Canada regulations provide that changes or
modifications not expressly approved by Dell Computer Corporation could void your authority to
operate this equipment.
This Class B (or Class A, if so indicated on the registration label) digital apparatus meets
the requirements of the Canadian Interference-Causing Equipment Regulations.
Cet appareil numérique de la Classe B (ou Classe A, si ainsi indiqué sur l’étiquette d’enregistration) respecte toutes les exigences du Reglement sur le Materiel Brouilleur du Canada.
CE Notice (European Union)
Marking by the symbol
indicates compliance of this Dell system to the EMC Directive and
the Low Voltage Directive of the European Union. Such marking is indicative that this Dell system
meets the following technical standards:
•
EN 55022 — “Limits and Methods of Measurement of Radio Interference Characteristics of
Information Technology Equipment.”
•
EN 50082-1: 1992 — “Electromagnetic compatibility—Generic immunity standard Part 1:
Residential, commercial, and light industry.”
•
EN 60950 — “Safety of Information Technology Equipment.”
NOTE: EN 55022 emissions requirements provide for two classifications:
•
•
Class A is for typical commercial areas.
Class B is for typical domestic areas.
RF INTERFERENCE WARNING: This is a Class A product. In a domestic environment this
product may cause radio frequency (RF) interference, in which case the user may be required
to take adequate measures.
This Dell device is classified for use in a typical Class B domestic environment.
A “Declaration of Conformity” in accordance with the preceding directives and standards has been
made and is on file at Dell Products Europe BV, Limerick, Ireland.
Battery Disposal
Your computer system uses a XXX battery. The XXX is a long-life battery, and it is very possible
that you will never need to replace it. However, should you need to replace it, refer to the section
about replacing the battery in your Dell system documentation for instructions.
C-4
QLA2xxx User’s Guide
Do not dispose of the battery along with household waste. Contact your local waste disposal agency
for the address of the nearest battery deposit site.
NOTE: Your system may also include circuit cards or other components that contain batteries. These
batteries must also be disposed of in a battery deposit site. For information about such batteries,
refer to the documentation for the specific card or component.
EN 55022 Compliance (Czech Republic Only)
This device belongs to Class B devices as described in EN 55022, unless it is specifically
stated that it is a Class A device on the specification label. The following applies to devices
in Class A of EN 55022 (radius of protection up to 30 meters). The user of the device is
obliged to take all steps necessary to remove sources of interference to telecommunication
or other devices.
Pokud nenÌ na typovÈm ötitku poËÌtaËe uvedeno, ûe spad· do t¯Ìdy A podle EN 55022,
spad· automaticky do t¯Ìdy B podle EN 55022. Pro za¯ÌzenÌ za¯azen· do t¯Ìdy A (ochrannÈ
p·smo 30m) podle EN 55022 platÌ n·sledujÌcÌ. Dojde-li k ruöenÌ telekomunikaËnÌch nebo
jinych za¯ÌzenÌ, je uûivatel povinen provÈst takov· opat¯enÌ, aby ruöenÌ odstranil.
VCCI Notice (Japan Only)
Most Dell computer systems are classified by the Voluntary Control Council for Interference
(VCCI) as Class B information technology equipment (ITE). However, the inclusion of certain
options can change the rating of some configurations to Class A. ITE, including peripherals, expansion cards, printers, input/output (I/O) devices, monitors, and so on, integrated into or connected to
the system, should match the electromagnetic environment classification (Class A or B) of the computer system.
To determine which classification applies to your computer system, examine the regulatory labels/
markings located on the bottom or back panel of your computer. Once you have determined your
system’s VCCI classification, read the appropriate VCCI notice.
Class A ITE
This is a Class A product based on the standard of the Voluntary Control Council for Interference
(VCCI) for information technology equipment. If this equipment is used in a domestic environment,
radio disturbance may arise. When such trouble occurs, the user may be required to take corrective
actions.
Regulatory Notices
C-5
VCCI-A
Figure C-1. VCCI Class A ITE Regulatory Mark
Class B ITE
This is a Class B product based on the standard of the Voluntary Control Council for Interference
(VCCI) for information technology equipment. If this equipment is used near a radio or television
receiver in a domestic environment, it may cause radio interference. Install and use the equipment
according to the instruction manual.
Figure C-2. VCCI Class B ITE Regulatory Mark
MOC Notice (South Korea Only)
To determine which classification (Class A or B) applies to your computer system (or other Dell digital device), examine the South Korean Ministry of Communications (MOC) registration labels
located on your computer (or other Dell digital device). The MOC label may be located separately
from the other regulatory marking applied to your product. The English text, “EMI (A),” for Class A
products, or “EMI (B)” for Class B products, appears in the center of the MOC label.
NOTE: MOC emissions requirements provide for two classifications:
•
•
C-6
Class A devices are for business purposes.
Class B devices are for nonbusiness purposes.
QLA2xxx User’s Guide
Class A Device
Please note that this device has been approved for business purposes with regard to electromagnetic
interference. If you find that this device is not suitable for your use, you may exchange it for a nonbusiness device.
EMI ( A )
Figure C-3. MOC Class A Regulatory Mark
Class B Device
Please note that this device has been approved for nonbusiness purposes and may be used in any
environment, including residential areas.
EMI ( B )
Figure C-4. MOC Class B Regulatory Mark
Polish Center for Testing and Certification Notice
The equipment should draw power from a socket with an attached protection circuit (a three-prong
socket). All equipment that works together (computer, monitor, printer, and so on) should have the
same power supply source.
The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
Regulatory Notices
C-7
To completely switch off the equipment, the power supply cable must be removed from the power
supply socket, which should be located near the equipment and easily accessible.
A protection mark “B” confirms that the equipment is in compliance with the protection usage
requirements of standards PN-93/T-42107 and PN-EN55022:1996.
Wymagania Polskiego Centrum BadaÒ i Certyfikacji
Urz¼dzenie powinno byÊ zasilane z gniazda z przyŠ¼czonym obwodem ochronnym (gniazdo z
koŠkiem). WspÛŠpracuj¼ce ze sob¼ urz¼dzenia (komputer, monitor,
drukarka) powinny byÊ zasilane z tego samego ürÛdŠa.
Instalacja elektryczna pomieszczenia powinna zawieraÊ w przewodzie fazowym
rezerwow¼ ochronÍ przed zwarciami, w postaci bezpiecznika o wartoúci znamionowej nie wiÍkszej
niø 16A (amperÛw).
W celu caŠkowitego wyŠ¼czenia urz¼dzenia z sieci zasilania, naleøy wyj¼Ê wtyczkÍ kabla
zasilaj¼cego z gniazdka, ktÛre powinno znajdowaÊ siÍ w pobliøu urz¼dzenia i byÊ Šatwo
dostÍpne.
Znak bezpieczeÒstwa "B" potwierdza zgodnoúÊ urz¼dzenia z wymaganiami
bezpieczeÒstwa uøytkowania zawartymi w PN-93/T-42107 i PN-EN55022:1966.
PozostaŠe instrukcje bezpieczeÒstwa
•
•
•
•
•
•
C-8
Nie naleøy uøywaÊ wtyczek adapterowych lub usuwaÊ koŠka obwodu ochronnego z wtyczki.
Jeøeli konieczne jest uøycie przedŠuøacza to naleøy uøyÊ przedŠuøacza 3-øyŠowego z prawidŠowo poŠ¼czonym przewodem ochronnym.
System komputerowy naleøy zabezpieczyÊ przed nagŠymi, chwilowymi
wzrostami lub spadkami napiÍcia, uøywaj¼c eliminatora przepiÍÊ, urz¼dzenia
dopasowuj¼cego lub bezzakŠÛceniowego ürÛdŠa zasilania.
Naleøy upewniÊ siÍ, aby nic nie leøaŠo na kablach systemu komputerowego,
oraz aby kable nie byŠy umieszczone w miejscu, gdzie moøna byŠoby na nie nadeptywaÊ lub
potykaÊ siÍ o nie.
Nie naleøy rozlewaÊ napojÛw ani innych pŠynÛw na system komputerowy.
Nie naleøy wpychaÊ øadnych przedmiotÛw do otworÛw systemu komputerowego, gdyø moøe
to spowodowaÊ poøar lub poraøenie pr¼dem, poprzez zwarcie
elementÛw wewnÍtrznych.
System komputerowy powinien znajdowaÊ siÍ z dala od grzejnikÛw i ürÛdeŠ ciepŠa. Ponadto,
nie naleøy blokowaÊ otworÛw wentylacyjnych. Naleøy unikaÊ kŠadzenia luünych papierÛw
pod komputer oraz umieszczania komputera w
ciasnym miejscu bez moøliwoúci cyrkulacji powietrza wokÛŠ niego.
QLA2xxx User’s Guide
NOM Information (Mexico Only)
The following information is provided on the device(s) described in this document in compliance
with the requirements of the official Mexican standards (NOM):
Exporter:
Dell Computer Corporation
One Dell Way
Round Rock, TX 78682
Importer:
Dell Computer de México,
S.A. de C.V.
Rio Lerma No. 302 - 4° Piso
Col. Cuauhtemoc
16500 México, D.F.
Ship to:
Dell Computer de México,
S.A. de C.V. al Cuidado de Kuehne
& Nagel de
México S. de R.I.
Avenida Soles No. 55
Col. Peñon de los Baños
15520 México, D.F.
Supply voltage:
115/230 VAC
Frequency:
60/50 Hz
Input current
rating:
DCM and MMP — 6.0/3.0 A
DCS — 6.0/3.0 A or 4.0/2.0 A
NCS — 6.0/3.0 A, 4.0/2.0 A, or 2.0/
1.0 A
Información para NOM (únicamente para México)
La información siguiente se proporciona en el dispositivo o en los dispositivos descritos en este documento, en cumplimiento con los requisitos de la Norma Oficial Mexicana (NOM):
Exportador:
Dell Computer Corporation
One Dell Way
Round Rock, TX 78682
Importador:
Dell Computer de México,
S.A. de C.V.
Rio Lerma No. 302 - 4° Piso
Col. Cuauhtemoc
16500 México, D.F.
Regulatory Notices
C-9
Exportador:
Dell Computer Corporation
One Dell Way
Round Rock, TX 78682
Embarcar a:
Dell Computer de México, S.A. de
C.V. al Cuidado de Kuehne &
Nagel de México S. de R.I.
Avenida Soles No. 55
Col. Peñon de los Baños
15520 México, D.F.
Tensión
alimentación:
115/230 VAC
Frecuencia:
60/50 Hz
Consumo de
corriente:
DCM and MMP — 6.0/3.0 A
DCS — 6.0/3.0 A or 4.0/2.0 A
NCS — 6.0/3.0 A, 4.0/2.0 A, or 2.0/
1.0 A
BSMI Notice (Taiwan Only)
C-10 QLA2xxx User’s Guide
APPENDIX D
Warranty, Return Policy, and Year 2000
Statement of Compliance
Limited Three-Year Warranty (U.S. Only)
Dell Computer Corporation (“Dell”) manufactures its hardware products from parts and components
that are new or equivalent to new in accordance with industry-standard practices. Dell warrants that
the hardware products it manufactures will be free from defects in materials and workmanship. The
warranty term is three years beginning on the date of invoice, as described in the following text.
Damage due to shipping the products to you is covered under this warranty. Otherwise, this warranty
does not cover damage due to external causes, including accident, abuse, misuse, problems with
electrical power, servicing not authorized by Dell, usage not in accordance with product instructions, failure to perform required preventive maintenance, and problems caused by use of parts and
components not supplied by Dell.
This warranty does not cover any items that are in one or more of the following categories: software;
external devices (except as specifically noted); accessories or parts added to a Dell system after the
system is shipped from Dell; accessories or parts added to a Dell system through Dell’s system integration department; accessories or parts that are not installed in the Dell factory; or DellWareSM
products. Monitors, keyboards, and mice that are Dell-branded or that are included on Dell’s standard price list are covered under this warranty; all other monitors, keyboards, and mice (including
those sold through the DellWare program) are not covered. Batteries for portable computers are covered only during the initial one-year period of this warranty.
Coverage During Year One
During the one-year period beginning on the invoice date, Dell will repair or replace products covered under this limited warranty that are returned to Dell’s facility. To request warranty service, you
must call Dell’s Customer Technical Support within the warranty period. Refer to the chapter titled
“Getting Help” in your system’s troubleshooting documentation or, for some systems, the section
titled “Contacting Dell” in your system’s online guide to find the appropriate telephone number for
obtaining customer assistance. If warranty service is required, Dell will issue a Return Material
Authorization Number. You must ship the products back to Dell in their original or equivalent packaging, prepay shipping charges, and insure the shipment or accept the risk of loss or damage during
shipment. Dell will ship the repaired or replacement products to you freight prepaid if you use an
address in the continental U.S., where applicable. Shipments to other locations will be made freight
collect.
Warranty, Return Policy, and Year 2000 Statement of Compliance
D-1
NOTE: Before you ship the product(s) to Dell, back up the data on the hard-disk drive(s) and any
other storage device(s) in the product(s). Remove any removable media, such as diskettes, CDs, or
PC Cards. Dell does not accept liability for lost data or software.
Dell owns all parts removed from repaired products. Dell uses new and reconditioned parts made by
various manufacturers in performing warranty repairs and building replacement products. If Dell
repairs or replaces a product, its warranty term is not extended.
Coverage During Years Two and Three
During the second and third years of this limited warranty, Dell will provide, on an exchange basis
and subject to Dell’s Exchange Policy in effect on the date of the exchange, replacement parts for
the Dell hardware product(s) covered under this limited warranty when a part requires replacement.
You must report each instance of hardware failure to Dell’s Customer Technical Support in advance
to obtain Dell’s concurrence that a part should be replaced and to have Dell ship the replacement
part. Dell will ship parts (freight prepaid) if you use an address in the continental U.S., where applicable. Shipments to other locations will be made freight collect. Dell will include a prepaid shipping
container with each replacement part for your use in returning the replaced part to Dell. Replacement parts are new or reconditioned. Dell may provide replacement parts made by various
manufacturers when supplying parts to you. The warranty term for a replacement part is the remainder of the limited warranty term.
You will pay Dell for replacement parts if the replaced part is not returned to Dell. The process for
returning replaced parts, and your obligation to pay for replacement parts if you do not return the
replaced parts to Dell, will be in accordance with Dell’s Exchange Policy in effect on the date of the
exchange.
You accept full responsibility for your software and data. Dell is not required to advise or remind
you of appropriate backup and other procedures.
General Provisions
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS WHICH VARY FROM STATE
TO STATE (OR JURISDICTION TO JURISDICTION). DELL'S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND
REPLACEMENT AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND
IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY
IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTIBILITY AND FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY
PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED,
WILL APPLY AFTER SUCH PERIOD.
SOME STATES (OR JURISDICTIONS) DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE PRECEDING LIMITATION MAY NOT APPLY TO
YOU.
DELL DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS
WARRANTY STATEMENT OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT
BEING AVAILABLE FOR USE OR FOR LOST DATA OR SOFTWARE.
D-2
QLA2xxx User’s Guide
SOME STATES (OR JURISDICTIONS) DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE PRECEDING
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
These provisions apply to Dell’s limited three-year warranty only. For provisions of any service
contract covering your system, refer to your invoice or the separate service contract that you will
receive.
If Dell elects to exchange a system or component, the exchange will be made in accordance with
Dell’s Exchange Policy in effect on the date of the exchange. In any instance in which Dell issues a
Return Material Authorization Number, Dell must receive the product(s) for repair prior to the expiration of the warranty period in order for the repair(s) to be covered by the warranty.
NOTE: If you chose one of the available warranty and service options in place of the standard limited three-year warranty described in the preceding text, the option you chose will be listed on your
invoice.
Limited Three-Year Warranty (Canada Only)
Dell Computer Corporation (“Dell”) manufactures its hardware products from parts and components
that are new or equivalent to new in accordance with industry-standard practices. Dell warrants that
the hardware products it manufactures will be free from defects in materials and workmanship. The
warranty term is three years beginning on the date of invoice, as described in the following text.
Damage due to shipping the products to you is covered under this warranty. Otherwise, this warranty
does not cover damage due to external causes, including accident, abuse, misuse, problems with
electrical power, servicing not authorized by Dell, usage not in accordance with product instructions, failure to perform required preventive maintenance, and problems caused by use of parts and
components not supplied by Dell.
This warranty does not cover any items that are in one or more of the following categories: software;
external devices (except as specifically noted); accessories or parts added to a Dell system after the
system is shipped from Dell; accessories or parts added to a Dell system through Dell’s system integration department; accessories or parts that are not installed in the Dell factory; or DellWare
products. Monitors, keyboards, and mice that are Dell-branded or that are included on Dell’s standard price list are covered under this warranty; all other monitors, keyboards, and mice (including
those sold through the DellWare program) are not covered. Batteries for portable computers are covered only during the initial one-year period of this warranty.
Coverage During Year One
During the one-year period beginning on the invoice date, Dell will repair or replace products covered under this limited warranty that are returned to Dell’s facility. To request warranty service, you
must call Dell’s Customer Technical Support within the warranty period. Refer to the chapter titled
“Getting Help” in your system’s troubleshooting documentation or, for some systems, the section
titled “Contacting Dell” in your system’s online guide to find the appropriate telephone number for
obtaining customer assistance. If warranty service is required, Dell will issue a Return Material
Authorization Number. You must ship the products back to Dell in their original or equivalent packaging, prepay shipping charges, and insure the shipment or accept the risk of loss or damage during
shipment. Dell will ship the repaired or replacement products to you freight prepaid if you use an
address in Canada, where applicable. Shipments to other locations will be made freight collect.
Warranty, Return Policy, and Year 2000 Statement of Compliance
D-3
NOTE: Before you ship the product(s) to Dell, back up the data on the hard-disk drive(s) and any
other storage device(s) in the product(s). Remove any removable media, such as diskettes, CDs, or
PC Cards. Dell does not accept liability for lost data or software.
Dell owns all parts removed from repaired products. Dell uses new and reconditioned parts made by
various manufacturers in performing warranty repairs and building replacement products. If Dell
repairs or replaces a product, its warranty term is not extended.
Coverage During Years Two and Three
During the second and third years of this limited warranty, Dell will provide, on an exchange basis
and subject to Dell’s Exchange Policy in effect on the date of the exchange, replacement parts for
the Dell hardware product(s) covered under this limited warranty when a part requires replacement.
You must report each instance of hardware failure to Dell’s Customer Technical Support in advance
to obtain Dell’s concurrence that a part should be replaced and to have Dell ship the replacement
part. Dell will ship parts (freight prepaid) if you use an address in Canada, where applicable. Shipments to other locations will be made freight collect. Dell will include a prepaid shipping container
with each replacement part for your use in returning the replaced part to Dell. Replacement parts are
new or reconditioned. Dell may provide replacement parts made by various manufacturers when
supplying parts to you. The warranty term for a replacement part is the remainder of the limited warranty term.
You will pay Dell for replacement parts if the replaced part is not returned to Dell. The process for
returning replaced parts, and your obligation to pay for replacement parts if you do not return the
replaced parts to Dell, will be in accordance with Dell’s Exchange Policy in effect on the date of the
exchange.
You accept full responsibility for your software and data. Dell is not required to advise or remind
you of appropriate backup and other procedures.
General Provisions
DELL MAKES NO EXPRESS WARRANTIES OR CONDITIONS BEYOND THOSE STATED
IN THIS WARRANTY STATEMENT. DELL DISCLAIMS ALL OTHER WARRANTIES AND
CONDITIONS, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. SOME STATES (OR JURISDICTIONS) DO NOT ALLOW
LIMITATIONS ON IMPLIED WARRANTIES OR CONDITIONS, SO THIS LIMITATION MAY
NOT APPLY TO YOU.
DELL’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND REPLACEMENT AS SET FORTH IN THIS WARRANTY
STATEMENT. THESE WARRANTIES GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU
MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION).
DELL DOES NOT ACCEPT LIABILITY BEYOND THE REMEDIES SET FORTH IN THIS
WARRANTY STATEMENT OR LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES, INCLUDING WITHOUT LIMITATION ANY LIABILITY FOR PRODUCTS NOT
BEING AVAILABLE FOR USE OR FOR LOST DATA OR SOFTWARE.
D-4
QLA2xxx User’s Guide
SOME STATES (OR JURISDICTIONS) DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE PRECEDING
EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU.
These provisions apply to Dell’s limited three-year warranty only. For provisions of any service
contract covering your system, refer to your invoice or the separate service contract that you will
receive.
If Dell elects to exchange a system or component, the exchange will be made in accordance with
Dell’s Exchange Policy in effect on the date of the exchange. In any instance in which Dell issues a
Return Material Authorization Number, Dell must receive the product(s) for repair prior to the expiration of the warranty period in order for the repair(s) to be covered by the warranty.
NOTE: If you chose one of the available warranty and service options in place of the standard limited three-year warranty described in the preceding text, the option you chose will be listed on your
invoice.
Warranty, Return Policy, and Year 2000 Statement of Compliance
D-5
Intel® Warranty Statement (U.S. and Canada Only)
D-6
QLA2xxx User’s Guide
“Total Satisfaction” Return Policy (U.S. and Canada
Only)
If you are an end-user customer who bought new products directly from a Dell company, you may
return them to Dell within 30 days of the date of invoice for a refund or credit of the product purchase price. If you are an end-user customer who bought reconditioned or refurbished products from
a Dell company, you may return them to Dell within 14 days of the date of invoice for a refund or
credit of the product purchase price. In either case, the refund or credit will not include any shipping
and handling charges shown on your invoice. If you are an organization that bought the products
under a written agreement with Dell, the agreement may contain different terms for the return of
products than specified by this policy.
To return products, you must call Dell Customer Service to receive a Credit Return Authorization
Number. Refer to the chapter titled “Getting Help” in your system's troubleshooting documentation
or, for some systems, the section titled “Contacting Dell” in your system's online guide to find the
appropriate telephone number for obtaining customer assistance. To expedite the processing of your
refund or credit, Dell expects you to return the products to Dell in their original packaging within
five days of the date that Dell issues the Credit Return Authorization Number. You must also prepay
shipping charges and insure the shipment or accept the risk of loss or damage during shipment. You
may return software for refund or credit only if the sealed package containing the diskette(s) or
CD(s) is unopened. Returned products must be in as-new condition, and all of the manuals, diskette(s), CD(s), power cables, and other items included with a product must be returned with it. For
customers who want to return, for refund or credit only, either applications software or an operating
system that has been installed by Dell, the whole system must be returned, along with any media and
documentation that may have been included in the original shipment.
This “Total Satisfaction” Return Policy does not apply to DellWare products, which may be
returned under DellWare's then-current return policy. In addition, reconditioned parts purchased
through Dell Spare Parts Sales in Canada are nonreturnable.
Year 2000 Statement of Compliance for Dell-Branded
Hardware Products
Dell-branded hardware products shipped on or after January 1, 1997, are eligible to carry the “NSTL
Hardware Tested Year 2000 Compliant” logo by virtue of formal testing with, and successful completion of, the National Software Testing Laboratories (NSTL) YMARK2000 test.* Dell will treat a
failure to pass the YMARK2000 test as a covered event under Dell's warranty for the product, subject to the normal warranty limitations.** For a complete copy of Dell's warranty, see the product's
documentation. Dell-branded hardware products will also recognize the year 2000 as a leap year.
*The YMARK2000 standard tests the ability of system hardware and firmware to support the transition to the
year 2000 (and to recognize leap years, when appropriate, for years 2000 through 2009 inclusive) and not that of
options, operating systems, or applications software. Dell-branded hardware products that pass the
YMARK2000 test conform to BSI-DISC
PD 2000-1.
** Except for this clarification of Dell's warranty for NSTL logo hardware, all other warranties, conditions and
remedies, express or implied, relating to year 2000 readiness or compliance are disclaimed. To make a claim
Warranty, Return Policy, and Year 2000 Statement of Compliance
D-7
under this warranty for NSTL logo hardware, customers must contact Dell prior to January 1, 2001. To make a
claim, write to:
Dell Computer Corporation
P.O. Box 149258
Austin, Texas 78714-9258
Attention: Year 2000
Despite a system's ability to pass the YMARK2000 test, actual rollover results in specific operating environments may vary depending on other factors including, but not limited to, other hardware, operating systems, and
applications software.
Previous Products
For Dell-branded hardware products shipped prior to January 1, 1997, that have an upgradable basic
input/output system (BIOS), Dell makes available a BIOS upgrade. Although these products may
not have been tested under the YMARK2000 test, Dell believes that the hardware would pass the
YMARK2000 test, provided the appropriate BIOS upgrade is properly loaded.
For Dell-branded hardware products that do not have an upgradable BIOS, Dell has made available,
as a convenience to customers, the Dell Program Patch, a software utility designed to assist customers in managing the year 2000 rollover.
Software
Dell specifically excludes all non-Dell-developed software from this compliance statement. All software run on Dell-branded hardware products should be independently verified by customers to be
year 2000-compliant.
The factory-installed software on your system is the current version provided by the software manufacturer and is validated by Dell for installation. Dell recommends that you check each software
manufacturer’s year 2000 Web site for updates to their products. Links to a number of these Web
sites can be found at the Dell year 2000 Web sites.
Additional Information
For additional information on year 2000 compliance of Dell-branded hardware products, refer to the
following Dell year 2000 Web sites, or contact a Dell customer service representative in your area:
•
•
•
•
D-8
http://www.dell.com/year2000 (Americas)
http://www.dell.com/jp/year2000 (Japan)
http://www.euro.dell.com/year2000 (Europe)
http://www.dell.com/ap/year2000 (Asia Pacific)
QLA2xxx User’s Guide
Printed in the U.S.A.
™
P/N 5503T
Download PDF

advertising
