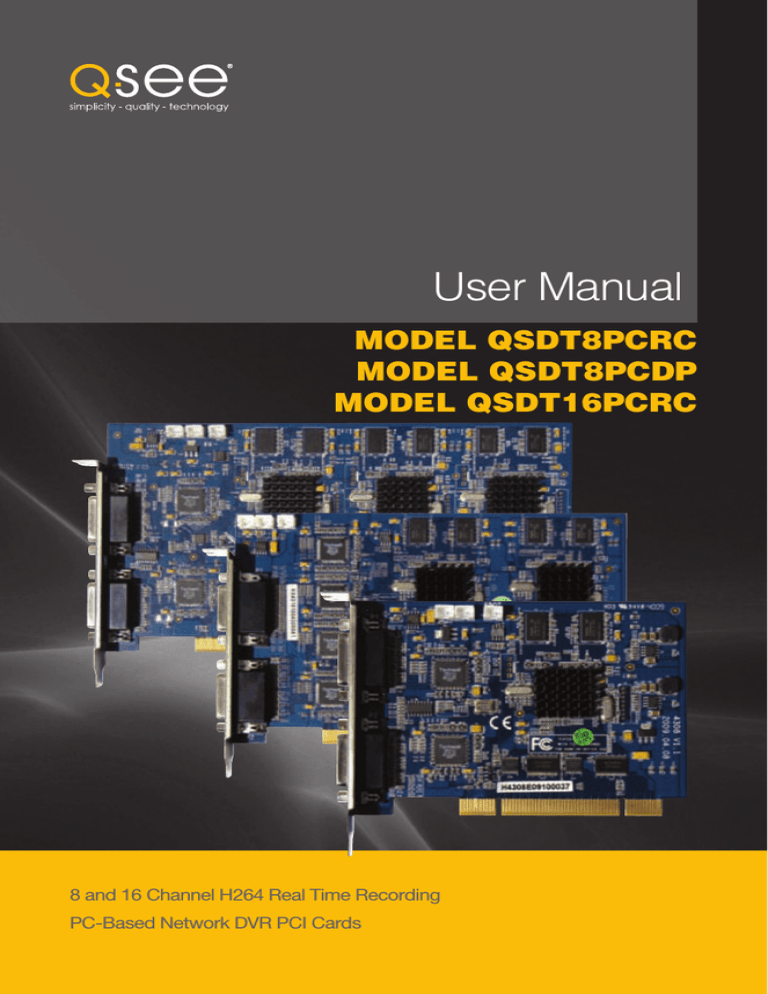

Digital Innovations 4070300 Computer Accessories User Manual

User Manual
MODEL QSDT8PCRC
MODEL QSDT8PCDP
MODEL QSDT16PCRC
8 and 16 Channel H264 Real Time Recording
PC-Based Network DVR PCI Cards
1
About this Manual
Thank You for Choosing a Q-See Product!
All of our products are backed by a conditional service warranty covering all hardware for 12
months from the date of purchase. Additionally, our products also come with a free exchange
policy that covers all manufacturing defects for one month from the date of purchase.
Permanent upgrading service is provided for the software and is available at www.Q-See.com.
Be certain to make the most of your warranty by completing the registration form online. In
addition to warranty and technical support benefits, you’ll receive notifications of product
updates along with free downloadable firmware updates for your DVR. Register today at
www.Q-See.com!
Please see the back of this manual for exclusions.
This manual is written for the QSDT8PCRC, QSDT8PCDP and QSDT16PCRP security
surveillance video capture cards. This manual was accurate at the time it was completed.
However, because of our ongoing effort to constantly improve our products, additional
features and functions may have been added since that time and on-screen displays may
change. We encourage you to visit our website at www.Q-see.com to check for the latest
firmware updates and product announcements.
Throughout the manual we have highlighted warnings and other important information that will
assist you in operating your new system in a safe and trouble-free manner. Please take the
time to read and follow all instructions and pay attention to alerts as shown below:
IMPORTANT! Red boxes with this icon indicate warnings. To prevent
possible injury or damage to the product, read all warnings before use.
NOTE! Text in blue boxes with the Information icon offer additional guidance
and explanations about how to make the most out of your card.
© 2010, 2011 Q-See. Reproduction in whole or in part without written permission is
prohibited. All rights reserved. This manual and software and hardware described herein, in
whole or in part, may not be reproduced, translated, or reduced to any machine-readable
form without prior written approval.
Trademarks: All brand names and products are trademarks or registered trademarks of their
respective owners.
Q-See is a registered trademark of DPS, Inc.
Disclaimer: The information in this document is subject to change without notice. The
manufacturer makes no representations or warranties, either express or implied, of any kind
with respect to completeness of its contents.
Manufacturer shall not be liable for any damages whatsoever from misuse of this product.
2
Rev. 1.0 5/25/2011
3
6. Recording, Playback and Record Search
TABLE OF CONTENTS
1. Introduction
Features and Specifications 2. System Requirements and Specifications
8
8
10
2.1 System Requirements
QSDT8PCRP & QSDT8PCDP
QSDT16PCRP
10
10
10
2.2 System Specifications
11
3. Video Capture Card Hardware and Connections 12
3.1 QSDT8PCDP Card
Video and Audio Pin Layout
Connecting Multiple Cards
12
13
13
3.2 QSDT8PCRP Card
Video and Audio Pin Layout
Connecting Multiple Cards
14
15
15
3.3 QSDT16PCRP Card
Video and Audio Pin Layout
Connecting Multiple Cards
16
17
18
3.4 Connecting a PTZ Camera
19
4. Installing the SuperDVR Software
20
4.2 User Account Control for Windows Vista and Windows 7
22
5. Basic operation
24
5.1 Log In 24
5.2 Display Control Panel
Display Modes
Auto Dwell Display
Page Flip
25
25
25
25
5.3 Other Controls
Snapshot
Urgent Record
4
20
4.1 Installing the Software
25
25
25
26
6.1 Recording Configuration
Basic Configuration
Record Status Panel
26
27
28
6.2 Recording Modes
Manual Record Mode
Sensor Alarm Record Mode
Motion Detection Record Mode
Schedule Recording
28
28
28
28
29
6.3 Recording to Hard Drive
31
6.4 Record Search and Playback
Record Search
Playback
32
33
34
6.5 Other Functions
File Backup
Deleting Recorded Files
Capture Pictures
Digital Image Zoom
35
35
36
36
38
7. System Settings
39
7.1 Basic Configuration
Camera Display Settings
Video Configuration
40
40
41
7.2 Alarm Configuration
Alarm Types
Triggered Actions
42
42
43
7.3 E-map Configuration
Using the E-Map
45
46
7.4 User Configuration
User Rights
Add User
47
47
48
8. P.T.Z. Cameras
49
8.1 P.T.Z Control Configuration
Protocol Setup
Serial Ports Setup
49
49
50
8.2 PTZ Operation
Preset and Group Select
50
51
5
9. Remote Surveillance & Playback
52
9.1 Remote Live Surveillance
Remote Surveillance Server Configuration
52
52
9.2 Configuring Router for Remote Access
Part 1: Find Out the IP Address of the System
Part 2: Determine the Number of Routers on the Network
Part 3: Simple Port Forwarding
Part 4: Setting Up DMZ in Router 2
53
53
54
56
61
9.3 DDNS (Dynamic Domain Name Service)
Setting up DDNS
62
62
9.4 Accessing the DVR Using Internet Explorer
User Account Control for Windows Vista and Windows 7
Accessing the Internet Explorer Client
63
63
68
9.5 Remote Playback
Record Playback and Control
Remote Backup
71
71
71
9.6 System Setup
Basic Configuration
Alarm Setup
Camera Setup
Schedule Configuration
Alarm Configuration
Record Configuration
Storage Disk
Motion Configuration
E-mail Configuration
74
74
75
76
76
77
77
78
78
78
9.7 P.T.Z Configuration
Protocol Setup
Serial Port Setup
80
80
80
10. Mobile Surveillance
81
10.1 Windows Mobile Pro
81
10.2 Symbian
83
10.3 iPhone and iPad
Installing Through the iPhone or iPad
Installing Through PC or Macintosh Computer
Operating Instructions for iPhone/iPad
85
85
87
88
10.4 Android
Software Installation
92
92
6
APPENDIX
Frequently Asked Questions
97
97
Other Questions
100
Quick Start Instructions
Installation Instructions
Troubleshooting
102
102
102
Function Tree
104
System Configuration Tree
105
IE Client Function Tree
106
Remote Playback Function tree
107
Q-SEE PRODUCT WARRANTY
Questions or Comments? Contact Us
108
109
7
INTRODUCTION
CHAPTER 1
Also:
n One PC can fit 1, 2 or 4 cards of the same model to control up to 32 channels total
FEATURES AND SPECIFICATIONS
n Supports 320x240, 704x480 (NTSC), 352x288, 704x576 (PAL) standard resolutions.
The QSDT8PCRC, QSDT8PCDP and QSDT16PCRP 8- and 16-Channel cards allow you
to add surveillance capabilities to your computer. They use a H.264 hardware compression
format which provides maximum file storage with the least amount of signal loss possible.
Monitor and record up to four channels in CIF resolution with synchronous audio and video
compression and transmission. Remotely monitor your system through your network, over the
Internet or using select mobile devices.
n Image color is adjustable for each channel, including contrast, brightness, hue and
saturation.
The first chapters will cover the installation of your card as well as any connections you may
wish to make. Later chapters will guide you through the installation of the SuperDVR 6.3
software which supports these cards along with how to operate the hardware and software
together.
Please make sure you operate the products strictly in accordance with applicable laws along
with following the guidance of this manual to maintain the stability of your digital surveillance
system.
n H.264 compression format greatly reduces HDD usage.
n Powerful video playback functions, including pause, stop, fast-forward, single-frame play
and image capture.
n Supports advanced search mode. Users can search by date/time, camera, record mode,
and random combination of the three methods.
n Supports recorded file backup, delete by date/time, camera.
n Conveniently extend system functions through software upgrades.
n Supports multiple languages, including English, German, Spanish, Portuguese, Chinese
(Traditional), and other customized languages.
n CPU and storage resource saving by advanced technology
n Remote Surveillance and P.T.Z control through LAN, Intranet, and Internet.
This product offers the following features:
Motion detection mode
Motion detection areas are adjustable with a maximum 16 areas for each channel. Users can
also set motion detection sensitivity for each channel. The system begins to record only when
motion is detected on the channel and after motion stops it will stop recording after a certain
time period, which is adjustable by users.
n Supports alarm pre-record.
n Supports buzzer, e-mail alarm out.
n Can greatly decrease fragmented files while using NTFS partition.
n User-friendly graphical user interface.
Sensor alarm record mode
The system has an external alarm dongle which enables the system to support alarm input
and output.
Recycling record mode
Users can set recording storage sequence for hard drive partitions. The recording storage will
automatically switch to the next partition when the current one is full. If all the partitions are full
and recycling record mode is enabled, the oldest recorded data will be covered by new data.
Users can also set hard drive minimum storage alarm. Then once the present storage space
is less than the minimum storage and recycling record mode is not enabled, recording will
automatically stop.
P.T.Z control function
Supports many protocols: PelcoD, PelcoP, DSCP, DH-SD, Lilian, Minking, Neon, Star, VIDO,
and VISCA. Users can control multiple speed domes and integrative cameras, including pan,
tilt, zoom, focus and iris adjustment for P.T.Z devices. Supports preset points and auto scan.
User management
Different users have different rights, user names and passwords, to ensure system security.
Multi-channel display
Supports different multi-channel display modes, full screen display and auto dwell display.
8
9
SYSTEM REQUIREMENTS AND
SPECIFICATIONS
CHAPTER 2
2.1 SYSTEM REQUIREMENTS
Motherboard
QSDT8PCDP:
704x480 @ 30FPS (NTSC) / 704x576 @ 25FPS (PAL)
• Screen set: resolution 1024×768, color quality 16 bits or 32 bits.
• Compression format: H.264 Hardware
Two QSDT8PCRC or
QSDT8PCDP cards
Intel Dual-core 2.8Ghz
minimum
Intel with Intel system chipset
• Data format: H.264 (files saved as AVI)
• Input: D type connector
• PTZ: Protocol Configurable, Remote Control Capability
• Remote Access Software: Internet Explorer
• Interface: PCI
500GB minimum
Hard Drive
RAM
1GB minimum
2GB minimum
Video Card
Supports MOST* AGP and PCI-E Video Cards with 256MB of
RAM or more with full Direct Draw support.
*Some newer PCI-E cards are not yet supported
OS
Win 2000(SP4 above) /Win XP(SP2 above) /VISTA/Win7
DirectX
9.0
QSDT16PCRP
Card
PC Module
CPU
Single QSDT16PCRC card
Intel P4 2.8Ghz minimum or
later Intel processor
Motherboard
Two QSDT16PCRC cards
Intel Dual-core 2.8Ghz
minimum
Intel with Intel system chipset
500GB minimum
Hard Drive
RAM
1GB minimum
2GB minimum
Video Card
Supports MOST* AGP and PCI-E Video Cards with 256MB of
RAM or more with full Direct Draw support.
*Some newer PCI-E cards are not yet supported
OS
DirectX
Win 2000(SP4 above) /Win XP(SP2 above) /VISTA/Win7
9.0
NOTE! We do not recommend AMD systems because the SuperDVR
program usually has problems communicating with the video card on the
system through the chipset on the AMD motherboard. There are often similar
problems with Intel processors on motherboards that use chipsets other then Intel, and
there are known issues with the Intel G31 chipset.
10
11
CHAPTER 2 SYSTEM REQUIREMENTS AND SPECIFICATIONS
Single QSDT8PCRC or
QSDT8PCDP card
Intel P4 2.8Ghz minimum or
later Intel processor
CPU
• Resolution
• Compression code rate: 50kbps – 1.2Mbps.
QSDT8PCRP & QSDT8PCDP
PC Module
• Format: NTSC /PAL
QSDT8PCRP & QSDT16PCRP: 320×240 @ 30FPS (NTSC) / 352×288 @ 25FPS (PAL)
704x480 @ 7FPS (NTSC) / 704x576 @ 6FPS (PAL)
NOTE! If recorded disk partition’s format is FAT32 and the system has run
for a long time, the system will create a lot of data fragments that may result
in system running slowly. It’s recommended to run a disk defragmenter every
10 to 30 days. We strongly suggest that you use NTFS format for recording disk partition.
Card
2.2 SYSTEM SPECIFICATIONS
VIDEO CAPTURE CARD
HARDWARE AND CONNECTIONS
CHAPTER 3
VIDEO AND AUDIO PIN LAYOUT
P1
Pin
P2
Connection
PIN11 2 VIDEO-5
3 4 5 6 7 8
GND
Video 8
GND
Video 7
GND
Video 6
GND
Video 5
GND
Video 4
GND
Video 3
GND
Video 2
GND
Video 1
3.1 QSDT8PCDP CARD
P1
PIN 1 2 3 4 5 6 7 8
Pin
Connection
1
VIDEO-1
2
GND
3
VIDEO-2
4
GND
4
GND
5
VIDEO-7
5
VIDEO-3
6
GND
7
VIDEO-4
8
GND
9
GND
10
AUDIO-1
PIN 9 10 11 12 13 14 15
PIN 9 10 11 12 13 14 15
7
GND
VIDEO-8
8
GND
9
GND
10
AUDIO-5
11
AUDIO-6
12
AUDIO-7
12
AUDIO-3
13
AUDIO-8
13
AUDIO-4
14
NULL
14
NULL
15
GND
P2
PIN 1 2 3 4 5 6 7 8
11
AUDIO-2
GND
Null
Audio 8
Audio 7
Audio 6
Audio 5
GND
GND
Null
Audio 4
Audio 3
Audio 2
Audio 1
GND
15
GND
Video 8
GND
Video 7
GND
Video 6
GND
Video 5
GND
Video 4
GND
Video 3
GND
Video 2
GND
Video 1
PIN 9 10 11 12 13 14 15
P1
PIN 1 2 3 4 5 6 7 8
GND
PIN 9 10 11 12 13 14 15
PICTURE 3-3
Audio In and
Video In Ports
(4 Each)
P1
CONNECTING MULTIPLE CARDS
You may control up to 32 cameras by installing up to four QSDT8PCDP cards. You will need
to connect the cards in the manner shown below to use the Spot Out option.
P2
Call
Monitor
Out
CON 1 Port
CON 2 Port
Spot Out Port
PICTURE 3-2
12
PICTURE 3-4
13
CHAPTER 3 VIDEO CAPTURE CARD HARDWARE AND CONNECTIONS
VIDEO-6
GND
Null
Audio 8
Audio 7
Audio 6
Audio 5
GND
GND
3
GND
Null
Audio 4
Audio 3
Audio 2
Audio 1
GND
2
6
PICTURE 3-1
P2
3.2 QSDT8PCRP CARD
VIDEO AND AUDIO PIN LAYOUT
P1
Pin
P2
Connection
PIN11 2 VIDEO-5
3 4 5 6 7 8
GND
Video 8
GND
Video 7
GND
Video 6
GND
Video 5
GND
Video 4
GND
Video 3
GND
Video 2
GND
Video 1
Pin
Connection
1
VIDEO-1
2
GND
VIDEO-6
3
VIDEO-2
4
GND
4
GND
5
VIDEO-7
5
VIDEO-3
6
GND
7
VIDEO-4
8
GND
9
GND
10
AUDIO-1
PIN 9 10 11 12 13 14 15
PIN 9 10 11 12 13 14 15
7
GND
VIDEO-8
8
GND
9
GND
10
AUDIO-5
11
AUDIO-6
12
AUDIO-7
12
AUDIO-3
13
AUDIO-8
13
AUDIO-4
14
NULL
14
NULL
15
GND
P2
PIN 1 2 3 4 5 6 7 8
11
AUDIO-2
GND
Null
Audio 8
Audio 7
Audio 6
Audio 5
GND
GND
Null
Audio 4
Audio 3
Audio 2
Audio 1
GND
15
GND
Video 8
GND
Video 7
GND
Video 6
GND
Video 5
GND
Video 4
GND
Video 3
GND
Video 2
GND
Video 1
PIN 9 10 11 12 13 14 15
P1
PIN 1 2 3 4 5 6 7 8
GND
PIN 9 10 11 12 13 14 15
PICTURE 3-7
Audio In and
Video In Ports
(4 Each)
P2
CONNECTING MULTIPLE CARDS
You may control up to 32 cameras by installing up to four QSDT8PCRP cards. You will need
to connect the cards in the manner shown below to use the Spot Out option.
P1
Call
Monitor
Out
CON 1 Port
CON 2 Port
Spot Out Port
PICTURE 3-6
PICTURE 3-8
14
15
CHAPTER 3 VIDEO CAPTURE CARD HARDWARE AND CONNECTIONS
3
GND
Null
Audio 8
Audio 7
Audio 6
Audio 5
GND
GND
GND
Null
Audio 4
Audio 3
Audio 2
Audio 1
GND
2
6
PICTURE 3-5
P1
PIN 1 2 3 4 5 6 7 8
P2
3.3 QSDT16PCRP CARD
VIDEO AND AUDIO PIN LAYOUT
P1
Connection
Pin
Connection
1
AUDIO2
11
AUDIO3
2
AUDIO4
12
AUDIO5
3
AUDIO6
13
AUDIO7
4
AUDIO8
14
AUDIO9
5
AUDIO10
15
AUDIO11
6
AUDIO12
16
AUDIO13
7
AUDIO14
17
NULL
8
AUDIO15
18
NULL
9
AUDIO16
10
AUDIO1
1926
GND
Pin
Connection
Pin
Connection
1
VIDEO2
11
VIDEO3
2
VIDEO4
12
VIDEO5
3
VIDEO6
13
VIDEO7
4
VIDEO8
14
VIDEO9
5
VIDEO10
15
VIDEO11
6
VIDEO12
16
VIDEO13
7
VIDEO14
17
NULL
8
VIDEO15
18
NULL
9
VIDEO16
10
VIDEO1
1926
GND
P1
Pin
Pin
1
2
3
Pin
4
1
5
2
6
3
7
4
8
5
9
6
Audio 2
Audio 4
Audio 6
Audio 28
Audio
Audio
Audio 10
4
Audio 612
Audio
Audio
Audio 14
8
Audio 10
15
Audio
Audio
Audio 16
12
7
8
9
Audio 14
Audio 15
Audio 16
Video In Ports (8)
Audio In Ports (8)
Pin
19
20
12 Audio 5 21
Pin
Pin
Audio 17 22
13
10 Audio
19
14
Audio 93 23
11 Audio
20
15
Audio 11
5 24
12 Audio
21
Audio
13
16
13 Audio 7 25
22
17
Audio 9 26
14 Null
23
Null
18
15 Audio 11 24
16 Audio 13 25
17 Null
26
18 Null
Ground
Ground
P2
P2
PICTURE 3-9
10 Audio 1
P1
11 Audio 3
Pin
Pin
1
2
3
Pin
4
1
5
2
6
3
7
4
8
5
9
6
Video 2
Video 4
Video 6
Video 28
Video
Video
Video 10
4
Video 612
Video
Video
Video 14
8
Video 10
15
Video
Video
Video 16
12
7
8
9
Video 14
Video 15
Video 16
10 Video 1
P2
11 Video 3
Pin
19
20
12 Video 5 21
Pin
Pin
Video 17 22
13 Video
10
19
14
Video 93 23
11 Video
20
Video 511 24
15
12 Video
21
Video
13
16
13 Video 7 25
22
17
Video 9 26
14 Null
23
Null
18
15 Video 11 24
16 Video 13 25
17 Null
26
18 Null
Ground
Ground
PICTURE 3-11
P2
P1
CON 1 Port
CON 2 Port
Spot Out Port
PICTURE 3-10
16
17
CHAPTER 3 VIDEO CAPTURE CARD HARDWARE AND CONNECTIONS
Pin
CONNECTING MULTIPLE CARDS
You may control up to 32 cameras by installing up to two QSDT16PCRP cards. You will need
to connect the cards in the manner shown below to use the Spot Out option.
Call
Monitor
Out
3.4 CONNECTING A PTZ CAMERA
In order to operate a PTZ camera from your card, you will need to have first installed the card
into a PCI slot within the computer and attached the video dongle.
You will also need an RS485 to RS232 (Serial) adapter as well as having a serial port on the
back of your PC.
PTZ Camera
RS485 to
Serial Adapter
PC
2
4
PICTURE 3-12
PICTURE 3-13
STEP 1. Connect the RS485 cables from the PTZ camera to the RS485-to-Serial Adapter
STEP 2. Connect the Adapter to the serial port on the back of the PC
STEP 3. Connect the video line from the camera to any Video In port on the DVR card
(Item 4)
You may now connect your camera to a power source.
Please see Chapter 8 for instructions on operating the PTZ camera with the SuperDVR
software.
18
19
CHAPTER 3 VIDEO CAPTURE CARD HARDWARE AND CONNECTIONS
1
3
INSTALLING THE SUPERDVR
SOFTWARE
CHAPTER 4
4.1 INSTALLING THE SOFTWARE
You will be controlling your security system using the SuperDVR software. It is compatible with
Windows 2000, XP, and both the 32 bit and 64 bit versions of Vista and Windows 7.
The SuperDVR software is included on the disk that comes packaged with your DVR card. It
can also be downloaded from our website at www.Q-See.com by simply searching for your
product and going to the Downloads section.
STEP 4. Instruct the installer where you
want the software to be placed. Either
use the default location or select your
own. Click Next to continue.
PICTURE 4-4
CHAPTER 4 INSTALLING THE SUPERDVR SOFTWARE
STEP 1. The software can be installed
from the CD by selecting the
appropriate button in the CD’s menu,
by copying the installer to your hard
drive and then double clicking to
begin the process.
STEP 5. Once the installation has
completed, you will be asked to press
the Finish button.
PICTURE 4-1
PICTURE 4-5
STEP 2. Once the Setup window opens,
click Next to begin the installation.
As part of the installation process, a shortcut
to the SuperDVR software will be placed on
your desktop.
PICTURE 4-2
You will need to restart your computer before
you can launch SuperDVR and begin setting
up your surveillance system.
PICTURE 4-6
STEP 3. Select your video format. NTSC
is the standard in North America.
Click next to continue.
PICTURE 4-3
20
21
4.2 USER ACCOUNT CONTROL FOR WINDOWS VISTA AND
WINDOWS 7
5. Select Turn User Account Control
on or off
Some users of computers using Windows Vista or Windows 7 operating systems may receive
an error message informing of a codec that is missing or not installed. This conflict can be
resolved by turning off User Account Control (UAC).
PICTURE 4-11
Windows Vista
1. Open the Control Panel (accessible by
clicking on the Windows icon in the
lower left of your screen.
6. Uncheck the box next to “Use User
Account Control (UAC) to help protect
your computer.”
CHAPTER 4 INSTALLING THE SUPERDVR SOFTWARE
PICTURE 4-7
7. You will then be asked to restart your
computer for the change to take
effect.
2. Select User Accounts and Family
Safety.
PICTURE 4-8
3. Select “Add or Remove User
Account.”
PICTURE 4-12
Windows 7
Microsoft Office Outlook 2007
Devices and Printers
1. Open up the Start Menu (accessible by
clicking on the Windows icon in the
lower left of your screen.
Sticky Notes
Default Programs
iTunes
Help and Support
Adobe Acrobat
All Programs
PICTURE 4-9
2. Type “uac” into the search bar and hit
ENTER. The User Account Control
will open or you will be offered a link
to click to open it.
4. Select the desired user account.
PICTURE 4-10
uac
Shut down
PICTURE 4-13
3. Move slider to lowest setting and press
OK.
PICTURE 4-14
22
23
CHAPTER 5
BASIC OPERATION
When you launch the SuperDVR program, it will open to the Main Display Interface which
will show the video feeds from the cameras as well as the Display Control Panel.
The Display Control Panel includes the Display Mode buttons along with buttons which allow
you to cycle automatically or manually through individual or groups of channels.
Buttons currently in effect are highlighted.
The Drive Capacity Indicator Bar will fill in as
more files are recorded to the drive. When the
drive is at capacity, the bar will be red.
1
10
11
12
13
15
2
3
16
5 6
4
7
8
9
No.
DISPLAY MODES
Choose the number of channels you wish to view simultaneously. If you have fewer cameras
than portions of the screen, those channels without cameras will remain black.
Available modes are single-, four-, nine-. 16and 36-screen displays. The software will only
display the modes appropriate to the number
of cameras you have connected.
PICTURE 5-4
AUTO DWELL DISPLAY
If the Main Display is currently showing fewer channels than are available, you can have the
DVR automatically cycle through and show the feed from each camera or group of cameras
by selecting the button.
PAGE FLIP
This button allows you to manually cycle through the channels. Like the Auto Dwell feature, if
there are more channels available than are currently being displayed in a multi-screen display
mode, this button will take you to the next group of video feeds.
PICTURE 5-1
Item
PICTURE 5-3
Item
1
Display Window
2
Record Status Panel
3
Display Modes
4
Display Control Panel
5
Dwell Time
6
Page Flip
7
Drive Capacity Indicator Bar
8
Snapshot
9
Urgent Record
10
Date and Time
11
Login
12
Emap
13
Search and Playback
14
Configurations
15
PTZ Control
16
Exit
5.1 LOG IN
Located on the left side of the Main Display
Interface, clicking on the lock icon will open
the Login window. Enter your user name and
password to access the controls. The default
user name is System with no password
required. You can add a password and create
other user accounts as described in Section
7.4 User Configuration.
5.3 OTHER CONTROLS
Log In will be covered in the following section and the remaining operations on the left
hand side of the Main Display Interface will be covered in Chapter 7. The two remaining
functions are Snapshot and Urgent Record.
SNAPSHOT
Usable in single image display mode, pressing this button will take a series of still images
from the camera currently being displayed and will save them to a location on the hard drive.
Settings to determine the number of images (up to 32) as well as the location to where they
will be saved will be covered in Chapter 6.
URGENT RECORD
Clicking the Urgent Record icon will cause all cameras to begin recording regardless of their
schedule or recording mode. Video will be saved to the location designated by the user. Like
Snapshot, the settings for this feature will be covered in Chapter 6.
PICTURE 5-2
24
25
CHAPTER 5 BASIC OPERATION
14
No.
5.2 DISPLAY CONTROL PANEL
RECORDING, PLAYBACK AND
RECORD SEARCH
CHAPTER 6
6.1 RECORDING CONFIGURATION
The system can be set to record in four different modes; scheduled recording, manual recording, motion detection and sensor alarm.
Once you have logged into your system, you can access the control settings through the
Configuration window by clicking on the wrench icon located on the left of the Main Display Interface.
Upon accessing the Configuration window, the icons on the left will change as will the contents of the Display Window.
BASIC CONFIGURATION
The Record Panel, in the bottom half of the Basic Configuration page, allows users to set
recording modes along with other parameters for each camera. More than one recording
mode can be activated at one time.
It should be noted that the higher the recording quality and frame rate, the more space the
recorded file(s) will occupy on the hard drive.
Time Stamp - By selecting this option, the record date / time message appears in the
recorded file images.
Switch - Turns on corresponding cameras. If there is no camera on a channel, do not select
this option and you will save system resources.
Manual Record - Images from the selected camera will be recorded and saved all the time
(24 hour recording).
Manual Recording Frame Rate - Select the recording frame rate for manual record mode.
Schedule Record - This option allows you to record on a set schedule.
Schedule Record Frame Rate - Select Schedule Recording frame rate.
Motion Detection - By selecting this option, users can set the selected channels to record
when motion is detected in front of the camera.
PICTURE 6-1
Basic Configuration
Motion Record Frame Rate - Select recording frame rate for Motion Detection record mode.
Schedule configuration
Video configuration
Motion Detection Configuration
Alarm Configuration
P.T.Z Configuration
User Configuration
Save and Return
Sensor Record Frame Rate - If sensors are utilized to trigger recording, users can select
recording frame rate here.
Camera Security - Users are divided into three types: Normal user, Power user and
Administrator. By selecting this option, only administrators can see the selected channels.
Record Quality - Select recording image quality here.
Audio In - SuperDVR 6.3 can support one channel of microphone audio input signal on the
PC motherboard and any audio inputs that are on the card if any. Users can choose one video
channel for each available audio input.
For the purposes of this chapter, we will only be concerned with; Schedule Configuration,
Video Configuration and Motion Detection Configuration. The remaining functions will be
covered in Chapter 7.
26
27
CHAPTER 6 RECORDING, PLAYBACK AND RECORD SEARCH
PICTURE 6-2
RECORD STATUS PANEL
Configuring Motion Detection
A series of indicator lights will convey the recording status of each attached camera.
Selecting the running man icon will bring up the Motion Detection Configuration page,
where you can configure the settings for each camera according to your situation.
Sensitivity - Users can set motion detection
sensitivity here.
PICTURE 6-3
Grey
Normal
Light Green
Manual Record
Speed - Motion detection speed
Dark Green
Schedule Record
Yellow
Motion Detection
Record
Defaults - Reset to default settings.
Red
Sensor Alarm Record
Blue
Video Loss State
Clear - Clear all the detection areas and then
you can select a customized detection area
using the cursor.
If an indicator light color turns, it means there is an alarm output.
Block Number - Set grid’s number.
Select All - Select the entire area of the
channel as detection sensitive
PICTURE 6-4
6.2 RECORDING MODES
As mentioned at the beginning of this chapter, there are four different recording modes;
scheduled recording, manual recording, motion detection and sensor alarm. Motion Detection
record mode and Sensor Alarm record mode are called Alarm Record.
MANUAL RECORD MODE
STEP 1. Select the camera in the pull down list.
STEP 2. Select Clear
STEP 3. Click and drag the cursor in the camera view. You will see a green box appear
which shows the motion detection area. You can select a maximum of 16 customized
areas for each channel.
Manual Record mode is the most commonly used recording mode. If a special event occurs,
users can select this recording mode and record immediately. It may be desirable to increase
the framerate and recording quality in such cases - especially for shorter duration recordings.
If you intend to have the cameras recording non-stop, then it is advisable to reduce the frame
rate to conserve hard drive space.
SCHEDULE RECORDING
SENSOR ALARM RECORD MODE
Schedule Configuration
Users can use sensors to trigger sensor alarm recording on relative channels. At that time, the
record status indicator light will turn red.
Clicking on the calendar icon will
change the display window to the
Schedule Configuration page.
MOTION DETECTION RECORD MODE
This will enable the system to detect image changes and begin to record by activating motion
detection and motion alarm recording. For instance, somebody opens the door, and the
system detects image changes from the camera and begins to record, then users can play
back the recorded file and find out who opened the door. When there is no movement, the
system will not record which saves system resources, and makes it easier to find recorded
events. The indicator light color in the record status panel will be yellow.
Users can set working schedule for all of the recording modes in ‘Schedule Configuration’.
The dark green light in record status panel shows the corresponding channel is in Schedule
Record mode. Users can change record mode to manual record at any time, and the dark
green light will change into a light green light.
Each camera can be scheduled to record
based on motion detection, sensor alarm,
and time of day. Sensor alarm mode has
highest priority and it will take precedence
regardless of what other modes the camera
is also set for.
PICTURE 6-5
NOTE! When configuring for Motion Detection recording, you will need to
do so in three areas:
1. Select Motion Detection for the desired channels in Basic Configuration.
2. Configure the specific areas to detect motion in Motion Detection
Configuration.
3. Set the schedule for these cameras to operate in this mode in Schedule Configuration.
28
29
CHAPTER 6 RECORDING, PLAYBACK AND RECORD SEARCH
If users use multiple cameras to record, every camera works separately and the recorded files
are also saved separately. The parameters, i.e. camera ID, record date/time, and record mode
are all saved together with the recorded file.
To customize the detection area for a certain channel:
Schedules can be set individually for each day. The cameras are default configured to
be recording in both Motion Detection and Schedule recording 24/7 and will have fulllength colored bars in the schedule window. Above each window is a 0-24 with segments
corresponding to each hour of the day. This will show when a camera has been scheduled to
record in that mode.
NOTE! When setting up your recording schedule for the first time, it is faster
and easier to begin by selecting the mode’s schedule window and selecting
Delete All to clear the schedule before making changes.
To create a new schedule;
STEP 1. Select the camera name in one
of the three record mode groups.
STEP 2. Click on Add.
6.3 RECORDING TO HARD DRIVE
Users can determine where recorded files will be saved on their hard drive(s). In addition,
the recorder can save to a series of drives or partitions by automatically jumping to the next
partition when the current one is full. If all the partitions are full and Recycling Record mode
has been enabled prior to recording by checking the box below the Storage Disk list, the new
data will overwrite the oldest recorded data automatically.
The destination drive(s) for recordings which also applies to images captured using
the Snapshot button - is set in the Basic
Configuration window. You can also set
a HDD minimum storage alarm which will
cause the system to alert you once the that
threshold has been reached. If the present
storage space is less than the minimum
storage needed and Recycling Recordings is
not selected, the recording will automatically
stop.
PICTURE 6-6
WARNING! You should have your files record to a disk or partition OTHER
than your “C” drive. This will avoid issues with the Recycling function.
STEP 3. This will open a new window.
Set the start time and end time along
with the day(s) to which you wish the
schedule to apply.
STEP 4. Click OK to exit the Add
window.
PICTURE 6-7
Your new schedule will appear as a series of colored bars corresponding to the day(s) and
time(s) you’ve selected.
To edit a schedule, select a block of time and click Edit. You will be able to adjust the
schedule for that day and any other day in the same manner you used to create the schedule
in the Add window.
NOTE! When adding a new schedule, it should not duplicate an existing
schedule as this may cause a system error.
To add another block of time, such as an evening recording schedule to go with an early
morning schedule, you will need to repeat the process.
Clicking on Delete will remove a specific block of time from a specific day’s schedule.
Copy To allows you to apply the settings for one camera to another camera as well.
30
31
CHAPTER 6 RECORDING, PLAYBACK AND RECORD SEARCH
PICTURE 6-8
6.4 RECORD SEARCH AND PLAYBACK
Clicking the Search icon in the lower right of the Main Display Interface will cause it to
switch to the Search and Playback Interface. This interface handles both the Record
Search and Playback functions in addition to allowing you to back up your records.
RECORD SEARCH
Searches are based on date and time. Additional criteria can be selected to narrow the
search. These criteria include the type of the recording and where the files are saved.
STEP 1. Select whether the program
should search in the normal
destination location (See Section
6.3 Recording to Hard Drive)
and/or where you’ve backed up
recorded files (Covered in Section
6.5 Other functions)
STEP 2. Select the nature of the
recording - whether it was a
scheduled record, recorded as a
result of motion detection or etc. You
can select more than one category.
PICTURE 6-10
CHAPTER 6 RECORDING, PLAYBACK AND RECORD SEARCH
STEP 3. Enter the date and time. A
calendar will pop up. If there was an
event recorded on that date it will be
highlighted.
PICTURE 6-9
Pressing the back arrow in the upper right of the display will return you to live
surveillance in the Main Display Interface.
PICTURE 6-11
STEP 4. The program will display the
search results at the bottom of the
screen. They will be color coded to
indicate the mode in which they were
recorded.
32
PICTURE 6-12
33
PLAYBACK
Once you have completed your search, you are ready to play back your files. The controls on
the Search and Playback Interface operate like any other video playback software.
Button
Function
In addition, you can advance the playback to a certain point in the record by clicking on, and
sliding the progress indicator.
Note
PICTURE 6-15
Play / Pause
At the top of the file visualizer, the bar represents the time when the file was recorded. Clicking
on this will magnify it to show minutes allowing a more precise search.
Stop
NOTE! Clicking on any channel in multi-screen playback will switch the display
to a single-channel view of that feed. Click again to return to the previous
playback mode.
Reverse
Previous Section
Only functional when playing back in single channel mode.
6.5 OTHER FUNCTIONS
Next Section
Other functions within this interface allow you to back up files, capture still images, print
images and digitally zoom in on a recording.
Next Frame.
Only functional when playing back in single channel and in
Pause mode.
By default, the system will begin playing back the recording from Channel 1 when the Play
button is pressed.
Selecting a Screen Display Mode button
above the file list will open a pop-up window
allowing you to select which channel(s) to
play back. Only the screen display mode
buttons appropriate to your card will be
offered as options. Buttons allowing you to
select specific groups of channels will appear
depending on your card’s capabilities. Click
OK to return to the Playback window.
FILE BACKUP
Clicking on the file icon allows you to back up your files to another drive for use
elsewhere or simply to preserve them without having to worry about them being
overwritten by the Recycling Record function.
The Backup window operates much like the
Record Search window and it is divided into
four main areas:
A: Camera Selection Area - Select which
cameras’ recordings you wish to back up.
B: Time and Date Selection Area - Select
the start and end dates and times for the
records you wish to back up.
PICTURE 6-13
C: Operation Area - Select the save path
for the backup files. You can also choose to
save a standalone playback program to allow
others to view the files.
PICTURE 6-16
D: Information Area - The program will use
this area for any warnings or notices.
During playback, you can adjust the speed
of the recording with the slider located at the
bottom of the interface.
PICTURE 6-14
34
CHAPTER 6 RECORDING, PLAYBACK AND RECORD SEARCH
Previous Frame.
Click Start to begin backing up your files.
35
DELETING RECORDED FILES
Pressing the Snapshot button will bring up the Snap window.
While older files will get overwritten by the Recycling Recording function as the hard drive
fills up, you can delete unnecessary or unwanted recordings before then.
This function will delete a file or blocks of
files from a specific camera or which were
recorded during a set time.
Select the channel on the left side, and then
the select start date and time and end date
and time of the files you wish to delete.
Click Start to delete files.
You can also remove files manually by
deleting them from the folder where they are
stored, just as with any other PC file.
PICTURE 6-17
CAPTURE PICTURES
This feature allows you to capture still images from a recorded event so they can be saved or
printed out.
At this time the function buttons above the
File Search panel will be enabled.
Select the number of sequential images you wish to capture and set the save path. The save
path can also be set in the Basic Configuration menu in the Capture Browse setting. You
can also chose to include which camera took the video and/or the date and time that it was
recorded within the image itself.
Once you have made your selections, pressing the Snap button will save the images. Press
Save to preserve your settings for future use or Exit, if you do not wish to retain the settings.
PICTURE 6-18
Snapshot
PICTURE 6-20
Print setup
Print picture
NOTE! This feature is only available in Playback Pause mode on a single
channel.
In addition, a second menu will appear below the Search panel. This allows you to make
picture quality adjustments for the present channel, including brightness, contrast, saturation
and hue.
These changes will not affect the actual
recorded image. Pressing the Default icon
in the lower right of the panel will restore the
original settings.
The Print Setup button will bring up a
conventional Print Setup window to allow you
to make settings as normal.
Clicking the Print button will open a Print
Preview dialog that includes some extra
features.
Select the Position radio button and adjust
the position of the image on the page using
the + and - buttons.
Selecting the Size radio button will allow you
to adjust the image size using those same +
and - buttons.
PICTURE 6-21
Make the desired adjustments to the image
and then select the Snapshot icon.
PICTURE 6-19
36
37
CHAPTER 6 RECORDING, PLAYBACK AND RECORD SEARCH
When the Search and Playback Interface is displaying only a single channel and the user
hits the Play/Pause button a second time to pause playback, then the video is in Playback
Pause mode.
DIGITAL IMAGE ZOOM
During multi-screen playback, clicking on one channel will cause the display to shift to a single
channel display mode.
While in single channel playback mode the
digital zoom controls are enabled. These
allow you to zoom in or out of an area of the
recording.
PICTURE 6-22
CHAPTER 7
SYSTEM SETTINGS
Beyond the recording settings, there are other features of this video capture card which need
to be enabled or configured.
The Settings window is entered by clicking on the wrench icon on the left of the Main Display
Interface.
Zoom In
Zoom Out
Revert to original size
CHAPTER 7 SYSTEM SETTINGS
PICTURE 7-1
38
Basic Configuration
Schedule configuration
Video configuration
Motion Detection Configuration
Alarm Configuration
P.T.Z Configuration
User Configuration
Save and Return
39
7.1 BASIC CONFIGURATION
SYSTEM LOG IN AND REBOOT
Your card is pre-configured with default settings which meet the needs of most users,
however it is designed to allow you maximum flexibility in configuring the system to meet your
specific needs.
You can enter your User Name and Password that you use to log into Windows so that the
SuperDVR can log in upon startup or reboot.
Since the windows system may become
unstable after a couple of days of continuous
operating, it may cause SuperDVR to
become unstable. You can use the software
support auto-reboot option to help avoid this.
PICTURE 7-3
Select the PC Auto Reboot tab in the center
of the Basic Configuration screen and then
check the box next to PC Auto Reboot and
set the interval by day, which will cause the
system to reboot automatically according to
your schedule.
In the upper portion of the Basic Configuration window are settings which control additional
aspects of your cameras. We have already covered the recording-specific settings in the
previous chapter.
CAMERA DISPLAY SETTINGS
Dwell Interval
If you have enabled Auto Dwell function on the main interface page, then you can set the
dwell time, in seconds, of a screen here.
Caption
There are four options, None, ID, Name,
and ID/Name for users to select for all the
channels.
VIDEO CONFIGURATION
Clicking on the video configuration icon will open a new page which will allow you to
change the contrast, brightness, hue, saturation and auto gain of individual cameras, by
moving the levers on the bars. Clicking Default will restore the default values.
‘None’ means no title or name;
‘ID’ means camera numbers, i.e. 1, 2, 3
and so on;
‘ID/Name’ means both camera number
and camera name, i.e. 1/Cam1, 2/
Cam2 and so on.
PICTURE 7-2
Resolution
The range of values is from 0 to 255.
CHAPTER 7 SYSTEM SETTINGS
‘Name’ means camera names, i.e.
Cam1, Cam2 and so on;
Contrast - Set image color contrast.
Brightness - Set image brightness.
Hue - Set image hue.
Saturation - Set image Saturation
You may have resolution options of 320×240, 640x480, or 704x480 (NTSC) for users to select
for all the channels depending on the card you are using.
PICTURE 7-4
Call Monitor
You can connect another monitor to the Spot Out port on the card and select the display
modes here.
40
41
7.2 ALARM CONFIGURATION
TRIGGERED ACTIONS
The system can receive alarm signals generated both by attached devices as well as
from those from over a network. Alarms can also be generated when motion is detected.
Each type of alarm can be configured to generate an audible alarm - externally or internally, as
well as triggering other, pre-defined actions.
PICTURE 7-7
Buzzer - Select whether to activate the computer buzzer if alarms have been triggered and
also select how long the buzzer sounds.
Pre-Alarm Record - Select whether the system will pre-record and for how long.
Big Screen Holding Time - The corresponding channel will be full screen when an alarm is
triggered. Set the full screen hold time here.
Motion Holding Time - How long the recording continues after motion stops.
Sensor Holding Time - How long the recording continues after sensor stops.
Disk Shortage Alarm - If the Partition free space is less than the set percent, the system will
stop recording or recycling, but will sound an alert according to the settings.
Alarm Record
PICTURE 7-5
ALARM TYPES
Different conditions can be set to trigger an alarm.
Video Loss - Users can select alarm output
for this option.
For example: If you select alarm_out1 and
alarm_out3 for video loss. Then video loss of
any channel will trigger alarm_out1, alarm_
out3 to show a red light in the Alarm output
status panel
Disk Alarm - When HDD available space is
less than the set value, it will trigger alarm.
Sensor - If users have mounted sensors,
when the sensors have been activated, it will
trigger the selected output alarms.
Motion - Users can set the output of motion
detection alarm by different alarms and
remote alarm.
PICTURE 7-6
Users can also select the voltage (high or low) for alarm signals.
42
43
CHAPTER 7 SYSTEM SETTINGS
Every sensor can trigger multiple channels to record. For example: if CAM1, CAM4 and CAM5
are selected for Sensor2, then once the sensor is activated, CAM1, CAM4 and CAM5 will
begin to record.
Auto Mail
Any of the alarm types can be configured to generate an alert e-mail but it is especially useful
when triggered by a motion detection event.
If Attachment is enabled,then a picture of
what triggered the alarm will be sent to the
selected mailbox.
NOTE! Before configuring the Auto Mail function, be sure to set up Motion
Detection.
Click the Auto Mail icon on the left top side of alarm configuration page to enter the Auto
Mail Setup Interface.
PICTURE 7-10
NOTE! Only one picture will be attached for each alarm event.
7.3 E-MAP CONFIGURATION
E-map is used to show full geographic range covered by the whole monitoring system in the
form of map. An E-map features simple operation and direct display of status.
NOTE! The system only supports bmp or jpg image format for E-Map files.
PICTURE 7-8
Users can set receiving and sending E-mail
SMTP server and address. The address
of receiver and sender can be the same.
However, this is not recommended as it can
overflow your e-mail account. Some free
e-mail providers also place a daily limit on
the number of e-mails sent and received by a
single account.
To test the settings, click Send Mail Test.
If all settings are okay, response ‘Message
Sent Successfully’ will pop up. If some
settings are wrong, a warning message will
pop up.
CHAPTER 7 SYSTEM SETTINGS
You will need to draw the floor plan of where
you want to install the cameras in a program
such as Paint or Photoshop and save it in
BMP or JPG format before using this feature.
Files will be proportionally scaled to 833x678
pixels when in use.
Sender's SMTP
Sender's E-mail Address
Sender's User Name
Click on Emap Edit and then right-click in
the demonstration map currently displayed.
Select Load Picture in the pop-up. Navigate
to where the image is stored on your
computer and open the file. The map will be
displayed in this interface, allowing you to
add the cameras to the map.
PICTURE 7-11
Sender's Password
Receiver's E-mail Address
PICTURE 7-9
E-mail Subject
Drag the icon of a camera to the
corresponding position on the map, a
maximum of 32 cameras can be set
simultaneously, Click Change icon of camera
by right key to change icon or click Delete to
cancel a camera. After editing, right-click in
the map display area and select Save Map in
the pop-up to save the current map.
PICTURE 7-12
44
45
A gray map icon can be drawn to the corresponding position in the map on the right and set it
as a sub-map of the current map, or click the gray map icon on the left by right key and select
‘Open’ to build a new map. You can also click the blue map icon on the left by right key, and
select ‘Rename’ to change the name of the map or select ‘Close’ to cancel this map. The map
tree can only support three levels of maps and submaps.
7.4 USER CONFIGURATION
User accounts, privileges and passwords can be added, changed or deleted in this
menu. After installing the SuperDVR program, it will automatically create an administrator
account with the user name SYSTEM with no password. Users can use this name to log in the
system and Add, Edit or Delete users’ parameters.
USING THE E-MAP
To view the E-map during monitoring, click on its icon on the right side of the Main
Display Interface.
When a channel alarm is triggered, the camera icon will flash a yellow alarm signal. Select
‘Auto Show’, in case of an accidental alarm, an alarming screen will pop out automatically and
you can know about the alarming position immediately. Right-click on the camera to bring up
its feed immediately.
Alternately, you can enable Auto Show to bring up the E-map when you’re in another viewing
mode.
PICTURE 7-13
USER RIGHTS
CHAPTER 7 SYSTEM SETTINGS
Select a user in the User Configuration area, and
click Edit to enter the Edit User area
Users can edit user’s password and rights here, but
not the user name.
The system offers three kinds of rights:
Administrator: this user has the right to change all
the settings and playback. This user also has the
right to assign users power user rights and normal
user rights.
PICTURE 7-14
Power User: This type of user is authorized by the
administrator. The administrator assigns rights to
power users by checking boxes in the Power User
list.
Normal User: Normal user’s rights are also
assigned by the administrator. They have the same
list of available rights as Power Users. However,
whether they can possess a right is be decided by
the administrator. Only if the administrator assigns
that right, will they have the right. For example, if
Basic Configuration is checked, the Normal User
can access these functions.
PICTURE 7-15
NOTE! Administrators can change and authorize rights to Power Users and
Normal Users, but they cannot change or authorize other Administrators’
rights.
46
47
ADD USER
CHAPTER 8
P.T.Z. CAMERAS
Click Add in User Configuration to access
the Add User area.
If you are installing a PTZ camera, then the PTZ controls must be set up before operating the
camera. You should have your PTZ camera’s manual handy when configuring and operating
the PTZ camera for the first time. You should have the information regarding the Baud Rate,
Protocol and Address ready before you begin.
Enter the user name, password, confirm
password and select user rights, and then
click OK.
PICTURE 7-16
8.1 P.T.Z CONTROL CONFIGURATION
The PTZ settings are found in the Configuration menu. Click on the wrench icon on the
right side of the Display Interface to enter the Configuration menu and then click on the
PTZ menu to configure its settings.
Delete User
Select the user name in User
Configuration, and click Delete, and
confirm delete.
PICTURE 7-17
CHAPTER 8 P.T.Z. CAMERAS
PICTURE 8-1
PROTOCOL SETUP
You can select different protocols, serial port
number for P.T.Z devices.
The settings you enter here must match the
setting on the PTZ camera.
Port - Users can set serial port number.
Protocol - Communication protocol of the
P.T.Z device.
SuperDVR supports the following protocols:
PICTURE 8-2
DSCP, DH-SD, Lilian, Minking, Neon, PelcoD,
PelcoP, Star, VIDO, VISCA
Address - Communication address of P.T.Z
device (ID number)
48
49
SERIAL PORTS SETUP
Users should first enable the P.T.Z control function of a camera and then select a port number
in P.T.Z Protocol Setup. The values entered for each parameter should match those on the
camera itself.
Clicking on Set PTZ speed allows you to
adjust the Pan Speeds, Tilt Speeds, Focus
Speeds and Zoom Speeds for all connected
PTZ cameras.
Pan Speed - Set horizontal rotating speed.
Port- Set the port number.
Tilt Speed - Set vertical rotating speed.
Baud Rate - Set P.T.Z device Baud Rate to
match setting on camera. The default
value is 9600.
Focus Speed - Set camera focus speed.
Data Bits - Default value is 8.
Parity - Odd and even parity bit, default
None.
Stop Bits - The Default value is 1.
PICTURE 8-6
Zoom Speed - Set zoom in/ zoom out
speed.
PICTURE 8-3
8.2 PTZ OPERATION
and a pop-up window will
Click
appear; users can choose different presets or
group sets.
The PTZ Controls can be accessed directly from the Main Display Interface by clicking
on the PTZ Control icon on the right side of the display. This will replace the buttons and
functions on the right side of the display with the PTZ controls.
PICTURE 8-7
PRESET AND GROUP SELECT
CHAPTER 8 P.T.Z. CAMERAS
Click
to set Preset point and
change Preset point name. Every Group
includes multiple Preset points. If users
select preset1, preset2 and preset3 for
group1, preset1, preset2 and preset3 will be
automatically accessed in sequence after
users select group1 for auto scout.
PICTURE 8-8
PICTURE 8-4
Preset
, and a pop-up will
Click
appear allowing you to configure settings for
a Preset.
You can control P.T.Z. devices by clicking on
its display. The selected camera channel will
be highlighted in red indicating that it is ready
to be controlled.
Dwell- Set the dwell time for a Preset. The
camera will wait this long before moving on to
the next action.
Focus, Zoom and Iris (light level) are adjusted
by the use of the + and - keys to either side.
A PTZ function (direction, zoom, etc.) will
continue as long as the user is holding down
the left mouse button while the cursor is over
the button or until it reaches a physical limit.
PICTURE 8-9
PICTURE 8-5
50
51
CHAPTER 9
REMOTE SURVEILLANCE
& PLAYBACK
9.1 REMOTE LIVE SURVEILLANCE
Surveillance system supports Remote Surveillance through LAN, Internet, and Intranet. Simply
enable the Webcam function of the system on a computer which is connected to the Internet,
and the computer system will become an Internet Webcam server. On any other computer
that connects to Internet, enter the public IP server address in an Internet Explorer browser
window. Remote users can get high quality real-time image from the server (depending on
available bandwidth) and also control the P.T.Z devices.
9.2 CONFIGURING ROUTER FOR REMOTE ACCESS
PART 1: FIND OUT THE IP ADDRESS OF THE SYSTEM
STEP 1. To access the router’s settings you will need to enter the Command (CMD)
panel on the computer containing your video capture card.
A. WINDOWS XP – Select Run from
your Windows START menu (lower
left of screen) and type “cmd” after
the prompt.
REMOTE SURVEILLANCE SERVER CONFIGURATION
Microsoft Internet Explorer
Microsoft Office Outlook 2007
iTunes
Default Programs
Adobe Acrobat
Help and Support
Run
All Programs
Users should first enable the Web Camera Services in Basic Configuration and set other
settings as shown below:
Devices and Printers
Log Off
start
Inbox Microsof...
Shut Down
iTunes
PICTURE 9-2
HTTP Port - Web service & download
service port, default value is 80.
Data Port - Data transmission port, default
value is 1159.
Command Port - Control command port,
default value is 1160.
Picture Quality - Default value is medium.
PICTURE 9-1
B. WINDOWS VISTA and WINDOWS
7 – Click on the START menu
(Windows icon) in the lower left of
your screen. Type “cmd” into the field
that says, “Search programs and
files” and hit ENTER or click on the
magnifying glass icon.
Devices and Printers
Sticky Notes
Default Programs
iTunes
Help and Support
Adobe Acrobat
All Programs
cmd
If your internet connection does not have enough bandwidth available you can use the Picture
Quality option to send the video over the internet at a lower quality setting then you are using
for recording. That way you will be able to see the images over the internet at lower quality
while still recording at the higher quality setting.
Shut down
PICTURE 9-3
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
NOTE! The minimum speed on the internet connection is 1Mbps download
and 1Mbps upload for 4 and 8 channels, and 2Mbps download and upload
for 16 channels. You can check the speed of your connection at both ends by
going www.SpeedTest.net from both the computer in which the card is installed as well as
the remote computer which you will be using.
Microsoft Office Outlook 2007
STEP 2. Type “ipconfig” at the prompt
(Red arrow in Picture 9-4) to
access router settings.
STEP 3. Write down the IP4v address
(Blue arrow) as well as the Gateway
and Subnet Mask numbers (Green
arrows). The IP4v address is the
address used by the card.
PICTURE 9-4
52
53
PART 2: DETERMINE THE NUMBER OF ROUTERS ON THE NETWORK
To find out the number of routers on your network, you will need to download a FREE router
detection program.
STEP 6. If there is only one router detected, then you may skip to Part 3: Simple Port
Forwarding.
STEP 1. Go to
http://www.pcwintech.com/shanes-toolbox
If Multiple Routers are Detected
STEP 2. Click on Detect Multiple
Routers to begin the download.
If there are multiple routers, you will see a
display similar to Picture 9-8.
If so, it may be preferable to connect your
DVR and computer to the router that
connects directly to the Internet. However, this
is not always possible depending upon your
particular situation.
STEP 3. Unzip the application to install it.
PICTURE 9-5
PICTURE 9-8
In this case, you will need to proceed with the next section using the IP address for Router 1
to forward its ports. After that, you will need to proceed to Part 4.
STEP 4. Click on the detect_routers
application to run it.
PICTURE 9-6
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
STEP 5. Click on CHECK NOW to
detect how many Routers are in the
network.
PICTURE 9-7
54
55
PART 3: SIMPLE PORT FORWARDING
STEP 5. Click on ADD CUSTOM.
Download the FREE Simple Port Forwarding program from:
http://www.simpleportforwarding.com/download
STEP 1. Click on Download in any of the mirrors or the Direct Download link to download
and install this program.
PICTURE 9-9
STEP 2. Once the program is installed,
go to the Windows Start Menu
(Windows icon in the lower left of
your monitor) and look for Simple
Port Forwarding in the program list.
Click on the program to launch it.
PICTURE 9-12
STEP 6. Input the required information:
PICTURE 9-10
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
STEP 3. Once Simple Port Forwarding has launched, select your router from the list.
The default Router IP and Login information will automatically come up. If you have
previously changed the login information, then you will have to enter it manually
Name: (You can name your DVR if you
wish)
Type: TCP
Start Port: 80
End Port:80
IP add: IP of DVR obtained in Part 1.
PICTURE 9-13
Click on ADD
Repeat for port 1159 and 1160.
PICTURE 9-11
STEP 4. Click on “+” at the bottom to open the window allowing you to set your ports.
56
57
STEP 7. You will now be returned to the main window of the program. The ports you
added will now show on the list. Click on Update Router at the bottom.
If for some reason, a port or ports that you forwarded are not listed in the Router and if you
see a message in the Scripts list on the left side of the window stating that the port already
exists (Red box in Picture 9-16), then you will need to change the Port 80 to 85 in the DVR
and start over again.
PICTURE 9-16
PICTURE 9-14
STEP 8. You will see the “Updating is in progress” message. Please wait until you see it
say DONE at the bottom.
58
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
PICTURE 9-15
STEP 9. Once you receive the DONE message that the ports have been successfully
forwarded, test if the ports are working by clicking on item number 7 in the Check
List - Test that the ports now work.
PICTURE 9-17
59
STEP 10. Click on Begin.
PART 4: SETTING UP DMZ IN ROUTER 2
If you receive a message stating that the port is online and can be reached, then you have
set it up correctly.
NOTE! You will only need to proceed with this section if you detected a
second router in Section 2.
STEP 1. Login into Router 1 by putting
the IP of Router 1 into the Internet
Explorer browser, as in the example
shown in Picture 9-19 where the IP
address of Router 1 is 192.168.0.1
STEP 2. Find the status page on the
router settings that shows the WAN/
Internet IP address and write it down
this WAN IP address.
STEP 3. Log into the Router 2 by putting
the IP of Router 2 into the Internet
Explorer browser, as in example
shown in Picture 9-19 where the IP
address of Router 2 is 192.168.1.1
STEP 4. Find the DMZ page in the router
settings.
STEP 5. Enter the WAN IP for Router 1
into the DMZ page and enable DMZ.
PICTURE 9-19
PICTURE 9-18
To connect to your DVR from the Internet, you will need to put the Internet IP address shown
after “Your Internet Address:” message into your Internet Explorer browser or access program window.
STEP 6. Save your changes.
You have forwarded the ports on the router to which the DVR is connected, to the IP address
of the DVR, and set the primary router to pass the connection to this router.
IMPORTANT! Do not use 255 or higher to complete your IP address as these
addresses are reserved for other devices and components.
60
61
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
NOTE! The default value is 80. If port 80 is already occupied by another device
on the network, then another port will need to be selected. Choose another
number in the same range; 81-89. In this case, you will have to add the port to
the IP address when entering it into the Internet Explorer window. For example,
if the port is now 82, then you will need to enter http://192.168.0.25:82
NOTE! If you do not have a DMZ setting in the router, check to see if there
is a Bridge setting. If so, then use the Bridge setting instead of DMZ.
9.3 DDNS (DYNAMIC DOMAIN NAME SERVICE)
9.4 ACCESSING THE DVR USING INTERNET EXPLORER
You can access the system over the Internet using a static or dynamic IP address. However,
your service provider can change this dynamic address from time to time. When it changes,
you will have to return to www.MyIPAaddress.com to get the new public IP address.
There are two solutions to this problem. The first would be to obtain a static IP address from
your ISP – which can be expensive. A second – and free – option is to use a dynamic domain
name service (DDNS) to get a domain name that can be linked to your dynamic IP address. In
addition to automatically keeping up with the changes in the address, you will now be able to
enter a domain name rather than a string of digits when accessing the DVR in Internet Explorer.
Once you have configured the network settings on the DVR to match those on your router
and forwarded the ports needed by the DVR to enable remote access over the Internet, you
will be ready to remotely view your cameras using a webcam program based on an ActiveX
control. For this to work, you will have to enable the ActiveX control options that are built into
Internet Explorer. It is strongly suggested that you be running the latest version of Internet
Explorer (currently IE8). The instructions below will describe the process using that version of
the browser. Instructions for users with IE6 or 7 are available in the Resources library of our
Technical Support page.
We recommend using www.MyQ-See.com or www.DynDNS.com as the DVR has been
already configured to accept account information from these two services.
USER ACCOUNT CONTROL FOR WINDOWS VISTA AND WINDOWS 7
NOTE! Before setting up DDNS, you must have previously set up Port
Forwarding as described in the previous section.
SETTING UP DDNS
Windows Vista
The following instructions are for setting up DDNS with MyQ-See, instructions for DynDNS are
available on their website.
STEP 1. Using a computer that is
connected to the same router as the
DVR, use Internet Explorer to go to
www.MyQ-See.com
STEP 2. Select User Accounts and
Family Safety.
PICTURE 9-24
PICTURE 9-20
STEP 3. Select “Add or Remove User
Account.”
PICTURE 9-25
STEP 4. Select the desired user account.
PICTURE 9-21
STEP 5. Once you have completed steps 1-4, click on the link on the MyQ-See website
to download the MyQ-See software program onto your computer and install it so that
it can monitor the IP address assigned to your account. The computer must always be
on in order to update the link to the public IP address when it changes.
62
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
STEP 4. Once you have obtained your
domain name, you will need to
configure the DVR for access using it.
STEP 1. Open the Control Panel
(accessible by clicking on the
Windows icon in the lower left of your
screen.
PICTURE 9-23
STEP 2. Fill out the required information
to register and click the Submit
button at the bottom of the screen.
STEP 3. The next page will ask you
to create a domain name. Domain
names must begin with a letter (a-z)
or a number (0-9) and cannot contain
a hyphen. Once you’ve decided
upon a name, click on the “Request
Domain” button. If it is available you
will see a confirmation screen along
with the IP address associated with it.
Confirm that this matches the number
obtained in Network Settings. Your
domain name will look like this: http://example.myq-see.com
Some users of computers using Windows Vista or Windows 7 operating systems may receive
an error message informing of a codec that is missing or not installed. This conflict can be
resolved by turning off User Account Control (UAC).
PICTURE 9-26
63
Setting Up ActiveX Control
STEP 5. Select Turn User Account
Control on or off
STEP 1. Open Internet Explorer
STEP 2. Click on Tools
STEP 3. Select Internet Options in the
pull-down menu
PICTURE 9-27
STEP 6. Uncheck the box next to “Use
User Account Control (UAC) to help
protect your computer.”
PICTURE 9-32
STEP 4. Click on the Security Tab
STEP 5. Select Trusted Sites
STEP 6. Click on the Sites button
STEP 7. You will then be asked to restart
your computer for the change to take
effect.
PICTURE 9-33
PICTURE 9-28
Windows 7
Microsoft Office Outlook 2007
Devices and Printers
All Programs
STEP 9. Click the Add button
Default Programs
iTunes
uac
STEP 2. Type “uac” into the search bar
and hit ENTER. The User Account
Control will open or you will be offered
a link to click to open it.
Adobe Acrobat
STEP 8. Type the DVR’s IP address
(obtained during Network Setup)
or DDNS domain name into the “Add
this website to the zone:” box.
Sticky Notes
Help and Support
Shut down
PICTURE 9-29
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
STEP 1. Open up the Start Menu
(accessible by clicking on the
Windows icon in the lower left of your
screen.
STEP 7. Uncheck the “Require server
verification (https:) for all sites in
this zone” button.
STEP 10. Close the window.
PICTURE 9-34
STEP 3. Move slider to lowest setting
and press OK.
PICTURE 9-31
64
65
STEP 11. Click the Custom level…
button.
STEP 13. Click the Reset button
STEP 14. Click “Yes” when asked, “Are
you sure you want to change the
setting for this zone?”
STEP 15. Click OK
STEP 16. Click Apply
STEP 17. Click OK
STEP 18. Close Internet Explorer
PICTURE 9-37
PICTURE 9-35
You are now ready to access the DVR using Internet Explorer.
STEP 12. Pull down the “Reset to:”
menu button and select Low
Open a browser window in Internet Explorer
and enter the IP address or DDNS name
(obtained in Section 9.3 DDNS (Dynamic
Domain Name Service)) into the address
bar.
PICTURE 9-38
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
You will see a log in screen similar to that
shown in Picture 9-38 or yellow alert bar at
the top of the window asking for permission
to open an ActiveX application. Allow it to
install webrec.cab control to reach the
sign-in screen.
Instructions for controlling your system
remotely are in the next section.
PICTURE 9-36
66
67
ACCESSING THE INTERNET EXPLORER CLIENT
After enabling network server on the unit, and enabling ActiveX, users can view the video
from the cameras over the LAN or Internet through Internet Explorer. This unit only supports
Internet Explorer browser, no other browsers are supported. It also supports Win2000, WinXP,
Vista, and Win7.
Input the IP address of the computer with the card if accessing from LAN, or the public IP
address of the router if accessing from the internet, into the Internet Explorer window to reach
the window that prompts you to install the ActiveX control.
Icon
Description
Controls for PTZ Cameras:
Move Up.
Move Down.
Move Left rotate left. Move Right. Stop Rotating.
PTZ ‘Focus’ buttons.
Far Focus
PTZ ‘Zoom’ buttons.
Zoom In
PTZ ‘Iris’ button.
You will get a message asking you to install
the file NetVideo.cab. Install it as normal.
Increase light.
Near Focus
Zoom Out
Decrease light
Go to a Preset Point
Set a Preset Point
Speed dome.
Adjust PTZ speed.
Single channel with full screen display
PICTURE 9-39
Four channel mode - four cameras displayed
Contrast adjustment
You will then be asked to log in. Use the
same User Name and Password as you
would when logging in from the computer
itself. The default User Name is SYSTEM
without a password.
Brightness adjustment
Hue adjustment
Saturation adjustment
Log in/ Log out
Record playback
PICTURE 9-40
System Configuration
LAN or Master stream is for users on the same network as
your system. It has higher frame rate and needs higher network
bandwidth
Internet, or sub stream, has a lower frame rate and requires
lower network bandwidth. Users can select the stream
according to their bandwidth.
As you can see, the
WebCam main interface
is very similar to the
SuperDVR main interface.
PICTURE 9-41
68
69
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
Once you have entered the User Name and
Password, click OK to log in.
9.5 REMOTE PLAYBACK
Right-clicking the mouse in the main interface
will open a sub menu.
RECORD PLAYBACK AND CONTROL
Open Stream - Click this item, selected
channel will open
Close Stream - Click this item, selected
channel will close
PICTURE 9-42
Click
button on the Webcam main
interface, and the remote playback interface
will appear:
Close All - Click this item, all channels will
close
Full Screen - Select this item, the picture
will display full screen. Double click or
click right mouse to return to the previous
interface.
PICTURE 9-43
Play/ Pause
Stop
Adjust the speed of playing back. Users can adjust play speed as needed.
Playing back backup. Users can click Backup to enter into the Remote
Backup interface:
REMOTE BACKUP
STEP 1. Select the date, channel, then
click Search button. It will list all files
recorded for the day.
STEP 3. Select files in the search area.
Users can hold shift button on the
keyboard and select multi files with
mouse simultaneously.
STEP 4. Click Backup button to do
remote backup.
PICTURE 9-44
The backup files will be saved in AVI format. Most computer users can play with most third
party players directly.
If you do not have a media player installed, we suggest using Windows Media Player Classic
which is available as a free download from many web sites and is easily found via an online
search.
70
71
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
STEP 2. Click Browse button, set the
saving path.
The ruler on top of the bar shows the hours of the day. Right-click the ruler, it will be magnified
10 times allowing users to see the time marks more clearly.
Right-clicking the mouse in the search area
will open a sub menu.
PICTURE 9-45
If you want to view all channels, click Select all, then all check boxes before channels will be
selected.
When searching for a certain section of a record, draw the bar to the desired position. If
necessary, right-click the bar to see the magnified time marks for precise search.
You can click the Play button to play the selected record, Then return to live display mode after
finishing remote playback, it will display a message ‘Connecting…’on the screen. And you
may click “Large Picture” or “Quad Picture” button to refresh the screen to get live picture.
Click Clear all to clear all selected channels; if users select a certain channel, click Select this
channel, then just this channel be selected.
Click Clear this channel to deselect that channel.
Return to previous main interface
Multiple Channels playback control
The system default playback modes
are single and four channel. If you need
to change to other channels, then click
the single channel button to bring up the
1-channel configuration window where you
can select one channel from all the available
channels for playing back.
PICTURE 9-46
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
The four channel configuration window
will display when the four channel icon
is selected allowing you to select any four
channels from all the available channels for
play back.
PICTURE 9-47
Data preview shows the recorded data for different channels during corresponding time, the
left side shows the available channels. When a certain channel has been selected for playing
back, the background color will be highlighted, or its dark gray and a tick sign will appear
beside the channel title.
PICTURE 9-48
The data preview area at the center gives details of the recorded files. Different colors of the
bar show different types of records.
BLUE
Manually Recorded
YELLOW
Motion Detection
72
GREEN
RED
Schedule Recorded
Sensor Alarm
73
9.6 SYSTEM SETUP
Server PC Setup
Click
You can enter the user name and password
for the computer which houses the video
capture card in the appropriate boxes. This
way, when the computer system restarts, it
will access to the system with the user name
and password input in these boxes to begin
running the SuperDVR application.
and enter the main setup interface.
PICTURE 9-51
As the Windows system may become unstable after a couple of days of continuous operation.
It may cause the SuperDVR system to become unstable. The software supports auto-reboot.
Select PC Autoreboot and set the interval by day, which will instruct the system to reboot
automatically according to your settings.
ALARM SETUP
The Alarm setup configuration is similar to that in the SuperDVR software.
PICTURE 9-49
NOTE! When multiple clients access the system configuration interface
simultaneous, the user who enters into that interface first gets priority and
then others will not be able to access it.
BASIC CONFIGURATION
Caption
There are four options: None, ID, Name and
ID/Name to select from.
PICTURE 9-50
‘Name’ means camera names,i.e. Cam1, Cam2 and so on.
‘ID/Name’ means both camera number and camera name,i.e. 1/Cam1, 2/Cam2 and so on.
Full screen alarm - Users can select
PICTURE 9-52
whether channel will be full screen when
alarm triggered. Set the full screen hold
time here
Pre-alarm record - Users can select whether to enable alarm pre-recording and also prerecord time
Disk storage alarm - If the Partition’s free space is less than the assigned percentage, it will
stop recording or recycling, but give alarm tips according to the settings
Motion holding time - The continuous recording time after motion stopped
Sensor holding time - The continuous recording time after sensor stopped
Live audio
Your card supports accepts audio input through the RCA ports on the Audio In dongle. You
can choose the video channel to associate with these audio signals.
74
75
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
‘None’ means no title or name.
‘ID’ means camera numbers, i.e. 1,2,3 and so on.
Buzzer - Users can select whether to sound
the computer buzzer if the alarms have
been triggered also select how long the
buzzer sounds.
ALARM CONFIGURATION
CAMERA SETUP
Click the camera icon and the Camera Setup configuration will appear
Title - Channel name. Users can set the
channel name from Cam1, Cam2, Cam3
and Cam4.
Camera security - Users are divided into
two standards: normal user and super
admin. By selecting this option, only
administrator can see corresponding
channels.
Click the alarm icon to open the Alarm Configuration window
You can set the alarm type: Motion and other.
There are two alarm out options to choose
from: Buzzer and Auto mail.
Buzzer - Enable buzzer on board for alarm
PICTURE 9-53
Time stamp - If selecting the check box, record time will be displayed on the screen when
playing back the record.
Net quality - There are five options to choose from: lowest, lower, medium, higher and
highest. The higher the picture quality is, the clearer the picture is, but the more bandwidth
it takes to transmit the files.
Auto mail - When alarm is triggered, the
PICTURE 9-55
system will send an e-mail to users
automatically.
By clicking Copy To you can copy the setting of this channel to any other selected channel.
RECORD CONFIGURATION
Click the Record icon to open the Record Configuration interface.
Audio in - If users select the check box, Webcam will record audio along with the video.
Otherwise, it will not record audio.
NOTE! The default setting is that Audio input1 matches channel1 and
Audio input2 matches channel2
By clicking Copy To you can copy the setting of this channel to any other selected channel.
PICTURE 9-56
SCHEDULE CONFIGURATION
Click the Calendar icon to enter the Schedule Configuration page.
There are three kinds of recording modes:
Manual record, Schedule record and Motion
record
You can use multiple cameras to record.
Every camera works separately and recorded
files are also saved separately.
When users need to edit the schedule for a
channel, select the camera name in the left
Camera group first.
PICTURE 9-54
Click
icon and brush on the weekday schedule to add time; click
weekday schedule to delete time.
icon and click on the
By clicking Copy To you can copy the setting of this channel to any other selected channel.
PICTURE 9-57
Record quality - There are five quality options to select from: lowest, lower, medium, higher
and highest. The higher the record quality is, the clearer the recorded image is and the
more hard space the recording takes up.
Manual record - By selecting this option, the selected camera image will be recorded and
saved all the time.
Schedule record - By selecting this option, the selected camera image will be recorded
according to the times you setup on the schedule.
Motion record - By selecting this option, users can set selected channels to record when
there is motion detected in front of the camera.
76
77
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
Record setup
There are three kinds of recording modes:
manual record, schedule record, motion
detection/Sensor alarm record. Users can set
schedules from Sunday to Monday separately
for all of the three recording modes. Sensor
alarm recording mode has the highest priority
of the options.
STORAGE DISK
Mail setup
You can choose where to store recorded files by selecting storage disk. By checking the
Recycle check box, users can setup the software to continue recording after the hard drive is
full by recording over the oldest files on the hard drive.
Send to - Receiver’s E-mail Address
By clicking Copy To you can copy the setting
of this channel to any other selected channel.
You can select the ‘Set Mail Internal’ check
box to set e-mail send time, such as 5
seconds, 10 seconds and so on.
E-Mail from - Sender’s E-mail Address
Subject - E-mail Subject
PICTURE 9-62
Attachment setup
PICTURE 9-58
MOTION CONFIGURATION
Click the running figure icon to access the Motion Configuration interface.
Select ‘Attachment’ and the system will attach an image from the camera that triggered the
alarm to the designated recipient.
Camera - Channel Name
Time - Display Time
Format - Image Format
Sensitivity - Set motion detection sensitivity
here.
PICTURE 9-63
Resolution - CIF or QCIF
Speed - Motion detection speed
Block number - Set grid’s number
Select all - Select all the areas of the channel
as detection area
Clear all - Clear all the detection areas
and then users can select customized
detection areas using mouse curser.
PICTURE 9-59
By clicking Copy To you can copy the setting of this channel to any other selected channel.
CHAPTER 9 REMOTE SURVEILLANCE & PLAYBACK
E-MAIL CONFIGURATION
Click the E-mail icon to access to E-mail Configuration interface.
Mail server setup
In this area, users can set receiver and
sender’s E-mail SMTP server and address.
Note: the address of receiver and sender can
be the same.
SMTP server - Sender’s SMTP, such as
smtp.yahoo.com
User name - Sender’s User Name
SMTP PORT - Mail server’s port, the default
value of mail server is 25.
PICTURE 9-60
Password - Sender’s Password
You can select ‘My server requires a secure
connections’ or ‘My outgoing server
(SMTP)requires authentication’ check box
according to server mail service policy of mail
service provider.
78
PICTURE 9-61
79
9.7 P.T.Z CONFIGURATION
MOBILE SURVEILLANCE
Click the PTZ icon to configure the PTZ camera’s controls
CHAPTER 10
This video surveillance card supports mobile surveillance on smart phones and other devices
running Android,Symbian and Windows Mobile Pro operating systems along with the iPad
and iPhone on 3G networks. To access the card from these devices you must have first
configured your card for remote access as shown beginning with Section 9.2 Configuring
Router for Remote Access.
10.1 WINDOWS MOBILE PRO
Windows Mobile Pro 6.1 and 6.5
PICTURE 9-64
STEP 1. Activate mobile network access on the
mobile phone.
STEP 2. Run Internet Explorer
STEP 3. Input the DVR’s IP address or DDNS
domain
PROTOCOL SETUP
Protocol - Communication protocol of P.T.Z
device
Port - Set the serial port number
Address - The communication address of
P.T.Z device (ID number)
PICTURE 9-65
STEP 4. You will be asked to download the
software PCam. Click on the software name
to open the download dialog pop-up
SERIAL PORT SETUP
PICTURE 10-1
You should first enable the P.T.Z control function of selected camera and select a port number
in P.T.Z Protocol Setup and then set corresponding parameters. You should get the Baud
rate, Protocol and Address from your PTZ camera or its manual before proceeding.
STEP 5. Click Yes to start downloading and
installing.
Port - Set the port number
CHAPTER 10 MOBILE SURVEILLANCE
Baud rate - Set the P.T.Z device Baud rate,
default value is 9600, used value must match
Baud rate on PTZ control board
Data bits - The default value is 8, used value
much match Baud rate on PTZ control board.
Parity - Odd and even parity bit, default Null,
used value must match Baud rate on PTZ
control board
Stop bits - Default value is 1, used value must
match Baud rate on PTZ control board
PICTURE 9-66
Notice: Users should look into the P.T.Z
device and get Baud rate, Protocol and
Address first, and then set other values
accordingly.
PICTURE 10-2
By clicking Copy To you can copy the setting of this channel to any other selected channel.
80
81
10.2 SYMBIAN
STEP 6. PCam will open automatically
once the install process is complete.
This card supports phones running the 3rd or 5th editions of Symbian S60.
STEP 1. Enable network access on the mobile
phone.
STEP 2. Launch the web browser
STEP 7. Input the DVR’s address, ID and
password respectively in the fields
“Server”, “User” and “Password”.
The User Name and Password
are the same as used on the DVR.
The default is SYSTEM with no
password. Click “Go” to log onto the
DVR. Successful access will bring up
the view from a camera.
STEP 3. Input the DVR’s IP address or DDNS
domain name in a new bookmark. Click this
bookmark to connect to the DVR.
PICTURE 10-3
PICTURE 10-6
STEP 4. A welcome window will open and
prompt you to download a software
package called SCam. Click on the software
name to download.
STEP 5. Click Yes on the security pop-up
window to confirm your download
STEP 6. The SCam shortcut icon will appear
on the system menu when the download is
complete.
PICTURE 10-4
PICTURE 10-7
CHAPTER 10 MOBILE SURVEILLANCE
STEP 7. Launch the SCam program. It will
display a function interface:
STEP 8. Camera 1 is the default channel
after login. To change the channel,
use the drop-down Channel menu.
Live View – Open mobile Live View.
Image View – To check pictures snapped in
the Live View mode.
System Setting – Login setting and alarm
setting
Help – Function indication and help.
PICTURE 10-5
82
PICTURE 10-8
83
STEP 8. In System Setting, select Login
Setting to bring up the Login interface.
10.3 IPHONE AND IPAD
This card supports connection on 3G networks. Non-3G equipped devices will need a Wi-Fi
connection.
STEP 9. Input the DVR’s address, User Name
and Password then save. The User Name
and Password are the same as used on
the DVR. The default is SYSTEM with no
password.
STEP 10. The Access Point of “Winsock” is
the default. This access point may differ
outside North America or based on your
cellular provider. Contact your provider’s
tech support department if you experience
difficulties with this setting.
NOTE! Although the software needed to access your DVR is free, you will
need to have or create an iTunes or App Store account to proceed.
INSTALLING THROUGH THE IPHONE OR IPAD
STEP 1. Open the App Store function on your
device
PICTURE 10-9
STEP 11. Open Live View to see the camera
images.
PICTURE 10-12
STEP 2. Select the Search function and search
for “SuperCam”
PICTURE 10-10
STEP 3. Click on SuperCam to open the
introduction. Click on the FREE button and
it will change to INSTALL. Click it again.
PICTURE 10-11
84
CHAPTER 10 MOBILE SURVEILLANCE
PICTURE 10-13
STEP 12. In Live View you can take snapshot
images, select other camera channels and
control PTZ cameras.
PICTURE 10-14
85
INSTALLING THROUGH PC OR MACINTOSH COMPUTER
STEP 1. Access the iTunes store in your
computer and login.
STEP 2. Connect your device to the computer.
STEP 3. Select the Search function and search
for “SuperCam.”
PICTURE 10-15
PICTURE 10-18
STEP 4. Click the “Free Application” button
next to SuperCam_Pro. (Red box in
Picture 10-19)
STEP 4. Input your iTunes or App Store
password and then click “OK”. The
software will be downloaded and installed
automatically.
PICTURE 10-19
PICTURE 8-16
STEP 5. Input your Apple ID and password,
then click “Acquire.”
CHAPTER 10 MOBILE SURVEILLANCE
PICTURE 10-20
PICTURE 10-17
Instructions for operating SuperCam on your Apple mobile device can be found on page 88.
STEP 6. Check “Synchronously Apply
Program” and “SuperCam” and then
click the Apply button. SuperCam will be
installed automatically.
PICTURE 10-21
86
87
OPERATING INSTRUCTIONS FOR
IPHONE/IPAD
Live View Interface
You can access the different viewing functions of the DVR in a similar manner to the controls
on the DVR itself.
STEP 1. Launch SuperCam. This will bring up
the Login interface.
STEP 2. Input the DVR’s IP address or DDNS
domain name, User Name and Password.
Check the “Remember Server” box to save
this setting. The User Name and Password
are the same as used on the DVR. The
default is SYSTEM with no password.
If you are monitoring multiple devices,
previously saved login data for these devices
can be accessed using the
button on
the right.
PICTURE 10-22
Main Menu
This window contains the function buttons needed to access and control your system.
PICTURE 10-24
PICTURE 10-25
PICTURE 10-26
PICTURE 10-27
Clicking on the help icon will list the functions as
well as how to use them. They are also defined
below:
Button
Button
Function
Button
Function
Playback
Playback recorded files
Image view
Log
Log record
Server List
Device list
Live
Live view
Settings
Software settings
Information
Device information view
Help
Software help center
Logoff
Logoff and return to login
interface
88
Function
Button
CHAPTER 10 MOBILE SURVEILLANCE
PICTURE 10-23
Function
Switch channels
Switches to PTZ interface
Snap picture
Record
Close the video of the current
channel
Switch to 4-image view
Switch to single image view
Zoom In/Focus In/Iris Open
Move the dome horizontally
and vertically. The center
square stops the movement.
Zoom Out/Focus Out/Iris Close
Preset
Select the preset point
Group
Set the cruise line
Speed
Rotate speed of the PTZ
H-Reverse
Inverts PTZ control (up is down)
V-Reverse
Inverts PTZ control (left is right)
89
Image View Interface
Configuration Interface
This window allows you to configure the main settings for how files are recorded and saved as
well as how alerts are handled.
Button
Function
Previous picture
Record file clip size – This is the maximum size of
a single video clip.
Next picture
To first picture
Reserved disk space – This is the amount of
space reserved for video recordings on the internal
memory. If the available disk space is less than that
selected, the video will stop.
To last picture
Copy pictures to album
Delete
Record Playback Interface
Display mode – Select between single or fourscreen live display
PICTURE 10-28
Clicking on a recorded file will start the playback. The controls at the bottom of the screen
allow the user to move through the video.
Button
Remember display order – The user can choose
whether the phone remembers the display order or
not.
Alarm – If turned on, this will trigger an audible
alarm when a Video Loss, Sensor or Motion event
occurs.
PICTURE 10-31
Shake Alarm – If turned on, this will cause the
device to vibrate when a Video Loss, Sensor or
Motion event occurs.
Function
Play
Pause
Stop
Information View Interface
Reverse
This presents information on the cell phone you are using the SuperCam software version on
as well as the software itself.
Fast Forward
Device ID: This is the ID of the DVR you are
connected to.
PICTURE 10-29
Software Version: The current connection device
software version
Build Date: The date the software was released
This allows you to add, delete or modify the DVR connection or connections if you are
remotely monitoring multiple systems.
Software Version: The current version of the
SuperCam software in use on your phone
Software Build Date: The date this version of
SuperCam was released
Button
CHAPTER 10 MOBILE SURVEILLANCE
Server List Interface
PICTURE 10-32
Function
Add a server
Modify a server connection
Delete a server
PICTURE 10-30
90
91
10.4 ANDROID
STEP 5. You can view the download and
installation process in Notifications. Once
download is complete, the software will
install automatically.
SOFTWARE INSTALLATION
STEP 1. Enter the Android Market
STEP 2. Search for “SuperCam”
PICTURE 10-33
STEP 3. Click the Install button
PICTURE 10-36
OPERATING SUPERCAM
Login
STEP 1. Launch SuperCam. This will bring up
the Login interface.
PICTURE 10-34
STEP 4. Click the OK button to confirm the
download
CHAPTER 10 MOBILE SURVEILLANCE
PICTURE 10-37
STEP 2. Input the DVR’s IP address or DDNS
domain name, User Name and Password.
Check the “Remember Server” box to save
this setting. The User Name and Password
are the same as used on the DVR. The
default is SYSTEM with no password.
If you are monitoring multiple devices,
previously saved login data for these devices
can be accessed using the
button on
the right.
PICTURE 10-35
PICTURE 10-38
92
93
Image View
Main Menu
This window contains the function buttons needed to access and control your system.
Button
Function
Previous picture
Next picture
Zoom in
Clicking on the help icon will list the functions as
well as how to use them. They are also defined
below:
Zoom out
Delete
Return
PICTURE 10-40
PICTURE 10-39
Record Playback
Button
Function
Button
Function
Playback
Playback recorded files
Image view
Log
Log record
Server List
Device list
Live
Live view
Settings
Software settings
Information
Device information view
Help
Software help center
Logoff
Logoff and return to login
interface
Clicking on a recorded file in the Recorded File
window will start the playback.
Live View
In this display you can access the different viewing functions of the DVR in a similar manner to
the controls on the DVR itself.
Group
Function
Button
CHAPTER 10 MOBILE SURVEILLANCE
Button
PICTURE 10-41
Function
Switch channels
Switches to PTZ interface
Snap picture
Record
Talk
Return
Full Screen
Zoom In/Focus In/Iris Open
Move the dome horizontally
and vertically. The center
square stops the movement.
Zoom Out/Focus Out/Iris Close
Preset
Select the preset point
Set the cruise line
Speed
Rotate speed of the PTZ
The controls at the bottom of the screen allow the
user to move through the video.
Button
Function
Play
Pause
Stop
Full screen
Return
PICTURE 10-42
94
95
Server List
This allows you to add, delete or modify the DVR connection or connections if you are
remotely monitoring multiple systems.
Button
Function
APPENDIX
FREQUENTLY ASKED QUESTIONS
Installation
Cannot Install the SuperDVR Driver
Possible causes:
•
H.264 series capture card has not been installed. Before installing driver, users should
install capture card hardware in the PCI slot in the computer case before installing the
SuperDVR program.
•
H.264 series capture card has not been installed correctly. Please unplug the card and
install it again or change to another PCI slot, preferably next to the slot it was originally
installed in.
•
The card is not compatible with the PC system.
Add a server
Modify a server connection
Delete a server
Return to Main Menu
Can’t find H.264 Series Devices in Device Manager
Enter the Device Manager and cannot find corresponding H.264 series Devices, the possible
cause may be:
PICTURE 10-43
Information View
This presents information on the cell phone you are using the SuperCam software version on
as well as the software itself.
•
Windows system error. Restart computer.
•
Problem with H.264 series card. Replace the card.
•
Install SuperDVR to see if it finds card and installs the driver.
Operation
Meanings of the indicator lights
Device ID: This is the ID of the DVR you are
connected to.
Grey- Normal state
Red - Sensor alarm
Yellow - Motion detection alarm
Blue - Video loss
Software Version: The current connection device
software version
Light Green - Manual record state
Dark Green - Schedule record state
How do the different record modes work?
Users can set more than one record mode in Record setup (refer to Figure3-5), but actually,
there is only one valid record mode for recording.
Build Date: The date the software was released
Software Version: The current version of the
SuperCam software in use on your phone
The priority order of the recording modes is: Sensor Alarm Record > Motion Detection Record
> Manual Record > Schedule Record
Software Build Date: The date this version of
SuperCam was released
How to set recycling record mode on the system
Select ‘Recycle’ in basic configuration, refer to Figure4-1.
TIP
96
APPENDIX
PICTURE 10-44
Users can select the percent of used disk space to set up “disk shortage alarm.” You can
input percent manually or choose the selectable options such as, 25%, 50%, and 75% to
set up. For example, if selecting 50%, an alarm will warn you when your disk space usage
reaches 50%.
It is recommended that you install SuperDVR onto the partition with your
Windows system (normally C:), and save recorded files on a different partition.
97
How to set auto reboot function
When a Microsoft Windows system runs continuously for a couple of days the system may
become unstable; therefore, it is suggested you restart the computer every few days.
In the basic configuration, input Windows user name and password (It is not SuperDVR user
name and password), and select time interval, then the Windows system will automatically
restart according to the set time.
If the Windows system shutdown unexpectedly, i.e. power supply is cut off, when computer
reboots, SuperDVR system will automatically restart, and keep the settings you have entered.
TIP
Users do not need to enable auto reboot function, but it’s suggested to input
the Windows user name and password in the relative area, therefore when the
system shuts down unexpectedly, users don’t need to input Windows and
SuperDVR user names and passwords.
How to quickly setup the schedule record function
Press ‘Shift’ or ‘Ctrl’ key, and draw the cursor in corresponding areas to make schedules for
multiple channels.
What are the byte rates for different image qualities from highest to normal?
The frame rate is 30 fps, bit rate for the highest image quality is about 1.2MByte/s, and for the
lowest image quality is about 50KByte/s.
The frame rate seems to be lower than what I set
There is frame loss in image switch therefore the real recording frame rate is relatively lower
than the theoretic value.
Why can’t I select more channels to backup?
Please draw the mouse in the channel selection area, or utilize Shift and Ctrl key for assistance.
How to Use Network Function
How to monitor on the client-side
First enable ‘Web cameras service’ in basic configuration.
Input the server Internet address in IE browser on the client-side, and the necessary webcam
driver will be downloaded automatically, then users need to install the driver. After accessing
the webcam main interface, click ‘Login’ and input user name and password to log in the
system.
Why can’t I download the client-side software?
The possible causes:
Why can’t I see the images?
The possible causes:
•
The VGA card is too outdated or does not have enough Video RAM.
•
You need to install a newer version of DirectDraw.
•
SuperDVR cannot run on a version of Windows before Win2000 or on server versions
of Windows
•
Data port or command port is conflicting with other network services (please see section
7.2)
•
The user is connected to Internet through LAN, and the network administrator has not
enabled corresponding data port or command port.
•
The client-side has installed firewall software that may stop video transmission.
•
H.264 codec has not been installed properly, please download new version of Webcam
(newer version of SuperDVR).
•
Slow network speed.
What should I do if the Internet speed is quite slow?
The more channels opened, and the slower the video transmission speed, therefore try to use
one channel display mode when the network speed is slow.
TIP
There may be some surplus channels that have no video input. Switching off
the channels will help to improve transmission speed. (Refer to ‘4.1 Basic
Configuration’ about switching on/off channels.)
Why can’t I start Webcam server or RPB server?
Possible causes:
Other software is using these ports. If so, please change Webcam ports configuration or stop
other software.
How much hard drive space do the recorded files take up?
To use the table below, find the picture quality setting you are using and multiply the used
space figure by the number of cameras you are recording. Divide the result into the amount
of hard drive space available and you will get the number of hours you can record on the
available hard drive space.
Example using medium quality with 4 cameras with 200GB available:
•
The client-side computer is not properly connected to Internet or LAN.
•
The server-end has not enabled ‘Web Camera Service’.
•
The default Http port is 80. It may be conflict with other Web servers, for example IIS. If
so, please change to another port
Frame rate
Resolution
Picture quality
Used Space MB/
hour
•
Windows XP SP2 will block the OCX download. You should enable ‘Internet Option >
Security Settings > Download unsigned ActiveX controls’.
30fps
640*480
highest
93
30fps
640*480
higher
67.44
30fps
640*480
medium
48.12
30fps
640*480
lowest
10.92
•
It cannot be configured at the client-side, when the server is being configured at the
server-end.
•
Only the last configuration is valid if different configurations are deployed simultaneously.
98
APPENDIX
Why can’t the server be configured at the client-side?
The possible causes:
48.12MB X 4 Cam = 192.48MB/HR, 200GB/192.48 = 1064 HRs = 44 day
99
Other Questions
Why doesn’t the computer display work, or why can’t I access Window system?
The capture card may not be well installed. Unplug the card and try it again.
IMPORTANT! Please unplug the power plug of the computer before
re-installing the card to avoid damaging the motherboard chip set.
Why I can’t find the recorded files?
You do not have enough hard drive space available for recording.
Why is the screen’s display unstable with dithering and water-wave images?
Possible causes:
•
Camera does not have enough power
•
There is external electromagnetic disturbance, or electrostatic disturbance on camera’s
BNC connector. Use a shielded RG59 or RG6 cable.
•
You may need to update the driver for the video card on the system.
•
Problem with the video card. Try reinstalling the video card, or changing the video card.
Why does it delay playing back, and why is it slow to close and open the driver?
Possible causes:
•
Problem with the Windows system. Try rebooting the computer.
•
There are too many recorded files or too many fragments on the HDD, therefore it takes
time to search for the files, you need delete the files that you don’t need, or need to run
disk defragmenter.
•
Capture card problem.
•
Computer hardware system is too outdated (processor too slow, not enough memory, or
not enough free space on hard drive).
Precautions on changing system time
The SuperDVR system provides the retrieving mechanism for video files, which must take
the system time as a retrieving reference. To change the computer time after installation
will create a high risk of wrong time reference.
•
•
Before SuperDVR is used, it must be confirmed whether the current computer time is
correct.
•
Deactivate computer auto time updating function of system.
•
Make sure the motherboard of the computer is in normal state.
If system time must be changed, please do following preparations first
If new time is later than current computer time (for example, change 2006/01/01 0:0:0
(current system time) to 2007/01/01 0:0:0 (target time)), the change can be made directly.
If new time is before the current computer time (for example, change 2007/01/01 0:0:0
(current system time) to 2006/01/01 0:0:0 (target time)), first stop the video recording, backup
all video data. Turn off SuperDVR, change computer time, and re-start SuperDVR.
How to use REPAIRDB to repair SuperDVR database
Enter the installation directory of SuperDVR.
C:\ProgramFiles\SuperDVR\SuperDVR,open the REPAIRDB.EXE file. The user ID is ‘SYSTEM’,
and no password is needed to enter. After entering, please select database to repair.
How to set power options of Microsoft VISTA system
After installing VISTA system, you should enter the Start menu to choose ‘Control
Panel’. Select ‘System and Maintenance’ link. And select ‘Power’ option in ‘System and
Maintenance’ window. Finally, Select the ‘High Performance Change Plan Setting’ option.
Why can’t I play back?
Windows Media Player has been damaged, or decoder has not been installed properly. It is
suggested you reinstall the player program or download a codec pack from K-lite
www.free-codecs.com/download/K_lite_codec_pack.htm or www.divx.com.
Computer problem, recorded files have been damaged. It is suggested to fix these files using
SuperAVIFix program.
•
User has deleted these recorded files.
•
SuperDVR has deleted recorded file when recycling hard drive space.
•
Recorded files cannot be opened because the recording is on.
APPENDIX
Why do I see some gray blocks on time progress bar area when playing back?
Possible causes:
Why could I see some old recording sections that weren’t available for play back?
Possible causes:
•
You previously selected disk partitions different from the current partitions.
•
Database of recorded log was damaged.
•
You have installed SuperDVR on different directories.
100
101
QUICK START INSTRUCTIONS
INSTALLATION INSTRUCTIONS
STEP 1. Insert the PCI card (But do not connect the Camera yet).
STEP 2. Launch Windows.
Windows will come up with Hardware wizard. Just click ‘Cancel’.
STEP 3. Put the installation CD in the drive and open up SuperDVR folder and run the
‘Setup’ file.
Step 4. Follow the steps and in WinXP, it will come up with a message saying the
program has not passed Windows logo testing, just select ‘Continue anyway’.
STEP 5. Reboot computer once installation has completed.
Once Booted up, On Desktop there will be a ‘SuperDVR’ icon.
If this program recognizes the PCI card, program will open OK. Please log in to the program.
On the Remote Client Computer
STEP 1. Minimum Requirement for the client computer:
- 2.8 GHZ processor or later
-512 MB RAM
- Windows 2000 (SP4 minimum), Win XP (SP2 minimum), Vista, Windows 7
- MOST AGP and PCI-E cards with 128MB of Video RAM and full Direct Draw support are
supported.
- DirectX 9.0 minimum
- 500 GB free space on HDD
STEP 2. Open up Internet Explorer.
If you are running XP with SP2 on Internet explorer, click ‘Tools - Internet Option - Security Custom Level’, and enable ‘Download unsigned ActiveX controls’.
Once your program is opened, now connect the Cameras.
STEP 3. In the IE textbox of the Internet explorer, input the router’s Public IP.
TROUBLESHOOTING
STEP 4. Select ‘Live Surveillance’ and click ‘OK’ on displayed page.
When opening the SuperDVR program, it says ‘ Can’t find card ’.
Reboot one more time. If you still have the same problem, click ‘Start - Program - SuperDVR Install’ and then uninstall the program. Reboot the computer. After reboot, go back
to ‘Start - Program - SuperDVR - Install’. Now click on ‘Install’ to reinstall driver. Then
Reboot.
This will download the Webcam program. And then you can download Remote Playback
as well.
If for some reason still ‘Can’t find card ’, uninstall driver again. Shut down the computer. Move
PCI Card to another slot. Reboot it. And click ‘Cancel’ when Windows detects it.
Username: system (Password blank unless you setup a password on the main computer).
Then reinstall driver by going to ‘Start - Program - SuperDVR - Install’.
Data port: 1159 and Command port: 1160.
How to setup the web client to monitor from Internet
STEP 7. Click ‘OK’. Now you should be able to view the live video from main computer.
On Main Computer where DVR Card Installed
STEP 8. To play back the Video that has been recorded in Main Computer, Select
‘Remote Playback’ on displayed page.
STEP 1. Make sure the computer is connected to Internet. DSL or Cable Modem, or T1/
T3 line.
STEP 5. On Desktop now you should see ‘Webcam’ and ‘Remote Playback’ icon.
STEP 6. Open up Webcam, click ‘Key’ symbol icon.
Server: this the IP address of the Main Computer.
STEP 9. Click on ‘Config’.
STEP 2. Find out your router’s public IP address. You can go to www.myipaddress from
the computer the card is installed in.
Remote server: the IP address of main computer.
STEP 3. Open up the SuperDVR program and go to basic configuration. Checkmark
ENABLE Web Camera Service and Remote Play Back Service.
STEP 10. Then click ‘OK’.
STEP 4. Make Note of Data Port, Command Port and RPB port.
IP port: 1161.
STEP 11. Click ‘Login’. Now you should be able to play back the recorded video from
Main Computer.
APPENDIX
NOTE! If you are connecting to internet using a router, you need to configure
the setup of the router and do the port forwarding. Ports that need to be
forwarded: 80, 1159 and 1160. Check your router manual on how to set that
up.
102
103
FUNCTION TREE
SYSTEM CONFIGURATION TREE
Config
Basic Config
Video ProcAmp
System Config
Caption Mode
Interval of AutoDwell
CallMonitor Mode
Resolution
DeInterlace
Storage Disk
Select Disk
Recycle
Windows Auto Login
UserName
Password
Auto Reboot
Enable
Interval
Time Set
Live Audio
Audio Config
Select Channel
Gain Adjust
Select Camera
Brightness
Contrast
Hue
Saturation
Gain Mode
Auto Gain Enabled
Gain Value
Alarm Config
System Config
Buzzer
Disk Shortage
Motion Hold Time
Sensor Hold Time
Prerecord Enable
Prerecord Time
Remote Alarm
Enable
PC List
Sensor Alarm Config
Output Device Config
AutoMail Config
SMTP Server
User Name
Email From
Password
Send To
Subject
Message Body
Attach Picture
Send Mail Test
PTZ Config
Serial Port
Port Index
Baud rate
Data bits
Parity bits
Stop bits
Protocol
Select Camera
Enable
Protocol Type
Address
Schedule Config
Select Schedule Type
Schedule record
Motion Detect
Sensor Alarm
Alarm Output
Motion Detect Config
Select Camera
Motion Area
Sensitivity
Authorization
Add User
Edit Rights
Delete User
Schedule Operate
Select Schedule
Add
Edit
Delete
Network Service
Http Port
WebCam Service
Enable
Data Port
Command Port
RPB Service
Enable
RPB Port
Video Quality
Camera Config
Switch
Name
Time Stamp
Record Mode
Schedule
Manual
Motion Dectect
Sensor
Record Quality
Record Frame Rate
Schedule
Manual
Motion Dectect
Sensor
104
APPENDIX
Security
105
IE CLIENT FUNCTION TREE
REMOTE PLAYBACK FUNCTION TREE
APPENDIX
106
107
Q-SEE PRODUCT WARRANTY
Q-See is proud to back all of our products with a conditional service warranty covering all
hardware for 12 months from the date of purchase. Additionally, our products also come with
a free exchange policy that covers all manufacturing defects for one month from the date of
purchase. Permanent upgrading service is provided for the software.
Liability Exclusions:
Any product malfunction or abnormalities in operation or damage caused by the following
reasons are not within the free service scope of our company:
1. Equipment damage caused by improper operation.
2. Improper equipment operation environment and conditions (e.g., improper power,
extreme environmental temperatures, humidity, lightning and sudden surges of
electricity).
3. Damage caused by acts of nature (e.g., earthquake, fire, etc).
4. Equipment damage caused by the maintenance of personnel not authorized by Q-See.
5. Product sold over 12 months ago.
QUESTIONS OR COMMENTS? CONTACT US
Q-See Products
Digital Peripheral Solutions, Inc.
PRODUCT SUPPORT, DOWNLOADS,
FIRMWARE UPDATES
& MANUALS
8015 E. Crystal Drive
www.Q-See.com
MAILING ADDRESS
Anaheim, CA 92807
CUSTOMER SUPPORT
FAX
714-998-3509
Live Chat at www.Q-See.com (M-F, 9-5 PST)
E-mail: support@dpsi-usa.com
Phone: 877-998-3440 (M-F, 9-5 PST)
WEBSITE
www.Q-See.com
In order to fulfill the terms of your warranty, you must complete the registration process after
purchasing our product. To do this, simply fill out the User’s Information Card on our website
at www.Q-See.com
108
109
Digital Peripheral Solutions, Inc.
8015 E. Crystal Drive
Anaheim, CA 92807
110
111
Download PDF

advertising
