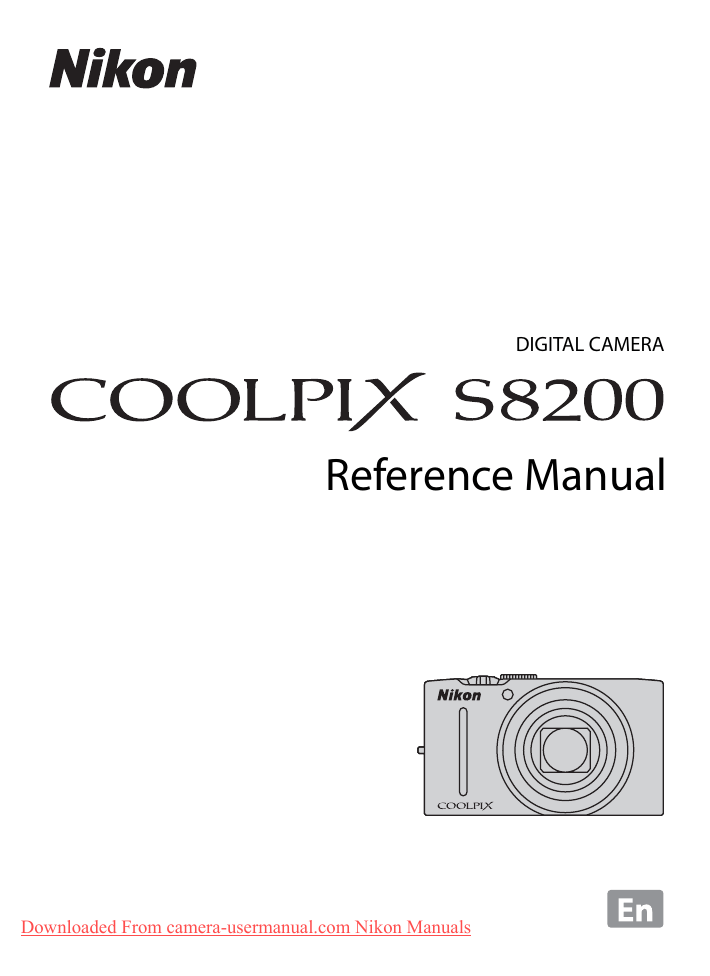

Reference Manual

Reference Manual

DIGITAL CAMERA

Reference Manual

No reproduction in any form of this manual, in whole or in part

(except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

2011

CT1G01(11)

6MM10911-01

Downloaded From camera-usermanual.com Nikon Manuals

Trademark Information

Microsoft, Windows and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

Macintosh, Mac OS, and QuickTime are trademarks of Apple Inc., registered in the U.S. and other countries. The iFrame logo and the iFrame symbol are trademarks of Apple

Inc.

Adobe and Acrobat are registered trademarks of Adobe Systems Inc.

SDXC, SDHC and SD Logos are trademarks of SD-3C, LLC.

PictBridge is a trademark.

HDMI, logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

All other trade names mentioned in this manual or the other documentation provided with your Nikon product are trademarks or registered trademarks of their respective holders.

AVC Patent Portfolio License

This product is licensed under the AVC Patent Portfolio License for the personal and noncommercial use of a consumer to (i) encode video in compliance with the AVC standard

(“AVC video”) and/or (ii) decode AVC video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC video. No license is granted or shall be implied for any other use.

Additional information may be obtained from MPEG LA, L.L.C.

Introduction

Parts of the Camera and Basic Operations

The Basics of Shooting and Playback

Shooting Features

Playback Features

Recording and Playing Back Movies

General Camera Setup

Reference Section

Technical Notes and Index

Downloaded From camera-usermanual.com Nikon Manuals

i

Introduction

Read This First

Thank you for purchasing the Nikon COOLPIX S8200 digital camera. Before using

the camera, please read the information in “For Your Safety” (

A vi) and familiarize

yourself with the information provided in this manual. After reading, please keep this manual handy and refer to it to enhance your enjoyment of your new camera.

Confirming the Package Contents

In the event that any items are missing, please contact the store where you purchased the camera.

COOLPIX S8200

Digital Camera

Camera Strap Rechargeable Li-ion Battery

EN-EL12 (with terminal cover)

Charging AC Adapter

EH-69P*

USB Cable UC-E6 Audio Video Cable EG-CP16

ViewNX 2 Installer CD Reference Manual CD

Warranty

* A plug adapter is included if the camera was purchased in a country or region that requires a plug adapter. The shape of the plug adapter varies with the country or region of purchase.

NOTE: A memory card is not included with the camera.

Read This First

About This Manual

If you want to start using the camera right away, see “The Basics of Shooting and

Playback” (

A 13).

To learn about the parts of the camera and basic operations, see “Parts of the

Camera and Basic Operations” (

A 1).

Other Information

Symbols and Conventions

To make it easier to find the information you need, the following symbols and conventions are used in this manual:

B

C

Icon

A/E/F

Description

This icon indicates cautions and information that should be read before using the camera.

This icon marks notes, information that should be read before using the camera.

These icons indicate other pages containing relevant information;

E: “Reference Section,” F: “Technical Notes and Index.”

SD, SDHC, and SDXC memory cards are referred to as “memory cards” in this manual.

The setting at the time of purchase is referred to as the “default setting.”

The names of menu items displayed in the camera monitor, and the names of

buttons or messages displayed on a computer monitor appear in bold.

In this manual, images are sometimes omitted from monitor display samples so

that monitor indicators can be more clearly shown.

Illustrations and monitor content shown in this manual may differ from the

actual product.

Downloaded From camera-usermanual.com Nikon Manuals

iii

Read This First

Information and Precautions

Life-Long Learning

As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and education, continually updated information is available online at the following sites:

For users in the U.S.A.: http://www.nikonusa.com/

For users in Europe and Africa: http://www.europe-nikon.com/support/

For users in Asia, Oceania, and the Middle East: http://www.nikon-asia.com/

Visit these sites to keep up-to-date with the latest product information, tips, answers to frequently asked questions (FAQs), and general advice on digital imaging and photography. Additional information may be available from the Nikon representative in your area. Visit the site below for contact information:

http://imaging.nikon.com/

Use Only Nikon Brand Electronic Accessories

Nikon COOLPIX cameras are designed to the highest standards and include complex electronic circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries, Charging AC adapters, and AC adapters) certified by Nikon specifically for use with this Nikon digital camera are engineered and proven to operate within the operational and safety requirements of this electronic circuitry.

T

HE USE OF NON-

N

IKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND MAY

VOID YOUR

N

IKON WARRANTY.

The use of third-party rechargeable Li-ion batteries not bearing the Nikon holographic seal could interfere with normal operation of the camera or result in the batteries overheating, igniting, rupturing, or leaking.

For more information about Nikon brand accessories, contact a local authorized Nikon dealer.

Holographic seal: Identifies this device as an authentic Nikon product.

Before Taking Important Pictures

Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.

About the Manuals

No part of the manuals included with this product may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form, by any means, without

Nikon’s prior written permission.

Nikon reserves the right to change the specifications of the hardware and software described in these manuals at any time and without prior notice.

Nikon will not be held liable for any damages resulting from the use of this product.

While every effort was made to ensure that the information in these manuals is accurate and complete, we would appreciate it were you to bring any errors or omissions to the attention of the

Nikon representative in your area (address provided separately).

Read This First

Notice Concerning Prohibition of Copying or Reproduction

Note that simply being in possession of material that was digitally copied or reproduced by means of a scanner, digital camera or other device may be punishable by law.

• Items prohibited by law from being copied or reproduced

Do not copy or reproduce paper money, coins, securities, government bonds or local government bonds, even if such copies or reproductions are stamped “Sample.” The copying or reproduction of paper money, coins, or securities which are circulated in a foreign country is prohibited. Unless the prior permission of the government was obtained, the copying or reproduction of unused postage stamps or post cards issued by the government is prohibited.

The copying or reproduction of stamps issued by the government and of certified documents stipulated by law is prohibited.

• Cautions on certain copies and reproductions

The government has issued cautions on copies or reproductions of securities issued by private companies (shares, bills, checks, gift certificates, etc.), commuter passes, or coupon tickets, except when a minimum of necessary copies are to be provided for business use by a company. Also, do not copy or reproduce passports issued by the government, licenses issued by public agencies and private groups, ID cards and tickets, such as passes and meal coupons.

• Comply with copyright notices

The copying or reproduction of copyrighted creative works such as books, music, paintings, woodcut prints, maps, drawings, movies, and photographs is governed by national and international copyright laws. Do not use this product for the purpose of making illegal copies or to infringe copyright laws.

Disposing of Data Storage Devices

Please note that deleting images or formatting data storage devices such as memory cards or built-in camera memory does not completely erase the original image data. Deleted files can sometimes be recovered from discarded storage devices using commercially available software, potentially resulting in the malicious use of personal image data. Ensuring the privacy of such data is the user’s responsibility.

Before discarding a data storage device or transferring ownership to another person, erase all data using commercial deletion software, or format the device and then completely refill it with images containing no private information (for example, pictures of empty sky). Be sure to also replace any

pictures selected for the Select an image option in the Welcome screen setting (

A 94). Care

should be taken to avoid injury or damage to property when physically destroying data storage devices.

Downloaded From camera-usermanual.com Nikon Manuals

v

For Your Safety

To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment.

Keep these safety instructions where all those who use the product will read them.

This icon marks warnings, information that should be read before using this Nikon product, to prevent possible injury.

WARNINGS

Turn off in the event of malfunction

Should you notice smoke or an unusual smell coming from the camera or Charging AC Adapter, unplug the Charging AC Adapter and remove the battery immediately, taking care to avoid burns. Continued operation could result in injury. After removing or disconnecting the power source, take the equipment to a Nikonauthorized service representative for inspection.

Do not disassemble

Touching the internal parts of the camera or Charging AC Adapter could result in injury. Repairs should be performed only by qualified technicians. Should the camera or

Charging AC Adapter break open as the result of a fall or other accident, take the product to a Nikon-authorized service representative for inspection, after unplugging the product and/or removing the battery.

Do not use the camera or

Charging AC Adapter in the presence of flammable gas

Do not use electronic equipment in the presence of flammable gas, as this could result in explosion or fire.

Handle the camera strap with care

Never place the strap around the neck of an infant or child.

Keep out of reach of children

Particular care should be taken to prevent infants from putting the battery or other small parts into their mouths.

Do not remain in contact with the camera, battery charger, or AC adapter for extended periods while the devices are on or in use

Parts of the devices become hot.

Leaving the devices in direct contact with the skin for extended periods may result in low-temperature burns.

For Your Safety

Observe caution when handling the battery

The battery may leak, overheat, or explode if improperly handled.

Observe the following precautions when handling the battery for use in this product:

Before replacing the battery, turn

the product off. If you are using the

Charging AC Adapter/AC adapter, be sure it is unplugged.

Use only a Rechargeable Li-ion

Battery EN-EL12 (included). Charge the battery by using a camera that supports battery charging or by using a Battery Charger MH-65

(available separately). To charge the battery with the camera, use either

Charging AC Adapter EH-69P

(included) or the Charge by

computer function.

When inserting the battery, do not

attempt to insert it upside down or backwards.

Do not short or disassemble the

battery or attempt to remove or break the battery insulation or casing.

Do not expose the battery to flame

or to excessive heat.

Do not immerse in or expose to water.

Replace the terminal cover when

transporting the battery. Do not transport or store with metal objects such as necklaces or hairpins.

The battery is prone to leakage when

fully discharged. To avoid damage to the product, be sure to remove the battery when no charge remains.

Discontinue use immediately should

you notice any change in the battery,

If liquid from the damaged battery

comes in contact with clothing or skin, rinse immediately with plenty of water.

Observe the following precautions when handling the Charging AC Adapter

Keep dry. Failure to observe this

precaution could result in fire or electric shock.

Dust on or near the metal parts of

the plug should be removed with a dry cloth. Continued use could result in fire.

Do not handle the plug or go near

the Charging AC Adapter during lightning storms. Failure to observe this precaution could result in electric shock.

Do not damage, modify, forcibly tug

or bend the USB cable, place it under heavy objects, or expose it to heat or flames. Should the insulation be damaged and the wires become exposed, take it to a Nikonauthorized service representative for inspection. Failure to observe these precautions could result in fire or electric shock.

Do not handle the plug or Charging

AC Adapter with wet hands. Failure to observe this precaution could result in electric shock.

Do not use with travel converters or

adapters designed to convert from one voltage to another or with DCto-AC inverters. Failure to observe this precaution could damage the product or cause overheating or fire.

vii

For Your Safety

Use appropriate cables

When connecting cables to the input and output jacks, use only the cables provided or sold by Nikon for the purpose, to maintain compliance with product regulations.

Handle moving parts with care

Be careful that your fingers or other objects are not pinched by the lens cover or other moving parts.

CD-ROMs

The CD-ROMs included with this device should not be played back on audio CD equipment. Playing CD-

ROMs on an audio CD player could cause hearing loss or damage the equipment.

Observe caution when using the flash

Using the flash close to your subject’s eyes could cause temporary visual impairment. Particular care should be observed if photographing infants, when the flash should be no less than

1 m (3 ft 4 in.) from the subject.

Do not operate the flash with the flash window touching a person or object

Failure to observe this precaution could result in burns or fire.

Avoid contact with liquid crystal

Should the monitor break, care should be taken to avoid injury caused by broken glass and to prevent liquid crystal from the monitor touching the skin or entering the eyes or mouth.

Turn the power off when using inside an airplane or the hospital

Turn the power off while inside the airplane during take off or landing.

Follow the instructions of the hospital when using while in a hospital. The electromagnetic waves given out by this camera may disrupt the electronic systems of the airplane or the instruments of the hospital.

Notices

Notices for Customers in the

U.S.A.

IMPORTANT SAFETY

INSTRUCTIONS - SAVE THESE

INSTRUCTIONS.

DANGER - TO REDUCE THE RISK

OF FIRE OR ELECTRIC SHOCK,

CAREFULLY FOLLOW THESE

INSTRUCTIONS

For connection to a supply not in the

U.S.A., use an attachment plug adapter of the proper configuration for the power outlet if needed.

The power supply unit is intended to be correctly orientated in a vertical or floor mount position.

equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving

antenna.

Increase the separation between the

equipment and receiver.

Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an

experienced radio/television technician for help.

Federal Communications

Commission (FCC) Radio

Frequency Interference

Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

CAUTIONS

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Nikon

Corporation may void the user’s authority to operate the equipment.

Interface Cables

Use the interface cables sold or provided by Nikon for your equipment. communications. However, there is no guarantee that interference will not

Using other interface cables may exceed the limits of Class B Part 15 of occur in a particular installation. If this the FCC rules.

Downloaded From camera-usermanual.com Nikon Manuals

ix

Notices

Notice for customers in the State of

California

WARNING

Handling the cord on this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm.

Wash hands after handling.

Nikon Inc.,

1300 Walt Whitman Road

Melville, New York 11747-3064

USA

Tel: 631-547-4200

Notice for customers in Canada

CAUTION

This Class B digital apparatus complies with Canadian ICES-003.

ATTENTION

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du

Canada.

Notices for customers in Europe

CAUTIONS

RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT

TYPE.

DISPOSE OF USED BATTERIES

ACCORDING TO THE

INSTRUCTIONS.

This symbol indicates that this product is to be collected separately.

The following apply only to users in European countries:

This product is designated for

separate collection at an appropriate collection point. Do not dispose of as household waste.

For more information, contact the

retailer or the local authorities in charge of waste management.

This symbol on the battery indicates that the battery is to be collected separately.

The following apply only to users in European countries:

All batteries, whether marked with

this symbol or not, are designated for separate collection at an appropriate collection point. Do not dispose of as household waste.

For more information, contact the

retailer or the local authorities in charge of waste management.

Table of Contents

Introduction .......................................................................................................................................... ii

Read This First ........................................................................................................................................ ii

Confirming the Package Contents ............................................................................................................. ii

About This Manual............................................................................................................................................... iii

Information and Precautions........................................................................................................................ iv

For Your Safety...................................................................................................................................... vi

WARNINGS ............................................................................................................................................................... vi

Notices ..................................................................................................................................................... ix

Parts of the Camera and Basic Operations ................................................................................. 1

Parts of the Camera.............................................................................................................................. 2

The Camera Body ................................................................................................................................................. 2

Controls Used in Shooting Mode ............................................................................................................... 4

Controls Used in Playback Mode ................................................................................................................ 5

The Monitor.............................................................................................................................................................. 6

Basic Operations.................................................................................................................................... 9

Switching Between Shooting Mode and Playback Mode .......................................................... 9

Using the Rotary Multi Selector ................................................................................................................. 10

Using Menus (the d Button) ................................................................................................................. 11

Attaching the Camera Strap ........................................................................................................................ 12

The Basics of Shooting and Playback........................................................................................ 13

Preparation 1 Insert the Battery..................................................................................................... 14

Preparation 2 Charge the Battery ................................................................................................. 16

Preparation 3 Insert a Memory Card ............................................................................................ 18

Internal Memory and Memory Cards ..................................................................................................... 19

Approved Memory Cards .............................................................................................................................. 19

Step 1 Turn the Camera On............................................................................................................. 20

Turning the Camera On and Off................................................................................................................ 21

Setting the Display Language, Date, and Time................................................................................ 22

Step 2 Select a Shooting Mode...................................................................................................... 24

Available Shooting Modes............................................................................................................................ 25

Step 3 Frame a Picture ...................................................................................................................... 26

Using the Zoom................................................................................................................................................... 27

Step 4 Focus and Shoot .................................................................................................................... 28

Step 5 Play Back Images ................................................................................................................... 30

Changing How Images Are Displayed .................................................................................................. 31

Step 6 Delete Unwanted Images................................................................................................... 32

Downloaded From camera-usermanual.com Nikon Manuals

xi

Table of Contents

Shooting Features............................................................................................................................ 35

A (Auto) Mode ................................................................................................................................... 36

Changing A (Auto) Mode Settings ....................................................................................................... 36

Options Available in the Auto Shooting Menu................................................................................ 37

Scene Mode (Shooting Suited to Scenes) .................................................................................. 39

Changing Scene Mode Settings................................................................................................................ 40

Characteristics of Each Scene...................................................................................................................... 40

Continuous Shooting Mode (Burst Shooting).......................................................................... 50

Changing Continuous Shooting Mode Settings ............................................................................ 51

Options Available in the Continuous Shooting Menu ................................................................ 52

Special Effects Mode (Applying Effects When Shooting) ..................................................... 53

Changing Special Effects Mode Settings............................................................................................. 54

Features That Can Be Set Using the Multi Selector................................................................. 55

Available Features .............................................................................................................................................. 55

Using the Flash (Flash Mode) ...................................................................................................................... 56

Using the Self-timer .......................................................................................................................................... 59

Using the Smile Timer, Smile Timer Continuous ............................................................................ 61

Using Macro Mode ............................................................................................................................................ 64

Adjusting Brightness (Exposure Compensation), Vividness, and Hue

(Creative Slider) .................................................................................................................................................... 65

Adjusting Brightness (Exposure Compensation)............................................................................ 68

Default Settings ................................................................................................................................................... 69

Changing the Image Size (Image Mode) .................................................................................... 71

Image Mode Settings (Image Size and Quality) .............................................................................. 71

Features That Cannot Be Used Simultaneously....................................................................... 73

Using Face Detection......................................................................................................................... 76

Using Skin Softening.......................................................................................................................... 77

Focus Lock ............................................................................................................................................. 78

Playback Features............................................................................................................................. 79

Features Available in Playback Mode (Playback Menu)........................................................ 80

Connecting the Camera to a TV, Computer, or Printer ......................................................... 81

Using ViewNX 2 ................................................................................................................................... 82

Installing ViewNX 2............................................................................................................................................ 82

Transferring Images to the Computer................................................................................................... 84

Viewing Images.................................................................................................................................................... 85

Retouching Photographs .............................................................................................................................. 86

Editing Movies ...................................................................................................................................................... 86

Printing Images.................................................................................................................................................... 86

Recording and Playing Back Movies.......................................................................................... 87

Recording Movies ............................................................................................................................... 88

Changing Movie Recording Settings (the Movie Menu) ........................................................... 91

Playing Back Movies........................................................................................................................... 92

Table of Contents

General Camera Setup.................................................................................................................... 93

The Setup Menu .................................................................................................................................. 94

Reference Section ....................................................................................................................... E1

Using Easy Panorama (Shooting and Playback) ................................................................. E2

Shooting With Easy Panorama.............................................................................................................

E2

Playing Back Images With Easy Panorama (Scroll Playback)..............................................

E4

Using Panorama Assist................................................................................................................. E5

Playing Back and Deleting Images Captured Continuously (Sequence)................... E7

Playing Back Sequences ...........................................................................................................................

E7

Deleting Images in a Sequence...........................................................................................................

E9

Editing Still Images..................................................................................................................... E10

Editing Features..........................................................................................................................................

E10

k Quick Retouch: Enhancing Contrast and Saturation ..................................................

E12

I D-Lighting: Enhancing Brightness and Contrast...........................................................

E13

e Skin Softening: Softening Skin Tones................................................................................... E14

p Filter Effects: Applying Digital Filter Effects....................................................................... E16

g Small Picture: Reducing the Size of an Image.................................................................

E18

a Crop: Creating a Cropped Copy .............................................................................................. E19

Connecting the Camera to a TV (Viewing Images on a TV) ......................................... E21

Connecting the Camera to a Printer (Direct Print).......................................................... E23

Connecting the Camera to a Printer..............................................................................................

E24

Printing Individual Images ...................................................................................................................

E26

Printing Multiple Images.......................................................................................................................

E27

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)................ E30

White Balance (Adjusting Hue) .........................................................................................................

E30

Metering..........................................................................................................................................................

E33

ISO Sensitivity...............................................................................................................................................

E34

Continuous Shooting..............................................................................................................................

E35

AF Area Mode ..............................................................................................................................................

E37

Autofocus Mode.........................................................................................................................................

E42

The Playback Menu .................................................................................................................... E43 a Print Order (Creating a DPOF Print Order).........................................................................

E43

b Slide Show.............................................................................................................................................

E46

d Protect...................................................................................................................................................... E47

f Rotate Image........................................................................................................................................ E49

E Voice Memo ......................................................................................................................................... E50

h Copy (Copy Between Internal Memory and Memory Card) ..................................

E52

C Sequence Display Options..........................................................................................................

E54

N Choose Key Picture.......................................................................................................................... E54

Downloaded From camera-usermanual.com Nikon Manuals

xiii

Table of Contents

The Movie Menu.......................................................................................................................... E55

Movie Options .............................................................................................................................................

E55

Autofocus Mode.........................................................................................................................................

E59

The Setup Menu .......................................................................................................................... E60

Welcome Screen ........................................................................................................................................

E60

Time Zone and Date................................................................................................................................

E61

Monitor Settings.........................................................................................................................................

E64

Print Date (Imprinting Date and Time).........................................................................................

E66

Vibration Reduction .................................................................................................................................

E67

Motion Detection ......................................................................................................................................

E68

AF Assist...........................................................................................................................................................

E69

Digital Zoom.................................................................................................................................................

E70

Sound Settings ............................................................................................................................................

E71

Auto Off ...........................................................................................................................................................

E72

Format Memory/Format Card ...........................................................................................................

E73

Language........................................................................................................................................................

E74

TV Settings .....................................................................................................................................................

E74

Charge by Computer...............................................................................................................................

E75

Blink Warning ...............................................................................................................................................

E77

Filmstrip ...........................................................................................................................................................

E79

Reset All ...........................................................................................................................................................

E80

Firmware Version .......................................................................................................................................

E83

File and Folder Names............................................................................................................... E84

Optional Accessories ................................................................................................................. E85

Error Messages............................................................................................................................. E86

Technical Notes and Index......................................................................................................... F1

Caring for the Product................................................................................................................... F2

The Camera .......................................................................................................................................................

F2

The Battery.........................................................................................................................................................

F4

Charging AC Adapter..................................................................................................................................

F5

Memory Cards .................................................................................................................................................

F5

Cleaning and Storage.................................................................................................................... F6

Cleaning ..............................................................................................................................................................

F6

Storage .................................................................................................................................................................

F6

Troubleshooting.............................................................................................................................. F7

Specifications ................................................................................................................................. F15

Supported Standards ................................................................................................................................

F19

Index .................................................................................................................................................. F20

Parts of the Camera and

Basic Operations

This chapter describes the parts of the camera and also explains how to use basic camera features.

Parts of the Camera ................................................2

The Camera Body ..........................................................................................2

Controls Used in Shooting Mode ............................................................4

Controls Used in Playback Mode .............................................................5

The Monitor.....................................................................................................6

Basic Operations.....................................................9

Switching Between Shooting Mode and Playback Mode ..............9

Using the Rotary Multi Selector............................................................. 10

Using Menus (the d Button) ............................................................. 11

Attaching the Camera Strap................................................................... 12

If you want to start using the camera right away, see “The Basics of

1

Parts of the Camera and Basic Operations

Parts of the Camera

The Camera Body

1 2 3 4 5 6 7 8

10

Flash raised

9

Lens cover closed

1

Zoom control ........................................4, 5, 27 f : wide................................................4, 27 g : tele...................................................4, 27

h : thumbnail playback..............5, 31 i : playback zoom.........................5, 31

j : help......................................................39

2

Speaker........................................................80, 92

3

Power switch/power-on lamp

..................................................................................20

4

Shutter-release button....................4, 5, 28

5

Self-timer lamp.............................................. 59

AF-assist illuminator ................................... 95

6

Mode dial ........................................... 4, 5, 9, 24

7

Microphone (stereo) ...........................80, 88

8

Flash ..................................................................... 56

9

Lens

10

Lens cover

1 2 3 4 5 6

Parts of the Camera

7 8 9 10 11 12 13 14 15

16 17 18

1

Monitor ..........................................................6, 24

2

Rotary multi selector (multi selector)...10

3

k (apply selection) button...............5, 10

4

c (playback) button..........4, 5, 9, 30, 80

5

Charge lamp ................................... 17,

E76

Flash lamp .........................................................56

6

b (e movie-record) button.....4, 5, 88

7

Tripod socket............................................

F17

8

d button............4, 5, 11, 37, 80, 91, 94

9

l (delete) button.......................4, 5, 32, 80

10

Cover latch................................................14, 18

11

Battery-chamber/

memory card slot cover....................14, 15

12

Eyelet for camera strap............................. 12

13

HDMI mini connector (Type C)............ 81

14

Connector cover....................................16, 81

15

USB/audio/video output connector

..........................................................................16, 81

16

Memory card slot ......................................... 18

17

Battery chamber ........................................... 14

18

Battery latch .................................................... 14

Downloaded From camera-usermanual.com Nikon Manuals

3

Parts of the Camera

Controls Used in Shooting Mode

Control Name Main Function

Mode dial Switches to another shooting mode.

Zoom control

Zooms in and out; rotate to g (i) to zoom in and make the subject larger, and rotate to f (h) to zoom out and view a wider area.

27

Rotary multi selector

See “Using the Rotary Multi Selector.”

10,

11

d button

Displays and hides the menu.

Shutterrelease button

When pressed halfway (i.e., if you stop pressing when you feel resistance): Sets focus and exposure.

When pressed all the way: Releases the shutter.

Movie-record button

Starts and stops movie recording.

28

88

11,

37,

91,

94

Playback button

Delete button

Plays back images.

Deletes the last image that was saved.

9,

30,

92

32

A

24

Parts of the Camera

Controls Used in Playback Mode

Control Name

Playback button

Zoom control

Main Function

When the camera is off, press and hold this button to turn the camera on and to change to playback mode.

Returns to shooting.

When rotated to g (i): Magnifies the image.

When rotated to f (h): Displays thumbnails or the calendar.

Adjusts the volume when playing back voice memos and movies

21,

30

9

A

31

31

80, 92,

E50

Rotary multi selector

See “Using the Rotary Multi Selector.”

10,

11

Apply selection button

Displays the histogram and shooting information.

Switches from image thumbnail or zoomed image display to full-frame display.

Plays back movies.

d button

Displays and hides the menu.

Delete button Deletes images.

30

31

92

11,

80,

94

32

– Mode dial

Shutterrelease button

Returns to shooting.

Movie-record button

Downloaded From camera-usermanual.com Nikon Manuals

5

Parts of the Camera

The Monitor

The information that is displayed in the monitor during shooting and playback

changes depending on the camera’s settings and state of use. By default, information is displayed when the camera is turned on and when you operate

the camera, and turns off after a few seconds (when Monitor settings (

A 94)

Photo info is set to Auto info).

Shooting Mode

39

35

34

36

38

37

10 22

2

1

3

4 5

7

6

8

9 10

33

32

31

30

11 12

13

29

28

14

22 21 20 19

18

9 9 9

9 9 9 9

15

16

27 26 25 24 23

17

Parts of the Camera

1

Shooting mode......................................24, 25

2

Macro mode ....................................................64

3

Zoom indicator ......................................27, 64

4

Focus indicator...............................................28

5

AE/AF-L indicator....................................

E5

6

Flash mode .......................................................56

7

Battery level indicator ................................20

8

Vibration reduction icon ..........................94

9

Motion detection icon...............................95

10

Noise reduction burst ................................44

11

“Date not set” indicator.... 23, 94,

E86

12

Travel destination icon..............................94

13

Print date............................................................94

14

Movie options (normal speed movies)

..................................................................................91

15

Movie options (HS movies).....................91

16

Image mode ....................................................71

17

Easy panorama...............................................49

18

Number of exposures remaining

(still images) .....................................................20

19

Internal memory indicator......................20

20

Movie length ...................................................88

21

Aperture value ............................................... 28

22

Shutter speed................................................. 28

23

Focus area (auto, target finding AF)

..........................................................................28, 37

24

Focus area (manual or center)............. 37

25

Focus area (face detection,

pet detection) .................................37, 43, 61

26

Focus area (subject tracking)................ 37

27

Center-weighted metering area ........ 37

28

Hand-held/tripod..................................41, 45

29

ISO sensitivity.................................................. 37

30

Exposure compensation value.....67, 68

31

Vividness............................................................ 67

32

Hue........................................................................ 67

33

White balance ................................................ 37

34

Continuous shooting mode ..........43, 50

35

Backlighting (HDR) ...................................... 42

36

Self-timer........................................................... 59

37

Smile timer,

smile timer continuous ............................ 61

38

Pet portrait auto release .......................... 43

39

Panorama.......................................................... 49

Downloaded From camera-usermanual.com Nikon Manuals

7

Parts of the Camera

Playback Mode

Full-frame display (A 30)

1 2 3

5

4

21

20

19

18

17

16 15

14

6

9

7

8

11

10

Shooting information (A 30)

22

1 0 0 N I KO N

0 0 0 4 . J P G

1 / 2 5 0 F 3.3

ISO

+1.0

1 0 0

4 / 4

23

24

25

26

27

28

29

13 12 a b

1

Date of recording .........................................22

2

Time of recording.........................................22

3

Voice memo indicator .............. 80,

E50

4

Battery level indicator ................................20

5

Protect icon ......................................................80

6

Print order icon ..............................................80

7

Image mode ....................................................71

8

Movie options.................................................91

9

Easy panorama...............................................49

10

(a) Current image number/

total number of images ....................30

(b) Movie length............................................92

11

Internal memory indicator......................30

12

13

Easy panorama playback guide

....................................................................49,

E4

Sequence playback guide.........51,

E7

Movie playback guide................................92

Voice memo playback guide

................................................................. 80,

E50

Voice memo recording guide

................................................................. 80,

E50

14

15

16

17

18

19

25

26

27

28

29

Volume indicator..................80, 92,

Shutter speed ................................................. 28

Exposure compensation value

......................................................................... 65, 68

ISO sensitivity.................................................. 37

Current image number/

total number of images ........................... 30

Histogram*

E50

D-Lighting icon ............................................. 80

Quick retouch icon...................................... 80

Filter effects icon .......................................... 80

Small picture icon ........................................ 80

Skin softening icon...................................... 80

20

Sequence icon ............................................... 51

21

File number and type........................

E84

22

Folder name ............................................

E84

23

File number and type........................

E84

24

Aperture value ............................................... 28

* A histogram is a graph showing the distribution of tones in the image. The horizontal axis corresponds to pixel brightness, with dark tones to the left and bright tones to the right.

The vertical axis shows the number of pixels.

Basic Operations

Switching Between Shooting Mode and Playback Mode

The camera has two modes of operation: Shooting mode, which is used for taking pictures, and playback mode, which is used for viewing pictures.

To switch between playback mode and shooting mode, press the c (playback) button.

While using playback mode, you can also switch to shooting mode by pressing

the shutter-release button or the b (e movie-record) button.

Shooting mode Playback mode

15/11/2011 15:30

0004. JPG

Rotate the mode dial and align an icon to the mark to select a shooting mode

(

A 24-25).

Downloaded From camera-usermanual.com Nikon Manuals

9

Basic Operations

Using the Rotary Multi Selector

Rotate the rotary multi selector, press the top (

H), bottom (I), left (J), or right

(

K) edges of its surface, and the k button.

The rotary multi selector is sometimes referred to as “the multi selector” in this manual.

In Shooting Mode

Rotates to select an item*.

Displays m (flash mode)

(A 56) menu.

Displays n (self-timer)

(A 59) menu.

Applies the current selection.

Displays the creative

slider (A 65).

Displays o (exposure

compensation) (A 68)

guide.

Displays p (macro mode) (A 64) menu.

* Items can also be selected by pressing up or down.

In Playback Mode

Auto

Selects the previous image, moves the displayed area when the image is

magnified (A 31)

1

.

Displays the histogram and shooting

information (A 8),

plays back movies

(A 92)

2

.

Selects the next image, moves the displayed area when the image is

magnified (A 31)

1

.

1

Previous or subsequent images can also be selected by rotating the rotary multi selector.

2

When displaying image thumbnails or when the image is magnified, this button switches the camera to full-frame display.

15/11/2011 15:30

0004. JPG

1 0 0 N I KO N

0 0 0 4 . J P G

1 / 2 5 0 F 3.3

ISO

+1.0

1 0 0

4 / 4

When Displaying Menus

Selects the item above*.

Selects the item to the left, returns to the previous screen.

Selects the item to the right, continues to the

Applies the current selection (next screen is next screen (current selection is applied).

displayed).

Selects the item below*.

* Items can also be selected by rotating the rotary multi selector.

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

Basic Operations

Using Menus (the

d Button)

If you press the d button while the shooting screen or playback screen is displayed, the menu for the current mode is displayed. Once the menu is displayed, you can change various settings.

Shooting mode Playback mode

15/11/2011 15:30

0004. JPG

Tabs

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

A tab:

Displays the settings that can be changed for the current shooting mode

(

A 24). Depending on the current

shooting mode, the tab icon that is displayed will be different.

D tab:

Displays movie recording settings.

z tab:

Displays the setup menu, where you can change a number of general settings.

Tabs

Playback menu

Quick retouch

D-Lighting

Skin softening

Filter effects

Print order

Slide show

Protect c tab:

Displays the settings that can be changed for the playback mode (

A 30).

z tab:

Displays the setup menu, where you can change a number of general settings.

C

If Tabs Are Not Displayed

If you press the d button and the screen that allows you to change the image mode is displayed, press the rotary multi selector

J to display the tabs.

Downloaded From camera-usermanual.com Nikon Manuals

Image mode

4608×3456

4608×3456

4000×3000

3264×2448

2592×1944

2048×1536

1024×768

11

Basic Operations

Switching Between Tabs

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

Set up

Welcome screen

Time zone and date

Monitor settings

Print date

Vibration reduction

Motion detection

AF assist

The selected menu is displayed.

Press the rotary multi selector J to highlight the tab.

Press the rotary multi selector H or I to select a tab, and press either the k button or K.

Selecting Menu Items

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

White balance

Auto

Press the rotary multi selector

H or I to select an item, and then press K or the k button.

You can also select an item by rotating the rotary multi selector.

Press H or I to select an item and then press the k button.

When you are finished changing settings, press the d button to exit the menu.

C

When the Menu Contains Two or More Pages

A guide indicating the page position is displayed.

Set up

Welcome screen

Time zone and date

Monitor settings

Print date

Vibration reduction

Motion detection

AF assist

Attaching the Camera Strap

The Basics of Shooting and

Playback

Preparation

Preparation 1 Insert the Battery .....................................................................................14

Preparation 2 Charge the Battery ..................................................................................16

Preparation 3 Insert a Memory Card.............................................................................18

Shooting

Step 1 Turn the Camera On..............................................................................................20

Setting the Display Language, Date, and Time (First Use After Purchase) ....22

Step 2 Select a Shooting Mode.......................................................................................24

Step 3 Frame a Picture .......................................................................................................26

Step 4 Focus and Shoot.....................................................................................................28

Playback

Step 5 Play Back Images ....................................................................................................30

Step 6 Delete Unwanted Images ...................................................................................32

Downloaded From camera-usermanual.com Nikon Manuals

13

The Basics of Shooting and Playback

Preparation 1 Insert the Battery

1

Open the battery-chamber/memory card slot cover.

2

Insert the included EN-EL12 battery (rechargeable Li-ion battery).

Use the battery to push the orange battery latch up in the direction indicated by the arrow (1), and fully insert the battery (2).

When the battery is inserted correctly, the battery latch will lock the battery in place.

Battery latch

B

Inserting the Battery Correctly

Inserting the battery upside down or backwards could damage the camera.

Be sure to check that the battery is in the correct orientation.

3

Close the battery-chamber/memory card slot cover.

Charge the battery before the first use or when the

battery is running low (

A 16).

While the battery-chamber/memory card slot cover is open, the camera cannot be turned on. Additionally, the battery inserted in the camera cannot be charged.

Preparation 1 Insert the Battery

Removing the Battery

Turn the camera off and be sure that the power-on lamp and the monitor have turned off before opening the battery-chamber/memory card slot cover.

To eject the battery, open the battery-chamber/ memory card slot cover and slide the orange battery latch up in the direction indicated by the arrow (1).

The battery can then be removed by hand (2). Do not pull it at an angle.

B

High Temperature Caution

The camera, battery, and memory card may be hot immediately after using the camera. Observe caution when removing the battery or memory card.

B

Notes About the Battery

Be sure to read and follow the warnings for the battery on page vii and in “The Battery” (

F4) before

Downloaded From camera-usermanual.com Nikon Manuals

15

Preparation 2 Charge the Battery

1

Prepare the included Charging AC Adapter EH-69P.

If a plug adapter* is included with your camera, attach the plug adapter to the plug on the Charging AC Adapter. Push the plug adapter firmly until it is securely held in place. Once the two are connected, attempting to forcibly remove the plug adapter could damage the product.

* The shape of the plug adapter varies according to the country or region in which the camera was purchased.

The Charging AC Adapter comes with the plug adapter attached in Argentina, Brazil, and Korea.

2

Make sure the battery is inserted in the camera, and then connect the camera to the Charging AC Adapter in order of 1 to 3.

Keep the camera turned off.

When connecting the cable, be sure that the plug is properly oriented. Do not use force when connecting the cable to the camera. When disconnecting the cable, do not pull the plug at an angle.

Close the battery-chamber/memory card slot cover.

Charge lamp

Electrical outlet

USB cable (included)

The charge lamp slowly blinks green to indicate that the battery is charging.

About four hours are required to charge a fully exhausted battery.

When the battery has been completely charged, the charge lamp turns off.

See “The Charge Lamp” (

A 17) for more information.

3

Disconnect the Charging AC Adapter from the electrical outlet and then disconnect the USB cable.

When the camera is connected to an electrical outlet with the Charging AC Adapter, the camera cannot be turned on.

Preparation 2 Charge the Battery

The Charge Lamp

Status

Blinks slowly (green) The battery is charging.

Off

Description

The battery is not charging. When charging is complete, the charge lamp stops blinking green and turns off.

Flickers (green)

The ambient temperature is not suited to charging. Charge the battery indoors with an ambient temperature of 5 °C to 35 °C

(41 °F to 95 °F).

The USB cable or Charging AC Adapter is not properly connected, or there is a problem with the battery. Disconnect the

USB cable or unplug the Charging AC Adapter and correctly connect it again, or change the battery.

B

Notes About the Charging AC Adapter

Be sure to read and follow the warnings for the Charging AC Adapter EH-69P on page vii and in

“Charging AC Adapter” (

F5) before use.

C

Charging Using Computer or Battery Charger

You can also charge the Rechargeable Li-ion Battery EN-EL12 by connecting the camera to a computer (

A 81, E75).

The EN-EL12 can be charged without using the camera by using the Battery Charger MH-65

(available separately;

E85).

C

Notes About an AC Power Source

You can take pictures and play back images while using the AC Adapter EH-62F (available separately;

E85) to power the camera from an electrical outlet.

Do not, under any circumstances, use another make or model of AC adapter other than EH-62F.

17

Preparation 3 Insert a Memory Card

1

Be sure that the power-on lamp and the monitor are off and open the batterychamber/memory card slot cover.

Be sure to turn off the camera before opening the cover.

2

Insert the memory card.

Slide the memory card in until it clicks into place.

B

Inserting the Memory Card

Inserting the memory card upside down or backwards could damage the camera or

the memory card. Be sure to check that the memory card is in the correct orientation.

Memory card slot

3

Close the battery-chamber/memory card slot cover.

B

Formatting a Memory Card

The first time you insert a memory card that has been used in another device into this camera, be sure to format it with this camera.

• All data stored on a memory card is permanently deleted when the card is formatted. Be sure to transfer important images to a computer and save them before formatting.

To format a memory card, insert the card into the camera, press the d button, and select

Format card in the setup menu (

A 94).

B

Notes About Memory Cards

See “Memory Cards” (

F5) and the documentation included with your memory card for more

information.

Preparation 3 Insert a Memory Card

Removing the Memory Card

Turn the camera off and be sure that the power-on lamp and the monitor have turned off before opening the battery-chamber/memory card slot cover.

Gently push the memory card into the camera (1) to partially eject the card, and then remove the card (2).

Do not pull it at an angle.

B

High Temperature Caution

The camera, battery, and memory card may be hot immediately after using the camera. Observe caution when removing the battery or memory card.

Internal Memory and Memory Cards

Camera data, including images and movies, can be saved in either the camera’s internal memory (approximately 89 MB) or on a memory card. To use the camera’s internal memory for shooting or playback, first remove the memory card.

Approved Memory Cards

The following Secure Digital (SD) memory cards have been tested and approved for use in this camera.

Memory cards with an SD Speed Class rating of 6 or faster are recommended for

recording movies. Movie recording may stop unexpectedly when memory cards with a lower Speed Class rating are used.

SanDisk

TOSHIBA

Panasonic

Lexar

SD memory card

2 GB

1

2 GB

1

2 GB

1

SDHC memory card

2

4 GB, 8 GB, 16 GB, 32 GB

4 GB, 8 GB, 16 GB, 32 GB

4 GB, 8 GB, 12 GB, 16 GB, 32 GB

4 GB, 8 GB, 16 GB, 32 GB

SDXC memory card

3

64 GB

64 GB

48 GB, 64 GB

1

2

If the memory card will be used with a card reader or similar device, make sure that the device supports 2 GB cards.

SDHC compliant.

If the memory card will be used with a card reader or similar device, make sure that the device supports SDHC.

3

SDXC compliant.

If the memory card will be used with a card reader or similar device, make sure that the device supports SDXC.

Contact the manufacturer for details on the above cards. We cannot guarantee camera performance when using memory cards made by other manufacturers.

Downloaded From camera-usermanual.com Nikon Manuals

19

Step 1 Turn the Camera On

1

Press the power switch to turn on the camera.

• If you are turning the camera on for the first time,

see “Setting the Display Language, Date, and Time”

(

A 22).

The lens extends and the monitor turns on.

2

Check the battery level indicator and the number of exposures remaining.

Battery level indicator

Number of exposures remaining

Battery Level Indicator

Display b

B

N

Battery exhausted.

Description

The battery is fully charged.

The battery is low. Prepare to charge or replace the battery.

The camera cannot take pictures. Recharge or replace with a fully charged battery.

Number of Exposures Remaining

The number of pictures that can be taken is displayed.

C is displayed when no memory card is inserted in the camera, and images will be saved in the internal memory (approx. 89 MB).

The number of exposures remaining depends on the amount of available memory in the internal memory or memory card, and also varies depending on the image quality and image size (determined by the image mode setting;

A 72).

The number of remaining exposures shown in the illustrations in this manual are for example purposes only.

Step 1 Turn the Camera On

Turning the Camera On and Off

The power-on lamp will light in green briefly then turn off, and then the monitor

will turn on.

To turn off the camera, press the power switch. When the camera turns off, the

power-on lamp and the display turn off.

To turn on the camera and switch to playback mode, press and hold the

c

(playback) button. The lens will not extend.

C

Power Saving Function (Auto Off)

If no operations are performed for a while, the monitor will turn off, the camera will enter standby mode, and the power-on lamp will blink. If no operations are performed for another three minutes, the camera will turn off automatically.

You can turn the monitor back on while the camera is in standby mode by performing any of the following:

➝ Press the power switch, shutter-release button, c (playback) button, or b (e movie-record) button.

➝ Rotate the mode dial.

Blinks

No operations performed

No operations performed

3 min

Camera enters standby mode.

Camera turns off.

The time that elapses before the camera enters standby mode can be changed using the Auto off setting in the setup menu (

A 94).

By default, the camera enters standby mode in about one minute when you are using shooting mode or playback mode.

If you are using the optional AC Adapter EH-62F, the camera enters standby mode after 30

Downloaded From camera-usermanual.com Nikon Manuals

21

Step 1 Turn the Camera On

Setting the Display Language, Date, and Time

When the camera is turned on for the first time after purchase, the language-selection screen and the date and time setting screen for the camera clock are displayed.

1

Press the multi selector H or I to select the desired language and press the k button.

Language

Cancel

Multi selector

2

Press H or I to select Yes and press the k button.

To cancel without changing the setting, select No.

Time zone and date

Choose time zone and set date and time?

Cancel

Yes

No

3

Press J or K to select your home time zone and press the k button.

See “Daylight Saving Time” (

A 23)

for information about daylight saving time.

4

Press H or I to select the date format and press the k button or K.

L o n d o n

C a s a b l a n c a

Back

Date format

Year/Month/Day

Month/Day/Year

Day/Month/Year

5

Press H, I, J, or K to set the date and time, and press the k button.

Date and time

Select an item: Press

K or J (changes between D, M,

Y, hour, and minute).

D

01

M

01

Y

2011

Edit the highlighted item: Rotate the multi selector or press

H or I.

Apply the setting: Select the minute setting and press the k button or K.

00 00

Edit

When settings are finished, the lens extends and the camera switches to shooting mode.

Daylight Saving Time

If daylight saving time is in effect, press the multi selector

H to enable the daylight saving time function while setting the region in step 3. When the daylight saving time function is enabled, W is displayed at the top of the monitor.

Press

I to disable the daylight saving time function.

Step 1 Turn the Camera On

L o n d o n

C a s a b l a n c a

Back

C

Changing the Language Setting and the Date and Time Setting

You can change these settings using the Language and Time zone and date settings in the

z setup menu (A 94).

You can enable and disable daylight saving time by selecting Time zone and date and then

Time zone in the z setup menu. When enabled, the clock moves forward one hour; when disabled, the clock moves back one hour. When the travel destination (x) is selected, the time difference between the travel destination and the home time zone (w) is automatically calculated and the date and time in the selected region are saved at the time of shooting.

If you exit without setting the date and time, O will blink when the shooting screen is displayed.

Use the Time zone and date setting in the setup menu to set the date and time (

A 94).

C

The Clock Battery

The camera’s clock is powered by a backup battery that is separate from the camera’s main battery.

The backup battery charges when the main battery is inserted into the camera or when the camera is connected to an optional AC adapter, and can provide several days of backup power after about ten hours of charging.

If the camera’s backup battery becomes exhausted, the date and time setting screen is displayed

when the camera is turned on. Set the date and time again. See step 2 of “Setting the Display

Language, Date, and Time” (

A 22) for more information.

C

Imprinting the Shooting Date in Printed Images

Set the date and time before shooting.

You can permanently imprint the shooting date in images as they are captured by setting Print

date in the setup menu (

A 94).

If you want the shooting date to be printed without using the Print date setting, print using the

Downloaded From camera-usermanual.com Nikon Manuals

23

Step 2 Select a Shooting Mode

Rotate the mode dial to select a shooting mode.

A (auto) mode is used in this example. Rotate the mode dial to A.

Auto mode

The camera switches to A (auto) mode and the A icon is displayed.

See “Shooting Mode” (

A 6) in “The Monitor” for information about the

shooting mode screen.

Step 2 Select a Shooting Mode

Available Shooting Modes

u Special effects mode (A 53)

Effects can be applied to images during shooting.

Six different effects are available.

A (Auto) mode (A 36)

Used for general shooting. Settings can be adjusted in the shooting

menu (

A 37) to suit the

shooting conditions and the type of shot you want to capture.

C Continuous shooting

mode (A 50)

Change settings to

Continuous or BSS (best shot selector).

Scene mode (A 39)

Camera settings are optimized according to the scene that you select.

x (Scene auto selector) : The camera automatically selects the optimum scene mode when you frame a picture, making it even easier to take pictures using settings that suit the scene.

y

: Select the desired scene from 15 different scene types, and the camera’s settings are automatically optimized for the selected scene.

To select a scene, first rotate the mode dial to y and press the d button. Select the desired scene by pressing

H or I, and then press the k button.

j (Night landscape)

W (Backlighting)

: Captures the atmosphere of night landscapes.

: The flash fires when there is backlight to prevent the subject from being hidden in shadow, or use the HDR function to shoot when there are very bright areas and very dark areas in the same frame.

O (Pet portrait)

: Use this mode when taking pictures of dogs or cats. When the camera detects the face of a dog or cat, the camera focuses on that face.

C

Features That Are Available in Shooting Mode

The multi selector

H (X), I (p), J (n), and K (o) can be used to set the corresponding features.

See “Features That Can Be Set Using the Multi Selector” (

A 55) for more information.

Press the

d button to display the menu for the selected shooting mode. See “Shooting

Features” (

A 35) for information about the settings available in the menu for the current

Downloaded From camera-usermanual.com Nikon Manuals

25

Step 3 Frame a Picture

1

Hold the camera steady.

Keep fingers, hair, the camera strap, and other objects away from the lens, flash, AF assist-illuminator, microphone, and speaker.

When taking pictures in portrait (tall) orientation, turn the camera so that the flash is above the lens.

Flash

2

Frame the picture.

Point the camera at the object (subject) you want to take a picture of.

C

When Using a Tripod

We recommend using a tripod to stabilize the camera in the following situations:

- When shooting in dark surroundings with the flash mode (

A 57) set to W (off)

- When zooming in on the subject

Set Vibration reduction to Off in the setup menu (

A 94) when using a tripod to stabilize the

camera during shooting.

Step 3 Frame a Picture

Using the Zoom

Use the zoom control to activate optical zoom.

To zoom in on the subject, rotate the zoom control

to g (telephoto).

To zoom out for a wider shot, rotate the zoom

control to f (wide-angle). When you turn the camera on, the zoom moves to the maximum wide-angle position.

Rotating the zoom control all the way in either

direction will adjust the zoom quickly, while rotating the control partially will adjust the zoom slowly

(except when recording movies).

A zoom indicator is displayed at the top of the

monitor when the zoom control is rotated.

Zoom out Zoom in

Optical zoom

Digital zoom

Digital Zoom

When the camera is zoomed in to the maximum optical zoom position, rotating and holding the zoom control at g triggers digital zoom.

Digital zoom can magnify the subject up to about 2× beyond the maximum magnification of the optical zoom.

Maximum optical zoom Digital zoom enabled

When you are using digital zoom, the camera focuses on the subject in the

center of the frame and the focus area is not displayed.

C

Digital Zoom and Interpolation

Unlike optical zoom, digital zoom uses a digital imaging process known as interpolation to magnify

images, resulting in slight deterioration of picture quality according to the image mode (

A 71) and

digital zoom magnification.

Interpolation is applied at zoom positions beyond V when taking still pictures.

When zoom is increased beyond the V position, interpolation is initiated and the zoom indicator turns yellow to indicate that interpolation is being applied.

The position of V moves to the right as image size decreases, allowing for confirmation of the zoom positions at which shooting without interpolation is possible at the current image mode setting.

Small image size

Downloaded From camera-usermanual.com Nikon Manuals

A 94).

27

Step 4 Focus and Shoot

1

Press the shutter-release button halfway, i.e., press the button slightly until you feel resistance.

When you press the shutter-release button halfway, the camera sets the focus and exposure (shutter speed and aperture value). Focus and exposure remain locked while the shutter-release button is pressed halfway.

When the camera detects the main subject, it focuses on that subject. When the subject is in focus, the focus areas (up to 12 areas) glow green.

The camera has nine focus areas, and if it does not detect the main subject, it automatically selects the focus areas containing the subject closest to the camera. When the subject is in focus, the focus areas that are in focus (up to nine areas) glow green.

Shutter speed Aperture value

Shutter speed Aperture value

When you are using digital zoom, the camera focuses on the subject in the center of the frame and the focus area is not displayed. When the camera has focused, the

focus indicator (

A 6) glows green.

While the shutter-release button is pressed halfway, the focus area or focus indicator may blink red. This indicates that the camera is unable to focus. Modify the composition and press the shutter-release button halfway again.

If the subject is dimly lit when you press the shutter-release button halfway, the AFassist illuminator (

A 95) may light and the flash (A 2, 58) may pop-up.

2

Press the shutter-release button all the way, i.e., press the button the rest of the way down.

The shutter is released and the image will be saved to the memory card or internal memory.

If you press the shutter-release button with too much force, the camera may shake, causing images to be blurred. Press the button gently.

Step 4 Focus and Shoot

B

Notes About Saving Images

While images are being saved, the number of exposures remaining (

A 20) will blink. Do not

open the battery-chamber/memory card slot cover while images are being saved. Removing the battery or memory card in these circumstances could result in loss of data or in damage to the camera or card.

It may take some time for the image to be saved depending on the current settings or the

shooting conditions (

F12).

B

Autofocus

The camera may not focus as expected in the following situations. In some rare cases, the subject may not be in focus despite the fact that the focus area or the focus indicator glows green:

Subject is very dark

Objects of sharply differing brightness are included in the scene (e.g. the sun is behind the subject makes that subject appear very dark)

No contrast between the subject and surroundings (e.g. a portrait subject, wearing a white shirt, is standing in front of a white wall)

Several objects are at different distances from the camera (e.g. the subject is inside a cage)

Subjects with repeating patterns (window blinds, buildings with multiple rows of similarly shaped windows, etc.)

Subject is moving rapidly

In the situations noted above, try pressing the shutter-release button halfway to refocus several times, or focus on another subject positioned at the same distance from the camera as the actual

desired subject, and use focus lock (

A 78).

C

When the Subject Is Close to the Camera

If the camera cannot focus, try shooting with macro mode (

A 64) or the Close-up scene mode

(

A 47).

C

Flash

If the subject is dimly lit, the flash will pop up automatically when you press the shutter-release button halfway when the flash mode is set to

U (auto; default setting). The flash will fire when you press the

shutter-release button all the way down. See “Using the Flash (Flash

Mode)” (

A 56) for more information.

To lower the flash, turn the camera off. See “Raising and Lowering the

Flash” (

A 58) for more information.

C

To Make Sure You Do Not Miss a Shot

If you are concerned that you might miss a shot, press the shutter-release button all the way without first pressing it halfway.

Downloaded From camera-usermanual.com Nikon Manuals

29

Step 5 Play Back Images

1

Press the c (playback) button.

When you switch from shooting mode to playback mode, the last image saved will be displayed full-frame.

2

Use the multi selector to select an image to display.

To display previous images, press

H or J.

To display subsequent images, press

I or K.

You can also scroll through images by rotating the multi selector.

15/11/2011 15:30

0004. JPG c (playback) button

Display the previous image

Display the subsequent image

Current image number/ total number of images

Remove the memory card from the camera to play back images saved in the camera’s internal memory. C is displayed near the current image number/total number of images display.

To return to shooting mode, press the c button, shutter-release button, or b (e movie-record) button.

C

Displaying Shooting Information

Press the k button in full-frame playback mode to display the histogram and shooting information (

A 8). Press the k button

again to return to full-frame playback mode.

1 0 0 N I KO N

0 0 0 4 . J P G

1 / 2 5 0 F 3.3

ISO

+1.0

1 0 0

4 / 4

C

Viewing Images

Images may be displayed briefly at low resolution while being read from the memory card or internal memory.

When images in which the face of a person (

A 76) or a pet (A 43) was detected at the time of

shooting are displayed in full-frame playback mode, depending upon the orientation of the detected face, the images may be automatically rotated for playback display (except when viewing images captured in a series).

You can change the orientation of an image using Rotate image in the playback menu (

A 80).

C

More Information

See “Features Available in Playback Mode (Playback Menu)” (

A 80) for more information.

Step 5 Play Back Images

Changing How Images Are Displayed

When using playback mode, you can change how images are displayed by rotating the zoom control to f (h) and g (i).

Playback Zoom

g (i) f

(h)

Display area guide

Image is displayed fullframe.

Image is zoomed in.

You can change the zoom ratio by rotating the zoom control to

f (h) and g

( i). Images can be zoomed up to 10×.

To view a different area of the image, press the multi selector

H, I, J, or K.

If you are viewing an image that was captured using face detection (

A 76) or

pet detection (

A 43), the camera zooms in on the face detected at the time of

shooting (except when viewing an image captured in a series). If the camera detected multiple faces when the image was captured, press

H, I, J, or K to display a different face. To zoom in on an area of the image where there are no faces, adjust the magnification rate and then press

H, I, J, or K.

You can crop the image and save the displayed area of the image as a separate

file by pressing the d button.

Press the

k button to return to full-frame playback mode.

Thumbnail Display, Calendar Display

f

(h)

1 / 2 0 g (i) f

(h) g (i)

2 0 1 1 1 1

Su M Tu W Th F Sa

6 7

1

8

2

9

3

10

4

11

5

12

13

20

14

21

15

22

16 17 18 19

23 24 25 26

27 28 29 30

3

Full-frame Display Image Thumbnail Display

(4, 9, 16, and 72 images per screen)

Calendar Display

You can view several images on one screen, making it easy to find the image you want.

You can change the number of thumbnails displayed by rotating the zoom

control to f (h) and g (i).

Rotate the multi selector or press

H, I, J, or K to select an image and then press the k button to display that image full-frame.

When 72 thumbnails are displayed, rotate the zoom control to

f (h) to switch to calendar display.

While using calendar display mode, rotate the multi selector, or press

H, I, J, or

K to select a date and then press the k button to display the first image

31

Step 6 Delete Unwanted Images

1

Press the l button to delete the image currently displayed in the monitor.

2

Press the multi selector H or I to select the desired deletion method and press the k button.

• Current image: The image currently displayed is deleted. If the key picture of a sequence (

A 51) is

selected, all images in the sequence are deleted.

Delete

Current image

Erase selected images

All images

• Erase selected images: Multiple images can be

selected and deleted. See “Operating the Erase Selected Images Screen” (

A 33) for

more information.

• All images: All images are deleted.

To exit without deleting the image, press the d button.

3

Press H or I to select Yes and press the k button.

Deleted images cannot be recovered.

To cancel, press

H or I to select No and press the k button.

Erase 1 image?

Yes

No

B

Notes About Deletion

Deleted images cannot be recovered. Copy important images to a computer before deleting them from the camera.

Protected images (

A 80) cannot be deleted.

B

Deleting Images Captured Using Continuous Shooting

Each time images are captured continuously, they make up a group of images called a sequence, and by default only the first image of a sequence (called the “key picture”) is displayed to represent

the sequence (

E7).

When you press the d button during key picture playback, all images in the key picture’s sequence can be deleted (

E9).

If you want to delete individual images in a sequence, press the k button before pressing the l button and display all images in the sequence individually.

C

Deleting the Last Image Captured While in Shooting Mode

In shooting mode, press the l button to delete the last image that was saved.

Step 6 Delete Unwanted Images

Operating the Erase Selected Images Screen

1

Press the multi selector J or K to select an image to be deleted, and then press H to display y.

To undo the selection, press

I to remove y.

Rotate the zoom control (

A 2) to g (i) to switch back

to full-frame playback or f (h) to display thumbnails.

Erase selected images

Back ON/OFF

2

Add y to all desired images and then press the k button to confirm the selection.

A confirmation dialog is displayed. Follow the instructions displayed in the monitor.

Downloaded From camera-usermanual.com Nikon Manuals

33

Shooting Features

This chapter describes the camera’s shooting modes and the features that are available when using each shooting mode.

You can select shooting modes and adjust settings according to the shooting conditions and the kind of images you want capture.

Continuous

Image mode

White balance

Metering

Continuous

ISO sensitivity

AF area mode

Autofocus mode

Downloaded From camera-usermanual.com Nikon Manuals

Auto

35

Shooting Features

A (Auto) Mode

Used for general shooting. Settings can be adjusted in the shooting menu (

A 37)

to suit the shooting conditions and the type of shot you want to capture.

You can change how the camera selects the area of the frame to focus on by

pressing the d button, selecting the A tab, and then selecting AF area

mode (

A 37). The default setting is Target finding AF.

When the camera detects the main subject, it focuses on that subject. When the camera does not detect the main subject, it automatically selects the focus areas (up to nine) that contain the subject closest to the camera. When the subject is in focus, the focus areas that are in focus (up to nine areas) glow green.

Changing A (Auto) Mode Settings

Features That Can Be Set Using the Multi Selector (

A 55): flash mode (A 56),

self-timer (

A 59), smile timer (A 61), macro mode (A 64), creative slider

(

o brightness (exposure compensation), G vividness, F hue) (A 65)

Features that can be set by pressing the

d button: See “Options Available in the Auto Shooting Menu” (

A 37).

C

Features That Cannot Be Used Simultaneously

Some settings cannot be used with other functions (

A 73).

A (Auto) Mode

Options Available in the Auto Shooting Menu

When using A (auto) mode, the following settings can be changed.

Select A (auto) mode M d button M A tab (A 11)

The same items can be set when using continuous

shooting mode (

A 50). Other than the continuous

shooting type, items share the same settings with continuous shooting mode, and the settings are saved in the camera’s memory even if the camera is turned off.

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

Option

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Description

Allows you to select the combination of image size and image quality used when saving images (

A 71).

This setting is also applied to other shooting modes.

71

A

Allows you to adjust the color tones of the image to match what you see with your eye. Although Auto (default setting) can be used in most shooting conditions, if the desired color tones are not achieved, adjust white balance to suit the sky conditions or light source.

When white balance is set to settings other than Auto or

Flash, set the flash mode (

A 56) to off (W).

Allows you to select the method that the camera uses to measure the brightness of the subject. The camera adjusts the exposure, which is a combination of shutter speed and aperture value, based on the brightness measurement.

E30

E33

Higher ISO sensitivity allows darker subjects to be captured.

By increasing the shutter speed, this feature can also reduce blurring caused by camera shake and subject movement even when shooting in adequately lit conditions. When ISO sensitivity is set to Auto (default setting), the camera sets the

ISO sensitivity automatically, and E is displayed while shooting when ISO sensitivity increases.

E34

Allows you to determine how the camera selects the focus area that is used for autofocus; the available settings are

Face priority, Auto, Manual, Center, and Target finding

AF (default setting). When using Target finding AF, if the camera detects the main subject, it focuses on that subject.

E37

Downloaded From camera-usermanual.com Nikon Manuals

37

A (Auto) Mode

Option

Autofocus mode

Description

When Single AF (default setting) is selected, the camera focuses only while the shutter-release button is pressed halfway. When Full-time AF is selected, the camera focuses even when the shutter-release button is not pressed halfway.

You may hear the sound of the camera focusing.

A

E42

C

Features That Cannot Be Used Simultaneously

Some settings cannot be used with other functions (

A 73).

Scene Mode (Shooting Suited to Scenes)

When one of the following scenes is selected in the scene menu or by rotating the mode dial, camera settings are automatically optimized for the selected scene.

x (Scene auto selector)

(A 40)

The camera automatically selects the optimum scene mode when you frame a picture.

j Night landscape (A 41)

W Backlighting (A 42)

O Pet portrait (A 43)

Rotate the mode dial to j,

W, or O and take pictures.

y

Press the d button to display the scene menu and select one of the following shooting scenes.

b Portrait (default setting) (A 44)

d Sports (A 45)

f Party/indoor (A 46)

z Snow (

A 46) i Dusk/dawn (A 46)

u Food (A 47)

m Fireworks show (A 48)

p Panorama (A 49)

c Landscape (A 44)

e Night portrait (A 45)

Z Beach ( A 46) h Sunset (A 46)

k Close-up (A 47)

l Museum (A 48) n Black and white copy (A 48)

Scene menu

Portrait

Landscape

Sports

Night portrait

Party/indoor

Beach

Snow

C

To View a Description (Help Display) of Each Scene

Select the desired scene from the scene menu and rotate the zoom control (

A 2) to g (j) to view

Downloaded From camera-usermanual.com Nikon Manuals g (j) again.

39

Scene Mode (Shooting Suited to Scenes)

Changing Scene Mode Settings

Depending on the scene, the multi selector

H (X), I (p), J (n), and K (o)

can be used to set the corresponding features. See “Features That Can Be Set

Using the Multi Selector” (

A 55) and “Default Settings” (A 69) for more

information.

Features that can be set by pressing the

d button: Image mode, which is

the combination of image size and image quality (

A 71).

When using j (night landscape),

W (backlighting), or O (pet portrait), press the d button to set the Image mode or any of the options available in the current mode’s shooting menu.

Characteristics of Each Scene

x Scene auto selector

The camera automatically selects the optimum scene mode when you frame a picture.

e: Portrait, f: Landscape, h: Night portrait, g: Night landscape, i: Close-up, j: Backlighting, d: Other scenes

When the camera selects a scene mode, the shooting mode icon displayed in the shooting screen changes to that for the scene mode currently enabled.

The area of the frame that the camera focuses on (AF area) depends on the composition of the picture. The camera detects and focuses on human faces.

Depending upon shooting conditions, the camera may not select the desired scene

mode. Should this occur, switch to A (auto) mode (

A 24) or select the desired scene

mode manually.

Digital zoom cannot be used.

C

If Night Landscape or Night Portrait Is Selected When Shooting with Scene

Auto Selector

If the camera switches to g (night landscape) when using scene auto selector, the camera shoots images continuously and combines and saves them as one image, just as when Hand-

held is selected when using j (night landscape;

A 41).

If the camera switches to h (night portrait) when using scene auto selector, the flash mode is fixed at red-eye reduction and the flash is used for capturing portraits (images are not captured continuously) just as when Tripod is selected when using Night portrait (

A 45).

Scene Mode (Shooting Suited to Scenes) j Night landscape

Captures the atmosphere of night landscapes.

Press the d button to set Night landscape to Hand-held or Tripod.

• Hand-held (default setting): Select this option to produce shots with reduced blurring and noise even when the camera is hand-held.

- The Y icon is displayed in the shooting screen.

- When the shutter-release button is pressed all the way, the camera captures a series of images which will be combined into a single image and saved.

- Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a still image is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen.

- The angle of view (i.e., the area visible in the frame) seen in the saved image will be narrower than that seen in the monitor at the time of shooting.

• Tripod: Select this option when using a tripod or other means to stabilize the camera during shooting.

- The Z icon is displayed in the shooting screen.

- Vibration reduction (

A 94) is automatically set to Off regardless of the setting in

the setup menu.

- One image is captured at a slow shutter speed when the shutter-release button is pressed all the way.

The focus area or focus indicator (

A 6) always glows green when the shutter-release

button is pressed halfway.

Downloaded From camera-usermanual.com Nikon Manuals

41

Scene Mode (Shooting Suited to Scenes)

W Backlighting

Use when light is coming from behind the subject, throwing features or details into shadow.

Press the d button to set HDR (high dynamic range) compositing using the HDR setting according to the shooting conditions and subject.

When HDR is set to Off (default setting): The flash fires to prevent the subject from being hidden in shadow.

- The camera focuses on the area in the center of the frame.

- One image is captured when the shutter-release button is pressed all the way.

When HDR is set to Level 1-Level 3: Use when taking pictures with very bright and dark areas in the same frame.

Select Level 1 when there is less difference between bright and dark areas, and Level 3 when there is more difference between bright and dark areas.

- The P icon is displayed in the shooting screen.

- The camera focuses on the area in the center of the frame.

- When the shutter-release button is pressed all the way, the camera shoots images continuously at high speed, and saves the following two images.

- A non-HDR composite image

- An HDR composite image in which the loss of details in highlights or shadows is minimized

- The second image saved is an HDR composite image. If there is only enough memory to

save one image, an image processed by D-Lighting (

A 80) at the time of shooting, in

which dark areas of the image are corrected, is the only image saved.

- Once the shutter-release button is pressed all the way, hold the camera steadily without moving it until a still image is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen.

- The angle of view (i.e., the area visible in the frame) seen in the saved image will be narrower than that seen in the monitor at the time of shooting.

- Depending on the shooting conditions, dark shadows may appear around bright subjects and bright areas may appear around dark subjects. You can compensate by lowering the level setting.

Scene Mode (Shooting Suited to Scenes)

O Pet portrait

Use this mode when taking pictures of dogs or cats. When the camera detects the face of a dog or cat, the camera focuses on that face. Once the camera has focused, by default it automatically releases the shutter (pet portrait auto release).

Press the d button to set Pet portrait to Single or

Continuous.

- Single: Images are captured one at a time.

- Continuous (default setting): Three images are captured continuously when a face is focused on (at a rate of about three fps when image mode is P 4608×3456). While

Continuous is selected, the F is displayed in the shooting screen.

When the camera detects a face, a double border (focus area) is displayed around the face, and the double border glows green when the camera has focused.

The faces of up to five pets can be detected at the same time. When the camera detects more than one face, the face displayed largest in the monitor is framed by a double border and the others by single borders.

If no pet faces are detected, the shutter can be released by pressing the shutter-release button.

- If no pet faces are detected, the camera focuses on the subject in the center of the frame.

- When Continuous is selected, up to five images are captured continuously at a rate of about three fps (when image mode is set to P 4608×3456) while the shutter-release button is held all the way down. Shooting ends when the shutter-release button is released.

Press the multi selector

J (n) to change auto release settings.

- Pet portrait auto release (default setting): The camera automatically releases the shutter when it focuses on the detected face. While Pet portrait auto release is selected, the d icon is displayed in the shooting screen.

- Off: The shutter is released only when the shutter-release button is pressed.

Digital zoom cannot be used.

Depending on the distance of the pet from the camera, the speed of the pet’s movement, the direction the pet is facing, the ambient brightness of the pet’s face, etc., pet faces may not be detected and other subjects may be displayed with a border.

• Pet portrait auto release is automatically set to Off in the following situations.

- When five series of images are captured using auto release

- When there is no remaining space in the internal memory or on the memory card

To continue using Pet portrait auto release to take more pictures, press the multi selector

J (n) and change the setting again.

Downloaded From camera-usermanual.com Nikon Manuals

43

Scene Mode (Shooting Suited to Scenes) y M b Portrait

Use this mode for portraits.

When the camera detects a human face, it focuses on that face (

A 76).

The camera softens skin tones by applying the skin

softening function before saving images (

A 77).

If no faces are detected, the camera focuses on the subject at the center of the frame.

Digital zoom cannot be used.

y M c Landscape

Use this mode for vivid landscapes and cityscapes.

From the screen displayed after the c Landscape scene mode is selected, select Noise reduction burst or Single

shot.

• Noise reduction burst: Crisp landscapes are captured in images with low noise.

- The x icon is displayed in the shooting screen.

- When the shutter-release button is pressed all the way, the camera shoots images continuously at high speed, and combines and saves them as one image.

- Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a still image is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen.

- The angle of view (i.e., the area visible in the frame) seen in the saved image will be narrower than that seen in the monitor at the time of shooting.

• Single shot (default setting): The camera saves an image with emphasized lines and contrast.

- One image is captured when the shutter-release button is pressed all the way.

The focus area or focus indicator (

A 6) always glows green when the shutter-release

button is pressed halfway.

Scene Mode (Shooting Suited to Scenes) y M d Sports

Use this mode when shooting sporting events. The camera captures a series of still images that allow you to clearly see detailed movements in a moving subject.

The camera focuses on the area in the center of the frame.

Press and hold the shutter-release button all the way to capture images continuously. Up to five images are captured continuously at a rate of about six fps (when image mode is set to P).

The camera focuses even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing.

Focus, exposure, and hue are fixed at the values determined with the first image in each series.

The frame rate with continuous shooting may vary depending upon the current image mode setting, the memory card used, or shooting condition.

y M e Night portrait

Use this mode for evening and night portraits that include background scenery. The flash fires to light the portrait subject while preserving background lighting to achieve a natural balance between the main subject and background ambience.

From the screen displayed after the e Night portrait scene mode is selected, select Hand-held or Tripod.

• Hand-held:

- The Y icon is displayed in the shooting screen.

- When shooting against a dark background, press the shutter-release button all the way to capture a series of images which will be combined into a single image and saved.

- Once the shutter-release button is pressed all the way, hold the camera steady without moving it until a still image is displayed. After taking a picture, do not turn the camera off before the monitor switches to the shooting screen.

- If the subject moves while the camera is shooting continuously, the image may be distorted, overlapped, or blurred.

• Tripod (default setting): Select this option when using a tripod or other means to stabilize the camera during shooting.

- The Z icon is displayed in the shooting screen.

- Vibration reduction (

A 94) is automatically set to Off regardless of the setting in

the setup menu.

- One image is captured at a slow shutter speed when the shutter-release button is pressed all the way.

The camera detects and focuses on a human face (

A 76).

The camera softens skin tones by applying the skin softening function before saving images (

A 77).

If no faces are detected, the camera focuses on the subject in the center of the frame.

Digital zoom cannot be used.

Downloaded From camera-usermanual.com Nikon Manuals

45

Scene Mode (Shooting Suited to Scenes) y M f Party/indoor

Suitable for taking pictures at parties. Captures the effects of candlelight and other indoor background lighting.

The camera focuses on the area in the center of the frame.

To avoid the effects of camera shake, hold the camera steady when shooting in dark surroundings. Set Vibration

reduction to Off in the setup menu (

A 94) when using a

tripod to stabilize the camera during shooting.

y M Z Beach

Captures the brightness of such subjects as beaches or sunlit expanses of water.

The camera focuses on the area in the center of the frame.

y M z Snow

Captures the brightness of sunlit snow.

The camera focuses on the area in the center of the frame.

y M h Sunset

O

Preserves the deep hues seen in sunsets and sunrises.

The focus area or focus indicator (

A 6) always glows green

when the shutter-release button is pressed halfway.

y M i Dusk/dawn

O

Preserves the colors seen in the weak natural light before sunrise or after sunset.

The focus area or focus indicator (

A 6) always glows green

when the shutter-release button is pressed halfway.

O: Use of a tripod is recommended when using scene modes indicated with O. Set Vibration

reduction to Off in the setup menu (

A 94) when using a tripod to stabilize the camera during

shooting.

Scene Mode (Shooting Suited to Scenes) y M k Close-up

Use this mode to photograph flowers, insects, and other small objects at close range.

Macro mode (

A 64) is enabled and the camera

automatically zooms to the closest position at which it can focus.

You can move the area of the frame that the area focuses on (AF area). To move the AF area, press the k button, and then rotate the multi selector or press

H, I, J, or K.

To change settings for any of the following functions, first press the k button to cancel focus-area selection, then change the settings as desired.

- Flash mode

- Self-timer

- Exposure compensation

The camera focuses even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing.

y M u Food

Use this mode when taking pictures of food.

Macro mode (

A 64) is enabled and the camera

automatically zooms to the closest position at which it can focus.

You can adjust hue by pressing the multi selector

H and I.

The hue setting is saved in the camera’s memory even after the camera is turned off.

You can move the area of the frame that the area focuses on

(AF area). To move the AF area, press the k button, and then rotate the multi selector or press

H, I, J, or K.

To change settings for any of the following functions, first press the k button to cancel focus-area selection, then change the settings as desired.

- Hue

- Self-timer

- Exposure compensation

The camera focuses even when the shutter-release button is not pressed halfway. You may hear the sound of the camera focusing.

Downloaded From camera-usermanual.com Nikon Manuals

47

Scene Mode (Shooting Suited to Scenes) y M l Museum

Use indoors where flash photography is prohibited (for example, in museums and art galleries) or in other settings in which you do not want to use the flash.

The camera focuses on the area in the center of the frame.

The camera captures a series of up to ten images while the shutter-release button is held all the way down, and the sharpest image in the series is automatically selected and saved (best shot selector;

A 52).

y M m Fireworks show

O

Slow shutter speeds are used to capture the light from fireworks.

Camera focuses at infinity.

The focus area or focus indicator (

A 6) always glows green

when the shutter-release button is pressed halfway.

Only the six optical zoom positions shown on the right can be applied. When the zoom control is rotated, zoom will not stop at any position other than the six indicated (digital zoom is available).

y M n Black and white copy

Provides clear images of text or drawings on a whiteboard or in print.

The camera focuses on the area in the center of the frame.

Use together with macro mode (

A 64) when shooting

subjects that are close to the camera.

O: Use of a tripod is recommended when using scene modes indicated with O. Set Vibration

reduction to Off in the setup menu (

A 94) when using a tripod to stabilize the camera during

shooting.

Scene Mode (Shooting Suited to Scenes) y M p Panorama

Use this mode to take panorama pictures.

From the screen displayed after the p Panorama scene mode is selected, select Easy

panorama or Panorama assist.

• Easy panorama (default setting): By simply moving the camera in the desired direction, panoramas that can be played back using the camera can be taken.

- You can set the shooting range to Normal (180°) or Wide (360°).

- Press the shutter-release button all the way and release it, and then slowly move the camera horizontally. Shooting ends automatically when the selected shooting range has been captured.

- The camera focuses on the area in the center of the frame when shooting begins.

- The zoom position is fixed at the maximum wide-angle position.

- When viewing an image captured using easy panorama in full-frame playback mode, press the k button to display the short edge of the image using the entire monitor and automatically move (scroll) the displayed area.

See “Using Easy Panorama (Shooting and Playback)” (

E2) for more information.

See “Playing Back Images With Easy Panorama (Scroll Playback)” (

E4) for more

information.

• Panorama assist: Use this setting to capture a series of images that will be connected using a computer to form a panorama image.

- Press the multi selector

H, I, J or K to select the direction that you will move the camera in when capturing images, and press the k button.

- After shooting the first image, confirm on the screen how the captured image will be connected to the next image, and shoot the next image. Shoot as many images as needed to complete the panorama. To finish shooting, press the k button.

- Transfer the images to your computer and use the included Panorama Maker 5 (

A 83,

E6) software to combine the images into a single panorama image.

See “Using Panorama Assist” (

E5) for more information.

B

Notes About Printing Panoramas

When printing panoramas, the entire image may not be able to be printed depending on the printer’s settings. Additionally, printing may not be possible depending on the printer.

49

Continuous Shooting Mode (Burst Shooting)

Use this mode to capture the details of a moving subject by shooting a continuous series of images.

1

Press the d button and confirm or change the settings in the continuous menu.

See “Continuous Menu” (

A 52) for more information.

Press the d button after changing the settings and return to the shooting screen.

Continuous

Image mode

White balance

Metering

Continuous

ISO sensitivity

AF area mode

Autofocus mode

2

Frame the subject and shoot.

By default, when the camera detects the main subject, it focuses on that subject. If the camera does not detect the subject, the camera selects the focus areas (up to nine areas) containing the subject closest to the camera.

Press the shutter-release button halfway to lock focus and exposure.

When Continuous, Pre-shooting cache, or BSS is selected in the continuous menu, images are captured while the shutter-release button is held all the way down.

When Continuous H: 120 fps, Continuous H: 60 fps, or Multi-shot 16 is selected in the continuous menu, the number of images determined by the setting are captured when the shutter-release button is pressed all the way. There is no need to hold the shutter-release button down.

The focus, exposure, and white balance settings are fixed at the values for the first image in each series.

After shooting, the camera returns to the shooting screen. If O is displayed, do not turn the camera off.

Continuous Shooting Mode (Burst Shooting)

B

Notes About Continuous Shooting Mode

It may take some time to save the images after shooting. The amount of time it takes to finish saving the captured images depends on the number of images, image mode, the write speed of the memory card, etc.

When ISO sensitivity increases, noise may appear in captured images.

The speed of continuous shooting may decrease depending on the image mode, type of memory card used, and shooting conditions.

When continuous is set to Pre-shooting cache, Continuous H: 120 fps, Continuous H: 60 fps, or Multi-shot 16, banding or variance in brightness or hue may occur in images that were captured under lighting that flickers at high speeds, such as fluorescent, mercury-vapor, or sodium-vapor lighting.

C

Images Captured in Continuous Shooting Mode

Each time you capture images when continuous is set to Continuous, Pre-shooting cache,

Continuous H: 120 fps, Continuous H: 60 fps, or smile timer continuous, the captured images

are saved as a “sequence” (

E7).

Changing Continuous Shooting Mode Settings

Features That Can Be Set Using the Multi Selector (

A 55): smile timer

continuous (

A 61), macro mode (A 64), creative slider (o brightness

(exposure compensation), G vividness, F hue) (

A 65)

Features that can be set by pressing the

d button: See “Options Available in the Continuous Shooting Menu” (

A 52).

C

Features That Cannot Be Used Simultaneously

51

Continuous Shooting Mode (Burst Shooting)

Options Available in the Continuous Shooting Menu

You can select the type of continuous shooting in the continuous shooting menu, in addition to the options (

A 37) that are available when using A (auto) mode,

such as image mode and white balance.

Enter shooting mode M d button M V tab (A 11)

For items not related to continuous shooting, see “Options Available in the Auto

Shooting Menu” (

A 37).

Other than the continuous shooting type, items

share the same settings with A (auto) mode, and the settings are saved in the camera’s memory even if the camera is turned off.

Continuous

Image mode

White balance

Metering

Continuous

ISO sensitivity

AF area mode

Autofocus mode

D BSS (best shot selector)

Option

V Continuous

(default setting) q Pre-shooting cache

Cn Continuous H:

120 fps

Cj Continuous H:

60 fps

W Multi-shot 16

Description

While the shutter-release button is held all the way down, up to five pictures are taken at a rate of about 6 frames per second (fps) (when Image mode is set to P

4608×3456).

Pre-shooting cache makes it easy to capture perfect moments, by saving images from before the shutterrelease button was pressed all the way. Pre-shooting cache shooting begins when the shutter-release button is pressed halfway, and continues when the shutterrelease button is pressed all the way.

Shooting ends when the shutter-release button is released or when the maximum number of frames has been shot.

Each time the shutter-release button is pressed all the way,

60 frames are captured at a speed of about 1/125 s or faster.

Each time the shutter-release button is pressed all the way,

60 frames are captured at a speed of about 1/60 s or faster.

The “best shot selector” is recommended when shooting with the flash off or the camera zoomed in, or in other situations in which inadvertent motion can result in blurred images. The camera captures a series of up to ten images while the shutter-release button is held all the way down, and the sharpest image in the series is automatically selected and saved.

Each time the shutter-release button is pressed, the camera takes 16 shots at a rate of about

30 fps and arranges them in a single image.

A

E35

E35

E35

E35

E35

E36

Special Effects Mode (Applying Effects When Shooting)

Effects can be applied to images during shooting.

The following six effects are available.

G High key

H Low key

Option

O Soft (default setting)

P Nostalgic sepia

F High-contrast monochrome

I Selective color

Description

Softens the image by adding a slight blur to the entire image.

Adds a sepia tone and reduces the contrast to simulate the qualities of an old photograph.

Changes the image to black and white and gives it sharp contrast.

Gives the entire image a bright tone.

Gives the entire image a dark tone.

Creates a black and white image in which only the specified color remains.

1

Press the d button to display the special effects menu, use the multi selector to select

Special effects, and then press the k button.

Special effects

Image mode

Special effects

2

Press H or I to select an effect and press the k button.

Press the d button after changing the settings and return to the shooting screen.

Special effects

Soft

Downloaded From camera-usermanual.com Nikon Manuals

53

Special Effects Mode (Applying Effects When Shooting)

3

Frame the subject and shoot.

The camera focuses on the area in the center of the frame.

When Selective color is selected in step 2, rotate the multi selector or press

H or I to select the desired color from the slider.

To change settings for any of the following functions, first press the k button to cancel color selection, then change the settings as desired:

- Flash mode (

A 56)

- Self-timer (

A 59)

- Macro mode (

A 64)

- Exposure compensation (

A 68)

To return to the color selection screen, press the k button again.

Slider

Changing Special Effects Mode Settings

Features That Can Be Set Using the Multi Selector (

A 55): flash mode (A 56),

self-timer (

A 59), macro mode (A 64), exposure compensation (A 68)

Features that can be set by pressing the

d button: Image mode, which is

the combination of image size and image quality (

A 71).

Features That Can Be Set Using the Multi Selector

When shooting, the multi selector

H (X), I (p), J (n), and K (o) can be used to set the following features.

X (flash mode) n (self-timer), smile timer, pet portrait auto release, smile timer continuous o creative slider, exposure compensation p (macro mode)

Available Features

The features that are available vary with the shooting mode, as shown below.

See “Default Settings” (

A 69) for information about each mode’s default

settings.

A x, y, j, W, O

V u

X

Flash mode (

A 56)

Self-timer (

A 59)

n

Smile timer (

A 61)

Pet portrait auto release (

A 43)

Smile timer continuous (

A 61)

p Macro mode (A 64)

o

Creative slider

( o brightness (exposure compensation), G vividness,

F hue) ( A 65)

Exposure compensation (

A 68)

w w w

– w w

*

– w w w

– w w

– w

– w

* Varies by the scene. See “Default Settings” (

A 69) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

55

Features That Can Be Set Using the Multi Selector

Using the Flash (Flash Mode)

You can set the flash mode to match the shooting conditions.

1

Press the multi selector H (m flash mode).

2

Use the multi selector to select the desired mode and press the k button.

See “Available Flash Modes” (

A 57).

If a setting is not applied by pressing the k button within a few seconds, the selection will be canceled.

When U (auto) is applied, D is only displayed for a few seconds, regardless of Monitor settings

(

A 94).

Auto

3

Frame the subject and take a picture.

See “Raising and Lowering the Flash”

(

A 58).

The flash lamp indicates the status of the flash when you press the shutter-release button halfway.

- On: The flash will fire when you press the shutter-release button all the way down.

- Blinking: The flash is charging. The camera cannot take pictures.

- Off: The flash will not fire when a picture is taken.

If the battery is low, the monitor will turn off in order to save power while the flash is charging.

C

Effective Range of the Flash

When ISO sensitivity is set to Auto, the flash has a range of 0.5 to 5.5 m (1 ft 8 in. to 18 ft) at the maximum wide-angle zoom position and a range of 1.0 to 3.0 m (3 ft 4 in. to 9 ft 10 in.) at the maximum telephoto zoom position.

Features That Can Be Set Using the Multi Selector

Available Flash Modes

U

Auto

Flash fires automatically when lighting is dim.

V

Auto with red-eye reduction

Reduce “red-eye” in portraits caused by the flash.

W

Off

Flash will not fire even when lighting is dim.

We recommend using a tripod to stabilize the camera when shooting in dark surroundings.

X

Fill flash

Flash fires whenever a picture is taken. Use to “fill-in” (illuminate) shadows and backlit subjects.

Y

Slow sync

Auto flash mode is combined with slow shutter speed.

Suited to evening and night portraits that include background scenery.

Flash illuminates main subject; slow shutter speeds are used to capture background at night or under dim lighting.

C

The Flash Mode Setting

The setting varies with the shooting mode. See “Available Features” (

A 55) and “Default Settings”

(

A 69) for more information.

Some settings cannot be used with other functions (

A 73).

The flash mode setting applied in A (auto) mode is saved in the camera’s memory even after the camera is turned off.

C

Red-eye Reduction

This camera uses advanced red-eye reduction (In-Camera Red-Eye Fix). If the camera detects red eye while saving an image, the affected area will be processed to reduce red-eye before the image is saved.

Note the followings when shooting.

More time than usual is required to save images.

Red-eye reduction may not produce the desired results in some situations.

In extremely rare instances, areas not subject to red-eye may be affected by red-eye reduction

57

Features That Can Be Set Using the Multi Selector

Raising and Lowering the Flash

The camera automatically raises and lowers the flash.

Do not pull the flash up or push down on it.

Raising the Flash

When you press the shutter-release button halfway, the flash will pop up if the conditions required for flash shooting are met.

When the flash fires automatically (U auto

flash, V auto with red-eye reduction, or Y slow sync): If the subject is dimly lit during shooting, the flash automatically pops up when you press the shutter-release button halfway.

The camera determines whether or not to pop up the flash based on the brightness of the subject and the settings used during shooting.

W (off): When the flash is lowered, the flash does not pop up even if the shutter-

release button is pressed halfway.

X (fill flash): The flash automatically pops up when you press the shutter-release

button halfway.

Lowering the Flash

To lower the flash, turn the camera off.

Be careful not to pinch fingers or other objects.

The flash cannot be lowered by pushing it down.

Features That Can Be Set Using the Multi Selector

Using the Self-timer

The camera is equipped with a self-timer that releases the shutter ten or two seconds after you press the shutter-release button. The self-timer is useful when you want to be in the picture you are taking, and when you want to avoid the effects of camera shake that occur when you press the shutter-release button.

When using the self-timer, use of a tripod is recommended. Set Vibration

reduction to Off in the setup menu (

A 94) when using a tripod to stabilize the

camera during shooting.

1

Press the multi selector J (n self-timer).

2

Use the multi selector to select 10s or 2s and press the k button.

• 10s (ten seconds): Use on important occasions, such as weddings.

• 2s (two seconds): Use to prevent camera shake.

When a is selected, the camera uses face detection to detect a human face, and then automatically releases

the shutter when a smile is detected (

A 61).

Self-timer

When the shooting mode is set to Pet portrait scene mode, Y (pet portrait auto release) is displayed; when set to continuous shooting mode, a (smile timer

continuous) is displayed (

A 43, 61). The self-timer settings 10s and 2s cannot be

used.

The mode selected for self-timer is displayed.

If a setting is not applied by pressing the k button within a few seconds, the selection will be canceled.

3

Frame the picture and press the shutter-release button halfway.

Focus and exposure will be set.

Downloaded From camera-usermanual.com Nikon Manuals

59

Features That Can Be Set Using the Multi Selector

4

Press the shutter-release button the rest of the way down.

The self-timer starts, and the number of seconds remaining before the shutter is released is displayed in the monitor. The selftimer lamp blinks while the timer is counting down. About one second before the shutter is released, the lamp stops blinking and glows steadily.

When the shutter is released, the self-timer will be set to OFF.

To stop the timer before a picture is taken, press the shutter-release button again.

Features That Can Be Set Using the Multi Selector

Using the Smile Timer, Smile Timer Continuous

When the camera detects a person’s smile, it automatically releases the shutter; you do not need to press the shutter-release button.

Smile timer: Images are captured one at a time. This feature can be used when

shooting mode (

A 24) is set to A (auto) mode or the Portrait or Night

portrait scene mode (

A 39).

Smile timer continuous: A continuous series of images is captured. This feature

can be used when shooting mode (

A 24) is set to continuous shooting mode

(

A 50).

1

Press the multi selector J (n self-timer).

To adjust settings for creative slider, exposure compensation, or items in the shooting menu, adjust the settings before pressing n.

2

Use the multi selector to select a (smile timer or smile timer continuous) and press the k button.

If a setting is not applied by pressing the k button within a few seconds, the selection will be canceled.

Smile timer

Smile timer

Smile timer continuous

Smile timer continuous

Downloaded From camera-usermanual.com Nikon Manuals

61

Features That Can Be Set Using the Multi Selector

3

Frame the picture and wait for the subject to smile.

When the camera detects a human face, a double border (focus area) is displayed around that face. When the camera has focused on that face, the double border will turn green for a moment and focus is locked.

Up to three faces can be detected. When the camera detects more than one face, the double border (focus area) is displayed around the face closest to the center of the frame, and single borders around the others.

When using smile timer:

- If the camera detects that the face framed by the double border is smiling, the shutter is automatically released.

- After the camera releases the shutter, it will continue to detect faces and smiles, and will release the shutter again if it detects a smiling face.

- To end automatic shooting by smile detection, set the smile timer to OFF.

When using smile timer continuous:

- The F icon is displayed in the shooting screen.

- If the camera detects that the face framed by the double border is smiling, the shutter is automatically released and up to five images are captured at a rate of about 3 fps.

- The camera will continue to detect faces and smiles until continuous shooting ends, and will capture images continuously again if it detects a smiling face. To finish, set the smile continuous timer to OFF.

Features That Can Be Set Using the Multi Selector

B

Notes About the Smile Timer, Smile Timer Continuous

Digital zoom cannot be used.

Under some shooting conditions, the camera may be unable to detect faces or detect smiles.

See “Notes About Face Detection” (

A 76) for more information.

This function cannot be used simultaneously with certain functions. See “Features That Cannot Be

Used Simultaneously” (

A 73) for more information.

C

Auto Power Off When Using Smile Timer, Smile Timer Continuous

The auto off function (

A 95) is activated and the camera turns off when either of the situations

indicated below persists and no other operations are performed.

The camera does not detect any faces.

The camera detected a face, but cannot detect a smile.

C

When the Self-timer Lamp Blinks

The self-timer lamp blinks slowly when the camera detects a face, and blinks quickly immediately after the shutter is released.

C

Releasing the Shutter Manually

Pictures can also be taken by pressing the shutter-release button. The camera focuses on the subject in the center of the frame when faces are not detected.

C

More Information

See “Autofocus” (

A 29) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

63

Features That Can Be Set Using the Multi Selector

Using Macro Mode

When using macro mode, the camera can focus on objects as close as 1 cm

(0.4 in.) from the front of the lens.

This feature is useful when taking close-up pictures of flowers and other small subjects.

1

Press the multi selector I (p macro mode).

2

Use the multi selector to select ON and press the k button.

The macro mode icon (F) is displayed.

If a setting is not applied by pressing the k button within a few seconds, the selection will be canceled.

Macro mode

3

Rotate the zoom control to the zoom position at which F and the zoom indicator glow green.

How close you can be to the subject when shooting depends on the zoom ratio.

When the zoom is set to a position where F and the zoom indicator glow green, the camera can focus on subjects as close as 10 cm (4 in.) from the lens.

When the zoom ratio is wider than G, the camera can focus on subjects as close as

1 cm (0.4 in.) from the lens.

B

Notes About Using the Flash

The flash may be unable to light entire subject at distances of less than 50 cm (1 ft 8 in.) from the camera.

C

Autofocus

When using macro mode in A (auto) mode or continuous shooting mode, you can focus without pressing the shutter-release button halfway by setting Autofocus mode (

A 38) in the shooting

menu (

A 37) to Full-time AF.

When using other shooting modes, Full-time AF is turned on automatically when macro mode is turned on (except when using O (pet portrait)).

You may hear the sound of the camera focusing.

C

The Macro Mode Setting

Macro mode cannot be used when using certain shooting modes. See “Default Settings” (

A 69)

for more information.

A (auto) mode and continuous shooting mode share the same macro mode setting. When using

A (auto) mode or continuous shooting mode, the macro mode setting is saved in the camera’s memory even if the camera is turned off.

Features That Can Be Set Using the Multi Selector

Adjusting Brightness (Exposure Compensation), Vividness, and Hue (Creative Slider)

When the shooting mode (

A 24) is set to A (auto) mode (A 36) or continuous

shooting mode (

A 50), use the creative slider to adjust brightness (exposure

compensation), vividness, and hue for taking pictures.

Operating the Creative Slider

1

Press the multi selector K (o).

2

Press the multi selector J or K to select o,

G, or F.

0.0

Brightness (Exp. +/-)

3

Adjust the brightness, vividness, or hue.

Use the multi selector as explained below.

-

HI: The slider moves. The effect can be adjusted while confirming the results in the monitor. The effect can also be adjusted by rotating the multi selector.

-

J K: Switches between brightness (exposure compensation), vividness, and hue.

Slider

+0.3

Brightness (Exp. +/-)

For more information on each item, see the following:

- “Adjusting Brightness (Exposure Compensation)” (

A 67)

- “Adjusting Vividness (Saturation Adjustment)” (

A 67)

- “Adjusting Hue (White Balance Adjustment)” (

A 67)

To turn off the effects of the creative slider, press

J or K to select P, and press the k button.

Downloaded From camera-usermanual.com Nikon Manuals

65

Features That Can Be Set Using the Multi Selector

4

When adjustment is complete, press J or K to select y and press the k button.

If the k button (except when P is selected) or the shutter-release button is pressed in step 3, the selected amount of effect is applied. When the effect is applied, the camera returns to the shooting screen.

If brightness is adjusted, H and the compensation value are displayed.

If vividness is adjusted, a is displayed.

If hue is adjusted, b is displayed.

5

Press the shutter-release button to take a picture.

End

C

Creative Slider Settings

A (auto) mode and continuous shooting mode share the same settings for brightness (exposure compensation), vividness, and hue; these settings are saved in the camera’s memory even when the camera is turned off.

Features That Can Be Set Using the Multi Selector

Adjusting Brightness (Exposure Compensation)

Adjust the overall brightness of the image.

To make the subject brighter, move the slider

toward “+.”

To make the subject darker, move the slider toward

“–.”

Slider

0.0

Brightness (Exp. +/-)

Exposure compensation value

Histogram

C

Using the Histogram

A histogram is a graph showing the distribution of tones in the image. Use as a guide when using exposure compensation and shooting without the flash.

The horizontal axis corresponds to pixel brightness, with dark tones to the left and bright tones to the right. The vertical axis shows the number of pixels.

Increasing exposure compensation shifts tone distribution to the right, and decreasing it shifts tone distribution to the left.

Adjusting Vividness (Saturation Adjustment)

Adjust the overall vividness of the image.

Vividness increases as the slider is moved up.

Vividness decreases as the slider is moved down.

Slider

Adjusting Hue (White Balance Adjustment)

Adjust the overall hue of the image.

The overall image becomes more reddish as the

slider is moved up. The overall image becomes more bluish as the slider is moved down.

Slider

Vividness

Hue

B

Notes About White Balance Adjustment

When hue is adjusted using the creative slider, White balance in the shooting menu (

A 37)

cannot be set. To set White balance, select P in the creative slider setting screen to reset the

67

Features That Can Be Set Using the Multi Selector

Adjusting Brightness (Exposure Compensation)

When the shooting mode (

A 24) is set to scene mode (A 39) or special effects

mode (

A 53), you can adjust the brightness (exposure compensation).

1

Press the multi selector K (o exposure compensation).

2

Use the multi selector to select a compensation value.

To make the subject brighter, apply positive (+) exposure compensation.

To make the subject darker, apply negative (–) exposure compensation.

+0.3

Exposure compensation

Histogram

Exposure compensation value

3

Press the k button to apply the compensation value.

If you do not press the k button within a few seconds, the setting will be applied and the menu will disappear.

When an exposure compensation value other than 0.0 is applied, the value is displayed with the H indicator in the monitor.

4

Press the shutter-release button to shoot.

To reset exposure compensation, repeat from step 1 and set the value to 0.0.

C

Notes About Exposure Compensation Value

When using the Fireworks show (

A 48) scene mode, exposure compensation is not available.

C

Histogram

See “Using the Histogram” (

A 67) for more information.

Features That Can Be Set Using the Multi Selector

Default Settings

Default settings for each shooting mode are described below.

Information about scene mode can be found on the next page.

Flash

(A 56)

A (auto) U

V (continuous) W

2 u

(special effects)

W

Self-timer

Off

Off

Off

(A 59)

1

3

Off

Off

Off

Macro

(A 64)

Off

Creative slider

(A 65)

Off

Exposure compensation

0.0

(A 68)

1

2

3

You can turn the self-timer and smile timer (

A 61) on and off.

The setting cannot be changed.

Self-timer cannot be used. You can turn the smile timer continuous (

A 61) on and off.

Settings applied in A (auto) mode and continuous shooting mode are saved in

the camera’s memory even after the camera is turned off, except for the selftimer setting.

Downloaded From camera-usermanual.com Nikon Manuals

69

Features That Can Be Set Using the Multi Selector

Default settings for scene mode are described below.

x (A 40) U

1

j (A 41) W

2

W (A 42) X

3

O (

A 43) W

2

b (A 44) V c (A 44) W

2

d (A 45) W

2

e (A 45) V

6

f (A 46) V

7

Z (

A 46) U z ( A 46) U h (A 46) W

2

i (A 46) W

2

k (A 47) W u (A 47)

W

2

l (A 48) W

2

m (A 48) W

2

n (A 48) W

p (A 49) W

8

Flash

(A 56)

Off

Off

Off

Y

4

Off

5

Off

Off

2

Off

5

Off

Off

Off

Off

Off

Off

Off

Off

Off

2

Off

Off

9

Self-timer

(A 59)

Off

Off

Off

Off

2

2

2

Off

Off

2

Off

2

On

2

On

2

Off

Off

2

Off

2

Off

2

Off

2

Off

2

Off

Off

2

Off

Off

8

Macro

(A 64)

2

3

8

9

6

7

4

5

1

U (auto) or W (off) can be selected. When U (auto) is selected, the camera automatically selects the flash mode appropriate for the scene it has selected.

The setting cannot be changed.

Flash is fixed at X (fill flash) when HDR is set to Off, and is fixed at W (off) when HDR is set to other than Off.

Self-timer cannot be used. You can turn the pet portrait auto release (

A 43) on and off.

You can turn the self-timer and smile timer (

A 61) on and off.

The flash fires using red-eye reduction.

Slow sync with red-eye reduction flash mode may be used. The default setting can be modified.

Can be changed when using Panorama assist.

Self-timer can be used when using Panorama assist.

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

0.0

2

0.0

0.0

0.0

0.0

0.0

0.0

0.0

Exposure compensation

(A 65)

0.0

0.0

0.0

C

Features That Cannot Be Used Simultaneously

Some settings cannot be used with other functions (

A 73).

Changing the Image Size (Image Mode)

Enter shooting mode M d button M Shooting menu M Image mode

You can use the Image mode setting in the shooting menu to select the combination of image size and compression ratio that is used when saving images.

Select the image mode best suited to the manner in which images will be used and the capacity of the internal memory or memory card. The higher the image mode setting, the larger the size at which it can be printed, but the number of images that can be saved is reduced.

Image Mode Settings (Image Size and Quality)

Option*

Q 4608×3456P

Description

Images will be higher quality than P. The compression ratio is approximately 1:4.

P 4608×3456

(default setting)

I 4000×3000

R 3264×2448

L 2592×1944

Best choice in most situations. The compression ratio is approximately 1:8.

M 2048×1536

N 1024×768

O 640×480

Smaller size than P, I, R, or L allows more images to be saved.

The compression ratio is approximately 1:8.

Suited to display on a computer monitor. The compression ratio is approximately 1:8.

Suited to display on a TV with an aspect ratio of 4:3, or distribution by e-mail. The compression ratio is approximately 1:8.

l 4608×2592

Images with an aspect ratio of 16:9 are saved. The compression ratio is approximately 1:8.

* The total number of pixels captured, and the number of pixels captured horizontally and vertically.

Example: P 4608×3456 = approx. 16 megapixels, 4608 × 3456 pixels

The icon for the current setting is displayed in the monitor in shooting and playback modes (

A 6, 8).

C

Notes About Image Mode

The setting is also applied to other shooting modes.

71

Changing the Image Size (Image Mode)

C

Number of Exposures Remaining

The following table lists the approximate number of images that can be saved in the internal memory and on a 4 GB memory card. Note that due to JPEG compression, the number of images that can be saved varies greatly depending on the composition of the image. In addition, this number may vary depending on the make of memory card, even when the memory cards have the same specified capacity.

Image mode

Q 4608×3456P

P 4608×3456

I 4000×3000

R 3264×2448

L 2592×1944

M 2048×1536

N 1024×768

O 640×480 l 4608×2592

Internal memory

(approx. 89 MB)

11

19

26

39

61

96

299

813

26

Memory card

1

(4 GB)

470

840

1110

1650

2560

4020

12000

30100

1120

Print size

2

(cm/in.)

39 × 29/15 × 11

39 × 29/15 × 11

34 × 25/13 × 10

28 × 21/11 × 8

22 × 16/8.5 × 6.5

17 × 13/7 × 5

9 × 7/3.5 × 2.5

5 × 4/2 × 1.5

39 × 22/15 × 8.6

1

2

If the number of exposures remaining is 10,000 or more, the number of exposures remaining display shows “9999”.

Print size at an output resolution of 300 dpi. Print sizes are calculated by dividing the number of pixels by printer resolution (dpi) and multiplying by 2.54 cm (1 in.). However, at the same image size, images printed at higher resolutions will print smaller than the size indicated, and those printed at lower resolutions will print larger than the size indicated.

Features That Cannot Be Used Simultaneously

Some shooting settings cannot be used with other functions.

Restricted function

Setting Description

Self-timer

Continuous

Macro mode

Image mode

White balance

ISO sensitivity

AF area mode (

Smile timer continuous

(

A 61)

AF area mode (

Continuous (

Hue (using the creative

slider) (

A 65)

Continuous (

A 37)

A 37)

A 50)

A 50)

When AF area mode is set to Subject

tracking, self-timer cannot be used.

Smile timer continuous is used for shooting regardless of the Continuous setting.

When AF area mode is set to Subject

tracking, macro mode cannot be used.

When using Pre-shooting cache, image mode is fixed at M.

When using Continuous H: 120 fps, image mode is fixed at O. When using

Continuous H: 60 fps, image mode is fixed at M (image size: 1280×960 pixels).

When using Multi-shot 16, image mode is fixed at L (image size: 2560×1920 pixels).

When hue is adjusted using the creative slider, White balance in the shooting menu cannot be set. To set White balance, select P in the creative slider setting screen to reset the brightness, vividness, and hue.

When shooting with Pre-shooting cache,

Continuous H: 120 fps, Continuous H:

60 fps, or Multi-shot 16, the ISO

sensitivity setting is automatically set according to the brightness.

Downloaded From camera-usermanual.com Nikon Manuals

73

Features That Cannot Be Used Simultaneously

Restricted function

Setting Description

AF area mode

Autofocus mode

Print date

Vibration reduction

Motion detection

Digital zoom

Self-timer (

A 59)

Smile timer, smile timer

continuous (

A 61)

Creative slider (

White balance (

Smile timer, smile timer

continuous (

A 61)

AF area mode (

Continuous (

A 65)

A 37)

A 37)

A 50)

When using Target finding AF, if you use the self-timer, the camera functions as when AF area mode is set to Auto.

Face detection is used regardless of the AF

area mode setting.

When using Target finding AF, if vividness or hue is adjusted using the creative slider, the camera functions as when AF area

mode is set to Auto.

When using Target finding AF, if White

balance is set to any setting other than

Auto, the camera functions as when AF

area mode is set to Auto.

When using smile timer or smile timer continuous, Autofocus mode is fixed at

Single AF.

When AF area mode is set to Face

priority, AF area mode is fixed at Single

AF.

When shooting with Pre-shooting cache,

Continuous H: 120 fps, or Continuous H:

60 fps, the shooting date is not imprinted.

Night landscape (

A 41)

Night portrait (

A 45)

When Vibration reduction is set to

Tripod, it changes to Off.

When Vibration reduction is set to

Tripod, it changes to Off.

ISO sensitivity (

AF area mode (

A 37)

A 37)

When ISO sensitivity is fixed, Motion

detection is disabled.

When AF area mode is set to Subject

tracking, Motion detection is disabled.

Smile timer, smile timer

continuous (

A 61)

Digital zoom cannot be used.

AF area mode (

Continuous (

A 37)

A 50)

When AF area mode is set to Subject

tracking, digital zoom cannot be used.

When using Multi-shot 16, digital zoom cannot be used.

Features That Cannot Be Used Simultaneously

Restricted function

Blink warning

Setting Description

Smile timer, smile timer

continuous (

A 61)

Blink warning does not function.

Night portrait (

A 45)

When Hand-held is selected, blink warning is disabled.

B

Notes About Digital Zoom

Depending on the shooting mode or the current settings, digital zoom may not be available

(

E70).

When digital zoom is in effect, the camera focuses in the center of the frame. Additionally,

75

Using Face Detection

When the following shooting modes or settings are selected, the camera uses face detection to automatically focus on human faces. If the camera detects more than one face, a double border is displayed around the face that the camera will focus on, and single borders are displayed around the other faces.

Shooting mode

Number of faces that can be detected

Focus area

(double border)

When AF area mode (A 37) in A

(auto) mode or continuous shooting mode is set to Face priority

Scene auto selector, Portrait, or Night

portrait scene mode (A 39) is selected

Smile timer, smile timer continuous

(A 61)

Up to 12

Up to 3

The face closest to the camera

The face closest to the center of the frame

When using Face priority, if you press the shutter-release button halfway while

no faces are detected or while framing a shot with no faces in it, the camera selects the focus area (up to nine areas) containing the subject closest to the camera.

When using scene auto selector, the focus area changes depending on which

scene the camera selects.

If no faces are detected when the shutter-release button is pressed halfway

when using Portrait or Night portrait, the camera will focus on the subject in the center of the frame.

B

Notes About Face Detection

The camera’s ability to detect faces depends on a variety of factors, including the direction in which the faces are looking. Additionally, the camera may be unable to detect faces in the following situations:

- When faces are partially hidden by sunglasses or otherwise obstructed

- When faces take up too much or too little of the frame

When the frame includes more than one face, the faces detected by the camera and the face on which the camera focuses depend upon a variety of factors, including the direction in which the faces are looking.

In some rare cases, such as those described in “Autofocus” (

A 29), the subject may not be in

focus even though the double border turns green. Should this occur, change AF area mode to

Manual or Center in A (auto) mode, and try focus lock shooting (

A 78) by focusing on another

subject that is the same distance from the camera.

B

Viewing Images That Were Captured Using Face Detection

During playback, the camera automatically rotates images according to the orientation of the faces that were detected at the time of shooting, except when viewing an image captured in a series.

When zooming in on an image displayed full-frame by rotating the zoom control to g (i), the image will be enlarged so that the face that was detected at the time of shooting is displayed in

the center of the monitor (

A 31), except when viewing an image captured in a series.

Using Skin Softening

When the shutter is released when using one of the following shooting modes, the camera detects one or more human faces (up to three), and processes the image to soften facial skin tones before saving the image.

• Scene auto selector (

A 40), Portrait (A 44), or Night portrait (A 45)

scene mode is selected.

Skin softening can also be applied to saved images (

A 80).

B

Notes About Skin Softening

It may take more time than usual to save images after shooting.

Under some shooting conditions, the desired skin softening results may not be achieved, and skin softening may be applied to areas of the image where there are no faces. If the desired results are

77

Focus Lock

You can use focus lock to focus on off-center subjects when center is selected for

AF area mode.

The following procedure describes how to use focus lock when using A (auto)

mode with AF area mode (

A 37) set to Center.

1

Position the subject in the center of the frame.

2

Press the shutter-release button halfway.

Confirm that the focus area glows green.

Focus and exposure are locked.

3

Continue holding down the shutter-release button halfway and recompose the picture.

Be sure to maintain the same distance between the camera and the subject.

4

Press the shutter-release button the rest of the way down to take the picture.

Playback Features

This chapter describes the features that are available when playing back images.

Playback menu

Quick retouch

D-Lighting

Skin softening

Filter effects

Print order

Slide show

Protect

Downloaded From camera-usermanual.com Nikon Manuals

79

Playback Features

Features Available in Playback Mode (Playback Menu)

When viewing images in full-frame playback mode or thumbnail playback mode, you can select one of the following functions by pressing the

d button (A 11)

to display the menu and then selecting the c tab.

k Quick retouch*

I D-Lighting* e Skin softening* p Filter effects* a Print order b Slide show d Protect f Rotate image g Small picture*

E Voice memo h Copy

Option Description

Allows you to create retouched copies in which contrast and saturation have been enhanced.

Allows you to create copies with enhanced brightness and contrast, brightening dark portions of an image.

When this feature is enabled, the camera detects faces in images and creates a copy with softer facial skin tones.

Digital filter effects can be used to apply a variety of effects to images. Effect types include Cross screen,

Fisheye, Miniature effect, and Painting.

When using a printer to print images saved on the memory card, you can use the Print order function to select which images are printed, and how many copies of each image are printed.

Allows you to view images saved in the internal memory or on a memory card in an automatic slide show.

Protects selected images from accidental deletion.

Specifies the orientation in which saved images are displayed during playback.

Creates a small copy of the current image. This feature is useful for creating copies for display on Web pages or for e-mail attachments.

Allows you to use the camera’s microphone to record voice memos and attach them to images. You can also play back and delete voice memos.

Allows you to copy images between the internal memory and a memory card.

A

E12

E13

E14

E16

E43

E46

E47

E49

E18

E50

E52

C Sequence display options

Allows you to display a sequence of images shot continuously as individual images, or display only the key picture of a sequence.

E54

N Choose key picture

Allows you to change the key picture that is displayed to represent a series of images shot continuously. See

“Playing Back and Deleting Images Captured Continuously

(Sequence)” (

E7) for information about sequences.

E54

* Images are edited and saved as separate files. Certain restrictions apply (

E10, E11). For

example, images captured at an Image mode (

A 71) setting of l 4608×2592 cannot

be edited, and the same editing feature cannot be applied multiple times.

Connecting the Camera to a TV, Computer, or Printer

You can enhance your enjoyment of images and movies by connecting the camera to a TV, computer, or printer.

Before connecting the camera to an external device, make sure the remaining

battery level is sufficient and turn the camera off. For information about the connection methods and subsequent operations, refer to the documentation included with the device in addition to this document.

HDMI mini connector (Type C)

USB/audio/video output connector

How to open the connector cover.

Insert the plug straight.

Viewing images on a TV

E21

You can view the camera’s images and movies on a TV.

Connection method: Connect the video and audio plugs of the included

Audio Video Cable EG-CP16 to the TV’s input jacks. Alternatively, connect a commercially available HDMI cable (Type C) to the TV’s HDMI input jack.

Viewing and organizing images on a computer

A 82

If you transfer images to a computer, you can perform simple retouching and manage image data in addition to playing back images and movies.

Connection method: Connect the camera to the computer’s USB input jack with the included USB Cable UC-E6.

Before connecting to a computer, install ViewNX 2 on the computer using the included ViewNX 2 Installer CD-ROM. For information about using the ViewNX 2 Installer CD-ROM and transferring images to a

computer, see page 82.

If any USB devices that draw the power from the computer are connected, disconnect them from the computer before you connect the camera to it.

Connecting the camera and other USB-powered devices to the same computer simultaneously may cause a camera malfunction or excessive power supply from the computer, which could damage the camera or memory card.

Printing images without using a computer

E24

If you connect the camera to a PictBridge-compatible printer, you can print images without using a computer.

Connection method: Connect the camera directly to the printer’s USB

81

Using ViewNX 2

ViewNX 2 is an all-in-one software package which enables you to transfer, view, edit and share images.

Install ViewNX 2 using the ViewNX 2 Installer CD-ROM.

Your Imaging Toolbox

ViewNX 2™

Installing ViewNX 2

An Internet connection is required.

Compatible Operating Systems

Windows

Windows 7 Home Basic/Home Premium/Professional/Enterprise/Ultimate

Windows Vista Home Basic/Home Premium/Business/Enterprise/Ultimate

(Service Pack 2)

Windows XP Home Edition/Professional (Service Pack 3)

Mac OS

Mac OS X (version 10.5.8, 10.6.7)

Refer to the Nikon website for the latest information on operating system compatibility.

1

Start the computer and insert the ViewNX 2 Installer CD-ROM into the

CD-ROM drive.

Mac OS: When the ViewNX 2 window is displayed, double-click the Welcome icon.

Using ViewNX 2

2

Select a language in the language selection dialog to open the installation window.

If the desired language is not available, click Region Selection to choose a different region and then choose the desired language (the Region Selection button is not available in the European release).

Click Next to display the installation window.

3

Start the installer.

We recommend clicking Installation Guide in the installation window to check the installation help information and system requirements before installing ViewNX 2.

Click Typical Installation (Recommended) in the installation window.

4

Download the software.

When the Software Download screen is displayed, click I agree - Begin download.

Follow the on-screen instructions to install the software.

5

Exit the installer when the installation completion screen is displayed.

Windows: Click Yes.

Mac OS: Click OK.

The following software is installed:

ViewNX 2 (consisting of the three modules below)

- Nikon Transfer 2: For transferring images to the computer

- ViewNX 2: For viewing, editing, and printing transferred images

- Nikon Movie Editor: For basic editing of transferred movies

Panorama Maker 5 (for creating a single panorama photo using a series of images shot in panorama assist scene mode)

QuickTime (Windows only)

6

Remove the ViewNX 2 Installer CD-ROM from the CD-ROM drive.

Downloaded From camera-usermanual.com Nikon Manuals

83

Using ViewNX 2

Transferring Images to the Computer

1

Choose how images will be copied to the computer.

Choose one of the following methods:

• Direct USB connection: Turn the camera off and ensure that the memory card is inserted in the camera. Connect the camera to the computer using the supplied USB

Cable UC-E6. The camera automatically turns on.

• SD card slot: If your computer is equipped with an SD card slot, the card can be inserted directly in the slot.

• SD card reader: Connect a card reader (available separately from third-party suppliers) to the computer and insert the memory card.

If a message is displayed prompting you to choose a program, select Nikon Transfer 2.

• When using Windows 7

If the dialog shown at right is displayed, follow the steps below to select Nikon

Transfer 2.

1 Under Import pictures and videos, click Change program. A program selection dialog will be displayed; select

Import File using Nikon Transfer 2 and click OK.

2 Double-click Import File.

If the memory card contains a large number of images, it may take a while for Nikon

Transfer 2 to start. Wait until Nikon Transfer 2 starts.

B

Connecting the USB Cable

The connection may not be recognized if the camera is connected to the computer via a USB hub.

Using ViewNX 2

2

Transfer images to the computer.

Confirm that the name of the connected camera or removable disk is displayed in the

“Source” panel in the Nikon Transfer 2 “Options” area (1).

Click Start Transfer (2).

1

At default settings, all the images on the memory card will be copied to the computer.

3

Terminate the connection.

If the camera is connected to the computer, turn the camera off and disconnect the

USB cable.

If a card reader or card slot is used, choose the appropriate option in the computer operating system to eject the removable disk corresponding to the memory card and then remove the card from the card reader or card slot.

Viewing Images

2

Start ViewNX 2.

Images are displayed in ViewNX 2 when transfer is complete.

Consult online help for more information on using ViewNX 2.

C

Starting ViewNX 2 Manually

• Windows: Double-click the ViewNX 2 shortcut icon on the desktop.

85

Using ViewNX 2

Retouching Photographs

Click Edit in the ViewNX 2 toolbar.

Image editing functions include tone compensation, sharpness adjustment, and trimming (cropping).

Editing Movies

Click Movie Editor in the ViewNX 2 toolbar.

Movie editing functions include the ability to delete unwanted scenes.

Printing Images

Click Print in the ViewNX 2 toolbar.

A dialog is displayed and images can be printed using a printer connected to the computer.

Recording and Playing Back

Movies

You can record movies by simply pressing the b (e movie-record) button.

In playback mode, press the k button to play a movie.

Downloaded From camera-usermanual.com Nikon Manuals

87

Recording and Playing Back Movies

Recording Movies

You can record movies by simply pressing the b (e movie-record) button.

Color tones, white balance, and other settings are the same when recording movies as they are when taking pictures.

1

Display the shooting screen.

The icon for the selected movie option is displayed.

The default setting is d HD 1080pP

(1920×1080) (

A 91).

* The maximum movie length shown in the illustrations in this manual is for example purposes only.

Movie option

Maximum movie length*

2

Press the b (e movie-record) button to start movie recording.

The camera focuses in the center of the frame. Focus areas are not displayed during recording.

When recording movies using d or a movie options setting with a 16:9 aspect ratio, the shooting screen changes to a 16:9 aspect ratio (the area indicated at right is recorded).

If Photo info in Monitor settings (

A 94) in the

setup menu is set to Movie frame+auto info, the area that will be visible in the movie can be confirmed before movie recording starts.

The approximate remaining movie length is displayed. C is displayed while saving to the internal memory.

Recording stops automatically when the maximum movie length has been recorded.

3

Press the b (e movie-record) button again to end recording.

B

Notes About Saving Movies

After a movie has been recorded, it is not fully saved to the internal memory or memory card until the shooting screen is displayed. Do not open the battery-chamber/memory card slot cover before movies have been fully saved. Removing the memory card or the battery while a movie is being saved may result in loss of the movie data or damage to the camera or to the memory card.

Recording Movies

B

Notes About Movie Recording

Memory cards with an SD Speed Class rating of 6 or faster are recommended when recording

movies (

A 19). When using a memory card with a lower Speed Class rating, movie recording may

stop unexpectedly.

There may be some degradation in image quality when digital zoom is used. If the digital zoom is not being used when movie recording begins, rotating and holding the zoom control at g zooms the image using optical zoom and the zoom stops at the maximum optical zoom ratio. After letting go of the zoom control, rotate the zoom control to g again to magnify the image using the digital zoom.

When recording ends, digital zoom turns off.

The sounds of zoom control operation, zoom, autofocus lens drive movement, vibration reduction, and aperture operation when brightness changes may be recorded.

The following phenomena may be seen in the monitor while recording movies. These phenomena are saved in the recorded movies.

- Banding may occur in images under fluorescent, mercury-vapor, or sodium-vapor lighting

- Subjects that move quickly from one side of the frame to the other, such as a moving train or car, may appear skewed

- The entire movie image may be skewed when the camera is panned.

- Lighting or other bright areas may leave residual images when the camera is moved

B

Camera Temperature

The camera may become warm when shooting movies for an extended period of time or when the camera is used in a hot area.

If the inside of the camera becomes extremely hot when recording movies, the camera will automatically stop recording after 30 seconds.

The amount of time remaining until the camera stops recording

(B30 s) is displayed.

Five seconds after the camera stops recording, it turns itself off.

Leave the camera off until the inside of the camera has cooled.

B

Notes About Autofocus

Autofocus may not perform as expected, as explained in “Autofocus” (

A 29). Try the following

methods when recording movies of these kinds of subjects.

1. Before shooting, set Autofocus mode to A Single AF (default setting) in the movie menu.

2. Aim the camera so that another subject positioned the same distance from the camera as the desired subject is in the center of the monitor, press the b (e movie-record) button, and then aim at the desired subject after recording starts.

Downloaded From camera-usermanual.com Nikon Manuals

89

Recording Movies

C

Movie Options and Maximum Movie Length

Movie options (A 91)

d HD 1080pP

(1920×1080) (default setting) e HD 1080p (1920×1080) f HD 720p (1280×720) p iFrame 540 (960×540) g VGA (640×480)

Internal memory (approx. 89 MB)

37 s

1

57 s

1 min 25 s

33 s

1

4 min 11 s

Memory card (4 GB)

2

25 min

40 min

60 min

25 min

3 h

All figures are approximate. The maximum movie length may vary depending on the make of the memory card, even among memory cards of the same capacity.

1

The maximum movie length for a single movie is 25 seconds.

2

Each movie is limited to a file size of 4 GB and a movie length of 29 minutes, even when there is sufficient free space on the memory card for longer recording. The maximum movie length that can be recorded for a single movie is displayed during recording.

C

Functions Available with Movie Recording

The creative slider, white balance (when using A (auto) mode, continuous shooting mode), or exposure compensation settings are also applied when recording movies. The tone that results from using special effects mode (

A 53) or scene mode (A 40) is also applied to movies. When

macro mode is enabled, movies of subjects closer to the camera can be recorded. Confirm settings before starting movie recording.

Set the self-timer (

A 59) and press the b (e movie-record) button to start recording a movie

after ten or two seconds.

The flash will not fire.

Press the d button to select the D (movie) tab and adjust movie menu settings before starting movie recording (

A 91).

Recording Movies

Changing Movie Recording Settings (the Movie Menu)

Enter shooting mode M d button M D tab (A 11)

The following settings can be changed.

Movie

Movie options

Autofocus mode

Option

Movie options

Autofocus mode

Description

Select the desired movie option to record. The camera can record normal speed movies and high speed (HS) movies, which can be played back in slow motion or fast motion.

A

E55

Select the autofocus method used when recording normal speed movies. When A Single AF (default setting) is selected, focus is locked when movie recording begins. When B Full-time AF is selected, the camera focuses continuously while recording.

When B Full-time AF is selected, the sound of the camera focusing may be heard in recorded movies. If you want to prevent the sound of the camera focusing from being recorded, select A Single AF.

E59

Downloaded From camera-usermanual.com Nikon Manuals

91

Playing Back Movies

Press the c button to enter playback mode.

Movies are indicated by the movie

options icon (

A 91).

Press the k button to play back movies.

Movie options

Functions Available During Playback

Rotate the multi selector to advance or rewind the movie.

Playback controls are displayed at the top of the monitor.

Press the multi selector

J or K to select a control. The operations described below are available.

Paused

Volume indicator

During playback

Function Icon

Rewind

Description

A

Hold down the k button to rewind the movie.

Advance

B

Hold down the k button to advance the movie.

Pause

E

Press the k button to pause playback. The following operations can be performed while playback is paused using the controls displayed at the top in the monitor.

C

D

Press the k button to rewind the movie. Hold down the k button for continuous rewinding.*

Press the k button to advance the movie. Hold down the k button for continuous advancing.*

F

Press the k button to resume playback.

End

G

Press the k button to return to full-frame playback mode.

* The movie can also be advanced or rewound by rotating the multi selector.

Adjusting volume

Rotate the zoom control to

g or f (A 2) during playback.

Deleting movies

To delete a movie, select the desired movie in full-frame playback mode (

A 30)

or thumbnail playback mode (

A 31) and press the l button (A 32).

B

Notes About Playing Back Movies

The COOLPIX S8200 is not able to playback movies recorded with another make or model of digital camera.

The histogram and shooting information are not displayed for movies (

A 8).

General Camera Setup

This chapter describes the various settings that can be adjusted in the z setup menu.

Set up

Welcome screen

Time zone and date

Monitor settings

Print date

Vibration reduction

Motion detection

AF assist

See “Using Menus (the

d Button)” (A 11) for information about using the

camera’s menus.

For further details about each setting, refer to “The Setup Menu” in the

Reference Section (

E60).

Downloaded From camera-usermanual.com Nikon Manuals

93

General Camera Setup

The Setup Menu

Press the d button M z (setup) tab (A 11)

From the menu screen, select the z tab to display the setup menu, and then you can change the following settings.

Option

Welcome screen

Time zone and date

Monitor settings

Print date

Vibration reduction

Set up

Welcome screen

Time zone and date

Monitor settings

Print date

Vibration reduction

Motion detection

AF assist

Description

Allows you to select the image displayed as the welcome screen when the camera is turned on. Select COOLPIX to display the COOLPIX logo. Select Select an image to use a picture taken with the camera as the welcome screen. The welcome screen is not displayed by default.

A

E60

Allows you to set settings related to the camera’s date and time. The Time zone setting allows you to specify the time zone where the camera is mainly used and whether or not daylight saving time is in effect. When the travel destination (x) is selected, the camera automatically calculates the time difference between the travel destination and the home time zone (w), and saves images using the date and time of the travel destination.

E61

Allows you to adjust settings related to the monitor.

• Photo info allows you to select the kind of information that is displayed during shooting mode and playback mode. If you select Framing grid+auto

info, a grid is displayed when shooting to help you frame the shot.

• Brightness allows you to adjust the brightness of the monitor.

Allows you to reduce blurring caused by camera shake when shooting. The default setting is On.

When using a tripod to stabilize the camera during shooting, set this feature to Off to prevent this feature from malfunctioning.

E64

Allows you to imprint the shooting date and time on images at the time of shooting. The default setting is Off.

The shooting date and time are not imprinted on images captured using Panorama or on movies.

E66

E67

The Setup Menu

Auto off

Option

Motion detection

AF assist

Digital zoom

Sound settings

Format memory/

Format card

Language

TV settings

Description

When set to Auto (default setting), if the camera detects camera shake or subject movement at the time of shooting, it automatically increases ISO sensitivity and shutter speed to reduce blurring. The r indicator glows green when the camera detects camera shake and increases shutter speed.

When using certain shooting modes or settings, motion is not detected. In these case the r indicator is not displayed.

A

E68

When set to Auto (default setting), the AF-assist illuminator (

A 2) lights when shooting in dark

surroundings to help the camera focus.

The AF-assist illuminator has a range of about 2.2 m

(7 ft 3 in.) at the maximum wide-angle position and about 1.4 m (4 ft 7 in.) at the maximum telephoto position.

Even if Auto is selected, the AF-assist illuminator may not light depending on the position of the focus area or the scene mode that is selected.

E69

When set to On (default setting), the digital zoom feature can be used by rotating the zoom control to g (i) to zoom in beyond the maximum optical zoom position

(

A 27).

Allows you to turn various camera operation sounds on and off.

Camera operation sounds are not heard when using certain modes, such as O (pet portrait).

E70

E71

Allows you to set the amount of time that passes before the monitor turns off to save power. The default setting is

1 min.

E72

Allows you to format the internal memory (only when a memory card is not inserted) or the memory card (when a memory card is inserted).

• All data stored in the internal memory or on the memory card is deleted during formatting and

cannot be restored. Be sure to save important images by transferring them to a computer before formatting.

Allows you to change the camera’s display language.

E73

E74

Set these settings to match your TV.

You can select the video output mode (NTSC or PAL) and adjust HDMI output settings.

E74

Downloaded From camera-usermanual.com Nikon Manuals

95

The Setup Menu

Option

Charge by computer

Blink warning

Filmstrip

Reset all

Firmware version

Description

When set to Auto (default setting), you can charge the camera’s battery by connecting the camera to a computer (provided that the computer is able to supply power).

When charging by computer, it takes more time to charge the battery than when using the Charging AC

Adapter EH-69P. Additionally, when charging by computer and transferring images to the computer, it takes more time to charge the battery.

Except when using continuous shooting mode or smile timer, the camera will display the message Did

someone blink? immediately after taking a picture using face detection (

A 76) if the camera detects a

subject with closed eyes, allowing you to check the image. The default setting is Off.

A

E75

E77

When On is selected, thumbnails of previous and subsequent images are displayed in the bottom of the monitor when you rotate the multi selector quickly while viewing an image in full-frame playback mode (

A 30).

The default setting is Off.

E79

Allows you to reset the camera’s settings to their default values.

Certain settings such as Time zone and date and

Language are not reset.

View the current camera firmware version.

E80

E83

The Reference Section provides detailed information and hints about using the camera.

Shooting

Using Easy Panorama (Shooting and Playback).............................................. E2

Using Panorama Assist ............................................................................................. E5

Playback

Playing Back and Deleting Images Captured Continuously (Sequence) ...... E7

Editing Still Images ..................................................................................................E10

Connecting the Camera to a TV (Viewing Images on a TV).......................E21

Connecting the Camera to a Printer (Direct Print) .......................................E23

Menus

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)....E30

The Playback Menu..................................................................................................E43

The Movie Menu .......................................................................................................E55

The Setup Menu........................................................................................................E60

Additional Information

File and Folder Names ............................................................................................E84

Optional Accessories...............................................................................................E85

Error Messages ..........................................................................................................E86

Downloaded From camera-usermanual.com Nikon Manuals

E

1

Reference Section

Using Easy Panorama (Shooting and Playback)

Shooting With Easy Panorama

1

Rotate the mode dial to y, press the d button and select

p Panorama (A 39).

Scene menu

Panorama

Image mode

2

Select V Easy panorama and press the k button.

Panorama

Easy panorama

Panorama assist

3

Select W Normal (180°) or X Wide

(360°) as the shooting range and press the k button.

When the camera is readied in the horizontal position, the image size (width × height) is as follows.

- W Normal (180°):

3200 × 560 when moved horizontally

1024 × 3200 when moved vertically

- X Wide (360°):

6400 × 560 when moved horizontally

1024 × 6400 when moved vertically

Easy panorama

Normal (180°)

Wide (360°)

- When the camera is readied in the vertical position, the direction and the width and height are switched.

4

Frame the first edge of the panorama scene, and then press the shutterrelease button halfway to focus.

The zoom position is fixed at the maximum wide-angle position.

A grid is displayed in the monitor.

The camera focuses on the subject in the center of the frame.

Exposure compensation (

A 65) can be set.

If the focus and exposure are not correct, try using focus lock (

A 78).

E

2

Using Easy Panorama (Shooting and Playback)

5

Press the shutter-release button all the way, and then remove your finger from the shutter-release button.

I is displayed to indicate the direction of camera movement.

6

Move the camera slowly and straight in one of the four directions, and begin shooting.

When the camera detects which direction it is moving in, shooting begins.

A guide indicating the current shooting position is displayed.

When the shooting position guide reaches the edge, shooting ends.

Shooting position guide

Example of camera movement

The operator, without shifting position, moves the camera horizontally or

vertically in an arc from one edge of the guide to the other.

Shooting ends if the edge of the guide is not reached within about 15 seconds

(when using W Normal (180°)) or within about 30 seconds (when using

X Wide (360°)).

B

Notes About Easy Panorama Shooting

The range of the image seen in the saved image will be narrower than that seen in the monitor at the time of shooting.

If the camera is moved too quickly, if the camera is shaken too much, or if the subject has little variance in appearance (such as a wall or in darkness), an error will occur.

If shooting is stopped before the camera reaches the half-way point in the panorama range, a panorama image is not saved.

If more than half of the panorama range is captured but shooting ends before reaching the edge of the range, the range not captured is recorded and displayed in gray.

Downloaded From camera-usermanual.com Nikon Manuals

E

3

Using Easy Panorama (Shooting and Playback)

Playing Back Images With Easy Panorama (Scroll Playback)

Switch to playback mode (

A 30), display an image

captured using easy panorama in full-frame playback mode, and then press the k button to display the short edge of the image using the entire monitor and automatically move (scroll) the displayed area.

The image scrolls in the direction that the camera

was moved at the time of shooting.

Rotate the multi selector to advance or rewind.

Playback controls are displayed at the top of the monitor during playback. Press the multi selector

J or

K to select a control, and then press the k button to use the following operations.

Function

Rewind

Advance

Icon

A

B

Hold down the

Hold down the

Description k button to scroll backward quickly.

k button to scroll forward quickly.

Pause

End

E

G

The following operations can be performed while playback is paused using the controls displayed at the top in the monitor

C

Hold down the k button to rewind.*

D

Hold down the k button to scroll.*

F

Resume automatic scrolling.

Switch to full-frame playback mode.

* Scrolling can also be performed by rotating the multi selector.

B

Notes About Images Captured With Easy Panorama

The histogram and shooting information are not displayed for images captured with easy panorama

(

A 8).

B

Notes About Easy Panorama Scroll Playback

The camera may not be able to scroll the playback of, or zoom in on, easy panorama images captured with another make or model of digital camera.

E

4

Using Panorama Assist

Use a tripod for the best results. Set Vibration reduction (

E67) to Off in the

setup menu when using a tripod to stabilize the camera.

1

Rotate the mode dial to y, press the d button and select

p Panorama (A 39).

Scene menu

Panorama

Image mode

2

Select U Panorama assist and press the k button.

Panorama direction icons are displayed to show the direction in which images will be joined.

Panorama

Easy panorama

Panorama assist

3

Use the multi selector to select the direction and press the k button.

Select the direction in which images will be joined in the completed panorama; right (I), left (J), up (K), or down (L).

The yellow panorama direction icon (II) is displayed for the current direction and the direction is fixed when the k button is pressed. The icon changes to the white fixed direction I icon.

If necessary, apply flash mode (

A 56), self-timer (A 59), macro mode (A 64), and

exposure compensation (

A 65) settings with this step.

Press the k button again to select a different direction.

4

Frame the first portion of the panorama scene and take the first picture.

The camera focuses on the subject in the center of the frame.

One third of the image will be displayed as translucent.

Downloaded From camera-usermanual.com Nikon Manuals

E

5

Using Panorama Assist

5

Take the next picture.

Frame the next image so that one third of the frame overlaps the first image, and press the shutter-release button.

Repeat this process until the necessary number of images has been taken to complete the scene.

6

Press the k button when shooting is complete.

The camera returns to step 3.

B

Notes About Panorama Assist

Set flash mode, self-timer, macro mode and exposure compensation before taking the first picture.

They cannot be changed after the first picture is taken. Images cannot be deleted, nor can zoom or

Image mode setting (

A 71) be adjusted after the first picture is taken.

Shooting ends if the auto off function (

E72) is activated. If the camera enters standby mode

during shooting, set Auto off to a longer setting.

C

R Indicator

In panorama assist mode, exposure, white balance, and focus for all images in a panorama are fixed at the values for the first image in each series.

When the first picture is taken, R is displayed to indicate that exposure, white balance, and focus are locked.

C

Combining Images to Make a Panorama

Transfer images to a computer (

A 84) and use Panorama Maker 5 to join them in a single

panorama.

Install Panorama Maker 5 from the included ViewNX 2 Installer CD-ROM.

After installing Panorama Maker 5, start the software as explained below.

Windows: Select the Start menu > All Programs > ArcSoft Panorama Maker 5 > Panorama

Maker 5

Mac OS X: Open the Applications folder > double-click Panorama Maker 5

For information about using Panorama Maker 5, refer to the on-screen instructions and help information contained in Panorama Maker 5.

C

More Information

See “File and Folder Names” (

E84) for more information.

E

6

Playing Back and Deleting Images Captured Continuously (Sequence)

Each series of images captured using the following settings is saved in a sequence.

Continuous shooting mode (

A 50)

- Continuous

- Pre-shooting cache

- Continuous H: 120 fps

- Continuous H: 60 fps

- Smile timer continuous

Scene mode (

A 40)

- Sports

- Pet portrait mode (when Continuous is selected)

Playing Back Sequences

In full-frame playback mode or thumbnail playback

mode (

A 31), the first image of a sequence is used as

the “key picture,” i.e., it is displayed to represent the images in the sequence.

Sequence display

15/11/2011 15:30

0004. JPG

While the key picture of a sequence is displayed in fullframe playback mode, press the k button to display each image in the sequence individually. To return to key picture only display, press the multi selector

H.

The following operations are available when each image in a sequence is displayed individually.

Select an image: Rotate the multi selector or press

J or K.

Zoom in: Rotate the zoom control to

g (i) (A 31).

Display the histogram and shooting information: Press the

k button.

B

Notes About Sequence

The camera cannot display images that were captured continuously as a sequence if the images were captured with another make or model of digital camera.

B

Notes About Images Captured in a Sequence

The histogram and shooting information are not displayed when only a sequence’s key picture is displayed (

A 8).

Downloaded From camera-usermanual.com Nikon Manuals

E

7

Playing Back and Deleting Images Captured Continuously (Sequence)

C

How Sequences Are Displayed on the Playback Screen

When using thumbnail playback mode, images are displayed as shown below.

9 / 2 0 1 / 7 9

4/9/16-image thumbnails 72-image thumbnails

When Sequence display options (

E54) in the playback menu is set to Individual pictures, if

you select images in a sequence when using full-frame playback mode or thumbnail playback mode, the F icon is displayed.

C

Sequence Display Options

Select Sequence display options (

E54) in the playback menu to set all sequences to be

displayed using their key pictures only or to display them as individual images.

C

Changing Key Picture of a Sequence

A sequence’s key picture can be changed using Choose key picture (

E54) in the playback menu.

C

Functions Available When Playing Back Sequences

The following menu operations are available by pressing the d button when playing back images captured in a sequence:

Quick retouch

1

(

E12)

Skin softening

1

(

E14)

Print order

2

(

E43)

Protect

2

(

E47)

Small picture

1

(

E18)

Copy

2

(

E52)

Choose key picture (

E54)

D-Lighting

1

(

E13)

Filter effects

1

(

E16)

Slide show (

E46)

Rotate image

1

(

E49)

Voice memo

1

(

E50)

Sequence display options (

E54)

1

2

Press the d button after displaying individual images. Settings can be applied to individual images.

If you press the d button while playing back only the key picture of a sequence, the same settings can be applied to all images in that sequence. Press the d button after displaying individual images to apply settings to individual images.

E

8

Playing Back and Deleting Images Captured Continuously (Sequence)

Deleting Images in a Sequence

If Sequence display options (

E54) in the playback menu is set to Key picture

only, press the

l button to select a deletion method and delete the following images.

If only the key picture is displayed to represent all images:

- Current image: When a sequence is selected, all images in that sequence are deleted.

- Erase selected images: When the key picture is selected in the deletion image selection screen (

A 33), all images in the

sequence are deleted.

- All images: All images are deleted, including the currently displayed sequence.

If the key picture is selected and the

k button is pressed to display each individual image in the sequence before pressing the l button:

Deletion methods change as follows.

- Erase current picture: The image currently displayed is deleted.

- Erase selected images: When multiple images in the same sequence are selected in the deletion image selection screen

(

A 33), the selected images are deleted.

- Erase entire sequence: All images in the sequence, including the image currently displayed, are deleted.

Downloaded From camera-usermanual.com Nikon Manuals

E

9

Editing Still Images

Editing Features

Use the COOLPIX S8200 to edit images in-camera and save them as separate files

(

E84). The editing functions described below are available.

Editing function

Quick retouch (E12)

Small picture (E18)

Crop (E19)

Description

Easily create retouched copies in which contrast and saturation have been enhanced.

D-Lighting (E13)

Create a copy of the current image with enhanced brightness and contrast, brightening dark portions of the image.

Skin softening (E14)

Make facial skin tones softer.

Filter effects (E16)

Digital filter effects can be used to apply a variety of effects to images. Effect types include Cross screen, Fisheye, Miniature

effect, and Painting.

Create a small copy of images suitable for use as e-mail attachments.

Crop a portion of the image. Use to zoom in on a subject or arrange a composition.

B

Notes About Image Editing

Images captured at an Image mode setting of l 4608×2592 (

A 71) cannot be edited.

Images captured using easy panorama (

A 49, E2) cannot be edited.

The editing functions of the COOLPIX S8200 cannot be used for images captured with another make or model of digital cameras.

If no face is detected in an image, a copy cannot be created using the skin softening function

(

E14).

Edited copies created with the COOLPIX S8200 may not be displayed properly on another make or model of digital camera. It may also be impossible to transfer them to a computer using another make or model of digital camera.

Editing functions are not available when there is not enough free space in the internal memory or on the memory card.

For sequences for which only a key picture is displayed (

E7), perform one of the following

operations before editing.

- Press k button to display individual images, and then select an image in the sequence

- Set Sequence display options (

E54) to Individual pictures so that each image is displayed

individually, and then select an image

E

10

Editing Still Images

C

Restrictions on Image Editing

When an edited copy is further modified with another editing function, check the following restrictions.

Editing function used

Quick retouch

D-Lighting

Skin softening

Filter effects

Editing functions that can be added

The skin softening, filter effects, small picture, or crop function can be added.

The quick retouch and D-Lighting functions cannot be used together.

The quick retouch, D-Lighting, small picture, or crop function can be added.

Additionally, the skin softening and filter effects functions can be used together.

Small picture

Crop

Another editing function cannot be added.

Copies created with editing functions cannot be further edited with the same function used to create them.

When combining the small picture or crop function and another editing function, use the small picture and crop functions after other editing functions have been applied.

Skin softening can also be applied to images captured with the skin softening function (

A 77).

C

Original and Edited Images

Copies created with editing functions are not deleted if the original images are deleted. The original images are not deleted if copies created with editing functions are deleted.

Edited copies are saved with the same shooting date and time as the original.

Print order (

E43) and protect settings (E47) do not remain effective in edited copies.

Downloaded From camera-usermanual.com Nikon Manuals

E

11

Editing Still Images

k Quick Retouch: Enhancing Contrast and Saturation

Quick retouch can be used to easily create retouched copies in which contrast and saturation have been enhanced. Copies created with the quick retouch function are saved as separate files.

1

Select an image in full-frame playback mode

(A 30) or thumbnail playback mode (A 31)

and press the d button.

2

Use the multi selector to select k Quick

retouch and press the k button.

The original version is displayed on the left and the edited version is displayed on the right.

Playback menu

Quick retouch

D-Lighting

Skin softening

Filter effects

Print order

Slide show

Protect

3

Press the multi selector H or I to select the degree of enhancement performed and press the k button.

A new, edited copy is created.

To exit without saving the copy, press the multi selector

J.

Copies created with the quick retouch function are indicated by the s icon displayed during playback.

Quick retouch

Normal

Amount

15/11/2011 15:30

0004. JPG

C

More Information

See “File and Folder Names” (

E84) for more information.

E

12

Editing Still Images

I D-Lighting: Enhancing Brightness and Contrast

D-Lighting can be used to create copies with enhanced brightness and contrast, brightening dark portions of an image. Enhanced copies are saved as separate files.

1

Select an image in full-frame playback mode

(A 30) or thumbnail playback mode (A 31)

and press the d button.

2

Use the multi selector to select I D-Lighting and press the k button.

The original version is displayed on the left and the edited version is displayed on the right.

Playback menu

Quick retouch

D-Lighting

Skin softening

Filter effects

Print order

Slide show

Protect

3

Select OK and press the k button.

A new, edited copy is created.

To exit without saving the copy, select Cancel and press the k button.

D - L i g h t i n g

Copies created with the D-Lighting function are indicated by the c icon displayed during playback.

OK

Cancel

15/11/2011 15:30

0004. JPG

C

More Information

See “File and Folder Names” (

E84) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

E

13

Editing Still Images

e Skin Softening: Softening Skin Tones

The camera detects faces in images and creates a copy with softer facial skin tones.

Copies created using the skin softening function are saved as separate files.

1

Select an image in full-frame playback mode

(A 30) or thumbnail playback mode (A 31)

and press the d button.

2

Use the multi selector to select e Skin

softening and press the k button.

The screen for selecting the degree of softening is displayed.

If no faces are detected in the image, an alert is displayed and the camera returns to the playback menu.

3

Press the multi selector H or I to select the degree of softening and press the k button.

The confirmation dialog is displayed with the face to which skin softening was applied enlarged in the center of the monitor.

To exit without saving the copy, press the multi selector

J.

4

Check the preview of the copy.

Skin tones in up to 12 faces, in the order of that closest to the center of the frame, are softened.

If more than one face was softened, press the multi selector

J or K to display a different face.

Press the d button to adjust the degree of softening. The monitor display returns to that shown in step 3.

When the k button is pressed, a new, edited copy is created.

Copies created with the skin softening function are indicated by the E icon displayed during playback.

Playback menu

Quick retouch

D-Lighting

Skin softening

Filter effects

Print order

Slide show

Protect

Skin softening

Normal

Amount

Preview

15/11/2011 15:30

0004. JPG

E

14

Editing Still Images

B

Notes About Skin Softening

Depending upon the direction in which faces are looking, or the brightness of faces, the camera may be unable to accurately recognize faces, or the skin softening function may not perform as expected.

C

More Information

See “File and Folder Names” (

E84) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

E

15

Editing Still Images

p Filter Effects: Applying Digital Filter Effects

Digital filter effects can be used to apply a variety of effects to images. The following effects are available. Copies created with the filter effects function are saved as separate files.

Type

Cross screen

Fisheye

Miniature effect

Painting

Description

Produce star-like rays of light that radiate outward from bright objects such as sunlight reflections or street lights. This effect is suitable for night scenes.

Make an image look as if it were captured with a fisheye lens.

This effect is well-suited for images captured in macro mode.

Make an image look like a miniature scene captured in macro mode. This effect is well-suited for images captured from a high vantage point with the main subject in the center of the image.

Gives images a hand-painted appearance.

1

Select an image in full-frame playback mode

(A 30) or thumbnail playback mode (A 31)

and press the d button.

2

Use the multi selector to select p Filter

effects and press the k button.

3

Press the multi selector H or I to select an effect, and press the k button.

Playback menu

Quick retouch

D-Lighting

Skin softening

Filter effects

Print order

Slide show

Protect

Filter effects

Cross screen

Fisheye

Miniature effect

Painting

E

16

4

Confirm the effect, and press the k button.

A new, edited copy is created.

To exit without saving the copy, press the multi selector

J.

Editing Still Images

Preview

Copies created using the filter effects function are indicated by the c icon displayed during playback.

15/11/2011 15:30

0004. JPG

C

More Information

See “File and Folder Names” (

E84) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

E

17

Editing Still Images

g Small Picture: Reducing the Size of an Image

Create a small copy of the current image. This feature is useful for creating copies for display on Web pages or for e-mail attachments. The 640×480, 320×240, and

160×120 sizes are available. Small copies are saved as separate files with a

compression ratio of about 1:16.

1

Select an image in full-frame playback mode

(A 30) or thumbnail playback mode (A 31)

and press the d button.

2

Use the multi selector to select g Small

picture and press the k button.

Playback menu

Rotate image

Small picture

Voice memo

Copy

Sequence display options

Choose key picture

3

Select the desired copy size and press the k button.

Small picture

640 × 480

320 × 240

160 × 120

4

Select Yes and press the k button.

A new, small copy is created.

To exit without saving the copy, select No and press the k button.

The copy is displayed with a black frame.

Create small picture file?

Yes

No

C

More Information

See “File and Folder Names” (

E84) for more information.

E

18

Editing Still Images

a Crop: Creating a Cropped Copy

Create a copy containing only the portion visible in the monitor when u is displayed with playback zoom (

A 31) enabled. Cropped copies are saved as

separate files.

1

Rotate the zoom control to g (i) in full-frame

playback mode (A 30) to zoom in on the

image.

To crop an image displayed in “tall” (portrait) orientation, zoom in on the image until the black bars displayed on the both sides of the monitor disappear.

The cropped image will be displayed in landscape orientation. To crop the image in its current “tall” (portrait) orientation, first use the Rotate image option (

E49) to rotate

the image so that it is displayed in landscape orientation. Next, enlarge the image for cropping, crop the image, and then rotate the cropped image back to “tall” (portrait) orientation.

2

Refine copy composition.

Rotate the zoom control to g (i) or f (h) to adjust the zoom ratio.

Press the multi selector

H, I, J, or K to scroll the image so that only the portion to be copied is visible in the monitor.

3

Press the d button.

4

Use the multi selector to select Yes and press the k button.

A cropped copy is created.

To exit without saving the copy, select No and press the k button.

Save this image as displayed?

Yes

No

Downloaded From camera-usermanual.com Nikon Manuals

E

19

Editing Still Images

C

Image Size

As the area to be saved is reduced, the image size (pixels) of the cropped copy is also reduced.

When the image size of the cropped copy is 320 × 240 or 160 × 120, a black frame is displayed around the image, and the small picture icon A is displayed in the left of the monitor in playback mode.

C

More Information

See “File and Folder Names” (

E84) for more information.

E

20

Connecting the Camera to a TV (Viewing Images on a TV)

Connect the camera to a TV to play images or movies back on the TV. If your TV is equipped with an HDMI jack, a commercially available HDMI cable can be used to connect the camera to the TV.

1

Turn off the camera.

2

Connect the camera to the TV.

When using the included audio/video cable

Connect the yellow plug to the video-in jack and the white and red plugs to the audio-in jacks on the TV.

When using a commercially available HDMI cable

Connect the plug to the HDMI jack on the TV.

Yellow White Red

HDMI mini connector (Type C)

Downloaded From camera-usermanual.com Nikon Manuals to HDMI jack

E

21

Connecting the Camera to a TV (Viewing Images on a TV)

3

Set the TV’s input to external video input.

See the documentation provided with your TV for details.

4

Press and hold the camera's c button and turn on the camera.

The camera enters playback mode and images are displayed on the TV.

While connected to the TV, the camera monitor will remain off.

B

Notes About Connecting the HDMI Cable

HDMI cable is not included. Use a commercially available HDMI cable to connect the camera to a

TV. The output terminal on this camera is an HDMI mini connector (type C). When purchasing an

HDMI cable, be sure that the device end of the cable is an HDMI mini connector.

We recommend shooting still images at an Image mode (

A 71) setting of M 2048×1536 or

higher, and movies at a Movie options (

E55) setting of f HD 720p (1280×720) or higher.

B

Notes About Connecting the Cable

When connecting the cable, be sure that the camera plug is properly oriented. Do not use force when connecting the cable to the camera. When disconnecting the cable, do not pull the plug at an angle.

Do not connect cables to the HDMI mini connector (Type C) and to the USB/audio/video output connector simultaneously.

B

If the Images Are Not Displayed on the TV

Be sure that the camera’s video mode setting of TV settings (

E74) in the setup menu conforms to

the standard used by your TV.

C

Using a TV Remote Control (HDMI Device Control)

The remote control of an HDMI-CEC-compatible TV can be used to control playback.

It can be used instead of the camera’s multi selector and zoom control to select images, start and pause movie playback, scroll playback of images captured using easy panorama, and switch between full-screen playback mode and 4-image thumbnail display.

Set the HDMI device control setting (

E74) of TV settings to On (default setting) and then

connect the camera and TV using an HDMI cable.

Aim the remote control at the TV when operating it.

Refer to the TV’s operating instructions for information about the TV’s HDMI-CEC compatibility.

E

22

Connecting the Camera to a Printer (Direct Print)

Users of PictBridge-compatible (

F19) printers can connect the camera directly to

the printer and print images without using a computer.

Follow the procedures below to print images.

Take pictures

Select images for printing and number of copies using

Print order option (E43)

Connect to the printer (E24)

Print images one at a

time (E26)

Print multiple images (E27)

When printing is complete, turn the camera off and disconnect the USB cable

B

Notes About Power Source

When connecting the camera to a printer, use a fully charged battery to prevent the camera from turning off unexpectedly.

If the AC Adapter EH-62F (available separately) is used, COOLPIX S8200 can be powered from an electrical outlet. Do not use any other make or model of AC adapter as it may cause the camera to heat up or malfunction.

C

Printing Images

In addition to printing images transferred to a computer from your personal printer and printing over a direct camera-to-printer connection, the following options are also available for printing images saved on the memory card:

Inserting a memory card into a DPOF-compatible printer’s card slot

Taking a memory card to a digital photo lab

For printing using these methods, specify the images and the number of prints each to the memory card using the Print order option in the playback menu (

E43).

Downloaded From camera-usermanual.com Nikon Manuals

E

23

Connecting the Camera to a Printer (Direct Print)

Connecting the Camera to a Printer

1

Turn off the camera.

2

Turn on the printer.

Check printer settings.

3

Connect the camera to the printer using the included USB cable.

Be sure that plugs are properly oriented. Do not attempt to insert plugs at an angle, and do not use force when connecting or disconnecting the USB cable.

E

24

Connecting the Camera to a Printer (Direct Print)

4

The camera is automatically turned on.

When properly connected, the PictBridge startup screen (

1) will be displayed in the camera monitor, followed by the Print selection screen (

2).

1 2

Print selection

15/11

2011

NO. 32

32

B

If the PictBridge Startup Screen Is Not Displayed

Turn the camera off and disconnect the USB cable. Set the Charge by computer option (

E75) in

the camera’s setup menu to Off and reconnect the cable.

Downloaded From camera-usermanual.com Nikon Manuals

E

25

Connecting the Camera to a Printer (Direct Print)

Printing Individual Images

After properly connecting the camera to the printer (

E24), follow the

procedures described below to print an image.

1

Use the multi selector to select the desired image and press the k button.

Rotate the zoom control to f (h) to display 12 thumbnails, and g (i) to switch back to full-frame playback.

Print selection

15/11

2011

NO. 32

32

2

Select Copies and press the k button.

PictBridge

000 prints

Start print

Copies

Paper size

3

Select the desired number of copies (up to nine) and press the k button.

Copies

4

4

Select Paper size and press the k button.

PictBridge

004 prints

Start print

Copies

Paper size

5

Select the desired paper size and press the k button.

To specify paper size using settings on the printer, select Default in the paper size option.

Paper size

Default

3.5×5 in.

5×7 in.

Postcard

100×150 mm

4×6 in.

8×10 in.

E

26

Connecting the Camera to a Printer (Direct Print)

6

Select Start print and press the k button.

PictBridge

004 prints

Start print

Copies

Paper size

7

Printing begins.

Monitor display returns to the screen shown in step 1 when printing is complete.

To cancel printing before all copies have been printed, press the k button.

Printing

002 / 004

Cancel

Current number of copies/ total number of copies

Printing Multiple Images

After properly connecting the camera to the printer (

E24), follow the

procedures described below to print multiple images.

1

When the Print selection screen is displayed, press the d button.

The Print menu screen is displayed.

2

Use the multi selector to select Paper size and press the k button.

To exit the print menu, press the d button.

Print menu

Print selection

Print all images

DPOF printing

Paper size

3

Select the desired paper size and press the k button.

To specify paper size using settings on the printer, select Default in the paper size option.

Downloaded From camera-usermanual.com Nikon Manuals

Paper size

Default

3.5×5 in.

5×7 in.

Postcard

100×150 mm

4×6 in.

8×10 in.

E

27

Connecting the Camera to a Printer (Direct Print)

4

Select Print selection, Print all images, or

DPOF printing and press the k button.

Print menu

Print selection

Print all images

DPOF printing

Paper size

Print selection

Select images (up to 99) and the number of copies (up to nine) of each.

Rotate the multi selector, or press

J or K to select images, and press

H or I to specify the number of copies to be printed.

Print selection

11 11 33

10

Images selected for printing are indicated by the check mark (y) and the numeral

Back indicating the number of copies to be printed.

If no copies have been specified for images, the selection is canceled.

Rotate the zoom control to g (i) to switch back to full-frame playback or f

( h) to display 12 thumbnails.

Press the k button when setting is complete.

When the screen shown on the right is displayed, select Start print and press the k

Print selection button to start printing.

Select Cancel and press the k button to return to the print menu.

010 prints

Start print

Cancel

Print all images

One copy each of all images saved in the internal memory, or on the memory card, is printed.

When the screen shown on the right is displayed, select Start print and press the k button to start print. Select Cancel and press the k button to return to the print menu.

Print all images

018 prints

Start print

Cancel

E

28

Connecting the Camera to a Printer (Direct Print)

DPOF printing

Print images for which a print order was created using the Print order option (

E43).

When the screen shown on the right is displayed, select Start print and press the k button to start printing. Select Cancel and press the k button to return to the print menu.

To view the current print order, select View

images and press the k button. To print images, press the k button again.

DPOF printing

010 prints

Start print

View images

Cancel

View images

10

Back

5

Printing begins.

Monitor display returns to the screen shown in step 2 when printing is complete.

To cancel printing before all copies have been printed, press the k button.

Printing

002 / 010

Cancel

Current number of copies/ total number of copies

C

Paper Size

The camera supports the following paper sizes: Default (the default paper size for the printer connected to the camera), 3.5×5 in., 5×7 in., 100×150 mm, 4×6 in., 8×10 in., Letter, A3, and A4.

Only sizes supported by the printer will be displayed.

Downloaded From camera-usermanual.com Nikon Manuals

E

29

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

See “Changing the Image Size (Image Mode)” (

A 71) for information about

Image mode.

Other than the Continuous (

E35), items share the same settings with A

(auto) mode and continuous shooting mode, and the settings are saved in the camera’s memory even if the camera is turned off.

• Continuous can be selected only when using continuous shooting mode.

White Balance (Adjusting Hue)

Enter A (auto) mode or continuous shooting mode M d button M A or C tab M

White balance

The color of light reflected from an object varies with the color of the light source.

The human brain is able to adapt to changes in the color of the light source, with the result that white objects appear white whether seen in the shade, direct sunlight, or under incandescent lighting. Digital cameras can mimic this adjustment by processing images according to the color of the light source. This is known as “white balance.” For natural colors, select a white balance setting that matches the light source before shooting.

Although the default setting, Auto, can be used under most types of lighting, the white balance setting suited to a particular light source can be specified manually to achieve more accurate results.

Option a Auto

(default setting) b Preset manual c Daylight d Incandescent e Fluorescent f Cloudy g Flash

Description

White balance is automatically adjusted to suit lighting conditions.

Best choice in most situations.

Useful when shooting under unusual lighting. See “Using Preset

Manual” for more information (

E32).

White balance adjusted for direct sunlight.

Use under incandescent lighting.

Use under fluorescent lighting.

Use when taking pictures under overcast skies.

Use with the flash.

The current white balance setting is indicated by an icon when shooting (

A 6).

No icon is displayed when Auto is selected.

E

30

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

B

Notes About White Balance

When hue is adjusted using the creative slider (

A 67), this feature cannot be set.

Some settings cannot be used with other functions (

A 73).

At white-balance settings other than Auto or Flash, turn the flash off (W) (

A 56).

Downloaded From camera-usermanual.com Nikon Manuals

E

31

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Using Preset Manual

Preset manual is used with mixed lighting or to compensate for light sources with a strong color cast when the desired effect has not been achieved with white balance settings like Auto and Incandescent (for example, to make images shot under a lamp with a red shade look as though they had been shot under white light).

Use the procedure below to measure the white balance value under the lighting used during shooting.

1

Place a white or gray reference object under the lighting that will be used during shooting.

2

Display the shooting menu (A 11, 37), use

the multi selector to select b Preset manual in the White balance menu, and press the k button.

The camera zooms in to the position for measuring white balance.

White balance

Preset manual

3

Select Measure.

To apply the most recently measured white balance value, select Cancel and press the k button. The white balance setting will not be measured again and the most recently measured value will be set.

Preset manual

Cancel

Measure

4

Frame the reference object in the measuring window.

Preset manual

Cancel

Measure

Measuring window

5

Press the k button to measure a value for preset manual.

The shutter is released and the new white-balance value is set. No image is saved.

B

Notes About Preset Manual

A value for flash lighting cannot be measured with Preset manual. When shooting using the flash, set White balance to Auto or Flash.

E

32

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Metering

Enter A (auto) mode or continuous shooting mode M d button M A or C tab M

Metering

The process of measuring the brightness of the subject to determine exposure is known as metering.

Select how the camera meters exposure.

Option

G Matrix

(default setting) q Center-weighted

Description

Uses a wide area of the screen for metering. This metering mode provides the appropriate exposure for a variety of shooting conditions. Recommended in most situations.

The camera meters the entire frame but assigns greatest weight to the subject in the center of the frame. Classic meter for portraits; preserves background details while letting lighting conditions in the center of the frame determine exposure. Can

be used with focus lock (

A 78) to meter off-center subjects.

B

Notes About Metering

While digital zoom is in effect, metering is set to center-weighted metering. The active metering area is not displayed.

C

Metering Area

The active metering area is displayed in the monitor when Center-weighted is selected for

Metering.

Active metering area

Downloaded From camera-usermanual.com Nikon Manuals

E

33

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

ISO Sensitivity

Enter A (auto) mode or continuous shooting mode M d button M A or C tab M

ISO sensitivity

When ISO sensitivity is increased, less light is needed when taking pictures.

Higher ISO sensitivity allows darker subjects to be captured. Additionally, even with subjects of similar brightness, pictures can be taken at faster shutter speeds, and blurring caused by camera shake and subject movement can be reduced.

Although higher ISO sensitivity is effective when shooting darker subjects, when

shooting without the flash, when shooting with the camera zoomed in, etc., images may contain noise.

Option

Auto

(default setting)

Fixed range auto

Description

Sensitivity is ISO 100 when there is sufficient lighting; the camera compensates by raising sensitivity to a maximum of ISO 1600 when lighting is dim.

Select the range in which the camera automatically adjusts ISO sensitivity; ISO 100-400 and ISO 100-800 are available. The camera will not increase sensitivity beyond the maximum value in the selected range. Set the maximum value for ISO sensitivity for effective control over the amount of grain that appears in images.

100, 200, 400, 800,

1600, 3200

ISO sensitivity is locked at the specified value.

The current ISO sensitivity setting is indicated by an icon when shooting (

A 6).

When Auto is selected, the E icon is not displayed at ISO 100, but is displayed

if the ISO sensitivity automatically increases to more than 100.

When Fixed range auto is selected, U and the maximum value for ISO

sensitivity are displayed.

B

Notes About ISO Sensitivity

Some settings cannot be used with other functions (

A 73).

When ISO sensitivity is fixed, Motion detection (

E68) is disabled.

E

34

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Continuous Shooting

Enter shooting mode M d button M C tab M Continuous

Select the desired continuous shooting option (only when using continuous shooting mode).

Option

V Continuous

(default setting) q Pre-shooting cache

Description

While the shutter-release button is held all the way down, images are captured continuously at a rate of about 6 fps

(when image mode is set to P 4608×3456). Shooting ends when the shutter-release button is released, or 5 images have been captured.

Pre-shooting cache makes it easy to capture perfect moments, by saving images from before the shutter-release button was pressed all the way. Pre-shooting cache shooting begins when the shutter-release button is pressed halfway, and shooting continues when the shutter-release button is

pressed all the way (

E36).

Frame rate: up to 15 fps

Number of frames:

Up to 20 frames (including up to 5 frames captured in the pre-shooting cache)

Shooting ends when the shutter-release button is released or when the maximum number of frames has been shot.

Image mode is fixed at M.

n Continuous H: 120 fps j Continuous H: 60 fps j BSS (best shot selector)

Each time the shutter-release button is pressed all the way,

60 frames are captured at a speed of about 1/125 s or faster.

Image mode is fixed at O.

Each time the shutter-release button is pressed all the way,

60 frames are captured at a speed of about 1/60 s or faster.

Image mode is fixed at M (image size: 1280 × 960 pixels).

The “best shot selector” is recommended when shooting with the flash off or the camera zoomed in, or in other situations in which inadvertent motion can result in blurred images. The camera captures a series of up to 10 images while the shutter-release button is held all the way down, and the sharpest image in the series is automatically selected and saved.

Best suited to shooting subjects that are not moving.

When shooting moving subjects or when the composition of the picture changes while shooting, the desired results may not be achieved.

Downloaded From camera-usermanual.com Nikon Manuals

E

35

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Option

W Multi-shot 16

Description

Each time the shutter-release button is pressed, the camera takes 16 shots at a rate of about 30 fps and arranges them in a single image.

Image mode is fixed at L (image size: 2560 × 1920 pixels).

Digital zoom cannot be used.

The current continuous shooting setting is indicated by an icon when shooting

(

A 6).

C

Pre-shooting Cache

When Pre-shooting cache is selected, shooting begins when the shutter-release button is pressed halfway for 0.5 seconds or longer, and images captured before the shutter-release button is pressed all the way are saved along with images captured after the shutter-release button is pressed all the way. Up to 5 images can be saved in the pre-shooting cache.

The current pre-shooting cache setting is indicated by an icon when shooting (

A 6). No icon is

displayed when the pre-shooting cache is not set. The pre-shooting cache icon lights in green while the shutter-release button is pressed halfway.

Press down halfway Press down fully

Images saved by pressing halfway

Images saved by pressing all the way

If the number of exposures remaining is less than 6, shooting with the pre-shooting cache is not possible. Before shooting, check that there are 6 or more exposures remaining.

E

36

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

AF Area Mode

Enter A (auto) mode or continuous shooting mode M d button M A or C tab M

AF area mode

Use this option to determine how the camera selects the focus area for autofocus.

Option a Face priority w Auto

Description

When the camera detects a human face, it focuses on that face. See

“Using Face Detection” (

A 76) for

more information. If more than one face is detected, the camera focuses on the face closest to the camera.

When taking pictures of subjects other than people, or framing a subject with which no face is

Focus area detected, the AF area mode setting switches to Auto, and the camera will automatically select the focus area (up to nine areas) containing the subject closest to the camera.

The camera has nine focus areas, and automatically selects the focus areas containing the subject closest to the camera. Press the shutter-release button halfway to activate the focus area. When the shutter-release button is pressed halfway, the focus areas that are in focus (up to nine areas) selected by the camera will be displayed in the monitor.

Focus areas

Downloaded From camera-usermanual.com Nikon Manuals

E

37

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Option x Manual

Description

Select one of 99 focus areas in the monitor. This option is suited to situations in which the intended subject is relatively still and not positioned in the center of the frame.

Rotate the multi selector or press

H,

I, J, or K to move the focus area to where the subject is, and take a

Selectable focus area picture.

To change settings for any of the

Focus area following functions, first press the k button to cancel focus-area selection, then change the settings as desired.

- Flash mode, macro mode, self-timer

- Brightness (exposure compensation), vividness, hue

To return to the focus area selection screen, press the k button again.

The camera focuses on the subject in the center of the frame.

The focus area is always displayed in the center of the screen.

y Center

Focus area s Subject tracking

By registering a subject, the focus area will automatically move to track

and focus on the subject. See “Using

Subject Tracking” for more

information (

E40).

E

38

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Option

M Target finding AF

(default setting)

Description

When the camera detects the main subject, it focuses on that subject.

Press the shutter-release button halfway to activate the focus area.

When the shutter-release button is pressed halfway, focus areas that suit the size of the subject are displayed in the monitor (up to 12 areas).

When the main subject cannot be

AF area detected, the AF area mode setting switches to Auto, and the camera selects the focus areas (up to nine areas) containing the subject closest to the camera.

B

Notes About AF Area Mode

When digital zoom is in effect, focus will be on the center of the screen regardless of the AF area

mode setting.

Some settings cannot be used with other functions (

A 73).

Autofocus may not perform as expected. See “Autofocus” (

A 29) for more information.

If the camera does not focus on the desired subject when using a feature that selects and focuses on the subject, such as target finding, set AF area mode to Manual or Center and align the

focus area with the desired subject. You may also try using focus lock (

A 78).

B

Notes About Target Finding AF

Depending on shooting conditions, the subject that the camera determines to be the main subject may vary.

The camera cannot detect the main subject in the following situations:

The focus area will be the same as when AF area mode is set to Auto.

- When vividness or hue is adjusted using the creative slider

- White balance is set to any setting other than Auto

The camera may not detect the main subject appropriately in the following situations:

- When the image shown in the monitor is very dark or bright

- When the main subject lacks clearly defined colors

- When the shot is framed such that the main subject is on the edge of the monitor

- When the main subject is composed of a repeating pattern

Downloaded From camera-usermanual.com Nikon Manuals

E

39

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Using Subject Tracking

Use this mode to take pictures of moving subjects. When you register a subject, subject tracking begins and the focus area automatically follows the subject.

1

Press the d button in A (auto) mode or continuous shooting mode.

The shooting menu or continuous shooting menu is displayed.

2

Use the multi selector to select Subject

tracking in the AF area mode option and press the k button.

See “AF Area Mode” (

E37) for more information.

Press the d button after changing the settings and return to the shooting screen.

3

Register a subject.

Align the white border in the center of the monitor with the subject that you want to register and press the k button.

- The subject is registered.

- When the camera is unable to focus on the subject, the border will glow red. Change the composition and try registering the subject again.

When the subject is registered, a yellow double border

(focus area) is displayed around that subject.

To cancel subject registration, press the k button.

If the camera cannot track the registered subject anymore, the focus area will disappear and the registration will be canceled. Register the subject again.

Shooting menu

Image mode

White balance

Metering

ISO sensitivity

AF area mode

Autofocus mode

E

40

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

4

Press the shutter-release button the rest of the way down to take a picture.

The camera focuses on the focus area when the shutter-release button is pressed halfway. The focus area will glow green and focus will be locked.

If the shutter-release button is pressed halfway while the focus area is not displayed, the camera focuses on the subject in the center of the frame.

B

Notes About Subject Tracking

Digital zoom cannot be used.

Adjust zoom position, flash mode, creative slider, and menu settings prior to registering the subject. If any camera setting is changed after the subject has been registered, subject registration will be canceled.

The camera may not be able to register or track the subject, or a different subject may be tracked, depending on shooting conditions such as if the subject is moving fast, if there is camera shake, and if there are similar looking subjects in the frame. The camera’s ability to accurately track the registered subject is also dependent upon the size and brightness of the subject.

When using autofocus and shooting subjects that are difficult to focus on (

A 29), the subject

may not be in focus even though the focus area glows green. If the subject is not in focus, change

AF area mode (

E37) to Manual or Center in A (auto) mode, and try focus lock shooting

(

A 78) by focusing on another subject that is the same distance from the camera.

Some settings cannot be used with other functions (

A 73).

Downloaded From camera-usermanual.com Nikon Manuals

E

41

The Shooting Menu (for A (Auto) Mode, Continuous Shooting Mode)

Autofocus Mode

Enter A (auto) mode or continuous shooting mode M d button M A or C tab M

Autofocus mode

Select how the camera focuses.

Option

A Single AF

(default setting)

B Full-time AF

Description

The camera focuses when the shutter-release button is pressed halfway.

The camera focuses continuously until the shutter-release button is pressed down halfway. Use with moving subjects. The sound of lens drive movement will be heard while the camera focuses.

B

Notes About Autofocus Mode

Some settings cannot be used with other functions (

A 73).

C

Autofocus Mode for Movie Recording

Autofocus mode for movie recording can be set with Autofocus mode (

E59) in the movie menu.

E

42

The Playback Menu

For information about the following image editing features, see “Editing Still

Images” (

E10):

- Quick retouch

- Skin softening

- Small picture

- D-Lighting

- Filter effects

a Print Order (Creating a DPOF Print Order)

Press the c button (playback mode) M d button M c tab M a Print order

When printing images saved on the memory card using any of the following methods, the Print order option in the playback menu is used to create digital

“print orders” for printing on DPOF-compatible devices.

Inserting the memory card into a DPOF-compatible (

F19) printer’s card slot.

Taking the memory card to a digital photo lab.

Connecting the camera to a PictBridge-compatible (

F19) printer (E23). A

print order can also be created for images saved in the internal memory if the memory card is removed from the camera.

1

Select Select images and press the k button.

Print order

Select images

Delete print order

2

Select images (up to 99) and the number of copies (up to nine) of each.

Rotate the multi selector, or press

J or K to select images, and press

H or I to specify the number of copies to be printed.

Print selection

11 11 33

Images selected for printing are indicated by the check mark icon and the numeral indicating the number of

Back copies to be printed. If no copies have been specified for images, the selection is canceled.

Rotate the zoom control to g (i) to switch to full-frame playback. Rotate the zoom control to f (h) to switch back to 12-thumbnail display.

Press the k button when setting is complete.

Downloaded From camera-usermanual.com Nikon Manuals

E

43

The Playback Menu

3

Select whether or not to print shooting date and shooting information.

Select Date and press the k button to print the shooting date on all images.

Select Info and press the k button to print shooting information (shutter speed and aperture value) on all images.

Select Done and press the k button to apply the settings.

Print order

Done

Date

Info

Images selected for printing are indicated by the w icon during playback.

15/11/2011 15:30

0004. JPG

B

Notes About Printing Shooting Date and Shooting Information

When the Date and Info settings are enabled in the print order option, shooting date and shooting information are printed on images when a DPOF-compatible (

F19) printer that supports printing

of shooting date and shooting information is used.

Shooting information cannot be printed when the camera is connected directly to a printer, via the included USB cable, for DPOF printing (

E29).

Note that Date and Info settings are reset each time the Print order option is displayed.

The date printed is that saved when the image was captured.

Changing the camera’s date using the Date and time or Time

zone in the Time zone and date option in the setup menu after an image has been captured has no effect on the date printed on the image.

C

Canceling Existing Print Order

Select Delete print order in step 1 of “a Print Order (Creating a DPOF Print Order)” (

E43) and

press the k button to remove print marking from all images and cancel the print order.

E

44

The Playback Menu

C

Print Date

When shooting date and time are imprinted on images using the Print date option (

E66) in the

setup menu, images are saved with shooting date and time imprinted on the image when they are captured. Images with the date imprinted on them can be printed from printers that do not support printing of the date on images.

If the Print date option is used to imprint the shooting date on images, the Date selection option of the Print order function has no effect.

Downloaded From camera-usermanual.com Nikon Manuals

E

45

The Playback Menu

b Slide Show

Press the c button (playback mode) M d button M c tab M b Slide show

Play back images, saved in the internal memory or on a memory card, one by one in an automated “slide show.”

1

Use the multi selector to select Start and press the k button.

Slide show

To change the interval between images, select Frame

intvl, select the desired interval time, and press the k button before selecting Start.

To repeat the slide show automatically, select Loop and press the k button before selecting Start. The

Start

Frame intvl

Loop check mark (w) will be added to the loop option when enabled.

Pause

2

The slide show begins.

While the slide show is in progress, press the multi selector

K to display the next image or J to display the previous image. Hold down either button to fast forward or rewind.

To end or pause the slide show, press the k button.

3s

3

End the slide show or restart it.

The screen shown on the right is displayed when the slide show has ended or is paused. Select G and press the k button to return to the screen displayed in step 1. Select F to play the slide show again.

B

Notes About Slide Show

Only the first frame of movies included in a slide show is displayed.

For sequences (

E7) whose sequence display options are set to Key picture only, only the key

picture is displayed.

Images captured using easy panorama (

A 49, E2) are displayed full-frame when played in a

slide show. They do not scroll.

The maximum playback time is up to 30 minutes even if Loop is enabled (

E72).

E

46

The Playback Menu

d Protect

Press the c button (playback mode) M d button M c tab M d Protect

Protect selected images from accidental deletion.

Select images to protect or cancel protection for previously protected images from the image selection screen.

See “The Image Selection Screen” (

E48) for more information.

Note that formatting the camera’s internal memory or the memory card will permanently delete protected images (

E73).

Protected images are indicated by the s icon during playback (

A 8).

Downloaded From camera-usermanual.com Nikon Manuals

E

47

The Playback Menu

The Image Selection Screen

When using one of the following features, a screen like that shown on the right is displayed when selecting images.

Print order > Select images (

E43)

Protect (

E47)

Rotate image (

E49)

Copy > Selected images (

E52)

Choose key picture (

E54)

Welcome screen > Select an image (

E60)

Delete image > Erase selected images (

A 32)

Protect

Follow the procedures described below to select the images.

Back

ON/OFF

1

Rotate the multi selector, or press J or K to select the desired image.

Rotate the zoom control (

A 2) to g (i) to switch to

full-frame playback or f (h) to switch back to 12thumbnail display.

Only one image can be selected for Rotate image,

Choose key picture, and Welcome screen. Proceed to step 3.

2

Press H or I to select or deselect (or to specify the number of copies).

When an image is selected, a check mark (y) is displayed with the image. Repeat steps 1 and 2 to select additional images.

Protect

Back

Protect

ON/OFF

Back ON/OFF

3

Press the k button to apply image selection.

When Selected images is selected, a confirmation dialog is displayed. Follow the instructions displayed in the monitor.

E

48

The Playback Menu

f Rotate Image

Press the c button (playback mode) M d button M c tab M f Rotate image

Specify the orientation in which saved images are displayed during playback. Still images can be rotated 90 degrees clockwise or 90 degrees counterclockwise.

Images that were saved in portrait (“tall”) orientation can be rotated up to 180 degrees in either direction.

Select an image from the image selection screen (

E48). When the Rotate image

screen is displayed, rotate the multi selector or press

J or K to rotate the image

90 degrees.

Rotate image Rotate image Rotate image

Back Rotate

Rotate 90 degrees counterclockwise

Back Rotate Back Rotate

Rotate 90 degrees clockwise

Press the k button to finalize display orientation, and save orientation information with the image.

B

Notes About Image Rotation

The camera cannot rotate images captured with another make or model of digital camera.

While only the key picture of a sequence is displayed, images cannot be rotated. Apply the setting after displaying individual images (

E7, E54).

Downloaded From camera-usermanual.com Nikon Manuals

E

49

The Playback Menu

E Voice Memo

Press the c button (playback mode) M select an image M d button M c tab M

E Voice memo

Use the camera’s microphone to record voice memos for images.

For an image that has no voice memo, the voice memo recording screen is

displayed; for an image that has a voice memo (i.e., an image indicated by p in full-frame playback mode), the voice memo playback screen is displayed.

Recording Voice Memos

Press and hold the

k button to record a voice memo (up to 20 seconds).

Do not touch the microphone during recording.

During recording, o and p blink in the monitor.

When recording ends, the voice memo playback

screen is displayed. See “Playing Voice Memos” for

more information.

Press the multi selector

J before or after recording a voice memo to return to the playback menu. Press the d button to exit the playback menu.

Playing Voice Memos

Press the

k button to play the voice memo.

Press the

k button again to stop playback.

Rotate the zoom control to

g or f during playback to adjust playback volume.

Press the multi selector

J before or after playing a voice memo to return to the playback menu. Press the d button to exit the playback menu.

E

50

The Playback Menu

Deleting Voice Memos

Press the l button while the screen described in

“Playing Voice Memos” is displayed.

When the confirmation dialog is displayed, select Yes and press the k button. Only the voice memo will be deleted.

File will be deleted. OK?

Yes

No

B

Notes About Voice Memos

When an image with a voice memo attached is deleted, both the image and its voice memo are deleted.

You cannot delete voice memos attached to protected images (

E47).

Voice memos cannot be recorded for an image that already has a voice memo attached to it. The current voice memo must be deleted before a new voice memo can be recorded.

Voice memos cannot be attached to pictures recorded with easy panorama.

This camera cannot record voice memos for images captured with another make or model of digital camera.

C

More Information

See “File and Folder Names” (

E84) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

E

51

The Playback Menu

h Copy (Copy Between Internal Memory and Memory Card)

Press the c button (playback mode) M d button M c tab M h Copy

Copy images between the internal memory and a memory card.

1

Use the multi selector to select a copy destination and press the k button.

q: Copy images from internal memory to memory card.

r: Copy images from memory card to internal memory.

Copy

2

Select a copy option and press the k button.

• Selected images: Copy images selected from the image selection screen (

E48). If a sequence for which

only a key picture is displayed is selected (

E7), all

images in the displayed sequence are copied.

Camera to card

Selected images

All images

• All images: Copy all images. If an image in a sequence is selected, this option is not displayed.

• Current sequence: This option is available only if an image that is in a sequence group was selected before the playback menu was displayed. All images in the current sequence are copied.

E

52

The Playback Menu

B

Notes About Copying Images

JPEG-, MOV-, and WAV-format files can be copied. Files saved in any other format cannot be copied.

If voice memo (

E50) are attached to images selected for copying, voice memos are copied with

the images.

Operation is not guaranteed with images captured with another make of camera or that have been modified on a computer.

When copying images for which Print order (

E43) options are enabled, the print order settings

are not copied. However, when copying images for which Protect (

E47) is enabled, the protect

setting is copied.

If you copy images that are in a sequence, the copied images are not part of a sequence.

If Sequence display options (

E54) is set to Key picture only and an image in the sequence is

selected and the

k button is pressed to display individual images (E7), only r (memory

card to internal memory) image copy is available.

C

If “Memory contains no images.” Is Displayed

If there are no images saved on a memory card inserted in the camera when playback mode is applied, the message Memory contains no images. will be displayed. Press the d button to display the copy options screen, and copy the images saved in the camera’s internal memory to the memory card.

C

More Information

See “File and Folder Names” (

E84) for more information.

Downloaded From camera-usermanual.com Nikon Manuals

E

53

The Playback Menu

C Sequence Display Options

Press the c button (playback mode) M d button M c tab M

C Sequence display options

Select the method used to display a series of images shot continuously (sequence;

E7) when viewing them in full-frame playback mode (A 30) and in thumbnail

playback mode (

A 31).

Settings are applied to all sequences, and the setting is saved in the camera’s memory even if the camera is turned off.

Option

Individual pictures

Key picture only

(default setting)

Description

Set all images in all sequences to be displayed individually.

Set all sequences to be displayed using their key pictures only.

N Choose Key Picture

Press the c button (playback mode) M d button M c tab M N Choose key picture

When Sequence display options is set to Key picture only, the key picture

displayed in full-frame playback mode (

A 30) and thumbnail playback mode

(

A 31) can be set for each sequence of images.

When changing this setting, before pressing

d, first select the desired sequence using full-frame playback mode or thumbnail playback mode.

When the key picture selection screen is displayed, select an image. See “The

Image Selection Screen” (

E48) for more information.

E

54

The Movie Menu

Movie Options

Enter shooting mode M d button M D tab M Movie options

Select the desired movie option to record.

In addition to normal speed movies, the camera can also record high speed (HS) movies (

E57), which can be played back in slow motion or fast motion.

Larger image sizes and faster movie bitrates mean higher image quality and larger movie file sizes.

Normal Speed Movies

Option d HD 1080pP

(1920×1080)

(default setting) e HD 1080p

(1920×1080) f HD 720p

(1280×720) p iFrame 540

(960×540) g VGA (640×480)

Description

Movies with an aspect ratio of 16:9 are recorded. This option is suited to playback on a wide screen TV.

Movie bitrate: 18.8 Mbps

Frame rate: About 30 frames per second

Movies with an aspect ratio of 16:9 are recorded. This option is suited to playback on a wide screen TV.

Movie bitrate: 12.6 Mbps

Frame rate: About 30 frames per second

Movies with an aspect ratio of 16:9 are recorded.

Movie bitrate: 8.4 Mbps

Frame rate: About 30 frames per second

Movies with an aspect ratio of 16:9 are recorded. A format supported by Apple Inc.

Movie bitrate: 20.8 Mbps

Frame rate: About 30 frames per second

When recording movies to the internal memory, recording may stop unexpectedly in some shooting conditions. When recording movies of important events, recording to a memory card (Speed

Class 6 or higher) is recommended.

Movies with an aspect ratio of 4:3 are recorded.

Movie bitrate: 2.9 Mbps

Frame rate: About 30 frames per second

Downloaded From camera-usermanual.com Nikon Manuals

E

55

The Movie Menu

HS Movie

Option h HS 120 fps

(640×480) i HS 60 fps

(1280×720) j HS 15 fps

(1920×1080)

Description

1/4-speed slow motion movies with a 4:3 aspect ratio are recorded.

Max. recording time: 7 minutes and 15 seconds (playback time:

29 minutes)

Movie bitrate: 2.8 Mbps

Frame rate: About 120 frames per second

When the shooting mode is set to special effects (

A 53), the

Soft effect is not applied to movies. Only the hue of the

Nostalgic sepia effect is applied.

1/2-speed slow motion movies with a 16:9 aspect ratio are recorded.

Max. recording time: 14 minutes and 30 seconds (playback time:

29 minutes)

Movie bitrate: 8.3 Mbps

Frame rate: About 60 frames per second

2× speed fast motion movies with a 16:9 aspect ratio are recorded.

Max. recording time: 29 minutes (playback time: 14 minutes and

30 seconds)

Movie bitrate: 18.6 Mbps

Frame rate: About 15 frames per second

The movie bitrate is the volume of movie data recorded per second. Variable

bitrate (VBR) encoding is used to automatically adjust the bitrate depending on the subject being recorded. When recording movies of subjects with large amounts of motion, the file size increases.

See “Movie Options and Maximum Movie Length” (

A 90) for information

about recording time.

C

More Information

See “File and Folder Names” (

E84) for more information.

E

56

The Movie Menu

Recording Movies in Slow Motion and Fast Motion (HS Movie)

HS (high speed) movies can be recorded. Movies can be played back in slow motion at 1/4 or 1/2 of normal playback speed, or played back in fast motion at a speed two times faster than normal speed.

See “HS Movie” (

E58) for more information.

1

Display the movie menu (E55), use the

multi selector to select Movie options, and then press the k button.

Movie

Movie options

Autofocus mode

2

Confirm or change HS movie settings, and then press the k button.

See “Movie Options” (

E55) for more information.

Press the d button after changing the settings and return to the shooting screen.

Movie options

HD 1080p (1920×1080)

HD 1080p (1920×1080)

HD 720p (1280×720) iFrame 540 (960×540)

VGA (640×480)

HS 120 fps (640×480)

HS 60 fps (1280×720)

3

Press the b (e movie-record) button to start recording.

Movie recording begins after the monitor briefly turns off.

The camera focuses in the center of the frame. Focus areas are not displayed during recording.

The maximum movie length display indicates the maximum HS movie length.

4

Press the b (e movie-record) button to end recording.

HS movie options

Downloaded From camera-usermanual.com Nikon Manuals

E

57

The Movie Menu

B

Notes About HS Movie

Sound is not recorded.

When recording HS movies, zoom position, focus, exposure, and white balance are locked when the b (e movie-record) button is pressed to start recording.

C

HS Movie

Recorded movies are played back at about 30 frames per second.

When Movie options (

E55) is set to HS 120 fps (640×480) or HS 60 fps (1280×720), you can

record movies that can be played back in slow motion. When set to HS 15 fps (1920×1080), movies that can be played back in fast motion at a speed two times faster than normal speed can be recorded.

When HS 120 fps (640×480) is selected:

Movies are captured for up to 7 minutes and 15 seconds at high speed, and are played back in slow motion at a speed four times slower than normal speed.

Recording

10 s

Playback 40 s

Slow motion playback

(no sound)

When HS 15 fps (1920×1080) is selected:

A movie of up to 29 minutes in length is recorded when shooting for the purpose of high-speed playback. Movies are played back two times faster than normal speed.

Recording

2 min

Playback 1 min

Fast motion playback

(no sound)

E

58

The Movie Menu

Autofocus Mode

Enter shooting mode M d button M D tab M Autofocus mode

Select the autofocus method used when recording normal speed movies.

Option

A Single AF

(default setting)

B Full-time AF

Description

Focus is locked when the b (e movie-record) button is pressed to start recording.

Select this option when the distance between the camera and the subject will remain fairly consistent.

Camera focuses continuously.

Select this option when the distance between the camera and subject will change significantly during recording. The sound of the camera focusing may be heard in the recorded movie.

Use of Single AF is recommended to prevent the sound of the camera focusing from interfering with recording.

Downloaded From camera-usermanual.com Nikon Manuals

E

59

The Setup Menu

Welcome Screen

d button M z tab M Welcome screen

Select whether or not a welcome screen is displayed when the camera is turned on.

Option

None (default setting)

COOLPIX

Select an image

Description

The camera enters shooting or playback mode without displaying the welcome screen.

The camera displays a welcome screen and enters shooting or playback mode.

Displays an image selected for the welcome screen. When the

image selection screen is displayed, select an image (

E48) and

press the k button.

As the selected image is saved by the camera, it will be displayed when the camera is turned on even if the original image is deleted.

Images captured at an Image mode (

A 71) setting of

l 4608×2592, images captured with easy panorama, and copies created at a size of 320 × 240 or smaller using the small

picture (

E18) or crop (E19) function cannot be selected.

E

60

The Setup Menu

Time Zone and Date

d button M z tab M Time zone and date

Set the camera clock.

Option

Date and time

Date format

Time zone

Description

Set camera clock to current date and time.

Use the multi selector to set the date and time in the date screen.

Select an item: Press

K or J to change between D, M, Y, hour, and minute.

Edit the highlighted item: Rotate the multi selector or press

H or I.

Apply the setting: Select the minute setting and press the k button.

Date and time

D

01

00

M

01

00

Y

2011

Edit

The available date formats are Year/Month/Day, Month/Day/Year, and Day/Month/Year.

w Home time zone can be specified and daylight saving time can be enabled or disabled. When the travel destination (x) is selected, local

time (

E63) is automatically calculated and images are saved with the

shooting date and time of the selected region. This can be useful when travelling.

Selecting the Travel Destination Time Zone

1

Use the multi selector to select Time zone and press the k button.

The Time zone screen is displayed.

Time zone and date

1 5 / 1 1 / 2 0 1 1 1 5 : 3 0

L o n d o n , C a s a b l a n c a

Date and time

Date format

Time zone

2

Select x Travel destination and press the k button.

The date and time displayed in the monitor changes according to the region currently selected.

Time zone

L o n d o n , C a s a b l a n c a

1 5 / 1 1 / 2 0 1 1 1 5 : 3 0

Home time zone

Travel destination

Downloaded From camera-usermanual.com Nikon Manuals

E

61

The Setup Menu

3

Press K.

The travel destination screen is displayed.

Time zone

L o n d o n , C a s a b l a n c a

1 5 / 1 1 / 2 0 1 1 1 5 : 3 0

Home time zone

Travel destination

4

Press J or K to select the travel destination time zone.

If daylight saving time is in effect, press

H to enable daylight saving time function. W is displayed at the top of the monitor and the camera clock is advanced one hour. Press

I to disable the daylight saving time function.

Press the k button to apply the travel destination time zone.

While the travel destination time zone is selected, the

Z icon will be displayed in the monitor when the camera is in shooting mode.

1 1 : 3 0

E D T :

N e w Yo r k

To r o n t o

L i m a

– 0 4 : 0 0

Back

Time zone

E DT: N e w Yo r k

To ro n t o, L i m a

1 5 / 1 1 / 2 0 1 1 1 1 : 3 0

Home time zone

Travel destination

C w Home Time Zone

To switch to the home time zone, select w Home time zone in step 2 and press the k button.

To change the home time zone, select w Home time zone in step 2, and complete steps 3 and 4.

C

Daylight Saving Time

When daylight saving time starts or ends, turn the daylight saving time function on or off from the time zone selection screen displayed in step 4.

C

Imprinting Date on Images

Enable print date from the Print date option (

E66) in the setup menu after the date and time

have been set. When the Print date option is enabled, images will be saved with shooting date imprinted on them.

E

62

The Setup Menu

C

Time Zones

The camera supports the time zones listed below.

For time zones not listed below, set the camera clock to local time from the Date and time option.

UTC +/–

–11

–10

–9

Location

Midway, Samoa

Hawaii, Tahiti

Alaska, Anchorage

UTC +/–

+1

+2

+3

Location

Madrid, Paris, Berlin

Athens, Helsinki, Ankara

Moscow, Nairobi, Riyadh,

Kuwait, Manama

–8

–7

–6

–5

–4.5

–4

–3

–2

–1

±0

PST (PDT): Los Angeles, Seattle,

Vancouver

MST (MDT): Denver, Phoenix

CST (CDT): Chicago, Houston,

Mexico City

EST (EDT): New York, Toronto,

Lima

Caracas

Manaus

Buenos Aires, Sao Paulo

Fernando de Noronha

Azores

London, Casablanca

+4

+5

+5.5

+6

+7

+8

+9

+10

+11

+12

Abu Dhabi, Dubai

Islamabad, Karachi

New Delhi

Colombo, Dhaka

Bangkok, Jakarta

Beijing, Hong Kong, Singapore

Tokyo, Seoul

Sydney, Guam

New Caledonia

Auckland, Fiji

Downloaded From camera-usermanual.com Nikon Manuals

E

63

The Setup Menu

Monitor Settings

d button M z tab M Monitor settings

Set the options below.

Option

Photo info

Brightness

Description

Select information displayed in the monitor during shooting and

playback. See “Photo Info” (

E65) for more information.

Select from five settings for monitor brightness. The default setting is 3.

E

64

The Setup Menu

Photo Info

Select whether or not the photo information is displayed in the monitor.

See “The Monitor” (

A 6) for information about indicators displayed in the monitor.

Shooting mode Playback mode

Show info

Auto info

(default setting)

The same information as in Show info is displayed. If no operations are performed after a few seconds, the display will be the same as Hide info.

The information is displayed again when an operation is performed.

Hide info

1 5 / 1 1 / 2 0 1 1 1 5 : 3 0

0 0 0 4 . J P G

Framing grid+auto info

In addition to information shown with Auto info above, a framing grid is displayed to help frame pictures. It is not displayed when recording movies.

The same information as in Auto

info is displayed.

The same information as in Auto

info is displayed.

Movie frame+auto info

In addition to information shown with Auto info above, a frame is displayed before recording begins that represents the area that will be captured when recording movies. It is not displayed when recording movies.

Downloaded From camera-usermanual.com Nikon Manuals

E

65

The Setup Menu

Print Date (Imprinting Date and Time)

d button M z tab M Print date

The shooting date and time can be imprinted on the images during shooting, allowing the information to be printed even from printers that do not support date printing (

E44).

Option f Date

S Date and time k Off

(default setting)

Description

Date is imprinted on images.

Date and time are imprinted on images.

Date and time are not imprinted on images.

The current print date setting is indicated by an icon when shooting (

A 6). No

icon is displayed when Off is selected.

B

Notes About Print Date

Imprinted dates form a permanent part of image data and cannot be deleted. The date and time cannot be imprinted on images after they have been captured.

The date cannot be imprinted in the following situations:

- When using Panorama scene mode

- When using continuous shooting mode (Pre-shooting cache, Continuous H: 120 fps, or

Continuous H: 60 fps)

- When shooting movies

Dates imprinted at an Image mode setting (

A 71) of O 640×480 may be difficult to read.

Select an Image mode setting of N 1024×768 or higher when using print date.

The date is saved using the format selected in the setup menu’s Time zone and date option

(

A 22, E61).

C

Print Date and Print Order

When printing from DPOF-compatible printers that support the printing of shooting date and shooting information, the date and information can be printed without imprinting this information

on them using settings in the Print order option (

E43).

E

66

The Setup Menu

Vibration Reduction

d button M z tab M Vibration reduction

Reduce the effects of camera shake while shooting. Vibration reduction reduces blur, caused by slight hand movement known as camera shake, which commonly occurs when shooting with zoom applied or at slow shutter speeds. The effects of camera shake are reduced when recording movies, in addition to when taking still pictures.

Set Vibration reduction to Off when shooting still images while using a tripod to stabilize the camera.

Option g On (default setting)

Description

Vibration reduction is enabled.

Camera automatically detects the panning direction and only corrects for vibration due to camera shake. When the camera is panned, for example, vibration reduction reduces only vertical shake. If the camera is tilted, vibration reduction affects only horizontal shake.

Vibration reduction is not enabled.

k Off

The current vibration reduction setting is indicated by an icon when shooting

(

A 6). No icon is displayed when Off is selected.

B

Notes About Vibration Reduction

After turning on the camera or after switching from playback mode to shooting mode, wait for the shooting mode screen to be displayed completely before taking pictures.

Due to characteristics of the vibration reduction function, images displayed in the camera’s monitor immediately after shooting may be displayed blurry.

Vibration reduction may be unable to completely eliminate the effects of camera shake in some situations.

When the Night landscape or Night portrait scene modes are set to Tripod, vibration reduction is turned Off.

Downloaded From camera-usermanual.com Nikon Manuals

E

67

The Setup Menu

Motion Detection

d button M z tab M Motion detection

Enable motion detection to reduce the effects of subject movement and camera shake when shooting still images.

Option

U Auto

(default setting)

Description

When the camera detects subject movement or camera shake, the ISO sensitivity and shutter speed are automatically increased to reduce blurring.

However, motion detection does not function in the following situations.

When the flash mode is set to fill-flash

In A (auto) mode, when ISO sensitivity (

E34) is fixed

In the following scene modes:

- j (night landscape) (

A 41)

-

W (backlighting) (A 42)

- O (pet portrait) (

A 43)

- Landscape (

A 44), Sports (A 45), Night portrait

(

A 45), Fireworks show (A 48), Panorama (when Easy

panorama is selected) (

A 49)

• AF area mode is set to Subject tracking (

E40)

In continuous shooting mode (

A 50)

Motion detection is not enabled.

k Off

The current motion detection setting is indicated by an icon when shooting

(

A 6). When the camera detects camera shake or subject movement, it increases

shutter speed and the motion detection icon turns green. No icon is displayed when Off is selected.

B

Notes About Motion Detection

Motion detection may be unable to completely eliminate the effects of subject movement and camera shake in some situations.

Motion detection may not function if the subject exhibits significant movement or is too dark.

The images captured using motion detection may be somewhat “grainy” in appearance.

E

68

The Setup Menu

AF Assist

d button M z tab M AF assist

Enable or disable AF-assist illuminator, which assists autofocus operation when the subject is dimly lit.

Option

Auto (default setting)

Off

Description

AF-assist illuminator will be used to assist the focus operation when the subject is dimly lit. The illuminator has a range of about 2.2 m (7 ft 3 in.) at the maximum wide-angle position and about 1.4 m (4 ft 7 in.) at the maximum telephoto position.

Note that for some focus areas and for some scene modes, such as Museum (

A 48) and Pet portrait (A 43), the AF-assist

illuminator may not light even when Auto is selected.

AF-assist illuminator does not light. The camera may be unable to focus under dim lighting.

Downloaded From camera-usermanual.com Nikon Manuals

E

69

The Setup Menu

Digital Zoom

d button M z tab M Digital zoom

Enable or disable digital zoom.

Off

Option

On (default setting)

Description

When the camera is zoomed in to the maximum optical zoom position, rotating the zoom control to g (i) triggers digital

zoom (

A 27).

Digital zoom will not be activated.

B

Notes About Digital Zoom

When digital zoom is in effect, the camera focuses in the center of the frame.

Digital zoom cannot be used in the following situations.

- When using smile timer

- When using the scene auto selector, O (pet portrait), Portrait, Night portrait, Panorama

(when Easy panorama is selected) scene modes

- When AF area mode is set to Subject tracking

- When continuous shooting mode is set to Multi-shot 16 or smile timer continuous

While digital zoom is in effect, metering is automatically set to center-weighted metering.

E

70

The Setup Menu

Sound Settings

d button M z tab M Sound settings

Adjust the following sound settings.

Option

Button sound

Shutter sound

Description

Select On (default setting) or Off. When On is selected, a beep will sound once when operations are completed successfully, twice when the camera acquires focus on the subject, and three times when an error is detected. Start-up sound will also play when the camera is turned on.

Select On (default setting) or Off.

The shutter sound is not heard, even if On is selected, when using continuous shooting mode (

A 50), or when recording

movies.

B

Notes About Sound Settings

Button sounds and the shutter sound are not heard when using O (pet portrait).

Downloaded From camera-usermanual.com Nikon Manuals

E

71

The Setup Menu

Auto Off

d button M z tab M Auto off

If no operations are performed for a specified amount of time, the monitor turns

off and the camera enters standby mode (

A 21).

Select the time allowed to elapse before the camera enters standby mode from 30 s,

1 min (default setting), 5 min, and 30 min.

C

When the Monitor Has Turned Off to Save Power

When the camera is in standby mode, the power-on lamp blinks.

If no operations are performed for about three minutes, the camera will turn off automatically.

When the power-on lamp is blinking, the following operations will turn the monitor back on.

- Pressing the power switch, shutter-release button, c button, or b (e movie-record) button

- Rotating the mode dial

C

Auto Off

The time allowed to elapse before the camera enters standby mode is fixed in the following situations:

While menus are displayed: 3 minutes (when auto off is set to 30 s or 1 min)

During slide show playback: Up to 30 minutes

When the AC Adapter EH-62F is connected: 30 minutes

E

72

The Setup Menu

Format Memory/Format Card

d button M z tab M Format memory/Format card

Use this option to format the internal memory or a memory card.

Formatting the internal memory or memory cards permanently deletes all

data. Data that has been deleted cannot be restored. Be sure to transfer

important images to a computer before formatting.

Formatting the Internal Memory

To format the internal memory, remove the memory card from the camera.

The Format memory option is displayed in the setup menu.

Format memory

All images will be deleted! OK?

Format

No

Formatting Memory Cards

When a memory card is inserted in the camera, the

Format card option is displayed in the setup menu.

Format card

All images will be deleted! OK?

Format

No

B

Notes About Formatting Internal Memory and Memory Cards

Do not turn the camera off or open the battery-chamber/memory card slot cover during formatting.

The first time you insert a memory card that has been used in another device into this camera, be sure to format it with this camera.

Downloaded From camera-usermanual.com Nikon Manuals

E

73

The Setup Menu

Language

d button M z tab M Language

Select one of 29 languages for display of camera menus and messages.

Czech

Danish

German

(default setting)

Spanish

Greek

French

Indonesian

Italian

Hungarian

Dutch

Norwegian

Polish

Brazilian Portuguese

European Portuguese

Russian

Romanian

Finnish

Swedish

Vietnamese

Turkish

Ukrainian

Arabic

Simplified Chinese

Traditional Chinese

Japanese

Korean

Thai

Hindi

TV Settings

d button M z tab M TV settings

Adjust settings for connection to a TV.

Option

Video mode Select from NTSC and PAL.

Description

HDMI

Select a resolution for HDMI output from Auto (default setting),

480p, 720p, or 1080i. When Auto is selected, the option best suited to the TV to which the camera is connected is automatically selected from 480p, 720p, or 1080i.

HDMI device control

Select whether or not the camera can receive signals from a TV that supports the HDMI-CEC standard when it is connected to the TV via

HDMI. When On (default setting) is selected, the TV’s remote control

can be used to control the camera during playback. See “Using a TV

Remote Control (HDMI Device Control)” (

E22) for more information.

C

HDMI and HDMI-CEC

HDMI (High-Definition Multimedia Interface) is a multimedia interface. HDMI-CEC (HDMI-Consumer

Electronics Control) allows compatible devices to inter-operate.

E

74

The Setup Menu

Charge by Computer

d button M z tab M Charge by computer

Select whether or not the battery inserted into the camera is charged when the

camera is connected to a computer via the USB cable (

A 81).

Option

Auto (default setting)

Off

Description

When the camera is connected to a computer that is running, the battery inserted into the camera is automatically charged using power supplied by the computer.

The battery inserted into the camera is not charged when the camera is connected to a computer.

B

Notes About Connecting the Camera to a Printer

The battery cannot be charged with connection to a printer, even if the printer complies with the

PictBridge standard.

When Auto is selected for Charge by computer, it may be impossible to print images with direct connection of the camera to some printers. If the PictBridge startup screen is not displayed in the monitor after the camera is connected to a printer and turned on, turn the camera off and disconnect the USB cable. Set Charge by computer to Off and reconnect the camera to the printer.

B

Notes About Charging with Connection to a Computer

The battery cannot be charged, nor can data be transferred, when the camera is connected to a

computer before the camera’s display language and date and time have been set (

A 22). If the

camera’s clock battery (

A 23) has been exhausted, the date and time must be reset before the

battery can be charged or images can be transferred with connection to a computer. In this case,

use the Charging AC Adapter EH-69P (

A 16) to charge the battery and then set the camera’s date

and time.

If the camera is turned off, charging will also stop.

If the computer enters sleep mode while charging, charging will stop and the camera may be turned off.

When disconnecting the camera from the computer, turn the camera off and then disconnect the

USB cable.

It may take longer to charge the battery with connection to a computer than with charging using the Charging AC Adapter EH-69P. Charging time increases when images are transferred while the battery is charging.

When the camera is connected to a computer, an application installed on the computer, such as

Nikon Transfer 2, may start. If the camera was connected to the computer for the sole purpose of charging the battery, exit the application.

The camera turns off automatically if there is no communication with the computer for 30 minutes after the battery has finished charging.

Depending upon computer specifications, settings, and power supply and allocation, it may be impossible to charge the battery using a computer connection while it is inserted into the camera.

Downloaded From camera-usermanual.com Nikon Manuals

E

75

The Setup Menu

C

The Charge Lamp

The following chart explains charge lamp status when the camera is connected to a computer.

Charge lamp

Blinks slowly

(green)

Battery charging.

Description

Off

Flickers (green)

Battery not charging. If the charge lamp changes from slow blinking (green) to off while the power-on lamp is lit, charging is complete.

The ambient temperature is not suited to charging. Charge the battery indoors with an ambient temperature of 5 °C to 35 °C (41 °F to 95 °F).

The USB cable is not connected correctly, or the battery is faulty. Make sure the USB cable is connected correctly and replace the battery if necessary.

The computer is in sleep mode and is not supplying power. Wake up the computer.

The battery cannot be charged because the computer cannot supply power to the camera, due to the computer’s settings or its specifications.

E

76

The Setup Menu

Blink Warning

d button M z tab M Blink warning

Specify whether or not the camera detects human subjects that have blinked using face detection (

A 76) when shooting in the following modes.

A (auto) mode (when Face priority (

E37) is selected for AF area mode

option)

In the following scene modes:

- Scene auto selector (

A 40)

- Portrait (

A 44)

- Night portrait (when Tripod is selected) (

A 45)

Option

On

Off (default setting)

Description

When the camera detects that one or more human subjects may have blinked in an image captured using face detection, the Did

someone blink? screen is displayed in the monitor.

The face of the human subject that may have closed his/her eyes is framed by a yellow border. Should this occur, check the image and determine whether or not another image should be captured.

See “The Blink Warning Screen” (

E78) for more information.

Blink warning is not enabled.

B

Notes About Blink Warning

Blink warning does not function when using continuous shooting mode or smile timer (

A 61).

Downloaded From camera-usermanual.com Nikon Manuals

E

77

The Setup Menu

The Blink Warning Screen

When the Did someone blink? screen shown on the right is displayed in the monitor, the operations described below are available.

If no operations are performed within a few seconds, the camera automatically returns to shooting mode.

Did someone blink?

Function

Enlarge the detected face that blinked

Switch to full-frame playback mode

Select the face to be displayed

Delete the image

Switch to shooting mode

Control g (i) f (h) l k

Description

Rotate the zoom control to g (i).

Rotate the zoom control to f (h).

If the camera detects that more than one human subject blinked, press

J or K to switch the display to another face.

Press the l button.

Press the k button or shutter-release button.

E

78

The Setup Menu

Filmstrip

d button M z tab M Filmstrip

Allows you to select whether or not filmstrips are displayed when you rotate the multi selector quickly in full-frame playback mode (

A 30).

Option

On

Off (default setting)

Description

Image thumbnails are displayed in the bottom of the monitor when you rotate the multi selector quickly while viewing an image in full-frame playback mode.

You can view thumbnails of previous and subsequent images, and select an image.

While the filmstrip is displayed, you can hide it by pressing the k button.

Disables the filmstrip.

B

Notes About Filmstrip Display

In order to display the filmstrip, at least ten images must be saved in the camera’s internal memory or on the memory card.

Downloaded From camera-usermanual.com Nikon Manuals

E

79

The Setup Menu

Reset All

d button M z tab M Reset all

When Reset is selected, the camera’s settings will be restored to their default values.

Basic Shooting Functions

Option

Flash mode (A 56)

Self-timer (A 59)

Macro mode (A 64)

Creative slider adjustment (A 65)

Exposure compensation (A 67, 68)

Auto

Off

Off

Off

0.0

Default value

Shooting Menu

Option

Image mode (A 71)

White balance (E30)

Metering (E33)

ISO sensitivity (E34)

AF area mode (E37)

Autofocus mode (E42)

Scene Mode

Option

Scene menu (A 39)

Night portrait (A 45)

Hue adjustment in Food mode (A 47)

Panorama (A 49)

Night landscape Menu

Option

Night landscape (A 41)

Default value

P 4608×3456

Auto

Matrix

Auto

Target finding AF

Single AF

Default value

Portrait

Tripod

Center

Easy panorama (Normal (180°))

Hand-held

Default value

E

80

The Setup Menu

Backlighting Menu

Option

HDR (A 42)

Pet portrait Menu

Option

Pet portrait (A 43)

Continuous Shooting Menu

Option

Continuous (A 52)

Special Effects Menu

Option

Special effects (A 53)

Off

Continuous

Continuous

Soft

Default value

Default value

Default value

Default value

Movie Menu

Option

Movie options (E55)

Autofocus mode (E59)

Default value

HD 1080pP (1920×1080)

Single AF

Setup Menu

Option

Welcome screen (E60)

Photo info (E64)

Brightness (E64)

Print date (E66)

Vibration reduction (E67)

Motion detection (E68)

AF assist (E69)

Digital zoom (E70)

Button sound (E71)

Shutter sound (E71)

Auto off (E72)

None

Auto info

3

Off

On

Auto

Auto

On

On

On

1 min

Default value

Downloaded From camera-usermanual.com Nikon Manuals

E

81

The Setup Menu

Option

HDMI (E74)

HDMI device control (E74)

Charge by computer (E75)

Blink warning (E77)

Filmstrip (E79)

Auto

On

Auto

Off

Off

Default value

Others

Option

Paper size (E26, E27)

Default

Default value

Frame interval for Slide show (E46)

3 s

Selecting Reset all also clears the current file number (

E84) from memory.

Numbering will continue from the lowest number available. To reset file numbering to “0001”, delete all images saved in the internal memory or on the memory card (

A 32) before selecting Reset all.

The following menu settings will remain unaffected when menus are reset with

Reset all.

Shooting menu:

Preset manual data (

E32) acquired for White balance

Playback menu:

Sequence display options (

E54), Choose key picture (E54)

Setup menu:

Time zone and date (

E61), Language (E74), Video mode under TV

settings (

E74)

E

82

Firmware Version

d button M z tab M Firmware version

View the current camera firmware version.

The Setup Menu

CO O L P I X S 8200 Ve r. x . x

Back

Downloaded From camera-usermanual.com Nikon Manuals

E

83

File and Folder Names

Images, movies, or voice memos are assigned file names as follows.

D S C N 0 0 0 1 . J P G

Identifier (not shown on camera monitor)

Original still images (voice memo attachment included) and movies

Small copies (voice memo attachment included)

Cropped copies (voice memo attachment included)

Images created by an image editing function other than crop and small picture (voice memo attachment included)

DSCN

SSCN

RSCN

FSCN

Extension (indicates file format)

Still images

Movies

Voice memos

.JPG

.MOV

.WAV

File number (assigned automatically in ascending order, starting with “0001”)

Files are saved in folders named with a folder number followed by an identifier:

“P_” plus a three-digit sequential number for images captured in Panorama

assist scene mode (e.g. “101P_001”;

E5) and “NIKON” for all other images (e.g.

“100NIKON”). When the number of files within a folder reaches 9999, a new folder will be created. File numbers will be assigned automatically starting with

“0001”.

Voice memo file names have the same identifier and file number as the image

to which the voice memo is attached.

Files copied using Copy > Selected images are copied to the current folder,

where they are assigned new file numbers in ascending order starting from the largest file number in memory. Copy > All images copies all folders from the source medium; file names do not change but new folder numbers are assigned in ascending order, starting from the largest folder number on the

destination medium (

E52).

A single folder can hold up to 200 files; if the current folder already contains 200

files, a new folder, named by adding one to the current folder name, will be created the next time an image is captured. If the current folder is numbered

999 and contains 200 files, or an image is numbered 9999, no further images can be captured until the internal memory or memory card is formatted

(

E73), or a new memory card is inserted.

E

84

Optional Accessories

Rechargeable battery Rechargeable Li-ion Battery EN-EL12

1

Charging AC adapter Charging AC Adapter EH-69P

1, 2

Battery charger Battery Charger MH-65

AC Adapter EH-62F (connect as shown)

AC adapter

USB cable

Audio/video cable

Be sure that the power connector cord has been properly aligned in the power connector and battery chamber grooves before closing the battery-chamber/memory card slot cover. If part of the cord runs out of the grooves, the cover or cord may be damaged when the cover is closed.

USB Cable UC-E6

1

Audio Video Cable EG-CP16

1

1

2

Included with the camera at the time of purchase (

A ii).

When using in other countries, use a plug adapter (commercially available) as necessary.

For more information about plug adapters, consult your travel agency.

Downloaded From camera-usermanual.com Nikon Manuals

E

85

Error Messages

Display

O (blinks)

N

Battery exhausted.

Problem

Clock not set.

Battery exhausted.

Solution

Set date and time.

A

E61

Charge or replace the battery.

14, 16

P

Battery temperature high

P

The camera will turn off to prevent overheating.

Q (

● blinks red)

P

Please wait for the camera to finish recording.

u

Memory card is write protected.

P

This card cannot be used.

P

This card cannot be read.

Battery temperature is high.

Memory card or inside of camera has become hot.

Camera cannot focus.

Write-protect switch is in “lock” position.

Error accessing memory card.

Turn off camera, and allow battery to cool down before resuming use. After five seconds, this message will disappear, the monitor will turn off, and the power-on lamp will blink rapidly. After the lamp blinks for three minutes, the camera will turn off automatically. Pressing the power switch also turns off the camera.

The camera turns off automatically. Leave the camera off until the memory card or the inside of the camera has cooled and then turn it on again.

21

Refocus.

Use focus lock.

28, 29

78

Camera cannot perform other operations until saving is complete.

Wait until message clears from display automatically when saving is complete.

Slide write-protect switch to

“write” position.

Use approved card.

Check that terminals are clean.

Confirm that memory card is correctly inserted.

19

18

18

E

86

Error Messages

P

Card is not formatted.

Format card?

Yes

No

Memory card has not been formatted for use in COOLPIX S8200.

u

Out of memory.

P saved.

P saved.

N

Display

Image cannot be

Sound file cannot be

Image cannot be modified.

u

Cannot record movie.

Memory card is full.

Error occurred while saving image.

Camera has run out of file numbers.

Image cannot be used for welcome screen.

Insufficient space to save a copy.

A voice memo cannot be attached to this file.

Cannot edit selected image.

Problem

Time out error while saving movie on the memory card.

Solution

Formatting deletes all data saved on the memory card. Be sure to select No and make copies of any images which need to be kept before formatting the memory card. Select Yes and press the k button to format the memory card.

A

F5

Select smaller image size.

Delete images.

Insert new memory card.

Remove memory card and use internal memory.

71

32, 92

18

19

Format internal memory or memory card.

Insert a new memory card or format internal memory or memory card.

E73

18,

E73

The following images cannot be registered as welcome screen.

Images captured at an

Image mode setting of l 4608×2592

Images captured with easy panorama

Images created using the small picture or crop functions that are 320 × 240 or smaller in size

E60

Delete images from destination.

Voice memos cannot be attached to movies.

Select an image captured with COOLPIX S8200.

Select images that support editing function.

Movies cannot be edited.

32

92

E51

E11

Select memory card with faster write speed.

18

Downloaded From camera-usermanual.com Nikon Manuals

E

87

Error Messages

N images.

Display

Memory contains no

Problem

No images in the internal memory or memory card.

Solution

Remove the memory card from the camera to play back images saved in the camera’s internal memory.

To copy image from internal memory to memory card, press the d button. The copy screen will be displayed and images in the internal memory can be copied to memory card.

18

A

E52

N

File contains no image data.

P

This file cannot be played back.

N

All images are hidden.

N

This image cannot be deleted.

N

Travel destination is in the current time zone.

P

Mode dial is not in the proper position.

File not created with the

COOLPIX S8200.

No images available for a slide show.

Image is protected.

Destination in same time zone as home.

The mode dial is not set to the correct position.

File cannot be viewed on this camera. View file using a computer or the devices used to create or edit this file.

Disable protection.

Rotate the mode dial to select the desired mode.

E46

E47

E63

24

u

Flash is not fully raised.

Flash is being held down by fingers and other objects.

Do not hold down the flash.

26

E

88

Error Messages

Display u

Unable to create panorama.

u

Unable to create panorama. Pan the camera in one direction only.

u

Unable to create panorama. Pan the camera more slowly.

Problem

Could not shoot using easy panorama.

Solution

Shooting with easy panorama may not be possible in the following situations.

When shooting does not end after a certain amount of time

When the camera is moved too fast

When the camera is not moved in a straight line in the panorama direction

A

E2

Lens error

Q

P

Communications error

System error

Q

PR

Printer error: check printer status.

PR

Printer error: check paper

PR

Printer error: paper jam

PR

Printer error: out of paper

Lens error.

Paper has jammed in printer.

No paper is loaded in printer.

Turn camera off and then on again. If error persists, contact retailer or Nikon-authorized service representative.

20

Error occurred during communication with printer.

Turn camera off and reconnect USB cable.

Error has occurred in camera’s internal circuitry.

Printer error.

Specified size of paper is not loaded in printer.

Turn camera off, remove and reinsert battery, and turn camera on. If error persists, contact retailer or Nikonauthorized service representative.

Check printer. After solving the problem, select Resume and press the k button to resume printing.*

Load the specified size of paper, select Resume, and press the k button to resume printing.*

E24

14, 21

Remove the jammed paper, select Resume, and press the k button to resume printing.*

Load the specified size of paper, select Resume, and press the k button to resume printing.*

Downloaded From camera-usermanual.com Nikon Manuals

E

89

Error Messages

PR

Printer error: check ink

PR

Display

Printer error: out of ink

Problem

Ink error.

Solution

Check ink, select Resume, and press the k button to resume printing.*

Running out of ink or ink cartridge is empty.

Replace ink cartridge, select

Resume, and press the k button to resume printing.*

A

PR

Printer error: file corrupt

An error caused by the image file has occurred.

Select Cancel and press the k button to cancel printing.

* See the documentation provided with your printer for further guidance and information.

E

90

Technical Notes and Index

Caring for the Product...............................................

F2

The Camera.............................................................................................................F2

The Battery..............................................................................................................F4

Charging AC Adapter..........................................................................................F5

Memory Cards .......................................................................................................F5

Cleaning and Storage................................................

F6

Cleaning...................................................................................................................F6

Storage .....................................................................................................................F6

Troubleshooting ........................................................

F7

Specifications...........................................................

F15

Supported Standards....................................................................................... F19

Index .........................................................................

F20

Downloaded From camera-usermanual.com Nikon Manuals

F

1

Technical Notes and Index

Caring for the Product

The Camera

To ensure continued enjoyment of this Nikon product, observe the following precautions when using or storing the device.

B

Do Not Drop

The product may malfunction if subjected to strong shock or vibration.

B

Handle the Lens and All Moving Parts with Care

Do not apply force to the lens, lens cover, monitor, memory card slot, or battery chamber. These parts are easily damaged. Applying force to the lens cover could result in camera malfunction or damage to the lens. Should the monitor break, care should be taken to avoid injury caused by broken glass and to prevent the liquid crystal from the display touching the skin or entering the eyes or mouth.

B

Keep Dry

The device will be damaged if immersed in water or subjected to high humidity.

B

Avoid Sudden Changes in Temperature

Sudden changes in temperature, such as when entering or leaving a heated building on a cold day, can cause condensation to form inside the device. To prevent condensation, place the device in a carrying case or a plastic bag before exposing it to sudden changes in temperature.

B

Keep away from Strong Magnetic Fields

Do not use or store this device in the vicinity of equipment that generates strong electromagnetic radiation or magnetic fields. Strong static charge or the magnetic fields produced by equipment such as radio transmitters could interfere with the monitor, damage data saved on the memory card, or affect the product’s internal circuitry.

B

Do Not Point the Lens at Strong Light Sources for Extended Periods

Avoid pointing the lens at the sun or other strong light sources for extended periods when using or storing the camera. Intense light may cause deterioration of the image sensor, producing a white blur effect in photographs.

B

Turn the Product off Before Removing or Disconnecting the Power Source

Do not remove the battery while the product is on, or while images are being saved or deleted.

Forcibly cutting power in these circumstances could result in loss of data or in damage to product memory or internal circuitry.

F

2

Caring for the Product

B

Notes About the Monitor

The monitor may contain a few pixels that are always lit or that do not light. This is a characteristic common to all TFT LCD displays, and does not indicate a malfunction. Images saved using the product will not be affected.

Images in the monitor may be difficult to see under bright lighting.

The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your

Nikon-authorized service representative.

Downloaded From camera-usermanual.com Nikon Manuals

F

3

Caring for the Product

The Battery

Check the battery level before using the camera and replace or charge the battery if necessary. Do not continue charging once the battery is fully charged as this will result in reduced battery performance. Whenever possible, carry a fully charged spare battery when taking pictures on important occasions.

Do not use the battery at ambient temperatures below 0 °C (32 °F) or above 40 °C (104 °F).

Charge the battery indoors with an ambient temperature of 5 °C to 35 °C (41 °F to 95 °F) before use.

When charging the camera using the Charging AC adapter EH-69P or a computer, the charge capacity may decrease at ambient temperatures 45 °C to 60 °C (113 °F to 140 °F).

The battery is not charged at ambient temperatures below 0 °C (32 °F) or above 60 °C (140 °F).

Note that the battery may become hot during use; wait for the battery to cool before charging.

Failure to observe these precautions could damage the battery, impair its performance, or prevent it from charging normally.

On cold days, the capacity of batteries tends to decrease. If an exhausted battery is used at a low temperature, the camera not turn on. Be sure that the battery is fully charged before heading outside to take pictures in cold weather. Keep spare batteries in a warm place and exchange as necessary. Once warmed, a cold battery may recover some of its charge.

Dirt on the battery terminals can prevent the camera from functioning. Should the battery terminals become dirty, wipe them off with a clean, dry cloth before use.

If the battery will not be used for some time, insert it in the camera and run it flat before removing it for storage. The battery should be stored in a cool location with an ambient temperature of 15 to

25 °C (59 to 77 °F). Do not store the battery in hot or extremely cold locations.

Always remove the battery from the camera or optional battery charger when it is not being used.

When inserted, minute amounts of current are drawn from the battery even when not in use. This may result in excessive draining of the battery and complete loss of function. Turning the camera on or off while the battery is exhausted can result in reduced battery life.

Recharge the battery at least once every six months and completely exhaust it before returning it to storage.

After removing the battery from the camera or optional battery charger, replace the included terminal cover and store it in a cool place.

A marked drop in the time a fully-charged battery retains its charge, when used at room temperature, indicates that the battery needs to be replaced. Purchase a new EN-EL12 battery.

Replace the battery when it no longer holds a charge. Used batteries are a valuable resource.

Please recycle used batteries in accordance with local regulations.

F

4

Caring for the Product

Charging AC Adapter

The Charging AC Adapter EH-69P is for use only with compatible devices. Do not use with another make or model of device.

The EH-69P is compatible with AC 100-240 V, 50/60 Hz electrical outlets. When using in other countries, use a plug adapter (commercially available) as necessary. For more information about plug adapters, consult your travel agency.

Do not, under any circumstances, use another make or model of AC adapter other than Charging

AC Adapter EH-69P or USB-AC adapter. Failure to observe this precaution could result in overheating or in damage to the camera.

Memory Cards

Use only Secure Digital memory cards. See “Approved Memory Cards” (

A 19) for recommended

memory cards.

Observe the precautions noted in the documentation included with your memory card.

Do not affix labels or stickers to the memory card.

Do not format the memory card using a computer.

Before using a memory card with this camera, we recommend using this camera to format the memory card, especially if the memory card was used previously in another device.

Note that formatting a memory card permanently deletes all images and other data on the

memory card. If there is data saved on the memory card that you wish to keep, copy that data to a computer before formatting.

If the message Card is not formatted. Format card? is displayed when the camera is turned on, the memory card must be formatted. If there is data on the memory card that you do not want to delete, select No and press the k button. Copy that data to a computer before formatting. To format the memory card, select Yes.

Observe the following precautions while formatting the memory card, saving and deleting images, and copying images to a computer, otherwise data or the memory card itself may be damaged.

- Do not open the battery-chamber/memory card slot cover or remove the memory card or battery.

- Do not turn off the camera

- Do not disconnect the AC adapter

Downloaded From camera-usermanual.com Nikon Manuals

F

5

Cleaning and Storage

Cleaning

Lens

Monitor

Body

Avoid touching glass parts with your fingers. Remove dust or lint with a blower

(typically a small device with a rubber bulb attached to one end that is pumped to produce a stream of air out the other end). To remove fingerprints or other stains that cannot be removed with a blower, wipe the lens with a soft cloth, using a spiral motion that starts at the center of them and working toward the edges. If this fails, clean the lens using a cloth lightly dampened with commercial lens cleaner.

Remove dust or lint with a blower. To remove fingerprints and other stains, clean the monitor with a soft, dry cloth, being careful not to apply pressure.

Use a blower to remove dust, dirt, or sand, then wipe gently with a soft, dry cloth. After using the camera at the beach or other sandy or dusty environment, wipe off any sand, dust, or salt with a dry cloth lightly dampened with fresh water and dry thoroughly. Note that foreign matter inside the

camera could cause damage not covered by the warranty.

Do not use alcohol, thinner, or other volatile chemicals.

Storage

Turn the camera off when not in use. Be sure that the power-on lamp is off before putting the camera away. Remove the battery if the camera will not be used for an extended period. Do not store the camera with naphtha or camphor moth balls, or in any of the following locations:

Next to equipment that produces strong electromagnetic fields, such as

televisions or radios

Exposed to temperatures below –10 °C (14 °F) or above 50 °C (122 °F)

Places that are poorly ventilated or subject to humidity of over 60%

To prevent mold or mildew, take the camera out of storage at least once a month.

Turn the camera on and release the shutter a few times before putting the camera away again.

F

6

Troubleshooting

If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative.

Power, Display, Settings Issues

Problem

The battery inserted in the camera cannot be charged.

Cause/Solution

Confirm all connections.

• Off is selected for Charge by computer in the setup menu.

When charging by connecting the camera to a computer, battery charging stops when the camera is turned off.

When charging by connecting the camera to a computer, battery charging stops when the computer is suspended (sleeping), and the camera may turn off.

Depending upon computer specifications, settings, and status, charging the battery inserted in the camera may not be possible via computer connection.

A

16

96,

E75

96

96

Camera cannot be turned on.

Camera turns off without warning.

Battery is exhausted.

The camera cannot be turned on while connected to an electrical outlet via the

Charging AC Adapter.

Battery is exhausted.

Camera has turned off automatically to save power.

The camera and battery may not perform properly if they are cold.

The camera turns off if the Charging AC Adapter is connected while the camera is on.

The camera turns off if the USB cable connecting it to a computer or printer is disconnected. Reconnect the USB cable.

Inside of the camera has become hot. Leave the camera off until the inside of the camera has cooled, and then try turning it on again.

20

16

20

95

F4

16

81, 84,

E24

Downloaded From camera-usermanual.com Nikon Manuals

F

7

Troubleshooting

Problem

Monitor is blank.

Cause/Solution

Camera is off.

Standby mode for saving power: press the power switch, shutter-release button, c button, or b (e movie-record) button, or rotate the mode dial.

When flash lamp blinks, wait until flash has charged.

Camera and computer are connected via USB cable.

Camera and TV are connected via A/V cable or

HDMI cable.

Adjust monitor brightness.

Monitor is dirty. Clean monitor.

21

A

2, 21

56

81, 84

81,

E21

Monitor is hard to read.

94,

E64

F6

Date and time of recording are not correct.

No indicators displayed in monitor.

If camera clock has not been set, “Date not set” indicator blinks during shooting and movie recording. Images and movies saved before clock is set are dated “00/00/0000 00:00” or “01/

01/2011 00:00” respectively. Set the correct time and date from the Time zone and date option in the setup menu.

Check camera clock regularly against more accurate timepieces and reset as required.

Hide info is selected for Photo info.

Select Show info.

22, 94,

E61

94,

E64

Print date not available.

Date not imprinted on images even when Print

date is enabled.

Camera clock has not been set.

The current shooting mode is one that does not support Print date.

The date cannot be imprinted on movies.

22, 94,

E61

94,

E66

Screen for setting time zone and date is displayed when camera is turned on.

Camera settings reset.

Clock battery is exhausted; all settings were restored to their default values.

Monitor turns off, and the power-on lamp blinks rapidly.

Battery temperature is high. Turn off camera and allow battery to cool down before resuming use.

After the lamp blinks for three minutes, the camera will turn off automatically. Pressing the power switch also turns off the camera.

22, 23

21

F

8

Troubleshooting

Problem

Camera becomes hot.

Cause/Solution

The camera may become hot when shooting movies for an extended period of time or when the camera is used in a hot area; this is not a malfunction.

A

Characteristics of Digital Cameras

In extremely rare instances, unusual characters may appear in the monitor and the camera may stop functioning. In most cases, this phenomenon is caused by a strong external static charge. Turn the camera off, remove and replace the battery, then turn the camera on again. In the event of continued malfunction, contact your retailer or Nikon-authorized service representative. Note that disconnecting the power source as described above may result in the loss of any data not saved to internal memory or the memory card at the time the problem occurred. Data already saved will not be affected.

Downloaded From camera-usermanual.com Nikon Manuals

F

9

Troubleshooting

Shooting Issues

Problem

Cannot switch to shooting mode.

No image captured when the shutter-release button is pressed.

Cause/Solution

Disconnect HDMI cable or USB cable.

A

81, 84,

E21,

E24

When camera is in playback mode, press the c button or shutter-release button.

When menus are displayed, press the d button.

Battery is exhausted.

When flash lamp blinks, flash is charging.

9, 30

11

20

56

Camera cannot focus.

Colored stripes appear in monitor when shooting.

Images are blurred.

Subject is too close. Try shooting using macro mode, or the Scene auto selector or Close-up scene modes.

The intended subject is one with which autofocus does not perform well.

Set AF assist in the setup menu to Auto.

Turn camera off and then on again.

40, 47, 64

29

95,

E69

21

Colored stripes may appear when shooting subjects with repeating patterns (such as window blinds); this is not a malfunction.

The colored stripes will not appear in captured images or recorded movies.

However, when using Continuous H: 120 fps or

HS 120 fps (640×480), the colored stripes may be seen in the captured images and recorded movies.

Use flash.

Increase ISO sensitivity.

Enable vibration reduction or motion detection.

Use D (best shot selector).

Use tripod and self-timer.

56

37

94, 95

48, 52,

E35

59

Bright specks appear in images captured with flash.

Flash is reflecting off particles in air. Set the flash mode setting to W (off).

57

F

10

Troubleshooting used.

Problem

Flash does not fire.

Digital zoom cannot be

Image mode not available.

Cause/Solution

The flash mode is set to W (off).

Scene mode with which the flash does not fire is selected.

Flash is not fully raised. Do not hold down the flash.

Another function that restricts flash is enabled.

• Digital zoom is set to Off in the setup menu.

Digital zoom cannot be used in the following situations:

- When using smile timer

- When using the scene auto selector, O (pet portrait), Portrait, Night portrait, or

Panorama (when Easy panorama is selected) scene modes

- When AF area mode is set to Subject

tracking

- When continuous shooting mode is set to

Multi-shot 16 or continuous smile timer

Another function that restricts the Image mode option is enabled.

56

70

26

73

95,

61

E70

40, 43, 44,

45, 49

37

52

73

A

No sound when shutter is released.

Off is selected for Sound settings > Shutter

sound in the setup menu. No sound is heard with some shooting modes and settings, even when

On is selected.

95,

E71

AF-assist illuminator does not light.

Off is selected for the AF assist option in the setup menu. AF-assist illuminator may not light depending on the position of the focus area or the current scene mode, even when Auto is selected.

Images appear smeared.

Lens is dirty. Clean lens.

95,

E69

Colors are unnatural.

White balance or hue is not adjusted properly.

F6

37, 47, 65,

E30

Randomly spaced bright pixels (“noise”) appear in image.

Shutter speed is too slow or ISO sensitivity is high as the subject is dark. Noise can be reduced by:

Using flash.

Specifying a lower ISO sensitivity setting.

56

37,

E34

Downloaded From camera-usermanual.com Nikon Manuals

F

11

Troubleshooting

Problem

Images are too dark

(underexposed).

Cause/Solution

The flash mode is set to W (off).

Flash window is blocked.

Subject is beyond flash range.

Adjust exposure compensation.

Increase ISO sensitivity.

Subject is backlit. Select

W (backlighting) or set the flash mode to X (fill flash).

A

56

26

56

67, 68

37,

E34

42, 56

Images are too bright

(overexposed).

Adjust exposure compensation.

67, 68

Unexpected results when flash set to V (auto with red-eye reduction).

Saving images takes time.

A ring-shaped belt or rainbow-colored stripe appears in the monitor or images.

When using V (auto with red-eye reduction) or the Night portrait to take pictures using the flash, In-Camera Red Eye Fix may be applied to areas not affected by red-eye in rare cases. Use any shooting mode other than Night portrait, change the flash mode to any setting other than

V (auto with red-eye reduction), and then try taking a picture again.

It may take more time to save images in the following situations.

When the noise reduction function has been activated automatically, such as when shooting in a dark environment

When the flash mode is set to V (auto with red-eye reduction).

When taking pictures in the following scene modes.

- j (night landscape)

-

W (backlighting) (when HDR is set to any setting other than Off)

- Portrait, Landscape (when Noise

reduction burst is selected), Night portrait

When using continuous shooting mode.

45, 56

57

41

42

44, 45

50

When shooting with backlighting or when a very strong light source (such as sunlight) is in the frame, a ring-shaped belt or rainbow-colored stripe (ghosting) may occur. Change the position of the light source, or frame the picture so that the light source does not enter the frame and try again.

F

12

Troubleshooting

Playback Issues

File cannot be played back.

Problem Cause/Solution

File or folder was overwritten or renamed by computer or other make of camera.

The COOLPIX S8200 is not able to play back movies recorded with another make or model of digital camera.

92

A

Cannot zoom in on image.

Cannot record voice memos.

Playback zoom cannot be used with movies, small pictures, or images that have been cropped to a size of 320 × 240 or smaller.

The COOLPIX S8200 may not be able to zoom in on images captured with another make or model of digital camera.

Voice memos cannot be attached to movies.

Voice memos can only be attached to images captured with the COOLPIX S8200. Voice memos attached to images using another camera cannot be played back on this camera.

80,

E50

Cannot use quick retouch,

D-Lighting, skin softening, filter effects, small picture, or crop.

These options cannot be used with movies.

Images captured at an Image mode setting of l 4608×2592 cannot be edited, and the same editing feature cannot be applied multiple times.

The camera cannot edit images captured with another make or model of digital camera.

Images not displayed on

TV.

Nikon Transfer 2 does not start when camera is connected.

80,

E10

E11

• Video mode or HDMI is not correctly set in the

TV settings setup menu.

Memory card contains no images. Replace the memory card. Remove the memory card to play back images from the internal memory.

Camera is off.

Battery is exhausted.

USB cable is not correctly connected.

Camera is not recognized by the computer.

Confirm system requirements.

Computer is not set to start Nikon Transfer 2 automatically.

For more information about Nikon Transfer 2, refer to help information contained in ViewNX 2.

80,

E10

E11

95,

E74

18

21

20

81, 84

82

84

Downloaded From camera-usermanual.com Nikon Manuals

F

13

Troubleshooting

Problem

The PictBridge startup screen is not displayed when the camera is connected to a printer.

Images to be printed are not displayed.

Cannot select paper size with camera.

Cause/Solution

With some PictBridge-compatible printers, the

PictBridge startup screen may not be displayed and it may be impossible to print images when

Auto is selected for the Charge by computer option in the setup menu. Set the Charge by

computer option to Off and reconnect the camera to the printer.

96,

Memory card contains no images. Replace the memory card.

Remove the memory card to print images from the internal memory.

18

A

E75

Paper size cannot be selected from the camera in the following situations, even when printing from a PictBridge-compatible printer. Use the printer to select paper size.

The printer does not support the paper sizes specified by the camera.

The printer automatically selects the paper size.

81,

E26,

E27

F

14

Specifications

Nikon COOLPIX S8200 Digital Camera

Type

Effective pixels

Image sensor

Lens

Focal length f/-number

Construction

Digital zoom

Vibration reduction

Autofocus (AF)

Focus range (from the center of the front of the lens)

Focus-area selection

Monitor

Compact digital camera

16.1 million

1

/

2.3

-in. type CMOS; approx. 16.79 million total pixels

14× optical zoom, NIKKOR lens

4.5-63.0mm (angle of view equivalent to that of 25-350 mm lens in 35mm [135] format) f/3.3-5.9

11 elements in 10 groups (2 ED lens elements)

Up to 2× (angle of view equivalent to that of approx. 700 mm lens in 35mm [135] format)

Lens shift

Contrast-detect AF

[W]: Approx. 50 cm (1 ft 8 in.) to

∞,

[T]: Approx. 1.0 m (3 ft 4 in.) to

Macro mode: Approx. 1 cm (0.4 in.) to

∞ (wider than G)

Face priority, auto (9-area automatic selection), manual with

99 focus areas, center, subject tracking, Target finding AF

7.5 cm (3-in.), approx. 921k-dot, wide viewing angle TFT LCD with anti-reflection coating and 5-level brightness adjustment

Frame coverage

(shooting mode)

Frame coverage

(playback mode)

Storage

Approx. 100% horizontal and 100% vertical

Approx. 100% horizontal and 100% vertical

Media

File system

File formats

Internal memory (approx. 89 MB), SD/SDHC/SDXC memory card

DCF, Exif 2.3, and DPOF compliant

Still pictures: JPEG

Sound files (Voice Memo): WAV

Movies: MOV (Video: H.264/MPEG-4 AVC, Audio: AAC stereo)

Downloaded From camera-usermanual.com Nikon Manuals

F

15

Specifications

Image size

(pixels)

16M (High) [4608 × 3456P]

16M [4608 × 3456]

12M [4000 × 3000]

8M [3264 × 2448]

5M [2592 × 1944]

3M [2048 × 1536]

PC [1024 × 768]

VGA [640 × 480]

16:9 [4608 × 2592]

ISO 100, 200, 400, 800, 1600, 3200

Auto (auto gain from ISO 100 to 1600)

Fixed range auto (ISO 100 to 400, ISO 100 to 800)

ISO sensitivity

(Standard output sensitivity)

Exposure

Metering

Exposure control

Shutter

Speed

224-segment matrix, center-weighted

Programmed auto exposure with motion detection and exposure compensation (–2.0 to +2.0 EV in steps of

1

/

3

EV)

Mechanical and CMOS electronic shutter

1/1600 to 1 s (when ISO sensitivity is set to Auto, Fixed

range auto, 1600)

1/1600 to 4 s (when ISO sensitivity is set to 100, 200, 400)

1/1600 to 2 s (when ISO sensitivity is set to 800)

1/1600 to 1/2 s (when ISO sensitivity is set to 3200)

1/4000 to 1/125 s (Continuous H: 120 fps)

1/4000 to 1/60 s (Continuous H: 60 fps)

4 s (Fireworks show scene mode)

Aperture

Range

Self-timer

Built-in flash

Range (approx.)

(ISO sensitivity: Auto)

Electronically-controlled ND filter (–2 AV) selection

2 steps (f/3.3 and f/6.6 [W])

Can be selected from 10 s and 2 s

[W]: Approx. 0.5 to 5.5 m (1 ft 8 in. to 18 ft)

[T]: Approx. 1.0 to 3.0 m (3 ft 4 in. to 9 ft 10 in.)

Flash control

Interface

TTL auto flash with monitor preflashes

Hi-Speed USB

Data transfer protocol MTP, PTP

Video output Can be selected from NTSC and PAL

HDMI output Can be selected from Auto, 480p, 720p, and 1080i

I/O terminal

Audio/video (A/V) output; digital I/O (USB), HDMI mini connector (Type C) (HDMI output)

F

16

Specifications

Supported languages

Power sources

Charging time

Battery life

(EN-EL12)

Tripod socket

Dimensions (W × H × D)

Arabic, Chinese (Simplified and Traditional), Czech, Danish,

Dutch, English, Finnish, French, German, Greek, Hindi,

Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian,

Polish, Portuguese (European and Brazilian), Romanian,

Russian, Spanish, Swedish, Thai, Turkish, Ukrainian, Vietnamese

One Rechargeable Li-ion Battery EN-EL12 (included)

AC Adapter EH-62F (available separately)

Approx. 4 hours (when using Charging AC Adapter EH-69P and when no charge remains)

Still pictures*: Approx. 250 shots

Movies: Approx. 1 h 10 min (HD 1080pP)

The maximum file size for a single movie is 4 GB and the maximum movie length for a single movie is 29 minutes, even when there is sufficient free space on the memory card for longer recording.

1/4 (ISO 1222)

Approx. 103.7 × 59.3 × 32.7 mm (4.1 × 2.4 × 1.3 in.) (excluding projections)

Approx. 213 g (7.6 oz) (including battery and SD memory card) Weight

Operating environment

Temperature

Humidity

0°C to 40°C (32°F to 104°F)

Less than 85% (no condensation)

Unless otherwise stated, all figures are for a camera with a fully-charged

Rechargeable Li-ion Battery EN-EL12 operated at an ambient temperature of

25°C (77°F).

* Based on Camera and Imaging Products Association (CIPA) standards for measuring the life of camera batteries. Measured at 23 (±2)°C (73 (±4)°F); zoom adjusted with each shot, flash fired with every other shot, image mode set to P 4608×3456. Battery life may vary depending on shooting interval and length of time menus and images are displayed.

Downloaded From camera-usermanual.com Nikon Manuals

F

17

Specifications

Rechargeable Li-ion Battery EN-EL12

Type

Rated capacity

Rechargeable lithium-ion battery

DC 3.7 V, 1050 mAh

Operating temperature 0°C to 40°C (32°F to 104°F)

Dimensions (W × H × D) Approx. 32 × 43.8 × 7.9 mm (1.3 × 1.7 × 0.3 in.)

Weight Approx. 22.5 g (0.8 oz) (excluding terminal cover)

Charging AC Adapter EH-69P

Rated input

Rated capacity

Dimensions (W × H × D)

AC 100-240 V, 50/60 Hz, 0.068-0.042 A

6.8-10.1 VA

Rated output DC 5.0 V, 550 mA

Operating temperature 0°C to 40°C (32°F to 104°F)

Approx. 55 × 22 × 54 mm (2.2 × 0.9 × 2.2 in.) (excluding plug adapter)

For Argentina: Approx. 55 × 59 × 63 mm (2.2 × 2.4 × 2.5 in.)

For Brazil and Korea: Approx. 55 × 59 × 66.5 mm (2.2 × 2.4 × 2.6 in.)

Weight

Approx. 55 g (2.0 oz) (excluding plug adapter)

For Argentina, Brazil, and Korea: Approx. 80 g (2.9 oz)

B

Specifications

Nikon will not be held liable for any errors this manual may contain. The appearance of this product and its specifications are subject to change without notice.

F

18

Specifications

Supported Standards

• DCF: Design Rule for Camera File System is a standard widely used in the digital

camera industry to ensure compatibility among different makes of camera.

• DPOF: Digital Print Order Format is an industry-wide standard that allows

images to be printed from print orders saved on memory cards.

• Exif version 2.3: Exchangeable image file format (Exif) version 2.3 for digital still

cameras is a standard that allows information saved with photographs to be used for optimal color reproduction when images are output from Exifcompliant printers.

• PictBridge: A standard developed cooperatively by the digital camera and

printer industries, allowing photographs to be output directly to a printer without connecting the camera to a computer.

Downloaded From camera-usermanual.com Nikon Manuals

F

19

Index

Symbols

R E6

g (tele) 27 f (wide) 27

b (e movie-record) button 4, 5

d button 4, 5, 11, 37, 91, 94

k Apply selection button 5, 10

A Auto mode 24, 36

W Backlighting 42

C Continuous shooting mode 50, 52

l Delete button 4, 5, 32, E51

o Exposure compensation 68

X Flash mode 56

j Help 39

h Image thumbnail display 31

p Macro mode 64

j Night landscape 41

O Pet portrait 43

c Playback button 4, 5, 9, 30

c Playback menu 80, E43

i Playback zoom 31

C Scene 39

x Scene auto selector 40

n Self timer 59

z Setup menu 94

u Special Effects Mode 53

A

AC adapter 17,

E85

AF area mode 37,

E37

AF assist 95,

E69

Aperture value 28

Audio/video cable 81,

E21, E85

Audio/video-in jack 81,

E21

Auto 57

Auto mode 24, 36

Auto off 21, 95,

E72

Autofocus 38, 64, 91,

E42, E59

Autofocus mode 38, 91,

E42, E59

F

20

B

Backlighting

W 42

Battery 14, 16

Battery chamber 3

Battery charger 17,

E85

Battery latch 3

Battery level 20

Battery-chamber/memory card slot cover

14, 18

Beach Z 46

Best shot selector 48, 52,

E35

Black and white copy n 48

Blink warning 96,

E77

Brightness 94,

E64

BSS 48, 52,

E35

Button sound

E71

C

Calendar display 31

Center-weighted

E33

Charge by computer 96,

E75

Charge lamp 3, 17,

E76

Charger 16,

E85

Charging AC Adapter 16,

E85

Choose key picture 80,

E54

Close-up k 47

Compression ratio 71

Computer 81, 84

Connector cover 3

Continuous menu 52

Continuous shooting 52,

E35

Continuous shooting mode 50

Copy 80,

E52

Creative Slider 65

Crop 31,

E19

D

Date and time 22, 94,

E61

Date format 22,

E61

Daylight saving time 23, 94,

E62

Delete 32,

E9, E51

Index

Digital zoom 27, 95,

E70

Direct print 81,

E23

D-Lighting 80,

E13

DPOF

F19

DPOF print

E29

DSCN

E84

H

HDMI

E74

HDMI cable 81,

E21

HDMI device control

E74

HDMI mini connector 3

Dusk/dawn i 46

Help 39

High-speed continuous 52,

E35

E

Easy panorama 49,

E2

Easy panorama playback

E4

EH-69P 16,

E85

EN-EL12 14, 16,

E85

Histogram 8, 67

HS movie 91,

E57

Hue 65

I

Identifier

E84

Exposure compensation 65, 68

Extension

E84

Image mode 71

Imprinting Date and Time 23,

E66

Eyelet for camera strap 3

F

Internal memory 19

ISO sensitivity 37,

E34

Face detection 76

Face priority 37,

E37

J

JPG

E84

File name

E84

L

Fill flash 57

Landscape c 44

Filmstrip 96,

E79

Language 95,

E74

Filter effects 80,

E16

Lens 2,

F15

Fireworks show m 48

Lens cover 2

Firmware version 96,

E83

M

Fixed range auto

E34

Macro mode 64

Flash

E30

Matrix

E33

Flash lamp 56

Maximum movie length 90

Flash mode 56, 57

Memory capacity 20

Flash off 57

Memory card 18

Focus 28, 37,

E37

Memory card slot 18

Focus indicator 7

Metering 37,

E33

Focus lock 78

Microphone 2

Folder name

E84

Mode dial 4, 5

Food u 47

Monitor 6,

F6

Format internal memory 95,

E73

Monitor settings 94,

E64

Format memory 95,

E73

Motion detection 95,

E68

Format memory card 18, 95,

E73

MOV

E84

Formatting 18, 95,

E73

Movie menu 91

FSCN

E84

Movie options 91,

E55

Full-frame display 30

Movie playback 92

Full-time AF 38, 91,

E42, E59

Downloaded From camera-usermanual.com Nikon Manuals

F

21

Index

Movie recording 88

Multi selector 4, 5, 10

Multi-shot 16 52,

E36

Museum l 48

N

Night landscape j 41

Night portrait e 45

Nikon Transfer 2 82, 83, 85

Number of exposures remaining 20, 72

O

Optical zoom 27

Optional accessories

E85

P

Panorama assist 49,

E5

Panorama Maker 5 49, 83,

E6

Panorama p 49

Paper size

E26, E27

Party/indoor f 46

Pet portrait auto release 43

Pet portrait O 43

Photo info 94,

E64

PictBridge 81,

E23, F19

Playback 30, 92,

E50

Playback menu 80,

E43

Playback mode 9

Playback zoom 31

Portrait b 44

Power 20, 21

Power switch 20, 21

Power-on lamp 20, 21

Preset manual

E32

Pre-shooting cache 52,

E35

Pressing halfway 4

Print

E26, E27, E43

Print date 23, 94,

E66

Print order 80,

E43

Print order date option 23,

E44

Printer 81,

E23

Protect 80,

E47

Q

Quick retouch 80,

E12

R

Rechargeable battery

E85

Rechargeable Li-ion battery 14, 16

Recording slow motion movies

E57

Red-eye reduction 57

Reset all 96,

E80

Rotary multi selector 4, 5, 10

Rotate image 80,

E49

RSCN

E84

S

Scene auto selector x 40

Scene mode 39, 40

Self-timer 59

Self-timer lamp 60

Sequence display options 80,

E54

Setup menu 94

Shooting 26, 28, 50

Shooting info 10

Shooting menu 36,

E30

Shooting mode 9, 24

Shutter sound

E71

Shutter speed 28

Shutter-release button 4, 5, 28

Single AF 38, 91,

E42, E59

Skin softening 80,

E14

Slide show 80,

E46

Slow sync 57

Small picture 80,

E18

Smile timer 61

Smile timer continuous 61

Snow z 46

Sound settings 95,

E71

Speaker 2

Special effect menu 53

Special Effects Mode 53

Sports d 45

SSCN

E84

Strap 12

Subject tracking 37,

E38, E40

F

22

Index

Sunset h 46

T

Target finding AF 37,

E39

Thumbnail display 31

Time difference 94,

E63

Time zone 94,

E61, E63

Time zone and date 22, 94,

E61

Tripod socket 3,

F17

TV 81,

E21

TV settings 95,

E74

U

USB cable 81, 84,

E24, E85

USB/audio/video output connector 81,

84,

E23

V

Vibration reduction 94,

E67

Video mode

E74

ViewNX 2 82, 83

Voice memo 80,

E50

Volume 92,

E50

W

WAV

E84

Welcome screen 94,

E60

White balance 37,

E30

Z

Zoom control 4, 5, 27

Zoom in 27

Zoom out 27

Downloaded From camera-usermanual.com Nikon Manuals

F

23

F

24

Downloaded From camera-usermanual.com Nikon Manuals

No reproduction in any form of this manual, in whole or in part

(except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION.

CT1G02(11)

6MM10911-02

DIGITAL CAMERA

Reference Manual

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
