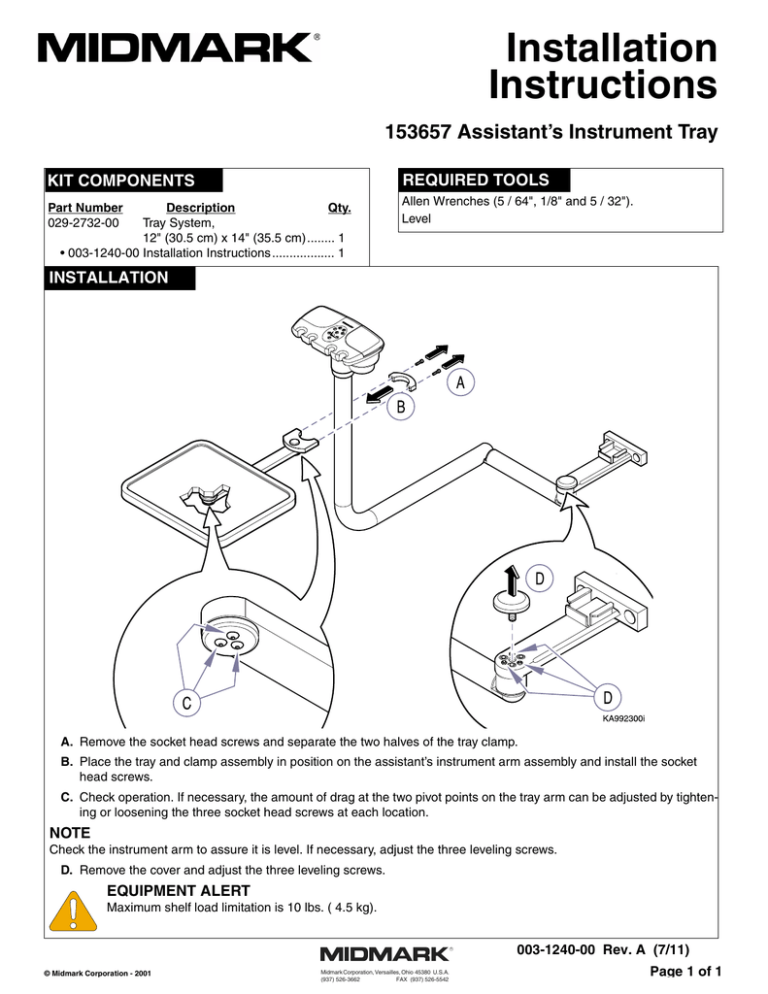

Installation Instructions 153657 Assistant’s Instrument Tray REQUIRED TOOLS

Installation Instructions 153657 Assistant’s Instrument Tray REQUIRED TOOLS
Installation
Instructions
153657 Assistant’s Instrument Tray
KIT COMPONENTS
REQUIRED TOOLS
Part Number
029-2732-00
Allen Wrenches (5 / 64", 1/8" and 5 / 32").
Level
Description
Qty.
Tray System,
12" (30.5 cm) x 14" (35.5 cm)........ 1
• 003-1240-00 Installation Instructions .................. 1
INSTALLATION
A. Remove the socket head screws and separate the two halves of the tray clamp.
B. Place the tray and clamp assembly in position on the assistant’s instrument arm assembly and install the socket
head screws.
C. Check operation. If necessary, the amount of drag at the two pivot points on the tray arm can be adjusted by tightening or loosening the three socket head screws at each location.
NOTE
Check the instrument arm to assure it is level. If necessary, adjust the three leveling screws.
D. Remove the cover and adjust the three leveling screws.
EQUIPMENT ALERT
Maximum shelf load limitation is 10 lbs. ( 4.5 kg).
R
© Midmark Corporation - 2001
Midmark Corporation, Versailles, Ohio 45380 U.S.A.
(937) 526-3662
FAX (937) 526-5542
003-1240-00 Rev. A (7/11)
Page 1 of 1
Assistant’s Tray
(153657)
KA991600i
Item
Part No.
Description
153657
Assistant’s Tray - 1 3/4” Clamp [Factory
Installed] (includes items 1 thru 12) ... Ref
Assistant’s Tray - 1 3/4” Clamp [Field
Installed] (includes items 1 thru 12) ... Ref
Assistant’s Tray - 2” Clamp [Factory
Installed] (includes items 1 thru 12) ... Ref
Assistant’s Tray - 2” Clamp [Field
Installed] (includes items 1 thru 12) ... Ref
Assistant’s Tray - 2 1/4” Clamp [Factory
Installed] (includes items 1 thru 12) ... Ref
Assistant’s Tray - 2 1/4” Clamp [Field
Installed] (includes items 1 thru 12) ... Ref
• Assistant’s Tray Top ............................. 1
• Tray Arm Pin........................................ 1
153657-001
153657-002
153657-003
153657-004
153657-005
1
2
• 063-9958-00
• 057-0666-00
Rev. 7/11
© Midmark Corporation - 2000
Qty
Item
Part No.
3
4
5
6
7
8
9
10
•
•
•
•
•
•
•
•
•
•
11
12
Page 153657
Description
Qty
122445
• Screw.................................................. 4
121079-50
• Instrument Tray Arm ........................... 1
119458
• Thrust Washer .................................... 8
119462
• Needle Bearing ................................... 4
120579
• Tray Arm Bearing ................................ 2
120580-50
• Tray Arm Bearing Cap ........................ 2
121698-5
• Screw.................................................. 6
051-0959-50 • Assistant’s Tray Clamp - 1 3/4”
051-0959-51 • Assistant’s Tray Clamp - 2”
051-1226-00-216•Assistant’s Tray Clamp - 2 1/4”
(includes item 11) ............................... 1
• • 040-0010-132 • • Screw ............................................... 2
• 120962
• Pivot Pin.............................................. 1
