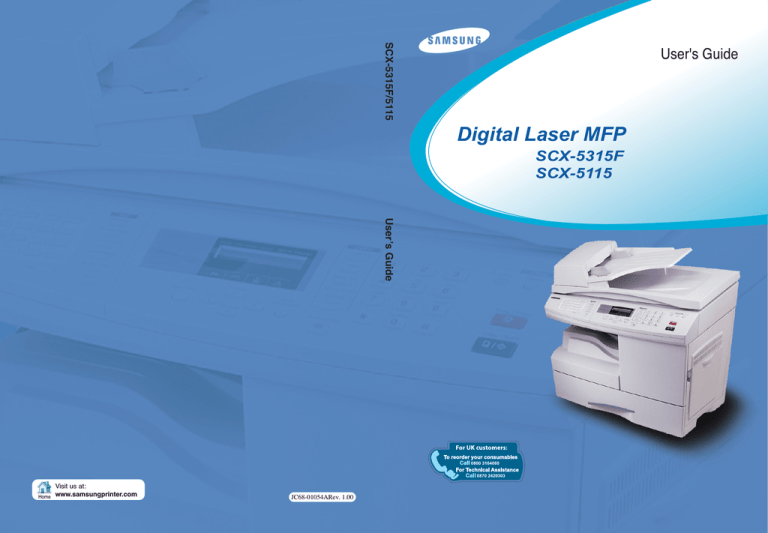

SCX-5315F/5115
Digital Laser MFP
SCX-5315F
SCX-5115
User’s Guide
Home
Visit us at:
www.samsungprinter.com
JC68-01054ARev. 1.00
This manual is provided for information purposes only. All information included herein is
subject to change without notice. Samsung Electronics is not responsible for any changes,
direct or indirect, arising from or related to use of this manual.
© 2003 Samsung Electronics Co., Ltd. All rights reserved.
• SCX-5315F, SCX-5115 and Samsung logo are trademarks of Samsung Electronics
Co., Ltd.
• Centronics is a trademark of Centronics Data Computer Corporation.
• IBM and IBM PC are trademarks of International Business Machines Corporation.
• Microsoft, Windows, Windows 9x, Window Me, Windows 2000, Windows NT 4.0
and Windows XP are registered trademarks of Microsoft Corporation.
• All other brand or product names are trademarks of their respective companies or
organizations.
CONTENTS
Chapter 1:
GETTING
STARTED
Unpacking ..........................................................
Component Location ............................................
Front View .....................................................
Rear View ......................................................
1.2
1.4
1.4
1.5
Control Panel Functions ........................................ 1.6
SCX-5315F .................................................... 1.6
SCX-5115 ...................................................... 1.9
Making Connections ............................................
Installing the Drum and Toner Cartridges ...............
Turning the Machine On .......................................
Loading Paper ....................................................
Tray Setting the Paper Size ..................................
Changing the Display Language ............................
Using Save Modes ..............................................
Toner Save ...................................................
Paper Save ...................................................
Power Save ...................................................
Chapter 2:
1.11
1.14
1.17
1.17
1.20
1.20
1.21
1.21
1.21
1.22
INSTALLING SOFTWARE
About Samsung Software ..................................... 2.2
MFP Driver ..................................................... 2.2
SmarThru Software ......................................... 2.2
OCR Software (AnyPage Lite) ............................................. 2.2
System Requirements .......................................... 2.3
Installing Samsung Software ................................. 2.4
Uninstalling Samsung Software ............................. 2.8
Uninstalling the MFP Driver .............................. 2.8
Uninstalling Samsung SmarThru ...................... 2.10
Using the SmarThru CD-ROM .......................... 2.12
ii
Chapter 3:
PAPER HANDLING
Selecting Print Media ............................................
Paper Guidelines ..................................................
TrayLoading Paper in the Tray ...............................
Using the Multi-Purpose Tray .................................
Setting the Paper Size for Copying .........................
Chapter 4:
3.2
3.3
3.4
3.6
3.9
COPYING
Loading Paper for Copy Output ..............................
Selecting a Paper Tray .........................................
Making Copies from the Automatic Document Feeder
Making Copies using the Document Glass ................
Setting Copy Options ...........................................
Image ...........................................................
Contrast ........................................................
Set ...............................................................
Zoom ............................................................
4.2
4.2
4.3
4.4
4.6
4.6
4.7
4.7
4.8
Auto Fit Copying .................................................. 4.9
Clone Copying .................................................... 4.10
Duplex Copying .................................................. 4.11
Collation Copying ................................................ 4.12
Chapter 5:
PRINTING
Printing a Document ............................................ 5.2
Printer Settings ................................................... 5.3
Accessing Printer Settings ................................ 5.3
Printer Properties Tabs .................................... 5.4
Printer Properties Buttons & Icons .................... 5.12
Setting Up the Locally Shared Printer .................... 5.12
In Windows 9x/Me ......................................... 5.12
In Windows NT 4.0/2000/XP ........................... 5.13
iii
Chapter 6:
SCANNING
Scanning using the Samsung SmarThru .................. 6.2
Scanning Process with TWAIN-enabled Software ...... 6.4
Chapter 7:
MAINTENANCE
Cleaning the Scan Unit ......................................... 7.2
Expected Cartridge Life ........................................ 7.3
Replacing the Toner Cartridge ............................... 7.3
Setting to Notify Toner Low ................................... 7.7
Cleaning the Drum ............................................... 7.8
Replacing the Drum Cartridge ............................... 7.8
Consumables and Replacement Parts .................... 7.11
Chapter 8:
TROUBLESHOOTING
Document Jams ...................................................
Input Misfeed .................................................
Exit Misfeed ...................................................
Roller Misfeed ................................................
8.2
8.2
8.3
8.3
Paper Jams ......................................................... 8.4
Paper Feed Area ............................................. 8.4
Fuser Area ..................................................... 8.6
Paper Exit Area .............................................. 8.7
Duplex Jam .................................................... 8.9
Multi-Purpose Tray Jam .................................. 8.10
LCD Error Messages ............................................
Solving Problems ................................................
Copier Problem Solution Chart .........................
Printing Problem Solution Chart .......................
Fax Problem Solution Chart .............................
iv
8.11
8.13
8.13
8.15
8.18
Appendix A:
INSTALLING
A
NETWORK OPTION
Installing a Network Interface Card ........................ A.2
Configuring Network Parameters ............................ A.6
Supported Operating Systems .......................... A.7
Printing a Network Configuration Page ............... A.7
Configuring TCP/IP .......................................... A.8
Configuring Netware ...................................... A.10
Restoring the Network Configuration ................ A.11
Resetting the Network Interface Card ............... A.11
Configuring the Samsung Network Printer Port ....... A.12
Installing Samsung Network Printer Port ........... A.12
Selecting the Samsung Network Printer Port ...... A.13
Appendix B:
SPECIFICATIONS
General Specifications ..........................................
Scanner and Copy Specifications ............................
Printer Specifications ............................................
Facsimile Specifications ........................................
B.2
B.3
B.4
B.4
v
Important Precautions and Safety Information
When using this product, these basic safety precautions should always be followed to
reduce risk of fire, electric shock, and injury to persons:
1. Read and understand all instructions.
2. Use common sense whenever operating electrical appliances.
3. Follow all warnings and instructions marked on the product and in the literature
accompanying the product.
4. If an operating instruction appears to conflict with safety information, heed the
safety information. You may have misunderstood the operating instruction. If you
cannot resolve the conflict, contact your sales or service representative for
assistance.
5. Unplug the product from the AC wall socket and/or telephone jack before
cleaning. Do not use liquid or aerosol cleaners. Use only a damp cloth for
cleaning.
6. Do not place the product on an unstable cart, stand, or table. It may fall, causing
serious damage.
7. Your product should never be placed on, near, or over a radiator, heater, air
conditioner, or ventilation duct.
8. Do not allow anything to rest on the power lead. Do not locate your product where
the cords will be abused by persons walking on them.
9. Do not overload wall outlets and extension cords. This can diminish performance,
and may result in the risk of fire or electric shock.
10. Do not allow pets to chew on the AC power, telephone, or PC interface cords.
11. Never push objects of any kind into the product through case or cabinet openings.
They may touch dangerous voltage points, creating a risk of fire or shock. Never
spill liquid of any kind onto or into the product.
12. You product may have a heavy cover for optimal pressure on the document for
the best scanning and/or faxing (usually the flatbed-type product). In this case,
replace the cover after placing a document on the scan glass, by holding it and
moving it down slowly until it sits back on the product.
13. To reduce the risk of electric shock, do not disassemble the product. Take it to a
qualified service technician when repair work is required. Opening or removing
covers may expose you to dangerous voltages or other risks. Incorrect
reassembly could cause electric shock when the unit is subsequently used.
14. Unplug the product from the telephone jack, PC and AC wall outlet, and refer
servicing to qualified service personnel under the following conditions:
• When any part of the power cord, plug, or connecting cable is damaged or
frayed.
vi
• If liquid has been spilled into the product.
• If the product has been exposed to rain or water.
• If the product does not operate properly after instructions have been followed.
• If the product has been dropped, or the cabinet appears damaged.
• If the product exhibits a sudden and distinct change in performance.
15. Adjust only those controls covered by the operating instructions. Improper
adjustment of other controls may result in damage, and may require extensive
work by a qualified service technician to restore the product to normal operation.
16. Avoid using this product during a lightning storm. There may be a remote risk of
electric shock from lightning. If possible, unplug the AC power and telephone cord
for the duration of the lightning storm.
17. SAVE THESES INSTRUCTIONS FOR FUTURE REFERENCE.
vii
Laser Safety Statement
The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR,
chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a
Class I laser product conforming to the requirements of IEC 825.
Class I laser products are not considered to be hazardous. The laser system and
printer are designed so there is never any human access to laser radiation above a
Class I level during normal operation, user maintenance, or prescribed service
condition.
WARNING
Never operate or service the printer with the protective cover removed from Laser/
Scanner assembly. The reflected beam, although invisible, can damage your eyes.
CAUTION - INVISIBLE LASER RADIATION
WHEN THIS COVER OPEN.
DO NOT OPEN THIS COVER.
VORSICHT - UNSICHTBARE LASERSTRAHLUNG,
WENN ABDECKUNG GE FFNET.
NICHT DEM STRAHL AUSSETZEN.
ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS
D OUVERTURE. EXPOSITION DANGEREUSE
AU FAISCEAU.
ATTENZIONE - RADIAZIONE LASER INVISIBILE IN CASO DI
APERTURA. EVITARE L ESPOSIZIONE AL FASCIO.
PRECAUCI N - RADIACI N LASER INVISIBLE CUANDO SE ABRE.
EVITAR EXPONERSE AL RAYO.
PERIGO - RADIA O LASER INVISŒVEL AO ABRIR. EVITE
EXPOSI O DIRECTA AO FEIXE.
GEVAAR - ONZICHTBARE LASERSTRALEN BIJ GEOPENDE
KLEP. DEZE KLEP NIET OPENEN.
ADVARSEL. - USYNLIG LASERSTR LNING VED BNING, N R
SIKKERHEDSBRYDERE ER UDE AF FUNKTION.
UNDG UDSAETTELSE FOR STR LNING.
ADVARSEL. - USYNLIG LASERSTR LNING N R DEKSEL
PNES. STIRR IKKE INN I STR LEN. UNNG
EKSPONERING FOR STR LEN.
VARNING - OSYNLIG LASERSTR LNING N R DENNA DEL
R PPEN OCH SP RREN R URKOPPLAD.
BETRAKTA EJ STR LEN. STR LEN R FARLIG.
VARO! - AVATTAESSA JA SUOJALUKITUS OHITETTAESSA
OLET ALTTIINA N KYM TT M LLE LASERS TEILYLLE L KATSO S TEESEEN.
viii
Ozone Safety
During normal operation, this product produces ozone. The
ozone produced does not present a hazard to the operator.
However, it is advisable that the product be operated in a well
ventilated area.
If you need additional information about ozone, please request
your nearest Samsung dealer.
Power Saver
This product contains advanced energy conservation
technology that reduces power consumption when it is not
in active use.
When the product does not receive data for an extended
period of time, power consumption is automatically
lowered.
The energy star emblem does not represent EPA
endorsement of any product or service.
Recycling
Please recycle or dispose of the packaging material for this
product in an environmentally responsible manner.
ix
Radio Frequency Emissions
FCC Information to the User
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his
own expense.
Canadian Radio Interference Regulations
This digital apparatus does not exceed the Class A limits for radio noise emissions
from digital apparatus as set out in the interference-causing equipment standard
entitled “Digital Apparatus”, ICES-003 of the Industry and Science Canada.
Cet appareil numérique respecte les limites de bruits radioélectriques applicables aux
appareils numériques de Classe A prescrites dans la norme sur le matériel brouilleur:
“Appareils Numériques”, ICES-003 édictée par l’Industrie et Sciences Canada.
Fax Branding
The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to
use a computer or other electronic device to send any message via a telephone
facsimile machine unless such message clearly contains in a margin at the top or
bottom of each transmitted page or on the first page of the transmission the following
information:
(1) the date and time of transmission
(2) identification of either business, business entity or individual sending the
message; and
(3) telephone number of either the sending machine, business, business entity or
individual.
Refer to the Facsimile User’s Guide for instructions on how to enter this information
into your product’s memory.
The Telephone Company may make changes in its communications facilities,
equipment operations, or procedures where such action is reasonably required in the
operation of its business and is not inconsistent with the rules and regulations in FCC
Part 68. If such changes can be reasonably expected to render any customer terminal
equipment incompatible with telephone company communications facilities, or
require modification or alteration of such terminal equipment, or otherwise materially
affect its use or performance, the customer shall be given adequate notice in writing,
to allow the customer an opportunity to maintain uninterrupted service.
x
Ringer Equivalence Number
The Ringer Equivalence Number and FCC Registration Number for this product may
be found on the label located on the bottom or rear of the product. In some instances
you may need to provide these numbers to the telephone company.
The Ringer Equivalence Number (REN) is a measure of the electrical load placed on
the telephone line, and is useful for determining whether you have “overloaded” the
line. Installing several types of equipment on the same telephone line may result in
problems making and receiving telephone calls, especially ringing when your line is
called. The sum of all Ringer Equivalence Numbers of the equipment on your
telephone line should be less than five in order to assure proper service from the
telephone company. In some cases, a sum of five may not be usable on your line. If
any of your telephone equipment is not operating properly, you should immediately
remove it from your telephone line, as it may cause harm to the telephone network.
WARNING:
FCC Regulations state that changes or modifications to this equipment not expressly
approved by the manufacturer could void the user’s authority to operate this
equipment. In the event that terminal equipment causes harm to the telephone
network, the telephone company should notify the customer that service may be
stopped. However, where prior notice is impractical, the company may temporarily
cease service, providing that they:
a) Promptly notify the customer.
b) Give the customer an opportunity to correct the equipment problem.
c) Inform the customer of the right to bring a complaint to the Federal
Communication Commission pursuant to procedures set out in FCC Rules and
Regulations Subpart E of Part 68.
You should also know that:
• Your product is not designed to be connected to a digital PBX system.
• If you intend to use a computer modem or fax modem on the same phone line as
your product, you may experience transmission and reception problems with all
the equipment. It is recommended that no other equipment, except for a regular
telephone, share the line with your product.
• If your area experiences a high incidence of lightning or power surges, we
recommend that you install surge protectors for both the power and the telephone
lines. Surge protectors can be purchased from your dealer or telephone and
electronic specialty stores.
• When programming emergency numbers and/or making test calls to emergency
numbers, use a non-emergency number to advise the emergency service
dispatcher of your intentions. The dispatcher will give you further instructions on
how to actually test the emergency number.
• This product may not be used on coin service or party lines.
• This product provides magnetic coupling to hearing aids.
• You may safely connect this equipment to the telephone network by means of a
standard modular jack, USOC RJ-11C.
xi
Declaration of Conformity (European Countries)
Approvals and Certifications
The CE marking applied to this product symbolises Samsung
Electronics Co., Ltd. Declaration of Conformity with the following
applicable 93/68/EEC Directives of the European Union as of the
dates indicated:
January 1, 1995: Council Directive 73/23/EEC Approximation of the laws of the
member states related to low voltage equipment.
January 1, 1996: Council Directive 89/336/EEC (92/31/EEC), approximation of the
laws of the Member States related to electromagnetic compatibility.
March 9, 1999: Council Directive 1999/5/EC on radio equipment and
telecommunications terminal equipment and the mutual recognition of their
conformity.
A full declaration, defining the relevant Directives and referenced standards can be
obtained from your Samsung Electronics Co., Ltd. representative.
EC Certification
Certification to 1999/5/EC Radio Equipment & Telecommunications
Terminal Equipment Directive (FAX)
This Samsung product has been self-certified by Samsung for pan-European single
terminal connection to the analogue public switched telephone network (PSTN) in
accordance with Directive 1999/5/EC. The product has been designed to work with
the national PSTNs and compatible PBXs of the European countries:
In the event of problems, you should contact the Euro QA Lab of Samsung Electronics
Co., Ltd. in the first instance.
The product has been tested against TBR21. To assist in the use and application of
terminal equipment which complies with this standard, the European
Telecommunication Standards Institute (ETSI) has issued an advisory document (EG
201 121) which contains notes and additional requirements to ensure network
compatibility of TBR21 terminals. The product has been designed against, and is fully
compliant with, all of the relevant advisory notes contained in this document.
xii
Replacing the Fitted Plug (for UK Only)
IMPORTANT
The mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and
has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct
13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover,
do not use the plug until you have another fuse cover.
Please contact the outlet you purchased the machine from.
The 13 amp plug is the most widely used type in the UK and should be suitable.
However, some buildings (mainly old ones) do not have normal 13 amp plug socket.
You will need to buy a suitable plug adaptor. Do not remove the moulded plug.
WARNING
If you cut off the moulded plug, dispose of it immediately.
You cannot rewire the plug and you may receive an electric shock if you plug
it into a socket.
IMPORTANT WARNING: You must earth this machine.
The wires in the mains lead have the following colour code:
• Green and Yellow:
Earth
• Blue:
Neutral
• Brown:
Live
If the wires in the mains lead do not match the colours marked in your plug, do the
following:
You must connect the green and yellow wire to the pin marked by the letter `E', or
by the safety `Earth symbol' or coloured green and yellow or green.
You must connect the blue wire to the pin which is marked with the letter `N' or
coloured black.
You must connect the brown wire to the pin which is marked with the letter `L' or
coloured red.
You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.
xiii
NOTE: Any queries, problems or requests for accessories/Information as well as
service should be directed at the address shown in your warranty paperwork.
xiv
1
GETTING STARTED
Thank you for purchasing Samsung multifunctional
product. This machine provides printing, copying,
scanning, and faxing (SCX-5315F only) functions!
This chapter provides step-by-step instructions on
setting up the machine, and installing the software.
This chapter includes:
• Unpacking
• Component Location
• Control Panel Functions
• Making Connections
• Installing the Drum and Toner Cartridges
• Turning the Machine On
• Loading Paper
• Tray Setting the Paper Size
• Changing the Display Language
• Using Save Modes
Unpacking
1 Remove the shipping tape from the front, back, and sides of
the machine.
Tape
2 Remove the label completely from the scanner module by
pulling it straight out, away from the unit. The scan unlock
switch automatically moves to the unlock position (
).
Scanner
module
NOTE: To scan or copy a document, the
switch must be on that position. When you
are moving the machine or do not intend to
use it for a long time, push the switch to the
lock position ( ).
3 Pull open the paper Tray and remove the packing material
from the paper Tray.
1.2
GETTING STARTED
4 Ensure that you have the following:
1
USB Cable
AC Power Cord*
Telephone Line Cord*
TAM Lead
(For SCX-5315F only)
(For SCX-5315F UK only)
This User’s Guide,
Facsimile User’s Guide
(SCX-5315F only),
Quick install Guide
CD-ROM†
Starter Toner Cartridge
Drum Cartridge
*. The appearance of the power cord and the telephone line cord
vary according to countries.
†. The CD-ROM contains the MFP driver, SmarThru software,
the SmarThru user’s guides and the Adobe Acrobat Reader program.
NOTE: You can purchase and install an optional Network Print Server. For
details, see Appendix A, "Installing a Network Option."
GETTING STARTED
1.3
Component Location
Take a moment to familiarise yourself with the main components
of your machine.
Front View
Automatic
Document Feeder
Control Panel
(See page 1.6 for SCX-5315F.
Document
Guides
Document
Input Tray
See page 1.9 for SCX-5115.)
Document
Output Tray
Paper Guides
Multi-Purpose Tray
Scanner Module
Paper Tray
Release lever
Front Cover
1.4
GETTING STARTED
Side Cover
Rear View
1
Document Cover
ADF (Automatic Document
Feeder) Connector
Document
Glass
Telephone
Connections
(available in
SCX-5315F only)
Paper Tray
AC Power Cord
Connector
Parallel Connector
USB
Connector
Power Switch
Paper Exit Extension
GETTING STARTED
1.5
Control Panel Functions
SCX-5315F
1
2
4
3
5
6
7
13
8
01
21
System Data
06
26
Delay TX
11
31
System ID
07
27
Memory TX
12
32
03
23
04
24
05
25
Date & Time
System Setup
Memory Clear
08
28
Priority TX
09
29
10
30
Polling
Add/Cancel
13
33
14
34
Tx Confirm
Schedule Job
16
36
17
37
18
38
19
39
20
40
Phone Book
System List
Tx Journal
Rx Journal
Help List
Group Dial
1
02
22
Maintenance
15
35
9
10
11
12
Used to store frequently dialled fax numbers
and dial them with the touch of one button. Also
use in conjunction with the Menu/Exit button
to access the corresponding menu function.
Allows you to shift one-touch buttons to the
locations 21 through 40.
Adjusts the resolution of the current fax job
documents.
Used to choose the receive mode. The selected
mode is displayed in Standby mode.
Used to search for a number in the memory.
Also used to delete digits in editing mode.
2
Used to store frequently dialed fax numbers and
dial them using the associated 2-digit speed dial
number. Also used to alternately display
alternately the currently active job and any
pending jobs.
F
A
X
Redials the last number in Standby mode or
inserts a pause into a fax number in the edit
mode.
*
1.6
GETTING STARTED
Used to perform a hook-switch operation, such
as call waiting.
When an error occurs, the light on the
corresponding location on the Status map turns
on, as well as the error indicator, and the error
message appears on the display so that you can
locate the error. For details on the meaning of
the error messages, see page 8.11.
(status map)
ex) The paper is jammed in the exit area.
3
Turns on when a paper jam occurs. To clear
the jam, see page 8.4.
Turns on when the toner or drum has
almost run out. To replace the toner or
drum cartridge, see page 7.3 and page 7.8.
(Error
indicators)
Turns on when the input tray you are using
is empty. To load paper, see page 1.17.
Turns on when an error occurs on the
system.
4
Displays the current status and prompts during
operation.
Used to adjust the contrast of the current copy
or fax job.
5
C
O
P
Y
Used to select the text type for the current copy
job or fax job.
Used to specify the paper tray you want to use
in Fax or Copy mode.
Used to set up special copy features, such as
AutoFit, Clone, and Collation.
The current copy job will use both sides of the
paper when printed.
6
Used to dial a number or enter alphanumeric
characters.
GETTING STARTED
1.7
1
7
S
A
V
E
8
Allows you to save toner by using less toner to
print a document.
Allows you to save power by reducing power
consumption when not printing.
Allows you to save paper by printing 2 pages on
a single sheet of paper (available in the Copy
mode only).
Enters the menu functions in conjunction with
the one-touch buttons. Also backs you up to the
previous menu level or exits the menu.
Scrolls though the menu items. When you set
the copy size or the copy page number, they can
be used to change the number.
9*
Scrolls though the options available for the
selected menu item. In the Copy mode,
allows you to change the zoom rate and to
change the number of copies.
10
Selects the mode to activate: FAX or COPY. Also,
confirms the selection on the display.
11
Engages the telephone line.
12
Used to start a job.
13
Used to stop an operation at any time.
Also, used to clear/cancel the copy options such
as the zoom rate and multi copy pages in Copy
mode.
* Navigation buttons
1.8
GETTING STARTED
SCX-5115
2
1
3
4
5
1
10
7
6
8
9
When an error occurs, the light on the
corresponding location on the Status map turns
on, as well as the error indicator, and the error
message appears on the display so that you can
locate the error. For details on the meaning of the
error messages, see page 8.11.
(status map)
ex) The paper is jammed in the exit area.
1
Turns on when a paper jam occurs. To clear
the jam, see page 8.4.
Turns on when the toner or drum almost runs
out. To replace the toner or drum cartridge,
see page 7.3 and page 7.8.
(Error
indicators)
Turns on when the input tray you are using is
empty. To load paper, see page 1.17.
Turns on when an error occurs on the system.
2
Displays current status and prompts during
operation.
GETTING STARTED
1.9
Used to adjust the contrast of the current copy job.
Used to select the text type for the current copy
job.
3
C
O
P
Y
Used to specify the paper tray you want to use in
Copy mode.
Used to collate the copied documents.
Used to print the original image to fit the page
(Auto Fit) or to print multiple copies on a single
page (Clone).
The current copy job will use both sides of the
paper when printed.
4
5
S
A
V
E
6
Used to enter numbers.
Allows you to save toner by using less toner to
print a document.
Allows you to save power by reducing power
consumption when not printing.
Allows you to save paper by printing 2 pages on a
single sheet of paper (available in the Copy mode
only).
Enters the Menu mode.
Scrolls though the menu items. When you set the
copy size or the copy page number, they can be
used to change the number.
7
Scrolls though the options available for the
selected menu item. The button allows you to
change the zoom rate and the button to change
the number of copies.
8
Confirms the selection on the display.
9
Used to start a job.
10
1.10 GETTING STARTED
Used to stop an operation at any time.
Also, used to clear/cancel the copy options such as
the zoom rate and multi copy pages in Copy mode.
Making Connections
1 Connect the ADF (Automatic Document Feeder) cord to this
port and fasten the side screws.
NOTE: Without connecting the cord to the port, you cannot use
the ADF.
2 If you have SCX-5115:
Skip this step and proceed to step 3.
If you have SCX-5315F:
Connect the supplied telephone line to the LINE jack and
the other end to the wall jack.
GETTING STARTED
1.11
1
If you want to use your machine for receiving both faxes
and voice calls, you will need to connect a telephone and/or
answering machine to your machine.
Plug the cord of your extension phone or answering
machine into the EXT jack.
UK users should plug the cord of the extension phone into
the supplied TAM lead and plug the cord of the TAM lead
into the EXT jack on the back of your machine.
TAM lead
(For UK users only)
NOTES:
• For UK users, use the TAM lead and the telephone line cord
supplied with your machine.
• You should use the telephone line cord which is supplied with
your machine. If you are replacing it with another vendor’s, it
should be AWG #26 or lower gage.
1.12 GETTING STARTED
3 Connect the USB cable which came with your machine.
1
If you want to use a parallel printer cable, only use a IEEE1284 compliant cable and connect it to the parallel
connector on your machine.
NOTE:
• To connect the machine to the parallel port of the computer
requires a certified parallel cable.
You will need to buy the a IEEE1284 compliant cable.
• You only need to connect one of the above cables.
• If you are using a USB cable, you must be running Windows 98/
Me/2000/XP.
• When using the a USB connection, your machine provides two
USB modes; Fast and Slow. Fast is the default mode. Some PC
user may experience poor USB function in the default mode. If
this occurs, select the Slow mode to achieve successful results.
For details on changing the USB mode, see page 8.16.
GETTING STARTED
1.13
Installing the Drum and Toner
Cartridges
1 Pull the release lever to open the side cover.
CAUTION: Ensure that the side cover is always open before
opening the front cover.
2 Open the front cover.
3 If the cartridge locking lever is on the lower position, turn
the lever upward until it locks into place.
1.14 GETTING STARTED
4 Remove the drum cartridge from its bag and slide it into the
machine firmly until it locks into place completely.
1
5 Remove the starter toner cartridge from its bag. Gently
shake the cartridge to loosen the toner.
Thoroughly shaking the cartridge will assure maximum
copies per cartridge.
6 Slide the toner cartridge into the machine aligning the
cartridge to the left of the slot until it locks into place
completely.
GETTING STARTED
1.15
7 Turn the cartridge locking lever downwards until it locks into
place.
8 Close the front cover
1
and then side cover
2
.
2
1
NOTE: When the drum or toner cartridge need to be replaced, the
display indicates the corresponding message with the error
indicator. Refer to the list of error messages on page 8.11.
To replace the drum and toner cartridges, see page 7.8 and
page 7.3 respectively.
1.16 GETTING STARTED
Turning the Machine On
1 Plug one end of the supplied three-wire electrical grounding
type cord into the AC socket on the machine and the other
end into a properly grounded AC outlet.
2 Turn on the power switch. “WARMING UP PLEASE WAIT”
appears on the display indicating that the machine now is
on.
To view your display text in another language, see
page 1.20.
Note: Power cord must be plugged into a grounded power socket.
Loading Paper
The paper Tray can hold a maximum of 550 sheets of 20lb plain
paper. For copying or faxing, you can use A4-, letter-, or legalsize paper only.
1 Pull open the paper Tray.
GETTING STARTED
1.17
1
2 Push down on the pressure plate until it locks in position.
3 Adjust the rear paper guide to the desired paper length. It
is preset to Letter or A4 size depending on the country. To
load another size, lift and insert the rear guide into the
corresponding position.
LG
L
FO
LIO
A4
LT
R
Rear guide
4 Fan the paper and insert it into the Tray.
1.18 GETTING STARTED
5 Ensure that the paper corners are under the corner
snubbers.
1
Corner
snubber
Do not fill above the max fill line.
Max Fill Line
6 While pinching the side guide as shown, move it toward the
stack of paper until it lightly touches the side of the stack.
Do not press the guide too tightly to the edge of the paper;
the guide may bend the paper.
7 Close the paper Tray.
GETTING STARTED
1.19
Tray Setting the Paper Size
After loading paper in the paper Tray, you need to set the paper
size using the control panel buttons. These settings will apply to
the Copy mode only. In the PC printing mode, you have to select
the paper size in the application program you use.
1 Press Menu/Exit and then System Data from the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
The display shows “CASSETTE PAPER” on the top line and
the available options on the bottom line.
2 Use
or to find the paper size you are using, and press
Mode/Enter (Enter for SCX-5115) to save the selection.
You can press the corresponding number shown on the
display to select the paper size.
3 To return to Standby mode, press Stop/Clear.
Changing the Display Language
To change the language that is displayed on the LCD display,
take the following steps:
1 Press Menu/Exit and then System Setup from the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2 Press
or
until “SELECT LANGUAGE” appears on the top
line of the display. The current setting appears on the
bottom line of the display.
3 Press
or
until you see the language you want on the
display.
4 Press Mode/Enter (Enter for SCX-5115) to save the
selection.
5 To return to Standby mode, press Stop/Clear.
1.20 GETTING STARTED
Using Save Modes
1
Toner Save
The Toner Save feature allows the printer to use less toner on
each page. Activating this mode extends the life of the toner
cartridges up to twice as long as in normal mode, but reduces
the print quality.
To turn the Toner Save mode on, take the following steps:
1 Press SAVE Toner. The display shows the current setting
on the bottom line.
2 Press SAVE Toner or use the navigation buttons to change
the setting.
To enable the Toner Save mode on, select “ON.” The button
backlight is on. To disable the mode, select “OFF.” The
button backlight is off.
3 Press Mode/Enter (Enter for SCX-5115) to save the
selection.
Paper Save
This feature prints 2 pages on a single sheet to save paper. To
turn this feature on, take the following steps:
1 Press SAVE Paper. The display shows the current setting
on the bottom line.
2 Press SAVE Paper or use the navigation buttons to change
the setting. To enable the Paper Save mode, select “ON.” Or
select “OFF” to disable the mode.
3 Press Mode/Enter (Enter for SCX-5115) to save the
selection.
NOTES:
• The Paper Save mode is available only when the document is
loaded in the ADF.
• The Paper Save mode is disabled when you set the collation or
duplex copy options.
GETTING STARTED
1.21
Power Save
The Power Save mode allows the printer to reduce power
consumption when it is not in actual use. To turn the Power Save
mode on, take the following steps:
1 Press SAVE Power. The display shows the current setting
on the bottom line.
2 Press SAVE Power or use the navigation buttons to change
the setting. To enable the Power Save mode, select “ON.” Or
select “OFF” to disable the mode.
3 Press Mode/Enter (Enter for SCX-5115) to save the
selection.
You can further select the length of time the machine waits after
a job is printed before it switches to a reduced power state.
1 Press Menu/Exit and then System Data from the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2 Press
or
until “POWER SAVE” appears on the display.
Make sure that “ON” blinks on the bottom line.
If necessary, use or to select “ON” and press Mode/
Enter (Enter for SCX-5115).
3 The available time settings appear on the display and the
current setting blinks. The available options are 5, 10, 15,
30, and 45 (minutes). Press or until the desired time
blinks.
4 Press Mode/Enter (Enter for SCX-5115) to save the
selection.
5 To return to Standby mode, press Stop/Clear.
1.22 GETTING STARTED
2
INSTALLING SOFTWARE
This chapter provides information about installing the
supplied Samsung software. You must install the Samsung
software to use your machine as a printer and scanner.
The topics included in this chapter are:
• About Samsung Software
• System Requirements
• Installing Samsung Software
• Uninstalling Samsung Software
About Samsung Software
You must install software using the supplied CD-ROM after you
have set up your machine and connected it to your computer.
The CD-ROM includes:
• Samsung software
• User’s Guides
• Adobe Acrobat Reader
The CD-ROM provides you with the following software:
Windows MFP Driver
To use your machine as a printer and scanner in Windows, you
must install the MFP driver. For information about installing the
MFP driver in Windows, see page 2.4.
Remote Control Panel
This Windows-based program is only available for SCX-5315F. It
is automatically installed when you install the MFP driver. For
information about using the program, refer to the Facsimile
User’s Guide.
SmarThru Software
SmarThru is the accompanying software for your multifunctional
product. SmarThru contains a powerful image editor that allows
you to edit images in many ways and also includes powerful
Internet mail client software.
With SmarThru, you can save the scanned images in a dedicated
storage area for subsequent editing, sending via e-mail or fax,
printing, and processing by other programmes of your choice.
OCR Software
(AnyPage Lite)
OCR (Optical Character Recognition) is software that has the
ability to recognise most character formats, so that a scanned
document can be read and edited with word processing
software.
2.2 INSTALLING SOFTWARE
System Requirements
Before you begin, ensure that your system meets the minimum
requirements.
Supported Operating System
Windows 95 OSR2/Windows 98/Windows 98 SE/Windows Me/
Windows NT 4 Workstation or Server with Service Pack 3/
Windows 2000 Professional or Advanced Server/Windows XP
Home edition or Professional.
Minimal Requirements
• Disk space: 120 MB for installation
• Memory: 64 MB
• CPU: Pentium II 233 or higher
• Required software: Internet Explorer 4.01.
Recommended
• Disk space: 220 MB for installation
• Memory: 128 MB
• CPU: Pentium II 400 or higher
• Required software: Internet Explorer 5.5
NOTES:
• For Windows NT/2000/XP, the system administrator should
install the software.
• Windows 95 versions prior to OSR2 are not recommended due to
incompatibility with OLE/COM libraries.
INSTALLING SOFTWARE
2.3
2
Installing Samsung Software
NOTES:
• For Windows 95/98/Me/NT 4.0/2000/XP users, cancel the “New
Hardware Found” screen when the computer boots up.
• Make sure that your machine is plugged in and connected to
your computer’s parallel port or USB port before installing
software from the CD. Windows 95 and Windows NT 4.0 do not
support USB connection.
1 Insert the supplied SmarThru CD-ROM into your CD-ROM
drive.
The SmarThru CD-ROM should automatically run and the
opening window appear.
If the installation window does not appear, click Start, and
then Run. Type X:Autorun.exe, replacing “X” with the
letter of your drive, and click OK.
2 If you are asked to select the language, choose the desired
language.
3
Click Install the Samsung Software on your PC.
Installs the Samsung
Software on your PC.
Installs the Adobe
Acrobat Reader program
on your PC.
Opens the user’s guides
in PDF file format.
Accesses the Samsung
web site to allow you to
register as a user.
Uninstalls the Samsung
Software. See page 2.12.
4 Follow the on-screen instructions and click Next.
2.4 INSTALLING SOFTWARE
5 The SmarThru installation supports three types of setup:
•Typical: Program will be installed with the most common
options and is recommended for most users.
•Compact: Only the MFP driver will be installed.
•Custom: You may choose the options you want to install.
Recommended for advanced users.
2
If you select the Custom installation, you may
choose the options you want to install.
• SmarThru Software: to scan and edit images
and to work with electronic documents.
• OCR Software: AnyPage Lite software to enable
OCR.
• MFP Driver: to print and scan.
6 Selecting the type, Click Next.
INSTALLING SOFTWARE
2.5
7 Choosing SmarThru networking option allows you to
share the modems on other computers in your network,
and your machine as a scan device or to access similar
shared devices.
Stand-alone configuration does not allow you to use any
networking features such as Remote Fax or Remote Scan
service.
If you selected SmarThru networking, you can select to
install it as a Server, a Client, or both.
The Server option allows you to share a local fax modem
and/or a scanner over a LAN. You can control sharing by
managing a remote service user. The Client option allows
you to use Remote Fax or Remote Scan services provided
by a SmarThru Server over a LAN. You need to have a client
account provided by the server. For details on Remote Fax/
Scan Services, please refer to the SmarThru User’s Guide.
2.6 INSTALLING SOFTWARE
8 Click Next.
2
9 When the installation is completed, shut down and restart
your computer.
If your computer does not shut down and restart
automatically, you must shut it down manually and restart
it before the changes will be saved.
NOTE: When you install the software, the Digital Signature Not
Found window appears in Windows 2000 and Windows XP. Click
OK in Windows 2000 and click Continue Anyway in Windows XP.
INSTALLING SOFTWARE
2.7
Uninstalling Samsung Software
Uninstall is required if you are upgrading the software or if your
installation fails. You can uninstall all software including
SmarThru and MFP drivers, using the SmarThru CD or uninstall
the desired item using the Window unInstallShield.
Note: Before beginning uninstallation, ensure that all applications
are closed on your PC. A system reboot is required after the
software is uninstalled.
Uninstalling the MFP Driver
1 From the Start menu, select Programs, then select
Samsung SCX-5x15 Series.
2 You can select a component in the MFP driver to uninstall
individually.
If you want to uninstall the scan driver, select Twain
Driver Uninstall.
If you want to uninstall the printer driver, select Printer
Driver Uninstall.
If you want to uninstall the Remote Control Panel, select
Remote Control Panel Uninstall.
2.8 INSTALLING SOFTWARE
3 When your computer confirms your selection, click Yes. The
selected printer driver and all its components are removed
from your computer.
2
4 When the uninstallation is done, click OK.
5 The message box recommends you restart your computer.
Click OK, then restart Windows.
NOTE: If you want to install the printer driver or the scan driver
using the SmarThru CD-ROM, make sure that you select the Setup
Type to Compact. Or select Custom then select MFP Driver. For
details, see page 2.5.
INSTALLING SOFTWARE
2.9
Uninstalling Samsung SmarThru
1 From the Start menu, select Programs.
2 Select Samsung SmarThru, then select SmarThru 3
Uninstall.
3 When your computer asks you to confirm your selection,
click Yes. The Uninstall Options dialogue box appears.
Uninstall options are:
•Backup and delete: Backs up all your data and options to
a safe place. It then removes the SmarThru system,
including the data.
•Delete: Deletes all the SmarThru data and options. No
backup or copying takes place. Be careful while using this
option as you can easily lose your data.
•Leave intact: Uninstalls SmarThru software leaving data
and option intact. This can be useful, if, for example, you
decide to install the Stand Alone configuration over the
SmarThru Networking. In this case, uninstall Samsung
SmarThru having the Leave intact option set and install
the SmarThru Stand Alone configuration.
4 After selecting the uninstall option, click Next.
2.10 INSTALLING SOFTWARE
5 Follow the on-screen instructions to complete the uninstallation. The SmarThru software and all components will
be removed.
2
6 When the uninstallation is done, click OK. The message box
recommends restarting your computer.
7 Click OK.
Shut down and restart your computer to complete the uninstallation process and save your changes.
INSTALLING SOFTWARE 2.11
Using the SmarThru CD-ROM
You can uninstall both the MFP driver and the SmarThru
software with the CD-ROM you have used to install the software.
1 Insert the SmarThru CD-ROM into your CD-ROM drive.
The SmarThru CD-ROM should automatically run and the
installation window appear. If the installation window does
not appear, select Run from the Start menu, then type
X:Autorun.exe, replacing “X” with the letter of your drive
and click OK.
2 If you are asked to select the language, choose the desired
language.
3 Click Uninstall the Samsung Software on your PC.
4 Follow the on-screen instructions to complete the uninstallation.
You must shut down and restart your computer before any
changes you have made will take effect.
2.12 INSTALLING SOFTWARE
3
PAPER HANDLING
This chapter introduces you to the basics of selecting print
media and loading print media into your machine.
This chapter includes:
• Selecting Print Media
• Paper Guidelines
• TrayLoading Paper in the Tray
• Using the Multi-Purpose Tray
• Setting the Paper Size for Copying
Selecting Print Media
Always use print media that meets the guidelines for use with
this machine. Using a print media that is not recommended may
cause paper jams or print quality problems.
Media Size Input Sources and Capacities
Input Source/Capacitya
Media Size
Paper Tray
MultiPurpose Tray
Plain paper
Letter (8.5 x 11 in.)
Folio (8.5 x 13 in.)
Legal (8.5 x 14 in.)
Executive (7.25 x 10.5 in.)
A4 (210 x 297 mm)
B5 (182 x 257 mm)
A5 (148 x 210 mm)
YES/550
YES/550
YES/550
NO/0
YES/550
NO/0
NO/0
YES/100
YES/100
YES/100
YES/100
YES/100
YES/100
YES/100
NO/0
NO/0
NO/0
NO/0
NO/0
YES/10
YES/10
YES/10
YES/10
YES/10
NO/0
NO/0
YES/30
YES/30
Letter (8.5 x 11 in.)
A4 (210 x 297 mm)
NO/0
NO/0
YES/30
YES/30
Card stocksb
A6 (105 x 148 mm)
Post Card (4 x 6 in.)
Hagaki (100 x 148 mm)
NO/0
NO/0
NO/0
YES/10
YES/10
YES/10
Envelopes
No. 10 (4.12 x 9.5 in.)
C5 (162 x 229 mm)
DL (110 x 220 mm)
Monarch (3.87 x 7.5 in.)
B5 (176 x 250 mm)
Labelsb
Letter (8.5 x 11 in.)
A4 (210 x 297 mm)
Transparency filmsb
a. Maximum capacity may be reduced depending on paper
thickness.
b. If you are experiencing excessive jamming, feed one sheet at a
time through the Multi-Purpose Tray.
3.2
PAPER HANDLING
Paper Guidelines
When selecting or loading paper, envelopes, or other special
media, keep these guidelines in mind:
• Attempting to print on damp, curled, wrinkled, or torn paper
can cause paper jams and poor print quality.
• Use only high quality copier grade paper. Avoid paper with
embossed lettering, perforations, or texture that is too
smooth or too rough.
• Store paper in its ream wrapper until ready to use. Place
cartons on pallets or shelves, not on the floor. Do not place
heavy objects on top of the paper, whether it is packaged or
unpackaged. Keep it away from moisture, or other conditions
that can cause it to wrinkle or curl.
• During storage, moisture-proof wrap (any plastic container or
bag) should be used to prevent dust and moisture from
contaminating your paper.
• Always use paper and other media that conform with the
specifications listed under “General Specifications” on
page B.2.
• Use only well-constructed envelopes with sharp, well creased
folds.
- DO NOT use envelopes with clasps and snaps.
- DO NOT use envelopes with windows, coated lining,
self-adhesive seals, or other synthetic materials.
- DO NOT use damaged or poorly made envelopes.
• It is recommended that you feed special paper types one
sheet at a time.
• Only use the special media recommended for use in laser
printers.
• To prevent special media such as transparencies and label
sheets from sticking together, remove them from the exit tray
as they are printed.
• Place transparencies on a flat surface after removing them
from the machine.
• Do not leave the film in the paper tray for long periods of
time. Dust and dirt may accumulate on them resulting in
spotty printing.
• To avoid smudging caused by fingerprints, handle
transparencies and coated paper carefully.
• To avoid fading, do not expose the printed transparencies to
prolonged sunlight.
PAPER HANDLING
3.3
3
• Store unused media at temperatures between 59oF and 86oF
(15oC to 30oC). The relative humidity should be between 10%
and 70%.
• Do not load more than 10 sheets of special media into the
Multi-Purpose Tray at a time.
• Verify that your labels’ adhesive material can tolerate fusing
temperature of 200oC (392oF) for 0.1 second.
• Make sure that there is no exposed adhesive material
between labels. Exposed areas can cause labels to peel off
during printing, which can cause paper jams. Exposed
adhesive can also cause damage to machine components.
• Do not feed a sheet of labels through the machine more than
once. The adhesive backing is designed for one pass through
the machine.
• Do not use labels that are separating from the backing sheet
or are wrinkled, bubbled, or otherwise damaged.
TrayLoading Paper in the Tray
The paper Tray can hold a maximum of 550 sheets of 20lb(75g)
plain paper. For copying or faxing, you can use A4-, letter-, or
legal-size paper only.
To load paper, pull open the paper Tray and place paper with the
side you want to print facing up.
3.4
PAPER HANDLING
You can load letterhead paper with the design side facing up.
The top edge of the sheet with the logo should be placed at the
right side.
3
For details on loading paper in the Tray, see page 1.17.
After loading paper in the Tray, you need to set the correct paper
size using the control panel buttons. See page 1.20.
NOTES:
• When you print a file from your PC using the paper Tray, make
sure that you select the Paper source and the correct paper size
from your software application before starting your print job.
• If you experience problem with the paper feed, place the paper
in the Multi-Purpose Tray.
• You can load up to 300 sheets
of previously printed paper.
The printed side should be
facing down with the uncurled
edge at the right side. If you
experience problems with the
paper feed, turn the paper
around. Note that the print
quality is not guaranteed.
PAPER HANDLING
3.5
Using the Multi-Purpose Tray
Multi-Purpose Tray is located at the right side of your machine.
It can be closed when you are not using it, making the machine
more compact.
Use the Multi-Purpose Tray to print transparencies, labels,
envelopes or postcards in addition to making quick runs of paper
types or sizes that are not currently loaded in the paper Tray.
Acceptable print media are plain paper with sizes ranging from
98 x 148 mm (3.9 x 5.8 in.) to Legal 216 x 356 mm (8.5 x 14
in.), the largest size acceptable, and weighing between 16lb and
32lb.
The following table summarizes the print media allowed as well
as their stacking height limit.
Paper Type
Stacking Height Limit
Plain Paper
100 sheets or 9mm (max)a
Envelope
10 envelopes or 9mm (max)a
Transparency
30 sheets or 9mm (max)a
Label
30 sheets or 9mm (max)a
Cardstock
10 sheets or 9mm (max)a
a. The height is measured with the stack of sheets untouched laid
on a flat surface.
Notes:
• Always load only use print media specified in Specifications to
avoid paper jams and print quality problems.
• Do not hit the Multi-Purpose Tray or rest your hands on it;
otherwise the tray may be damaged or detached from the
machine.
• Flatten any curling on postcards, envelopes, and labels before
loading them into the Multi-Purpose Tray.
3.6
PAPER HANDLING
To load print media in the Multi-Purpose Tray:
1 Lower the Multi-Purpose Tray, located on the right side of
the machine. Unfold the paper support extension as shown.
Paper support
Multi-Purpose Tray
2 Prepare a stack of paper or envelopes for loading by flexing
or fanning them back and forth. Straighten the edges on a
level surface.
For transparencies, hold the transparencies by the edges
and avoid touching the print side. Oils from your fingers
that are deposited on the transparency can cause print
quality problems. If you are using the transparencies with
paper backing, insert a sheet of plain paper on the tray
before loading transparencies. Doing so prevents paper
jams while feeding.
3 Load the print material with the side you want to print
facing down and against the right edge of the tray.
PAPER HANDLING
3.7
3
4 Adjust the paper guide to the width of the stack of print
material.
Make sure that you have not loaded too much print media.
The stack should be under the Max. fill line. The print media
buckles if you load a stack that is too deep or if you push it
in too far.
Max. fill line
NOTES: When printing on previously
used paper via the Multi-Purpose Tray,
the printed side should be facing up
with the uncurled edge
at the left side. If you experience
problems with paper feed, turn the
paper around.
3.8
PAPER HANDLING
Setting the Paper Size for Copying
After loading paper in the paper Tray or the Multi-Purpose Tray,
you need to set the correct paper size using the control panel
buttons. These settings will apply to the Copy mode, and the Fax
mode (SCX-5315F only). In PC printing mode, you have to select
the paper size in the application program you use.
To set the paper size for Tray, take the following steps:
1 Press Menu/Exit and then System Data from the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
The display shows “CASSETTE PAPER” on the top line and
the available options on the bottom line. The current setting
blinks.
2 Use
or to select the paper size you are using, and press
Mode/Enter (Enter for SCX-5115) to save the selection.
You can press the corresponding number shown on the
display to select the paper size.
3 To return to Standby mode, press Stop/Clear.
To set the paper size for the Multi-Purpose Tray, take the
following steps:
1 Press Menu/Exit and then System Data from the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
The display shows “CASSETTE PAPER” on the top line and
the available options on the bottom line.
2 Use
to display “BYPASS TRAY” on the top line. The
available options appear on the bottom line and the current
setting blinks.
3 Use
or to select the paper size you are using, and press
Mode/Enter (Enter for SCX-5115) to save it.
You can press the corresponding number shown on the
display to select the paper size.
4 To return to Standby mode, press Stop/Clear.
PAPER HANDLING
3.9
3
NOTE
3.10 PAPER HANDLING
4
COPYING
This chapter provides step-by-step instructions for copying
documents.
This chapter includes:
• Loading Paper for Copy Output
• Selecting a Paper Tray
• Making Copies from the Automatic Document
Feeder
• Making Copies using the Document Glass
• Setting Copy Options
• Auto Fit Copying
• Clone Copying
• Duplex Copying
• Collation Copying
Loading Paper for Copy Output
You can copy to a size of media as small as an index card 98 x
148 mm (3.9 x 5.8 in.) or as large as a sheet of legal-sized 216
x 356 mm (8.5 x 14 in.) paper.
The instructions for loading the print media are the same
whether you are printing, faxing, or copying. For details, see
page 1.17 and page 3.6.
Selecting a Paper Tray
After loading the print media for use when copying, you have to
select the paper tray you will use for both copy and fax jobs
(SCX-5315F only).
1 Press Paper Tray. The current setting appears on the
bottom line of the display.
2 Select “CASSETTE” or “BYPASS” by pressing Paper Tray
repeatedly or using the navigation buttons, and press
Mode/Enter (Enter on SCX-5115) to save the selection.
3 If you selected “BYPASS” at the step 2, the display prompts
you to select the PAPER TYPE for the Multi-Purpose Tray.
Use the navigation buttons to select the paper type you are
using in the Multi-Purpose Tray.
4 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
4.2
COPYING
Making Copies from the Automatic
Document Feeder
Using the ADF (Automatic Document Feeder), you can load up
to 30 documents (20lb, 75 g/m2) in one job. Ensure that
documents are in good condition, that they have the same
thickness and weight, and that all of the staples and paper clips
have been removed.
1 Feed the documents (up to 30 pages) face up into the ADF
and adjust the document guides to the document size.
Make sure that the bottom of the document stack matches
the paper size marked on the ADF.
4
Document guides
2 SCX-5315F users should verify that the machine is in the
Copy mode. If necessary, press Mode/Enter to change the
mode to Copy mode. In Copy mode, the LCD display shows:
Copy size
Number of copies
Note that you cannot make copies in Fax mode. The
machine will sounds an error beep.
3 Make sure that you have selected the required paper tray.
See page 4.2.
4 Customise the copy settings including the number of copies,
copy size, contrast and image type using the control panel
buttons. See “Setting Copy Options” on page 4.6.
To clear the settings, use the Stop/Clear button.
5 If necessary, you can use special copy features, such as
collation and duplex copying.
COPYING
4.3
6 Press Copy/Start to begin copying. The display shows the
copy processing.
NOTE: Dust on the ADF glass may cause black lines on the
printout, so always keep it clean.
Making Copies using the Document
Glass
If you want to make copies from booklet, pamphlet,
transparencies, or documents having other unusual
characteristics, use the document glass to load documents.
1 Lift the document cover.
2 Place the document face down on the glass and align it
with document guides on the left top corner of the
document glass.
4.4
COPYING
NOTE: Make sure that no other documents are in the ADF. If a
document is detected in the ADF, this document has the priority
rather than the document on the scan glass.
3 Close the scanner cover.
NOTES:
• Leaving the cover open while copying will affect the copy quality
and toner consumption.
• If you are copying a page from a book or magazine, close the
cover flat. The slanted cover may cause heavy exposure of the
light when scanning.
4 SCX-5315F users should verify that the machine is in the
Copy mode. If necessary, press Mode/Enter to change the
mode to Copy mode. In Copy mode, the LCD display shows:
Copy size
4
Number of copies
Note that you cannot make copies in Fax mode. The
machine will sounds an error beep.
5 Make sure that you have selected the required paper tray.
See page 4.2.
6 Customise the copy settings including the number of copies,
copy size, contrast and image type using the control panel
buttons. See “Setting Copy Options” on page 4.6.
To clear the settings, use the Stop/Clear button.
7 If necessary, you can use special copy features, such as
Auto Fit and Clone.
8 Press Copy/Start to begin copying. The display shows the
copy processing.
NOTES:
• You can cancel a copy job while it is copying by Press the Stop/
Clear button.
• Dust on the document scanner glass may cause black spots on
the printout, so always keep it clean.
COPYING
4.5
Setting Copy Options
The following buttons on the control panel let you set all the basic
copy options; contrast, image type, number of copies and copy
size. When making a copy, use these buttons before pressing
Copy/Start.
The Image setting is used to improve the copy quality. To select
the image type, take the following steps:
1 Press Image. You can see the current setting on the bottom
line of the display.
2 Press Image or the navigation buttons until the desired
mode appears. You can choose from:
TEXT: Used for documents containing mostly text.
MIXED: Used for documents with mixed text and graphics.
PHOTO: Used when the originals are photographs.
3 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
4.6
COPYING
Contrast
If you have an original document containing faint markings or
dark images, you can adjust the brightness to make a copy that
is easier to read. To adjust the contrast, take the following
steps:
1 Press Contrast.
2 Press Contrast or the navigation buttons to select an
option and press Mode/Enter (Enter on SCX-5115).
MANUAL: You can adjust the contrast manually. Continue
to the next step.
AUTO SUPPRESS: Use this setting for copying an original
from a newspaper or magazine to remove its background
image. This setting is available only in the Copy mode.
3 When you select Manual, choose from 5 contrast settings
using the navigation buttons.
Each time you press the button, the selection block on the
LCD display moves to the left or to the right. As the
selection block moves to the right, the contrast becomes
darker.
Selection block
4 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
Set
Using the Set ( ) button, you can select the number of copies,
from 1 to 999.
1 Press Set ( ). The triangle symbol on the middle of the top
line heads for the number of copies.
2 Enter the number of copies using the number keypad. The
selected number appears on the display.
You can also use Increase ( ) or Decrease ( ) to change
the number of copies. Press Increase ( ) or Decrease
( ) to increase or decrease the number by 1. If you press
and hold the buttons, the number increases or decreases
rapidly.
3 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
COPYING
4.7
4
Zoom
Using the Zoom ( ) button, you can reduce or enlarge the size
of a copied image by 25% to 400% when you copy the original
from the document scanner glass, and by 25% to 100% using
the ADF. Note that the zoom rate available is different according
to the document loading method.
1 Press Zoom ( ). The triangle symbol on the middle of the
top line points to the zoom rate.
2 Enter the size using the number keypad. The selected
number appears on the display.
You can also use Increase ( ) or Decrease ( ) to change
the zoom rate. Press Increase ( ) or Decrease ( ) to
increase or decrease the number by 1. If you press and hold
the buttons, the number increases or decreases rapidly.
3 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
NOTES:
• If you press the Stop/Clear button while setting the copy
options and before starting to copy, all the copy options you
have set for the current copy job will be cancelled and return to
their default values.
• When reducing, black lines may appear at the bottom of the
copy.
4.8
COPYING
Auto Fit Copying
This feature automatically reduces or enlarges the original
image to fit on the paper currently loaded in the machine, so you
don’t need to adjust the copy size.
This special copy mode is only available when using document
scanner glass. If a document is detected in the ADF, the auto-fit
will not work.
1 Load the document to be copied on the document glass,
and close the cover.
2 Make sure that you have selected the required paper tray.
See page 4.2.
3 To enter the special copy mode, SCX-5315F users should
press Special Copy in the Copy mode (see page 4.5) and
SCX-5115 users should press Autofit/Clone.
4 Press Special Copy (Autofit/Clone on SCX-5115)
repeatedly or use the navigation buttons until “AUTO FIT”
appears on the bottom line of the display.
5 Press Mode/Enter (Enter for SCX-5115) to save the
selection.
6 If necessary, customise the copy settings including the
number of copies, contrast and image type using the
control panel buttons. See “Setting Copy Options” on
page 4.6.
NOTE: You cannot adjust the copy size using the Zoom button
while Auto fit is enabled.
7 Press Copy/Start to begin copying.
8 When copying is completed, press Stop/Clear to cancel
the Auto Fit mode.
COPYING
4.9
4
Clone Copying
The Clone feature prints multiple image copies on a single page.
The number of images is automatically determined by the
original image size, so you are unable to adjust the copy size.
This special copy mode is available only when using the
document scanner glass. If a document is detected on the ADF,
the Clone option will not work.
1 Load the document to be copied on the document glass,
and close the cover.
2 Make sure that you have selected the required paper tray.
See page 4.2.
3 To enter the special copy mode, SCX-5315F users should
press Special Copy in the Copy mode (see page 4.5) and
SCX-5115 users should press Autofit/Clone.
4 Press Special Copy (Autofit/Clone on SCX-5115)
repeatedly or use the navigation buttons until “CLONE”
appears on the bottom line of the display.
5 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
6 If necessary, customise the copy settings including the
number of copies, contrast and image type using the
control panel buttons. See “Setting Copy Options” on
page 4.6.
NOTE: You cannot adjust the copy size using the Zoom button
while making a clone.
7 Press Copy/Start to begin copying.
8 When the copying is completed, press Stop/Clear to
cancel the Clone mode.
4.10
COPYING
Duplex Copying
Duplex copying allows you to print on both sides of the paper.
Before printing in the duplex mode, decide on which edge you
will bind your finished document. The binding options are:
LONG EDGE, which is the conventional layout used in book
binding.
SHORT EDGE, which is the type often used with calendars.
Long Edge
Short Edge
1 Load the documents to be copied in the ADF.
4
Make sure that the original document is single sided.
Or, place a sheet of the documents on the document glass
face down.
2 Make sure that you have selected the required paper tray.
See page 4.2.
3 Press Duplex Copy. The current setting appears on the
bottom line of the display.
4 Press Duplex Copy or use the navigation buttons to select
the binding orientation. If you select “OFF”, you cannot use
duplex copying.
5 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
6 If necessary, customise the copy settings including the
number of copies, copy size, contrast and image type using
the control panel buttons. See “Setting Copy Options” on
page 4.6.
NOTE: In duplex copy mode, the PHOTO setting using the Image
button is disabled.
7 Press Copy/Start to begin copying.
COPYING
4.11
8 When the document is fed from the document glass, the
display shows “SCAN SIDE 2?” on the top line after the
page is scanned into the memory. To scan another page,
remove the scanned page and load the next page on the
glass. Select “YES” and press Mode/Enter.
After scanning, the machine starts printing automatically.
Then the display shows "SCAN ANOTHER?". To scan another
page, select "YES" and press Mode/Enter.
When the display shows "SCAN SIDE2?" again, repeat as
necessary.
When all of the pages are scanned, select “NO” when the
display shows “SCAN SIDE 2?” or “SCAN ANOTHER ?” and
press Mode/Enter.
9 When the copying is completed, press Stop/Clear to
cancel the duplex copy mode.
Collation Copying
When the Collation Copying feature is on, your machine sorts
the copy job. For example, if you make 2 copies of 3 pages
documents, one complete 3 page document will print followed
by the second complete 3 page document.
1 Load the documents to be copied in the ADF.
Or, place a sheet of the documents on the document glass
face down.
2 Make sure that you have selected the required paper tray.
See page 4.2.
3 To enter collation copy mode, SCX-5315F users should
press Special Copy in the Copy mode (see page 4.3).
Press Special Copy or use the navigation buttons until
“COLLATION” appears on the bottom line of the display.
SCX-5115 users should press Collation Copy, and press
Collation Copy or the navigation buttons to select “ON” to
turn this feature on.
4.12
COPYING
4 Press Mode/Enter (Enter on SCX-5115) to save the
selection.
5 If necessary, customise the copy settings including the
number of copies, copy size, contrast and image type using
the control panel buttons. See “Setting Copy Options” on
page 4.6.
6 Press Copy/Start to begin copying.
NOTE: In duplex copy mode, the PHOTO setting using the Image
button is disabled.
7 When the document is fed from the document glass, the
display shows “SCAN ANOTHER?” on the top line after the
page is scanned into the memory. To scan another page,
remove the scanned page and load the next page on the
glass. Select “YES” and press Mode/Enter. Repeat as
necessary.
When all of the pages are scanned, select “NO” when the
display shows “SCAN ANOTHER?” and press Mode/Enter.
8 When copying is completed, press Stop/Clear to cancel
the collation copy mode.
COPYING
4.13
4
MEMO
4.14
COPYING
5
PRINTING
Read this chapter to learn how to select and load print
media and how to use the print settings.
This topics included in this chapter are:
• Printing a Document
• Printer Settings
• Setting Up the Locally Shared Printer
Printing a Document
This procedure describes the general steps required for printing
from various Windows applications. The exact steps for printing
a document may vary depending on the application program you
are using. Refer to the user’s guide of your software application
for the exact printing procedure.
The following steps describe the typical process to print from
Windows:
1 Ensure that your machine is properly connected to the
computer, the machine is powered on, and there is paper in
the paper tray.
2 Verify that you have installed the Samsung software for
your computer. For details, see “Installing Samsung
Software” on page 2.4.
3 Start the program you are using to create the document,
and create or open the document you want to print.
4 Choose Print or Print Setup from the File menu. Make
sure that Samsung SCX-5x15 Series PCL 6 is selected as
your default printer. Click Properties or Setup if you want
to make any adjustments that are appropriate for printing
your document. For details, see “Printer Settings” on
page 5.3.
5.2 PRINTING
5 Click OK to close the Properties dialogue box.
6 After making any necessary changes to the printing
parameters, click OK to start the print job.
Printer Settings
You can use the machine with all your Windows 95/98/Me/2000/
XP or Windows NT 4.0 applications. Be sure to set Samsung
SCX-5x15 Series PCL 6 as the default printer for all of your
Windows operations.
Most Windows software applications allow you to make changes
to the printer settings. This includes settings that determine
how a print job looks such as paper size, paper orientation, and
margins. Settings made in the application to create the
document will usually override settings made in the printer
driver.
NOTE: You do not need to use any of the control panel buttons to
use the machine as a PC printer. For example, if you want to adjust
the printing contrast you do not have to press Contrast on the
control panel. The control panel buttons are used primarily for
copying.
Accessing Printer Settings
You can access printer settings by using either of these
methods.
Windows 95/98/Me
• Select the File > Print > Properties or File > Print Setup
command from within any Windows application.
Or
• Select Samsung SCX-5x15 Series PCL 6 printer from the
Printers folder, then select File > Properties (or select the
printer icon in the Printers folder, and click the right mouse
button).
PRINTING
5.3
5
Windows NT 4.0
• Select the File > Print > Properties or File > Print Setup
command from within any Windows application.
Or
• Select Samsung SCX-5x15 Series PCL 6 printer from the
Printers folder, click the right mouse button, then select
Document Defaults from the drop-down list.
Windows 2000
• Select the File > Print command from within any Windows
application.
Or
• Select Samsung SCX-5x15 Series PCL 6 printer from the
Printers folder, click the right mouse button, then select
Properties and Printing Preferences from the drop-down
list.
Windows XP
• Select the File > Print > Preferences command from
within any Windows application.
• Select Samsung SCX-5x15 Series PCL 6 printer from the
Printers and Faxes folder, click the right mouse button,
then select Printing Preferences from the drop-down list.
Printer Properties Tabs
When Printer Properties are displayed, you can review and
change whatever settings are needed for your printer job.
Your printer’s Properties window consists of 5 tabs: Paper,
Graphic, Output, Watermark and About.
If you access the Printer Properties through the Printers folder,
you can view more Windows-based tabs, in addition to these 5
tabs. For information on the Windows-based tabs, refer to your
Windows User’s Guide.
The printer’s Properties window may differ depending on the
operating system used. This User Guide shows the Properties
window on Windows unless otherwise specified.
NOTE: If you access Printer Properties through the Printers
folder, any settings made will become the default settings for the
printer. Settings made when Printer Properties are accessed
through an application File menu and Print or Print Setup will
remain active until the application you are printing from is closed.
5.4 PRINTING
Paper Tab
Use the Paper tab to select the size of paper you have in your
printer, the orientation, the number of copies to print, etc.
1
2
3
4
1
2
Click on the box to put a check
mark to use the different paper
source for the first page. Select
the desired paper source for the
first page and other pages
independently.
5
Select the desired paper
source. Select Tray if you
load media in the paper Tray,
Multi-Purpose Tray if you
load in the Multi-Purpose Tray.
Select the size of
paper you are
using.
3
PRINTING
5.5
Select the type of paper you
are using.
4
Graphic Tab
The Graphic tab allows you to adjust the print quality for your
specific printing needs.
1
3
2
4
5.6 PRINTING
1
You can select the printing resolution. The higher the
setting, the sharpen the clarity of printed image. Higher
settings may increase the time it takes to print a
document.
2
When you print with the resolution of 300, 600, 1200 dpi,
some printed characters or images can appear to have
jagged or uneven edges. Set this Samsung Resolution
enhancement Technology (SRT) option to improve the print
quality of your text and images, make the characters and
images appear smoother.
• Printer Default - Choose this setting to use the SRT that
your printer provides.
• Normal - Choose to disable SRT mode.
• Text Enhance - Choose to refine the print quality of
characters by smoothing out jagged edges that can occur
on the angles and curves of each character.
• Image Enhance - Choose to refine the print quality of
photo images using SRT.
3
With this option checked all text in your document will be
printed in solid black. When it is not checked, colored text
is printed in shades of gray.
4
Toner Save Mode allows the printer to use less toner on
each page. Using this mode will extend the life of your
toner cartridge and reduce your cost per page, but will
reduce print quality. Click to put a check mark and enable
this mode.
Output Tab
The Output tab provides options for you to adjust how the
document will appear on the printed page. The Output Mode
Type options includes Multiple Pages per Side, Booklet
Printing, Fit to Page, Poster and Duplex printing.
Multiple Pages per Side
Choose the Multiple Pages per Side option to print multiple
pages on a single sheet of paper
1
5
2
1
Select the number of page you want to print per sheet
(1,2,4,6,9 or 16) in the Pages per Sheet drop-down list.
2
Click on the box to put a check mark so that a border is
printed around each page on the sheet.
PRINTING
5.7
Booklet Printing
The Booklet Printing option allows you to print a document out
as a booklet.
7
Once your document prints, fold the pages in half and staple the
pages.
Booklet printing is available only when you select Plain Paper for
Paper Type in the Paper tab.
Fit to Page
Choose this option to scale your print job to any selected paper
size regardless of the logical document size.
5.8 PRINTING
Poster
Choose the Poster option to enlarge the printed document.
1
To determine the scaling factor, select the style. You can
choose from: 2x2, 3x3, or 4x4.
1
For example, if you select 2x2, the output will be
automatically stretched to cover 4 physical pages.
PRINTING
5
5.9
Duplex Printing
Choose the Duplex option from the Output tab to print the
document on both sides of the paper.
1
Choosing Long Edge lets you have the binding orientation
along the long edge of the paper as in a magazine.
1
Choosing Short Edge lets you have the binding
orientation along the short edge of the paper as in a
calendar.
Duplex printing is available only when you select Plain Paper for
Paper Type in the Paper tab.
5.10 PRINTING
Watermark Tab
The Watermark tab allows you to create a background image
of text to print on each page of your document.
Watermarks are useful for printing identifying information on a
document, information such as “DRAFT” or “CONFIDENTIAL”, or
perhaps the name of your company or department. By changing
the watermark settings, you can create faint watermarks that
are not intrusive to a document, or bold watermarks to call
attention to specific information.
5
To create a watermark, enter the desired text message in the
Text field, and select the desired watermark options. You can
select the font type and size, color, position, and angle.
To add a new watermark to the list, click Add.
PRINTING 5.11
About Tab
The About tab gives you the programme version number. If you
click on the globe image on the window, you will be connected
to the Samsung web site provided you have access to the
Internet.
Printer Properties Buttons & Icons
• Click OK when you finish reviewing or making changes.
• Click Cancel if you want to exit the tab menus without
applying any changes.
• Click Help to view the online Help feature and tab menu
details.
• Click the ? icon in the title bar to get information about
specific setting on the page. Position the ? pointer over the
parameter in question and click to see a pop-up window for
an explanation.
Setting Up the Locally Shared Printer
You can connect the machine directly to a selected computer,
which is called the “host computer,” on the network. Your
machine can be shared by other users on the network through
a Windows 9x, Me, 2000, XP or NT 4.0 network printer
connection.
In Windows 9x/Me
Setting Up the Host Computer
1 Start Windows.
2 From the Start menu, select Control Panel and doubleclick on the Network icon.
3 Check the File and Print Sharing box and click OK.
5.12 PRINTING
4 Click Start and select Printers from Settings. Double-click
your printer name.
5 Select Properties in the Printer menu.
6 Click the Sharing tab and check the Shared As box. Fill in
the Shared Name field and then click OK.
Setting Up the Client Computer
1 Right-click Start and select Explorer.
2 Open your network folder in the left column.
3 Right-click the shared name and select Capture Printer
Port.
4 Select the port you want, check the Reconnect at log on
box and then click OK.
5 From the Start menu, select Settings and then Printers.
6 Double-click your printer icon.
7 From the Printer menu, select Properties.
8 From the Details tab, select the printer port and click OK.
5
In Windows NT 4.0/2000/XP
Setting Up the Host Computer
1 Start Windows.
2 For Windows NT 4.0/2000, from the Start menu, select
Settings and then Printers.
For Windows XP, from the Start menu, select Printers and
Faxes.
3 Double-click your printer icon.
4 From the Printer menu, select Sharing.
5 For Windows NT 4.0, check the Shared box.
For Windows 2000, check the Shared As box.
PRINTING 5.13
For Windows XP, check the Share this printer box.
6 For Windows NT 4.0, fill in the Share Name field and click
OK.
For Windows 2000/XP, fill in the Shared Name field and
click OK.
Setting Up the Client Computer
1 Right-click Start and select Explorer.
2 Open your network folder in the left column.
3 Click the shared name.
4 For Windows NT 4.0/2000, from the Start menu, select
Settings and Printers.
For Windows XP, from the Start menu, select Printers and
Faxes.
5 Double-click your printer icon.
6 From the Printer menu, select Properties.
7 Press the Ports tab and click Add Port.
8 Select Local Port and click New Port.
9 Fill in the Enter a port name field and enter the shared
name.
10 Click OK and click Close.
11 For Windows NT 4.0, click OK.
For Windows 2000/XP, click Apply and click OK.
5.14 PRINTING
6
SCANNING
Scanning with your machine lets you turn pictures and text
into digital files on your computer. Then you can fax or
e-mail the files, display them on your web site, or use them
to create projects that you can print out using Samsung
SmarThru software which came with your machine.
This chapter includes:
• Scanning using the Samsung SmarThru
• Scanning Process with TWAIN-enabled Software
Scanning using the Samsung
SmarThru
SmarThru is the accompanying software for your machine. With
SmarThru, scanning becomes a pleasure.
Take the following steps to start scanning using SmarThru:
1 Feed the document(s) to be scanned face up into the ADF.
Or
Place a single document on the document glass face down
then close the cover.
2 Once you have installed the Samsung software, you will see
the SmarThru icon on the desktop window. Double-click the
SmarThru 3 icon.
Double click.
The SmarThru 3 window opens.
6.2 SCANNING
3 To open the Scan Wizard, click the Scan Wizard icon in the
plugin bar on the left of the SmarThru 3 window.
Scan Wizard
icon.
The Scan Wizard lets you use the following services:
•Scan
Lets you scan the original documents and save them in the
Image Manager of the Samsung SmarThru system. The
Image Manager is an image database manager and image
editing program.
•Copy
Lets you use your machine to produce professional quality
copies. You can adjust the image size and select advanced
settings.
•Scan to Email
Lets you scan the original document then launches a New
Message form to send the just scanned image attached to
a new mail. The email account must be configured in the
Samsung SmarThru system to enable e-mail services.
•Scan to FAX
Lets you scan the original documents then launches a New
Fax form which helps you to send them as a fax image.
•Scan to WEB
Lets you scan the original documents for further publishing
to the Web.
•Scan to OCR
Lets you scan the original documents and pass them to the
OCR program. OCR (Optical Character Recognition) is the
process of converting a scanned image into text that you
can edit in a word processing program. After you scan your
document, the software processes or “recognises” it. Then
you can edit it and either save the file or open it in any
word processing program on your computer.
SCANNING
6.3
6
4 Click the desired service.
5 The Samsung Scan Manager opens for the selected service.
Adjust the scan settings. You can use the Help button to
receive on-line help.
6 To begin scanning, click Scan.
For further information, please refer to the SmarThru User’s
Guide which came with your machine.
Scanning Process with TWAINenabled Software
If you want to scan documents using other software, you will
need to use TWAIN-compliant software, such as Adobe
PhotoDeluxe or Adobe Photoshop. The first time you scan with
your machine, you will need to select it as your TWAIN source in
the application you will use.
The basic scanning process involves a number of steps:
• Place your photograph or page on the document glass.
• Open an application, such as PhotoDeluxe or Photoshop.
• Open the TWAIN window and setting the scan options.
• Scan and save your scanned image.
You need to follow the programme’s instructions for acquiring an
image. Please refer to the user’s guide for the application.
6.4 SCANNING
7
MAINTENANCE
This chapter provides information for maintaining the
cartridge and your machine.
This chapter includes:
• Cleaning the Scan Unit
• Expected Cartridge Life
• Replacing the Toner Cartridge
• Setting to Notify Toner Low
(Available in SCX-5315F only)
• Cleaning the Drum
• Replacing the Drum Cartridge
• Consumables and Replacement Parts
Cleaning the Scan Unit
Keeping the scan unit clean helps ensure the best possible
copies. We suggests that you clean the scan unit at the start of
each day and during the day as needed.
CAUTIONS: Cleaning the cabinet of the printer with surfactants
containing large amounts of alcohol, solvent or other strong
substances can discolor or crack the cabinet.
NOTE: Clean the cabinet of the printer with a soft, lint-free cloth.
You can dampen the cloth slightly with water, but be careful not to
be let any water drip onto the printer or inside of it.
1 Slightly dampen a soft lint-free cloth or paper towel with
water.
2 Open the document cover.
3 Wipe the surface of the document glass and ADF glass until
it is clean and dry.
White sheet
Document cover
ADF glass
Document
4 Wipe the underside of the white document cover and white
sheet until it is clean and dry.
5 Close the document cover.
7.2
MAINTENANCE
Expected Cartridge Life
The life of your toner cartridge depends on the amount of toner
used in each print job. For instance, when you print a typical
business letter with about 5% page coverage, you can expect a
toner cartridge life of approximately 6,000 pages. The actual
number may vary according to the print density of the page you
print. If you print a lot of graphics, you may need to change the
cartridge more often.
Replacing the Toner Cartridge
When the toner cartridge is near the end of its life, white streaks
or light copy will occur. The LCD displays a warning message
“TONER LOW.” You can temporarily re-establish the print quality
by re-distributing the remaining toner in the cartridge.
To do this:
1 Pull the release lever to open the side cover.
7
MAINTENANCE
7.3
2
Open the front cover.
3 Turn the cartridge locking lever upwards to release the
toner cartridge.
4 Pull the toner cartridge out and gently shake the cartridge
to distribute the toner evenly inside the cartridge.
NOTE: If the toner gets on your clothing, wipe it off with a dry
cloth and wash clothing in cold water. Hot water sets the toner into
fabric.
7.4
MAINTENANCE
5 Reinstall the cartridge and turn the cartridge locking lever
downwards.
6 Close the front cover, then the side cover. The display shows
“NEW TONER? 1.YES 2.NO.”
7 Select “NO” by pressing 2. The machine returns to Standby
mode. This is typically successful only one time.
When the toner eventually runs out, only blank pages will print
when a print job is sent, or when a fax is received. At this stage,
the toner cartridge needs to be replaced. The display shows the
warning message “TONER EMPTY.”
Take the following steps to replace the toner cartridge:
1 The side cover must be open to open the front cover.
Make sure that the side cover is open before opening the
front cover.
2 Turn the cartridge locking lever upwards to release the
toner cartridge.
7
MAINTENANCE
7.5
3 Pull the used cartridge out.
NOTE: Help the environment by recycling your used toner
cartridge. Refer to the recycling brochure packed with the toner
cartridge for details.
4 Shake the new toner cartridge horizontally four or five
times.
Save the box and the cover for shipping.
5 Slide the new toner cartridge in until it locks in place.
6 Turn the cartridge locking lever downwards until it locks in
place.
7 Close the front cover, then the side cover. The display shows
“NEW TONER? 1.YES 2.NO”.
8 Select “YES” by pressing 1. The machine returns to Standby
mode.
7.6
MAINTENANCE
Setting to Notify Toner Low
(Available in SCX-5315F only)
If you have set this NOTIFY TONER LOW menu option to “ON,”
your machine automatically sends a fax to your service company
or the dealer to notify them that your machine requires a new
toner cartridge when the toner cartridge needs to be replaced.
The fax number is preset by your dealer when you bought your
machine.
1 Press Menu/Exit and then Maintenance from the onetouch dial keypad.
2 Use
or
until “NOTIFY TONER” appears on the bottom
line of the display, and press Mode/Enter.
“NOTIFY TONER LOW” appears on the top line and the
current setting appears on the bottom line.
3 Press
or to change the setting. Select “ON” to enable
this feature, then press Mode/Enter.
Select “OFF” disables this feature.
4 Enter your fax number, and then press Mode/Enter.
5 Enter your name of up to 20 digits, and then press Mode/
Enter.
6 Enter the service company’s phone number to which your
machine sends the fax message to notify Toner Low, and
then press Mode/Enter.
7 Enter the serial number of your machine, and then press
Mode/Enter.
7
MAINTENANCE
7.7
Cleaning the Drum
If there are streaks or spots on your print, the drum cartridge
may require cleaning.
1 Before setting the cleaning procedure, make sure that
paper is loaded in the machine.
2 SCX-5315F users should press Menu/Exit then
Maintenance from the one-touch dial keypad.
SCX-5115 users should press Menu then press
“MAINTENANCE” appears on the top line.
or
until
3 “CLEAN DRUM” appears on the bottom line of the display.
Press Mode/Enter (Enter on SCX-5115).
4 The machine prints out a cleaning page. Toner particles on
the drum surface are affixed to the paper. Repeat this
process three or four times.
Replacing the Drum Cartridge
The useful life of the drum cartridge is approximately 15,000
copies. The LCD displays “DRUM WARNING” when the drum is
near the end of life. Approximately 1,000 more copies can be
made, but you should have a replacement drum cartridge in
stock. When “DRUM EMPTY” is displayed, the machine will stop
operating until the drum cartridge is replaced.
To replace the drum cartridge:
1 Open the side cover, then the front cover.
The side cover is open before opening the front cover.
7.8
MAINTENANCE
2 Turn the cartridge locking lever upwards to unlock the toner
cartridge, then pull the toner cartridge out.
NOTE: The toner cartridge must be removed to replace the drum
cartridge.
3 Pull the used drum cartridge out.
NOTE: Help the environment by recycling your used drum
cartridge. Refer to the recycling brochure packed with the drum
cartridge for details.
7
MAINTENANCE
7.9
4 Unpack the new drum cartridge and slide it into place,
making sure not to touch the surface of the drum.
5 Reinstall the toner cartridge, and then lock the lever.
NOTE: If your machine automatically recognises the replaced
cartridge, you can skip steps 6 and 7.
6 Close the front cover and the side cover. The LCD displays
“NEW DRUM? 1.YES 2.NO”.
7 Select “YES” by pressing 1. The machine returns to Standby
mode.
If the drum cartridge does not work properly and you have to
replace it with a new one before “DRUM WARNING” or “DRUM
EMPTY” may appears on the display, replace the drum cartridge
as described above then take the following steps to reset the
drum counter:
1 Press Menu/Exit then Maintenance from the one-touch
dial keypad.
7.10 MAINTENANCE
SCX-5115 users should press Menu then press
“MAINTENANCE” appears on the top line.
or
until
2 Use
or
until “NEW DRUM” appears on the bottom line
of the display, and press Mode/Enter (Enter on SCX5115).
3
“NEW DRUM UNIT?” appears on the top line and “1.YES
2.NO” appears on the bottom line. Press 1 to select “1.YES.”
NOTE: If you do not reset the counter, “DRUM WARNING” or
“DRUM ENPTY” may appear before the current drum cartridge’s
time is up.
Consumables and Replacement
Parts
From time to time, you will need to replace the toner and drum
cartridges, roller, and fuser unit to maintain top performance
and to avoid print quality problems and paper feed problems
resulting from worn parts.
The following items should be replaced after you have printed a
specified number of pages. See the table below.
Items
Yield(Average)
ADF Rubber Pad
20,000
ADF Roller
50,000
Paper Feeding Roller
75,000
Transfer Roller
75,000
Fuser Unit
75,000
7
To purchase the consumables and replacement parts, contact
your local Samsung dealer or outlet you bought your machine
from. We strongly recommend that items be installed by a
trained service professional, except for the print cartridge.
MAINTENANCE
7.11
MEMO
7.12 MAINTENANCE
8
TROUBLESHOOTING
This chapter gives helpful information for what to do if you
encounter an error.
This chapter includes:
• Document Jams
• Paper Jams
• LCD Error Messages
• Solving Problems
Document Jams
If a document jams while it is feeding through the ADF,
“DOCUMENT JAM” appears on the display.
Details for clearing the three types of document misfeeds are
given below.
Input Misfeed
1 Open the ADF top cover.
2 Pull the document gently to the right and out of the ADF.
3 Close the ADF top cover. Then place the documents back
into the ADF.
NOTE: To prevent document jams, use the document scanner
glass for thick, thin or mixed documents.
8.2
TROUBLESHOOTING
Exit Misfeed
1 Open the document cover and turn the release knob to
remove the misfed documents from the exit area.
2 Close the document cover. Then place the documents back
into the ADF.
Roller Misfeed
1 Open the document cover.
2 Turn the release knob so that you can easily seize the
misfed document, and remove the document from the ADF
or the feed area by carefully pulling it rightwards using both
hands.
3 Close the document cover. Then place the documents back
into the ADF.
TROUBLESHOOTING
8.3
8
Paper Jams
If paper jams occur, “PAPER JAM” appears on the display. Follow
the steps below to clear the jam. To avoid tearing the paper, pull
the jammed paper out gently and slowly.
Paper Feed Area
If the paper jammed in the feed area, “PAPER JAM0” appears in
the display.
1 Pull the paper Tray open. After you pull it out completely, lift
the front part of the Tray slightly up to release the Tray from
the machine.
2 Remove the jammed paper by gently pulling it straight out.
Once you remove the jammed paper here, open the side
cover and then close it to clear the “PAPER JAM” message
on the display.
8.4
TROUBLESHOOTING
If there is any resistance, and the paper does not move
immediately when you pull, stop pulling. Then:
3 Pull the release lever to open the side cover.
NOTE: Do not touch the shiny drum cartridge surface. Scratches
or smudges will result in poor copy quality.
4
Carefully remove the misfed paper in the direction shown.
5 Close the cover and insert the paper Tray. Lower the rear
part of the Tray to align the rear edge to the corresponding
slot of the machine, then insert it completely.
8
TROUBLESHOOTING
8.5
Fuser Area
If the paper jammed in the fuser area, “PAPER JAM 1” appears
on the display:
NOTE: The fuser area is hot. Take care when removing paper
from the machine.
1 Lift the release lever to open the side cover.
2 Pull down on the fuser lever as shown below.
This will release pressure on the paper.
If paper is not seen in this area, skip to the Exit Area.
NOTE: Do not pull paper up through the fusing unit. Unfused
toner may adhere in the area, resulting in smudged copies.
3 Remove the jammed paper, in the direction shown.
8.6
TROUBLESHOOTING
4 Push the fuser lever up, and then close the side cover.
Paper Exit Area
If the paper jammed in the exit area, “PAPER JAM 2” appears on
the display.
1 Press the release lever to open the side cover.
2 Open the front cover.
8
TROUBLESHOOTING
8.7
3 Pull down on the fuser lever. This will release pressure on
the paper.
4 Turn the Jam Remove Lever in the direction of the arrow to
move the paper to the exit area, then gently pull the paper
out through the exit area.
5 Push the fuser lever up.
8.8
TROUBLESHOOTING
6 Turn the Jam Remove Lever back to the original position.
7 Close the front cover
1
and the side cover
2
.
2
1
Duplex Jam
If paper jam occurs in the duplexer, “DUPLEX JAM” appears on
the display.
1 Press the release lever to open the side cover.
8
2 Remove the jammed paper. Then close the side cover.
TROUBLESHOOTING
8.9
Multi-Purpose Tray Jam
“BYPASS JAM” appears on the display when you try to print
using the Multi-Purpose Tray and the machine does not detect
paper due to no paper or improper paper loading.
“BYPASS JAM” also may occur when the paper is not properly fed
into the machine through the Multi-Purpose Tray. In that case,
pull the paper out of the machine.
8.10 TROUBLESHOOTING
LCD Error Messages
Display
Meaning
Solution
BYPASS JAM
The machine detects no
feeding from the MultiPurpose Tray.
Load paper in the Multi-Purpose
Tray.
DOCUMENT JAM
The loaded document
has jammed in the ADF.
Clear the document jam. See
page 8.2.
DOOR OPEN
The side cover is not
securely latched.
Close the side cover until it locks
into place.
DRUM WARNING
The drum cartridge is
near the end of its life.
You should have a replacement
cartridge in stock.
DUPLEX JAM
Paper has jammed in the
middle of a 2-sided print
job.
Clear the jam. See page 8.9.
DRUM EMPTY
The drum cartridge is
empty.
Replace the drum cartridge. See
page 7.8.
There is a problem in the
fuser unit.
Unplug the power cord and plug it
back in. If the problem still
persists, please call for service.
You have used an
unauthorised cartridge.
You must use a Samsungapproved cartridge.
FUSER ERROR
OPEN HEAT ERROR
HEATTING ERROR
OVER HEAT
INVALID
CARTRIDGE
LINE ERROR
(for SCX-5315F only)
LSU ERROR
Your machine cannot
connect with the remote
machine, or has lost
contact because of a
problem with the phone
line.
A problem has occurred
in the LSU (Laser
Scanning Unit).
Try again. If the problem persists,
wait an hour or so for the line to
clear, then try again.
Or, turn the ECM mode on. See
‘System Data Options’ in the
Facsimile User’s Guide.
Unplug the power cord and plug it
back in. If the problem still
persists, please call for service.
TROUBLESHOOTING 8.11
8
Display
Meaning
Solution
The memory is full.
Either delete unnecessary
documents, retransmit after more
memory becomes available, or
split the transmission into more
than one operation.
The remote fax machine
has not answered after
several redial attempts.
Try again. Make sure the remote
machine is operational.
The remote fax machine
you want to poll is not
ready to respond to your
poll.
The remote operator should know
in advance that you are polling
and have the fax machine loaded
with the original document.
(for SCX-5315F only)
Or, when setting up to
poll another fax
machine, you have used
an incorrect poll code.
Enter the correct poll code.
NO DEVELOPER
CARTRIDGE
The drum cartridge is not
installed.
Install the drum cartridge.
NO PAPER
The paper in the paper
Tray has run out.
Load paper in the paper Tray.
RX TRAY FULL
Paper is overstacked in
the output bin.
Remove paper.
PAPER JAM 0
Paper has jammed in the
paper feeding area of the
Tray.
Clear the jam. See page 8.4.
PAPER JAM 1
Paper has jammed in the
fuser area.
Clear the jam. See page 8.6.
PAPER JAM 2
Paper has jammed in the
paper exit area.
Clear the jam. See page 8.7.
The machine is waiting
for a specified time
interval to redial a
previously busy station.
You can press Mode/Enter to
immediately redial, or Stop/
Clear to cancel the redial
operation.
The scan module is
locked.
Unlock the scanner (see
page 1.2) and press Stop/Clear.
MEMORY FULL
(for SCX-5315F only)
NO ANSWER
(for SCX-5315F only)
POLLING ERROR
RETRY REDIAL?
(for SCX-5315F only)
SCANNER LOCKED
8.12 TROUBLESHOOTING
Display
Meaning
Solution
TONER EMPTY
The toner cartridge has
run out. The machine
stops.
Replace with a new toner
cartridge. See page 7.3.
TONER LOW
The toner is almost
empty.
Take out the toner cartridge and
gently shake it. By doing this, you
can temporarily re-establish
printing operations.
Solving Problems
The following chart lists some conditions that may occur and the
recommended solutions. Follow the suggested solutions until
the problem is corrected. If the problem persists, please contact
a service engineer.
Copier Problem Solution Chart
Condition
Suggested solutions
The LCD does not turn on.
Check that the machine is plugged into an electrical
supply.
Ensure that there is power to the socket where the
unit is plugged in to and that the machine power
switch is in the ON position.
The machine beeps an error
sound and does not make a
copy.
Make sure that the machine is in copy mode. If not,
change the mode to the Copy mode by pressing
Mode/Enter.
Copies are too light or too
dark.
Smears, lines, marks, or
spots on copies.
White or black lines on
your copy.
If the original is light, use the Contrast button to
darken the background of the copies.
If the original is dark, use the Contrast button to
lighten the background of the copies.
If the detects are on the original, press the Contrast
button to lighten the background of your copies.
If no defects are on the original, clean the document
glass and underside of the document cover.
Check to see if the temperature is too low. When it
is lower than 10 oC , copy your document 1 hour
after you turn the machine on.
TROUBLESHOOTING 8.13
8
Condition
Copy image is skewed.
Suggested solutions
Ensure that original is positioned correctly on
document glass.
Check that the copy paper is loaded correctly.
Blank copies.
Image rubs off the copy
easily.
Ensure that the original is face down on the
document glass or face up in the ADF.
Replace the paper in the Tray with paper from a new
package.
In high humidity areas do not leave paper in the
machine for extended periods of time.
Fan the stack of paper, then turn it over in the Tray.
Replace the paper in paper Tray with a fresh supply.
Check/adjust the paper guides, if necessary.
Frequent copy paper jams.
Ensure that the paper is the proper paper weight. 20
lb (75 g/m2) bond paper is recommended.
Check for copy paper or pieces of copy paper
remaining in the machine after a paper jam has been
cleared.
Toner yield is lower than
expected and TONER LOW
message appears on the
LCD.
Toner may be lodged in the cartridge. Remove the
toner cartridge. Shake the toner cartridge and tap
along the top of the toner cartridge over a waste
receptacle. Take care not to touch the exposed toner
on the left side of the cartridge.
Fewer copies from the toner
cartridge than expected.
Your originals may contain pictures, solids, or heavy
lines, for example, forms, newsletters, books or other
documents that use more toner. The machine may be
turned frequently on and off. The document cover is
being left open while copies are being made.
The following message appears
on your computer screen:
Scanner is busy receiving or
printing data. When the current
job is completed, try again.
There may be a copying or printing job in progress.
When the current job is completed, try the job again.
8.14 TROUBLESHOOTING
Printing Problem Solution Chart
Condition
Probable cause
The IEEE-1284 parallel
cable or USB cable is
not connected properly.
Your machine
does not print.
Your machine
does not print.
(continued)
Half of the page is
blank.
The IEEE-1284 parallel
cable or USB cable is
defective.
Suggested solutions
Check the cable connection.
Check the cable with a computer
and printer that work. If printing is
still not possible, replace the cable.
The port setting is
incorrect.
Check the printer settings in the
Windows Control Panel to make
sure that the print job is being sent
to the correct port. (For Example:
LPT1.)
The toner and drum
cartridges are not
installed properly.
Check that the toner and drum
cartridges are installed properly.
The printer driver may
not be installed
properly.
Reinstall the software.
The parallel port cable
specifications may not
be correct.
Use the IEEE-1284 parallel port
cable supplied with the machine or
replace it with an IEEE-1284
compliant cable.
The page layout is too
complex.
Reduce the resolution setting from
600 dpi to 300 dpi. Install more
RAM in the computer.
The page orientation
may be incorrect.
Change the page orientation in the
printer setup dialogue.
8
TROUBLESHOOTING 8.15
Condition
Probable cause
Suggested solutions
Change the USB mode to “SLOW.”
To do so, take the following steps:
1. Press Menu/Exit then
System Setup from the onetouch dial keypad. SCX-5115
users should press Menu then
Enter.
When printing
using the USB
connection, an
error occurs
repeatedly.
When the USB mode is
set to “FAST” some PC
users may experience
poor USB
communication.
2. Use
or
until “USB MODE”
appears on the top line of the
display. The current setting
appears on the bottom line.
3. Press
or
to select “SLOW.”
4. Press Mode/Enter (Enter on
SCX-5115) to save the
selection.
5. Press Stop/Clear to return to
Standby mode.
Printing is too
slow.
The computer parallel
port may not be set for
high speed
communications.
If your computer is equipped with
an ECP parallel port, enable this
mode of operation. Refer to the
Enabling High Speed Printer
Communications section and your
computer’s user guide.
If using Windows 95,
the spool setting may
be set incorrectly.
Point to the Start and then click
Settings then Printers. Click
your printer icon with the right
mouse button. Click Properties
and then spool settings on the
Details tab. Select the desired
setting from the available choices.
Computer may not have
enough memory (RAM).
Install more RAM in your computer.
The print job is large.
Reduce resolution from 600 dpi to
300 dpi.
8.16 TROUBLESHOOTING
Condition
Probable cause
Suggested solutions
There is a paper quality
problem.
Use only paper that meets the
specifications required by the
machine.
Toner may be unevenly
distributed.
Remove the toner cartridge and
shake it gently to evenly distribute
the toner. Then reinstall the toner
cartridge.
Black staining
There is a paper quality
problem.
Use only paper that meets the
specifications required by your
machine.
Character voids
The paper may be too
dry.
Try printing with a different batch
of paper.
The paper may be too
damp.
Try printing with a different batch
of paper. Do not open packets of
paper until necessary so that the
paper does not absorb too much
moisture from the air.
Printing over uneven
surfaces.
If printing onto envelopes, change
your printing layout to avoid
printing over areas that have
overlapping seams on the reverse
side.
Missing characters
The paper may be too
damp.
Try printing with a different batch
of paper. Do not open packets of
paper until necessary so that the
paper does not absorb too much
moisture from the air.
Back of printout is
dirty
The transfer roller may
be dirty.
Print a few blank pages to clean
the transfer roller.
Toner may be low.
Remove the toner cartridge and
shake it gently to evenly distribute
the toner. Then reinstall the toner
cartridge.
Irregular faded
patches of print.
Background
scatter
Faded graphics
Ensure that you have a spare toner
cartridge.
TROUBLESHOOTING 8.17
8
Fax Problem Solution Chart
(Available in SCX-5315F only)
Condition
The machine is not
working, there is no
display and the buttons
are not working.
Suggested solutions
Unplug the power cord and plug it in again.
Check that your socket is Live.
Check that the phone line is connected properly.
No dial tone
The numbers stored in
the memory do not dial
correctly.
The document does not
feed into the machine.
Check that the phone socket on the wall is working by
plugging in another phone.
Make sure that the numbers are stored in the memory
correctly. Print a Phone Book list referring to the
Facsimile User’s Guide.
Make sure that the document is not wrinkled and you
are putting it in correctly. Check that the document is
the right size, not too thick or thin.
Make sure that the ADF top cover is firmly closed.
The FAX mode should be selected.
Faxes are not received
automatically.
Make sure that there is paper in the Tray.
Check if the display shows “MEMORY FULL.”
Faxes are not received
manually.
Check that you hung up the handset of the external
telephone before you started faxing.
Make sure that the document is loaded face down/up
depending on whether you are using the Document
scanner glass or ADF unit.
Your machine will not
send anything.
“TX” should show up on the display.
Check the other fax machine you are sending to, to see
if it can receive your fax.
You cannot poll another
machine.
8.18 TROUBLESHOOTING
The fax machine you are polling may be using a poll
code. Contact the remote operator.
Condition
Suggested solutions
The fax machine sending you the fax may be faulty.
The incoming fax has
blank spaces or you
received a poor-quality
copy.
The fax machine sending you a fax may have a dirty
document glass. Clean the document glass, referring to
page 7.2.
A noisy phone line can cause line errors.
Check your machine by making a copy.
The toner cartridge may be empty. Replace the toner
cartridge, referring to page 7.3.
Some of the words are
stretched on the
incoming fax.
The fax machine sending you the fax had a temporary
document jam.
There are lines on the
copies or documents you
send.
Check your scan glass for marks, and clean it. See
page 7.2.
The machine dials a
number, but fails to
make a connection with
another fax machine.
The other fax machine may be turned off, out of paper,
or cannot answer incoming calls. Speak with the other
machine operator and ask her or him to sort out the
problem.
Documents are not
stored in the memory
There may not be enough memory to store the
document. If the display shows a “MEMORY FULL”
message, delete any documents you no longer need
from the memory, then restore the document.
Blank areas appear at
the bottom of each page
or on other pages, with
only a small strip of text
printed at the top.
You may have chosen the wrong paper settings in the
user option setting. Refer to the Facsimile User’s Guide
to choose the proper paper size.
8
TROUBLESHOOTING 8.19
NOTE
8.20 TROUBLESHOOTING
A
INSTALLING A NETWORK
OPTION
You can connect your machine to your network by installing
an optional network interface card.
This chapter includes:
• Installing a Network Interface Card
• Configuring Network Parameters
• Configuring the Samsung Network Printer Port
Installing a Network Interface Card
To install an optional network interface card, take the following
steps:
CAUTIONS:
• DISCONNECT THE POWER CORD. Never remove the control
board while the printer is plugged in. To avoid the possibility of
an electrical shock, always disconnect the power cord when
installing or removing ANY printer options.
• DISCHARGE STATIC ELECTRICITY. The control board and the
interface card are sensitive to static electricity. Before installing
or removing the card, discharge static electricity from your body
by touching something metal, such as the metal back plate on
any device plugged into a grounded power source. If you walk
around before finishing installation, discharge any static
electricity once again.
1 Unpack the network interface card. Make sure that there is
no missing or damaged part.
œNetwork
Interface Card
œSyncThru CD-ROM
and User’s Guide
2
Turn your machine off and unplug the power cord and all of
cables from the machine.
3
Remove the six screws from the back of the machine.
A.2 INSTALLING A NETWORK OPTION
4
Pull the control board cover slightly towards you and slide it
to the left. Remove the cover from the machine.
5
Remove the one screw from the port cover.
A
6
Remove the port cover by using your finger or a screw
driver from the machine.
INSTALLING A NETWORK OPTION
A.3
7
Remove the plates covering the network port and LED slots
from the port cover.
8
Insert the two teeth at the bottom of the port cover into
the slots on the port panel and replace the cover, as shown.
Fasten the screw removed in Step 5 to secure the cover.
9
Insert the network interface card, ensuring that the
network cable connector and LEDs on the card align with
the port and LED slots.
A.4 INSTALLING A NETWORK OPTION
10 Align the connector of the network interface card with the
network card port on the control board and press the card
until it is securely seated on the board.
11 Insert the teeth at the bottom of the control board cover
into the corresponding slots on your machine.
A
12 Slide the cover to the right and align the connectors on top
of the cover with those on the machine. Fasten the six
screws to secure the cover.
INSTALLING A NETWORK OPTION
A.5
13 Plug one end of the 10/100 Base-TX network cable into the
network interface connector and the other end into the
network connection.
14 Plug all of the cables and the power cord you removed in
Step 2.
15 Turn your machine on.
Configuring Network Parameters
To use your machine as a network printer, you need to set up
the desired network protocols on the machine. Setting protocols
can be accomplished by using the supplied network programme.
Please refer to SyncThru User’s Guide.
You can configure the basic network parameters through the
control panel of your machine. Use the control panel to do the
following:
• Enable or disable network protocols; TCP/IP, IPX/SPX
(Netware)
• Configure TCP/IP
• Configure IPX frame types
A.6 INSTALLING A NETWORK OPTION
Supported Operating Systems
Item
•
•
•
•
•
Requirements
Network Interface
10/100 Base-TX
Network Operating
System
• Novell NetWare 3.x, 4.x, 5.x
• Windows 95/98/Me/XP, NT 4.0/2000
• Unix AT&T, BSD4.3, HP-UX, SUN OS,
SOLARIS, SCO
• Linux RedHat 6.0
Network Protocols
• Netware IPX/SPX
• IPX/SPX, TCP/IP, DLC/LLC on Windows
• LPD(LPR), Port9100 on Windows NT,
Unix, Linux
Dynamic Addressing
Server
• DHCP, BOOTP
IPX/SPX: Internet Packet eXchange/Sequenced Packet eXchange
TCP/IP: Transmission Control Protocol/Internet Protocol
DLC/LLC: Data Link Control/Logical Link Control
DHCP: Dynamic Host Configuration Protocol
BOOTP: Bootstrap Protocol
Printing a Network Configuration Page
The Network Configuration page shows you how the network
card installed in your machine is configured. The default setting
suitable for most applications have been enabled.
1 Press Menu/Exit and then press System Setup on the
one-touch dial keypad. SCX-5115 users should press Menu
and then Enter.
2
Press
or
to display “NETWORK SETUP” on the top line.
3
Press
line.
or
to display “PRINT NET CFG” on the bottom
4
Press Mode/Enter (Enter for SCX-5115).
The Network Configuration page prints out.
INSTALLING A NETWORK OPTION
A.7
A
Configuring TCP/IP
Your printer can be set up on a variety of TCP/IP networks. There
are two ways that your printer can be assigned a TCP/IP
address, depending on your network:
• Static Addressing: TCP/IP address is assigned manually by
the system administrator.
• Dynamic Addressing BOOTP/DHCP (default): TCP/IP address
is assigned automatically by the server.
Static Addressing
To enter the TCP/IP address from your printer’s control panel,
take the following steps:
1 Press Menu/Exit and then System Setup on the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2
Press
3
Press
4
Press Mode/Enter (Enter for SCX-5115) to access the menu.
or
or
to display “NETWORK SETUP” on the top line.
to display “CONFIG NETWORK” on the bottom line.
The first option, “CONFIGURE TCP” displays on the bottom line.
5
Press Mode/Enter (Enter for SCX-5115) to access the menu.
6
Press
7
Press Mode/Enter (Enter for SCX-5115) to access the menu.
8
Press
or
to select IP ADDRESS, SUBNET MASK, or
GATEWAY on the bottom line.
9
Press Mode/Enter (Enter for SCX-5115) to set an address.
or
until “IP ADDRESS” displays on the bottom line.
A TCP/IP address consists of 4 bytes.
Enter a number between 0
and 255 for each byte.
A.8 INSTALLING A NETWORK OPTION
10 Enter a number between 0 and 255 for each byte and press
Mode/Enter (Enter for SCX-5115).
You can move between each byte by pressing
or
.
11 Repeat steps 6 through 8 to configure the other TCP/IP
parameters, such as subnet mask and gateway.
12 When you are finished, press Stop/Clear.
Dynamic Addressing (BOOTP/DHCP)
To allow the server to automatically assign the TCP/IP address,
take the following steps:
1 Press Menu/Exit and then System Setup on the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2
Press
3
Press
or
bottom line.
4
Press Mode/Enter (Enter for SCX-5115) to access the
menu.
or
to display “NETWORK SETUP” on the top line.
to display “CONFIG NETWORK” on the
A
The first option, “CONFIGURE TCP” displays on the bottom
line.
5
Press Mode/Enter (Enter for SCX-5115) to access the
menu.
6
Press
or
to select the server to assign the TCP/IP
address, DHCP or BOOTP.
7
Press Mode/Enter (Enter for SCX-5115) to save the
selection.
8
When you are finished, press Stop/Clear.
INSTALLING A NETWORK OPTION
A.9
Configuring Netware
On IPX/SPX protocol networks (for example, Novell NetWare),
the format of network communication frames must be specified
on the printer. In most cases, you can keep the default setting
on “AUTO.” However, you can manually set the frame type
format if required.
• AUTO (default): Automatically senses and limits the frame
type to the first one detected.
• IEEE802.3: Limits the frame type to IPX over IEEE 802.3
frames. All others are discarded.
• ETHERNET II: Limits the frame type to IPX over Ethernet
Frames. All others are discarded.
• IEEE802.2: Limits the frame type to IPX over IEEE 802.2 with
IEEE 802.3 frames. All others are discarded.
• SNAP: Limits the frame type to IPX over SNAP with IEEE
802.3 frames. All others are discarded.
Take the following steps to change the frame type format:
1 Press Menu/Exit and then System Setup on the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2
Press
3
Press
or
bottom line.
4
Press Mode/Enter (Enter for SCX-5115) to access the
menu.
5
Press
6
Press Mode/Enter (Enter for SCX-5115).
7
Press
or
to select the frame type you want to set and
press Mode/Enter (Enter for SCX-5115).
or
or
to display “NETWORK SETUP” on the top line.
to display “CONFIG NETWORK” on the
to display “NETWARE” on the bottom line.
If you don’t want to enable the Netware protocol,
select “OFF”.
8
To return to Standby mode, press Stop/Clear.
A.10 INSTALLING A NETWORK OPTION
Restoring the Network Configuration
You can return the network configuration to its default settings.
1 Press Menu/Exit and then System Setup on the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2
Press
or
to display “NETWORK SETUP” on the top line.
3
Press
or
to display “SET DEFAULT” on the bottom line.
4
Press Mode/Enter (Enter for SCX-5115) to access the
menu.
5
Press
or
to select “YES” and press Mode/Enter
(Enter for SCX-5115).
To cancel restoring, select “NO.”
6
To return to Standby mode, press Stop/Clear.
Resetting the Network Interface Card
When your network interface card does not work properly, you
need to reboot the card.
1 Press Menu/Exit and then System Setup on the onetouch dial keypad. SCX-5115 users should press Menu and
then Enter.
2
Press
3
Press Mode/Enter (Enter for SCX-5115) when “RESET
NETWORK” displays on the bottom line.
4
Press
or
to select “YES” and press Mode/Enter
(Enter for SCX-5115).
or
to display “NETWORK SETUP” on the top line.
To cancel resetting, select “NO.”
5
To return to Standby mode, press Stop/Clear.
INSTALLING A NETWORK OPTION A.11
A
Configuring the Samsung Network
Printer Port
The supplied network programme installation CD-ROM contains
Samsung Network Printer Port for using Windows networks. You
can install the port with the network administration programme.
Before installing the Samsung Network Printer port, you need to
install the MFP driver on your system if it is not already installed.
See page page 2.4.
Installing Samsung Network Printer Port
1 Insert the installation CD supplied with your network
interface card into the CD-ROM drive.
2 The language selection window automatically opens. Select
a language.
If the SyncThru setup does not start automatically, if the
opening window does not appear, click Start, and then
Run. Type X:Autorun.exe, replacing “X” with the letter of
your drive, and click OK.
3 Click SyncThru.
4 Click Install Samsung Software on your PC.
5 In the Welcome window, click Next.
6 The Chooser Destination Location window appears. You may
select the program folder. Or click Next to install it in the
default folder.
7 When the Setup Type window appears, select Compact and
click Next.
8 When the installation is complete, click Finish.
A.12 INSTALLING A NETWORK OPTION
Selecting the Samsung Network Printer
Port
To print to the Samsung Network Printer port, you need to select
it in the printer driver.
1 From the Windows Start menu, selecting Settings and
then Printer to open the Printer folder.
In Windows XP, select Start and then Printers and Faxes.
2 Right-click on the Samsung SCX-5x15 Series PCL 6
printer icon and select Properties from the pop-up menu.
3 In Windows 95/98/Me, click the Details tab.
In Windows NT4.0/2000/XP, click the Ports tab.
4 Click Add Port.
5 In Windows 95/98/Me, click Other, and select Samsung
Network Printer Port. Click OK.
In Windows NT4.0/2000/XP, select Samsung Network
Printer Port and click New Port.
6 The Network Printer Port Wizard window appears. Select
the method for detecting the network interface card of your
machine and enter the associated address, if necessary.
Click Next.
You can find a print server by entering the printer’s IP
address, MAC address, or IPX/SPX address. To search
through all of the interface cards connected to the network,
select Auto Detection on the network.
7 If you selected Auto Detection on the network, the
system detects all of the print servers and displays a list.
Select your printer you want to use then click Next.
8 Type a port name to identify the new printer and click
Finish.
9 The selected port displays on the print port list. Click OK or Close.
10 You are finished. To send a job to the network printer, select
the printer from the application programme.
INSTALLING A NETWORK OPTION A.13
A
MEMO
A.14 INSTALLING A NETWORK OPTION
B
SPECIFICATIONS
This chapter includes:
• General Specifications
• Scanner and Copy Specifications
• Printer Specifications
• Facsimile Specifications (SCX-5315F only)
General Specifications
Item
Description
Printing method
Laser scanning unit
Scanning method
Sheet-fed and Flat-bed CCD(charge coupled device)
module
Effective scanning width
8.2 inches (208 mm)
Width
ADF Document size
6.9 to 8.5 inches (174 to 216 mm)
Length Single page: 5 to 59 inches (128 to 1500 mm)
Multi pages: 5 to 14 inches (128 to 356 mm)
for Tray : Letter, A4, Legal
(weight: 60~90 g/m2, 16 ~ 24 lb)
Recording paper type
for Multi-Purpose Tray: Letter, Legal, JIS B5, A4,
Executive, A5, A6 card, Post Card 4x6, HagaKi, Envelope
7-3/4, Envelope COM-10, Envolope DL, Envelope C5
* Min.: 3.9 x 5.8 inches (98 x 148 mm),
(weight: 60~120 g/m2, 16 ~ 32 lb)
Recording paper capacity
for Tray : 550 sheets (weight: 75 g/m2, 20 lb)
for Multi-Purpose Tray: 100 sheets (weight: 75 g/m2, 20 lb)
Automatic document
feeder
Up to 30 pages (20 lb or 75 g/m2)
Consumables
2-piece Toner/Drum cartridge system
Compatibility
Win 95, 98, 2000, NT 4.0, Win Me, Win XP
PC Interface
IEEE 1284 Parallel, USB, Optional Network
Power requirements
100 ~ 127 VAC, 50/60 Hz, 5A
220 ~ 240 VAC, 50/60 Hz, 2.5A
Sleep mode: 35 W
Power consumption
Standby mode: 90 W
Average: 350 W
Operating conditions
Temperature: 50 oF to 89 oF (10 oC to 32 oC)
Humidity: 20% to 80% RH
B.2 SPECIFICATIONS
Item
Description
LCD
16 Characters x 2 lines
Toner cartridge life
6,000 pages @ IDC 5% coverage
Drum cartridge life
15,000 pages @ IDC 5% coverage
SET Dimension (WxDxH)
22.0 x 17.0 x 18.1 inches (560 x 433 x 459 mm)
Net: 22.5 Kg (including consumables)
Weight
Gross: 26.5 Kg (including consumables, accessories and
package)
Package Weight
Paper: 2.7 Kg
Plastic: 0.7 Kg
Scanner and Copy Specifications
Item
Description
Compatibility
TWAIN standard
Resolution
Optical 600 dpi resolution (Mono and Color)
Color bit depth
Mono bit depth
Internal: 32 bit
External: 24 bit
1 bit for text mode
8 bit for Gray mode
Copy speed
15 copies per minute
Copy resolution
1,200 dpi enhanced
Zoom Rate
B
by platen 25 ~ 400 %
by ADF
25 ~ 100 %
SPECIFICATIONS
B.3
Printer Specifications
Item
Description
Printing method
Laser Scanning Unit + Electro Photographic
Printing speed
15 pages per minute/A4
Print resolution
1200 dpi class
Emulation language
PCL 6
Facsimile Specifications
(SCX-5315F only)
Item
Description
Printing method
Laser Scanning Unit
Compatibility
ITU-T Group 3, ECM
Applicable line
Public Switched Telephone Network(PSTN) or behind
PABX
Data coding
MH/MR/MMR (ECM Mode) and JPEG for color fax
transmission
Modem speed
33600/28800/21600/19200/14400/12000/9600/7200/
4800/2400 bps with fall back
Approx. 3 seconds/page
Transmission speed
Scanning speed
Resolution
B.4 SPECIFICATIONS
* Transmission time applies to memory transmission of
text data with ECM compression using only ITU-T No.1
Chart.
Platen: approx. 3 seconds/letter (at standard fax
resolution mode)
ADF: approx. 5 seconds/letter (at standard fax resolution
mode)
Standard(203x98 dpi), Fine(203x196 dpi),
Superfine(300x300 dpi), Photo(203x196 dpi/300x300
dpi), Color(203x196 dpi)
Item
Description
User Memory
4 MB (320 pages)
Halftone
256 levels
Auto dialer
One-touch dialling (registration for 40 numbers)
Speed dialling (registration for 80 numbers)
B
SPECIFICATIONS
B.5
INDEX
A
F
ADF load 4.3
fit to page print
in copy mode 4.9
in print mode 5.8
B
booklet print 5.8
C
cartridge locking lever 1.16
clone
in copy mode 4.10
in print mode 5.7
collation for copying 4.12
consumables 7.11
contrast
for copying 4.7
copy size 4.8
D
default printer 5.2
display language 1.20
document
jam, clear 8.2
load in ADF 4.3
load on document glass 4.4
document glass
clean 7.2
load 4.4
drum
clean 7.8
install 1.14
replace 7.8
E
error 8.11
extension phone, connect 1.12
J
jam, clear
document 8.2
paper 8.4
L
Loading Paper in the Tray 3.1
M
MFP driver
install 2.4
uninstall 2.8
N
network interface card
configure A.6
install A.2
network printer, setup
locally shared 5.12
network-connected A.6
P
paper jame, clear 8.4
paper load
in Multi-Purpose tray 3.6
in Tray 1.17
paper load capacity 3.2
paper save 1.21
paper size, set
in Multi-Purpose tray 3.9
in print mode 5.5
paper source
in copy mode 4.2
in print mode 5.5
paper type 3.2
parallel, connect 1.13
poster print 5.9
power save 1.22
printer driver
install 2.4
uninstall 2.8
printer driver window 5.3
R
resolution, print 5.6
S
scan driver
install 2.4
uninstall 2.8
scanner lock 1.2
SmarThru
install 2.4
uninstall 2.10
software
install 2.4
uninstall 2.12
T
tel line, connect 1.11
toner cartridge
install 1.14
life 7.3
replace 7.5
toner save 1.21
two-sided print
in copy mode 4.11
in print mode 5.10
U
USB, connect 1.13
Using the Multi-Purpose Tray 3.1
W
watermark, print 5.11
