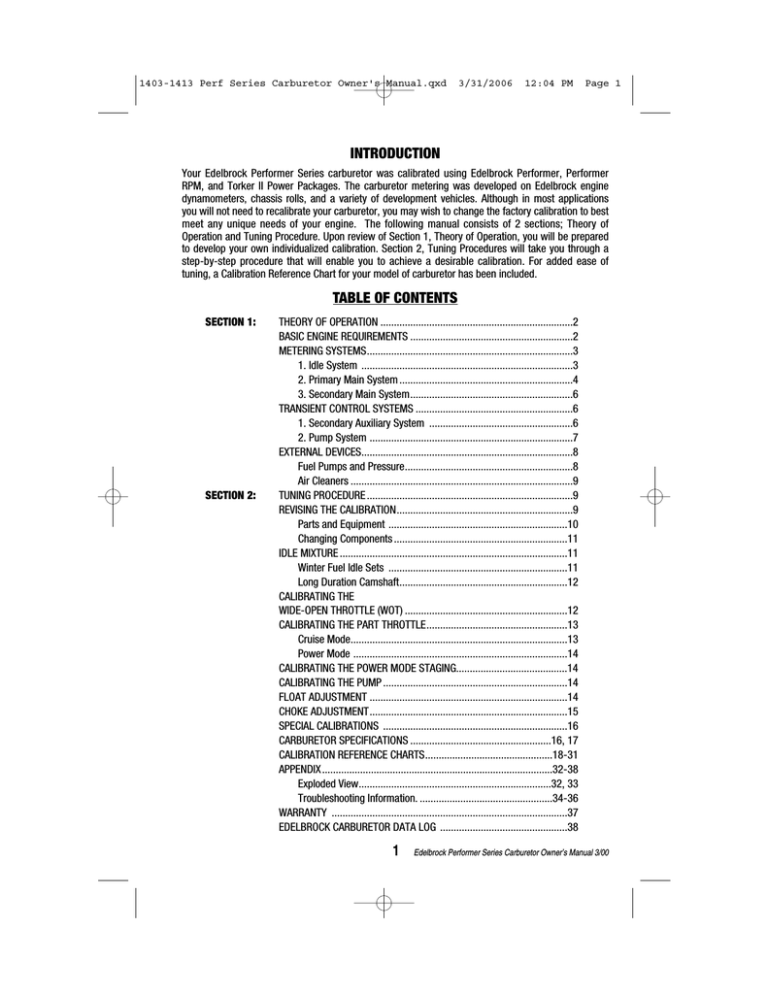

INTRODUCTION
Your Edelbrock Performer Series carburetor was calibrated using Edelbrock Performer, Performer
RPM, and Torker II Power Packages. The carburetor metering was developed on Edelbrock engine
dynamometers, chassis rolls, and a variety of development vehicles. Although in most applications
you will not need to recalibrate your carburetor, you may wish to change the factory calibration to best
meet any unique needs of your engine. The following manual consists of 2 sections; Theory of
Operation and Tuning Procedure. Upon review of Section 1, Theory of Operation, you will be prepared
to develop your own individualized calibration. Section 2, Tuning Procedures will take you through a
step-by-step procedure that will enable you to achieve a desirable calibration. For added ease of
tuning, a Calibration Reference Chart for your model of carburetor has been included.
TABLE OF CONTENTS
SECTION 1:
SECTION 2:
THEORY OF OPERATION .......................................................................2
BASIC ENGINE REQUIREMENTS ............................................................2
METERING SYSTEMS............................................................................3
1. Idle System ..............................................................................3
2. Primary Main System ................................................................4
3. Secondary Main System............................................................6
TRANSIENT CONTROL SYSTEMS ..........................................................6
1. Secondary Auxiliary System .....................................................6
2. Pump System ...........................................................................7
EXTERNAL DEVICES..............................................................................8
Fuel Pumps and Pressure..............................................................8
Air Cleaners ..................................................................................9
TUNING PROCEDURE ............................................................................9
REVISING THE CALIBRATION.................................................................9
Parts and Equipment ..................................................................10
Changing Components ................................................................11
IDLE MIXTURE ....................................................................................11
Winter Fuel Idle Sets ..................................................................11
Long Duration Camshaft..............................................................12
CALIBRATING THE
WIDE-OPEN THROTTLE (WOT) ............................................................12
CALIBRATING THE PART THROTTLE....................................................13
Cruise Mode................................................................................13
Power Mode ...............................................................................14
CALIBRATING THE POWER MODE STAGING.........................................14
CALIBRATING THE PUMP ....................................................................14
FLOAT ADJUSTMENT .........................................................................14
CHOKE ADJUSTMENT.........................................................................15
SPECIAL CALIBRATIONS ....................................................................16
CARBURETOR SPECIFICATIONS ....................................................16, 17
CALIBRATION REFERENCE CHARTS...............................................18-31
APPENDIX .....................................................................................32-38
Exploded View.......................................................................32, 33
Troubleshooting Information. .................................................34-36
WARRANTY .......................................................................................37
EDELBROCK CARBURETOR DATA LOG ...............................................38
1
Edelbrock Performer Series Carburetor Owner’s Manual 3/00
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 2
SECTION 1: THEORY OF OPERATION
BASIC ENGINE REQUIREMENTS
The spark-ignition 4-cycle engine burns a mixture of AIR and FUEL. The air is controlled by the
driver’s operation of the throttle. The fuel is mixed with the incoming air by the carburetor. The Ratio
of AIR to FUEL is the AIR/FUEL Ratio (A/F). This is a ratio by WEIGHT; if 12 pounds of Air are combined
with 1 pound of Fuel the A/F is 12:1, or more commonly, A/F = 12.
Despite the enormous variety in engine designs, virtually all (spark-ignition 4-Cycle) engines have
very similar A/F Ratio requirements. For fully warmed-up engines, the range of A/F is:
A/F RATIO
CHARACTERISTICS
5
RICH BURN LIMIT: Combustion is weak/erratic.
6-9
EXTREMELY RICH: Black smoke and low power.
10-11
VERY RICH: Some supercharged engines run in this range at full power as a
means of controlling detonation.
12-13
RICH: Best power A/F: Un-supercharged WOT.
14-15
CHEMICALLY IDEAL: At 14.6 the A/F is at the theoretical ideal ratio with no
excess fuel or oxygen after combustion. Good A/F for part
throttle cruise and light to moderate acceleration.
16-17
LEAN: Best economy A/F ratio. Borderline for part throttle
drivability (worse than borderline if EGR is used).
18-19
VERY LEAN: Usual lean limit (Driveability).
20-25
LEAN BURN LIMIT: Varies with engine and system.
Even though engines will run anywhere between 5 and 25 A/F, the usual target values for an unsupercharged engine are a fairly narrow range (Figure 1). A/F is about 12.5 for the WOT and 14.015.5 at part-throttle cruise. An intermediate value of about 13.5-14.0 is usually used for mid-range
power (non-WOT acceleration).
2
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 3
Lean 17.0
16.0
A
/
F
Part-throttle cruise
15.0
14.0
R
A
T
I
O
Part-throttle acceleration
X
13.0
Idle
Wide open throttle
12.0
11.0
Rich 10.0
0
1000 2000 3000 4000 5000 6000 7000 8000 9000
Engine RPM
Typical Engine A/F Ratios
Figure 1
METERING SYSTEMS
The Edelbrock carburetor has three (3) basic systems that meter fuel to the engine: The Idle System,
Primary Main System, and Secondary Main System. By understanding the operation of each you will
be better prepared to calibrate your carburetor.
Idle System: The Idle System delivers 100% of the idle fuel. It also meters fuel at off-idle throttle
positions; a large percentage at just off of idle decreasing to a minor influence as the throttle is
opened wider. The idle setting is critical both to a smooth idle at proper rpm and to a smooth
transition to part-throttle operation.
(5) Idle Channel Restrictor
(4) 1st Idle Air Bleed
(6) 2nd Idle Air-Bleed
(3) Idle Jet
(2) Primary Well
(1) Main Jet and
Metering Rod
(7) Transfer Slot
(8) Idle
Screw
Port
Idle System
Figure 2
3
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 4
Fuel is drawn through the Idle System (Figure 2) by the intake manifold vacuum that is
communicated at the Idle Screw Port (8) and Transfer Slot (7). Fuel in the bowl passes through the
Primary Main Jet and Metering Rod Restriction (1) and into the Primary Well (2). The fuel for the Idle
System is drawn through the restriction at the end of the Idle Jet (3) - a brass tube - and flows up the
tube to the location of the 1st Idle Air Bleed (4) - a brass restrictor - where air is mixed with the liquid
fuel. The emulsified air and fuel is then drawn through the Idle Channel Restrictor (5) - a drilled passage
that serves to increase the velocity of the air and fuel to promote better mixing. As the emulsified fuel is
discharged from the Idle Channel Restrictor, additional air is added at the 2nd Idle Air Bleed (6) - a drilled
hole - and the highly aerated mixture then moves through the passages in the main-body to the location
of the Transfer Slot (7) and Idle Screw Port (8). The Transfer Slot (7) is a large air bleed when the throttle
is closed, but as the throttle is opened the slot is exposed to manifold vacuum and becomes a discharge
port for Idle System fuel. The Idle Screw Port is a variable discharge restriction that is adjusted by the
engine tuner to achieve the desired A/F Ratio at engine idle.
Primary Main System: The Primary Main system delivers an increasing percentage of the fuel as
throttle position increases (phasing over the Idle System) and varies fuel delivery in response to air flow
and manifold vacuum.
Fuel is drawn through the Main System (Figure 3) by the pressure-drop that occurs when the incoming
air flow must increase in velocity in order to pass the reduced throat areas at the Main Venturi (1) and the
Boost Venturi (2). This pressure-drop (or suction) is communicated to the system by the Nozzle (3)-a
brass tube that opens into the inside of the Booster Venturi (2).
The fuel must pass through the restriction at the Main Jet (4) and Metering Rod (5). The Rod extends
through the Jet, reducing the amount of area available for fuel flow. If the diameter of the Rod is large,
then fuel flow through the Jet is more restricted than if the Rod were small.
After the Rod and Jet, the fuel enters the Primary Well and is drawn up the inside of the Primary Well
Tube (6). Sometimes this tube is called an Emulsion Tube. Here, the fuel is mixed with air that enters the
inside of the Tube through a series of small holes. The air is supplied by the Main Well Bleed (7) at the
top of the Main Well. The air/fuel mixture exits from the top of the Main Well into a passage that leads it
to discharge into the Booster Venturi (2) at the Nozzle (3).
(3) Nozzle
(7) Main
Well
Bleed
(9) Step-Up
Piston
(10) Step-Up
Piston Spring
(2) Boost
Venturi
(1) Main
Venturi
(8) Vacuum
Passage
(5) Metering Rod
(6) Primary
Well
Tube
(4) Main Jet (primary)
Primary Main
System
Figure 3
4
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 5
The fuel flow rate in the Main System is proportional to the air flow rate; as air flow increases - from
either an increase in throttle opening or an increase in engine speed at the same throttle opening the fuel flow also increases by nearly the same degree.
At higher engine loads, such as in a heavy part-throttle acceleration, there is a need for a richer
mixture. This enrichment is provided by the Metering Rod and Step-Up Function (Figure 4). A vacuum
passage (8) communicates the manifold vacuum to the underside of the Step-Up Piston (9). This
vacuum tries to hold the Piston in the bottom of its bore by working against the force of the Step-Up
Spring (10).
When the manifold vacuum is high, indicating a low load such as idle, cruise, or light acceleration, it
is able to overcome the force of the Step-Up Spring and hold the Step-Up Piston at the bottom of its
bore, which also positions the Metering Rod at the bottom of its travel. At this point, the Rod has a
large diameter that creates a high restriction through the Jet and the fairly lean A/F Ratio that is
desirable for low load/low power operation. This portion of the Metering Rod is referred to as the
“Lean Step” of the Rod.
When the manifold vacuum is low, indicating a high load such as a heavy part-throttle (or WOT)
acceleration, the Step-Up Spring is able to force the Piston to the top of its bore and position the
Metering Rod at the top of its travel. This action is called “Power Mode Staging”. The portion of the
rod now located in the jet has a smaller diameter, thus the restriction through the Jet is reduced and a
rich A/F Ratio is provided for high load/high power operating conditions. This is the “Rich Step” of the
Rod.
ROD DOWN: Lean A/F Ratio
HIGH LOAD: Low Vacuum
Step-Up Piston
Step-Up Spring
Metering Rod
LEAN STEP In Jet
RICH STEP In Jet
Main Jet
LOW LOAD: High Vacuum
ROD UP: Rich A/F Ratio
Metering Rod and Step-Up Function
Figure 4
5
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 6
Secondary Main System: The Secondary Main System (Figure 5) delivers fuel only when the
secondary throttle blades and air valve are open. It ensures that fuel delivery varies with air flow.
The Secondary Throttles (1) begin to open when the Primaries are about 65% open. The Primary and
Secondary Throttles arrive at the WOT stop at the same time.
Air flow through the Secondary side is controlled by Air Valves (2). These valves are located in the
secondary bores above the throttle blades. They are balanced against a counter weight and open to
admit additional air flow only if there is enough air velocity to allow the proper operation of the
Secondary Metering Systems.
The principles of operation for the Secondary Main System are the same as those that govern the
operation of the Primary Main System; the pressure drop (suction) arises from the increase in the airs
velocity as it passes through the Venturi sections. The pressure drop (suction) at the Secondary
Booster Venturi (3) is communicated into the system by the Secondary Nozzle (4).
Fuel flows through the Secondary Main Jet (5) to the Secondary Well where it is drawn through the
Secondary Well Tube (6). The fuel is mixed with air that enters the tube through a series of small
holes. The source of the air is one of the Secondary Well Bleeds (7). There are two air-bleeds; one
admits air to the outside of the Well Tube and the other allows air to flow into the passage behind the
Nozzle. The fuel, now well mixed with air, flows through the slightly up-hill passage and exits into the
Secondary Boost Venturi (3) through the Secondary Nozzle (4).
(7) Secondary
Well Bleeds
(2 bleeds)
Secondary Main
Systems
Figure 5
(3) Secondary
Boost
Venturi
(4) Secondary
Nozzle
(6) Secondary
Well Tube
(5) Secondary
Main Jet
(2) Air
Valve
(1) Secondary
Throttle
TRANSIENT CONTROL SYSTEMS
In addition to the three (3) basic Metering Systems, there are two (2) Transient Control Systems; The
Secondary Auxiliary System and The Pump System.
Secondary Auxiliary System
During the initial stages of Secondary Operation, the air flow rate through the secondaries is very low.
Accordingly, there is not enough pressure drop (suction) at the Secondary Nozzle to induce fuel flow.
In order to prevent a lean A/F condition that would be experienced by the driver as a
6
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 7
“bog” or “flat spot” on secondary opening, it is necessary to add fuel by an auxiliary means during the
time the secondary is in the transient phase.
This is accomplished by placing a small Discharge Nozzle (2) at a point just under the Air Valve (1).
The air flow past the edge of the Air Valve creates sufficient pressure drop to pull fuel out of the
Auxiliary System. The fuel must first pass through the Secondary Main Jet (3) to the Secondary Well; it
is then drawn through the Auxiliary Fuel Tube (4) and exits at the Discharge Nozzle (2). There is
always an air-bleed, either in the Auxiliary Fuel Tube (near the top), or as a separate brass restriction
bushing (shown).
The flow of fuel in the Auxiliary System is enough to prevent a lean transient on Secondary opening.
As the Air Valve is opened further by increasing air flow, the fuel flow through this system decreases.
Correspondingly, the fuel flow in the Secondary Main System increases, providing a near constant A/F
Ratio.
(5) Air-Bleed
(some PNs)
(2) Discharge
Nozzle
(3) Secondary
Main Jet
(1) Air Valve
(4) Auxiliary
Fuel Tube
Secondary Auxiliary System
Figure 6
Pump System
When the throttle is opened rapidly, the air flow through the engine will increase immediately. The
fuel, since it is much heavier than the air, will “lag” behind. This contributes to a temporary lean A/F
condition. Regardless of cause, a solution is to temporarily enrichen the A/F Ratio by mechanically
pumping a small quantity of fuel into the throat of the carburetor (Figure 7). The Edelbrock carburetor
has a piston that draws fuel into the pump cavity past the plunger lip-seal when the throttle is closing
(1). Upon opening, the lip-seal seats, allowing the plunger to force the fuel through another one-way
valve, the Pump Discharge Ball and Weight (2), and the Pump Jets (3) into the primary throats.
7
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 8
The pump plunger is not driven directly by the throttle, but through an intermediate Pump Drive Spring
(4) that extends the duration of the “pump shot” past the time the throttle stops moving. The
Edelbrock Performer Series carburetor has an external pump lever with three hole locations for link
attachment providing three distinct pump delivery curves. This is further explained in “Calibrating The
Pump”.
(3) Pump Jets
Pump
System
Figure 7
(2) Pump Discharge Ball & Weight
(4) Pump Drive Spring
(1) Inlet Check
(Lip Seal)
EXTERNAL DEVICES
The function of your Edelbrock Performer Series carburetor is also dependent on several external
devices; the fuel pump and air cleaner.
Fuel Pumps and Pressure
Avoid extremes in fuel pressure. At IDLE, there should not be any more than 6.0 psi; if the vehicle has
an adjustable fuel-pressure regulator, set it to 5.5 psi. With most fuel pumps the minimum fuel
pressure is encountered at high rpm and WOT. Fuel pressure should not drop below 2.0 psi. If it does,
a fuel pump with more capacity may be required. Note that some later model vehicles (the 5.0L Ford
is one example) have mechanical pumps that will give more than 6.0 psi at idle. The vehicle will
perform well, but may be prone to stalls on quick turns and stops with the clutch disengaged. If this
problem occurs, check the fuel pressure. If it is more than 6.0 psi at IDLE, it should be reduced
through the use of a regulator, such as Edelbrock #8190, or by creating a restricted by-pass bleed to
the fuel return line. Edelbrock Street Fuel Pumps are highly recommended for all Edelbrock Performer
Series carburetor installations.
Always use a filter, such as Edelbrock #8873 between the pump and carburetor. Note that a good
filter is large in area, so it may be able to transmit a significant amount of heat to the fuel. It is a good
practice to keep the filter away from heat and not allow it to come in contact with any part of the
engine.
8
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 9
Air Cleaners
Your Edelbrock carburetor was originally calibrated with a low restriction open element air cleaner
configuration; a 14”x3” Edelbrock Signature Series unit. It was also evaluated for proper metering and
vehicle performance using a variety of other air cleaner designs and will perform as intended with
nearly any reasonable air cleaner design. While the Edelbrock Performer Series carburetor does not
exhibit excessive sensitivity to the air cleaner, there are several guidelines you should follow when
selecting an air cleaner:
•
Running without an air cleaner is strongly discouraged for a street-driven vehicle. Dirt and
varnish will accumulate in critical bleeds and upset the fuel metering. Dirt and debris may easily
get into the fuel bowl through the bowl vents or larger bleeds and cause a multitude of
problems.
•
Any calibration testing should be performed with the air cleaner in place. Depending upon the air
cleaner used, the metering typically will be leaner with the air cleaner in place.
—
A large 14”x3” open element air cleaner, such as Edelbrock Elite Series, Signature Series and
Pro-Flo air cleaners, offers almost no resistance to air flow. Flow bench results show virtually no
reduction in air flow. Also, this design should cause no change to the fuel metering.
—
A 10”x2” open element design will result in some definite air flow restriction but little change to
the fuel metering.
—
Elements smaller than 10”x2” are more restrictive and have the most effect upon
metering. The fuel metering at WOT will be shifted LEANER, especially at higher rpm ranges.
•
If you have a dual-purpose vehicle that is sometimes used in competition without an air cleaner,
it may be necessary to have two separate calibrations. If you are running a smaller air cleaner
and have optimized the WOT with it in place, do not be surprised to find that the metering shifts
RICHER when the air cleaner is removed. This may require you to calibrate the WOT with leaner
Jets and Rods at the drag strip.
•
DO NOT allow the vehicle air-stream to blow across the top of the carburetor(s) such as on an
open-bodied car or full-bodied vehicle with a tunnel-ram manifold. The flow of air across the
carburetor will result in an upset to the fuel metering that cannot be accommodated by
recalibration since the change to the A/F Ratio will be different for every vehicle speed.
SECTION 2 : TUNING PROCEDURE
Before proceeding please ensure you have installed your Edelbrock Performer Series
Carburetor according to the Carburetor Installation Instructions included with the carburetor
REVISING THE CALIBRATION
The Edelbrock Performer Series Carburetor is designed to allow quick and easy changes to the
metering. Virtually any change imaginable can be performed without removing the carburetor from
the manifold, and the most common changes may be performed in less than five minutes without
removal of the airhorn (bowl cover).
9
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 10
To help you calibrate your carburetor, a CALIBRATION REFERENCE CHART has been designed for each
model of the Edelbrock Performer Series carburetor. These charts (pages 18—31) each consist of two
sections: A Calibration Table and a Rod/Jet Reference Chart.
After reading the Calibration procedures, the next step in calibrating your carburetor is to look at the
Calibration Table for your model carburetor. Determine if you would like to go richer or leaner in the
Cruise Mode and do the same for the Power Mode. Select the number that is closest to intersection of
your Cruise and Power Mode selections. This is your calibration reference number. Now refer to the
Rod/Jet Reference Chart that appears on the opposing page. Locate your calibration reference
number to determine the rod/jet combination for your application.
For example, you have a 1405 Edelbrock Performer Series carburetor. You have determined (by
reading the rest of the manual) you would like to go 1 stage lean in the Cruise Mode and 2 stages lean
in the Power Mode. The intersection of these two lines lies on the number 21. This is your calibration
reference number. Now look below the Calibration Table to the Rod/Jet Reference Chart. Find the
number 21 under the REF# column. The jets you should use are .098 and the rods are .070 x .052.
Located at the very bottom of each Calibration Reference Chart is a guide for changing your
Secondary Metering. This will be useful when calibrating the wide-open-throttle (WOT).
Before you attempt to establish a new calibration, be sure that the engine is in a sound state of tune.
All ignition items must be in proper working order, including reasonably fresh plugs of the correct heat
range. Timing should be properly set and the air filter element and fuel filter should be clean.
Proper fuel pressure should be verified and cracked or brittle vacuum lines should be
eliminated. Many so-called “carburetor calibration” problems have been traced to another part of the
engine system that was not functioning properly.
CAUTION: Be alert to carburetor flooding when fuel is first applied. Flooding can be caused by dirt,
small particles of hose cuttings, floats and inlet needles which have settled during shipping, or
by other conditions as discussed below. Each Edelbrock Performer Series carburetor is flow
tested in the factory for both air and liquid flow so flooding is rare. However, for safety sake
please observe this caution. When the fuel pump is turned on or when the engine is first started,
watch closely for signs of flooding. If flooding is apparent, tap the body of the carburetor lightly
with a rawhide mallet or the wooden handle of a small hammer. If flooding continues, pinch the
fuel line hose to shut off flow, run the engine to clear the carburetor, and let the fuel line flow
again. If flooding continues, pinch the fuel line hose to shut off flow, run the engine to clear the
carburetor, and let the fuel line flow again. If flooding still continues, stop the engine. Clean up
any raw gasoline and refer to the “Trouble Shooting” section of the Owner’s Manual.
Parts and Equipment —
Aside from ordinary hand tools, the following items are recommended.
•
Edelbrock Performer Series Carburetor Jet Set - Contains selections of Main Jets,
Metering Rods, and Springs.
•
Tachometer - If the vehicle is not equipped with a tach, the dwell meter style tach will
be adequate. If neither is available, you will be able to use the speedometer in place
of the tach for some of the procedures, but it will not be as convenient.
•
Vacuum Gauge - Should be hooked up to read engine’s intake manifold vacuum.
Without a vacuum gauge, some of the calibration procedures will be more difficult.
10
Edelbrock Performer Series Carburetor Owner’s Manual 9/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 11
Changing Components
Metering Rod and Step-Up Spring changes can typically be made in less than five minutes and
without removing the carburetor. First, loosen the Step-Up Piston Cover Screws (See pg. 32) and twist
the Step-Up Piston Cover Plates to the side. The Metering Rods and Step-Up Springs can now be
removed and replaced if necessary. Be sure to replace the Step-Up Piston Cover Plate and tighten the
Step-Up Piston Cover Screw when finished. CAUTION: Do not overtighten the Step-Up Piston
Cover Screws! They should only be tightened to 12 to 17 inch/pounds. Excessive torque will
weaken or snap off the screw heads. If this happens, they may fall into the carb causing serious
engine damage. If an inch/pound torque wrench is not available, snug the screw until it just touches
the plate, then tighten 1/16th turn more.
To replace the Primary or Secondary Metering Jets, first, remove the Metering Rods and Step-Up
Springs as outlined in the preceding paragraph. Next, disconnect the Choke Cam Connector Rod,
Pump Connector Rod, and Choke Connector Rod (when applicable). Finally, remove the 8 Airhorn
Attaching Screws and remove the Airhorn from the carburetor body. A standard screwdriver can now
be used to remove the appropriate Metering Jets. Once desired Metering Jets have been installed the
carb may be reassembled by reversing this procedure.
IDLE MIXTURE
The Edelbrock Performer Series carburetor has conventional Idle Mixture Screws (IMS) that provide a
leaner A/F when turned clockwise and richer A/F when turned counter clockwise. The idle air flow is
controlled by a conventional screw that opens the Primary Throttles. The following procedure should
be used to set the idle mixture and speeds.
1. Fully warm engine and ensure choke is fully open.
2. Air cleaner in place.
3. Set desired speed with the air screw.
4. Adjust the IMS on ONE side to get the maximum possible RPM. Do not go rich
beyond the maximum speed point.
5. If the above changed the idle speed more than 40 RPM, then readjust the speed.
6. Adjust the side OPPOSITE of that in Step 4 to get maximum RPM.
7. Reset the speed.
8. Carefully trim each IMS to again get the maximum idle RPM.
9. Go leaner just enough to get a 20 RPM drop in speed.
10. Reset the speed to the desired RPM.
11. This is a Lean-Best Idle Set. Setting richer than this will not improve idle quality or
performance, but could tend to foul plugs.
Winter Fuel Idle Sets
During the winter months (in most parts of the country) the local fuel will be a “winter” blend that is
very volatile, as an assist to cold-engine starting and driveability during warm-up. However, the high
volatility has the disadvantage of allowing excessive vaporization of the fuel if the vehicle is operated
in a heated area such as a garage. This can result in problems in the idle-set procedures since the
carburetor’s internal vents will allow this excess vapor to be drawn into the throats and enrichen the
mixture. The idle will be erratic and not seem to be able to hold a set. To resolve this type of problem,
it is advisable to perform the final settings outdoors after the vehicle has been stabilized with a drive
of several miles.
11
Edelbrock Performer Series Carburetor Owner’s Manual 9/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 12
Long Duration Camshaft
If the engine has a fairly radical camshaft it may require an excessive amount of throttle
opening for idle and/or have low idle vacuum levels. Either condition can lead to poor levels of
adjustability and erratic idles.
•
Another fix for the above condition is to run as much spark advance as possible at idle. If the
distributor is fitted with a vacuum advance unit, connect it directly to manifold vacuum. If you
are not able to employ vacuum advance for some reason, then the mechanical curve should
have a low limit, which will allow you to use plenty of initial spark advance.
•
Measure the manifold vacuum at idle. If it is below 7” Hg, there is a good chance that the
Metering Rods are in the up (rich) position. When combined with a high idle air rate this can
cause the Nozzles to discharge fuel at idle. Use a weaker Step-Up Spring (see section on StepUp calibration) to keep the Rods down at idle. With some cams, a stiffer spring (pink or silver) is
necessary. Experimentation is the best way to determine which is best for your application.
CALIBRATING THE WIDE-OPEN-THROTTLE (WOT)
The best place to perform your WOT calibration is on a chassis dyno. If one is not available then
consider a safe, legal driving space, such as a drag strip where you are given E.T. and MPH data.
1. Select an RPM Range to use in evaluating the WOT power. As a rule, use the highest 50
percent of the real power band. If your engine makes good power up to 5000 RPM, then
2500-5000 is a good range. If peak power is at 6500, then 3500-6500 would be a good
pick. Be sure not to select RPMs that are higher than the engine’s useful power band.
2. Accelerate at WOT from 1000 RPM below the range you have elected to a few hundred over
the range. Time the acceleration with a stop-watch. Be sure to time only the interval while
the engine is sweeping through the selected range. Make enough timed accelerations to get
a good average that is not affected by wind or grade.
3. Refer to the Calibration Reference Chart for your model. Find the richest Power Mode
(Primary Metering) change you can make without changing a Jet — a Rod change only.
This will probably be 2 stages (8%) rich.
4. Change to the indicated Rods. Perform timed acceleration #2. Compare the times. Do not be
surprised if there is no difference.
5. Compare the results of timed acceleration #2 to the base calibration and refer to the
following section that best describes your situation:
Case 1: Faster than base calibration
Change Secondaries 2 stages richer and perform acceleration test #3.
•
If test #3 is the same as #2, you’re done.
•
If test #3 is slower than #2, change to 1 stage rich for the Primary and Secondary and you’re
done.
•
If test #3 is still faster than #2, go to 3 stages rich Primary and Secondary and keep going richer
until there is no change (or slower) in the times. Stay at the first “no change” level, so that you
stay with the richer of any two levels of calibration that have the same power.
12
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 13
Case 2: Slower than base calibration
Go to 1 stage lean Primaries and 1 lean Secondaries and perform acceleration test #3.
•
If test #3 is the same as base calibration, go back to the base calibration.
•
If test #3 is faster than base calibration, go to 2 stages lean on both the Primaries and the
Secondaries. Keep going in the lean direction until there is no change or slower then back up 1
stage richer, so that you stay with the richer of any two levels of calibration that have the same
power.
Case 3: Same as base calibration
Do not be surprised. Change back to base calibration.
CALIBRATING THE PART-THROTTLE
The Metering Rod feature used in the Edelbrock Performer allows easy calibration of the part-throttle
without change to the WOT metering.
•
Cruise Mode: The power output is low, as in a steady cruise light acceleration. Manifold Vacuum
is high and the Metering Rods are down in the lean position.
•
Power Mode: The power output is high, as in a heavy but not wide-open acceleration. Manifold
Vacuum is low and the Rods are up in the rich position.
As explained in the “Theory of Operation,” the Step-Up function modulates the Rods between the
Cruise and Power positions.
The part-throttle calibration is more “individualized” than is the Wide-Open-Throttle (WOT). It is not
measured by absolute numbers, but reflects the driver’s feel for a particular
combination.
Carefully evaluate the driveability with the carburetor at the calibration level determined from the WOT
exercise. Drive at a variety of engine speeds and throttle openings looking for any flat spots or
lean/surge conditions.
Cruise Mode
If there are any surge or flat spot conditions in the steady speed cruises or light accelerations, a lean
condition probably exists. Consult the Calibration Reference Chart and change to 1 stage rich in the
Cruise Mode. If it gets better, but not completely fixed, keep going in the rich direction. The
Calibration Reference Chart will give you Rod and Jet combinations that are directionally correct or
you may choose your own.
If the light throttle is satisfactory, trying going 1 stage lean in the Cruise Mode. If there are still no
problems with surge or other indications of lean metering, do not hesitate to go to 2 stages lean in the
Cruise Mode. A lean Cruise Mode has advantages in fuel economy and keeping the plugs clean. Keep
going until you begin to notice driveability problems and then back up 1 stage.
Power Mode
Accelerations at part-throttle with low manifold vacuum (less than about 5” Hg on a vacuum gauge)
are metered by the Power Mode. Avoid calibrating this portion of the engine’s
operating range too lean as spark knock (detonation) and piston/valve burning can occur. If this mode
has any lean driveability symptoms (surge or flat spots), it is too lean and should be recalibrated at
least 1 stage richer.
13
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 14
CALIBRATING THE POWER MODE STAGING
The Step-Up function, which moves the Metering Rod to the Power Mode, is controlled by the Step-Up
Spring. The base calibration has a spring which “stages” rich at 5” Hg.
If your vehicle has a mid-throttle driveability problem that is encountered as the throttle is gradually
opened, but then goes away upon further opening, it may be possible to eliminate the lean spot by
using a stronger Step-Up Spring. The available Step-Up Springs are listed in the following chart along
with their respective “staging” point. It is best to select a new spring on the basis of vacuum
readings, but in the absence of a gauge, try the strongest spring (highest vacuum rating) to see if the
problem goes away. If the drive problem is cured by the strong spring, try the next weakest spring as
well. If the strong one does not help, then the calibration problem is related to the A/F metering stage
of either the Cruise or Power Modes. Use the Calibration Reference Chart to help select another
combination.
Spring Color
Staging Vacuum
("Hg)
Blue
Yellow
Orange
Pink
Plain
3"
4"
5"
7"
8"
A complete set of these springs is available separately as Edelbrock part #1464.
CALIBRATING THE PUMP
If you encounter any hesitations or stumbles that do not seem to be related to the basic metering or
have not responded to changes in the basic metering, move the pump drive link to one of the holes
closer to the carburetor body. This will increase the stroke length of the plunger and result in more
pump delivery.
FLOAT ADJUSTMENT
To properly adjust the floats in the EPS carburetor, two procedures must be followed. First, invert the
airhorn cover (Figure 8) holding the airhorn gasket in place. There should be 7/16” between the
airhorn gasket and the top of the outer end of the float. To adjust the float level, bend the float lever
until the recommended level is attained. DO NOT press the needle into the seat when adjusting the
float lever. Next, you should check the float drop (Figure 9). Hold the airhorn upright and let the floats
hang down. There should be 15/16" to 1" between the airhorn gasket and the top of the outer end of
the float. To adjust the float drop, bend the tab on the back until the recommended float drop is
attained. For the off-road float adjustment, see page 16.
CHOKE ADJUSTMENT
To adjust the choke piston linkage (Figure 10) open the choke valve and insert a .026” wire, with a 90
degree bend 1/8” from the end, between the top of the slot in the choke piston cylinder and the
bottom of the slot in the piston. Hold the wire in position and close the choke valve by pressing on
piston lever A until resistance is felt. The dimension C should be .100” between the top edge of the
choke valve and the air horn. To adjust, bend rod B.
To adjust the fast idle linkage (Figure 11) place the fast idle screw A between the two notches on the
cam. Close the choke valve as far as possible without forcing it. The dimension C should be 3/64”
between the choke valve and the air horn. To adjust bend rod D.
Fast idle may be adjusted to manufacturers specifications (usually 1500 rpm) during normal choke
cold operation. The fast idle screw A can be adjusted with engine off and throttle held open to allow
screw head access. Recheck fast idle speed after each adjustment.
14
Edelbrock Performer Series Carburetor Owner’s Manual 1/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 15
BEND HERE
Float Level (7/16")
Figure 8
7/16” Drill bit
TAB
C (.100")
Float Drop (15/16" to 1")
Figure 9
B
A
C (3/64")
.026 Wire
Slot Piston Cylinder
D
Choke piston linkage
Figure 10
A
Fast idle linkage
Figure 11
15
Edelbrock Performer Series Carburetor Owner’s Manual Rev 9/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 16
The length of time during which the choke will stay closed is determined by the position of the choke
cap. As the choke cap is turned clockwise the choke will stay closed longer. To properly set the choke
turn the choke cap to the leanest notch on the choke housing, loosen the choke housing retaining
screws, and run the engine until normal operating temperature is reached. With the engine running,
slowly turn the choke cap clockwise until the choke valve begins to close. Now turn the choke
housing one notch counterclockwise (LEAN) and tighten the choke housing retaining screws. Periodic
readjustment of the choke will be required as the temperature changes throughout the year. After
each adjustment verify that the choke valve opens fully after the engine is warm.
SPECIAL CALIBRATIONS
The preceding calibrations and adjustments apply to carburetors used in general street applications.
In the following extreme instances, special calibration procedures may need to be followed.
Off-Road
Although the Edelbrock Performer Series carburetor was not calibrated with hill climbing and other
extreme off-road operation in mind, it can be made to perform superbly by substituting Edelbrock
#1465 spring loaded needle and seat for the original needle and seat. The spring loaded needle and
seat act like a shock absorber, reducing the possibility of flooding during off-road operation. After
installation of the new needle and seat you must reset the float level to 7/16" and drop the float drop
to 15/16 to 1" as outlined in “FLOAT ADJUSTMENT”.
High Fuel Flow
When evidence of fuel starvation exists, first ensure that proper pressure (4-5 psi minimum) is
maintained at WOT. If proper fuel pressure is supplied and fuel starvation still exists, it may be
necessary to change the needle and seat to a larger size (#1466). Do not make this change unless
absolutely required, as the smaller inlet is preferred for proper fuel control under most conditions.
High Altitude
Altitude has a direct effect on the operation of most carburetors. As the altitude increases, the air
becomes less dense so a carburetor, originally calibrated at low altitude, delivers too much fuel and
the engine runs richer. If the preceding tuning procedure is performed on an Edelbrock Performer
Series carburetor, a proper high altitude calibration will result. If the vehicle was calibrated at lower
Carburetor Specifications - All Models
Carburetor
Part No.
CFM
1404
1405
1406
1407
1409*
1410*
1411
1412
1413
500
600
600
750
600
750
750
800
800
Main
Jet
Primary
.086"
.100"
.098"
.113"
.098"
.113"
.110"
.113"
.113"
Main
Metering
Jet
Rod
Secondary (Primary only)
.095"
.065" x .052"
.095"
.070" x .047"
.095"
.075" x .047"
.107"
.071" x .047"
.101"
.068" x .047"
.107"
.071" x .047"
.107"
.075" x .047"
.101"
.071" x .047"
.101"
.071" x .047"
Step-Up
Spring
Needle
& Seat
Float
Height
orange (5")
orange (5")
yellow (4")
orange (5")
orange (5")
orange (5")
orange (5")
orange (5")
orange (5")
.0935"
.0935"
.0935"
.0935"
.0935"
.0935"
.0935"
.0935"
.0935"
7/16"
7/16"
7/16"
7/16"
7/16"
7/16"
7/16"
7/16"
7/16"
* = Carburetor is certified to meet U.S. Coast Guard Requirements
16
Edelbrock Performer Series Carburetor Owner’s Manual Rev 1/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 17
altitude, however, and is to be driven at high altitude temporarily, it is not necessary to repeat the
complete calibration procedure. Instead, use the rule of: “2% leaner per 1500 feet” and the
Calibration Reference Chart for your model carburetor. For example, with a #1405 at baseline
calibration (location #1 on the chart) and intended operation at 6000 ft. altitude, you would want 6000
divided by 1500 x 2% = 8% leaner calibration. That would be location #24 on the chart which would
require only a rod and jet change.
Blended Fuels
Typically, two types of blended fuels are available: Gasohol and gasahol. Gasohol is a blend of not
more than 10% ethanol and gasoline. As long as there is no more than 10% ethanol mixed with the
gasoline you carburetor will function properly. As the percentage of ethanol climbs above10%, a
richer A/F ratio will be required. Also, because gasohol is more volatile than gasoline, hard hot starting
and poor hot weather driveability may result.
Gasahol can be a blend of either ethanol, methanol or other alcohol with gasoline. Methanol blended
fuel should not be used in your Edelbrock Performer Series carburetor as it will cause corrosion of the
fuel system components. It can also cause rapid failure of seals, gaskets, diaphragms and pump
plungers.
Always check to see if you are using a blended fuel. Although the pump may not indicate the fuel is
blended, it is always advisable to verify the type of fuel the station carries.
Blown Engines
Two model #1405 carburetors should be used on engines with positive displacement superchargers,
such as GMC 6-71 blowers or equivalent. The following calibration changes make an excellent
starting point: Primary Jets - .101" (#1429); Secondary Jets - .101” (#1429); Metering Rods - .070" x
.042" (#1450); Step-up Piston Springs - 5" (orange, stock); Needle & Seat assemblies - .110"
(#1466).
This calibration has been tested on engines ranging in size from 350 c.i.d. Chevys to 440 c.i.d.
Chryslers with good results.
Carburetor Specifications (continued)
Float
Drop
(±1/4")
1-1/4"
1-1/4"
1-1/4"
1-1/4"
1-1/4"
1-1/4"
1-1/4"
1-1/4"
1-1/4"
Pump Drive Accelerator
Link
Pump
Location Nozzle Diameter
middle hole
.028"
middle hole
.028"
middle hole
.031"
top hole
.035"
middle hole
.028"
top hole
.035"
top hole
.035"
top hole
.035"
top hole
.035"
Venturi
Venturi Throttle Bore Throttle Bore
Diameter Diameter
Diameter
Diameter
Primaries Secondaries Primaries
Secondary
1-3/16"
1-9/16"
1-7/16"
1-11/16"
1-3/16 "
1-9/16"
1-7/16"
1-11/16"
1-3/16 "
1-9/16"
1-7/16"
1-11/16"
1-7/16 "
1-9/16"
1-11/16"
1-11/16"
1-3/16 "
1-9/16"
1-7/16"
1-11/16"
1-7/16 "
1-9/16"
1-11/16"
1-11/16"
1-7/16 "
1-9/16"
1-11/16"
1-11/16"
1-17/32 "
1-5/8"
1-3/4"
1-3/4"
1-17/32 "
1-5/8"
1-3/4"
1-3/4"
17
Edelbrock Performer Series Carburetor Owner’s Manual 9/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 18
#1403/ #1404 Calibration Reference Chart / Primary Metering
Power Mode: Low Vacuum/High Power-Rod Up
Base
Power
Mode
1 stage
Rich (4%)
2 stages
Rich (8%)
25
3 stages
Rich (12%)
Rich
1 stage
Lean (4%)
26
3 stages
Rich (12%)
27
23
24
2 stages
Rich (8%)
22
21
16
1 stage
Rich (4%)
18
17
Base
Power
Mode
4
20
19
1
3
2
5
1 stage
Lean (4%)
6
2 stages
Lean (8%)
7
8
9
13
14
15
11
12
3 stages
Lean (12%)
10
Lean
Power Mode
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
2 stages
Lean (8%)
Cruise Mode
3 stages
Lean (12%)
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1486 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
18
Edelbrock Performer Series Carburetor Owner’s Manual 12/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 19
Model #1403/#1404
Rod/Jet Reference Chart
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
MAIN JET
METERING ROD
CHANGE FROM BASE
1423 (.086)
1423 (.086)
1423 (.086)
1423 (.086)
1422 (.083)
1423 (.086)
1423 (.086)
1423 (.086)
1423 (.086)
1422 (.083)
1422 (.083)
1422 (.083)
1423 (.086)
1423 (.086)
1423 (.086)
1422 (.083)
1422 (.083)
1423 (.086)
1423 (.086)
1423 (.086)
1424 (.089)
1424 (.089)
1423 (.086)
1423 (.086)
1422 (.083)
1424 (.089)
1424 (.089)
1460 (065 x 052)
1445 (065 x 047)
1444 (065 x 037)
1461 (065 x 057)
1441 (062 x 052)
1463 (067 x 055)
1448 (068 x 052)
1447 (068 x 047)
1446 (068 x 042)
1463 (067 x 055)
1460 (065 x 052)
1462 (067 x 049)
1452 (070 x 052)
1451 (070 x 047)
1450 (070 x 042)
1438 (058 x 052)
1437 (057 x 049)
1441 (062 x 052)
1443 (063 x 047)
1442 (063 x 037)
1445 (065 x 047)
1460 (065 x 052)
1439 (060 x 052)
1440 (060 x 057)
1436 (055 x 055)
1441 (062 x 052)
1443 (063 x 047)
none - stock calibration
Rod
Rod
Rod
Rod & Jet
Rod
Rod
Rod
Rod
Rod & Jet
Jet
Rod & Jet
Rod
Rod
Rod
Rod & Jet
Rod & Jet
Rod
Rod
Rod
Rod & Jet
Jet
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1423
(.086)
JET #1424
(.089)
JET #1425
(.092)
JET #1426
(.095)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-386 = .086" jet (Edelbrock p/n 1423).
120-401 = .101" jet (Edelbrock p/n 1429).
19
Edelbrock Performer Series Carburetor Owner’s Manual 12/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 20
#1405 Calibration Reference Chart / Primary Metering
2 stages
Lean (8%)
3 stages
Rich (12%)
1 stage
Rich (4%)
2 stages
Rich (8%)
3 stages
Rich (12%)
17
18
19
11
16
12
2 stages
Rich (8%)
13
14
15
9
10
1 stage
Rich (4%)
7
8
Base
Power
Mode
5
6
2
1
3
4
1 stage
Lean (4%)
21
23
22
20
2 stages
Lean (8%)
24
25
26
30
3 stages
Lean (12%)
27
Lean
28
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
Base
Power
Mode
1 stage
Lean (4%)
Cruise Mode
3 stages
Lean (12%)
Rich
Power Mode: Low Vacuum/High Power-Rod Up
29
Power Mode
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1479 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
20
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 21
Model #1405
Rod/Jet Reference Chart
REF #
1
MAIN JET
1428 (.100)
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1428 (.100)
1428 (.100)
1430 (.104)
1427 (.098)
1428 (.100)
1427 (.098)
1428 (.100)
1428 (.100)
1430 (.104)
1430 (.104)
1427 (.098)
1429 (.101)
1430 (.104)
1430 (.104)
1428 (.100)
1430 (.104)
1430 (.104)
19
20
21
22
23
24
25
26
27
28
29
30
1430 (.104)
1426 (.095)
1427 (.098)
1428 (.100)
1428 (.100)
1427 (.098)
1428 (.100)
1427 (.098)
1426 (.095)
1427 (.098)
1427 (.098)
1429 (.101)
METERING ROD
1451 (070 x 047)*
*Some Have ID #695
1450 (070 x 042)
1449 (070 x 037)
1458 (075 x 037)
1448 (068 x 052)
1452 (070 x 052)
1445 (065 x 047)
1448 (068 x 052)
1446 (068 x 042)
1459 (075 x 047)
1455 (073 x 042)
1441 (062 x 052)
1448 (068 x 052)
1457 (073 x 052)
1456 (073 x 047)
1445 (065 x 047)
1452 (070 x 052)
1451 (070 x 047)*
*Some Have ID #695
1450 (070 x 042)
1445 (065 x 047)
1452 (070 x 052)
1457 (073 x 052)
1455 (073 x 042)
1457 (073 x 052)
1459 (075 x 047)
1449 (070 x 037)
1446 (068 x 042)
1456 (073 x 047)
1455 (073 x 042)
1458 (075 x 037)
CHANGE FROM BASE
none - stock calibration
Rod
Rod
Rod & Jet
Rod & Jet
Rod
Rod & Jet
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod & Jet
Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod
Rod & Jet
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1423
(.086)
JET #1424
(.089)
JET #1425
(.092)
JET #1426
(.095)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-398 = .098" jet (Edelbrock p/n 1427).
120-400 = .100" jet (Edelbrock p/n 1428).
21
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 22
#1406 Calibration Reference Chart / Primary Metering
Power Mode: Low Vacuum/High Power-Rod Up
Base
Power
Mode
1 stage
Lean (4%)
1 stage
Rich (4%)
3 stages
Rich (12%)
18
17
15
2 stages
Rich (8%)
16
119
22
2 stages
Rich (8%)
20
23
21
Base
Power
Mode
5
4
25
24
1
22
8
9
Cruise Mode
1 stage
Rich (4%)
3
6
1 stage
Lean (4%)
7
2 stages
Lean (8%)
10
3 stages
Lean (12%)
11
Lean
12
13
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
3 stages
Rich (12%)
2 stages
Lean (8%)
Rich
3 stages
Lean (12%)
14
Power Mode
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1487 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
22
Edelbrock Performer Series Carburetor Owner’s Manual 1/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 23
Model #1406
Rod/Jet Reference Chart
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
MAIN JET
METERING ROD
CHANGE FROM BASE
1427 (.098)
1426 (.095)
1427 (.098)
1425 (.092)
1426 (.095)
1425 (.092)
1426 (.095)
1426 (.095)
1426 (.095)
1425 (.092)
1425 (.092)
1426 (.095)
1425 (.092)
1426 (.095)
1426 (.095)
1426 (.095)
1427 (.098)
1429 (.101)
1427 (.098)
1425 (.092)
1426 (.095)
1426 (.095)
1427 (.098)
1427 (.098)
1427 (.098)
1459 (075 x 047)
1449 (070 x 037)
1458 (075 x 037)
1446 (068 x 042)
1453 (071 x 047)
1447 (068 x 047)
1456 (073 x 047)
1455 (073 x 042)
1454 (073 x 037)
1451 (070 x 047)
1453 (071 x 047)
1459 (075 x 047)
1449 (070 x 037)
1458 (075 x 037)
1448 (068 x 052)
1447 (068 x 047)
1453 (071 x 047)
1459 (075 x 047)
1449 (070 x 037)
1445 (065 x 047)
1451 (070 x 047)
1446 (068 x 042)
1455 (073 x 042)
1456 (073 x 047)
1454 (073 x 037)
none - stock calibration
Rod & Jet
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Jet
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod
Rod
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1423
(.086)
JET #1424
(.089)
JET #1425
(.092)
JET #1426
(.095)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-398 = .098" jet (Edelbrock p/n 1427).
120-401 = .101" jet (Edelbrock p/n 1429).
23
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 24
#1407 / #1410 Calibration Reference Chart / Primary Metering
Power Mode: Low Vacuum/High Power-Rod Up
8
1 stage
Rich (4%)
1 stage
Rich (4%)
2 stages
Rich (8%)
3 stages
Rich (12%)
15
16
17
12
13
14
11
10
9
4
Base
Power
Mode
6
7
1
2
3
5
1 stage
Lean (4%)
18
2 stages
Lean (8%)
20
19
22
21
24
23
27
3 stages
Lean (12%)
25
Lean
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
3 stages
Rich (12%)
2 stages
Rich (8%)
Base
Power
Mode
1 stage
Lean (4%)
Rich
2 stages
Lean (8%)
Cruise Mode
3 stages
Lean (12%)
26
Power Mode
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1480 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
24
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 25
Model #1407 & #1410
Rod/Jet Reference Chart
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
MAIN JET
1433 (.113)
1433 (.113)
1433 (.113)
1434 (.116)
1431 (.107)
1432 (.110)
1433 (.113)
1432 (.110)
1433 (.113)
1434 (.116)
1432 (.110)
1433 (.113)
1434 (.116)
1434 (.116)
1433 (.113)
1433 (.113)
1434 (.116)
1432 (.110)
1433 (.113)
1433 (.113)
1433 (.113)
1431 (.107)
1431 (.107)
1432 (.110)
1431 (.107)
1432 (.110)
1432 (.110)
METERING ROD
CHANGE FROM BASE
1453 (071 x 047)
1450 (070 x 042)
1449 (070 x 037)
1454 (073 x 037)
1443 (063 x 047)
1445 (065 x 047)
1452 (070 x 052)
1441 (062 x 052)
1447 (068 x 047)
1456 (073 x 047)
1443 (063 x 047)
1445 (065 x 047)
1453 (071 x 047)
1449 (070 x 037)
1443 (063 x 047)
1442 (063 x 037)
1444 (065 x 037)
1452 (070 x 052)
1457 (073 x 052)
1456 (073 x 047)
1454 (073 x 037)
1445 (065 x 047)
1444 (065 x 037)
1449 (070 x 037)
1447 (068 x 047)
1456 (073 x 047)
1454 (073 x 037)
none - stock calibration
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod & Jet
Rod
Rod & Jet
Rod & Jet
Rod
Jet
Rod & Jet
Rod
Rod
Rod & Jet
Rod & Jet
Rod
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
JET #1431
(.107)
JET #1432
(.110)
JET #1433
(.113)
JET #1434
(.116)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-398 = .098" jet (Edelbrock p/n 1427).
120-413 = .113" jet (Edelbrock p/n 1433).
25
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 26
#1409 Calibration Reference Chart / Primary Metering
Power Mode: Low Vacuum/High Power-Rod Up
3 stages
Lean (12%)
2 stages
Lean (8%)
1 stage
Lean (4%)
Base
Power
Mode
1 stage
Rich (4%)
2 stages
Rich (8%)
3 stages
Rich (12%)
28
26
25
27
18
24
22
1 stage
Rich (4%)
23
Base
Power
Mode
19
21
20
7
1
17
Cruise Mode
2 stages
Rich (8%)
2
3
1 stage
Lean (4%)
8
5
6
4
16
2 stages
Lean (8%)
9
3 stages
Lean (12%)
10
14
11
Lean
13
12
Power Mode
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
3 stages
Rich (12%)
Rich
29
15
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1488 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
26
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 27
Model #1409
Rod/Jet Reference Chart
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
MAIN JET
1427 (.098)
1427 (.098)
1429 (.101)
1427 (.098)
1427 (.098)
1427 (.098)
1426 (.095)
1426 (.095)
1425 (.092)
1426 (.095)
1426 (.095)
1425 (.092)
1427 (.098)
1429 (.101)
1427 (.098)
1429 (.101)
1430 (.104)
1430 (.104)
1427 (.098)
1429 (.101)
1427 (.098)
1427 (.098)
1426 (.095)
1426 (.095)
1426 (.095)
1427 (.098)
1427 (.098)
1429 (.101)
1430 (.104)
METERING ROD
CHANGE FROM BASE
1447 (068 x 047)
1446 (068 x 042)
1456 (073 x 047)
1450 (070 x 042)
1451 (070 x 047)
1452 (070 x 052)
1443 (063 x 047)
1460 (065 x 052)
1443 (063 x 047)
1452 (070 x 052)
1447 (068 x 047)
1444 (065 x 037)
1456 (073 x 047)
1459 (075 x 047)
1454 (073 x 037)
1458 (075 x 037)
1459 (075 x 047)
1456 (073 x 047)
1444 (065 x 037)
1451 (070 x 047)
1445 (065 x 047)
1460 (065 x 052)
1441 (062 x 052)
1439 (060 x 052)
1438 (058 x 052)
1441 (062 x 052)
1443 (063 x 047)
1462 (067 x 049)
1452 (070 x 052)
none - stock calibration
Rod
Rod & Jet
Rod
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Jet
Rod & Jet
Rod
Rod & Jet
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod & Jet
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod
Rod & Jet
Rod & Jet
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1425
(.092)
JET #1426
(.095)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
JET #1431
(.107)
JET #1432
(.110)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-398 = .098" jet (Edelbrock p/n 1427).
120-401 = .101" jet (Edelbrock p/n 1429).
27
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 28
#1411 Calibration Reference Chart / Primary Metering
Power Mode: Low Vacuum/High Power-Rod Up
25
26
27
20
21
2 stages
Rich (8%)
14
1 stage
Rich (4%)
Base
Power
Mode
7
1 stage
Lean (4%)
6
2 stages
Lean (8%)
18
3 stages
Lean (12%)
19
9
8
5
17
Lean
3 stages
Rich (12%)
29
28
23
24
10
11
12
1
2
3
22
13
2 stages
Rich (8%)
4
15
16
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
3 stages
Rich (12%)
1 stage
Rich (4%)
Rich
Base
Power
Mode
2 stages
Lean (8%)
Cruise Mode
1 stage
Lean (4%)
3 stages
Lean (12%)
Power Mode
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1489 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
28
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 29
Model #1411
Rod/Jet Reference Chart
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
MAIN JET
1432 (.110)
1432 (.110)
1432 (.110)
1431 (.107)
1431 (.107)
1431 (.107)
1430 (.104)
1430 (.104)
1430 (.104)
1432 (.110)
1432 (.110)
1432 (.110)
1431 (.107)
1431 (.107)
1431 (.107)
1430 (.104)
1430 (.104)
1430 (.104)
1430 (.104)
1432 (.110)
1432 (.110)
1432 (.110)
1432 (.110)
1432 (.110)
1432 (.110)
1432 (.110)
1432 (.110)
1432 (.110)
1433 (.113)
METERING ROD
CHANGE FROM BASE
1459 (075 x 047)
1419 (075 x 042)
1458 (075 x 037)
1454 (073 x 037)
1456 (073 x 047)
1457 (073 x 052)
1445 (065 x 047)
1416 (065 x 042)
1444 (065 x 037)
1456 (073 x 047)
1455 (073 x 042)
1454 (073 x 037)
1447 (068 x 047)
1448 (068 x 052)
1458 (075 x 037)
1449 (070 x 037)
1450 (070 x 042)
1451 (070 x 047)
1453 (071 x 047)
1418 (070 x 057)
1452 (070 x 052)
1453 (071 x 047)
1450 (070 x 042)
1449 (070 x 037)
1417 (068 x 057)
1448 (068 x 052)
1447 (068 x 047)
1446 (068 x 042)
1455 (073 x 042)
none - stock calibration
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod
Rod
Rod
Rod
Rod
Rod
Rod
Rod
Rod & Jet
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
JET #1431
(.107)
JET #1432
(.110)
JET #1433
(.113)
JET #1434
(.116)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-398 = .098" jet (Edelbrock p/n 1427).
120-413 = .113" jet (Edelbrock p/n 1433).
29
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 30
#1412 & #1413 Calibration Reference Chart / Primary Metering
Power Mode: Low Vacuum/High Power-Rod Up
8
1 stage
Rich (4%)
1 stage
Rich (4%)
2 stages
Rich (8%)
3 stages
Rich (12%)
15
16
17
12
13
14
11
10
9
4
Base
Power
Mode
6
7
1
2
3
5
1 stage
Lean (4%)
18
2 stages
Lean (8%)
20
19
22
21
24
23
27
3 stages
Lean (12%)
25
Lean
Lean
Cruise Mode: High Vacuum/Low Power-Rod Down
3 stages
Rich (12%)
2 stages
Rich (8%)
Base
Power
Mode
1 stage
Lean (4%)
Rich
2 stages
Lean (8%)
Cruise Mode
3 stages
Lean (12%)
26
Power Mode
Rich
1
Stock Calibration
#
Numbers in black are the steps obtainable using Calibration Kit #1480 plus
the stock jets and metering rods.
#
Numbers in white are the steps obtainable using jet and rod combinations
shown on the following page.
Step 1
Select the combination of Cruise Mode and Power Mode fuel-metering stages
desired for your calibration. Normal calibration changes will be within the gridded
diagonal area. That is, Cruise and Power mode changes should be in the same
direction (either richer or leaner) and usually by the same amount.
Step 2
Find the number that is nearest your desired combination. This is your Calibration
Reference Number.
Step 3
Go to the next page. Find the Calibration Reference Number you have just selected
in Step 2. Listed will be the Main Jet and Metering Rod required to achieve the
desired fuel metering for the Primaries.
30
Edelbrock Performer Series Carburetor Owner’s Manual 10/00
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 31
Model #1412 & #1413
Rod/Jet Reference Chart
REF #
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
MAIN JET
1433 (.113)
1433 (.113)
1433 (.113)
1434 (.116)
1431 (.107)
1432 (.110)
1433 (.113)
1432 (.110)
1433 (.113)
1434 (.116)
1432 (.110)
1433 (.113)
1434 (.116)
1434 (.116)
1433 (.113)
1433 (.113)
1434 (.116)
1432 (.110)
1433 (.113)
1433 (.113)
1433 (.113)
1431 (.107)
1431 (.107)
1432 (.110)
1431 (.107)
1432 (.110)
1432 (.110)
METERING ROD
CHANGE FROM BASE
1453 (071 x 047)
1450 (070 x 042)
1449 (070 x 037)
1454 (073 x 037)
1443 (063 x 047)
1445 (065 x 047)
1452 (070 x 052)
1441 (062 x 052)
1447 (068 x 047)
1456 (073 x 047)
1443 (063 x 047)
1445 (065 x 047)
1453 (071 x 047)
1449 (070 x 037)
1443 (063 x 047)
1442 (063 x 037)
1444 (065 x 037)
1452 (070 x 052)
1457 (073 x 052)
1456 (073 x 047)
1454 (073 x 037)
1445 (065 x 047)
1444 (065 x 037)
1449 (070 x 037)
1447 (068 x 047)
1456 (073 x 047)
1454 (073 x 037)
none - stock calibration
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod
Rod & Jet
Rod
Rod & Jet
Rod & Jet
Rod
Jet
Rod & Jet
Rod
Rod
Rod & Jet
Rod & Jet
Rod
Rod
Rod
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Rod & Jet
Secondary Metering
The factory calibration jet is shown in the center column. For leaner or richer calibration
use the jet # indicated in the appropriate column.
3 Stages
Lean (12%)
2 Stages
Lean (8%)
1 Stage
Lean (4%)
SECONDARY
Stock Calibration
1 Stage
Rich (4%)
2 Stages
Rich (8%)
3 Stages
Rich (12%)
JET #1425
(.092)
JET #1426
(.095)
JET #1427
(.098)
JET #1429
(.101)
JET #1430
(.104)
JET #1431
(.107)
JET #1432
(.110)
Main Jet I.D.—All Edelbrock jets have “120-”prefix. The last three digits minus 300 = actual jet size.
Examples:
120-398 = .098" jet (Edelbrock p/n 1427).
120-413 = .113" jet (Edelbrock p/n 1433).
31
Edelbrock Performer Series Carburetor Owner’s Manual 10/00
1. Step-up piston cover screws (2)
2. Step-up piston cover plates (2)
3. Step-up pistons (2)
4. Step-up (metering) rods (2)
5. Step-up piston springs (2)
6. Step-up rod retainer springs (2)
7. Pin springs (small) (3)
8. Choke connector rod & lever*
9. Choke piston housing*
9a. Choke piston housing seal*
9b. Choke filter*
10. Mounting screws (3)
10a. Choke housing retainers (3)*
11. Thermostatic coil assembly*
12. Baffle plate*
13. Choke housing gasket*
14. Choke/cam connector rod
15. Pump connector rod
16. Airhorn attaching screw (1)
17. Airhorn attaching screws (8)
18. Airhorn assembly
19. Pump arm screw
20. Pump arm
21. Pump connector link
22. Fuel inlet fitting
23. Fuel Strainer Screens (2)
24. Fuel inlet fitting gasket
25. Float lever pins (2)
26. Float & lever assemblies (2)
Item Description
17a
16
22
32
25
26
24
28
8
4
27
2
6
5
26
25
23
3 16
1
3
23
5
27
6
1
7
20
14
18
17
4
2
21
15
19
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:04 PM
Page 32
Exploded View of Edelbrock Performer Series Carburetor
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
Needle & seat assemblies (2)
Airhorn gasket
Pump plunger assembly
Pump plunger spring
Primary cluster screws (4)
Primary venturi boosters (2)
Venturi booster gaskets (2)
Pump jet housing screws (2)
Pump jet housing
Pump jet housing gasket
Pump discharge weight
Pump discharge ball
Secondary booster screws (4)
Secondary venturi boosters (2)
Venturi booster gaskets (2)
Air valve & weights
Primary metering jets (2)
Secondary metering jets (2)
Fuel bowl baffle plates (2)
Idle mixture screws & springs (2)
Fast idle cam
Idle speed screw
Body assembly
Ported vacuum port
Full-time vacuum port
PCV valve port
*Electric choke models 1406, 1409,
1410, &1411
10
11
33
13 12
10a
9
33
32
9b
31
46
50
41
52
44
34
51
43
36
37
38
35
32
39
33
48
44
42
41
40
45
30
49
29
47
31
3/31/2006
46
9a
8
43
45
40
39
1403-1413 Perf Series Carburetor Owner's Manual.qxd
12:05 PM
Page 33
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:05 PM
Page 34
Troubleshooting Chart
Possible Solution
(Symptoms on opposite page)
Check for air leaks. Make sure carburetor and manifold gaskets seal properly. All
outlets must be plugged or connected.
Check ignition system. Replace parts as necessary. Adjust timing to proper
specifications.
Check choke adjustment. See page 14.
Change carburetor fuel filter and/or in-line fuel filter.
Too lean. See Tuning Procedure.
Check float level and drop. See page 14.
Check idle mixture screw adjustment. See page 11.
Too rich. See Tuning Procedure.
Increase accelerator pump stroke. Pump squirter size change may be needed.
See page 14.
Off-road vehicle may need spring-loaded needle and seat kit (pg. 16).
Check for dirt or metal in needles and seats. Needles and seats may need replacement.
See page 36.
Check for dirt blocking the low speed circuit. Clean unit and apply air pressure.
Install in-line fuel filter #8873.
Check floats for leakage. Replace if necessary.
Check air horn gasket. Replace if deterioration or breakage is present.
Fuel is boiling due to excessive under hood temperature. See page 36.
Fuel pressure too high. Fuel regulator may be needed. See page 8.
Fuel pressure too low. Check fuel system. See page 8.
Check secondary latching device and rod for proper movement.
Lower float level from 7/16” . See page 14.
34
Edelbrock Performer Series Carburetor Owner’s Manual 9/01
Bogs
X
X
X
X X
X
X
X
X
X X
X
X X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
35
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
12:05 PM
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Low fuel economy
3/31/2006
Engine stalls on
hard braking
Pinging at
moderate cruise
Symptoms
Lack of power
Hard starting
Rough idle
Engine
won’t idle
Stumbles or
loads up
Misses or surges
Internal fuel leak
Fuel leaks at shaft
Carburetor floods
Backfires
Carburetor
doesn’t adjust
1403-1413 Perf Series Carburetor Owner's Manual.qxd
Page 35
X
X
X
X
X
X
X
X
X
X
X
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:05 PM
Page 36
Troubleshooting Information
Dirt/metal shavings between the needle and seat or a
“sticking float”: To correct either of these problems, lightly tap the
carburetor fuel inlet area with the handle of a screwdriver. If flooding
continues, pinch the fuel line (if possible). Start the engine and let it run until
it stops. Release line and restart engine. If flooding persists examine the
needles, seats, float level, and float drop. Adjust or replace parts if
necessary.
Excessive under hood temperature: Ensure fuel line is not located too
close to heat sources such as the exhaust or block, causing
expanding fuel to be forced past the needle and seat. Fuel can also boil
inside the carburetor due to missing gaskets, spacers, or heat shields. Also
check to see if the exhaust heat riser is stuck, allowing excessive heat
under the carburetor. Use Edelbrock Divided Heat Insulator Gasket #9266 for
dual-plane manifolds, Square-Bore Heat Insulator Gasket #9265 for singleplane manifolds, and #9267 Heat Insulator Gaskets for dual-quad manifolds.
Excessive fuel pump pressure: See page 8.
For further information contact the
Edelbrock Technical Department:
Between 7:00 am and 5:00 pm PST,
Monday through Friday
Tech Line: (800) 416-8628 • Offices: (310) 781-2222
FAX (310) 320-1187
®
36
Edelbrock Performer Series Carburetor Owner’s Manual 3/00
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:05 PM
Page 37
WARRANTY
EDELBROCK warrants its Performer Series Carburetors to be free from defects
in material or workmanship. This warranty is valid provided that the product is properly
installed, subjected to normal use and service and is not modified or changed in any way,
or used for racing or competition purposes. This warranty is extended to the original
consumer purchaser and has a duration of 90 days from date of original purchase by such
consumer. Any implied warranty determined to be applicable is limited in duration to the
duration of this warranty. Some states do not allow limitations on how long an implied
warranty is so the above limitation may not apply to you.
In the event of a defect in material or workmanship, Edelbrocks sole responsibility is to
repair or replace the defective product. This warranty covers the replacement or repair at
Edelbrock's option of the product only and does not cover the cost of removal or installation
of the product. Final warranty determination will be the decision of EDELBROCK.
EDELBROCK does not warrant products which have been modified or altered outside
factory specifications; subjected to conditions such as misuse, neglect, accident, improper
installation or adjustment, dirt or other contaminants, weather or corrosion, gum or varnish,
use of improper or poor quality fuel or fuel additives, improper fuel pressure and faulty
repair or use in other than those automotive applications recommended in a current
EDELBROCK catalog. Further, there are no warranties which extend beyond those stated
here.
EDELBROCK shall not be responsible for (a) actual or alleged labor, transportation or other
incidental charges or (b) actual or alleged consequential or other damages incurred by use
of EDELBROCK Performer Series Carburetors. Edelbrock Corp shall not be liable for any
and all consequential damages occasioned by the breach of any written or implied warranty
pertaining to this sale in excess of the purchase price of the product.
Warranty claims will be initiated by returning the alleged defective product to the place of
purchase with dated purchase receipt and with completed applicable EDELBROCK
warranty claim tag. Do not send the product directly to EDELBROCK.
This warranty gives you specific legal rights, and you may also have other rights which vary
from state to state.
The general limited Warranty supersedes all prior warranty statements. Inquiries concerning
this warranty should be directed to:
EDELBROCK CORP.
2700 California St.
Torrance, CA 90503
37
Edelbrock Performer Series Carburetor Owner’s Manual 9/01
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:05 PM
Page 38
Notes:
38
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
1403-1413 Perf Series Carburetor Owner's Manual.qxd
3/31/2006
12:05 PM
Page 39
Edelbrock Carburetor Data Log
In order to get the most from your Edelbrock carburetor purchase, please complete and mail the
enclosed warranty card. Also, you may want to record your calibration settings in the table below and
keep it with your vehicle records.
Model#:______________________________________ Purchase Date: _________________
DATE
ROD
PRI.
JET
SEC.
JET
STEP-UP
SPRING
PUMP
DRIVE
LINK
LOCATION
PUMP
CLUSTER
NEEDLE
AND
SEAT
REFERENCE
CHART
LOCATION #
Comments:
39
Edelbrock Performer Series Carburetor Owner’s Manual 8/94
Download PDF

advertising
