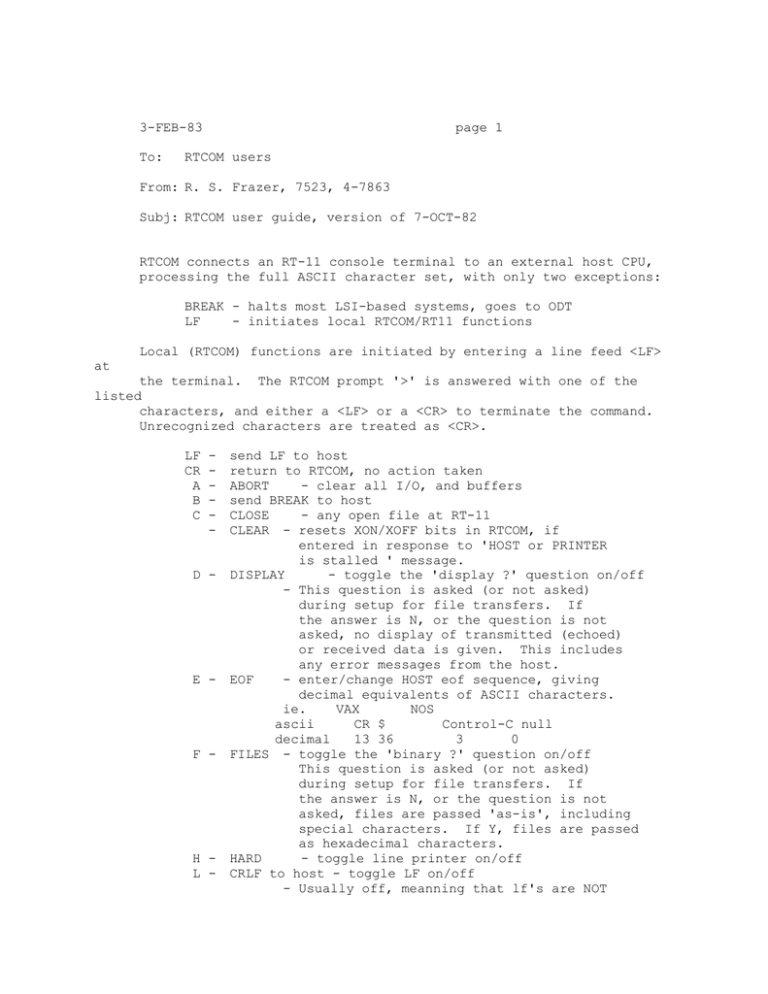

3-FEB-83 page 1 To: RTCOM users

3-FEB-83 page 1 To:  RTCOM users
3-FEB-83
To:
page 1
RTCOM users
From: R. S. Frazer, 7523, 4-7863
Subj: RTCOM user guide, version of 7-OCT-82
RTCOM connects an RT-11 console terminal to an external host CPU,
processing the full ASCII character set, with only two exceptions:
BREAK - halts most LSI-based systems, goes to ODT
LF
- initiates local RTCOM/RT11 functions
Local (RTCOM) functions are initiated by entering a line feed <LF>
at
the terminal. The RTCOM prompt '>' is answered with one of the
listed
characters, and either a <LF> or a <CR> to terminate the command.
Unrecognized characters are treated as <CR>.
LF
CR
A
B
C
-
D -
E -
F -
H L -
send LF to host
return to RTCOM, no action taken
ABORT
- clear all I/O, and buffers
send BREAK to host
CLOSE
- any open file at RT-11
CLEAR - resets XON/XOFF bits in RTCOM, if
entered in response to 'HOST or PRINTER
is stalled ' message.
DISPLAY
- toggle the 'display ?' question on/off
- This question is asked (or not asked)
during setup for file transfers. If
the answer is N, or the question is not
asked, no display of transmitted (echoed)
or received data is given. This includes
any error messages from the host.
EOF
- enter/change HOST eof sequence, giving
decimal equivalents of ASCII characters.
ie.
VAX
NOS
ascii
CR $
Control-C null
decimal
13 36
3
0
FILES - toggle the 'binary ?' question on/off
This question is asked (or not asked)
during setup for file transfers. If
the answer is N, or the question is not
asked, files are passed 'as-is', including
special characters. If Y, files are passed
as hexadecimal characters.
HARD
- toggle line printer on/off
CRLF to host - toggle LF on/off
- Usually off, meanning that lf's are NOT
sent to the host immediately after a cr,
since the host supplies one. If on, you
will be apt to see double spacing in files
sent to the host.
3-FEB-83
Q
R
S
W
X
page 2
-
QUIT
- release files and return to RT11SJ
READ
- enter file spec. for write
to host
START
- re-start program.
WRITE
- enter file spec. for read from host
HOST TYPE- change to NOS or VAX type host.
If NOS, number of 1 msec delays after
CR will be requested. Suggestions:
baud 300
delays
1200
132
2400
32
4800
16
9600
8
5
These allow time for the CR and three char. times.
XON/XOFF (ctrl-Q, ctrl-S) are never sent to a NOS
type host. They are sent to a VAX type host.
ERROR messages are meant to be self-explanatory. Monitor traps go
through RTCOM, restoring the RT-11 environment before processing
the trap. RTCOM can be run again, and the host will never know
it was gone. Characters from the host will be lost in the interim.
Monitor traps disable host interrupts, and restore RT-11 vector
addresses. RT-11 files are left hanging, so a RESET command to
RT-11 would be advisable after a trap exit.
The ONLY correct exit from RTCOM to RT-11 is via the QUIT command.
This provides for an orderly restoration of the RT-11 interrupt
and trap vectors, and proper disposition of RT-11 files and
devices.
TO READ A FILE FROM RT-11 TO HOST:
*** VAX
***
COPY TT: HOSTFILE<LF>
*** NOS ***
NEW, lfn
TAPEIN<LF>
note use of <LF> to prompt RTCOM
>R<CR>
>RT-11 file to be READ by HOST = DEV:NAME.EXT<CR>
DEV = 2 or 3 character device name with :
NAME = 1 to 6 character file name with .
EXT = 1 to 3 character extension
If no device entered, DK0: is assumed.
If neither a name nor an extension is given, the device
is copied.
If no entry, just a <CR>, the RTCOM function is cancelled.
3-FEB-83
page 3
>FOUND, BLOCKS = decimal block length of file
-or>DEVICE START BLOCK (decimal) = starting block of random access
device
(sequential devices always start with block 0.)
>HOW MANY BLOCKS
(decimal) = how many blocks to transfer
for sequential or random acess DEVICES.
>BINARY ? A<CR> A=Y If the file is to be converted to hexadecimal
before being transferred. The question is switchable on/off.
>DISPLAY ? A<CR> A=Y if the echo from the host is to be displayed.
The question is switchable on/off.
>DEV:NAME.EXT --Are you sure ? A<CR> A=Y if yes, anything else
restarts, asking for a filespec.
RTCOM then sends a <CR> to the host, to terminate the host command,
and waits for a CR,LF echo before proceeding.
*** VAX ***
*** NOS ***
Must receive a Control-Q (tape
reader ON), then wait one sec.
before proceeding.
>****RT-11 TRANSFER STARTING****
transfer.
conditions are met, start
File transfers from RT-11 to the host continue until a null byte
is sensed in a non-binary file, or until the block count is
exhausted
on a binary file. You send the character that terminates the copy
operation at the host (control-C for NOS).
Please be aware that no error checking is currently done.
Transfers
proceed a character at a time until complete, or until halted by
the
host (XOFF). If the 'stalled' message should appear, try to clear
it
by the RTCOM function <lf> >C <cr> (clear).
TO WRITE A FILE FROM THE HOST TO RT-11:
*** VAX ***
COPY HOSTFILE TT:<LF>
*** NOS ***
OLD, lfn
TAPEOUT<LF>
note <LF> terminator
>W<CR>
3-FEB-83
page 4
>RT-11 file to be WRITTEN by HOST = DEV:NAME.EXT
DEV = 2 or 3 character device name with :
NAME = 1 to 6 character file name with .
EXT = 1 to 3 character extension
If no device entered, DK0: is assumed.
If neither a name nor an extension is given, the device
is copied.
If no entry, just a <CR>, the RTCOM function is cancelled.
>FILE OPENED LENGTH = decimal maximum available blocks for file.
-or>DEVICE START BLOCK (decimal) = start block random access device.
sequential devices start at block 0.
>HOW MANY BLOCKS
(decimal) = how many blocks to copy
for both sequential and random access devices.
>BINARY ? A<CR> A=Y If the file is to be converted from
hexadecimal
to binary before being stored. The question is switchable.
>DISPLAY ? A<CR> A=Y if input from the host is to be displayed.
The question is switchable.
> after CR-LF, EOF SEQUENCE (decimal equiv) ? dd,dd<CR>
is only asked if none present (you never entered one).
See the E (EOF) command, page 1. This sequence is used
to check for the host prompt, signalling the end of the
file transfer.
>DEV:NAME.EXT --Are you sure ? A<CR> A=Y if yes, anything else
restarts, asking for a filespec.
RTCOM then sends a <CR> to the host, to terminate the host command,
and waits for a CR,LF echo before proceeding.
*** VAX ***
*** NOS ***
Must receive a CR before pro-
Must receive a Control-R (record
ON)
ceeding.
before proceeding.
>****RT-11 TRANSFER STARTING****
Conditions met, start transfer.
File transfers from the host to RT-11 continue until the RT-11
block count is exhausted, or an EOF sequence is received after a
CRLF.
If the host sends none of the above, the file can be closed
locally (<LF><C><CR>).
NULL characters are never put into an RT-11 file as received.
3-FEB-83
page 5
BINARY files sent to the host are formatted as (16(Z4.4,1X),
hexadecimal. While reading a BINARY file from the host, only
the hexadecimal set of characters is converted and stored. The
first
non-hex character received terminates the conversion of anymore
characters until a CRLF is received. This allows commenting of lines
from the host. All characters received are displayed, if
requested.
On VAX, program HDUMP is available to dump files in a form
compatible
with RTCOM. Program LSIIN reads binary files from RTCOM.
RTCOM should be 'customized' by the user before running it for the
first time, by running RTSET. You will be asked for the name of
the
save file to be modified (NOT copied to a new file). In most cases
this will be RTCOM.SAV . The current set-up for the program will
be displayed, and you can make changes 'by the numbers'. When
done,
the program will ask if the changes should be made permanent before
exiting. I suggest that you copy the modified file to another file
with a name indicative of the type of host, ie., NOS.SAV or VAX.SAV
.
Be aware that when the LP is on, ALL incoming characters from the
host
are passed to it. This can create interesting displays on the
printer
while running some editors, EDT, for instance. You should turn it
off
(<LF><H><CR>) before editing, if it was ON.
To run RTCOM (or whatever you called it):
.R RTCOM
