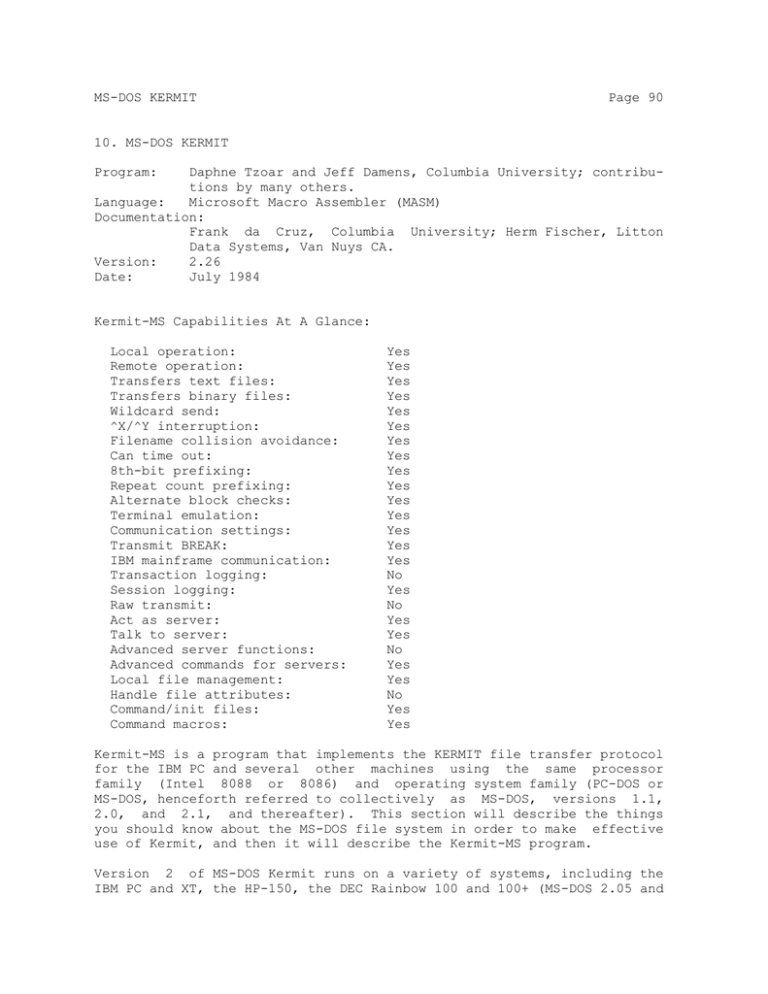

10. MS-DOS KERMIT

Program: Daphne Tzoar and Jeff Damens, Columbia University; contribu-

tions by many others.

Language: Microsoft Macro Assembler (MASM)

Documentation:

Frank da Cruz, Columbia University; Herm Fischer, Litton

Data Systems, Van Nuys CA.

Version: 2.26

Date: July 1984

Kermit-MS Capabilities At A Glance:

Local operation: Yes

Remote operation: Yes

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: Yes

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: Yes

Alternate block checks: Yes

Terminal emulation: Yes

Communication settings: Yes

Transmit BREAK: Yes

IBM mainframe communication: Yes

Transaction logging: No

Session logging: Yes

Raw transmit: No

Act as server: Yes

Talk to server: Yes

Advanced server functions: No

Advanced commands for servers: Yes

Local file management: Yes

Handle file attributes: No

Command/init files: Yes

Command macros: Yes

Kermit-MS is a program that implements the KERMIT file transfer protocol for the IBM PC and several other machines using the same processor family (Intel 8088 or 8086) and operating system family (PC-DOS or

MS-DOS, henceforth referred to collectively as MS-DOS, versions 1.1,

2.0, and 2.1, and thereafter). This section will describe the things you should know about the MS-DOS file system in order to make effective use of Kermit, and then it will describe the Kermit-MS program.

Version 2 of MS-DOS Kermit runs on a variety of systems, including the

IBM PC and XT, the HP-150, the DEC Rainbow 100 and 100+ (MS-DOS 2.05 and

above), the Wang PC, and there is a "generic" MS-DOS version. Version 1 was adapted at various stages of development to run on other systems as well, including the Heath/Zenith 100, Tandy 2000, Victor 9000

(Sirius-1), and Seequa Chameleon, and is still available for those sys- tems until support for them and others is added to version 2.

MS-DOS KERMIT Page 91

The program operates under version 1.1 or 2.0 and above of DOS, although some features require the functionality of 2.0. It runs in ap- proximately 80K of memory -- over and above the memory used by DOS

-- which means that your system should have at least 128K of RAM to use version 2 of MS-DOS Kermit; smaller systems may still use Version 1.

10.1. The MS-DOS File System

The features of the MS-DOS file system of greatest interest to KERMIT users are the form of the file specifications, and the distinction be- tween pre-MS-DOS 2.0 file names and newer file names which allow direc- tory paths.

10.1.1. File Specifications

MS-DOS 2.x file specifications are of the form

DEVICE:\PATHNAME\NAME.TYPE where the DEVICE is a single character identifier (for instance, A for the first floppy disk, C for the first fixed disk, D for a RAM disk emulator), PATHNAME is up to 63 characters of identifier(s) (up to 8 characters each) surrounded by reverse slashes, NAME is an identifier of up to 8 characters, and TYPE is an identifier of up to 3 characters in length. Device and pathname may be omitted. The first backslash in the pathname may be omitted if the specified path is relative to the current directory. In the path field, "." means current directory, ".." means parent directory. Some DOS implementations (like Wang) may use slash

"/" rather than backslash in the path field.

Pathname is normally omitted, and cannot be specified for MS-DOS 1.x or with those commands which allow MS-DOS 1.x use. Device and directory pathnames, when omitted, default to either the user's current disk and directory, or to the current directory search path as specified in the

DOS PATH environment variable, depending on the context in which the file name appears.

When this manual says that a file is searched for "in the cur-

rent path," it means that the PATH is searched first, and if the

file is not found, then Kermit-MS looks on the current disk and

directory. If the PATH environment variable is empty, Kermit

looks only at the current disk and directory.

NAME.TYPE is normally sufficient to specify a file, and only this infor- mation is sent along by Kermit-MS with an outgoing file.

The device, path, name, and type fields may contain uppercase letters, digits, and the special characters "-" (dash), "_" (underscore), and "$"

(dollar sign). (For use only among MS-DOS processors, additional

filename special characters allowed are "#&!%'`(){}". DOS 1.x allows others as well.). There are no imbedded or trailing spaces. Other characters may be not be included; there is no mechanism for "quoting" otherwise illegal characters in filenames. The fields of the file specification are set off from one another by the punctuation indicated

MS-DOS KERMIT Page 92 above.

The name field is the primary identifier for the file. The type, also called the extension or suffix, is an indicator which, by convention, tells what kind of file we have. For instance FOO.BAS is the source of a BASIC program named FOO; FOO.OBJ might be the relocatable object module produced by compiling FOO.BAS; FOO.EXE could be an executable program produced by linking FOO.OBJ, and so forth. .EXE and .COM are the normal suffixes for executable programs.

The MS-DOS allows a group of files to be specified in a single file specification by including the special "wildcard" characters, "*" and "?

". A "*" matches any string of characters from the current position to the end of the field, including no characters at all; a "?" matches any single character. Here are some examples:

*.BAS All files of type BAS (all BASIC source files) in the current

directory.

FOO.* Files of all types with name FOO.

F*.* All files whose names start with F.

F?X*.* All files whose names start with F and contain X in the third

position, followed by zero or more characters.

?.* All files whose names are exactly one character long.

Wildcard notation is used on many computer systems in similar ways, and it is the mechanism most commonly used to instruct Kermit to send a group of files.

Note: Kermit-MS uses the "?" character for help while commands

are being typed, so the single-character wildcard in Kermit-MS

commands is "=" rather than "?". For example

Kermit-MS>send =.*

would send files of all types whose names were exactly one

character long.

Kermit-MS users should bear in mind that other (non-MS-DOS) systems may use different wildcard characters. For instance the DEC-20 uses "%" in- stead of "?" as the single character wildcard; when using Kermit-MS to request a wildcard file group from a KERMIT-20 server, the Kermit-MS "=" must be replaced by the DEC-20 "%".

10.1.2. File Formats

MS-DOS systems store files as bulk collections of 8 bit bytes, with no

particular differences between text, program code, and binary files.

ASCII text files consist of lines separated by carriage-return-linefeed sequences (CRLFs), which conforms exactly to the way Kermit represents text files during transmission. Since a non-MS-DOS receiving system might need to make distinctions as to file type, you may need to use

MS-DOS KERMIT Page 93 various SET functions on the remote system to inform it that the incom- ing file is of some particular (non-default) type, such as binary. In transmitting files between Kermit-MS's, regardless of file contents, the receiving MS-DOS system is equally capable of processing text, code, and data, and in fact has no knowledge of how the bytes in the file are used.

MS-DOS (unlike CP/M) is capable of pinpointing the end of file with precision by keeping a byte count in the directory, so one would expect no particular confusion in this regard. However, certain MS-DOS programs continue to use the CP/M convention of terminating a text file with a Control-Z character, and won't operate correctly unless this ter- minating byte is present. Therefore, Kermit-MS users should be aware of a special SET EOF option for both incoming and outbound files, described below.

Non-MS-DOS systems may well be confused by nonstandard ASCII files from

Kermit-MS. Files produced by Easywriter or Word Star, for example, may need to be converted to conventional ASCII format prior to transmission by commonly available "exporter" programs. Spreadsheet or database files usually need special formatting to be meaningful to non-MS-DOS recipients (though they can be transmitted between MS-DOS systems with

Kermit-MS). Furthermore, files created by word processors (such as BLUE or Easy Writer) that store formatting data at the end of the file, after the control-Z and before physical end, will require special processing via SET EOF to strip the formatting data, lest they confuse non-MS-DOS recipients.

10.2. Program Operation

Kermit-MS can be run interactively, from a batch file, or as an

"external" DOS command. Commands consist of one or more fields, separated by "whitespace" -- one or more spaces or tabs.

Upon initial startup, the program executes any commands found in the file MSKERMIT.INI in the current path. This initialization file may contain command macro definitions, communications settings for one or more ports, or any other Kermit-MS commands. Here is a sample

MSKERMIT.INI file:

set warning on ; Enable filename collision avoidance.

;

; Define some macros

;

define unix set local-echo off, set flow xon, set timer off

def ibm set parity odd, set local on, set handsh xon, set timer on

def modem set port 2, set baud 1200

def noisy set block-check 3, set send packet-length 40

;

; Select a port

;

set port 1 ; Select COM1 for communications,

set baud 4800 ; setting the speed to 4800 baud,

connect ; and make a terminal connection.

MS-DOS KERMIT Page 94

Note that comments may be included by prefixing them with a semicolon.

The program can be run in several ways.

Interactive Operation:

To run Kermit-MS interactively, invoke the program from DOS command level by typing its name. When you see the command's prompt,

Kermit-MS> you may type Kermit commands repeatedly until you are ready to exit the program, for example:

A>

A>kermit

IBM PC Kermit-MS V2.26

Type ? for help

Kermit-MS>send foo.*

informational messages about the files being sent

Kermit-MS>get bar.*

informational messages about the files being received

Kermit-MS>exit

A>

During interactive operation, you may edit the command you're currently typing to erase the character most recently typed (BACKSPACE or DEL), the most recent field (CTRL-W), or the entire command (CTRL-U). In ad- dition, you may use the help ("?") and recognition (ESC) features freely while typing Kermit-MS commands. A question mark typed at almost any point in a command produces a brief description of what is expected or possible at that point; for this reason, Kermit-MS uses "=" for the single-character match wildcard in local filenames. ESC typed at any point, even in a local filename, will cause the current field to be filled out if what you have typed so far is sufficient to identify it, and will leave you in position to type the next field (or to type a "?" to find out what the next field is); otherwise, the program will beep at you and wait for you to type further characters.

Some Kermit-MS commands, like GET, SHOW KEY, SET KEY, may prompt for ad- ditional information on subsequent lines. If you have reached one of these prompts and then wish to cancel the command, you may type

Control-C.

Summary of Kermit-MS Command Characters:

BACKSPACE Delete the character most recently typed. May be typed

repeatedly to delete backwards. You may also use

DELETE, RUBOUT, or equivalent keys.

MS-DOS KERMIT Page 95

CTRL-W Delete the most recent "word", or field, on the command

line. May be typed repeatedly.

CTRL-U Delete the entire command line.

CTRL-C Cancel the current command and return to the

"Kermit-MS>" prompt.

? Type a brief message describing what you are expected to

type in the current field.

ESC If enough characters have been supplied in the current

field (keyword or file name) to uniquely identify it,

supply the remainder of the field and position to the

next field of the command. Otherwise, sound a beep.

= Wildcard character for matching single characters in

filenames, equivalent to MS-DOS "?".

Command Line Invocation:

Kermit-MS may also be invoked with command line arguments from DOS com- mand level, for instance:

A>kermit send foo.bar or

A>kermit set port 1, set baud 9600, connect

In this case, help and recognition are not available (because the program won't start running until after you type the entire command line), and Kermit-MS will exit after completing the specified command or commands. Therefore, when invoked with command line arguments,

Kermit-MS will behave as if it were an external DOS command, like MODE.

Note that several commands may be given on the command line, separated by commas.

Batch Operation:

Like other MS-DOS programs, Kermit-MS may be operated under batch with either command line arguments and/or TAKE files; Kermit will also run interactively if invoked from batch, but it will read commands from the keyboard and not the batch file.

10.3. Kermit-MS Commands

MS-DOS Kermit implements a large subset of the commands of "ideal" Ker-

mit. Here's a brief summary:

BYE to remote server.

CLOSE log file and stop logging remote session.

CONNECT as terminal to remote system.

MS-DOS KERMIT Page 96

DEFINE macros of Kermit-MS commands.

DELETE local files.

DIRECTORY listing of local files.

DO a macro expansion.

EXIT from Kermit-MS.

FINISH Shut down remote server.

GET remote files from server.

HELP about Kermit-MS.

LOCAL prefix for local file management commands.

LOG remote terminal session.

LOGOUT remote server.

PUSH to MS-DOS command level.

QUIT from Kermit-MS

RECEIVE files from remote Kermit.

REMOTE prefix for remote file management commands.

RUN an MS-DOS program.

SEND files to remote Kermit.

SERVER mode of remote operation.

SET various parameters.

SHOW various parameters.

SPACE inquiry.

STATUS inquiry.

TAKE commands from file.

The remainder of this section concentrates on the commands that have special form or meaning for MS-DOS Kermit. Not all of the following commands are necessarily available on all MS-DOS systems, and some of the commands may work somewhat differently between DOS versions.

10.3.1. Commands for File Transfer

The file transfer commands are SEND, GET, and RECEIVE.

THE SEND COMMAND

Syntax: SEND filespec1 [filespec2]

The SEND command causes a file or file group to be sent from the local

MS-DOS system to the Kermit on the remote system. The remote Kermit may be running in either server or interactive mode; in the latter case, you should already have given it a RECEIVE command and escaped back to your

PC. filespec1 may contain a device designator, like "A:" and the wildcard characters "*" and/or "=". The current release of Kermit-MS, however, does not allow pathnames in the SEND command file specification.

If filespec1 contains wildcard characters then all matching files will be sent, in the same order that MS-DOS would show them in a directory

listing. If filespec1 specifies a single file, you may direct Kermit-MS to send that file with a different name, given in filespec2. For in- stance, in the command

Kermit-MS>send foo.bar framus.widget

MS-DOS KERMIT Page 97 filespec2 begins with the first nonblank character after filespec1 and ends with the carriage return; thus it may contain blanks or other un- usual characters that may be appropriate on the target machine. Lower case letters in filespec2 are raised to upper case for transmission.

If a file can't be opened for read access, standard MS-DOS recovery procedures will take place. For example:

Not ready error reading drive A

Abort, Retry, Ignore?

If you select "Abort," you will be returned to DOS.

Files will be sent with their MS-DOS filename and filetype (for instance

FOO.TXT, no device or pathname). Each file is sent as is, with no con- versions done on the data, except for possibly adding or deleting a ter- minating Control-Z character (see the SET EOF command).

Once you give Kermit-MS the SEND command, the name of each file will be displayed on your screen as the transfer begins; packet, retry, and other counts will be displayed along with informational messages during the transfer. If the file is successfully transferred, you will see

"Complete", otherwise there will be an error message. When the specified operation is done, the program will sound a beep.

Several single-character commands may be given while a file transfer is in progress:

^X (Control-X) Stop sending the current file and go on to the next

one, if any.

^Z Stop sending this file, and don't send any further files.

^C Return to Kermit-MS command level immediately without sending any

kind of notification to the remote system.

^E Like ^C, but send an Error packet to the remote Kermit in an at-

tempt to bring it back to server or interactive command level.

CR Simulate a timeout: resend the current packet, or NAK the expected

one.

Control-X and Control-Z send the proper protocol messages to the remote

Kermit to bring it gracefully to the desired state. Control-C leaves the remote Kermit in whatever state it happens to be in. Control-E

"aborts" any protocol that is taking place.

THE RECEIVE COMMAND

Syntax: RECEIVE [filespec]

The RECEIVE command tells Kermit-MS to receive a file or file group from the other system. Kermit-MS simply waits for the file to arrive; this command is not to be used when talking to a Kermit server (use GET for that). You should already have issued a SEND command to the remote Ker-

MS-DOS KERMIT Page 98 mit and escaped back to Kermit-MS before issuing the RECEIVE command.

If the optional filespec is provided, store the incoming file under that name. The filespec may include a device designator, or may consist of only a device designator. The incoming file is stored on the default or specified device (current directory in DOS 2.0 and thereafter). If no name was specified, the name from the incoming file header packet is used; if that name is not a legal MS-DOS file name, Kermit-MS will delete excessive characters from it, and will change illegal characters to the letter X.

If the optional filespec was provided, but more than one file arrives, the first file will be stored under the given filespec, and the remainder will be stored under their own names, but on the specified device.

If an incoming file does not arrive in its entirety, Kermit-MS will nor- mally discard it; it will not appear in your directory. You may change this behavior by using the command SET INCOMPLETE KEEP, which will cause as much of the file as arrived to be saved in your directory.

The same single-character commands are available as during SEND:

^X Request that the remote Kermit stop sending the current file, and

proceed to the next one immediately. Since this is an optional

feature of the Kermit protocol, the remote Kermit might not honor

the request.

^Z Request that the remote Kermit terminate the entire transfer; this

is also an optional feature that may or may not be supported by

the remote Kermit.

^C, ^E, and CR operate in the same way as they do during SEND.

If the incoming file has the same name as a file that already exists, and WARNING is set ON, Kermit-MS will change the incoming name (and in- form you how it renamed it) so as not to obliterate the pre-existing file. If WARNING is OFF, the original file will be overwritten; if you type ^X or ^Z to interrupt the transfer, you'll either get a partial new file, or else both the old and the new file of that name will be lost, depending on SET INCOMPLETE. In any case, when WARNING is off, files with the same name as incoming files will not survive.

Caution: If an incoming file's name (the part before the dot) cor- responds to an MS-DOS device name, such as NUL, COM1, CON, AUX, or PRN, output will go to that device, rather than to a file with that name.

This is a feature of MS-DOS.

MS-DOS KERMIT Page 99

THE GET COMMAND

Syntax: GET remote-filespec

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. This command can be used only when

Kermit-MS has a KERMIT server on the other end of the connection. This means that you must have CONNECTed to the other system, logged in, run

KERMIT there, issued the SERVER command, and escaped back (e.g. ^]C) to the local Kermit-MS. If the remote Kermit does not have a SERVER com- mand, then you should use SEND and RECEIVE as described above.

You may use the GET command to specify a different name for storing the incoming. Just type GET alone on a line, and you will be prompted separately for the remote filespec and the local filespec:

Kermit-MS>get

Remote Source File: com1.txt

Local Destination File: xcom1.txt

If more than one file arrives, only the first will be renamed.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally. It can contain whatever wildcard or file-group notation is valid on the remote system. As files arrive, their names will be displayed on your screen, along with packet traffic statistics and status messages. You may type

^X to request that the current incoming file be cancelled, ^Z to request that the entire incoming batch be cancelled, and ^C or ^E to return im- mediately to the Kermit-MS> prompt, exactly as described for the RECEIVE command.

10.3.2. Commands for Connecting and Disconnecting

The CONNECT command connects your PC as a terminal to the remote system, so that you can start up Kermit there. The BYE, FINISH, and LOGOUT com- mands allow you to shut down a remote Kermit server.

BYE When communicating with a remote KERMIT server, use the

BYE command to shut down the server, log out its job,

and exit from Kermit-MS to DOS.

FINISH Like BYE, FINISH shuts down the remote server. However,

FINISH does not log out the server's job. You are left

at Kermit-MS prompt level so that you can connect back

to the job on the remote system.

LOGOUT The LOGOUT command is identical to the BYE command, ex-

cept you will remain at Kermit-MS prompt level, rather

than exit to DOS, so that you can establish another con-

nection.

MS-DOS KERMIT Page 100

The CONNECT Command

Establish an interactive terminal connection to the system connected to the currently selected communications port (e.g. COM1 or COM2) using full duplex (remote) echoing and no parity unless otherwise specified in previous SET commands. Get back to Kermit-MS by typing the escape character followed by the letter C. The escape character is Control-] by default.

You can use the SET ESCAPE command to define a different escape charac- ter, and on some systems (including the PC and XT) you can SET BAUD to change the baud rate, and SET PORT to switch between ports.

Terminal emulation is described in greater detail in section 10.4 below.

10.3.3. Commands for File Management

Kermit-MS provides commands or managing both local and remote files.

THE REMOTE COMMANDS

The REMOTE keyword is a prefix for a number of commands. It indicates that the command is to be performed by the remote Kermit, which must be running as a server. Note that not all Kermit servers are capable of executing all these commands, and some Kermit servers may be able to perform functions for which Kermit-MS does not yet have the correspond- ing commands. In case you send a command the server cannot execute, it will send back a message stating that the command is unknown to it. If the remote server can execute the command, it will send the results to your screen. Here are the REMOTE commands which Kermit-MS may issue:

CWD [directory] Change Working Directory on the remote host. Change the

default source and destination area for file transfer

and management. You will be prompted for a password,

which will be erased as you type it. If you do not

supply a password (i.e. you type only a carriage

return), the server will attempt to access the specified

directory without a password. If you do not supply a

directory name, your default or login directory on the

remote system will be assumed.

DELETE filespec Delete the specified file or files on the remote system.

In response, the remote host should display a list of

the files that were or were not successfully deleted.

DIRECTORY [filespec] The remote system will provide a directory listing

of the specified files. If no files are specified, then

all files in the default area (the current working

directory) will be listed.

HELP The remote host tells what server functions it is

capable of.

HOST [command] Send the command to the remote system's command proces-

MS-DOS KERMIT Page 101

sor for execution.

SPACE [directory]

Provide a brief summary of disk usage in the specified

area on the remote host. If none specified, the default

or current area will be summarized.

TYPE filespec Display the contents of the specified remote file or

files on the screen.

THE LOCAL COMMAND

The LOCAL keyword is a prefix for a number of commands. It indicates that the specified command is to be executed on the local MS-DOS system.

The LOCAL prefix may be omitted. The local commands available are:

DELETE filespec Deletes the specified file or files. As in DOS, the

names of the deleted files are not listed, only the mes-

sage "file(s) deleted" or "file(s) not found", and if

you give the command "delete *.*", Kermit-MS will prompt

"Are you sure?", like DOS.

DIRECTORY [filespec] Lists the names, sizes, and creation dates of

files that match the given file specification. If no

filespec is given, the command is equivalent to DIR *.*.

SPACE Performs the MS-DOS CHKDSK function by running the

CHKDSK program from the current path, or default disk

under DOS 1.1.

RUN filespec Runs the specified file, which must be in .EXE or .COM

format, from the specified path or according to the

value of the PATH variable if no path was included in

the filespec. This command requires MS-DOS 2.0 or

higher.

PUSH Invokes an MS-DOS command processor "under" Kermit-MS,

either COMMAND.COM or whatever shell you have specified

with COMSPEC. When you return to Kermit-MS (for in-

stance, by typing the MS-DOS EXIT command), you will

find Kermit-MS as you left it, with all settings intact.

This command only works in MS-DOS 2.0 or higher.

The local RUN command has various uses, one of which is to supplement the features of Kermit-MS. For instance, suppose there is an involved procedure that you regularly perform on a certain remote system -- this might include giving commands to a modem to dial the system, looking for a particular herald or prompt, performing a login command sequence, run- ning a selected application, and then running Kermit to send the results back to your PC. You could write a program in the compiled language of

your choice, say C or BASIC, to send the desired commands to your modem and the remote system and to look for the appropriate responses. You could put all this in a Kermit-MS TAKE command file (see below), like

MS-DOS KERMIT Page 102

run update.com

receive

The program, called UPDATE in this case, does everything up to and in- cluding starting Kermit sending from the remote system. When the program terminates, the next Kermit-MS command, "receive," is executed from the command file. When the end of the command file is reached, in- teractive operation is resumed.

THE TAKE COMMAND

Syntax: TAKE filespec

Execute Kermit commands from the specified file, which may include an explicit path; if no path is specified, the value of the PATH variable is used; if PATH has no value, then the current disk and directory are searched. The command file may include TAKE commands, but it cannot in- clude characters to be sent to a remote host during terminal emulation

(i.e. after a CONNECT command). A command file may include comments prefixed by semicolons.

THE LOG COMMAND

Syntax: LOG filespec

Specifies that all characters that appear on your screen during CONNECT will be recorded in the specified file. This allows you to "capture" files from a remote system that doesn't have Kermit, as well as to record remote command typescripts. The log is closed when you EXIT from

Kermit-MS or when you issue an explicit CLOSE command.

10.3.4. The SERVER Command

Kermit-MS is capable of acting as a Kermit server, providing file trans- fer for users coming in through one of the communication ports. The current version of Kermit-MS can send files (the user on the other end types the GET command), receive files (the user types SEND), and ter- minate, giving control back to the console (user types BYE).

To put Kermit-MS into server mode, first issue any desired SET commands to select and configure the desired port, and then type the SERVER com- mand. Kermit-MS will await all further instructions from the user Ker- mit on the other end of the connection, which may be hardwired or con- nected through an autoanswer modem. For example:

Kermit-MS>set port 1

Kermit-MS>set baud 1200

Kermit-MS>set timer on

Kermit-MS>set warning on

Kermit-MS>server

MS-DOS KERMIT Page 103

10.3.5. The SET Command

Syntax: SET parameter [value]

Establish or modify various parameters for file transfer or terminal connection. You can examine their values with the SHOW command. Note that there is no "set ibm" command; IBM mainframe communication parameters may be selected with a command macro (see below). The fol- lowing SET commands are available in Kermit-MS:

BAUD Communications port line speed

BELL Whether to beep at the end of a transaction

BLOCK-CHECK-TYPE Level of error checking for file transfer

DEBUG Display packet contents during file transfer

DEFAULT-DISK Default disk drive for file i/o

DESTINATION Default destination device for incoming files

END-OF-LINE Packet terminator

EOF Method for determining or marking end of file

ESCAPE Escape character for CONNECT

FLOW-CONTROL Enable or disable XON/XOFF

HANDSHAKE Half-duplex line turnaround option

HEATH19 Heath/Zenith-19 terminal emulation

INCOMPLETE What to do with an incompletely received file

KEY Specify key redefinitions, or "keystroke macros"

LOCAL-ECHO Specify which host does the echoing during CONNECT

PARITY Character parity to use

PORT Select a communications port

PROMPT Change the "Kermit-MS>" prompt to something else

RECEIVE Request remote Kermit to use specified parameters

REMOTE For running Kermit-MS interactively from back port

SEND Use the specified parameters during file transfer

TAKE-ECHO Control echoing of commands from TAKE files

TIMER Enable/disable timeouts during file transfer

WARNING Specify how to handle filename collisions

The SET commands that are peculiar to MS-DOS Kermit are now described in greater detail. The others behave as in "ideal" Kermit.

SET BAUD

Syntax: SET BAUD rate

Set the speed of the currently selected terminal communications port

(COM1 by default) to 300, 1200, 1800, 2400, 4800, 9600 or other common baud rate. Some implementations do not support this command. In any case, Kermit-MS leaves the current communication port settings alone un- less you issue explicit SET commands to change them.

SET BELL

Syntax: SET BELL ON or OFF

Specifies whether bell (beeper) should sound upon completion of a file transfer operation.

MS-DOS KERMIT Page 104

SET DEBUG

Syntax: SET DEBUG ON or OFF

ON Display the Kermit packet traffic on your screen during file

transfer. If the debugger is loaded, transfer control to it

when CTRL-C is typed. In Heath-19 terminal emulation on the IBM

PC, display unusual control characters in uparrow notation.

OFF Don't display debugging information (this is the default). If

debugging was in effect, turn it off.

SET DEFAULT-DISK

Syntax: SET DEFAULT-DISK x:

Specify the default disk drive to use for file transfer, directory list- ings, and so forth. Equivalent to typing the DOS command for changing disks.

SET DESTINATION

Syntax: SET DESTINATION device

Specify the device for incoming files, DISK or PRINTER. SET DESTINATION

PRINTER will cause incoming files to be spooled directly to the printer.

The normal destination is DISK.

END-OF-LINE

Syntax: SET END-OF-LINE number

If the remote system needs packets to be terminated by anything other than carriage return, specify the decimal value of the desired ASCII character.

SET EOF

Syntax: SET EOF option

Controls how the end of file is handled. The options are:

CTRL-Z Append a Control-Z character to the end of an incoming

file, unless it already ends with a Control-Z. Certain

MS-DOS text editors and other applications require files

to be in this format. For outbound files, treat the

first Control-Z as the end of file, and do not send it

nor any characters following it.

NOCTRL-Z (Default) Store incoming files exactly as is, and send

MS DOS files exactly as is (according to their byte

count).

MS-DOS KERMIT Page 105

SET ESCAPE

Syntax: SET ESCAPE character

Specify the control character you want to use to "escape" from remote connections back to Kermit-MS. The default is normally ^] (Control-

Rightbracket). The character is entered literally, and should normally be chosen from the ASCII control range.

SET FLOW-CONTROL

Syntax: SET FLOW-CONTROL option

Specify the full duplex flow control to be done on the currently selected port. The current options are XON/XOFF and NONE. The specified type of flow control will be done during both terminal emula- tion and file transfer. If set to XON/XOFF, HANDSHAKE is automatically set to OFF.

SET HANDSHAKE

Syntax: SET HANDSHAKE option

Specify any half-duplex handshaking to be done on the currently selected port. The options are BELL, CR, LF, NONE, XOFF, or XON. The specified handshaking will be done during file transfer only. If HANDSHAKE is set to anything other than NONE, FLOW-CONTROL is automatically set to OFF.

SET HEATH19

Syntax: SET HEATH19 ON or OFF

Specify whether Kermit-MS should use its built-in software facility for emulating a Heath/Zenith-19 (H19) terminal.

ON During CONNECT, incoming characters are to be examined for H19

terminal screen control commands (escape sequences), and if en-

countered, the commands are to be emulated on the PC screen.

The H19 codes are a superset of the popular DEC VT52 codes, so

if your system does not support the Heath-19, you may tell it

that your terminal type is VT52 (or one of the many VT52

compatibles). The Heath-19 codes are listed in section 10.10,

below.

OFF All incoming characters will be sent to the screen "bare",

through DOS. If you have loaded a device driver into DOS for

the CON: device, such as ANSI.SYS, then that driver will be able

to interpret the codes itself. Most non-IBM systems have their

own screen control code interpreter built into DOS or firmware,

or available as a loadable device driver.

See section 10.4 for details about terminal emulation.

MS-DOS KERMIT Page 106

SET KEY

Syntax: SET KEY key-specifier

Specifies that when the designated key is struck during terminal emula- tion, the associated character string is sent. The key-specifier is one of the keywords F1, F2, ..., or SCAN followed by a scan code. Systems that have a BACKSPACE key also include BACKSPACE as a keyword.

If SCAN is used, it is followed by a decimal number to indicate the scan code of the key, which you would ascertain from your system reference manual, or else by using the Kermit-MS SHOW KEY command. SET KEY prompts you on a new line for the definition string. Certain charac- ters, like ESC and CR, may not be entered literally into the string, but can be included by inserting escape codes of the form \ooo, a backslash followed by a 2- or 3-digit octal number corresponding to the ASCII value of the desired character. If some other key redefinition package, like ProKey, has been loaded, then its redefinitions will take precedence over Kermit's.

The SET KEY command is illustrated in the terminal emulation section,

10.4, below.

SET LOCAL-ECHO

Syntax: SET LOCAL-ECHO option

Specify how characters are echoed during terminal emulation on the cur- rently selected port. ON specifies that characters are to be echoed by

Kermit-MS (because neither the remote computer nor the communications circuitry has been requested to echo), and is appropriate for half- duplex connections. LOCAL-ECHO is OFF by default, for full-duplex, remote echo operation.

When you SET LOCAL-ECHO ON, the current HANDSHAKE (if any) is automati- cally enabled and full-duplex FLOW-CONTROL is automatically turned off.

When you SET LOCAL-ECHO OFF, HANDSHAKE is also disabled, and the current mode of FLOW-CONTROL (if any) is enabled. If this behavior is un- desired, you may override it by typing explicit SET HANDSHAKE or SET

FLOW commands after entering the SET LOCAL-ECHO command.

SET PARITY

Syntax: SET PARITY keyword

Specify the character parity to be used on the currently selected port.

The choices for SET PARITY are NONE (the default), ODD, EVEN, MARK, and

SPACE. NONE means no parity processing is done, and the 8th bit of each character can be used for data when transmitting binary files.

You will need to SET PARITY to ODD, EVEN, MARK, or possibly SPACE when communicating with a system, or over a network, or through modems, con- centrators, multiplexers, or front ends that require or impose character parity on the communication line. For instance, GTE Telenet requires

MS-DOS KERMIT Page 107

MARK parity. If you neglect to SET PARITY when the communications equi- pment requires it, the symptom may be that terminal emulation works par- tially, and file transfer does not work at all.

If you have set parity to ODD, EVEN, MARK, or SPACE, then Kermit-MS will request that binary files will be transferred using 8th-bit-prefixing.

If the other side knows how to do 8th-bit-prefixing (this is an optional feature of the KERMIT protocol, and not all implementations of KERMIT have it), then binary files can be transmitted successfully. If NONE is specified, 8th-bit-prefixing will not be requested. Note that there is no advantage to using parity; it only slows Kermit file transfer down.

The SET PARITY command is provided only to allow Kermit to adapt to hardware that insists upon using parity.

SET PORT

Syntax: SET PORT number

On machines with more than one communications port, select the port to use for file transfer and CONNECT. This command lets you use a dif- ferent asynchronous adapter, or switch between two or more simultaneous remote sessions. Subsequent SET BAUD, PARITY, HANDSHAKE, FLOW, and

LOCAL-ECHO commands will apply to this port only. SET PORT 1 selects

COM1, SET PORT 2 selects COM2.

SET REMOTE

Syntax: SET REMOTE ON or OFF

If you wish to run Kermit-MS interactively through the back port, for instance after the operator has done CTTY COM1, you must give the com- mand SET REMOTE ON; this suppresses the file transfer display screen, so that the display won't interfere with the file transfer itself.

SET RECEIVE

Syntax: SET RECEIVE parameter value

At the beginning of a protocol operation, request the remote Kermit to use the given value specified parameter, or inform Kermit-MS that the remote Kermit will be using it.

PACKET-LENGTH Ask the remote Kermit to use the specified maximum

length for packets that it sends to Kermit-MS. The nor-

mal (and maximum) length is 94. Use this command to

shorten packets if the communication line is noisy; this

will decrease the probability that a particular packet

will be corrupted, and will reduce the retransmission

overhead when corruption occurs, but it will increase

the protocol overhead.

PADCHAR Ask the remote Kermit to use the given character for in-

terpacket padding. Kermit-MS should never require any

MS-DOS KERMIT Page 108

padding.

PADDING Ask the remote Kermit to insert the given number of pad-

ding characters before each packet it sends. This

should never be necessary.

START-OF-PACKET The remote Kermit will be marking the beginning of pack-

ets with something other than Control-A. This will be

necessary only if the hosts or communication equipment

involved cannot pass a Control-A through as data.

TIMEOUT Ask the remote Kermit to time out after the given number

of seconds if a packet expected from Kermit-MS has not

arrived. Use this command to change the normal timeout

interval.

SET SEND

Syntax: SET SEND parameter value

PACKET-LENGTH Use the specified maximum length for outbound packets.

Normally, Kermit-MS uses whatever length the other Ker-

mit requests.

PADCHAR Use the specified character for interpacket padding.

Some hosts may require some padding characters (normally

NUL or DEL) before a packet.

PADDING How many padding characters to use between packets, nor-

mally zero.

QUOTE Use the indicated printable character for prefixing

(quoting) control characters and other prefix charac-

ters. The only reason to change this would be for send-

ing a very long file that contains very many "#" charac-

ters (the normal control prefix) as data.

START-OF-PACKET Mark the beginning of outbound packets with some control

character other than Control-A. This will be necessary

only if the remote host or the communication channel in-

volved cannot accept a Control-A as data. The remote

host must have been given the corresponding SET RECEIVE

START-OF-PACKET command.

TIMEOUT Change Kermit-MS's normal timeout interval; this command

is effective only if TIMER is set to be ON; it is nor-

mally OFF so that the remote KERMIT can control

timeouts.

MS-DOS KERMIT Page 109

SET TAKE-ECHO

Syntax: SET TAKE-ECHO ON or OFF

Specifies whether screen display should occur during implicit or ex- plicit TAKE operations on MSKERMIT.INI or other Kermit-MS command files, and during evaluation of macro definitions. Handy for finding errors in command files.

SET TIMER

Syntax: SET TIMER ON or OFF

Enable or disable the timer that is used during file transfer to break the deadlock that occurs when an expected packet does not arrive. By default, the timer is OFF, because Kermit-MS is usually used in conjunc- tion with a mainframe that is doing its own timeouts. During a file transfer, it is sufficient for one side to do the timing out and the mainframe is usually better equipped to adjust timeout intervals based on system load or other conditions. The timer should be set ON if you are communicating with a system that cannot do timeouts, such as IBM

VM/CMS Kermit.

SET WARNING

Syntax: SET WARNING option

Specify what to do when an incoming file has the same name as an exist- ing file in the default directory of the default device. If ON, Kermit will warn you when an incoming file has the same name as an existing file, and automatically rename the incoming file (as indicated in the warning message) so as not to destroy (overwrite) the pre-existing one.

If OFF, the pre-existing file is destroyed, even if the incoming file does not arrive completely.

10.3.6. The SHOW Command

Syntax: SHOW option

Currently, most parameters that may be altered with SET commands are displayed by the STATUS command. The SHOW command is used for display- ing macro definitions and key redefinitions.

The SHOW MACROS command displays the definitions of all currently defined macros.

The SHOW KEY command allows you to determine the scan code produced by pressing a given key, so that you can construct a SET KEY command to

redefine the key. If the key already has a redefinition in effect, that too will be displayed. In this example, a DEC Rainbow user determines the scan code for the accent grave key, and then redefines that key to send ESC:

MS-DOS KERMIT Page 110

Kermit-MS>show key

Press a key: `

Scan Code: 96

Definition:

Kermit-MS>set key scan 96

Definition string: \33

Kermit-MS>show key

Press a key: `

Scan Code: 96

Definition: \33

Kermit-MS>

The SHOW KEY command only works on certain systems.

10.3.7. Command Macros

Kermit-MS provides a facility for combining commands into "macros."

Command macro definitions may be included in your MSKERMIT.INI file,

TAKEn explicitly from a specified file, or typed interactively, and may be invoked with the DO command.

THE DEFINE COMMAND

Kermit-MS command macros are constructed with the DEFINE command. The syntax is

DEFINE macro-name [command [, command [, ...]]]

Any Kermit-MS commands may be included. Example:

define telenet set parity mark, set baud 1200, connect

THE DO COMMAND

A Kermit-MS command macro is invoked using the DO command. For in- stance, Kermit-MS comes with a predefined macro to allow convenient setup for IBM communications; to invoke it, you would type

do ibm

The IBM macro is defined as "parity mark, handshake xon, local-echo on, timer on". You can delete or replace this definition by adding a new

(perhaps null) definition, such as

define ibm parity even, handshake cr, local-echo on, timer on or

define ibm

MS-DOS KERMIT Page 111

10.4. Terminal Emulation

When you issue the CONNECT command, your PC acts as a terminal connected to a remote computer through the currently selected port. The charac- ters you type are sent out the port, and characters that arrive at the port are displayed on your screen. If you have not previously issued a

SET PORT command, COM1 is used. If you have SET LOCAL-ECHO ON for the selected port, then Kermit-MS will display characters on the screen as you type them. If LOCAL-ECHO is OFF, then XON/XOFF flow control will be done unless you have SET FLOW-CONTROL OFF. If you have SET PARITY to anything other than NONE, Kermit-MS will add the appropriate parity to each outbound character, and strip any parity from incoming ones. While

CONNECTed, you can also communicate with an autodialer or "smart modem" to control the communications line, hang it up, and the like; for in- stance, typing +++ to a Hayes-like modem will allow you to follow that by dialing or hangup commands.

If Heath-19 emulation is being done, incoming characters will be monitored for H19/VT52 escape sequences. These will be interpreted ac- cording to the table in section 10.10. In addition, keys on the numeric keypad will send H19/VT52 sequences unless you disable this feature in some way, for instance by pressing Num Lock on the IBM PC keyboard, or with key redefinitions.

Caution: On some systems, such as the IBM PC and XT, Kermit-MS

accesses the screen memory memory directly to perform certain

H19 emulation functions such as character insert/delete and

screen scroll. Without direct screen memory access, these func-

tions would be painfully slow. Although Kermit-MS has been

tested successfully on a variety of monochrome and color adap-

ters and monitors, there may be combinations for which this

method could cause video problems, such as snow. Should this

occur, you can alleviate the problem by setting HEATH19 emula-

tion OFF. In that case, however, you remove not only the

problems, but also the desirable features of emulation. But

Kermit-MS does permit you to load an external console device

driver, such as IBM's ANSI.SYS, to provide any desired screen

control.

Here are the terminal emulation options for the systems presently sup- ported by Kermit-MS:

System EscChar Cabilities Terminal Service

IBM PC, XT ^] R M P K Heath19 emulation

DEC Rainbow ^] R P K VT102 firmware

HP-150 ^] R HP-2623 firmware

Wang PC ^A Wang firmware

Generic DOS ^] Depends on system

Under Capabilities, R means rollback, M means mode line, P means printer control, and K means key redefinition.

IBM PC/XT Kermit can disable Heath-19 emulation and use an external con- sole device driver like ANSI.SYS instead.

When you first issue the CONNECT command, a message (on some systems, an

MS-DOS KERMIT Page 112 inverse video "mode line") will display the most important facts about the connection you've just established, so that you can quickly diagnose any problems. The items displayed in the mode line include the escape character, port number, the baud rate, the parity, the echo, and how to get help, for instance:

+---------------------------------------------------------------------+

|EscChar:^],Port:1,Baud:9600,Parity:None,Echo:Remote,Type ^]? for Help|

+---------------------------------------------------------------------+

The escape character is used to regain the attention of Kermit-MS. When you type the escape character, Kermit-MS waits for you to follow it with a single character command. For instance, the single-character-command

"?" produces a list of available single character commands, such as this:

? Help -- prints the available single-character commands.

C Close the connection and return to Kermit-MS prompt level.

S Show the status of the connection.

B Send a BREAK signal to the port.

0 (the digit zero) Send a NUL (ASCII 0) to the port.

Q Temporarily quit logging the remote session.

R Resume logging the remote session.

M Toggle the mode line, i.e. turn it off if it is on & vice versa.

^] (or whatever you have set the escape character to be)

Typing the escape character twice sends one copy of it to the con-

nected host.

Typing any other character (except the space bar, which is the "null command") after the escape character will cause Kermit-MS to beep, but will do no harm. The escape character can be changed to something other than Control-Rightbracket by using the SET ESCAPE command.

Kermit-MS includes several advanced features for use during terminal emulation, including screen scroll, printer control, and key redefini- tions.

Screen Scroll

Kermit-MS provides several pages of screen memory, which may be scrolled up and down using keys as follows:

Function IBM PC/XT Rainbow HP-150

Screen Down PgDn PrevScreen Prev

Line Down Ctrl-PgDn Ctrl-PrevScreen Shift-UpArrow

Screen Up PgUp NextScreen Next

Line Up Ctrl-PgUp Ctrl-NextScreen Shift-DownArrow

Top of Memory Home

Bottom of Memory End

There is presently no way to assign these functions to other keys.

MS-DOS KERMIT Page 113

Printer Control

A locally attached printer may be controlled in the normal manner, on most systems. Pushing the "Print Screen" key (shifted on some systems) will cause the current contents of the screen to be printed or spooled; holding down CTRL while depressing Print Screen will start or stop the spooling of incoming characters to the printer. ^P or ^N are sent to the host during terminal emulation, and do not toggle printing, as they do when you're talking directly to DOS.

CTRL-Print-Screen can be simulated with the Kermit-MS LOG PRN and CLOSE commands.

Key Redefinitions

Key redefinitions are useful for defining "keystroke macros" of login sequences, frequently issued commands, and so forth, and for setting up the terminal for use with host resident software designed to work with terminals that send predefined sequences from their function keys. For instance, here's a key redefinition file for arranging the DEC Rainbow keyboard into the normal ASCII keyboard layout:

; Make shift-comma send a left angle bracket

set key scan 556

<

; Shift-period sends a right angle bracket

set key scan 558

>

; Accent grave is where ESC is supposed to be

set key scan 96

\33

; Put accent grave on the ESC function key

set key f11

`

The SET KEY facility may be used provide the PC with a "meta" key for use with editors like EMACS or TVEDIT that can use "meta characters" as commands. A meta key is a shift key whose effect is to turn on the 8th

(parity) bit of the character. For instance, on the IBM PC the scan codes produced by holding down ALT together with other keys can be determined using SHOW KEY, and then 8-bit ASCII equivalents with the 8th bit turned on can be defined using SET KEY; if the scan code produced by typing ALT-a, i.e. the letter "a" (ASCII 141, octal) with the ALT key held down, is 2078 (decimal), you would set the META equivalent to

141+200=341 (octal), or "\341" in octal SET KEY notation:

Kermit-MS>sho key

Press a key: ALT-a

Scan Code: 2078

Definition:

Kermit-MS>set key scan 2078

Definition String: \341

Whenever you type ALT-a with this definition in effect, Kermit-MS will transmit octal 341, rather than 141.

MS-DOS KERMIT Page 114

10.5. Installation of Kermit-MS

by Bill Catchings, Columbia University

If you already have Kermit on your PC, you can use it to obtain new ver- sions of Kermit-MS when they appear on the central system at your site.

If you do not have Kermit or any other reliable file capture facility on your PC, and there is no one from whom you can borrow a floppy disk to copy Kermit, then you should read the following instructions for in- itially "bootstrapping" Kermit-MS from a mainframe where it is stored onto your microcomputer.

There are at least three methods of initially getting Kermit-MS onto your PC:

1. Try again to find a copy on diskette.

2. Use another file capture facility to get it.

3. Type in and run a bootstrapping program.

10.5.1. Try Again To Find A Kermit Disk

Before explaining how to bootstrap Kermit onto your PC, a disclaimer must be made. Although a fair amount of thought and time has gone into these procedures, they are far from error free. If they were foolproof, there would be no need for a protocol such as Kermit. There are many places where things can go wrong, from something as simple as a typing mistake to something as unavoidable and probably inevitable as a com- munications line failure. By far the easiest and best way to install

Kermit is from a floppy disk. Before you embark on any of the following procedures it is a good idea to check once again for a diskette to copy, even it it contains an old version of Kermit. The time you spend searching is likely to be far less frustrating than the time you spend trying to bootstrap Kermit by the methods described below.

10.5.2. Bootstrapping From the Communication Line

If you can't find a diskette with Kermit on it, there are two other methods available for bootstrapping MS-DOS Kermit onto your PC. The first method is to use a file capture method or other file transfer protocol to transfer the file to your PC. Some systems come supplied with facilities like this, and various public domain or commercial packages are available. The second method requires you to type in your own downloading program.

In either case, you must transmit the file from the system where it resides over a communication line and into your PC. Since version 2 of

MS-DOS Kermit is much larger than version 1, it comes with a new

bootstrapping procedure in which the executable program is encoded much more compactly than in the earlier "fix" files. The new encoding packs

3 .EXE file bytes into 4 printable characters in the MSxxx.BOO file, and also compresses adjacent zero bytes (of which there are many). The .BOO file contains only printable characters, to ensure that downloading can

MS-DOS KERMIT Page 115 take place regardless of parity or other peculariaries of the communica- tion channel.

10.5.2.1. Use An Existing File Capture Facility

In the rest of this discussion of bootstrapping, the host-resident boot

.BOO file will be referred to as MSKERMIT.BOO. In fact, the actual name will depend on which MS-DOS system you are using -- MSIBMPC.BOO for the

IBM PC or XT, MSRB100.BOO for the Rainbow 100, etc.

Use your file capture facility, whatever it may be, to get the file

MSKERMIT.BOO onto your PC's disk, but first make sure you have enough room for it. Once the file is on your disk, you must run the BASIC program MSPCTRAN.BAS to decode the file back into KERMIT.EXE. This program can be downloaded by the same method you used with MSKERMIT.BOO.

The program looks on your current disk and directory for the file

MSKERMIT.BOO and outputs KERMIT.EXE to the same place. KERMIT.EXE is about 80K bytes, so make sure there is space for it on your disk or else you will have to start the program over. Since the program will take about twenty minutes to completely translate the file you will want to avoid running it more than once.

10.5.2.2. Type In Your Own Bootstrap

If you can't find some method for downloading the .BOO file and the

BASIC program, the second way of bootstrapping Kermit is to use the programs MSPCBOOT.BAS and MSBOOT.FOR to download via your PC's asynchronous port from your host and translate it directly, "on the fly." You run the program MSBOOT.FOR on your host and then run the program MSPCBOOT.BAS in BASIC on your PC. The FORTRAN program sends the encoded .EXE file to the BASIC program, which decodes it and stores it in executable form on your current directory as KERMIT.EXE. A very rudimentary form of error checking is done to allow obviously corrupted records to be retransmitted. Follow this procedure:

1. First, you must establish a connection from your PC to the

host system. A high speed connection is preferable; a

"clean" line is preferable to a noisy one. In fact, a clean

line is essential for this procedure. You must be able to

log in to the host system over this connection. If your PC

already has a terminal emulation facility, use that. If not,

you might need to put your PC next to a real terminal and use

that for logging in, then switch the connector to the PC at

the crucial moment. If you are using a terminal, make sure

the terminal and PC have their communication ports set to the

same speed.

2. Ensure that the files MSBOOT.FOR and MSKERMIT.BOO are present

on the host system. MSBOOT.FOR is listed below, in case you

need to type it in.

3. Get back to your PC and type in MSPCBOOT.BAS on your PC; a

listing appears below. There is no need to type in the com-

ments (anything following an apostrophe); they are only there

MS-DOS KERMIT Page 116

to clarify what the program is doing. Check very carefully

for errors. You should check line 80 in the program to see

that it reflects the way your system is actually set up. If

necessary, substitute the correct baud rate for the supplied

rate of 9600, and if you are not using COM1: make that change

as well. If you are downloading from an IBM or other half-

duplex mainframe, leave line 1000 as it is; otherwise,

replace it by a RETURN statement. If you type it in directly

to BASIC make sure you save the program before you run it, so

you won't have to type it in again in case of error.

4. Get back to your host system and compile MSBOOT.FOR, if it

needs compiling. Define logical unit numbers 5 and 6 to be

the controlling terminal, and logical unit 7 to be the file

MSKERMIT.BOO. On VAX/VMS systems, for example, use these

commands:

$assign sys$input for005

$assign sys$output for006

$assign mskermit.boo for007

On a DECSYSTEM-20, do:

@define 5: tty:

@define 6: tty:

@define 7: mskermit.boo

On a DECsystem-10, do something like this:

.assign tty: 5:

.assign tty: 6:

.assign dsk: 7:

.rename for007.dat=mskerm.boo

On an IBM system under VM/CMS, do this:

.filedef 5 term ( lrecl 80 recfm v

.filedef 6 term ( lrecl 80 recfm v

.filedef 7 disk mskermit boo ( lrecl 77 recfm f perm

5. Set your host system up for downloading:

- Ensure that your terminal does not automatically pause

at the end of a screenful of output. For instance, on a

DEC-20 you would issue the command "terminal no pause

end-of-page".

- Do whatever you can to disable messages from appearing

at your terminal while these programs are running. This

would include messages from other users, mail notifica-

tion, alarms or alerts, system messages, and so forth.

Such messages will interfere with the procedure, and

probably render the result useless.

- You should put your host terminal in "local echo" or

"half duplex" mode, if possible.

MS-DOS KERMIT Page 117

6. Start the MSBOOT program on your host system.

7. Get back to the PC. If you have been using a terminal,

switch the connector to the PC.

8. Now run the BASIC program, MSPCBOOT.BAS. This procedure will

take at least twenty minutes and possibly longer depending on

line speed. Watch your modem and/or disk lights for reas-

surance that something is happening.

By using one of these installation methods, you should now have a work- ing version of Kermit. If you experience any problems or quirky be- havior with the program, it's possible that some part of it was cor- rupted during the downloading procedure. Perhaps enough usable code remains to allow you to transfer MSKERMIT.EXE from the host. If not, you will have to repeat the downloading procedure.

Once you have Kermit-MS on your disk, you should make the disk available to other users for copying, so that they can be spared the tedium of this bootstrap procedure.

Here is a listing of MSPCBOOT.BAS. The "outdented" PRINT statements with line numbers ending in 5 may be included if you want incoming records to be displayed on the screen. You don't need to include the comments.

1 'Run this program on the PC in conjunction with a Fortran program

2 '(MSBOOT.FOR) on the mainframe to download Kermit to the PC. This

3 'program will run for about thirty minutes, depending on line speed.

4 ' Bill Catchings, June 1984

5 ' Columbia University Center for Computing Activities

10 t$ = time$ ' Save the time.

20 defint a-z ' All integer to gain some speed.

30 n$ = chr$(0)

40 z = asc("0")

50 t = asc("~")-z

60 def fnuchr%(a$)=asc(a$)-z

70 open "com1:9600,s,7,1,cs,ds,cd" as #1

100 print#1,"O ," ' Char constants "O", " " and ","

110 input#1,f$

120 if len(f$) < 5 then goto 110 ' In case the host echos the ACK.

130 input#1,n

135 print f$+" "+str$(n)

140 if n > 20 then goto 900

150 open f$ for output as #2

160 print "Outputting to "+f$

170 goto 300 ' Correct version of the file.

200 gosub 1000 ' Do turnaround char processing

210 print#1,"NO" ' Tell host data was incorrect.

220 goto 320

MS-DOS KERMIT Page 118

300 gosub 1000 ' Do turnaround char processing

310 print#1,"OK" ' Say the line was all right.

320 input#1,x$

330 if len(x$) < 5 then goto 320 ' In case the host echos ACK/NAK

340 input#1,n

345 print x$+" "+str$(n)

350 if len(x$) <> n then goto 200 ' Length doesn't match, NAK it.

360 if x$ = "&&&&&&&&&&" then goto 800 ' End of file?

370 y$ = "" ' Set output string to null.

380 goto 500

400 print#2,y$; ' Print the output string.

410 goto 300 ' Go get another line.

500 if len(x$) = 0 goto 400 ' Done with input string?

510 a = fnuchr%(x$)

520 if a = t then goto 700 ' Null repeat character?

530 q$=mid$(x$,2,3) ' Get the quadruplet to decode.

540 x$=mid$(x$,5)

550 b = fnuchr%(q$)

560 q$ = mid$(q$,2)

570 c = fnuchr%(q$)

580 q$ = mid$(q$,2)

590 d = fnuchr%(q$)

600 y$ = y$ + chr$(((a * 4) + (b \ 16)) and 255) ' Decode the quad.

610 y$ = y$ + chr$(((b * 16) + (c \ 4)) and 255)

620 y$ = y$ + chr$(((c * 64) + d) and 255)

630 goto 500 ' Get another quad.

700 x$ = mid$(x$,2) ' Expand nulls.

710 r = fnuchr%(x$) ' Get the number of nulls.

715 print " Null: ",r

720 x$ = mid$(x$,2)

730 for i=1 to r ' Loop, adding nulls to string.

740 y$ = y$ + n$

750 next

760 print#2,y$; ' Print the nulls.

770 y$ = "" ' Clear the output buffer.

780 goto 500

800 print "Processing complete, elapsed time: "+t$+" to "+time$

810 print "Output in "+f$

820 close #1,#2

830 goto 9999

900 print "?The format of the BOO file is incorrect"

910 goto 820

1000 x$ = input$(1,#1) ' Make this line RETURN for full-duplex

1010 if x$ <> chr$(17) then goto 1000 ' Loop for a turn around char.

1020 return

9999 end

MS-DOS KERMIT Page 119

Here is a listing of MSBOOT.FOR, in case you can't find it on your host system:

C This Fortran program should be run on the mainframe in conjunction

C with a Basic program (MSPCBOOT.BAS) on the PC to transfer

C MSKERMIT.BOO to the PC and translate it into KERMIT.EXE. This

C program uses a very rudimentary technique to try to insure that

C the characters it sends arrive correctly. It just sends a count

C of the number of characters sent after each line. In this way any

C errors of character loss or insertion will be caught. If a

C character is just corrupted it will not be caught. Hopefully if

C this happens it will be in a non-critical part of the KERMIT.EXE

C file. The reason a simple checksum was not used was so that this

C program could run on machines using either EBCIDIC or ASCII

C characters. This program should take about thirty minutes to run.

C This program assumes that 5 and 6 are directed to the terminal and

C 7 is directed to the file MSKERMIT.BOO.

INTEGER LINE(77), ACK(4), CHECK, OK, SPACE, COMMA

WRITE(6,100)

100 FORMAT(' Ready to transfer data, now run MSPCBOOT.BAS on the PC.')

C Get characters for constants (character constants are rough in

C some FORTRANs!)

READ (5,200) OK, SPACE, COMMA, ACK

200 FORMAT(4A1)

GO TO 30

C Get terminal handshake.

10 READ (5,200)ACK

C Did the other side like it? (Did they send OK?)

IF (ACK(1) .NE. OK) GO TO 50

C Yes, get new line from file.

20 READ (7,300,END=99)LINE

300 FORMAT(77A1)

C Count the characters as some rudimentary check for noise.

I = 1

30 IF (LINE(I) .EQ. SPACE) GO TO 40

I = I + 1

GO TO 30

C Put in a comma followed by the count.

40 LINE(I) = COMMA

C Write to TTY.

50 WRITE (6,400)LINE,I-1

400 FORMAT(' ',77A1,I2)

GOTO 10

MS-DOS KERMIT Page 120

C Send good-bye message.

99 WRITE (6,500)

500 FORMAT(' ',10('&'),',10')

STOP

END

10.6. Compatibility with Older Versions of MS-DOS Kermit

MS-DOS Kermit supports many different systems. Like CP/M-80 KERMIT, this support was added to the program piecemeal, at many sites, using conditional assembly. However, before allowing the program to grow into a complicated monolith like CP/M-80 KERMIT, we have broken the program up into separate modules, with system dependencies isolated into a single module consisting of compact collections of low-level primitives for console and port i/o.

The last monolithic (single source file) release of MS-DOS Kermit was

1.20. To this and earlier versions was added support for systems like the Seequa Chameleon, the Tandy 2000, the Victor 9000, the Heath/Zenith

100, and others. Eventually, support for these systems may be in- tegrated with the new modular version. Meanwhile, implementations based on these old versions will have at least the following incompatibilies from the version described here:

- RECEIVE filespec is used instead of GET filespec. There is no

GET command in older versions, and no way to specify a new

name for an incoming file.

- No LOCAL or REMOTE commands.

- No 8th-bit prefixing, repeat counts, CRCs or 2-character

checksums.

- No TAKE or initialization files.

- No command macros or command line arguments.

- No terminal session logging. and others, depending on the specific version.

10.7. What's Missing

Kermit-MS has plenty of room for improvement. Features that need to be improved or added include:

- A built-in facility for sending files "raw" to the remote sys-

tem, obeying current settings for parity, flow control, hand-

shake, and so forth. This might include a script interpreta-

tion facility to allow remote sessions to be conducted

automatically. For the present, this can be accomplished with

a user-supplied program invoked with the Kermit-MS RUN com-

mand.

- Additional functionality when running in server mode

-- directory listings, file deletion, execution of DOS com-

mands, etc.

MS-DOS KERMIT Page 121

- More commands when talking to remote servers -- REMOTE RENAME,

COPY, STATUS, WHO, etc.

- Filename conversion options (normal form, handling of fully

qualified filespecs, etc.).

- Transaction file logging.

- Improved command parsing; for instance, accept default values

for omitted trailing fields.

- A better built-in help facility.

- Support for Kermit file attribute packets.

- The Kermit-MS program is quite large. Much of the size is due

to the deliberate decision to provide support for versions of

MS-DOS prior to 2.0. At some point, this support should be

removed. This will not only reduce the size of the program

considerably, but also provide much more flexibility.

10.8. Program Organization

Kermit-MS version 2 is composed of separate assembler source files, as- sembled separately, and linked together. The modules are:

System/Device Independent:

MSKERM.ASM Main program

MSSEND.ASM File sender

MSRECV.ASM File receiver

MSSERV.ASM Server operation

MSFILE.ASM File i/o

MSCMD.ASM Command parser

MSTERM.ASM CONNECT command

MSCOMM.ASM Communications port buffering & flow control

MSSET.ASM SET, SHOW, and STATUS commands

MSDEFS.H Data structure definitions and equates

System/Device Dependent:

MSXxxx.ASM System-dependent code for system xxx

MSYxxx.ASM System-dependent screen and keyboard code

MSZxxx.ASM Modem control (modem-dependent)

The modular organization allows easier modification of the program, quicker transfer of modified portions from system-to-system. The modules are designed to be well-defined and self-contained, such that they can be easily replaced. For instance, someone who prefers windows and mice to typing commands could replace the command parsing module

without having to worry about the effect on the other modules.

To assemble any of the kermit modules, file MSDEFS.H must be on the default disk.

MS-DOS KERMIT Page 122

All the Kermit implementations require the modules MSCMD, MSCOMM,

MSFILE, MSKERM, MSRECV, MSSEND, MSSERV, MSSET, MSTERM.

The IBM PC version requires MSXIBM and MSYIBM as well.

The Rainbow version requires MSXRB and MSXDMB; MSXDMB must be the first object file given to the linker for Kermit to link properly for the

Rainbow.

The HP150 version requires MSXHP150, the Wang version requires MSXWNG, and the generic version requires MSXGEN.

Once all the required object modules exist, they may be linked together to produce Kermit. For example, on the Rainbow:

A>link

Microsoft Object Linker V2.00

(C) Copyright 1982 by Microsoft Inc.

Object Modules [.OBJ]: msxdmb mskerm msxrb mscomm msset mssend +

msrecv msserv msfile msterm mscmd

Run File [MSXDMB.EXE]: kermit

List File [NUL.MAP]: kermit

A>

10.9. Adding Support For New Systems

You can bring Kermit-MS to systems that are not explicitly supported in one of two ways -- attempt to run the "generic" MS-DOS Kermit on it, or add explicit code to support your system.

10.9.1. Generic MS-DOS Kermit

To get started with Kermit on a new system, try running "generic" MS-DOS

Kermit; in many cases, it will run as is. The generic version ac- complishes all its port and console i/o through DOS calls, and during terminal connection does not attempt to emulate any particular kind of terminal. In some cases, the generic version may still require some fiddling to run on a new system; for instance, different systems refer to their communication ports in different ways -- COM1, AUX, etc. It attempts to do this automatically by trying various DOS file handles for the communication port, and asking you to supply one if it does not succeed.

Generic MS-DOS Kermit will probably run no faster than 1200 baud, and it only works with DOS 2.0 or later.

MS-DOS KERMIT Page 123

10.9.2. Adding System-Dependent Code

The following is a guide to the system dependent module of Kermit-MS.

SPECIFICATION FOR KERMIT SYSTEM-DEPENDENT MODULES

by Jeff Damens, Columbia University

All the system-independent global data structures used in Kermit-MS are defined in the file MSDEFS.H.

The routine MSXxxx.ASM contains system-dependent support for system xxx, except for terminal emulation, which is in MSXxxx.ASM, described below.

The routines in the MSX module may change any registers but the stack pointer and segment registers, unless otherwise noted. A routine that returns via a RET instruction is said to return normally; a routine that skip returns is one that returns to three bytes past the normal return address.

Global variables that must be defined in the system-dependent module:

XOFSNT byte. This should be set to a non-zero value if we are

doing flow control and have sent an XOFF character to

the remote host, zero otherwise.

MACHNAM byte. A $-terminated string identifying the machine

this version of Kermit is for; it is printed when Kermit

starts up.

SETKTAB byte. A keyword table associating terminal key names to

16-bit scan code values, used in the set key command.

If the kermit version can accept arbitrary decimal

values as scan codes, the word "SCAN" should appear in

the table with a scan value of -1. If key redefinition

is not implemented, the first byte of the table should

be a zero.

SETKHLP byte. A $-terminated string to be printed when ? is

typed in the SET KEY command. This is usually simply a

list of the key names in SETKTAB. SETKHLP must be

defined even if key redefinition is not implemented, to

satisfy the linker; if key redefinition is not imple-

mented, SETKHLP will never be displayed.

COUNT word. The number of characters in the serial input

buffer, if known. This is how Kermit knows to send an

XON if the serial handler has sent an XOFF. If the num-

ber of characters in the buffer isn't known, COUNT

should be 0.

These are the required entry points for the system dependent dependent module MSXxxx.ASM.

MS-DOS KERMIT Page 124

SERINI

Parameters None.

Returns Normally, no return value.

Description Perform any initialization that must be done before the

serial port can be used, including setting baud rate,

interrupt vectors, etc. Parity and baud rate should be

set according to the values in the PORTINFO structure.

The external variable PORTVAL points to the PORTINFO

structure for the current port. Calling SERINI more

than once without an intervening call to SERRST should

have no effect.

SERRST

Parameters None.

Returns Normally, no return value.

Description Undoes any initialization done by SERINI, including

resetting the serial port, restoring any interrupt vec-

tors changed by SERINI, etc. Calling this more than

once without an intervening call to SERINI should be

harmless.

CLRBUF

Parameters None.

Returns Normally, no return value.

Description Remove and discard from the serial port's input buffer

any characters sent by the remote host that have not yet

been read by Kermit, and set COUNT to 0. This is used

before a file transfer to flush NAK's that accumulate in

the buffer when the remote host is in server mode.

MS-DOS KERMIT Page 125

OUTCHR

Parameters A character in AH.

Returns Skip returns if the character has been transmitted;

returns normally if the character can not be transmitted

because of a hardware error.

Description Sends the character in AH out the currently selected

serial port. OUTCHR can assume that SERINI will have

been called previously. OUTCHR should call the external

routine DOPAR to set the parity of the character if the

communications hardware doesn't automatically set

parity. Flow control should be honored; the external

variable PORTVAL contains a pointer to a PORTINFO struc-

ture (as defined in MSDEFS.H) containing the current

flow control definitions.

COMS

Parameters None.

Returns Normally if a parse error is encountered, skip returns

otherwise.

Description Called by the SET PORT command. On a machine with mul-

tiple serial ports, COMS should parse for the name or

number of a serial port and make that the port used by

succeeding calls to SERINI, PRTCHR, OUTCHR, and SERRST.

It should set the external variable PORTVAL to point to

one of the external port structures PORT1 or PORT2, and

set COMFLG in the FLAGS structure to 1 for port one, 0

for port 2. For implementations that use only one

serial port, COMS should print a message to that effect

and skip return.

VTS

Parameters None.

Returns Normally if a parse error is encountered, skip returns

otherwise.

Description Parses for an ON or OFF, sets HEATH-19 emulation while

in terminal emulation appropriately. The VTFLG field of

the FLAGS structure should be set non-zero if HEATH-29

emulation is on, zero otherwise. If HEATH-19 emulation

is not done, VTS should print a message and skip return.

MS-DOS KERMIT Page 126

DODEL

Parameters None.

Returns Normally, no return value.

Description Erases the character immediately to the left of the cur-

sor from the screen, then backs up the cursor.

CTLU

Parameters None.

Returns Normally, no return value.

Description Move the cursor to the left margin, then clear the line.

CMBLNK

Parameters None.

Returns Normally, no return value.

Description Clears the screen and homes the cursor.

LOCATE

Parameters None.

Returns Normally, no return value.

Description Homes the cursor.

LCLINI

Parameters None.

Returns Normally, no return value.

Description Performs any system-dependent initialization required by

this implementation.

MS-DOS KERMIT Page 127

PRTCHR

Parameters None.

Returns Normally, with the next character from the currently

selected serial port in AL. Skip returns if no charac-

ter is available.

Description Reads the next character from the current serial port.

PRTCHR can assume SERINI has been called previously, and

should handle flow control correctly.

DOBAUD

Parameters None.

Returns Normally, no return value.

Description Sets the baud rate for the current port. The baud rate

should be obtained from the BAUD field of the PORTINFO

structure, pointed to by the external variable PORTVAL.

CLEARL

Parameters None.

Returns Normally, no return value.

Description Clears from the cursor to the end of the current line.

DODISK

Parameters None.

Returns Normally, no return value.

Description Sets the external variable DRIVES to the number of disk

drives attached to the machine.

GETBAUD

Parameters None.

Returns Normally, no return value.

Description Store current baud rate of the currently selected port

in the BAUD field of the current PORTINFO structure,

which is pointed to by PORTVAL. If the baud rate is to

default to a particular value, this routine can store

that value into the BAUD field instead.

MS-DOS KERMIT Page 128

BEEP

Parameters None.

Returns Normally, no return value.

Description Rings the terminal bell.

PUTHLP

Parameters A pointer to a string in AX.

Returns Normally, no return value.

Description Writes the null-terminated string given in AX to the

terminal. This is used to display help and status mes-

sages. The IBM and Rainbow versions write the string in

a reverse video box.

PUTMOD

Parameters A pointer to a string in AX.

Returns Normally, no return value.

Description Writes the null-terminated string given in AX to the

last line of the screen, in inverse video if possible.

CLRMOD

Parameters None.

Returns Normally, no return value.

Description Clears the line written by PUTMOD.

POSCUR

Parameters Row in DH, column in DL.

Returns Normally, no return value.

Description Positions the cursor to the row and column given in DX.

Rows and columns both originate at 0 (not 1!).

MS-DOS KERMIT Page 129

SENDBR

Parameters None.

Returns Normally, no return value.

Description Send a break to the current serial port.

SHOWKEY

Parameters Pointer to a terminal argument block in AX (see TERM

below).

Returns Normally, with a string pointer in AX and the length of

the string in CX.

Description Called by the SHOW KEY command. Reads a key from the

terminal and returns a string containing

implementation-dependent information about the key. In

the usual case, the string contains the key's

(machine-dependent) scan code, and the key's definition

(if any) from the terminal argument block. The length

of the returned string should be returned in CX. The

string may contain any characters; unprintable charac-

ters will be quoted when the string is printed. If the

implementation does not support key redefinition, SHOW-

KEY may return a static string saying so.

TERM

Parameters Pointer to terminal argument block in AX.

Returns Normally, no return value.

Description Do terminal emulation, based on argument block described

below...

The terminal emulator is supplied in the file MSYxxx.ASM. The terminal argument block passed to the terminal emulator has the following fields:

FLGS Byte containing flags. Flags are:

SCRSAM (80H) If on, the terminal emulator shouldn't

re-display the screen when entered.

CAPT (40H) Capture output. If on, the routine

passed in field CAPTR is called with

each character sent to the screen.

EMHEATH (20H) Emulate a Heath-19 terminal if on.

MS-DOS KERMIT Page 130

HAVTT (10H) A key redefinition table is present.

TRNCTL (08H) Print control character X as ^X (useful

for debugging).

MODOFF (04H) Do not display emulator mode line if on.

LCLECHO (01H) Echo keyboard characters on the screen

in addition to sending them to the port.

PRT Port to use for terminal emulation, used only in mode

line. This is just a copy of COMFLG in FLAGS.

COLS Number of columns on screen.

ROWS Number of rows on screen.

CAPTR Routine to call to with each character sent to the

screen if CAPT flag is on. Characters are passed in AL.

BELLD Bell divisor (used only on IBM).

KLEN Number of keys in key redefinition table, if HAVTT flag

is on.

KTAB Address of key redefinition table. The key redefinition

table is a table of KLEN 16-bit scan codes. Each

(machine dependent) scan code represents a key that is

redefined.

KRPL Address of key replacement table. The key replacement

table parallels the key redefinition table given in

KTAB. Entries in the replacement table are 16-bit

pointers to redefinitions. Each redefinition has a

one-byte length, followed by the definition.

ESCC Escape character (single byte). When this character is

typed to the emulator, it should return.

BAUDB byte. Bits describing the baud rate so it can be

printed on the mode line. This is a copy of the BAUD

field in the PORTINFO structure. Currently used only on

the IBM. See MSDEFS.H for possible values.

PARITY byte. Current parity to print on the mode line. This

is a copy of PARFLG in the PORTINFO structure. Cur-

rently used only on the IBM. See MSDEFS.H for possible

values.

MS-DOS KERMIT Page 131

10.10. Heath/Zenith-19 Control Codes

The Heath/Zenith-19 terminal is equivalent to the DEC VT52 with exten- sions for line and character insertion and deletion. Items marked with an asterisk are not currently supported by Kermit-MS H19 emulation.

Cursor Functions

Sequence Mnemonic Definition

ESC H HCUH Cursor Home

ESC C HCUF Cursor Forward

ESC D HCUB Cursor Backward

ESC B HCUD Cursor Down

ESC A HCUU Cursor Up

ESC I HRI Reverse Index

*ESC n HCPR Cursor Position Report

*ESC j HSCP Save Cursor Position

*ESC k HRCP Set Cursor to Previously Saved Position

ESC Y HDCA Direct Cursor Addressing, 1-based:

31+line# 31+col# (same as VT52)

Erasing and Editing

Sequence Mnemonic Definition

ESC E HCD Clear Display (Shift Erase)

ESC b HBD Erase Beginning of Display

ESC J HEOP Erase to End of Page (Erase Key)

ESC l HEL Erase Entire Line

ESC o HEBL Erase Beginning of Line

ESC K HEOL Erase to End of Line

ESC L HIL Insert Line

ESC M HDL Delete Line

ESC N HDCH Delete Character

ESC @ HEIM Enter Insert Character Mode

ESC O HERM Exit Insert Character Mode

Configuration

Sequence Mnemonic Definition

*ESC z HRAM Reset to Power-Up Configuration

*ESC r Bn HMBR Modify Baud Rate: Bn=

A=110, B=150, C=300, D=600, E=1200,

F=1800, G=2000, H=2400, I=3600, J=4800,

K=7200, L=9600, M=19200

*ESC x Ps HSM Set Mode(s): Ps=

1 = Enable 25th line

2 = No key click

3 = Hold screen mode

4 = Block cursor

5 = Cursor off

MS-DOS KERMIT Page 132

6 = Keypad shifted

7 = Alternate keypad mode

8 = Auto line feed on CR

9 = Auto CR on line feed

*ESC y Ps HRM Reset mode(s): Ps=

1 = Disable 25th line

2 = Enable key click

3 = Exit hold screen mode

4 = Underscore cursor

5 = Cursor on

6 = Keypad unshifted

7 = Exit alternate keypad mode

8 = No auto line feed

9 = No auto CR

*ESC < HEAM Enter ANSI Mode

Modes of Operation

Sequence Mnemonic Definition

*ESC [ HEHS Enter Hold Screen Mode

*ESC \ HXHS Exit Hold Screen Mode

ESC p HERV Enter Reverse Video Mode

ESC q HXRV Exit Reverse Video Mode

*ESC F HEGM Enter Graphics Mode

*ESC G HXGM Exit Graphics Mode

*ESC t HEKS Enter Keypad Shifted Mode

*ESC u HXKS Exit Keypad Shifted Mode

*ESC = HAKM Enter Alternare Keypad Mode

*ESC > HXAM Exit Alternate Keypad Mode

Additional Operations

Sequence Mnemonic Definition

*ESC } HDK Keyboard Disable

*ESC { HEK Keyboard Enable

ESC v HEWA Wrap Around at End of Line

ESC w HXWA Discard at End of Line

ESC Z HID Identify as VT52 (ESC / K)

*ESC ] HX25 Transmit 25th Line

*ESC # HXMP Transmit Page

The Heath-19 transmits the following sequences, but it will not

respond to them if they are received. Kermit-MS will transmit them

only if they are programmed with SET KEY.

ESC S HF1 Function Key #1

ESC T HF2 Function Key #2

ESC U HF3 Function Key #3

ESC V HF4 Function Key #4

ESC W HF5 Function Key #5

MS-DOS KERMIT Page 133

ESC P HF7 Function Key #7

ESC Q HF8 Function Key #8

ESC R HF9 Function Key #9

CP/M-80 KERMIT Page 134

11. CP/M-80 KERMIT

Program: Bill Catchings, Columbia University, with contributions from

Bernie Eiben (DEC), Nick Bush (Stevens), John Bray

(University of Tennessee), Bruce Tanner (Cerritos College),

Greg Small (University of California at Berkeley), Kimmo

Laaksonen (Helskini University of Technology), and many

others.

Language: 8080 Assembler or MAC80

Version: 3.9A

Date: 6 June 1984

Documentation:

Frank da Cruz, Columbia University

KERMIT-80 Capabilities At A Glance:

Local operation: Yes

Remote operation: No

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: Yes

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: No

Alternate block checks: Yes

Terminal emulation: Yes, VT52 and others

Communication settings: Yes; duplex, parity

Transmit BREAK: Yes; some versions

IBM communication: Yes

Transaction logging: No

Session logging (raw download): Yes

Raw upload: Yes

Act as server: No

Talk to server: Yes; SEND, GET, FIN, BYE

Advanced commands for servers: No

Local file management: Yes; DIR, ERA, SET DEFAULT disk

Handle file attributes: No

Command/init files: No

Printer control: Yes, limited

SUMMARY OF CP/M

CP/M-80 (version 2.2) has only five built-in commands, and they all deal with files; other functions are done by invoking programs.

CP/M file specifications are of the form DEV:XXXXXXXX.YYY, where

DEV: is a device name, normally the A: or B: floppy. If

omitted, the device name defaults to your connected dis-

kette.

XXXXXXXX is a filename of up to 8 characters.

CP/M-80 KERMIT Page 135

YYY is the file type, up to 3 characters.

File names and file types may contain letters, digits, and some special characters, including dash, dollar sign, and underscore, but no imbedded spaces. Upper and lower case letters are equivalent.

"Wildcard" file-group specifications are permitted in file names and file types (but not device names) within certain contexts; a "*" matches a whole field, a "?" matches a single character, including space. Ex- amples: "*.F??" specifies all files whose types start with F and are 1,

2, or 3 characters long; "F?.*" specifies all files whose names start with F and are no more than two characters long (before the trailing spaces).

The five CP/M commands are:

DIR file Lists the the names of the specified files. The default

file specification is "*.*". Example: "DIR B:*.FOR".

ERA file Erases (deletes) the specified file(s); wildcards al-

lowed.

REN new old Changes the name of a file from old to new, e.g.

"REN NEW.FOR=OLD.FOR".

SAVE Saves the specified number of memory blocks into a file.

TYPE file Types the specified file on the screen, e.g.

"TYPE FOO.TXT".

The most important programs are:

STAT Gives statistics on disk usage.

PIP Peripheral Interchange Program. Copies files. In

response to the "*" prompt, give a command of the form

disk:outfile=disk:infile

Wildcards ("*" for a whole field or "?" for a letter)

can be used. Examples: "A:=B:*.*" to copy a whole disk,

"A:=B:*.FOR" to copy all the Fortran programs from disk

B to disk A. If the disk specification is omitted, your

"connected" disk is assumed. Command line arguments are

also accepted, e.g. "PIP A:=B:*.*".

For further information on CP/M, consult your microcomputer manual or a

CP/M handbook.

CP/M-80 KERMIT Page 136

KERMIT-80 DESCRIPTION

Implementations of Kermit-80 presently exist for the DEC VT180 (Robin), the DECmate II, the Intertec Superbrain, the Heath/Zenith 89 and Z100, the Apple II with the Z80 SoftCard, the Osborne 1, the TRS-80 II with

CP/M, the Telcon Zorba, the Kaypro, the Vector Graphics CP/M system, the

Morrow Decision I, the Nokia MikroMikko, and others. There is also a

"generic" CP/M version that should run on most 8080-compatible CP/M 2.2 systems, but which may provide less performance, and another for CP/M

3.0.

Since Kermit-80 runs on a standalone micro, it is always in control of the screen -- it is always local. Thus, it always keeps the screen up- dated with the file name and the packet number, whether sending or receiving. Kermit-80 is capable of an imprecise or "fuzzy" timeout on an input request, and can break deadlocks automatically. In most cases, this is not important, because the KERMIT on the other side is most likely able to handle the timeouts. The timeouts done by Kermit-80 are fuzzy because they depend on the speed of the Z80 processor and other factors that can vary from system to system.

If despite the timeout capability, the transmission appears to be stuck

(and you can tell that this has happened if the screen fails to change for a while) you can type carriage return to have the micro do what it would have done on a timeout, namely NAK the expected packet to cause to foreign host to send it again (or, if the micro is sending, to retransmit the last packet). Micro/micro or micro/IBM-mainframe trans- fers could require this kind of manual intervention.

File transfers may be interrupted in several ways.

Control-C This will return you to Kermit-80 command level im-

mediately, so that you can connect back to the remote

system, or take any other desired action.

Control-X When sending a file, this will terminate the sending of

the current file with a signal to the KERMIT on the

other side to discard what it got so far. If there are

more files to be sent, KERMIT-80 will go on to the next

one. When receiving a file, KERMIT-80 will send a sig-

nal to the remote KERMIT to stop sending this file. If

the remote KERMIT understands this signal (not all im-

plementations of KERMIT do), it will comply, otherwise

the file will keep coming. In any case, the remote KER-

MIT will go on to the next file in the group, if any.

Control-Z Like Control-X, except if a file group is being trans-

mitted, this will stop the transmission of the entire

group. If only a single file is being transmitted, it

works exactly like Control-X.

Carriage Returns

If you type carriage return repeatedly Kermit-80 will

retry the current packet up to its retry limit

(somewhere between 5 and 16 times) and then, if no valid

response was received, return to Kermit-80 command

CP/M-80 KERMIT Page 137

level.

KERMIT-80 COMMANDS

KERMIT-80 uses the DECSYSTEM-20 keyword style command language. Each keyword may be abbreviated to its minumum unique length. "?" may be typed to request a menu of the available options for the current field at any point in a command. ESC may be typed at any point in a command to fill out the current keyword or filename; if sufficient characters have not been typed to identify the current field uniquely, KERMIT-80 will sound a beep and allow you to continue from that point.

CONNECT Establish a "virtual terminal" connection to any host that may

be connected to the serial port, i.e. pass all typein to the

serial port and display all input from the serial port on the

screen. Also, emulate a DEC VT52 to allow cursor control,

screen clearing, etc., if VT52-EMULATION is ON (see below), in

which case you should also set your terminal type on the remote

host to VT52. (Some versions emulate other terminals.) The es-

cape character differs from micro to micro; when you issue the

CONNECT command, the micro will print a message telling you how

to get back. The escape sequence is generally an uncommonly-

used control character, like CTRL-backslash or

CTRL-rightbracket, followed by a single letter "command".

C Close Connection, return to Kermit-80> command level.

S Display Status of connection, but maintain remote connec-

tion.

? List available single-character commands.

0 (zero) Send a null (0) character.

B Send a BREAK signal. Only some systems provide this func-

tion.

^] (or whatever - a second copy of the escape character) Send

the escape character itself to the remote host.

SEND filespec

Send file(s) specified by filespec to the remote Kermit. The

filespec may contain CP/M wildcards.

RECEIVE Receive file(s) from the remote Kermit. Store them under the

names provided in the file headers supplied by the remote host.

If the names aren't legal, use as many legal characters from the

name as possible (see the description of SET FILE-WARNING

below). If there's a conflict, and FILE-WARNING is ON, warn the

user and try to build a unique name for the file by adding "&"

characters to the name.

GET filespec

When Kermit-80 is talking to a Kermit Server on the host, you

should use the GET command to request the server to send files

to you, for example: get hlp:k*.hlp Limitation: If you request

an alternate block check type using the SET BLOCK command, the

GET command will not communicate it to the remote server. If

you want to have type 2 or 3 block checks done when getting

files from the server, you have to issue the appropriate SET

CP/M-80 KERMIT Page 138

BLOCK command to the remote KERMIT before putting it in server

mode.

LOG filespec

When CONNECTed to a foreign host as a terminal, log the terminal

session to the specified diskette file. This functionality

depends to some extent on the remote host's ability to do

XON/XOFF flow control, and does not guarantee a complete

transcript (after all, that's what the KERMIT protocol is for).

The log file is closed when the connection is closed by typing

the escape character followed by the single-character command

"C".

TRANSMIT filespec

Send the specified file to the system on the other end of the

connection as though it were being typed at the terminal, one

line at a time. No KERMIT protocol is involved. You must

manually confirm each line. This is useful for sending files to

systems that don't have a KERMIT program. During transmission,

you may type the escape character followed by one of these

single-character commands:

C Cease transmission

R Re-transmit the previous line

BYE When talking to a remote Kermit Server, this command shuts down

the server and logs it out, and also exits from Kermit-80 to

CP/M command level.

LOGOUT Like BYE, but leaves you at Kermit-80 command level.

FINISH Like LOGOUT, but shuts down the remote server without logging it

out. Leaves you at Kermit-80 command level; subsequent CONNECT

commands will put you back at host system command level.

SET parameter [value]

Set the specified parameter to the specified value. Possible

settings:

WARNING ON (or OFF)

Warn user of filename conflicts when receiving files

from remote host, and attempt to generate a unique name

by adding "&" characters to the given name. ON by

default.

VT52-EMULATION ON (or OFF)

When connected as a terminal to a foreign host, controls

whether the micro emulates a VT52 or runs in "native

mode". VT52 emulation is ON by default, except on

micros that already have terminal functionality built

in, such as the DEC VT180 and DECmate (these act as

VT100-series terminals). Some systems emulate other

terminals, like the ADM3A.

LOCAL-ECHO ON (or OFF)

When you CONNECT to a remote host, you must set LOCAL-

CP/M-80 KERMIT Page 139

ECHO ON if the host is half duplex, OFF if full duplex.

OFF by default.

ESCAPE Change the escape character for virtual terminal connec-

tions. Kermit-80 will prompt you for the new escape

character, which you enter literally.

BAUD Change the baud rate of the communications port. This

command only works on some systems, and its actual

operation can vary from system to system. Type SET BAUD

followed by a question mark, and follow the directions.

On systems that do not support this command, you must

set the port baud rate from CP/M or other setup

mechanism outside of KERMIT-80.

PARITY Sets parity for outgoing characters to one of the fol-

lowing: NONE, SPACE, MARK, EVEN, or ODD. On input, if

parity is NONE, then the 8th bit is kept (as data),

otherwise it is stripped and ignored. The parity set-

ting applies to both terminal connection and file trans-

fer. If you set parity to anything other than none,

KERMIT-80 will attempt to use "8th bit prefixing" to

transfer binary files. If the other KERMIT is also

capable of 8th bit prefixing, then binary files can be

transferred successfully; if not, the 8th bit of each

data byte will be lost (you will see a warning on your

screen if this happens).

TIMER ON (or OFF)

Enable or disable the "fuzzy timer". The timer is off

by default, because in the normal case KERMIT-80 is com-

municating with a mainframe KERMIT that has its own

timer. Mainframe KERMIT timers tend to be more precise

or adaptable to changing conditions. You should SET

TIMER ON if you are communicating with a KERMIT that

does not have a timer. You should SET TIMER OFF if you

are communicating over a network with long delays.

IBM ON (or OFF)

Allow the transfer of files to and from an IBM mainframe

computer. This makes Kermit-80 wait for the IBM tur-

naround character (XON), ignore parity on input, add ap-

propriate parity to output, and use local echoing during

CONNECT. As distributed, KERMIT-80 uses MARK parity for

IBM communication. If you don't give this command, IBM

mode is OFF. Since IBM VM/CMS KERMIT does not have

timeout capability, SET IBM ON also turns on the "fuzzy

timer" automatically.

BLOCK-CHECK-TYPE

The options are:

1-CHARACTER-CHECKSUM

Normal, default, standard 6-bit checksum.

2-CHARACTER-CHECKSUM

A 12-bit checksum encoded as two characters.

CP/M-80 KERMIT Page 140

3-CHARACTER-CRC-CCITT

A 16-bit CCITT-format Cyclic Redundancy Check,

encoded as 3 characters.

The 2 and 3 character options should only be used under

conditions of extreme line noise. Many implementations

of KERMIT only support the single character checksum.

FILE-MODE

Tells KERMIT-80 what kind of file it is sending, so that

KERMIT can correctly determine the end of the file. SET

FILE BINARY means to send all the 128-byte blocks of the

file, including the last block in its entirety; SET FILE

ASCII is used for text files, and transmission stops

when the first Control-Z is encountered anywhere in the

file (this is the CP/M convention for marking the end of

a text file). If binary transmission is used on a text

file, some extraneous characters (up to 127 of them) may

appear at the end of the file on the target system. If

ASCII transmission is used on a binary file, the entire

file will not be sent if it happens to contain any data

bytes that correspond to Control-Z.

DEFAULT-DISK

This allows you to set the default disk as source and

destination of file transfers. In addition, issuing

this command causes you to switch to the specified disk

and log it in, write-enabled. The selected disk appears

in your KERMIT-80 prompt, for instance

Kermit-80 A:>

PORT Allows you to switch between different communication

ports. This command is not available on all systems.

PRINTER ON or OFF. Turns copying of CONNECT session to printer

on and off. No attempt is made to do buffering or flow

control; it is assumed printer can keep up.

DIR This provides a directory listing of the specified files. If no

files are specified, all files on the default disk are listed.

File sizes, in K, are included. You may interrupt the listing

at any time by typing any character. The listing (even if

interrupted) concludes with a display of the amount of free

storage left on the disk.

ERA This executes the CP/M ERA command on the specified file(s).

The names of the files being erased are not displayed.

CP/M-80 KERMIT Page 141

11.1. Generic KERMIT-80

"Generic Kermit-80" is a implementation of Kermit that should run on any

8080-compatible CP/M system no modification at all, or perhaps only a minor one. Unlike other Kermit-80 implementations, it contains no system-dependent manipulation of the serial port or screen. All I/O is done with standard CP/M BIOS calls, and I/O redirection is done using the CP/M IOBYTE function, which, according to the Digital Research CP/M

Operating System Manual, is an optional feature of any particular CP/M implementation. If your system does not provide the IOBYTE function,

Generic Kermit-80 will not work; furthermore, not all systems that implement IOBYTE do so in the same way.

The reason all Kermit-80 implementations aren't generic is that a good deal of speed is sacrificed by getting all services from the operating system. While a specific implementation of Kermit-80 may be able to operate at 4800, 9600, or even 19200 baud, Generic Kermit will fail to work on some systems at speeds in excess of 1200 baud.

Generic Kermit also differs from other Kermit-80 implementations in that it does not do fancy screen control during file transfer; it simply types the file names, packet numbers, and messages in sequence across and down the screen. This works best if you can put your micro or ter- minal in "autowrap" mode; otherwise the packet numbers will pile up in the rightmost column; the filenames and messages will always appear on a new line, however. Neither does generic Kermit-80 do termimal emula- tion; thus a generic Kermit-80 acts either as a "dumb terminal"

(sometimes called a "glass TTY"), or else its own built in terminal firmware provides cursor control functions independent of the Kermit program.

Note that VT180 and DECmate-II Kermit are simply adaptations of Generic

Kermit that do VT100 (ANSI) screen control during file transfer.

11.2. Installation

Kermit-80 was written originally for the Intertec SuperBrain in lowest- common-denominator 8080 code with the standard assembler, ASM (no mac- ros, no advanced instructions), so that it can be assembled on any

16

CP/M-80 system . It has since been modified to run on many other sys- tems as well. Kermit-80 should be able to run on any 8080-, 8085- or

Z80-based microcomputer under CP/M with only minor modifications (see below).

All versions of Kermit-80 are assembled from the same source, with sys- tem dependencies taken care of by assembly-time conditionals. The most important system dependencies are terminal emulation (when CONNECTed to

_______________

16

The 8080 assembler is distributed as a standard part of CP/M-80, whereas the fancier Z80 or macro assemblers are normally a commercial product

CP/M-80 KERMIT Page 142 the remote host) and screen handling, which are dependent on the in- dividual micro's escape codes (these features are table driven and easily modified for other CP/M systems), and the lowest level i/o routines for the serial communications port. The port routines are best done only with BDOS calls, but some systems do not allow this, primarily because the BDOS routines strip the parity bit during port i/o, and the parity bit is used for data when transmitting binary files. Also, using

BDOS calls, there's no way to poll the serial port; you must hang until input appears.

Kermit-80's i/o routines must check the port status and go elsewhere if no input is available; this allows for virtual terminal connection, keyboard interruption of stuck transmissions, etc. On systems that fully implement i/o redirection via the optional CP/M IOBYTE facility, this may be done by switching the IOBYTE definition. On others, however, IN/OUT instructions explicitly referencing the port device registers must be used.

CP/M-80 KERMIT version 3.8 and above includes a "fuzzy timer" that al- lows a timeout to occur after an interval ranging from 5 to 20 seconds

(depending upon the speed of the processor and the operating system routines) during which expected input does not appear at the port. In this case, retransmission occurs automatically. In any case, you may type a carriage return during transmission to simulate a timeout when the transfer appears to be stuck.

11.2.1. Downloading Kermit-80

If you already have a version of Kermit on your micro and you want to install a new version, simply use your present version to get the new one. If it's stored in the form of a .COM file, you can run it directly. If it's stored as a .HEX file, you must first LOAD it on your micro to produce a .COM file.

If you do not have a copy of KERMIT on your micro, and you cannot borrow a Kermit floppy but you do have access to a mainframe computer with a copy of the Kermit-80 distribution, you should read this section.

There are several ways to get Kermit from a host system to your micro.

The easiest is to "download" the precompiled "hex" file into your micro's memory and then save it on the disk. The following is a proce- dure which, though far from foolproof, should allow you to get a version of Kermit to your CP/M based micro. It depends upon the host prompt, or at least the first character of the host prompt, being some character that cannot appear in a hex file (the valid characters for hex files are the digits 0-9, the upper case letters A-F, the colon ``:'', carriage return, and line feed). As soon as any other character is encountered, the transfer will terminate. If your host does not issue a prompt that will accommodate this scheme, you can achieve the same effect by adding an atsign ``@'' to the very end of the hex file before sending it from

the host. The program below looks for an atsign (the normal DEC-20 prompt, hex 40). DECSYSTEM-10 users would look for a dot, hex 2E.

1. Look for the appropriate hex file in the host's KERMIT area.

The name will be something like CPMROBIN.HEX, CPMHEATH.HEX,

CP/M-80 KERMIT Page 143

CPMOSBORN.HEX, etc. If you don't find it, but you do find a

corresponding .ASM or .M80 file, you'll either have to build

a new hex file on the host using a cross assembler (see below

for how to do this on a DEC-10 or DEC-20), or else bring the

M80 source file to your micro and assemble it there.

2. Connect to your host using a terminal or a terminal emulation

facility. Ensure that your host does not have your terminal

in "page mode". E.g. on the DEC-20, give the Exec command

TERMINAL NO PAUSE END-OF-PAGE.

3. Tell the host to display the hex file at your terminal. E.g.

on the DEC-20, give the Exec command TYPE KERMIT.HEX, without

a terminating carriage return.

4. Return to your micro. Connect to a floppy disk with plenty

of free space. Make sure your IOBYTE is set so that RDR: and

PUN: correspond to the I/O port that is connected to the

DEC-20 (this would normally be the case unless you have done

something special to change things). Run DDT and type in the

following (the comments should not be typed in; they are

there just to tell you what's happening):

-ikermit.hex ;Setup FCB for file KERMIT.HEX.

-a100 ;Begin assembling code at 100.

0100 lxi h,ffe ;Where to put HEX file.

0103 shld 300 ;Save the address.

0106 mvi e,d ;Get a CR.

0108 mvi c,4 ;Output function.

010A call 5

010D mvi c,3 ;Input function.

010F call 5

0112 ani 7f ;Turn off the parity.

0114 cpi 40 ;Our DEC-20 prompt atsign?

0116 jz 124 ;Yes, we have whole file.

0119 lhld 300 ;Get the pointer.

011C mov m,a ;Else, store the char.

011D inx h ;Increment the pointer.

011E shld 300 ;Save the pointer.

011F jmp 10d ;Go around again.

0124 mvi a,1a ;Get a control-Z.

0126 lhld 300 ;Get the pointer.

0129 mov m,a ;Store the char.

012A shld 300 ;Save the pointer.

012D lxi h,1000 ;Pointer to file.

0130 shld 310 ;Save the pointer.

0133 mvi c,16 ;Make file.

0135 lxi d,5c

0138 call 5

013B lhld 310 ;Get the file pointer.

013E xchg ;Put it in DE.

013F mvi c,1a ;Set DMA.

0141 call 5

0144 mvi c,15 ;Write DMA to file.

0146 lxi d,5c

0149 call 5

CP/M-80 KERMIT Page 144

014C lhld 310 ;Get the file pointer.

014F lxi d,80 ;Get the DMA size.

0152 dad d ;Adjust file pointer.

0153 shld 310 ;Save it.

0156 lda 301 ;Get high order byte.

0159 cmp h ;Have we passed the end?

015A jm 170 ;Yes.

015D jz 163 ;Maybe.

0160 jmp 13b ;No.

0163 lda 300 ;Get low order byte.

0166 cmp l ;Passed the end?

0167 jm 170 ;Yes.

016A jz 170 ;Yes.

016D jmp 13b ;Not quite.

0170 mvi c,10 ;Close file.

0172 lxi d,5c

0175 call 5

0178 ret

0179

-g100,179 ;Execute the program.

- ;Reboot

Now there should be a file KERMIT.HEX on your connected disk.

5. Load this using the CP/M command LOAD to produce KERMIT.COM.

This should be a runnable version of Kermit. Note that CP/M

hex files have checksums on each line. If there were any

transmission errors during the downloading process, the CP/M

loader will notice a bad checksum and will report an error

(something like "Illegal Format"). If you get any errors

during loading, either fix the hex file locally with an

editor, or repeat the previous step.

You now should have a running version of Kermit-80.

11.2.2. Building KERMIT.HEX

The source for Kermit-80 should be available on your host computer. It is written using 8080 assembler mnemonics, so it can be assembled on most 8080s and Z80s using the standard 8080 assembler provided with

CP/M. If you have KERMIT.ASM on your CP/M system, you can assemble it directly on the micro using ASM, setting the desired assembly switches as explained below. If you don't have it, you can attempt to download the source file from the host using the procedure outlined above.

A cross assembler is provided that runs on the DEC-10 and DEC-20, called

MAC80, contributed by Bruce Tanner at Cerritos College, that may be used for cross assembling KERMIT-80 as shown in this example (for TOPS-20):

1. Copy PS:<KERMIT>CPMKxx.M80 to your directory, as KERMIT.M80.

TOPS-10 filename rules must be followed. This is the 8080

assembler source file; xx is the current version number; for

instance version 3.8 would be stored as CPMK38.M80.

2. Edit KERMIT.M80 to set the conditional assembly switch for

CP/M-80 KERMIT Page 145

your machine. These are right near the top of the file. The

switch for your machine should be set to TRUE and all the

others to FALSE.

3. The "ibm-flag" setting is site dependent. As shipped from

Columbia, it turns on half duplex line handshaking, using

CTRL-Q as the turnaround character, sets LOCAL-ECHO ON, TIMER

ON, and PARITY MARK. Make any changes required for your

site.

4. The default FILE-MODE is ASCII as shipped from Columbia.

This means that when text files are sent from the CP/M sys-

tem, no extraneous characters will be sent after the end, but

that outgoing binary files may be truncated erroneously if

the user forgets to SET FILE BINARY. You can change the

default to BINARY, so that no data is ever lost from any

file, but text files will usually have extraneous junk at the

end.

5. Run MAC80:

@mac80

*kermit=kermit

*^Z

The result will be in your directory as KERMIT.HEX.

6. Use Kermit, MODEM, or any other downloading mechanism to

transfer KERMIT.HEX to the micro, or download it using the

DDT program shown above.

7. On the micro, load the hex file:

A>load kermit

KERMIT.COM will appear on the floppy.

8. The new Kermit should be ready to run.

11.2.3. Generic Kermit-80

If your CP/M 2.2 system implements i/o redirection via the (optional)

IOBYTE mechanism, you can probably run Generic Kermit on it, either without modification, or by a very simple change to the program. The standard CP/M IOBYTE is set up as follows:

I/O Byte assignments (four 2-bit fields for 4 devices at location 3)

: bits 6+7 LIST field

0 LIST is Teletype device (TTY:)

1 LIST is CRT device (CRT:)

2 LIST is Lineprinter (LPT:)

3 LIST is user defined (UL1:)

CP/M-80 KERMIT Page 146 bits 4+5 PUNCH field

0 PUNCH is Teletype device (TTY:)

1 PUNCH is high speed punch (PUN:)

2 PUNCH is user defined #1 (UP1:)

3 PUNCH is user defined #2 (UP2:) bits 2+3 READER field

0 READER is Teletype device (TTY:)

1 READER is high speed reader (RDR:)

2 READER is user defined #1 (UR1:)

3 READER is user defined #2 (UR2:) bits 0+1 CONSOLE field

0 CONSOLE is console printer (TTY:)

1 CONSOLE is CRT device (CRT:)

2 CONSOLE in Batch-mode (BAT:);READER=Input,LIST=Output

3 CONSOLE is user defined (UC1:)

(Here, bit zero is the least significant, "rightmost", bit).

I/O redirection is accomplished by switching the IOBYTE between two values, "batch i/o" and "normal i/o". In normal i/o mode, the keyboard is defined to be the console. In batch i/o mode, the serial port is defined to be the console. This switching is necessary because the con- sole is the only device that can be tested to see if input is available, but KERMIT must shuttle back and forth between the keyboard and the serial port looking for input. Here are the batch and default i/o mode definitions used in "standard" Generic KERMIT-80: batio EQU 056H ;I/O byte CON=BAT,LIST=CRT,READER=RDR defio EQU 095H ;I/O byte CON=CRT,LIST=LPT,READER=RDR

Other systems may have other logical devices that point to the serial port, in which case you'll need to redefine these symbols to point to those devices and then reassemble the program (with assembly switch

GENER set to TRUE, all others FALSE).

If your system runs CP/M 3.0, then the CPMPLUS version of KERMIT should run on your system without modification, except perhaps for screen con- trol or baud rate setting.

CP/M-86 KERMIT Page 147

12. CP/M-86 KERMIT

Authors: Bill Catchings, Columbia University; Ron Blanford, Univer-

sity of Washington; Richard Garland, Columbia University.

Language: Digital Research ASM86

Version: 2.7

Date: May 1984

Documentation:

Frank da Cruz, Columbia

This version of KERMIT is designed to support any CP/M-86 system. So far it supports the DEC Rainbow-100 and the NEC Advanced Personal Com- puter (APC). It is very similar to CP/M-80 and MS DOS KERMIT.

CP/M-86 KERMIT-86 Capabilities At A Glance:

Local operation: Yes

Remote operation: No

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: Yes

^X/^Y interruption: Yes

Filename collision avoidance: Yes

Can time out: Yes

8th-bit prefixing: Yes

Repeat count prefixing: No

Alternate block checks: No

Terminal emulation: Yes, uses PC firmware (VT100)

Communication settings: Yes; duplex, parity

Transmit BREAK: Yes

IBM communication: Yes

Transaction logging: No

Session logging (raw download): Yes

Raw upload: No

Act as server: No

Talk to server: Yes; SEND, GET, FIN, BYE

Advanced commands for servers: No

Local file management: No

Handle file attributes: No

Command/init files: Yes

Printer control: No

CP/M-86 Kermit closely resembles CP/M-80 Kermit, just as CP/M-86 is very similar to CP/M-80. In some respects, KERMIT-86 is superior to

KERMIT-80: the program is better modularized to facilitate easy addition of support for new systems, alternate style user interfaces, etc; the port i/o is fully buffered and XON/XOFF is done to allow high-speed com- munication and accurate session logging. On the other hand, the current version does not include the CP/M-80 Kermit's local file management com- mands.

CP/M-86 KERMIT Page 148

CP/M-86 KERMIT DESCRIPTION

Since Kermit-86 runs on a standalone micro, it is always in control of the screen -- it is always local. Thus, it always keeps the screen up- dated with the file name and the packet number, whether sending or receiving. Kermit-86 is capable of timing out an input request, and can thus break deadlocks automatically. In most cases, however, this is not desirable because the KERMIT on the other side is most likely better able to handle the timeouts; therefore, Kermit-86's timer is normally not used.

If despite the timeout capability, the transmission appears to be stuck

(and you can tell that this has happened if the screen fails to change for a long while) you can type carriage return to have the micro do what it would have done on a timeout, namely NAK the expected packet to cause to foreign host to send it again (or, if the micro is sending, to retransmit the last packet). Micro/micro or micro/IBM-mainframe trans- fers could require this kind of manual intervention.

File transfers may be interrupted in several ways.

Control-C This will return you to Kermit-86 command level im-

mediately, so that you can connect back to the remote

system, or take any other desired action.

Control-X When sending a file, this will terminate the sending of

the current file with a signal to the KERMIT on the

other side to discard what it got so far. If there are

more files to be sent, KERMIT-86 will go on to the next

one. When receiving a file, KERMIT-86 will send a sig-

nal to the remote KERMIT to stop sending this file. If

the remote KERMIT understands this signal (not all im-

plementations of KERMIT do), it will comply, otherwise

the file will keep coming. In either case, the remote

KERMIT will go on to the next file in the group, if any.

Control-Z Like Control-X, except if a file group is being trans-

mitted, this will stop the transmission of the entire

group. If only a single file is being transmitted, it

works exactly like Control-X.

Carriage Returns

If you type carriage return repeatedly Kermit-86 will

retry the current packet up to its retry limit

(somewhere between 5 and 16 times) and then, if no valid

response was received, return to Kermit-86 command

level.

When KERMIT-86 is started, it looks for the file KERMIT.INI. If found, it executes KERMIT-86 commands from it before prompting you for com- mands.

CP/M-86 KERMIT Page 149

12.1. Kermit-86 Commands

KERMIT-86 uses the DECSYSTEM-20 keyword style command language. Each keyword may be abbreviated to its minumum unique length. "?" may be typed to request a menu of the available options for the current field at any point in a command. ESC may be typed at any point in a command to fill out the current keyword or filename; if sufficient characters have not been typed to identify the current field uniquely, KERMIT-86 will sound a beep and allow you to continue from that point.

CONNECT Establish a "virtual terminal" connection to any host that may

be connected to the serial port, i.e. pass all typein to the

serial port and display all input from the serial port on the

screen, using the system's own built-in support for ANSI (VT100-

like) screen control. When you issue the CONNECT command, the

PC will print a message telling you how to get back by typing an

an escape sequence, an uncommonly-used control character, nor-

mally CTRL-backslash, followed by a single letter "command".

C Close Connection, return to Kermit-86> command level.

? List available single-character commands.

B Send a BREAK signal.

Q Quit logging the remote session.

R Resume logging the remote session.

L Toggle logging.

^\ (or whatever - a second copy of the escape character) Send

the escape character itself to the remote host.

SEND filespec

Send file(s) specified by filespec to the remote Kermit, using

the prevailing file mode (ASCII or BINARY; see SET). The

filespec may contain CP/M wildcards.

RECEIVE Receive file(s) from the remote Kermit. Store them under the

names provided in the file headers supplied by the remote host.

If the names aren't legal, use as many legal characters from the

name as possible (see the description of SET FILE-WARNING

below). If there's a conflict, and FILE-WARNING is ON, warn the

user and try to build a unique name for the file by adding "&"

characters to the name.

GET filespec

When Kermit-86 is talking to a Kermit Server on the host, you

should use the GET command to request the server to send files

to you, for example: get hlp:k*.hlp

BYE When talking to a remote Kermit Server, this command shuts down

the server and logs it out, and also exits from Kermit-86 to

CP/M command level.

LOGOUT Like BYE, but leaves you at Kermit-86 command level.

FINISH Like LOGOUT, but shuts down the remote server without logging it

out. Leaves you at Kermit-86 command level; a subsequent CON-

NECT command should put you back at host system command level.

CP/M-86 KERMIT Page 150

EXIT Exit from KERMIT-86 back to CP/M.

QUIT Synonym for EXIT.

SET parameter [value]

Set the specified parameter to the specified value. Possible

settings:

BAUD Change the baud rate of the communications port. This

command only works on some systems, and its actual

operation can vary from system to system. Type SET BAUD

followed by a question mark, and follow the directions.

On systems that do not support this command, you must

set the port baud rate from CP/M or other setup

mechanism outside of KERMIT-86.

DEBUG ON or OFF. If ON, displays incoming and outbound pack-

ets during file transfer. OFF by default.

ESCAPE Change the escape character for virtual terminal connec-

tions. Select a character in the control range that you

will not be likely to need at the remote host; type the

new character literally. Certain characters, like

Control-X, cannot be specified.

FILE-TYPE

Tells KERMIT-86 what kind of file it is sending, so that

KERMIT can correctly determine the end of the file. SET

FILE BINARY means to send all the 128-byte blocks of the

file, including the last block in its entirety; SET FILE

ASCII is used for text files, and transmission stops

when the first Control-Z is encountered anywhere in the

file (this is the CP/M convention for marking the end of

a text file). If binary transmission is used on a text

file, some extraneous characters (up to 127 of them) may

appear at the end of the file on the target system. If

ASCII transmission is used on a binary file, the entire

file will not be sent if it happens to contain any data

bytes that correspond to Control-Z. ASCII is the

default.

FLOW-CONTROL

Select the desired type of flow control to be used on

the communication line. The choices are NONE and

XON/XOFF. XON/XOFF is the default. If the remote sys-

tem is not full duplex or cannot do XON/XOFF, you should

use NONE.

IBM ON (or OFF)

Allow the transfer of files to and from an IBM mainframe

computer. This makes Kermit-86 wait for the IBM tur-

naround character (XON), ignore parity on input, add ap-

propriate parity to output, and use local echoing during

CONNECT. As distributed, KERMIT-86 uses MARK parity for

IBM communication. If you don't give this command, IBM

mode is OFF. Since IBM VM/CMS KERMIT does not have

CP/M-86 KERMIT Page 151

timeout capability, SET IBM ON also turns on the timeout

facility automatically, as if you had typed "SET TIMER

ON".

LOCAL-ECHO ON (or OFF)

When you CONNECT to a remote host, you must set LOCAL-

ECHO ON if the host is half duplex, OFF if full duplex.

OFF by default.

LOG Specify a log file on the current CP/M disk into which

to record incoming characters during CONNECT. If the

remote host can do XON/XOFF, then the log file will nor-

mally capture every character shown on the screen. When

connected to the remote system, several single-character

arguments to the connect escape character can be used to

control logging -- Q (quit), R (resume), L (toggle). If

you use R or L during connect without having previously

specified a log file name, then KERMIT.LOG is used. An

open log is closed when you escape back to the PC.

PARITY Sets parity for outgoing characters to one of the fol-

lowing: NONE, SPACE, MARK, EVEN, or ODD. On input, if

parity is NONE, then the 8th bit is kept (as data),

otherwise it is stripped and ignored. The parity set-

ting applies to both terminal connection and file trans-

fer. If you set parity to anything other than NONE,

Kermit-86 will attempt to use "8th bit prefixing" to

transfer binary files. If the other KERMIT is also

capable of 8th bit prefixing, then binary files can be

transferred successfully; if not, the 8th bit of each

data byte will be lost (you will see a warning on your

screen if this happens).

PORT Allows you to switch between different communication

ports on the PC. This command is not available on all

systems.

TIMER ON (or OFF)

Enable or disable the timeout facility. The timer is

off by default, because in the normal case KERMIT-86 is

communicating with a mainframe KERMIT that has its own

timer. Mainframe KERMIT timers tend to be more precise

or adaptable to changing conditions. You should SET

TIMER ON if you are communicating with another KERMIT

that does not have a timer. You should SET TIMER OFF if

you are communicating over a network with long delays.

WARNING ON (or OFF)

Warn user of filename conflicts when receiving files

from remote host, and attempt to generate a unique name

by adding "&" characters to the given name. OFF by

default.

SHOW Show the current settings of the SET parameters.

TAKE Take KERMIT-86 commands from the specified file. The file

CP/M-86 KERMIT Page 152

should not contain any TAKE commands; nested command files do

not work.

12.2. Installation:

CP/M-86 KERMIT is broken up into several source modules:

86KERCMD.A86 Command parser

86KERFIL.A86 File handler

86KERIO.xxx System Dependent I/O

86KERMIT.A86 Main Program

86KERPRO.A86 Protocol Module

86KERTRM.A86 Terminal Emulation

86KERUTL.A86 Utilities

The main program module, 86KERMIT.A86, contains INCLUDE directives for the other files. The 86KERIO module is stored with suffixes that denote the machine for which the program is being built -- RB for Rainbow, APC for NEC APC. The program may be built on the CP/M-86 system by obtain- ing all the source files listed above, storing them on the current disk with the names indicated, renaming the appropriate 86KERIO.xxx file to be 86KERIO.A86, and then doing:

ASM86 86KERMIT $PZ (takes about 6 minutes on the Rainbow)

GENCMD 86KERMIT (takes less than a minute) and, if desired,

REN KERMIT.CMD=86KERMIT.CMD

12.3. DEC Rainbow 100 Support

KERMIT-86 runs on the DEC Rainbow 100 or 100+ under CP/M-86/80, version

1 or 2, on the 8088 side. It uses the built-in firmware to emulate a

VT102 ANSI terminal during CONNECT, and runs well at speeds up to 9600 baud.

You should be able to download the program using the old KERMIT on the

Z80 side (Rainbow Kermit, VT180 Kermit, or generic CP/M-80 Kermit will do the job, but only under DEC CP/M-86/80 version 1.0), or an earlier version of KERMIT-86.

If you don't have an earlier version of KERMIT, then follow the direc- tions for installing KERMIT-80 (yes, KERMIT-80) in the KERMIT-80 section of the KERMIT User Guide, but send the KERMIT-86 hex file instead. This works because the Rainbow can run CP/M-80 programs like DDT.

Another way to get KERMIT onto your Rainbow for the first time would be from a DEC VT-180 diskette. A VT-180 can use its own KERMIT to load

RBKERMIT onto its disk, which can then be read directly by a Rainbow.

Also, note that VT-180 KERMIT-80 can actually run on the Rainbow on the

Z80 side under DEC CP/M-86/80 version 1 (but not version 2 or higher), at speeds of 1800 baud or lower.

CP/M-86 KERMIT Page 153

12.4. NEC Advanced Personal Computer Support

(Contributed by Ron Blanford, University of Washington)

Currently only the standard serial port is supported, and not the H14 auxiliary port. The SET PORT command is not implemented.

While in Kermit's terminal emulation mode, local commands are initiated by a two-character sequence consisting of the "escape character" fol- lowed by one other character identifying the command. (Make the second character a '?' to see a list of the valid commands.) As distributed, the standard Kermit-86 uses the control-backslash character as the es- cape character in terminal mode. The trouble is that the CP/M-86 BIOS in the APC ignores a keyboard entry of Control-\ (i.e. holding down the

CTRL key while striking the '\' key), making it difficult (impossible) to use this method to get out of terminal mode.

One solution is to perform a "SET ESCAPE ^" command before entering ter- minal mode to change the escape character to a caret (or any other character the APC keyboard will generate). This command could be placed in your KERMIT.INI file for automatic execution every time Kermit is started.

The simpler solution is to realize that the character code for a

Control-\ is a hexadecimal 1C, and that this is the code generated by the INS key on the numeric keypad. Once you can remember that every reference to Control-\ should be interpreted as a reference to the INS key, this is actually easier to use than the two-key Control-\ sequence.

In the standard CP/M-86 BIOS, the unshifted DEL key generates a

Control-X character (hexadecimal 18). This is the CP/M command to erase the current input line, and is very useful for local processing. Most mainframes do not use the Control-X character at all, so it becomes much less useful during terminal emulation. The DEL character (hexadecimal

7F), on the other hand, is often used by mainframes and can only be generated on the APC by holding down the SHIFT key while striking the

DEL key (this capability is not mentioned anywhere in the documentation).

Because the Control-X character is so seldom used while the DEL charac- ter is commonly used, the initialization procedure in Kermit-86 modifies the CP/M-86 BIOS so that the DEL key generates the DEL character whether shifted or not. Control-X can still be generated if necessary by hold- ing down the CTRL key while striking the 'X' key. The CP/M-86 BIOS is returned to its original state when Kermit terminates.

The APC uses escape sequences which have been standardized by the

American National Standards Institute (ANSI) to control cursor movement, screen erasing, and character attribute manipulation. Perhaps the best- known other terminal which follows ANSI guidelines is the DEC VT100.

The APC only recognizes a few of the more important ANSI commands, and

not the complete set which the VT100 supports.

The ANSI/VT100 features that the NEC APC supports are:

- direct cursor addressing (by row and column)

CP/M-86 KERMIT Page 154

- relative cursor addressing (up, down, left, right)

- line erasing (cursor to end, beginning to cursor, entire line)

- screen erasing (cursor to end, beginning to cursor, entire

screen)

- character attributes (underline, reverse video, blink, but not

bold)

In addition, the first four grey function keys (unshifted) generate the escape sequences associated with PF1 through PF4 on the VT100 keyboard.

The arrow keys and numeric keypad DO NOT generate the corresponding

VT100 sequences.

These functions are enough to support simple command line editing on most systems, and allow mailers or paged file display programs to clear the screen before each display. Underlining and reverse video are also useful in some applications. This is not enough to support the more sophisticated screen control required by screen editors such as EMACS or

KED. In addition, due to a bug in the implementation of the CP/M-86

BIOS, the sequence ordinarily used to home the cursor (esc [ H) does not work correctly; a patch for CP/M to correct this problem is distributed with APC Kermit-86.

APPLE-DOS KERMIT Page 155

13. APPLE-DOS KERMIT

Authors: Antonino N. J. Mione, Stevens Institute of Technology

Peter Trei, Columbia University

Documentation:

Antonino N.J. Mione, Stevens Institute of Technology

Peter Trei, Columbia University

Version: 2.1(45)

Date: July 1984

Kermit-65 Capabilities At A Glance:

Local operation: Yes

Remote operation: Yes

Transfers text files: Yes

Transfers binary files: Yes

Wildcard send: No

^X/^Y interruption: No

Filename collision avoidance: Yes

Can time out: No

8th-bit prefixing: Yes

Repeat count prefixing: No

Alternate block checks: No

Terminal emulation: Yes (VT52)

Communication settings: Yes; local echo, parity

Transmit BREAK: Yes

IBM communication: Yes

Transaction logging: No

Session logging (raw download): No

Raw upload: No

Act as server: No

Talk to server: Yes

Advanced commands for servers: No

Local file management: No

Handle file attributes: No

Command/init files: No

Printer control: No

KERMIT-65 is a program that implements the KERMIT file transfer protocol for the Apple ][ micro computer system. It is written in 6502 assembly language and should run on any Apple ][ or Apple ][ Plus system running

DOS 3.3. This section will describe the things you should know about the DOS 3.3 file system in order to make effective use of KERMIT, and then it will describe the special features of the KERMIT-65 program.

13.1. The DOS 3.3 File System

Items of importance which will be discussed in this section include

Filenames and File Characteristics.

APPLE-DOS KERMIT Page 156

Apple DOS Filenames

Filenames under Apple DOS may contain almost any ASCII character

(including space). It is not recommended that special characters, (i.e. control characters or spaces) be used in a filename to be transferred by

Kermit-65 since they may cause problems when parsing the filename.

Filenames may be up to 40 characters in length. No wildcarding of any kind can be done in KERMIT-65.

Apple DOS File Characteristics

All files in Apple DOS have a file type associated with them which is contained in the directory entry for the file but is not part of the filename itself. There are four types of files in DOS 3.3. They are:

- APPLESOFT BASIC

- INTEGER BASIC

- BINARY

- TEXT

All file types have their data stored in eight-bit bytes although not all of them need the eighth bit. The two file types containing basic programs required the eighth bit due to the nature of the data being stored. BINARY files are images of memory copied into a file. Often, these are machine code programs. These files require all eight bits.

TEXT files normally contain only printable or carriage control charac- ters. They are stored in the form of seven-bit ASCII characters but the eighth bit should always be set since Apples manipulate all text inter- nally as 'NEGATIVE ASCII'.

When transmitting text files, the byte size should be set to seven-bit.

When transmitting anything else, the user must insure that both Kermits are handling eight bit data so that no information is lost. If an eight-bit data path is not available (i.e. the remote Kermit needs to do parity checking with the eigth bit), then eight-bit quoting should be used. Of course, BINARY files as well as Apple BASIC files will not have much meaning on a different system. If the user desires to edit a BASIC file on a mainframe, for instance, he must convert it to a TEXT file be- fore sending it over. After receiving the file back on the Apple, the user may convert it back to BASIC once again. The reason BASIC files would be meaningless to a different machine is that the Apple stores

BASIC keywords as single character tokens to save space and processing time. To convert a BASIC program to and from a TEXT file, consult the

Apple DOS 3.3 Manual.

File information can be obtained by issuing the CATALOG command. For ex-

ample:

]CATALOG

DISK VOLUME 010

APPLE-DOS KERMIT Page 157

*A 002 HELLO

B 078 KERMIT

A 002 READER

T 005 TESTFILE

]

When KERMIT-65 is receiving a file, the file it creates on diskette will be of the type indicated by the FILE-TYPE parameter. The file will al- ways be left in an unlocked state after it is closed by KERMIT-65. When sending a file, KERMIT-65 will use the FILE-TYPE parameter to determine how to detect an End-of-file condition. Thus, it is important to have this set properly in all cases.

Recommendations for archiving files

When using a large system for archiving purposes, there is no reason to convert Apple Basic programs into text files before sending them since there is no need to edit them on the mainframe.

The FILE-TYPE parameter must always be set correctly when sending and receiving files. Also, when sending files which require eight-bit

FILE-BYTE-SIZEs, this parameter must also be set properly since

KERMIT-65 does not change it automatically based on FILE-TYPE.

The procedure for archiving TEXT files is:

- Run Kermit on remote system

- SET FILE-BYTE-SIZE SEVEN-BIT ! On KERMIT-65

- SET FILE-TYPE-MODE TEXT ! On KERMIT-65

- Send files

The procedure for archiving APPLESOFT, INTEGER, and BINARY files is:

- Run Kermit on remote system

- Set File-byte-size to Eight-bit ! On Remote Kermit

- SET FILE-BYTE-SIZE EIGHT-BIT ! On KERMIT-65

- SET FILE-TYPE-MODE APPLESOFT ! (or INTEGER, or BINARY) On

KERMIT-65

- Send files

APPLE-DOS KERMIT Page 158

13.2. Program Operation

HARDWARE CONSIDERATIONS

Prior to using KERMIT-65 for transferring files, the modem interface must be set to handle data in a certain manner. Firstly, the data format should be 8 data bits and 1 stop bit. Secondly, the card should be set to no parity. The baud rate (if adjustable) must be set to whatever rate the modem can handle. For the Apple Com card and the D.C. Hayes

Micromodem, these parameters are set correctly by default, so very lit- tle has to be done. For the Apple Super Serial Card, however, these have to be set before using KERMIT-65. In all cases, use the same procedure to connect to the mainframe host as is indicated in the section below on

Installing KERMIT.

Some mainframes cannot handle data in the format of 8 data bits and 1 stop bit because they may need parity checking (i.e. most IBM machines).

In this case, 7 data bits and 1 stop bit plus some parity setting (other than none) will usually work. When talking with such mainframes, binary and basic files on the Apple cannot be transferred unless

Eighth-bit-quoting is used.

CONVERSING WITH KERMIT-65

KERMIT-65's prompt is "KERMIT-65>".

To run KERMIT-65 and issue commands to it, type the following:

]BRUN KERMIT

STEVENS/CU - APPLE ][ KERMIT-65 - VER 2.1

Kermit-65>SEND TESTFILE

file is sent

Kermit-65>STATUS

performance statistics are printed

Kermit-65>Other commands

.

.

.

Kermit-65>EXIT

]

KERMIT-65 uses a TOPS-20 style command parser.

During interactive operation, you may use the ?-prompting help feature

("?") and recognition (ESC) features while typing commands. A question mark typed at any point in a command displays the options available at

APPLE-DOS KERMIT Page 159 that point; typing an ESC character causes the current keyword to be completed (or default value to be supplied). If you have not typed suf- ficient characters to uniquely specify the keyword or filename (or if there is no default value) then a beep will be sounded and you may con- tinue typing. Keywords may be abbreviated to any prefix that is unique.

There are several different Apple]['s which can run KERMIT-65. Kermit will have no problems running on an Apple ][ or Apple ][+ system. It will run on the Apple //e as well, however, the 80-column board cannot be used at this time.

Of the different communication devices available for the Apple ][, three are supported:

- Apple Com Card

- D.C. Hayes Micromodem

- Apple Super Serial Card

It is possible that other cards may have operational characteristics very similar or identical to one of the devices above. If this is the case, it may work using one of the currently available device drivers.

The user may want to try each of the above options to see if any of them work.

KERMIT-65 must be told which device is being used so that it may run with the correct device driver. It also must be told in which slot the card resides. This may be done with the 'SET' command (documented below).

13.3. Remote and Local Operation

KERMIT-65 is normally run in local mode. It may be run as a remote Ker- mit as well although there is no advantage to doing things that way.

KERMIT-65 supports User-mode commands for talking to a Server. It does not currently support server mode.

13.4. KERMIT-65 Commands

THE SEND COMMAND

Syntax: SEND filespec

The SEND command causes a file to be sent from the Apple to the remote system. The Filespec is the name of the file on the Apple diskette to be sent. The parser will not accept control characters and certain special characters in a filename (i.e. a comma), so the user may have to rename

the file before it is sent. The user may also have problems in filename compatibility with remote Kermits. If the remote Kermit does not have the facilities to beat the filename into a format that its system likes, the user may have to rename the file before sending it. The default disk drive used for file transfers is the drive used to boot the system

APPLE-DOS KERMIT Page 160 or the last drive accessed with a DOS command. This can be changed with the 'SET DEFAULT-DISK' command (explained below). Either the slot or the drive or both may be altered.

As a file is being sent, the screen displays either 'SENDING PACKET...' or 'WAITING PACKET...' followed by the absolute packet number since start of transmission. If a packet must be transmitted several times and it reaches the maximum retry count, the transfer will fail and the

'KERMIT-65>' prompt will return. If the remote Kermit sends an error packet, the text of the packet will be displayed on the screen and the prompt will return.

Currently, a packet can be retransmitted manually by typing anything on the keyboard. If a 'Q' is typed, the entire transmission will be aborted.

THE RECEIVE COMMAND

Syntax: RECEIVE [filespec]

The RECEIVE command tells KERMIT-65 to receive a file or file group from the other system. If only one file is being received, you may include the optional filespec as the name to store the incoming file under; otherwise, the name is taken from the incoming file header. If the name in the header is not a legal filename in DOS 3.3, KERMIT-65 will attempt to change it into something legal. There are very few things that are illegal in DOS 3.3. If FILE-WARNING is on and an incoming file has a name identical to a file already existing on the diskette, KERMIT-65 will issue a warning to the user and attempt to modify the filename to make it unique.

GET

Syntax: GET remote-filespec

The GET command requests a remote KERMIT server to send the file or file group specified by remote-filespec. This command can be used with a

KERMIT server on the other end.

The remote filespec is any string that can be a legal file specification for the remote system; it is not parsed or validated locally.

If the remote KERMIT is not capable of server functions, then you will probably get an error message back from it like "Illegal packet type".

In this case, you must connect to the other Kermit, give a SEND command, escape back, and give a RECEIVE command.

APPLE-DOS KERMIT Page 161

THE CONNECT COMMAND

Syntax: CONNECT

Establish a terminal connection to the remote system. Get back to

KERMIT-65 by typing the escape character followed by the letter C. The escape character is [email protected] by default. When you type the escape character, several single-character commands are possible:

B Send a BREAK Signal.

C Close the connection and return to KERMIT-65.

S Show status of the connection.

0 Send a null.

Connect-escape

Send the Connect-escape character itself.

? List all the possible single-character arguments.

You can use the SET ESCAPE command to define a different escape charac- ter.

When 'CONNECTED', KERMIT-65 will be passing characters entered on the keyboard to the remote system, and passing characters from the remote system to the Apple screen. If VT52-EMULATION is turned on, Kermit will trap escape codes and simulate the appropriate functions of a VT52 ter- minal.

On an Apple ][+ with an incomplete keyboard, special characters can be obtained by prefixing regular characters with a right-arrow. Also, Up- percase is shown in inverse and lowercase characters are displayed as normal uppercase characters.

Here are the rules for using the special 2/2+ input, to get all print- able ASCII characters, and how they appear on the screen:

Special meanings are applied in various contexts to certain characters.

The left and right arrow keys do special things, and sometimes the es- cape key does as well.

For letters, the keyboard is always in either default UPPERCASE mode or default lowercase mode. When in UPPERCASE, all letters typed are sent out as uppercase. In lowercase, all letters are sent as lowercase. To reverse the case for the next character only, hit the right-arrow

("prefix") key. To switch the default case, hit the prefix-key twice in a row.

For funny characters, the prefix key is also used to get the unusual punctuation characters which are not on the Apple keyboard. Here they are: (To represent the prefix character I am using the letter p).

To get Type Appearence

Left Square Bracket p( [

Right Square Bracket p) ]

Left Curly Bracket p< {

Right Curly Bracket p> }

Underline p- _

APPLE-DOS KERMIT Page 162

Backslash p/ \

Tilde (wiggle) p^ ~

Vertical Line p. |

The left-arrow key sends a rubout.

With left-arrow and right arrow doing special things, its a little hard to enter their characters (^H and ^U respectivly). There is therefore an escape from prefix mode sequence. If you type prefix-ESC, the next character is sent without any interpretation.

Currently, it is impossible to turn this special input and display on and off, so its a bit of a pain if you are on a Apple 2e.

THE HELP COMMAND

Syntax: HELP

Typing HELP alone prints a brief summary of the KERMIT-65 commands.

THE EXIT AND QUIT COMMANDS

Syntax: EXIT

Exit from KERMIT-65. You can restart the program, provided you haven't run anything else, by typing 'CALL 2049'.

Syntax: QUIT

This is merely a synonym for EXIT.

THE SET COMMAND

Syntax: SET parameter [option] [value]

Establish or modify various parameters for file transfer or terminal connection. You can examine their values with the SHOW command. The following parameters may be SET:

DEBUGGING TERSE or VERBOSE packet information.

DEFAULT-DISK Which Diskette drive is used for file transfer?

DEVICE-DRIVER Which communication device is being used?

EIGHT-BIT-QUOTING

Should eight-bit-quoting be used?

ESCAPE Character for terminal connection.

FILE-BYTE-SIZE SEVEN or EIGHT significant bits in a byte.

FILE-TYPE Of Apple DOS file being sent/received.

APPLE-DOS KERMIT Page 163

FILE-WARNING Warn users if incoming file exists?

IBM For communicating with an IBM mainframe

KEYBOARD ][+ or //e keyboard.

LOCAL-ECHO Full or half duplex switch.

PARITY Character parity to use

RECEIVE Various parameters for receiving files

SEND Various parameters for sending files

SLOT Which slot # is communication device in?

VT52-EMULATION Should Kermit emulate a VT52 when connected?

SET DEBUGGING

Syntax: SET DEBUGGING options

Record the packet traffic on your terminal. Options are:

TERSE Show packet info only (brief).

VERBOSE Display packet field descriptions with packet info

(lengthy).

OFF Don't display debugging information (this is the

default).

SET DEFAULT-DISK

Syntax: SET DEFAULT-DISK parameter value

This command will tell KERMIT-65 which disk drive should be used for file transfers. The two parameters which may be set separately are SLOT and DRIVE. The value for SLOT ranges from 1 to 7. The value for DRIVE is either 1 or 2.

SET DEVICE-DRIVER

Syntax: SET DEVICE-DRIVER parameter keyword

This command will tell KERMIT-65 what type of communication device is being used. Currently, three different cards are supported, however, other unsupported cards may work similar enough to one of the three

available that it may be possible to use them. KERMIT-65 must also be told where the card is in the machine (see the SET SLOT command). The options for this set command are:

APPLE-COM-CARD The old Apple communication card (300 baud).

APPLE-DOS KERMIT Page 164

DC-HAYES The D.C. Hayes Micromodem II (300 baud).

SUPER-SERIAL-CARD

The Apple Super Serial Card (300-19.2k baud).

SET ESCAPE

Syntax: SET ESCAPE hexidecimal-number

Specify the control character you want to use to "escape" from remote connections back to KERMIT-65. The default is 0 ([email protected]). The num- ber is the hex value of the ASCII control character, 1 to 37, for in- stance 2 is Control-B.

SET FILE-BYTE-SIZE

Syntax: SET FILE-BYTE-SIZE parameter

Byte size for Apple DOS file I/O. The choices are SEVEN-BIT or

EIGHT-BIT.

SEVEN-BIT

When sending a file, shut the H.O. bit. When receiving, turn the

H.O. bit on. This is done since text files are the only files

which should be sent as SEVEN-BIT files and text files only make

sense to the Apple if they are encoded in 'negative ascii'

values.

EIGHT-BIT

Always send and receive the bytes intact. All 8 bits are sig-

nificant.

SET FILE-TYPE

Syntax: SET FILE-TYPE parameter keyword

This will inform KERMIT-65 what type of DOS file is being sent or received. It is important that this is set correctly since KERMIT-65 must create a file of the appropriate type when receiving (and it has no way of knowing what kind of file it is). When KERMIT-65 is sending, it must also know the type of file since that tells it how to detect the actual end-of-file. The options for this parameter are APPLESOFT, IN-

TEGER, TEXT and BINARY.

APPLESOFT

The file being sent/received is an Applesoft Basic program.

INTEGER The file being sent/received is an Integer Basic program.

TEXT The file being sent/received is an ASCII Text file.

BINARY The file being sent/received is a Binary image.

APPLE-DOS KERMIT Page 165

SET FILE-WARNING

Syntax: SET FILE-WARNING ON or OFF

This tells KERMIT-65 whether to warn the user about incoming filenames conflicting with existing files or not.

SET IBM

Syntax: SET IBM ON or OFF

SET IBM actually sets a number of parameters. When setting it on, the command also turns on LOCAL-ECHO (half-duplex) and sets PARITY to MARK.

When setting IBM OFF, LOCAL-ECHO will revert back to OFF and PARITY will be set to NONE. It should be used when doing file transfers with an IBM or similar mainframe.

SET KEYBOARD

Syntax: SET KEYBOARD 2P or 2E

SET KEYBOARD tells KERMIT-65 if the user has a full keyboard (2E) or not

(2P). If the user is on an Apple ][+, this should be set to 2P (which is the default). When set to that, certain character translations are available by using the right-arrow key as a prefix character.

SET SLOT

Syntax: SET SLOT parameter

This option tells KERMIT-65 in which slot the communication device is located. The range for the parameter is 1-7.

THE SHOW COMMAND

Syntax: SHOW [option]

The SHOW command displays various information:

ALL All parameter settings (this is quite long).

DEBUGGING Debugging mode.

DEFAULT-DISK Which Diskette drive is used for file transfer?

DEVICE-DRIVER Which communication device is being used?

EIGHT-BIT-QUOTING

Should eight-bit-quoting be used?

ESCAPE Character for terminal connection.

APPLE-DOS KERMIT Page 166

FILE-BYTE-SIZE SEVEN or EIGHT significant bits in a byte.

FILE-TYPE Of Apple DOS file being sent/received.

FILE-WARNING Warn users if incoming file exists?

IBM For communicating with an IBM mainframe

KEYBOARD ][+ or //e keyboard.

LOCAL-ECHO Full or half duplex switch.

PARITY Character parity to use

RECEIVE Various parameters for receiving files

SEND Various parameters for sending files

SLOT Which slot # is communication device in?

VT52-EMULATION Should Kermit emulate a VT52 when connected?

The above options are analogous to the equivalent SET commands.

THE STATUS COMMAND

Give statistics about the most recent file transfer. This includes in- formation such as number of characters sent/received, number of data characters sent/received, and last error encountered.

13.5. Customizing, Building, and Installing KERMIT-65

STANDARD INSTALLATION

The Procedure

The procedure to bootstrap an assembled KERMIT object file to the Apple is as follows:

1. On the Apple, Type in the APPLBT.BAS program supplied (See

below). It is recommended that the user save this program as

it may be needed to bootstrap newer versions of KERMIT or

APPHXL in the future. Also, type the APPLESOFT program in

with none of the REMs. It will execute quicker and take up

less room.

2. Call and login to the mainframe on which the KERMIT-65 object

file resides. Do the following:

- ]IN#n ! Where n is between 1 and 7

- For Communication card, do the following:

APPLE-DOS KERMIT Page 167

* Dial number for computer system.

* Seat phone receiver in modem cradle.

* ]<Cntrl/A><Cntrl/F> !Full duplex, 300 baud

- For the D.C. Hayes Micromodem, do the following:

* ]<Cntrl/A><Cntrl/F> ! Full duplex, 300 baud

* MICROMODEM II: BEGIN TERM <Cntrl/A><Cntrl/Q>

* MICROMODEM II: DIALING: nnn-nnnn<cr> ! nnn-nnnn is

number of computer system

- For the Apple Super Serial Card, do the following:

* ]<Cntrl/A>

* APPLE SSC:0D ! 8 data bits, 1 stop bit

* ]<Cntrl/A>

* APPLE SSC:0P ! Force no parity

* ]<Cntrl/A>

* APPLE SSC:nB ! n = 6 for 300 baud, n = 8 for 1200

baud

* Dial number for computer system.

* Seat phone receiver in modem cradle.

* ]<Cntrl/A>

* APPLE SSC:T ! Terminal mode, now talking to remote

host

3. In your directory on the mainframe, the following files

should be present:

- APPLBT.FOR

- APPHXL.HEX

- APPLEK.HEX

Compile and execute APPLBT.FOR. This will be used along with

APPLBT.BAS on the Apple to load the APPHXL program. Once AP-

PLBT is executing on the mainframe, give control back to the

Apple and then run APPLBT.BAS on the Apple. For either the

Communication Card or the D.C. Hayes Micromodem, the proce-

dure is:

- <Cntrl/A><Cntrl/X><cr> ! Give control to Apple's Brain

APPLE-DOS KERMIT Page 168

- ]LOAD APPLBT.BAS<cr>

- ]LOMEM:9500<cr>

- ]RUN<cr>

4. Relocate and save APPHXL. Type the following:

- ]CALL -151<cr> ! Enter Apple's system monitor

- *9000<2000.2280M<cr> ! Move APPHXL from $2000 to $9000

- *<Cntrl/C><cr> ! Reenter APPLESOFT

- ]BSAVE APPHXL,A$9000,L$280<cr> ! Save APPHXL to disk

5. Now simply start executing APPHXL.

- ]CALL -151<cr> ! Enter monitor

- *9000G<cr> ! Start APPHXL

- SLOT FOR MODEM CARD? (1 TO 7 )n ! 'n' is slot # of card

(no <cr>)

- ENTER FILENAME TO LOAD APPLEK.HEX<cr> ! Tell APPHXL what

to load

APPHXL will print the byte count and load address for each

line it is receiving as it loads it into memory. At the end

of each line, it will print '[OK]' if the line was received

properly or '[CHECKSUM ERROR]' if there was a problem with

it.

6. When APPHXL finishes type the following to the Apple:

]BSAVE KERMIT,A$801,L$4E00<cr> ! Save KERMIT to disk

7. The user may set up a turn-key system by having the hello

file on the disk load and run KERMIT. The user may also run

KERMIT-65, change the defaults which are supplied in the

program such as SLOT and DEVICE-DRIVER, and then resave

KERMIT-65. The next time it is run, the user will not have

to set these values again. If the user does not set up a

turn-key system, he must start KERMIT-65 by typing:

]BRUN KERMIT<cr> ! Execute KERMIT-65 on the Apple

The Apple will display the following:

STEVENS/CU - APPLE ][ KERMIT-65 VER. 2.1

KERMIT-65>

The user is now ready to transfer files.

NOTE: For those users with the Apple Super Serial Card, the <cntrl/A>

APPLE-DOS KERMIT Page 169 intercept character should be shut off by typing <cntrl/A>Z to the card before Kermit is run. The reason for this is that Kermit uses <cntrl/A> as a Start-of-Header character and this character may never reach the program if the card is taking it to be a command.

APPLBT.BAS - The APPLESOFT Bootstrap program

10 REM - LOADER FOR HXLOAD

11 OAD = 0

100 N$ = "0123456789ABCDEF"

110 D$ = CHR$ (4)

130 PRINT D$;"IN#2" : REM CHANGE '2' TO SLOT OF COMM. CARD IF NECESSARY

135 PRINT CHR$ (1); CHR$ (6)

136 PRINT D$;"PR#2" : REM CHANGE '2' TO SLOT OF COMM. CARD IF NECESSARY

137 PR#2 : REM THIS LINE SHOULD BE HERE ONLY FOR THE APPLE COMM. CARD

140 C3 = 0

150 HOME

199 REM - REQUEST NEXT LINE

200 REM - PUT A DOT ON THE SCREEN FOR EACH LINE RECEIVED

201 C3 = C3 + 1: POKE 1024 + C3, ASC (".")

202 L$ = "":Y2% = 1: PRINT

203 GET A$:L$ = L$ + A$:Y2% = Y2% + 1: IF Y2% < 81 THEN 203

205 C1 = 0:C2 = 0:I = 0

208 IF LEFT$ (L$,1) > = "0" AND LEFT$ (L$,1) < = "9" THEN 220

210 L$ = RIGHT$ (L$, LEN (L$) - 1): GOTO 208

220 LL = LEN (L$)

249 REM - FETCH THE DATA BYTE COUNT FOR THIS LINE

250 GOSUB 1000:C1 = C1 + B:CO = B

255 IF CO = 0 THEN 990

259 REM - CONSTRUCT THE LOAD ADDRESS FOR THIS LINE

260 GOSUB 1000:C1 = C1 + B:AD = B: GOSUB 1000:C1 = C1 + B

:AD = AD * 256 + B

265 REM - IF THE LATEST VERSION OF CROSS IS USED, THIS SHOULD NOT

BE NEEDED : REM AD = AD - 28672

266 IF AD < OAD THEN 990

267 OAD = AD

270 FOR X = 0 TO CO - 1

275 REM - GO GET A BYTE AND PUT IT IN THE NEXT MEMORY LOCATION

280 GOSUB 1000:C1 = C1 + B

290 POKE AD + X,B

300 NEXT X

310 GOSUB 1000:C2 = B: GOSUB 1000:C2 = C2 * 256 + B

320 IF C1<>C2 THEN POKE 1024+C3,ASC("E")

330 GOTO 201

990 FOR X = 1 TO 1000: NEXT X

995 PRINT D$;"IN#0": PRINT D$;"PR#0": HOME : END

999 REM - GET BYTE

1000 GOSUB 1501:B = N1: GOSUB 1501:B = B * 16 + N1

1010 RETURN

1500 REM - GET NIBBLE

1501 IF LEN (L$) = 0 THEN N1 = 0: RETURN

1510 H$ = LEFT$ (L$,1)

1511 IF LEN (L$) = 1 THEN L$ = "": GOTO 1525

1515 L$ = RIGHT$ (L$, LEN (L$) - 1)

1520 REM - RETURN VALUE OF HEX NIBBLE

APPLE-DOS KERMIT Page 170

1525 FOR X1 = 1 TO 16

1530 IF H$ = MID$ (N$,X1,1) THEN 1610

1540 NEXT X1

1550 REM - DIGIT WAS NOT FOUND, RETURN ZERO

1560 N1 = 0: RETURN

1600 REM

1610 N1 = X1 - 1: RETURN

APPLBT.FOR - The Mainframe Bootstrap program

CHARACTER LINE*80,SENTNL*1

OPEN (UNIT=00,FILE='APPHXL.HEX',MODE='ASCII')

10 READ (UNIT=05,FMT=20) SENTNL

20 FORMAT (A1)

READ (UNIT=00,FMT=25,END=999) LINE

25 FORMAT(A80)

WRITE (UNIT=05,FMT=30) LINE

30 FORMAT(A80)

GO TO 10

999 READ (UNIT=05,FMT=20) SENTNL

STOP

END

ALTERNATIVE INSTALLATION PROCEDURES

HEXloading from Diskette

Once the user has a working version of KERMIT-65 on his system, he can use this to load the .HEX files of future versions of KERMIT. There is another hexload program available called APPDXL. This program will load a hex file from an Apple diskette into memory. To use this procedure, do the following:

1. Start executing APPHXL.

- ]BLOAD APPHXL ! Get APPHXL into memory

- ]CALL -151<cr> ! Enter monitor

- *9000G<cr> ! Start APPHXL

- SLOT FOR MODEM CARD? (1 TO 7 )n ! 'n' is slot # of card

(no <cr>)

- ENTER FILENAME TO LOAD APPDXL.HEX<cr> ! Tell APPHXL what

to load

APPHXL will print what it is receiving on the screen as well

as loading it into memory.

2. Relocate and save APPDXL. Type the following:

APPLE-DOS KERMIT Page 171

- ]CALL -151<cr> ! Enter Apple's system monitor

- *9000<2000.2500M<cr> ! Move APPDXL from $2000 to $9000

- *<Cntrl/C><cr> ! Reenter APPLESOFT

- ]BSAVE APPDXL,A$9000,L$500<cr> ! Save APPDXL to disk

3. Use Kermit-65 to transfer the new version of itself over.

Make the Apple file a Text file. WARNING: This file will take

LOTS of space (about 180 sectors) so make sure the disk is

reasonably empty. The transfer takes a LONG time also, so

please be patient.

4. Start executing APPDXL.

- ]BRUN APPDXL<cr> ! Start APPDXL

- ENTER FILENAME TO LOAD APPLEK.HEX<cr> ! Tell APPDXL what

to load

5. When APPDXL finishes type the following to the Apple:

]BSAVE KERMIT,A$801,L$4E00<cr> ! Save KERMIT to disk

The new version of Kermit is now on disk.

Using KERMIT-65 to transfer APPLEK.BIN

There is yet another way to Bootstrap a new version of KERMIT onto an

Apple. If the user has an older version of KERMIT-65 and has access to a machine with a valid copy of APPLEK.BIN, they can simply transfer

APPLEK.BIN using their version of KERMIT. Be sure to set the

File-byte-size to Eight-bit, and the File-type-mode to Binary before transfering the file since this is the actual object code. No special loading or conversion is needed. The file will be placed on the disk and ready to run.

FILES SUPPLIED FOR KERMIT-65

The following files should be supplied on the distribution tape:

- APPLBT.BAS - Initial bootstrap program to load APPHXL

- APPLBT.FOR - Program on mainframe to talk to APPLBT.BAS

- APPHXL.M65 - Source of program to load KERMIT-65

- APPHXL.HEX - Assembled version of Hex load program

- APPDXL.M65 - Source of program to load KERMIT-65 from Apple

diskette

- APPDXL.HEX - Assembled version of Disk Hex load program

APPLE-DOS KERMIT Page 172

- APPLEK.M65 - Source for the KERMIT-65 program

- APPLEK.HEX - Assembled version of KERMIT-65

- APPLEK.BIN - Assembled version of KERMIT-65 (Eight-bit Binary

object code)

- CROSS.MAC - CROSS Microprocessor Assembler (Source)

- CROSS.EXE - CROSS Microprocessor Assembler (Object)

CUSTOMIZING AND BUILDING KERMIT-65

The source code to KERMIT-65 is in 6502 Assembler. It has been formatted for CROSS which is a micro-Cross Assembler program which runs on

DECsystem-10s and DECSYSTEM-20s. Customizations would be made the easiest if CROSS were available.

KERMIT-65 currently supports the following communications devices:

- FTASER - The Apple Communication card

- FTHAYS - The D.C. Hayes Micromodem.

- FTSSC - The Apple Super Serial Card

All device drivers are included in the assembled version and may be used by issuing a 'SET DEVICE-DRIVER' command to Kermit. If any of the device drivers are not needed, it(they) may be excluded by setting the ap- propriate feature test to zero in the Feature test section of the source code. Excluding one or more device drivers can reduce the size of the object code greatly. DO NOT disable all device drivers since KERMIT-65 will then have no way of talking over the communication device.

The feature test FTCOM must be set to the type of computer for which

KERMIT-65 is being assembled. The only machine KERMIT-65 is available for currently is the Apple ][. This parameter must be set to FTAPPL.

After setting any options necessary in APPLEK.M65, rename it to

KERMIT.M65, and do the following:

- .R CROSS<cr> ! Run CROSS Microprocessor Assembler

- *KERMIT.HEX/PTP:KIM=KERMIT.M65/M65 ! Generate .HEX file

This command will produce an ASCII HEX file which can be downline loaded onto the Apple using APPHXL. If a listing is desired, one can be produced by adding ",KERMIT.LST" after the "/PTP:KIM" in the command line to CROSS.

KERMIT User Guide Page 173

I. The ASCII Character Set

ASCII Code (ANSI X3.4-1968)

There are 128 characters in the ASCII (American national Standard Code for Information Interchange) "alphabet". The characters are listed in order of ASCII value; the columns are labeled as follows:

Bit Even parity bit for ASCII character.

ASCII Dec Decimal (base 10) representation.

ASCII Oct Octal (base 8) representation.

ASCII Hex Hexadecimal (base 16) representation.

EBCDIC Hex EBCDIC hexadecimal equivalent for Kermit translate

tables.

Char Name or graphical representation of character.

Remark Description of character.

The first group consists of nonprintable 'control' characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 000 000 00 00 NUL ^@, Null, Idle

1 001 001 01 01 SOH ^A, Start of heading

1 002 002 02 02 STX ^B, Start of text

0 003 003 03 03 ETX ^C, End of text

1 004 004 04 37 EOT ^D, End of transmission

0 005 005 05 2D ENQ ^E, Enquiry

0 006 006 06 2E ACK ^F, Acknowledge

1 007 007 07 2F BEL ^G, Bell, beep, or fleep

1 008 010 08 16 BS ^H, Backspace

0 009 011 09 05 HT ^I, Horizontal tab

0 010 012 0A 25 LF ^J, Line feed

1 011 013 0B 0B VT ^K, Vertical tab

0 012 014 0C 0C FF ^L, Form feed (top of page)

1 013 015 0D 0D CR ^M, Carriage return

1 014 016 0E 0E SO ^N, Shift out

0 015 017 0F 0F SI ^O, Shift in

1 016 020 10 10 DLE ^P, Data link escape

0 017 021 11 11 DC1 ^Q, Device control 1, XON

0 018 022 12 12 DC2 ^R, Device control 2

1 019 023 13 13 DC3 ^S, Device control 3, XOFF

0 020 024 14 3C DC4 ^T, Device control 4

1 021 025 15 3D NAK ^U, Negative acknowledge

1 022 026 16 32 SYN ^V, Synchronous idle

0 023 027 17 26 ETB ^W, End of transmission block

0 024 030 18 18 CAN ^X, Cancel

1 025 031 19 19 EM ^Y, End of medium

1 026 032 1A 3F SUB ^Z, Substitute

0 027 033 1B 27 ESC ^[, Escape, prefix, altmode

1 028 034 1C 1C FS ^\, File separator

0 029 035 1D 1D GS ^], Group separator

0 030 036 1E 1E RS ^^, Record separator

1 031 037 1F 1F US ^_, Unit separator

The last four are usually associated with the control version of back-

KERMIT User Guide Page 174 slash, right square bracket, uparrow (or circumflex), and underscore, respectively, but some terminals do not transmit these control charac- ters.

The following characters are printable:

First, some punctuation characters.

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

1 032 040 20 40 SP Space, blank

0 033 041 21 5A ! Exclamation mark

0 034 042 22 7F " Doublequote

1 035 043 23 7B # Number sign, pound sign

0 036 044 24 5B $ Dollar sign

1 037 045 25 6C % Percent sign

1 038 046 26 50 & Ampersand

0 039 047 27 7D ' Apostrophe, accent acute

0 040 050 28 4D ( Left parenthesis

1 041 051 29 5D ) Right parenthesis

1 042 052 2A 5C * Asterisk, star

0 043 053 2B 4E + Plus sign

1 044 054 2C 6B , Comma

0 045 055 2D 60 - Dash, hyphen, minus sign

0 046 056 2E 4B . Period, dot

1 047 057 2F 61 / Slash

Numeric characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 048 060 30 F0 0 Zero

1 049 061 31 F1 1 One

1 050 062 32 F2 2 Two

0 051 063 33 F3 3 Three

1 052 064 34 F4 4 Four

0 053 065 35 F5 5 Five

0 054 066 36 F6 6 Six

1 055 067 37 F7 7 Seven

1 056 070 38 F8 8 Eight

0 057 071 39 F9 9 Nine

More punctuation characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 058 072 3A 7A : Colon

1 059 073 3B 5E ; Semicolon

0 060 074 3C 4C < Left angle bracket

1 061 075 3D 7E = Equal sign

1 062 076 3E 6E > Right angle bracket

0 063 077 3F 6F ? Question mark

1 064 100 40 7C @ "At" sign

KERMIT User Guide Page 175

Upper-case alphabetic characters (letters):

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 065 101 41 C1 A

0 066 102 42 C2 B

1 067 103 43 C3 C

0 068 104 44 C4 D

1 069 105 45 C5 E

1 070 106 46 C6 F

0 071 107 47 C7 G

0 072 110 48 C8 H

1 073 111 49 C9 I

1 074 112 4A D1 J

0 075 113 4B D2 K

1 076 114 4C D3 L

0 077 115 4D D4 M

0 078 116 4E D5 N

1 079 117 4F D6 O

0 080 120 50 D7 P

1 081 121 51 D8 Q

1 082 122 52 D9 R

0 083 123 53 E2 S

1 084 124 54 E3 T

0 085 125 55 E4 U

0 086 126 56 E5 V

1 087 127 57 E6 W

1 088 130 58 E7 X

0 089 131 59 E8 Y

0 090 132 5A E9 Z

More punctuation characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

1 091 133 5B AD [ Left square bracket

0 092 134 5C E0 \ Backslash

1 093 135 5D BD ] Right square bracket

1 094 136 5E 5F ^ Circumflex, up arrow

0 095 137 5F 6D _ Underscore, left arrow

0 096 140 60 79 ` Accent grave

KERMIT User Guide Page 176

Lower-case alphabetic characters (letters):

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

1 097 141 61 81 a

1 098 142 62 82 b

0 099 143 63 83 c

1 100 144 64 84 d

0 101 145 65 85 e

0 102 146 66 86 f

1 103 147 67 87 g

1 104 150 68 88 h

0 105 151 69 89 i

0 106 152 6A 91 j

1 107 153 6B 92 k

0 108 154 6C 93 l

1 109 155 6D 94 m

1 110 156 6E 95 n

0 111 157 6F 96 o

1 112 160 70 97 p

0 113 161 71 98 q

0 114 162 72 99 r

1 115 163 73 A2 s

0 116 164 74 A3 t

1 117 165 75 A4 u

1 118 166 76 A5 v

0 119 167 77 A6 w

0 120 170 78 A7 x

1 121 171 79 A8 y

1 122 172 7A A9 z

More punctuation characters:

.....ASCII.... EBCDIC

Bit Dec Oct Hex Hex Char Remarks

0 123 173 7B C0 { Left brace (curly bracket)

1 124 174 7C 4F | Vertical bar

0 125 175 7D D0 } Right brace (curly bracket)

0 126 176 7E 7E ~ Tilde

Finally, one more nonprintable character:

0 127 177 7F 07 DEL Delete, rubout

KERMIT User Guide Page 177

Index

DEFINE 65, 110

8080 141 Define SET Macros 43

Delay 38

?-prompting 158 DELETE 56

DEVICE-DRIVER 163

ANSI.SYS 105 Dialup 15

APC 153 Diskette 22

APPLE ][+ 155 DO Command 110

APPLESOFT 164 DOS 3.3 155

ARPANET 65 Downloading 142

ASCII 173 Duplex 38

Autoanswer 17

Autodialer 14, 111 EBCDIC 173

Eighth-Bit Prefix

29, 30, 40, 55,

Batch Operation of Kermit-MS 95 56, 107, 139, 151

Baud 139, 150 EMACS 113

Baud Rate 36, 103 End Of File 50, 93, 104

Beeper 103 End Of Line 41, 42

Bell 103 End-Of-Line (EOL) 82

BINARY 164 EOF 104

Binary Files 21, 29, 40, 55, 56, 107Error Recovery 20

BIOS 141 Escape Character 11,

137, 139, 149,

Block Check 36, 139 150

Bootstrap 142 Escape Character for

CONNECT 38, 62,

BREAK Simulation 61, 65 105, 164

BYE 18, 19, 138, 149 Escape Sequence 10

Byte Size 49, 57, 63, 164 EXIT 35, 61, 162

Expunging Deleted Files

62

Cables 14, 16

Cancelling a File Transfer 30, 31,File Renaming 109

55, 56, 97, 98 File Warning 109

Capturing Files 44 FILE-BYTE-SIZE 164

Checksum 6 FILE-TYPE 164

Command Files 109 File-Warning 137, 149,

165

Command Macro 110 Filespec 159

Command Parsing 25 FINISH 18, 19, 138, 149

CONNECT 9, 11, 111, 137, 149, 161 Flow Control 39, 105,

150

CONTINUE 35, 61

Control Characters 10, 173 Generation 56

Control-A 55 Generic Kermit-80 141,

145

Control-C 35, 61 Generic MS-DOS Kermit

122

Control-V 56 GET 19, 137, 149, 160

Control-X 30, 31, 55, 56, 97, 98

Control-Z 30, 31, 55, 56, 97, 98 Handshake 39, 105

CP/M 50, 141 Heath-19 Terminal

Emulation 105,

Crash 22 111, 131

Cross Assembler 144 Help 51, 94, 158, 162

Hex File 145

Deadlock 22

Debugging 37, 62, 104, 150, 163 IBM 63, 81, 139, 150,

165

DEC Rainbow 152 IBM PC 90

DECsystem-10 144 Incomplete File

Disposition 31, 56,

DECSYSTEM-20 46, 144 98

DEFAULT-DISK 163 Incomplete File Transfer

39

KERMIT User Guide Page 178

Initial Filespec 22, 29, 53, 54 Remote 11, 24

INTEGER 164 Repeated Character

Compression 29,

Interference 52 30, 55, 56

Internal Modem 20 Retry Limit 42

IOBYTE 145

ITS-Binary Format 63 SEND 11, 14, 19, 22,

29, 53, 81,

137, 149, 159

Kermit Commands 11 Server 17, 32, 57

KERMIT Protocol 6 SET 11, 82, 138, 150

Kermit server 17 SHOW 12, 43, 66, 82,

151, 165

Key Redefinition 106 SLOT 165

KEYBOARD 165 Smart Modem 20, 21, 111

Speed 65, 66

Line Sequence Numbers 55 Start Of Packet 41, 42

Local 11, 24, 136, 148 Superbrain 141

Local Echo 38

Local Echoing 106 TAC Binary Mode 65

Local-Echo 138, 151 TAKE 151

LOG 44, 138, 151 TELENET 40, 43, 106

LOGOUT 138, 149 TERSE 163

LRECL 82 TEXT 164

Timeout 41, 42, 81,

109, 136, 142,

MAC80 145 148

Macro 110 TIMER 139, 151

Message Interference 52 TOPS-20 46

META Key 113 TRANSMIT 138

Mode Line 111 TVT-Binary 65

Modem 20, 111

MS-DOS 90 UNDELETE 56

NAK 21, 136, 148 VERBOSE 163

NEC Advanced Personal Computer 153 Virtual Terminal 9, 11,

137, 149

Network 20 VM/CMS 14, 81

Noise 6 VT100 138

Normal Form for File Names 54, 63 VT52 138

Null Modem 14, 16

Warning 109, 138, 151

Packet 6, 8 Wildcard 11, 13, 47, 92

Packet Length 41, 42 Word Size 49

Packet-Length 82

Padding 41, 42 XON/XOFF 138, 173

Parity 20, 29, 30, 40, 55, 56, 106,

139, 151, 173 Z80 141

Pause Between Packets 41, 42

PC-DOS 90

Prompt 9, 41

Protocol 6

QUIT 35, 61, 162

Quote 82

Rainbow 100 152

RECEIVE 11, 13, 14, 30, 55, 82, 97,

137, 149, 160

RECFM 82

Recognition 51, 94, 158

KERMIT User Guide Page i

Table of Contents

Ordering Information 4

1. Introduction 6

2. How to Use KERMIT 8

2.1. The KERMIT Program 8

2.2. Talking to Two Computers at Once 9

2.3. Transferring a File 10

2.4. Basic KERMIT Commands 11

2.5. Real Examples 12

2.5.1. PC to Host 12

2.5.2. Host to Host 14

2.5.3. Micro to Micro 16

2.6. Another Way -- The KERMIT Server 17

3. When Things Go Wrong 20

3.1. Communication Line Problems 20

3.2. The Transfer is Stuck 21

3.3. The Micro is Hung 22

3.4. The Remote Host Went Away 22

3.5. The Disk is Full 22

3.6. Message Interference 23

3.7. Host Errors 23

3.8. File is Garbage 23

3.9. Junk after End of File 23

4. KERMIT Commands 24

4.1. Remote and Local Operation 24

4.2. Command Interface 25

4.3. Notation 26

4.4. Summary of KERMIT Commands 28

4.5. The SEND Command 29

4.6. The RECEIVE Command 30

4.7. GET 31

4.8. SERVER 32

4.9. BYE 32

4.10. FINISH 33

4.11. REMOTE 33

4.12. LOCAL 34

4.13. CONNECT 34

4.14. HELP 35

4.15. TAKE 35

4.16. EXIT, QUIT 35

4.17. The SET Command 35

4.18. DEFINE 43

4.19. SHOW 43

KERMIT User Guide Page ii

4.20. STATISTICS 43

4.21. LOG 44

4.22. TRANSMIT 44

5. KERMIT Implementations 45

6. DECSYSTEM-20 KERMIT 46

6.1. The DEC-20 File System 46

6.2. Program Operation 51

6.3. Remote and Local Operation 52

6.4. Conditioning Your Job for Kermit 53

6.5. KERMIT-20 Commands 53

6.6. Examples 68

6.7. Installation 71

7. VAX/VMS KERMIT 72

8. IBM VM/CMS KERMIT 81

9. UNIX KERMIT 86

10. MS-DOS KERMIT 90

10.1. The MS-DOS File System 91

10.1.1. File Specifications 91

10.1.2. File Formats 92

10.2. Program Operation 93

10.3. Kermit-MS Commands 95

10.3.1. Commands for File Transfer 96

10.3.2. Commands for Connecting and Disconnecting 99

10.3.3. Commands for File Management 100

10.3.4. The SERVER Command 102

10.3.5. The SET Command 103

10.3.6. The SHOW Command 109

10.3.7. Command Macros 110

10.4. Terminal Emulation 111

10.5. Installation of Kermit-MS 114

10.5.1. Try Again To Find A Kermit Disk 114

10.5.2. Bootstrapping From the Communication Line 114

10.5.2.1. Use An Existing File Capture Facility 115

10.5.2.2. Type In Your Own Bootstrap 115

10.6. Compatibility with Older Versions of MS-DOS Kermit 120

10.7. What's Missing 120

10.8. Program Organization 121

10.9. Adding Support For New Systems 122

10.9.1. Generic MS-DOS Kermit 122

10.9.2. Adding System-Dependent Code 123

10.10. Heath/Zenith-19 Control Codes 131

11. CP/M-80 KERMIT 134

KERMIT User Guide Page iii

11.1. Generic KERMIT-80 141

11.2. Installation 141

11.2.1. Downloading Kermit-80 142

11.2.2. Building KERMIT.HEX 144

11.2.3. Generic Kermit-80 145

12. CP/M-86 KERMIT 147

12.1. Kermit-86 Commands 149

12.2. Installation: 152

12.3. DEC Rainbow 100 Support 152

12.4. NEC Advanced Personal Computer Support 153

13. APPLE-DOS KERMIT 155

13.1. The DOS 3.3 File System 155

13.2. Program Operation 158

13.3. Remote and Local Operation 159

13.4. KERMIT-65 Commands 159

13.5. Customizing, Building, and Installing KERMIT-65 166

I. The ASCII Character Set 173

Index 177

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
