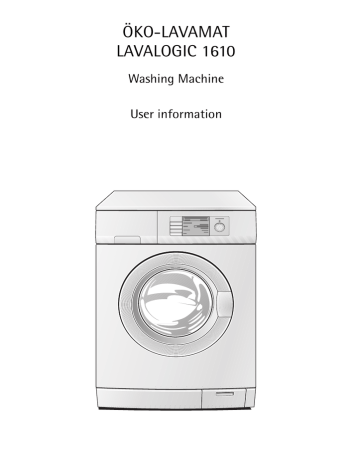

ÖKO-LAVAMAT
LAVALOGIC 1610
Washing Machine
User information
Dear Customer,
Please read this user information carefully and keep it to refer to later.
Please pass the user information on to any future owner of the appliance.
1
3
2
2
The following symbols are used in the text:
Safety instructions
Warning! Information that affects your personal safety.
Important! Information that prevents damage to the appliance.
Useful tips and hints
Environmental information
Contents
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
Switching on the appliance for the first time – setting the language
7
Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control panel with display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicators in the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
8
8
Main control features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
Programme overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before the first wash. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Carrying out a wash programme prior to first use. . . . . . . . . . . . . . . . . . . . . 14
Preparing and sorting washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Running a wash cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching on the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the spin speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TIME SAVING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DELAY START . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SENSITIVE/STAIN/PRE WASH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Opening the door/Loading the washing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CURRENT LOAD/DETERGENT display . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding detergent/conditioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting a programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Programme progress . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interrupting a programme/Adding washing . . . . . . . . . . . . . . . . . . . . . . . . . .
Washing cycle complete/Removing the washing . . . . . . . . . . . . . . . . . . . . . .
15
15
15
15
15
16
16
17
17
18
18
19
20
20
20
21
Setting extra options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
MEMORY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Saving a programme setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clearing a stored programme setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RINSE+, GENTLE SPIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LANGUAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TIMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
VOLUME . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22
22
22
23
24
24
24
25
3
Child safety device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
What to do if... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remedying small malfunctions yourself . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
If the wash result is not satisfactory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Carrying out an emergency drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drain pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
27
29
30
31
Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Consumption values. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Installation and connection instructions. . . . . . . . . . . . . . . . .
33
Safety information concerning installation . . . . . . . . . . . . . . . . . . . . . . . . 33
Installing the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transporting the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Removing the transit packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Where to install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Making the appliance level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
34
34
35
36
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Connecting the appliance to the water supply . . . . . . . . . . . . . . . . . . . . . 38
Water inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Water Drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service and Spare Parts
4
42
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Operating Instructions
1 Safety
Prior to using the appliance for the first time
• Follow the “Installation and connection instructions”.
• If the appliance is delivered in the winter months when there are minus temperatures: store the washing machine at room temperature
for 24 hours before using for the first time.
Correct use
• The washing machine is only designed for the washing of normal domestic laundry at home.
• Additions or modifications to the washing machine are not permitted.
• Only use detergents/conditioners that are suitable for use in domestic
washing machines.
• The washing must not contain any flammable solvent. The risk of explosion exists.
• Do not use the washing machine for dry cleaning.
• Dyes/colour removers may only be used in the washing machine, if
the manufacturer of these products expressly permits this. We cannot
accept liability for any damage arising.
Child safety
• Keep packaging away from children. There is a risk of suffocation.
• Children often do not recognise the hazards associated with electrical
appliances. Don’t allow children to use the washing machine unsupervised.
• Make sure that children and pets don’t climb into the drum of the
washing machine. The risk of death exists.
General safety
• Repairs to the washing machine may only be carried out by qualified/
authorised service engineers.
• Never use the appliance when the electrical cable is damaged or the
control panel, worktop or plinth area are damaged to such an extent
that the inside of the appliance is openly accessible.
5
• Switch off the washing machine prior to cleaning it and carrying out
maintenance. In addition, remove the power plug from the power
point or – if the appliance has been hard-wired – switch off the cutout in the fuse box or completely remove the fuse.
• If operation is stopped, disconnect the appliance from the mains supply and turn off the tap.
• Never remove the power plug from the power point by pulling on the
cable. Always pull the plug.
• Multiway-plugs, connectors and extension cables must not be used.
Resulting overheating may constitute a fire hazard.
• Never wash the washing machine down with a water jet. Danger of
electric shock.
• When using wash programmes with high temperatures the glass in
the door will become hot. Do not touch it!
• Before emergency emptying of the appliance, before cleaning the
drain pump or opening the door in an emergency, let the water cool
down.
• Small animals can nibble on electrical cables and water hoses. This
can constitute a risk of electrocution and water damage. Keep small
animals away from the washing machine.
Disposal
2
2
1
6
Packaging material
The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<,
>PS<, etc. Please dispose of the packaging materials in the appropriate
container at your local waste disposal facilities.
Old appliance
Please dispose of your old appliance in line with the guidelines for disposal in your area.
Warning: When your appliance has finished its working life, remove
the plug from the mains socket. Cut off the cable and plug and dispose
of them.
Destroy the door lock. This prevents children from trapping themselves
inside and endangering their lives.
Switching on the appliance for the first time
– setting the language
When switching on the appliance for the first time you should be sure
to set the language in which you want the indicators in the display to
appear.
1. Press the control knob.
The appliance is now
switched on. The languages
that can be chosen will appear in the display. In the
factory the language is preset to German.
Important: If the display is not showing any languages, the appliance
has been switched on before. If this happens, please see the section
“Setting extra options: Language”, if you want to change the language
setting.
2. Use the control knob to
EXTRAS
SPRACHE
highlight the desired lanÍ
guage.
§
ANWÄHLEN
ENGLISH§
DEUTSCH)
ITALIANO§
FRANÇAIS§
ZURÜCK
3. Press the SELECT key.
From now on all indicators in
the display will appear in this
language.
EXTRAS
LANGUAGE
Í
§§
ENGLISH!)
DEUTSCH§§
ITALIANO§§
FRANÇAIS§§
SELECT
BACK
4. Press the control knob to
switch off the appliance.
EXTRAS
LANGUAGE
Í
SELECT
BACK
§§
ENGLISH!)
DEUTSCH§§
ITALIANO§§
FRANÇAIS§§
7
Description of the appliance
Control panel with display
Drawer for
detergent and
conditioner
Rating plate
(behind door)
Door
Screw feet
(height
adjustable);
rear left:
automatically
adjusting foot
Drain pump
cover
Control panel with display
LINEN/EASY-C. 60°C
1600 RPM
START
60°
Buttons
1600
OPTIONS
10:17-12:16
î
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES
WOOLLENS
Control knob
Display
Indicators in the display
Information panel
shows programme,
temperature and
spin speed
Symbol row
shows options
selected and extras
LINEN/EASY-C. 60°C
1600 RPM
START
60°
1600
OPTIONS
8
10:17-12:16
î
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES
WOOLLENS
Current time – end
time of selected
programme
Navigation
display
Selection
Programme,
options,
extras
Main control features
Control knob
Switching the appliance on and off
Press the control knob to
switch the appliance on and
off.
Highlighting
You can highlight the entries
on the right of the display by
turning the control knob.
WOOLLENS 40°C
1200 RPM
START
40°
1200
OPTIONS
10:17-10:54
î
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES
WOOLLENS )
Cancelling settings
If you would like to cancel settings that have been made by mistake,
switch the appliance off and on again using the control knob. You are
now able to re-set the programme.
Keys
Using the keys you can:
– activate an entry on the
left-hand side of the display, e.g. START
– change the temperature
and the spin speed
– select OPTIONS and EXTRAS.
3
3
LINEN/EASY-C. 60°C
1400 RPM
START
60°
1400
OPTIONS
10:17-12:16
î
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES
WOOLLENS
You can set one or more options for each programme.
The basic rule: First set the programme, then set the option.
The programmes and functions are divided into different levels and
pages. In the navigation display you can see the level and the page you
are currently on (e.g. ì: level 3, page 1 of 2).
9
Programme overview
DELAY START
SENSITIVE
STAIN
PRE WASH
1600
1400
1200
1000/800/600/400
RINSE HOLD
Spin speed
VERY QUICK
Options
•
•
•
•2)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•2)
•
•
•
•
•
•
•
•
1kg
•
•
•
•
LINGERIE 40
1kg
•
•
•
•
40 -60 MIX
6kg
•
•
•
•
EASY IRON
60, 50, 40, 30, COLD
1kg
•
•
•
REFRESH 30
3kg
•
•
•
FASHION 40
3kg
•
•
•
max. load 1)
(dry washing)
QUICK
TIME SAVING
LINEN/EASY-CARES
60, 50, 40, 30, COLD
6kg
•
ENERGY SAVING3)
6kg
COTTONS 95
6kg
DELICATES 40, 30, COLD
3kg
WOOL
(Handwash)
40, 30, COLD
2kg
SILK
Programme
(Handwash) 30
•
•
•
•
•
•
•
•2)
•
•
•
•
•
•
•
•
1) A 10 litre bucket contains approximately 2.5 kg of dry washing (cotton).
2) STAIN can only be selected with wash temperatures of 40°C and above, as stain treatment products are only
effective at higher temperatures.
3) Programme settings for tests in accordance with or support of EN 60 456 and IEC 60 456 are described in
the section “Consumption values”.
10
Use/Features
Caresymbols1)
General programme for coloured and easy-care items made of cotton/linen as
well as for easy-care mixed fibres and synthetics. The wash programme is adjusted according to the different fabric types and load sizes. If loading only with
easy-care washing, do not load more than 3 kg.
IKN
JM
Energy-saving and water-saving programme which washes at 60°C for lightly to
normally soiled whites/coloureds made of cotton/linen.
MO
Programme for normally to heavily soiled whites made of cotton/linen.
Gentle programme for delicate fabrics such as bonded fabrics, microfibres, synthetics, net curtains (max. load for net curtains 20 to 25 m2). With RINSE HOLD
also suitable for fabrics with climate membrane, e.g. outdoor clothing.
O
IK
Particularly delicate programme for machine washable and hand washable wool
or wool mixtures.
QLH
Specially gentle programme for machine and hand-washable silk. Wash very delicate items individually.
QLH
Gentle programme for fine, sensitive fabrics.
IMPORTANT: Place lingerie containing wires in a washing net or bag.
KL
Programme for coloureds, which are labelled for different wash temperatures.
Items, which according to the care symbols are normally to be washed separately
at 40°C or at 60°C, can be washed together in this programme. This makes better
use of the drum capacity and thus saves energy. The washing results of a normal
60° programme are achieved.
JM
Special programme for easy-care fabrics, which afterwards are to be ironed only
lightly or not at all.
KN
Special programme, approx. 20 minutes long, for quickly washing through slightly dirty or new clothes.
JMO
IKN
KL
Gentle special programme for fabrics such as viscose, modal, cupro, lyocell, with
a more gentle machine action than in the Delicates programme and a more intensive cleaning action than the Handwash programme.
1) The figures in the care symbols indicate the maximum temperatures.
11
•
•
•
•
•
•
•
•
3kg
•
SPIN
6kg
•
•
STARCH
6kg
•
•
•
1) A 10 litre bucket contains approximately 2.5 kg of dry washing (cotton).
1400
1600
PRE WASH
SHORT SPIN
DRAIN
12
STAIN
SENSITIVE
DELAY START
VERY QUICK
QUICK
Programme
max. load 1)
(dry washing)
TIME SAVING
RINSE HOLD
1000/800/600/400
Spin speed
1200
Options
•
Use/Features
Drain and short spin after a rinse hold, or separate short spin of handwashed delicates, woollens, silk.
Drain and spin, e.g. after a rinse hold, or separate spin for hand-washed cottons/
linens and easy-cares.
Separate starching, conditioning, stiffening, treating of damp washing.
Caresymbols1)
IKN
QLH
JMO
JMO
Draining of the water after a rinse hold.
1) The figures in the care symbols indicate the maximum temperatures.
13
Before the first wash
Setting the time
So that the current time and the end of the programme are correctly
displayed, please check the display and set the current time, if necessary. (See “Setting extra options: Timer”.)
Carrying out a wash programme prior to first use
Before doing your first wash, run a washing cycle without any washing
in the machine (programme LINEN/EASY-C. 60°, option TIME SAVING/
VERY QUICK, use approx. 1/4 measuring cup of washing powder).
This will remove any residues from the drum and water container which
have been left as a result of the production process.
Preparing and sorting washing
Preparing washing
• Empty the pockets. Remove foreign bodies (e.g. coins, paper clips,
nails, etc.).
• Do up zips, button up covers to prevent damage to washing.
• Remove the runners from net curtains or cover them with a net or a
bag.
• Wash delicate and small items in a net/pillowcase, e. g. net curtains,
tights, small socks, handkerchiefs, bras.
Important: Bras and other items containing wires should only be
washed in a net bag. The wires can work loose and damage the appliance.
Sorting washing
• By colour: Wash white and coloured washing separately. Washing can
run.
• By temperature, type of washing and care symbol.
Important: Do not wash fabrics with the G care symbol (= do not
wash!) in the washing machine.
14
Running a wash cycle
Switching on the appliance
3
Press the control knob.
The appliance is now
switched on.
Before switching the appliance on, make sure that the
drum is empty.
If you do not, the washing
will subsequently not be registered properly by the load sensor.
Setting a programme
5. Highlight the desired programme, e.g. DELICATES.
DELICATES 40°C
1200 RPM
11:25-12:36
î
START
40°
1200
OPTIONS
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
WOOLLENS
Changing the temperature
6. Press the temperature key
repeatedly, until the desired
temperature appears, e.g.
30°C. Please note: a temperature cannot be increased
for fabric type selected. Only
decreased.
DELICATES 30°C
1200 RPM
11:25-12:36
î
START
30°
1200
OPTIONS
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
WOOLLENS
Changing the spin speed
7. Press the key for the spin
speed repeatedly until the
desired spin speed appears
e.g. 1000 or the RINSE HOLD.
Please note: the spin speed
cannot be increased for a
fabric type selected. Only decreased.
DELICATES 30°C
1000 RPM
START
30°
1000
OPTIONS
11:25-12:36
î
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
WOOLLENS
.
15
3
RINSE HOLD means: the washing is left to soak in the last rinse water
and is not spun.
If required, set options.
Selecting options
You can select different options on top of the programme that has
been selected. Only options that can be combined with the programme
that has already been selected will be offered.
TIME SAVING
DELAY START
SENSITIVE
STAIN
PRE WASH
Shortened wash programme for more lightly soiled
washing.
The start of a programme can be delayed in steps
of 30 minutes to a max. of 20 hours.
Enhanced rinse action through an additional rinse
cycle together with improved fabric care (decreased drum movement). This is ideal when frequent washes are necessary, for example in cases
of highly sensitive skin. An additional rinse cycle
can also be permanently set (see section “Setting
extra options: Rinse+”).
For heavily soiled or stained washing. In-wash
stain treatments are washed in at the optimum
time as the programme progresses.
A warm pre-wash cycle prior to the main wash cycle, which follows automatically.
TIME SAVING
1. Press the OPTIONS key.
2. Use the control knob to highlight TIME SAVING.
3. Press the SELECT key.
4. Use the control knob to
DELICATES 30°C
1000 RPM
11:25-12:36
highlight VERY QUICK.
è
5. Press the SELECT key. The
TIME SAVING¶¶¶¶
SELECT
symbol appears in the
NORMAL!¶
display.
BACK
VERY QUICK¶¶)
16
DELAY START
1. Press the OPTIONS key.
2. Use the control knob to highlight DELAY START.
3. Press the SELECT key.
4. Use the control knob to
DELICATES 30°C
1000 RPM
11:25-14:06
highlight the time at which
è
the programme is to end.
END OF PROGRAMME
SELECT
5. Press the SELECT key. The
14:06 H:MIN
(
BACK
programme end time will
change in the information
panel.
6. Press the START key.
Cancelling DELAY START: Press the START key again.
The wash programme will start immediately.
SENSITIVE/STAIN/PRE WASH
1. Press the OPTIONS key.
2. Use the control knob to
highlight PRE WASH.
3. Press the SELECT key.
The
symbol appears in
the display.
DELICATES 30°C
1000 RPM
START
SELECT
BACK
11:25-12:36
ç
TIME SAVING
DELAY START
STAIN
PRE WASH(
EXTRAS
17
Opening the door/Loading the washing
1. To open the door: carefully pull the handle on the door.
2. Unfold the washing and load it
loosely into the machine. Mix large
and small items.
Important: Do not get any washing
caught between the door and the
rubber seal.
3. Push the door firmly shut.
CURRENT LOAD/DETERGENT display
3
3
18
DELICATES 30°C
If settings are not undertak1000 RPM
11:25-12:36
en for several seconds during
§
the programme setting proc##################======]
ess or when loading with
MAXIMUM LOAD
¶ 3 KG
laundry, the following indiCURR. LOAD¶¶¶¶¶ ¶¶2 KG
cators appear on the display
DETERGENT ¶¶¶¶¶¶¶¶¶¶75 %
when the machine door is
open:
– the maximum permissible loading for the programme marked,
– the actual loading. This is also displayed by the bars (loads of less
than 0.5kg are not displayed),
– and washing agent measurement, with reference to the volume of
laundry, as recommended by the washing agent manufacturer.
If too much laundry has been loaded into the machine, the following
indicator appears in the display OVERLOADING. Please remove the relevant amount of laundry in such cases.
Press any button or turn any knob to undertake more programme
settings.
If the laundry is removed again before the programme starts, the CURR.
LOAD display may not change back to 0. If this occurs, please turn the
machine off and switch it back on again after approx. 3 seconds. Reset
the programme and refill machine with laundry.
The CURR. LOAD display goes out if the machine is closed.
Adding detergent/conditioner
Important: Only use detergents/conditioners that are suitable for use
in domestic washing machines.
Add detergent/conditioner in accordance with the detergent/conditioner manufacturer’s instructions. Observe instructions on the packaging.
The amount of detergent used depends on:
– the washing’s degree of soiling,
– the load size
– the hardness of the tap water.
Water softener should be used from water hardness range 2 (=medium). The amount of detergent used can then always be that as for
hardness range 1 (=soft). Your local water company will provide you
with information about water hardness in your area.
1. Pull out the detergent drawer as far as it will go.
2. Add the detergent/conditioner.
3. Push the detergent drawer in fully.
Washing powder/tablets
for the main wash cycle
Softener/
Wash-care products to
preserve the shape of
garments/Starch
Stain removal agent/
stain removal tablets
Washing powder/tablets
for the pre-wash cycle
or water softener
Washing powder/tablets for the main wash cycle
If you are using water softener and require the right compartment for
detergent for the pre-wash cycle, add the water softener on top of the
detergent for the main wash cycle in the left compartment.
Softener, wash-care products to preserve the shape of garments,
starch
Fill the compartment to no more than the MAX indicator. Add water to
thick liquid concentrates in accordance with the manufacturer’s instructions before using them. Dissolve powder starches.
If you are using liquid detergent:
Add liquid detergent using the dosage containers provided by the detergent manufacturer.
19
Starting a programme
1. Check that the water tap is
open.
2. Press the START key. The
wash cycle is started.
DELICATES 30°C
1000 RPM
11:25-12:36
î
START
30°
1000
OPTIONS
LINEN/EASY-C.
ENERGY SAVING
COTTONS
DELICATES)
WOOLLENS
Programme progress
While the programme is
DELICATES 30°C
1000 RPM
11:25-12:36
running, the display shows
§
PAUSE
among other things:
MAIN WASH
– each stage of the pro###############=========]
gramme as it progresses,
1000
MOISTURE 50 %
e.g. MAIN WASH,
– a bar showing the progress
of the programme,
– the expected residual moisture in the washing at the end of the programme.
Interrupting a programme/Adding washing
Interrupting a programme
• The wash programme can be temporarily interrupted at any time by
pressing the PAUSE key. It is then re-started by pressing the key
again.
• To cancel a programme before it has finished, switch off the appliance (press the control knob).
Adding washing
The padlock symbol in the display indicates whether washing can still
be added after the programme has started:
It is not possible to add washing (Door is locked because of high
water level or high temperature).
It is possible to add washing.
1. Press the PAUSE key. The
symbol appears in the display.
2. Open the door. Be cautious that any water in the drum may be hot and
there is a risk of scalding.
3. Add washing, close the door again.
4. Press the START key.
20
Washing cycle complete/Removing the washing
At the end of the programme PLEASE TAKE OUT THE CLOTHES appears
in the display. As soon as the § symbol appears, the door can be
opened.
1. Open the door using the handle.
2. Remove the washing.
3. Close the water tap.
4. Switch off the appliance.
If Rinse Hold has been selected:
1. Press the START key.
DELICATES 30°C
RINSE HOLD
11:28-11:28
§
START
RINSE HOLD
######################
RINSE H.
The display automatically
changes to the first programme page. Depending
upon the programme that
has been running either SPIN
or SHORT SPIN is highlighted.
If spinning or draining is required:
Use the control knob to
highlight either
– SPIN or
– DRAIN.
SHORT SPIN
1200 RPM
ú
EASY IRON
REFRESH
FASHION
SHORT SPIN)
SPIN
1200
OPTIONS
1200 RPM
START
1200
3
12:28-12:34
START
2. Reduce the spin speed, if
OPTIONS
necessary. The spin speed
cannot be increased. This
protects the fabric.
3. Press the START key.
The washing is spun or the water is drained.
SPIN
11:28-11:39
ú
FASHION
SHORT SPIN
SPIN)
STARCH
DRAIN
If OVERDOSING is shown in the display at the end of a wash cycle, too
much detergent was used in the completed wash programme. Please
take note of the dosage instructions provided by the detergent manufacturer and the amount of washing loaded the next time you wash.
21
Setting extra options
Independent of any programme you can set different basic settings.
These basic settings will permanently remain active until they are deselected again.
MEMORY
1, 2, 3, 4
RINSE+
GENTLE SPIN
LANGUAGE
TIMER
VOLUME
Frequently used programme settings can be stored.
The stored programme setting can then be selected
like a normal programme. There are a total of four
memory positions available.
Additional rinse cycle, only effective with the programmes COTTONS, LINEN/EASY-CARES, ENERGY
SAVING, DELICATES, 40-60MIX, EASY IRON and FASHION.
The washing does not cling to the side of the drum as
much and can be taken out more easily. Only effective
with the programmes COTTONS, LINEN/EASY-CARES,
ENERGY SAVING, 40-60MIX, STARCH and SPIN.
To set the language in which the indicators are to appear in the display.
To set the current time.
You will hear an acoustic signal when you press the
keys. The volume of this signal can be regulated and/
or the signal can be deselected. The volume of the
signal for error messages cannot be altered.
MEMORY
Saving a programme setting
First set a programme (e.g. LINEN/EASY-CARES, 40°C,
1200 rpm, with the SENSITIVE option), then save it.
1. Use the control knob to
highlight LINEN/EASY-C.
2. Set the temperature and the
spin speed.
3. Press the OPTIONS key.
LINEN/EASY-C. 40°C
1200 RPM
START
40°
1200
OPTIONS
22
10:17-12:16
î
LINEN/EASY-C.)
ENERGY SAVING
COTTONS
DELICATES
WOOLLENS
4. Highlight the SENSITIVE option.
5. Press the SELECT key.
The
symbol will appear in
the display.
LINEN/EASY-C. 40°C
1200 RPM
10:17-12:16
ç
START
TIME SAVING
DELAY START
SENSITIVE)
STAIN
PRE WASH
SELECT
BACK
EXTRAS
6. Press the EXTRAS key.
MEMORY is highlighted:
7. Press the SELECT key.
EXTRAS
ì
SELECT
MEMORY(
RINSE+
GENTLE SPIN.
LANGUAGE
BACK
If MEMORY 1 is highlighted:
8. Press the SAVE key.
The programme setting is
stored as M1: LINEN/EASY-C.
9. Then press the BACK key
3 times.
MEMORY
LINEN/EASY-C. 40°C
1200
é
SAVE
MEMORY 1(
MEMORY 2
MEMORY 3
MEMORY 4
BACK
Clearing a stored programme setting
1. Press the OPTIONS key.
2. Press the EXTRAS key.
MEMORY is highlighted:
3. Press the SELECT key.
EXTRAS
ì
SELECT
MEMORY(
RINSE+
GENTLE SPIN
LANGUAGE
BACK
4. Use the control knob to
highlight MEMORY 1.
5. Press the CLEAR key.
The stored programme setting has now been cleared.
6. Then press the BACK key
3 times.
MEMORY
LINEN/EASY-C. 40°C
1200
é
CLEAR
BACK
MEMORY 1!(
MEMORY 2§§
MEMORY 3§§
MEMORY 4§§
23
RINSE+, GENTLE SPIN
1. Press the OPTIONS key.
2. Press the EXTRAS key.
3. Use the control knob to
highlight the desired Extra,
e.g. RINSE+.
4. Press the SELECT key.
The symbol appears in the
display.
5. Press the BACK key twice.
EXTRAS
ì
SELECT
MEMORY
RINSE +)
GENTLE SPIN
LANGUAGE
BACK
LANGUAGE
1. Press the OPTIONS key.
2. Press the EXTRAS key.
3. Use the control knob to highlight LANGUAGE.
4. Press the SELECT key.
5. Use the control knob to
highlight the desired language, e.g. ENGLISH.
6. Use the SELECT key to store
the selected language.
7. Press the BACK key 3 times.
EXTRAS
LANGUAGE
Í
§
SELECT
ENGLISH)
DEUTSCH§
ITALIANO§
FRANÇAIS§
BACK
TIMER
1. Press the OPTIONS key.
2. Press the EXTRAS key.
3. Use the control knob to highlight TIMER.
4. Press the SELECT key.
5. Use the control knob to set
the desired time.
6. Press the SELECT key.
7. Press the BACK key 3 times.
24
EXTRAS
é
SELECT
BACK
TIMER¶¶¶¶ ¶¶¶¶¶¶¶
15:11 H:MIN
)
VOLUME
1. Press the OPTIONS key.
2. Press the EXTRAS key.
3. Use the control knob to highlight VOLUME.
4. Press the SELECT key.
5. Use the control knob to
highlight OFF, NORMAL or
LOUD.
6. Press the SELECT key.
7. Press the BACK key 3 times.
EXTRAS
VOLUME
é
SELECT
BACK
OFF§§§
NORMAL!)
LOUD§§§
Child safety device
If the child safety device has been activated, the door can no longer be
shut.
Activating the child safety device:
Use a coin to turn the knob (on the
inside of the door) in a clockwise direction as far as it will go.
1
Warning! The knob must not be depressed after being set, otherwise
the child safety device is not activated. The knob must stand proud
as shown in the illustration.
Deactivating the child safety device:
Turn the knob in an anti-clockwise direction as far as it will go.
25
Cleaning and care
Important: Do not use furniture cleaning products or aggressive cleaning agents to clean the appliance.
Wipe over the control panel and housing with a damp cloth.
Detergent drawer
The detergent drawer should be cleaned regularly.
1. Remove the detergent drawer by pulling firmly.
2. Remove the softener insert from the
middle compartment.
3. Clean all parts with water.
4. Place the softener insert in as far as
it will go, so that it is firmly in position.
5. Clean the entire drawer recess area
of the washing machine, in particular the jets on the upper side of the
washing-in chamber, with a brush.
6. Place the detergent drawer in its
guide rails and push it in.
Washing drum
Rust deposits in the drum may occur due to rusting foreign bodies in
the washing or tap water containing iron.
Important! Do not clean the drum with acidic descaling agents, scouring agents containing chlorine or iron or steel wool.
1. Remove any rust which has accumulated in the drum using a cleaning
agent for stainless steel.
2. Run a washing cycle without any washing to clean off any cleaning
agent residues. Programme: LINEN/EASY-CARES 60, with the TIME SAVING/VERY QUICK option, add about 1/4 of a measuring cup of washing
powder.
Door and rubber collar
Regularly check whether deposits or foreign substances are present in
the folds of the rubber collar or inside on the door glass.
Regularly clean the door glass and the rubber collar.
26
What to do if...
Remedying small malfunctions yourself
If one of the following fault messages is shown in the display during
operation:
– ATTENTION (E41)/PLEASE CLOSE THE DOOR
– ATTENTION ERROR CODE (E11)/PLEASE OPEN THE TAP
– ATTENTION ERROR CODE (E21)/PLEASE CHECK THE WATER DRAINAGE
please refer to the following table.
After you have rectified the error, press the START key.
If ATTENTION/PLEASE CALL YOUR LOCAL SERVICE FORCE together with
an error code (e.g. E..) appears in the display: Switch the appliance off
and then on again. Re-set the programme. Press the START key.
If the error code is displayed again, please contact the Service Force
and inform them of the PNC no. shown.
Problem
Possible cause
Remedy
Mains plug not plugged in or Connect the plug to a mains
fuse not working.
socket. Check the fuse.
Washing machine does The door is not closed propnot work.
erly.
Close the door properly.
There should be an audible
click.
The START key has not been
pressed.
Press the START key.
The door cannot be
closed.
The child safety device is
engaged.
Release the child safety device.
The programme does
not begin after the
START key has been
pressed.
ATTENTION(E41)/
PLEASE CLOSE THE
DOOR appears in the
display.
The door is not closed properly.
Close the door properly;
there should be an audible
click. Press the START key.
27
Problem
Possible cause
Remedy
The transit packaging has not Removing the transit packbeen removed.
aging.
The washing machine
vibrates when operating or is not stable.
The screw feet not correctly
adjusted.
Adjust the feet as described
in the installation and connection instructions.
There is very little washing in
This does not affect how the
the drum (e.g. only one
machine operates.
bathrobe).
The screw connection on the Screw the inlet hose in
inlet hose is leaking.
firmly.
The drainage hose is leaking. Replace drain hose.
Water is leaking out
from under the
washing machine.
The drain pump cover is not
closed properly.
Close the cover properly.
Washing was caught in the
door.
Load washing carefully for
the next wash.
Emergency drain hose is
leaking.
Close off emergency drain
hose properly.
Softener was not
washed in. compartment for conditioners
is filled with water.
The conditioner insert is not
correctly set into the additive compartment or is
blocked.
Clean the detergent dispenser drawer, insert the conditioner insert firmly.
Washing is heavily
creased.
There may have been too
much washing in the machine.
Observe maximum loads.
The door cannot be
opened when the appliance is switched on.
The
symbol appears
in the display.
The door is locked for safety
reasons.
Wait until the
pears.
The display goes out
while a wash cycle is
running.
Power cut.
For safety reasons, the door
will remain locked for approx. 4 minutes.
The background illumination of the display
The washing machine is in
has gone out even
stand-by mode.
though the appliance is
switched on.
28
symbol ap-
The programme will continue
when the power cut is over.
To remove washing:
If water can be seen in the
appliance, before opening
the door, first perform an
emergency drain.
Press any key.
Problem
Water is not entering
the appliance. ATTENTION ERROR CODE
(E11)/PLEASE OPEN
THE WATER TAP appears in the display.
The washing has not
been spun thoroughly
and water remains visible in the drum.
ATTENTION ERROR
CODE (E21)/PLEASE
CHECK THE WATER
DRAINAGE appears in
the display.
Possible cause
Tap turned off.
Remedy
Turn on the tap.
Turn off the tap. Unscrew the
The filter in the threaded inhose, take out the filter and
let hose fitting is blocked.
clean it.
Water tap is furred with lime Check the tap and have it rescale or is faulty.
paired, if necessary.
Drain hose is kinked.
Remove kink.
Maximum pumping height of Please contact your Local
1m exceeded.
Service Force.
The drain pump is blocked.
Clean the drain pump. Remove foreign bodies from
the pump housing.
For sink spigot connections:
The sink spigot is blocked.
Clean the sink spigot.
If the wash result is not satisfactory
The washing is grey and there are limescale deposits in the drum
• Too little detergent was used.
• An incorrect detergent was used.
• Individual stains were not pre-treated.
• The programme or temperature was not set properly.
There are grey stains on the washing
• Items that were soiled with ointments, fats or oils were washed using
too little detergent.
• The wash temperature used was too low.
• A common cause is that conditioner – in particular the type in concentrated form - has come in contact with the washing. Wash out
such marks as soon as possible and exercise care when using the said
conditioner.
Foam can still be seen following the final rinse
• Modern detergents can cause foam to be created even during the final rinse. In spite of this, the washing has been sufficiently rinsed.
There are white residues on the washing
• What can be seen here are insoluble substances which modern detergents contain. They are not the result of insufficient rinsing.
Shake or brush the washing. If possible turn the washing inside out
before washing. Check your selection of detergent and perhaps use
liquid detergent instead.
29
Carrying out an emergency drain
1
Warning! Prior to carrying out an emergency drain, switch off the
washing machine and remove the power plug from the power point.
Warning! The water that comes out of the emergency drain hose may
be hot. There is a risk of scalding. Let the water cool before performing
an emergency drain!
1. Open the plinth flap and remove it.
2. Remove the emergency drain hose.
3. Place a shallow container underneath it. Then loosen the drain plug
by turning it in an anti-clockwise
direction and pull it out.
4. The water will run out. If it is necessary to empty the container more
than once, seal up the emergency
drain hose with the drain plug while
you are doing so.
When the water has all drained away:
5. Insert the plug firmly into the emergency drain hose and turn it in a
clockwise direction until it is firmly in place.
6. Replace the emergency drain hose into the retainer.
7. Insert the plinth flap into place and close it.
30
Drain pump
1
The drain pump is maintenance-free. It is only necessary to open the
pump cover if there is a malfunction and water is no longer being
pumped out, e.g. if the pump wheel is blocked.
Before loading the machine, please always ensure that there are no foreign bodies present in the pockets or in between the items to be
washed. Paper clips, nails, etc. which may find their way into the washing machine along with the washing will remain in the drain pump
housing (foreign body trap that protects the pump wheel).
Warning! Before opening the cover of the drain pump, switch off the
washing machine and remove the power plug from the power point.
1. First carry out an emergency drain.
2. Place a cloth on the floor in front of the cover of the drain pump.
Residual water runs out.
3. Unscrew the pump cover in an anticlockwise direction and remove it.
4. Remove foreign bodies and fluff
from the pump housing and from
the pump wheel.
5. Check whether the pump wheel
right at the back of the pump housing can turn. (If the wheel rotates
with a jerky motion, this is normal.)
If the pumping wheel cannot be
turned, please contact your local
Service Force Centre..
6. Insert the pump cover. Insert the
guides at the sides of the cover into
the guide slots and tighten the cover by turning in a clockwise direction.
7. Close off the emergency drain hose
and place it in the retainer.
8. Close the plinth flap.
31
Technical data
5
This appliance conforms with the following EU Directives:
– 73/23/EEC dated 19.02.1973 Low Voltage Directive
– 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
– 93/68/EEC dated 22.07.1993 CE Marking Directive
Height x width x depth
850 x 598 x 640mm
Depth when door is open
1,017 mm
Height adjustability
approx. +10/-5mm
Load (depending on programme)
max. 6kg
Area of use
Household
Drum spin speed
see Rating Plate
Water pressure
1-10bar (=10–100N/cm2=0,1–1,0MPa)
Consumption values
The consumption values for selected programmes provided in the following table were determined under standard conditions. They may
vary when operating in domestic conditions.
Wash programme/
Temperature
Type of
material
Load
in kg1)
Water
in litres
ENERGY SAVING2)
Cotton
6
37
1,02
COTTONS 95
Cotton
6
50
2,05
LINEN/EASY-CARES 40
Cotton
6
58
0,66
LINEN/EASY-CARES 40
TIME SAVING (QUICK)2)
Synthetics
3
52
0,55
DELICATES 30
Synthetics
3
56
0,36
Wool
2
42
0,18
WOOLLENS
30
Energy
in kWh
1) The load is determined in accordance with the EN 60456 standard load.
2) Note: Programme setting for tests in accordance with or supporting EN 60 456 and
IEC 60 456. Consumption values will vary from the values quoted depending on water pressure, water hardness, water temperature at filling, room temperature, type
and quantity of washing, detergent used, variations in mains voltage and any options
selected.
32
Installation and connection instructions
1 Safety information concerning
installation
• This washing machine cannot be built-in.
• Before using for the first time, check the appliance for damage sustained while it was being transported. Do not under any circumstances connect an appliance that is damaged to the mains. In the event of
damage to the appliance contact your supplier.
• Be sure to remove all the components of the transit packaging before
using the appliance for the first time. Otherwise when spinning damage may be caused to the appliance or to neighbouring units or furniture.
• Before using the appliance for the first time, splash protection must
be completed. (See “Removing transit packaging”).
• Always plug the mains plug into a correctly installed shockproof
socket.
• If hard-wired: hard-wiring to the mains may only be carried out by
an a qualified electrician.
• Prior to using the appliance for the first time, ensure that the rated
voltage and current on the rating plate match the mains voltage and
current where the appliance is to be installed. The required fuse protection is also to be found on the rating plate.
• If work on the plumbing is required for the proper connection of the
washing machine to the water supply, this must be undertaken by a
registered plumber.
• If work on the electricity supply system is required for the proper
connection of the washing machine to the electricity supply, this
must be undertaken by a registered electrician.
• The washing machine’s mains cable must only be replaced by a
Service Force Engineer
33
Installing the appliance
Transporting the appliance
1
Warning: The washing machine is very heavy. There is a risk of injury.
Exercise care when lifting the appliance.
• Do not lay the washing machine on its front nor on its right side
(as seen from the front). Electrical components may get wet.
• Never transport the appliance without using the transit packaging.
Only remove the transit packaging when the appliance is in its place
of installation. Transporting the appliance without the use of the
transit packaging can cause damage to the appliance.
• Never lift the appliance by the door when it is open nor by the plinth.
When using a sack trolley to transport the washing machine:
• Only use the sack trolley on the side of the appliance.
Removing the transit packaging
Important! Be sure to remove all
the components of the transit packaging prior to using the appliance
for the first time. Keep the transit
packaging in a safe place, in case it
is needed at a later date when the
appliance is to be moved
(e.g. moving house).
1. Open the two hose retainers located
at the rear of the appliance and remove the hoses and electrical cable.
2. Remove the two hose retainers from
the appliance with a strong tug.
34
3
Special spanner A and sealing caps B
(2 units) and C (1 unit) come with
the appliance.
3. Use special spanner A to remove
screw D and the compression spring.
4. Use sealing cap C to cap the hole.
5. Use special spanner A to remove the
two screws E.
6. Use special spanner A to remove the
four screws F.
7. Remove transit bar G.
8. Screw in the four screws F again.
9. Use sealing caps B to cap the two
large holes.
Important: Press all sealing caps B
(2 items) and C (1 item) in firmly so
that they snap into the rear wall.
Where to install
Important! The washing machine must not be operated in a room
where there is a danger of frost. There is a risk of frost damage or adverse effect on the perfomance of the machine. Frost damage is not
covered under the warranty.
• The surface on which the appliance is to be installed must be firm
and level. Do not install the appliance on carpeted floors or soft floor
coverings.
• The surface on which the appliance is to be installed must be clean
and dry and free from grease, so that the appliance does not slide.
• If the location in which the appliance is to be installed is fitted with
small-format tiles, put a rubber mat (available in the shops) under
the appliance.
If the appliance is to stand on a floor which moves, e.g. a suspended wooden floor:
Place the appliance in an area as close as possible to a corner of the
room.
Screw a water-resistant wooden board (at least 15 mm thick) onto at
least 2 of the floor joists.
35
Making the appliance level
3
Automatic adjusting foot: The rear foot on the left-hand side of your
washing machine is built as a shock absorbing foot. This guarantees
that the appliance does not move even at high spin speeds.
The four feet of the appliance are
pre-adjusted.
Large degrees of unevenness can be
compensated for by adjusting the
four feet of the appliance.
Use the special spanner supplied to
do this.
Important: Do not use pieces of
wood, cardboard or such like to level out small degrees of unevenness
in the floor. Adjust the adjustable
feet instead.
Electrical Connection
1
36
Any electrical work required to install this appliance should be carried
out by a qualified electrician or competent person.
WARNING – THIS APPLIANCE MUST BE EARTHED.
The manufacturer declines any liability should these safety measures
not be observed.
Before switching on, make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.
The appliance is supplied with a 13 amp plug fitted. In the event of
having to change the fuse in the plug supplied, a 13 amp ASTA approved (BS 1362) fuse must be used.
Should the plug need to be replaced
for any reason, proceed as described
below.
The wires in the mains lead are
coloured in accordance with the
following code:
1
Green and Yellow:
Earth
Blue:
Neutral
Brown:
Live
• The wire coloured green and yellow
must be connected to the terminal
marked with the letter “E“ or by the
earth symbol E or coloured green and yellow.
• The wire coloured blue must be connected to the terminal “N“ or
coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
WARNING! A cut off plug inserted into a 13 amp socket is a serious
safety (shock) hazard. Ensure that the cut off plug is disposed of safely.
Permanent Connection
1
In the case of a permanent connection it is necessary that you install a
double pole switch between the appliance and the electricity supply
(mains), with a minimum gap of 3mm between the switch contacts and
of a type suitable for the required load in compliance with the current
electrical regulations.
The switch must not break the yellow and green earth cable at any
point.
This appliance complies with the requirements laid out in the EEC Directive 76/899.
Voltage 240 V AC: Fuse rating 13amps
See rating plate for further information.
This appliance meets VDE requirements.
Particular regulations of local electricity authorities must be observed.
This appliance conforms to EEC Directive No. 82/499/EWG on radio interference.
WARNING! Repairs to electrical appliances must only be carried out by
trained personnel. Improper repairs may lead to serious risks for the user.
37
Connecting the appliance to the water
supply
Important:
• This appliance must not be connected to the hot water supply.
• When connecting the appliance, use only new hose kits.
• Only connect the appliance to the drinking water supply. Rain water
or water for industrial use may only be used if it fulfils the requirements of DIN1986 and DIN1988.
• Do not kink or crush the water inlet hose or drain hose.
Permitted water pressure
The water pressure must be at least 1 bar (=10N/cm2 =0.1MPa), and
may be a maximum of 10bar (=100N/cm2 =1MPa).
– If more than 10bar: Connect a pressure reduction valve.
– If less than 1bar: Disconnect the appliance end of the inlet hose from
the solenoid inlet valve and remove the flow meter. (In addition remove the filter using pointed pliers and take out the rubber gasket
behind it.) Replace the filter.
38
Water inlet
3
A 1.35m long pressure hose is supplied with the appliance.
If a longer inlet hose is required, only hoses from the manufacturer are
to be used. Your local Service Force stocks hose kits of different lengths.
Sealing rings are either inserted in the plastic nuts of the threaded hose
fitting or are included as spare parts. Do not use any other sealing
rings.
Important! All threaded hose fittings must only be tightened by
hand.
1. Connect the hose with the right-angle connector to the machine.
Important! Do not position the inlet
hose vertically downwards. Position
it to the right or the left as shown in
the illustration.
2. Connect the hose with the straight
connector to a water tap with an R
¾ (inch) screw thread.
3. Slowly turn on the tap and check
that all connections are watertight.
39
Water Drainage
The appliance drain hose should hook into a standpipe, the hook in the
drain hose is formed using the plastic “U-Piece“ supplied. The standpipe
should have an internal diameter of approximately 38 mm (see diagram) thus ensuring there is an air break between the drain hose and
standpipe.
Important! It is essential to lay the drainage hose without kinks.
When discharging into a standpipe ensure that the top of the
curve in the hose end is no more
than 90 cm (35.4’’) and no less
than 60 cm (23.6’’) above floor
level.
The upright standpipe should
have a minimum, length of 30 cm
(12’’) from the bottom of the elbow to the top of the pipe (see
diagram). Make sure that it is designed in such a way that the end
of the drain hose cannot be covered with water.
Longer drain hoses are available
in lengths of 2.7 and 4 metres
from your Service Force Centre.
For drainage into an outlet
spigot: If the outlet spigot has not
been used before, remove any blanking plug that may be in place. Push
the drain hose onto the spigot and
secure with a clip if required. Ensure
the drain hose is looped upwards to
prevent waste water from the sink
entering the washing machine.
Important! The end of the drainage hose must not be submerged in the
pumped-out water. Otherwise, the water could be sucked back into the
appliance.
40
Pumping heights of over 1 metre
The washing machine’s drain pump is able to pump water to a height of
1metre, calculated from the surface on which the appliance is installed.
Important! If pumping height is over 1 metre malfunctions and damage to the appliance may arise.
For pumping heights over 1metre a conversion kit can be obtained.
Please contact Service Force Centre.
41
Warranty conditions
Great Britain
Standard guarantee conditions
We, AEG, undertake that if within 12 months of the date of the purchase this AEG appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we
will, at our discretion repair or replace the same FREE OF CHARGE for labour, materials or carriage
on condition that:
• The appliance has been correctly installed and used only on the electricity or gas supply stated
on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the
manufacturer's operating and maintenance instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any
person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre. Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.
• Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available
outside these hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
• Damage or calls resulting from transportation, improper use or neglect, the replacement of any
light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject
to rental agreements.
• Products of AEG manufacture which are not marketed by AEG.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to
your new home subject to the following qualifications:
• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in
the new country of use for this brand or range of products.
• This guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your
move and able to look after you and your appliances.
France
Germany
Italy
Sweden
UK
42
Senlis
Nürnberg
Pordenone
Stockholm
Slough
+33 (0) 3 44 62 29 29
+49 (0) 800 234 7378
+39 (0) 800 117511
+46 (0) 8 672 5360
+44 (0) 1753 219899
Service and Spare Parts
If the event of your appliance requiring service, or if you wish to purchase spare parts, please contact Service Force by telephoning:
0870 5 929 929
Your telephone call will be automatically routed to the Service Force
Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the website at
www. serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details
under the heading „What to do if...“
When you contact the Service Force Centre you will need to give the
following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating
plate)
5. The purchase date.
Please note that a valid purchase receipt or guarantee documentation is
required for in-guarantee service
calls.
Customer Care
For general enquiries concerning
your AEG appliance, or for further
information on AEG products please
contact our Customer Care Department by letter or telephone at the
address below or visit our website at www.aeg.co.uk.
Customer Care Department For Customer Service in the Republic
of Ireland please contact us at the adAEG Domestic Appliances
dress below:
55-77 High Street
AEG/ Electrolux Group (Ire) Ltd
Slough
Long Mile Road/ Dublin 12
Berkshire, SL1 1DZ
Republic of Ireland
Tel: 08705 350350 (*)
Tel: +353 (0) 1 4090751
Email: service.eid@electrolux.ie
(*) Calls may be recorded for training purposes
43
From the Electrolux Group. The world´s No.1 choice.
The Electrolux Group is the world´s largest producer of powered appliances for kitchen, cleaning and outdoor
use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines,
vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more
than 150 countries around the world.
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
105 176 006-01-250504-01
Subject to change without notice
Download PDF

advertising
