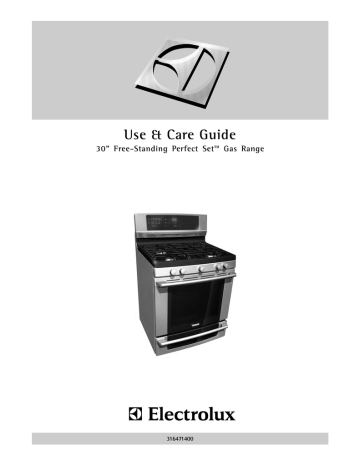

Use & Care Guide
30” Free-Standing Perfect Set™ Gas Range
316471400
2
Finding Information
Table of contents
Please read & save this guide
Finding information..................................................... 2
SAFETY ................................................................... 3-6
Features .................................................................. 7-9
Getting Started ................................................... 10-12
• About the griddle ................................................ 10
• Power up, control display modes & timers........... 11
• Control lock & oven lights................................... 12
Settings for Best Results .................................... 13-14
Surface Cooking....................................................... 15
• Cookware ............................................................ 15
• Home canning..................................................... 15
Setting cooktop controls .......................................... 16
Burner locations ....................................................... 16
• Setting cooktop controls..................................... 16
Setting Surface Controls .......................................... 16
• Burner locations .................................................. 16
• Setting cooktop controls..................................... 16
Setting Oven Controls......................................... 17-33
• Rapid preheat ...................................................... 17
• Bake .................................................................... 18
• Using cook time .................................................. 19
• Using cook time with end time............................ 20
• Broil .............................................................. 21-22
• Convection bake ................................................. 23
• Using convection convert.................................... 24
• Convection roast........................................... 25-26
• Keep warm .......................................................... 27
• Slow cook ........................................................... 28
• Dehydrate ............................................................ 29
• Bread proof ......................................................... 30
• Saving & recalling my favorite recipes.................. 31
• Setting Sabbath mode................................... 32-33
Setting Warmer Oven Controls .......................... 34-36
• Keep warm ................................................... 34-36
Setting Your Preferences ................................... 37-42
• Setting clock display (CLO) ................................. 37
• Setting 12 or 24 hour mode (CLO)....................... 38
• Changing between Fº or Cº (F-C)........................ 38
• Setting 12hr energy saving mode (ES)................. 39
• Setting audio mode (AUD)................................... 39
• Adjusting oven temperature (UPO) ...................... 40
• Factory default reset (RST)................................... 41
• List of Abbreviations ........................................... 41
• User preferences chart......................................... 42
Self-Clean ........................................................... 43-44
Care & Cleaning.................................................. 45-51
• Cleaning recommendations ........................... 45-46
• Cleaning cooktop and parts ................................ 47
• Oven door removal ........................................ 48-49
• Changing oven lights .......................................... 50
• Removing and replacing warmer oven drawer...... 51
Solutions to Common Problems......................... 52-54
Warranty ................................................................... 55
Thank you for choosingElectrolux, the new premium
brand in home appliances. This Use & Care Guide is
part of our commitment to customer satisfaction and
product quality throughout the service life of your new
appliance.
©2009 Electrolux Home Products, Inc.
We view your purchase as the beginning of a
relationship. To ensure our ability to continue serving
you, please use this page to record important
product information.
Keep a record for quick
reference
Purchase date
Electrolux model number
Electrolux serial number
Serial plate location: open lower oven
drawer (some models) or warmer oven drawer
.
NOTE
Registering your product with Electrolux
enhances our ability to serve you. You can
register online at
www.electroluxappliances.com or by dropping
your Product Registration Card in the mail.
Questions?
For toll-free telephone support in the U.S. and
Canada:
1-877-4ELECTROLUX (1-877-435-3287)
For online support and Internet production
information visit http://
www.electroluxappliances.com
All rights reserved. Printed in the USA
Safety
Important safety instructions
Recognize safety symbols, words and
labels
Safety items throughout this manual are labeled with
a WARNING or CAUTION based on the risk type as
described below:
This symbol alerts you to situations that may
cause serious body harm, death or property
damage.
This symbol alerts you to situations that may
cause bodily injury or property damage.
Read all of the following safety instructions
before using this appliance:
• All ranges can tip.
• Injury to persons could result.
• Install anti-tip device packed
with range.
• See Installation Instructions.
To reduce the risk of tipping, the
range must be secured by
properly installed anti-tip bracket
provided with the range. To
check if the bracket is installed
properly, visually check that rear
leveling leg is inserted into and
fully secured by the anti-tip
bracket by removing lower panel or storage
drawer. For models with a warmer drawer, grasp
the top rear edge of the range and carefully
attempt to tilt it forward. Refer to the installation
instructions for proper anti-tip bracket installation.
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
For your safety:
• Do not store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
• Installation and service must be performed by
a qualified installer, servicer or the gas
supplier.
What to do if you smell gas:
• Do not try to lite any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
• Never use this appliance as a space heater
to heat or warm the room. Doing so may
result in carbon monoxide poisoning.
• Never cover any slots, holes or passages in
the oven bottom or cover an entire rack with
materials such as aluminum foil.Doing so
blocks air flow through the oven and may cause
carbon monoxide poisoning. Aluminum foil
linings may trap heat, causing a fire hazard.
• Stepping, leaning or sitting on the doors or
drawers of this range can result in serious
injuries and also cause damage to the
range. Do not allow children to climb or play
around the range. The weightof a child on an
open door may cause the range to tip,
resulting in serious burns or other injury.
• Do not use the oven or Warmer oven/
Lower Oven (if equipped) for storage.
Do not store items of interest to children in
the cabinets above a range or on the
backguard of a range.Children climbing on the
range to reach items could be seriously injured.
Save these instructions for future reference.
3
4
Safety
Important safety instructions
• Remove all tape and packaging before using
the range. Destroy the carton and plastic bags
after unpacking the range. Never allow children
to play with packaging material.
IMPORTANT
Do not attempt to operate the range during a
power failure. If the power fails, always turn off
the range. If the range is not turned off and the
power resumes, the range will begin to operate
again. Once the power resumes, reset the clock
and oven function.
• Proper Installation—Be sure your appliance is
properly installed and grounded by a qualified
technician in accordance with the National
Fuel Gas Code ANSI Z223- latest edition, or in
Canada CAN/CGA B149.1 and CAN/GGA
B149.2, and the National Electrical Code
ANSI/NFPA No.70-latest edition, or in Canada • Do not leave children alone—Children should
not be left alone or unattended in the area
CSA Standard C22.1, Canadian Electrical
where appliance is in use.They should never
Code, Part 1, and local code requirements.
be allowed to sit or stand on any part of the
Install only per installation instructions provided
appliance.
in the literature package for this range.
Ask your dealer to recommend a qualified
technician and an authorized repair service.
Know how to disconnect the power to the range
at the circuit breaker or fuse box in case of an
emergency.
• User servicing—Do not repair or replace any
part of the appliance unless specifically
recommended in the manuals.All other
servicing should be done only by a qualified
technician. This may reduce the risk of personal
injury and damage to the range.
• DO NOT TOUCH SURFACE BURNERS,
AREAS NEAR THESE BURNERS, OVEN
BURNERS OR INTERIOR SURFACES OF THE
OVEN. Both surface and oven burners may be
hot even though flames are not visible. Areas
near surface burners may become hot enough to
cause burns. During and after use, do not touch,
or let clothing or other flammable materials touch
these areas until they have had sufficient time to
cool. Among these areas are the cook top,
surfaces facing the cook top, the oven vent
openings and surfaces near these openings,
oven door and window.
• Never modify or alter the construction of a
range by removing leveling legs, panels, wire
• Wear proper apparel—Loose-fitting or
covers, anti-tip brackets/screws, or any other
hanging garments should never be worn
part of the product.
while using the appliance.Do not let clothing or
other flammable materials contact hot surfaces.
• Air curtain or other overhead range hoods,
which operate by blowing a downward air
• Do not use water or flour on grease fires—
flow on to a range, shall not be used in
Smother the fire with a pan lid, or use baking
conjunction with gas ranges other than when
soda, a dry chemical or foam-type
the hood and range have been designed,
extinguisher.
tested and listed by an independent test
• When heating fat or grease, watch it closely.
laboratory for use in combination with each
Fat or grease may catch fire if allowed to
other.
become too hot.
• Storage in or on Appliance—Flammable
• Use only dry potholders - Moist or damp
materials should not be stored in an oven,
potholders on hot surfaces may result in
warmer drawer, near surface burners or in the
burns from steam. Do not let potholders touch
storage drawer. This includes paper, plastic
hot heating elements. Do not use a towel or other
and cloth items, such as cookbooks,
bulky cloth instead of a potholder.
plasticware and towels, as well as flammable
liquids. Do not store explosives, such as aerosol • Do not heat unopened food containers cans, on or near the range.
Buildup of pressure may cause container to
• Remove the oven door from any unused
range if it is to be stored or discarded.
burst and result in injury.
Safety
Important safety instructions
Important instructions for using your
cooktop
• Use Proper Flame Size—Adjust flame size so
it does not extend beyond the edge of the
utensil. The use of undersized utensils will
expose a portion of the burner flame to direct
contact and may result in ignition of clothing.
Proper relationship of utensil to flame will also
improve efficiency.
Important instructions for using your
oven
• Use care when opening oven door or lower
oven drawer (if equipped)—Stand to the side of
the range when opening the door of a hot oven.
Let hot air or steam escape before you remove
or replace food in the oven.
• Keep Oven Vent Ducts Unobstructed.The
oven vent is located below the backguard.
Touching the surfaces in this area when the oven
is operating may cause severe burns. Also, do
not place plastic or heat-sensitive items on or
near the oven vent. These items could melt or
ignite.
• Know which knob controls each surface
burner. Place a pan of food on the burner before
• Placement of oven racks. Always place oven
turning it on, and turn the burner off before
racks in desired location while oven is cool. If
removing the pan.
rack must be moved while oven is hot use
• Always turn knob to the full LITE position
extreme caution. Use potholders and grasp the
when igniting top burners. Visually check that
rack with both hands to reposition. Do not let
burner has lit. Then adjust the flame so it does
potholders contact the hot heating elements in
not extend beyond the edge of the utensil.
the oven. Remove all utensils from the rack
before moving.
• Utensil Handles Should Be Turned Inward and
Not Extend Over Adjacent Surface Burners
—
• Do not use the broiler pan without insert. The
To reduce the risk of burns, ignition of flammable
broiler pan and insert allows dripping fat to drain
materials, and spillage due to unintentional
and be kept away from the high heat of the
contact with the utensil, the handle of the utensil
broiler.
should be positioned so that it is turned inward,
• Do not cover the broiler insert with aluminum
and does not extend over adjacent surface
foil. Exposed fat and grease could ignite.
burners.
• Cold temperatures can damage the electronic
• Never leave surface burners unattended at
control. When using the appliance for the first
high heat settings—Boilovers cause smoking
time, or when the appliance has not been used
and greasy spillovers that may ignite, or a pan
for an extended period of time, be certain the
that has boiled dry may melt.
unit has been in temperatures above 32°F (0°C)
• Protective Liners—Do not use aluminum foil to
for at least 3 hours before turning on the power
line surface burner pans, or oven bottom, except
to the appliance.
as suggested in this manual. Improper
installation of these liners may result in risk of
electric shock, or fire.
• Glazed cooking utensils—Only certain types of
glass, glass/ceramic, ceramic, earthenware, or
other glazed utensils are suitable for cook top
service without breaking due to the sudden
change in temperature. Check the
manufacturer’s recommendations for cook top
use.
5
6
Safety
Important safety instructions
Important cleaning instructions
Grounding Instructions
For personal safety, this appliance must be
properly grounded. For maximum safety, the power
cord must be plugged into an electrical outlet that
is correctly polarized and properly grounded. If a 2prong wall receptacle is the only available outlet, it
• Kitchen cleaners and aerosols—Always follow is the personal responsibility of the consumer to
the manufacturer’s recommended directions
have it replaced with a properly grounded 3-prong
for use. Be aware that excess residue from
wall receptacle installed by a qualified electrician.
cleaners and aerosols may ignite causing
damage and injury.
• Clean the range regularly to keep all parts free
of grease that could catch fire.Pay particular
attention to the area underneath each surface
element. Do not allow grease to accumulate.
Self cleaning ovens
• Clean in the self-cleaning cycle only the parts
listed in this Use & Care Manual.Before self
cleaning the oven, remove the broiler pan and
any utensils or foods from the oven.
• Do not use oven cleaners—No commercial
oven cleaner or oven liner protective coating of
any kind should be used in or around any part of
the oven.
• Do not clean door gasket—The door gasket is
essential for a good seal. Care should be taken
not to rub, damage or move the gasket.
• The health of some birds is extremely sensitive
to the fumes given off during the self-cleaning
cycle of any range. Move birds to another wellventilated room.
Important Safety Notice
The California Safe Drinking Water and Toxic
Enforcement Act requires the Governor of California
to publish a list of substances known to the state
to cause cancer, birth defects or other reproductive
harm, and requires businesses to warn customers
of potential exposure to such substances.
• Avoid fire hazard or electrical shock. Do not
use an adapter plug, an extension cord, or
remove grounding prong from electrical power
cord. Failure to follow this warning can cause
serious injury, fire or death.
• This appliance is equipped with a 3-prong
grounding plug for your protection against
shock hazard and should be plugged directly
into a properly grounded receptacle. Do not
cut or remove the grounding prong from this
plug.
See the INSTALLATION INSTRUCTIONS
packaged with this appliance for complete
installation and grounding instructions.
Features
Oven features & options
1
3
2
4
7
1. Luxury-Lighting™ interior oven lights-pg 12
2. Control lock -pg 12
3. Standard cooking
• Bake -pg 18
• Broil -pg 21-22
• Convection bake -pg 23
• Convection roast -pg 25-26
• Keep warm -pg 27
• Slow cook -pg 28
4. Specialized cooking
• Dehydrate - pg 29
• Bread proof -pg 30
5. Favorite settings -pg 31
6. Clean -pg 43-44
7. Cooking time
• Cook time -pg 19
• End time -pg 20
8. Rapid preheat -pg 17
9. Convection convert -pg 24
6
5
8
9
Minimum & maximum control settings
Feature
Bake
Min. temp
Max. temp
170°F / 76°C
550°F / 288°C
Bread Proof
Lo (85°F /30°C)
Hi (100°F / 38°C)
Broil
300°F / 148°C
550°F / 288°C
Conv Bake
300°F / 148°C
550°F / 288°C
Conv Roast
300°F / 148°C
550°F / 288°C
Keep Warm
150°F/66°C
Slow Cook
Lo (225°F /108°C)
Dehydrate
100°F / 38°C
190°F/88°C
Hi (275°F / 135°C)
225°F / 108°C
7
8
Features
Oven control display & keys
16
18
13
15
14
17
13. Oven key pads
• Upper oven
• Warmer oven
Feature
14. User preferences -pg 37-42
Timer 1
1 min
11 hr 59 min
The following options are available under User
Preferences:
• Clock setting -pg 11 & 37
• Clock display setting -pg 37
• 12 hr/ 24 hr -pg 38
• Fahrenheit/ Celsius -pg 38
• 12 Hr energy save mode on/off p
- g 39
• Audio mode -pg 39
• UPO offset (temp. adjust) or reset -pg 40
• Factory default reset -pg 41
15.Oven display
16. Timers -pg 11
17. Cancel & Start
18. Numeric key pad
Timer 2
1 min
11 hr 59 min
Clock 12 hr
1:00 hr
11 hr 59 min
Clock 24 hr
0:00 hr
23 hr 59 min
Cook time 12 hr
1 min
11 hr 59 min
Cook time 24 hr
1 min
23 hr 59 min
End time 12 hr
1:00 hr
12 hr 59 min
End time 24 hr
0:00 hr
23 hr 59 min
Clean duration
Lite (2 hr)
Heavy (4 hr)
Minimum & maximum time settings
Min. time
Max. time
Features
Perfect Set™ Range features
2
Your gas range features include:
1. Glass control panel.
2. Electronic oven & surface controls & timers.
3. Dishwasher safe burner grates.
4. Easy to clean upswept deep well cooktop.
5. Left front burner valve & knob.
6. Left Rear burner valve & knob.
7. Center burner valve & knob.
8. Perfect-simmer™ right rear burner valve &
knob.
9. Extra large right front burner valve & knob.
4
3
5
6
12
13
10. Sure-2-fit™ cobalt blue self-cleaning oven
interior.
11. Self-clean oven door latch.
12. Automatic oven door light switch.
17
1
7
9
11
10
14
15
13. Theatre style Luxury-Lighting™ halogen upper
oven interior lights.
14. Convection fan & cover.
15. Fully extendable Luxury-Glide™ interior oven
rack (s).
16. Offset and flat interior oven racks (not shown).
17. Oven glide rack sensor.
18. Large 1-piece metal oven door handles.
19.Color coordinated or stainless steel oven
exterior panels & trim.
20. Full-width tinted oven door window glass.
21. Warmer oven.
22. Warmer oven door window glass.
23. Leveling legs & anti-tip bracket (included).
24. Broiler pan (some models).
25. Broiler pan insert (some models).
26. Convection roasting rack (some models).
27. Cast iron griddle (some models-not shown).
26
18
19
20
18
21
22
23
6
3
8
7
5
9
25
4
24
8
9
10
Getting Started
About the griddle (some models)
Your new appliance is supplied with a griddle. Use
the raised grill side of the griddle-Fig. 1- to cook
meats such as sausage, steak, bacon, or other
items that produce grease when cooking. Use the
smooth side of the griddle -Fig. 2- to cook items
such as pancakes, eggs or grilled cheese
sandwiches.
Using the griddle
• Place either side of the griddle centered over the
left or right side of gas burner grates. Be sure
locking tabs fit properly on top of grates-Fig. 1-.
• Preheat the griddle for 5 minutes on medium to
medium low setting. Slow preheat ensures even
heat distribution during the cooking process.
The griddle will perform best on the left side, but
• DO NOT preheat the griddle on HI burner setting.
may be used on the right side. Make sure that all
Preheating on HI may warp the griddle and
burners are turned off before placing the griddle on
prevent even heat distribution.
the grates.
Locking tabs
Before first use
1. Wash griddle in hot soapy water. Rinse and then
Grill side up
dry completely.
2. Apply a thin coat of vegetable oil to the entire
surface (front and back of griddle).
3. Bake griddle for 1 hour at 350°F, then turn oven
OFF and let cool before removing.
4. The surface may appear to have a tacky feel to
it from the seasoning process. If desired, wash
the griddle in hot soapy water, rinse well, and
dry completely.
Fig. 1
After each use
• DO NOT CLEAN GRIDDLE IN DISHWASHER.
• After each use, clean with a stiff brush and hot
water only.
Flat side up
• Dry immediately and apply a light coating of
vegetable oil to griddle before storing.
• To prevent rusting, store in a dry place and keep
uncovered.
Fig. 2
Getting Started
Timers
Setting clock at power up
The two timers provided with the oven control
serve as extra reminders in the kitchen. When a
timer reaches less than 1 minute the display will
start to count down in seconds. When the time
runs out the active timer will beep, “00:00” will
display and the timer key will flash.
You will be prompted to enter the time of day in the
event of a power failure or when you first provide
electric power to your appliance.
The following time settings apply to the timers:
• Min. time: 1 minute
• Max. time: 11 hours 59 minutes
See example below to set the timer for 5 minutes:
Example
Step
Press
1. Press TIMER
2. Enter 5 minutes
3. Press TIMER
To cancel after setting the timer, press the TIMER
key again.
NOTE
The timer(s) will not affect the cooking process.
• When your appliance is first powered up, 12:00
will flash in the display.
• Enter the time of day using the numeric key
pads and press START to set.
If an invalid time of day is entered, the control will
triple beep. Re-enter a valid time of day and
press START. If CANCEL is pressed your clock
will start with the time set for12:00.
Select the user pref key to modify the time of day
during other situations such as day light savings.
11
12
Getting Started
Changing settings
Interior Luxury-Lighting™
Software controls the upper and warmer ovens so
that both may be set to operate at the same time
with unique settings. It is very important to
understand that before setting or modifying either
oven, you must first select which oven you desire
to set or modify.
Your appliance includes “theater” style oven
lighting that gradually lights both the upper and
warmer oven interiors to full brightness.
The display will provide which oven is currently
selected for setting/changes by displaying a small
red triangle indicator next to the upper or lower
warmer oven text -Fig.1.
This model includes 2 halogen lights in the upper
oven and one standard appliance light located on
the rear wall of the warmer oven.
If the upper oven text symbol displays the red
triangle indicator but you wish to set or change the
settings for the warmer oven, press
once
to change the oven selection. Then make the
setting/changes. You may toggle between either
oven and make setting changes at any time. You
may also make cooktop settings or modifications
without having to make an oven selection.
The
key controls the interior oven lights.
The oven lights will automatically turn ON whenever
the upper oven door is opened. The lights will
remain on until the door has been shut.
To replace any of the interior light bulbs see
“Changing the oven lights” in the Care and Cleaning
section.
Control lock
The control lock will lock the oven controls and the
upper oven door. Once locked, the upper oven
light will not switch from on to off or off to on.
Control lock will lock the oven light and will not be
available.
See example below to lock the upper oven and the
cooktop:
Example
Step
Fig.1
Preheat Temperature Display
Press
Press CONTROL LOCK and
hold for 3 seconds.
To unlock, Press CONTROL
LOCK and hold for 3 seconds.
Once a cooking feature has been started for either
will flash in the display until the door
the upper or warmer oven the control will display
has
finished
locking. Once the door has been
the actual oven temperature while preheating. Once
locked
the
door
lock indicator will turn on. LOC will
the oven reaches the oven set temperature only the
then
display
in
the
upper oven cavity only.
oven set temperature will display.
Do not attempt to open the oven door while the
door lock indicator is flashing.
Setting for Best Results
Upper oven racks
Types of oven racks
Your appliance is equipped with 3 styles of interior
oven racks; 1 offset oven rack, 1 handle oven rack
and 1 fully extendable Luxury-Glide™ oven racks.
6
5
4
3
2
1
offset oven rack
Fig. 1
Fig. 4
handle oven rack
Fig. 3
fully extendable
glide oven rack
Fig. 2
Air circulation in the oven
For best air circulation and baking results allow a
space of 2-4" (5-10 cm) around the cookware for
proper air circulation and be sure pans and
cookware do not touch each other, the oven door,
sides or back of the oven cavity. The hot air must
be able to circulate around the pans and cookware
in the oven for even heat to reach around the food.
Always use potholders or oven mitts when
removing food or adjusting the oven racks. Wait
until the oven has completely cooled if possible.
Oven racks may be HOT and may cause burns.
The offset -Fig 1- and handle -Fig 3- oven rack
may be used in all of the rack positions. The offset
design provides additional height options. For
maximum available space if preparing a large
turkey, it is suggested to place the rack near the
oven bottom (rack positions 1 or 2) -refer to Fig. 4.
Do not extend the offset rack past the oven door
when in the lowest rack position.
Fig. 5 - Proper pan spacing using single oven rack.
The fully extendable glide racks -Fig. 2- make food
preparation easier. Especially when preparing
heavier dishes. The glide oven rack has 2 glide
tracks that allow you to extend your food away
from the oven effortlessly without rubbing the sides
of the oven wall.
Baking layer cakes with 1 or 2 oven
racks
For best results when baking cakes using 2 oven
racks, place cookware on rack positions 2 & 4 refer to Fig. 4-. For best results when using a
offset oven rack, place cookware on rack position 2 Fig. 6 - Proper pan spacing using 2 oven racks.
or 3.
13
14
Setting for Best Results
Upper oven racks
Always use potholders or oven mitts when
removing food or adjusting the oven racks. Wait
until the oven has completely cooled if possible.
Oven racks may be HOT and may cause burns.
Luxury-Glide™ extendable oven rack
upper rack
portion
Removing and replacing the offset rack
(not illustrated)
• To remove pull the oven rack straight forward
until it reaches the stop position. Lift up front of
oven rack slightly and slide out.
• To replace, fit the oven rack onto the rack
guides on the oven walls. Tilt the front of the
rack upward slightly and slide the oven rack
completely back into place (not shown).
release
lever
lower rack
portion
Fig. 1
Removing and replacing the
Luxury-Glide™ oven racks
To remove using one hand, reach through handle
opening on top of glide rack and lift up on the
release lever located across the lower front of the
rack as shown -Fig. 1-.
While holding up on the release lever, pull the glide
rack out of the oven until you reach the oven rack
stop position -Fig. 2-. Using both hands, grasp the
upper and lower portions of the glide rack. Lift up
the front of the rack slightly and continue to pull the
rack away from the oven -Fig. 3-. Be sure to grasp
both upper and lower rack portions together when
removing or handling the glide rack - the rack
portions move independently and are difficult to
handle unless held together.
Fig. 2
To replace - grasp both upper and lower
portions of glide rack, lift and place the rack
resting evenly between the oven cavity walls. Tilt
the front of the rack upward slightly and slide the
rack completely into position. Some force may be
necessary to make sure the oven rack has
snapped completely back into place.
NOTE
DO NOT attempt to close the oven door until all
the oven racks are properly positioned inside
the oven cavity. Be sure the glide oven racks
make contact with the vertical rack sensor
located at the left rear oven cavity wall (see item
#17, page 9).
Fig. 3
Surface Cooking
Cookware
Using proper cookware
Oven vent location
The size and type of cookware used will influence
the setting needed for best cooking results.
Cookware should have flat bottoms that make good
contact with the entire burner grate surface. Check
for flatness by rotating a ruler across the bottom of
the cookware.
The oven vent is located below the backguard.
When the oven is on, warm air is released through
this vent. This venting is necessary for proper air
circulation and provides good baking results in the
oven. DO NOT BLOCK THIS VENT.
Cookware should always:
• Have a flat bottom.
• Have tight fitting lids.
• Be well balanced.
• Be made of a material that conducts heat well.
• Be easy to clean.
Cookware material types
Oven vent location
Home Canning
Be sure to read and observe all the following points
when home canning with your appliance. Check
with the USDA (United States Department of
Agriculture) website and be sure to read all the
information they have available as well as follow
their recommendations for home canning
procedures.
• Use only quality flat bottom canners when home
canning. Use a straight-edge to check canner
bottom.
• Use only a completely flat bottom canner with
no ridges that radiate from the bottom center
when home canning using a ceramic cooktop.
• Make sure the diameter of the canner does not
exceed 1 inch beyond the surface element
markings or burner. It is recommended to use
Copper - Excellent heat conductor but discolors
smaller diameter canners on electric coil and
easily.
ceramic glass cooktops.
Stainless steel - Slow heat conductor with
uneven cooking results. Is durable, easy to clean • Start with hot tap water to bring water to boil more
quickly.
and resists staining.
• Use the highest heat seating when first bringing
Cast iron - A poor heat conductor however will
the water to a boil. Once boiling is achieved,
retain heat very well. Cooks evenly once cooking
reduce heat to lowest possible setting to maintain
temperature is reached.
that boil.
Porcelain-enamel on metal -Heating
characteristics will vary depending on base
material.
NEVER place or straddle a cooking utensil over 2
Glass- Slow heat conductor.
different surface cooking areas at the same time.
The cookware material determines how evenly and
quickly heat is transferred from the surface burner
to the pan bottom. The most popular materials
available are:
• Aluminum - Excellent heat conductor. Some
types of food will cause it to darken (Anodized
aluminum cookware resists staining & pitting).
•
•
•
•
•
IMPORTANT
15
16
Setting Surface Controls
Burner locations
2 Standard burners -9,500 BTU- best for most
surface cooking requirements.
Large burner -14,000 BTU- best for bringing
large quantities of liquid to boil or when
preparing large quantities of food.
Extra large burner -16,000 BTU- Capabilities of
large burner to bring large quantities of liquid
to boil or when preparing larger food portions.
Perfect Simmer™ burner -5,000 BTU- best for
simmering delicate sauces, melting
chocolates, etc.
Operating single burners
1. Push the desired gas surface control knob in and
turn counterclockwise out of the OFF position Fig.1.
2. Release knob and rotate to
(lite) position.
Visually check that the needed burner has lit.
3. To adjust, push the knob in and turn counterclockwise to a flame size setting that best fits
your need.
Fig. 1
Setting Oven Controls
About rapid preheat
Use the rapid preheat option onsingle rack baking
to quickly bring the upper oven to baking
temperature.
The rapid preheat option may be set with the
following cooking features:
• Bake
• Conv bake
• Conv roast
The following temperature settings apply to the
rapid preheat feature:
• Auto-suggest (default) setting:350°F/176°C
• Min. rapid preheat setting: 170°F / 76°C
• Max. rapid preheat setting: 550°F / 288°C
You may press CANCEL at any time when
setting the control or during the cooking process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish to
change. Make temperature changes using the+
or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
For best results
Setting rapid preheat
See example below to set a rapid preheat with
bake to start immediately using default
temperature.
Example
Step
NOTE
Press
1. Press UPPER OVEN
2. Press BAKE
3. Press RAPID PREHEAT
4. Press START
When START is pressed the oven will preheat
quickly. The control will display PRE-HEATING
during this time. While PREHEATING the Convection
fan may operate.
After a few minutes a beep will sound and PREHEATING will no longer display. Place prepared
food on a single oven rack. The oven will continue
to bake at the set temperature until bake is canceled.
• Single oven rack cooking ONLY.
• Use oven rack positions 2 or 3.
17
18
Setting Oven Controls
About baking in upper oven
Use the bake feature to cook most food items that
require normal cooking temperatures.
Bake may be set with the following options:
• Rapid preheat
• Cook time
• Cook time with end time
The following temperature settings apply to the
bake feature:
• Auto-suggest (default) setting:350°F/176°C
• Min. bake setting: 170°F / 77°C
• Max. bake setting: 550°F / 288°C
Setting bake for upper oven
See example below to set a bake to start
immediately using the default temperature.
Example
Step
Press
1. Press UPPER OVEN
If your recipe requires a different baking
temperature than the auto-suggested (default)
temperature (example below shows upper oven
temperature set for 425°F/ 218°C ).
Example
Step
Press
1. Press UPPER OVEN
2. Press BAKE
3. Enter 425°F
4. Press START
For best results
• Place food items in rack positions 2 or 5.
• When using the offset oven rack, place in rack
position 2 or 3.
2. Press BAKE
• When placing multiple food items in the oven
allow 2-4” (5-10cm) of space between the food
items for proper air circulation.
3. Press START
• For best results when baking cakes using 2 oven
racks, place cookware on rack positions 2 & 5.
Once START is pressed the oven will begin heating.
The oven display shows PRE-HEATING. While
PREHEATING the Convection fan may operate.
After the oven reaches set temperature, PREHEATING will turn off and a beep will indicate the
oven is ready. The oven will continue to maintain
this temperature until the cooking feature is
canceled.
NOTE
You may press CANCEL any time when setting
the control or during the cooking process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish to
change. Make temperature changes using the+
or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
Setting Oven Controls
Using cook time in upper oven
Adding a cook time when baking is beneficial when
a recipe requires a specific temperature and period
of time to cook. Following the recipe cook time
helps insure the best possible results.
Cook time may be set with the following features:
• Bake
• Conv bake
• Conv roast
• Slow cook
• Dehydrate
• Bread proof
• Keep warm
NOTE
• You may press CANCEL any time when
setting the control or during the cooking
process.
See example below to set the upper oven for bake,
starting immediately with preheating to the autosuggest (default) setting of 350°F (176°C) and then
to automatically turn off after 30 minutes.
Example
Step
Press
Preheat the oven if necessary
1. Press UPPER OVEN
2. Press BAKE
3. Press START
4. Press COOK TIME
5. Enter 30 minutes
6. Press START
Once START is pressed the oven will cook and after
30 minutes automatically shut-off.
19
20
Setting Oven Controls
Using cook time with end time
in upper oven
Adding a cook time along with a specific end time
gives the same benefits as the cook time option in
addition to controlling exactly when the cooking
process will begin and end.
Cook time and end time may be set with the
following features:
• Bake
• Convection bake
• Convection roast
• Slow cook
• Clean (delayed Clean uses end time only)
• Dehydrate
• Bread proof
• Keep warm
NOTE
• When setting the END TIME option be sure
the correct time of day is set.
See example below to set the upper oven with
preheating for bake at 375°F (176°C) for 50 minutes
and to automatically shut-off at 5:30.
Example
Step
Press
1. Press UPPER OVEN
2. Press BAKE
3. Enter 375°F
4. Press COOK TIME
5. Enter 50 minutes
6. Press END TIME
• You may press CANCEL any time when
setting the control or during the cooking
process.
7. Enter 5:30
• You may also choose to useCOOK TIME
with no END TIME. See pg. 19
8. Press START
Once START is pressed, the oven will calculate the
start time at which the oven will begin heating. The
oven display shows PRE-HEATING. While
PREHEATING the Convection fan may operate.
After the oven reaches set temperature, PREHEATING will turn off and a beep will indicate the
oven is ready. The oven will continue to maintain
this temperature for the selected time or until the
cooking feature is canceled.
Setting Oven Controls
About broiling
Setting broil
Use the broil feature to cook meats that require
direct exposure to radiant heat for optimum
browning results. This cooking feature is only
available in the upper oven.
See example below to set broil for the upper oven
starting immediately with the auto-suggest (default)
setting.
Example
The following temperature settings apply to the
broil feature:
Step
• Auto-suggest (default) setting:550°F / 288°C
• Min. broil setting: 300°F / 148°C
• Max. broil setting: 550°F / 288°C
1. Place the broiler insert on the broiler pan, then
place the meat on the insert. Remember to
follow all warnings and cautions.
Should an oven fire occur, close the oven door. If
the fire continues, throw baking soda on the fire
or use a fire extinguisher. Do not put water or
flour on the fire. Flour may be explosive and
water can cause a grease fire to spread and
cause personal injury.
Press
2. Arrange the interior oven rack-p. 22 Figs. 2 &
3- for position recommendations. Be sure to
place the prepared food and pan directly
under broil burner. Close the oven door.
3. Press UPPER OVEN
4. Press BROIL
5. Press START
• Do not use the broiler pan without the insert.
• Do not cover the broil pan/insert with
aluminum foil; the exposed grease could ignite.
• To prevent food from contacting the broil burner
and to prevent grease splattering, do not use
the roasting rack when broiling.
For best results
• Use the recommended pans and oven rack
positions for the type of meat being preparedp.22 Figs. 1, 2 & 3-.
• For optimum browning results, allow the oven to
preheat 5-6 minutes before placing the food in
the oven.
NOTE
Example
You may press CANCEL any time while setting
the control or during the broiling process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish to
change. Make temperature changes using the+
or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
21
22
Setting Oven Controls
Setting broil
The broil pan insert (if equipped) contains slots that
allows grease from the meat to drain into the broil
pan. Place prepared meat on broil pan insert and
then place onto broiler pan as shown-Fig. 1.
Recommended broiling times
Use the broiling table-Fig. 3- for approximate
recommended broiling times for the types of meats
listed. Increase or decrease broiling times, or move
the broiling pan to a different rack position to suit
for doneness.
If the food you are broiling is not listed in the table,
follow the instructions provided in your recipe and
watch the item closely.
Insert
6
5
4
Broil pan
Fig. 1
Fig. 2
Broiling Table
Food
Steak 1” thick
Steak 1” thick
Steak 1” thick
Pork chops 3/4” thick
Chicken-bone in
Chicken-boneless
Fish
Shrimp
Hamburger 1” thick
Hamburger 1” thick
Rack position
5th or 6th*
5th or 6th*
5th or 6th*
5th
4th
5th
5th
4th
6th*
5th
Temp
550°F
550°F
550°F
550°F
450°F
450°F
500°F
550°F
550°F
550°F
*Use the off-set rack when using oven rack position 6.
Cook time in minutes
1st side
2nd side
8
6
10
8
12
8
12
8
25
15
12
8
as directed
as directed
17
10
14
12
Doneness
Medium
Medium-well
Well
Well
Well
Well
Well
Well
Medium
Well
Fig. 3
Setting Oven Controls
About convection bake
Setting convection bake
Convection bake is part of the Perfect-Convect³™
system. Convection bake uses a fan to circulate
the oven heat evenly and continuously. The
improved heat distribution allows for even cooking
with excellent results. Multiple rack cooking may
slightly increase cook times for some foods, but
the overall result is time saved.
The following temperature settings apply to the
conv bake feature:
The conv bake feature should ONLY be used when
your recipe instructions have been written for use
with convection baking.
If your recipe instructions are for normal baking and
you wish to use convection bake, follow the
Convection Convert option instructions. The
convection convert option will automatically adjust
the oven temperature so that convection baking
may provide the best possible results.
Conv bake may be set with the following options:
• Conv convert
• Cook time or cook time with end time
• Probe
• Rapid preheat
Benefits of convection bake:
• Superior multiple oven rack performance.
• Some foods cook up 25 to 30% faster, saving
time and energy.
• No special pans or bakeware required.
NOTE
Once conv bake has started the convection fan
make take up to 6 minutes to turn on. This will
allow for proper gas combustion.
• Auto-suggest (default) setting:350°F/176°C
• Min. conv bake setting : 300°F / 148°C
• Max. conv bake setting: 550°F / 288°C
See the example below to set conv bake, starting
immediately with the auto-suggest (default) setting
of 350°F (176°C).
Example
Example
Step
Press
1. Press UPPER OVEN
2. Press CONV BAKE
3. Press START
Once START is pressed the oven will begin
heating. The oven display showsPRE-HEATING
during this time.
After the oven reaches set temperature,PREHEATING will turn off and a beep will indicate the
oven is ready. The oven will continue to maintain
this temperature until the cooking feature is canceled.
For best results
• When baking with a single rack use rack
positions 2 or 3. When using 2 racks use rack
positions 2 & 4. When using 3 racks use rack
positions 2, 3 & 5.
• Cookies and biscuits should be baked on pans
with no sides or very low side to allow heated air
to circulate around the food.
• Food baked on pans with a dark finish will cook
faster.
• When placing multiple food items in the oven
allow 2-4” (5-10cm) of space between the food
items for proper air circulation.
NOTE
• You may press CANCEL any time when
setting the control or when cooking.
23
24
Setting Oven Controls
Using convection convert
Setting convection convert
The conv convert option allows you to convert any
normal baking recipe using the convection bake
feature. The control uses the normal recipe settings
and adjusts to a lower temperature for convection
baking. Conv convert must be used with CONV
BAKE feature.
See the example below to set conv bake, starting
immediately with the auto-suggest (default) setting
of 350°F (176°C) and adding the conv convert
option.
Benefits of conv bake using conv
convert option:
• Superior multiple oven rack performance.
• Some foods cook up 25 to 30% faster, saving
time and energy.
• No special pans or bakeware required.
For best results
• Place food items using the recommended rack
positions. When baking with a single rack use
rack positions 2 or 3. When using 2 racks use
rack positions 2 and 4. When using 3 racks use
rack positions 2, 3 and 5.
Example
Example
Step
Press
1. Press UPPER OVEN
2. Press CONV BAKE
3. Press CONV CONVERT
4. Press START
Once START is pressed the oven display shows
PRE-HEATING. After the oven reaches the
converted set temperature, PRE-HEATING will turn
off and a beep will indicate the oven is ready.
• Cookies and biscuits should be baked on pans
with no sides or very low side to allow heated air The added conv convert option will automatically
lower the set temperature you set from the bake
to circulate around the food.
recipe to an adjusted conv bake temperature.
• Food baked on pans with a dark finish will cook
When conv convert is used with cook time the time
faster.
remaining will flash when the cook time is 75%
• When placing multiple food items in the oven
complete. The control will also beep at regular
allow 2-4” (5-10cm) of space between the food
intervals until baking has finished.
items for proper air circulation.
NOTE
• You may press CANCEL any time when setting
the control or during the cooking process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish
to change. Make temperature changes using the
+ or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
Setting Oven Controls
About convection roast
Setting convection roast
How convection roast works
See example below to set convection roast to start
immediately with the auto-suggest (default) setting.
Convection roast is part of the Perfect-Convect³™
system. Convection roast combines a cook cycle
with the convection fan and element to rapidly
roast meats and poultry. Heated air circulates
around the meat from all sides, sealing in juices
and flavors. Meats cooked with this feature are
crispy brown on the outside while staying moist on
the inside. In addition, there is no need to reduce
the oven temperature when using convection roast.
Convection roast may be set with the following
options:
• Cook time or cook time with end time
• Rapid preheat
The following temperature settings apply to
convection roast:
• Factory auto-start default: 350°F/176°C
• Minimum: 300°F / 148°C
• Maximum: 550°F / 288°C
Benefits of convection roast:
• Superior multiple oven rack performance.
• Some foods cook up 25 to 30% faster, saving
time and energy.
• No special pans or bakeware required.
For best results
• Preheating is not necessary for most meats and
poultry.
• Place food items using the recommended rack
positions for the type of food being prepared.
• When placing multiple food items in the oven
allow 2-4” (5-10cm) of space between the food
items for proper air circulation.
• Be sure to carefully follow your recipe’s
temperature and time recommendations or refer
to the convection roast chart for additional
information -p. 26, Fig. 2.
Example
Example
Step
Press
1. Press UPPER OVEN
2. Press CONV ROAST
3. Press START
Once START is pressed the oven will begin heating.
The oven display shows PRE-HEATING.
After the oven reaches set temperature, PREHEATING will turn off and a beep will indicate the
oven is ready.
NOTE
• You may press CANCEL any time when
setting the control or during the cooking
process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish
to change. Make temperature changes using the
+ or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
25
26
Setting Oven Controls
Roasting recommendations
Roasting rack instructions
When preparing meats for convection roasting, you
may use the broiler pan, insert and the roasting
rack supplied with your appliance (some models).
The broiler pan will catch grease spills and the
insert will help prevent grease splatters. The
roasting rack fits on top of the insert allowing the
heated air to circulate under the food for even
cooking and helps to increase browning on the
underside.
Roasting rack
Insert
1. Place oven rack on bottom or next to the
bottom oven rack position.
Broil pan
2. Place the insert on the broiler pan.
3. Make sure the roasting rack is securely seated
on top of the insert. Do not use the broiler pan
without the insert. Do not cover the insert with
aluminum foil.
Fig. 1
4. Position food (fat side up) on the roasting rack.
-Fig. 15. Place prepared food on oven rack in the oven.
Convection Roasting Chart
Meat
Beef
Poultry
Pork
Weight
Oven temp
Internal temp
Standing rib roast
4 to 6 lbs.
350°F
*
25-30
Rib eye roast
4 to 6 lbs.
350°F
*
25-30
Tenderloin roast
2 to 3 lbs.
400°F
*
15-25
Turkey, whole**
12 to 16 lbs.
325°F
180°F
8-10
Turkey, whole**
16 to 20 lbs.
325°F
180°F
10-15
Turkey, whole**
20 to 24 lbs.
325°F
180°F
12-16
Chicken
3 to 4 lbs.
350°F -375°F
180°F
12-16
Ham roast, fresh
4 to 6 lbs.
325°F
160°F
30-40
Shoulder blade roast
4 to 6 lbs.
325°F
160°F
20-30
Loin
3 to 4 lbs.
325°F
160°F
20-25
Pre-cooked ham
5 to 7 lbs.
325°F
160°F
30-40
* For beef: med rare 145°F, med 160°F, well done 170°F
** Stuffed turkey requires additional roasting time. Shield legs and breast with foil to
prevent overbrowning and drying of the skin.
Minute per lb.
Fig. 2
Setting Oven Controls
About keep warm
Setting keep warm
Use the keep warm feature to keep hot foods
warm. Keep warm may be set with the following
options:
See example below to set keep warm for the upper
oven to start immediately with the auto-suggest
(default) setting.
Keep warm may be set the following options:
• Cook time
• Cook time with end time
The following temperature settings apply to the
keep warm feature:
• Auto-suggest (default) setting: 170°F / 76°C
• Min. keep warm setting: 150°F / 66°C
• Max. keep warm setting: 190°F / 88°C
• FOOD POISONING HAZARD. Do not let
food sit for more than one hour before or
after cooking. Doing so may cause bacteria
to grow which can result in food poisoning
or sickness.
• To prevent food from contacting the broil
element and to prevent grease splattering,do
not use the roasting rack when broiling.
NOTE
Example
You may press CANCEL any time when setting
the control or during the cooking process.
Example
Step
Press
1. Press UPPER OVEN
2. Press KEEP WARM
3. Press START
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish
to change. Make temperature changes using the
+ or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
27
28
Setting Oven Controls
About slow cook
Setting slow cook
The slow cook feature may be used to cook foods See the example below to set a slow cook on Lo.
more slowly at lower oven temperatures. The
cooking results will be like that of a Slow Cooker or
Example
Example
Crock-Pot. This feature is ideal for roasting beef,
pork & poultry. Slow cooking meats may result in
Step
Press
the exterior of meats becoming dark but not burnt;
this is normal. Slow cook may be set using the
1. Press UPPER OVEN
upper oven only.
Slow cook may be set with the following options:
• Cook time
• Cook time with end time
The following temperature settings apply to the
slow cook feature:
• HI: 275°F/ 134°C (default) for cooking 4 to 5 hours
• Lo: 225°F / 108°C for cooking 8 to 9 hours
For best results
2. Press SLOW COOK
3. Press -lo to choose the Lo
option -Fig. 2.
4. Press START
Fig.1
Fig. 2
• Completely thaw all frozen foods before cooking.
• When using a single oven rack, place in position
2 or 3.
• Position multiple racks to accommodate size of
cooking utensils when cooking multiple food
item.
NOTE
Example
You may press CANCEL any time when setting
the control or during the cooking process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish
• Do not open the oven door often or leave the
to change. Make temperature changes using the
door open when checking foods. The more heat
+ or - keys. Each press of + or - will adjust the
that is lost, the longer the food will need to cook.
temperature by 5° F ( or 2°C). Temperature
• Cover the foods to keep them moist or use a
changes when settingSLOW COOK are HI or LO.
loose or vented type cover to allow foods to turn • If changing cooking times, select thecook time
crisp or brown.
or end time keys needed to make the changes.
• Roasts may be left uncovered so browning can
occur. Cook times will vary depending on the
weight, fat content, bone & the shape of the
roast.
• Add any cream or cheese sauces during the last
hour of cooking.
• Preheating the oven will not be necessary.
Setting Oven Controls
About dehydrate
For best results
The dehydrate feature dries with heat from the
convection element. The heat is circulated
throughout the oven by the convection fan. Use
dehydrate to dry and/or preserve foods such as
fruits, vegetables, herbs and very thin slices of
meat. Dehydrate may be set in the upper oven
only. The Convection fan may operate while
dehydrating.
The following temperature settings apply to the
dehydrate feature:
• Auto-suggest (default) setting: 120°F / 48°C
• Min. dehydrate setting: 100°F / 38°C
• Max. dehydrate setting: 225°F / 108°C
• Drying times vary depending on the moisture
and sugar content of the food, the size of the
pieces, the amount being dried and the humidity
in the air.
• Treat fruits with antioxidants to avoid discoloration.
• Tightly woven cooling racks can be used to
allow the air to circulate around the food; or use
drying racks to allow the air to circulate around
the food (this type of oven rack is not supplied
with this appliance).
• Consult a food preservation book or library for
information.
Setting dehydrate
See the example below to set dehydrate at the
default temperature of 120°F.
Example
Step
• Dry most fruits and vegetables at 140°F. Dry
herbs at 100°F.
Press
1. Press UPPER OVEN
2. Press DEHYDRATE
3. Press START
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish
to change. Make temperature changes using the
+ or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
Example
29
30
Setting Oven Controls
About bread proof
Setting bread proof
The bread proof feature maintains a warm
environment useful for rising yeast-leavened
products. Bread proof may be set in the upper
oven only.
See the example below to set bread proof for85°F /
30°C).
Example
Example
Bread proof may be set in conjunction with the
following feature:
Step
• My favorite
1. Press UPPER OVEN
The following temperature settings apply to the
bread proof feature:
2. Press BREAD PROOF
• Auto-suggest (default) setting:100°F/38°C
• Min. bread proof setting:85°F/30°C
• Max. bread proof setting: 100°F / 38°C
3. Press and continue to
press -lo to advance to 85°F
Press
4. Press START
For best results
• Lightly cover the dough
• Place a bowl of hot water on the rack below.
• Use the oven light to check progress. Do not
open the oven door.
NOTE
Example
You may press CANCEL any time when setting
the control or during the cooking process.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish to
change. Make temperature changes using the+
or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
Setting Oven Controls
About my favorite
Recalling a favorite
You may store up to 2 of your most frequently used
heat settings and cooking times, for setting or
recalling.
Example
Example
Step
The favorite key will allow you to store a cooking
feature, oven set temperature and a cook time for
either the upper oven or warmer oven.
1. Press UPPER OVEN
Saving my favorite instructions
2. Choose MY FAVORITE
The example below shows how to save a favorite
cooking instruction for the upper oven.
3. Press START
Example
Example
Step
Press
Press
Deleting/overwriting a favorite
Once the favorite key has been filled you may
choose to overwrite an existing favorite. Follow the
1. Press UPPER OVEN
same instructions to save a recipe; choose the
2. Input the cooking instructions using the control favorite you wish to overwrite and hold for 3
seconds.
keypads and any additional options you wish
to save and later recall.
It is not necessary to delete a favorite before
saving another. Choose the favorite key and store
3. Press START
the new cooking instructions using the overwriting
instructions.
4. Press and hold the available
MY FAVORITE for 3 seconds
5. Press CANCEL*
You will hear a beep and a red light will display
above the selected favorite to indicate that your
favorite recipe has been stored.
*If you wish to store the cooking instructions but
not start the oven.
31
32
Setting Oven Controls
Sabbath mode
This appliance provides special settings for use
when observing the Jewish Sabbath/Holidays. This
mode will turn off all audible tones or visual
display changes normally provided by the oven
control. BAKE and cooktop heating are the only
cooking features available while in the Sabbath
mode.
You must first set theBAKE feature and
temperature(s) needed for the upper/lower oven(s),
the COOK TIME option if needed and any cooktop
power levels before setting the Sabbath mode. Any
settings made prior to setting the Sabbath mode
will be visible in the displays. The COOK TIME
option, if set prior to the Sabbath mode, will give 1
audible alert at the end of COOK TIME.
The Sabbath mode will override the factory preset
12 Hour Energy Saving mode and the appliance
will stay on until the cooking features are
cancelled. If any of the cooking features are
cancelled when the appliance is in the Sabbath
mode, no audible or visual indicators will be
available to verify the cancellation.
If the oven interior lights are needed, be sure to
activate them prior to setting the Sabbath mode.
Once the oven light is turned ON and the Sabbath
mode is active, the oven light will remain on until
the Sabbath mode is turned off and the oven lights
are turned off. The oven door will not activate the
oven interior lights when the oven door is opened
or closed.
It is recommended that any oven temperature
change with the Sabbath mode be followed with 2
presses of the START key. This will insure the
oven remains ON even if the attempt to set the
oven temperature was lower or higher than the
oven control can accept. If the oven temperature is
set incorrectly, the oven temperature will default to
170°F or 550°F. Try to set the desired oven
temperature again.
The cooktop settings may also be changed even
after the appliance has been set for the Sabbath
mode (Jewish Holidays only).
Should a power failure or interruption occur during
the Sabbath/Holidays, the appliance will shut OFF.
When power is restored the appliance will not turn
back on automatically to the original BAKE feature
settings. SF will appear in the control display panel
indicating a Sabbath mode failure. - Fig. 1 After a power failure, the food may be safely
removed from the oven while still in the Sabbath
mode.
Fig. 1
For further assistance, guidelines for
proper usage and a complete list of
models with the Sabbath feature,
please vist the web at
http:\\www.star-k.org.
Setting Oven Controls
Setting Sabbath mode
Canceling Sabbath mode
The example below shows setting the oven to
observe the Sabbath (and Jewish holidays).
The example below shows how to cancel the
Sabbath mode.
Example
Step
1. Press UPPER or
LOWER OVEN
Example
Press
or
&
2. All cooking features previously set and the
cooktop will automatically cancel once Sabbath
mode has ended.
Be sure to make any additional
oven or cooktop setting
changes before going to step 3.
&
Once properly set in Sabbath mode, Sab-Fig. 1will show in the oven display until such time the
Sabbath mode is cancelled.
Fig. 1
Press
1. Press and hold both the LO
and HI keys together for 3
seconds (a beep will sound)
and release:
2. Press BAKE.
3. To enter Sabbath mode,
press and hold both the LO
and HI keys together for 3
seconds (a beep will sound)
and release.
Step
NOTES
Example
The only keys available once the appliance is
set for the Sabbath mode are
,
&
,
,
,
.
You may change the oven temperature and any
cooktop settings once baking has started
(Jewish holidays only). Choose oven and enter
the oven temperature change (170 to 550F°) and
press START. Remember that the oven
control will no longer beep or display any
further changes once the oven is set in the
Sabbath mode.
33
34
Setting Warmer Oven Controls
Warmer oven features
The warmer oven is ideal for warming foods such
as pizza, casseroles, baked potatoes and frozen
convenience foods. Use the keep warm feature to
keep hot cooked foods at serving temperature.
The warmer oven may be set with the keep warm
feature.
• KEEP CHILDREN AWAY FROM THE
LOWER OVEN WHEN HOT. FAILURE TO DO
SO CAN RESULT IN BURNS.
Recommendations for the warmer oven
• When placing food in the lower oven always use
a baking sheet or pan with 4 raised sides to
prevent food from sliding off.
• DO NOT LINE THE OVEN DRAWER WITH
FOIL OR COVER THE OVEN RACK WITH
FOIL. This may result in damage to your oven.
• The maximum height of foods and utensils that
may be used in the lower oven is 2-1/2”. The
maximum width is 15”. Pay close attention to
foods that have potential to rise beyond the
recommended 2-1/2” maximum height.
• Use pans in the lower oven large enough to
contain food and any juices created from the
cooking process.
• Always use oven mitts when removing food
from the lower oven. The lower oven rack,
compartment, cookware/plates may be hot.
• Should an oven fire occur, close the drawer
and turn the lower oven OFF. If the fire
continues, use a fire extinguisher. Do not put
water or flour on the fire. Flour may be
explosive.
For best results
• The warmer oven rackmust always be in place
when warming. Be sure that the rack is placed
with the down turned sides into the drawer-Fig.
1. This will provide for some air space between
the drawer and the food.
• For best results with the warmer oven, pastries,
casseroles with crumb toppings and bakery
type items should be cooked in the upper oven.
• When using the warmer oven, limit the number of
times the drawer is opened; this will minimize
heat loss. Repeated opening of the drawer
during the warming process may produce
uneven results.
• Do not use plastic wrap to cover food. Plastic
may melt onto the drawer or surrounding
areas and be very difficult to clean.Use a lid or
aluminum foil instead. Use only utensils and
cookware in the oven drawer that are
recommended for oven use in the upper oven.
Fig. 1
Setting Warmer Oven Controls
About keep warm in the
warmer oven
Use the keep warm feature to keep cooked foods
warm.
When using keep warm always start with hot food.
Do not heat cold food.
Keep warm may be set with the following options:
• Cook time
• Cook time with end time
The following temperature settings apply to the
keep warm feature:
• Auto-suggest (default) setting: 170°F / 76°C
• Min. keep warm setting: 150°F / 66°C
• Max. keep warm setting: 190°F / 88°C
If you enter a temperature beyond this range your
control will automatically default to the nearest
temperature available.
• FOOD POISONING HAZARD. Do not let
food sit for more than one hour before or
after cooking. Doing so can result in food
poisoning or sickness.
NOTE
• The warmer oven will not operate when the
upper oven is set for self-cleaning or the
control lock feature is active.
• If the warmer oven is ON and a self-clean or
control lock request is attempted, the oven
control will deny the request with a triple
beep.
To add or change any cook settings after this
feature has started:
• Select the UPPER or WARMER oven you wish
to change. Make temperature changes using the
+ or - keys. Each press of + or - will adjust the
temperature by 5° F ( or 2°C).
• If changing cooking times, select thecook time
or end time keys needed to make the changes.
Temperature selection
See the recommended settings chart below for
keep warm. If a particular food is not listed, use
the default temperature of170°F. If more crispness
is desired, remove the lid or aluminum foil from the
food. Most foods can be kept at serving
temperatures at 170°F. When a combination of
foods are to be kept warm (for example a meat
with 2 vegetables and rolls) use 170°F.
Keep Warm
Recommended Food Settings
Food Item
Heating Level
Hot Beverages
190°F
Fried Foods
190°F
Vegetables
170°F
Soups (Cream)
170°F
Stews
170°F
Sauces
170°F
Meats
170°F
Gravies
150°F
Eggs
150°F
Dinner Plates with Food
150°F
Casseroles
150°F
Breads/Pastries
150°F
35
36
Setting Warmer Oven Controls
Setting keep warm in the
warmer oven
See example below to set keep warm for the lower
oven to start at 190°F / 88°C:
Example
Step
Press
1. Press WARMER OVEN
2. Press KEEP WARM
3. Use +hi to increase the
temp. to 190°F.
4. Press START
NOTE
• Use the +hi key to increase from the default
keep warm temperature. Use the - lo to
decrease the temperature.
• You may press CANCEL any time when
setting the control or during the cooking
process.
Warmer oven cleaning tips
For easier clean-up, the loweroven should be
cleaned as soon as the oven cools down. Clean
after each use to minimize build-up of spatter and
food leftovers. When cooking foods that spatter
,
cover the food with heatproof lid or foil. Use a mild
detergent and water to clean the oven drawer and
sides. For stubborn soils use a nonabrasive
cleaning pad to remove soils. DO NOT use oven
cleaners on the oven cavity.
Setting Your Preferences
About user preferences with
Perfect-Set™ controls
Setting clock display (CLO)
The clock display mode allows you to turn the
clock display on or off.
The
key controls options for preferences. The
display will show a digital abbreviation and a value
for every preference each time a key is pressed
one at a time.
• Press
or
to
to toggle between options for
each preference.
• Press
or
to increase or decrease numeric
values. You may also use the numeric keys to
input precise values.
• Press START
Example
Step
Please read the following instructions before
changing the user preferences functions:
• Press and continue to press USER PREF
navigate through the preferences.
See the example below to change the clock
display to OFF.
Press
1. Press and continue to press
USER PREF until you reach
the preset clock display
mode -Fig. 1-.
2. Use the +hi & -lo to toggle to the
CLO off option -Fig. 2-.
or
3. Press START to accept or
press CANCEL to reject.
to accept a new option entry
or press USER PREF
preference.
• Press CANCEL
to advance to the next
Fig. 1
after pressing START
to exit the preferences mode.
NOTE
User preference options are not available while
cooking or when using the kitchen timer
.
Setting clock (CLO)
See the example below to set the clock to 1:30.
Example
Step
1. Press USER PREF.
2. Enter 1:30 or use +hi/-lo to
advance to 1:30.
3. Press START to accept or
press CANCEL to reject.
Press
Fig. 2
37
38
Setting Your Preferences
Setting 12 or 24 hour mode
The clock display mode allows you to choose
between 12 and 24 hour mode. The factory preset
clock display mode is 12 hour.
See the example below to change the default
mode to 24 hour.
Press
or
Press
1. Press and continue to press
USER PREF until you reach
the Fahrenheit/Celsius
mode. -Fig. 12. Use the +hi or -lo to toggle to
the C option. -Fig. 2-
3. Press START to accept.
Fig. 1
Example
Step
1. Press and continue to press
USER PREF until you reach
the preset clock display
mode -Fig. 1-.
2. Use the +hi & -lo to toggle to the
24hr option. -Fig. 2-.
Your control has the ability to display and set
Fahrenheit or Celsius temperatures. The factory
preset temperature display is Fahrenheit.
See the example below to change the default
temperature display to Celsius.
Example
Step
Changing between F° or C°
(F-C)
or
3. Press START to accept or
press CANCEL to reject.
Fig. 2
Fig. 1
Fig. 2
Setting Your Preferences
Setting 12hr energy saving
mode (ES)
Setting audio mode (AUD)
The audio mode allows you choose between 5
levels of audio volume for the oven control. You
may turn the audio off and later return to operating
with all the normal audible sounds and alerts. The
preheat and cook time features will still beep to
alert you when to put your food in and take it out.
The oven control has a factory preset built-in 12
hour energy saving feature that will shut off the
appliance if the oven has been heating for more
than 11 hours and 59 minutes. The oven can be
programmed to override this feature for continuous
The factory preset audible level is 5.
baking.
See the example below when changing the audible
See the example below to turn off 12 hour energy
level settings.
saving mode.
Example: Turning offExample
12 hr enery saving mode
Step
Press
or
3. Press START to accept or
press CANCEL to reject.
Fig. 1
Step
Press
1. Press and continue to press
USER PREF until you reach the
pre-set AUd mode.
1. Press and continue to press
USER PREF until you reach
the preset 12hr energy
saving mode -Fig. 1.
2. Use the +hi & -lo to toggle to the
off option -Fig. 2.
Example
2. Use the +hi or -lo to choose
desired audio level -Fig. 1 or
to choose theoff option
-Fig. 2.
or
3. Press START to accept or
press CANCEL to reject.
Fig. 2
Fig. 1
Fig. 2
39
40
Setting Your Preferences
Adjusting oven temperature
User programmable offset (UPO)
Your appliance has been factory calibrated and
tested to ensure an accurate baking temperature.
For the first few uses, follow your recipe times and
temperature recommendations carefully.
If you feel your oven is too hot or too cool from
your baking experience, the oven temperature may
be adjusted to your liking. The temperature may be
increased up to +35°F (+19°C) or decreased down
to -35°F (-19°C) from normal.
Example
Example
Press
1. Press and continue to press
USER PREF until you reach
the preset UPO mode
-Fig. 1.
The temperature may be increased +35°F (+19°C)
or decreased -35°F (-19°C) from normal.
See the example below to increase the
temperature in thewarmer oven.
Example
Step
1. Press and continue to press
USER PREF until you reach
the preset UPO mode.
-Fig. 1 -
See the example below to decrease the
temperature in the upper oven.
Step
Adjusting warmer oven
temperature (UPO)
2. Press +hi to adjust the
temperature higher.-Fig. 23. Use +hi to advance to 10.
-Fig. 24. Press START to accept or
press CANCEL to reject.
2. Press -lo to adjust the
temperature lower.
To set the temperature lower
use the lo- key.
3. Use -lo to advance to -10
-Fig. 2.
4. Press START to accept or
press CANCEL to reject.
To set the temperature
higher use the hi+ key.
Fig. 1
Fig. 1
Fig. 2
Fig. 2
Press
Setting Your Preferences
Factory default reset (RST)
List of displayed abbreviations
You may choose to restore your factory settings.
This will erase all settings or favorites that you
have saved.
See the example below reset your control.
Press
1. Press and continue to press
USER PREF until you reach the
factory default reset mode
-Fig. 1.
2. Use the +hi or -lo to toggle to
the yes option to reset -Fig. 1.
or
3. Press CANCEL if you decide
not to reset.
Fig. 1
Abbreviantions Chart
Message
Example
Step
See the chart below for common abbreviations that
you may see while using your appliance.
Fig. 2
Message
explanation
CLn
Self clean
CLO
Setting the clock
dEF
Defrost
d-O
Door open
End
End of cycle
F10*
Fault code error
Hi
Hi setting
Hot
Hot oven
Lo
Lo setting
Loc
Control lock
SAb
Sabbath mode
Sd
Demo mode
SF
Sabbath mode failure
CF
Check food
*This is an example of a fault code that you may
see. These codes will help your servicer repair
your appliance.
41
42
Setting Your Preferences
User preferences chart
The following chart will help you navigate through
the user preferences.
User Preferences Options
Preference
1st option
Setting clock
Clock display
12 or 24 hour mode
F° or C°
12hr energy save
mode
Audio mode*
UPO upper oven
UPO warmer oven
Reset to factory
pre-sets
* Audio mode provides 6 possible settings
2nd option*
Self-Clean
Before starting self-clean
A self-cleaning oven automatically cleans with high
temperatures that are well above those used for
normal cooking. The self-clean feature eliminates
soils completely or reduces them to a fine
powdered ash that you can later easily wipe away
with a damp cloth.
Adhere to the following precautions when
running the self-clean cycle:
During the self-clean cycle, the outside of the
appliance can become very hot to the touch.Do
not leave small children unattended near the
appliance.
• Do not use oven cleaners or protective coatings
in or around the oven interior.
• Do not clean the oven door gasket. The woven
material of the oven door gasket is essential for
a good seal. Care should be taken not to rub,
damage or remove the gasket -Fig. 1.
• Do not use any cleaning materials on the door
gasket. Leaving chemical residue can damage
the door gasket.
• DO NOT line the oven walls, oven racks,
bottom or any other part of the range with
aluminum foil. Doing so will stop heat
distribution, produce poor baking results
and cause permanent damage to the oven
interior (aluminum foil will melt to the interior
surface of the oven).
• DO NOT force the oven door open. The
automatic door locking system can be
damaged.
• Use caution when opening the door after the
self-clean cycle is finished. The oven may
still be VERY HOT.
• Remove the broiler pan, insert, all utensils and
any aluminum foil. These items cannot
withstand high cleaning temperatures.
• The health of some birds is extremely
sensitive to the fumes given off during the
self-cleaning cycle of any range. Move birds
to another well-ventilated room.
• All oven racks MUST be removed. If they are
left in while attempting to set a self-clean cycle,
the display will show REMOVE RACKS -Fig. 2.
The oven control will not start a self-clean cycle
without first removing all the oven racks.
• Remove any excessive spilloversin the oven
cavity before starting a self-clean cycle. To
clean, use hot, soapy water and a cloth. Large
spillovers can cause heavy smoke or fire when
subjected to high temperatures.
• Clean any soil from the oven frame, the door
liner outside the oven door gasket and the small
area at the front center of the oven bottom with
soap and water. These areas heat sufficiently to
burn soil on.
• Do not allow food spills with a high sugar or
acid content (such as milk, tomatoes,
sauerkraut, fruit juices or pie filling) to remain on
the porcelain surface, they may leave a dull spot
even after cleaning.
Fig. 1
Fig. 2
43
44
Self-Clean
Setting self-clean
Setting delayed self-clean
The clean feature provides 3 different choices for
self-cleaning the upper oven. Set the clean forlite
(2 hrs), med (3 hrs) or heavy soils (4 hrs). The
example below shows setting the upper oven for
self-clean to begin immediately using a medium (3
hour) setting.
You may wish to set your appliance to perform a
self-clean cycle sometime later (up to 12 hours
later). The END TIME key will determine when the
cleaning will stop.
Example
Step
Press
1. Remove racks and
Press UPPER OVEN
2. Choose LITE, MED OR
HEAVY CLEAN
You will need to set theEND TIME out far enough
to allow for the type of clean cycle you choose (2-34 hours). Remember to add 30-40 additional
minutes for the oven to cool enough and the oven
door to unlock.
The example below shows setting the upper oven
for a self-clean cycle to end at 8:00 o’clock.
or
or
Example
Step
3. Press START
After pressing start, the motorized oven door latch
will automatically lock the door. The DOOR lock
icon will flash (Fig. 1). Once the door has locked the
DOOR lock icon will remain on through the entire
self-clean cycle.
After self-clean, the oven may take about 30-40
minutes to cool and unlock. AHot message (Fig. 2)
will display during this period. After cooling the
DOOR lock icon will flash and disappear indicating
that the door has unlocked.
Press
1. Remove racks and
Press UPPER OVEN
2. Choose LITE, MED OR
HEAVY CLEAN
or
or
3. Press END TIME
4. Enter 800
5. Press START
Fig. 2
Fig. 1
IMPORTANT
NOTES
Example
• A self-clean cycle will not start if the appliance
has the CONTROL LOCK turned on.
• You may press CANCEL any time during the
cleaning process. After cancelling the selfclean cycle, do not attempt to open the oven
door until the DOOR lock icon turns off.
• If a self-clean cycle was started but did not
finish due to a power failure, your oven may
not be completely cleaned. After power has
been restored and the oven door has
unlocked, set for another self-clean if needed.
• If you desire to set a delayed self-clean
cycle to end in 12-24 hours, use theUSER
PREF key to set the 12hr energy saving mode
(ES) to OFF and also set the clock mode
(CLO) to 24 hr.
Example
Care and Cleaning
Cleaning Recommendations
Surface Type
Cleaning Recommendation
• Aluminum (trim pieces) & vinyl
Use hot, soapy water and a cloth. Dry with a
clean cloth.
• Painted and plastic control knobs
• Body parts
• Painted decorative trim
For general cleaning, use hot, soapy water and a
cloth. For more difficult soils and built-up grease,
apply a liquid detergent directly onto the soil.
Leave on soil for 30 to 60 minutes. Rinse with a
damp cloth and dry. Do not use abrasive
cleaners on any of these materials; they can
scratch. To remove control knobs, turn to the OFF
position; grasp firmly and pull straight off the
shaft. To replace knobs after cleaning, line up the
flat sides of both the knob and the shaft; then
push the knob into place.
• Chrome control panel(some models)
• Decorative trim (some models)
• Stainless steel(some models)
Before cleaning the control panel,turn all controls
to OFF and remove the control knobs. To remove,
pull each knob straight off the shaft. Clean using
hot, soapy water and a dishcloth. Rinse with a
clean water using a dishcloth. Be sure to squeeze
excess water from the cloth before wiping the
panel; especially when wiping around the
controls. Excess water in or around the controls
may cause damage to the appliance.To replace
knobs after cleaning, line up the flat sides of both
the knob and the shaft; then push the knob into
place.
Stainless steel (some models). Clean the stainless
with warm soapy water using a clean sponge or
cloth. Rinse with clean water and dry with a soft
clean cloth. Do not use harsh scrubbing cleaners.
Only use kitchen cleaners that are especially
made for cleaning Stainless Steel. Always be sure
to rinse the cleaners from the surface as bluish
stains may occur during heating that cannot be
removed.
• Porcelain enamel broiler pan and
insert (if equipped)
• Door liner & body parts
• For Warmer Oven cleaning
instructions see the Warmer
Oven section.
Gentle scouring with a soapy non-abrasive
scouring pad will remove most spots. Rinse with a
1:1 solution of clear water and ammonia.If
necessary, cover difficult spots with an ammoniasoaked paper towel for 30 to 40 minutes. Rinse
with clean water and a damp cloth, and then scrub
with a soap-filled non-abrasive scouring pad.
Rinse and wipe dry with a clean cloth. Remove all
cleaners or the porcelain may become damaged
during future heating. Do not use spray oven
cleaners on the cooktop.
45
46
Care and Cleaning
Cleaning Recommendations
Surface Type
Cleaning Recommendation
• Oven racks
Oven racks must be removed. Clean by using a
mild, abrasive cleaner following manufacturer's
instructions. Rinse with clean water and dry.
• Oven door
Use soap & water to thoroughly clean the top,
sides and front of the oven door. Rinse well. You
may use a glass cleaner on the outside glass of the
oven door. Do not immerse the door in water. Do
not spray or allow water or the glass cleaner to
enter the door vents. Do not use oven cleaners,
cleaning powders or any harsh abrasive cleaning
materials on the outside of the oven door.
Do not clean the oven door gasket. The oven door
gasket is made of a woven material, on SelfCleaning models, which is essential for a good
seal. Care should be taken not to rub, damage or
remove this gasket.
• Burner heads, caps, grates & the cooktop
See “Cleaning cooktop and parts” in the Care and
Cleaning section.
Cleaning cooktop and parts
• Do not remove any parts from the cooktop
until they have completely cooled and are safe
to handle.
• Any additions, changes or conversions
required in order for this appliance to
satisfactorily meet the application needs must
be made by an authorized qualified Agency.
IMPORTANT
The cooktop is designed to make cleaning easier.
Because the gas burners are sealed, cleanups are
easy when spillovers are cleaned up immediately.
Cooktop
If a spill occurs on or in the recessed or contoured
areas, blot up spill with an absorbent cloth. Rinse
with a clean, damp cloth and wipe dry. Do not use
harsh abrasive cleaners on the cooktop. They can
scratch the porcelain. Completely rinse any mild
cleaners used from the surface or the porcelain
cooktop may become damaged during future
heating.
• Do not use spray oven cleaners on the
cooktop.
Burner grates
• Before placing burner grates onto cooktop,
turn grates over to identify rear of grate and
place all the grates to the rear of the cooktop.
The burner grates are dishwasher safe and may be
cleaned in the dishwasher. Remove any excessive
soils before placing in the dishwasher.
• For proper gas flow and ignition of the
burners — DO NOT allow spills, food,
cleaning agents or any other material to
enter the gas orifice opening.
• The cooktop is not removable.Do not
attempt to remove or lift the cooktop.
Care and Cleaning
Cleaning cooktop and parts
Burner heads
• To avoid possible burns use care when
cleaning the cooktop. DO NOT attempt to
clean the cooktop whenever the cooktop or
burner heads are still hot.
• To avoid possible burns DO NOT attempt any
of the following cleaning instructions provided
before turning OFF all of the surface burners
and allow them to cool.
• To avoid possible burns DO NOT attempt to
operate the surface burners without the
burner caps.
Your range is shipped with the burner heads and
burner caps in the correct locations. Before using
your gas range be sure to:
• Follow installation instructions before operating.
• Remove all packing tape from cooktop area.
Lift the burner cap from the burner head. The
surface burner heads are secured to the cooktop
and must be cleaned in place.
For proper gas flow it may be necessary to clean the
burner heads and slots. To clean, first use a clean
DAMP cloth to soak up any spills. Remove any food
from between the burner slots using a small
nonabrasive brush like a toothbrush and afterwards
wipe up using a damp cloth. For stubborn soils
located in the slots, use a small-gauge wire or needle
to clean.
Should you experience ignition problems it may be
that an ignition port hole is partially blocked with soil.
(See Fig. 1) . With the burner head in place, use a
small wire gauge needle or the end of a paper clip to
clear the ignition port or ports.
slots
ignition port
Burner caps
Should you ever need to remove the burner caps
for cleaning lift the burner cap off the burner head.
Clean heavy soils with an absorbent cloth. Rinse
with a clean, damp cloth and immediately
thoroughly dry including the bottom and inside of
the cap. Do not use harsh abrasive cleaners. They
can scratch the porcelain on the cap. Do not clean
burner caps in dishwasher.
When placing the burner caps, see IMPORTANT
note below.
IMPORTANT
When placing the burner caps on the cooktop, be
sure the burner caps are seated firmly on top of
burner heads. Improper flame size and uneven
heating may result when any surface burners are
turned ON and the burner caps are not seated
correctly.
orifice port
Fig. 1 - Cooktop burner head
47
48
Care and Cleaning
The oven door with LuxuryHold™ hinges
Removing the Lift-Off oven door
To prevent possible burns, do not attempt to
remove the oven door until the oven has
completely cooled.
IMPORTANT
The oven door is heavy. Be careful when
removing and lifting the door. Do not lift the
oven door by the handle.
Fig. 1
1. Fully open the oven door-Fig. 1.
2. Unlock both oven door hinge locks by pulling
them up and away from the oven frame until
they stop (unlocked position) -Figs. 2. If
needed use a small flat-bladed screwdriver to
assist with loosening the door hinge locks.
3. Firmly grasp both sides of oven door-Fig. 3.
4. Before completing this step, be prepared to
hold the whole weight of the door while
grasping the sides of the oven door with both
hands. Hold midway down the oven door
sides. Close the oven door to about 4 inches
and continue closing beyond the door stop
position. The oven door should release from
the frame on its own-Fig. 3.
Fig. 2
5. Carefully lift door away evenly, slightly up and
out until both hinge arms are clear of the hinge
slots in the oven frame -Fig. 3. After door has
been removed, be sure to lay the door flat with
the inside of the door downward (never rest the
oven door with any weight on the door handle).
Fig. 3
Care and Cleaning
The oven door with LuxuryHold™ hinges
To replace the Lift-Off oven door
1. Firmly grasp the oven door along both sides
just below the door handle. When positioning
the door hinge arms with the door hinge slots in
the oven frame, you may wish to use your knee
to stabilize the door before attempting to insert
the door hinge arms in the hinge slots-Fig. 1.
2. Position the angle of the door to the door
removal angle and carefully insert the door
hinge arms fully and evenly into the door hinge
slots. Carefully let the weight of the door
transfer from your hands so that the oven now
supports the oven door.
Fig. 2
3. Open the oven door down to the fully open
position -Fig. 2.
4. With the door in the fully open position, push
both oven door hinge locks toward the oven
frame until they both are locked-Fig. 3.
5. Close the oven door.
Fig. 3
Fig. 1
49
50
Care and Cleaning
Special door care instructions
Changing upper oven lights
IMPORTANT
Most oven doors contain glass that can
break. Read the following recommendations:
•
•
•
•
•
•
Do not close the oven door until all the interior
oven racks are fully inserted and retracted to
the back of the oven.
• Be sure the range is unplugged and all parts
are COOL before replacing oven light. Wear a
leather-faced glove for protection against
possible broken glass or burns.
The upper oven light bulbs are located at the rear
of the oven cavity and both are covered with a
Do not hit the glass with pots, pans, or any
other object. The oven door glass may break or glass shield. The glass shield must be in place
whenever the oven is in use.
even break at a later time unexpectedly.
Replacing the upper oven interior light bulbs:
Scratching, hitting, jarring or stressing the oven
1. Turn electrical power off at the main source or
door glass may weaken its structure causing
unplug the range.
an increased risk of breakage at a later time.
2. Remove upper oven interior light shield as
You may use a glass cleaner on the outside of
illustrated below.
the oven door glass. Do not spray or allow
water or the cleaner to enter or drip down into 3. Replace bulb with a new T-4 type 40 Watt
Halogen appliance bulb. Please note: do not
the oven door vents. Spray cleaner on cloth
allow your fingers to touch the new bulb when
first and then wipe the oven door clean.
replacing. This will shorten the life of the new
Do not use strong oven cleaners, powders or
bulb. Use a paper towel to cover the new bulb
any harsh abrasive cleaning materials on the
when installing.
outside of the oven door or glass.
4. Replace glass shield over bulb.
Never clean the oven door gasket. The oven
5. Turn power back on again at the main source
door gasket should always clean during the
(or plug the range back in).
Self-clean cycle.
6. The clock will then need to be reset.
Care and Cleaning
Removing and replacing the
warmer oven drawer
Left-hand rail and release
Electrical Shock Hazard can occur and result in
serious injury or death. Disconnect appliance
from electric power before cleaning and servicing
the warmer oven.
To remove the warmer oven drawer:
1. Turn power OFF before removing the warmer
oven drawer.
2. Open the warmer oven drawer completely.
3. On left warmer oven drawer rail, locate black
release lever and press up with finger while
pulling out slightly on the oven drawer handle.
On right warmer oven drawer rail, locate black
release lever and press down with finger while
pulling out slightly on the warmer oven drawer
handle -Fig. 1.
4. The warmer oven drawer should now be
released from the rails. Remove warmer oven
drawer (using level & square motion)
completely away from the appliance.
To replace the warmer oven drawer:
1. Pull the bearing glides to the front of the outer
compartment glide channels until they snap
into place -Fig. 3.
2. Carefully line up both sides of the warmer oven
drawer glide rails to the outer compartment
glide channels located inside the empty
warmer oven compartment-Fig. 2.
3. While holding the warmer oven drawer level
and square using the warmer oven drawer
handle, push (DO NOT FORCE) the warmer
oven drawer all the way into the outer
compartment glide channels all the way into
the range. Pull the warmer oven drawer open
again to verify the glides have seated.
4. If you do not hear the levers “click” or the
bearing glides do not feel seated remove the
warmer oven drawer and repeat steps "1"
through "3". This will minimize possible
damage to the bearing glides.
Warmer
oven
drawer
handle
Right-hand rail and release
Fig. 1
Left-hand channel
Right-hand channel
Fig. 2
Fig. 3
51
52
Solutions to Common Problems
Before you call for service, review the following list. It may save you time & expense. The list includes
common occurrences that are not the result of defective workmanship or materials in this appliance.
Before you call
Problem
Solution
Appliance is not level
• Be sure floor is level, strong & stable enough to
adequately support appliance.
• If floor is sagging or sloping, contact a carpenter to
correct the situation.
• Poor installation. Place oven rack in center of oven.
Place a level on the oven rack. Adjust leveling legs at
base of appliance until the oven rack is level.
• Kitchen cabinet alignment may make appliance appear
not level. Be sure cabinets are square & have sufficient
room for appliance clearance.
Cannot move appliance easily.
Appliance must be accessible for
service
Surface burners do not light
• Cabinets not square or are built in too tightly. Contact
builder or installer to make appliance accessible.
• Carpet interferes with appliance. Provide sufficient
space so appliance can be lifted over carpet.
• Surface control knob has not been completely turned
to
(lite). Push in and turn the surface control knob to
lite until burner ignites and then turn control knob to
desired flame size.
• Burner ports are clogged. With the burners OFF, use a
small-gauge wire or needle to clean ports. See
“Cleaning cooktop and parts” in theCare and Cleaning
section for complete instructions.
• Appliance power cord is disconnected from outlet. Be
sure power cord is securely plugged into the electrical
outlet.
• Electrical power outage.
Surface burner flame burns half way
around.
• Burner ports are clogged. With the burner OFF, clean
ports by using a small-gauge wire or needle.
• Moisture is present after cleaning. Lightly fan the flame
and allow burner to operate until flame is full. Dry the
burners thoroughly and follow instructions under
“Cleaning cooktop and parts” in theCare and Cleaning
section.
Questions or for service call: 1-877-4ELECTR
OLUX (1-877-435-3287)
Solutions to Common Problems
Before you call
Problem
Solution
Surface burner flame is orange.
• Dust particles in main line. Allow the burner to operate a
few minutes until flame turns blue
• In coastal areas, a slightly orange flame is unavoidable
due to salt air.
Oven does not operate
• Be sure the oven controls are set properly for the desired
function. See Setting Oven Controls in this Use & Care
Guide or read the instructions “Entire appliance does not
operate” in this checklist.
Entire appliance does not operate
• The time of day is not set. The time of day must first be
set in order to operate the oven. See “Setting the clock
at power up” in the Getting Started section.
• Be sure power cord is plugged correctly into electrical
outlet.
• Service wiring is not complete. Contact your dealer,
installing agent or authorized service agent.
• Electrical power outage. Call your local electric company
for service.
Oven light does not work
• Replace or tighten bulb. See“Changing upper oven
lights” section in this Use & Care Guide.
Poor baking results
• Many factors affect baking results. Make sure the proper
oven rack position is used. Center food in the oven &
space pans to allow air to circulate. Allow the oven to
preheat to the set temperature before placing food in the
oven. Try adjusting the recipe's recommended
temperature or baking time. If you feel the oven is too hot
or cool, see “Adjusting Your Oven Temperature” in the
Setting Your Preferences section of this Use & Care
Guide.
Questions or for service call: 1-877-4ELECTR
OLUX (1-877-435-3287)
53
54
Solutions to Common Problems
Before you call
Problem
Solution
Oven smokes excessively during
broiling
• Control not set properly. Follow broiling instructions under
Setting Oven Controls.
• Make sure oven door is closed when broiling.
• Meat too close to the broil burner. Reposition the broil
rack to provide proper clearance between the meat & the
element. Preheat the broil burner for searing.
• Meat not properly prepared. Remove excess fat from
meat. Cut remaining fatty edges to prevent curling, but
do not cut into lean.
• Insert on broiler pan wrong side up & grease not draining.
Always place grid on the broiler pan with ribs up & slots
down to allow grease to drip into pan (some models).
• Grease has built up on oven surfaces. Regular cleaning is
necessary when broiling frequently. Old grease or food
spatters cause excessive smoking.
Flames inside oven or
smoking from oven vent
Oven control panel beeps &
displays any F code error (for
example F10, F11, F13, F14,
F15, F20, F23, F25, F30, F31
or F90)
• Excessive spillovers in oven. For example this will
happen for pie spillovers or large amounts of grease left
on the oven bottom. Wipe up excessive spillovers before
starting oven. If flames or excessive smoke are present
see “About broiling” in theSetting Oven Controls
section.
• Oven control has detected a fault or error condition.
Press CANCEL to clear the display & stop beeping.
Try the bake or broil feature again. If the F code error
repeats, remove power supply to appliance, wait 5
minutes and then repower the appliance and set clock
for the time of day. Try the bake or broil feature again.
If the fault recurs, record fault and call for service.
Questions or for service call: 1-877-4ELECTR
OLUX (1-877-435-3287)
Major Appliance Warranty Information
Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will
repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is
installed, used, and maintained in accordance with the provided instructions. In addition, the glass cooktop or radiant surface
element of your appliance (excluding built-in and free-standing range appliances) is covered by a two through five year
limited warranty. During the 2nd through 5th years from your original date of purchase, Electrolux will provide a replacement
glass cooktop or radiant surface element for your appliance which has proven to be defective in materials or workmanship
when such appliance is installed, used, and maintained in accordance with the provided instructions.
Exclusions
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
This warranty does not cover the following:
Products with original serial numbers that have been removed, altered or cannot be readily determined.
Product that has been transferred from its original owner to another party or removed outside the USA or Canada.
Rust on the interior or exterior of the unit.
Products purchased “as-is” are not covered by this warranty.
Products used in a commercial setting.
Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in
ordinary household use or used other than in accordance with the provided instructions.
Service calls to correct the installation of your appliance or to instruct you how to use your appliance.
Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc.,
which are not a part of the appliance when it is shipped om
fr the factory.
Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs,
handles, or other cosmetic parts.
Labor or in-home service costs during the additional limited warranty periods beyond the first year from your
original date of purchase.
Pickup and delivery costs; your appliance is designed to be repaired in the home.
Surcharges including, but not limited to, any after hour
, weekend, or holiday service calls, tolls, ferry trip char
ges, or
mileage expense for service calls to remote areas, including the state of Alaska.
Damages to the finish of appliance or home incurred during transportation or installation, including but not limited to
floors, cabinets, walls, etc.
Damages caused by: services performed by unauthorized service companies; use of parts other than genuine
Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such
as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.
DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES
CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED W
ARRANTY SHALL BE REPAIR OR REPLACEMENT AS PROVIDED HEREIN.CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHOR
TEST
PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR.ELECTROLUX SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM
ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND PROVINCES
DO NOT ALLOW THE EXCLUSION OR LIMIT
ATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, OR LIMITATIONS ON
THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY TO YOU. THIS
WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MA
Y ALSO HAVE OTHER RIGHTS THAT VARY FROM
STATE TO STATE.
If You Need Service
Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be
required. If service is performed, it is in your best interest to obtain and keep all receipts. Service under this warranty must be
obtained by contacting Electrolux at the addresses or phone numbers below.
This warranty only applies in the USA, Puerto Rico and Canada. In the USA and Puerto Rico, your appliance is warranted by
Electrolux Major Appliances North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty.
Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company.
Product features or specifications as described or illustrated are subject to change without notice.
USA
1-877-435-3287
Electrolux Major Appliances North America
P.O. Box 212378
Augusta, GA 30907
Canada
1-800-265-8352
Electrolux Canada Corp.
5855 Terry Fox Way
Mississauga, Ontario, Canada L5V 3E4
55
