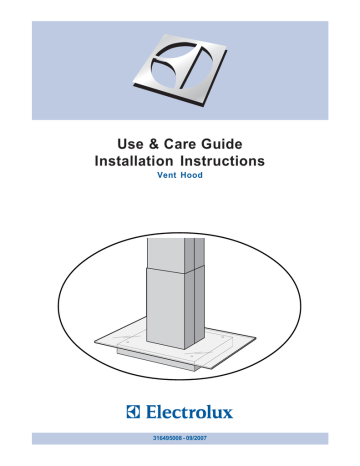

Use & Care Guide

Installation Instructions

Vent Hood

316495008 - 09/2007

2

Finding Information

Please read and save this guide

Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Keep a record for quick reference

Purchase date

Electrolux model number

Electrolux serial number (see picture for location)

NOTE

Registering your product with Electrolux enhances our ability to serve you. You can register online at

www.electroluxusa.com or by dropping your

Product Registration Card in the mail.

Questions?

For toll-free telephone support in the U.S. and Canada:

1-877-4ELECTROLUX (1-877-435-3287)

For online support and Internet product information visit http://www.electroluxusa.com

Table of contents

Finding information ................................................ 2

SAFETY .............................................................. 3

Verify package contents............................................5

Installation ........................................................... 6

• Install the ductwork .............................................................. 6

• Install support system..........................................................7

• Prepare the hood .................................................................. 8

• Connect decorative flue ........................................................ 9

• Install the hood ..................................................................... 9

• Connect ductwork ............................................................... 10

• Install filters.......................................................................10

Maintenance ....................................................... 11

• Grease filters ....................................................................... 11

• Non-Ducted recirculation filters .......................................... 11

• Hood cleaning .................................................................... 11

Operation ........................................................... 12

• Controls.............................................................................12

• Halogen bulbs....................................................................13

• Fuse replacement...............................................................13

Wiring................................................................14

Warranty information..............................................15

©2007 Electrolux Home Products, Inc.

All rights reserved. Printed in Italy

Safety

Important Safety Instructions

Read all instructions before using this appliance.

Save these instructions for future reference.

Do not attempt to install or operate your appliance until you have read the safety precautions in this manual. Safety items throughout this manual are labeled with a

WARNING or CAUTION based on the risk type.

This symbol alerts you to situations that may cause serious body harm, death or property damage.

This symbol alerts you to situations that may cause bodily injury or property damage.

INTENDED FOR DOMESTIC COOKING

ONLY

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR INJURY TO PERSONS, OBSERVE THE

FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer at the address or telephone number listed in the warranty.

2. Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.

3. Installation work and electrical wiring must be done by a qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction codes and standards.

4. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent backdrafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

5. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

6. Ducted fans must always be vented to the outdoors.

7. Do not use this unit with any separate solid-state speed control device.

8. To reduce the risk of fire, use only metal ductwork.

9. This unit must be grounded.

TO REDUCE THE RISK OF A RANGE TOP GREASE

FIRE:

A. Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.

B. Always turn hood ON when cooking at high heat or when flambeing food (i.e. Crepes Suzette, Cherries

Jubilee, Peppercorn Beef Flambe’).

C. Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan or filter.

D. Use proper pan size. Always use cookware appropriate for the size of the surface element.

3

4

Safety

TO REDUCE THE RISK OF INJURY TO PERSONS

IN THE EVENT OF A RANGE TOP GREASE FIRE,

OBSERVE THE FOLLOWING:*

6. Your hood motor has a thermal overload which will automatically shut off the motor if it becomes overheated. The motor will restart when it cools down.

If the motor continues to shut off and restart, have the hood serviced.

1. SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off the burner. BE

CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL

THE FIRE DEPARTMENT.

7. For best capture of cooking impurities, the bottom of the hood should be a minimum of 24" and a maximum of 30" above the cooking surface.

8. Two installers are recommended because of the large size and weight of this hood.

2. NEVER PICK UP A FLAMING PAN - You may be burned.

3. DO NOT USE WATER, including wet dishcloths or towels - violent steam explosion will result.

9. This product is equipped with a thermostat which may start blower automatically. To reduce the risk of injury and to prevent power from being switched on accidentally, switch power off at service panel and lock or tag service panel.

4. Use an extinguisher ONLY if:

A. You know you have a Class ABC extinguisher and you already know how to operate it.

B. The fire is small and contained in the area where it started.

C. The fire department is being called.

D. You can fight the fire with your back to an exit.

* Based on “Kitchen Fire Safety Tips” published by NFPA.

10. Please read specification label on product for further information and requirements.

AUTOMATICALLY OPERATED DEVICE.

TO REDUCE THE RISK OF INJURY, DISCONNECT

FROM POWER SUPPLY BEFORE SERVICING.

THE UNIT IS EQUIPPED WITH AN INTEGRAL

DISCONNECTING SWITCH LOCATED INSIDE THE

BLOWER HOUSING.

INTEGRAL DISCONNECTING SWITCH

1. To reduce risk of fire and to properly exhaust air, be sure to duct air outside. Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.

2. Take care when using cleaning agents or detergents.

3. Avoid using food products that produce flames under the Range Hood.

4. For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.

5. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

Unpack hood and check contents.

You should receive:

1 - Hood

1 - Decorative Flue Assembly

1 - Support Frame

1 - Parts Bag containing:

1 - Support Frame Bracket

1 - Discharge Collar

4 - Mounting Screws (6 x 70)

16 - Mounting Screws (3,9 x 9,5mm Pan Head)

4 - Washers D.6.4mm

6 - Serrated Washers

1 - Wiring Box Cover

1 - Wire Clamp

1 - Installation Instructions

1 - Warranty Card

Verify package contents

5

WIRE

CLAMP

WIRING BOX

COVER

DECORATIVE

FLUE

SUPPORT

FRAME

4 WASHERS

D.6.4mm

6 SERRATED

WASHERS

4 MOUNTING

SCREWS (6 x

70mm)

DISCHARGE

COLLAR

SUPPORT FRAME

BRACKET

16 MOUNTING SCREWS

(3.9 x 9.5mm Pan Head)

6

Installation

Install the ductwork

To reduce the risk of fire, use only metal ductwork.

ROOF CAP

ROUND

DUCT

1. Decide where the ductwork will run between the hood and the outside.

2. A straight, short duct run will allow the hood to perform most efficiently.

3. Long duct runs, elbows, and transitions will reduce the performance of the hood. Use as few of them as possible. Larger ducting may be required for best performance with longer duct runs.

4. Install a roof or wall cap. Connect round metal ductwork to cap and work back towards hood location. Use duct tape to seal the joints between ductwork sections.

5. Never make the size or area of the ductwork smaller than the size that originates at the hood.

6. Bigger ductwork is better.

7. Keep duct lenght less than 50 linear feet.

8. Minimize use of elbows and transitions (4 or less).

9. Always separate 90 degree elbows with at least 2 feet of straight ductwork.

10. Place transitions at least 1 foot from the hood outlet.

D E C O R A -

T I V E

F L U E

ROUND

ELBOW

6” ADAPTER

24” TO 30” ABOVE

COOKING SURFACE

HOOD

EAVE

VENT

Installation

Install support system

1. At hood location, install 2 X 4 cross framing between

ceiling joists using dimensions shown.

2. Finish the ceiling surface. Be sure to mark the location of the ceiling joists and cross framing.

3. Secure the support frame bracket to joists and cross framing with four screws provided (6x70mm) and four washers (D. 6.4mm). Make sure screws are driven into center of joists and framing for maximum strength.

4. Fix the support frame to the support frame bracket with (4) 3.9x9.5mm mounting screws. Fig. 2.

5. Adjust the overall height of the support frame. Loosen and re-tighten the 4 screws in the height adjustment

slots as necessary.

FRONT

5 15 /

16

DRYWALL

CROSS FRAMING

CEILING JOISTS

WASHERS (Ø6.4mm)

MOUNTING SCREWS

(6x70mm)

FIG. 1

MOUNTING SCREWS

(3.9x9.5mm)

7

HEIGHT

ADJUSTMENT

SLOTS

FRONT

SUPPORT

FRAME

FIG. 2

TOP VIEW OF SUPPORT FRAME

5 15 /

16

5 15 /

16

8

Installation

Prepare the hood

NOTE

On stainless steel hoods, carefully remove the plastic protective film from all exterior surfaces of the hood and decorative flues, prior to final installation.

Fix the electrical mounting plate with (2) 3.9x9.5mm

screws and (2) serrated washers. Fig. 3.

ELECTRICAL MOUNTING

PLATE

MOUNTING

SCREWS

(3.9x9.5mm)

recirculation plenum. Fig.6.

4. Mount the 6”/5” adapter above hood. Fig. 7.

NON-DUCTED

RECIRCULATION PLENUM

FRONT

FIG. 5

FIG. 3

DUCTED CONFIGURATION

Mount the discharge collar above the hood. Fig. 4.

DISCHARGE

COLLAR

5” DUCT

DUCT

CONNECTOR

6”/5”

ADAPTER

FIG. 6

FIG. 4

NON- DUCTED CONFIGURATION

NOTE

Purchase a Non-ducted recirculation KIT from your dealer (Model DFKTPC40EC).

1. Insert the non-ducted recirculation plenum through the support frame openings. Fig. 5.

2. Through the support frame openings fit the duct connector to the plenum locking it with a turning movement. Fig. 6.

3. Fix a 5” duct to the duct connector of the non-ducted

FIG. 7

Installation

Connect decorative flue Install the hood

1. Secure the upper flue to the upper support frame with the mounting screws (3.9x9.5mm). Fig. 8.

2. Insert the lower flue moving it completely towards the top and fix it temporarily with a tape. Fig. 9.

MOUNTING SCREWS

(3.9x9.5mm)

NOTE

At least three people will be required to mount the hood.

Fix the hood to the support frame with (6) 3.9x9.5mm

mounting screws and (2) serrated washers (Fig. 10).

MOUNTING SCREWS

(3.9x9.5mm)

SERRATED

WASHERS

UPPER

FLUE

9

FIG. 8

REAR

FIG.10

LOWER

FLUE

TAPE

FIG. 9

ROOMS WITH 10-FOOT CEILINGS

Rooms with 10-foot ceilings require flue extension model EXPC75GS, available from your local dealer.

Discard the flue supplied with the product. Replace it with the flue extension EXPC75GS.

Continue with the instructions above (points 1 and 2).

10

Installation

Connect ductwork Install filters

(DUCTED HOODS ONLY)

1. Use 6" round metal duct to connect the discharge collar on the hood to the ductwork above (Fig. 11).

2. Use duct tape to make all joints secure and air tight.

3. Remove the tape from the lower flue and set it in place on the hood (Fig. 11).

(DUCTED AND NON-DUCTED HOODS)

1. To remove the GREASE filters, pull the metal latch tab outside and unlock the filter.

2. To install the GREASE filters, align rear filter tabs with slots in the hood. Depress the metal latch tab, push filter into position and release. Make sure filter is securely engaged after installation.

TAPE

NOTE

Prior to use, remove protective film from the filter frame.

6” ROUND METAL

DUCT

FIG.11

(NON-DUCTED HOODS ONLY)

1. To remove the CHARCOAL filter, push in on the front filter latch. Pull the filter down to disengage the rear filter tabs.

2. To install the CHARCOAL filter, align the rear filter tabs with slots in the hood. Push the filter up into place until the front latch snaps securely into the slot. Make sure the filter is securely engaged after assembly.

3. Install GREASE filters after charcoal filter is installed.

GREASE FILTERS

LATCH

TABS

NON-DUCTED

RECIRCULATION

FILTER

Maintenance

Proper maintenance of the Range Hood will assure proper performance of the unit.

Grease filters

Hood cleaning

The grease filters should be cleaned when the filter reset switch will be illuminated.

Use a warm detergent solution. Grease filters are dishwasher safe.

Stainless steel is one of the easiest materials to keep clean. Occasional care will help preserve its fine appearance.

See “INSTALL FILTERS” section for removal and installation instructions.

Once the grease filters are cleaned and installed, press in and hold the “filter reset switch” for approximately 3 seconds.

Non-Ducted Recirculation filters

The non-ducted recirculation filter should be changed when the filter reset switch will be illuminated and blink.

See “INSTALL FILTERS” section for removal and installation instructions.

Once the new charcoal filter is installed, press in and hold the “filter reset switch” for approximately 3 seconds.

Cleaning tips:

O

Hot water with soap or detergent is all that is usually needed.

O

Follow all cleaning by rinsing with clear water. Wipe dry with a clean, soft cloth to avoid water marks.

O

For discolorations or deposits that persist, use a non-scratching household cleanser or stainless steel polishing powder with a little water and a soft cloth.

O

For stubborn cases, use a plastic scouring pad or soft bristle brush together with cleanser and water.

Rub lightly in direction of polishing lines or "grain" of the stainless finish. Avoid using too much pressure which may mar the surface.

O

DO NOT allow deposits to remain for long periods of time.

O

DO NOT use ordinary steel wool or steel brushes.

Small bits of steel may adhere to the surface causing rust.

O

DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact with stainless steel for extended periods.

Many of these compounds contain chemicals which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth.

Painted surfaces should be cleaned with warm water and mild detergent only.

11

12

Controls

Operation

light switch filter reset switch fan on/off switches fan speed switches delay shut off display

Dead-front mode

Push this switch once to turn the timer Off.

Stand-by mode

Fan on/off switch

Push this fan switch to turn OFF the fan.

The hood turns in the stand-by mode.

Filter reset switch

When the filter switch is illuminated, it is necessary to clean the GREASE FILTERS. Once the grease filters are cleaned and installed, press in and hold the “filter reset switch” for approximately 3 seconds.

When the filter switch is illuminated and blink, it is necessary to replace the CHARCOAL FILTER. Once the new charcoal filter is installed, press in and hold the “filter reset switch” for approximately 3 seconds.

In dead-front mode, press any key for enter in standby mode.

If the hood is in stand-by mode, after 10 seconds on return automatically in dead-front mode.

Light switch

Press any key for enter in stand-by mode.

Push the light switch once to turn the lights ON to a dim level.

Push a second time to turn the lights ON to a brighter level.

Push a third time to turn the lights OFF (stand-by mode).

Heat Sentry

Your hood is equipped with a HEAT SENTRY™ thermostat. This thermostat is a device that will turn on or speed up the blower if it senses excessive heat above the cooking surface.

1) If blower is OFF - it turns blower ON to HIGH speed.

2) If blower is ON at a lower speed setting - it turns blower up to HIGH speed.

When the Heat Sentry is active, the word “HS” appears in the display and the tone alarm is active. To disarm the tone alarm, press the 4 fan speed switch.

When the temperature level drops to normal, the blower will return to its original setting.

Fan speed switches

Press any key for enter in stand-by mode.

The fan speed switches turns the fan on.

1 : fan ON at low speed

2 : fan ON at medium-low speed

3 : fan ON at medium-high speed

4 : fan ON at high speed

IMPORTANT

The HEAT SENTRY thermostat can start the blower even if the hood is turned OFF. When this occurs, it is impossible to turn the blower

OFF with its switch. If you must stop the blower, do it from the integral disconnecting switch located inside the blower housing.

Heat Sentry active

Delay shut off switch

Pressing this switch when is active any speed, sets a timer which keeps the fan operating at this speed for

10 minutes (the number “10” appears in the display).

After 10 minutes, the hood turns in the stand-by mode.

Operation

Halogen bulbs Fuse replacement

This range hood requires four halogen bulbs (max 20W,

12V, Type T3 bulb, G4 Base).

Halogen Bulb Key : 5304454951

SWITCH OFF THE ELECTRICITY SUPPLY.

ALWAYS SWITCH OFF THE ELECTRICITY SUPPLY

BEFORE CARRYING OUT ANY OPERATIONS ON THE

APPLIANCE.

To change bulbs:

1. Open the cover by prying from the proper slots. - DO

NOT ROTATE. CAUTION: BULB MAY BE HOT!

3. Replace with a max 20W, 12V, Type T3 bulb, G4 Base bulb. Do not touch replacement bulb with bare hands! If the bulb is touched with the bare hand, it should be cleaned with a lint-free cloth moistened with methylated spirit.

Remove the grease filters.

Open the fuse box.

Replace with the same type of fuse (5x20mm, 4A, 125V).

Fuse Key : 5304455332

13

FUSE

FUSE BOX

14

Wiring

This range hood must be properly grounded.

Improper grounding can result in a risk of electric shock.

The unit should be installed by a qualified electrician in accordance with all applicable national and local electrical codes.

Turn off electrical power at service entrance before wiring.

1. Remove the (2) screws of the upper flue and move the upper flue towards the bottom.

2. Feed 6” of power cable through the top opening of the support frame bracket (installed on ceiling) and into the wiring box. For the Non-Ducted Hoods, do not use the upper hole of the wiring box.

Secure cable to the wiring box using an appropriate connector.

3. Feed the range hoods power cable through the lower hole of the wiring box (use a wire clamp located in the

Hardware Package.

4. Make electrical connections. Wire white-to-white, black-to-black and green-to-green.

5. Push all wiring inside the wiring box. Install the wiring box cover with (2) 3.9x9.5mm screws and (2) serrated washers making sure wires are not pinched.

6. Tuck excess power cable inside the flue.

7. Reinstall the upper flue.

LINE IN 120 VOLTS - 60 HZ

WIRING BOX

COVER

BLK-BLK

WHT-WHT

GRN-GRN

WIRE CLAMP

Warranty Information

In the U.S.A., your appliance is warranted by Electrolux Home Products North America, a division of White Consolidated Industries,

Inc. We authorize no person to change or add to any of our obligations under this warranty. Our obligations for service and parts under this warranty must be performed by us or authorized Electrolux Home Products North America servicer. In Canada, our appliance is warranted by Electrolux Canada Corp.

FULL ONE-YEAR

WARRANTY

LIMITED

WARRANTY

(Applicable to the State of Alaska)

WARRANTY

PERIOD

One year from original purchase date

Time periods listed above

THROUGH OUR AUTHORIZED SERVICERS,

WE WILL:

Pay all costs for repairing or replacing any parts of this appliance which prove to be defective in materials or workmanship.

All of the provisions of the full and limited warranties above and the exclusions listed below apply.

THE CONSUMER WILL BE

RESPONSIBLE FOR:

Costs of service calls that are listed under NORMAL RESPONSIBILITIES OF

THE CONSUMER.*

Costs of the technician’s travel to the home and any costs for pick up and delivery of the appliance required because of service.

*NORMAL

RESPONSIBILITIES

OF THE CONSUMER

This warranty applies only to products in ordinary household use and the consumer is responsible for the items listed below.

1. Proper use of the appliance in accordance with instructions provided with the product.

2. Proper installation by an authorized servicer in accordance with instructions provided with the appliance and in accordance with all local plumbing, electrical and/or gas codes.

3. Proper connection to grounded power supply of sufficient voltage, replacement of blown fuses, repair of loose connections or defects in house wiring.

4. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it was shipped from the factory.

5. Damages to finish after installation.

6. Replacement of light bulbs and/or fluorescent tubes (on models with these features).

EXCLUSIONS

This warranty does not cover the following:

1. CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY AND INCIDENTAL EXPENSES

RESULTING FROM ANY BREACH OF THIS WRITTEN OR ANY IMPLIED WARRANTY.

NOTE: Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation or exclusion may not apply to you.

2. Service calls which do not involve malfunction or defects in workmanship or material, or for appliances not in ordinary household use. The consumer shall pay for such service calls.

3. Damages caused by services performed by servicers other than Electrolux Home Products North

America or its authorized servicers; use of parts other than genuine Electrolux Home Products parts; obtained from persons other that such servicers; or external causes such as abuse, misuse, inadequate power supply or acts of God.

4. Products with original serial numbers that have been removed or altered and cannot be readily determined.

IF YOU NEED

SERVICE

Keep your bill of sale, delivery slip, or some other appropriate payment record. The date on the bill establishes the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts. This written warranty gives you specific legal rights. You may also have other rights that vary from state to state. Service under this warranty must be obtained by contacting

Electrolux Home Products.

This warranty only applies in the 50 states of the U.S.A., Puerto Rico and Canada. Product features or specifications as described or illustrated are subject to change without notice. All warranties are made by Electrolux Home Products North America, a division of

White Consolidation Industries, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp.

USA

1-800-944-9044

Electrolux Home Products

North America

P.O. Box 212378

Augusta, GA 30917

Canada

1-866-294-9911

Electrolux Home Products

North America

802, boul. L’Ange-Gardien

L’Assomption, Quebec J5W 1T6

15

04307839/2S

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
