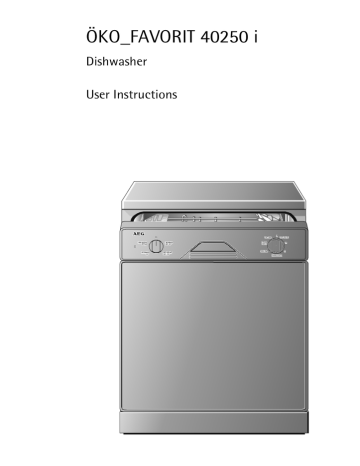

ÖKO_FAVORIT 40250 i
Dishwasher
User Instructions
Dear customer,
Please read these user instructions carefully.
Please observe the safety instructions on the first few pages ofthese
user instructions! Please keep these user instructions for later reference.
Pass them on to any subsequent owner of the appliance.
1
0
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step by step
through the operation of the appliance.
3
Next to this symbol you receive additional information and practical
tips on using the appliance.
2
Tips and instructions for the economical and environmentally conscious
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your AEG Service
Force Centre.
In this respect please read the chapter "Service & Spare Parts".
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
2
Contents
CONTENTS
Operating Instructions
....................................
5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . .
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
9
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
10
11
12
13
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery and Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . .
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . .
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bio Wash Programmes and Concentrated Detergents . . . . . . . . . . . . . .
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . .
Starting the Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing/Interrupting the Wash Programme . . . . . . . . . . . . . . . . . . . .
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14
14
15
16
17
18
19
20
21
21
22
22
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
...there are problems with the operation of the dishwasher. . . . . . . . . . . . 24
...the wash result is unsatisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
3
Contents
4
Installation and Connection Instructions . . . . . . . . . . . . . . . .
28
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-In Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28
29
29
29
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
31
31
31
32
33
34
35
Guarantee Conditions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Service & Spare parts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Operating Instructions
OPERATING INSTRUCTIONS
1
Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage,
please contact your retailer.
• Before installing the appliance, ensure that the nominal voltage and
type of supply on the rating plate match that of the supply where the
appliance is to be installed. The fuse rating is also to be found on the
rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Adaptors / connectors
and extension cables must not be used.
Child Safety
• This appliance is designed to be oprated by adults. Children should
not be allowed to tamper with the controls or play with the product.
• Keep all packaging away from children.
• Keep all detergents in a safe place out of children’s reach.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of an old appliance, cut off the power supply cable
and remove any door catches, to prevent young children being
trapped inside.
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact your local
AEG Service Force Centre.
5
Operating Instructions
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG Service Force) must be replaced by a
service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Long bladed knives stored in an upright position are a potential hazard.
• Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
• When finished loading or unloading, close the door as an open door
can be a hazard.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Only use detergents specifically designed for use in domestic dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
• Do not sit or stand on the open door, the appliance may tip over.
6
Operating Instructions
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: remove the fuse.
2
Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of Old Appliances
When disposing of old appliances, remove the plug and ensure that any
locks or catches are removed to prevent young children becoming
trapped inside.
Use an authorised disposal site.
2
Economical and Ecological Dishwashing
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the detergent manufacturer.
7
Operating Instructions
Appliance Features and Control Panel
Rubber Seal for
Connecting the
Water Feed to the
Upper Spray Arm
Spray Arms
Water Hardness Switch
Container for
Salt
Container
for Rinse Aid
Container for
Detergent
Rating Plate
8
Filters
Operating Instructions
Control Panel
Power Indicator light
Door Handle
Program Selector
Programme Switch
Set the point at which the wash programme is to start using the programme switch. The programme switch rotates during the wash programme and indicates the position that has been reached in the
programme.
Switch on the dishwasher and start a wash programme using the programme selector.
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Fill with Salt for the Water Softener
3. Fill with Rinse Aid
9
Operating Instructions
Adjust the Water Softener
To prevent the build up of scale on dishes and in the dishwasher, the
dishes must be washed with soft, i.e. low lime content water. For this
reason the dishwasher is fitted with a water softener in which tap
water from a hardness of 4 °d (German degrees) is softened with the
aid of special salt.
3
Your local water authority can advise you on the hardness of the water
in your area.
The water softener has 4 settings.
Water Hardness
in °d1)
in ppm
2)
Turn the arrow on the
water hardness switch to number
29-50
22-28
510 - 900
390 - 500
4
3
15-21
260 - 380
2*
4-14
70 - 250
1
under 4
under 70
1
no salt necessary
1)(°d) German degree, measure of water hardness
2)(ppm) Parts Per Million (CaCO3)
*factory setting
0
10
Adjust the water softener in accordance with the table to suit your area:
1. Open the door on the dishwasher.
2. Remove the lower rack from the
dishwasher.
3. Adjust the water hardness switch
with, e.g. a coin.
4. Replace the lower rack and close the
door of the dishwasher.
Operating Instructions
Filling with Salt for the Water Softener
1
Use only salt designed for dishwashers. Never fill the salt container
with any another type of salt (e.g. culinary salt) or dishwasher detergent, as this would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of dishwasher salt in your hand.
Fill with dishwasher salt:
– Prior to using the dishwasher for the first time
– If a green mark can be seen under the lid of the salt container, then
there is sufficient salt. If the green mark cannot be seen, you must
refill the container with salt.
If the water hardness in your area is less than 4 °d, you do not need to
use dishwasher salt. The green mark will then not be visible. The function of the appliance is not impaired.
0 1. Open the door, remove the lower
rack.
LE
SA ALT Z
2. Undo the lid on the salt container by
S AL
S EL
turning it anticlockwise.
S
3. When using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the container opening.
Fill the container with salt through
the funnel; the capacity of the container is approx. 1.0-1.5 kg depending on the grain size. Do not overfill
the salt container with salt.
3
3
The water expelled by filling the salt container with special salt runs
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise dishwasher salt will leak
into the wash water. Dull glasses may result.
3
Depending on the size of the salt grains, it can take several hours for
the salt to dissolve in the water and the green mark to become visible
again. The setting of the water softener and thus the consumption of
salt are dependent on the hardness of the local water.
11
Operating Instructions
Filling with Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying.
1
Only use rinse aid specifically designed for domestic dishwashers. Never
fill the rinse aid container with any other substance as this would damage the appliance.
12
ax
6 5 4
1
32
3. Fill with rinse aid, up to the broken
line as a maximum; this line corresponds to a quantity of approx.
150 ml
4. Replace the lid and tighten by turning clockwise.
5. If rinse aid has been spilt, wipe up
with a cloth. Otherwise there will be
too much foam during washing.
m
Fill with rinse aid:
– Prior to using the dishwasher for the first time
– Then the window indicator has a dark centre surrounded by a light
ring. If there is sufficient rinse aid in the container, the indicator window is completely dark.
The rinse aid container is on the inside of the dishwasher door.
0 1. Open the door
2. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
Operating Instructions
Adjusting Rinse Aid Dosing
The dose should be adjusted according to the finish and drying results
obtained. The dose is factory set at 4, and can adjusted from 1 to 6.
Gradually increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce if it there are sticky whitish streaks on
the dishes.
0 1. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
2. Adjust the dose setting with a tea
spoon.
3. Replace the lid and tighten by turning clockwise.
4. If rinse aid has run out, wipe up with
a cloth.
3
13
Operating Instructions
In Daily Use
• Check the salt and rinse aid levels.
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
Loading Cutlery and Dishes
1
Sponges, household cloths and any object that can absorb water should
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with glued parts that
is not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
are of limited suitability:
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove all scraps of food.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
14
Operating Instructions
– To avoid damage to glasses, they must not touch
– Do not lay small objects (e.g. lids) in the cutlery rack
Loading Cutlery
1
Long bladed knives stored in an
upright position are a potential hazard.
1
Long and/or sharp items of cutlery
such as carving knives must be positioned horizontally in the upper basket.
Take care when loading or unloading
sharp items such as knives.
To ensure that all items of cutlery are
completely washed, you should
1. Place the grid insert on the cutlery
rack
2. Place short knives, forks and spoons
in the grid insert with their handles
pointing downwards.
1
15
Operating Instructions
Loading Pans, Frying Pans
and Large Plates
Load large and heavily soiled dishes
in the lower rack.
To ease the loading of large items at
some dishwasher-models the two
rows of prongs for the right-hand
plate insert can be folded down:
0 1. Slightly lift the right plate insert.
3
2. Fold the plate insert to the left.
16
Operating Instructions
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper rack.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper rack.
17
Operating Instructions
Filling with Detergent
1
Use only dishwasher detergent.
Fill with Detergent:
– Prior to the start of a wash programme (not for the Pre Wash programme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer’s dosing and storage recommendations given on the detergent packaging.
The detergent dispenser is on the
inside of the door.
0 1. If the lid is closed: Press the latching
lever (1) forwards. The lid springs
open.
2
2
1
2. Fill the detergent dispenser with
detergent. The markings are an aid to
correct dosing:
"MIN" corresponds to approx. 30 ml
detergent,
"MAX" corresponds to approx. 40 ml
detergent.
3. Close the lid, press it down until the
latch engages.
3
18
In the case of heavily soiled dishes,
add additional detergent in the cavity in the lid (2). This detergent is
effective during the pre wash.
X:
MA
N:
MI
Operating Instructions
Bio Wash Programmes and Concentrated Detergents
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– Conventional, alkaline detergents with caustic components
– Weak alkaline concentrated detergents with natural enzymes.
2
The use of BIO wash programmes in conjunction with concentrated
detergents reduces pollution and is good for your dishes; the BIO wash
programmes are specially matched to the soil dissolving properties of
the enzymes in the concentrated detergent. It is for this reason that
BIO wash programmes can achieve the same results at 50 °C that can
otherwise only be achieved using 65 °C programmes.
3
Detergent tablets from different manufacturers dissolve at different
rates. For this reason some detergent tablets cannot develop their full
cleaning power during short programmes. Therefore please use normal
programmes with pre wash when using detergent tablets.
Detergent Recommendations
For best results we recommend the use of Finish detergent, rinse aid
and salt.
19
Operating Instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of Dishes
Dinner Service and Cooking Utensils
In Addition
Type of Soiling
• heavily
soiled
• dried
leftovers
with non-temperature resistant dishes
• normally
soiled
Dessert Dishes
and Coffee
Service
All
Dish Types
with
delicate glasses
-
• lightly
soiled
particularly suited
to the use of concentrated detergents.
NORMAL
NORMAL BIO
ECON. BIO
PRE WASH
Turn programme
switch to
B
B
C
A
Turn programme
selector to
NORMAL
65°
NORMAL
BIO 50°
Suitable
Wash Programme:
Programme Sequence 1) Pre wash
Main Wash
Rinsing
Final Rinse
Drying
Consumption Figures: 1)
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
ECONOMY
BIO 50°
Main Wash
Rinsing
Final Rinse
Drying
PRE WASH
EXTRA
Pre Wash
-
Duration
90 minutes
86 minutes
70 minutes
10 minutes
Energy
1.45 kWh
1.4 kWh
1.4 kWh
< 0.1 kWh
Water
18 litres
18 litres
14 litres
6 litres
1)
20
Used dishes that
are collected in
the dishwasher
and are to be
washed at a
later point in
time.
The consumption figures were measured under standard conditions. They are intended as a guide
only as variations can occur during normal usage.
Operating Instructions
Starting the Wash Programme
0 1. Check that when the dishes and cutlery are loaded into the dishwasher
the spray arms are free to rotate.
2. Open the tap fully.
3. Close dishwasher door.
4. Turn the programme selector clockwise to A, or B or C (see “Programme
Table“).
For interference suppression reasons, only operate the programme
selector with the dishwasher switched off. It is also possible that the
automated addition of detergent will be triggered.
5. Turn the programme selector to the required programme (see “Programme Table“).
Power indicator light illuminates. The selected wash programme starts.
The programme selector rotates during the wash programme and indicates the position that has been reached in the programme.
1
1
If a wash programme has been started even though the tap was closed,
turn the programme selector to the I position, open the tap and start
the programme again.
Changing/Interrupting the Wash Programme
Only change or interrupt a wash programme in progress if it is absolutely necessary.
3
Changing the wash programme
0 1. Turn the program selector to the I position. Power indicator light
goes out, wash programme stops.
Hot steam may escape when the door is opened. Open the door carefully.
2. Open dishwasher door and check whether there is still detergent in the
container. Refill the container if necessary.
3. Close dishwasher door.
4. Turn the programme selector clockwise to A, or B or C (see “Programme
Table“).
5. Turn the programme selector to the required programme (see “Programme Table“). Power indicator light illuminates, wash programme
starts.
1
21
Operating Instructions
Interrupting the wash programme by opening the door of the dishwasher
Hot steam may escape when the door is opened. Open the door carefully.
0 1. Open the door of the dishwasher. The wash programme stops.
2. Shut the door. The wash programme continues.
1
Switching Off the Dishwasher
When the wash programme is finished:
0 1. Turn the program selector to the I position. Power indicator light goes
out.
Hot steam may escape if the door is opened immediately after the end
of the programme. Therefore:
2. Open the door carefully.
1
Emptying the Dishwasher
3
• Hot dishes are sensitive to knocks. The dishes should therefore be
allowed to cool down before removing them from the appliance.
• The dishes will dry quicker if, when the programme has finished, you
briefly open the door fully and then leave it slightly ajar.
• Leave the dishes in the dishwasher for approx. 15 minutes after the
end of the programme so that they dry better and can cool down.
• Empty the lower rack first, then the upper rack. In this way you will
avoid any water left on the upper rack dripping onto the dishes in the
lower rack and causing water spots.
Care and Cleaning
1
22
Do not under any circumstances use furniture care products or aggressive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• The spray arms do not need cleaning.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Operating Instructions
Cleaning the Filter
The filters should be checked and
cleaned regularly. Blocked filters will
give poor wash results.
0 1. Open the door, remove the lower
rack.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter (1)
by the handle with the hole and
remove from the microfilter (2)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (3) from the
base of the washing compartment
and clean both faces thoroughly
3
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
1
The dishwasher must not be used
without filters under any circumstances.
23
Operating Instructions
What to do, if ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call an engineer to resolve a of fault
listed here, or to repair a fault caused by incorrect use or installation, a
charge will be made even if the appliance is in guarantee.
...there are problems with the operation of the dishwasher.
Symptom
Possible Cause
The drain pump in the
dishwasher runs conThe anti-flood system has
tinuously - even with
been triggered.
the appliance switched
off.
Solution
Close the tap, then unplug
from the mains and contact
AEG Service Force.
The door of the dishwasher is
Shut the door.
not closed properly.
Mains plug is not plugged in. Insert mains plug.
The programme does
not start.
24
House fuse in defective.
Replace fuse.
A delay start is selected.
If the dishes are to be
washed immediately, set the
delay start to 0 hours
The washing compartment is
made of corrosion-resistant
stainless steel. Rust spots in
the washing compartment
Rust spots are visible in are from particles from outthe washing compart- side the appliance (rust particles from the water pipe,
ment.
from pans, cutlery, etc.).
Remove such spots with a
commercially available stainless steel cleaner.
Only wash cutlery and dishes
that are suitable for dishwasher use.
There is a whistling
noise during washing.
Use a different brand of
detergent.
The whistling is not a cause
for concern.
Close the lid of the special
salt container securely.
Operating Instructions
...the wash result is unsatisfactory.
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were arranged in such a manner that water has not
reached all parts. The dish racks must not be overloaded.
– The filter in the base of the washing compartment is dirty or incorrectly positioned.
– Detergent was not used or too little was used.
– In the case of scale deposits on the dishes: the special salt container
is empty or the water softener is incorrectly adjusted.
– The drain hose is incorrectly laid.
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Decrease rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.
25
Operating Instructions
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 600 x 600 (H x B x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated or Fully Integrated, Built-In Dishwashers
That Can Be Fitted With Decor Panels
Dimensions:
820 – 880 x 595 x 570 (H x B x D in mm)
Max. Weight:
50 Kg
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
26
Operating Instructions
Notes for Test Institutes
The salt container for the water softener and the rinse aid container
must be completely full prior to the test.
Test Standard:
EN 5O 242
Comparative Programme:
Normal BIO 50 °C for full and half load
Full Load:
12 place settings incl. serving dishes
Detergent Dosing:
30g (Type B) in the detergent container
Half Load:
6 place settings incl. serving dishes
For half load every second stacking position is left empty
Detergent Dosing:
20g (Type B) in the detergent container
Rinse Aid Setting:
4 (Type III) for full and half load
Example Loading Arrangement: Upper rack (lower and upper positions):
Bottom rack with cutlery basket
Cutlery rack
27
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted such
that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrewing. Depending on the design of the
threaded feet use either
– an open-end spanner
or
– a screwdriver.
• For built-in, integrated and fully integrated dishwashers, the rear feet
should be adjusted from the front of the appliance using a screwdriver.
• The drain hose, inlet hose and mains cable must be laid such that
they are free to move in the rear of the plinth recess, so that they
cannot be kinked or crushed.
• The dishwasher must also be screwed on tightly to the work surface
or to the adjoining units. This is absolutely necessary so that its
stability is guaranteed according to VDE regulations.
28
Installation and Connection Instructions
• Depending on type, the dishwasher is to be installed as follows:
Dishwashers That Can Be Integrated
(see installation template supplied)
3
The door of the appliance can be fitted with a wooden/facing panel
with the following dimensions:
Width
587mm
591 – 594 mm
Thickness:
16 – 24 mm
Height:
dependent on
(variable)
– Aperture height
– Plinth height
– The adjustment so that the unit matches the height of
the adjoining units
The exact height of the adjoining units must be measured at the place of installation.
Weight:
1
max. 8 kg
If the facing panel is longer than 600 mm, the door of the appliance
cannot be opened completely (the facing panel bumps against the
plinth).
If this is the case, the plinth must be cut out (see installation template)
or the brace adapter for the extra long door BLT 60 must be used.
You can obtain this with the E No. 911 239 008.
Built-In Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
1
• can be set up as stand-alone without additional installation.
If the dishwasher is set up next to a gas or coal cooker, a heat-insulating, non-flammable plate must be mounted between the dishwasher and the cooker, flush to the top edge of the work surface
(depth
57.5 cm). The plate should have aluminium foil on the side facing the
cooker.
29
Installation and Connection Instructions
• If the dishwasher is installed underneath a kitchen work surface, the
original work surface of the dishwasher is to be removed as follows:
– Unscrew the screws (1) from the
elbows on the back side.
– Slide the work surface approx.
1cm to the rear (2) , lift at the
front (3) and remove.
– Press the work surface retaining
brackets at the position shown in
the diagram (4) and remove the
bracket at an angle to the rear
(5).
30
4
5
1
If the dishwasher is later used as a free-standing appliance, the original
work surface must be re-mounted.
3
The plinth on free-standing appliances is not adjustable.
• Free-standing appliances can be
outfitted with a décor panel to
match the facings of other kitchen
equipment. The décor panels must
be obtained from the kitchen manufacturer. A décor frame is necessary for installation, and can be
obtained as an accessory from the
dealer if not included in the scope
of delivery.
• Decor panel dimensions:
– Height 590 mm
– Width 581 mm
– Clamp thickness: max. 4 mm
• To ensure that thin decor panels do not flex or distort, attach them to
the door of the appliance using double sided adhesive tape.
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the return of
wash water into the drinking water system and comply with the applicable plumbing regulations.
• The dishwasher should be connected to a cold water supply.
• The dishwasher should not be connected to a hot water supply.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10N/cm2 =100 kPa)
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
For a water pressure of less than 2 bar
please seek advice from AEG Service
Force.
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
1
0
3
The water inlet hose must not be kinked, crushed or entangled when it
is being connected up.
Connect the threaded hose fitting (DIN 259) on the water inlet hose to
a tap with an external thread (¾ inch). Handtighten the threaded hose
fitting only.
• In order that access to the tap in the kitchen is not limited by the use
of the dishwasher, we recommend the installation of an additional
tap, or the fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose contact your local AEG Service
Force Centre.
31
Installation and Connection Instructions
Water drain
Drain hose
1
The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 30 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
AEG Service Force. The internal
diameter of the extension hoses
must be 19 mm to ensure that the
function of the appliance is not
impeded.
• Hoses may be laid a maximum of
3 metres horizontally; the maximum permitted height for the connection for the drain hose is then
85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
Discharging into a standpipe
When discharging into a standpipe,
the upright standpipe should have a
minimum, length of 30 cm (12“) from
the bottom of the elbow to the top
of the pipe (see diagram). Make sure
that it is designed in such a way that
the end of the drain hose cannot be
covered with water.
32
Installation and Connection Instructions
Leak Prevention System
For protection from damage due to water leaks, the dishwasher is
equipped with a leak prevention system, the AQUA CONTROL SYSTEM.
In the event of a fault, the drain pump switches on. By this means
water can neither escape nor overflow. The remaining water in the
appliance is automatically pumped out.
1
The AQUA CONTROL SYSTEM also works when the appliance is switched
off – the appliance must however not be disconnected from the mains.
33
Installation and Connection Instructions
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
1
WARNING - This appliance must be earthed.
The manufacturer declines any responsibility should these safety
measures not be observed.
Before switching on make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
Changing a fuse
The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved
(BS 1363A) fuse must be used.
Green
Should the plug need to be
& Yellow
replaced for any reason, proceed as
described below.
The wires on the mains lead are
coloured in accordance with the
following code.
Blue
Brown
Green and Yellow : Earth
Blue
: Neutral
Brown
: Live
Cord Clamp
• The wire coloured green and yellow must be connected to the terminal marked with the letter “E“ or by the earth symbol
or coloured
green and yellow.
• The wire coloured blue must be connected to the terminal “N“ or coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
1
34
WARNING! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that, if it is necessary to cut off
the plug, it is disposed of safely and not retained.
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation.
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Water
inlet
Mains
cable
Water
drain
Mains socket
Double tap
Water drain
Water inlet
Mains
cable
35
Guarantee Conditions
GUARANTEE CONDITIONS
1.
2.
3.
4.
5.
6.
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
The guarantee is valid for 12 months commencing when the appliance is handed over
to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
The guarantee covers all parts or components which fail due to faulty workmanship or
faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty installation,
unauthorised modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware or plastic,
dust bags or filters.
Should guarantee repairs be necessary the purchaser must inform the nearest customer
service office (manufacturer´s service or authorised agent). AEG reserves the right to
stipulate the place of the repair (i. e. the customer´s home, place of installation or AEG
workshop).
The guarantee or free replacement includes both labour and materials.
Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
The purchaser´s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with
you to your new home subject to the following qualifications:
– The guarantee starts from the date you first purchased your product.
– The guarantee is for the same period and to the same extent for labour and parts as
exist in the new country of use for this brand or range of products.
– This guarantee relates to you and connot be transferred to another user.
– Your new home is within the European Community (EC) or European Free Trade Area.
– The product is installed and used in accordance with our instructions and is only used
domestically, i. e. a normal household.
– The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to
give them details of your new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after you and your appliances.
36
France
Senlis
+33 (0) 44 62 29 29
Germany
Nürnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219899
37
38
Service & Spare parts
SERVICE & SPARE PARTS
If you wish to purchase spare parts or require an engineer, contact your
local AEG Service Force Centre by telephoning:
08705 929 929
Your telephone call will be automatically routed to the Service Centre
covering your post code area.
When you contact the Service Centre they will need the following
information:
1.
Your name & address, including post code.
2.
Your telephone number
3.
Clear and concise details of the fault.
4.
The model, serial and production number. This information can
be found on the rating plate. The rating plate is on the inner
edge of the door on the right.
5.
Date of purchase. Please note that it will be necessary to provide
proof of purchase for any in guarantee service call.
In-guarantee customers should ensure that the chapter headed “What
to do if ...“ has been read, as the engineer will make a charge if the
fault is not a mechanical or electrical breakdown.
Customer Care
For general enquiries concerning your AEG appliance or for further
information on AEG products please contact our Customer Care
Department by letter or telephone as follows:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel. 08705 350350 (*)
(*) Calls may be recorded for training purposes
39
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 945 464 - 00 - 0600
Download PDF

advertising
