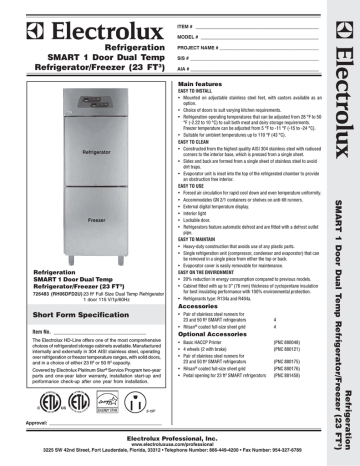

Electrolux RH06DFD2U(726483) Datasheet

Electrolux RH06DFD2U(726483) Datasheet
ITEM # _______________________________________________
MODEL # _____________________________________________
Refrigeration
SMART 1 Door Dual Temp
Refrigerator/Freezer (23 FT3)
PROJECT NAME # ______________________________________
SIS # _________________________________________________
AIA # _________________________________________________
Main features
Refrigerator
Refrigeration
SMART 1 Door Dual Temp
Refrigerator/Freezer (23 FT3)
726483 (RH06DFD2U) 23 ft3 Full Size Dual Temp Refrigerator
1 door 115 V/1p/60Hz
Accessories
• Pair of stainless steel runners for
23 and 50 ft3 SMART refrigerators
• Rilsan® coated full-size sheet grid
Short Form Specification
Item No. ___________________________________
The Electrolux HD-Line offers one of the most comprehensive
choices of refrigerated storage cabinets available. Manufactured
internally and externally in 304 AISI stainless steel, operating
over refrigeration or freezer temperature ranges, with solid doors,
and in a choice of either 23 ft3 or 50 ft 3 capacity.
®
Covered by Electrolux Platinum Star Service Program two-year
parts and one-year labor warranty, installation start-up and
performance check-up after one year from installation.
4
4
Optional Accessories
• Basic HACCP Printer
• 4 wheels (2 with brake)
• Pair of stainless steel runners for
23 and 50 ft3 SMART refrigerators
• Rilsan® coated full-size sheet grid
• Pedal opening for 23 ft3 SMART refrigerators
(PNC 880048)
(PNC 880121)
(PNC 880175)
(PNC 880176)
(PNC 881458)
5-15P
Approval: ___________________________________________
Electrolux Professional, Inc.
www.electroluxusa.com/professional
3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789
Refrigeration
SMART 1 Door Dual Temp Refrigerator/Freezer (23 FT3)
Freezer
EASY TO INSTALL
• Mounted on adjustable stainless steel feet, with castors available as an
option.
• Choice of doors to suit varying kitchen requirements.
• Refrigeration operating temperatures that can be adjusted from 28 °F to 50
°F (-2.22 to 10 °C) to suit both meat and dairy storage requirements.
Freezer temperature can be adjusted from 5 °F to -11 °F (-15 to -24 °C).
• Suitable for ambient temperatures up to 110 °F (43 °C).
EASY TO CLEAN
• Constructed from the highest quality AISI 304 stainless steel with radiused
corners to the interior base, which is pressed from a single sheet.
• Sides and back are formed from a single sheet of stainless steel to avoid
dirt traps.
• Evaporator unit is inset into the top of the refrigerated chamber to provide
an obstruction free interior.
EASY TO USE
• Forced air circulation for rapid cool down and even temperature uniformity.
• Accommodates GN 2/1 containers or shelves on anti-tilt runners.
• External digital temperature display.
• Interior light
• Lockable door.
• Refrigerators feature automatic defrost and are fitted with a defrost outlet
pipe.
EASY TO MAINTAIN
• Heavy-duty construction that avoids use of any plastic parts.
• Single refrigeration unit (compressor, condenser and evaporator) that can
be removed in a single piece from either the top or back.
• Evaporator cover is easily removable for maintenance.
EASY ON THE ENVIRONMENT
• 20% reduction in energy consumption compared to previous models.
• Cabinet fitted with up to 3″ (76 mm) thickness of cyclopentane insulation
for best insulating performance with 100% environmental protection.
• Refrigerants type: R134a and R404a.
Refrigeration
SMART 1 Door Dual Temp
Refrigerator/Freezer (23 FT3)
Front View
Electric
Supply voltage:
726483 (RH06DFD2U)
115 V/1p/60Hz - 12A
Key Information
LEGEND
C - Water Drain
1/2″ (12.7 mm)
I – Electrical Connection
115 V/1p/60Hz
TECHNICAL DATA
Operating temperature min.:
28 °F (-2.22 °C)
Operating temperature max.:
50 °F (10 °C)
Built-in Compressor and Refrigeration Unit
External Dimensions:
Top View
Width:
29-1/2″ (749. mm)
Depth:
31-7/8″ (810 mm)
Height:
Side View
80-11/16″ (2049 mm)
Min/Max internal humidity % :
75/ 90
Number and type of doors:
2 Half
Door hinges:
Right
Number and type of grids (included):
4, GN 2/1
Compressor power:
1/5 HP
Refrigerant type:
R134a
Refrigerant quantity
200g
Refrigerant Power:
250W
Power:
640 watts
Net weight:
370 lbs (168 kg)
Configuration:
Top:
Refrigerator
Bottom:
Freezer
Refrigeration
SMART 1 Door Dual Temp Refrigerator/Freezer (23 FT 3)
The company reserves the right to make modifications to the products
without prior notice. All information correct at time of printing.
7-2-09
