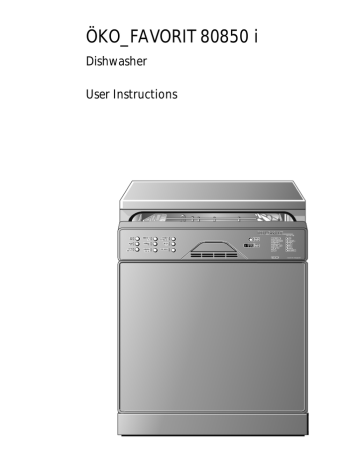

ÖKO_FAVORIT 80850 i
Dishwasher
User Instructions
Dear customer,
Please read these user instructions carefully.
Please observe the safety instructions on the first few pages of these
user instructions! Please keep these user instructions for later reference.
Pass them on to any subsequent owner of the appliance.
1
0
The warning triangle and/or specific words (Warning!, Caution!,
Important!) are used to highlight instructions that are important for
your safety or for the function of the appliance. It is imperative that
these instructions are observed.
This symbol or numbered instruction steps lead you step by step
through the operation of the appliance.
3
Next to this symbol you receive additional information and practical
tips on using the appliance.
2
Tips and instructions for the economical and environmentally conscious
use of the appliance are marked with a clover leaf.
In the event of a malfunction, these operating instructions contain
information on how to rectify faults yourself, see the "What to do, if..."
section.
If these instructions are insufficient, please contact your AEG Service
Force Centre.
In this respect please read the chapter "Service & Spare Parts".
Printed on paper manufactured with environmentally sound processes.
He who thinks ecologically acts accordingly ...
2
Contents
CONTENTS
Operating Instructions
....................................
5
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
Economical and Ecological Dishwashing . . . . . . . . . . . . . . . . . . . . . . . . . .
8
Appliance Features and Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Prior to using for the first time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjust the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Salt for the Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Rinse Aid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting Rinse Aid Dosing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting the Audible Signal for the End of the Wash Programme . . . . . . .
11
11
13
14
15
15
In Daily Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery and Dishes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Cutlery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Loading Pans, Frying Pans and Large Plates . . . . . . . . . . . . . . . . . . . . . .
Loading Cups, Glasses and Coffee Services . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the Height of the Upper Rack . . . . . . . . . . . . . . . . . . . . . . . . .
Filling with Detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bio Wash Programmes and Concentrated Detergents . . . . . . . . . . . . . .
AUTO 65° and AUTO BIO 50° Wash Programmes . . . . . . . . . . . . . . . . . .
Selecting the Wash Programme (Programme Table) . . . . . . . . . . . . . . . . . .
Starting the Wash Programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing/Interrupting/Cancelling the Wash Programme . . . . . . . . . . .
Pause Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setting or Changing the Delay Start Timer . . . . . . . . . . . . . . . . . . . . . . .
Load Sensing – Sensor Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Switching Off the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emptying the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
16
16
17
19
20
21
22
23
23
24
26
26
27
28
28
29
29
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Cleaning the Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
What to do, if ... . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
...there are problems with the operation of the dishwasher. . . . . . . . . . . .
...the wash result is not satisfactory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31
31
33
33
3
Contents
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Notes for Test Institutes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
4
Installation and Connection Instructions . . . . . . . . . . . . . . . .
36
Installing the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dishwashers That Can Be Integrated . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Built-In Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Free-Standing Appliances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36
37
37
37
Connecting the Dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Permitted water pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the inlet hose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Water drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Leak Prevention System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39
39
39
39
40
41
42
43
Guarantee Conditions
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Service & Spare parts
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Operating Instructions
OPERATING INSTRUCTIONS
1
Safety Instructions
The safety aspects of AEG electrical appliances comply with accepted
technical standards and the German Appliance Safety Law. Nevertheless, as a manufacturer we consider it our obligation to make you
aware of the following safety information:
Installation, Connection and Placing into Operation
• The dishwasher may only be transported upright.
• Check the dishwasher for transport damage. Do not in any circumstances connect an appliance that is damaged. In the case of damage,
please contact your retailer.
• Before installing the appliance, ensure that the nominal voltage and
type of supply on the rating plate match that of the supply where the
appliance is to be installed. The fuse rating is also to be found on the
rating plate.
• For information on how to correctly install and connect up your dishwasher, please read the “Installation“ section. Adaptors / connectors
and extension cables must not be used.
Child Safety
• This appliance is designed to be operated by adults. Children should
not be allowed to tamper with the controls or play with the product.
• Keep all packaging away from children.
• Keep all detergents in a safe place out of children’s reach.
• The water in your dishwasher is not suitable for drinking. If there are
still remnants of detergent in the appliance, there is a risk of burns!
• When disposing of an old appliance, cut off the power supply cable
and remove any door catches, to prevent young children being
trapped inside.
General Safety
• Repairs to the dishwasher are only to be carried out by qualified service engineers. Improper repairs can give rise to significant hazards for
the user. If your appliance needs repairing, please contact your local
AEG Service Force Centre.
5
Operating Instructions
• Never place the dishwasher in operation if the mains cable, water
inlet or drain hose is damaged; or the control panel, work top or
plinth area is damaged such that the inside of the appliance is freely
accessible.
• If the mains lead is damaged, or is to be replaced for a longer lead,
the cable (obtainable from AEG Service Force) must be changed by a
service engineer authorised by AEG.
• Never unplug the appliance by pulling on the cable, always pull the
plug.
• Additions or modifications to the dishwasher are not permitted for
safety reasons.
• Ensure that the door of the dishwasher is always closed when it is not
being loaded or unloaded. In this way you will avoid anybody tripping
over the open door and hurting themselves.
• Long bladed knives stored in an upright position are a potential hazard.
• Long and/or sharp items of cutlery such as carving knives must be
positioned horizontally in the upper basket.
• When finished loading or unloading, close the door as an open door
can be a hazard.
Correct Use
• Only wash household dishes using the dishwasher. If the appliance is
used for other purposes, or is used incorrectly, the manufacturer cannot accept any liability for any damage caused.
• Only use detergents specifically designed for use in domestic dishwashers.
• Do not put any solvents in the dishwasher. There is a risk of an explosion!
• The anti-flood system provides dependable protection against damage due to leaks. For this system to function correctly, the following
preconditions must be met:
– The appliance must remain connected to the mains even when it is
switched off.
– The dishwasher must be correctly installed.
– Always shut off the water supply at the tap when the dishwasher is
not to be used for longer periods, e.g. when you are away on holiday.
• Do not sit or stand on the open door, the appliance may tip over.
6
Operating Instructions
• In the event of a fault, first close the tap, then switch off the appliance and unplug it from the mains. If the appliance is permanently
wired to the mains: remove the fuse.
2
Disposal
Disposing of the Packaging Material
Dispose of the dishwasher packaging material correctly. All the packaging materials used are harmless to the environment and can be recycled.
• Plastic parts are marked with standard international abbreviations:
– >PE<
for polyethylene, e.g. sheet wrapping material
– >PS<
for polystyrene, e.g. padding material (always CFC-free)
– >POM< for polyoxymethylene, e.g. plastic clips
• Cardboard packaging is manufactured from recycled paper and
should be deposited in the waste paper collection for recycling.
Disposal of Old Appliances
When disposing of old appliances, remove the plug and ensure that any
locks or catches are removed to prevent young children becoming
trapped inside.
Use an authorised disposal site.
7
Operating Instructions
2
Economical and Ecological Dishwashing
• Ensure that the water softener is correctly adjusted.
• Do not pre-rinse dishes under running water.
• If you wash a small load, the load sensor calculates the amount of
water necessary and shortens the programme. It is more economical
to always wash with a full load.
• Select the wash programme to suit the nature and degree of the soiling on the dishes.
• Do not use more detergent, special salt or rinse aid than is recommended in these operating instructions and by the detergent manufacturer.
• The dishwasher's interior light is always switched on as long as the
door of the appliance is open. To save energy you should therefore
always close the door of the dishwasher after loading or removing
dishes.
8
Operating Instructions
Appliance Features and Control Panel
Top Spray Arm
Rubber Seal for
Connecting the
Water Feed to
the Middle Spray
Arm
Spray Arms
Container for
Salt
Container
for Rinse Aid
Container for
Detergent
Inlet
for Fan
Assisted Drying
Rating Plate
Filters
Interior Lighting
9
Operating Instructions
Control Panel
Signal
Tone
Button
Water Softener
Button
Control Panel
Door
Handle
MultiDisplay
Air Outlet for Fan
Assisted Drying
Set Start
Delay
Indicators
Display for the Individual
Wash Programme Steps
The Control Panel comprises the ON/OFF switch and the programme
buttons with LED indicators.
Signal Tone Button: In addition to the wash program printed on the
front panel, this button can be used to set whether a signal tone is to
indicate that a wash program is finished.
Water Softener Button: In addition to the wash program printed on
the front panel, this button can be used to adjust the dishwasher's
water softener.
The Multi-Display can display,
– the hardness setting to which the water softener is set.
– whether the signal tone is switched on or off.
– the start delay that is set.
– how long the current wash programme can be expected to last.
– which fault has occurred on the dishwasher.
The indicators have the following significance :
3
10
SALT
Refill with special salt
RINSE AID
Refill with rinse aid
WATER
Open tap
FILTER
Clean the dishwasher's filter system
DOOR
The dishwasher door is open
SPRAY ARM
The middle spray arm is jammed
The FILTER indicator is intended to remind you to check the filters in
the dishwasher from time to time and, if necessary, to clean it. The
indicator illuminates at regular intervals, independent of the amount of
soiling of the filters.
Operating Instructions
Prior to using for the first time
Prior to using for the first time, remove all the clips with which the dish
racks are secured for transport.
Then perform the following steps:
0 1. Adjust the water softener
2. Fill with Salt for the Water Softener
3. Fill with Rinse Aid
Adjust the Water Softener
To prevent the build up of scale on dishes and in the dishwasher, the
dishes must be washed with soft, i.e. low lime content water. For this
reason the dishwasher is fitted with a water softener in which tap
water from a hardness of 4 °d (German degree) is softened with the aid
of special salt.
3
0
Your local water authority can advise you on the hardness of the water
in your area.
Adjust the water softener to the setting given in the table that corresponds to the hardness of the water in the area where you live. The
water softener can be adjusted in 10 steps.
Water Hardness
in °d1)
in ppm2)
Adjust
to Hardness Setting
Indication on the
Multi-Display
41-50
35-40
31-34
27-30
23-26
730-900
630-720
550-620
480-540
410-470
9
8
7
6
5
H9
H8
H7
H6
H5
19-22
15-18
330-400
260-320
4
3*
H4
H3
11-14
190-250
2
H2
4-10
70-180
1
H1
under 4
under 70
0
no salt necessary
H0
1)(°d) German degree, measure of the hardness of water
2)(ppm) Parts Per Million
*factory setting
11
Operating Instructions
0 1. The dishwasher must be switched off.
2. Press the signal tone and water softener buttons simultaneously and
keep them pressed
3. Press the ON/OFF button. The LED indicators for the signal tone and
water softener buttons flash.
4. Press the softener button again.
The multi-display indicates the hardness setting.
5. Pressing the hardness button increases the hardness setting by 1.
(Exception: Hardness setting 0 follows hardness setting 9).
6. Once the hardness setting is correctly adjusted, press the ON/OFF button.
The hardness setting is then saved.
12
Operating Instructions
Filling with Salt for the Water Softener
1
Use only special salt for dishwashers. Never fill the salt container with
any another type of salt (e.g. culinary salt) or dishwasher detergent, as
this would irreparably damage the water softener.
Prior to filling with salt, please check each time that you really do have
a packet of dishwasher salt in your hand.
Fill with salt:
– Prior to using the dishwasher for the first time
– When the SALT indicator on the control panel is illuminated.
If the water hardness in your area is less than 4 °d, you do not need to
use salt.
0 1. Open the door, remove the lower
rack.
LE
SA ALT Z
2. Undo the lid on the salt container by
S AL
S EL
turning it anticlockwise.
S
3. When using for the first time:
fill the salt container with water.
4. Place the funnel supplied on the
container opening.
Fill the container with salt through
the funnel; the capacity of the container is approx. 1.0-1.5 kg depending on the grain size. Do not overfill
the salt container with salt.
3
3
The water expelled by filling the salt container with special salt runs
out of the salt container onto the base of the washing compartment.
This is not a cause for concern, the water will be pumped out at the
start of the next wash programme.
5. Clean any salt remnants on the container opening.
6. Turn the lid clockwise to the stop, otherwise special salt will leak into
the wash water. Dull glasses may result.
7. If you are not going to wash your dishes immediately, you should run
the PRE WASH programme. This will wash away salt water that has run
out of the container and any grains of salt that have been spilt.
3
Depending on the size of the salt grains, it can take several hours for
the salt to dissolve in the water and for the SALT indicator to extinguish.
The setting of the water softener and thus the consumption of salt are
dependent on the hardness of the local water.
13
Operating Instructions
Filling with Rinse Aid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying.
1
Only use rinse aid specially designed for domestic dishwashers. Never
fill the rinse aid container with any other substance as this would damage the appliance.
Fill with rinse aid:
– Prior to using the dishwasher for the first time
– When the RINSE AID indicator on the control panel is illuminated.
14
ax
6 5 4
1
32
3. Fill with rinse aid, up to the broken
line (maximum); this line corresponds
to a quantity of approx. 150 ml
4. Replace the lid and tighten by turning clockwise.
5. If rinse aid has been spilt, wipe up
with a cloth. Otherwise there will be
foaming during the washing.
m
The rinse aid container is on the inside of the dishwasher door.
0 1. Open the door
2. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
Operating Instructions
Adjusting Rinse Aid Dosing
The dose should be adjusted according to the finish and drying results
obtained. The dose is factory set at 4, and can adjusted from 1 to 6.
Gradually increase the dose if there are drops of water or lime spots on
the dishes after washing. Reduce if it there are sticky whitish streaks on
the dishes.
0 1. Turn the lid of the container
¼ of a turn anticlockwise and
remove.
2. Adjust the dose setting with a tea
spoon.
3. Replace the lid and tighten by turning clockwise.
4. If rinse aid has run out, wipe up with
a cloth.
3
Setting the Audible Signal for the End of the Wash
Programme
The dishwasher can be set to exit an audible signal at the end of a wash
cycle.
0 1. The dishwasher must be switched off.
2. Press the signal tone and water softener buttons simultaneously and
keep them pressed.
3. Press the ON/OFF button. The LED indicators for the signal tone and
water softener buttons flash.
4. Press the signal tone button again.
The multi-display indicates the current setting:
b0
Signal tone switched off
b1
Signal tone switched on (factory setting)
5. Pressing the signal tone button changes the setting.
6. Once the multi-display indicates the required setting, press the ON/OFF
button. The setting is then saved.
15
Operating Instructions
In Daily Use
• Check the salt and rinse aid levels.
• Load cutlery and dishes into the dishwasher
• Fill with dishwasher detergent
• Select a wash programme suitable for the cutlery and dishes
• Start the wash programme
Loading Cutlery and Dishes
1
Sponges, household cloths and any object that can absorb water should
not be washed in the dishwasher.
For washing in the dishwasher the following cutlery/dishes
are not suitable:
• Cutlery with wooden, horn,
china or mother of pearl handles
• Plastic items that are not heat
resistant
• Older cutlery with glued parts that
is not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Lead crystal glass
• Steel items subject to rusting
• Wooden platters
• Items made from synthetic fibres
are of limited suitability:
• Only wash stoneware in the dishwasher if it
is specifically marked as being dishwashersafe by the manufacturer.
• Glazed patterns may fade if machine
washed frequently.
• Silver and aluminium parts have a tendency
to discolour during washing. Left-overs, e.g.
egg white, egg yolk and mustard often
cause discolouring and staining on silver.
Therefore always clean left-overs from silver
immediately, if it is not to be washed
straight after use.
• Some types of glass can become dull after a
large number of washes.
• Before loading the dishes, you should:
– Remove all scraps of food.
– Soften remnants of burnt food in pans.
• When loading the dishes and cutlery, please note:
– Dishes and cutlery must not impede the rotation of the spray arms.
– Load hollow items such as cups, glasses, pans, etc. with the opening
downwards so that water cannot collect in the container or a deep
base.
– Dishes and items of cutlery must not lie inside one another, or
cover each other
16
Operating Instructions
– To avoid damage to glasses, they must not touch
– Do not lay small objects (e.g. lids) in the cutlery rack
Loading Cutlery
1
1
Long bladed knives stored in an upright position are a potential hazard.
1
Take care when loading or unloading sharp items such as knives.
Long and/or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket.
Place knives, small spoons and small
forks in the cutlery tray.
Place forks and spoons that do not fit
in the cutlery tray in the cutlery basket.
To ensure that all items of cutlery in
the cutlery basket are properly
washed, you should
1. Place the grid insert on the cutlery
rack
2. Place forks and spoons in the grid
insert on the cutlery basket with the
handle downwards.
To make the removal of cutlery easier, on some dishwasher models it
is possible to open the cutlery basket.
17
Operating Instructions
If you use the grid insert, it is not
possible to open the cutlery basket.
To ensure that the cutlery basket
cannot open on removal from the
appliance, you should always hold
both parts of the two part handle.
0 1. Place the cutlery basket on a table or
work surface
2. Open the two part handle
3. Remove cutlery
4. Close the two part handle.
1
18
Operating Instructions
Loading Pans, Frying Pans
and Large Plates
Load large and heavily soiled dishes
in the lower rack.
To ease the loading of large items at
some dishwasher-models the two
rows of prongs for the right-hand
plate insert can be folded down:
0 1. Slightly lift the right plate insert.
3
2. Fold the plate insert to the left.
19
Operating Instructions
Loading Cups, Glasses and
Coffee Services
Load small, delicate items and long
pointed cutlery in the upper rack.
• Arrange items of crockery on the
folding cups racks so that they are
offset from each other and water
can reach all items.
• The cup racks can be folded up out
of the way for tall items.
• Lay or hang wine, champagne, and
brandy glasses in the cut outs on
the cup racks.
• Glasses, beakers, etc. can also be
placed on the two rows of prongs
on the left of the upper rack.
20
Operating Instructions
Adjusting the Height of the Upper Rack
Maximum Height of the Dishes in the
Upper Rack
Lower Rack
3
With Raised Upper Rack
22 cm
31 cm
With Lowered Upper Rack
24 cm
29 cm
The height of the rack can also be adjusted when the rack is loaded.
Lowering the Upper Rack:
0 1. Pull out the upper rack to the stop.
2. Lift the upper rack at the rear right
and lower.
Raising the Upper Rack:
0 1. Pull out the upper rack to the stop.
2. Raise the upper rack at the rear right,
pull slightly forward and allow to
lock into place in the upper position.
21
Operating Instructions
Filling with Detergent
1
Use only dishwasher detergent.
Fill with Detergent:
– Prior to the start of a wash programme (not for the Pre Wash programme). The detergent is released into the wash water during the
programme.
Please observe the manufacturer’s dosing and storage recommendations given on the detergent packaging.
The detergent dispenser is on the
inside of the door.
0 1. If the lid is closed: Press the latching
lever (1) forwards. The lid springs
open.
2
2
1
2. Fill the detergent dispenser with
detergent. The markings are an aid to
correct dosing:
"MIN" corresponds to approx. 30 ml
detergent,
"MAX" corresponds to approx. 40 ml
detergent.
3. Close the lid, press it down until the
latch engages.
3
22
In the case of heavily soiled dishes,
add additional detergent in the cavity in the lid (2). This detergent is
effective during the pre wash.
X:
MA
N:
MI
Operating Instructions
Bio Wash Programmes and Concentrated Detergents
Based on their chemical composition, dishwasher detergents can be
split into two basic types:
– Conventional, alkaline detergents with caustic components
– Weak alkaline concentrated detergents with natural enzymes.
2
The use of BIO wash programmes in conjunction with concentrated
detergents reduces pollution and is good for your dishes; the BIO wash
programmes are specially matched to the soil dissolving properties of
the enzymes in the concentrated detergent. It is for this reason that
BIO wash programmes can achieve the same results at 50 °C that can
otherwise only be achieved using 65 °C programmes.
During BIO programmes the water is briefly heated to 60 °C so that the
active oxygen becomes effective.
3
Detergent tablets from different manufacturers dissolve at different
rates. For this reason some detergent tablets cannot develop their full
cleaning power during short programmes. Therefore please use normal
programmes with pre wash when using detergent tablets.
Detergent recommendations
For best results we recommend the use of Finish detergent, rinse aid
and salt.
AUTO 65° and AUTO BIO 50° Wash Programmes
During the AUTOMATIC programmes, the amount of soiling on the
dishes is determined by the amount of clouding of the water. If the
dishes are heavily soiled, they are pre-washed and two rinses also performed. If the dishes are only lightly soiled, the dishes are not prewashed and only one rinse is performed.
This ensures the dishes receive the best wash cycle and conserves electricity and water.
23
Operating Instructions
Selecting the Wash Programme (Programme Table)
Choose the most suitable wash programme with the aid of this table:
Type of Dishes
Dinner Service and Cooking Utensils
In Addition
-
Type of Soiling
Suitable
Wash Programme:
Programme
Sequence 2)
Consumption
Figures: 3)
• normally to
lightly
soiled
particularly suited
to the use of concentrated detergents.
AUTO
65 °C
AUTO BIO
50 °C
1)
-
• heavily
soiled
• dried on
leftovers, particularly egg
white and
thickeners
-
• normally
soiled
INTENSIVE
70 °C
NORMAL
65 °C
Pre Wash
Main Wash
(2x) Rinsing
Final Rinse
Drying
Pre Wash
Main Wash
(2x) Rinsing
Final Rinse
Drying
Pre Wash
Main Wash
2x Rinsing
Final Rinse
Drying
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
Duration
88 -120 minutes
86 - 115 minutes
120 - 130 minutes
100 - 110 minutes
Electricity
0.9 - 1.4 kWh
0.85 - 1.25 kWh
1.4 - 1.6 kWh
1.05 - 1.25 kWh
Water
10 - 18 litres
10 - 18 litres
16 - 18 litres
12 - 14 litres
1)
2)
3)
24
• heavily to lightly
soiled
• dried
leftovers
with non-temperature resistant dishes
During BIO programmes, the wash water is briefly heated to 60 °C so that the active oxygen can
become effective.
The various stages in the wash programme have different sounds; this is because the dishes are
washed more intensely for short periods during certain stages of the wash programme to improve
cleaning.
The consumption figures were measured under standard conditions. They are intended as a guide
only as variations can occur during normal usage.
Operating Instructions
Type of Dishes
Dinner Service and Cooking Utensils
Dessert Dishes
and Coffee
Service
All
Types of
Dishes
with non-temperature resistant dishes
with
delicate glasses
-
In Addition
Type of
Soiling
• normally
soiled
• dried
leftovers
• normally
soiled
• lightly
soiled
particularly suited
to the use of concentrated detergents.
Suitable
Wash Programme:
Programme
Sequence 2)
Consumption Figures: 3)
NORMAL BIO
ENERGY SAVING
50 °C 1)
50 °C 2) 4) 5)
Used dishes
that are collected in the
dishwasher and
are to be
washed at a
later point in
time.
QUICK 40 °C
PRE WASH
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
Pre Wash
Main Wash
Rinsing
Final Rinse
Drying
Main Wash
Rinsing
Final Rinse
-
Pre Wash
-
Duration
95 - 105 minutes
130 - 150 minutes
29 - 49 minutes
11 minutes
Electricity
1,05 - 1.15 kWh
0.95 - 1.05 kWh
0.7 kWh
< 0.1 kWh
Water
12 - 14 litres
12 - 14 litres
10 litres
4 litres
4)
5)
The “ENERGY SAVING“ wash programme washes normally soiled dishes with a very low electricity
consumption. If the dishes need to be washed more quickly, as an alternative you can use the
“NORMAL BIO 50°“ wash programme.
Test programme
25
Operating Instructions
Starting the Wash Programme
0 1. Check that when the dishes and cutlery are loaded into the dishwasher
the spray arms are free to rotate.
2. Open the tap fully.
3. Shut the door.
4. Press the ON/OFF button The ON/OFF button indicator illuminates.
5. Press the button for the programme required (see “Programme Table“).
The programme indicator and the associated wash programme steps in
the programme progress display illuminate. After around 6 seconds, the
wash programme selected starts. The remaining time for the programme calculated from quantity of dishes loaded is displayed in the
multi-display. With automatic programme adjustment this residual
time count can be stopped or corrected if necessary (load quantity,
degree of dirtiness, etc.) using the dishwasher control. The current programme step is also displayed in the programme progress display.
3
If fault messages are displayed on the multi-display after the start of
the programme, please read the “What to do, if...“ section.
Changing/Interrupting/Cancelling the Wash
Programme
Changing the wash programme
To change the wash programme within the first 6 seconds after the
selection of the programme, briefly press the button for the required
programme.
To change the wash programme at a later point in time, use the following procedure:
0 1. Press the button for the new wash program and keep it pressed. The
indicators for both wash programmes now flash.
2. After a few seconds, only the display for the new wash programme
flashes. Release the programme button, the new wash programme is
now carried out.
3
26
Operating Instructions
Interrupting the wash programme by opening the door of the dishwasher
Hot steam may escape when the door is opened. Open the door carefully.
0 1. Open the door of the dishwasher. The wash programme stops.
2. Shut the door. The wash programme continues.
1
Cancelling the wash programme
0 1. Press the button for the wash programme in progress and keep it
pressed. The programme indicator for the wash programme in progress
flashes for a few seconds and then goes out.
2. Release the programme button, the wash programme is stopped.
Pause Function
The wash programme can be interrupted for a short period by using the
Pause function:
0 1. Press the ON/OFF button. The wash programme stops.
2. All indicators go out.
3. If after a short period the wash programme is to be continued, press
the ON/OFF button again. The wash programme continues.
2
The wash programme should not be interrupted for an extended period
of time, as otherwise the wash water will cool down and need to be
reheated thus increasing the electricity consumption.
27
Operating Instructions
Setting or Changing the Delay Start Timer
Using the delay start timer you can:
1. Press the ON/OFF button.
2. Press the DELAY TIMER button until the required delay (in hours) is
flashing on the multi-display.
3. Press the button for the desired wash programme. The multi-display
now displays the number of hours until the wash programme starts.
4. The wash programme starts automatically at the end of the time delay
set.
Changing the delay start:
As long as the wash programme has not started, you can change the
delay start set by pressing the DELAY TIMER button.
Load Sensing – Sensor Logic
If a wash programme is started even though there are only a few dishes
in the upper and/or lower rack, an intelligent electronic system adjusts
the amount of water and the duration of the wash programme to the
number of dishes. By this means it is possible to wash only a few dishes
quickly and economically. At half load (6 place settings), up to 2 litres
of water and 0.2 kWh of electricity are saved.
28
Operating Instructions
Switching Off the Dishwasher
Switch the dishwasher off when the multi-display indicates “0“ for the
remaining programme time and END is illuminated on the programme
progress display.
If the signal tone for the end of the washing programme is enabled, a
continuous tone indicates the end of the programme for 10 seconds. If
the dishwasher is not switched off, the continuous tone is repeated
twice after a few minutes.
0 1. Press the ON/OFF button. All indicators go out.
Hot steam may escape if the door is opened immediately after the end
of the programme.
2. Open the door carefully, as steam may escape.
1
Emptying the Dishwasher
3
• The dishes should be allowed to cool down before removing them
from the appliance, as hot dishes can be sensitive to knocks.
• The dishes will dry quicker if, when the programme has finished, you
briefly open the door fully and then leave it slightly ajar, when the
programme has finished.
• Leave the dishes in the dishwasher for approx. 15 minutes after the
end of the programme so that they dry better and can cool down.
• Empty the lower rack first, then the upper rack. In this way you will
avoid any water left on the upper rack dripping onto the dishes in the
lower rack and causing water spots.
29
Operating Instructions
Care and Cleaning
1
Do not under any circumstances use furniture care products or aggressive cleaners.
• If necessary, clean the controls only with a soft cloth and pure warm
water.
• The spray arms do not need cleaning.
• Occasionally check the internal containers, door seal, and water inlet
for soiling, clean if necessary.
Cleaning the Filter
The filters should be checked and
cleaned regularly. Dirty filters will
give poor wash results.
0 1. Open the door, remove the lower
rack.
2. The dishwasher filter system comprises a coarse/fine filter, microfilter
and a flat filter. Unlock the filter system using the handle on the microfilter, and remove.
3. Turn the handle about ¼ a turn anticlockwise and remove.
4. Take hold of the coarse/fine filter
(1/2) by the handle with the hole and
remove from the microfilter (3)
5. Clean all filters thoroughly under
running water.
6. Remove the flat filter (4) from the
base of the washing compartment
and clean both faces thoroughly
3
30
Operating Instructions
7. Put the flat filter back in the base of
the washing compartment
8. Place the coarse/fine filter in the
microfilter and press together.
9. Put the filter combination in place
and lock by turning the handle clockwise to the stop. During this process
ensure that the flat filter does not
protrude above the base of the washing compartment.
1
The dishwasher must not be used
without filters under any circumstances.
What to do, if ...
Try to rectify minor faults on the dishwasher with the aid of the
instructions given here. If you call an engineer to resolve a fault
listed here, or to repair a fault caused by incorrect use or installation, a
charge will be made even if the appliance is in guarantee.
...Error messages
• If the multi-display indicates the fault code (2, or the WATER,
DOOR or SPRAY ARM indicator illuminates, you can probably rectify the fault yourself. After rectifying a (2 fault or a fault related to
the WATER indicator, press the button for the wash programme that
has been started. The wash programme should continue. If the fault
code is displayed again, contact AEG Service Force.
• For all other faults that are indicated, please contact AEG Service
Force stating the fault code.
31
Operating Instructions
Symptom
Solution
The programme indicator for
the programme selected is
flashing, the WATER indicator is illuminated and
1 warning tone can be
heard that is continually
repeated: no water is running into the dishwasher.
Tap is closed.
The water inlet hose
is not correctly laid.
Check hose
installation.
The programme indicator for
the selected programme is
flashing, the multi-display is
indicating the fault code (2
and 2 warning tones can be
heard that are continually
repeated.
The sink outlet is
blocked.
Clean the sink outlet.
The water drain hose
is not correctly laid.
Check hose
installation.
The anti-flood system
has been triggered.
Close the tap and contact
AEG Service Force.
The middle spray arm is
jammed.
Open the door carefully, as
hot steam can escape when
the door is opened. There is
a risk of scolding! Place the
dishes and cutlery in the
lower basket in such a way
that the middle spray arm
can rotate freely. Close the
door of the dishwasher.
The DOOR indicator is illuminated
The door of the dishwasher is open.
Close the door of the dishwasher.
The FILTER indicator is illuminated.
The FILTER indicator
illuminates at regular
intervals to remind you
to check and clean the
filter in the dishwasher
from time.
The indicator goes out
automatically on the start
of the next wash programme.
The multi-display is indicating the fault code (3 and
3 warning tones can be
heard that are continually
repeated.
During a wash programme
the SPRAY ARM indicator
illuminates at irregular
intervals and 1 longer
warning tone can be heard
at the same time.
32
Possible Cause
Open tap.
The filter (where present)
Clean the filter in the
in the threaded hose fitthreaded hose fitting.
ting is blocked.
Operating Instructions
...there are problems with the operation of the dishwasher.
Symptom
Possible Cause
Solution
The door of the dishwasher is
Shut the door.
not closed properly.
Mains plug is not plugged in. Insert mains plug.
The programme does
not start.
House fuse in defective.
Replace fuse.
A delay start is selected.
If the dishes are to be
washed immediately, set the
delay start to 0 hours
The washing compartment is
made of corrosion-resistant
stainless steel. Rust spots in
the washing compartment
Rust spots are visible in are from particles from outthe washing compart- side the appliance (rust particles from the water pipe,
ment.
from pans, cutlery, etc.).
Remove such spots with a
commercially available stainless steel cleaner.
Only wash cutlery and dishes
that are suitable for dishwasher use.
There is a whistling
noise during washing.
Use a different brand of
detergent.
The whistling is not a cause
for concern.
Close the lid of the special
salt container securely.
Mains plug is not plugged in. Insert mains plug.
Dishwasher interior
lighting does not work. Light bulb for the interior
Contact AEG Service Force.
lighting is defective.
...the wash result is not satisfactory.
The dishes are still dirty.
– The wrong wash programme was selected.
– The dishes were arranged in such a manner that water has not
reached all parts. The dish racks must not be overloaded.
– The filter in the base of the washing compartment is dirty or incorrectly positioned.
– Detergent was not used or too little was used.
– In the case of scale deposits on the dishes: the special salt container
is empty or the water softener is incorrectly adjusted.
33
Operating Instructions
– The drain hose is incorrectly laid.
The dishes are wet and dull.
– Rinse aid was not used.
– The rinse aid container is empty.
There are streaks, milky spots or a bluish coating on glasses and
dishes.
– Decrease rinse aid dosing.
There are dried water drops on the glasses and dishes.
– Increase rinse aid dosing.
– The detergent may be the cause. Contact the detergent manufacturer's consumer advisor.
Technical Data
Capacity:
12 place settings including serving dishes
Permitted Water
Pressure:
1-10 bar (=10-100 N/cm2 = 0.1-1.0 MPa)
Electrical Connection:
Information on the electrical connection is given on the
rating plate on the inner edge of the dishwasher door on
the right.
Dishwasher: Free-Standing Appliances
Dimensions:
850 x 600 x 600 (H x B x D in mm)
Max. Weight:
54 Kg
Dishwashers that Can Be Integrated or Fully Integrated, Built-In Dishwashers
That Can Be Fitted With Decor Panels
Dimensions:
820 – 880 x 595 x 570 (H x B x D in mm)
Max. Weight:
50 Kg
; This appliance conforms with the following EU Directives:
– 73/23/EWG dated 19. 02. 1973 – Low Voltage Directive
– 89/336/EWG dated 03. 05. 1989
(including Directive Amendment 92/31/EWG) – EMC Directive
34
Operating Instructions
Notes for Test Institutes
The salt container for the water softener and the rinse aid container
must be completely full prior to the test.
Test Standard:
EN 5O 242
Comparative Programme:
see "Program table; Test program" for full and half load
Full Load:
12 place settings incl. serving dishes
Detergent Dosing:
30g (Type B) in the detergent container
Half Load:
6 place settings incl. serving dishes
For half load every second stacking position is left empty
Detergent Dosing:
20g (Type B) in the detergent container
Rinse Aid Setting:
4 (Type III) for full and half load
Example Loading Arrangements:
Top rack without cutlery tray
Top rack with cutlery tray
Bottom rack with cutlery basket
Cutlery rack
35
Installation and Connection Instructions
INSTALLATION AND CONNECTION
INSTRUCTIONS
Installing the Dishwasher
• The dishwasher must be installed on a firm floor and adjusted such
that it is stable and level.
• To compensate for unevenness in the
floor and to match the height of the
appliance to that of surrounding units
extend the threaded feet by unscrewing. Depending on the design of the
threaded feet use either
– an open-end spanner
or
– a screwdriver.
• For built-in, integrated and fully integrated dishwashers, the rear feet
should be adjusted from the front of the appliance using a screwdriver.
• The drain hose, inlet hose and mains cable must be laid such that
they are free to move in the rear of the plinth recess, so that they
cannot be kinked or crushed.
• The dishwasher must also be screwed on tightly to the work surface
or to the adjoining units. This is absolutely necessary so that its stability is guaranteed according to VDE regulations.
36
Installation and Connection Instructions
• Depending on type, the dishwasher is to be installed as follows:
Dishwashers That Can Be Integrated
(see installation template supplied)
3
The door of the appliance can be fitted with a wooden/facing panel
with the following dimensions:
Width:
591 – 594 mm
Thickness:
16 – 24 mm
Height:
(variable)
dependent on
– Aperture height
– Plinth height
– The adjustment so that the unit matches the height of
the adjoining units
The exact height of the adjoining units must be
measured at the place of installation.
Weight:
1
max. 8 kg
If the facing panel is longer than 600 mm, the door of the appliance
cannot be opened completely (the facing panel bumps against the
plinth).
If this is the case, the plinth must be cut out (see installation template)
or the brace adapter for the extra long door BLT 60 must be used. You
can obtain this with the E No. 911 239 008.
Built-In Dishwasher
(see enclosed installation instructions)
Free-Standing Appliances
1
• can be set up as stand-alone without additional installation.
If the dishwasher is set up next to a gas or coal cooker, a heatinsulating, non-flammable plate must be mounted between the
dishwasher and the cooker, flush to the top edge of the work surface
(depth 57.5 cm). The plate should have aluminium foil on the side
facing the cooker.
37
Installation and Connection Instructions
• If the dishwasher is installed underneath a kitchen work surface, the
original work surface of the dishwasher is to be removed as follows:
– Unscrew the screws (1) from the
elbows on the back side.
– Slide the work surface approx.
1cm to the rear (3) , lift at the
front (4) and remove.
– Press the work surface retaining
brackets at the position shown in
the diagram (4) and remove the
bracket at an angle to the rear
(5).
38
4
5
1
If the dishwasher is later used as a free-standing appliance, the original
work surface must be re-mounted.
3
The plinth on free-standing appliances is not adjustable.
Installation and Connection Instructions
Connecting the Dishwasher
Water Connection
The dishwasher is fitted with safety devices that prevent the return of
wash water into the drinking water system and comply with the applicable plumbing regulations.
• The dishwasher should be connected to a cold water supply.
• The dishwasher should not be connected to a hot water supply.
Permitted water pressure
Lowest permitted water pressure:
1 bar (=10N/cm2 =100 kPa)
Highest permitted water pressure:
10 bar (=100 N/cm2 =1 MPa)
For a water pressure of less than 2 bar
please seek advice from AEG Service
Force.
In the case of a water pressure greater
than 10 bar, a pressure reduction valve
must be used (available from your
dealer).
Connect the inlet hose
1
0
3
The water inlet hose must not be kinked, crushed or entangled when it
is being connected up.
Connect the threaded hose fitting (DIN 259) on the water inlet hose to
a tap with an external thread (¾ inch). Handtighten the threaded hose
fitting only.
• In order that access to the tap in the kitchen is not limited by the use
of the dishwasher, we recommend the installation of an additional
tap, or the fitting a two way adapter to the existing tap.
• If you need a longer water inlet hose contact your local AEG Service
Force Centre.
39
Installation and Connection Instructions
Water drain
Drain hose
1
The drain hose must not be kinked, crushed or entangled.
• Connecting the drain hose:
– Maximum permitted height: 1 metre.
– Minimum required height 30 cm above the lower edge of the
machine.
Extension hoses
• Extension hoses are available from
AEG Service Force. The internal
diameter of the extension hoses
must be 19 mm to ensure that the
function of the appliance is not
impeded.
• Hoses may be laid a maximum of
3 metres horizontally; the maximum permitted height for the connection for the drain hose is then
85 cm.
Sink outlet connection
• The outlet of the drain hose (ø 19 mm) fits all commonly available
sink outlet spigot types. The outer diameter of the spigot connection
must be at least 15 mm.
• The drain hose must be fixed to the sink outlet connection using the
hose clamp supplied.
Discharging into a standpipe
When discharging into a standpipe,
the upright standpipe should have a
minimum, length of 30 cm (12“) from
the bottom of the elbow to the top
of the pipe (see diagram). Make sure
that it is designed in such a way that
the end of the drain hose cannot be
covered with water.
40
Installation and Connection Instructions
Leak Prevention System
For protection from damage due to water leaks, the dishwasher is
equipped with a leak prevention system, the AQUA CONTROL SYSTEM.
In the event of a fault, the safety valve immediately interrupts the supply of water to the appliance and the drain pump switches on. It is thus
not possible for water to either leak or overflow. Any water left in the
appliance is automatically pumped out.
1
The AQUA CONTROL SYSTEM also works when the appliance is switched
off – the appliance must however not be disconnected from the mains.
When the appliance is switched on, a buzzing tone can also be heard.
41
Installation and Connection Instructions
Electrical Connection
Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
1
WARNING - This appliance must be earthed.
The manufacturer declines any responsibility should these safety
measures not be observed.
Before switching on make sure the electricity supply voltage is the
same as that indicated on the appliance rating plate.
To isolate the dishwasher from the mains, remove the mains plug.
Important: The plug must still be accessible after the appliance has
been installed.
Changing a fuse
The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved
(BS 1363A) fuse must be used.
Green
Should the plug need to be
& Yellow
replaced for any reason, proceed as
described below.
The wires on the mains lead are
coloured in accordance with the
following code.
Blue
Brown
Green and Yellow : Earth
Blue
: Neutral
Brown
: Live
Cord Clamp
• The wire coloured green and yellow must be connected to the terminal marked with the letter “E“ or by the earth symbol
or coloured
green and yellow.
• The wire coloured blue must be connected to the terminal “N“ or coloured black.
• The wire coloured brown must be connected to the terminal marked
“L“ or coloured red.
• Upon completion there must be no cut, or stray strands of wire
present and the cord clamp must be secure over the outer sheath.
1
42
WARNING! A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard. Ensure that, if it is necessary to cut off
the plug, it is disposed of safely and not retained.
Installation and Connection Instructions
Connections
The water inlet and drain hoses, as well as the mains cable must be
connected beside the dishwasher as there is insufficient space behind
the appliance.
The plumbing and electrical installation example given below can only
be regarded as a recommendation.
Two 45° or Straight Connections,
Outer ø 19 mm, Length 30 mm
Water
inlet
Mains
cable
Water
drain
Mains socket
Double tap
Water drain
Water inlet
Mains
cable
43
Guarantee Conditions
GUARANTEE CONDITIONS
1.
2.
3.
4.
5.
6.
Guarantee Conditions
AEG offer the following guarantee to the first purchaser of this appliance.
The guarantee is valid for 12 months commencing when the appliance is handed over
to the first retail purchaser, which must be verified by purchase invoice or similar documentation.
The guarantee does not cover commercial use.
The guarantee covers all parts or components which fail due to faulty workmanship or
faulty materials. The guarantee does not cover appliances where defects or poor performance are due to misuse, accidental damage, neglect, faulty installation,
unauthorised modification or attempted repair, commercial use or failure to observe
requirements and recommendations set out in the instruction book.
This guarantee does not cover such parts as light bulbs, removable glassware or plastic,
dust bags or filters.
Should guarantee repairs be necessary the purchaser must inform the nearest customer
service office (manufacturer´s service or authorised agent). AEG reserves the right to
stipulate the place of the repair (i. e. the customer´s home, place of installation or AEG
workshop).
The guarantee or free replacement includes both labour and materials.
Repairs carried out under guarantee do not extend the guarantee period for the appliance. Parts removed during guarantee repairs become the property of AEG.
The purchaser´s statutory rights are not affected by this guarantee.
European Guarantee
If you should move to another country within Europe then your guarantee moves with
you to your new home subject to the following qualifications:
– The guarantee starts from the date you first purchased your product.
– The guarantee is for the same period and to the same extent for labour and parts as
exist in the new country of use for this brand or range of products.
– This guarantee relates to you and connot be transferred to another user.
– Your new home is within the European Community (EC) or European Free Trade Area.
– The product is installed and used in accordance with our instructions and is only used
domestically, i. e. a normal household.
– The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care Centre, listed below, to
give them details of your new home. They will then ensure that the local Service
Organisation is aware of your move and able to look after you and your appliances.
44
France
Senlis
+33 (0) 44 62 29 29
Germany
Nürnberg
+49 (0) 911 323 2600
Italy
Pordenone
+39 (0) 1678 47053
Sweden
Stockholm
+46 (0) 8 738 7910
UK
Slough
+44 (0) 1753 219899
45
46
Service & Spare parts
SERVICE & SPARE PARTS
If you wish to purchase spare parts or require an engineer, contact your
local AEG Service Force Centre by telephoning:
08705 929 929
Your telephone call will be automatically routed to the Service Centre
covering your post code area.
When you contact the Service Centre they will need the following
information:
1.
Your name & address, including post code.
2.
Your telephone number
3.
Clear and concise details of the fault.
4.
The model, serial and production number. This information can
be found on the rating plate. The rating plate is on the inner
edge of the door on the right.
5.
Date of purchase. Please note that it will be necessary to provide
proof of purchase for any in guarantee service call.
In-guarantee customers should ensure that the chapter headed “What
to do if ...“ has been read, as the engineer will make a charge if the
fault is not a mechanical or electrical breakdown.
Customer Care
For general enquiries concerning your AEG appliance or for further
information on AEG products please contact our Customer Care
Department by letter or telephone as follows:
Customer Care Department
AEG Domestic Appliances
55-77 High Street
Slough
Berkshire, SL1 1DZ
Tel. 08705 350350 (*)
(*) Calls may be recorded for training purposes
47
AEG Hausgeräte GmbH
Postfach 1036
D-90327 Nürnberg
http://www.aeg.hausgeraete.de
© Copyright by AEG
822 945 462 - 00 - 0600
