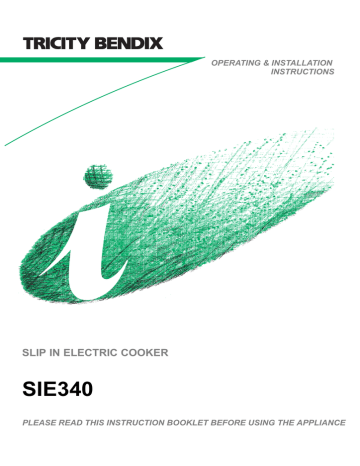

OPERATING & INSTALLATION
INSTRUCTIONS
SLIP IN ELECTRIC COOKER
SIE340
PLEASE READ THIS INSTRUCTION BOOKLET BEFORE USING THE APPLIANCE
TECHNICAL DETAILS
MODEL NO. SIE340
Voltage:
230-240 Volts AC 50Hz
Wattage:
9.4-10.3kW
Height:
900mm
Width:
500mm
Depth:
500mm
Weight:
55kg
This appliance complies with: European Council Directive 73/23/EEC.
EMC Directive 89/336/EEC.
CE Marking Directive 93/68/EEC.
2
CONTENTS
Technical Details .................................................................................................................................... 2
Contents .................................................................................................................................................. 3
Preface ..................................................................................................................................................... 5
Safety .......................................................................................................................................................
Before Installation ...........................................................................................................................
During Operation ............................................................................................................................
After Use .........................................................................................................................................
General ...........................................................................................................................................
6
6
6
7
7
Introduction .............................................................................................................................................
Rating Plate ....................................................................................................................................
Installation .......................................................................................................................................
General Notes on Using Your Appliance ........................................................................................
About Condensation and Steam .....................................................................................................
Oven Indicator Neons .....................................................................................................................
Grill and Oven Furniture .................................................................................................................
8
8
8
9
9
9
9
Getting to Know Your Appliance .......................................................................................................... 10
The Control Panel ........................................................................................................................... 10
The Electronic Minute Minder ......................................................................................................... 11
The Ceramic Hob .................................................................................................................................... 14
Recommended Saucepans ............................................................................................................ 14
Hints and Tips ................................................................................................................................. 14
Deep Fat Frying ...................................................................................................................................... 15
Preserving ............................................................................................................................................... 15
The Grill ...................................................................................................................................................
Selecting the Grill ............................................................................................................................
Things to Note ................................................................................................................................
The Grill Pan and Handle ...............................................................................................................
Hints and Tips .................................................................................................................................
Grilling Chart ...................................................................................................................................
16
16
16
16
17
17
The Top Oven .........................................................................................................................................
Uses of the Top Oven .....................................................................................................................
Selecting the Top Oven ..................................................................................................................
Things to Note ................................................................................................................................
To Fit the Top Oven Shelf ...............................................................................................................
Hints and Tips .................................................................................................................................
18
18
18
18
18
19
The Main Fan Oven ................................................................................................................................
Selecting the Main Fan Oven .........................................................................................................
Things to Note ................................................................................................................................
To Fit the Main Fan Oven Shelves .................................................................................................
Hints and Tips .................................................................................................................................
20
20
20
20
21
Oven Cooking Chart ............................................................................................................................... 22
Roasting Chart ........................................................................................................................................ 23
3
CONTENTS
Defrost Feature .......................................................................................................................................
Uses of Defrost Feature ..................................................................................................................
Selecting Defrost ............................................................................................................................
Things to Note ................................................................................................................................
Hints and tips ..................................................................................................................................
24
24
24
24
24
Care and Cleaning ..................................................................................................................................
Cleaning Materials ..........................................................................................................................
Cleaning the Brass or Chrome Plated Handles (Where Applicable) ..............................................
Cleaning the Ceramic Hob ..............................................................................................................
Hints and Tips .................................................................................................................................
Cleaning the Outside of the Appliance ...........................................................................................
Cleaning the Grill and Oven Furniture ............................................................................................
Cleaning Inside the Oven/Grill Compartments ...............................................................................
Care of Stayclean Surfaces ............................................................................................................
Hints and Tips .................................................................................................................................
Cleaning the Door Glass .................................................................................................................
25
25
25
25
26
26
26
27
27
27
28
Something Not Working? ...................................................................................................................... 29
Service and Spare Parts ........................................................................................................................ 30
Guarantee Conditions ............................................................................................................................ 31
4
PREFACE
Dear Customer,
Thank you for buying a Tricity Bendix appliance. With our 80 years experience in
developing and manufacturing the very best in U.K. appliances, you can be assured that
you have purchased a hard working, reliable, quality product.
Tricity Bendix appliances comply with British Standard safety and performance
requirements. They have been approved by BEAB (British Electrotechnical Approvals
Board) and are covered by a 12 month parts and labour guarantee.
To get the best from your new Tricity Bendix appliance, we ask that you PLEASE READ
THESE INSTRUCTIONS CAREFULLY. Particular attention should be made to cooking
times and temperatures, which may differ, from your previous appliance.
It is most important that this instruction book is retained with the appliance for future
reference. Should the appliance be sold, or if you move house and leave the appliance,
always ensure that the book remains with the appliance. This will enable the new
owner to be acquainted with the functioning of the appliance and the relevant warnings.
Please read the whole instruction book before attempting to use the appliance ensuring
you follow the recommendations given.
5
SAFETY
THESE WARNINGS ARE PROVIDED IN
THE INTERESTS OF YOUR SAFETY.
ENSURE THAT YOU UNDERSTAND
THEM ALL BEFORE INSTALLING OR
USING THE APPLIANCE.
Do not allow young children to play
with any part of the packaging.
After installation, please dispose of
the packaging with due regard to
safety and the environment, your
local authority can arrange this.
PLEASE
READ
CAREFULLY
DURING OPERATION
This appliance is not intended to be
operated by means of an external
timer or remote control system.
BEFORE INSTALLATION
This appliance is heavy and care
must be taken when moving it.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
Ensure that all packaging, both
inside and outside the appliance has
been removed before the appliance
is used.
This appliance is designed to be
operated by adults. Young children
must not be allowed to tamper with
the appliance or play with the
controls.
During use the appliance becomes
Hot. Care should be taken to avoid
touching the heating elements inside
the oven.
If the appliance is to be placed on a
base, measures must be taken to
prevent the appliance slipping from
the base.
CAUTION: Accessible parts may
be hot when the grill is in use.
Young children should be kept
away.
Do not try to lift or move the
appliance by pulling the door
handles.
Take great care when heating fats
and oils, as they will ignite if they
become too hot.
The electrical installation work must
be undertaken by a qualified
electrician/competent person.
This appliance has been designed for
cooking edible foodstuffs only, and
must not be used for any other
purposes.
It is dangerous to alter or modify the
specifications of the appliance in any
way.
Never place plastic or any other
material which may melt in the oven
or on the hob.
Do not use the appliance if the
ceramic glass is damaged. If a fault
or crack becomes visible during
cooking, disconnect the appliance
immediately from the electricity
supply and contact your local Service
Force Centre.
Ensure cooking utensils are large
enough to contain foods to prevent
spillages and boil overs.
The handles of saucepans which are
smaller than the heated area on the
hob will become hot. Ensure your
hand is protected before handling the
pan.
Do not place foil or plastic containers
on ceramic glass.
6
Do not leave utensils containing
foodstuffs, e.g. fat or oil in or on the
appliance in case it is inadvertently
switched ON.
Take
care
to
follow
the
recommendations given for tending
the food when grilling.
Do not leave the handle in position
when grilling as it will become hot.
Cookers and hobs become very hot,
and retain their heat for a long period
of time after use. Children should be
kept well away from the appliance
until it has cooled.
Always use oven gloves to remove
and replace the grill pan handle when
grilling.
Recommendations given on page 16
Ensure that all vents are left
unobstructed to ensure ventilation of
the oven cavity.
GENERAL
Under no circumstances should
any repairs be carried out by an
inexperienced person as this may
cause injury or serious malfunction.
Ensure the anti-tilt shelves are put in
place correctly. Refer to instructions
on pages 18 and 20.
This appliance should be serviced by
an authorised service Engineer and
only genuine-approved spare parts
should be used. Details of repair and
servicing arrangements are supplied
on page 30 of this book.
Never line any part of the appliance
with foil. Do not allow heatproof
cooking materials e.g. roasting bags,
to come into contact with oven
elements.
Do not stand on the appliance or on
the open oven door.
Always stand back from the
appliance when opening the oven
door to allow any build up of steam or
heat to release.
Do not hang towels, dishcloths or
clothes from the appliance or its
handle. They are a safety hazard.
Never
leave
the
appliance
unattended when the oven doors
are open.
Do not place sealed cans or
aerosols inside the oven. They may
explode if they are heated.
Always switch OFF the appliance at
its power point and allow the
appliance to cool before any
maintenance or cleaning work is
carried out.
Do not leave the hotplates switched
on for long periods when not covered
by a saucepan. The controls and
cabinets may overheat.
Only clean this appliance in
accordance with the instructions
given this book.
AFTER USE
Ensure that all control knobs are in
the OFF position when not in use.
Your safety is of paramount importance.
Therefore, if you are unsure about any of
the meanings of these WARNINGS contact
the:
For hygiene and safety reasons
this appliance should be kept
clean at all times. A build-up of
fats or other foodstuffs could
result in a fire, especially in the
grill pan.
Customer Care Department
Telephone 0870 5 950950
7
INTRODUCTION
WARNING: THIS APPLIANCE MUST BE EARTHED
RATING PLATE
To move the appliance, open the main oven door,
and lift the appliance by holding inside the top of the
oven compartment.
This is situated on the front frame of the appliance
and can be seen upon opening the door. Alternatively
the rating plate may also be found on the back or top
of some models (where applicable).
The appliance must be protected by a suitably rated
fuse or circuit breaker. The rating of the appliance is
given on the rating plate.
Do not remove the rating plate from the appliance
as this may invalidate the guarantee.
INSTALLATION
This is a type X appliance, which means it is freestanding and can be fitted with cabinets on one or
both sides.
If your appliance has been damaged in transit,
contact your supplier immediately. DO NOT attempt
to install it.
Side walls which are above hob level should be
protected by heat resistant non-combustible material
and MUST NOT be nearer than 40mm to the hob
side.
Your appliance left the factory fully packaged to
protect it from damage. If it is delivered without
packaging and damage has occurred, the
manufacturer cannot accept responsibility. Contact
your supplier for advice.
A nominal air gap of 2mm at the sides of the
appliance is required to enable the appliance to be
moved into position.
It is recommended that
proprietary trims are fitted to protect the worktops of
either side of the appliance. These are available
from most DIY stores.
Once the packaging has been removed the appliance
should only be moved by hand. DO NOT use a sack
barrow or any other aid to lift the appliance as
damage may occur.
Connection to the electricity supply must be carried
out by a qualified electrician/competent person.
Air gap
The electrical connection should be made using a
double pole isolating switch (cooker socket) with at
least 3mm contact separation in all poles. The cable
must have conductors of sufficiently high crosssectional area to prevent overheating and
deterioration.
Always ensure an air gap is maintained at hotplate
level. Tiles or other forms of deep wall covering
should not obscure this gap.
The recommended cross-section area is six square
2
millimetres (6.00mm ).
The cable should be routed away from potentially hot
areas marked by an ‘X’ in the diagram below.
Overhanging surfaces or a cooker hood should be a
minimum of 685mm above the hob.
It is important to ensure that the appliance is level
after installation. Levelling feet are fitted to the
appliance to accommodate uneven floors.
8
GRILL AND OVEN FURNITURE
GENERAL NOTES ON USING YOUR
APPLIANCE
The following items of grill/oven furniture have been
supplied with the appliance:
We suggest that you run the oven elements for 10 –
o
15 minutes at 220 C to burn off any residue from
their surfaces. The procedure should be repeated
with the grill for approximately 5 – 10 minutes.
During this period an odour may be emitted, it is
therefore advisable to open a window for ventilation.
1 grill pan
ABOUT CONDENSATION AND STEAM
When food is heated it produces steam similar to a
boiling kettle. The oven is vented to allow some of
this steam to escape. However, always stand back
from the appliance when opening the oven door to
allow any build up of steam or heat to release.
If the steam comes into contact with a cool surface
on the outside of the appliance, e.g. a trim, it will
condense and produce water droplets. This is quite
normal and is not caused by a fault on the appliance.
1 grill pan handle
To prevent discolouration, regularly wipe away
condensation and also soilage from surfaces.
For your safety wall coverings at the rear of the
appliance should be securely fixed to the wall.
1 grill pan grid
CONTROL PANEL INDICATOR NEONS
These lights indicate whether the ovens are switched
on.
The neons also indicate when the set temperature
has been reached. They will turn on and off during
use to show that the temperature is being
maintained.
1 straight shelf
for grilling and
top oven cooking only
If the neons do not operate as the instructions
indicate the controls have been incorrectly set.
Return all controls to zero and re-set following the
instructions for the required setting.
THE COOLING FAN FOR THE
CONTROLS
The cooling fan will always come on when the grill
and the top oven are switched on. If they are only
used for a short period of time the fan will switch off
when the controls are turned off. If the grill or the top
oven are used for a longer period of time the fan will
run on depending on the temperature, and may turn
on and off until the appliance has cooled.
2 straight shelves
for main oven cooking
In the case of the main oven the cooling fan may not
switch on except when used for a longer period of
time. The cooling fan may run on, and turn on and
off after the control knobs have been switched off,
until the appliance has cooled. Do not switch the
appliance off at its power point until the fan has
cooled the appliance down.
Scuffing of the Stayclean panel/s by the oven
furniture pack may occur during transit. These marks
will disappear after the oven elements have been
burnt off for the first time.
9
GETTING TO KNOW YOUR APPLIANCE
THE CONTROL PANEL
A
E
C
B
D
FEATURES
A
B
C
D
E
-
Fan Oven Temperature Control
Fan Oven Indicator Neon
Top Oven/Grill Control
Top Oven Indicator Neon
Hotplate Controls
10
ELECTRONIC MINUTE MINDER (SIE340 WHITE ONLY)
1=
(-)
DECREASE CONTROL & MINUTE
MINDER
2=
(+)
INCREASE CONTROL
(
)
COOKPOT SYMBOL
The electronic minute minder can indicate the time of
day, operate as a minute minder and it can be used
to time and switch off the main oven.
1
Fig.1
Please note that this is a 24 hour clock, for example
2.00pm is shown as 14.00.
In the following pages we explain how to use the
minute minder and set the time of day. Read through
them until you are familiar with the procedure.
1. SET THE TIME OF DAY
Fig.2
When the electricity supply is first switched ON, the
display will flash 0.00. See Fig.1.
Press buttons (1) and (2) together. Release buttons,
0.00 will appear in the display as Fig. 2. Within 5
seconds press button (2), 12.00 will show in the
display as Fig. 3.
Within 5 seconds press and hold either button (1) to
decrease or button (2) to increase the time until the
correct time of day on the 24 hour clock is reached,
e.g. 14.30. See Fig. 4.
Fig.3
Note: The increase and decrease control buttons
operate slowly at first, and then more rapidly.
They should be pressed separately.
Fig.4
11
2
2. THE MINUTE MINDER
Fig.5
IMPORTANT
The minute minder can be used to time a set cooking
period. At the end of the cook time the minute
minder will automatically switch off the main oven if in
use.
The minute minder gives an audible reminder at the
end of any period of cooking up to 23 hours and 59
minutes.
To set press button (1) and the display will read 0.00,
see Fig. 5.
Release button (1) and press and hold button (2).
The display will count up in one minute intervals until
the interval to be timed is reached e.g. 30 minutes,
see Fig. 6. If necessary press and hold button (1) to
achieve the correct time interval.
The minute minder will begin to count down once set.
The time of day will show in the display. To show the
remainder of the cook time. Press button (1).
At the end of the timed period the minute minder will
click, switching the main oven OFF if in use.
An audible signal will sound for up to 2 minutes. The
Auto symbol will flash and the cookpot symbol will go
out. The time of day will show in the display. See
Fig. 7.
To stop the sound press button (1). The display will
stop flashing and show the time of day, e.g. 15.00.
To return the timer to manual press button (1) again.
See Fig. 8. If using the main oven it will come on
again once button (1) has been depressed. When
cooking is complete remove food and turn OFF oven
temperature control.
Fig.6
Fig.7
Fig.8
3. TO CANCEL THE MINUTE MINDER
If you change your mind and want to cancel the
minute minder. Press and release button (1). Press
and hold button (1) and the display will count down in
one minute intervals to 0.00. See Fig. 9. Release
button (1).
After a few seconds the time of day will show in the
display. See Fig. 10.
If the main oven is in use this will switch OFF after a
few seconds.
To reset, press buttons (1) and (2) together. See Fig.
11.
Fig.9
Fig.10
4. THINGS TO NOTE
1. The time of day must be set before the main
oven will operate. There will be a few seconds
delay before the oven switches on.
2. The minute minder function controls the main
oven and will switch the oven OFF at the end of a
timed period. This function is useful if you want
to begin cooking now and have the oven switch
OFF automatically.
Fig.11
3. If you have used the minute minder to time food
cooking in the main oven you will need to reset
the timer by pushing button (1) before the oven
can operate again.
12
5. LOCK FEATURE - MAIN OVEN ONLY
Please read the following information with care.
TO LOCK THE OVEN USING THE TIMER
Fig. 12
Press and hold Buttons (1) and (2) on your timer for 3
- 8 seconds. See Fig. 12.
'ON' will appear in the display. See Fig. 13.
Press Button (2) to change the display to 'Of'.
The key symbol ( ) appears in the display.
The oven will now not operate.
After a few seconds the time of day will show in the
display.
Wait 3 seconds before selecting another function.
1
Fig. 13
TO UNLOCK THE OVEN
Press and hold Buttons (1) and (2) for 3 - 8 seconds.
'Of' will appear in the display. See Fig. 14.
Press Button (2) to change the display to 'On'.
The key symbol ( ) will go out.
After a few seconds the time of day will show in the
display.
The oven can now be operated normally.
Fig. 14
13
2
THE CERAMIC HOB
CAUTION: DO NOT USE THE APPLIANCE IF THE CERAMIC GLASS IS DAMAGED. IF A
FAULT OR CRACK BECOMES VISIBLE DURING COOKING, DISCONNECT THE
APPLIANCE IMMEDIATELY FROM THE ELECTRICITY SUPPLY AND CONTACT YOUR
LOCAL SERVICE FORCE CENTRE.
USING THE HOB
·
To operate the hotplates, turn the control knobs
in either direction to vary the heat setting.
·
The highest number represents the hottest
setting and the lowest number represents the
coolest setting. Choose a setting appropriate to
the quantity and type of food to be cooked.
Some switching ON and OFF when cooking at high
temperatures, e.g. deep fat frying is quite normal,
causes no damage to the hob and little delay in
cooking times.
Excessive switching may however be caused by the
use of an unsuitable saucepan or a saucepan which
is smaller than the heated area.
If excessive
switching occurs, discontinue use of the saucepan.
RECOMMENDED SAUCEPANS
HINTS AND TIPS
For speed and economy only good quality saucepans
with flat bases and close fitting lids are
recommended.
The saucepan base should be
approximately the same size as the cooking area, a
base diameter of up to 225mm (9”) may be used on a
180mm (7”) heated area.
Ensure that new saucepans are well scrubbed to
remove edges and take off any deposits left from
manufacture.
Pressure cookers, preserving pans, etc., should
comply with the recommendations given above.
Traditional round bottomed Woks must not be used
even with a stand. Woks with flat-bottomed bases
are available and do comply with the above
recommendations.
NOTE
Occasionally the heated areas may be seen to switch
ON and OFF when higher heat settings are being
used. This is due to a safety device which prevents
the glass from overheating.
14
·
Lift, rather than slide saucepans on and off the
heated areas. This will reduce the risk of
scratches and metal marks from saucepans with
aluminium bases. Metal marks can be easily
cleaned off providing they are not allowed to burn
on.
·
Follow any guidelines provided by the saucepan
manufacturer, particularly those relating to
recommended heat settings.
·
Avoid using thin, badly dented or distorted
saucepans as they can lead to sticking and
burning of food.
·
·
5. Double frying chips.
To prolong the life of the hotplates:·
DO NOT place foil and plastic vessels on the
hot surface of the ceramic hob and DO NOT
use the surface for storage purposes.
·
Never use utensils with a skirt, e.g. a bucket.
·
Never use an asbestos mat.
·
Never leave the hotplates ON when not
covered with a saucepan.
Double frying will ensure good chips. First fry the
chips for a few minutes at 170°C/340°F to seal
the outside. Remove the chips from the oil.
Increase the temperature of the oil to
190°C/375°F to finish cooking and brown the
chips.
Chips may be kept for several hours after the first
frying before finishing off with the second frying.
Ensure that the hob and saucepans are clean
and dry before the start of cooking to reduce
cleaning.
·
Follow the cleaning instructions very closely to
keep the hob looking like new.
·
If spillage occurs with sugar solutions, e.g.
jams and syrups, it must be wiped from the
hob before it sets and becomes hard
otherwise damage to the hob will occur.
6. Frying temperatures
DEEP FAT FRYING
SPECIAL FRYING NOTE:
For safety purposes when deep fat frying, fill the pan
one third full of oil, DO NOT cover the pan with a lid
and DO NOT leave the pan unattended. In the
unfortunate event of a fire, switch the appliance OFF
at the electricity supply and cover the pan with a lid
or damp cloth to assist in smothering the flames.
Celsius
Scale (°C)
150
Fahrenheit
Scale (°F)
300
First frying of potatoes
170
175
180
340
350
360
Second frying of potatoes
Frying chicken and fish
190
195
200
375
380
390
PRESERVING
1. DO NOT use a pan that overlaps the perimeter of
the hob trim.
2. To allow for a full rolling boil, the pan should be
no more than one third full when all the
ingredients have been added. It is better to use
two pans rather than overfill one, or use half
quantities.
DO NOT use water on the fire. Leave the pan to cool
for at least 30 minutes before moving it.
DO NOT leave the fat or oil in the frying pan on the
hob to store it in case the hob is inadvertently
switched ON.
3. Use firm fruit or vegetables and wash well before
using.
1. Preparing the food.
4. Preserving sugar gives clear jam, however
granulated sugar is cheaper and gives equally
good flavour.
Seal the food by coating with flour, egg and
breadcrumbs or batter. Do not use a basket with
batter coated foods as they will stick.
2. Amount of oil.
5. Crystallization may be caused if sugar is not
completely dissolved before bringing jam to the
boil. Over boiling will affect the flavour, setting
properties and colour of the jam.
For safety purposes fill the pan only one-third full
of oil.
3. Testing the temperature of the oil.
It is advisable to use a thermometer to test the
temperature of the oil. Alternatively, drop a
small cube of bread into the oil which should
brown in just under a minute if the oil is at the
correct temperature of 190°C/375°F.
6. To test jam for setting:
If a jam thermometer is available, boil jam to
104°C. Marmalade should be boiled to 106°C.
If a jam thermometer is not available, remove
pan from heat, place sample of jam on a cold
dish and cool quickly (i.e. in a freezer or frozen
food storage compartment of a refrigerator).
When cold, it will crinkle and hold the mark of a
finger run through it, if it is at setting point.
4. Cooking the food.
Lower the food gently into the oil. Do Not add
too much food at once or the temperature of the
oil will be reduced and may result in soggy,
greasy food.
Turn the food if necessary; doughnuts float to the
surface so will not brown on the upperside if not
turned.
Once cooked, drain the food on
absorbent paper.
7. The scum should be removed as soon as
possible after setting point has been reached.
Marmalade should be allowed to cool before
potting to prevent the peel rising.
15
THE GRILL
CAUTION – ACCESSIBLE PARTS MAY BECOME HOT WHEN THE GRILL IS IN USE.
CHILDREN SHOULD BE KEPT AWAY.
SELECTING THE GRILL
·
THE GRILL PAN AND HANDLE
To operate the grill, open the grill door and turn
the top oven/grill control clockwise so that ‘0’ on
the control knob lines up with setting 1, 2 or 3.
·
Setting 3 represents the grill on Full.
At settings 1 and 2 the grill may turn on and off
over time and you may prefer to use these
settings for keeping food warm.
The food will however continue to cook gently if
the grill is used for this purpose.
·
The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will turn ON and OFF periodically
showing that the oven temperature is being
maintained.
The grill pan is supplied with a removable handle.
To insert the handle, press the button on the handle
with the thumb and pivot the handle slightly upwards
inserting the lip into widest part of the bracket. Move
the handle towards the left, lower into position and
release the button.
Ensure the handle is positively located.
When removing the handle, press the button on the
handle with the thumb and pivot the handle slightly
upwards and towards the right to remove from the
bracket.
NOTE
THE GRILL DOOR MUST BE LEFT OPEN DURING
GRILLING. IF THE DOOR IS CLOSED THE TOP
OVEN WILL OPERATE.
·
The cooling fan will operate. For more details
about the cooling fan see page 9.
·
Some smoke from fat splashes may be evident
as the grill cleans itself.
·
The top oven cannot be operated when the grill
is in use.
·
The inner element may appear to glow slightly
brighter than the outer element. This is quite
normal.
Ensure your hand is protected when inserting
and removing the grill pan handle as the control
panel trim and grill element can become very hot.
ALWAYS REMOVE THE GRILL PAN HANDLE
DURING GRILLING.
16
To correctly locate the grill pan on the shelf, ensure
that the cut out on the underside of the handle
bracket locates over the front bar of the shelf.
To check the progress of the food being grilled, the
grill pan should be withdrawn on the shelf to tend the
food during cooking.
·
Accompaniments such as tomatoes and
mushrooms may be placed underneath the grid
when grilling meats.
·
When toasting bread use the straight shelf in
position 1 with the grid in the high position and
placing the bread in the centre of the grid.
·
Preheat the grill on a full setting for five minutes
before cooking. Adjust the shelf as necessary
during cooking.
·
The food should be turned over during cooking
as required.
GRILLING CHART
FOOD
RUNNER
POSITION
1
GRILL TIME
(mins in total)
2 - 3 each side
Beefburgers
1
6 - 10 each side
Chicken Joints
1
15 - 20 each side
Chops – Lamb
Pork
1
1
7 - 10 each side
10 - 15 each side
Fish – Whole
Trout/Mackerel
1
8 - 12 each side
Fillets – Plaice/Cod
1
4 - 6 each side
Kebabs
1
10 - 15 each side
Kidneys – Lamb/Pig
1
4 - 6 each side
Liver – Lamb/Pig
1
5 - 10 each side
Sausages
1
10 - 15 each side
Steaks – Rare
Medium
Well Done
1
1
1
3 - 6 each side
6 - 8 each side
7 - 10 each side
Toasted Sandwiches
1
1¼ - 1½ each side
Bacon Rashers
HINTS AND TIPS
·
·
·
Food should be thoroughly dried before grilling to
minimise splashing. Brush lean meats and fish
lightly with a little oil or melted butter to keep
them moist during cooking.
Adjust the height of the grilling grid and grill pan
runner position to allow for different heights of
food
Place food on the grill pan or grid directly onto
the grill pan base.
Shelf positions are counted from the bottom up.
The times quoted above are given as a guide and
should be adjusted to suit personal taste.
17
THE TOP OVEN
USES OF THE TOP OVEN
The top oven is the smaller of the two ovens. It is heated by elements in the top oven and bottom of the oven. It is
designed for cooking smaller quantities of food. It gives especially good results if used to cook fruit cakes, sweet or
savoury flans or quiche.
The top oven is also ideal for use as a warming compartment to warm dishes and keep food hot.
temperature setting of 90°C – 100°C on the top oven control dial.
Use a
SELECTING THE TOP OVEN
·
TO FIT THE TOP OVEN SHELF
To operate the top oven turn the temperature
control to the required setting. Our diagram
shows the oven set to 150°C. Close the oven
door.
The shelf should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
THINGS TO NOTE
1. The grill cannot be operated when the top oven is
in use. Only the outer part of the top oven
element in conjunction with the base element will
operate when using the top oven.
2. The top oven indicator neon will glow until the
oven has reached the desired temperature and
then go out. It will then turn ON and OFF
showing that the oven temperature is being
maintained.
3. The cooling fan will operate. For more details
about the cooling fan see page 9.
4. Always place plates on the oven shelf to warm.
Never place dishes directly on the top oven base
as it becomes very hot and damage may occur.
18
HINTS AND TIPS
·
All cooking should be carried out using an oven
shelf positioned in one of the shelf runners.
·
Stand dishes on a suitably sized baking tray on
the shelf to prevent spillage onto the oven base
and to help reduce cleaning.
·
There should always be at least 2.5cm (1”)
between the top of the food and the element.
This gives best cooking results and allows room
for rise in yeast mixtures, Yorkshire puddings,
etc.
·
When cooking cakes, pastry, scones, bread, etc.,
place the tins or baking trays centrally on the
shelf directly below the element.
·
DO NOT place dishes directly onto the oven
base as it becomes very hot and damage may
occur.
19
·
The material and finish of the baking trays and
dishes will affect the degree of base browning of
the food. Enamelware, dark, heavy or non-stick
utensils increase base browning. Shiny
aluminium or polished steel trays reflect the heat
away and give less base browning.
·
DO NOT use the grill pan as a baking tray as this
will increase base browning of the food.
·
Because of the smaller cooking space, lower
temperatures and shorter cooking times are
sometimes required. Be guided by the
recommendations on page 22.
·
For economy leave the door open for the shortest
possible time, particularly when placing food into
a pre-heated oven.
THE MAIN FAN OVEN
USES OF THE FAN OVEN
PREHEATING
The fan oven quickly reaches its temperature, so it is not usually necessary to preheat the oven. Without
preheating however, you may find you need to add an extra 5 – 10 minutes on the recommended cooking times.
For recipes needing high temperatures, e.g. bread, pastries, scones, soufflés etc., best results are achieved if the
oven is preheated first. For best results when cooking frozen or cooked chilled ready meals always preheat the
oven first.
COOKING TEMPERATURES
Fan oven cooking generally requires lower temperatures than conventional cooking. Follow the temperatures
recommended in the chart on page 22. As a guide reduce temperatures by about 20°C – 25°C for your own
recipes, using a conventional oven.
BATCH BAKING
The fan oven cooks evenly on both shelf levels, especially useful when batch baking.
SELECTING THE FAN OVEN
Turn the fan oven temperature control to the required
setting.
TO FIT THE FAN OVEN SHELVES
THINGS TO NOTE
The shelves should be fitted with the straight rods
uppermost on the frame and the forms towards the
back of the oven. If not fitted correctly the anti-tilt
and safety stop mechanism will be affected.
1. The fan oven indicator neon will glow until the
oven has reached the required temperature and
then go out. It will turn ON and OFF periodically
during cooking showing that the temperature is
being maintained.
2. The cooling fan for the controls may switch in
after a time. See page 9 for more information on
the operation of the cooking fan.
20
HINTS AND TIPS
·
Arrange the shelves in the required positions
before switching the oven ON. Shelves positions
are numbered from the bottom upwards.
·
When cooking more than one dish in the fan
oven, place dishes centrally on different shelves
rather than cluster several dishes on one shelf,
this will allow the heat to circulate freely for the
best cooking results.
·
When batch baking one type of food e.g. Victoria
sandwich cakes, those of similar size will be
cooked in the same time.
·
It is recommended that when baking larger
quantities, the shelf positions should be evenly
spaced to suit the load being cooked. A slight
increase in cooking time may be necessary.
·
DO NOT place baking trays directly on the oven
floor as it interferes with the oven air circulation
and can lead to base burning; use the lower shelf
position.
·
The use of excessively high temperatures can
cause uneven browning. It may be necessary to
reduce temperatures slightly.
Refer to the
recommendations given in the oven cooking
chart on page 22.
21
OVEN COOKING CHART
The oven temperatures are intended as a guide only. It may be necessary to increase or decrease the temperature
by 10°C to suit individual preferences and requirements
Shelf positions are counted from the bottom of the oven.
FAN OVEN
FOOD
Biscuits
Bread
Bread rolls/buns
Cakes:
SHELF
POSITION
Shelf
Small & Queen
Sponges
Victoria Sandwich
Madeira
Rich Fruit
Christmas
Gingerbread
Meringues
Flapjack
Shortbread
Casseroles:
Beef/Lamb
Chicken
Convenience Foods
Fish
Fish Pie (Potato Topped)
Fruit Pies, Crumbles
Milk Puddings
Pasta Lasagne etc.
Pastry:
Shortcrust
Choux
Eclairs, Profiteroles
Flaky/Puff Pies
Mince Pies
Meat Pies
Quiche, Tarts, Flans
positions
are not
critical
but ensure
that oven
shelves
are
evenly
COOKING
TEMP °C
180 - 190
200 - 220
200 - 220
160 - 170
160 - 170
160 - 170
140 - 150
130 - 140
130 - 140
TOP OVEN
SHELF
POSITION
1
1*
1
1
1
1
1
1
1
COOKING
TEMP°C
170 - 190
200 - 220
200 - 220
180 - 190
160 - 170
160 - 170
140 - 150
140 - 150
130 - 140
140 - 150
1
140 - 150
80 - 100
1
90 - 100
170 - 180
1
170 - 180
130 - 140
1
140 - 150
140 - 160
1*
140 - 160
180 - 190
1*
180 - 190
Follow manufacturer’s instructions
170 - 190
1
170 - 190
190 - 200
1*
190 - 200
190 - 200
1
190 - 200
130 - 140
1
140 - 150
190 - 200
1
170 - 180
APPROX
COOK TIME (m)
10 - 20
25 - 30
15 - 20
18 - 25
18 - 20
18 - 25
1¼ - 1½h
2¼ - 2½h
3 - 4½h
depends on size
1¼ - 1½h
2½ - 3h
25 - 30
45 - 65
2½ - 3h
1¼ - 1½h
20 - 30
20 - 25
40 - 50
1½ - 2h
40 - 45
190 - 200
170 - 180
210 - 220
190 - 200
190 - 210
180 - 210
1
1
1*
1
1*
1
180 - 190
170 - 180
210 - 220
190 - 200
190 - 210
180 - 200
30 - 35
20 - 30
25 - 40
15 - 20
25 - 35
25 - 45
160 - 180
1*
160 - 180
see roasting chart
210 - 220
190 - 200
170 - 180
180 - 190
180 - 190
1
1*
1
1
1
220 - 230
190 - 200
170 - 180
180 - 190
180 - 190
8 - 12
30 - 40
20 - 30
1 - 1½h
1 - 1½h
210 - 220
200 - 210
1
1
200 - 210
200 - 210
25 - 40
15 - 25
spaced
Roasting Meat, Poultry
Scones
Shepherd’s Pie
Soufflés
Vegetables:
when more
Baked Jacket Potatoes
Roast Potatoes
Yorkshire Puddings: Large
Individual
than one is
used
* = Shelf on the oven base
Note: Shelf positions are counted from the bottom of the oven.
22
ROASTING CHART
ROASTING CHART
INTERNAL TEMPERATURES –
Rare : 50-60°C; Medium : 60-70°C; Well done : 70-80°C
MEAT
SECOND/FAN
OVEN
COOKING TIME
20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Beef
160-180°C
Beef, boned
160-180°C
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Mutton and Lamb
160-180°C
25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pork and Veal
160-180°C
30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Ham
160-180°C
30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Chicken
160-180°C
15-20 minutes per ½kg (1lb)
and 20 minutes over
Turkey and Goose
160-180°C
15-20 minutes per ½kg (1lb) up
to 3½kg (7lb) then 10 minutes
per ½kg (1lb) over 3½kg (7lb)
Duck
160-180°C
25-35 minutes per ½kg (1lb)
and 25-30 minutes over
Pheasant
160-180°C
35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit
160-180°C
20 minutes per ½kg (1lb)
and 20 minutes over
Potatoes with
meat
160-180°C
according to size
Potatoes without
meat
180-190°C
according to size
The roasting temperatures and times given in the chart should be adequate for most joints, but slight adjustments
may be required to allow for personal requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30 min. cooking time.
23
DEFROST FEATURE
USES OF DEFROST FEATURE
Small or thin fish fillets, frozen peeled prawns, cubed
or minced meat, liver, thin chops, steaks etc., can be
thawed in 1 – 2 hours.
This fan oven function defrosts most foods faster
than more conventional methods. It is particularly
suitable for delicate frozen foods which are to be
served cold e.g. cream filled gateaux, cakes covered
with icings or frostings, cheesecakes, biscuits,
scones, etc.
A 1kg/2¼lb oven ready chicken will be thawed in
approximately 5 hours. Remove the giblets as soon
as possible during the thawing process.
Joints of meat up to 2kg/4½lb in weight can be
thawed using the defrost function.
It is preferable to thaw fish, meat and poultry slowly
in the fridge. However, this process can be
accelerated by using the defrost function.
ALL JOINTS OF MEAT AND POULTRY MUST BE
THAWED THOROUGHLY BEFORE COOKING.
ALWAYS COOK THOROUGHLY IMMEDIATELY
AFTER THAWING.
SELECTING DEFROST
·
HINTS AND TIPS
Turn the fan oven temperature control to the
defrost setting.
·
When defrost is selected, the oven indicator neon
may come ON. It will stay ON until the oven
reaches room temperature and then go OFF.
·
It may turn ON and OFF periodically during
defrosting to maintain a steady room
temperature, inside the oven.
·
Place the frozen food in a single layer where
possible and turn it over half way through the
defrosting process.
·
The actual speed of defrosting is influenced by
room temperature. On warm days defrosting will
be faster than on cooler days.
·
DO NOT leave food at room temperature once it
is defrosted. Cook raw food immediately or store
cooked food in the fridge, once it has cooled.
THINGS TO NOTE
Care must always be taken when handling foods in
the home. Always follow the basic rules of food
hygiene to prevent bacterial and microbial growth
and cross contamination when defrosting, preparing,
cooking, cooling and freezing foods.
24
CARE AND CLEANING
If Hob Brite is unavailable, one or more of the
cleaning agents below may be used temporarily:
a) Cif Cream Cleaner
b) Baking Soda
ALWAYS SWITCH OFF THE ELECTRICITY
SUPPLY AT THE MAIN WALL SWITCH AND
ALLOW THE APPLIANCE TO COOL
BEFORE CLEANING.
TO REMOVE MORE STUBBORN MARKS
CLEANING MATERIALS
1. Bar Keepers Friend may be used to clean off
more
stubborn
stains
or
to
remove
discolourations.
It may be necessary to rub the marks hard for
several minutes.
2. Use a plastic pad specially for non-stick
saucepans with Bar-Keepers Friend for removal
of more stubborn soilage.
Before using any cleaning materials on your
appliance, check that they are suitable and that their
use is recommended by the manufacturer.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Harsh abrasives
should also be avoided. Multi-surface anti-bacterial
cleaning products should not be used on the ceramic
hob or on the surrounding trims.
CLEANING THE BRASS OR CHROME
PLATED HANDLES
(WHERE APPLICABLE)
It is strongly recommended that only hot soapy water
is used for cleaning the handles. THE USE OF ANY
OTHER CLEANING MATERIALS MAY DULL THE
BRASS OR CHROME PLATED FINISH.
TO REMOVE BURNT ON SOILAGE
CLEANING THE CERAMIC HOB
We strongly recommend the use of a Ceramic Hob
Scraper (incorporating a single edge razor blade) to
remove spillage on the hob, in particular sugar
solutions, which if not removed can cause permanent
damage.
Make sure the ceramic glass is cool before cleaning.
It is important to clean the ceramic hob daily to
prevent soilage being burnt on.
Take care to avoid the hob trims when cleaning the
ceramic glass as they may be damaged by the
cleaning agents recommended.
1. Make sure the ceramic glass is cool.
2. Use a ceramic hob scraper with care at an angle
of 30° to remove as much soilage as possible.
DAILY CLEANING
3. Use Bar-Keepers Friend or Hob Brite to finish off
as directed above.
Use the recommended Hob Brite Cleaner daily. If
soilage is not allowed to burn on it will be much
easier to clean off.
1. Apply a small amount of Hob Brite in the centre
of each area to be cleaned.
TO REMOVE DISCOLOURATIONS OR
WHITE AND SILVER MARKS
These marks sometimes give the impression of being
in or underneath the hob glass. They can almost
always be removed provided they have not become
excessively burnt on. Follow the instructions above
under ‘To Remove more Stubborn Marks’.
2. Dampen a clean paper towel or a plastic pad
made specially for non-stick saucepans and rub
vigorously until all marks are removed. This may
take a few minutes.
3. Wipe off residues of cleaner with another damp
paper towel and polish dry with a soft cloth.
If this is unsuccessful, make up a paste of one part
water to three parts Cream of Tarter and leave on the
discoloured areas overnight. The marks should be
easily removable the next day provided they have not
been excessively burnt on. The paste should be
thoroughly washed off afterwards.
25
CLEANING THE
APPLIANCE
HINTS AND TIPS
TO REDUCE HOB SOILAGE:
·
Make sure the bottom of the saucepan and the
cooking area are clean and dry before cooking
begins.
·
Ensure saucepans are large enough
accommodate food to avoid boil overs.
·
If possible, wipe up spills and splatters as they
occur, but take care to avoid steam burns.
·
Avoid using a dishcloth or sponge to clean the
hob. These may leave a layer of soiled detergent
on the hob surface which will burn and discolour
the next time the hob is used.
·
Avoid the use of:
·
Household detergents and bleaches.
·
Impregnated plastic or nylon pads that are not
described as suitable for non-stick saucepans.
·
Brillo pads, Ajax pads, steel wool pads.
·
Chemical oven cleaners, e.g. aerosols and oven
pads.
·
Rust stain, bath and sink stain removers.
·
Any of the above products may cause
damage to the hob.
·
It is dangerous to mix different cleaning products.
The chemicals in them may react with each other
with hazardous results.
·
·
OUTSIDE
OF
THE
DO NOT use abrasive cleaning materials, or
scourers on the outside of the appliance as some of
the finishes are painted and damage may occur.
Cleaners that contain bleach should NOT be used as
they may dull the surface finishes. Regularly wipe
over the control panel, splashback, oven doors and
cooker sides using a soft cloth and liquid detergent.
to
DO NOT ATTEMPT TO REMOVE ANY OF THE
CONTROL KNOBS FROM THE PANEL AS THIS
MAY CAUSE DAMAGE AND IS A SAFETY
HAZARD
CLEANING THE GRILL AND OVEN
FURNITURE
Soilage from sugar solutions must be
removed from the hob before the syrup has
set otherwise damage to the hob surface will
occur.
All removable parts, except the grill pan handle can
be washed in the dishwasher.
The grill pan, grill pan grid and oven shelves may be
cleaned using a soap impregnated steel wool pad.
Soaking first in soapy water will make cleaning
easier.
Avoid placing plastic items, foil or dishes on the
hot surface as this will cause damage to the hob.
26
CLEANING INSIDE THE
GRILL COMPARTMENTS
OVEN
HINTS AND TIPS
AND
The sides and back panel of the main oven and
grill/top oven back and sides are coated with special
Stayclean coating.
The Stayclean surfaces inside the oven should not
be cleaned manually. See below ‘Care of Stayclean
Surfaces’.
The vitreous enamel main oven base, interior main
oven door and grill/top oven compartment base can
be cleaned using normal oven cleaners with care.
Ensure that the manufactures instructions are
followed and that all parts are well rinsed afterwards.
Aerosol cleaners must not be used on the
Stayclean rear oven panel and must not come
into contact with elements or the door seal as
this may cause damage.
For advice on how the keep the Stayclean surfaces
in good condition see ‘Care of Stayclean Surfaces’.
·
Manual cleaning of the Stayclean surfaces IS
NOT recommended.
Damage will occur if
abrasives or aerosol sprays of any kind are used.
·
Slight discolouration and polishing of the
Stayclean surfaces may occur in time. This does
not affect the Stayclean properties in any way.
·
A good time to allow the oven to run on is after
the weekly roast. After removing the roast, turn
the oven up to 220°C and allow to run for an hour
or so.
·
It is important not to allow a build-up of soilage as
this can prevent the Stayclean surfaces from
working.
·
Follow the recommendations below to keep oven
soilage to a minimum.
·
Cook at the recommended temperatures. Higher
temperatures during roasting will increase
soilage. Try cooking at lower temperatures for
an increased length of time, you will save energy
and often the joint is more tender.
·
Use minimal, if any, extra oil or fat when roasting
meat, potatoes only require brushing with fat
before cooking. Extra fat in the oven during
roasting will increase splashing and soilage.
·
It is NOT necessary to add water to a meat tin
when roasting. The water and the fat juices from
the joint create excessive splattering during
cooking - even at normal temperatures, as well
as causing condensation.
·
Covering joints during cooking will also prevent
splashing onto the interior surfaces. Removing
the covering for the last 20-30 minutes will allow
extra browning if required. Some large joints and
turkeys especially benefit by this method of
cooking, allowing the joint to cook through before
the outside is over-browned.
CARE OF STAYCLEAN SURFACES
The Stayclean surfaces destroy splashes of food and
fats when the oven temperature is raised to around
220°c.
It is a good idea to run the oven for an hour or two
per week to ensure continued good performance
from the Stayclean finish.
27
TO REPLACE THE OUTER GLASS
CLEANING THE DOOR GLASS
1. Holding the oven glass with both hands, gently
place the locators into the holes of the brackets
at the bottom of the oven door.
To prevent damaging or weakening of the
door glass panels avoid the use of the
following:
·
Household detergents and bleaches
·
Impregnated pads unsuitable for nonstick saucepans
·
Brillo/Ajax pads or steel wool pads
·
Chemical oven pads or aerosols
·
Rust removers
·
Bath/Sink stain removers
2. Push the top of the oven glass towards the oven
door, ensuring the screw location holes line up.
3.
4. Tighten the screws positively with a Pozidrive
screwdriver before closing the oven door.
CLEANING BETWEEN THE OUTER AND
INNER DOOR GLASS
Do not attempt to use the oven without the
glass being in place.
The outer door glass is removable for cleaning.
TO CLEAN THE INNER GLASS DOOR
TO REMOVE THE OUTER GLASS
The inner glass door is not removable. Clean using
hot soapy water or Hob Brite and a soft cloth. Take
care NOT to use abrasives as they may damage the
glass or seal.
1. Open the oven door slightly to gain access to the
two cross head screws on the top of the oven
door.
2. Loosen the
screwdriver.
two screws
Hold the glass in place with one hand and insert
the cross head screws into the location holes
with the other hand. Give the screws one turn to
ensure the glass is secure.
using a Pozidrive
If the door glass panel becomes chipped or
has deep scratches the glass will be
weakened and must be replaced to prevent
the possibility of the panel shattering.
Please contact your local Service Force
Centre who will be pleased to advise
further.
3. Hold the door glass securely in place with one
hand before removing the screws completely with
the other hand.
4. Using both hands, gently tilt the top of the door
glass towards you, lift slightly to disengage the
locators from the two bottom brackets.
5. Clean the outer and inner glass using hot soapy
water or Hob Brite cleaner may be used. DO NOT
use Hob Brite on the Stainless Steel or painted
finishes. DO NOT try to clean the foil which is
inside the door. The foil is there to help keep the
door cool, if it is damaged it will not work. Ensure
that all parts are well rinsed and thoroughly dried
before attempting to replace the outer door.
28
SOMETHING NOT WORKING?
We strongly recommend that you carry out the
following checks on your appliance before calling a
Service Engineer. It may be that the problem is a
simple one which you can solve yourself without the
expense of a Service call.
If our Service Engineer finds that the problem is listed
below you will be charged for the call whether or not
the appliance is under guarantee.
The appliance does not work at all:
* Check that the appliance has been wired in
and is switched on at the wall.
* Check that the main appliance fuse is
working.
* Check that the timer instructions have been
followed correctly.
The oven temperature is too high or low:
* Check that the recommended temperatures
are being used (see page 22). Be prepared
to adjust the temperature up or down by
10°C to achieve the results you want.
The hotplates and main oven work but the grill
does not:
* Check that you have carefully followed the
instructions for operation of the grill.
If the oven is not cooking evenly or the side
opening door will not stay open:
* Check that the appliance is level.
* Check that the recommended shelf positions
and temperatures are being used.
The oven fan is noisy:
* Check that the oven is level.
* Check that bakeware and shelves are not
vibrating in contact with the back panel in the
oven.
29
SERVICE AND SPARE PARTS
In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local
Service Force Centre by telephoning:-
0870 5 929929
Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
For the address of your local Service Force Centre and further information about Service Force, please visit the
website at www.serviceforce.co.uk
Before calling out an engineer, please ensure you have read the details under the heading "Something Not
Working?".
When you contact the Service Force Centre you will need to give the following details:
1. Your name, address and post code.
2. Your telephone number.
3. Clear and concise details of the fault.
4. The model and serial number of the appliance (found on the rating plate).
5. The purchase date.
Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service
calls.
CUSTOMER CARE DEPARTMENT
For general enquires concerning your Tricity Bendix appliance, or for further information on Tricity Bendix products,
please contact our Customer Care Department by letter or telephone at the address below;
Customer Care Department
Tricity Bendix
55 – 77 High Street
Slough
Berkshire
SL1 1DZ
Tel: 0870 5 950950 (*)
*calls to this number may be recorded for training purposes.
30
GUARANTEE CONDITIONS
Standard guarantee conditions
We, Tricity Bendix, undertake that if within 12 months of the date of the purchase this Tricity Bendix appliance or
any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option
repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that:
·
·
The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
·
The appliance has not been serviced, maintained, repaired, taken apart or tampered with by any person not
authorised by us.
·
·
·
All service work under this guarantee must be undertaken by a Service Force Centre.
The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer’s
instructions.
Any appliance or defective part replaced shall become the Company’s property.
This guarantee is in addition to your statutory and other legal rights.
Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these
hours in which case a premium will be charged.
Exclusions
This guarantee does not cover:
·
Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or
removable parts of glass or plastic.
·
Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the
United Kingdom.
·
Appliances found to be in use within a commercial environment, plus those which are subject to rental
agreements.
·
Products of Tricity Bendix manufacture which are not marketed by Tricity Bendix.
European Guarantee
If you should move to another country within Europe then your guarantee moves with you to your new home
subject to the following qualifications:
·
·
The guarantee starts from the date you first purchased your product.
·
·
·
This guarantee relates to you and cannot be transferred to another user.
The guarantee is for the same period and to the same extent for labour and parts as exists in the new country
of use for this brand or range of products.
Your new home is within the European Community (EC) or European Free Trade Area.
The product is installed and used in accordance with our instructions and is only used domestically, i.e. a
normal household.
·
The product is installed taking into account regulations in your new country.
Before you move please contact your nearest Customer Care centre, listed below, to give them details of your new
home. They will then ensure that the local Service Organisation is aware of your move and able to look after you
and your appliances.
France
Germany
Italy
Sweden
UK
Senlis
Nürnberg
Pordernone
Stockholm
Slough
+33 (0) 3 44 62 20 13
+49 (0) 800 234 7378
+39 (0) 800117511
+46 (0) 20 78 77 50
+44 (0) 1753 219898
31
Tricity Bendix, 55-77 High Street, Slough, Berkshire SL1 1DZ
Consumer care telephone number 08705 950950
IMPORTANT NOTICE
In line with our continuing policy of research and development, we reserve the right to alter models and
specifications without prior notice.
This instruction booklet is accurate at the date of printing, but will be superseded if specifications or
appearance are changed.
SIE340 - 311535608
© Electrolux plc 2002
Download PDF

advertising
