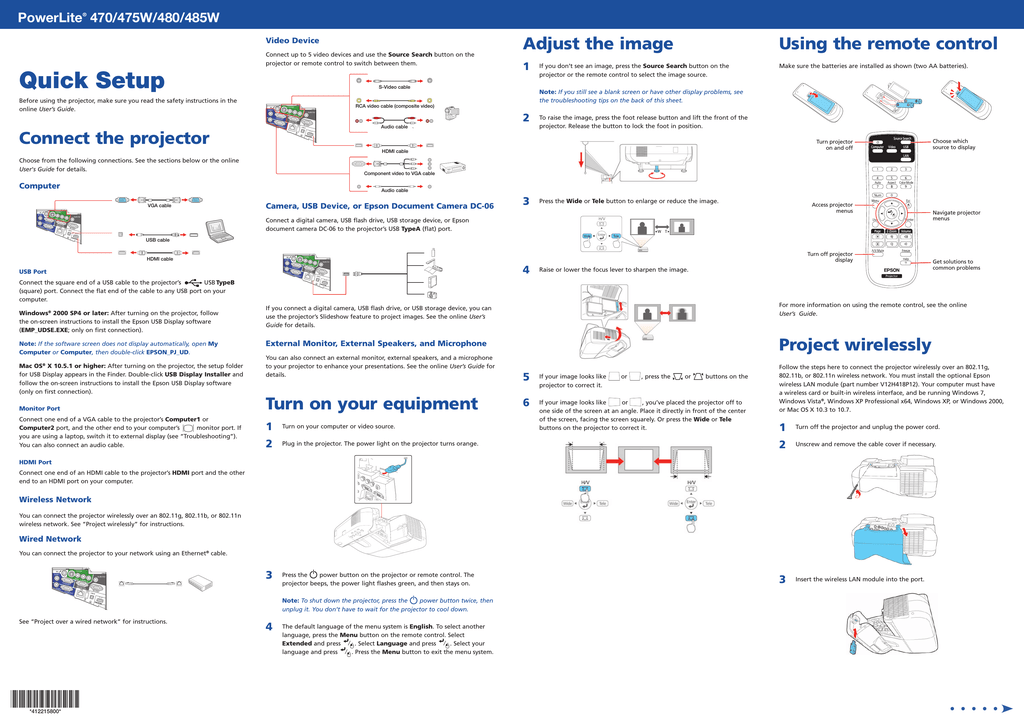

PowerLite 470/475W/480/485W
®
Video Device
Quick Setup
Connect up to 5 video devices and use the Source Search button on the
projector or remote control to switch between them.
Adjust the image
Using the remote control
1If you don’t see an image, press the Source Search button on the
Make sure the batteries are installed as shown (two AA batteries).
projector or the remote control to select the image source.
S-Video cable
Before using the projector, make sure you read the safety instructions in the
online User’s Guide.
RCA video cable (composite video)
Audio cable
Connect the projector
Note: If you still see a blank screen or have other display problems, see
the troubleshooting tips on the back of this sheet.
2To raise the image, press the foot release button and lift the front of the
projector. Release the button to lock the foot in position.
Turn projector
on and off
HDMI cable
Choose from the following connections. See the sections below or the online
User's Guide for details.
Choose which
source to display
Component video to VGA cable
Computer
Audio cable
VGA cable
Camera, USB Device, or Epson Document Camera DC-06
3
Press the Wide or Tele button to enlarge or reduce the image.
Access projector
menus
Connect a digital camera, USB flash drive, USB storage device, or Epson
document camera DC-06 to the projector’s USB TypeA (flat) port.
Navigate projector
menus
USB cable
Turn off projector
display
HDMI cable
4
Raise or lower the focus lever to sharpen the image.
USB Port
Connect the square end of a USB cable to the projector’s
USBTypeB
(square) port. Connect the flat end of the cable to any USB port on your
computer.
Windows® 2000 SP4 or later: After turning on the projector, follow
the on-screen instructions to install the Epson USB Display software
(EMP_UDSE.EXE; only on first connection).
Note: If the software screen does not display automatically, open My
Computer or Computer, then double-click EPSON_PJ_UD.
Mac OS® X 10.5.1 or higher: After turning on the projector, the setup folder
for USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software
(only on first connection).
Monitor Port
Connect one end of a VGA cable to the projector’s Computer1 or
Computer2 port, and the other end to your computer’s
monitor port. If
you are using a laptop, switch it to external display (see “Troubleshooting”).
You can also connect an audio cable.
For more information on using the remote control, see the online
User’s Guide.
If you connect a digital camera, USB flash drive, or USB storage device, you can
use the projector’s Slideshow feature to project images. See the online User’s
Guide for details.
Project wirelessly
External Monitor, External Speakers, and Microphone
You can also connect an external monitor, external speakers, and a microphone
to your projector to enhance your presentations. See the online User’s Guide for
details.
5If your image looks like
or
, press the
or
buttons on the
projector to correct it.
Turn on your equipment
1
Turn on your computer or video source.
2
Plug in the projector. The power light on the projector turns orange.
6If your image looks like
or
, you’ve placed the projector off to
one side of the screen at an angle. Place it directly in front of the center
of the screen, facing the screen squarely. Or press the Wide or Tele
buttons on the projector to correct it.
Follow the steps here to connect the projector wirelessly over an 802.11g,
802.11b, or 802.11n wireless network. You must install the optional Epson
wireless LAN module (part number V12H418P12). Your computer must have
a wireless card or built-in wireless interface, and be running Windows 7,
Windows Vista®, Windows XP Professional x64, Windows XP, or Windows 2000,
or Mac OS X 10.3 to 10.7.
1
Turn off the projector and unplug the power cord.
2Unscrew and remove the cable cover if necessary.
HDMI Port
Connect one end of an HDMI cable to the projector’s HDMI port and the other
end to an HDMI port on your computer.
Wireless Network
You can connect the projector wirelessly over an 802.11g, 802.11b, or 802.11n
wireless network. See “Project wirelessly” for instructions.
Wired Network
You can connect the projector to your network using an Ethernet® cable.
3Press the
power button on the projector or remote control. The
projector beeps, the power light flashes green, and then stays on.
Note: To shut down the projector, press the
power button twice, then
unplug it. You don’t have to wait for the projector to cool down.
See “Project over a wired network” for instructions.
4The default language of the menu system is English. To select another
language, press the Menu button on the remote control. Select
Extended and press
. Select Language and press
. Select your
language and press
. Press the Menu button to exit the menu system.
*412215800*
*412215800*
Get solutions to
common problems
3
Insert the wireless LAN module into the port.
PowerLite 470/475W/480/485W
®
Video Device
Quick Setup
Connect up to 5 video devices and use the Source Search button on the
projector or remote control to switch between them.
Adjust the image
Using the remote control
1If you don’t see an image, press the Source Search button on the
Make sure the batteries are installed as shown (two AA batteries).
projector or the remote control to select the image source.
S-Video cable
Before using the projector, make sure you read the safety instructions in the
online User’s Guide.
RCA video cable (composite video)
Audio cable
Connect the projector
Note: If you still see a blank screen or have other display problems, see
the troubleshooting tips on the back of this sheet.
2To raise the image, press the foot release button and lift the front of the
projector. Release the button to lock the foot in position.
Turn projector
on and off
HDMI cable
Choose from the following connections. See the sections below or the online
User's Guide for details.
Choose which
source to display
Component video to VGA cable
Computer
Audio cable
VGA cable
Camera, USB Device, or Epson Document Camera DC-06
3
Press the Wide or Tele button to enlarge or reduce the image.
Access projector
menus
Connect a digital camera, USB flash drive, USB storage device, or Epson
document camera DC-06 to the projector’s USB TypeA (flat) port.
Navigate projector
menus
USB cable
Turn off projector
display
HDMI cable
4
Raise or lower the focus lever to sharpen the image.
USB Port
Connect the square end of a USB cable to the projector’s
USBTypeB
(square) port. Connect the flat end of the cable to any USB port on your
computer.
Windows® 2000 SP4 or later: After turning on the projector, follow
the on-screen instructions to install the Epson USB Display software
(EMP_UDSE.EXE; only on first connection).
Note: If the software screen does not display automatically, open My
Computer or Computer, then double-click EPSON_PJ_UD.
Mac OS® X 10.5.1 or higher: After turning on the projector, the setup folder
for USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the Epson USB Display software
(only on first connection).
Monitor Port
Connect one end of a VGA cable to the projector’s Computer1 or
Computer2 port, and the other end to your computer’s
monitor port. If
you are using a laptop, switch it to external display (see “Troubleshooting”).
You can also connect an audio cable.
For more information on using the remote control, see the online
User’s Guide.
If you connect a digital camera, USB flash drive, or USB storage device, you can
use the projector’s Slideshow feature to project images. See the online User’s
Guide for details.
Project wirelessly
External Monitor, External Speakers, and Microphone
You can also connect an external monitor, external speakers, and a microphone
to your projector to enhance your presentations. See the online User’s Guide for
details.
5If your image looks like
or
, press the
or
buttons on the
projector to correct it.
Turn on your equipment
1
Turn on your computer or video source.
2
Plug in the projector. The power light on the projector turns orange.
6If your image looks like
or
, you’ve placed the projector off to
one side of the screen at an angle. Place it directly in front of the center
of the screen, facing the screen squarely. Or press the Wide or Tele
buttons on the projector to correct it.
Follow the steps here to connect the projector wirelessly over an 802.11g,
802.11b, or 802.11n wireless network. You must install the optional Epson
wireless LAN module (part number V12H418P12). Your computer must have
a wireless card or built-in wireless interface, and be running Windows 7,
Windows Vista®, Windows XP Professional x64, Windows XP, or Windows 2000,
or Mac OS X 10.3 to 10.7.
1
Turn off the projector and unplug the power cord.
2Unscrew and remove the cable cover if necessary.
HDMI Port
Connect one end of an HDMI cable to the projector’s HDMI port and the other
end to an HDMI port on your computer.
Wireless Network
You can connect the projector wirelessly over an 802.11g, 802.11b, or 802.11n
wireless network. See “Project wirelessly” for instructions.
Wired Network
You can connect the projector to your network using an Ethernet® cable.
3Press the
power button on the projector or remote control. The
projector beeps, the power light flashes green, and then stays on.
Note: To shut down the projector, press the
power button twice, then
unplug it. You don’t have to wait for the projector to cool down.
See “Project over a wired network” for instructions.
4The default language of the menu system is English. To select another
language, press the Menu button on the remote control. Select
Extended and press
. Select Language and press
. Select your
language and press
. Press the Menu button to exit the menu system.
*412215800*
*412215800*
Get solutions to
common problems
3
Insert the wireless LAN module into the port.
4Replace the cable cover and tighten the screws.
5
14Select the type of wireless network you are using as the Wireless LAN
Sys. setting.
Plug in and turn on the projector.
6To configure your projector for your wireless network, do one of
the following:
•If you’re using the optional Quick Wireless Connection USB key
(Windows only), insert it into the projector’s USB TypeA port, wait
for the displayed message, remove the key, and connect it to a USB
port on your computer. Follow the on-screen instructions to install
the driver, then run your presentation. For details, see the online
User’s Guide.
•
If you’re not using the key, continue with these steps.
7Press the Menu button on the remote control, select the Network
menu, and press
.
6
Select the Wired LAN menu and press
Where to get help
.
15If you selected Advanced connection mode, enter your network SSID (up
Manuals
16If your network assigns addresses automatically, select IP Settings and
For more information about using the projector, click the icons on your
desktop to access the online manuals (requires an Internet connection). If you
don’t have icons to the manuals, you can install them from the projector CD or
go to the Epson website, as described below.
to 32 characters) as the SSID setting.
turn on the DHCP setting. If not, turn off the DHCP setting and enter
the projector’s IP Address, Subnet Mask, and Gateway Address,
as needed.
Telephone Support Services
17To prevent the SSID and IP address from appearing on the network
standby screen, set the SSID Display and/or IP Address Display settings
to Off.
18When you are finished, select Complete and press
, then press
again to save your settings.
7
.
8If your network assigns addresses automatically, select IP Settings and
turn on the DHCP setting. If not, turn off the DHCP setting and enter
the projector’s IP Address, Subnet Mask, and Gateway Address,
as needed.
19 Press the Menu button to exit the menu system.
20 See “Install network software” for additional instructions.
Choose IP Settings and press
8
Choose Network Configuration and press
9
Select the Basic menu and press
.
Follow the steps here to configure your projector for your wired network using
the projector’s menu system.
1
.
Plug in and turn on the projector.
2
Press the Menu button on the remote control, select the Network menu,
and press
.
, and enter a name (up to
16 characters long) to identify your projector over the network.
Use the displayed keyboard to enter characters. Press the arrow buttons
on the remote control to highlight the characters and press
to select
them.
3
Select Network Configuration and press
4
Select the Basic menu and press
.
am
to 8
pm,
Pacific Time, Monday through Friday
10When you are finished, select Complete and press
Internet Support
, then press
again to save your settings.
11Press the Menu button to exit the menu system.
Visit www.epson.com/support (U.S.) or www.epson.ca/support
(Canada) for solutions to common problems. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson.
12See “Install network software” for additional instructions.
Registration
Install network software
Install the EasyMP® Network Projection software on each computer that will
project over the network. Use the CD labeled Epson Projector Software to
install the program.
Register today to get product updates, special promotions, and customer-only
offers. You can use the CD included with your projector or register online at
www.epson.com/webreg.
Optional accessories
For a list of optional accessories, see the online User’s Guide.
You can purchase screens, carrying cases, or other accessories from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase online at www.epsonstore.com (U.S.
sales) or www.epson.ca (Canadian sales).
To monitor and control your projector over the network, download and install
the EasyMP Monitor software and manual from the Epson support web site.
You can install a link to the downloads page from the projector CD or go to the
Epson website, as described on the right.
.
Troubleshooting
Note: See the online User’s Guide for information on adding passwords.
11 Select the Wireless LAN menu and press
Canada: (905) 709-3839, 6
Days and hours of support are subject to change without notice. Toll or long
distance charges may apply.
For instructions on installing and using your network software, click the icon
on your desktop to access the online EasyMP Network Projection Operation
Guide (requires an Internet connection). If you don’t see the EasyMP Network
Projection Guide icon, you can install it from the projector CD or go to the
Epson website, as described on the right.
10Select the Projector Name setting, press
US: (562) 276-4394, 6 am to 8 pm, Pacific Time, Monday through Friday, and
7 am to 4 pm, Pacific Time, Saturday
9To prevent the IP address from appearing on the network standby screen,
set the SSID Display and/or IP Address Display settings to Off.
Project over a wired
network
To use the Epson PrivateLine® Support service, call (800) 637-7661 and enter
the PIN on the Epson PrivateLine Support card included with your projector.
This service is available 6 am to 6 pm, Pacific Time, Monday through Friday, for
the duration of your warranty period. You may also speak with a projector
support specialist by dialing:
If you see a blank screen or the No signal message after turning on your
computer or video device, check the following:
.
•Make sure the power light on the projector is green and not flashing, and
the A/V Mute slide is open.
5Select the Projector Name setting, press
, and enter a name (up to
16 characters long) to identify your projector over the network.
12Select the Connection Mode setting, press
, and choose one of
these options:
•
Quick to connect the projector to one computer on the network
•Advanced to connect the projector to multiple computers on
the network
13
If you selected Quick connection mode, select the Channel setting for
your wireless network and turn on the SSID Auto Setting setting.
•
Press the Source Search button on the projector or the remote control to
select the computer as the image source.
•
If you’re using a Windows notebook, press the function key on your
keyboard that lets you display on an external monitor. It may be labeled
CRT/LCD or have an icon such as
. You may have to hold down the
Fn key while pressing it (such as Fn + F7). Wait a moment for the display
to appear.
•
If you’re using a Mac® laptop, open System Preferences and select
Displays. Select the VGA Display or Color LCD option if necessary, then
click the Arrange or Arrangement tab, and select the Mirror Displays
check box.
Use the displayed keyboard to enter characters. Press the arrow buttons
on the remote control to highlight the characters and press
to select
them.
Note: See the online User’s Guide for information on adding passwords.
Epson and EasyMP are registered trademarks, and Epson Exceed Your Vision is a registered logomark of Seiko
Epson Corporation. PowerLite and PrivateLine are registered trademarks of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks
of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2011 Epson America, Inc. 11/11
Printed in XXXXXX
CPD-35669
4Replace the cable cover and tighten the screws.
5
14Select the type of wireless network you are using as the Wireless LAN
Sys. setting.
Plug in and turn on the projector.
6To configure your projector for your wireless network, do one of
the following:
•If you’re using the optional Quick Wireless Connection USB key
(Windows only), insert it into the projector’s USB TypeA port, wait
for the displayed message, remove the key, and connect it to a USB
port on your computer. Follow the on-screen instructions to install
the driver, then run your presentation. For details, see the online
User’s Guide.
•
If you’re not using the key, continue with these steps.
7Press the Menu button on the remote control, select the Network
menu, and press
.
6
Select the Wired LAN menu and press
Where to get help
.
15If you selected Advanced connection mode, enter your network SSID (up
Manuals
16If your network assigns addresses automatically, select IP Settings and
For more information about using the projector, click the icons on your
desktop to access the online manuals (requires an Internet connection). If you
don’t have icons to the manuals, you can install them from the projector CD or
go to the Epson website, as described below.
to 32 characters) as the SSID setting.
turn on the DHCP setting. If not, turn off the DHCP setting and enter
the projector’s IP Address, Subnet Mask, and Gateway Address,
as needed.
Telephone Support Services
17To prevent the SSID and IP address from appearing on the network
standby screen, set the SSID Display and/or IP Address Display settings
to Off.
18When you are finished, select Complete and press
, then press
again to save your settings.
7
.
8If your network assigns addresses automatically, select IP Settings and
turn on the DHCP setting. If not, turn off the DHCP setting and enter
the projector’s IP Address, Subnet Mask, and Gateway Address,
as needed.
19 Press the Menu button to exit the menu system.
20 See “Install network software” for additional instructions.
Choose IP Settings and press
8
Choose Network Configuration and press
9
Select the Basic menu and press
.
Follow the steps here to configure your projector for your wired network using
the projector’s menu system.
1
.
Plug in and turn on the projector.
2
Press the Menu button on the remote control, select the Network menu,
and press
.
, and enter a name (up to
16 characters long) to identify your projector over the network.
Use the displayed keyboard to enter characters. Press the arrow buttons
on the remote control to highlight the characters and press
to select
them.
3
Select Network Configuration and press
4
Select the Basic menu and press
.
am
to 8
pm,
Pacific Time, Monday through Friday
10When you are finished, select Complete and press
Internet Support
, then press
again to save your settings.
11Press the Menu button to exit the menu system.
Visit www.epson.com/support (U.S.) or www.epson.ca/support
(Canada) for solutions to common problems. You can download utilities and
documentation, get FAQs and troubleshooting advice, or e-mail Epson.
12See “Install network software” for additional instructions.
Registration
Install network software
Install the EasyMP® Network Projection software on each computer that will
project over the network. Use the CD labeled Epson Projector Software to
install the program.
Register today to get product updates, special promotions, and customer-only
offers. You can use the CD included with your projector or register online at
www.epson.com/webreg.
Optional accessories
For a list of optional accessories, see the online User’s Guide.
You can purchase screens, carrying cases, or other accessories from an Epson
authorized reseller. To find the nearest reseller, call 800-GO-EPSON
(800-463-7766). Or you can purchase online at www.epsonstore.com (U.S.
sales) or www.epson.ca (Canadian sales).
To monitor and control your projector over the network, download and install
the EasyMP Monitor software and manual from the Epson support web site.
You can install a link to the downloads page from the projector CD or go to the
Epson website, as described on the right.
.
Troubleshooting
Note: See the online User’s Guide for information on adding passwords.
11 Select the Wireless LAN menu and press
Canada: (905) 709-3839, 6
Days and hours of support are subject to change without notice. Toll or long
distance charges may apply.
For instructions on installing and using your network software, click the icon
on your desktop to access the online EasyMP Network Projection Operation
Guide (requires an Internet connection). If you don’t see the EasyMP Network
Projection Guide icon, you can install it from the projector CD or go to the
Epson website, as described on the right.
10Select the Projector Name setting, press
US: (562) 276-4394, 6 am to 8 pm, Pacific Time, Monday through Friday, and
7 am to 4 pm, Pacific Time, Saturday
9To prevent the IP address from appearing on the network standby screen,
set the SSID Display and/or IP Address Display settings to Off.
Project over a wired
network
To use the Epson PrivateLine® Support service, call (800) 637-7661 and enter
the PIN on the Epson PrivateLine Support card included with your projector.
This service is available 6 am to 6 pm, Pacific Time, Monday through Friday, for
the duration of your warranty period. You may also speak with a projector
support specialist by dialing:
If you see a blank screen or the No signal message after turning on your
computer or video device, check the following:
.
•Make sure the power light on the projector is green and not flashing, and
the A/V Mute slide is open.
5Select the Projector Name setting, press
, and enter a name (up to
16 characters long) to identify your projector over the network.
12Select the Connection Mode setting, press
, and choose one of
these options:
•
Quick to connect the projector to one computer on the network
•Advanced to connect the projector to multiple computers on
the network
13
If you selected Quick connection mode, select the Channel setting for
your wireless network and turn on the SSID Auto Setting setting.
•
Press the Source Search button on the projector or the remote control to
select the computer as the image source.
•
If you’re using a Windows notebook, press the function key on your
keyboard that lets you display on an external monitor. It may be labeled
CRT/LCD or have an icon such as
. You may have to hold down the
Fn key while pressing it (such as Fn + F7). Wait a moment for the display
to appear.
•
If you’re using a Mac® laptop, open System Preferences and select
Displays. Select the VGA Display or Color LCD option if necessary, then
click the Arrange or Arrangement tab, and select the Mirror Displays
check box.
Use the displayed keyboard to enter characters. Press the arrow buttons
on the remote control to highlight the characters and press
to select
them.
Note: See the online User’s Guide for information on adding passwords.
Epson and EasyMP are registered trademarks, and Epson Exceed Your Vision is a registered logomark of Seiko
Epson Corporation. PowerLite and PrivateLine are registered trademarks of Epson America, Inc.
General Notice: Other product names used herein are for identification purposes only and may be trademarks
of their respective owners. Epson disclaims any and all rights in those marks.
This information is subject to change without notice.
© 2011 Epson America, Inc. 11/11
Printed in XXXXXX
CPD-35669

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
