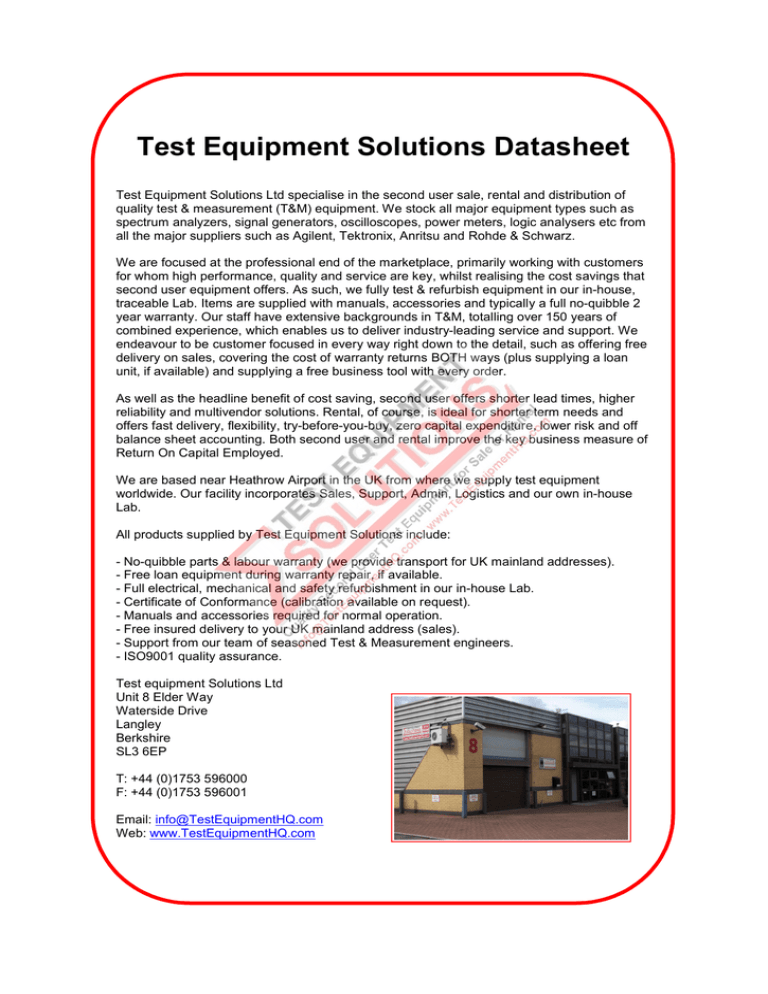

Test Equipment Solutions Datasheet

Test Equipment Solutions Datasheet
Test Equipment Solutions Datasheet
Test Equipment Solutions Ltd specialise in the second user sale, rental and distribution of
quality test & measurement (T&M) equipment. We stock all major equipment types such as
spectrum analyzers, signal generators, oscilloscopes, power meters, logic analysers etc from
all the major suppliers such as Agilent, Tektronix, Anritsu and Rohde & Schwarz.
We are focused at the professional end of the marketplace, primarily working with customers
for whom high performance, quality and service are key, whilst realising the cost savings that
second user equipment offers. As such, we fully test & refurbish equipment in our in-house,
traceable Lab. Items are supplied with manuals, accessories and typically a full no-quibble 2
year warranty. Our staff have extensive backgrounds in T&M, totalling over 150 years of
combined experience, which enables us to deliver industry-leading service and support. We
endeavour to be customer focused in every way right down to the detail, such as offering free
delivery on sales, covering the cost of warranty returns BOTH ways (plus supplying a loan
unit, if available) and supplying a free business tool with every order.
As well as the headline benefit of cost saving, second user offers shorter lead times, higher
reliability and multivendor solutions. Rental, of course, is ideal for shorter term needs and
offers fast delivery, flexibility, try-before-you-buy, zero capital expenditure, lower risk and off
balance sheet accounting. Both second user and rental improve the key business measure of
Return On Capital Employed.
We are based near Heathrow Airport in the UK from where we supply test equipment
worldwide. Our facility incorporates Sales, Support, Admin, Logistics and our own in-house
Lab.
All products supplied by Test Equipment Solutions include:
- No-quibble parts & labour warranty (we provide transport for UK mainland addresses).
- Free loan equipment during warranty repair, if available.
- Full electrical, mechanical and safety refurbishment in our in-house Lab.
- Certificate of Conformance (calibration available on request).
- Manuals and accessories required for normal operation.
- Free insured delivery to your UK mainland address (sales).
- Support from our team of seasoned Test & Measurement engineers.
- ISO9001 quality assurance.
Test equipment Solutions Ltd
Unit 8 Elder Way
Waterside Drive
Langley
Berkshire
SL3 6EP
T: +44 (0)1753 596000
F: +44 (0)1753 596001
Email: [email protected]
Web: www.TestEquipmentHQ.com
HMP4040
Programmable 3[4] Channel
High-Performance Power Supply
HMP4030 [HMP4040]
3 Channel Version
HMP4030
R 3
x 0…32 V/0…10 A
[4 x0…32 V/0…10 A
384 W max.
384 W max.]
R 384 W Output Power realized by intelligent Power Management
R Low Residual Ripple: <150 µVrms due to linear Post Regulators
R High Setting- and Read-Back Resolution of 1 mV up to 0.2 mA
Individual Linking of single
Channels using FuseLink
R Keypad for direct Parameter Entry
R G
alvanically isolated, earth-free and short circuit protected
­Output Channels
R Advanced Parallel- and Serial Operation via V/I Tracking
R EasyArb Function for freely definable V/I Characteristics
R FuseLink: Individual Channel Combination of Electronic Fuses
Rear Outputs for simple
Integration in Rack Systems
R Free adjustable Overvoltage Protection (OVP) for all Outputs
R All Parameters clearly displayed via LCD and Illuminated Buttons
R Rear Connectors for all Channels including Sense
R U
SB/RS-232 Dual-Interface, optional Ethernet/USB
­Dual-Interface or IEEE-488 (GPIB)
Programmable 3 Channel High Performance Power Supply HMP4030
[Programmable 4 Channel High Performance Power Supply HMP4040]
All data valid at 23 °C after 30 minutes warm-up.
Outputs
Advanced parallel and series operation: simultaneous switching on/off of
­active Channels via “Output” button, common voltage- and current control using tracking mode (individual channel linking), individual mapping
of Channels which shall be affected by FuseLink overcurrent protection
(switch-off), all Channels galvanically isolated from each other and the
protective earth
HMP4030:
HMP4040:
Output terminals:
Output power:
Compensation of lead
resistances (Sense):
Overvoltage/overcurrent
protection (OVP/OCP):
Electronic fuse:
Response time:
3 x 0…32 V/0…10 A
4 x 0…32 V/0…10 A
4 mm safety sockets frontside, Screw-type
terminal rear side (4 units per channel)
384 W max.
1 V
Adjustable for each channel
Adjustable for each channel,
may be combined using FuseLink
<10 ms
32 V Channels
Output values:
3 x 0…32 V/0…10 A, (5 A at 32 V, 160 W max.)
HMP4030
4 x 0…32 V/0…10 A, (5 A at 32 V, 160 W max.)
HMP4040
Resolution:
1 mV
Voltage
<1 A: 0.2 mA; ≥1 A: 1 mA
Current
Setting accuracy:
<0.05 % + 5 mV (typ. ±2 mV)
Voltage
<0.1 % + 5 mA (typ. ±1 mA at I <500 mA)
Current
Measurement accuracy:
<0.05 % + 2 mV
Voltage
<500 mA: <0.05 % + 0.5 mA, typ. ±0.5 mA
Current
≥500mA: <0.05 % + 2 mA, typ. ±2 mA
Current
3 Hz…100 kHz
3 Hz…20 MHz
Residual ripple:
<150 µVrms
1.5 mVrms typ.
Voltage
<1 mArms
Current
Residual deviation after a load change (10…90 %):
<0.01 % + 2 mV
Voltage
<0.01 % + 250 µA
Current
Residual deviation after a line voltage change (±10 %):
<0.01 % + 2 mV
Voltage
<0.01 % + 250 µA
Current
Recovery time after a load
step from 10…90 % for return
<100 µs
within a ±10 mV window:
Arbitrary Function EasyArb
Voltage, current, time
Parameters of points:
128
Number of points:
10 ms…60 s
Dwell time:
Continuous or burst mode
Repetition rate:
with 1…255 repetitions
Manually via keyboard or via Interface
Trigger:
Maximum ratings
Reverse voltage:
Reverse polarized voltage:
Max. permitted current in
case of reverse voltage:
Voltage to earth:
Miscellaneous
Temperature coefficient/°C:
Voltage
Current
Display:
Memory:
Interface:
Processing time:
Protection class:
Power supply:
Mains fuses:
Power consumption:
Operating temperature:
Storage temperature:
Rel. humidity:
Dimensions (W x H x D):
Weight:
33 V max.
0.4 V max.
5 A max.
150 V max.
0.01 % + 2 mV
0.02 % + 3 mA
240 x 128 Pixel LCD (full graphical)
Non volatile memory for 3 Arbitrary
functions and 10 device settings
Dual-Interface USB/RS-232 (HO720)
<50 ms
Safety class I (EN61010-1)
115/230 V ±10 %; 50…60 Hz, CAT II
115 V: 2 x 10 A slow blow 5 x 20 mm
230 V: 2 x 5 A slow blow 5 x 20 mm
550 VA max.
+5…+40 °C
-20…+70 °C
5…80 % (non condensing)
285 x 125 x 365 mm
approx. 10 kg
Accessories supplied: Line cord, Operating manual, CD, Software
Recommended accessories:
HO730 Dual-Interface Ethernet/USB
HO740 Interface IEEE-488 (GPIB), galvanically isolated
HZ10S 5 x silicone test lead (measurement connection in black)
HZ10R 5 x silicone test lead (measurement connection in red)
HZ10B 5 x silicone test lead (measurement connection in blue)
HZ13
Interface cable (USB) 1.8 m
HZ14
Interface cable (serial) 1:1
HZ43
19" Rackmount Kit 3RU
HZ72
GPIB-Cable 2 m
HZP91 19" Rackmount Kit 4RU
HMP4030/HMP4040E/050912 · C&E · Subject to change without notice · © HAMEG Instruments GmbH® · DQS-certified in accordance with DIN EN ISO 9001:2008, Reg.-No.: 071040 QM08
HAMEG Instruments GmbH · Industriestr. 6 · D-63533 Mainhausen · Tel +49 (0) 6182 8000 · Fax +49 (0) 6182 800100 · www.hameg.com · [email protected]
