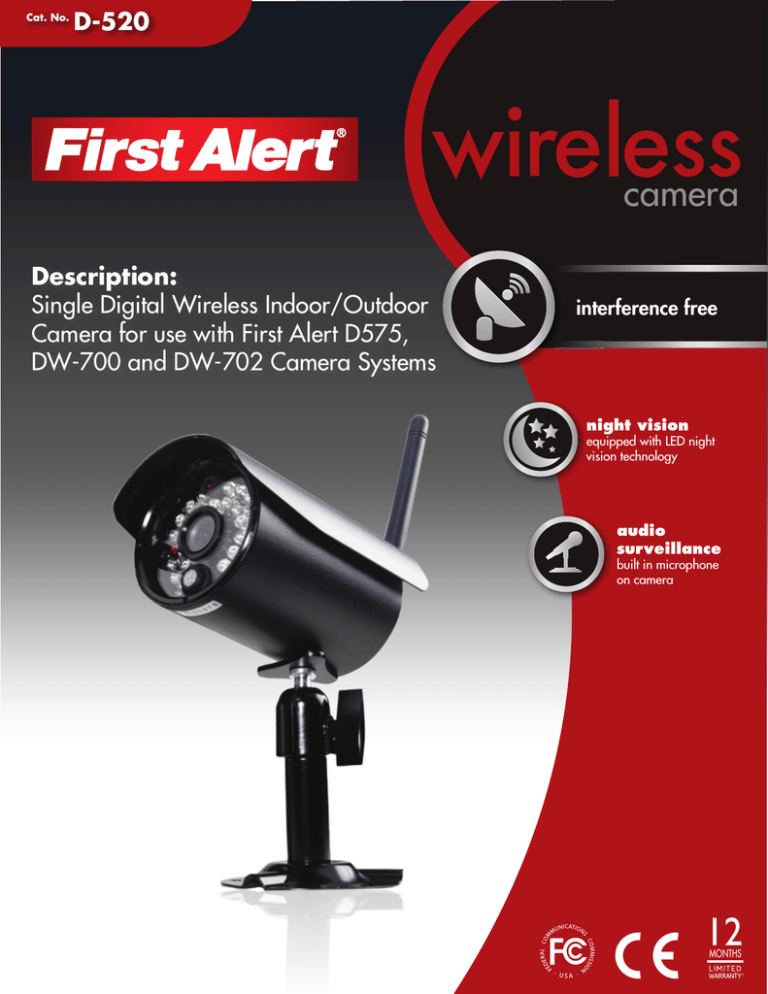

Cat. No.
D-520
camera
Description:
Single Digital Wireless Indoor/Outdoor
Camera for use with First Alert D575,
DW-700 and DW-702 Camera Systems
interference free
night vision
equipped with LED night
vision technology
audio
surveillance
built in microphone
on camera
12
MONTHS
Cat. No.
D-520
camera
Contents
1 Wireless Digital Indoor/
Outdoor Camera
1 Power Supply
1 Camera Stand
1 Camera Mounting Hardware
1Manual
Product Specifications
General
Operating Power
Operating Temp
Dimensions (Camera & Stand)
Weather Resistant
Transmission Channels
Wireless Signal
Range
DC 5V
14°F - 122°F
4.7”H x 2.8”W x 2.7”D
IP66
40
2.4GHz Frequency Hopping Spread Spectrum (FHSS) Technology
up to 750 ft. line of sight
Camera
Image Sensor
CMOS
Video Quality
VGA 5~7 fps/QVGA 15fps
White Balance
Auto
Signal/Noise Ratio
50dB
Gain Control
Auto
Backlight Compensation
Yes
Lens
3.6 mm
Viewing Angle
H:56 V:43
Audio Range
16 ft.
ColorYes
Indoor/OutdoorBoth
Microphone
Built in
Night Vision
Number of infrared LED’s
Distance
27
Up to 40 ft.
Shipping Specifications
Individual Carton
Dimensions Weight Cube UPC
Master Carton
Dimensions Master Pack
Weight Cube I2of5
Pallet Information
Cases per layer Number of Layers Cases per Pallet Units per Pallet
Cube
Weight
brkelectronics.com
9.50”L x 3.00”W x 6.0”H
1.5 lbs.
0.06 ft3
0 29054 00753 7
16.25”L x 6.88”W x 12.50”H
10
15.7 lbs.
0.81 ft3
500 29054 00753 2
8
6
48
480
58.9 ft3
804 lbs.
©2011 BRK Brands, Inc. a Jarden Corporation
Company (NYSE: JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Tech Services: 800-323-9005
For ordering contact: The Lehigh Group
2834 Schoeneck Road, Macungie, PA 18062-9679
Customer Service: 800-523-9382
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3064
