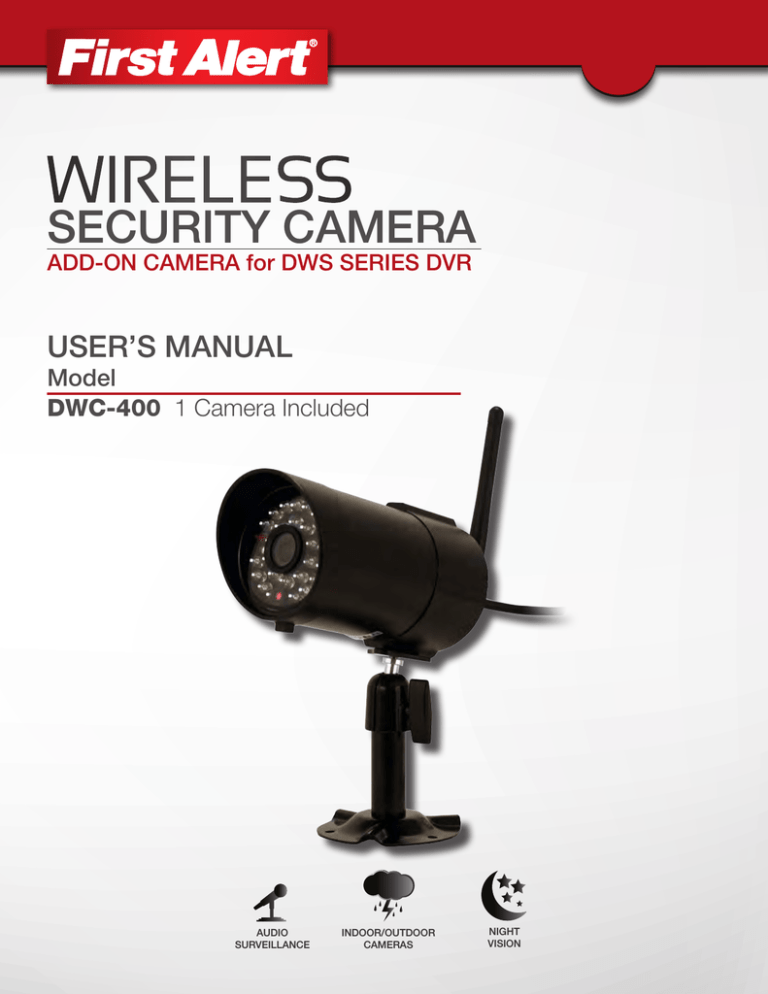

SECURITY CAMERA
ADD-ON CAMERA for DWS SERIES DVR
USER’S MANUAL
Model
DWC-400 1 Camera Included
AUDIO
SURVEILLANCE
INDOOR/OUTDOOR
CAMERAS
NIGHT
VISION
1
INTRODUCTION
THANK YOU
WELCOME
Thank you for choosing First Alert for your security needs!
For more than half a century, First Alert has made the home-safety and security products that make
your job easier. Our products are built to the highest standard which has earned us a leadership role
in the home-safety and security product categories. We are committed to serving our customers,
from the professionals who install our products, to the families and businesses who count on them.
First Alert has been helping families and businesses stay safe for over 50 years. By having a First
Alert Security System, you’re taking the first step in protecting your home or business from damage
or theft. We’re watching, even when you’re not.
This manual is written for the DWC-400 Wireless Camera. It was accurate at the time it was completed.
However, because of our ongoing effort to constantly improve our products, additional features and functions
may have been added since that time. We encourage you to visit our website at www.brkelectronics.com
to check for the latest manuals (English and Spanish), firmware updates, downloads, other security camera
products and announcements. You’ll find this product line under Products >> Security Cameras >> Wireless
Cameras.
©2012 BRK Brands, Inc.
a Jarden Corporation company (NYSE:JAH)
www.brkelectronics.com
All rights reserved. Distributed by BRK Brands, Inc. 3901 Liberty Street Road, Aurora, IL 60504-8122. Due to continuing product development, the
product inside the packaging may look slightly different than the one on the package.
BRK Brands, Inc. is a subsidiary of Jarden Corporation (NYSE: JAH). First Alert® is a registered trademark of the First Alert Trust. To obtain warranty
service, contact the Consumer Affairs Division at 1-800-323-9005, Monday through Friday, 7:30 a.m. - 5 p.m., Central Standard Time.
Made in China
Page 2
INTRODUCTION
KEY PRODUCT FEATURES
1
MAIN DESCRIPTION
Digital wireless add-on camera for First Alert DWS Series DVR systems suitable for applications such as high-end residential - new or remodel, light commercial, small business/retail, small warehouse or small grocery.
PRODUCT FEATURES
• 2.4 GHz Digital Frequency Hopping Spread Spectrum (FHSS) Technology
• Audio surveillance camera
• CMOS Color camera with 25 IR LED’s for up to 60’ night vision
• Camera has built-in IR cut filter for truer color representation
• IP66 weather rating
WHAT’S IN THE BOX
SECURITY CAMERA
ADD-ON CAMERA for DWS SERIES DVR
USER’S MANUAL
Model
DWC-400 1 Camera Included
AUDIO
SURVEILLANCE
Power Supply
INDOOR/OUTDOOR
CAMERAS
User’s Manual
Digital Wireless Camera,
Antenna and Stand
English and Spanish
Manuals
Page 3
NIGHT
VISION
Mounting Hardware
(3 screws and 3 plastic
anchors per Camera)
2
SAFETY
CAUTION STATEMENTS
SAFETY PRECAUTIONS
•
•
•
•
•
•
Do not drop, puncture, or disassemble the cameras or DVR.
Do not tug on the power adapter. Use the plug to remove it from the wall.
Do not expose the cameras or DVR to high temperatures.
For your own safety, avoid using the DVR when there is a storm or lightning in your area.
Use the cameras and DVR with care. Avoid pressing hard on the cameras or DVR body.
Do not crush or damage the power cable
FCC COMPLIANCE
FCC Compliance Class C Intentional Radiator
This equipment has been tested and found to comply with the limits for a Class C Intentional Radiator,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that the interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that of the receiver.
• Consult the dealer or an experienced radio or TV technician for help.
Notice: Only peripherals complying with FCC limits may be attached to this equipment. Operation with noncompliant peripherals or peripherals not recommended by First Alert / BRK Brands, Inc. is likely to result in
interference to radio and TV reception. Changes or modifications to the product, not expressly approved by
First Alert / BRK Brands, Inc., could void the user’s authority to operate the equipment.
We, First Alert / BRK Brands, Inc. declare under our sole responsibility that the device to which this declaration
relates: Complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC Certification
This device contains a radio transmitter. Accordingly, it has been certified as compliant with 47 CFR Part 15 of
the FCC Rules for intentional radiators. Products that contain a radio transmitter are labeled with an FCC ID.
DISPOSAL
This symbol indicates that it is prohibited to dispose of these batteries in the household waste. Take
spent batteries that can no longer be charged to the designated collection points in your community.
Page 4
INSTALLATION
MOUNTING & PAIRING
INSTALLING CAMERAS
3
1. Select the position for the camera and secure the camera stand.
(Screws and anchors are supplied. Use an appropriate screw type
for the mounting surface.)
2. Screw the camera onto the bracket.
3. Adjust camera to the proper view angle Make
sure the lens is upright relative to your subject.
Tighten the thumb bolt.
4. Screw the antenna into place on the rear of
the camera. Adjust the antenna to an upright
position.
5. Connect the power cable to the DC IN of the
camera.
6. Plug the power supply into the electrical outlet.
Camera Orientation
It’s important the camera is mounted correctly
to ensure the image is not upside down as the
camera lens can only be positioned one way.
CAMERA PAIRING
Camera Setup-Sub Menu
Use
Camera Setup-Pairing
to select the camera to set up (1-4).
Use
to select PAIRING, BRIGHTNESS and CAMERA ON/OFF
settings.
MENU key once to
With PAIRING section highlighted, press
begin camera pairing. Press Pairing Key button on Camera cord.
Pairing LED on camera will blink once then will begin blinking
continuously indicating data transmission is in process.
System will confirm pairing process is successful with “PAIRED”
displaying on screen. System will indicate pairing process failed
with “PAIRING FAIL” displaying on screen.
Press ESC to return to main menu.
Page 5
Pairing Key
4
APPENDIX
TROUBLESHOOTING/SPECIFICATIONS
TROUBLESHOOTING
TROUBLE
SHOOTING
Error
Possible Cause
Solutions
System is not receiving
power or is not powering up
Cable from power adapter is loose or is unplugged. No power at electrical outlet.
• Confirm that all cables are connected correctly.
• Confirm that the power adapter is securely connected to the back of the unit.
• Confirm power is on at electrical outlet.
Camera out of range
• Locate camera closer to receiver.
Camera not “Paired”
• Connect camera through Camera Pairing menu.
Signal is blocked
• If possible, remove major obstacles in between the camera and the receiver. Or, relocate
the camera to another location.
The power supply for the camera is not plugged in
• Confirm camera power supply is connected correctly.
No power being received at the electrical outlet
• Confirm power is on at electrical outlet
At night, only white appears
on the screen
The camera’s infra-red LEDs shine invisible light
that reflects of surfaces such as glass causing
white light
• Place the camera on the other side of windows to try to improve the night vision or place
in a well lit area.
A black and white image
appears at night
This is normal operation for night vision
• No action required.
Interference
• Place the camera and/or receiver antenna at a new angle or readjust its position to make
an improvement.
• Remove obstacles between the camera and receiver that might affect the signal (e.g.,
furniture, cabinets, and walls.)
• Relocate the camera closer to the receiver.
Antenna direction is limited
• Adjust the camera antenna and receiver position
Signal has been blocked
• If possible, remove major obstacles in between the camera and receiver. Or, relocate the
camera to another location.
Strong radio signal nearby
• Keep WIFI router away from the camera and/or receiver.
Strong electromagnetic interference nearby
• Keep active appliances such as hair dryers, heat fans, air conditioners, water pumps, or
microwave ovens away from the camera and/or receiver.
Camera and receiver are too close
• The camera has a high sensitivity microphone. Keep the camera at least 10 feet away
from the receiver. If the camera must be within 10 feet of the receiver, keep the volume
down.
There is no picture on
selected channels/camera picture is not being
displayed
Poor image quality
Low or unstable signal
Audio Feedback
TECHNICAL SPECIFICATIONS
Item
Camera
SPECIFICATIONS
Device Parameter
Specification
Wireless Parameters
2.4 GHz secure digital wireless with 24 transmission channels using Frequency Hopping Spread Spectrum (FHSS) technology
Communication Range
2.4 GHz secure digital wireless at approximately 500 feet (150 meters) open space line
of sight
Camera Resolution
640 x 480
IR LED’s
25
IR Cut Filter
Automatic for daytime true color
Weather Resistant Rating
IP-66
Night Vision
60’ (18m)
Operating Temperature
14 °F to 122 °F (-10 °C to 50°C)
Operating Voltage
DC 5V / 1A
Current Consumption
860mA (max)
Dimensions
4.8”D (123mm) x 2.6”W (65mm) x 2.6”H (65mm) camera barrel only
6.2”D (157mm) x 2.75”W (70mm) x 8.5”H (216mm) w/stand and antenna
Page 6
APPENDIX
WARRANTY
4
WARRANTY
PRODUCT LIMITED WARRANTY
BRK Brands, Inc., (“BRK”) the maker of First Alert® brand products warrants that for a period of one year from the date of purchase
(the “Warranty Period”), this product will be free from defects in material and workmanship. BRK, at its sole option, will repair or
replace this product or any component of the product found to be defective during the Warranty Period. Replacement or repair will
be made with a new or remanufactured product or component. If the product is no longer available, replacement may be made with
a similar product of equal or greater value. This is your exclusive warranty.
This warranty is valid for the original retail purchaser only from the date of initial retail purchase and is not transferable. In order
to obtain warranty service, you must keep the original sales receipt and proof of purchase in the form of the UPC code from the
package. BRK dealers, service centers, or retail stores selling BRK products do not have the right to alter, modify or any way change
the terms and conditions of this warranty.
WARRANTY EXCLUSIONS
Parts and Labor: 1 year limited (warranted parts do not include bulbs, LEDs, and batteries)
This warranty does not apply to bulbs, LEDs, and batteries supplied with or forming part of the product.
This warranty is invalidated if non- BRK accessories are or have been used in or in connection with the product or in any modification
or repair is made to the product.
This warranty does not apply to defects or damages arising by use of the product in other than normal (including normal atmospheric,
moisture and humidity) conditions or by installation or use of the product other than in strict accordance with the instructions
contained in the product owner’s manual.
This warranty does not apply to defects in or damages to the product caused by (i) negligent use of the product, (ii) misuse,
abuse, neglect, alteration, repair or improper installation of the product, (iii) electrical short circuits or transients, (iv) usage not in
accordance with product installation, (v) use of replacement parts not supplied by BRK, (vi) improper product maintenance, or (vii)
accident, fire, flood or other Acts of God.
This warranty does not cover the performance or functionality of any computer software included in the package with the product.
BRK makes no warranty that the software provided with the product will function without interruption or otherwise be free of
anomalies, errors, or “Bugs.” This warranty does not cover any costs relating to removal or replacement of any product or software
installed on your computer.
BRK reserves the right to make changes in design or to make additions to or improvements in its products without incurring any
obligations to modify any product which has already been manufactured. BRK will make every effort to provide updates and fixes to
its software via its website. This warranty does not cover any alteration or damage to any other software that may be or may become
resident on the users system as a result of installing the software provided. This warranty is in lieu of other warranties, expressed or
implied, and BRK neither assumes nor authorizes any person to assume for it any other obligation or liability in connection with the
sale or service of the product. In no event shall BRK be liable for any special or consequential damages arising from the use of the
product or arising from the malfunctioning or non-functioning of the product, or for any delay in the performance of this warranty
due to any cause beyond its control.
BRK does not make any claims or warranties of any kind whatsoever regarding the product’s potential, ability, or effectiveness to
prevent, minimize, or in any way affect personal or property damage or injury. BRK is not responsible for any personal damage, loss,
or theft related to the product or to its use for any harm, whether physical or mental related thereto. Any and all claims or statements,
whether written or verbal, by salespeople, retailers, dealers, or distributors to the contrary are not authorized by BRK, and do not
affect this provision of this warranty.
BRK’s responsibility under this, or any other warranty, implied or expressed, is limited to repair, replacement or refund, as set
forth above. These remedies are the sole and exclusive remedies for any breach of warranty. BRK is not responsible for direct,
special, incidental, or consequential damages resulting from any breach of warranty or under any other legal theory including but
not limited to, loss profits, downtime, goodwill, damage to or replacement of equipment and property and any costs of recovering,
reprogramming or reproducing any program or data stored in or used with a system containing the product accompanying software.
BRK does not warrant the software will operate with any other software except that which is indicated. BRK cannot be responsible
for characteristics of their party hardware or software which may effect the operation of the software included.
Except to the extent prohibited by applicable law, any implied warranty of merchantability or fitness for a particular purpose is
limited in duration to the duration of the above Warranty Period. Some states, provinces, or jurisdictions do not allow the exclusion
or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above limitations
or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary from
state to state, or province to province, or jurisdiction to jurisdiction.
OBTAINING SERVICE
If service is required, do not return the product to your place of purchase. In order to obtain warranty service, contact the Consumer
Affairs Division at 1-800-323-9005, 7:30 a.m. – 5:00 a.m. Central Standard Time, Monday through Friday. To assist us in serving you,
please have the model number and date of purchase available when calling.
After contacting the Consumer Affairs Division and it is determined that the product should be returned for Warranty Service, please
mail the product to: BRK Brands, Inc., 3901 Liberty Street Road, Aurora, IL 60504-8122.
Page 7
©2012 BRK Brands, Inc.
a Jarden Corporation Company (NYSE:JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Phone: 630-851-7330 Tech Services: 800-323-9005
www.brkelectronics.com
M08-0427-002
Download PDF

advertising
