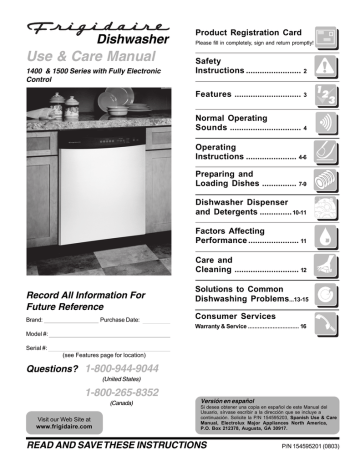

Use & Care Manual

1400 & 1500 Series with Fully Electronic


Product Registration Card

Please fill in completely, sign and return promptly!


Instructions ........................


Features .............................


Normal Operating

Sounds ...............................



Instructions ......................


Preparing and

Loading Dishes ...............


Dishwasher Dispenser and Detergents ..............


Factors Affecting

Performance ......................


Care and

Cleaning ............................


Record All Information For

Future Reference

Brand: Purchase Date:

Model #:

Serial #:

(see Features page for location)



(United States)



Visit our Web Site at

Solutions to Common

Dishwashing Problems


Consumer Services

Warranty & Service ............................... 16

Versión en español

Si desea obtener una copia en español de este Manual del

Usuario, sírvase escribir a la dirección que se incluye a continuación. Solicite la P/N 154595203, Spanish Use & Care

Manual, Electrolux Major Appliances North America,

P.O. Box 212378, Augusta, GA 30917.


P/N 154595201 (0803)

Important Safety Instructions

This symbol will help alert you to such dangers as personal injury, burns, fire, and electrical shock.

To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow basic precautions including the following:

• Read all instructions before using your dishwasher.

• Use your dishwasher only as instructed in this

Use and Care Manual.

• This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.

• NSF certified residential dishwashers are not intended for licensed food establishments.


GROUNDED. Read the Installation Instructions for details.

• This dishwasher is designed to operate on regular house current (120 V, 60 Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food waste disposer.

• Do not operate dishwasher unless all enclosure panels are in their proper place.

• Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

• Keep young children and infants away from dishwasher when it is operating.

• Do not let children abuse, sit, stand or play on door or racks of a dishwasher.

• Use only detergents and rinse agents recommended for use in a dishwasher.

• Store dishwasher detergent and rinse agents out of the reach of children.

• Do not wash plastic items unless marked

“dishwasher safe” or the equivalent. Check with manufacturer for recommendations, if not

©2003 Electrolux Major Appliances North America

All rights reserved.

2 marked. Items that are not dishwasher safe may melt and create a potential fire hazard.

• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.

• Disconnect electrical power to dishwasher before servicing.

• Repairs should be done by a qualified technician.

• Do not tamper with controls.

• Do not touch the heating element during or immediately after use.

• Use care unloading the dishware when the

SANITIZE option has been selected. Contents may be hot to the touch immediately after the end of cycle.

• Water vapor from the vent may be hot to the touch when the SANITIZE option has been selected. Use care and do not let small children play around or touch the vent area of the dishwasher.

• When loading items to be washed:

- Locate sharp items and knives so that they are not likely to damage the door seal or tub.

- Load sharp items and knives with the handles up to reduce the risk of cut-type injuries.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN

GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas.

HYDROGEN GAS IS FLAMMABLE. Do not smoke or use an open flame during this time.

• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.



Printed in U.S.A.

Dishwasher Features

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. The number of water fills will vary with the cycle being used.

Cup Shelves

pages 8

(on some models)


Top Rack

pages 7,8

Tub Gasket

page 14

Middle Spray Arm

pages 14

Lower Spray Arm

pages 14

Overfill Protector

page 12

Detergent Dispenser

page 10

Rinse Aid


page 11




Serial Label

(located on right

side of tub)

Bottom Rack

page 8



page 9

Glass Trap

page 12



page 12

Heating Element

page 12

Appearance may vary from your model.


Operating Instructions

Very Important


Read Before

Operating Your Dishwasher!

Normal Operating


This dishwasher does not sound like most dishwashers—IT'S QUIETER.

Your Precision Direct Wash System® dishwasher uses energy efficient motors for the wash and drain portions of the cycle you select.

Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may–or may not–hear the drain motor.

The next sound you will hear is the splashing water as it enters the tub. Then the lower arm rotates and circulates water. This is followed by a pause and a slightly different sound as the middle arm sprays water. If you listen closely, you will hear the change in sound as the wash action switches from one arm to the other.

PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON'T hear!

Appearance may vary from your model.

Getting Started

1. Load dishwasher (See Preparing and Loading


2. Add detergent (See Dishwasher Dispenser &


3. Add rinse aid, if needed (See Rinse Aid).

4. Close door to latch.

5. Select desired CYCLE (See Cycle Chart). The indicator light above the pad will glow when selected.

6. Select desired OPTIONS (See Energy

Options). The indicator light above the pad will glow when selected.

7. Run hot water faucet nearest dishwasher until water is hot. Turn water off.

8. To start, press START/CANCEL pad.

Wash Cycle Selections

Note: Cycle times are approximate and will vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the timer will be delayed for automatic water heating in the main wash of all cycles. This happens even when HI-TEMP WASH option has not been selected. When HI-TEMP WASH is selected, an even higher temperature will be guaranteed to handle heavier soil loads.


Operating Instructions


To Select Cycle

Cycle Chart


Pots & Pans

For pots, pans, casseroles and dinnerware with dried-on or baked-on soils.

Select POTS & PANS and desired OPTIONS. HI-TEMP

WASH and SANITIZE will automatically be provided.

Normal Wash

For regularly soiled dishes and silverware.

Select NORMAL WASH and desired OPTIONS.

Eco Wash

For lightly soiled and pre-rinsed dishes and silverware.

Select ECO WASH and desired OPTIONS.

Upper Rack

For lightly soiled or pre-rinsed dishes and silverware when you do not have a full load.

Select UPPER RACK and desired OPTIONS.

Rinse Only

For rinsing dishes that will be washed later.


DO NOT USE detergent.







imp. gal.







2 washes

5 rinses

6.1 to


5.1 to

7 .0

23.1 to



imp. gal.






imp. gal.






imp. gal.






imp. gal.






2 washes

3 rinses

2 wash

2 rinses

2 wash

1 rinses

2 rinses

* Includes drying time.


Operating Instructions


Options Selections

Hi-Temp Wash

When HI-TEMP WASH option is selected the dishwasher adds temperature, time, and water to the cycle. The dishwasher heats water in the main wash to approximately 140°F (60°C).

This increase in water temperature helps dishwasher detergent remove food grease and soil from dishes more effectively and aids in drying. HI-

TEMP WASH option can be used with all cycles except UPPER RACK, and RINSE ONLY. HI-

TEMP WASH is automatically provided when

POTS & PANS cycle is selected.

When HI-TEMP WASH option is selected, the light above the pad will come on and remain on until end of cycle. To turn off the HI-TEMP WASH option, press the pad a second time. The light above the pad will turn off.

Sanitize Option

To sanitize your dishes and glassware, select the

SANITIZE option. When selected, the light above the pad will come on and remain on until end of cycle. The water temperature in the final rinse will be raised to 155°F (68°C) and will maintain that temperature for 9 minutes. This option is available in POTS & PANS, NORMAL and ECO WASH cycles. Only these sanitization cycles have been designed to meet NSF requirements.

The cycle time will be extended until the proper water temperature is reached. Washing action will continue during the water heating delay. For best results, the incoming water temperature should be at least 120°F (49°C).

The sanitize criteria may not be satisfied if there is an interruption of the cycle, power failure or if the incoming water temperature is below 120°F


To turn off the SANITIZE option, press the pad a second time. The light above the pad will turn off.

Heat Dry

The HEAT DRY option in combination with rinse aid will enhance drying performance. The energy required to use the HEAT DRY option costs pennies per cycle. You may choose not to select the HEAT DRY option; however you will have items in your dish load that will not be completely

6 dry at the end of the cycle.

You may see water vapor coming from the vent during the drying portion of cycle. The vent is closed during washing to hold moisture and sound inside. The vent opens during the last few minutes of the final rinse and remains open for drying. The drying option may be changed at any time during the cycle and affects only the drying period.

Opening the door longer than one minute during the dry cycle cancels the selected dry program.

Delay Start

The DELAY START option allows you to automatically delay starting your dishwasher from

1-3 or 2-4-6 hours depending on your model.

On models with 2-4-6 hour delay, press the pad once for a 2 hour delay, twice for 4 hours and three times for 6 hours. A light will come on indicating the delay start hours and will remain on until cycle starts.

To cancel the DELAY START option and begin the cycle before the delay period is over, press the


To Cancel a Cycle

You can cancel a cycle anytime during the cycle.

Press START/CANCEL pad and the dishwasher will start a 90 second drain. At the end of the drain, select the desired cycle.

Status Indicator Lights

The WASHING light (some models) comes on at the beginning of cycle and remains on until the end of the main wash.

The DRYING light (some models) indicates the drying portion of the cycle. The light will come on when either drying option is selected.

When the SANITIZE option is selected, the

SANITIZED light will glow when the SANITIZE cycle is finished. If the dishwasher did not properly sanitize the dishes, the light will not come on. This can happen if the cycle is interrupted. The light will remain on until the door is opened.

The CLEAN light (some models) will come on at end of cycle and remain on until door is opened.

Preparing and Loading Dishes

Dish Preparation

Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove remaining food particles.

Burned-on foods should be loosened before loading. Empty liquids from glasses and cups.

Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to rinse off these food soils.

• Load racks so that large items do not prevent the detergent dispenser from opening.

• Check manufacturer's recommendations before washing items in question.

• If the dishwasher drains into a food disposer, be sure

disposer is completely empty before starting dishwasher.

Loading the Top


Features and appearance of racks and silverware basket may vary from your model.

The upper rack is designed for flexibility in loading a wide variety of items including cups, glasses, stemware, small plates, bowls, etc.

Load glasses in top rack. Damage may occur if placed in bottom rack.

Load plastic items in top rack only. Melting may occur if placed in bottom rack.

Load items with open ends facing down for better cleaning and draining.

Damage may occur if delicate items touch each other during dishwasher operation.

Long-handled knives and utensils can be placed in top rack.

Be sure nothing protrudes through the bottom of the rack to block rotation of middle spray arm.


10 place settings standard loading pattern.

12 place settings standard loading pattern.

Some models have a fold-down cup shelf or a cup shelf/stemware holder. They can be used to load two levels of cups, juice glasses, and other short items. Stagger items on upper level so that water can reach all inside surfaces. Fold up to load tall glasses.

Preparing and Loading Dishes


Upper Rack Option

The UPPER RACK option can be used to wash a wide assortment of items when you don't have a full load. Also, when the upper rack fills up with glasses and the lower rack is still empty, you don't have to wait anymore for clean glasses.

STEMWARE HOLDER/CUPSHELF not available on all models.

Loading the Bottom Rack

Features and appearance of racks and silverware basket may vary from your model.

The lower rack is best for plates, saucers, bowls, and cookware. Large items should be placed along the edge so they do not block the spray arm rotation. For best results, place bowls, casseroles, and sauce pans with soiled surface facing down or toward the center. Tilt slightly for better drainage.

Make sure tall items do not block spray arm rotation.

Be sure pan handles do not protrude through the bottom of the rack and block the spray arm rotation.

10 place settings standard loading pattern.


12 place settings standard loading pattern.

Preparing and Loading Dishes


Loading the Silverware Basket

Cut Injury

Load sharp items (knives, skewers, etc.) pointing down.

Failure to do so may result in injury.

Features and appearance of racks and silverware basket may vary from your model.

Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

In some models small items like baby bottle caps, jar lids, corn cob holders, etc.,can be placed in a covered section. Close the cover to hold small items in place.

When covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Water spray cannot reach nested items.

Adding a Dish

To add or remove items after wash cycle starts:

• Unlatch door and wait a few seconds until wash action stops before opening.

• Add the item and wait a few seconds to allow cold air to slowly expand inside dishwasher.

• Close door firmly to latch and resume cycle.

Use suggested loading patterns, as shown, to increase washability of your silverware.

Be sure nothing protrudes through bottom of basket or rack to block the spray arm.

Do not mix silver and stainless to avoid damaging the silver finish.


Dishwasher Dispenser & Detergents

Filling the Detergent Dispenser

The detergent dispenser has one main wash and one prewash cup. Detergent in the uncovered cup falls into the dishwasher when the door is closed. The covered cup opens automatically to release detergent.

• Use only fresh automatic dishwashing detergent. Other detergents will cause oversudsing.

• When using automatic dishwashing detergent tabs, place one tab in main wash cup and close.

• Add detergent just before starting cycle.

• Store detergent in a cool, dry location. Moist or caked detergent will not dissolve properly.

How much Detergent to use

The amount of detergent to use depends on the water hardness. Water hardness is measured in grains per gallon. Using too little detergent can result in poor cleaning and hard water filming or spotting.

Using too much detergent in soft water can cause a permanent film called etching. Your local water company, water softener company or county extension agent can tell you the water hardness in your area.


Main Wash Cup

The use of industrial grade detergent can damage the heating coil and other parts of the dishwasher leading to damage to the unit and surrounding property. Use only household grade automatic dishwasher detergents.

Cover Latch

Pre Wash Cup

Note: If the cover is closed on the Main Wash

Cup, open by pressing the cover latch.


Pots & Pans


Normal Wash

Eco Wash


Upper Rack

Soft Water

(0-3 grains)

2 teaspoons

(each cup–

1/4 full)

2 teaspoons

(each cup–

1/4 full)

Detergent Usage Guide

Medium Hard Water

(4-8 grains)

Hard Water

(9-12 grains)

5 teaspoons

(each cup–fill to line above "Regular")

5 teaspoons

(each cup–fill to line above "Regular")

8 teaspoons

(each cup– completely full)

8 teaspoons

(each cup– completely full)

Very Hard Water*

(over 12 grains)

Each Cup–

Completely Full

(water softener recommended)

Each Cup–

Completely Full

(water softener recommended)

Rinse Only

No Detergent No Detergent No Detergent

No Detergent

(water softener recommended)


For very hard water, detergent alone may not be enough. A water softener is recommended to improve water quality and dishwashing performance. Try adding more detergent at the beginning of the main wash portion of the cycle. As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle.


Dishwasher Dispenser

& Detergents


Rinse Aid

Rinse aid greatly improves drying and reduces

water spots and filming. Water "sheets" off dishes rather than forming water droplets that cling and leave spots.

A dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. If spotting and poor drying are problems, increase the amount of rinse aid dispensed by rotating the dial to a higher number. The dial is located under the dispenser cap. The indicator will be dark when full and will show clear when it is time to refill.

To add liquid rinse aid, turn dispenser cap 1/4 turn counterclockwise and lift out. Pour in rinse aid until liquid touches the indicated fill level. Replace cap.

Do not overfill since this can cause oversudsing.

Wipe up any spills with a damp cloth.

The dispenser holds enough for 35 to 140 washes, depending on setting.

Dispenser Opening Indicator

Factors Affecting


Water Pressure

The hot water line to dishwasher must provide water pressure between 20 and 120 psi.

Low water pressure may occur when laundry or showers are in operation. Wait until water use is reduced before starting dishwasher.

Water Temperature

Hot water is needed for best dishwashing and drying results. Water entering dishwasher should be at least 120°F (49°C) to give satisfactory results.

To check water temperature entering dishwasher:

• Turn on hot water faucet nearest dishwasher for several minutes to clear cool water from pipes.

• Hold a candy or meat thermometer in stream of water to check the temperature.

• If temperature is below 120°F (49°C), have a qualified person raise the hot water heater thermostat setting.

Important: Before starting a cycle, run hot water to clear cool water from pipe.

Less More

Dispenser Cap

Adjustable setting

The HEAT DRY option in combination with rinse aid will enhance drying performance.

The energy required to use the HEAT DRY option costs pennies per cycle. You may choose not to select the HEAT DRY option; however you will have items in your dish load that will not be completely dry at the end of the cycle.


Care and Cleaning

Burn Hazard

Allow heating element to cool before cleaning the interior.

Failure to do so can result in burns.


Occasionally wipe with a mild nonabrasive detergent and water. Rinse and dry.

Models with Stainless Steel Door

Clean outer door with warm soapy water and a dishcloth or sponge. Rinse with clean water and a dry cloth. Do not use harsh cleaners.


—The inside of the dishwasher is selfcleaning with normal use. If needed, clean around the tub gasket area with a damp cloth.

The filter is selfcleaning. A glass trap located in the center of the filter is designed to collect pieces of broken glass, straws, bones and pits. To remove items in glass trap, grasp handle, lift out, empty and replace.

Note: Hard water may cause lime deposit buildup on the interior of the dishwasher. For cleaning instructions see “Removing Spots and Film” section.

Overfill Protector

—keeps dishwasher from overfilling and is located in the left front corner of the tub.

• Clean occasionally with household cleaner containing vinegar or bleach to dissolve any buildup.

• Overfill Protector should move up and down freely about one inch. If it does not move, lift and clean underneath.

Care of Drain Air Gap

If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. A drain air gap is usually mounted on countertop and can be inspected by removing the cover. This is not part of your dishwasher and is not covered by warranty.

Property Damage Hazard

Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected.

Failure to do so could result in property damage.



A dishwasher left in an unheated place should be protected from freezing. Have a qualified person do the following:

To Disconnect Service:

1. Turn off electrical power to the dishwasher at the supply source by removing fuses or tripping circuit breaker.

2. Shut off water supply.

3. Place a pan under the inlet valve. Disconnect water line from inlet valve and drain into pan.

4. Disconnect drain line from pump and drain water into pan.

Note: See Installation Instructions for more details.

To Restore Service:

1. Reconnect the water, drain, and electrical power supply.

2. Turn on water and electrical power supply.

3. Fill both detergent cups and run dishwasher through a POTS & PANS cycle.

4. Check connections to make sure they do not leak.

Note: See Installation Instructions for more details.

Solutions to Common Dishwashing Problems

Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher.

Food Soils Left on Dishes

• Choose another cycle for longer washing time.

• Check rack loading section for proper loading—avoid nesting items.

• Home water pressure may be too low— should be 20 to 120 pounds per square inch


• Check incoming water temperature. It should be at least 120°F (49°C). (See

Factors Affecting Performance.)

• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart.)

• Use fresh detergent.

• Check to make sure funnel in top rack is not blocked.

• Make sure items are not blocking the spray arms, preventing them from rotating.

Dishes not Dry

• Select heat dry option.

• Make sure the rinse aid dispenser is filled.

• Increase the amount of rinse aid. (See Rinse


• Check the incoming water temperature. Be sure it is at least 120°F (49°C).

• Check for proper loading—avoid nesting items.

• Plastic items may need to be towel dried.

• Cups with a concave bottom will collect water.

Glassware/Flatware Spotted or


• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart.)

• Water temperature may be low. Avoid extremely low or high temperatures. (See

Factors Affecting Performance.)

• Avoid overloading and improper loading.

(See Preparing and Loading Dishes.)

• Use fresh detergent. Old detergent is ineffective.

• Make sure rinse aid dispenser is filled.

• Check to see that proper amount of detergent is being used for cycle selected.

Also, check phosphate level. (See Detergent


• Home water pressure may be too low—it should be 20 to 120 pounds per square inch


Dishware Chipped

• Load with care and do not overload. (See

Preparing and Loading Dishes.)

• Place delicate items in top rack.

• Place glasses securely against pins and not over pins.

• Load items so they are secure and don’t jar loose when moving racks in and out. Move racks in and out slowly.

• Make sure tall glasses and stemware will clear top of tub when rack is pushed in.

• Fine antique china and crystal should be hand-washed.


Solutions to Common Dishwashing Problems


Dishware Stained or Discolored

• Tea and coffee can stain cups. Remove the stains by hand washing in a solution of 1/2 cup (120 ml) bleach and one quart (1 L) of warm water. Rinse thoroughly.

• Iron deposits in water can cause a yellow or brown film. A special filter installed in the water supply line will correct this problem.

(See Removing Spots and Film.)

• Aluminum utensils can leave gray/black marks when they rub against other items.

Load properly.

• Certain high acid foods can cause discoloration of stainless steel and plastics if allowed to sit for a long period. Use the

Rinse & Hold cycle or rinse by hand if not operating dishwasher at once.

• Mixing stainless steel and silver utensils in silverware basket can cause pitting of the stainless steel blades. Avoid mixing stainless steel and silver.


• Using too much detergent in soft or softened water causes this film that cannot be removed.

• Adjust the amount of detergent based on the water hardness. (Check Detergent Chart.)

• Lower the water temperature.

• Use no heat dry option.

Detergent Left in Cups

• Detergent may be old. Discard and use fresh detergent.

• Be sure water action can reach the dispenser.

• Check to see if cycle has been completed.

• Make sure items do not prevent the detergent dispenser from opening.

Dishwasher Leaks

• Use only fresh detergent designed for automatic dishwashers. Measure detergent carefully. Try a different brand.

• Spilled rinse aid can cause foam and lead to overflowing. Wipe up any spills with a damp cloth.

• Check to see that dishwasher is level.

(See Installation Instructions.)

Normal Sounds You Will Hear

• Normal sounds include water fill, water circulation and motor sounds.

• There is a noticeable change in sound when the wash action switches between the lower and middle spray arm. This is normal since each spray arm has its own sound.

• It is normal for dishwasher to pause (no sound) when the wash action is switching between the lower and middle spray arms.

Water in Bottom of Tub

• Water left in bottom of tub after cycle is complete is not normal. If water remains in the bottom of the tub, dishwasher may not be draining properly. (See Dishwasher Does

Not Drain Properly.)

Vapor at Vent

• Water vapor escapes from the vent during the drying part of cycle. This is normal.

Dishwasher Won’t Run

• Check to see if circuit breaker is tripped or if a fuse is blown.

• Make sure water supply is turned on.

• Check to see if cycle is set correctly.

(See Operating Instructions.)

• Is dishwasher set for delay start option?

• Make sure door is closed and latched.


Solutions to Common Dishwashing Problems


Dishwasher Does Not Drain


• If unit is hooked up to a food waste disposer, make sure the disposer is empty.

• Check to see if the knockout plug has been removed from inside the food waste disposer inlet.

• Check to see if drain hose is kinked.

• Make sure cycle is complete, not in a pause.

Cycle Takes a Long Time

• Is cycle in a water heating delay?

• Has the delay start option been selected?

• Has the sanitize option been selected?

Dishwasher Won’t Fill

• Is water supply turned on?

• Does overfill protector move up and down freely? (See Overfill Protector section.)

Dishwasher Has an Odor

• Soiled dishes left in dishwasher too long can create an odor. Use Rinse Only cycle.

• There will be a “new” smell when first installed. This is normal.

• Check to see if unit is draining properly.

(See Dishwasher Does Not Drain Properly.)

Stains on Tub Interior

• Washing large amounts of dishware with tomato based soil can cause a pink/orange appearance. This will not affect performance and will gradually fade over time. Prerinsing or using the Rinse Only cycle will reduce the chance of staining. Using no heat dry option will lessen staining.

Removing Spots and Film

Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See Glassware/Flatware

Spotted or Cloudy section.) To remove buildup, spots and film, clean using the following instructions:

1. Load clean dishes and glasses in normal manner. Do not load any metal utensils or silverware.

2. Do not add detergent.

3. Select the NORMAL WASH cycle. Close and latch door. Press START/CANCEL pad.

4. Allow dishwasher to run until it starts the second water fill (approximately 10 minutes).

5. Unlatch and open door and pour 2 cups of white vinegar into the bottom of dishwasher.

6. Close and latch door and allow cycle to finish.

Note: If these conditions persist, a home water

softener should be considered.


Major Appliance Warranty Information

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.


This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or


3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances

not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves,

etc.,which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or

knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip

charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors,

cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than

genuine Electrolux parts or parts obtained from persons other than authorized service companies; or

external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.













If You Need


Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances

North America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada

Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.



Electrolux Major Appliances

North America

P.O. Box 212378

Augusta, GA 30907



Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4


Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
