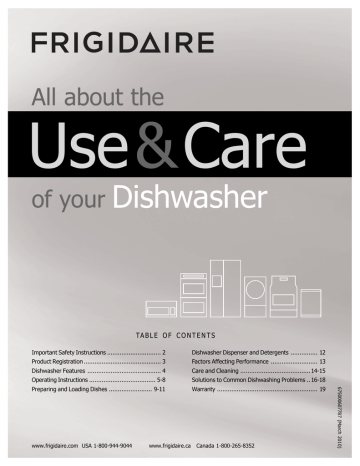

All about the

Use

&

Care

of your

Dishwasher

TA B L E O F C O N T E N T S

Important Safety Instructions .............................. 2

Product Registration ........................................... 3

Dishwasher Features ......................................... 4

Operating Instructions ..................................... 5-8

Preparing and Loading Dishes ........................ 9-11

Dishwasher Dispenser and Detergents ............... 12

Factors Affecting Performance .......................... 13

Care and Cleaning .......................................14-15

Solutions to Common Dishwashing Problems ..16-18

Warranty ........................................................ 19 www.frigidaire.com USA 1-800-944-9044 www.frigidaire.ca Canada 1-800-265-8352

2

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

Save these instructions for future reference.

WARNING

This symbol will help alert you to such dangers as personal injury, burns, fire, and electrical shock.

WARNING

To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow basic precautions including the following:

• Use your dishwasher only as instructed in this Use and

Care Manual.

• This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.

• NSF certified residential dishwashers are not intended for licensed food establishments.

• DISHWASHER MUST BE ELECTRICALLY GROUNDED.

Read the Installation Instructions for details.

• This dishwasher is designed to operate on regular house current (120 V, 60 Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food waste disposer.

• Do not operate dishwasher unless all enclosure panels are in their proper place.

• To avoid entrapment and/or suffocation, remove door or door latch mechanism from any dishwasher that is discarded or not in use.

• Keep young children and infants away from dishwasher when it is operating.

• Do not let children abuse, sit, stand or play on door or racks of a dishwasher.

• Use only detergents and rinse agents recommended for use in a dishwasher.

• Store dishwasher detergent and rinse agents out of the reach of children.

• Do not wash plastic items unless marked “dishwasher safe” or the equivalent. Check with manufacturer for recommendations, if not marked. Items that are not dishwasher safe may melt and create a potential fire hazard.

Disconnect electrical power to dishwasher before servicing.

• If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.

• Repairs should be done by a qualified technician.

• Do not tamper with controls.

• Do not touch the heating element during or immediately after use.

• Use care unloading the dishware when the SANITIZE option has been selected. Contents may be hot to the touch immediately after the end of cycle.

• Water vapor from the vent may be hot to the touch when the SANITIZE option has been selected. Use care and do not let small children play around or touch the vent area of the dishwasher.

• When loading items to be washed:

- Locate sharp items and knives so that they are not likely to damage the door seal or tub.

- Load sharp items and knives with the handles up to reduce the risk of cut-type injuries.

• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on all hot water faucets and let water flow from each for several minutes. This will release any accumulated hydrogen gas. HYDROGEN

GAS IS FLAMMABLE. Do not smoke or use an open flame during this time.

• Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

©2009 Electrolux Home Products, Inc.

All rights reserved. Printed in the USA

PRODUCT REGISTRATION

Thank you for choosing Frigidare.

This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the service life of your new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you, please use this page to record important product information.

Purchase date

Model number

Serial number

Registering your product with Frigidaire enhances our ability to serve you. You can register online at

www.frigidaire.com or by dropping your Product

Registration Card in the mail.

NOTE

Very Important Information—

Read Before Operating Your

Dishwasher!

Normal Operating Sounds

T his dishwasher does not sound like most dishwashers—IT'S QUIETER.

Your Direct Feed Wash System dishwasher uses energy efficient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may–or may not– hear the drain motor. The next sound you will hear is the splashing water as it enters the tub.

PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON'T hear!

3

4

DISHWASHER FEATURES

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces.

Each cycle begins by filling with water covering the filter area. Next, the dishwasher fills with water covering the filter area. Water is then pumped through the filter and spray arms. Soil particles go down the drain as the water is pumped out and replaced with clean water. The number of water fills will vary with the cycle being used.

Tub Gasket

Cup Shelf

Upper Spray Arm

Middle Spray Arm

Adjustable Upper Rack

Lower Spray Arm

Detergent Dispenser

Top Rack

Bowl Tines

Serial Label

(located on right

side of tub)

Bottom Rack

Silverware Basket

Glass Trap

Self-Cleaning Filter

Heating Element

Rinse Aid

Dispenser

OPERATING INSTRUCTIONS

Getting Started

1. Load dishwasher (See Preparing and Loading

Dishes).

2. Add detergent (See Dishwasher Dispenser &

Detergents).

3. Add rinse aid (See Rinse Aid).

4. Select desired CYCLE (See Cycle Chart). The indicator light above the pad will glow when selected.

5. Select desired OPTIONS (See Energy Options). The indicator light above the pad will glow when selected.

6. Run hot water faucet nearest dishwasher until water is hot. Turn water off.

7. To start, press START/CANCEL pad.

8. Close door to latch.

NOTE

The dishwasher is programmed to remember your last cycle so you do not have to reset each time. To start the dishwasher using the same cycle and options selected on the previous wash, just press the START/CANCEL pad.

NOTE

Lights and Display on top of console will shut off when the door is closed. They will light up when the door is opened and display time remaining will be displayed for several seconds. Then “Cd” will display flashing, informing you to close the door so the cycle can continue.

Options Selections

Hi-Temp Wash

When HI-TEMP WASH option is selected, the dishwasher heats water in the main wash to approximately 140°F

(60°C).

This increase in water temperature helps dishwasher detergent remove food grease and soil from dishes more effectively and aids in drying. This option is available in NORMAL WASH and LIGHT WASH. HI-TEMP

WASH is automatically provided when HEAVY WASH cycle is selected.

Wash Cycle Selections

Cycle times are approximate and will vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the timer will be delayed for automatic water heating in the main wash of all cycles. This happens even when HI-TEMP WASH option has not been selected. When HI-TEMP WASH is selected, an even higher temperature will be guaranteed to handle heavier soil loads.

5

6

OPERATING INSTRUCTIONS

Sanitize Option

To sanitize your dishes and glassware, select the

SANITIZE option. When selected, the light above the pad will come on. The water temperature in the final rinse will be raised to 155°F (68°C) assuring bacteria is destroyed. This option is available in HEAVY WASH,

NORMAL WASH and LIGHT WASH. Only these sanitization cycles have been designed to meet NSF requirements.

The cycle time will be extended until the proper water temperature is reached. Washing action will continue during the water heating delay. For best results, the incoming water temperature should be at least 120°F

(49°C).

The sanitize criteria may not be satisfied if there is an interruption of the cycle, power failure or if the incoming water temperature is below 120°F (49°C).

To turn off the SANITIZE option, press the pad a second time. The light above the pad will turn off.

To Cancel a Cycle

You can cancel a cycle anytime during the cycle. Press

START/CANCEL pad and the dishwasher will start a 60 second drain. At the end of the drain, select the desired cycle.

When an option is selected, the light above the pad will come on and remain on until end of cycle. To turn off the option, press the pad a second time. The light above the pad will turn off.

Child Lock Controls

To prevent children from accidently changing the dishwasher cycle or starting the dishwasher, lock the dishwasher controls by pressing and releasing the DELAY

START pad for 3 seconds. An indicator light on the lock graphic pad will illuminate when the controls are locked and no new selections can be made until the lock is released. To unlock the controls, press the DELAY START pad until the indicator light goes out.

Air Dry

The unit defaults to heated dry when it is started with any cycle selected. This drying uses a combination of the heated dry with rinse aid that achieves enhanced drying performance. If you prefer to only have AIR DRY for dishes, you will select AIR DRY and the unit will not energize the heating element. This will reduce energy consumption, but reduce drying perfomance.

Delay Start

The DELAY START option allows you to automatically delay starting your dishwasher from 1-24 hours.

On models with 1-24 hour delay, press the DELAY START pad until the desired delay time shows in the STATUS window. A light will come on indicating the delay start hours and will remain on until cycle starts.

To cancel the DELAY START option and begin the cycle before the delay period is over, press the START/CANCEL pad.

OPERATING INSTRUCTIONS

The Smart Soil Sensor checks the soil level on your dishes in the Heavy Wash, Light Wash, and Normal Wash cycles.

Depending on soil level, the sensor will determine if additional water fills are needed to clean the dishes or if water fills can be deleted. Cycle time and water usage will vary based on the amount of soil on the dishes. Cycle time will also vary based on the options selected and the incoming water temperature. Not all cycles available on all models.

Cycle

Heavy Wash

For pots, pans, casseroles and dinnerware with dried-on or baked-on soils.

Normal Wash

For regularly soiled dishes and silverware.

Light Wash

A fast wash for lightly soiled dishes and silverware.

China Crystal

For lightly soiled china and crystal.

Energy Saver

For lightly soiled and pre-rinsed dishes and silverware.

Rinse Only

For rinsing dishes that will be washed later.

To Select Cycle

Cycle Chart

Soil Level

Select HEAVY WASH and desired OPTIONS.

HI-TEMP WASH will automatically be provided.

Select NORMAL WASH and desired OPTIONS.

Select LIGHT WASH and desired OPTIONS.

Select CHINA CRYSTAL and desired OPTIONS.

Select ENERGY SAVER and desired OPTIONS.

Select RINSE ONLY.

DO NOT USE detergent.

Heavy and

Medium

Light

Heavy

Medium

Light

Heavy

Medium and

Light

8.7

7.3

33.1

5.0

4.2

18.9

Water

(approx.)

gal.

imp. gal.

liters gal.

imp. gal.

liters

5.0

4.2

18.9

3.6

3.0

13.6

6.0

5.2

23.7

7.5

6.2

28.4

5.0

4.2

18.9

3.7

3.1

14.2

6.0

5.2

23.7

gal.

imp. gal.

liters gal.

imp. gal.

liters gal.

imp. gal.

liters gal.

imp. gal.

liters gal.

imp. gal.

liters gal.

imp. gal.

liters gal.

imp. gal.

liters

Time*

(mins)

150

100

130

110

105

130

105

87

100

2.5

2.1

9.5

gal.

imp. gal.

liters

19

Washes/

Rinses

5 washes

2 rinses

3 washes

1 rinse

4 washes

2 rinses

3 washes

1 rinse

2 washes

1 rinse

4 washes

1 rinse

3 washes

1 rinse

2 washes

1 rinses

4 washes

1 rinse

2 rinses

* Includes dry time.

7

OPERATING INSTRUCTIONS

Status Indicator Lights

sanitized

PF………………

1H-24H………..

Cd………………

MINUTES…...…

Appears in window when dishwasher is first installed, or when power has been interrupted. HI-

TEMP WASH and NO

HEAT DRY indicator lights will also flash. To clear, touch START/CANCEL pad.

Number of delay start hours. Count down are in hours.

Close dishwasher door.

The status indicator lights will also flash to indicate current cycle status.

Number of minutes left in cycle (1-200).

NOTE

The wash cycle time could suddenly increase or drop several minutes. This means the Smart Sensor has checked the soil level and determined if additional water fills are needed or if water fills can be deleted.

When the SANITIZE option is selected, the SANITIZED light will glow when the SANITIZE cycle is finished and remain on for 30 seconds after the door is opened. If the dishwasher did not properly sanitize the dishes, the light will not come on. This can happen if the cycle is interrupted or if incoming water temperture is below

120 o

F.

The CLEAN light will come on at the end of the cycle.

When the door is opened at end of cycle and remain on for

30 seconds after door is opened.

The add RINSE AID light, Located near the Rinse

Only Pad, comes on at the end of a cleaning cycle when the rinse agent reservoir is low. The light will remain on through 5 successive cycles or until the reservoir is filled.

In the unlikely event the dishwasher malfunctions, the indicator may display one of the following codes "Er", or

"CE". If one of these codes are displayed contact the

Frigidaire Customer Care Center at

1-

800-944-

9044

They will be able to provide assistance in troubleshooting the problem and/or locating an authorized service technician, if needed.

8

PREPARING AND LOADING DISHES

Dish Preparation

Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuous filtered wash system will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups.

Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to rinse off these food soils.

• Load racks so that large items do not prevent the detergent dispenser from opening.

• Check manufacturer's recommendations before washing items in question.

• If the dishwasher drains into a food disposer, be sure

disposer is completely empty before starting dishwasher.

Loading the Top Rack

Features and appearance of racks and silverware basket may vary from your model.

The upper rack is designed for flexibility in loading a wide variety of items including cups, glasses, stemware, small plates, bowls, etc.

Load glasses in top rack. Damage may occur if placed in bottom rack.

Load plastic items in top rack only. Melting may occur if placed in bottom rack.

Load items with open ends facing down for better cleaning and draining.

Damage may occur if delicate items touch each other during dishwasher operation.

Be sure nothing protrudes through the bottom of the rack to block rotation of middle spray arm.

10 place settings standard loading pattern

(For best washing performance, the upper rack should be in the raised position.)

12 place settings standard loading pattern

Some models have a fold-down cup shelf or a cup shelf/ stemware holder. They can be used to load two levels of cups, juice glasses, and other short items. Stagger items on upper level so that water can reach all inside surfaces. Fold up to load tall glasses.

9

PREPARING AND LOADING DISHES

Bowl Tines

The bowl tines offer the ultimate in flexibility. When closed, load with saucers or small dishes. Open halfway and it is perfect for small casseroles. Open completely for those hard to fit items such as coffee pots, food processors, etc. As you load your dishwasher, you will find many other ways to use this unique feature.

To raise the rack to the middle or upper position, simply lift the rack. The lever is spring loaded to engage the upper position. To lower the rack to the lower position, push lever with thumbs and push downward simutaneously. To ensure ease of adjustment when adjusting the rack, ensure that the rack remains level from front to back with both sides at the same height.

Adjustable Upper Rack (available on select models)

The top rack height can be easily adjusted to accommodate loading taller dishes in either rack. Height should be

adjusted without dishes in the racks.

To accommodate taller dishes in the bottom rack, there are

2 positions available:

10

Fold-down Tines

The fold-down tines in the lower rack make easy loading for those extra large and hard-to-fit items. The tines may be left up for normal use or folded down for more flexible loading. Fold down for more space to load large pots or pans.

PREPARING AND LOADING DISHES

Loading the Bottom Rack

Features and appearance of racks and silverware basket may vary from your model.

The lower rack is best for plates, saucers, bowls, and cookware. Large items should be placed along the edge so they do not block the spray arm rotation. For best results, place bowls, casseroles, and sauce pans with soiled surface facing down or toward the center. Tilt slightly for better drainage.

Make sure tall items do not block spray arm rotation.

Be sure pan handles do not protrude through the bottom of the rack and block the spray arm rotation.

Loading the Silverware Basket

Features and appearance of racks and silverware basket may vary from your model.

Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.

Place small items like baby bottle caps, jar lids, corn cob holders, etc., in a covered section. Close the cover to hold small items in place.

Use suggested loading patterns, as shown, to increase washability of your silverware.

Be sure nothing protrudes through bottom of basket or rack to block the spray arm.

Do not mix silver and stainless to avoid damaging the silver finish.

The silverware basket can be separated and placed in several locations in the bottom rack. Load silverware in all sections or just one, depending on your load.

10 place settings standard loading pattern

When covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting. Water spray cannot reach nested items.

12 place settings standard loading pattern

CAUTION

Load sharp items (knives, skewers, etc.) pointing down.

Failure to do so may result in injury.

Adding a Dish

To add or remove items after wash cycle starts:

• Unlatch door and wait a few seconds until wash action stops before opening.

• Add the item and wait a few seconds to allow cold air to slowly expand inside dishwasher.

• Close door firmly to latch and resume cycle.

11

DISHWASHER DISPENSER & DETERGENTS

Filling the Detergent Dispenser

The detergent dispenser has one covered and one uncovered cup. Detergent in the uncovered cup falls into the dishwasher when the door is closed. The covered cup opens automatically to release detergent.

• Use only fresh automatic dishwashing detergent.

Other detergents will cause oversudsing.

• When using automatic dishwashing detergent tabs, place one tab in main wash cup and close.

• Add detergent just before starting cycle.

• Store detergent in a cool, dry location. Moist or caked detergent will not dissolve properly.

How much Detergent to use

The amount of detergent to use depends on the water hardness. Water hardness is measured in grains per gallon. Using too little detergent can result in poor cleaning and hard water filming or spotting. Using too much detergent in soft water can cause a permanent film called etching. Your local water company, water softener company or county extension agent can tell you the water hardness in your area.

Cover

Main Wash Cup

CAUTION

The use of industrial grade detergent can damage the heating coil and other parts of the dishwasher leading to damage to the unit and surrounding property. Use only household grade automatic dishwasher detergents.

Cover Latch

Pre Wash Cup

If the cover is closed on the Main Wash Cup, open by pressing the cover latch.

Cycle

Heavy Wash

or

Normal Wash

Top Rack

Rinse Only

Soft Water

(0-3 grains)

2 teaspoons

(each cup–

1/4 full)

2 teaspoons

(Main Wash cup–

1/4 full)

No Detergent

Detergent Usage Guide

Medium Hard Water

(4-8 grains)

5 teaspoons

(each cup–fill to line above "Regular")

5 teaspoons

(Main Wash cup–fill to line above "Regular")

No Detergent

Hard Water

(9-12 grains)

8 teaspoons

(each cup– completely full)

8 teaspoons

(Main Wash cup– completely full)

No Detergent

Very Hard Water*

(over 12 grains)

Each Cup–

Completely Full

(water softener recommended)

Main Wash Cup–

Completely Full

(water softener recommended)

No Detergent

(water softener recommended)

NOTE

For very hard water, detergent alone may not be enough. A water softener is recommended to improve water quality and dishwashing performance. Try adding more detergent at the beginning of the main wash portion of the cycle. As a rule, use 1 teaspoon for each grain above 12. Unlatch the door, open slowly and add detergent to the bottom of the tub. Close the door to latch and the dishwasher will continue through the cycle.

12

FACTORS AFFECTING PERFORMANCE

Rinse Aid

Rinse aid greatly improves drying and reduces

water spots and filming. Water "sheets" off dishes rather than forming water droplets that cling and leave spots.

A dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. If spotting and poor drying are problems, increase the amount of rinse aid dispensed by rotating the dial to a higher number. The dial is located under the dispenser cap. The indicator will be dark when full and will show clear when it is time to refill. On models with a STATUS window, LO will appear at the end of the cycle indicating that it is time to refill.

To add liquid rinse aid, turn dispenser cap 1/4 turn counterclockwise and lift out. Pour in rinse aid until liquid touches the indicated fill level. Replace cap.

Do not overfill since this can cause oversudsing. Wipe up any spills with a damp cloth.

The dispenser holds enough for 35 to 140 washes, depending on setting.

Water Pressure

The hot water line to dishwasher must provide water pressure between 20 and 120 psi.

Low water pressure may occur when laundry or showers are in operation. Wait until water use is reduced before starting dishwasher.

Water Temperature

Hot water is needed for best dishwashing and drying results. Water entering dishwasher should be at least

120°F (49°C) to give satisfactory results.

To check water temperature entering dishwasher:

• Turn on hot water faucet nearest dishwasher for several minutes to clear cool water from pipes.

• Hold a candy or meat thermometer in stream of water to check the temperature.

• If temperature is below 120°F (49°C), have a qualified person raise the hot water heater thermostat setting.

Dispenser Opening

Indicator

IMPORTANT

Before starting a cycle, run hot water to clear cool water from pipe.

The HEAT DRY option in combination with rinse aid will enhance drying performance. The energy required to use the HEAT DRY option costs pennies per cycle. You may choose not to select the HEAT

DRY option; however you will have items in your dish load that will not be completely dry at the end of the cycle.

Less More

Dispenser Cap

Adjustable setting

13

CARE AND CLEANING

WARNING

Burn Hazard

Allow heating element to cool before cleaning the interior.

Failure to do so can result in burns.

Outside

Occasionally wipe with a mild nonabrasive detergent and water. Rinse and dry.

Clean the Stainless Steel Inner

Door and Tub

The tub is made of Stainless Steel, it will not rust or corrode if the dishwasher should be scratched or dented.

Care of Drain Air Gap

If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. A drain air gap is usually mounted on countertop and can be inspected by removing the cover. This is not part of your dishwasher and is not covered by warranty.

Clean the Cylinder Filter

The Cylinder Filter is designed to collect some big items such as broken glass, bones and pits. The Cylinder Filter needs to be cleaned to maximize wash performance.

Remove the lower rack, rotate the Cylinder Filter as shown, lift it out, empty and clean it by rinsing

it under running water and replace.

Winterizing

A dishwasher left in an unheated place should be protected from freezing. Have a qualified person do the following:

To Disconnect Service:

1. Turn off electrical power to the dishwasher at the supply source by removing fuses or tripping circuit breaker.

2. Shut off water supply.

3. Place a pan under the inlet valve. Disconnect water line from inlet valve and drain into pan.

4. Disconnect drain line from pump and drain water into pan.

To Restore Service:

1. Reconnect the water, drain, and electrical power supply.

2. Turn on water and electrical power supply.

3. Fill both detergent cups and run dishwasher through a

HEAVY WASH cycle.

4. Check connections to make sure they do not leak.

NOTE

Hard water may cause lime deposit buildup on the interior of the dishwasher. For cleaning instructions see

“Removing Spots and Film” section.

14

Clean the Fine Filter

Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub bottom. To remove the Fine Filter you must first remove the bottom spray arm as shown below.

Flush the Fine Filter by holding it under running water and replace.

CARE AND CLEANING

15

SOLUTIONS TO COMMON DISHWASHING PROBLEMS

Before calling for service, review this list.

It may save you both time and expense.

This list includes common experiences that are not the result of defective workmanship or material in your dishwasher.

CAUTION

Property Damage Hazard

Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected.

Failure to do so could result in property damage.

NOTE

See Installation Instructions for more details on disconnecting and restoring service to your dishwasher.

Dishes not Dry

• Select heat dry option.

• Make sure the rinse aid dispenser is filled.

• Increase the amount of rinse aid. (See Rinse Aid.)

• Check the incoming water temperature. Be sure it is at least 120°F (49°C).

• Check for proper loading—avoid nesting items.

• Plastic items may need to be towel dried.

• Cups with a concave bottom will collect water.

Dishware Stained or Discolored

• Tea and coffee can stain cups. Remove the stains by hand washing in a solution of 1/2 cup (120 ml) bleach and one quart (1 L) of warm water. Rinse thoroughly.

• Iron deposits in water can cause a yellow or brown film.

A special filter installed in the water supply line will correct this problem. (See Removing Spots and Film.)

• Aluminum utensils can leave gray/black marks when they rub against other items. Load properly.

• Certain high acid foods can cause discoloration of stainless steel and plastics if allowed to sit for a long period. Use the Rinse & Hold cycle or rinse by hand if not operating dishwasher at once.

• Mixing stainless steel and silver utensils in silverware basket can cause pitting of the stainless steel blades.

Avoid mixing stainless steel and silver.

Food Soils Left on Dishes

• Choose another cycle for longer washing time.

• Check rack loading section for proper loading—avoid nesting items.

• Home water pressure may be too low—should be 20 to 120 pounds per square inch (psi).

• Check incoming water temperature. It should be at least 120°F (49°C). (See Factors Affecting

Performance.)

• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See

Detergent Chart.)

• Use fresh detergent.

• Check to make sure funnel in top rack is not blocked.

• Make sure items are not blocking the spray arms, preventing them from rotating.

Glassware/Flatware Spotted or

Cloudy

• Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent

Chart.)

• Water temperature may be low. Avoid extremely low or high temperatures. (See Factors Affecting Performance.)

• Avoid overloading and improper loading. (See Preparing and Loading Dishes.)

• Use fresh detergent. Old detergent is ineffective.

• Make sure rinse aid dispenser is filled.

• Check to see that proper amount of detergent is being used for cycle selected. Also, check phosphate level.

(See Detergent Dispenser.)

• Home water pressure may be too low—it should be 20 to

120 pounds per square inch (psi).

16

SOLUTIONS TO COMMON DISHWASHING PROBLEMS

Dishwasher Leaks

• Use only fresh detergent designed for automatic dishwashers. Measure detergent carefully. Try a different brand.

• Spilled rinse aid can cause foam and lead to overflowing. Wipe up any spills with a damp cloth.

• Check to see that dishwasher is level.

(See Installation Instructions.)

Water in Bottom of Tub

• Water left in bottom of tub after cycle is complete is not normal. If water remains in the bottom of the tub, dishwasher may not be draining properly. (See

Dishwasher Does Not Drain Properly.)

Normal Sounds You Will Hear

• Normal sounds include water fill, water circulation and motor sounds.

• There is a noticeable change in sound when the wash action switches between the lower and middle spray arm. This is normal since each spray arm has its own sound.

• It is normal for dishwasher to pause (no sound) when the wash action is switching between the lower and middle spray arms.

Etching

• Using too much detergent in soft or softened water causes this film that cannot be removed.

• Adjust the amount of detergent based on the water hardness. (Check Detergent Chart.)

• Lower the water temperature.

• Use no heat dry option.

Detergent Left in Cups

• Detergent may be old. Discard and use fresh detergent.

• Be sure water action can reach the dispenser.

• Check to see if cycle has been completed.

• Make sure items do not prevent the detergent dispenser from opening.

Dishware Chipped

• Load with care and do not overload. (See Preparing and Loading Dishes.)

• Place delicate items in top rack.

• Place glasses securely against pins and not over pins.

• Load items so they are secure and don’t jar loose when moving racks in and out. Move racks in and out slowly.

• Make sure tall glasses and stemware will clear top of tub when rack is pushed in.

• Fine antique china and crystal should be hand-washed.

Vapor at Vent

• Water vapor escapes from the vent during the drying part of cycle. This is normal.

Dishwasher Won’t Run

• Check to see if circuit breaker is tripped or if a fuse is blown.

• Make sure water supply is turned on.

• Check to see if cycle is set correctly.

(See Operating Instructions.)

• Is dishwasher set for delay start option?

• Make sure door is closed and latched.

Cycle Takes a Long Time

• Is cycle in a water heating delay?

• Has the delay start option been selected?

• Has the sanitize option been selected?

17

SOLUTIONS TO COMMON DISHWASHING PROBLEMS

Dishwasher Does Not Drain

Properly

• If unit is hooked up to a food waste disposer, make sure the disposer is empty.

• Check to see if the knockout plug has been removed from inside the food waste disposer inlet.

• Check to see if drain hose is kinked.

• Make sure cycle is complete, not in a pause.

Dishwasher Won’t Fill

• Is water supply turned on?

Dishwasher Has an Odor

• Soiled dishes left in dishwasher too long can create an odor. Use Rinse & Hold cycle.

• There will be a “new” smell when first installed. This is normal.

• Check to see if unit is draining properly. (See

Dishwasher Does Not Drain Properly.)

Removing Spots and Film

Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See

Glassware/Flatware Spotted or Cloudy section.) To remove buildup, spots and film, clean using the following instructions:

1. Load clean dishes and glasses in normal manner. Do not load any metal utensils or silverware.

2. Do not add detergent.

3. Select the NORMAL WASH cycle. Close and latch door. Press START/CANCEL pad.

4. Allow dishwasher to run until it starts the second water fill (approximately 10 minutes). The SENSING light will be off.

5. Unlatch and open door and pour 2 cups of white vinegar into the bottom of dishwasher.

6. Close and latch door and allow cycle to finish.

NOTE

If these conditions persist, a home water softener should

be considered.

18

WARRANTY

Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will pay all costs for repairing or replacing any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used and maintained in accordance with the provided instructions.

Exclusions

This warranty does not cover the following:

1. Products with original serial numbers that have been removed, altered or cannot be readily determined.

2. Product that has been transferred from its original owner to another party or removed outside the USA or

Canada.

3. Rust on the interior or exterior of the unit.

4. Products purchased “as-is” are not covered by this warranty.

5. Food loss due to any refrigerator or freezer failures.

6. Products used in a commercial setting.

7. Service calls which do not involve malfunction or defects in materials or workmanship, or for appliances not in ordinary household use or used other than in accordance with the provided instructions.

8. Service calls to correct the installation of your appliance or to instruct you how to use your appliance.

9. Expenses for making the appliance accessible for servicing, such as removal of trim, cupboards, shelves, etc., which are not a part of the appliance when it is shipped from the factory.

10. Service calls to repair or replace appliance light bulbs, air filters, water filters, other consumables, or knobs, handles, or other cosmetic parts.

11. Surcharges including, but not limited to, any after hour, weekend, or holiday service calls, tolls, ferry trip charges, or mileage expense for service calls to remote areas, including the state of Alaska.

12. Damages to the finish of appliance or home incurred during installation, including but not limited to floors, cabinets, walls, etc.

13. Damages caused by: services performed by unauthorized service companies; use of parts other than genuine

Electrolux parts or parts obtained from persons other than authorized service companies; or external causes such as abuse, misuse, inadequate power supply, accidents, fires, or acts of God.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

CUSTOMER’S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR OR

REPLACEMENT AS PROVIDED HEREIN. CLAIMS BASED ON IMPLIED WARRANTIES, INCLUDING WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST

PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. ELECTROLUX SHALL NOT BE LIABLE FOR CONSE-

QUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING

FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY. SOME STATES AND

PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES,

OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES, SO THESE LIMITATIONS OR EXCLUSIONS MAY

NOT APPLY TO YOU. THIS WRITTEN WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE

OTHER RIGHTS THAT VARY FROM STATE TO STATE.

If You Need

Service

Keep your receipt, delivery slip, or some other appropriate payment record to establish the warranty period should service be required. If service is performed, it is in your best interest to obtain and keep all receipts.

Service under this warranty must be obtained by contacting Electrolux at the addresses or phone numbers below.

This warranty only applies in the USA and Canada. In the USA, your appliance is warranted by Electrolux Major Appliances North

America, a division of Electrolux Home Products, Inc. In Canada, your appliance is warranted by Electrolux Canada Corp. Electrolux authorizes no person to change or add to any obligations under this warranty. Obligations for service and parts under this warranty must be performed by Electrolux or an authorized service company. Product features or specifications as described or illustrated are subject to change without notice.

USA

1.800.944.9044

Electrolux Major Appliances

North America

10200 David Taylor Drive

Charlotte, NC 28262

Canada

1.800.265.8352

Electrolux Canada Corp.

5855 Terry Fox Way

Mississauga, Ontario, Canada

L5V 3E4

19

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
